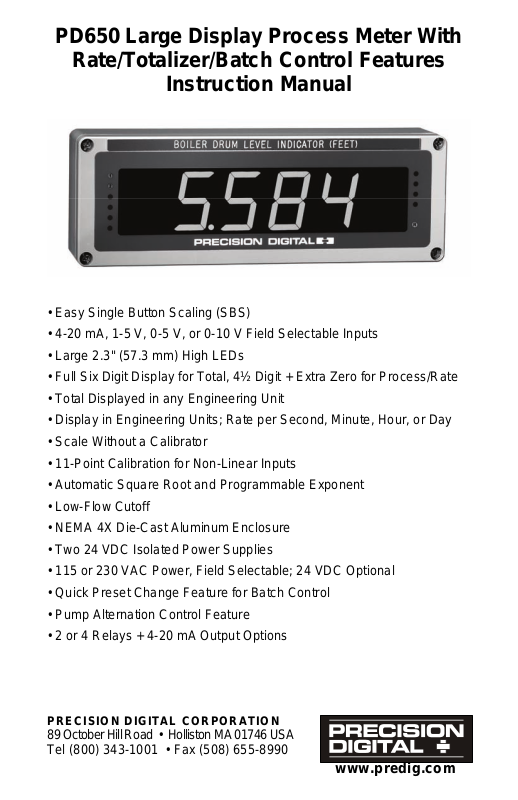

PD650 Large Display Process Meter With
Rate/Totalizer/Batch Control Features
Instruction Manual
• Easy Single Button Scaling (SBS)
• 4-20 mA, 1-5 V, 0-5 V, or 0-10 V Field Selectable Inputs
• Large 2.3" (57.3 mm) High LEDs
• Full Six Digit Display for Total, 4½ Digit + Extra Zero for Process/Rate
• Total Displayed in any Engineering Unit
• Display in Engineering Units; Rate per Second, Minute, Hour, or Day
• Scale Without a Calibrator
• 11-Point Calibration for Non-Linear Inputs
• Automatic Square Root and Programmable Exponent
• Low-Flow Cutoff
• NEMA 4X Die-Cast Aluminum Enclosure
• Two 24 VDC Isolated Power Supplies
• 115 or 230 VAC Power, Field Selectable; 24 VDC Optional
• Quick Preset Change Feature for Batch Control
• Pump Alternation Control Feature
• 2 or 4 Relays + 4-20 mA Output Options
PRECISION DIGITAL CORPORATION
89 October Hill Road • Holliston MA 01746 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
Model PD650 Large Display Process Meter Instruction Manual
Disclaimer
The information contained in this document is subject to change without
notice. Precision Digital makes no representations or warranties with respect
to the contents hereof, and specifically disclaims any implied warranties of
merchantability or fitness for a particular purpose.
Visit our Website
http://www.predig.com
2
Model PD650 Large Display Process Meter Instruction Manual
Table of Contents
INTRODUCTION ----------------------------------------------------------------------- 7
Features ----------------------------------------------------------------------------------------- 7
Typical Applications ------------------------------------------------------------------------- 8
Ordering Information ------------------------------------------------------------------------ 8
Safety Notice ----------------------------------------------------------------------------------- 9
Specifications -------------------------------------------------------------------------------- 10
Basic Process Meter --------------------------------------------------------------------- 10
Rate/Totalizer/Batch Controller Features ------------------------------------------- 11
Options -------------------------------------------------------------------------------------- 12
Display Functions and Messages ----------------------------------------------------- 15
SETUP AND PROGRAMMING -------------------------------------------------- 17
Overview --------------------------------------------------------------------------------------- 17
Disassembling the Meter ----------------------------------------------------------------- 18
Reassembling the Meter ----------------------------------------------------------------- 18
Jumper Configuration --------------------------------------------------------------------- 19
Overview ------------------------------------------------------------------------------------ 19
Jumper Arrays Function and Location ---------------------------------------------- 19
Power Selection ----------------------------------------------------------------------------- 20
Overview ------------------------------------------------------------------------------------ 20
Changing from 115 to 230 VAC Power --------------------------------------------- 20
Labeling Meter for 115 VAC, 230 VAC, or 24 VDC ------------------------------ 20
Connections ---------------------------------------------------------------------------------- 21
Overview ------------------------------------------------------------------------------------ 21
Wiring Instructions ------------------------------------------------------------------------ 22
Terminals Designation -------------------------------------------------------------------- 22
Power Connections ---------------------------------------------------------------------- 23
Signal Connections ---------------------------------------------------------------------- 24
Enter, Acknowledgement, and Reset Total Connections ----------------------- 26
Optional Relays & 4-20 mA Output Terminals ------------------------------------ 26
Isolated 4-20 mA Output Option Connections ------------------------------------- 27
Programming -------------------------------------------------------------------------------- 28
Overview ------------------------------------------------------------------------------------ 28
General Programming Description --------------------------------------------------- 28
ENTER and ACK Functionality ---------------------------------------------------- 28
Five Basic Digit/Display Setting Instructions ----------------------------------- 30
Basic Meter Programming -------------------------------------------------------------- 32
Overview -------------------------------------------------------------------------------- 32
Select Input Signal -------------------------------------------------------------------- 32
Select Calibration Method ---------------------------------------------------------- 33
Initial Calibration With External Source (if Needed) -------------------------- 33
Scale or Calibrate the Meter ------------------------------------------------------- 34
Scale Using Internal Calibration (I-CAL) ------------------------------------ 34
Minimum Input Span (Error Message) ------------------------------------- 35
Calibrate Using External Calibration (E-CAL)------------------------------- 38
Calibrate Using External Calibration (E-CAL)------------------------------- 38
Round Horizontal Tank Calibration Points ---------------------------------- 40
Calibration Error (error) -------------------------------------------------------- 40
Rate Meter Programming --------------------------------------------------------------- 41
3
Model PD650 Large Display Process Meter Instruction Manual
Overview -------------------------------------------------------------------------------- 41
Set Display to Rate (dSPy r) ------------------------------------------------------ 41
Low-Flow Cutoff Programming (Cutoff) --------------------------------------- 42
Totalizer Programming ------------------------------------------------------------------ 43
Overview -------------------------------------------------------------------------------- 43
Set Display for Total (dSPy t) ----------------------------------------------------- 43
Set Rate Time Base (t baSE) ----------------------------------------------------- 44
Set Totalizer Conversion Factor (tot CF) -------------------------------------- 44
Set Totalizer Decimal Point (tot dp) -------------------------------------------- 45
Set Alternating Total/Rate Display ------------------------------------------------ 46
Parameter Combinations Resulting in Error Message (error1 ) --------- 46
Set Point Setup and Programming --------------------------------------------------- 47
Overview -------------------------------------------------------------------------------- 47
Set Relays for Manual or Automatic Reset ------------------------------------- 48
Set Relays for Fail-Safe Operation ----------------------------------------------- 48
Assigning Set Points to Process/Rate or Total (setup) --------------------- 49
Rate or Total, Latching or Non-Latching Relays --------------------------- 50
Programming Internal Total Reset and Delay (DELAy) ------------------- 52
Setting Relays for Pump Alternation (ALtERn) ------------------------------------ 53
Programming Alarm Points and Presets (SEtPtS) --------------------------- 54
Overview ----------------------------------------------------------------------------- 54
Set and Reset Points for Process/Rate Alarms ---------------------------- 54
Preset Values for Total Set Points -------------------------------------------- 54
Preset Offset Values for Total Set Points (OFFSET) ----------------------- 54
Programming Alarm and Preset Values (SEtPtS) ------------------------ 55
4-20 mA Isolated Output Option Programming (output) ----------------------- 59
4-20 mA Output Programming Confirmation ------------------------------- 59
Lockout and Display Selection Programming ------------------------------------- 60
Overview -------------------------------------------------------------------------------- 60
Lockout ---------------------------------------------------------------------------------- 60
Display Selection (dSPLAy) --------------------------------------------------------- 61
Alternating Display ---------------------------------------------------------------- 62
Include or Exclude Menu Titles From Menu Scroll ------------------------ 63
OPERATION -------------------------------------------------------------------------- 64
Overview --------------------------------------------------------------------------------------- 64
Two Types of Display: Process/Rate and Total ---------------------------------- 65
Basic Meter Operation -------------------------------------------------------------------- 66
Overview ------------------------------------------------------------------------------------ 66
ENTER and ACK Button Operation -------------------------------------------------- 66
Display Peak & Reset Peak Operation (dSPY P & rSEt P) ------------------- 67
Rate Meter Operation ---------------------------------------------------------------------- 68
Overview -------------------------------------------------------------------------------- 68
Display Rate (dSPy r) --------------------------------------------------------------- 68
Low-Flow Cutoff (CutoFF) ---------------------------------------------------------- 68
Totalizer Operation ------------------------------------------------------------------------- 69
Overview ------------------------------------------------------------------------------------ 69
Display Total (dSPy t) --------------------------------------------------------------- 69
Total Conversion Factor (tot CF) & Time Base (t bASE) ----------------- 69
Applications Using Total Conversion Factor and Time Base -------------- 70
Totalizer Reset ------------------------------------------------------------------------- 71
Resetting Total Using the ENTER Button ----------------------------------- 71
Resetting Total via External Contact Closure ------------------------------ 71
4
Model PD650 Large Display Process Meter Instruction Manual
Resetting Total Automatically via User Selectable Preset -------------- 71
Relays Operation --------------------------------------------------------------------------- 72
Overview ------------------------------------------------------------------------------------ 72
Relays Auto Initialization ---------------------------------------------------------------- 72
Fail-Safe Operation ---------------------------------------------------------------------- 72
Front Panel LEDs ------------------------------------------------------------------------- 73
Acknowledging Relays ------------------------------------------------------------------ 75
Simple On/Off Control with 100% Deadband Operation ------------------------ 76
Manual Batch Control Operation ----------------------------------------------------- 78
Automatic Batch Control Operation -------------------------------------------------- 79
Delay on Release (delay) ------------------------------------------------------ 80
Priority Batch Programming or Quick Presets ------------------------------------- 80
Batch Control with Varying Batch Sizes -------------------------------------------- 80
Pump Alternation Control --------------------------------------------------------------- 81
Pump Alternation Typical Application -------------------------------------------- 81
Switching Inductive Loads -------------------------------------------------------------- 82
AC and DC Loads --------------------------------------------------------------------- 82
Low Voltage DC Loads -------------------------------------------------------------- 82
4-20 mA Output Operation --------------------------------------------------------------- 83
Overview ------------------------------------------------------------------------------------ 83
Lockout and Display Selection Operation ----------------------------------------- 83
Overview ------------------------------------------------------------------------------------ 83
Low Voltage Detector --------------------------------------------------------------------- 83
INSTALLATION ---------------------------------------------------------------------- 84
Wall Mounting Dimensions -------------------------------------------------------------- 84
Panel Mounting Instructions ------------------------------------------------------------ 85
OPTION CARD REMOVAL & INSTALLATION ------------------------------ 87
PROGRAMMED PARAMETER SETTINGS ---------------------------------- 89
Diagnostic Feature (dIA9) --------------------------------------------------------------- 93
Overview ------------------------------------------------------------------------------------ 93
Operation ----------------------------------------------------------------------------------- 93
OTHER PRECISION DIGITAL PRODUCTS ---------------------------------- 94
5
Model PD650 Large Display Process Meter Instruction Manual
List of Figures
Figure 1. Removing the Display Board ....................................................... 18
Figure 2. Input Power Label ........................................................................ 20
Figure 3. Connections and Jumper Diagram ............................................. 21
Figure 4. Options Board Connectors and J5 Jumper ............................... 22
Figure 5. Input Power Connections ............................................................ 23
Figure 6. Two-Wire Transmitter Powered by Meter ................................... 24
Figure 7. Two-Wire Transmitter Powered by External Supply.................. 24
Figure 8. Three-Wire Transducer Powered by Meter ................................. 25
Figure 9. Direct Voltage Signal Connections ............................................. 25
Figure 10. External Control Connections ..................................................... 26
Figure 11. Relay and 4-20 mA Output Terminals ......................................... 26
Figure 12. Both Input and Output Loops Powered by Meter ...................... 27
Figure 13. Input Loop Powered by Meter, Output Loop Powered from
External Supply ............................................................................ 27
Figure 14. Jumper Arrays and Status LED Identification ........................... 29
Figure 15. Two-Point Calibration Flowchart ................................................ 31

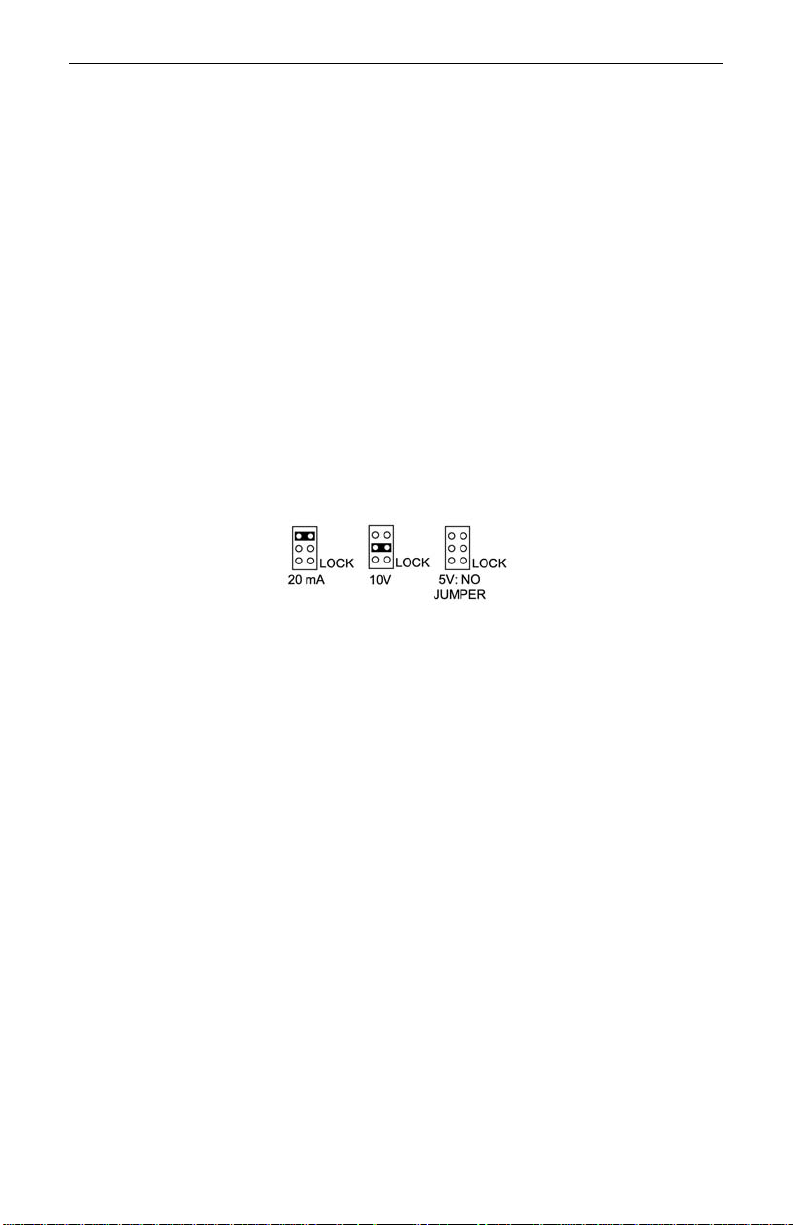

Figure 16. JP1 Input Signal Selection Array. ............................................... 32
Figure 17. Display Showing Location of Set Point LEDs ............................ 55
Figure 18. Display Showing Location of Set, Reset and Rate LEDs .......... 55

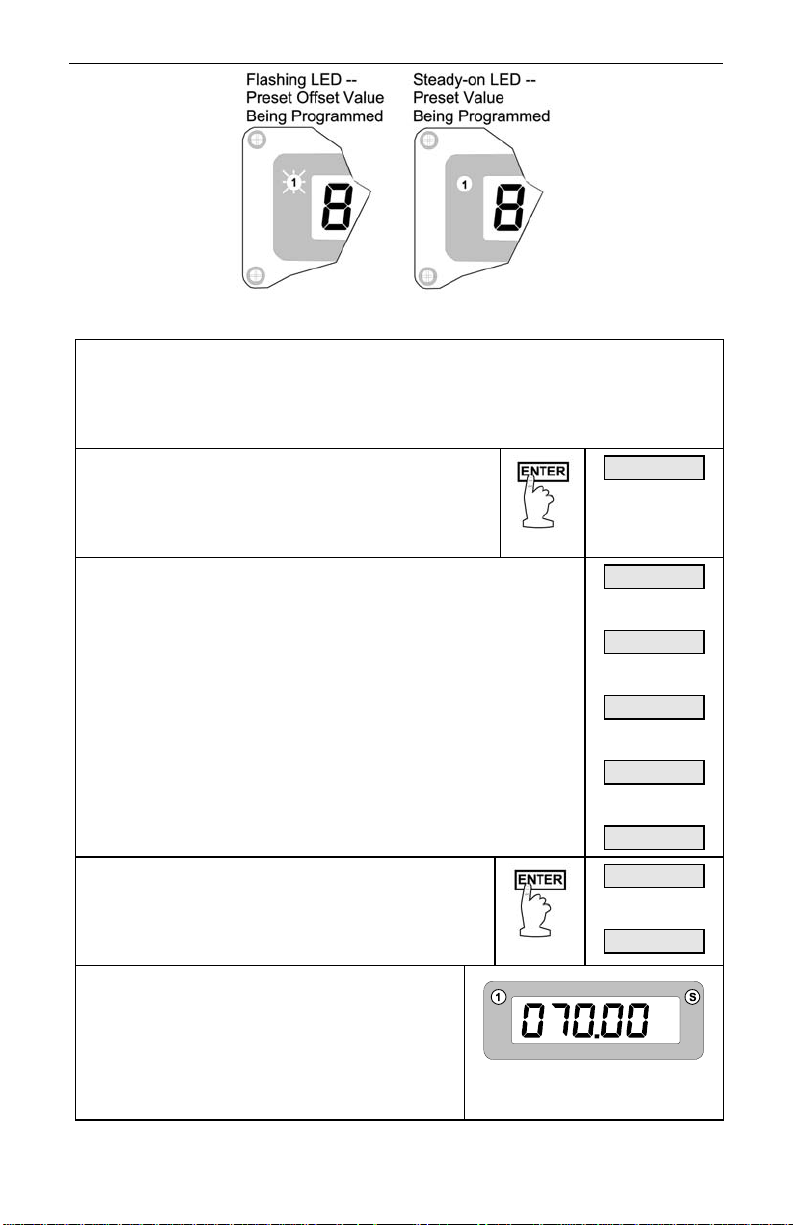

Figure 19. Programming Status of Set Point LEDs Assigned to Total ...... 56
Figure 20. Functions Locked Out with the Lockout Jumper ...................... 60

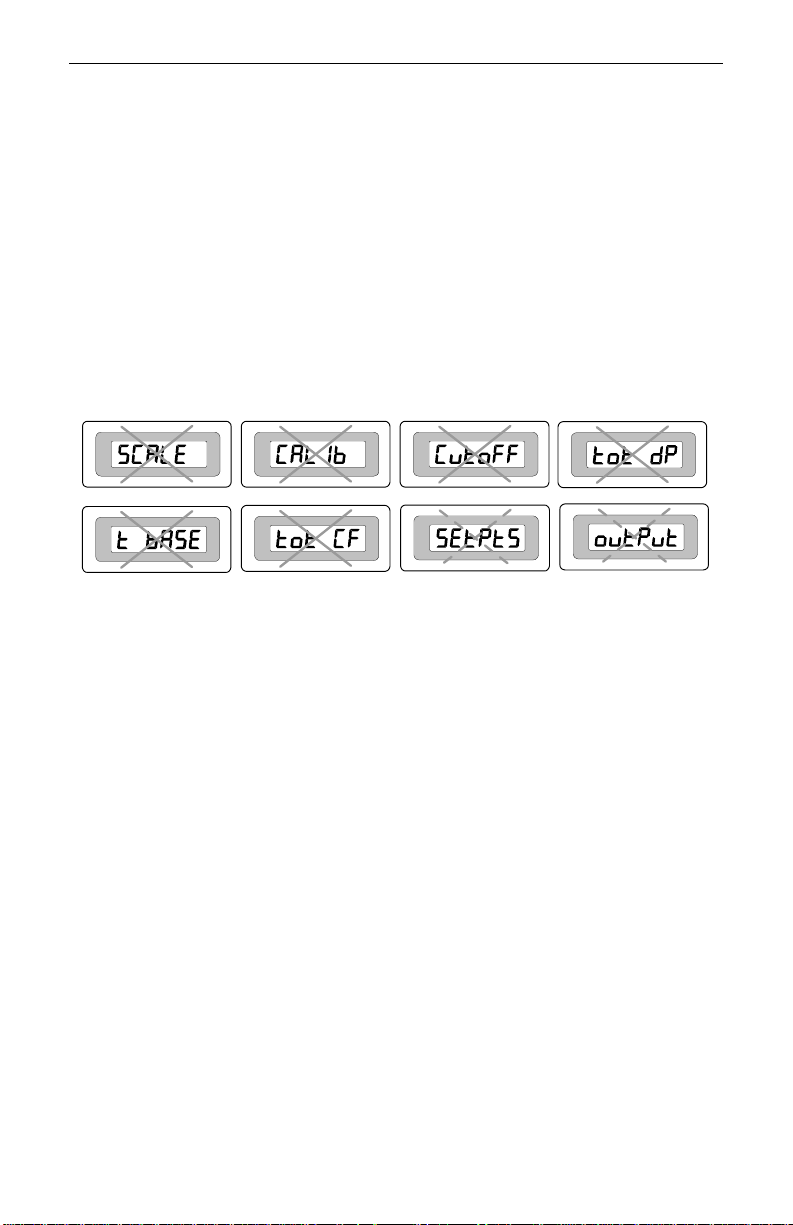

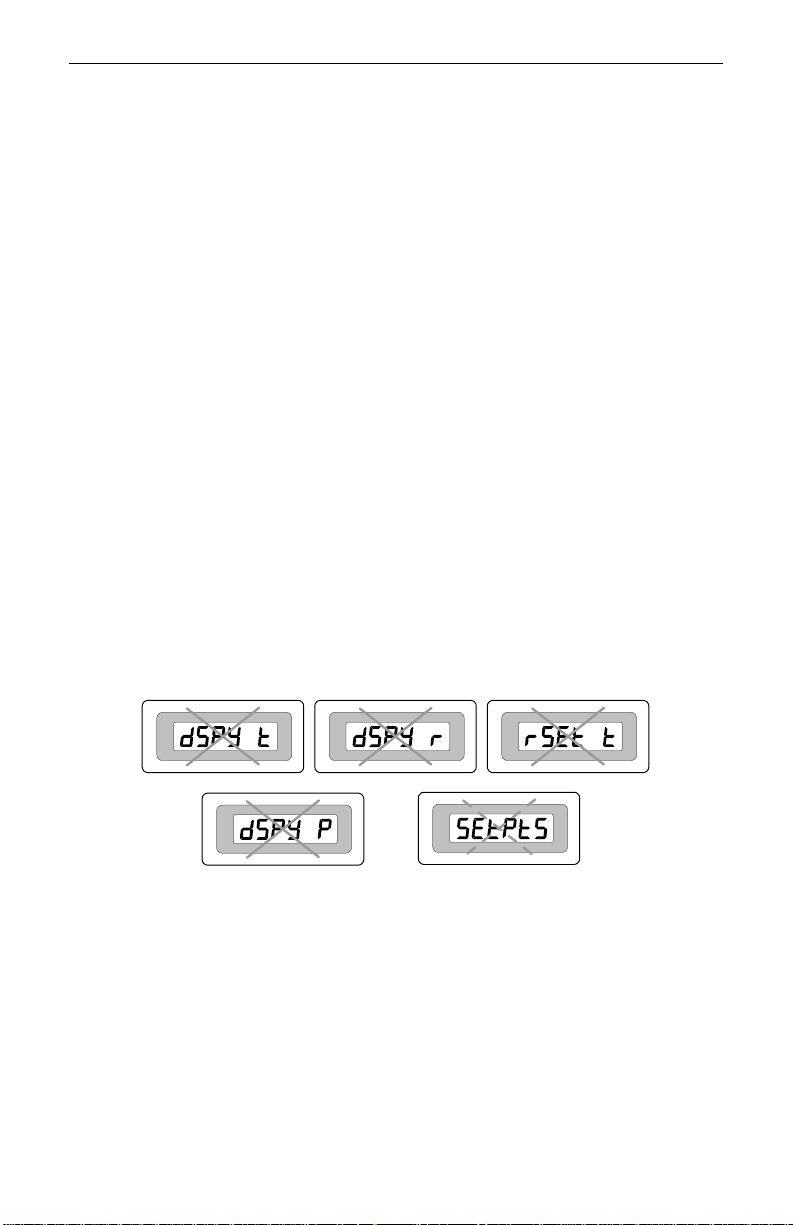

Figure 21. Menu Titles Excluded with Display Menu ................................... 61
Figure 22. Front Panel LEDs ......................................................................... 64

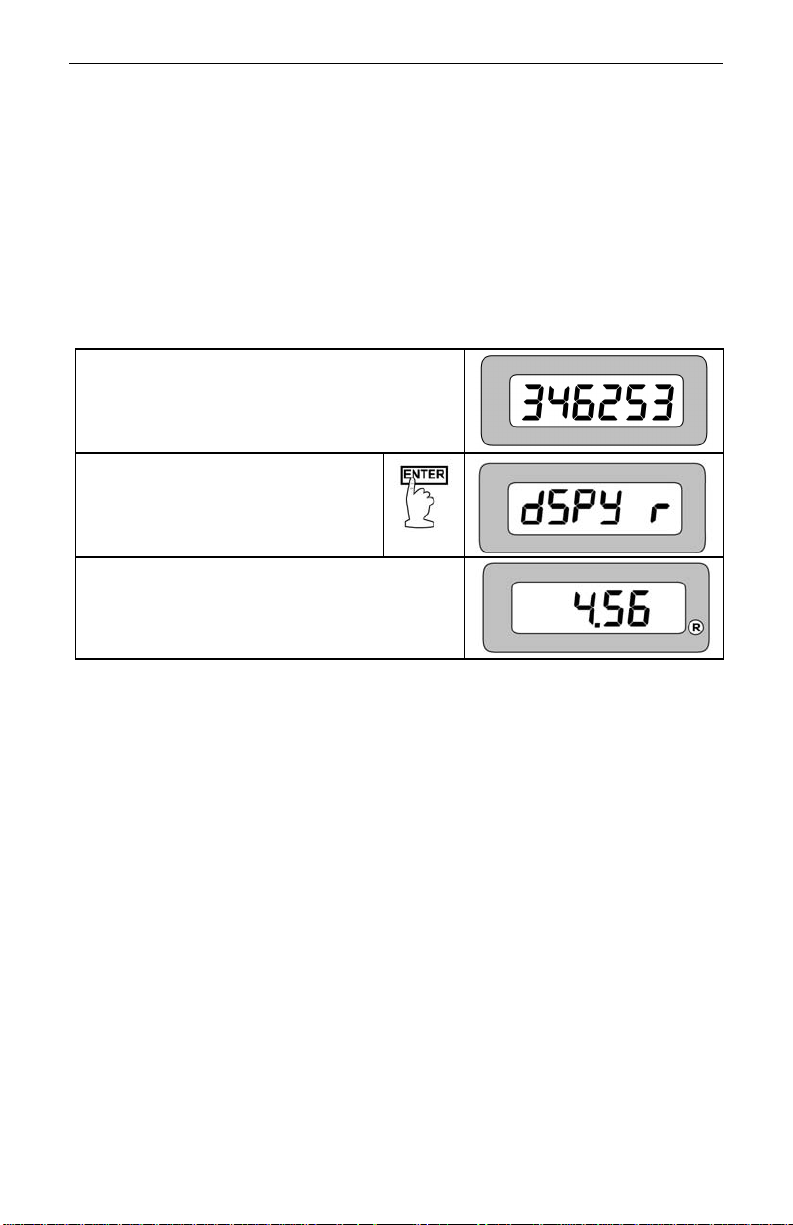

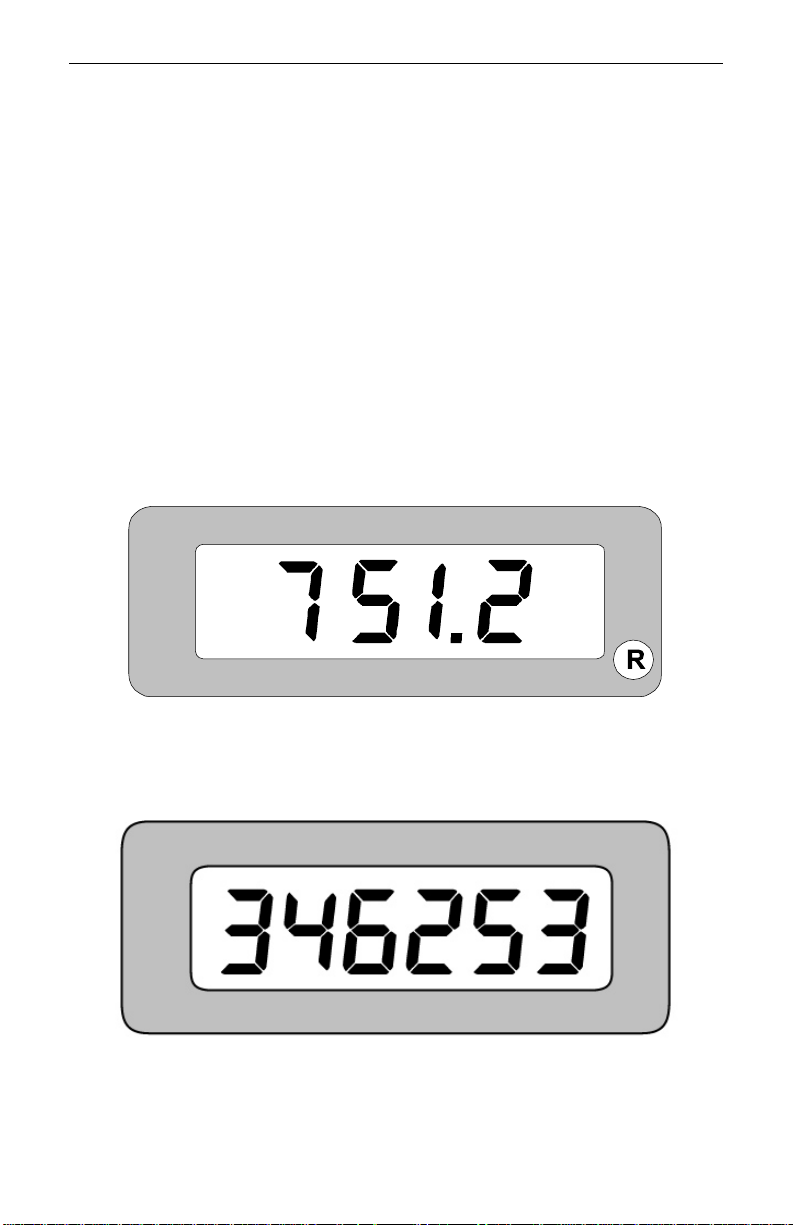

Figure 23. Meter Displaying Process/Rate ................................................... 65

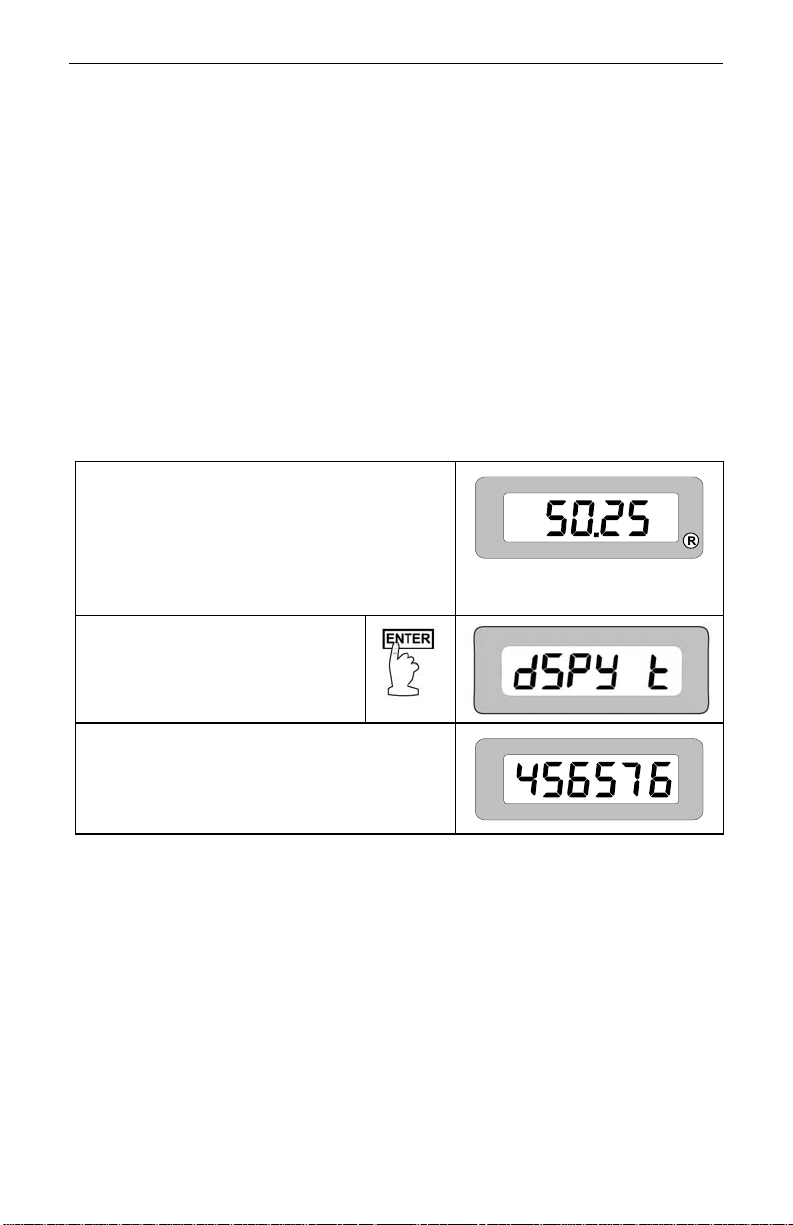

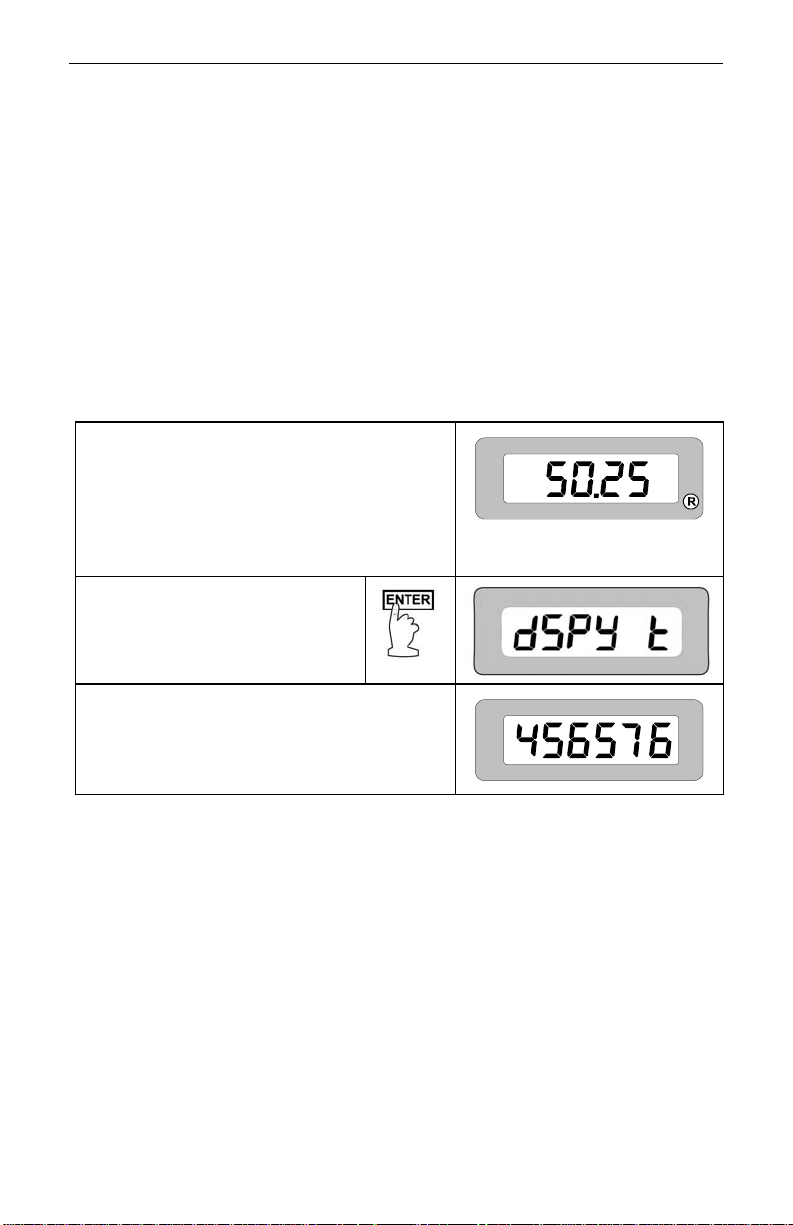

Figure 24. Meter Displaying Total ................................................................. 65

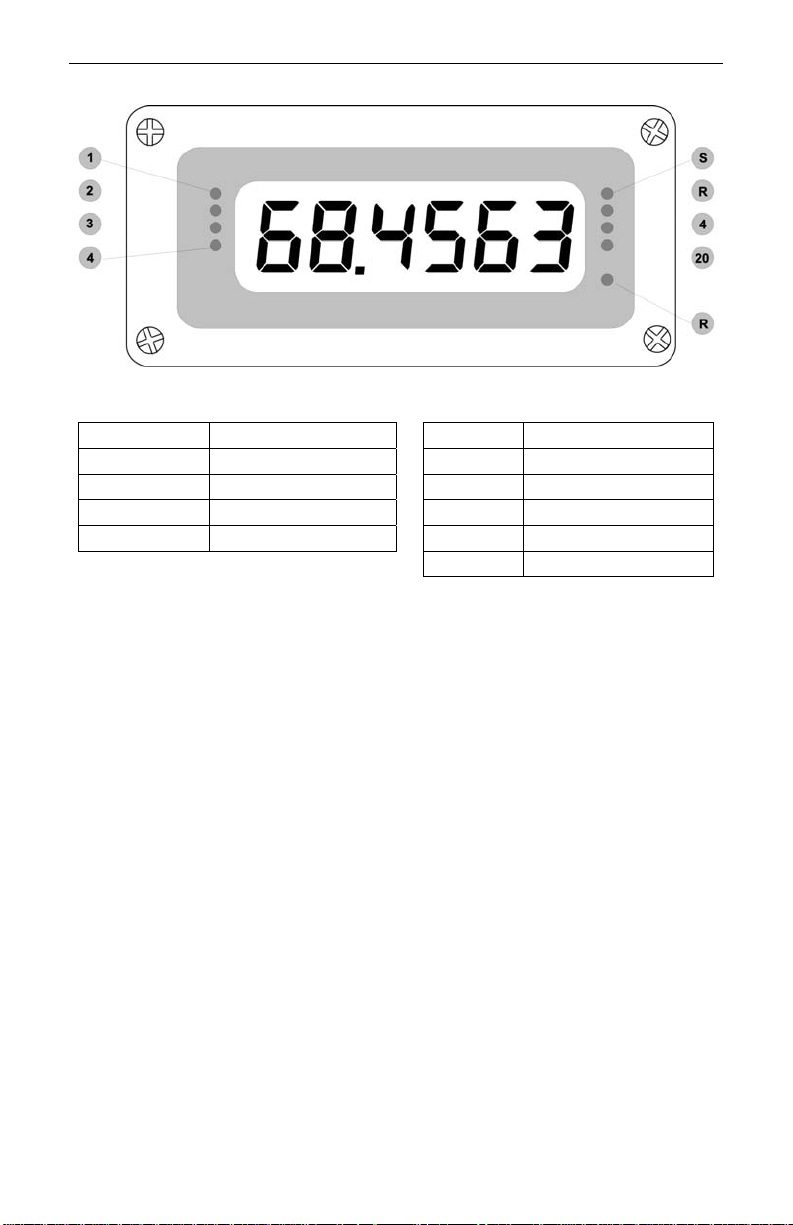

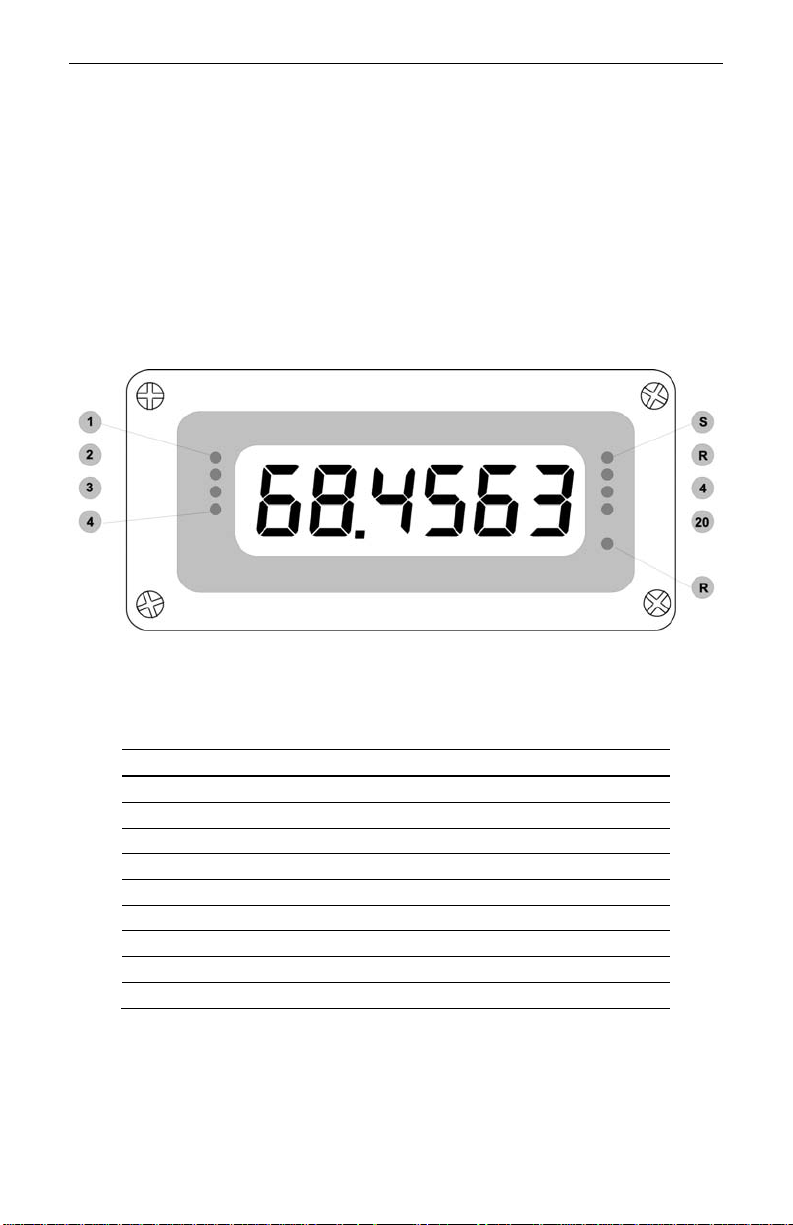

Figure 25. Front Panel LED Indicator Locations.......................................... 73

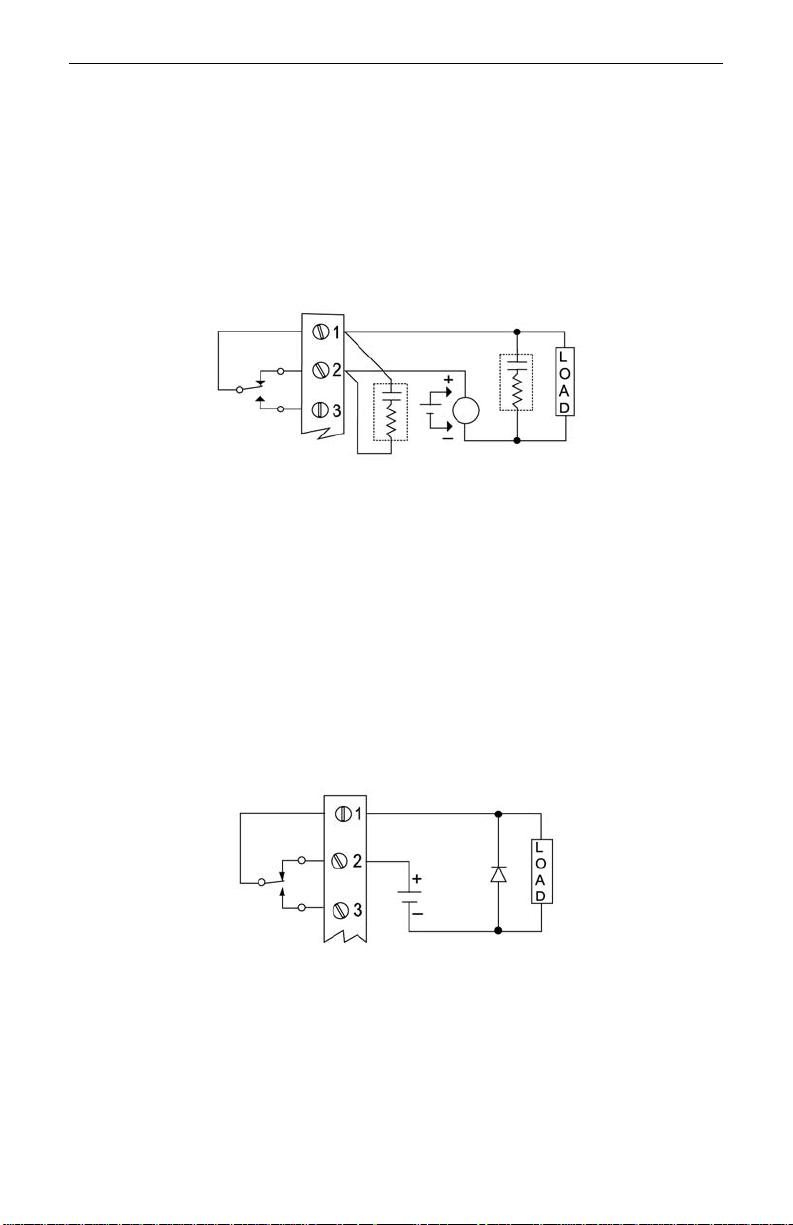

Figure 26. AC and DC Loads Protection ...................................................... 82
Figure 27. Low Voltage DC Loads Protection .............................................. 82

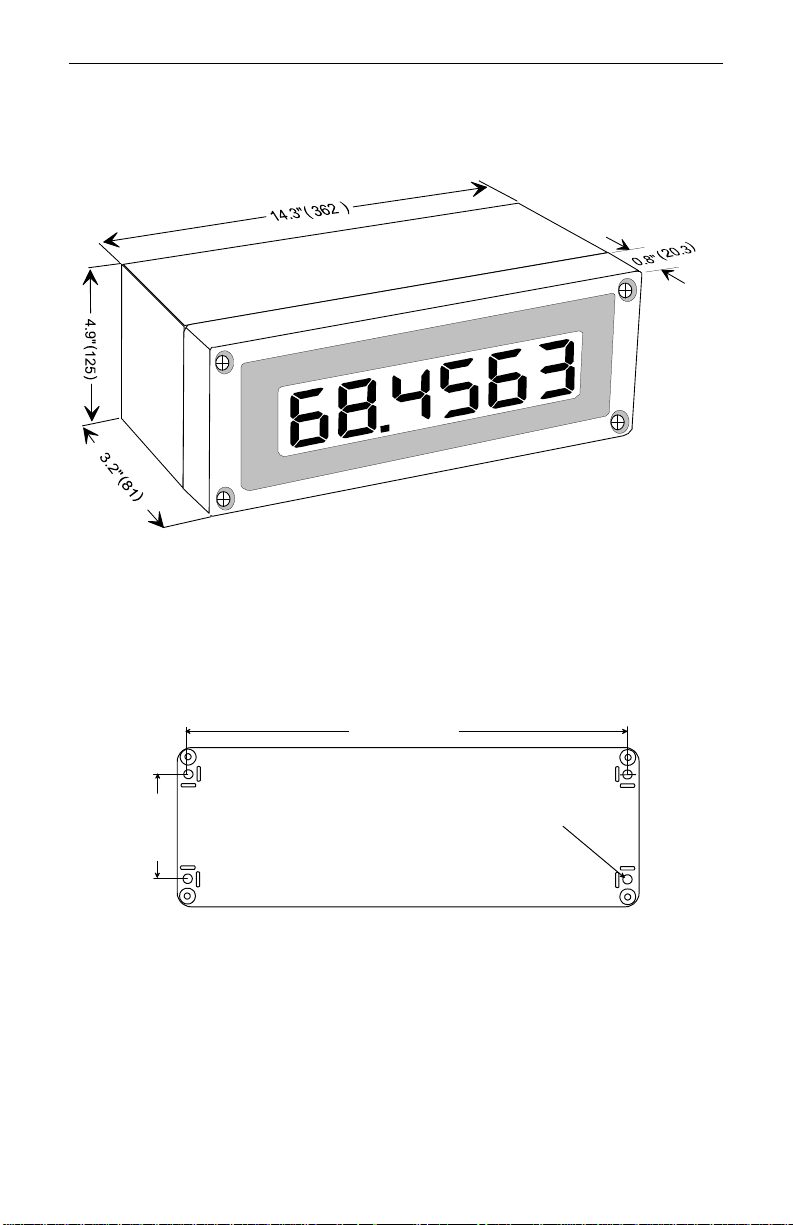

Figure 28. Overall Dimensions ...................................................................... 84
Figure 29. Wall Mounting Dimensions .......................................................... 84

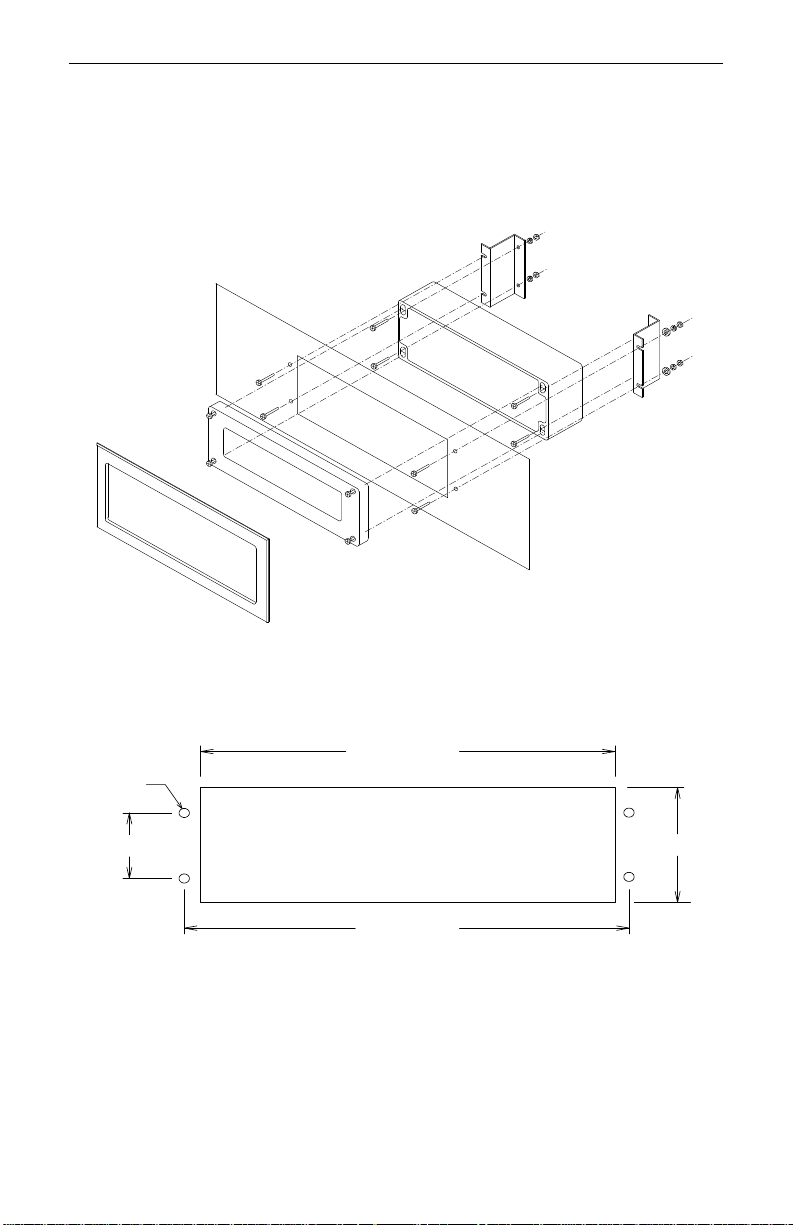

Figure 30. Panel Mounting Instructions ....................................................... 85
Figure 31. Panel Mounting Cutout ................................................................ 85

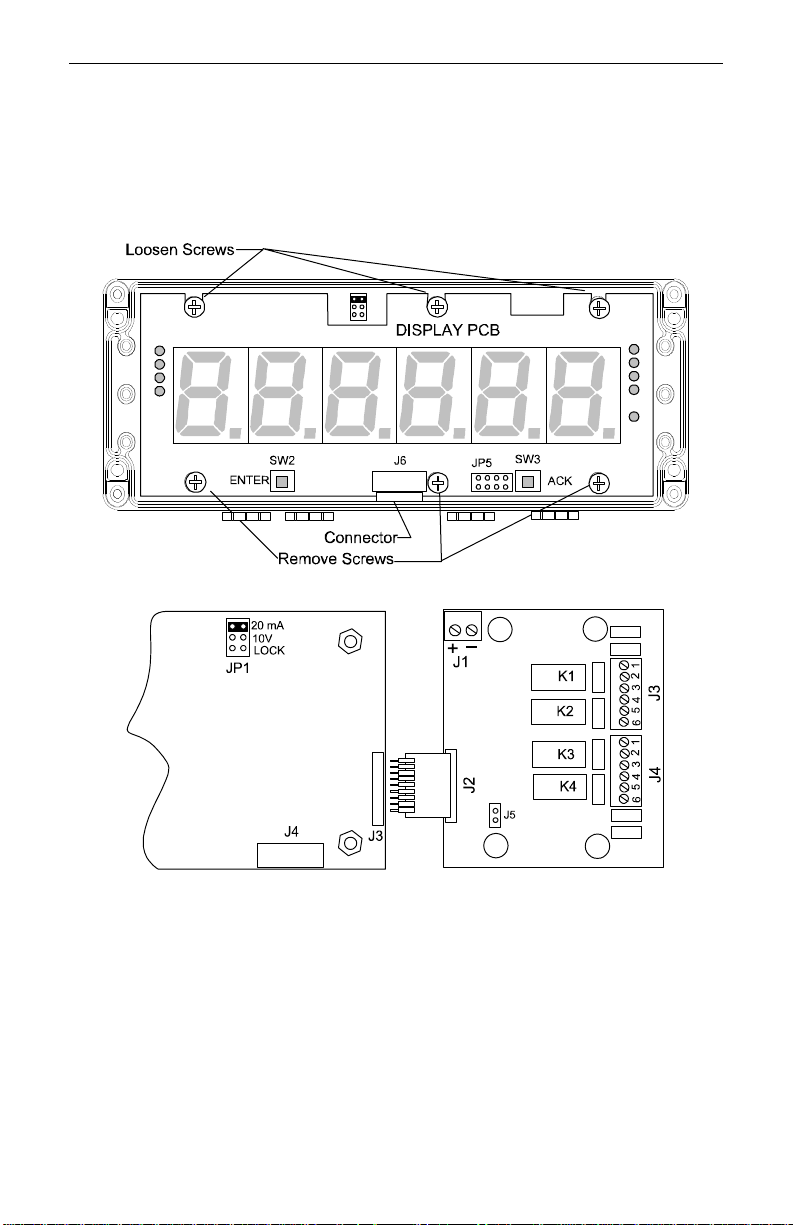

Figure 32. Removing the Display Board ....................................................... 87
Figure 33. Options Board Installation ........................................................... 87
Figure 34. Options Board Installed ............................................................... 88
6
Model PD650 Large Display Process Meter Instruction Manual
INTRODUCTION
This instrument is an analog input process meter with flow rate, totalizer, and
batch control capabilities housed in a rugged, die-cast aluminum NEMA 4X
enclosure. It accepts the common process signals such as 4-20 mA, 0-5 VDC,
1-5 VDC, and 0-10 VDC. It displays these signals in engineering units on a 2.3"
high 4½ digit LED display. The meter also provides two isolated 24 VDC power
supplies to drive both the input and output loops. Options include up to 4 relays
for alarms or batch controlling as well as an isolated 4-20 mA transmitter output.
Features
This model contains several features of interest:
• Two 24 VDC Isolated Transmitter Power Supplies
• 115 or 230 VAC Field Selectable Power
• Rate Display in Units per Day, in Addition to Second, Minute, and Hour
• Programmable Set points for Latching and Non-Latching Relay Operation
• Built-in Snubbers on Each Relay Contact
• Any Set Point Programmable for Process/Rate or Total
• Quit or Exit Menu Scroll with ACK Button

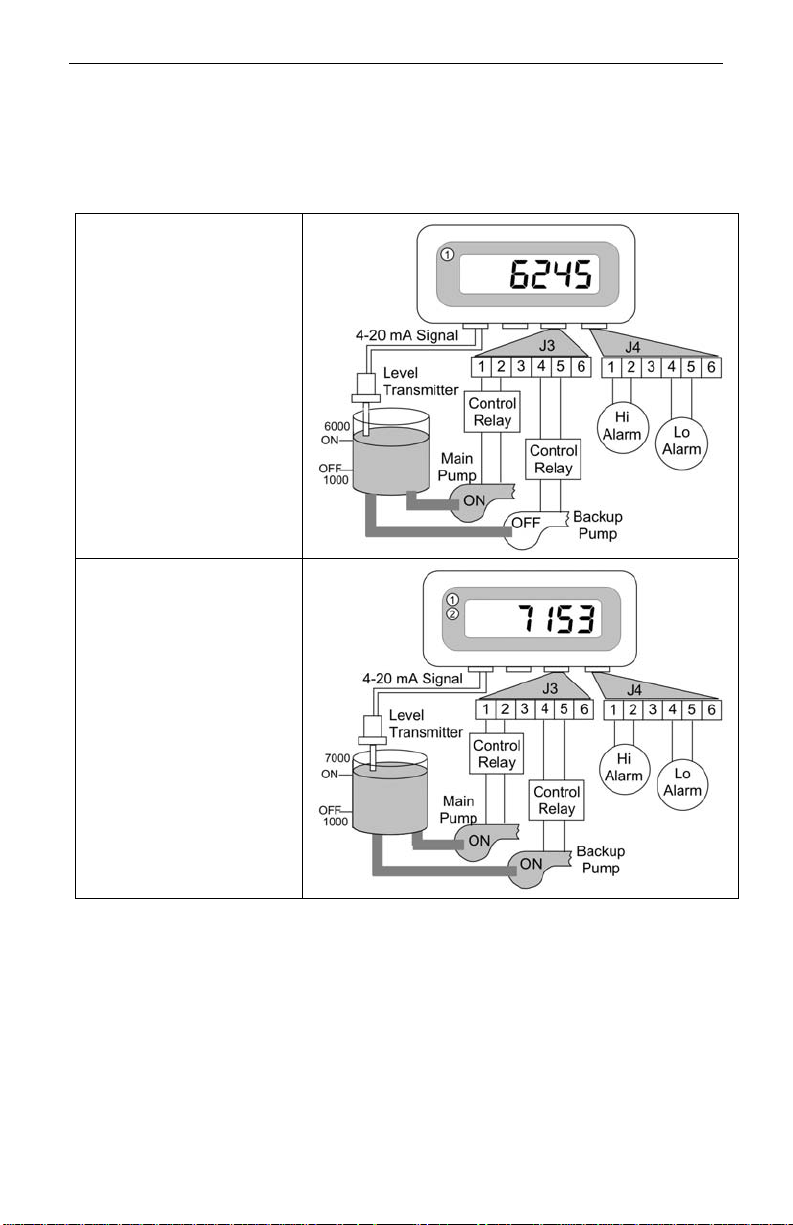

• Pump Alternation Control Feature for Rate Relays
• Automatic Square Root Extraction for Differential Pressure Transmitters
• Programmable Exponent for Weirs and Flumes
7
Model PD650 Large Display Process Meter Instruction Manual
Typical Applications
Level:

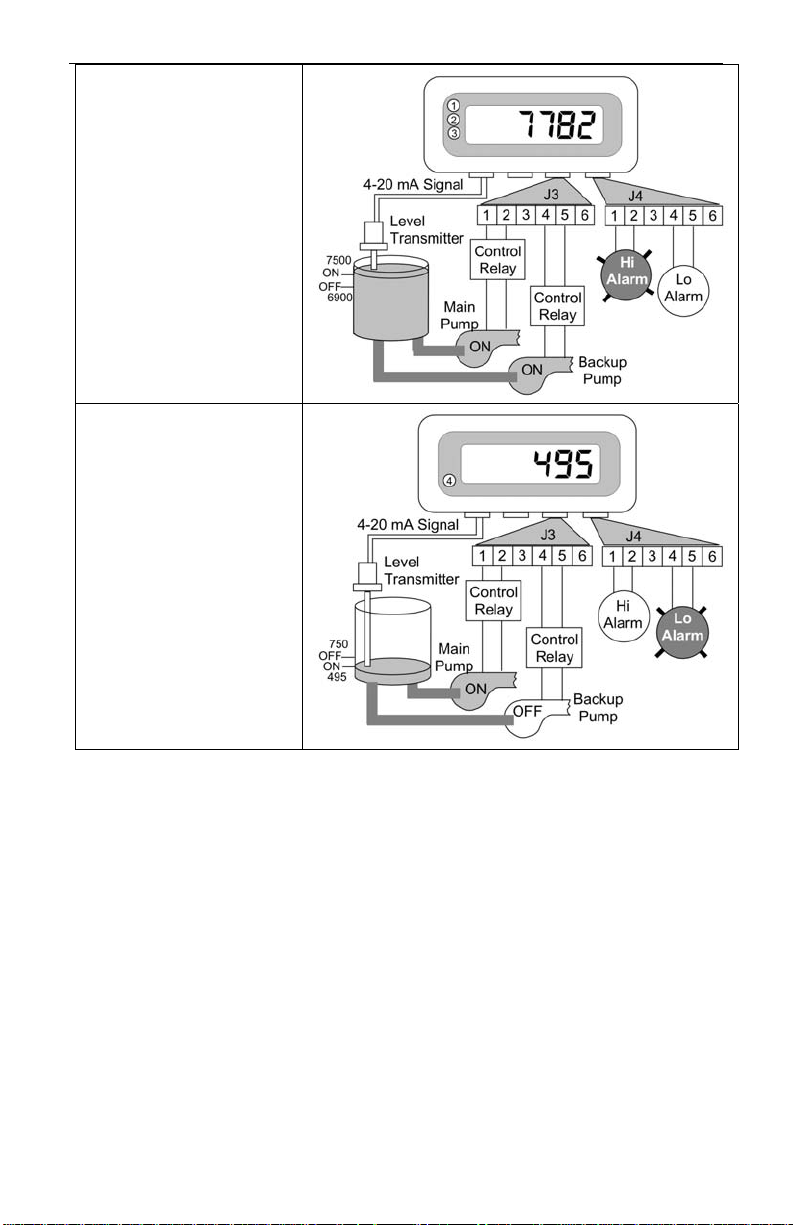

Sump Pump Control
Water Tank Level
Round Horizontal Tank Volume Measurement
Well Draw-Down
Lift Station Control
Flow:
Square Root Extraction from Differential Pressure Transmitter
Programmable Exponent for Weirs and Flumes
Rate, Total, and Batch Control
Pressure:
Compound Pressure
High Pressure Alarms
Temperature:
Heat Exchanger Display and Alarm
Boiler Temperature Monitoring
Gas Turbine Combustor Alarm
Condenser Temperature Indicator
Ordering Information
115/230 VAC
Model
PD650-N PD650-2-N No Options
PD650-34 PD650-2-34 2 Relays
PD650-35 PD650-2-35 4-20 mA Output
PD650-36 PD650-2-36 2 Relays + 4-20 mA Output
PD650-37 PD650-2-37 4 Relays
PD650-38 PD650-2-38 4 Relays + 4-20 mA Output
Accessories
PDA6504 Panel Mounting Kit**
** The PDA6504 panel mounting kit is not intended to provide waterproof
protection to the panel.
24 VDC
Model
Options Installed
8
Model PD650 Large Display Process Meter Instruction Manual
Safety Notice
!
CAUTION: Read complete
instructions prior to installation and
operation of the unit.
Observe all safety regulations. Electrical wiring should be performed in
accordance with all applicable national, state, and local codes to
!
prevent damage to the unit and ensure personnel safety.
Do not use this use this unit to directly drive heavy equipment such as
pumps, motors, valves, etc.
It is recommended to use this meter in a fail-safe system that
accommodates the possibility of meter failure or power failure.
!
WARNING
Hazardous voltages exist within enclosure. Installation and service should
be performed only by trained service personnel.
AVERTISSEMENT
Les pièces à l'intérieur du boîtier portent des tensions dangereuses. Seules
des personnes qualifiées et bien entrainées devraient entreprondre
l'ótalonnage et la maintenance.
WARNING: Risk of electric shock.
9
Model PD650 Large Display Process Meter Instruction Manual
Specifications
Except where noted all specifications apply to operation at +25°C.
Basic Process Meter
INPUTS
DISPLAY
DECIMAL POINT
CALIBRATION
RANGE
INPUT IMPEDANCE
LOOP POWER
ACCURACY
ROOT EXTRACTION
11-POINT
LINEARIZATION
Field selectable:
4-20 mA, 0-20 mA, 0-5 V, 1-5 V, 0-10 V
Six digit, 2.3" (57.3 mm) high efficiency red LED.
Rate: -19999(0) to 29,999(0) with selectable extra zero
Total: 0 to 999,999; automatic lead zero blanking
Process/rate display: Decimal point may be placed in any of the
following positions. 2.9999, 29.999, 299.99, 2999.9, or 299990.
Total decimal point: 9.99999, 99.9999, 999.999, 9999.99, or
99999.9. Rate and total decimal points are independent of each
other.
4 mA (1 V) input may be set anywhere in range of the meter.
20 mA (5 V) may be set anywhere in range of the meter above
or below 4 mA input. An Error message will appear if input 1
signal and input 2 signal are too close together.
Input Range Minimum Difference Between
0-5 V 0.16 V
0-10 V 0.32 V
4-20 mA 1.60 mA
Voltage ranges: greater than 300 KΩ
Current ranges: 100 Ω
Two isolated power supplies, 24 VDC ± 5% @ 20 mA each,
regulated. Maximum loop resistance is 1200 Ω.
Linear input: ±0.05% of calibrated span ±1 count
Root extraction: ±0.1% FS ± 2 counts
Square root extraction: Automatic
Programmable exponent: Greater than 1.0000 and smaller than
3.0000
Input Range Minimum Span Between Inputs
4-20 mA (1.6 mA ÷ (Number of points -1))
0-5 V (0.16 V ÷ (Number of points -1))
0-10 V (0.32 V ÷ (Number of points -1))
e.g. Minimum span for an 11-point, 4-20 mA calibration is
0.16 mA between inputs.
Input 1 & Input 2
TIME BASE
ALARM POINTS
ALARM POINT
DEADBAND
ALARM STATUS
INDICATION
Second, minute, hour, or day
Four, any combination of high or low alarms
0-100% of full scale, user selectable
Front panel LED
10
Model PD650 Large Display Process Meter Instruction Manual

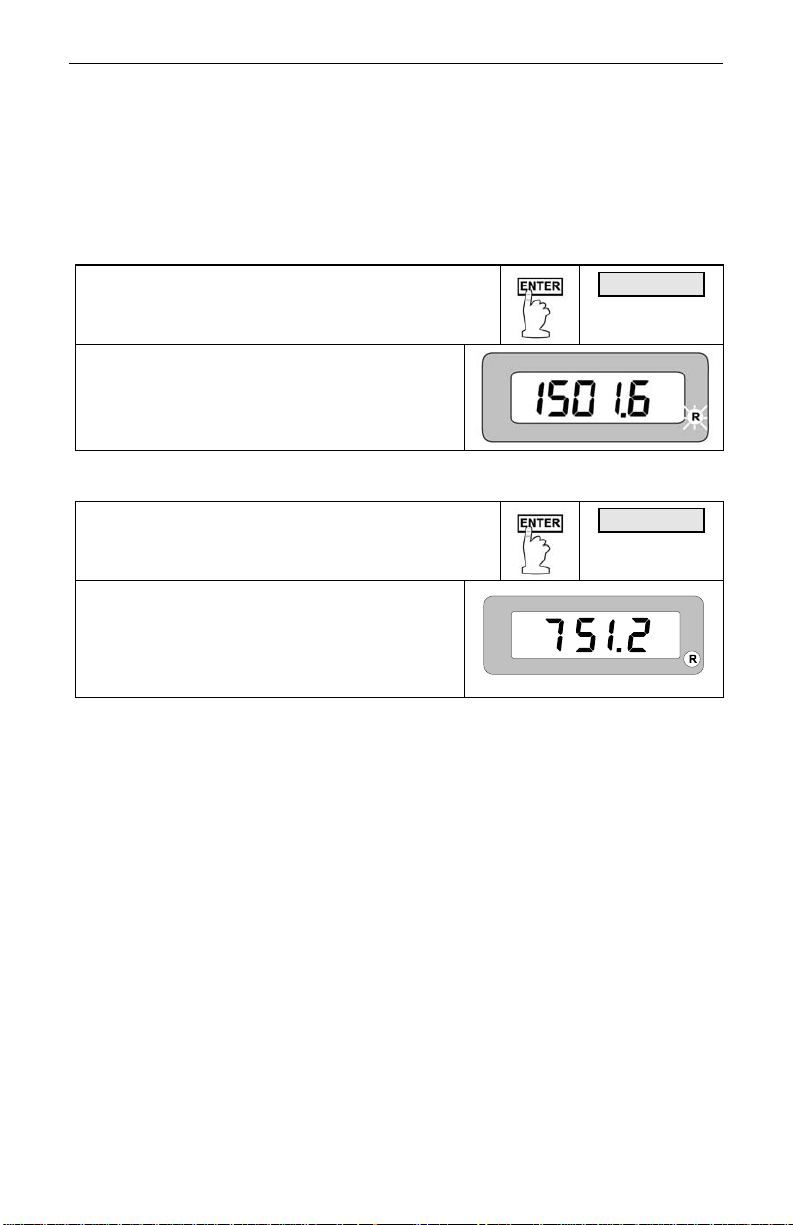

PEAK HOLD
MAX (DISPLAY PEAK)
PEAK HOLD OR
MAX INDICATION
LOCKOUT
NON-VOLATILE
MEMORY
POWER OPTIONS
NORMAL MODE
REJECTION
ENCLOSURE
ENVIRONMENTAL
CONNECTIONS
MOUNTING
OVERALL
DIMENSIONS
WEIGHT
WARRANTY
EXTENDED
WARRANTY
Captures the maximum or peak process/rate and displays it via
the front panel ENTER button
Front panel flashing “R” LED
Jumper JP1 labeled “LOCK” restricts modification of
programmed settings.
All programming values are stored in non-volatile memory for a
minimum of ten years if power is lost.
AC power: 115 or 230 VAC (field select) ±10%, 50/60 Hz, 12 VA
DC power: 22-28 VDC; 12 watts maximum
64 dB at 50/60 Hz
Die-cast aluminum, NEMA 4X, modified specifically for PDC;
four holes for ½" conduit provided at base, 3 plugs provided.
Operating temperature range: -20 to 65°C
Storage temperature range: -40 to 85°C
Relative humidity: 0 to 90% non-condensing
Removable screw terminal blocks, accept 22 to 12 AWG wire
Enclosure contains four ¼" holes for wall mounting. Panel
mounting kit available
4.9" x 14.3" x 3.2" (125 mm x 362 mm x 81 mm)
7.0 lbs (3.2 kg)
2 years parts & labor
1 or 2 years, refer to the Price List for details.
(Dspy p)
Rate/Totalizer/Batch Controller Features
RATE DISPLAY
INDICATION
LOW-FLOW
CUTOFF
ALTERNATING
DISPLAY
TOTAL DISPLAY
TOTAL DECIMAL
POINT
LED labeled “R” in lower right illuminates when meter is
displaying rate or process input.
Any input below the low-flow cutoff value will result in a display
of zero. May be set from 1 count to 100% FS, user selectable.
To disable low-flow cutoff, program cutoff value to zero.
Totalizer is based on rate display. So, inputs below the lowflow cutoff value will not affect the totalizer.
Display may be programmed to alternate between rate and
total every 10 seconds.
0 to 999,999, automatic lead zero blanking
May be set in any of the following positions: 9.99999, 99.9999,
999.999, 9999.99, 99999.9. Total decimal point is independent
of process/rate decimal point.
11
Model PD650 Large Display Process Meter Instruction Manual
TOTAL
CONVERSION
FACTOR
TOTALIZER
TOTALIZER
ROLLOVER
TOTALIZER
PRESETS
PRESET OFFSET
PROGRAMMABLE
DELAY ON
RELEASE
PRIORITY BATCH
PROGRAMMING
TOTAL RESET
TOTAL RESET
LOCKOUT
Programmable from 0.00001 to 59999
Calculates total based on rate and field programmable total
conversion factor to display total in engineering units. Time
base must be selected according to time units in which rate is
displayed.
Totalizer “rolls over” when display exceeds 999,999. Relay
status reflects display.
Up to four, user selectable under setup menu Setup. Any set
point can be assigned to total and may be programmed
anywhere in the range of the meter.
Relays assigned to total can be programmed to trip at any
point below the next relay’s preset value.
If the meter is programmed to reset total to zero automatically
when the highest preset is reached, then a delay will occur
before the total relays reset. This delay can be programmed
anywhere from 1 to 999 seconds.
This feature allows the user to quickly change preset values
without going into the main menu by holding the ENTER
button for more than 3 seconds.
Via front panel ENTER button, external contact closure, or
automatically via user selectable preset value.
Meter may be programmed so total cannot be reset from front
panel.
Options
Relays
RATING
ASSIGN TO
PROCESS/RATE
OR TOTAL
BUILT-IN
SUPPRESSION
DEADBAND
HIGH OR LOW
ALARM
RELAY
OPERATION
2 or 4 SPDT (Form C); rated 2 A @ 30 VDC or 2 A @
250 VAC resistive load;
loads. Built-in suppression.
Any relay may be assigned to process/rate or total.
A built-in suppressor (snubber) to prolong the life of the relays
protects each relay contact. The suppressor provides a degree
of protection against electrical noise caused by inductive
loads. Suppressor value: .01 µF/470 Ω, 250 VAC.
0-100% of full scale, user selectable
User may program any alarm for a high or low trip point.
Latching or non-latching
1
/14 HP @ 125/250 VAC for inductive
12
Model PD650 Large Display Process Meter Instruction Manual
FAIL-SAFE
OPERATION
AUTO
INITIALIZATION
RELAYS RESET
Total relays reset
Process/rate
relays reset
Relay coils are energized in non-alarm condition. In case of
power failure, relays will go to alarm state. Fail-safe operation
may be disabled, by removing jumper J5 located on the
Options Board.
When power is applied, relays assigned to total will reflect the
state of the accumulated total value in memory. Relays
assigned to process/rate will reflect the state of the input to the
meter.
1. When total is reset to zero, if set up for external total reset
2. After delay has elapsed, if set up for internal total reset
3. Manual any time, if set up for external total reset (via user
supplied external contact closure at terminals AK and CM
or front panel ACK button)
Note: Manual reset resets all manually resettable relays.
1. Automatic reset only
2. Manual reset only, at any time
3. Automatic plus manual reset at any time
4. Manual reset only after alarm condition has been
corrected
Automatic reset: Relays will automatically reset when the
input passes the reset point.
Manual reset: It can be performed via user supplied external
contact closure at terminals AK and CM or front panel ACK
button. Manual reset resets all manually resettable relays.
13
Model PD650 Large Display Process Meter Instruction Manual
Isolated 4-20 mA Transmitter Output
CALIBRATION
RANGE
EQUIPMENT
NEEDED
OUTPUT LOOPPOWER
ACCURACY
ISOLATION
EXTERNAL
LOOP-POWER
SUPPLY
OUTPUT LOOP
RESISTANCE
The transmitter output can be calibrated so that a 4 mA output
is produced for any process/rate measured by the meter. The
20 mA output may correspond to any process/rate that is at
least 501 counts greater or smaller than the process/rate
corresponding to 4 mA. (Ex. 4 mA = 0, 20 mA = 501) If the
span between 4 and 20 mA is less than 501 counts, an
message will appear.
The 4-20 mA output from the meter is calibrated without the
use of a calibrator.
24 VDC ± 5% @ 20 mA, regulated. Maximum loop resistance
is 1200 Ω. Isolated from input loop-power.
± 0.1% FS ± 0.004 mA
500 V input-to-output or input/output-to-24 VDC supply
35 VDC maximum
Power supply Minimum loop
24 VDC
35 VDC (external)
resistance
10 Ω 600 Ω
600 Ω 1000 Ω
Maximum loop
resistance
error
14
Model PD650 Large Display Process Meter Instruction Manual
Display Functions and Messages
The meter displays various functions and messages during operation and
programming. The following table shows the various displayed functions and
messages with their description.
Display
18888L
-19999
2 PtS
29999
ALtErn
CALIb
CutoFF
Day
Delay
DIA9
DspLAy
Dspy 1
Dspy 2
DSPy P
DSPy r
DSPy t
E rSt
E-CAL
Error
Error1
Hour
I or e
I rSt
I-CAL
Inpt 1
Inpt 2
LatCk
Parameter Description/Comments
Low voltage
Underrange
2 points
Overrange
Alternate
External calibration
Low-flow cutoff
Day
Delay
Diagnostic
Display
Display 1
Display 2
Display peak
Display process/rate
Display total
External total reset
External calibration
Error
Error 1
Hour
Internal or external
Internal total reset
Internal calibration
Input 1
Input 2
Latch
Indicates an input voltage below specifications during
power up.
Indicates the input signal is below the negative range of
the meter.
Indicates number of calibration points selected (2 to 11
points can be selected).
Indicates the input signal exceeds the full-scale range of
the meter.
Sets any relay pair for pump alternation control.
Calibrates unit using a calibrated signal source.
Sets meter to display zero below programmed cutoff
point.
Sets time base to display rate in units per day.
Sets delay on release from 1 to 999 seconds for internal
total reset.
Displays parameter settings one at a time for diagnostic
purposes. Setting cannot be changed under this function.
Sets menu title scroll, selections are activated with
lockout jumper installed.
Sets display 1 calibration.
Sets display 2 calibration.
Displays the highest process/rate value captured.
Sets process/rate as default display.
Sets total as default display.
Indicates total reset was set to externally reset total to
zero via the ENTER button or an external switch closure.
Sets meter to calibrate using a calibrated signal source.
Indicates calibration was not successful.
Indicates a combination of parameters that exceeds the
totalizer capabilities.
Sets time base to display rate in units per hour.
Sets highest preset for internal or external total reset.
Indicates highest preset was set to internally reset total to
zero when preset value is reached.
Sets meter for internal calibration to scale meter without
applying an input signal.
Sets input 1 calibration point
Sets input 2 calibration point
Sets process/rate set points for Latching or Non-latching
relay operation.
15
Model PD650 Large Display Process Meter Instruction Manual
Display
LInear
min
No PtS
OFFSET
outPut
Pro9 r
R or t
Rate
Rset P
RSEt t
SCALE
SeC
SEt 1
SEt 2
SEt 3
SEt 4
SetPtS
Setup
SquArE
t bASE
Tot CF
Tot dp
TotAL
y or n
Parameter Description/Comments
Linear input
Minute
Number of points
Preset offset
Output
Programmable root
Rate or total
Rate
Reset peak
Reset total
Scale
Second
Set point 1
Set point 2
Set point 3
Set point 4
Set points
Setup
Square root
Time base
Totalizer conversion
factor
Total decimal point
Total
Yes or no
Indicates linear input was selected.
Sets time base to display rate in units per minute.
Sets meter for 2 to 11 calibration points.
Sets preset offset value (Relay n trips at a point below
Relay n+1 preset value).
Sets the optional 4-20 mA output values.
Sets exponent for special root extraction used for weirs
and flumes.
Sets set points for process/rate or total.
Indicates set point was assigned to rate.
Erases peak value from memory and captures a new
peak reading.
Resets the totalizer to zero.
Scales meter using internal calibration for desired display
(Signal source not required).
Sets time base to display rate in units per second.
Sets operation for set point 1.
Sets operation for set point 2.
Sets operation for set point 3.
Sets operation for set point 4.
Sets alarm set /reset points and total presets (relays are
optional).
Sets operation of set points for process/rate or total,
latching or non-latching, etc.
Sets meter for square root extraction.
Sets meter with correct time unit factor (second, minute,
hour, or day).
Sets multiplier factor to display total in any engineering
unit.
Sets the decimal position for the totalizer.
Indicates set point was assigned to total.
Sets selection or de-selection of various functions.
16
Model PD650 Large Display Process Meter Instruction Manual
SETUP AND PROGRAMMING
Overview
To set up and program the meter, it is necessary to disassemble the Display
Board. See disassembling instructions in the next pages.
Setting up and programming the meter involves four basic steps:
1. Jumper Configuration (Page 19)
a. Input selection and lockout jumpers
b. Relay acknowledge enable
c. Fail-safe operation of rela ys
2. Power Selection (Page 20)
a. Changing to 230 VAC power if needed. Factory default is 115 VAC.
b. Labeling meter for input power: 115 VAC, 230 VAC, or 24 VDC
3. Connections (Page 21)
a. Power
b. Input signal
c. Enter, acknowledgement, and reset total
d. Relays
e. 4-20 mA output
4. Programming (Page 28)
a. Basic meter
b. Process/rate meter
c. Totalizer
d. Batch controller
e. Relays
f. 4-20 mA output
g. Lockout and display selection
Programmed Parameter Settings
To simplify programming, write down the desired programming values prior to
attempting to program the meter. The Programmed Parameter Settings form
located at the back of this manual provides a convenient method to record the
user settings; it also provides the factory setting for most of the programmable
parameters.
17
Model PD650 Large Display Process Meter Instruction Manual
Disassembling the Meter
To perform the steps described above, it is necessary to partially disassemble
the meter. Main Board may remain attached to enclosure’s base even during
conduit hub installation if proper precautions are taken.
1. Loosen the four screws that hold the enclosure’s cover in place and remove
cover.
2. Loosen the top three mounting screws holding the Display Board
(see Figure 1).
3. Remove the bottom three mounting screws.
4. Slide the Display Board out from under the top three screws. The ribbon
cable to the Display Board may be removed during meter installation. Do
not remove standoffs from Main Board. The Main Board is secured to
enclosure’s base with four mounting standoffs.
5. Change voltage selection as required, described on page 20. Set
configuration jumpers; connect power and signal wires.
6. Reassemble the Display Board prior to applying power.
7. To program meter using front panel buttons leave top cover off until meter
programming is complete.
8. Install lockout jumper to prevent accidental changes to programmed
settings.
Reassembling the Meter
After the wiring and jumper selections have been made, reassemble the Display
Board.
1. Slide the Display Board under the top three screws (see Figure 1). Make
sure the ribbon cable is connected to the connector on the Display Board.
2. Replace the bottom three mounting screws.
3. Fasten the top three mounting screws.
4. Align the enclosure cover so the alarm numbers on the cover are on the left
side of the unit and aligned with the alarm status LEDs.
5. To program the meter using the front panel buttons leave top cover off until
meter programming is complete.
6. Replace the enclosure cover and fasten the four screws that hold it in place.
Figure 1. Removing the Display Board
18
Model PD650 Large Display Process Meter Instruction Manual
Jumper Configuration
Overview
Before programming the meter, it is necessary to configure three jumper arrays.
The jumper arrays are used for setting the type of input signal (4-20 mA, 0-5 V,
or 0-10 V); locking out the programmed settings, enable relay acknowledgement
(ACK), and setting relay fail-safe operation.
Jumper Arrays Function and Location
Jumper Array Function Label Location Diagram
Input signal and Lockout JP1 Main Board Figure 3
Relay ACK enable JP5 Display Board Figure 14
Fail-safe J5 Options Board Figure 4
Input Selection and Lockout Jumpers
Jumper JP1 Position Function
No jumper Sets input to 5 V
20 mA Sets input to 20 mA
10V Sets input to 10 V
LOCK Sets a lock on programming functions
Relay Acknowledge Enable
Jumper
JP5 Position
1 Enable relay 1 manual reset
2 Enable relay 2 manual reset
3 Enable relay 3 manual reset
4 Enable relay 4 manual reset
Fail-Safe Operation of Relays
Jumper
J5 Position
On Apply fail-safe function to all relays
Off Disable fail-safe function to all relays
Function
Function
19
Model PD650 Large Display Process Meter Instruction Manual
Power Selection
Overview
Power Selection involves the following:
1. Changing to 230 VAC power if needed. Factory default is 115 VAC.
2. Labeling the meter as to how it will be powered: 115 VAC, 230 VAC, or
24 VDC. Meters powered from 24 VDC are labeled as such at the factory.
Note: Meters ordered to operate from 24 VDC do not require any special setup,
this option is not field selectable.
All AC powered meters are shipped from the factory set for
!
!
!
115 VAC power. Do not apply 230 VAC without first setting up the
meter to accept this voltage.
Disconnect power prior to performing the following procedures.
The meter is field selectable for either 115 VAC or 230 VAC power.
Changing the voltage selection involves the removal of the front
cover and the Display Board, then selecting 115V or 230V on
switch S1 located on the Main Board.
Observe polarity for DC powered meters. Applying voltage with
reverse polarity may damage the meter.
Do not apply an AC voltage to DC powered meters. Applying an
AC voltage to DC powered meters will result in damage to the
meter and endanger personnel.
Changing from 115 to 230 VAC Power
To access the 115/230 VAC switch it is necessary to remove the housing cover
and the Display Board, see Disassembling the Meter, page 18.
Once the Display Board has been removed, switch S1 is visible
black component with a red slide switch on the top, located next to the
transformer. For location see Figure 3, page 21.
For 115 VAC operation, the switch shows 115V; for 230 VAC it shows 230V.
Several setup steps are required and connections made while the Display Board is
removed, so it should not be reinstalled just yet. However, to avoid electric shock,
install the Display Board prior to applying power.
. It is the large
Labeling Meter for 115 VAC, 230 VAC, or 24 VDC
CAUTION
ALL AC POWERED UNITS ARE
SHIPPED FROM THE FACTORY
SET FOR 115 VAC
(SEE INSTRUCTION MANUAL TO CHANGE VOLTAGE SELECTION)
Figure 2. Input Power Label
115 VAC
230 VAC
24 VDC
20
A label on top of the unit
contains a place for the
user to indicate if the unit is
powered from 115 or 230
VAC. The user should mark
the appropriate box once
the desired power has been
selected on switch S1.
Model PD650 Large Display Process Meter Instruction Manual
Connections
Overview
The following connections are made to removable screw terminal connectors
supplied with each meter:
Power Connections
Signal Connections
Enter, Acknowledgement, and Reset Total Connections
Relays Connections
4-20 mA Output Connections
OPTIONS PCBMAIN PCB

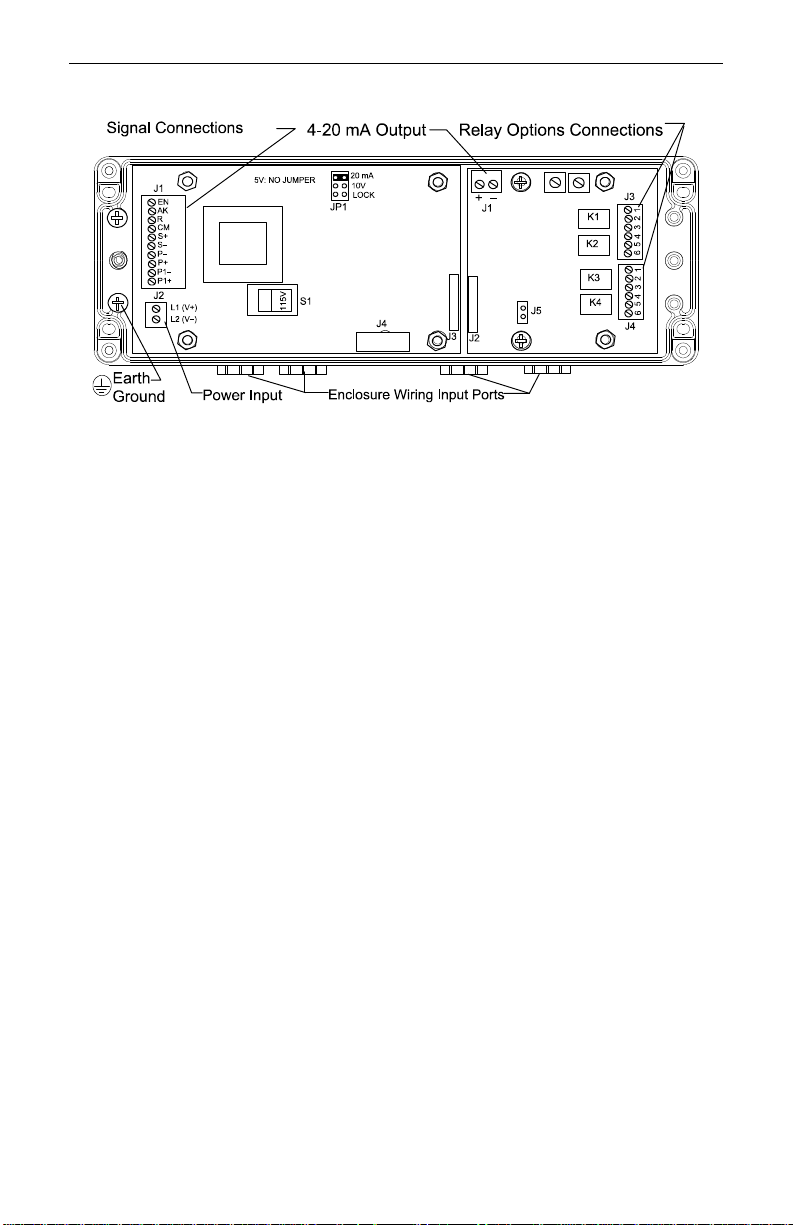

Figure 3. Connections and Jumper Diagram
Connector Location: Function Wire Size
J1 Main Board Signal connections 12-22
J2 Main Board Power connections 12-18
J3 Main Board Connections to
Options Board
J4 Main Board Connections to
Display Board
J1 Options Board 4-20 mA output 12-22
J2 Options Board Connections to Main Board
J3 Options Board Relays 1 & 2 Connections 12-18
J4 Options Board Relays 3 & 4 Connections 12-18
21
Model PD650 Large Display Process Meter Instruction Manual
Figure 4. Options Board Connectors and J5 Jumper
Wiring
Instructions
Refer to Figure 3 and Figure 4 for connectors’ location.
1. All field connections to be made with insulated copper wire, either solid or
stranded. Tighten all screw terminals to 4.5 lb-in (0.5 Nm).
Strip length = ¼ in (7 mm). DO NOT
2. Terminals Earth Ground, L2(V-), L1(V+) on J2, Main Board and
terminals 1-6 on J3-J4, Options Board : Use AWG #12-18 wire, 600 volt,
60°C. Connect only one wire to each terminal.
3. Terminals EN, AK, R, CM, S+, S-, P-, P+, P1-, P1+ on J1 Main Board and
terminals +, - on Options Board: Use AWG #12-22 wire, 150 volt, 60°C. If
using AWG #20 or smaller wire, up to two wires may be connected to each
terminal. If using AWG #18 or larger wire, only one wire may be connected
to each terminal.
4. Install conduit hubs to the enclosure cable input ports. To maintain
NEMA 4X rating use only UL/CSA watertight conduit hubs.
5. Feed all wires through the enclosure cable input ports.
6. Remove one connector at a time from the headers and connect the wires to
the connector.
7. After wiring a connector, insert it back into the header.
pre-treat wire with solder.
Terminals Designation
Terminal Description Terminal Description
L1, L2, Gnd AC input power
V+, V- DC input power
EN External Enter P+, P-
AK External relay
acknowledge
R External total reset 1-6
CM Common (return) for
S+, S- Input signal
P1+, P1-
+, -
(Options Board)
(Option Board)
22
AK, EN, & R
24 VDC output
power supplies
4-20 mA output
(see page 26)
Relays 1-4
(see page 26)
Model PD650 Large Display Process Meter Instruction Manual
Power Connections
!
Refer to Changing from 115 to 230 VAC Power, page 20, to make sure meter
is set up to accept proper voltage before applying power.
!
Disconnect power to the meter before making any connections.
!
Do not connect Power or Earth Ground to any unused or CM terminals.
Connecting 230 VAC with 115 VAC selected will result in damage to the
instrument as well as endanger personnel. Connecting AC power when meter is
set up for DC power will result in damage to the instrument as well as endanger
personnel.
Connect power to terminals L2(V-) and L1(V+). Connect Earth Ground to screw
terminal marked with Ground symbol on the enclosure’s base (see Figure 3).
Figure 5. Input Power Connections
Notice:
• Primary voltages must not be accessible to the user.
• Primary wires must be installed in accordance to the applicable standards.
• Keep the primary wires separated from signal cables.
23
Model PD650 Large Display Process Meter Instruction Manual
Signal Connections
Signal connections are made to a 10-position connector J1 on the Main Board.
This connector also includes connections for Enter, Acknowledgement, Reset
Total, and Common. Refer to Figure 3 for location of J1.
Figure 6. Two-Wire Transmitter Powered by Meter
Figure 7. Two-Wire Transmitter Powered by External Supply
24
Model PD650 Large Display Process Meter Instruction Manual
3-Wire
Transducer
Figure 8. Three-Wire Transducer Powered by Meter
Figure 9. Direct Voltage Signal Connections
25
Model PD650 Large Display Process Meter Instruction Manual
Enter, Acknowledgement, and Reset Total Connections
Enter, acknowledgement, and reset total terminals provide a convenient method
to remotely access the following functions:
Terminal Function
EN Programs meter via the front panel menu
AK
R Resets total to zero
Acknowledges or resets relays, exit menu
scroll
Hold reading switch
ACK switch
ENTER switch
Figure 10. External Control Connections
Optional Relays & 4-20 mA Output Terminals
Depending on the model number, the Options Board may contain 2 or 4 relays
and an isolated 4-20 mA output transmitter. Relay connections are made to
removable screw terminal connectors located at J3 and J4 on the Option Board.
Connections for the isolated 4-20 mA output option are made to J1 on the
Options Board. Refer to Figure 4, page 22 for connectors’ location.
J1
J3
J4
Figure 11. Relay and 4-20 mA Output Terminals
PD375
PD376
PD374
PD378
PD377
26
Model PD650 Large Display Process Meter Instruction Manual
Isolated 4-20 mA Output Option Connections
The meter can be equipped with an isolated 4-20 mA output signal opti on that
can be programmed to produce a 4-20 mA output for virtually any process/rate
display with at least a 501 count span.
The meter can power both the input loop and the isolated 4-20 mA output loop.
The following diagrams illustrate the 4-20 mA output signal being powered from
the meter’s internal power supply (AC powered units only) and by an external
power supply.
Figure 12. Both Input and Output Loops Powered by Meter
Figure 13. Input Loop Powered by Meter, Output Loop Powered from
External Supply
If the output loop is powered by an external supply, the loop power
!
supply must be turned on before the meter is turned on. Otherwise,
the output loop signal may be incorrect.
27
Model PD650 Large Display Process Meter Instruction Manual
Programming
Overview
The meter is programmed using the ENTER button and three jumper arrays. The
ENTER button is used to calibrate the meter, program various totalizer functions,
and set alarm trip and reset points. The jumper arrays are used for programming
the input signal, lockout, relays acknowledge enable, and relays fail-safe
operation. This section of the manual deals with programming the following
aspects of the meter:
• Basic Meter
• Process/Rate Meter
• Totalizer
• Batch Controller
• Relays
• 4-20 mA Output
• Lockout and Display Selection
General Programming Description
All programming is performed using the ENTER button. To set up a function
there are sequential steps that have to be performed. As each step progresses,
either a single digit or the entire display will flash. The flashing digit, or flashing
display, will be looking for acknowledgement if it is the desired di git or display.
Pressing the ENTER button will accept the value. If the flashing display or digit is
not the one desired, wait and the value will change.
Each digit will flash for 3 seconds before it starts to change, when it is accepted
the next digit will flash for 3 seconds. This procedure will continue until the
ENTER button is pressed while the desired option is flashing. As the
programming progresses there will be times when a decision has to be made, an
example is yes or no ( y or n ).
ENTER and ACK Functionality
The ENTER button is used to program the meter for various functions.
The ACK b utton is used to acknowledge the relays during operation and to quit
main menu scroll during programming, diagnostic menu, and calibration.
28
Model PD650 Large Display Process Meter Instruction Manual
On the bottom PCB
Figure 14. Jumper Arrays and Status LED Identification
ENTER Button
The ENTER button is used to program the meter for various functions and is
located behind the front panel on the Display Board, It is labeled SW2 in Figure
14 above. The ENTER button can also be accessed by wiring a normally open
pushbutton switch across terminals EN and CM on connector J1 located on the
Main Board (see Figure 3, page 21).
Jumper Arrays Function and Location
Jumper Array Function Label Location Diagram
Input signal and Lockout JP1 Main Board Figure 3
Relay ACK enable JP5 Display Board Figure 14
Fail-safe J5 Options Board Figure 4
29
