PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

PRECISION DIGITAL CORPORATION

233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • Fax (508) 655-8990

www.predig.com

• 1/8 DIN Digital Panel Flow Rate/Totalizers with NEMA 4X, IP65 Front

• Dual Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, Sine Wave (Coil), Square Wave Inputs

• Rate, Total, and Grand Total for Each Input Channel

• Dual-Line 6-Digit Display, 0.6" (15 mm) & 0.46" (12 mm)

• Isolated 5, 10 or 24 VDC Flowmeter Power Supply

• 2 or 4 Relays + Isolated 4-20 mA Output Options

• Free PC-Based, On-Board, MeterView Pro USB Programming Software

• No Assembly Required

• Gate Function for Display of Slow Pulse Rates

• K-Factor, Internal Scaling, or External Calibration

• Optional SunBright Display Models for Outdoor Applications

• Operating Temperature Range: -40 to 65°C (-40 to 149°F)

• UL & C-UL Listed. E160849; 508 Industrial Control Equipment

• Input Power Options: 85-265 VAC / 90-265 VDC or 12-24 VDC / 12-24 VAC

• Programmable Display, Function Keys & Digital Input

• External 4-Relay, Dual Analog Output, & Digital I/O Expansion Modules

• RS-232 & RS-485 Serial Communication Options with Modbus RTU

• Password Protection

• Wide Assortment of NEMA 4X Enclosures for up to Ten Meters

• Light / Horn & Reset Button Accessory

• Control Station Accessory for Remote Operation

• 3-Year Warranty

MeterView Pro

USB Install

Page 2

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Disclaimer

The information contained in this document is subject to change without notice. Precision Digital makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. See Warranty Information and Terms & Conditions on www.predig.com for complete details.

• Read complete instructions prior to installation and operation of the meter.

• Risk of electric shock or personal injury.

• This product is not recommended for life support

applications or applications where malfunctioning could result in personal injury or property loss. Anyone using this product for such applications does so at his/her own risk. Precision Digital Corporation shall not be held liable for damages resulting from such improper use.

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Limited Warranty

Precision Digital Corporation warrants this product against defects in material or workmanship for the specified period under

“Specifications” from the date of shipment from

the factory. Precision Digital’s liability under this limited warranty shall not exceed the purchase value, repair, or replacement of the defective unit. See Warranty Information and Terms & Conditions on www.predig.com for complete details.

Registered Trademarks

All trademarks mentioned in this document are the property of their respective owners.

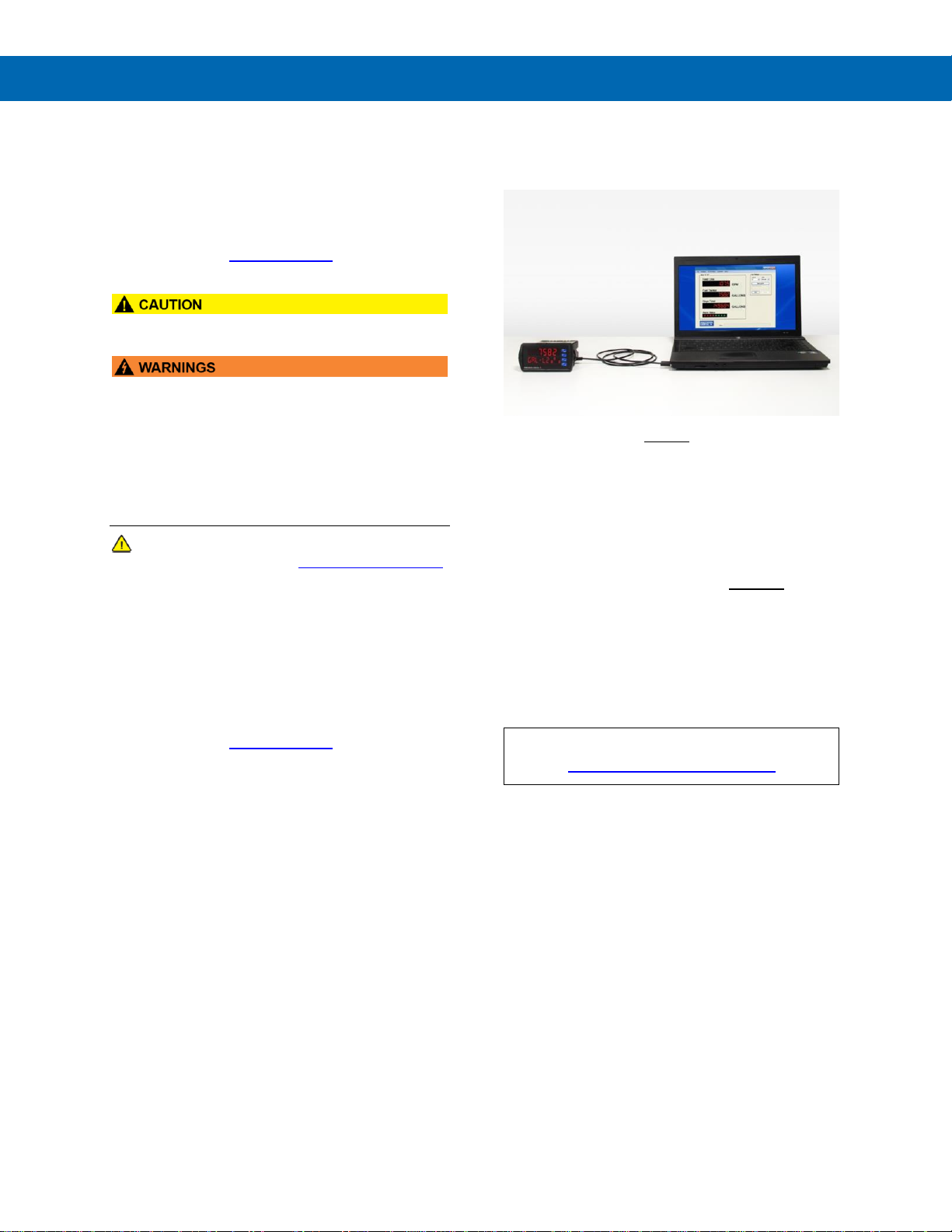

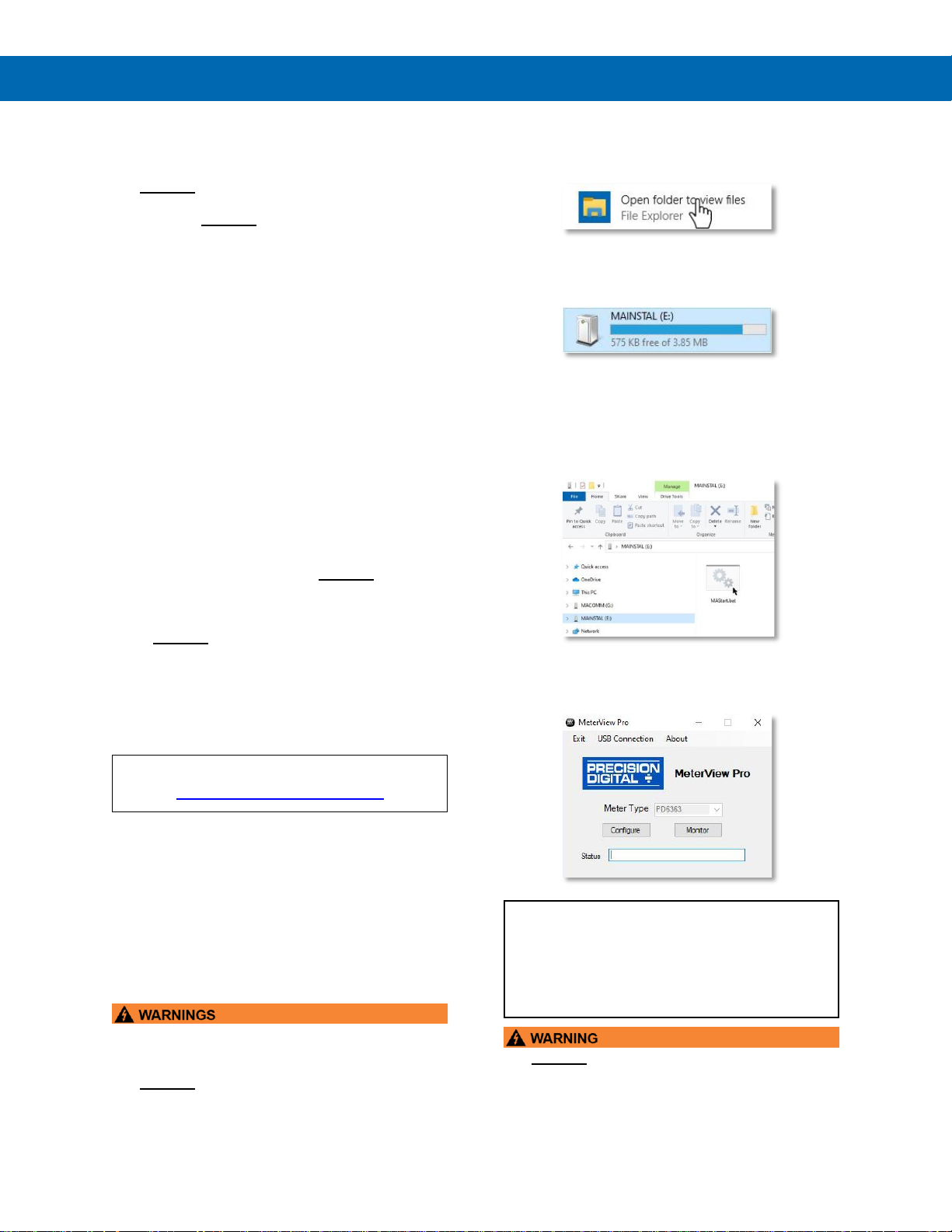

FREE MeterView Pro Programming Software

The meter can be powered from the USB connection. When using the USB connection, DO NOT apply AC or DC power to the meter.

The easiest and quickest way to program your PROVU meter is to use the FREE MeterView Pro programming software. This software is loaded into the meter and connects and installs directly to your PC with a USB cable. We recommend that the first thing you do after taking the meter out of the box is connect the PROVU to your PC with the provided USB cable – do not use a different cable. DO NOT apply AC or DC power to the meter while your PC is connected to the meter as it will disrupt the USB

connection. You don’t even have to apply an input

signal. MeterView Pro programming software is intuitive, and

most customers can get their meter programmed as they like without even looking in the manual.

Watch MeterView Pro Software Video at

www.predig.com/meterviewpro

In addition to programming, the software may be used for:

• Monitoring

• Datalogging using your PC

• Generating and saving programming files for

later use

Once your meter is programmed the way you want it, you can wire it up for your application per the instructions in this manual and install it. If you find that you need to make adjustments to the programming after the meter is installed, you can use the front panel buttons and the instructions in this manual to do so.

Page 3

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Table of Contents

Introduction .......................................................................................................... 6

Ordering Information ........................................................................................... 6

Specifications..................................................................................................... 10

General ........................................................................................................... 10

Dual Pulse Inputs .......................................................................................... 11

Dual Rate/Totalizer ........................................................................................ 12

Relays ............................................................................................................. 12

Isolated 4-20 mA Flowmeter Output ............................................................ 13

USB Connection ............................................................................................ 13

On-Board Digital Input (F4) ........................................................................... 13

Modbus® RTU Serial Communications ........................................................ 13

MeterView Pro Software ................................................................................ 13

Compliance Information .................................................................................... 14

Safety .............................................................................................................. 14

Electromagnetic Compatibility ..................................................................... 14

EU Declaration of Conformity ........................................................................... 14

Safety Information ............................................................................................. 14

Installation .......................................................................................................... 14

Unpacking ...................................................................................................... 14

Panel Mounting Instructions ........................................................................ 15

Mounting Dimensions .................................................................................. 15

Installation Overview ..................................................................................... 16

MeterView Pro Software ................................................................................ 16

MeterView Pro Installation........................................................................... 16

Flowmeter Supply Voltage Selection (P+, P-) ................................................. 17

Connections ................................................................................................... 17

Connectors Labeling ................................................................................... 17

Power Connections ..................................................................................... 18

Signal Connections ..................................................................................... 18

Configure Input Type and Level Switches ................................................... 19

Modbus RTU Serial Communications ......................................................... 19

Relay Connections ...................................................................................... 19

Switching Inductive Loads ........................................................................... 19

F4 Digital Input Connections ....................................................................... 20

4-20 mA Output Connections ...................................................................... 20

Analog Output Flowmeter Power Supply .................................................... 20

External Relay, Analog Output, & Digital I/O Connections .......................... 21

Remote Operation of Meter ......................................................................... 21

Interlock Relay Feature ............................................................................... 21

Setup and Programming ................................................................................... 22

Front Panel Buttons and Status LED Indicators ........................................ 22

Display Functions & Messages .................................................................... 23

Main Menu ...................................................................................................... 26

Setting Numeric Values ................................................................................ 26

Setting Up the Meter (setup) ........................................................................ 27

Setting the Input Signal (Input) .................................................................. 28

Setting the Totalizer Features (total) ................................................... 28

Setting the Dual-Input Mode (nmode) ...................................................... 28

Setting the Rate, Total, & Grand Total Units/Tags (units)......................... 30

Setting the Decimal Point (dEc pt)............................................................. 30

Programming the Rate/Totalizer (prog) ...................................................... 31

Input Calibration Method (InCAL) ........................................................... 31

K-Factor Calibration (Fact-A, Fact-b)................................................... 31

Scaling the Meter without a Signal Source (SCAL-A, SCAL-B) ................ 31

Scaling the Meter for Channel A (SCal-A).............................................. 32

Error Message (Error) ........................................................................... 32

Calibrating the Meter with External Source (CAL-A, CAL-B) ................... 32

Total & Grand Total Setup (tsetup) ....................................................... 33

Total & Grand Total Reset (treset) ....................................................... 33

Setting the Display Parameters & Intensity (dsplay).................................. 34

Page 4

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Display Intensity (d-Inty) ........................................................................... 34

Setting the Relay Operation (relay) ........................................................... 35

Setting the Relay Assignment (asSign) ................................................. 35

Setting the Relay Action (Act) ................................................................ 35

Programming Set and Reset Points........................................................ 36

Setting Fail-Safe Operation..................................................................... 36

Programming Time Delay ....................................................................... 36

Relay and Alarm Operation Diagrams ......................................................... 37

High Alarm Operation (Set > Reset)................................................................ 37

Low Alarm Operation (Set < Reset) ............................................................ 37

High Alarm with Fail-Safe Operation (Set > Reset) ..................................... 37

Low Alarm with Fail-Safe Operation (Set < Reset) ..................................... 37

Time Delay Operation .................................................................................... 38

Total Relay Sampling Operation ................................................................. 38

Pump Alternation Control Operation ........................................................... 39

Relay Operation Details ................................................................................ 40

Overview ..................................................................................................... 40

Relays Auto Initialization ............................................................................. 40

Fail-Safe Operation ..................................................................................... 40

Front Panel LEDs ........................................................................................ 40

Latching and Non-Latching Relay Operation .............................................. 40

Non-Latching Relay (Auto) ......................................................................... 41

Non-Latching Relay with Manual Reset (A-nman) ....................................... 41

Latching Relay (LatcH) ............................................................................... 41

Latching Relay with Clear (Lt-Clr) ............................................................ 41

Acknowledging Relays ................................................................................ 41

Setting Up the Interlock Relay (Force On) Feature ..................................... 42

Scaling the 4-20 mA Analog Output (Aout)................................................. 42

Reset Menu (reset) ....................................................................................... 42

Manual Control Menu (Contrl) ..................................................................... 42

Setting Up the Password (pass) ................................................................... 43

Protecting or Locking the Meter Functions .................................................. 43

Total Reset Password & Non-Resettable Total ........................................... 43

Making Changes to a Password Protected Meter ....................................... 43

Disabling Password Protection.................................................................... 43

Advanced Features Menu ............................................................................. 44

Advanced Features Menu & Display Messages.......................................... 44

Gate Function (Gate) .................................................................................. 45

Contact De-Bounce Filter (FiLter)............................................................. 46

Rounding Feature (round) .......................................................................... 46

Modbus RTU Serial Communications (serial) .......................................... 46

Select Menu (SElect) ................................................................................. 47

Input Signal Conditioning (Functn) ............................................................. 47

Multi-Point Linearization (Linear) .......................................................... 47

Math Function (nmath) ................................................................................ 48

Math Constants (Const) .............................................................................. 48

Low-Flow Cutoff (CutofF) ........................................................................... 48

Totalizer Count Up/Down (Count) ............................................................... 49

Analog Output Programming (AoutPr) ....................................................... 50

Analog Output Calibration Procedure ..................................................... 50

Programmable Function Keys User Menu (user) ....................................... 51

Meter Operation ................................................................................................. 53

Front Panel Buttons Operation .................................................................... 53

Function Keys Operation .............................................................................. 53

F4 Operation .................................................................................................. 53

Maximum/Minimum Readings ...................................................................... 53

Troubleshooting................................................................................................. 54

Diagnostics Menu (diag) .............................................................................. 54

Testing the Display LEDs ............................................................................ 54

Determining Software Version..................................................................... 54

Reset Meter to Factory Defaults ................................................................... 54

Factory Defaults & User Settings ................................................................ 55

Troubleshooting Tips .................................................................................... 57

Page 5

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Table of Figures

Figure 1. 1/8 DIN Panel Cutout Dimensions .................................................... 15

Figure 2. Panel Mounting Details ..................................................................... 15

Figure 3. Meter Dimensions - Side View .......................................................... 15

Figure 4. Meter Dimensions - Top View ........................................................... 15

Figure 5. Flowmeter Supply Voltage Selection ............................................... 17

Figure 6. PD6363-##0 Connectors Label ......................................................... 17

Figure 7. PD6363-##2 Connectors Label ......................................................... 17

Figure 8. PD6363-##3 Connectors Label ......................................................... 17

Figure 9. PD6363-##4 Connectors Label ......................................................... 17

Figure 10. PD6363-##5 Connectors Label ....................................................... 17

Figure 11. PD6363-##7 Connectors Label ....................................................... 17

Figure 12. Power Connections ......................................................................... 18

Figure 13. Flowmeters Powered by Internal Power Supply ........................... 18

Figure 14. Flowmeters Powered by External Supply...................................... 18

Figure 15. Self-Powered Magnetic Pickup Coil Flowmeter ............................ 18

Figure 16. NPN open Collector Input ............................................................... 18

Figure 17. PNP Sensor Powered by Internal Supply ...................................... 18

Figure 18. Switch Input Connections ............................................................... 18

Figure 19. Relay Connections........................................................................... 19

Figure 20. AC and DC Loads Protection .......................................................... 19

Figure 21. Low Voltage DC Loads Protection ................................................. 19

Figure 22. F4 Digital Input Connections .......................................................... 20

Figure 23. 4-20 mA Output Connections ......................................................... 20

Figure 24. Analog Output Supply Powering Other Devices........................... 20

Figure 25. Expansion Module & DIN Rail Mounting Kit .................................. 21

Figure 26. External Relays Module Connections ............................................ 21

Figure 27. Digital I/O Module Connections ...................................................... 21

Figure 28. Dual 4-20 mA Output Module Connections ....................................... 21

Figure 29. Meter to Control Station Connections ........................................... 21

Figure 30. Interlock Connections ..................................................................... 21

Figure 31. Dual Input Mode (ud AB).................................................................. 28

Figure 32. Dual Input Mode (ud AI).................................................................. 28

Figure 33. Dual Input Mode (ud BI).................................................................. 29

Figure 34. Dual Input Mode (quad 1)................................................................ 29

Figure 35. Dual Input Mode (quad 2)................................................................ 29

Figure 36. Dual Input Mode (quad 4)................................................................ 29

Page 6

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Introduction

The PROVU PD6363 is a multipurpose, easy to use digital dual pulse input rate/totalizer ideal for flow rate, total, and flow control applications. Its superluminous LED digits make it easily readable in smoke, dust, fog, and, with the optional SunBright display, even direct sunlight.

It accepts two pulse (e.g. 40 mVp-p to 8 Vp-p), square wave (0-5 V, 0-12 V, or 0-24 V), open collector, NPN, PNP, TTL or switch contact signals. Various math functions may be applied to the rate, total, or grand totals of the two channels; including addition, difference, average, minimum, maximum, draw, ratio and more.

The displays, relays, and the analog output may be assigned to the rate, total, or grand total of input channels A or B; or math result channel C. Three of the front panel buttons can be custom-programmed for a specific operation.

The basic model includes an isolated 24 VDC flowmeter power supply that can be used to power the input flowmeters or other devices. An additional isolated 24 VDC power supply is included with the 4-20 mA output option. A digital input is standard.

A fully loaded PD6363 meter has the following: four SPDT relays, 4-20 mA output, and two 24 VDC power supplies. The PD6363 capabilities may be enhanced by adding the following external expansion modules: four SPST relays –creating an eight-relay dual-input process meter, two digital I/O modules with four inputs and four outputs each, serial communication adapters for use with MeterView Pro or Modbus RTU, and a dual isolated 4-20 mA output expansion module.

Ordering Information

Standard Models

85-265 VAC Model

12-24 VDC Model

Options Installed

PD6363-6R0

PD6363-7R0

No options

PD6363-6R2

PD6363-7R2

2 relays

PD6363-6R3

PD6363-7R3

4-20 mA output

PD6363-6R4

PD6363-7R4

4 relays

PD6363-6R5

PD6363-7R5

2 relays & 4-20 mA output

PD6363-6R7

PD6363-7R7

4 relays & 4-20 mA output

SunBright Display Models

85-265 VAC Model

12-24 VDC Model

Options Installed

PD6363-6H0

PD6363-7H0

No options

PD6363-6H2

PD6363-7H2

2 relays

PD6363-6H3

PD6363-7H3

4-20 mA output

PD6363-6H4

PD6363-7H4

4 relays

PD6363-6H5

PD6363-7H5

2 relays & 4-20 mA output

PD6363-6H7

PD6363-7H7

4 relays & 4-20 mA output

Accessories

Model

Description

PDA1002

DIN rail mounting kit for two devices

PDA1004

4 SPST (Form A) relays module

PDA1011

Dual isolated analog output

PDA1044

4 digital inputs & 4 digital outputs module

PDA1232

RS-232 serial adapter

PDA1485

RS-485 serial adapter

PDA7485-I

RS-232 to RS-485 isolated converter

PDA8008

USB Adapter

PDA8232-N

USB to RS-232 non-isolated converter

PDA8485-I

USB to RS-485 isolated converter

PDA-LH

Light / horn accessory

MOD-LH

Light / horn / enclosure modification

PDA2360

Plastic control stations series

PD659

Signal isolators, splitters, & conditioners

PD9501

Multi-function calibrator

PD9502

Low-cost signal generator

PDX6901

Snubber: 0.01 μF/470 Ω, 250 VAC

Enclosures

Series

Meters

Material

PDA2300

1-10

Plastic NEMA 4X

PDA2500

1-6

Plastic NEMA 4X

PDA2600

1-6

Stainless Steel NEMA 4X

PDA2700

1-6

Painted Steel NEMA 4

PDA2800

1-2

Plastic NEMA 4X

PDA3400

1-3

Plastic NEMA 4X

Need help selecting the right enclosure?

Go to www.predig.com/esu

Replacement Option Cards

Model

Options Installed

PD1102

2 relays

PD1103

4-20 mA output

PD1104

4 relays

PD1105

2 relays & 4-20 mA output

PD1107

4 relays & 4-20 mA output

Page 7

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

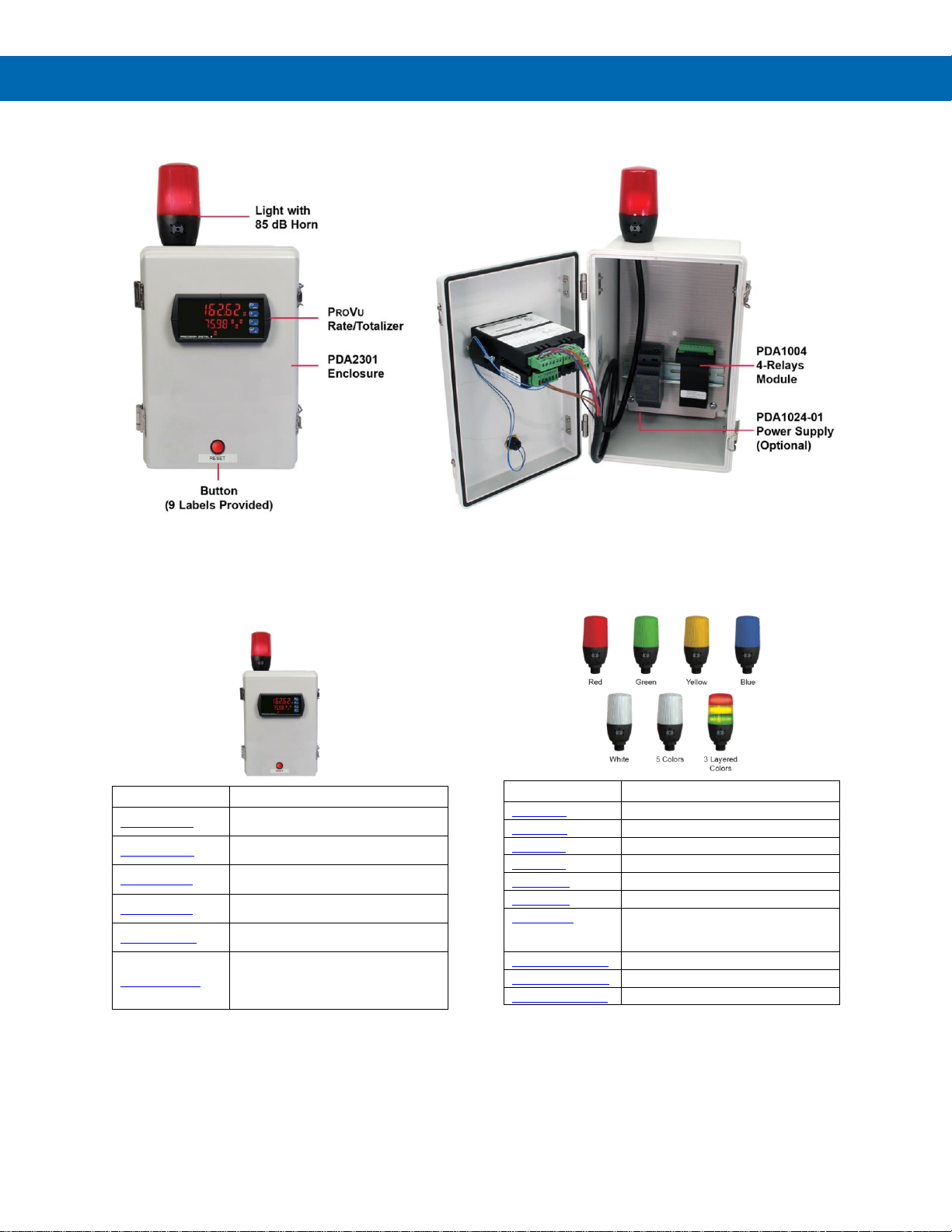

Light / Horn Accessories

PROVU Meter Shown in a PDA2301 Enclosure with MOD-LHRB1 Red Light / Horn and Button. Meter & Enclosure Sold Separately. Assembly Required.

MOD-LH

Model

Description

MOD-LHRB1

Red Light / Horn and Button with Holes Drilled in Enclosure

(1)

MOD-LHGB1

Green Light / Horn and Button with Holes Drilled in Enclosure

(1)

MOD-LHYB1

Yellow Light / Horn and Button with Holes Drilled in Enclosure

(1)

MOD-LHBB1

Blue Light / Horn and Button with Holes Drilled in Enclosure

(1)

MOD-LHWB1

White Light / Horn and Button with Holes Drilled in Enclosure

(1)

MOD-LH5CB1

Light / Horn with User Choice of Red, Green, Yellow, Blue or White Light, Button, and Holes Drilled in Enclosure

(1)

Note:

1. This MOD supplies the Light / Horn and Button. The enclosure comes pre-drilled with holes for Light / Horn and Button and the user performs the installation and wiring. Meter and enclosure are sold separately. The Light / Horn hole is in the back left corner of the enclosure and the Button is centered on the cover of the enclosure below the meter about an inch off the bottom of the cover except on the PDA3400 series where it is mounted on the side of the enclosure.

PDA-LH & PDA-BUTTON

Model

Description

PDA-LHR

Red Light / Horn

PDA-LHG

Green Light / Horn

PDA-LHY

Yellow Light / Horn

PDA-LHB

Blue Light / Horn

PDA-LHW

White Light / Horn

PDA-LHW

White Light / Horn

PDA-LH5C

Light / Horn with User Choice of Red, Green, Yellow, Blue or White Light

PDA-BUTTON1R

Red Button

PDA-BUTTON1G

Green Button

PDA-BUTTON1B

Blue Button

Page 8

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

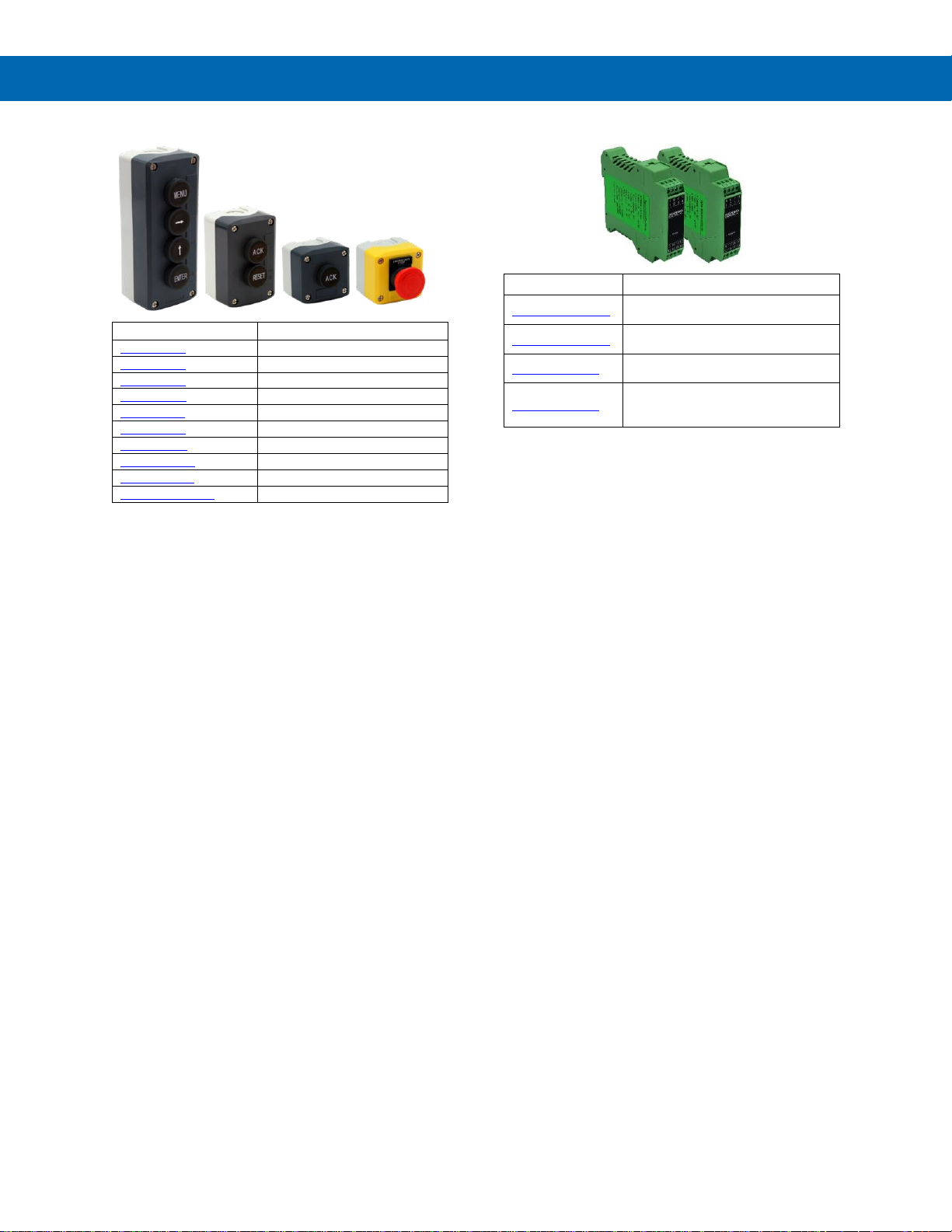

PDA2360 Control Stations

Model

Description

PDA2360-E

Emergency button

PDA2361-A

Ack button

PDA2361-B

Blank button

PDA2361-R

Reset button

PDA2361-T

Tare button

PDA2361-S

Stop button

PDA2361-Q

Silence button

PDA2362-AR

Ack and Reset buttons

PDA2362-BB

Two blank buttons

PDA2364-MRUE

Menu, right, up, enter buttons

Note: Control stations with one button may be connected directly to the meter via the F4 terminal. A PDA1044 (4) digital inputs & (4) digital outputs module is required to operate the control stations of more than one button. See Remote Operation of Meter on page 21 for details.

Signal Splitter & Conditioner Accessories

Model

Description

PD659-1MA-1MA

Signal Isolator with One 4-20 mA Input and One 4-20 mA Output

PD659-1MA-2MA

Signal Splitter with One 4-20 mA Input and Two 4-20 mA Outputs

PD659-1V-1MA

Signal Conditioner with One 0-10 VDC Input and One 4-20 mA Output

PD659-1MA-1V

Signal Conditioner with One 4-20 mA Input and One 0-10 VDC Output

Page 9

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

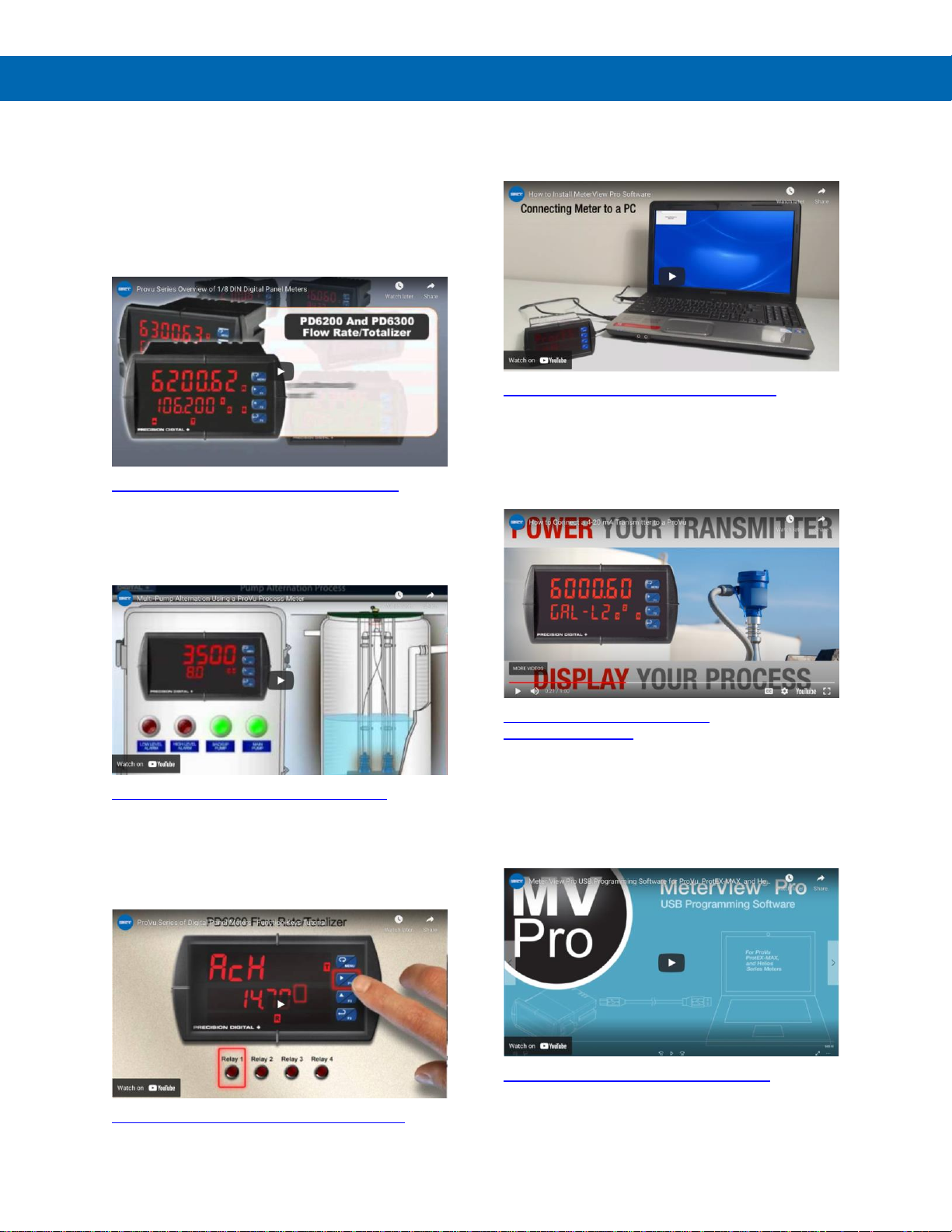

Helpful Videos

Precision Digital's PROVU Series is a powerful line of 1/8 DIN meters that boasts advanced functionality for various applications. The following videos might be of interest.

PROVU Series Overview

Learn about all the meters in the PROVU Series.

https://www.predig.com/videos/E4gmQrAeT8o

PROVU Multi-Pump Alternation

Learn how to use the PROVU as a pump controller.

https://www.predig.com/videos/PumpControl

PROVU Function Keys Tutorial

Learn how the PROVU’s function keys increase the utility of the PROVU.

https://www.predig.com/videos/WMBYKlavW-Q

Connect a PROVU to a PC Using MeterView Pro

Learn how easy it is to use MeterView Pro software.

https://www.predig.com/videos/PC_Connect

Connect a 2-Wire 4-20 mA Transmitter to a PROVU

Learn how to connect your transmitter to a PROVU.

https://www.predig.com/videos/420_mA_Connections

MeterView Pro USB Programming Software

Learn how easy it is to program a PROVU PD6000 process meter.

https://www.predig.com/videos/MVPro_SW

Page 10

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Specifications

Except where noted all specifications apply to operation at +25°C.

General

Display

Line 1: 0.60" (15 mm) high, red LEDs Line 2: 0.46" (12 mm) high, red LEDs 6 digits each (-99999 to 999999), with lead zero blanking

Display Intensity

Eight user selectable intensity levels Default value is six.

Display Update Rate

Rate: 10 per second; up to 1 per 100 seconds (and is a function of Low Gate setting); Total: 10 per second (fixed)

LED Status Indicators

See Front Panel Buttons and Status LED Indicators on page 22 for details.

Overrange

Display flashes 999999

Display Assignment

Display lines 1 & 2 may be assigned to show:

• One or more rate channels: Channel A (Ch-A), B (Ch-B), or C (Ch-C)

• Toggle between rate channels: Ch-A & Ch-B, Ch-A & Ch-C, Ch-B & Ch-C, and Ch-A, Ch-B, & Ch-C

• Total or grand total: Ch-A or Ch-B

• Rate and total or grand total:

Ch-A or Ch-B

• Relay set points

• Max and/or min values:

Ch-A, Ch-B, or Ch-C

• Toggle between any rate channel & units

• Total and units: Ch-A or Ch-B

• Toggle between totals:

Ch-A & Ch-B; Ch-A, Ch-B, and sum of Ch-A and Ch-B

• Modbus input

Line 2 may also be set to show engineering units or be off, with no display.

Programming Methods

Four front panel buttons, digital inputs, PC and MeterView Pro software, or Modbus registers.

Recalibration

All ranges are calibrated at the factory. Recalibration is recommended at least every 12 months.

Max/Min Display

Max/min readings reached by the process are stored until reset by the user or until power to the meter is turned off.

Rounding

Select 1, 2, 5, 10, 20, 50, or 100 (e.g. rounding = 10, value = 123.45,

display = 123.50).

Password

Three programmable passwords restrict modification of programmed settings and two prevent resetting the totals.

Pass 1: Allows use of function keys and digital inputs Pass 2: Allows use of function keys, digital inputs and editing set/reset points Pass 3: Restricts all programming, function keys, and digital inputs. Total: Prevents resetting the total manually Gtotal: Prevents resetting the grand total manually

Non-Volatile Memory

All programmed settings are stored in nonvolatile memory for a minimum of ten years if power is lost.

Power Options

85-265 VAC 50/60 Hz; 90-265 VDC, 20 W max; 12-24 VDC, 12-24 VAC, 15 W max. Powered over USB for configuration only.

Fuse

Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse

Isolation

4 kV input/output-to-power line 500 V input-to-output or output-to-P+ supply

Overvoltage Category

Installation Overvoltage Category II: Local level with smaller transient

overvoltages than Installation Overvoltage Category III.

Environmental

Operating temperature range:

-40 to 65°C (-40 to 149°F)

Storage temperature range:

-40 to 85°C (-40 to 185°F)

Relative humidity:

0 to 90% non-condensing

Connections

Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters.

Enclosure

1/8 DIN, high impact plastic, UL 94V-0, color: black

Front Panel

NEMA 4X, IP65

Mounting

1/8 DIN panel cutout required:

3.622" x 1.772" (92 mm x 45 mm) Two panel mounting bracket assemblies are provided.

Tightening Torque

Screw terminal connectors: 5 lb-in (0.56 Nm)

Overall Dimensions

4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm) (W x H x D)

Weight

9.5 oz (269 g)

Warranty

3 years parts & labor. See Warranty Information and Terms & Conditions on

www.predig.com for complete details.

Page 11

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Dual Pulse Inputs

Two Inputs

Field selectable: Pulse or square wave 0-5 V, 0-12 V, or 0-24 V @ 30 kHz; TTL; open collector 4.7 k pull-up to 5 V @ 30 kHz; NPN or PNP transistor, switch contact 4.7 k pull-up to 5 V @ 40 Hz; Modbus PV (Slave)

Isolated Flowmeter Power Supply

Terminals P+ & P-: 24 VDC 10%. All models selectable for 24, 10, or 5 VDC

supply (internal jumper J4). 85-265 VAC models rated @ 200 mA max, 12-24 VDC powered models rated @ 100 mA max. 5 & 10 VDC supply rated @ 50 mA max. Refer to Flowmeter Supply Voltage Selection (P+, P-) on page 17.

When the Light / Horn is powered by the flowmeter power supply, see MOD-LH Light / Horn's flowmeter power supply specification in MOD-LH manual for additional details. Light / Horn power not available for 5 or 10 VDC supplies.

Channels

Channel A, Channel B, Channel C (Math channel)

Programmable Constants

Constant P (Adder):

-99.999 to 999.999, default: 0.000

Constant F (Factor):

0.001 to 999.999, default: 1.000

Math Functions

Name

Function

Setting

Addition

(A+B+P)*F

Sunm

Difference

(A-B+P)*F

diF

Absolute diff.

((Abs(A-B))+P)*F

diFAbS

Average

(((A+B)/2)+P)*F

AVG

Multiplication

((A*B)+P)*F

nmulti

Division

((A/B)+P)*F

diVide

Max of A or B

((AB-Hi)+P)*F

Hi-Ab

Min of A or B

((AB-Lo)+P)*F

Lo-Ab

Draw

((A/B)-1)*F

drAuw

Weighted avg.

((B-A)*F)+A

uw avg

Ratio

(A/B)*F

ratio

Ratio 2

((B-A)/A)+P)*F

ratio2

Concentration

(A/(A+B))*F

Concen

Total Addition

(tA+tB+P)*F

Sunm t

G. Tot. Addition

(GtA+GtB+P)*F

SunmGT

Total Difference

(tA-tB+P)*F

Dif GT

G. Tot. Difference

(GtA-GtB+P)*F

Dif GT Total Ratio

(tA/tB)*F

Tratio

Total Ratio 2

((tB-tA)/tA)*F

t-rat2

Total Percent

(tA/(tA+tB))*100

T PCT

Note: The F constant can be any value from

0.001 to 999.999. If the value is less than 1, it will have the same effect as a divider. For example, the average could also be derived by using (A+B)*F, where F = 0.500.

Low Voltage Mag Pickup

Sensitivity: 40 mVp-p to 8Vp-p

Minimum Input Frequency

0.001 Hz Minimum frequency is dependent on high gate setting.

Maximum Input Frequency

30,000 Hz (10,000 for low voltage mag pickup)

Input Impedance

Pulse input: Greater than 300 k @ 1 kHz. Open collector/switch input: 4.7 k pull-up to 5 V.

Input Threshold

Low

High 1.6 V

3.3 V

Sequence of Operations for Input Programming

1. Select Input for A and B

2. Set up the rate, total, and grand total engineering units for channels A & B, and units for math channel C

3. Set up rate, total, and grand total decimal points for channels A & B, and decimal point for math channel C

4. Program channel A & B rate parameters

5. Program channel A & B total and reset parameters

6. Set up display lines 1 & 2 and display intensity

7. Select the transfer function for A & B (e.g. Linear)

8. Select Math function for Channel C

9. Program constants for Factor (F) and Adder (P).

10. Program cutoff values for A and B

Accuracy

±0.03% of calibrated span ±1 count

Temperature Drift

Rate display is not affected by changes in temperature.

Multi-Point Linearization

2 to 32 points for channel A and B

Low-Flow Cutoff

0.1 to 999,999 (0 disables cutoff function).

Point below at which the display always shows zero.

Decimal Point

Up to five decimal places or none: d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd

Calibration

May be calibrated using K-factor, scaling without a signal source, or by applying an external calibration signal.

K-Factor

Field programmable K-factor converts input pulses to rate in engineering units. May be programmed from 0.00001 to 999,999 pulses/unit.

Calibration Range

Input 1 signal may be set anywhere in the range of the meter; input 2 signal may be set anywhere above or below input 1 setting.

Minimum input span between any two inputs is 1.0 Hz for calibration and 0.1 Hz for scaling. An error message will appear if the input span is too small.

Filter

Programmable contact de-bounce filter: 40 to 999 Hz maximum input frequency allowed with low speed filter.

Time Base

Second, minute, hour, or day

Gate

Low gate: 0.1-99.9 seconds High gate: 2.0-999.9 seconds

3.3 V

1.6 V

0 V

Page 12

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Dual Rate/Totalizer

Rate Display Indication

-99999 to 999999, lead zero blanking.

Total Display & Total Overflow

0 to 999,999; automatic lead zero blanking. Up to 999,999,999 with total-overflow

feature. “oF” is displayed to the left of total overflow and ▲ LED is illuminated.

Total Decimal Points

Up to five decimal places or none: d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd Total decimal point is independent of rate decimal point. Channel A and B decimal points programmed independently.

Dual Totalizer

Calculates total for channels A and B based on rate and field programmable multiplier to display total in engineering units. Time base must be selected according to the time units in which the rate is displayed. Channel A and B totalizer parameters programmed independently.

Totalizer Rollover

Totalizer rolls over when display exceeds 999,999,999. Relay status reflects display.

Total Overflow

Override

Program total A or B total reset for automatic with 0.1 second delay and set point 1 for 999,999

Totalizer Alarm Presets

Up to eight, user selectable under setup menu. Any set point can be assigned to channel A or B total or grand total (or C) and may be programmed anywhere in the range of the meter for total alarm indication.

Total & Grand Total Reset

Via front panel button, external contact closure on digital inputs, automatically via user selectable preset value and time delay, or through serial communications. Channel A and B total and grand total reset parameters programmed independently.

Total Reset Password

Total and grand total passwords may be entered to prevent resetting the totals or grand totals from the front panel.

Programmable Delay On Release

0.1 and 999.9 seconds; applied to the

first relay assigned to total or grand total. If the meter is programmed to reset total

to zero automatically when the preset is reached, then a delay will occur before the total is reset.

Non-Resettable Total

The grand totals can be programmed as non-resettable totals by entering the password “050873”. Both channels are set to non-resettable when this password is entered.

• Once the Grand Total has been programmed as “nonresettable” the feature CANNOT be disabled.

Relays

Rating

2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A) external; rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP (≈ 50 W) @ 125/250 VAC for inductive loads

Noise Suppression

Noise suppression is recommended for each relay contact switching inductive loads; see Switching Inductive Loads on page 19 for details.

Relay Assignment

Relays may be assigned to channel A or B rate, total, or grand total; channel C; or Modbus control.

Deadband

0-100% of span, user programmable

High or Low Alarm

User may program any alarm for high or low trip point. Unused alarm LEDs and relays may be disabled (turn off).

Relay Operation

• Automatic (non-latching) and/or manual

reset

• Latching (requires manual acknowledge) with or without clear

• Pump alternation control (2-8 relays)

• Sampling (based on set point and time)

• Off (disable unused relays and enable

Interlock feature)

• Manual on/off control mode

Relay Reset (Acknowledge)

User selectable via front panel button, F4 terminal at back of meter, external contact closure on digital inputs, or through serial communications.

1. Automatic reset only (non-latching), when the input passes the reset point.

2. Automatic + manual reset at any time (non-latching)

3. Manual reset only, at any time (latching)

4. Manual reset only after alarm condition has cleared (L)

Note: Front panel button, F4 terminal at back of meter or digital input may be assigned to acknowledge relays programmed for manual reset.

Time Delay

0 to 999.9 seconds, on & off relay time delays. Programmable and independent for each relay

Fail-Safe Operation

Programmable and independent for each relay.

Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.

Auto Initialization

When power is applied to the meter, relays will reflect the state of the input to the meter.

Additional Relays

An external module, model PDA1004, is available to add 4 SPST 3 A relays to the meter.

Page 13

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Isolated 4-20 mA Flowmeter Output

Output Source

Input channels A or B, rate, total, or grand total; channel C; max or min for channel A or B; highest or lowest max or min of A and B; set points 1-8; Modbus input; or manual control mode

Scaling Range

1.000 to 23.000 mA for any display range

Calibration

Factory calibrated:

4.000 to 20.000 = 4-20 mA output

Analog Out Programming

23.000 mA maximum for all parameters:

Overrange, underrange, max, min, and break

Accuracy

± 0.1% of span ± 0.004 mA

Temperature Drift

0.4 µA/C max from 0 to 65C ambient,

0.8 µA/C max from -40 to 0C ambient

Note: Analog output drift is separate from input drift.

Isolated Flowmeter Power Supply

Terminals I+ & R: 24 VDC  10%. May be used to power the 4-20 mA output or other devices.

All models rated @ 40 mA max.

External Loop Power Supply

35 VDC maximum

Output Loop Resistance

Power supply

Minimum

Maximum

24 VDC

10 

700 

35 VDC (external)

100 

1200 

0-10 VDC Output

The PD659-1MA-1V can convert the optional 4-20 mA output to a 0-10 VDC output

Additional 4-20 mA Outputs

An external module, model PDA1011, is available to add two 4-20 mA outputs to the meter.

USB Connection

Function

Programming only

Compatibility

USB 2.0 Standard, Compliant

Connector Type

Micro-B receptacle

Cable

USB A Male to Micro-B Cable

Driver

Microsoft® Windows® XP/Vista/7/8/10

Power

USB port provides power to the meter.

DO NOT apply AC or DC power to the meter while the USB port is in use.

On-Board Digital Input (F4)

Function

Remote operation of front-panel buttons, acknowledge/reset relays, reset totals, reset max/min values. See

Function Keys & Digital I/O Available Settings on page 52 for a complete list of capabilities.

Contacts

3.3 VDC on contact. Connect normally

open contacts across F4 to COM

Logic Levels

Logic High: 3 to 5 VDC Logic Low: 0 to 1.25 VDC

Additional I/O

Up to 2 external modules, model PDA1044 with 4 digital inputs and 4 digital outputs each can be added.

Modbus® RTU Serial Communications

Slave Id

1 – 247 (Meter address)

Baud Rate

300 – 19,200 bps

Transmit Time Delay

Programmable between 0 and 199 ms

Data

8 bit (1 start bit, 1 or 2 stop bits)

Parity

Even, Odd, or None with 1 or 2 stop bits

Byte-To-Byte Timeout

0.01 – 2.54 second

Turn Around Delay

Less than 2 ms (fixed)

Note: Refer to the PROVU Modbus Register Tables located at www.predig.com for details.

MeterView Pro Software

Availability

Download directly from meter or from

www.predig.com/download_software

System Requirements

Microsoft® Windows® XP/Vista/7/8/10

Communications

USB 2.0 (for programming only) (Standard USB A to Micro USB B)

RS-232 adapter, RS-485 adapter and RS-485 to USB converter (programming, monitoring, and data logging)

Configuration

Configure meters one at a time

Power

USB port provides power to the meter.

DO NOT apply AC or DC power to the meter while the USB port is in use.

Page 14

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Compliance Information

Safety

UL & c-UL Listed

USA & Canada UL 508 Industrial Control Equipment

UL File Number

E160849

Front Panel

UL Type 4X, NEMA 4X, IP65; panel gasket provided

Low Voltage Directive

EN 61010-1 Safety requirements for measurement, control, and laboratory use

Electromagnetic Compatibility

Emissions

EN 55022 Class A ITE emissions requirements

Radiated Emissions

Class A

AC Mains Conducted Emissions

Class A

Immunity

EN 61326-1 Measurement, control, and laboratory equipment EN 61000-6-2 EMC heavy industrial generic immunity standard

RFI - Amplitude Modulated

80 -1000 MHz 10 V/m 80% AM (1 kHz)

1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)

2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)

Electrical Fast Transients

±2kV AC mains, ±1kV other

Electrostatic Discharge

±4kV contact, ±8kV air

RFI Conducted

10V, 0.15-80 MHz, 1kHz 80% AM

AC Surge

±2kV Common, ±1kV Differential

Surge

1KV (CM)

PowerFrequency Magnetic Field

30 A/m 70%V for 0.5 period

Voltage Dips

40%V for 5 & 50 periods 70%V for 25 periods

Voltage Interruptions

<5%V for 250 periods

Note:

Testing was conducted on meters installed through the covers of grounded metal enclosures with cable shields grounded at the point of entry representing installations designed to optimize EMC performance.

EU Declaration of

Conformity

EU Declaration of Conformity is available in the Documentation CD provided with the product under the EU DoC menu.

Safety Information

• Read complete instructions prior to installation and operation of the meter.

• Risk of electric shock or personal injury.

• Hazardous voltages exist within enclosure.

Installation and service should be performed only by trained service personnel.

Installation

There is no need to remove the meter from its case to complete the installation, wiring, and setup of the meter for most applications.

Instructions are provided for changing the flowmeter power supply to output 5 or 10 VDC instead of 24 VDC. See Figure 5. Flowmeter Supply Voltage Selection on page 17.

Unpacking

Remove the meter from box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier.

If any part is missing or the meter malfunctions, please contact your supplier or the factory for assistance.

Page 15

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Panel Mounting Instructions

• Prepare a standard 1/8 DIN panel cutout -

3.622" x 1.772" (92 mm x 45 mm). Refer to Figure 1. 1/8 DIN Panel Cutout Dimensions below for more details.

• Clearance: allow at least 6.0" (152 mm) behind the panel for wiring.

• Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm). Recommended minimum panel thickness to maintain Type 4X rating: 0.06" (1.5 mm) steel panel, 0.16" (4.1 mm) plastic panel.

• Remove the two mounting brackets provided with the meter (back-off the two screws so that there is ¼" (6.4 mm) or less through the bracket. Slide the bracket toward the front of the case and remove).

• Insert meter into the panel cutout.

• Install mounting brackets and tighten the screws

against the panel. To achieve a proper seal, tighten the mounting bracket screws evenly until meter is snug to the panel along its short side. DO NOT OVER TIGHTEN, as the rear of the panel may be damaged.

Figure 1. 1/8 DIN Panel Cutout Dimensions

DO NOT apply AC or DC power to the meter when using the USB connection.

Figure 2. Panel Mounting Details

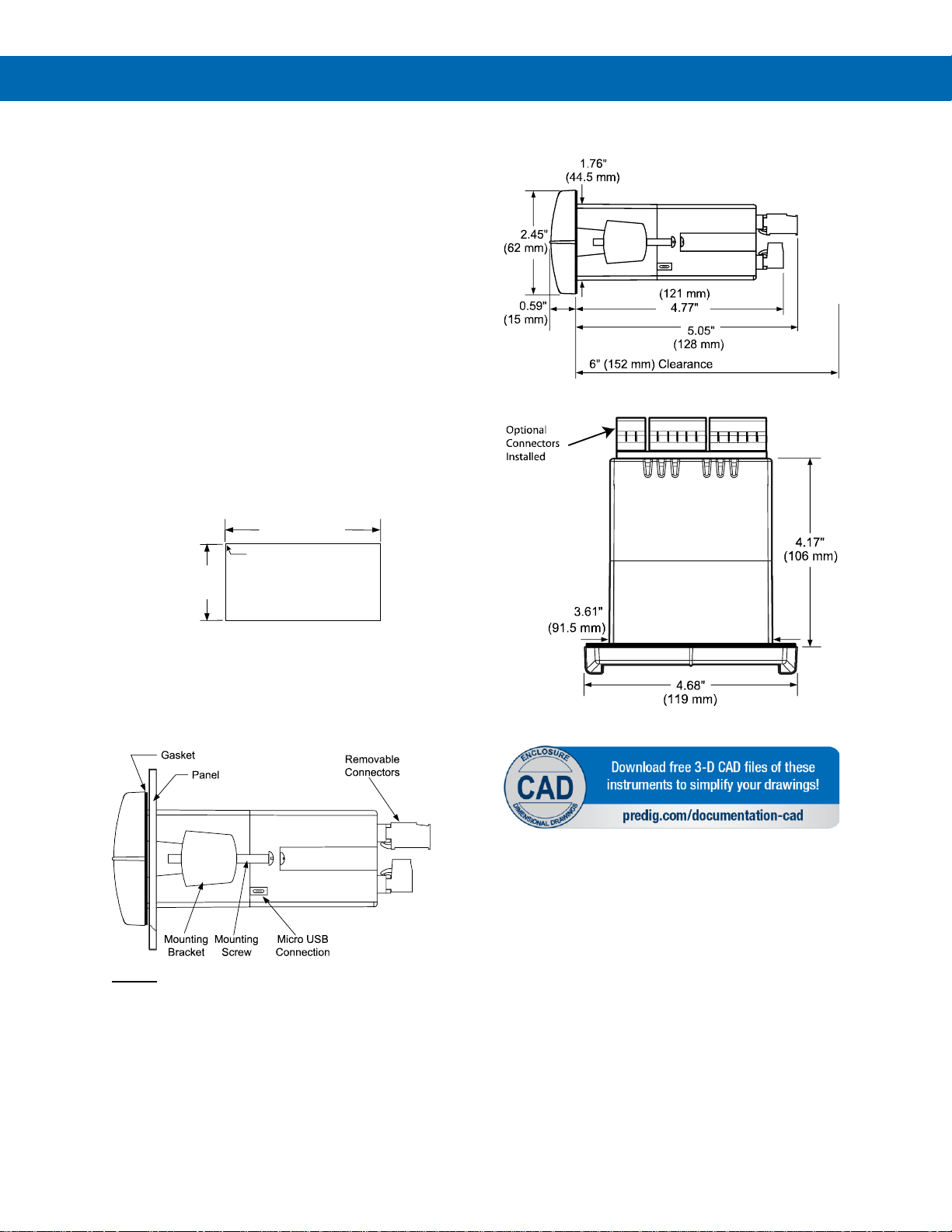

Mounting Dimensions

Figure 3. Meter Dimensions - Side View

Figure 4. Meter Dimensions - Top View

CNOC

+-R

3.622" (92 mm)

1.772"

(45mm)

Panel Cutout

to DIN 43700

Square Corners to 0.060"

(1.5mm) Max Radius

Tolerances:

A: +0.032 (+0.8mm)

-0.000 (-0.0mm)

B: +0.024 (+0.6mm)

-0.000 (-0.0mm)

Page 16

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Installation Overview

We recommend the following sequence for getting the meter into service:

1. DO NOT apply AC or DC power to the meter.

2. Connect the meter to the PC with the USB cable provided. DO NOT use a different USB cable.

3. If MeterView Pro (MVPro) is already installed in your computer, then the program will launch automatically in most systems. If the program does not start automatically, double-click on the MVPro icon.

4. If MVPro is not installed, follow the instructions provided below.

5. Use MVPro to configure the meter for your application.

6. Disconnect the USB cable from the meter.

7. Apply power and signal and check operation of the meter.

8. Install the meter and put into service.

9. Make any programming adjustments using the front panel buttons.

MeterView Pro Software

The easiest and quickest way to program your PROVU meter is to use the FREE MeterView Pro programming software. This software is loaded into the meter and connects and installs directly to your PC with the USB cable provided. DO NOT use a different USB cable. We recommend that the first thing you do after taking the meter out of the box is connect the PROVU to your PC with the provided USB cable. DO NOT apply AC or DC power to the meter while your PC is connected to the meter as it will disrupt the USB connection. It is not necessary to apply an input signal.

MeterView Pro programming software is intuitive, and most customers can get their meter programmed as they like without even looking in the manual.

Watch Meterview Pro Software Video at

www.predig.com/meterviewpro

MeterView Pro Installation

1. Connect one end of the provided USB cable

to the meter and the other end to the computer. The computer will automatically install the driver software it needs to talk to the meter. Follow the on-screen instructions and allow sufficient time for the process to complete. This can take a few minutes. If the process is interrupted, then it could leave the system in an unstable condition.

• Only one meter may be connected at a time. Attaching multiple meters will cause a conflict with the meter software.

• DO NOT apply AC or DC power to the meter when using the USB connection.

2. Once the driver is installed, an AutoPlay dialog should appear for the drive

“MAINSTAL.” Click “Open folder to view

files.”

If the computer does not display an AutoPlay

dialog for the drive “MAINSTAL,” you should

open My Computer and double-click on the drive labeled “MAINSTAL.”

3. Double-click on the file named “MAStart.” The program will open a few windows and install two programs on your computer. Simply follow the on-screen instructions until you see one of the dialogs below. If you

receive a “User Account Control” warning,

click “Yes.”

4. If there is an update available, click the

“Update” button to install the new version. Otherwise, click “Configure” to begin

programming your meter.

Note: If you decide to update your MeterView Pro software, once the installation has completed, you will be asked if you want to update the setup files located on the meter itself. This way, you will always have the most current version on the meter for future installs.

• DO NOT unplug the meter while the new installation files are being written to it. The meter will display uwrite during the process and you will receive an on-screen notification once the process is complete.

Page 17

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Flowmeter Supply Voltage

Selection (P+, P-)

All meters, including models equipped with the 12-24 VDC power option, are shipped from the factory configured to provide 24 VDC power for the flowmeter or sensor.

If the flowmeter requires 5 or 10 VDC excitation, the internal jumper J4 must be configured accordingly.

To access the voltage selection jumper:

1. Remove all the wiring connectors.

2. Unscrew the back cover.

3. Slide out the back cover by about 1 inch.

4. Configure the J4 jumper, located behind the input signal connector, for the desired excitation voltage as shown.

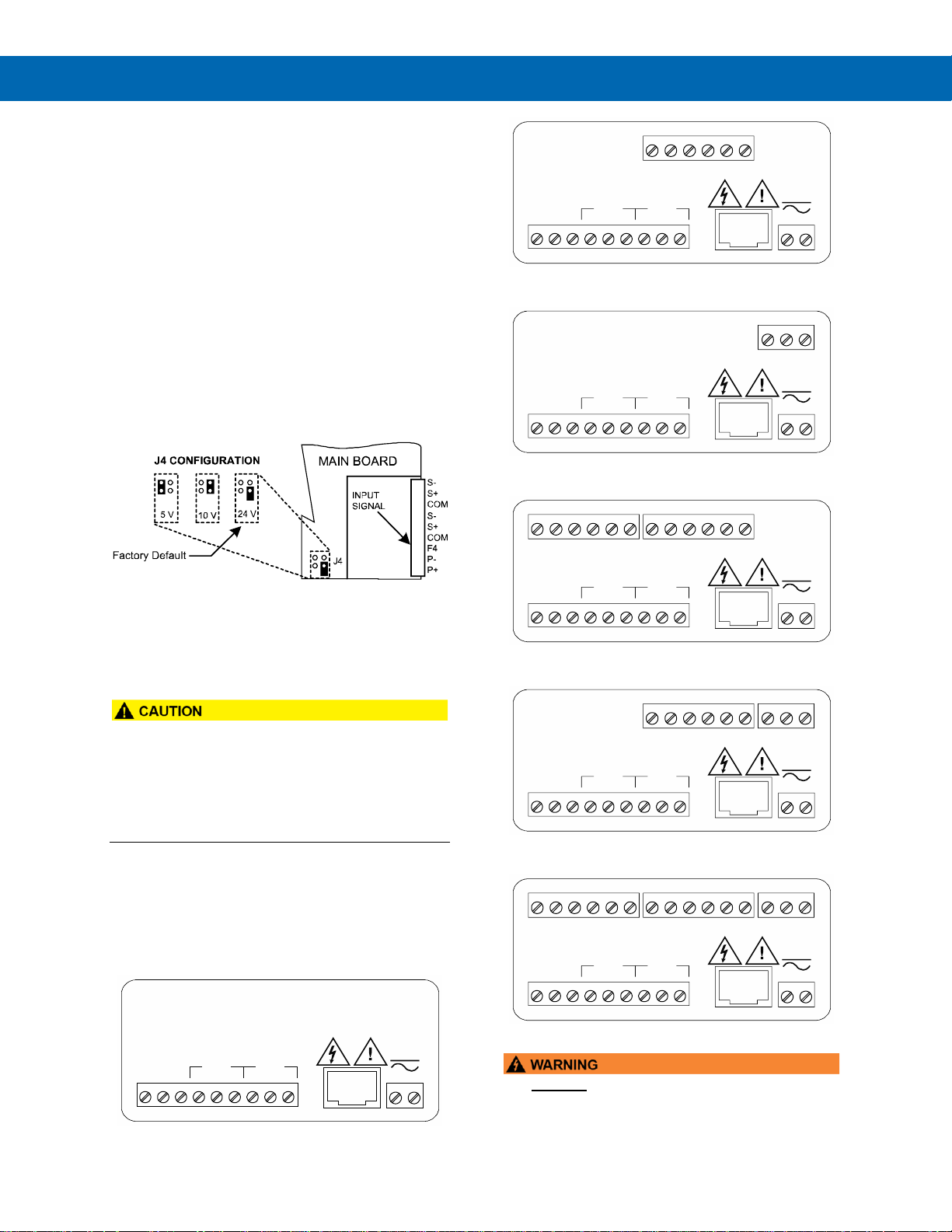

Figure 5. Flowmeter Supply Voltage Selection

Connections

All connections are made to removable screw terminal connectors located at the rear of the meter.

• Use copper wire with 60°C or 60/75°C insulation for all line voltage connections. Observe all safety regulations. Electrical wiring should be performed in accordance with all applicable national, state, and local codes to prevent damage to the meter and ensure personnel safety.

Connectors Labeling

The connectors’ label, affixed to the meter, shows the

location of all connectors available with requested configuration.

Note: ## on the following figures refers to power and display options. (Example: PD6363-6H5)

Figure 6. PD6363-##0 Connectors Label

Figure 7. PD6363-##2 Connectors Label

Figure 8. PD6363-##3 Connectors Label

Figure 9. PD6363-##4 Connectors Label

Figure 10. PD6363-##5 Connectors Label

Figure 11. PD6363-##7 Connectors Label

• DO NOT connect any equipment other than

Precision Digital’s expansion modules, cables, or

meters to the RJ45 M LINK connector. Otherwise damage will occur to the equipment and the meter.

POWER

M-LINK

123 4 5 6 7 8

SIGNAL

Ch-A

P- F4P+ COM S1+

3412 5

S1- COM S2+ S2-

7869

Ch-B

POWER

M-LINK

CNONO NC NC C

RELAY2 RELAY1

4365 21

123 4 5 6 7 8

SIGNAL

Ch-A

P- F4P+ COM S1+

3412 5

S1- COM S2+ S2-

7869

Ch-B

I- I+

MA OUT

POWER

M-LINK

123 4 5 6 7 8

SOURCE: I- to R SINK: I- to I+

SIGNAL

Ch-A

P- F4P+ COM S1+

3412 5

S1- COM S2+ S2-

7869

Ch-B

POWER

M-LINK

CNONO NC NC C

RELAY4 RELAY3

4365 2 1

CNONO NC NC C

RELAY2 RELAY1

4365 21

123 4 5 6 7 8

SIGNAL

Ch-A

P- F4P+ COM S1+

3412 5

S1- COM S2+ S2-

7869

Ch-B

I- I+

MA OUT

POWER

M-LINK

CNONO NC NC C

RELAY2 RELAY1

4365 21

123 4 5 6 7 8

SOURCE: I- to R SINK: I- to I+

SIGNAL

Ch-A

P- F4P+ COM S1+

3412 5

S1- COM S2+ S2-

7869

Ch-B

I- I+

MA OUT

POWER

M-LINK

CNONO NC NC C

RELAY4 RELAY3

4365 2 1

CNONO NC NC C

RELAY2 RELAY1

4365 21

123 4 5 6 7 8

SOURCE: I- to R SINK: I- to I+

SIGNAL

Ch-A

P- F4P+ COM S1+

3412 5

S1- COM S2+ S2-

7869

Ch-B

Page 18

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Power Connections

Power connections are made to a two-terminal connector labeled POWER. The meter will operate regardless of DC polarity connection. The + and symbols are only a suggested wiring convention. There are separate models for low voltage and high voltage power. See Ordering Information on page 6 for details.

Figure 12. Power Connections

Signal Connections

Signal connections are made to a nine-terminal connector labeled SIGNAL. The COM (common) terminals are the return for certain input signals. The two COM terminals connect to the same common return, and are not isolated.

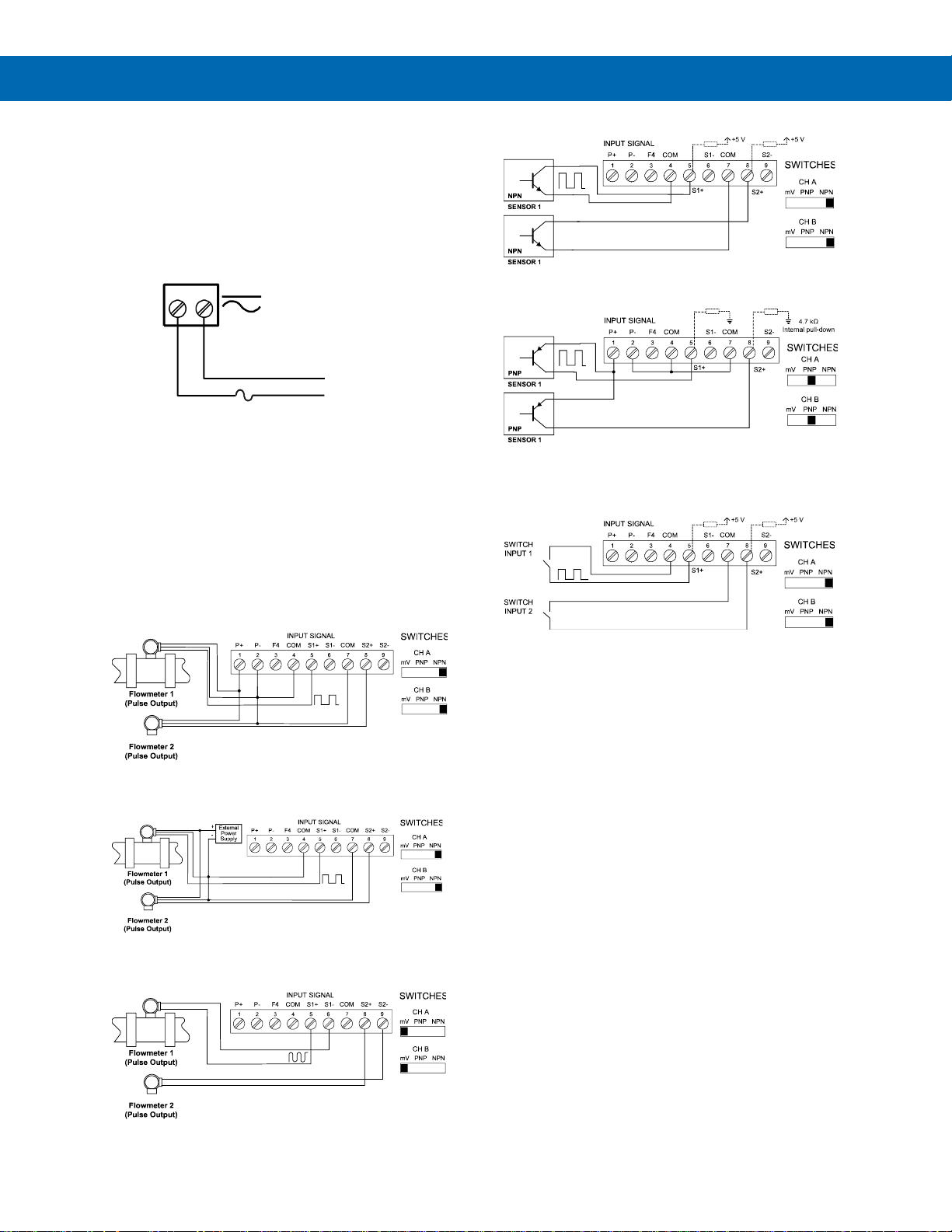

The following figures show examples of signal connections.

Figure 13. Flowmeters Powered by Internal Power

Supply

Figure 14. Flowmeters Powered by External

Supply

Figure 15. Self-Powered Magnetic Pickup Coil

Flowmeter

Figure 16. NPN open Collector Input

Figure 17. PNP Sensor Powered by

Internal Supply

Figure 18. Switch Input Connections

AC or DC

POWER

Required External Fuse:

5 A max, 250 V Slow Blow

POWER

Page 19

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Configure Input Type and Level Switches

Channel A and B each have an internal input type configuration switch. These switches must be set to the correct input type and level. Each switch can be set for mV, PNP, or NPN. For details on what input type to select, see Signal Connections starting on page 18.

Modbus RTU Serial Communications

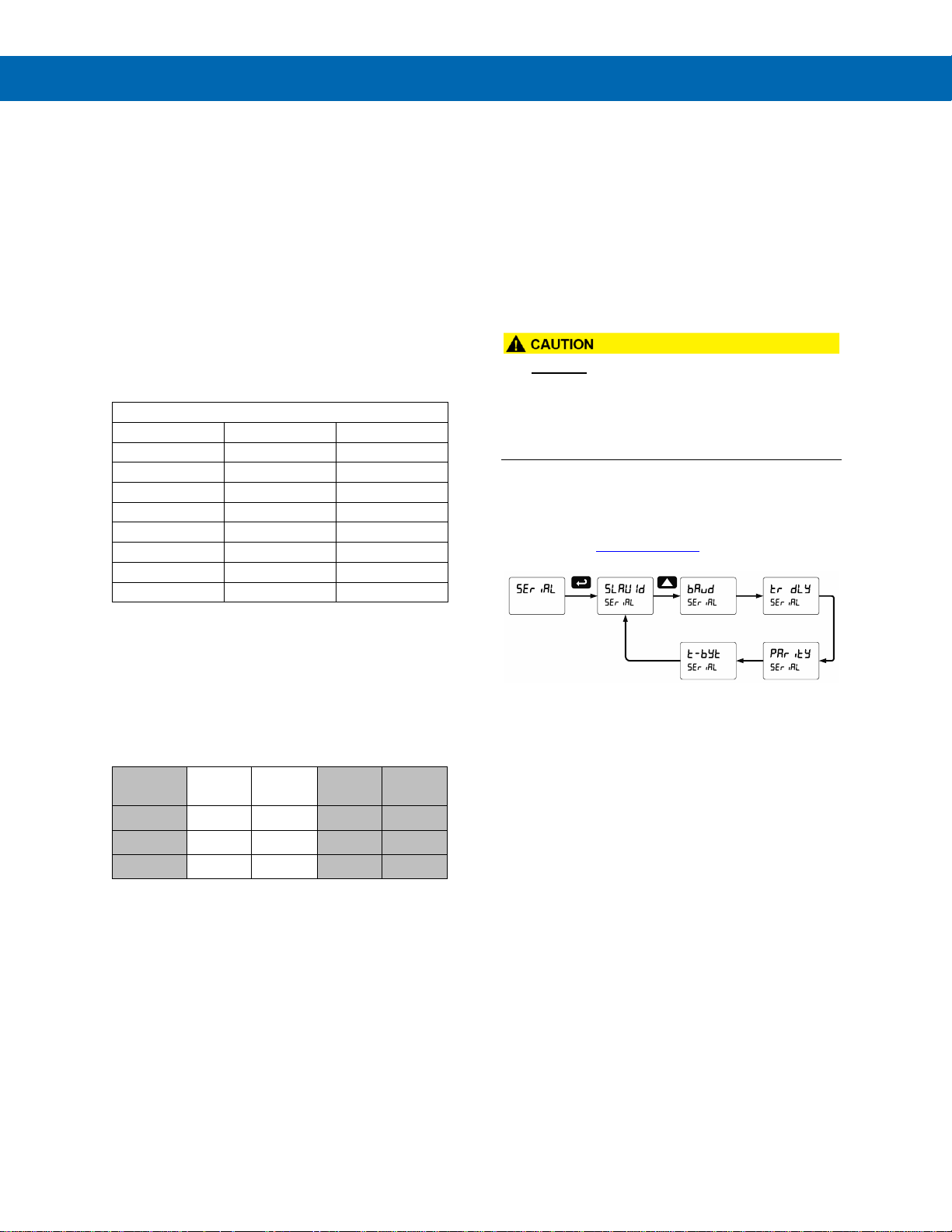

Serial communications connection is made to an RJ45 connector labeled M-LINK. For interfacing to the PROVU®, use the PDA1232 for RS-232 or the PDA1485 for RS-485. The same port is used for interfacing with all expansion modules (e.g. external relays, additional 4-20 mA outputs, digital I/O).

Relay Connections

Relay connections are made to two six-terminal connectors labeled RELAY1 – RELAY4. Each relay’s C terminal is common only to the normally open (NO) and normally closed (NC) contacts of the

corresponding relay. The relays’ C terminals should

not be confused with the COM (common) terminal of the INPUT SIGNAL connector.

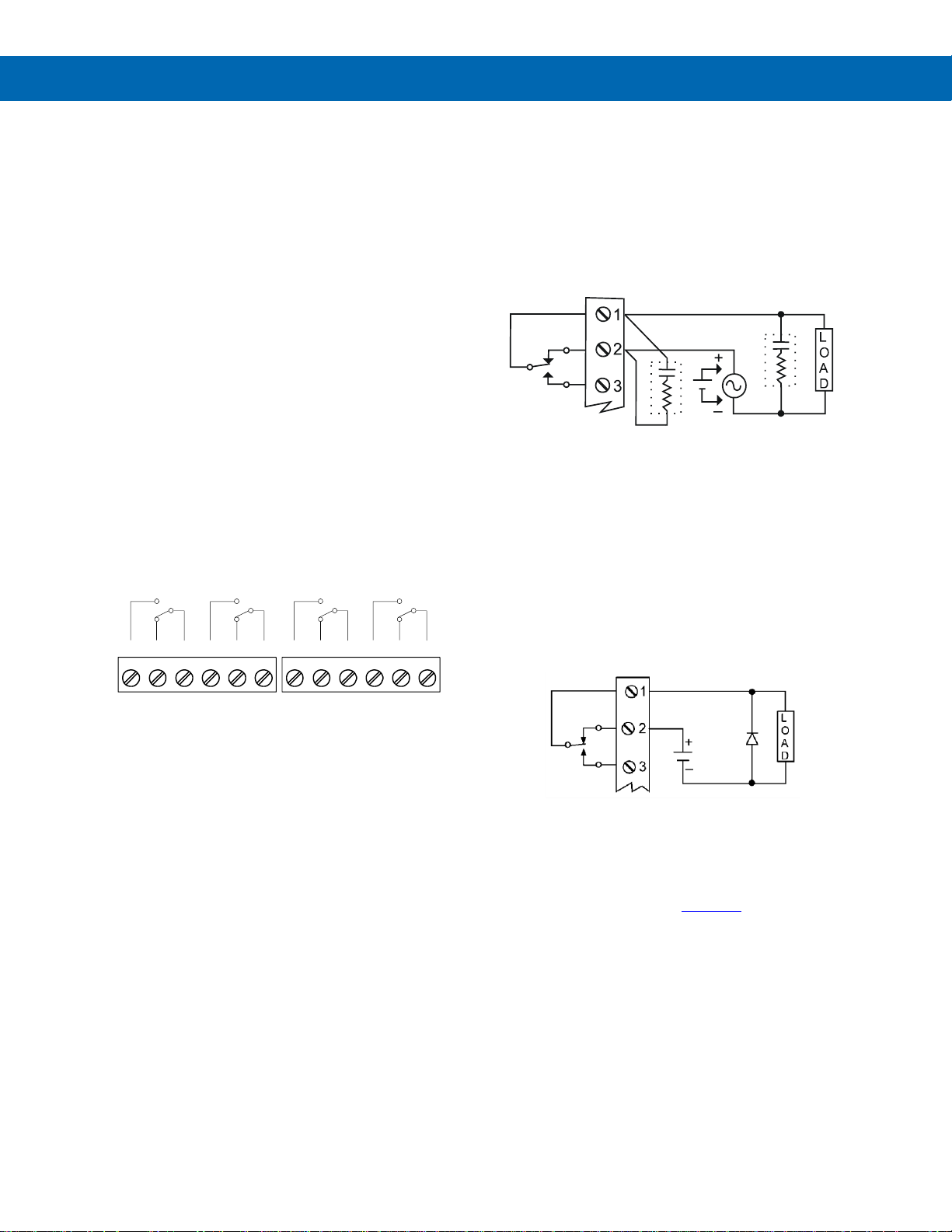

Figure 19. Relay Connections

Switching Inductive Loads

The use of suppressors (snubbers) is strongly recommended when switching inductive loads to

prevent disrupting the microprocessor’s operation.

The suppressors also prolong the life of the relay contacts. Suppression can be obtained with resistorcapacitor (RC) networks assembled by the user or purchased as complete assemblies. Refer to the following circuits for RC network assembly and installation:

Figure 20. AC and DC Loads Protection

Choose R and C as follows: R: 0.5 to 1 Ω for each volt across the contacts C: 0.5 to 1 µF for each amp through closed contacts

Notes:

1. Use capacitors rated for 250 VAC.

2. RC networks may affect load release time of solenoid loads. Check to confirm proper operation.

3. Install the RC network at the meter's relay screw terminals. An RC network may also be installed across the load. Experiment for best results.

Figure 21. Low Voltage DC Loads Protection

RC Networks Available from Precision Digital

RC networks are available from Precision Digital and should be applied to each relay contact switching an inductive load. Part number: PDX6901.

Note: Relays are de-rated to 1/14th HP (50 watts) with an inductive load.

C NONO NC NC C

RELAY4 RELAY3

4 36 5 2 1

C NONO NC NC C

RELAY2 RELAY1

4 36 5 2 1

C R

Page 20

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

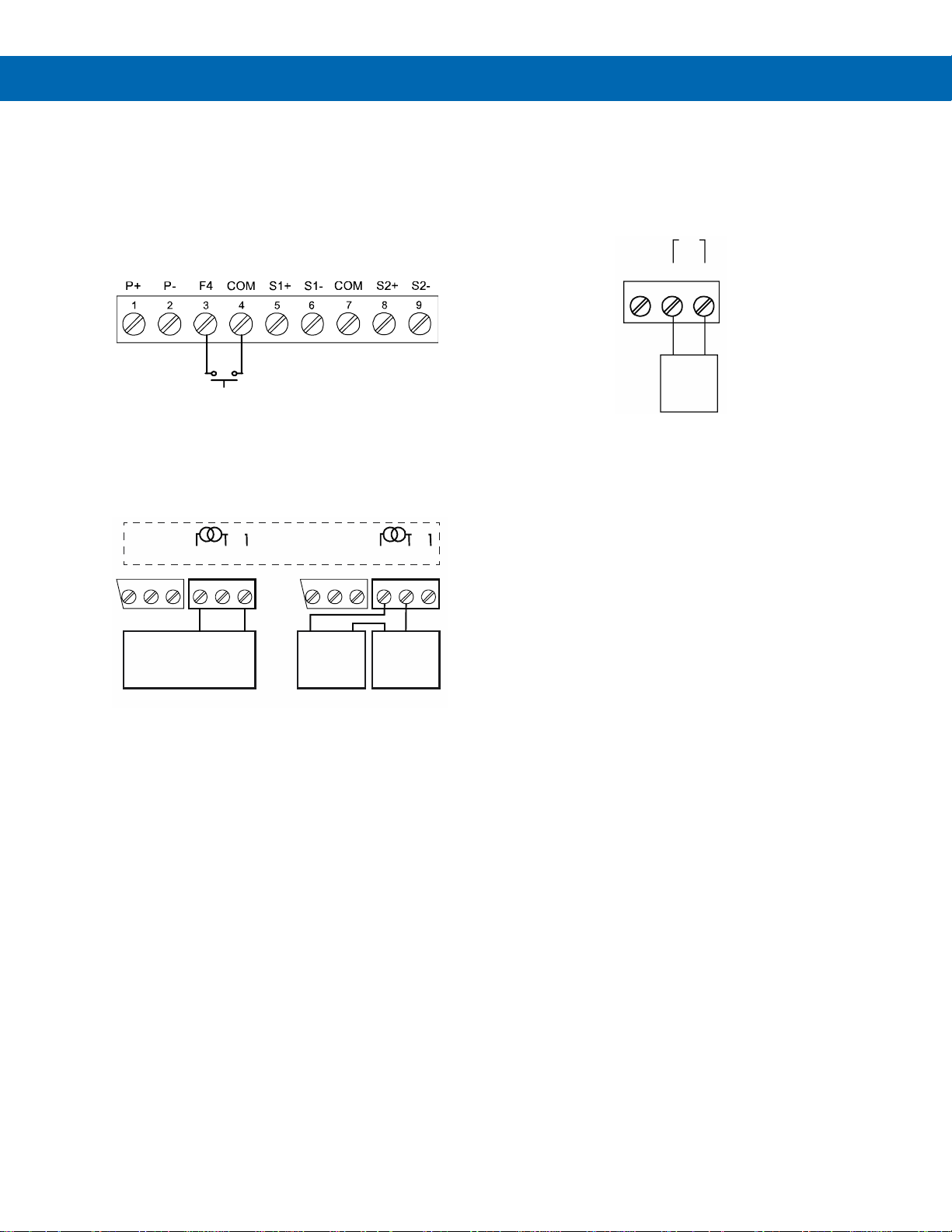

F4 Digital Input Connections

A digital input, F4, is standard on the meter. This digital input connected with a normally open closure across F4 and COM, or with an active low signal applied to F4. It can be used for remote operation of front-panel buttons, to acknowledge/reset relays, reset totals, or to reset max/min values. See Function Keys & Digital I/O Available Settings on page 52 for a complete list of capabilities.

Figure 22. F4 Digital Input Connections

4-20 mA Output Connections

Connections for the 4-20 mA flowmeter output are made to the connector terminals labeled MA OUT. The 4-20 mA output may be powered internally or from an external power supply.

Figure 23. 4-20 mA Output Connections

Analog Output Flowmeter Power Supply

The internal 24 VDC power supply powering the analog output may be used to power other devices, if the analog output is not used. The I+ terminal is the +24 V and the R terminal is the return.

Figure 24. Analog Output Supply Powering Other

Devices

4-20 mA Input

Remote Display, PLC,

Chart Recorder, Etc.

RI- I+

132

RELAY1

mA OUT

24 V

12-35 VDC

Power

Supply

4-20 mA

Input Meter

RI- I+

132

RELAY1

321

24 V

mA OUT

Internal Power Supply

and Analog Output

321

Active Output Loop Passive Output Loop

RI- I+

132

24 VDC

Powered

Device

24 V

Page 21

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

External Relay, Analog Output, & Digital I/O Connections

The relay, dual analog output, and digital I/O expansion modules PDA1004, PDA1011, and

PDA1044 are connected to the meter using a CAT5

cable provided with each module. The two RJ45 connectors on the expansion modules are identical and interchangeable; they are used to connect additional modules to the system.

Note: The jumper located between the RJ45

connectors of the PDA1044 must be removed on the second digital I/O module in order for the system to recognize it as module #2.

• DO NOT connect or disconnect the expansion modules with the power on! More detailed instructions are provided with each optional expansion module.

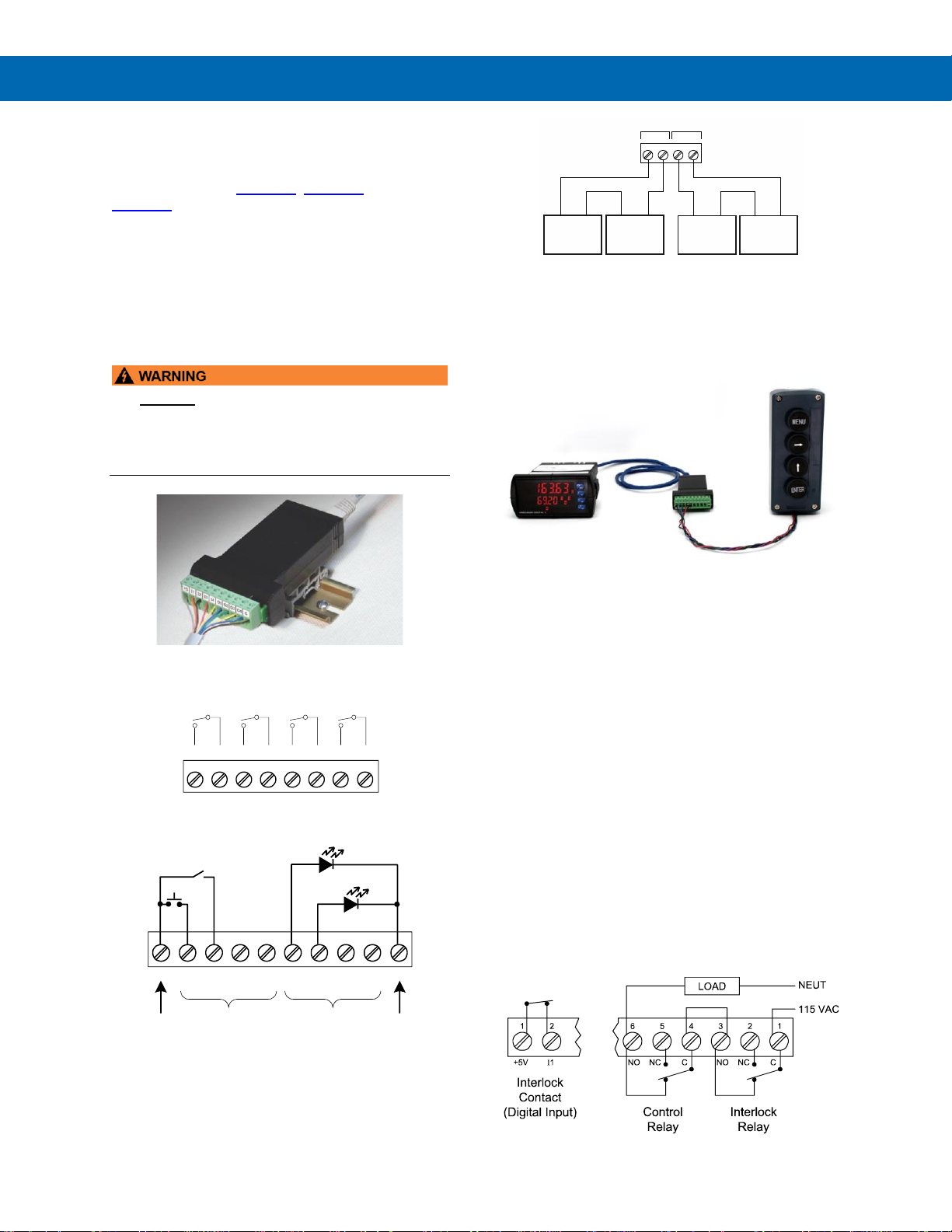

Figure 25. Expansion Module & DIN Rail Mounting

Kit

Figure 26. External Relays Module Connections

Figure 27. Digital I/O Module Connections

Figure 28. Dual 4-20 mA Output Module Connections

Remote Operation of Meter

The meter can be operated via the front panel push buttons or a remote control station using the PDA1044 Digital I/O module as illustrated in Figure

29. Meter to Control Station Connection.

Figure 29. Meter to Control Station Connections

Interlock Relay Feature

As the name implies, the interlock relay feature reassigns one, or more, alarm/control relays for use as interlock relay(s). Interlock contact(s) are wired to digital input(s) and activate the interlock relay. This feature is enabled by configuring the relay, and the corresponding digital input(s), see Setting Up the Interlock Relay (Force On) Feature on page 42.

In the example below, an Interlock Contact switch is connected to a digital input, which will be used to force on (energize) the Interlock Relay. The Interlock Relay and the Control Relay are connected in series with the load.

• When the Interlock Contact is closed (safe), the Interlock Relay energizes, allowing power to flow to the Control Relay; the corresponding front panel LED is on.

• When the Interlock Contact is open, the corresponding front panel LED flashes (locked out), the Interlock Relay is de-energized, preventing power from flowing to the Control Relay and the load.

Figure 30. Interlock Connections

1 2

RLY5 RLY6 RLY7 RLY8

3 4 5 6 7 8

NO C NO C NO C NO C

1 2 3 4 5 6

+5 I1 I2 I3 I4 O1

7 8

O2 O3

9 10

O4 G

DI 1-4 DO 1-4

5 VDC GND

-+- +

2314

Out 3Out 2

4-20 mA

Input

Meter 2

4-20 mA

Input

Meter 3

12-35 VDC

Power

Supply 2

12-35 VDC

Power

Supply 3

Page 22

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Setup and Programming

The meter comes factory calibrated to NIST standards, so for initial setup, it is recommended to use the K-Factor method or (SCALE) function.

Overview

There are no jumpers to set for the meter input selection.

Setup and programming is done using MeterView Pro or through the front panel buttons.

After power and input signal connections have been completed and verified, apply power to the meter.

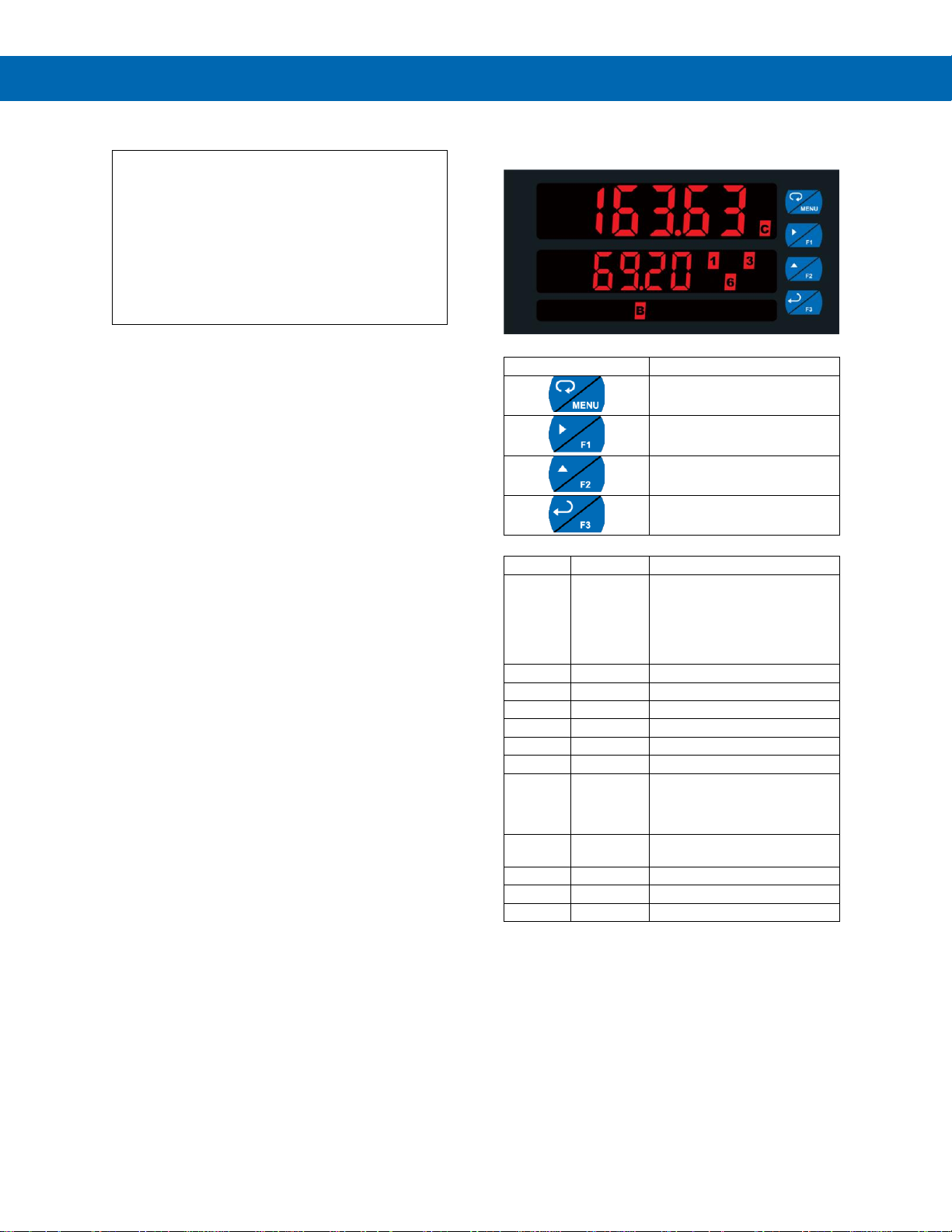

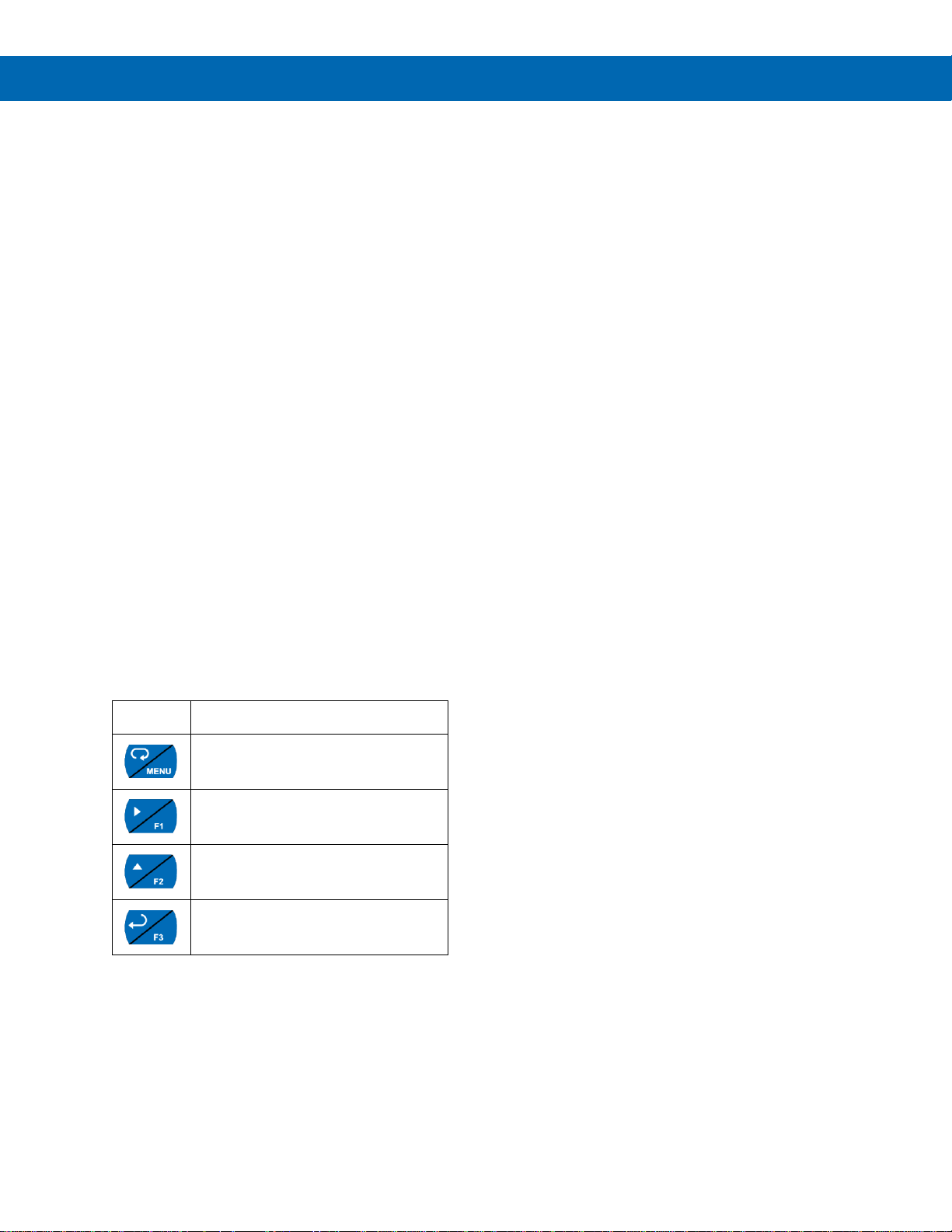

Front Panel Buttons and Status LED Indicators

•

Button Symbol

Description

Right arrow/F1

Up arrow/F2

Enter/F3

•

LED

State

Indication

1-8

Steady

Alarm condition based on set and reset points, independent of relay status in certain configurations. (Available on all meter configurations, including those without relays installed)

1-8

Flashing

Relay interlock switch open

1-8 & M

Flashing

Relay in manual control mode

Steady

Rate T Steady

Total T Flashing

Meter in Tare mode

G & T

Steady

Grand Total

▲

Steady

Total overflow (“oF” is

displayed to the left of total overflow and ▲ LED is illuminated)

Flashing

Analog ouput in manual control mode

Steady

Channel A displayed

Steady

Channel B displayed

Steady

Channel C displayed

• Press the Menu button to enter or exit the Programming Mode at any time.

• Press the Right arrow button to move to the next digit during digit or decimal point programming.

• Press or hold the Up arrow button to scroll through the menus, decimal point, or to increment the value of a digit.

• Press the Enter button to access a menu or to accept a setting.

• Press and hold the Menu button for three seconds to access the advanced features of the meter.

Page 23

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Display Functions & Messages

The meter displays various functions and messages during setup, programming, and operation. The following table shows the main menu functions and messages in the order they appear in the menu.

Display Functions & Messages

Display

Parameter

Action/Setting Description

setup

Setup

Enter Setup menu

Input

Enter Input selection menu

Ch-A*

Input

Set input operation for channel A (*or B)

total

Total

Enable/disable totalizer functions

YES

Yes

Enable totalizer functions

Disable totalizer functions

nmode

Mode

Select dual-input operation mode

Dual

Set independent dual input mode

ud AB

Up/Down AB

Set channel A total add/subtract based on the state of channel B

ud A1

Up/Down AI

Set channel A total add/subtract based on the state of a digital input

ud b1

Up/Down BI

Set channel B total add/subtract based on the state of a digital input

ud b1

Up/Down ABI

Set channel A & B total add/subtract based on the state of a digital input for each

Quad 1

Quadrature 1

Set type 1 quadrature operation

Quad 2

Quadrature 2

Set type 2 quadrature operation

Quad 4

Quadrature 4

Set type 4 quadrature operation

units

Unit

Select the display units/tags

Ch-A*

Rate unit

Set rate unit or tag for channel A (*or B)

Ch-C

Math unit

Set unit or tag for math channel C

Tot-A*

Total unit

Set total unit or tag for channel A (*or B)

Gtot-A*

Grand total unit

Set grand total unit or tag for channel A (*or B)

Dec pt

Decimal point

Set decimal point

Ch-A*

Decimal point

Set decimal point for channel A (*or B or C)

Rate*

Rate

Set rate decimal point (*channel A and B only)

Display Functions & Messages

Display

Parameter

Action/Setting Description

Total*

Total

Set total decimal point (*channel A and B only)

Gtotal*

Grand total

Set grand total decimal point (*channel A and B only)

prog

Program

Enter the Program menu

InCAL

Input calibration

Enter the Input Calibration menu

Ch-A

Channel A

Enter channel A input setup

Fact-a

K-factor A

Enter channel A k-factor

SCal-a

Scale A

Enter the Scale menu for channel A

Cal-A

Calibrate A

Enter the Calibration menu for channel A

Inp 1

Input 1

Calibrate input 1 signal or program input 1 value

Dis 1

Display 1

Program display 1 value

Inp 2

Input 2

Calibrate input 2 signal or program input 2 value (up to 32 points)

Dis 2

Display 2

Program display 2 value (up to 32 points)

Error

Error, calibration or scaling not successful, check signal or programmed value

Ch-b

Channel B

Enter channel B input setup

Fact-b

K-factor B

Enter channel B k-factor

SCal-b

Scale B

Enter the Scale menu for channel B

Cal-b

Calibrate B

Enter the Calibration menu for channel B

tsetup

Total setup

Enter the Total Setup menu

Ch-A*

Channel A

Setup the total for channel A (*or B)

tbase

Time base

Program total time base

T Cf

Total conversion factor

Program total conversion factor

Gt CF

Grand total conversion factor

Program grand total conversion factor

treset

Total reset

Program total reset mode: auto or manual

Ch-A*

Channel A

Set total reset modes for channel A (*or B)

T rst

Total reset

Program total reset mode: auto or manual

Gt rst

Grand total reset

Program grand total reset mode: auto or manual

Page 24

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Display Functions & Messages

Display

Parameter

Action/Setting Description

T dly

Time delay

Program automatic reset time delay

dsplay

Display

Enter the Display menu

Line 1

Display Line 2

Assign the upper display parameter

Line 2

Display Line 2

Assign the lower display parameter

D Ch-A

Display Ch-A

Assign display to channel A

D Ch-B

Display Ch-B

Assign display to channel B

D Ch-C

Display Ch-C

Assign display to channel C (math)

D Ab

Display AB

Alternate display of channels A & B

D AC

Display AC

Alternate display of channels A & C

D BC

Display BC

Alternate display of channels B & C

D AbC

Display ABC

Alternate display of channels A, B, & C

D t-a

Display total A

Assign display to channel A total

D t-b

Display total B

Assign display to channel B total

D gt-a

Display grand total A

Assign display to channel A grand total

D gt-b

Display grand total B

Assign display to channel B grand total

D rt-a

Display rate and total A

Alternate display of channel A rate and total

D rt-b

Display rate and total B

Alternate display of channel B rate and total

Drgt-a

Display rate and grand total A

Alternate display of channel A rate and grand total

Drgt-b

Display rate and grand total B

Alternate display of channel B rate and grand total

Dset 1*

Display Set 1*

Displays relay 1 (*through 8) set point.

D Hi-A

Display high A

Display high value of channel A

D Lo-A

Display low A

Display low value of channel A

D HL-A

Display high/low A

Alternate between high/low value of channel A

D Hi-B

Display high B

Display high value of channel B

Display Functions & Messages

Display

Parameter

Action/Setting Description

D Lo-B

Display low B

Display low value of channel B

D HL-B

Display high/low B

Alternate between high/low value of channel B

D Hi-C

Display high C

Display high value of channel C

D Lo-C

Display low C

Display low value of channel C

D HL-C

Display high/low C

Alternate between high/low value of channel C

D a-u

Display A and units/tags

Alternate display of channel A and the unit/tag

D B-u

Display B and units/tags

Alternate display of channel B and the unit/tag

D C-u

Display C and units/tags

Alternate display of channel C and the unit/tag

D ta-u

Display total A and total A units

Alternate display of channel A total and total units

D tb-u

Display total B and total B units

Alternate display of channel B total and total units

D tab

Display total A and B

Alternate display of channel A total and channel B total

D TAbC

Display total A, B, and sum of A and B

Alternate display of channel A total, channel B total, and sum of totals as channel C

nm bus

Display Modbus

Display Modbus input register

D off

Display off

Display blank line 2

D unit

Display unit

Display line 1 channel units

d-Inty

Display intensity

Set display intensity level from 1 to 8

RELaY

Relay

Enter the Relay menu

Assign

Assignment

Assign relays to channels or Modbus

Asign1*

Assign 1

Relay 1 (*through 8) assignment

Ch-A*

Channel A*

Assign relay to channel A (*or B or C)

Rate*

Rate

Assign relay to rate (*channel A and B only)

Total*

Total

Assign relay to total (*channel A and B only)

Gtotal*

Grand total

Assign relay to grand total (*channel A and B only)

Page 25

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Display Functions & Messages

Display

Parameter

Action/Setting Description

nm bus

Modbus

Assign relay to Modbus register

RLY 1*

Relay 1

Relay 1 (*through 8) setup

Act 1

Action 1

Set relay 1 action

Auto

Automatic

Set relay for automatic reset

Set 1

Enter relay 1 set point

RST 1

Reset 1

Enter relay 1 reset point

A-nman

Automanual

Set relay for auto or manual reset any time

LatCH

Latching

Set relay for latching operation

Lt-CLr

Latchingcleared

Set relay for latching operation with manual reset only after alarm condition has cleared

Altern

Alternate

Set relay for pump alternation control

SAnmpl

Sample

Set relay for sample time trigger control

Off

Turn relay off

FaiLSF

Fail-safe

Enter Fail-safe menu

FLS 1*

Fail-safe 1

Set relay 1 (*through 8) fail-safe operation

Enable fail-safe operation

off

Off

Disable fail-safe operation

DeLAY

Delay

Enter relay Time Delay menu

DLY 1*

Delay 1

Enter relay 1 (*through 8) time delay setup

On 1

Set relay 1 On time delay

OFF 1

Off 1

Set relay 1 Off time delay

Aout

Analog output

Enter the Analog output scaling menu

Aout 1*

Aout Channel

Analog Output source channel (*1-3)

Dis 1

Display 1

Program display 1 value

Out 1

Output 1

Program output 1 value (e.g. 4.000 mA)

Dis 2

Display 2

Program display 2 value

Out 2

Output 2

Program output 2 value (e.g. 20.000 mA)

reset

Reset

Press Enter to access the Reset menu

Rst Hi

Reset high

Press Enter to reset max display

Rst Lo

Reset low

Press Enter to reset min display

Rst HL

Reset high & low

Press Enter to reset max & min displays

Display Functions & Messages

Display

Parameter

Action/Setting Description

Tot a

Reset total A

Press Enter to reset channel A total

Tot b

Reset total B

Press Enter to reset channel B total

Gtot a

Reset grand total A

Press Enter to reset channel A grand total

Gtot b

Reset grand total B

Press Enter to reset channel B grand total

Tot ab

Reset totals A and B

Press Enter to reset channels A and B totals

Gt ab

Reset grand totals A and B

Press Enter to reset channels A and B grand totals

Contrl

Control

Enter Manual Control menu

Auto

Automatic

Press Enter to set meter for automatic operation

nmAn

Manual

Press Enter to manually control relays or analog output operation

pass

Password

Enter the Password menu

Pass 1

Password 1

Set or enter Password 1

unloc

Unlocked

Program password to lock meter

Locd

Locked

Enter password to unlock meter

Pass 2

Password 2

Set or enter Password 2

Pass 3

Password 3

Set or enter Password 3

Total

Total reset password

Set or enter a total reset password

Gtotal

Grand total password

Set or enter a grand total reset password

999999

Flashing

Overrange condition

Page 26

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

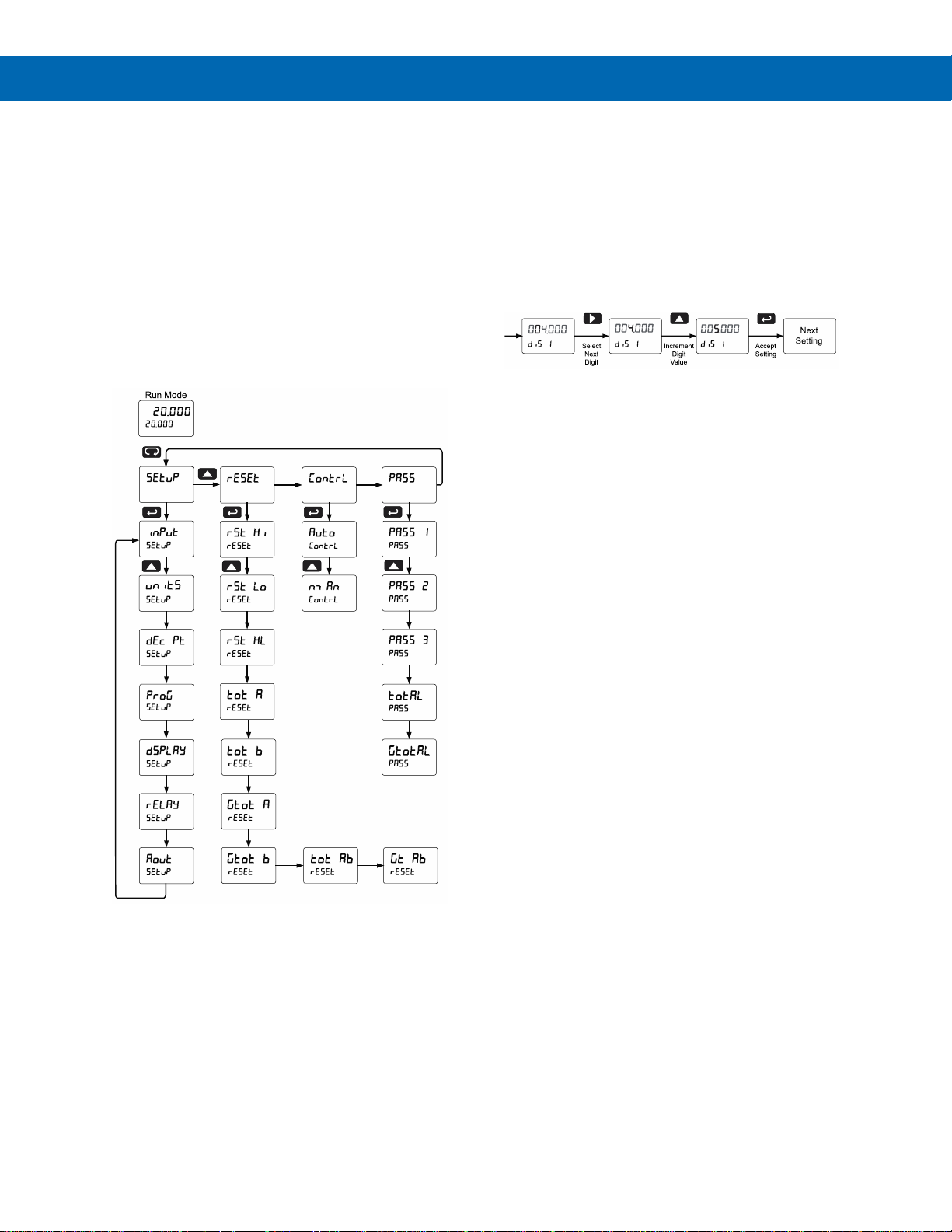

Main Menu

The main menu consists of the most commonly used functions: Reset, Manual Control, Setup, and Password.

• Press Menu button to enter Programming Mode then press the Up arrow button to scroll main menu.

• Press Menu, at any time, to exit and return to Run Mode. Changes made to settings prior to pressing Enter are not saved.

• Changes to the settings are saved to memory only after pressing Enter.

• The display moves to the next menu every time a setting is accepted by pressing Enter.

Setting Numeric Values

The numeric values are set using the Right and Up arrow buttons. Press Right arrow to select next digit and Up arrow to increment digit value. The digit being changed is displayed brighter than the rest. Press and hold Up to auto-increment the display value. If negative numbers are allowed, the first digit position will include a negative symbol (-) after the 9.

Press the Enter button, at any time, to accept a setting or Menu button to exit without saving changes.

Page 27

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

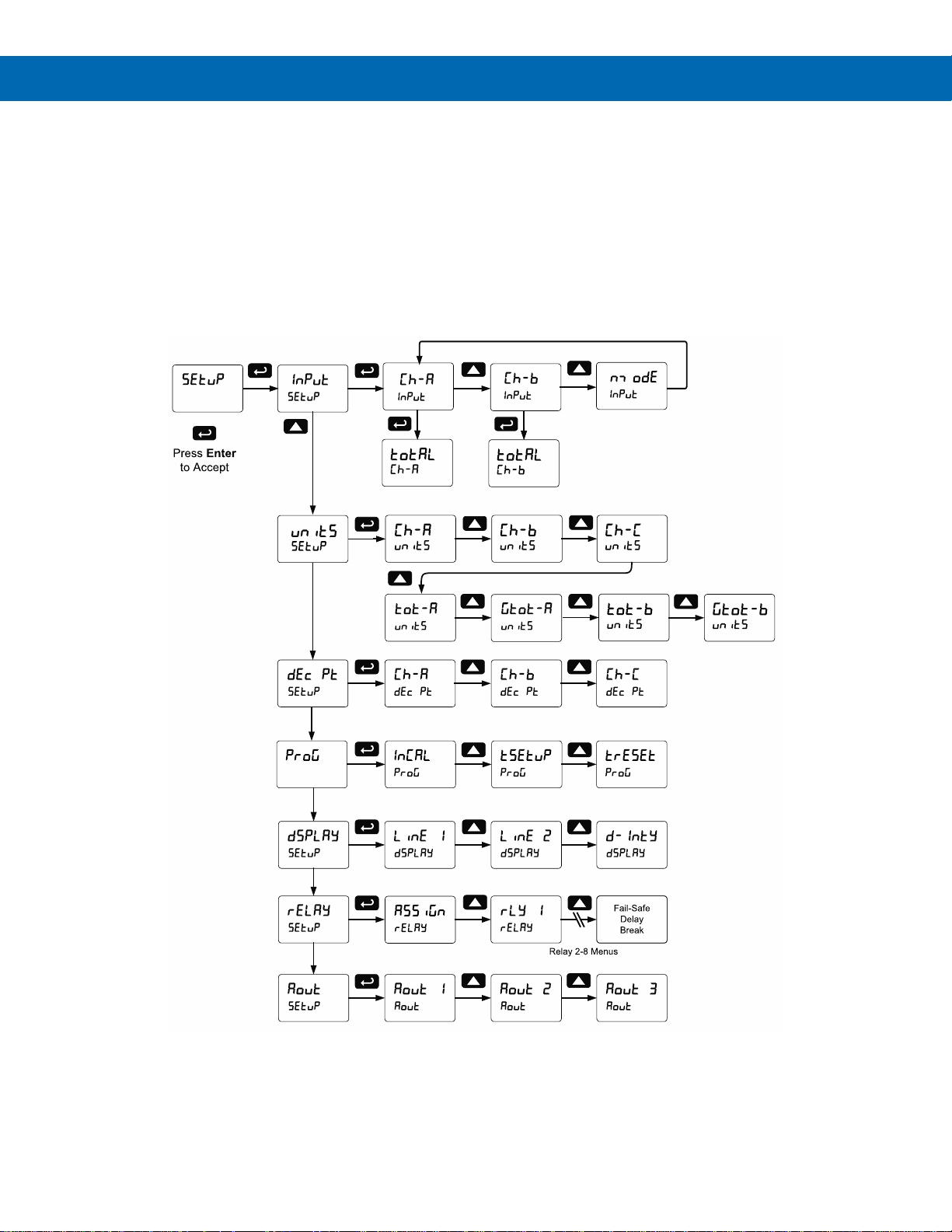

Setting Up the Meter (setup)

The Setup menu is used to select:

1. Total enable/disable and channel A and B input modes

2. Units for A & B rate, total & grand total, and C

3. Decimal positions for A & B rate, total, and grand total, and C

4. Program the K-factor (or scale or calibrate) & total functions

5. Display parameters and intensity

6. Relay assignments and operation

7. 4-20 mA analog output scaling

Press the Menu button to exit at any time.

Page 28

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

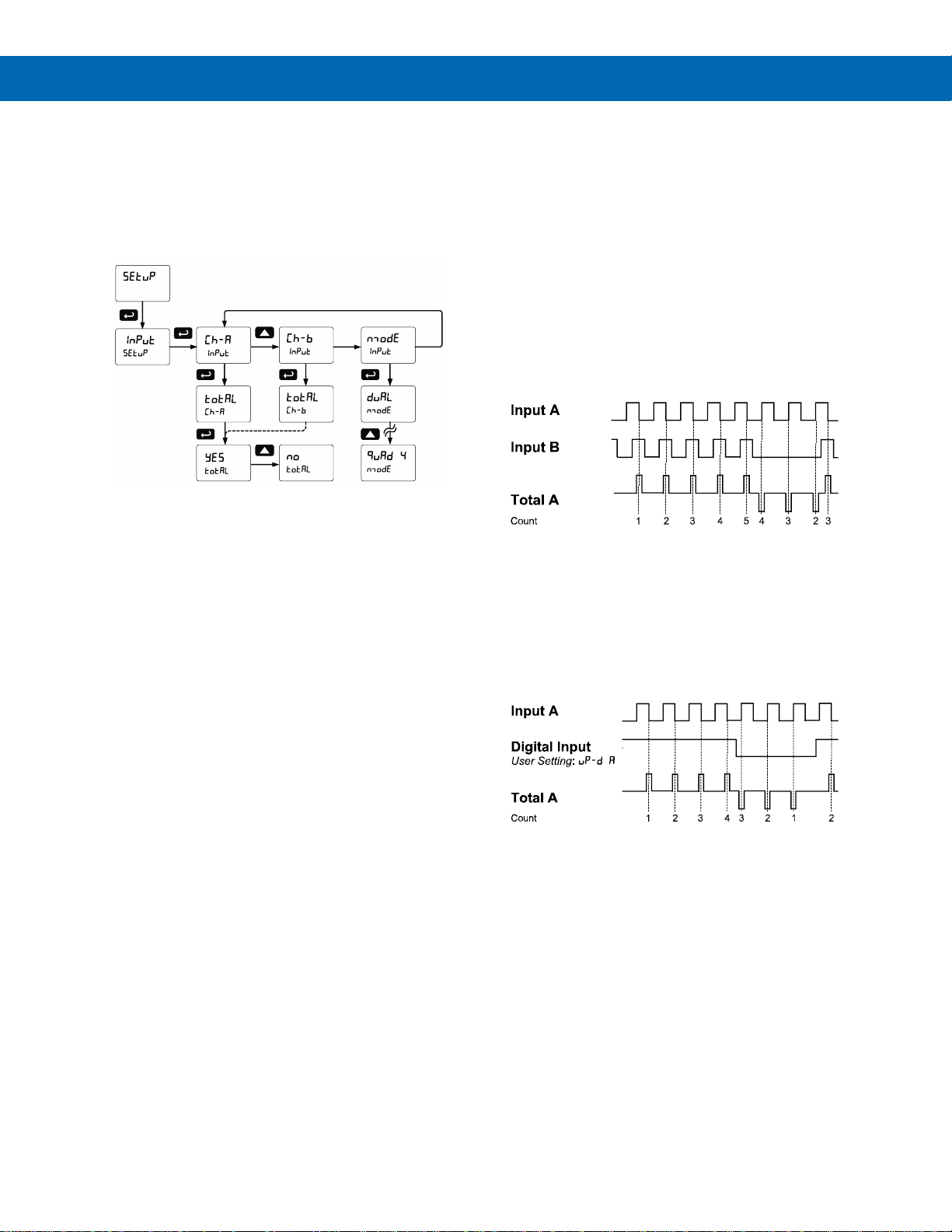

Setting the Input Signal (Input)

There are two internal slide switches, located inside the rear meter housing to the left of the input connector, which must be configured according to the input levels and types. See Configure Input Type and Level Switches on page 19 for details.

Enter the Input menu to enable or disable the totalizer features.

Setting the Totalizer Features (total)

To simply not display the total, select alternative display parameters in the display (dsplay) menu.

Enable or disable the totalizer features by selecting

“Yes” or “no” after the input type has been set up. If

the totalizer features are disabled, most totalizer features and functions are hidden from the menus.

Note: The totalizer continues working in the background.

Setting the Dual-Input Mode (nmode)

The Mode menu is used to set the functions of the dual input and total. The inputs may be configured for independent one-directional total operation, bidirectional total count with the use of another input or a digital input, or for quadrature input modes.

Independent Dual Totalizers (DUAL)

Total A and B are one-directional and independent, only counting up or down depending on Count settings.

Ch-A Totalizer Add/Subtract by Ch-B Input (ud AB)

Total of channel A will add or subtract as determined by the state of input channel B. Channel A total will add at each falling edge if input B is high, and subtract at each rising edge if input B is low.

Ch-A Totalizer Add/Subtract by Digital Input (ud AI)

Total of channel A will add or subtract as determined by the state of a digital input. Channel A total will add at each falling edge if an assigned digital input is high, and subtract at each rising edge if an assigned digital input is low.

Figure 31. Dual Input Mode (ud AB)

Figure 32. Dual Input Mode (ud AI)

Page 29

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Ch-B Totalizer Add/Subtract by Digital Input (ud BI)

Total of channel B will add or subtract as determined by the state of a digital input. Channel B total will add at each falling edge if an assigned digital input is high, and subtract at each rising edge if an assigned digital input is low.

Ch-A & Ch-B Totalizer Add/Subtract by Digital Input (ud aB)

Totals of channel A and B will add or subtract as determined by the state of a digital input assigned to each channel. This mode combines the features of ud AI and ud BI.

This setting requires the use of a PDA1044 digital I/O expansion module (see Ordering Information on page

6). The F4 digital input will only support one channel.

Quadrature Input Type 1 (quad 1)

Quadrature modes are used to accept inputs that are ±90 degrees out of phase, from quadrature output devices. Total of channel A will add or subtract as determined by the state of input channel B. Channel A total will add at each rising edge if channel B is high, and subtract at each rising edge if channel B is low.

Quadrature Input Type 2 (quad 2)

Quadrature Input Type 4 (quad 4)

Quadrature modes are used to accept inputs that are ±90 degrees out of phase, from quadrature output devices. Totals of channel A and B will add at each rising and falling edge of that channel.

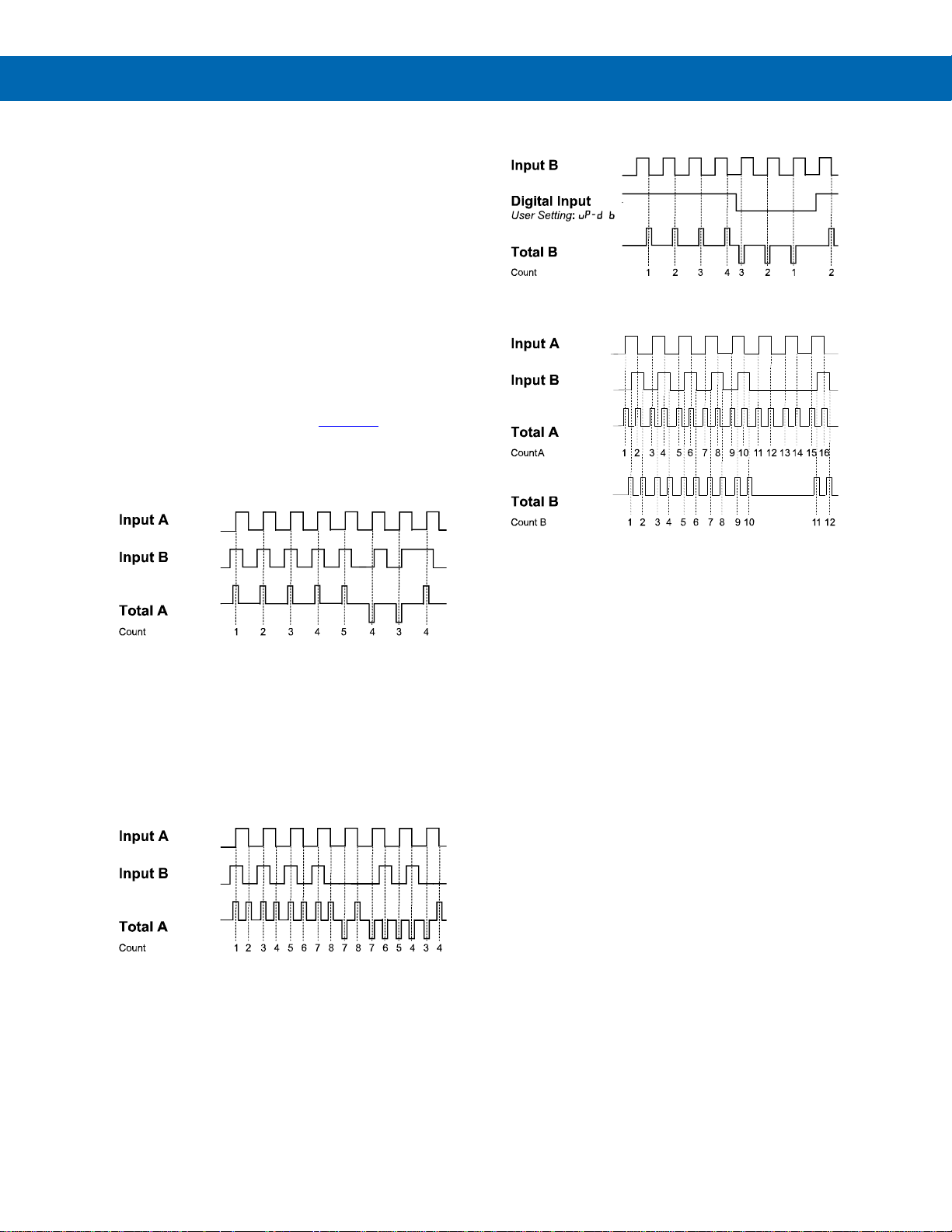

Figure 33. Dual Input Mode (ud BI)

Figure 34. Dual Input Mode (quad 1)

Figure 35. Dual Input Mode (quad 2)

Figure 36. Dual Input Mode (quad 4)

Page 30

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

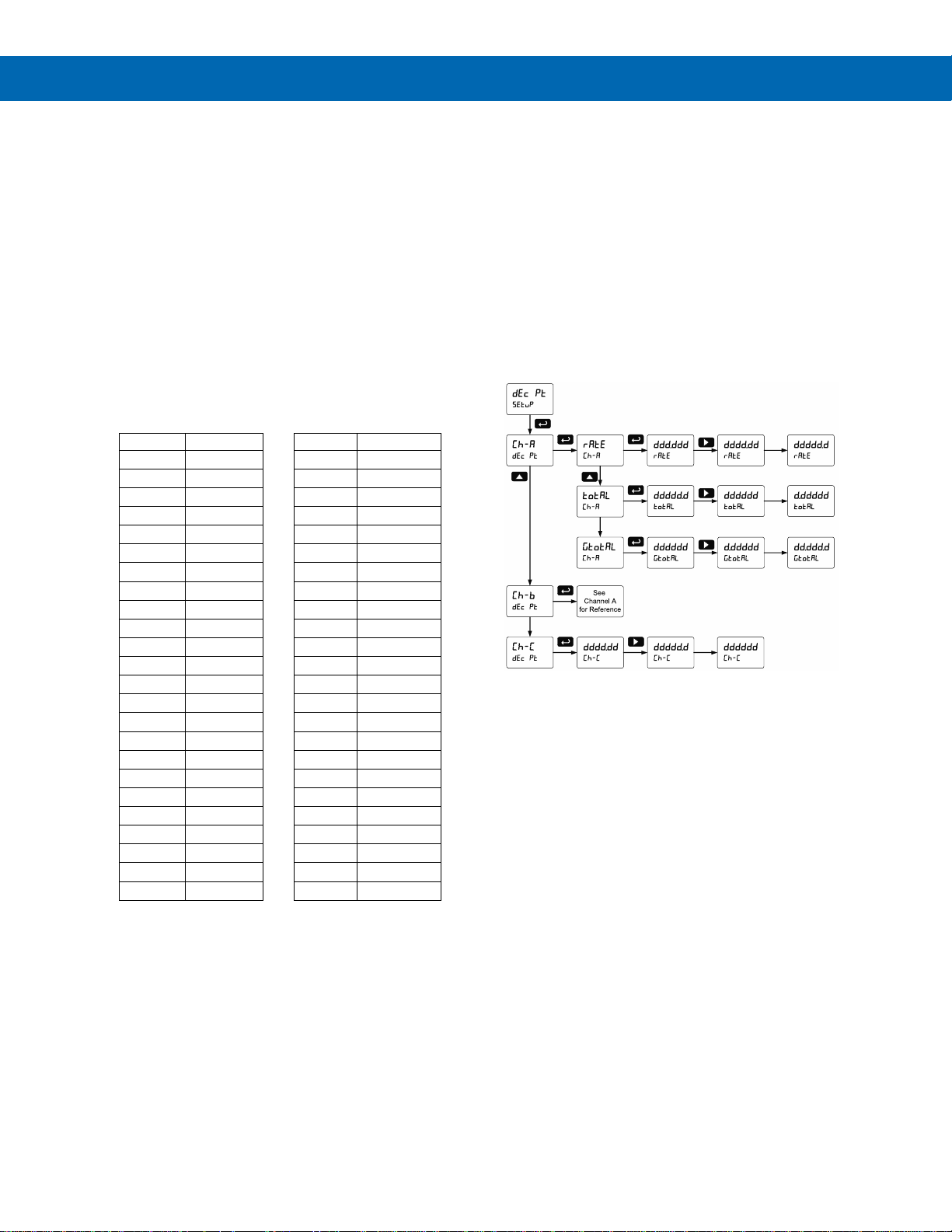

Setting the Rate, Total, & Grand Total Units/Tags (units)

Enter the channel A and B rate, total, grand total, and math channel C units (or custom tags) that will be displayed if alternating units is selected in the units menu, or d unit is selected as the lower display parameter.

See the Setting the Display Parameters & Intensity (dsplay) flow chart on page 34 for details on accessing the Units menu and parameters. Ch-A and Ch-B set the rate units, tot-A and tot-B the total units, and Gtot-A and Gtot-B the grand total units. Ch-C sets the units for the math channel C.

See the Setting the Display Parameters & Intensity (dsplay) flow chart on page 34 to access the display menu to show the unit or tag on the lower display.

The engineering units or custom legends can be set using the following 7-segment character set:

Display

Character

Display

Character

k K 1

n m

n n 4

O O 5

q q 8

r r 9

u u C

v V c

y Y f

z Z g

[ ] h

] [ I

Degree(<)

Space

Notes:

1. Degree symbol represented by (<) if programming with MeterView Pro.

2. The letters “m” and “w” use two 7-segment LEDs each; when selected the characters to the right are shifted one position.

3. Press and hold up arrow to auto-scroll the characters in the display.

Setting the Decimal Point (dEc pt)

The decimal point for any channel, rate, total, or grand total, may be set with up to five decimal places or with no decimal point at all.

Pressing the Right arrow moves the decimal point one place to the right until no decimal point is displayed, and then it moves to the leftmost position. Pressing the Up arrow moves the decimal point one place to the left.

There are seven decimal points to set up for three channels: Ch-A rate, total, and grand total; Ch-B rate, total, and grand total; and Ch-C.

After the decimal points are set up, the meter moves to the Program menu.

Page 31

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

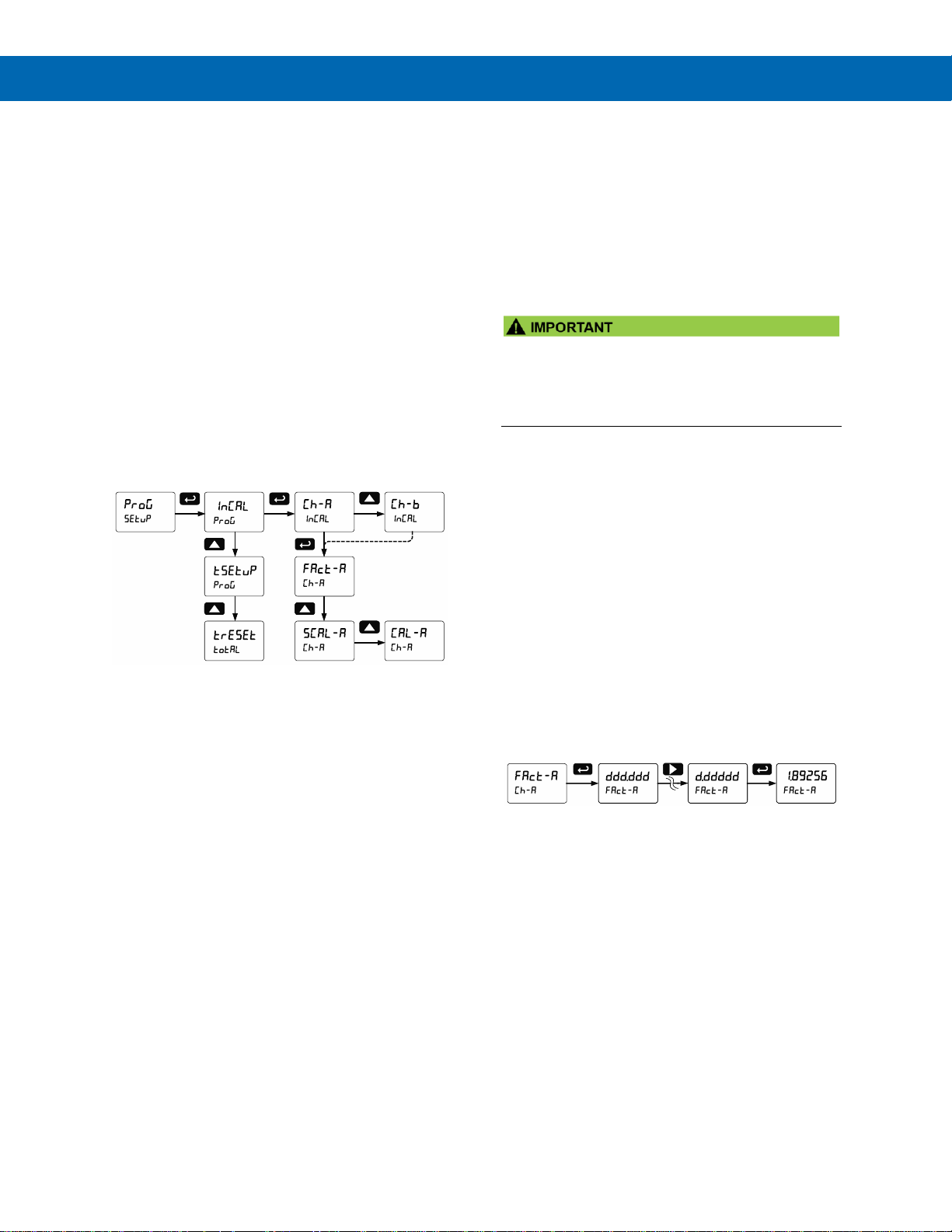

Programming the Rate/Totalizer (prog)

The meter may either be scaled (SCALE) without applying an input, calibrated (Cal) by applying an input, or you may use the K-Factor menu to match the rate/totalizer with a flowmeter’s k-factor (pulse/unit of measure). The meter comes factory calibrated to NIST standards, so for initial setup, it is recommended to use the (SCALE) function.

The Program menu contains the following menus for each channel A and B:

1. K-Factor calibration

2. Scale without a signal source

3. Calibrate with a calibrated signal source

4. Total time base & conversion factor

5. Grand total time base & conversion factor

6. Reset modes for total & grand total

The pulse inputs may be calibrated or scaled to any display value within the range of the meter.

Additional parameters, not needed for most applications, are found in the Advanced Features menu; see Advanced Features Menu, page 44.

Input Calibration Method (InCAL)

There are three methods of calibrating (or scaling) the display for each input channel to show the correct engineering units.

• Use the Factor menu to enter the k-factor of a flowmeter in units/pulse

• Use the Scale menu to enter the scaling without a signal source.

• Use the Calibrate menu to apply a signal from a signal source.

• The Scale, Calibrate, and K-Factor functions are exclusive of each other. The meter uses the last function programmed. Only one of these methods can be employed at a time.

Multi-Point Calibration & Scaling

The Scale and Calibrate functions can use up to 32 points (default is 2). The number of points should be set in the Advanced menu under the Multi-Point Linearization (Linear) menu selection prior to scaling and calibration of the meter, see page 47 for details.

K-Factor Calibration (Fact-A, Factb)

The meter may be calibrated using the K-Factor function. Most flowmeter manufacturers provide this information with the device. Enter the K-Factor (Fact-A, Fact-b) menu and select the decimal point with highest resolution possible and program the kfactor value (i.e. pulses/gal). The meter will automatically calculate the flow rate using the k-factor and the time base selected.

Scaling the Meter without a Signal Source (SCAL-A, SCAL-B)

The inputs can be scaled to display the process variables in engineering units.

A signal source is not needed to scale the meter; simply program the inputs and corresponding display values.

From the INCAL menu, select channel A or B, followed by SCal-A or SCal-B, and then set the input signal value and display value for each of the scaling points (default is two). Enter the input signal values in pulses/second (Hz), and the corresponding display values in appropriate engineering units.

Channel B is scaled similarly to Channel A, shown below.

Page 32

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

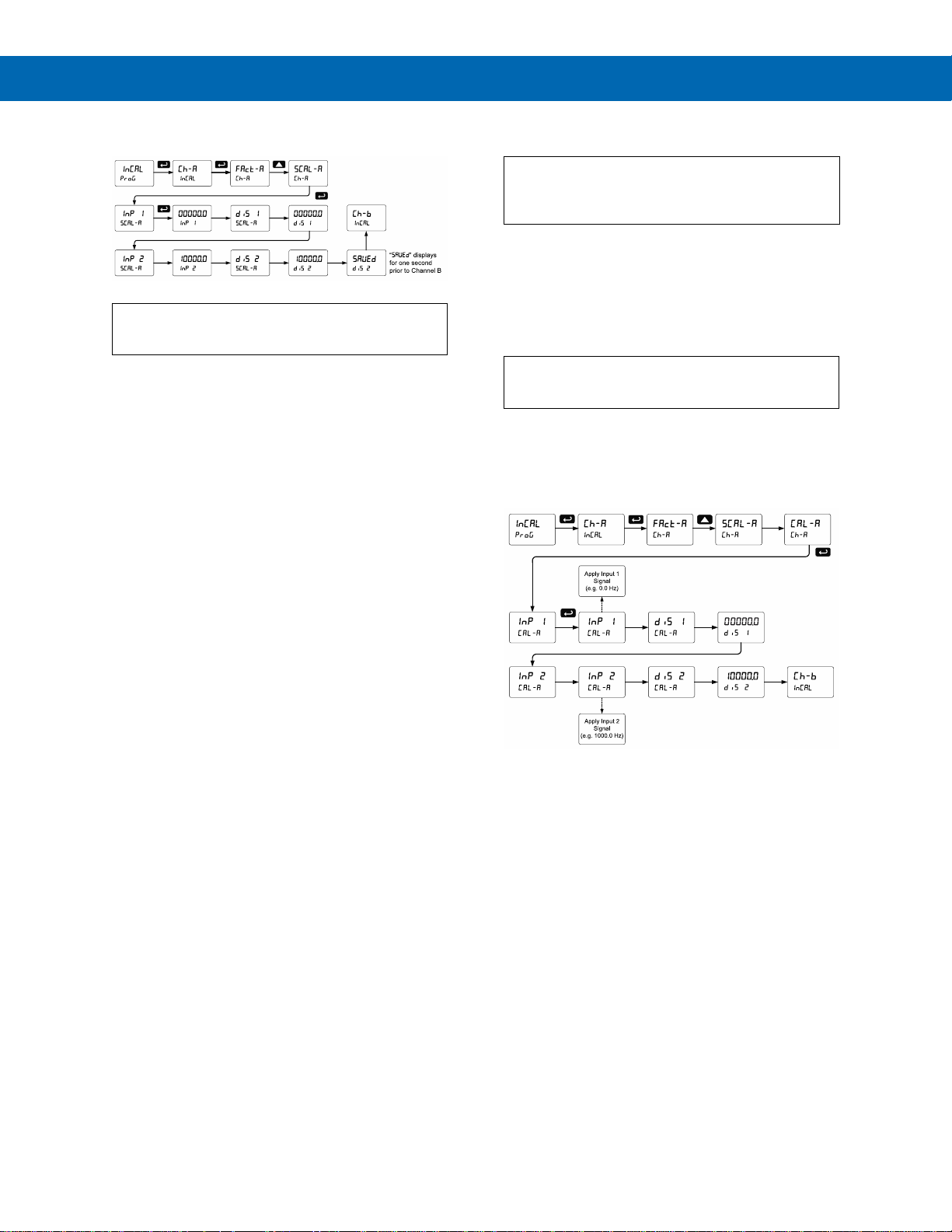

Scaling the Meter for Channel A (SCal-A)

For instructions on how to program numeric values

see Setting Numeric Values, page 26.

Note: The display values (DiS 1 and DiS 2) need to be in units of measure per second.

For example: If the rate at 1000 Hz is 13.2 gal/min, this must be converted to gal/sec. In this scenario, the numbers input into the SCALE menu would be as follows:

InP 1: 0.0 DiS 1: 0.000 InP 2: 1000.0 DiS 2: 0.220

Set the time base set to minutes (see Total & Grand Total Setup (tsetup) on page 33) and the meter will

display 13.2 gal/min at 1000 Hz

Error Message (Error)

An error message indicates that the calibration or scaling process was not successful.

After the error message is displayed, the meter reverts to input 2 during calibration or scaling and to input 1 during internal calibration, allowing the appropriate input signal to be applied or programmed.

The error message might be caused by any of the following conditions:

1. Input signal is not connected to the proper terminals or it is connected backwards.

2. Minimum input span requirements not maintained.

3. Input 1 signal inadvertently applied to calibrate input 2.

Minimum Input Span

The minimum allowed input span is 1.0 Hz, which is the minimum difference between input 1 and input 2 signals required to complete the calibration using an external signal source, or 0.1 Hz for scaling the meter without a signal source.

Calibrating the Meter with External Source (CAL-A, CAL-B)

To scale the meter without a signal source, refer to

Scaling the Meter without a Signal Source (SCAL-A,

SCAL-B), page 31.

The meter can be calibrated to display the process variables in engineering units by applying the appropriate input signal and following the calibration procedure.

The use of a calibrated signal source is strongly recommended to calibrate the meter.

There is no need to warm up the meter before

performing calibration of the inputs.

Channel B is calibrated similarly to Channel A, shown below.

Calibrating the Meter for Channel A (CAL-A)

Note: The display values (

DiS 1

and

DiS 2

) need to

be in units of measure per second. Note: Inputs for the above example are:

Input 1: 0.0 Hz; Display 1: 0.0 gallons/min Input 2: 1000.0 Hz; Display 2: 6000.0 gallons/min

Page 33

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

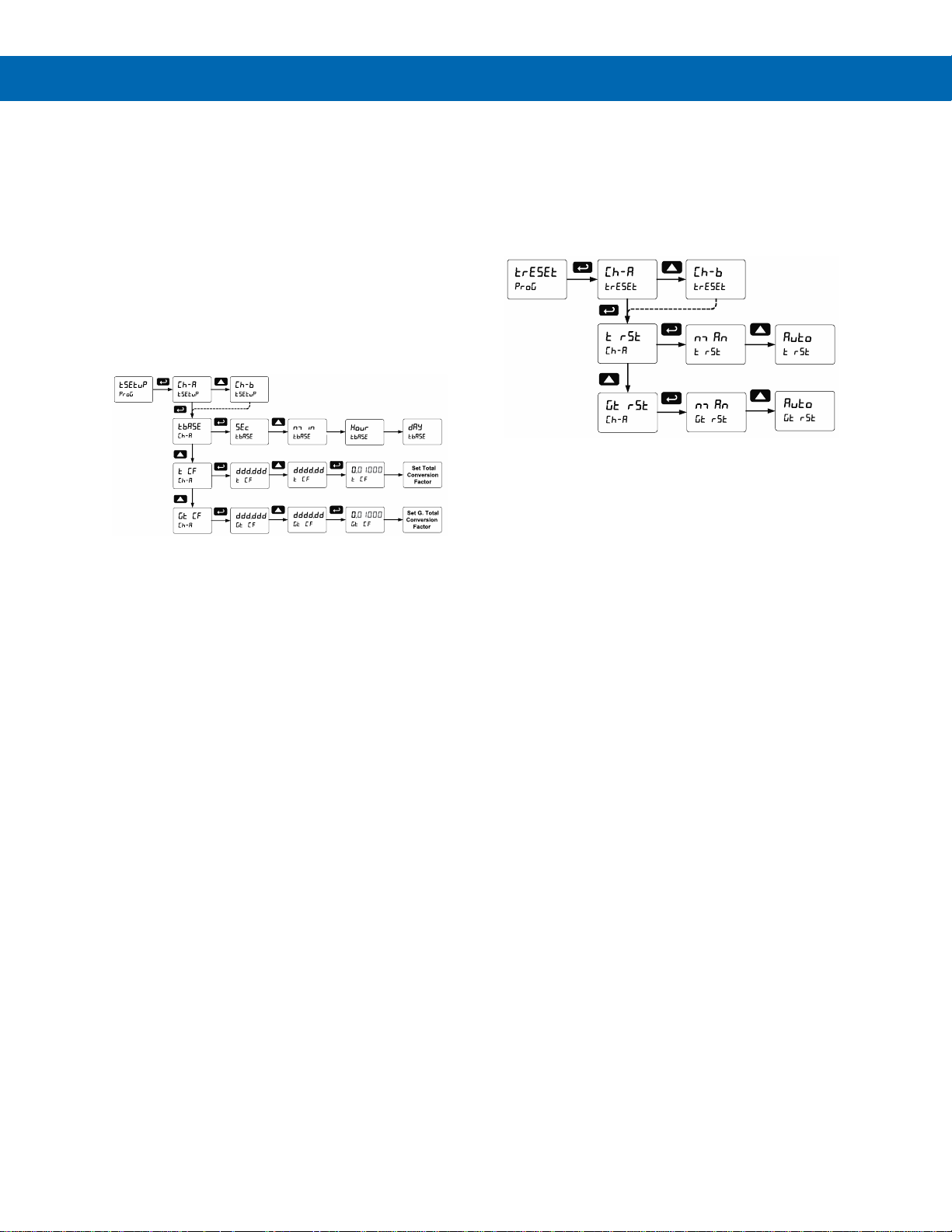

Total & Grand Total Setup (tsetup)

The time base and total and grand total conversion factors for input channels A and B are located in the Totalizer Setup menu.

The time base is determined by the rate programming. Enter the time unit of the programmed rate scale. For example: A rate display scaled in

engineering units of gallons per minute would use a time base of minutes.

Total & grand total conversion factors for channel A and B are programmed independently. This means that one total or grand total can be displaying the value in gallons while another displays in million gallons, liters, m3, etc.

Total & Grand Total Reset (treset)

Total reset menus are located in the Program menu. The totals can be programmed for manual or automatic reset. In the automatic reset mode, a programmable time delay (t dly) in seconds is available to reset the total or grand total after the assigned preset is reached.

Page 34

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Setting the Display Parameters & Intensity (dsplay)

Display line 1 (line 1) can be programmed to display:

1. Ch-A rate (D Ch-A)

2. Ch-B rate (D Ch-B)

3. Ch-C math channel (D Ch-C)

4. Toggle Ch-A & Ch-B rate (D AB)

5. Toggle Ch-A rate and Ch-C (D AC)

6. Toggle Ch-B rate and Ch-C (D BC)

7. Toggle Ch-A & Ch-B rate, and Ch-C (D ABC)

8. Ch-A total (D T-A)

9. Ch-B total (D T-B)

10. Ch-A grand total (D GT-A)

11. Ch-B grand total (D GT-B)

12. Toggle Ch-A rate and total (D RT-A)

13. Toggle Ch-B rate and total (D RT-B)

14. Toggle Ch-A rate and grand total (DRGT-A)

15. Toggle Ch-B rate and grand total (DRGT-B)

16. Relay set points (1-8) (DSET 1 to DSET 8)

17. Max, min, and max & min values for

Ch-A, Ch-B, or Ch-C (D Hi-A to d HL-C)

18. Toggle Ch-A rate & units (d A-u)

19. Toggle Ch-B rate & units (d B-u)

20. Toggle Ch-C & units (d C-u)

21. Toggle Ch-A total & units (d TA-u)

22. Toggle Ch-B total & units (d TB-u)

23. Toggle Ch-A total and Ch-B total (d tAb)

24. Toggle Ch-A total, Ch-B total, and the sum of

total A + total B (d tABC)*

25. Modbus input (nm bus)

*Note: The (C = sum of total A + total B) displayed with the selection (d tABC) is different than the math channel C calculated under the Math menu functions. Example: (C = Rate Ch-A + Rate Ch-B).

Display line 2 (Line 2) can be programmed to display:

1. All options for display line 1

2. Off, with no display (d ofF)

3. Engineering units for any single channel,

total, or grand total

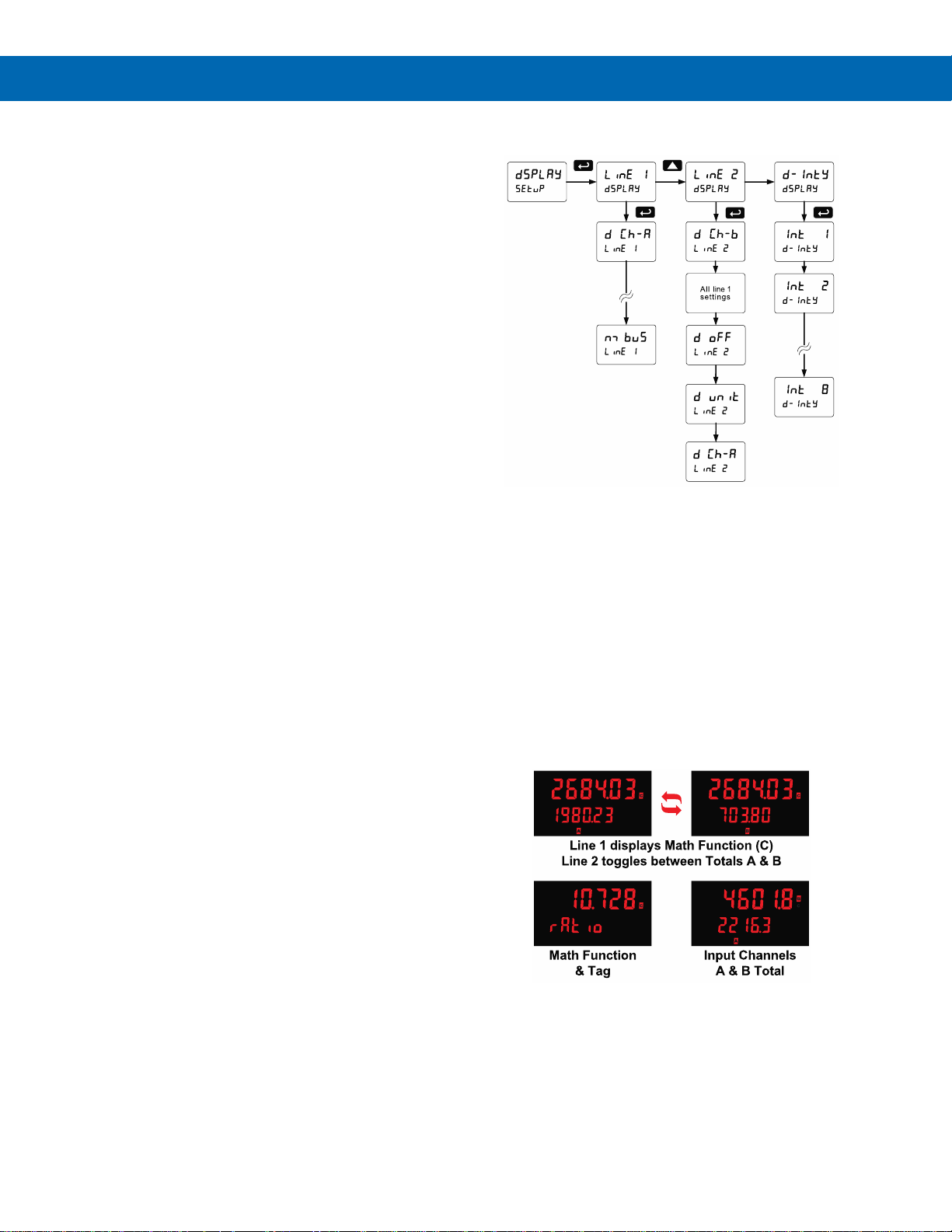

Display Parameter Menu

After setting up the input and display, press the Menu button to exit programming and skip the rest of the setup menu.

Customizable Displays

The displays can be set up to read input channels (A or B), rate, total, or grand total, math function channel C, toggle between A & B, B & C, A & C, A & B & C, toggle between channels A, B, or C & units, the max/min of any of the channels, including the math channel (C), set points, or the Modbus input. This allows the display to be setup to display whatever variables are most valuable to the application. Here are just a few examples.

Display Intensity (d-Inty)

The meter has eight display intensity levels to give the best performance under various lighting conditions. Select intensity 8 for outdoor applications. The default intensity is 6.

Page 35

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

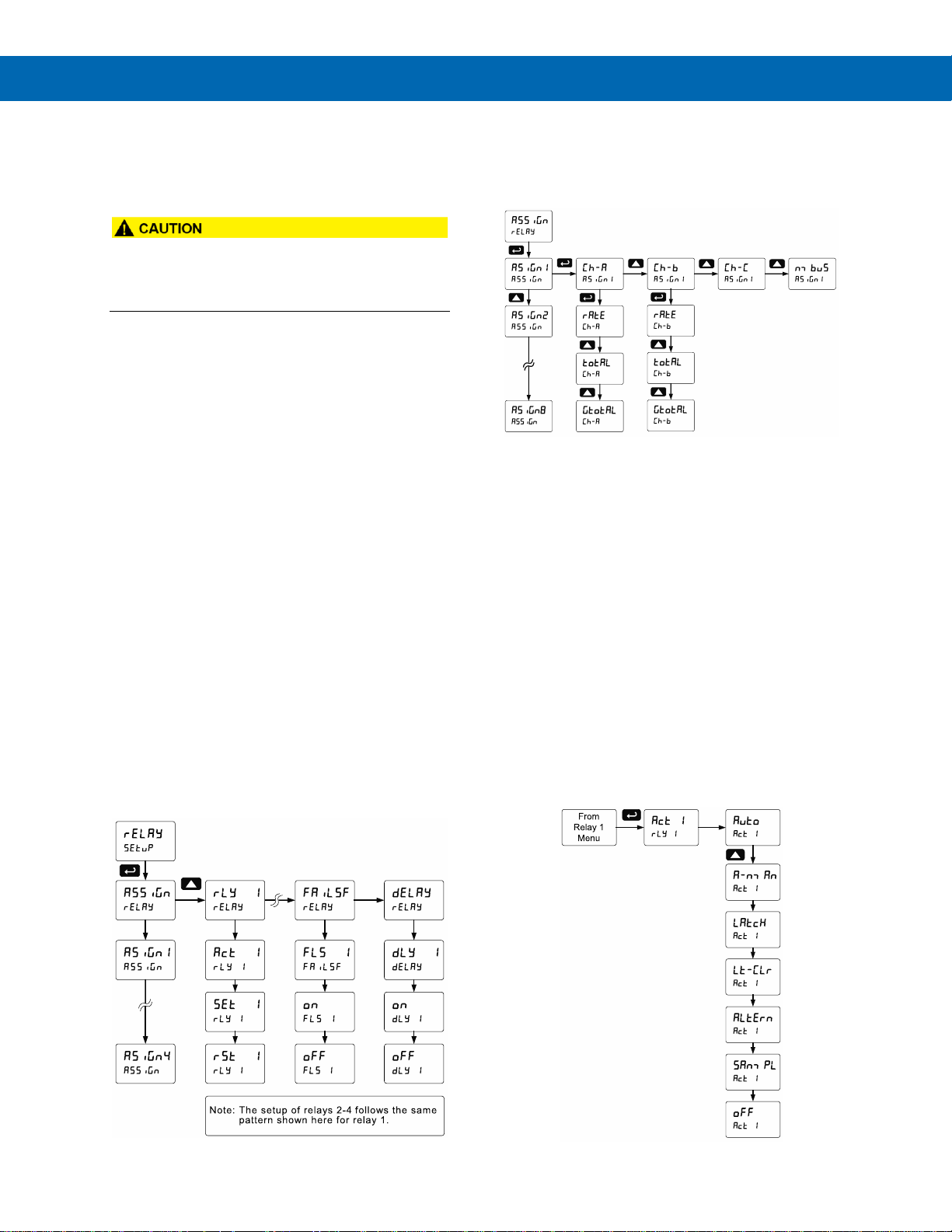

Setting the Relay Operation (relay)

This menu is used to set up the assignment and operation of the relays.

• During setup, the relays do not follow the input and they will remain in the state found prior to entering the Relay menu.

1. Relay assignment

a. Channel A rate, total, or grand total b. Channel B rate, total, or grand total c. Channel C (Math channel) d. Modbus

2. Relay action

a. Automatic reset only (non-latching) b. Automatic + manual reset at any time

(non-latching) c. Latching (manual reset only) d. Latching with Clear (manual reset only

after alarm condition has cleared) e. Pump alternation control (automatic

reset only) f. Sampling (the relay is activated for a

user-specified time) g. Off (relay state controlled by Interlock

feature)

3. Set point

4. Reset point

5. Fail-safe operation a. On (enabled) b. Off (disabled)

6. Time delay a. On delay (0-999.9 seconds) b. Off delay (0-999.9 seconds)

Setting the Relay Assignment (asSign)

Relays may be assigned to Channel A (rate, total, or grand total), Channel B (rate, total, or grand total), Channel C (Math channel), or Modbus input.

Setting the Relay Action (Act)

Operation of the relays is programmed in the Action menu. The relays may be set up for any of the following modes of operation:

1. Automatic reset (non-latching)

2. Automatic + manual reset at any time (nonlatching)

3. Latching (manual reset only, at any time)

4. Latching with Clear (manual reset only after alarm condition has cleared)

5. Pump alternation control (automatic reset only)

6. Sampling (the relay is activated for a userspecified time)

7. Off (relay state controlled by Interlock feature)

The following graphic shows relay 1 action setup; relay 2-8 are set up in a similar fashion.

Page 36

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

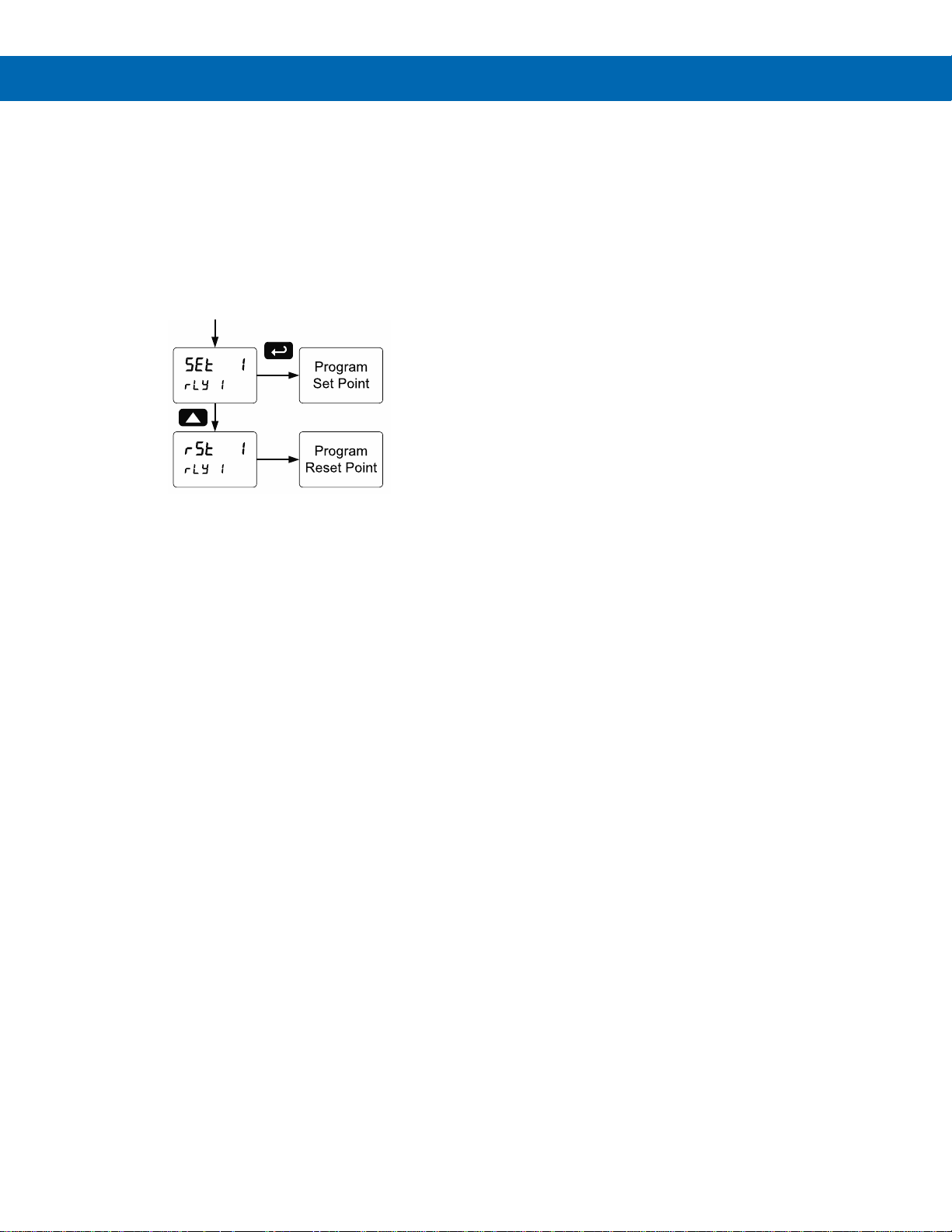

Programming Set and Reset Points

High alarm indication: program set point above reset point. Low alarm indication: program set point below reset point. The deadband is determined by the difference between set and reset points. Minimum deadband is one display count. If the set and reset points are programmed with the same value, the relay will reset one count below the set point.

Note: Changes are not saved until the reset point has been accepted.

Setting Fail-Safe Operation

In fail-safe mode of operation, the relay coil is energized when the process variable is within safe limits and the relay coil is de-energized when the alarm condition exists. The fail-safe operation is set independently for each relay. Select on to enable or select off to disable fail-safe operation.

Programming Time Delay

The On and Off time delays may be programmed for each relay between 0 and 999.9 seconds. The relays will transfer only after the condition has been maintained for the corresponding time delay.

The On time delay is associated with the set point. The Off time delay is associated with the reset point.

Page 37

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

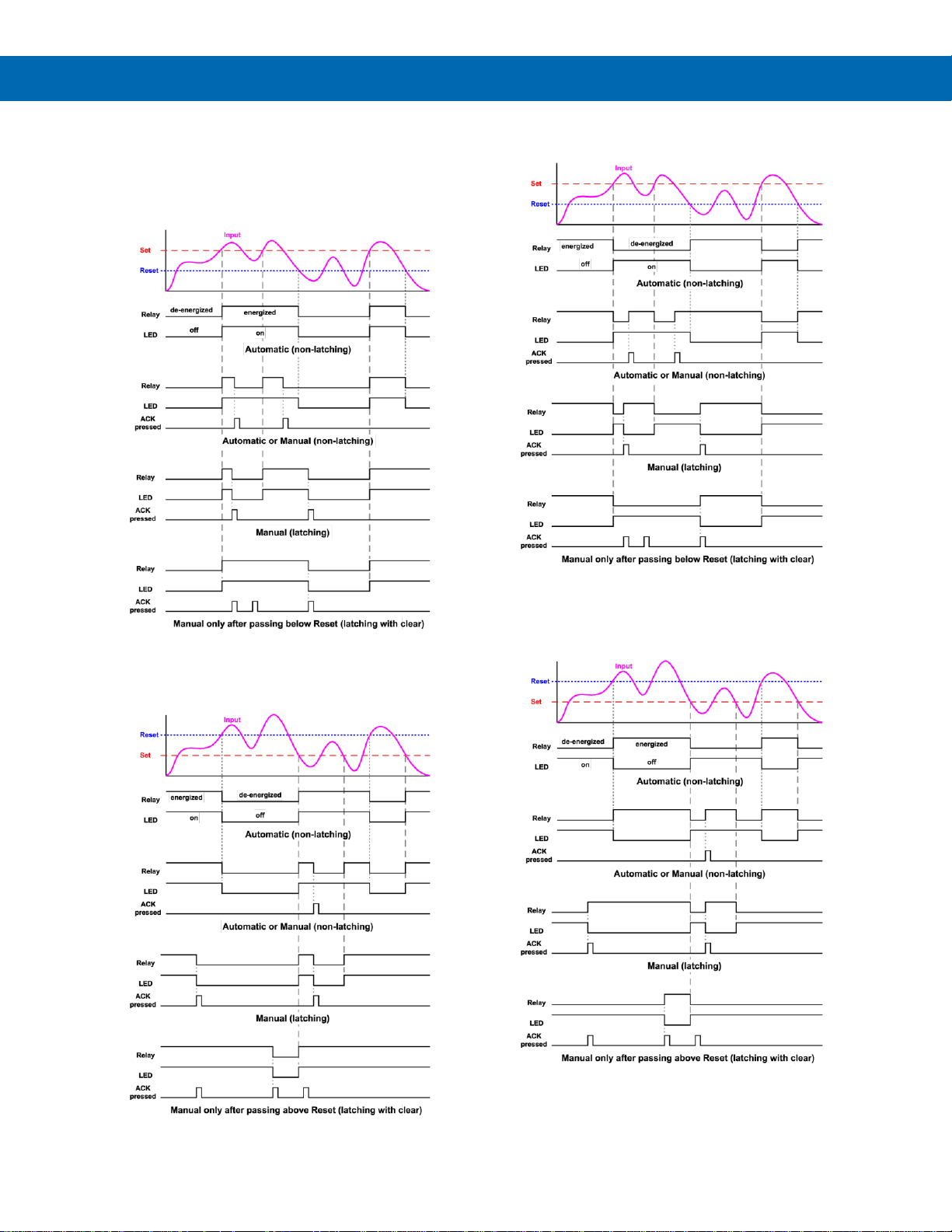

Relay and Alarm Operation Diagrams

The following graphs illustrate the operation of the relays, status LEDs, and ACK button.

High Alarm Operation (Set > Reset)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay. To detect a new alarm condition, the signal must go below the set point, and then go above it.

Low Alarm Operation (Set < Reset)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay. To detect a new alarm condition, the signal must go below the set point, and then go above it.

High Alarm with Fail-Safe Operation (Set > Reset)

Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.

Low Alarm with Fail-Safe Operation (Set < Reset)

Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.

Page 38

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

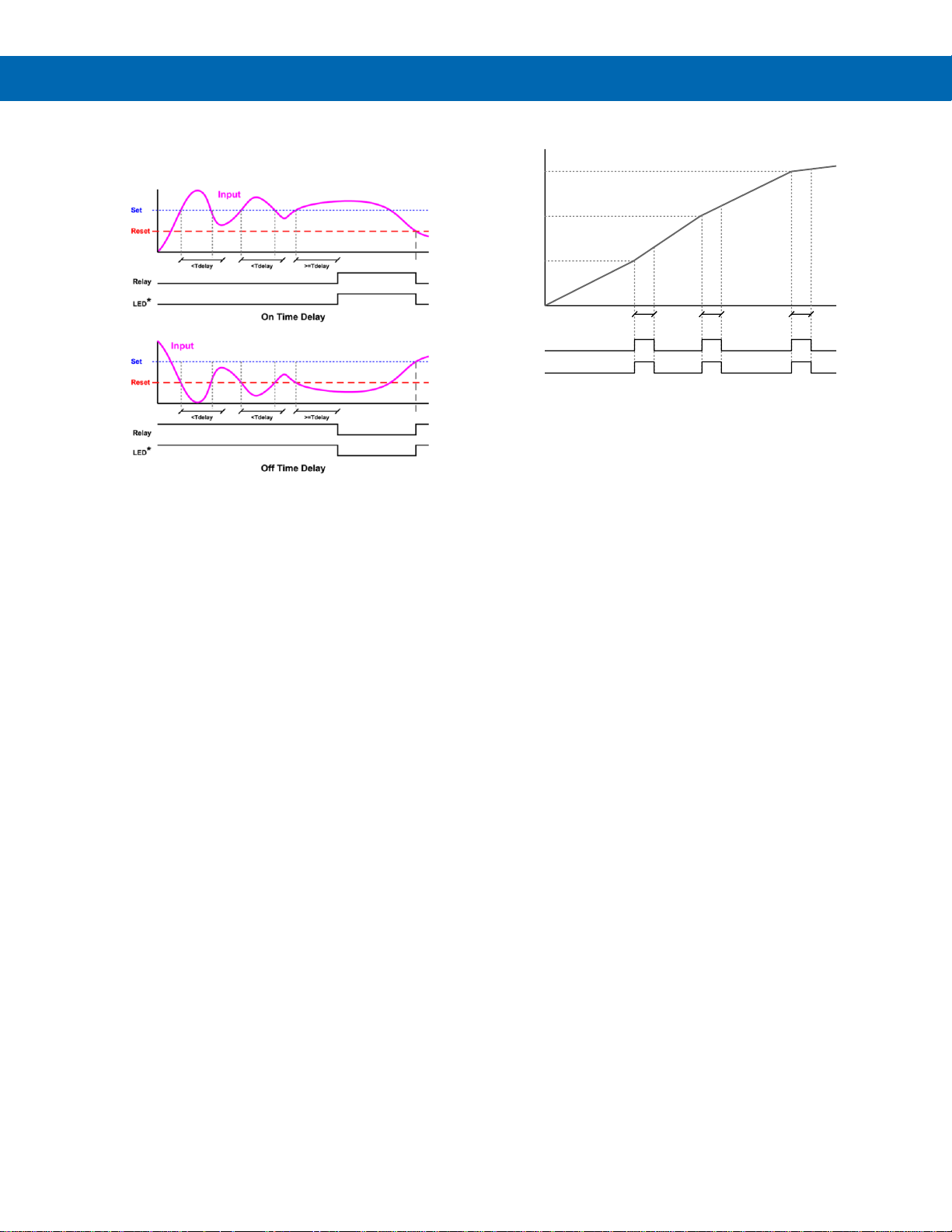

Time Delay Operation

The following graphs show the operation of the time delay function.

When the signal crosses the set point, the On time delay timer starts and the relay trips when the time delay has elapsed. If the signal drops below the set point (high alarm) before the time delay has elapsed, the On time delay timer resets and the relay does not change state. The same principle applies to the Off time delay.

Note: If “Automatic or Manual (A-nmAn)” reset mode is selected, the LED follows the reset point and not the relay state when the relay is acknowledged.

Total Relay Sampling Operation

When the total reaches the preset, the relay trips and the sample time starts. After the sample time has elapsed, the relay resets. The cycle repeats every time the preset value is added to the total.

Preset = 100

100

Relay

LED

Total

200

300

Sample

Time

Sample

Time

Sample

Time

Page 39

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

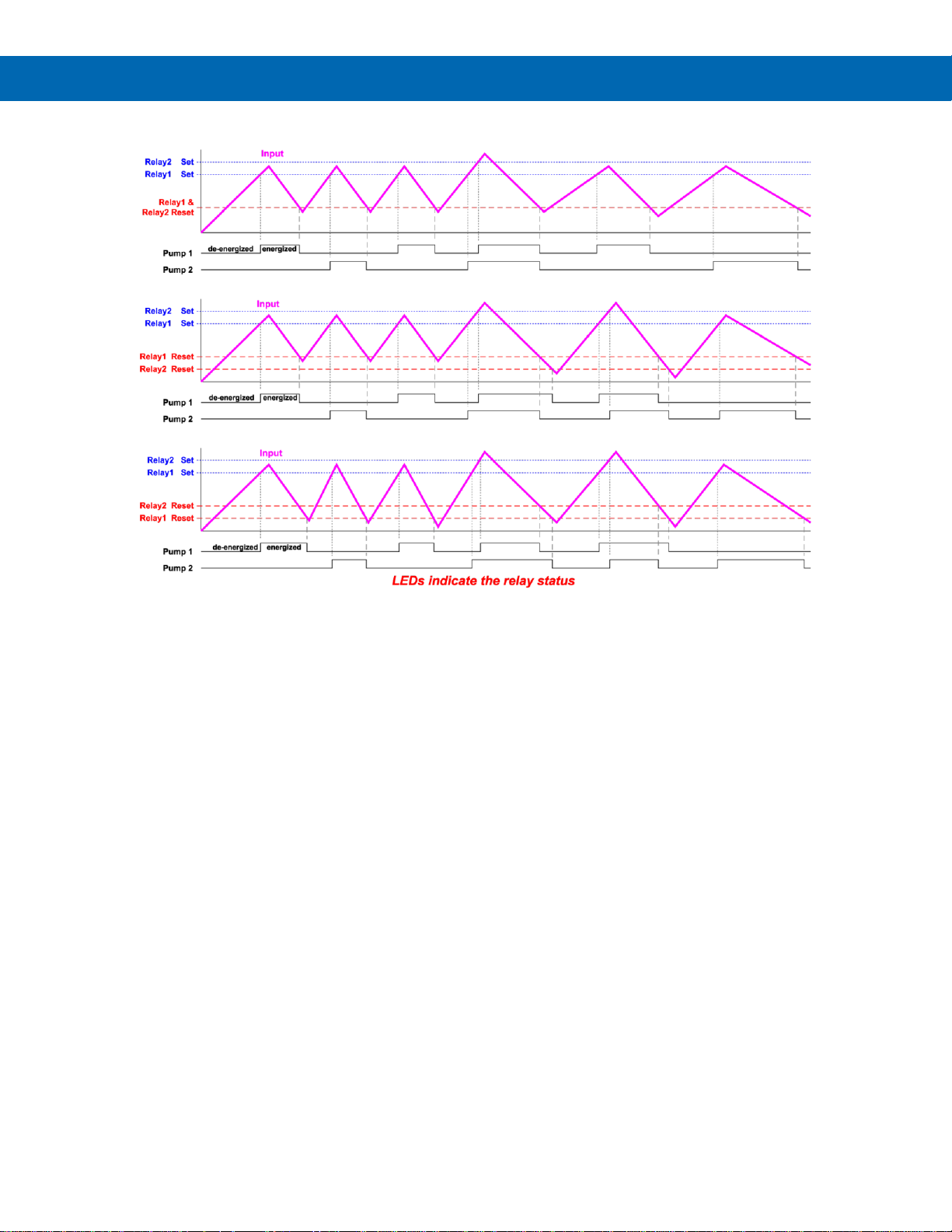

Pump Alternation Control Operation

Page 40

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Relay Operation Details

Overview

The relay capabilities of the meter expand its usefulness beyond simple indication to provide users with alarm and control functions. These capabilities include front panel alarm status LEDs as well as either 2 or 4 optional internal relays and/or 4 external relays expansion module. Typical applications include high and low temperature, level, pressure or flow alarms, control applications such as simple on/off pump control, and pump alternation control for up to 8 pumps. There are four basic ways the relays can be used:

1. High and Low Alarms with Latching or NonLatching Relays

2. Simple On/Off Control with 100% Adjustable Deadband

3. Sampling (Based on Time)

4. Pump Alternation Control for up to 8 Pumps

Relays Auto Initialization

When power is applied to the meter, the front panel LEDs and alarm relays will reflect the state of the input to the meter. The following table indicates how the alarm LEDs and relays will react on power-up based on the set and reset points:

Fail-Safe Operation

The following table indicates how the relays behave based on the fail-safe selection for each relay:

Fail-Safe Selection

Non-Alarm State

Alarm State

Power Failure

Off

Open

Closed

Open

Relays go to nonalarm state

Closed

Open

Closed

Relays go to alarm state

Note: NO = Normally Open, NC = Normally Closed.

This refers to the condition of the relay contacts when the power to the meter is off.

Front Panel LEDs

The alarm status LEDs on the front panel are available on all meters, even those without relays installed, and provide status indication for the following:

LED

Status

LED

Status

Alarm 1

Alarm 5

Alarm 2

Alarm 6

Alarm 3

Alarm 7

Alarm 4

Alarm 8

Note: LEDs 5-8 require the external relay module PDA1004 to be connected.

The meter is supplied with four alarm points that include front panel LEDs to indicate alarm conditions. This standard feature is particularly useful for alarm applications that require visual-only indication. The LEDs are controlled by the set and reset points programmed by the user. When the display reaches a set point for a high or low alarm, the corresponding alarm LED will turn on. When the display returns to the reset point the LED will go off. The front panel LEDs responds differently for latching and nonlatching relays.

For non-latching relays, the LED is always off during normal condition and always on during alarm condition, regardless of the state of the relay (e.g. Relay acknowledged after alarm condition).

For latching relays, the alarm LEDs reflects the status of the relays, regardless of the alarm condition. The following tables illustrate how the alarm LEDs function in relation to the relays and the acknowledge button (Default: F3 key assigned to ACK).

Latching and Non-Latching Relay Operation

The relays can be set up for latching (manual reset) or non-latching (automatic reset) operation.

Relay terminology for following tables

Terminology

Relay Condition

Alarm (Tripped)

Off

Normal (Reset)

Ack

Acknowledged

The On and Off terminology does not refer to the status of the relay’s coil, which depends on the failsafe mode selected.

• In latching relay mode, if Fail-Safe is off, latched relays will reset (unlatch) when power is cycled.

Alarm #

HI or LO

Alarm

Set

Point

Reset Point

Power-

Reading

Relay &

LED

1000

500

499

Off 2 LO

700

900

499

250

400

499

Off

450

200

499

Page 41

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Non-Latching Relay (Auto)

In this application, the meter is set up for automatic reset (non-latching relay). Acknowledging the alarm while it is still present has no effect on either the LED or the relay. When the alarm finally goes away, the relay automatically resets and the LED also goes off.

Non-Latching Relay with Manual Reset (A-nman)

In this application, the meter is set up for automatic and manual reset at any time (non-latching relay). The LED and the relay automatically reset when the meter returns to the normal condition.

In addition, the relay can be manually reset while the alarm condition still exists, but the LED will stay on until the meter returns to the normal condition.

Automatic + manual reset at any time

Condition

LED

Relay

Normal

Off

Alarm

Normal

Off

Next Alarm

Ack

Off

Normal

Off

Latching Relay (LatcH)

In this application, the meter is set up for manual reset at any time. Acknowledging the alarm even if the alarm condition is still present resets the relay and turns off the LED.

Manual reset any time

Condition

LED

Relay

Normal

Off

Alarm

Ack

Off

Latching Relay with Clear (Lt-Clr)

In this application, the meter is set up for manual reset only after the signal passes the reset point (alarm condition has cleared). Acknowledging the alarm while it is still present has no effect on either the LED or the relay. When the alarm is acknowledged after it returns to the normal state, the LED and the relay go off. Notice that the LED remains on, even after the meter returns to the normal condition. This is because, for latching relays, the alarm LED reflects the status of the relay, regardless of the alarm condition.

Manual reset only after

alarm condition has cleared

Condition

LED

Relay

Normal

Off

Alarm

Ack (No effect)

Normal

Ack

Off

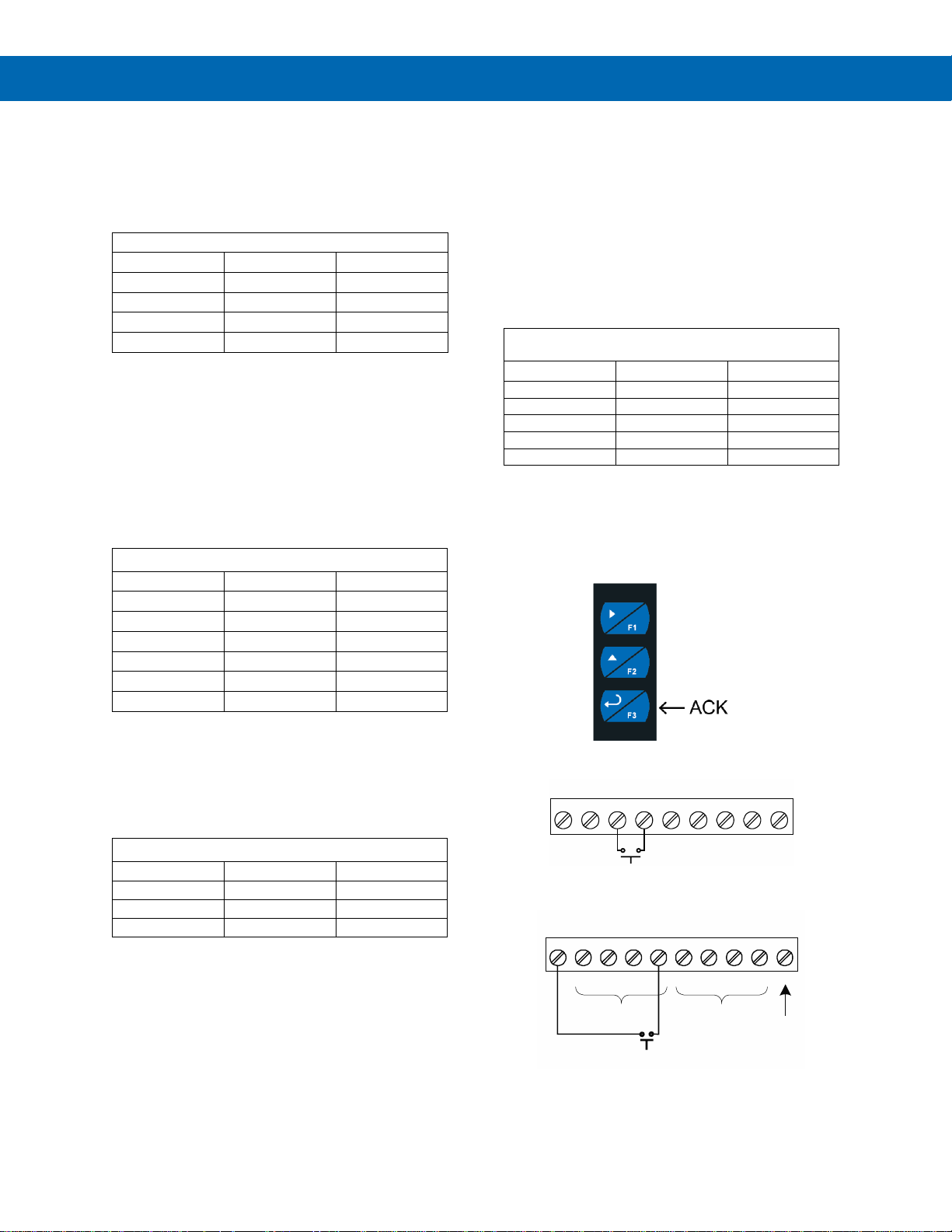

Acknowledging Relays

There are three ways to acknowledge relays programmed for manual reset:

1. Via the programmable front panel function keys F1-F3 (Example: F3 assigned to ACK).

2. Remotely via a normally open push button wired to the F4 terminal at the rear of the instrument.

3. One of the digital inputs and the +5 V terminals on the digital I/O expansion module.

When the ACK button or the assigned digital input is closed, all relays programmed for manual reset are acknowledged.

P- F4P+ COM S1+

3412 5

S1- COM S2+ S2-

7869

I1 I2 I3 I4

O1 O2 O3 O4 G

DO 1-4

GND

ACK

Digital I/O Module

1 2345 6 78910

DI 1-4

Automatic reset only

Condition

LED

Relay

Normal

Off

Alarm

Ack (No effect)

Normal

Off

Page 42

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

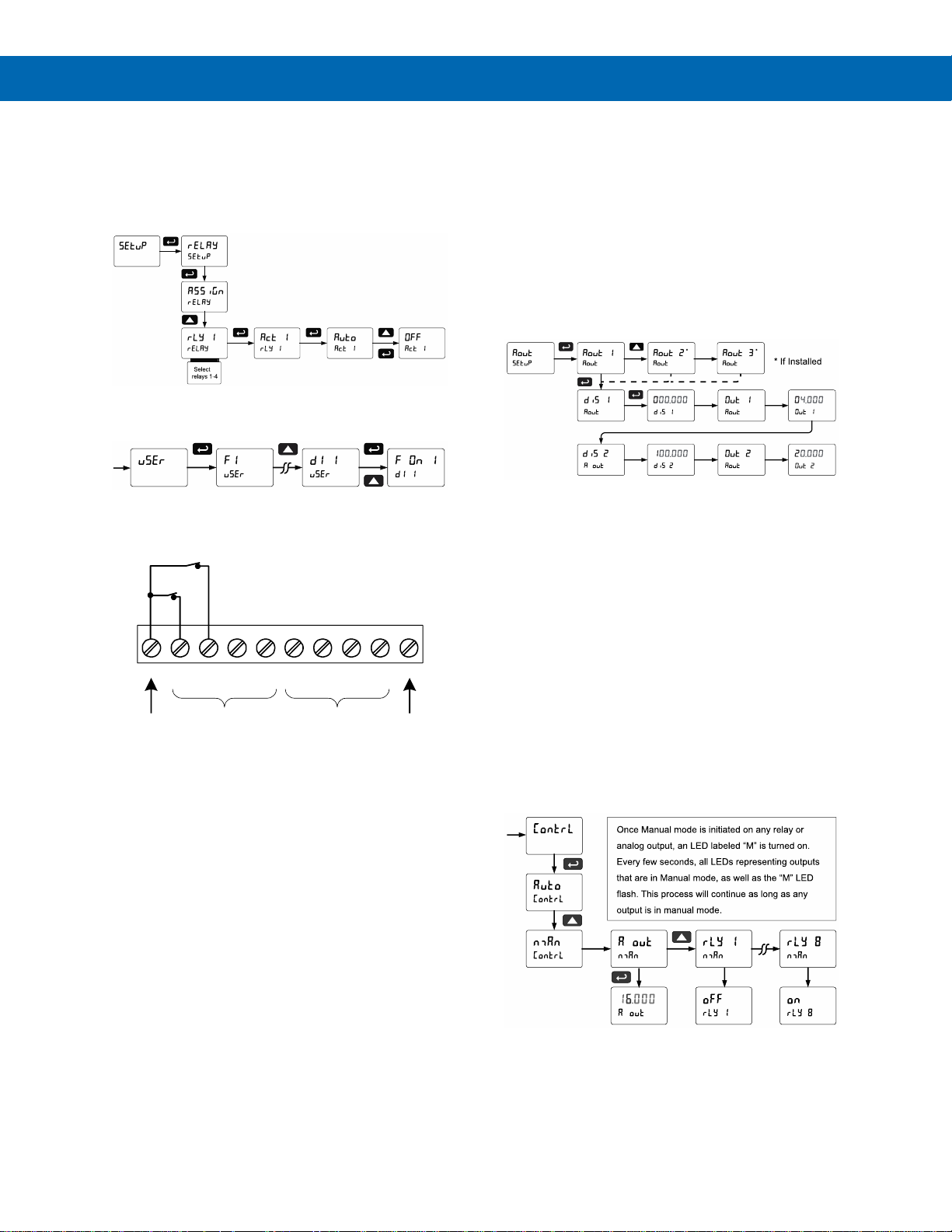

Setting Up the Interlock Relay (Force On) Feature

Relays 1-4 can be set up as interlock relays. To set up the relays for the interlock feature:

1. Access the Setup – Relay – Action menu and set the action to off.

2. In the Advanced features – User menu program

any of the digital inputs to Force On any of the internal relays (1-4).

3. Connect a switch or dry contact between the +5V

terminal and the corresponding digital input (dI-1 to dI-4) terminal.

Interlock Relay Operation Example

Relays 1 & 2 are configured to energize (their front panel LEDs are steady on) when SW1 & SW2 switches (above) are closed. If the contacts to these digital inputs are opened, the corresponding front panel LEDs flash, indicating this condition. The processes being controlled by the interlock relay will stop, and will re-start only after the interlock relay is re-activated by the digital inputs (switches).

Note: If multiple digital inputs are assigned to the same relay, then the corresponding logic is (AND) – i.e. both switches must be closed to trip the relay.

Scaling the 4-20 mA Analog Output (Aout)

The 4-20 mA analog outputs can be scaled to provide a 4-20 mA signal for any display range selected. To select the channel and source assignments the analog outputs are assigned to, see Analog Output Source on page 50.

No equipment is needed to scale the analog outputs; simply program the display values to the corresponding mA output signal.

The Analog Output menu is used to program the 4-20 mA outputs based on display values.

Reset Menu (reset)

The Reset menu is used to reset the maximum (peak) value of Ch-A and Ch-B rate (rst Hi), minimum (valley) reading of Ch-A and Ch-B rate (rst Lo), both high and low value of Ch-A and Ch-B rate (rst HL), Ch-A total (tot A) or Ch-B total (tot B), Ch-A grand total (Gtot A) or Ch-B grand total (Gtot B), both ChA and Ch-B totals (tot AB), or both Ch-A and Ch-B grand totals (Gt AB).

Manual Control Menu (Contrl)

The Manual Control menu is used to control the 4-20 mA analog output (Aout 1 only) and the relays manually, ignoring the input. Each relay and analog output can be programmed independently for manual control. Selecting automatic control sets all relays and analog output for automatic operation.

1 2 3 4 5 6

+5 I1 I2 I3 I4 O1

7 8

O2 O3

9 10

O4 G

DI 1-4 DO 1-4

5 VDC GND

SW2

SW1

Page 43

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

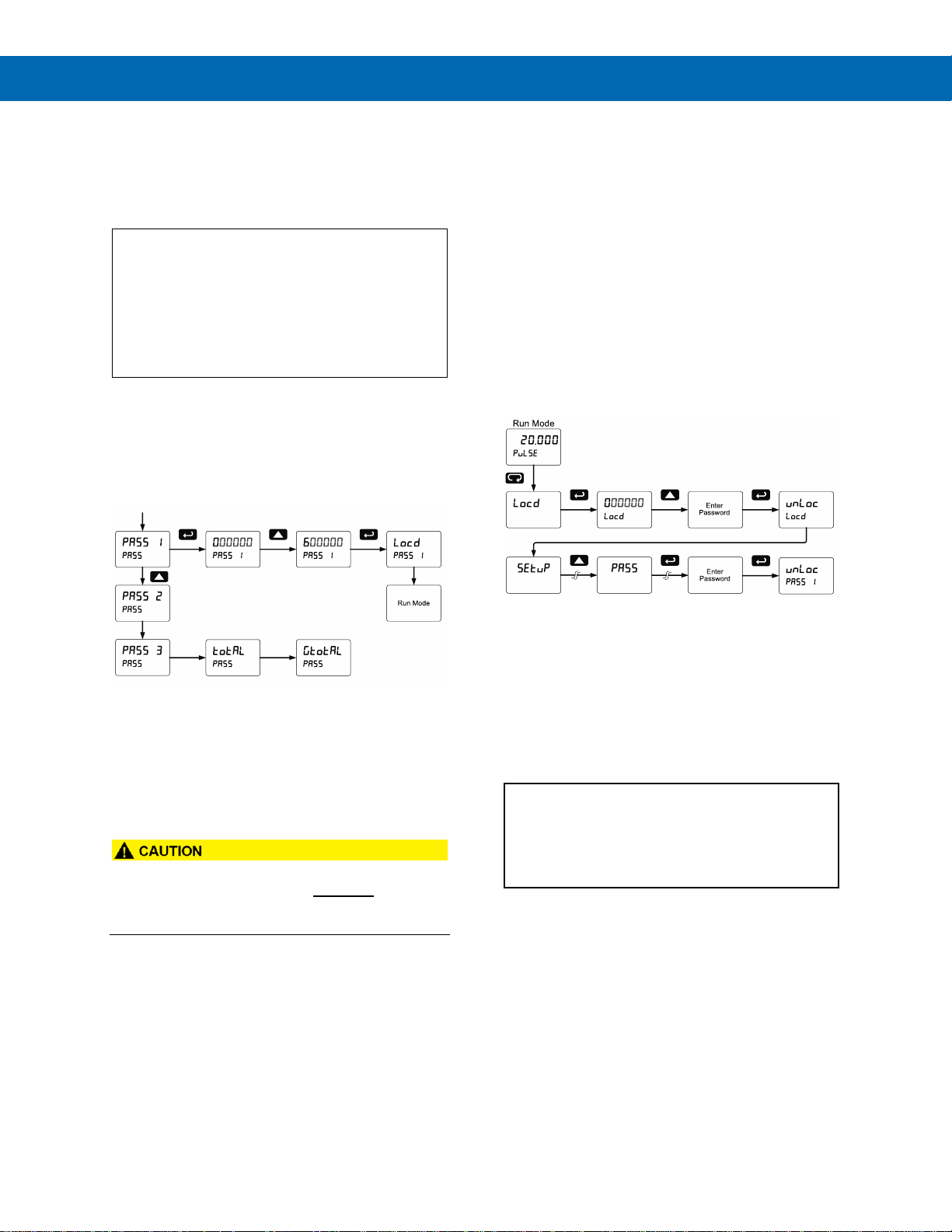

Setting Up the Password (pass)

The Password menu is used for programming three levels of security to prevent unauthorized changes to the programmed parameter settings, to restrict the ability to reset the totals and grand totals, and to program the non-resettable totalizer.

Protecting or Locking the Meter Functions

Enter the Password menu and program a six-digit password.

For instructions on how to program numeric values see Setting Numeric Values on page 26.

Total Reset Password & NonResettable Total

The total and the grand total can be passwordprotected to prevent unauthorized total resets.

The grand total can be programmed as a nonresettable total by entering the password “050873”.

• Once the Grand Total has been programmed as

“non-resettable” the feature CANNOT be disabled.

Making Changes to a Password Protected Meter

If the meter is password protected, the meter will display the message Locd (Locked) when the Menu button is pressed. Press the Enter button while the message is being displayed and enter the correct password to gain access the menu. After exiting the programming mode, the meter returns to its password protected condition.

Disabling Password Protection

To disable the password protection, access the Password menu and enter the correct password twice, as shown below. The meter is now unprotected until a new password is entered.

If the correct six-digit password is entered, the meter displays the message unLoc (unlocked) and the protection is disabled until a new password is programmed.

If the password entered is incorrect, the meter displays the message Locd (Locked) for about two seconds, and then it returns to Run Mode. To try again, press Enter while the Locked message is displayed.

Did you forget the password?

The password may be disabled by entering a master password once. If you are authorized to make changes, enter the master password 508655 to unlock the meter.

Page 44

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Advanced Features Menu

To simplify the setup process, functions not needed for most applications are located in the Advanced Features menu.

Press and hold the Menu button for three seconds to access the advanced features of the meter.

Advanced Features Menu & Display Messages

The following table shows the functions and messages of the Advanced Features menu in the order they appear in the menu.

Advanced Features Menu & Display Messages

Display

Parameter

Action/Setting

Gate

Enter Gate function menu

Lo G

Low gate

Program Low gate value

Hi G

High gate

Program High gate value

filter

Filter

Enter the Filter menu

Ch-A

Channel A

Set filter speed for channel A

Ch-b

Channel B

Set filter speed for channel B

Lo Spd

Low speed

Set the contact de-bounce filter value

Hi Spd

High speed

Select high speed filter

Round

Set the rounding value for the display

seriAl

Serial

Set serial communication parameters

SlaVId

Slave ID

Set slave ID or meter address

Baud

Baud rate

Select baud rate

Tr dLY

Transmit delay

Set serial communication transmit delay

Parity

Select parity Even, Odd, or None with 1 or 2 stop bits

t-byt

Time byte

Set byte-to-byte timeout

SelEct

Select

Enter the Select menu (function, math, constant, cutoff, count, Aout programming)

Functn

Input signal conditioning

Select linear function parameters

Ch-A

Channel A

Select menu for channel A

Ch-b

Channel B

Select menu for channel B

Linear

Set meter for linear function and select number of linearization points

No pts

Number of points

Set the number of linearization points (default: 2)

Advanced Features Menu & Display Messages

Display

Parameter

Action/Setting

nmath

Math

Select the channel C math function

Sunm

Sum

C = (A+B+P)*F

Dif

Difference

C = (A-B+P)*F

difabs

Abs difference

C = ((Absolute value of (A-B))+P)*F

Avg

Average

C = (((A+B)/2)+P)*F

nmulti

Multiplication

C = ((A*B)+P)*F

DiVide

Divide

C = ((A/B)+P)*F

Hi-ab

Max of A or B

C = ((High value of channel A or B)+P)*F

Lo-ab

Min of A or B

C = ((Low value of channel A or B)+P)*F

Drauw

Draw

C = ((A/B)-1)*F

uw Avg

Weighted avg.

C = ((B-A)*F)+A

ratio

Ratio

C = (A/B)*F

Ratio2

Ratio 2

C = ((B-A)/A)+P)*F

Concen

Concentration

C = (A/(A+B))*F

Sunm t

Sum total

C = (tA+tB+P)*F

Sunmgt

Sum grand total

C = (GtA+GtB+P)*F

Dif t

Diff. of total

C = (tA-tB+P)*F

Dif gt

Difference of grand total

C = (GtA-GtB+P)*F

Tratio

Total ratio

C = (tA/tB)*F

t-rat2

Total ratio 2

C = ((tB-tA)/tA)*F

T pct

Total percent

C = (tA/(tA+tB))*100

Const

Constant

Enter math equation constants

adder

Adder

Addition constant used in channel C math calculations (P)

factor

Factor

Multiplication constant used in channel C math calculations (F)

CutofF

Cutoff

Set low-flow cutoff

Ch-A

Channel A

Set low-flow cutoff for Channel A

Ch-b

Channel B

Set low-flow cutoff for Channel B

Count

Set total count direction

Ch-A

Channel A

Set total count direction for Channel A

Ch-b

Channel B

Set total count direction for Channel B

Tot C

Total count

Set direction of total count

Gtot C

G. total count

Set direction of grand total count

Count up

Douwn

Count down

C strt

Count start

Enter count down start value

AoutPr

Analog output programming

Program analog output parameters

Aout 1*

Analog output 1

Program analog output 1 (*1-3) parameters

Source

Select source for the 4-20 mA output

Page 45

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Advanced Features Menu & Display Messages

Display

Parameter

Action/Setting

Calib

Calibrate

Calibrate 4-20 mA output

4 nmA

4 mA output

Enter mA output value read by milliamp meter with at least 0.001 mA resolution

20 nmA

20 mA output

Enter mA output value read by milliamp meter with at least 0.001 mA resolution

O-rang

Overrange

Program mA output for display overrange

u-rang

Underrange

Program mA output for display underrange

nmAx

Maximum

Program maximum mA output allowed

nmin

Minimum

Program minimum mA output allowed

User

User I/O

Assign function keys and digital I/O

F1*

F1* function key

Assign F1 function key (*F1/F2/F3)

F4 digital input

Assign F4 function (digital input)

dI I

Digital input 1

Assign digital input 1 – 8, if expansion modules are connected

dO 1

Digital output 1

Assign digital output 1 – 8, if expansion modules are connected

Diag

Diagnostics

Display parameter settings

LED t

LED test

Test all LEDs

Info

Information

Display software number and version

Erase

Erase MeterView Pro software stored in meter’s memory

Gate Function (Gate)

The gate function (Gate) is the first option in the Advanced Features menu. There are two settings for the Gate, low gate (Lo G) and high gate (Hi G). Channel A and B use the same gate settings.

The gate function is used for displaying slow pulse rates. Using the programmable gate, the meter is able to display pulse rates as slow as 1 pulse every 999.9 seconds (0.001 Hz). The gate function can also be used to obtain a steady display reading with a fluctuating input signal.

Low Gate (Lo G)

For most applications, low gate setting should be left at 1.0 second. Increase low gate setting to obtain a steadier rate display. The rate display will update in accordance with the low gate setting, for example if low gate is set at 10.0, the display will update every 10 seconds; changes in rate between updates will not be reflected until next display update.

High Gate (Hi G)

Set the high gate value to correspond to the highest expected pulse period (lowest pulse rate). For instance if the meter must display a rate when there is 1 pulse coming into the meter every 10 seconds, set the high gate to 11.0 seconds. When the signal is removed from the meter, the display will show the last reading for 11 seconds; then it will read zero.

Gate Settings

Slow Pulse Rate

Low Gate*

(sec)

High Gate

(sec)

Min Freq**

(Hz)

1.0

2.0

0.5000

1.0

10.0

0.1000

1.0

20.0

0.0500

1.0

100.0

0.0100

1.0

200.0

0.0050

1.0

400.0

0.0025

1.0

800.0

0.0012

1.0

999.9

0.0010

*The low gate setting corresponds to the display update rate and is used to stabilize the display reading with a fluctuating signal.

**The minimum frequency is dependent on high gate setting.

Page 46

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Contact De-Bounce Filter (FiLter)

The filter function (Filter) is the second option in the Advanced Features menu. The filter function (FiLter) can be used for applications where the meter is set up to count pulses generated by switch contacts. The filter value can be set anywhere between 2 and 50, the higher the value, the greater the filtering. Channel A and B have independent settings.

There are two settings, Hi SPd (high speed) and Lo

SPd (low speed). After pressing ENTER to select Lo SPd, enter the desired filter setting based on the table

below so that there are no extra counts when a contact closure is completed. Selecting Hi SPd does not require a programmable filter value.

Filter Settings

Contact De-Bounce Filter

Filter Setting

Speed Setting

Max Freq (Hz)

Lo SPd

999

Lo SPd

499

Lo SPd

249

Lo SPd

124

Lo SPd

N/A

Hi SPd

30,000

Rounding Feature (round)

The rounding feature is used to give the user a steadier display with fluctuating signals. Rounding is used in addition to the filter function.

Rounding causes the display to round to the nearest value according to the rounding selected. This setting affects the last two digits, regardless of decimal point position.

Rounding Selection

Actual Value

Display Value

Actual Value

Display Value

12.022

12.023

12.022

12.020

12.023

12.025

12.024

12.020

12.025

12.030

Modbus RTU Serial Communications (serial)

The meter is equipped with serial communications capability as a standard feature using Modbus RTU Serial Communication Protocol.

The meter may be connected to a PC for initial configuration via the on-board USB connection. For ongoing digital communications with a computer or other data terminal equipment, an RS-232, or RS-485 option is required; see Ordering Information on page 6 for details.

• DO NOT connect any equipment other than

Precision Digital’s expansion modules, cables, or

meters to the RJ45 M LINK connector. Otherwise damage will occur to the equipment and the meter.

Notes

1. More detailed instructions are provided with each optional serial communications adapter.

2. Refer to the PROVU Modbus Register Tables located at www.predig.com for details.

When using more than one meter in a multi-drop mode, each meter must be provided with its own unique address. The meter address (Slave ID) may be programmed between 1 and 247. The transmit delay may be set between 0 and 199 ms. The parity can be set to even, odd, or none with 1 or 2 stop bits.

Page 47

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

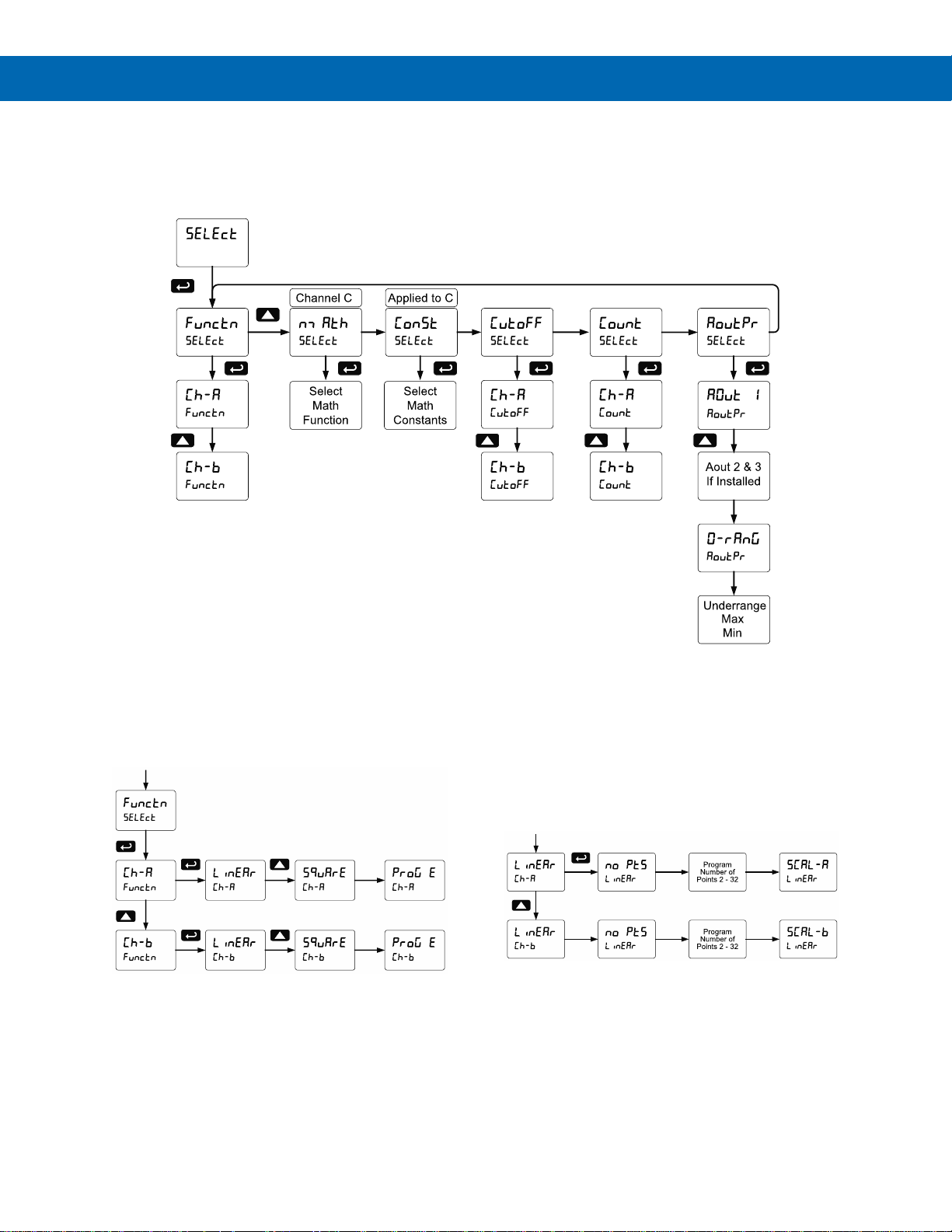

Select Menu (SElect)

The Select menu is used to select the input signal conditioner applied to the inputs, math function for A & B, constants, low-flow cutoff, total count direction (up or down from a preset amount), and analog output programming. Multi-point linearization is part of the linear function selection.

Input Signal Conditioning (Functn)

The Function menu is used to condition the linear input signal. Multi-point linearization is part of the linear function selection. Each input channel input signal conditioner is programmed independently.

Multi-Point Linearization (Linear)

Meters are set up at the factory for linear function with 2-point linearization. Up to 32 linearization points can be selected for each channel under the linear function. The multi-point linearization can be used to linearize the display for non-linear signals such as those from level flowmeters used to measure volume in odd-shaped tanks or to convert level to flow using weirs and flumes with complex exponent.

Note: After Scale is displayed continue pressing the

Enter button until the meter completes the scaling of the input and display values.

Page 48

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

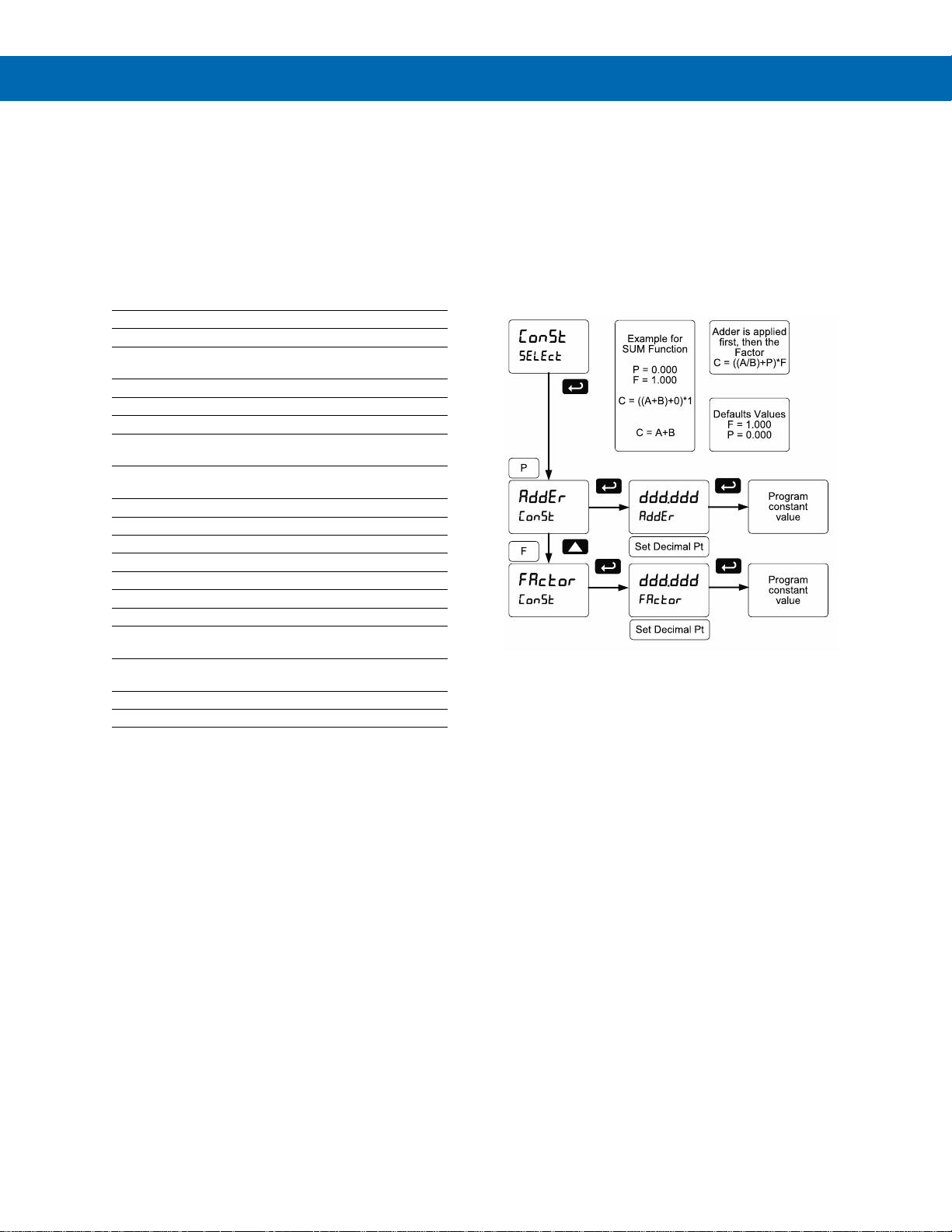

Math Function (nmath)

The Math menu is used to select the math function that will determine the channel C value. These math functions are a combination of input channels A and B, and will display when channel C is selected in the Display menu.

A and B refer to the rate of channel A and B. tA and tB refer to the totals of channel A and B. GtA and GtB refer to the grand totals of channel A and B. The following math functions are available.

Function

Display

Description

Sunm

Sum

C = (A+B+P)*F

Dif

Difference

C = (A-B+P)*F

difabs

Absolute difference

C = ((Absolute value of (A-B))+P)*F

AVg

Average

C = (((A+B)/2)+P)*F

nmulti

Multiplication

C = ((A*B)+P)*F

DiVide

Divide

C = ((A/B)+P)*F

Hi-ab

Max of A or B

C = ((High value of channel A or B)+P)*F

Lo-ab

Min of A or B

C = ((Low value of channel A or B)+P)*F

Drauw

Draw

C = ((A/B)-1)*F

uw Avg

Weighted avg.

C = ((B-A)*F)+A

ratio

Ratio

C = (A/B)*F

Ratio2

Ratio 2

C = ((B-A)/A)+P*F

Concen

Concentration

C = (A/(A+B))*F

Sunm t

Sum total

C = (tA+tB+P)*F

Sunmgt

Sum grand total

C = (GtA+GtB+P)*F

Dif t

Difference of total

C = (tA-tB+P)*F

Dif gt

Diff. of grand total

C = (GtA-GtB+P)*F

Tratio

Total ratio

C = (tA/tB)*F

t-rat2

Total ratio 2

C = ((tB-tA)/tA)*F

T pct

Total percent

C = (tA/(tA+tB))*100

Math Constants (Const)

The Math Constants menu is used to set the constants used in channel C math. The math functions include adder constant P, and factor constant F.

The Adder constant (P) may be set from -99.999 to

999.999.

The Factor constant (F) may be set from 0.001 to

999.999.

The chart on page 48 details the math functions that may be selected in the Math Function menu.

Low-Flow Cutoff (CutofF)

The low-flow cutoff feature allows the meter to be programmed so that the often-unsteady output from a differential pressure flowmeter, at low flow rates, always displays zero on the meter. The low-flow cutoff for each channel is programmed independently. The cutoff can be disabled to display negative values.

The cutoff value may be programmed from 0.1 to

999999. The meter will display zero below the cutoff

value. Programming the cutoff value to zero disables the cutoff feature. The cutoff can be disabled to display negative values.

Page 49

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

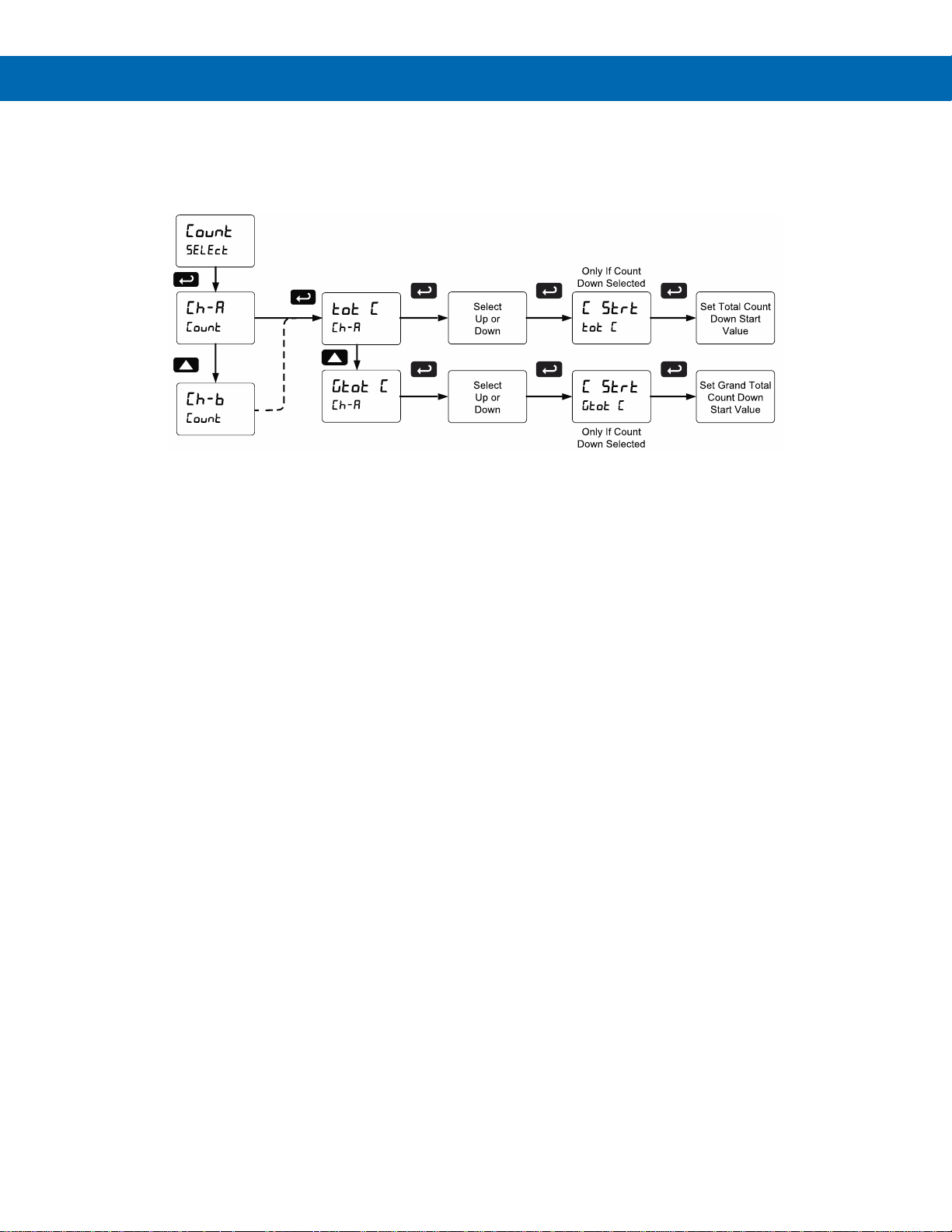

Totalizer Count Up/Down (Count)

The totalizer count up/down menu may be used to program the total and grand total to either count up from 0 when reset or count down from a programmed value when reset. Total and grand total may have their countdown numbers programmed individually from 0 to 999999.

Page 50

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

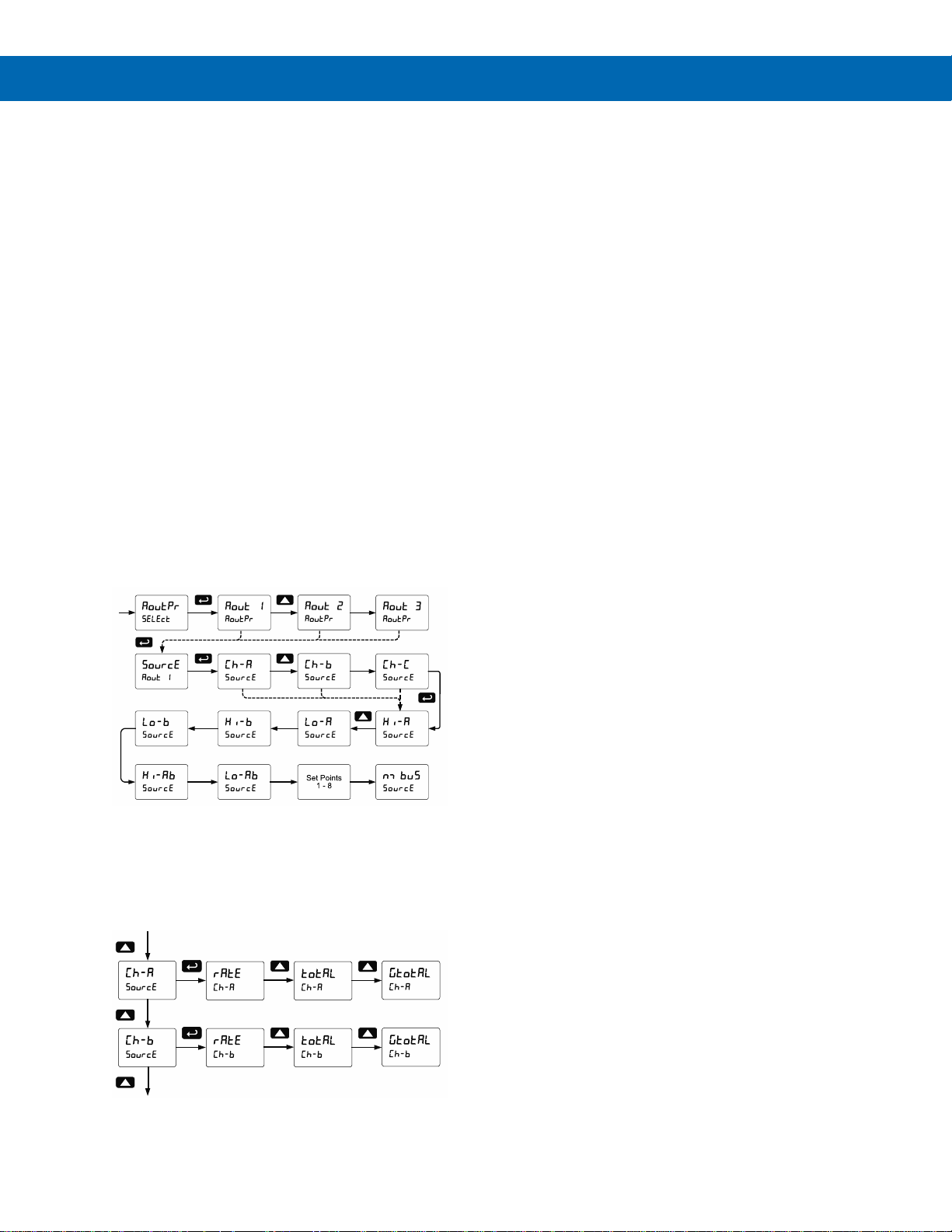

Analog Output Programming (AoutPr)

The Analog Output Programming menu is used to program the behavior of the 4-20 mA outputs. The following parameters and functions are programmed in this menu for each analog output:

1. Source: Source for generating the 4-20 mA output

2. Overrange: Analog output value with display in overrange condition

3. Underrange: Analog output value with display in underrange condition

4. Max: Maximum analog output value allowed regardless of input

5. Min: Minimum analog output value allowed regardless of input

Analog Output Source

The analog output source can be based on either of the input channel rate, total, or grand totals (Ch-A, Ch-B), the math channel (Ch-C), maximum stored value of either input channel (Hi-A, Hi-B), minimum stored value of either input channel (Lo-A, Lo-B), maximum or minimum of A and B (Hi-AB, Lo-AB), relay set points, or the Modbus input.

To base an analog output on the rate, total, or grand total of channels A or B, select the channel in the Analog Output Source menu. Then select the rate, total, or grand total as the source reference for the output, and program the output scale.

Analog Output Calibration

To perform the analog output calibration, it’s

recommended to use a milliamp meter with a resolution of at least 0.1 µA to measure the output current. The values saved internally during this procedure are used for scaling the 4-20 mA output in the Setup menu.

Analog Output Calibration Procedure

1. Wire the PD6363 4-20 mA output to a current loop that includes a power supply (internal or external 12 to 24 VDC), and the mA input on the digital meter. See Figure 23. 4-20 mA Output Connections on page 20 for details.

2. Turn on all devices. Allow for a 15 to 30 minute warm-up.

3. Go to the Advanced Features menu, and navigate to the Analog Output Programming

(AoutPr) → Calibration (Calib) menu and press Enter.

4. The display will show 4 nmA. The PD6363 mA output should now be close to 4 mA. Press Enter and the display will show 04.000. Enter the actual value read by the digital mA meter and press Enter.

5. The display will show 20 nmA. The PD6363 mA output should now be close to 20 mA. Press Enter and the display will show 20.000. Enter the actual value read by the digital mA meter and press Enter.

6. The meter will now calculate the calibration factors and store them.

7. Press Menu to exit and return to Run mode.

Page 51

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

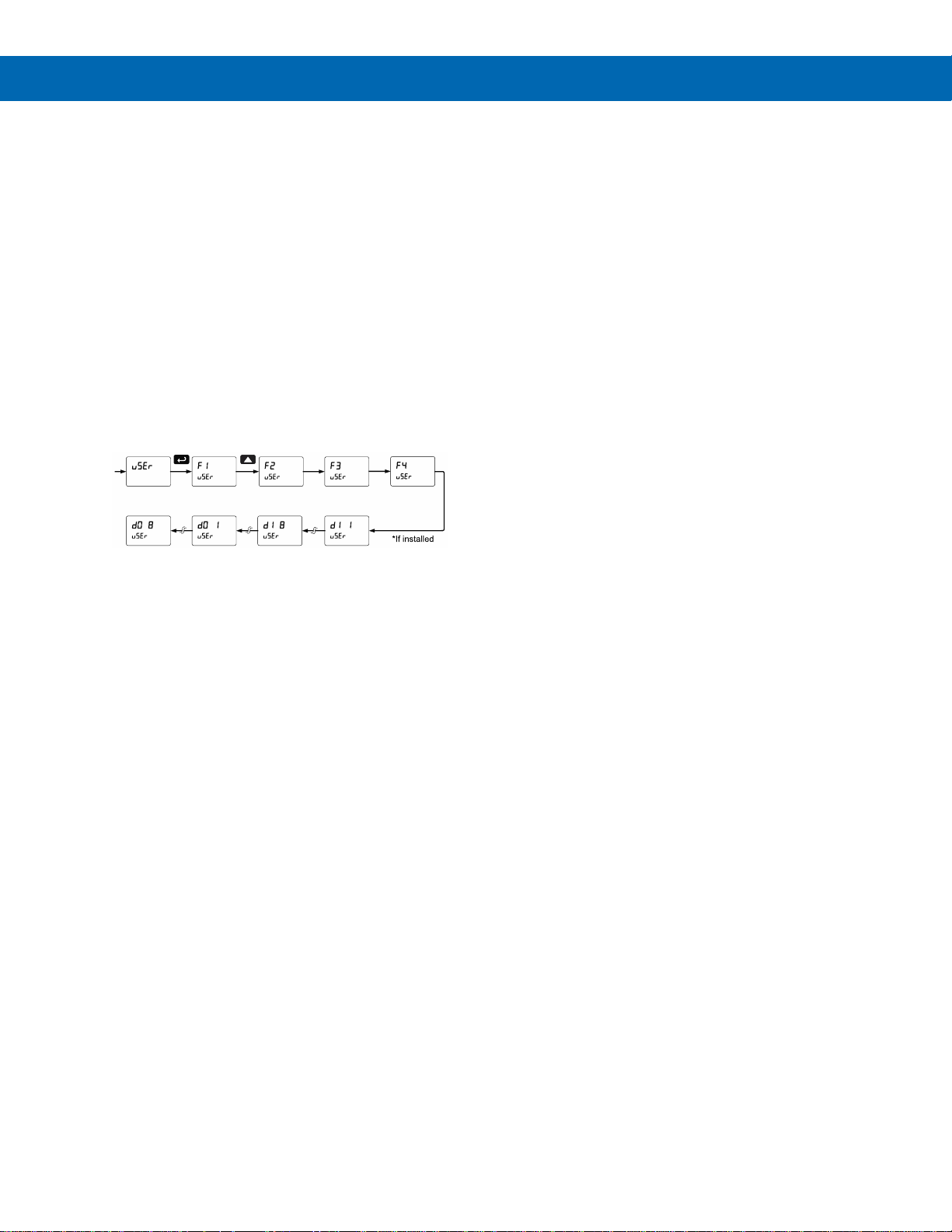

Programmable Function Keys User Menu (user)

The User menu allows the user to assign the front panel function keys F1, F2, and F3, the digital input F4 (a digital input located on the input signal connector), and up to eight additional digital inputs to access most of the menus or to activate certain functions immediately (e.g. reset totals, reset max & min, hold relay states, etc.). This allows the meter to be greatly customized for use in specialized applications.

Up to eight digital outputs can be assigned to a number of actions and functions executed by the meter (i.e. alarms, relay acknowledgement, reset totals, reset max, min, or max & min, tare, and reset tare). The digital outputs can be used to trigger external alarms or lights to indicate these specific events.

Page 52

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Function Keys & Digital I/O Available Settings

Refer to the following table for descriptions of each available function key or digital I/O setting.

Function Keys & Digital I/O Available Settings

Display

Description

Rst Hi

Reset the stored maximum display values for all channels

Rst Lo

Reset the stored minimum display values for all channels

Rst HL

Reset the stored maximum & minimum display values for all channels

relay

Directly access the relay menu

Set 1*

Directly access the set point menu for relay 1 (*through 8)

Rly d

Disable all relays until a button assigned to enable relays (Rly E) is pressed

Rly E

Enable all relays to function as they have been programmed

O Hold

Hold current relay states and analog output as they are until a button assigned to enable relays (Rly E) is pressed

d Hold

Hold the current display value, relay states, and analog output momentarily while the function key or digital input is active. The process value will continue to be calculated in the background.

D AbC

Scrolls values for A, B & C when activated. Keeps the last value for 10 seconds and then it returns to its assignment. Values are displayed on display line 1 and the corresponding channel and units on display line 2.

d tot

Scrolls through totals for channels A, B, and C (which is the sum of A and B). Values are displayed on display line 1.

D gtot

Scrolls through grand totals for channels A, B, and C (which is the sum of A and B). Values are displayed on display line 1.

Ln1 Hi

Display maximum channel A display value on line 1

Ln1 Lo

Display minimum channel A display value on line 1

Ln1 HL

Display maximum & minimum channel A display values on line 1

Ln2 Hi

Display maximum channel B display value on line 2

Ln2 Lo

Display minimum Channel B display value on line 2

Ln2 HL

Display maximum & minimum channel B display values on line 2

Function Keys & Digital I/O Available Settings

Display

Description

Ln2 HC

Display minimum channel C display value on line 2

Ln2 HC

Display maximum & minimum channel C display values on line 2

LitHLC

Display maximum channel C display value on line 2

F On 1*

Force relay 1 (*through 4) into the on state. This function is used in conjunction with a digital input expansion module to achieve interlock functionality. See Setting Up

the Interlock Relay (Force On) Feature on page 42 for details about

interlock relays.

Contrl

Directly access the manual control menu

disabl

Disable the selected function key or digital I/O

up-d a

Total count mode direction control for channel A

up-d b

Total count mode direction control for channel B

AcH

Acknowledge all active relays that are in a manual operation mode such as auto-manual or latching

Reset

Directly access the reset menu

Rst t

Reset totals for all channels

Rst gt

Reset grand totals for all channels

Rst ta

Reset total for channel A

Rst ga

Reset grand total for channel A

Rst tb

Reset total for channel B

Rst gb

Reset grand total for channel B

nmenu

Mimic the menu button functionality (digital inputs only)

rigHt

Mimic the right arrow/F1 button functionality (digital inputs only)

Mimic the up arrow/F2 button functionality (digital inputs only)

Enter

Mimic the enter/F3 button functionality (digital inputs only)

Alnm 1*

Provide indication when alarm 1 (*through 8) has been triggered (digital outputs only)

Page 53

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Meter Operation

The meter accepts two input channels (A and B) of either pulses (e.g. ±40 mV to ± 8V), square wave (0-5 V, 0-12 V, or 0-24 V), open collector NPN, PNP, TTL, or switch contact signals and displays these signals in engineering units from -99999 to 999999. (e.g. a 0-1000 Hz signal could be displayed as -

50.000 to 50.000). Digital inputs and quadrature inputs can be accepted

for bi-directional flow on channel A and B. Quadrature inputs can also be accepted, using channels A and B to calculate a single bi-directional flow.

A totalizer can be programmed to count the scaled engineering units, interpreting it as count per second, minute, hour, or day. The scaled rate and total for each channel can be displayed on the top or bottom displays.

A math function channel (C) is available to perform operations on channel A and B rates or totals, with adder and factor constants, and display the results. Engineering units or tags may be displayed with these three channels.

The dual-line display can be customized by the user. Typically, display line 1 is used to display the math channel C, while line 2 is used to alternate between displaying input channels A and B rate or total.

Additionally, the meter can be set up to display any input or math channel on display line 1 and a unit or tag on line 2. The relays and analog output can be programmed to operate based on any input rate or total, or the math function channel.

Front Panel Buttons Operation

Button Symbol

Description

Press to enter or exit Programming Mode, view settings, or exit max/min readings

Press to reset max/min readings or other parameter/function assigned through the User menu

Press to display max/min readings or other parameter/function assigned through the User menu

Press to acknowledge relays or other parameters/function assigned through the User menu

Function Keys Operation

During operation, the programmable function keys operate according to the way they have been programmed in the Advanced Features – User menu. See Programmable Function Keys User Menu (user) on page 51 for details.

The table above shows the factory default settings for F1, F2, and F3.

F4 Operation

A digital input, F4, is standard on the meter. This digital input is programmed identically to function keys F1, F2, and F3. The input is triggered with a contact closure to COM, or with an active low signal. During operation, F4 operates according to the way it has been programmed in the Advanced Features – User menu. See Programmable Function Keys User Menu (user) on page 51 for details.

Maximum/Minimum Readings

The max & min readings (peak & valley) reached by the process can be displayed either continuously or momentary:

1. Display briefly by assigning to the F1-F3

function keys or to the digital inputs in the User menu.

2. Display continuously by assigning either

display to max/min through the Display menu.

Any of the F1-F3 function keys (buttons) and the digital inputs can be programmed to reset the max & min readings. The meters are set at the factory to display the max/min reading by pressing the Up arrow/F2 button and to use the Right arrow/F1 button to reset the max/min.

To display max and min channel A reading using function key with factory defaults:

1. Press Up arrow/F2 button to display the maximum and minimum reading of channel A since the last reset/power-up.

2. To reset max/min press Right arrow/F1 button. The max & min displays are reset to actual values.

3. Press Menu to exit max/min display reading.

Page 54

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Troubleshooting

The rugged design and the user-friendly interface of the meter should make it unusual for the installer or operator to refer to this section of the manual. However, due to the many features and functions of

the meter, it’s possible that the setup of the meter

does not agree with what an operator expects to see. If the meter is not working as expected, refer to the

Diagnostics menu and recommendations below.

Diagnostics Menu (diag)

The Diagnostics menu is located in the Advanced Features menu. To access the Diagnostics menu see Advanced Features Menu, page 44.

For a description of the diagnostic messages, see Advanced Features Menu & Display Messages, page

44.

Testing the Display LEDs

To test all LEDs on the display:

1. Go to the Diagnostics menu (diAG) and press Enter button.

2. Press Up arrow button and scroll to LED Test menu (led t)

3. Press the Enter button to activate the LED Test. The meter will cycle through all digits, decimal points, and relay indicators to enable the operator to check that all LEDs are functioning properly.

4. Press the Enter button again to access the Information menu (info) or press the Menu button to return to Run Mode.

Determining Software Version

To determine the software version of a meter:

1. Go to the Diagnostics menu (diAG) and press Enter button.

2. Press Up arrow button and scroll to Information menu (Info).

3. Press Enter to access the software number (SFT) and version (UER) information. Write down the information as it is displayed. Continue pressing Enter until all the information is displayed.

4. The meter returns to Run Mode after displaying all the settings.

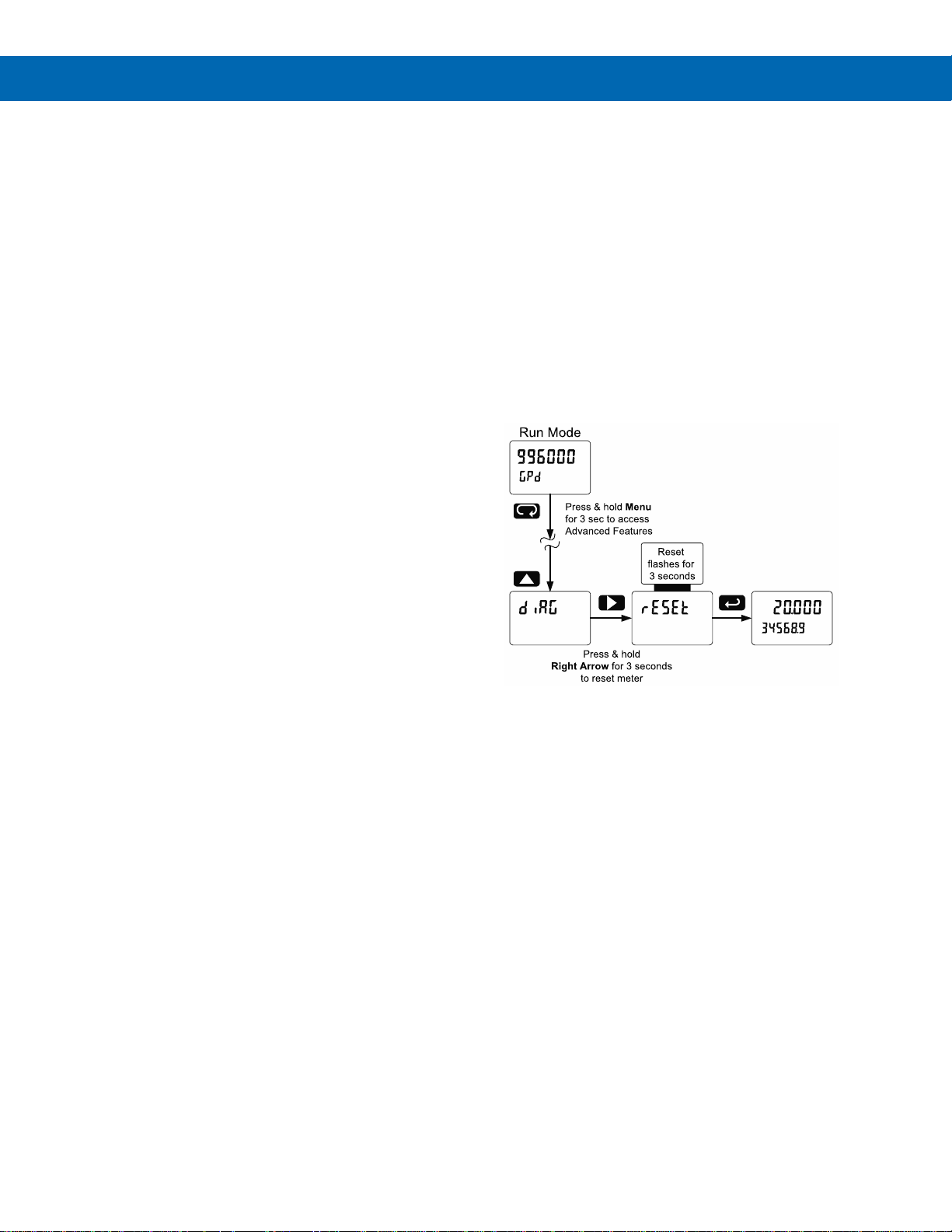

Reset Meter to Factory Defaults

When the parameters have been changed in a way

that is difficult to determine what’s happening, it might

be better to start the setup process from the factory defaults.

Instructions to load factory defaults:

1. Enter the Advanced Features menu. See Advanced Features Menu, page 44.

2. Press Up arrow to go to Diagnostics menu

3. Press and hold Right arrow for three seconds, press Enter when display flashes reset.

Note: If Enter is not pressed within three seconds, the display returns to Run Mode.

4. The meter goes through an initialization sequence (similar as on power-up), and loads the factory default settings.

Page 55

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Factory Defaults & User Settings

The following table shows the factory setting for most of the programmable parameters on the meter.

Factory Defaults & User Settings

Parameter

Display

Default Setting

Input type

Input

Total, channel A

Ch-A

Yes

Total, channel B

Ch-B

Yes

Units

units

Rate unit, channel A

Ch-A

HZ-A

Rate unit, channel B

Ch-B

HZ-b

Unit, channel C

Ch-C

HZ-C

Total unit, channel A

Tot-A

tot-A

Grand total unit, ch-A

Gtot-A

Total unit, channel B

Tot-b

tot-b

Grand total unit, ch-B

Gtot-b

Gtot-B

Decimal Point

Dec pt

Rate, channel A

rate

Total, channel A

Total

Grand total, channel A

gtotal

Rate, channel B

rate

Total, channel B

Total

Grand total, channel B

gtotal

Channel C

Ch-C

Input Calibration

InCAL

Number of points

No pts

Number of points, ch-A

Ch-A

Number of points, ch-B

Ch-B

K-Factor, channel A

Fact-A

1.000

K-Factor, channel B

Fact-B

1.000

Total setup

Tsetup

Time base, channel A

Tbase

Sec

Total conversion factor, Ch-A

T CF

1.000

Grand total conversion factor, Ch-A

Gt CF

1.000 Time base, channel B

Tbase

Sec

Total conversion factor, Ch-B

T CF

1.000

Grand total conversion factor, Ch-B

Gt CF

1.000 Total reset

Treset

Total reset, channel A

T rst

Manual

Grand total reset, Ch-A

Gt rst

Manual

Total reset, channel B

T rst

Manual

Grand total reset, Ch-B

Gt rst

Manual

Display assignment

Dsplay

Factory Defaults & User Settings

Parameter

Display

Default Setting

Display line 1

D Ch-A

Channel A

Display line 2

d Ch-B

Channel B

Display intensity

d-Inty

Relay

Relay 1 assignment

Ch-A

Channel A total

Relay 1 action

Act 1

Automatic

Relay 1 set point

Set 1

100.0

Relay 2 assignment

Ch-A

Channel A total

Relay 2 action

Act 2

Automatic

Relay 2 set point

Set 2

200.0

Relay 3 assignment

Ch-A

Channel A rate

Relay 3 action

Act 3

Automatic

Relay 3 set point

Set 3

300.0

Relay 3 reset point

RSt 3

250.0

Relay 4 assignment

Ch-A

Channel A rate

Relay 4 action

Act 4

Automatic

Relay 4 set point

Set 4

400.0

Relay 4 reset point

RSt 4

350.0

Fail-safe relay 1 to 4

Fls 1

Off

On delay relay 1 to 4

On 1

0.0 sec

Off delay relay 1 to 4

Off 1

0.0 sec

Analog output

Aout

Display 1 analog out

Dis 1

0.0

Output 1 value

Out 1

4.000 mA

Display 2 analog out

Dis 2

1000.0

Output 2 value

Out 2

20.000 mA

Source analog output

Source

Channel A

Overrange output

O-rang

21.000 mA

Underrange output

u-rang

3.000 mA

Maximum output

nmAx

23.000 mA

Minimum output

nmin

3.000 mA

Filter

Filter, channel A

Ch-A

High speed

Filter, channel B

Ch-B

High speed

Round

Cutoff

Cutoff value, channel A

Ch-a

0.0 (disabled)

Cutoff value, channel B

Ch-b

0.0 (disabled)

Serial

Slave ID (Address)

SlavId

247

Baud rate

baud

9600

Transmit delay

Tr dly

50 ms

Parity

Even

Byte-to-byte timeout

t-byt

010 (0.1 sec)

Page 56

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Factory Defaults & User Settings

Parameter

Display

Default Setting

Math

nmath

Math, channel C

Sunm

Sum

Adder (constant P)

Adder

0.000

Factor (constant F)

Factor

User

user

F1 function key

Reset max & min

F2 function key

Line 1 Max & Min

F3 function key

Acknowledge relays

F4 function (digital input)

Acknowledge relays Digital input 1

DI 1

Digital input 2

DI 2

Right arrow

Digital input 3

DI 3

Up arrow

Digital input 4

DI 4

Enter

Digital output 1

DO 1

Alarm 1

Digital output 2

DO 2

Alarm 2

Digital output 3

DO 3

Alarm 3

Digital output 4

DO 4

Alarm 4

Password

pass

Password 1

Pass 1

000000 (unlocked)

Password 2

Pass 2

000000 (unlocked)

Password 3

Pass 3

000000 (unlocked)

Total

000000 (unlocked)

Grand total

gtotal

000000 (unlocked)

Page 57

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

Troubleshooting Tips

This meter is a highly sophisticated instrument with an extensive list of features and capabilities. If the front panel buttons are used to program the meter, it may be a difficult task to keep everything straight. That is why we strongly recommend the use of the free MeterView Pro software for all programming activities. A USB cable is provided with the meter for programming with MeterView Pro software.

If you have programmed the meter with the front panel buttons and it is not working as intended, try re-programming the meter using MeterView Pro software.

Symptom

Check/Action

No display at all

Check power at power connector

Not able to change setup or programming, Locd is displayed

Meter is password-protected, enter correct six-digit password to unlock

Controller does not respond to input change

Check:

1. The input signal type and make sure it corresponds with the position of the input switch.

2. The input signal voltage level

3. If a Low-Flow Cutoff has been programmed, the controller will display zero below that point, regardless of the input.

Controller displays error message during calibration (Error)

Check:

1. Signal connections

2. Input switch position

3. Minimum input span requirements

Controller displays

999999

-99999

Check:

1. The input signal frequency

2. K-Factor value or scaling, time base, and decimal point

Display is unstable

Check:

1. Input signal stability and value

2. Display scaling vs. input signal

3. Increase the gate settings to average more pulses

Display reading is not accurate

Check:

1. K-Factor value provided by the flowmeter manufacturer

2. Time base selected

3. Scaling or calibration

Display response is too slow

Check: Filter and gate values

Display does not respond to input changes, reading a fixed number

Check: Display assignment, it might be displaying max, min, or set point.

Display alternates between

4. Hi and a number

5. Lo and a number

Press Menu to exit max/min display readings.

Relay operation is reversed

Check:

1. Fail-safe in Setup menu

2. Wiring of relay contacts

Relay and status LED do not respond to signal

Check:

1. Relay action in Setup menu

2. Set and reset points

Flashing relay status LEDs

Relays in manual control mode or relay interlock switches opened.

Meter not communicating with application programs

Check:

1. Serial adapter and cable

2. Serial settings

3. Meter address and baud rate

If the display locks up or the meter does not respond at all

Cycle the power to reboot the microprocessor.

Other symptoms not described above

Call Technical Support for assistance.

Note: Certain sequences of events can cause unexpected results. To solve these issues, it is best to start fresh from factory defaults and use the manual as a step by step programming guide, rather than a random approach to programming. To reset the meter to factory defaults, see Reset Meter to Factory Defaults on page 54. In addition, for best results, we recommend using the free MeterView Pro software for all programming needs.

Page 58

PROVU™ PD6363 Dual Pulse Input Rate/Totalizer

Instruction Manual

PRECISION DIGITAL CORPORATION

233 South Street • Hopkinton MA 01748 USA Tel (800) 343-10 01 • Fax (508) 655-8990

www.predig.com

LIM6363_I

SFT065 Ver 4.010 & up

02/22

Contact Precision Digital

Technical Support

Call: (800) 610-5239 or (508) 655-7300 Fax: (508) 655-8990 Email: [email protected]

Sales Support

Call: (800) 343-1001 or (508) 655-7300 Fax: (508) 655-8990 Email: [email protected]

Place Orders

Email: [email protected]

For the latest version of this manual please visit

www.predig.com
