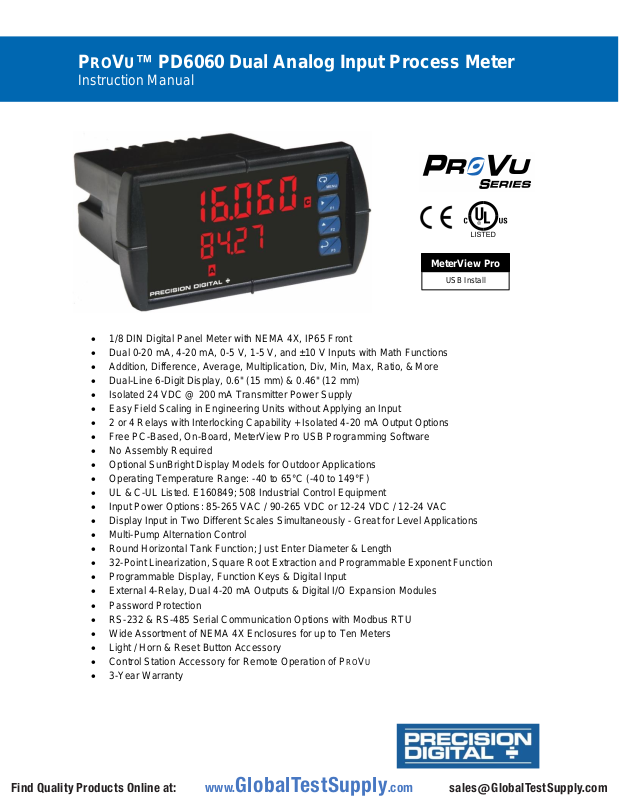

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

• 1/8 DIN Digital Panel Meter with NEMA 4X, IP65 Front

MeterView Pro

USB Install

• Dual 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs with Math Functions

• Addition, Difference, Average, Multiplication, Div, Min, Max, Ratio, & More

• Dual-Line 6-Digit Display, 0.6" (15 mm) & 0.46" (12 mm)

• Isolated 24 VDC @ 200 mA Transmitter Power Supply

• Easy Field Scaling in Engineering Units without Applying an Input

• 2 or 4 Relays with Interlocking Capability + Isolated 4-20 mA Output Options

• Free PC-Based, On-Board, MeterView Pro USB Programming Software

• No Assembly Required

• Optional SunBright Display Models for Outdoor Applications

• Operating Temperature Range: -40 to 65°C (-40 to 149°F)

• UL & C-UL Listed. E160849; 508 Industrial Control Equipment

• Input Power Options: 85-265 VAC / 90-265 VDC or 12-24 VDC / 12-24 VAC

• Display Input in Two Different Scales Simultaneously - Great for Level Applications

• Multi-Pump Alternation Control

• Round Horizontal Tank Function; Just Enter Diameter & Length

• 32-Point Linearization, Square Root Extraction and Programmable Exponent Function

• Programmable Display, Function Keys & Digital Input

• External 4-Relay, Dual 4-20 mA Outputs & Digital I/O Expansion Modules

• Password Protection

• RS-232 & RS-485 Serial Communication Options with Modbus RTU

• Wide Assortment of NEMA 4X Enclosures for up to Ten Meters

• Light / Horn & Reset Button Accessory

• Control Station Accessory for Remote Operation of PROVU

• 3-Year Warranty

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 2

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Disclaimer

The information contained in this document is subject to change without notice. Precision Digital makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.

• Read complete instructions prior to installation and operation of the meter.

• Risk of electric shock or personal injury.

• This product is not recommended for life support

applications or applications where malfunctioning could result in personal injury or property loss. Anyone using this product for such applications does so at his/her own risk. Precision Digital Corporation shall not be held liable for damages resulting from such improper use.

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Limited Warranty

Precision Digital Corporation warrants this product against defects in material or workmanship for the specified period under

“Specifications” from the date of shipment from the factory. Precision Digital’s liability under this

limited warranty shall not exceed the purchase value, repair, or replacement of the defective unit.

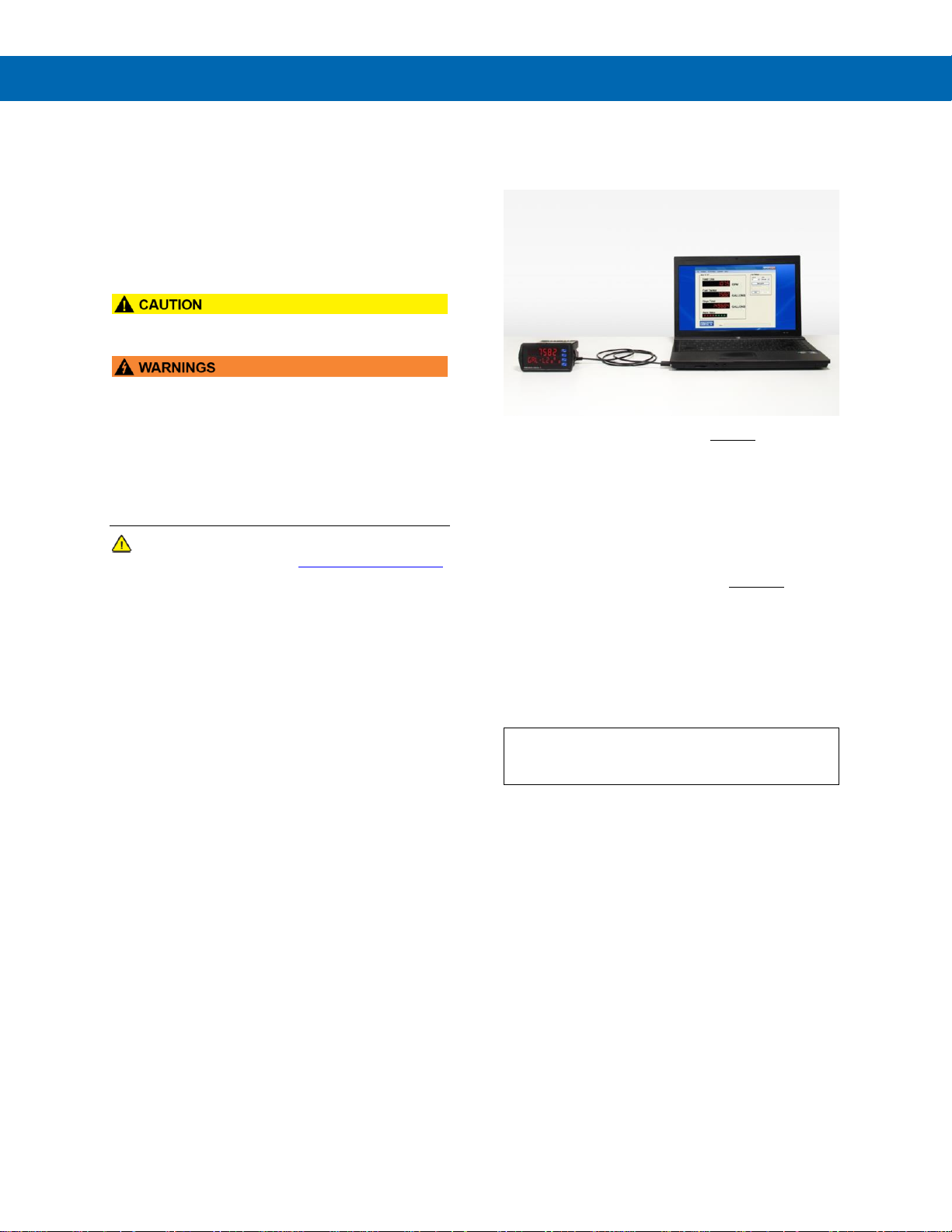

FREE MeterView Pro Programming Software

The meter can be powered from the Micro USB connection. When using the Micro USB connection, DO NOT apply AC or DC power to the meter.

The easiest and quickest way to program your PROVU meter is to use the FREE MeterView Pro programming software. This software is loaded into the meter and connects and installs directly to your PC with a USB cable. We recommend that the first thing you do after taking the meter out of the box is connect the PROVU to your PC with the provided USB cable – do not use a different cable. DO NOT apply AC or DC power to the meter while your PC is connected to the meter as it will disrupt the USB

connection. You don’t even have to apply an input

signal. MeterView Pro programming software is intuitive, and

most customers can get their meter programmed as they like without even looking in the manual.

Registered Trademarks

All trademarks mentioned in this document are the property of their respective owners.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

In addition to programming, the software may be used for:

• Monitoring

• Datalogging using your PC

• Generating and saving programming files for

later use

Once your meter is programmed the way you want it, you can wire it up for your application per the instructions in this manual and install it. If you find that you need to make adjustments to the programming after the meter is installed, you can use the front panel buttons and the instructions in this manual to do so.

Page 3

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Table of Contents

Introduction .......................................................................................................... 6

Ordering Information ........................................................................................... 6

Specifications....................................................................................................... 7

General ............................................................................................................. 7

Dual Process Input .......................................................................................... 8

Relays ............................................................................................................... 9

Isolated 4-20 mA Transmitter Output ............................................................ 9

USB Connection ............................................................................................ 10

On-Board Digital Input (F4) ........................................................................... 10

Modbus® RTU Serial Communications ........................................................ 10

MeterView Pro ................................................................................................ 10

Compliance Information .................................................................................... 11

Safety .............................................................................................................. 11

Electromagnetic Compatibility ..................................................................... 11

Safety Information ............................................................................................. 11

Installation .......................................................................................................... 11

Unpacking ...................................................................................................... 11

Panel Mounting Instructions ........................................................................ 12

Mounting Dimensions .................................................................................. 12

Installation Overview ..................................................................................... 13

MeterView Pro Software ................................................................................ 13

MeterView Pro Installation........................................................................... 13

Transmitter Supply Voltage Selection (P+, P-) ........................................... 14

Connections ................................................................................................... 14

Connectors Labeling ................................................................................... 14

Power Connections ..................................................................................... 15

Signal Connections ..................................................................................... 15

Modbus RTU Serial Communications ......................................................... 15

Relay Connections ...................................................................................... 15

Switching Inductive Loads ........................................................................... 16

F4 Digital Input Connections ....................................................................... 16

4-20 mA Output Connections ...................................................................... 16

Analog Output Power Supply ...................................................................... 16

External Relay, Analog Output, & Digital I/O Connections .......................... 17

Interlock Relay Feature ............................................................................... 17

Setup and Programming ................................................................................... 18

Overview ......................................................................................................... 18

Front Panel Buttons and Status LED Indicators ........................................ 18

Display Functions & Messages .................................................................... 19

Main Menu ...................................................................................................... 21

Setting Numeric Values ................................................................................ 21

Setting Up the Meter (setup) ........................................................................ 21

Setting the Input Signal (Input) .................................................................. 22

Setting the Display Units or Custom Tags (units) ..................................... 22

Setting the Decimal Point (dEc pt)............................................................. 23

Programming the Meter (prog) ................................................................... 23

Setting the Display Parameter & Intensity (dsplay) ................................... 25

Display Intensity (d-Inty) ........................................................................... 25

Setting the Relay Operation (relay) ............................................................ 26

Setting the Relay Assignment (asSign) ...................................................... 26

Setting the Relay Action .............................................................................. 26

Programming Set and Reset Points ............................................................ 27

Setting Fail-Safe Operation ......................................................................... 27

Programming Time Delay............................................................................ 27

Relay Action for Loss of 4-20 mA Input (Loop Break) ................................. 27

Relay and Alarm Operation Diagrams ......................................................... 27

High Alarm Operation (Set > Reset) .............................................................. 27

Low Alarm Operation (Set < Reset) ............................................................ 28

High Alarm with Fail-Safe Operation (Set > Reset) ..................................... 28

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 4

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Low Alarm with Fail-Safe Operation (Set < Reset) ..................................... 28

Time Delay Operation ................................................................................. 28

Pump Alternation Control Operation ........................................................... 29

Relay Sampling Operation .......................................................................... 29

Relay Operation Details ................................................................................ 30

Overview ..................................................................................................... 30

Relays Auto Initialization ............................................................................. 30

Fail-Safe Operation ..................................................................................... 30

Front Panel LEDs ........................................................................................ 30

Latching and Non-Latching Relay Operation .............................................. 30

Non-Latching Relay (Auto) ......................................................................... 31

Non-Latching Relay with Manual Reset (A-nman) ....................................... 31

Latching Relay (LatcH) ............................................................................... 31

Latching Relay with Clear (Lt-Clr) ............................................................ 31

Acknowledging Relays ................................................................................ 31

Pump Alternation Control Applications (Altern) ........................................ 32

Setting Up the Interlock Relay (Force On) Feature ..................................... 32

Scaling the 4-20 mA Analog Output (Aout) ................................................. 33

Reset Menu (reset) ....................................................................................... 33

Manual Control Menu (Contrl) ..................................................................... 33

Setting Up the Password (pass) ................................................................... 34

Protecting or Locking the Meter .................................................................. 34

Making Changes to a Password Protected Meter ....................................... 34

Disabling Password Protection.................................................................... 34

Advanced Features Menu ............................................................................. 35

Advanced Features Menu & Display Messages.......................................... 35

Noise Filter (filter) ................................................................................... 36

Noise Filter Bypass (bypass) ...................................................................... 36

Rounding Feature (round) .......................................................................... 37

Modbus RTU Serial Communications (serial) .......................................... 37

Select Menu (SElect) ................................................................................. 37

Input Signal Conditioning (Functn) ............................................................. 37

Multi-Point Linearization (Linear)............................................................... 38

Math Function (nmath) ................................................................................ 39

Math Constants (Const) .............................................................................. 39

Low-Flow Cutoff (CutofF) ........................................................................... 39

Analog Output Programming (AoutPr) ....................................................... 39

Programmable Function Keys User Menu (user) ....................................... 40

Tare (tare A, tare B) ............................................................................... 41

Internal Calibration (ICAL) ........................................................................... 41

Meter Operation ................................................................................................. 42

Front Panel Buttons Operation .................................................................... 42

Function Keys Operation .............................................................................. 42

F4 Operation .................................................................................................. 42

Maximum/Minimum Readings ...................................................................... 42

Troubleshooting................................................................................................. 43

Diagnostics Menu (diag) .............................................................................. 43

Determining Software Version..................................................................... 43

Reset Meter to Factory Defaults ................................................................... 43

Factory Defaults & User Settings ................................................................ 43

Troubleshooting Tips .................................................................................... 45

EU Declaration of Conformity ........................................................................... 46

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 5

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Table of Figures

Figure 1. 1/8 DIN Panel Cutout Dimensions .................................................... 12

Figure 2. Panel Mounting Details ..................................................................... 12

Figure 3. Meter Dimensions - Side View .......................................................... 12

Figure 4. Meter Dimensions - Top View ........................................................... 12

Figure 5. Transmitter Supply Voltage Selection ............................................. 14

Figure 6. PD6060-##0 Connectors Label ......................................................... 14

Figure 7. PD6060-##2 Connectors Label ......................................................... 14

Figure 8. PD6060-##3 Connectors Label ......................................................... 14

Figure 9. PD6060-##4 Connectors Label ......................................................... 14

Figure 10. PD6060-##5 Connectors Label ....................................................... 14

Figure 11. PD6060-##7 Connectors Label ....................................................... 14

Figure 12. Power Connections ......................................................................... 15

Figure 13. Transmitters Powered by Internal Supply ..................................... 15

Figure 14. Transmitter Powered by Ext. Supply or Self-Powered ................. 15

Figure 15. Voltage Input Connections ............................................................. 15

Figure 16. Relay Connections........................................................................... 15

Figure 17. AC and DC Loads Protection .......................................................... 16

Figure 18. Low Voltage DC Loads Protection ................................................. 16

Figure 19. F4 Digital Input Connections .......................................................... 16

Figure 20. 4-20 mA Output Connections ......................................................... 16

Figure 21. Analog Output Supply Powering Other Devices........................... 16

Figure 22. Expansion Module & DIN Rail Mounting Kit .................................. 17

Figure 23. External Relays Module Connections ............................................ 17

Figure 24. Digital I/O Module Connections ...................................................... 17

Figure 25. Dual 4-20 mA Output Module Connections ................................... 17

Figure 26. Interlock Connections ..................................................................... 17

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 6

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Introduction

85-265 VAC Model

12-24 VDC Model

Options Installed

PD6060-6R0

PD6060-7R0

No options

PD6060-6R2

PD6060-7R2

2 relays

PD6060-6R3

PD6060-7R3

4-20 mA output

PD6060-6R4

PD6060-7R4

4 relays

PD6060-6R5

PD6060-7R5

2 relays & 4-20 mA output

PD6060-6R7

PD6060-7R7

4 relays & 4-20 mA output

85-265 VAC Model

12-24 VDC Model

Options Installed

PD6060-6H0

PD6060-7H0

No options

PD6060-6H2

PD6060-7H2

2 relays

PD6060-6H3

PD6060-7H3

4-20 mA output

PD6060-6H4

PD6060-7H4

4 relays

PD6060-6H5

PD6060-7H5

2 relays & 4-20 mA output

PD6060-6H7

PD6060-7H7

4 relays & 4-20 mA output

Model

Description

PDA1002

DIN rail mounting kit for two devices

PDA1004

4 SPST (Form A) relays

PDA1011

Dual isolated analog output

PDA1044

4 digital inputs & 4 digital outputs

PDA1232

RS-232 serial adapter

PDA1485

RS-485 serial adapter

PDA7485-I

RS-232 to RS-485 isolated converter

PDA8008

USB Adapter

PDA8232-N

USB to RS-232 non-isolated converter

PDA8485-I

USB to RS-485 isolated converter

PDA-LH

Light / horn accessory

MOD-LH

Light / horn / enclosure modification

PD659

Signal isolators, splitters, & conditioners

PDA2360

Plastic control stations series

PD9501

Multi-function calibrator

PD9502

Low-cost signal generator

PDX6901

Snubber: 0.01 μF/470 Ω, 250 VAC

Series

Meters

Material

PDA2300

1-10

Plastic NEMA 4X

PDA2500

1-6

Plastic NEMA 4X

PDA2600

1-6

Stainless Steel NEMA 4X

PDA2700

1-6

Painted Steel NEMA 4

PDA2800

1-2

Plastic NEMA 4X

PDA3400

1-3

Plastic NEMA 4X

Model

Options Installed

PD1102

2 relays

PD1103

4-20 mA output

PD1104

4 relays

PD1105

2 relays & 4-20 mA output

PD1107

4 relays & 4-20 mA output

The PROVU PD6060 is a multipurpose, easy to use digital dual-input process meter ideal for level, flow rate, temperature transmitter, or pressure transmitter applications. Its superluminous LED digits make it easily readable in smoke, dust, fog, and, with the optional SunBright display, even direct sunlight. It accepts current and voltage signals (e.g. 4-20 mA, 0-10 V). Various math functions may be applied to the inputs including addition, difference, absolute difference, average, weighted average, multiplication, division, minimum, maximum, draw, ratio, and concentration. This is in addition to the input signal conditioning functions (linear, square root, programmable exponent, or round horizontal tank calculations).

The displays, relays, and the analog output may be assigned to input channels A or B, or math result channel C.

Three of the front panel buttons can be customprogrammed for a specific operation.

The basic model includes an isolated 24 VDC transmitter power supply that can be used to power the input transmitters or other devices. An additional isolated 24 VDC power supply is included with the 4-20 mA output option. A digital input is standard.

A fully loaded PD6060 meter has the following: four SPDT relays, 4-20 mA output, and two 24 VDC power supplies. The PD6060 capabilities may be enhanced by adding the following external expansion modules: four SPST relays –creating an eight-relay dual-input process meter, two digital I/O modules with four inputs and four outputs each, serial communication adapters for use with MeterView Pro or Modbus RTU, and a dual 4-20 mA output expansion module.

Ordering Information

Standard Models

SunBright Display Models

Accessories

Enclosures

Replacement Option Cards

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 7

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Specifications

Display

Line 1: 0.60" (15 mm) high, red LEDs Line 2: 0.46" (12 mm) high, red LEDs 6 digits each (-99999 to 999999), with lead zero blanking

Display Intensity

Eight user selectable intensity levels. Default value is six.

Display Update Rate

5/second (200 ms)

Overrange

Display flashes 999999

Underrange

Display flashes -99999

Display Assignment

Display lines 1 & 2 may be assigned to process values for Channels A (Ch-A), B (Ch-B), or C (Ch-C), toggle between (Ch-A & Ch-B, Ch-A & Ch-C, Ch-B & Ch-C, and Ch-A, Ch-B, & Ch-C), toggle between Channel & units, show channel gross value (no tare) or toggle net (tared) and gross values, show relay set points, max & min values, or Modbus input. Line 2 may also be set to show engineering units or be off, with no display.

Programming Methods

Four front panel buttons, digital inputs, PC and MeterView Pro software, or Modbus registers.

Noise Filter

Programmable from 2 to 199 (0 will disable filter)

Filter Bypass

Programmable from 0.1 to 99.9% of calibrated span

Recalibration

All ranges are calibrated at the factory. Recalibration is recommended at least every 12 months.

Max/Min Display

Max/min readings reached by the process are stored until reset by the user or until power to the meter is cycled.

Rounding

Select 1, 2, 5, 10, 20, 50, or 100 (e.g. rounding = 10, value = 123.45,

display = 123.50).

Tare

Tare function zeros out the meter to accommodate for weight of a container. Tare function can be assigned to a function key, F4 terminal, or a digital input. There are two tare functions: Capture Tare for channel A and B, and Reset Tare. See Tare (tare A, tare B) on page 41 for details.

Reset Tare

Clears the tare function and returns the display to the value without tare (gross).

Accessed via the Reset menu, function key, or digital input.

Password

Three programmable passwords restrict modification of programmed settings.

Pass 1: Allows use of function keys and digital inputs Pass 2: Allows use of function keys, digital inputs and editing set/reset points Pass 3: Restricts all programming, function keys, and digital inputs.

Non-Volatile Memory

All programmed settings are stored in nonvolatile memory for a minimum of ten years if power is lost.

Power Options

85-265 VAC 50/60 Hz; 90-265 VDC, 20 W max; 12-24 VDC, 12-24 VAC, 15 W max. Powered over USB for configuration only.

Fuse

Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse

Normal Mode Rejection

Greater than 60 dB at 50/60 Hz

Isolation

4 kV input/output-to-power line 500 V input-to-output or output-to-P+ supply

Overvoltage Category

Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.

Environmental

Operating temperature range:

-40 to 65°C

Storage temperature range:

-40 to 85°C

Relative humidity:

0 to 90% non-condensing

Connections

Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters.

Enclosure

1/8 DIN, high impact plastic, UL 94V-0, color: black

Front Panel

NEMA 4X, IP65

Mounting

1/8 DIN panel cutout required:

3.622" x 1.772" (92 mm x 45 mm) Two panel mounting bracket assemblies are provided.

Tightening Torque

Screw terminal connectors: 5 lb-in (0.56 Nm)

Overall Dimensions

4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm) (W x H x D)

Weight

9.5 oz. (269 g)

Warranty

Except where noted all specifications apply to operation at +25°C.

General

3 years parts & labor.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 8

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Dual Process Input

Two Inputs

Two non-isolated inputs, independent, field selectable: 0-20 mA, 4-20 mA, 10 V (0-5 V, 1-5 V, 0-10 V), Modbus PV (Slave)

Isolated Transmitter Power Supply

Terminals P+ & P-: 24 VDC 10%. All models selectable for 24, 10, or 5 VDC

supply (internal jumper J4). 85-265 VAC models rated @ 200 mA max, 12-24 VDC powered models rated @ 100 mA max. 5 & 10 VDC supply rated @ 50 mA max. Refer to Transmitter Supply Voltage Selection (P+, P-) on page 14.

When the Light / Horn is powered by the transmitter power supply, see MOD-LH Light / Horn's transmitter power supply specification in MOD-LH manual for additional details. Light / Horn power not available for 5 or 10 VDC supplies.

Channels

Channel A, Channel B, Channel C (Math channel)

Programmable Constants

Constant P (Adder):

-99.999 to 999.999, default: 0.000

Constant F (Factor):

0.001 to 999.999, default: 1.000

Math Functions

Name

Function

Setting

Addition

(A+B+P)*F

Sunm

Difference

(A-B+P)*F

diF

Absolute diff.

((Abs(A-B))+P)*F

diFAbS

Average

(((A+B)/2)+P)*F

AvG

Multiplication

((A*B)+P)*F

nmulti

Division

((A/B)+P)*F

diVide

Max of A or B

((AB-Hi)+P)*F

Hi-Ab

Min of A or B

((AB-Lo)+P)*F

Lo-Ab

Draw

((A/B)-1)*F

drAuw

Weighted avg.

((B-A)*F)+A

uw avg

Ratio

(A/B)*F

ratio

Ratio 2

((B-A)/A)+P)*F

ratio2

Concentration

(A/(A+B))*F

Concen

Note: The F constant can be any value from

0.001 to 999.999. If the value is less than 1, it will have the same effect as a divider (1/F). For example, the average could also be derived by using (A+B)*0.5 F = (A+B)/2

Sequence of Operations for Input Programming

1. Select Input for A and B

2. Set up the engineering units for A, B, and C

3. Set up decimal point for A, B, and C

4. Program A & B

5. Set up the displays for A, B, or C

6. Select the transfer function for A & B (e.g. Linear)

7. Select Math function for Channel C

8. Program constants for Factor (F) and Adder (P).

9. Program cutoff values for A and B

Accuracy

±0.03% of calibrated span ±1 count, square root & programmable exponent accuracy range: 10-100% of calibrated span

Temperature Drift

0.005% of calibrated span/C max from

0 to 65C ambient, 0.01% of calibrated span/C max from -40 to 0C ambient

Input Signal Conditioning

Linear, square root, programmable exponent, or round horizontal tank volume calculation

Multi-Point Linearization

2 to 32 points for channel A and B

Programmable Exponent

User selectable from 1.0001 to 2.9999 for open channel flow

Low-Flow Cutoff

0.0 to 999,999.9 (0 disables cutoff

function). Point below at which display always shows zero.

Decimal Point

Up to five decimal places or none: d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd

Calibration Range

Input Range

Minimum Span Input 1 & 2

4-20 mA

0.15 mA

10 V

0.10 V

An error message will appear if the input 1 and input 2 signals are too close together.

Input Impedance

Voltage ranges: greater than 500 k Current ranges: 50 - 100  (depending on resettable fuse impedance)

Input Overload

Current input protected by resettable fuse, 30 VDC max. Fuse resets automatically after fault is removed.

HART Incompatible

The meter can support ONLY one HART loop on either of the inputs. A signal isolator, such as the PD659 is required if two HART loops are being connected.

Under the described conditions, the meter does not interfere with existing HART communications; it displays the 4-20 mA primary variable and it allows the HART communications to pass through without interruption. The meter is not affected if a HART communicator is connected to the loop. The meter does not display secondary HART variables.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 9

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Relays

Rating

2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A) external; rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP (≈ 50 W) @ 125/250 VAC for inductive loads

Noise Suppression

Noise suppression is recommended for each relay contact switching inductive loads. See Switching Inductive Loads on page 15 for details.

Deadband

0-100% of span, user programmable

High or Low Alarm

User may program any alarm for high or low trip point. Unused alarm LEDs and relays may be disabled (turn off).

Relay Operation

• Automatic (non-latching) and/or

manual reset

• Latching (requires manual

acknowledge) with or without clear

• Pump alternation control (2-8 relays)

• Sampling (based on set point and time)

• Off (disable unused relays and enable

Interlock feature)

• Manual on/off control mode

Relay Reset

User selectable via front panel button, F4 terminal at back of meter, external contact closure on digital inputs, or through serial communications

Time Delay

0 to 999.9 seconds, on & off relay time delays. Programmable and independent for each relay

Fail-Safe Operation

Programmable and independent for each relay.

Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.

Auto Initialization

When power is applied to the meter, relays will reflect the state of the input to the meter.

Additional Relays

An external module, model PDA1004, is available to add 4 SPST 3 A relays to the meter.

Isolated 4-20 mA Transmitter Output

Output Source

Process channel A, B, or C, max or min for channel A, B, or highest or lowest of A and B, set points 1-8, Modbus input, or manual control mode

Scaling Range

1.000 to 23.000 mA for any display range

Calibration

Factory calibrated:

4.000 to 20.000 = 4-20 mA output

Analog Out Programming

23.000 mA maximum for all parameters:

Overrange, underrange, max, min, and break

Accuracy

± 0.1% of span ± 0.004 mA

Temperature Drift

0.4 µA/C max from 0 to 65C ambient,

0.8 µA/C max from -40 to 0C ambient

Note: Analog output drift is separate from input drift.

Isolated Transmitter Power Supply

Terminals I+ & R: 24 VDC  10%. May be used to power the 4-20 mA output or other devices.

All models rated @ 40 mA max.

External Loop Power Supply

35 VDC maximum

Output Loop Resistance

Power supply

Minimum

Maximum

24 VDC

10 

700 

35 VDC (external)

100 

1200 

0-10 VDC Output

The PD659-1MA-1V can convert the optional 4-20 mA output to a 0-10 VDC output

Additional 4-20 mA Outputs

An external module, model PDA1011, is available to add two 4-20 mA outputs to the meter.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 10

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

USB Connection

Function

Programming only

Compatibility

USB 2.0 Standard, Compliant

Connector Type

Micro-B receptacle

Cable

USB A Male to Micro-B Cable

Driver

Microsoft® Windows® XP/Vista/7/8/10

Power

USB port provides power to the meter.

DO NOT apply AC or DC power to the meter while the USB port is in use.

Function

Remote operation of front-panel buttons, acknowledge/reset relays, reset max/min values. See Function Keys & Digital I/O Available Settings on page 40 for a complete list of capabilities.

Contacts

3.3 VDC on contact. Connect normally

open contacts across F4 to COM

Logic Levels

Logic High: 3 to 5 VDC Logic Low: 0 to 1.25 VDC

Additional I/O

Up to 2 external modules, model PDA1044 with 4 digital inputs and 4 digital outputs each can be added.

Slave Id

1 – 247 (Meter address)

Baud Rate

300 – 19,200 bps

Transmit Time Delay

Programmable between 0 and 199 ms

Data

8 bit (1 start bit, 1 or 2 stop bits)

Parity

Even, Odd, or None with 1 or 2 stop bits

Byte-To-Byte Timeout

0.01 – 2.54 second

Turn Around Delay

Less than 2 ms (fixed)

Availability

System Requirements

Microsoft® Windows® XP/Vista/7/8/10

Communications

USB 2.0 (for programming only) (Standard USB A to Micro USB B)

RS-232 adapter, RS-485 adapter and RS-485 to USB converter (programming, monitoring, and data logging)

Configuration

Configure meters one at a time

Power

USB port provides power to the meter.

DO NOT apply AC or DC power to the meter while the USB port is in use.

On-Board Digital Input (F4)

Modbus® RTU Serial Communications

MeterView Pro

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 11

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Compliance Information

Safety

UL & c-UL Listed

USA & Canada UL 508 Industrial Control Equipment

UL File Number

E160849

Front Panel

UL Type 4X, NEMA 4X, IP65; panel gasket provided

Low Voltage Directive

EN 61010-1:2010 Safety requirements for measurement, control, and laboratory use

Electromagnetic Compatibility

Emissions

EN 55022:2010 Class A ITE emissions requirements

Radiated Emissions

Class A

AC Mains Conducted Emissions

Class A

Immunity

EN 61326-1:2013 Measurement, control, and laboratory equipment EN 61000-6-2:2005 EMC heavy industrial generic immunity standard

RFI - Amplitude Modulated

80 -1000 MHz 10 V/m 80% AM (1 kHz)

1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)

2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)

Electrical Fast Transients

±2kV AC mains, ±1kV other

Electrostatic Discharge

±4kV contact, ±8kV air

RFI Conducted

10V, 0.15-80 MHz, 1kHz 80% AM

AC Surge

±2kV Common, ±1kV Differential

Surge

1KV (CM)

PowerFrequency Magnetic Field

30 A/m 70%V for 0.5 period

Voltage Dips

40%V for 5 & 50 periods 70%V for 25 periods

Voltage Interruptions

<5%V for 250 periods

Note:

Testing was conducted on meters installed through the covers of grounded metal enclosures with cable shields grounded at the point of entry representing installations designed to optimize EMC performance.

Safety Information

• Read complete instructions prior to installation and operation of the meter.

• Risk of electric shock or personal injury.

• Hazardous voltages exist within enclosure.

Installation and service should be performed only by trained service personnel.

Installation

There is no need to remove the meter from its case to complete the installation, wiring, and setup of the meter for most applications.

Instructions are provided for changing the transmitter power supply to output 5 or 10 VDC instead of 24 VDC. See Figure 5. Transmitter Supply Voltage Selection on page 14.

Unpacking

Remove the meter from box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier.

If any part is missing or the meter malfunctions, please contact your supplier or the factory for assistance.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 12

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Panel Mounting Instructions

3.622" (92 mm)

1.772"

(45mm)

Panel Cutout

to DIN 43700

Square Corners to 0.060"

(1.5mm) Max Radius

Tolerances:

A: +0.032 (+0.8mm)

-0.000 (-0.0mm)

B: +0.024 (+0.6mm)

-0.000 (-0.0mm)

• Prepare a standard 1/8 DIN panel cutout -

3.622" x 1.772" (92 mm x 45 mm). Refer to

Figure 1. 1/8 DIN Panel Cutout Dimensions

below for more details.

• Clearance: allow at least 6.0" (152 mm) behind the panel for wiring.

• Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm). Recommended minimum panel thickness to maintain Type 4X rating: 0.06" (1.5 mm) steel panel, 0.16" (4.1 mm) plastic panel.

• Remove the two mounting brackets provided with the meter (back-off the two screws so that there is ¼" (6.4 mm) or less through the bracket. Slide the bracket toward the front of the case and remove).

• Insert meter into the panel cutout.

• Install mounting brackets and tighten the screws

against the panel. To achieve a proper seal, tighten the mounting bracket screws evenly until meter is snug to the panel along its short side. DO NOT OVER TIGHTEN, as the rear of the panel may be damaged.

Mounting Dimensions

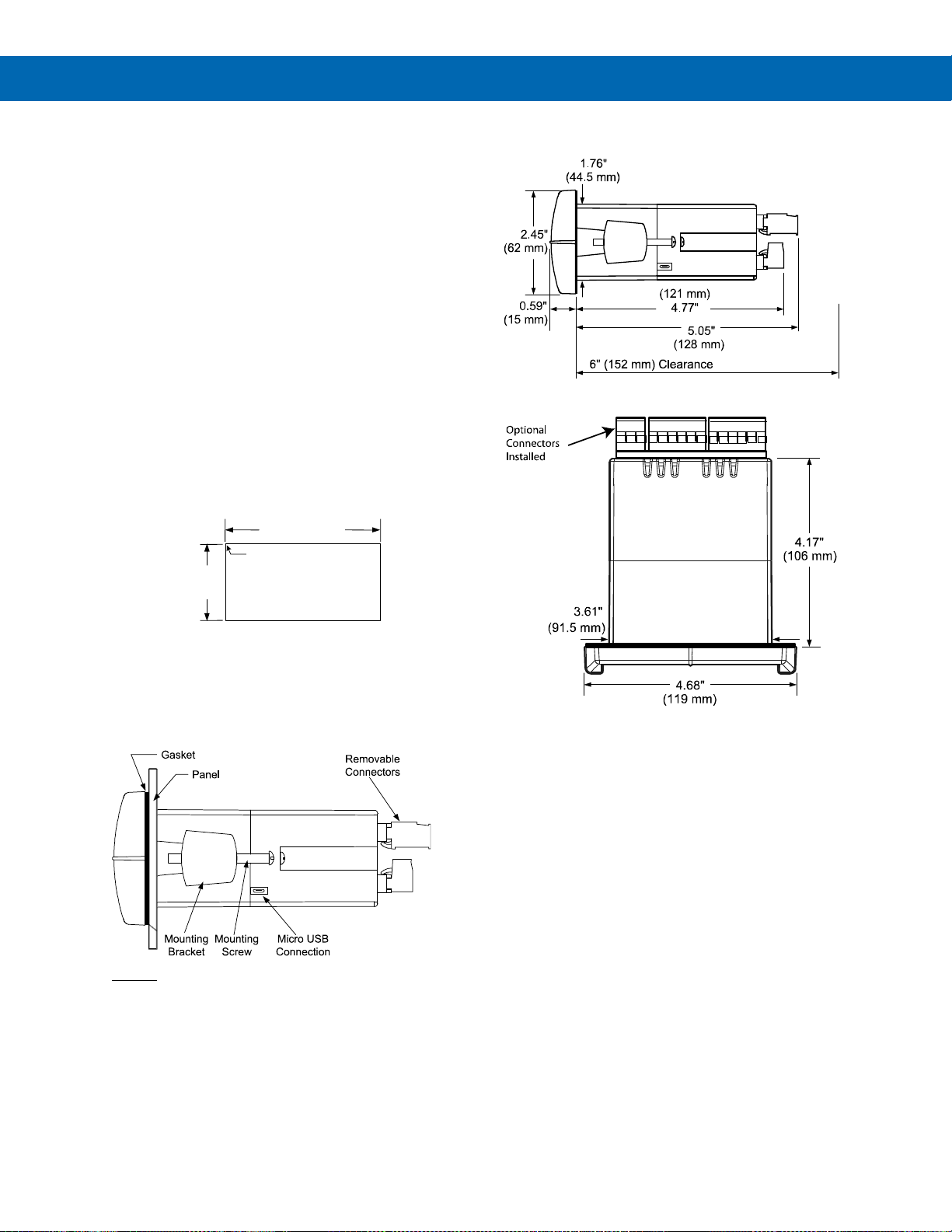

Figure 3. Meter Dimensions - Side View

Figure 1. 1/8 DIN Panel Cutout Dimensions

DO NOT apply AC or DC power to the meter when using the Micro USB connection.

Figure 2. Panel Mounting Details

Figure 4. Meter Dimensions - Top View

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 13

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Installation Overview

Note: If you decide to update your MeterView Pro

software, once the installation has completed, you will be asked if you want to update the setup files located on the meter itself. This way, you will always have the most current version on the meter for future installs.

We recommend the following sequence for getting the meter into service:

1. DO NOT apply AC or DC power to the meter.

2. Connect the meter to the PC with the USB cable provided. DO NOT use a different USB cable.

3. If MeterView Pro (MVPro) is already installed in your computer, then the program will launch automatically in most systems. If the program does not start automatically, double-click on the MVPro icon.

4. If MVPro is not installed, follow the instructions provided below.

5. Use MVPro to configure the meter for your application.

6. Disconnect the USB cable from the meter.

7. Apply power and signal and check operation of the meter.

8. Install the meter and put into service.

9. Make any programming adjustments using the front panel buttons.

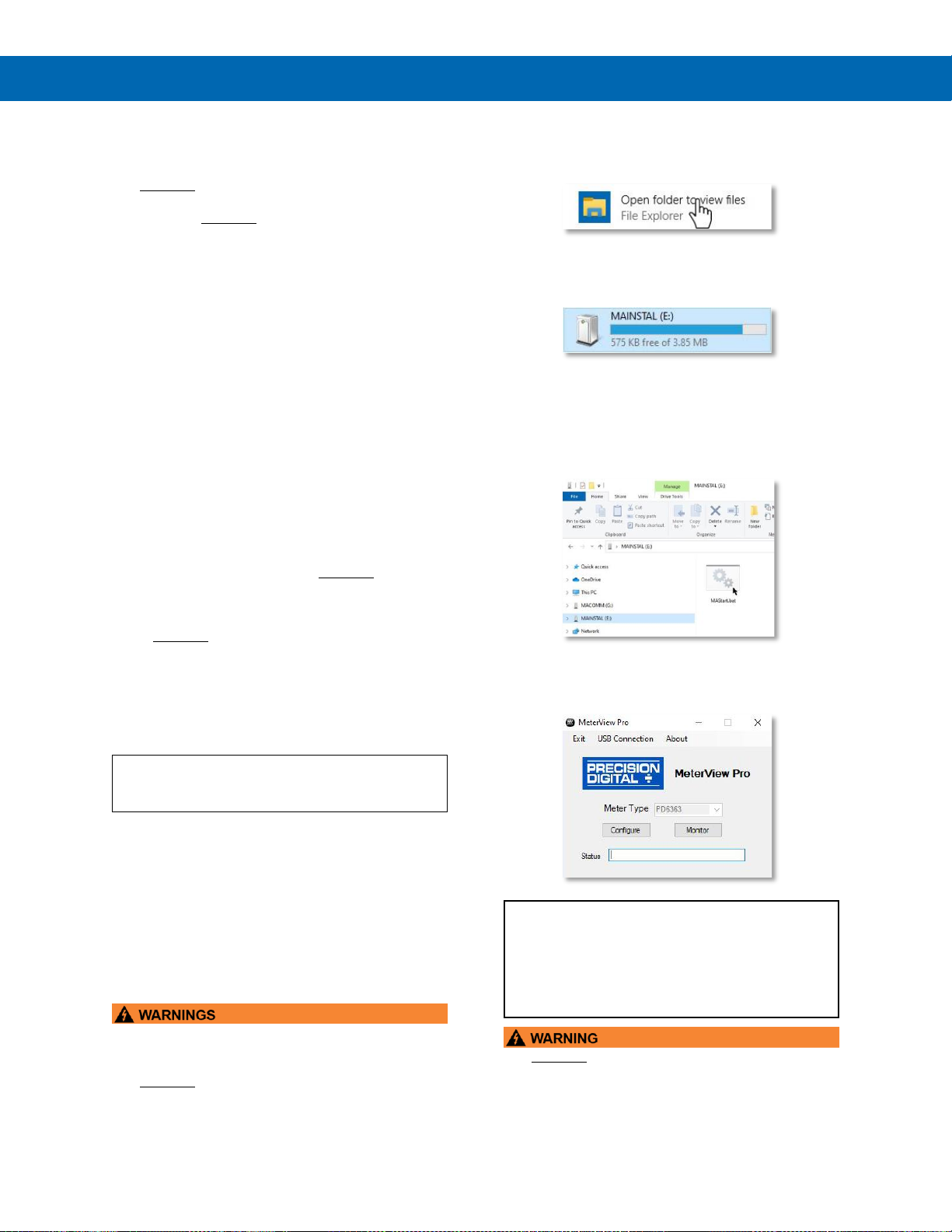

MeterView Pro Software

The easiest and quickest way to program your PROVU meter is to use the FREE MeterView Pro programming software. This software is loaded into the meter and connects and installs directly to your PC with the USB cable provided. DO NOT use a different USB cable. We recommend that the first thing you do after taking the meter out of the box is connect the PROVU to your PC with the provided USB cable. DO NOT apply AC or DC power to the meter while your PC is connected to the meter as it will disrupt the USB connection. It is not necessary to apply an input signal.

MeterView Pro programming software is intuitive, and most customers can get their meter programmed as they like without even looking in the manual.

2. Once the driver is installed, an AutoPlay dialog should appear for the drive

“MAINSTAL.” Click “Open folder to view files.”

If the computer does not display an AutoPlay

dialog for the drive “MAINSTAL,” you should

open My Computer and double-click on the drive labeled “MAINSTAL.”

3. Double-click on the file named “MAStart.” The program will open a few windows and install two programs on your computer. Simply follow the on-screen instructions until you see one of the dialogs below. If you

receive a “User Account Control” warning, click “Yes.”

4. If there is an update available, click the

“Update” button to install the new version. Otherwise, click “Configure” to begin

programming your meter.

MeterView Pro Installation

1. Connect one end of the provided USB cable

to the meter and the other end to the computer. The computer will automatically install the driver software it needs to talk to the meter. Follow the on-screen instructions and allow sufficient time for the process to complete. This can take a few minutes. If the process is interrupted, then it could leave the system in an unstable condition.

• Only one meter may be connected at a time. Attaching multiple meters will cause a conflict with the meter software.

• DO NOT apply AC or DC power to the meter when using the Micro USB connection.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

• DO NOT unplug the meter while the new installation files are being written to it. The meter will display uwrite during the process and you will receive an on-screen notification once the process is complete.

Page 14

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

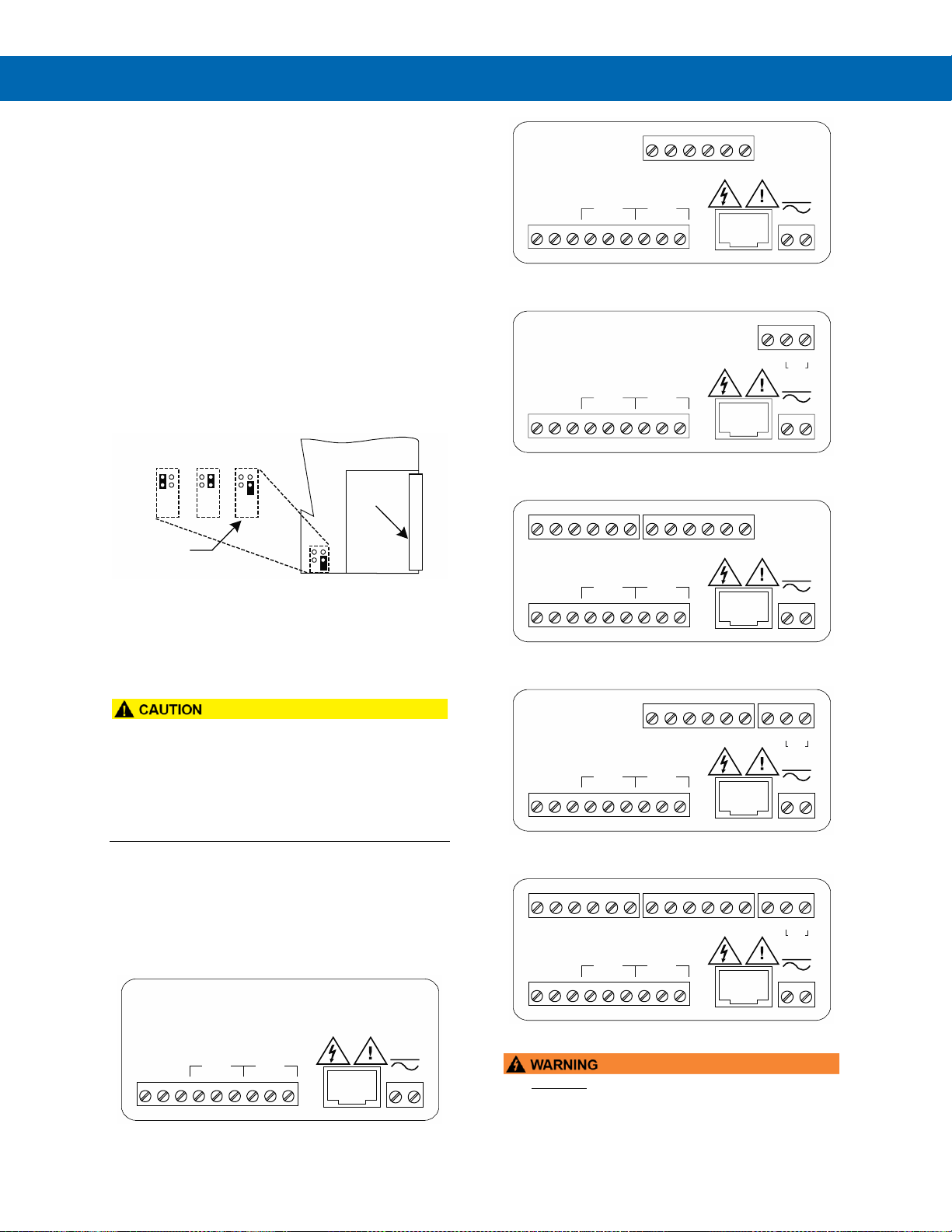

Transmitter Supply Voltage Selection (P+, P-)

All meters, including models equipped with the 12-24 VDC power option, are shipped from the factory configured to provide 24 VDC power for the transmitter or sensor.

If the transmitter requires 5 or 10 VDC excitation, the internal jumper J4 must be configured accordingly.

To access the voltage selection jumper:

1. Remove all the wiring connectors.

2. Unscrew the back cover.

3. Slide out the back cover by about 1 inch.

4. Configure the J4 jumper, located behind the input signal connector, for the desired excitation voltage as shown.

Figure 5. Transmitter Supply Voltage Selection

Connections

All connections are made to removable screw terminal connectors located at the rear of the meter.

• Use copper wire with 60°C or 60/75°C insulation for all line voltage connections. Observe all safety regulations. Electrical wiring should be performed in accordance with all applicable national, state, and local codes to prevent damage to the meter and ensure personnel safety.

Connectors Labeling

The connectors’ label, affixed to the meter, shows the location of all connectors available with requested configuration.

Note: ## on the following figures refers to power and display options. (Example: PD6060-6H5)

Figure 6. PD6060-##0 Connectors Label

Figure 7. PD6060-##2 Connectors Label

Figure 8. PD6060-##3 Connectors Label

Figure 9. PD6060-##4 Connectors Label

Figure 10. PD6060-##5 Connectors Label

Figure 11. PD6060-##7 Connectors Label

• DO NOT connect any equipment other than

Precision Digital’s expansion modules, cables, or

meters to the RJ45 M LINK connector. Otherwise damage will occur to the equipment and the meter.

MAIN BOARD

INPUT SIGNAL

5 V

10 V

24 V

J4 CONFIGURATION

Factory Default

P+

P-

mA+ COM

V+ F4

mA+ COM

V+

POWER

M-LINK

123 4 5 6 7 8

SIGNAL

Ch-A

P- F4P+ COM V+

3412 5

mA+ COM V+ mA+

7869

Ch-B

SIGNAL

Ch-A

P- F4P+ COM V+

3412 5

mA+ COM V+ mA+

7869

Ch-B

POWER

M-LINK

CNONO NC NC C

RELAY2 RELAY1

4365 21

123 4 5 6 7 8

SIGNAL

Ch-A

P- F4P+ COM V+

3412 5

mA+ COM V+ mA+

7869

Ch-B

I- I+

MA OUT

POWER

M-LINK

123 4 5 6 7 8

24 V

SIGNAL

Ch-A

P- F4P+ COM V+

3412 5

mA+ COM V+ mA+

7869

Ch-B

POWER

M-LINK

CNONO NC NC C

RELAY4 RELAY3

4365 2 1

CNONO NC NC C

RELAY2 RELAY1

4365 21

123 4 5 6 7 8

SIGNAL

Ch-A

P- F4P+ COM V+

3412 5

mA+ COM V+ mA+

7869

Ch-B

I- I+

MA OUT

POWER

M-LINK

CNONO NC NC C

RELAY2 RELAY1

4365 21

123 4 5 6 7 8

24 V

SIGNAL

Ch-A

P- F4P+ COM V+

3412 5

mA+ COM V+ mA+

7869

Ch-B

I- I+

MA OUT

POWER

M-LINK

CNONO NC NC C

RELAY4 RELAY3

4365 2 1

CNONO NC NC C

RELAY2 RELAY1

4365 21

123 4 5 6 7 8

24 V

www.GlobalTestSupply.com

Find Quality Products Online at: [email protected]

Page 15

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Power Connections

Power connections are made to a two-terminal connector labeled POWER. The meter will operate regardless of DC polarity connection. The + and symbols are only a suggested wiring convention.

Figure 12. Power Connections

Signal Connections

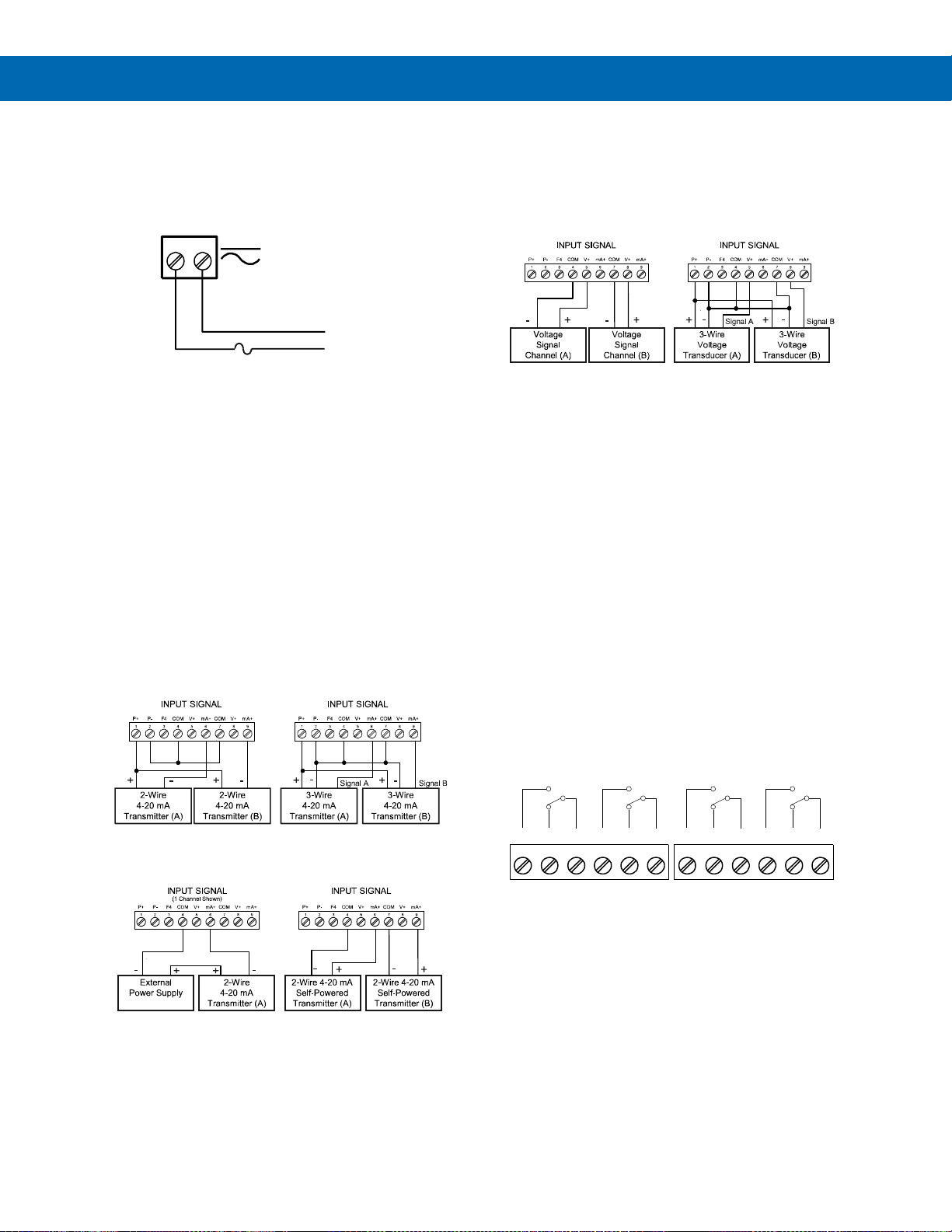

Signal connections are made to a nine-terminal connector labeled SIGNAL. The COM (common) terminals are the return for the 4-20 mA and the 10 V input signals. The two COM terminals connect to the same common return, and are not isolated.

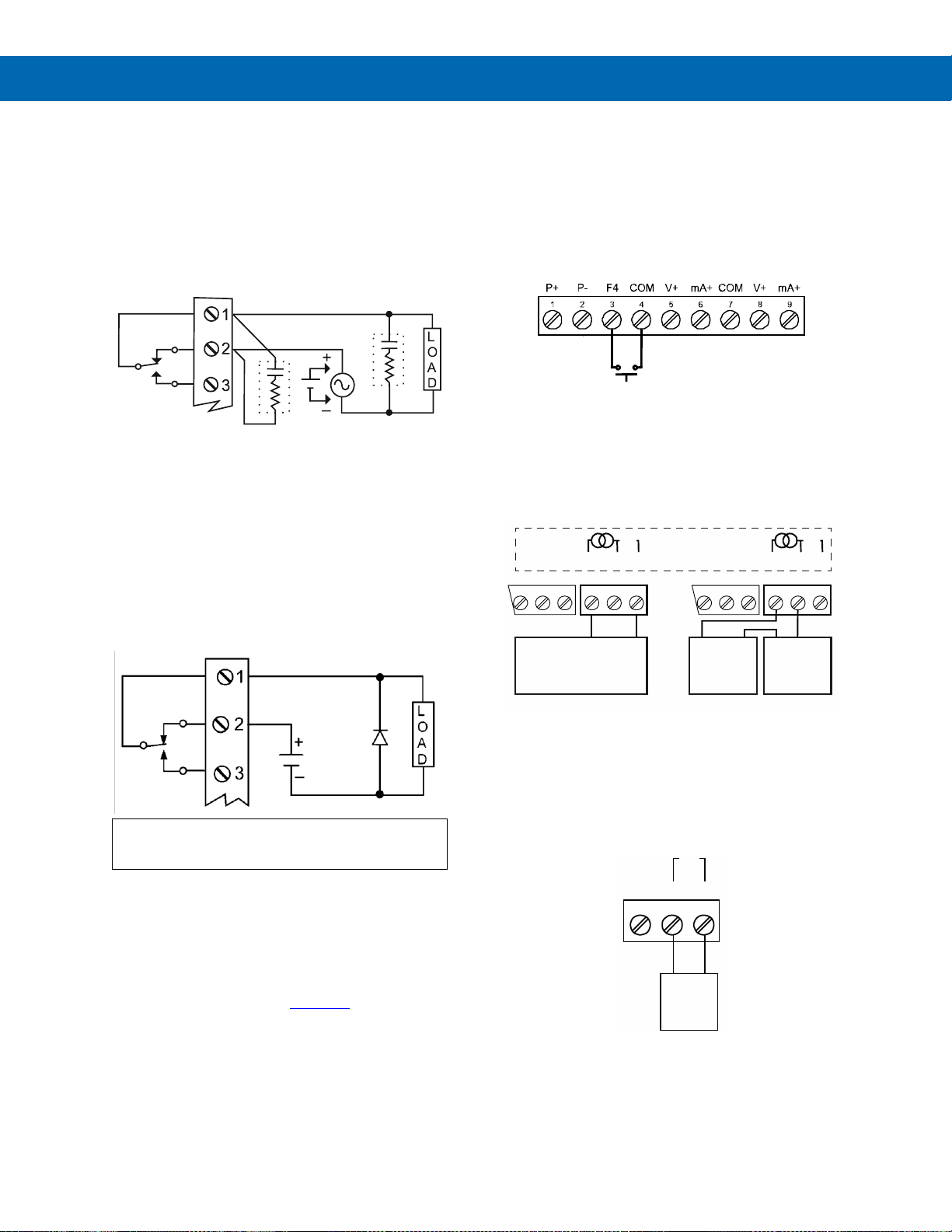

Current and Voltage Connections

The following figures show examples of current and voltage connections.

There are no switches or jumpers to set up for current and voltage inputs. Setup and programming is performed through the front panel buttons.

Figure 13. Transmitters Powered by Internal

Supply

Figure 14. Transmitter Powered by Ext. Supply or

Self-Powered

The current input is protected against current overload by a resettable fuse. The display may or may not show a fault condition depending on the nature of the overload.

The fuse limits the current to a safe level when it detects a fault condition, and automatically resets itself when the fault condition is removed.

Figure 15. Voltage Input Connections

The meter is capable of accepting any voltage from

-10 VDC to +10 VDC.

Modbus RTU Serial Communications

Serial communications connection is made to an RJ45 connector labeled M-LINK. For interfacing to the PROVU, use the PDA1232 for RS-232 or the PDA1485 for RS-485. The same port is used for interfacing with all expansion modules (e.g. external relays, digital I/O).

Relay Connections

Relay connections are made to two six-terminal connectors labeled RELAY1 – RELAY4. Each relay’s C terminal is common only to the normally open (NO) and normally closed (NC) contacts of the corresponding relay. The relays’ C terminals should not be confused with the COM (common) terminal of the INPUT SIGNAL connector.

Figure 16. Relay Connections

AC or DC

POWER

Required External Fuse:

5 A max, 250 V Slow Blow

POWER

C NONO NC NC C

RELAY4 RELAY3

4 36 5 2 1

C NONO NC NC C

RELAY2 RELAY1

4 36 5 2 1

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 16

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Switching Inductive Loads

The use of snubbers to suppress electrical noise is strongly recommended when switching inductive

loads to prevent disrupting the microprocessor’s

operation. The snubbers also prolong the life of the relay contacts. Suppression can be obtained with resistor-capacitor (RC) networks assembled by the user or purchased as complete assemblies. Refer to the following circuits for RC network assembly and installation:

Figure 17. AC and DC Loads Protection

Choose R and C as follows: R: 0.5 to 1 Ω for each volt across the contacts C: 0.5 to 1 µF for each amp through closed contacts

Notes:

1. Use capacitors rated for 250 VAC.

2. RC networks may affect load release time of solenoid loads. Check to confirm proper operation.

3. Install the RC network at the meter's relay screw terminals. An RC network may also be installed across the load. Experiment for best results.

Use a diode with a reverse breakdown voltage two to three times the circuit voltage and forward current at least as large as the load current.

Figure 18. Low Voltage DC Loads Protection

RC Networks (Snubbers) Available from Precision Digital

RC networks are available from Precision Digital and should be applied to each relay contact switching an inductive load. Part number: PDX6901.

Note: Relays are de-rated to 1/14th HP (50 watts) with an inductive load.

F4 Digital Input Connections

A digital input, F4, is standard on the meter. This digital input should be connected with a normally open contact across F4 and COM, or with an active low signal applied to F4. It can be used for remote operation of front-panel buttons, to acknowledge/reset relays, or to reset max/min values. See Function Keys & Digital I/O Available Settings on page 40 for a complete list of capabilities.

Figure 19. F4 Digital Input Connections

4-20 mA Output Connections

Connections for the 4-20 mA transmitter output are made to the connector terminals labeled mA OUT. The 4-20 mA output may be powered internally or from an external power supply.

Figure 20. 4-20 mA Output Connections

Analog Output Power Supply

The internal 24 VDC power supply powering the analog output may be used to power other devices, if the analog output is not used. The I+ terminal is the +24 V and the R terminal is the return.

Figure 21. Analog Output Supply Powering Other

Devices

C R

4-20 mA Input

Remote Display, PLC,

Chart Recorder, Etc.

RI- I+

132

RELAY1

mA OUT

24 V

12-35 VDC

Power

Supply

4-20 mA

Input Meter

RI- I+

132

RELAY1

321

24 V

mA OUT

Internal Power Supply

and Analog Output

321

Active Output Loop Passive Output Loop

RI- I+

132

24 VDC

Powered

Device

24 V

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 17

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

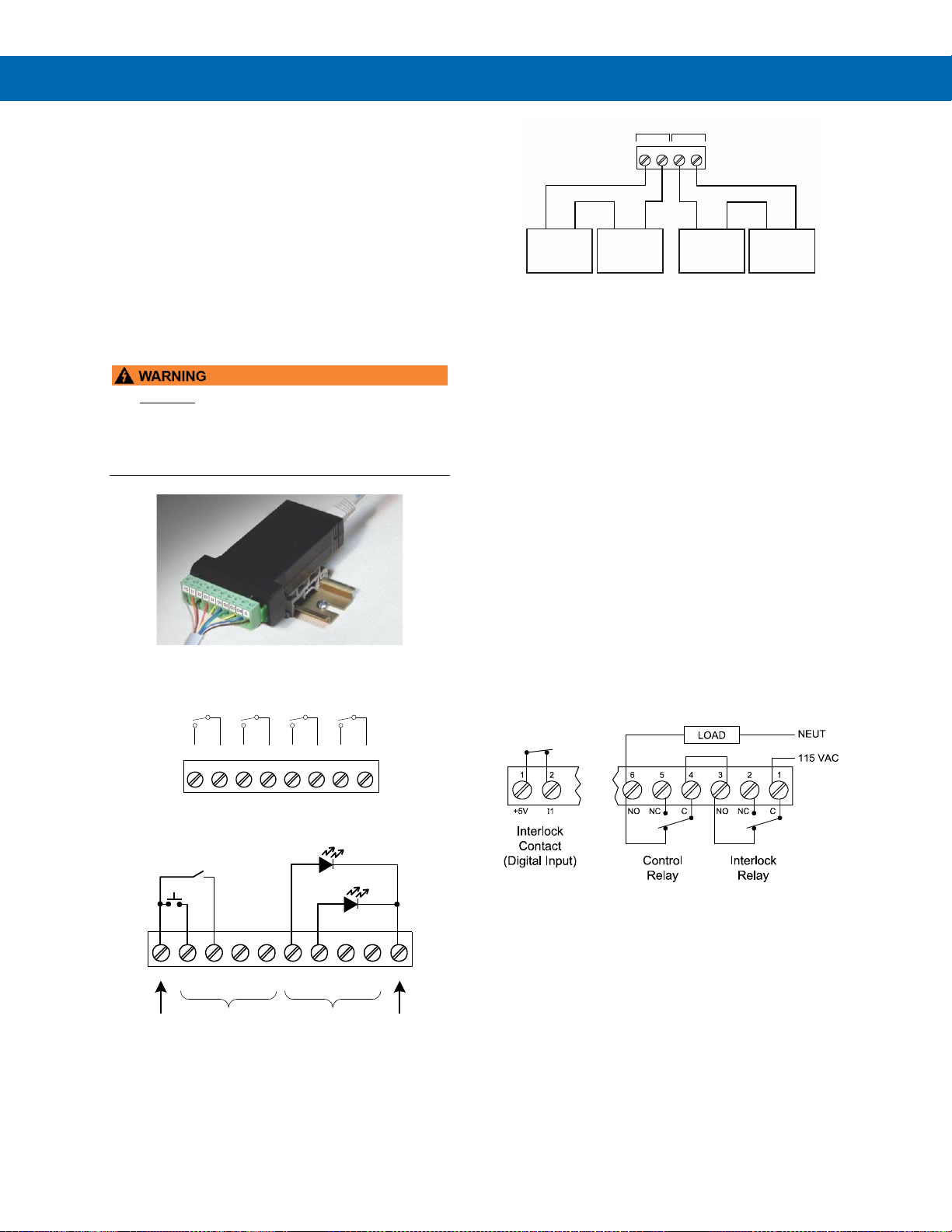

External Relay, Analog Output, & Digital I/O Connections

The relay, dual analog output, and digital I/O expansion modules PDA1004, PDA1011, and PDA1044 are connected to the meter using a CAT5 cable provided with each module. The two RJ45 connectors on the expansion modules are identical and interchangeable; they are used to connect additional modules to the system.

Note: The jumper located between the RJ45

connectors of the PDA1044 must be removed on the second digital I/O module in order for the system to recognize it as module #2.

• DO NOT connect or disconnect the expansion modules with the power on! More detailed instructions are provided with each optional expansion module.

Figure 22. Expansion Module & DIN Rail Mounting

Kit

Figure 23. External Relays Module Connections

Figure 24. Digital I/O Module Connections

Figure 25. Dual 4-20 mA Output Module

Connections

Interlock Relay Feature

As the name implies, the interlock relay feature reassigns one, or more, alarm/control relays for use as interlock relay(s). Interlock contact(s) are wired to digital input(s) and activate the interlock relay. This feature is enabled by configuring the relay, and the corresponding digital input(s), see Setting Up the Interlock Relay (Force On) Feature on page 32.

In the example below, an Interlock Contact switch is connected to a digital input, which will be used to force on (energize) the Interlock Relay. The Interlock Relay and the Control Relay are connected in series with the load.

• When the Interlock Contact is closed (safe), the Interlock Relay energizes, allowing power to flow to the Control Relay; the corresponding front panel LED is on.

• When the Interlock Contact is open, the corresponding front panel LED flashes (locked out), the Interlock Relay is de-energized, preventing power from flowing to the Control Relay and the load.

Figure 26. Interlock Connections

1 2

RLY5 RLY6 RLY7 RLY8

3 4 5 6 7 8

NO C NO C NO C NO C

1 2 3 4 5 6

+5 I1 I2 I3 I4 O1

7 8

O2 O3

9 10

O4 G

DI 1-4 DO 1-4

5 VDC GND

-+- +

2314

Out 3Out 2

4-20 mA

Input

Meter 2

4-20 mA

Input

Meter 3

12-35 VDC

Power

Supply 2

12-35 VDC

Power

Supply 3

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 18

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Setup and Programming

There is no need to recalibrate the meter when first received from the factory.

The meter is factory calibrated prior to shipment for milliamps and volts with calibration equipment that is certified to NIST standards.

Overview

There are no jumpers to set for the meter input selection.

Setup and programming is done using MeterView Pro or through the front panel buttons.

After power and input signal connections have been completed and verified, apply power to the meter.

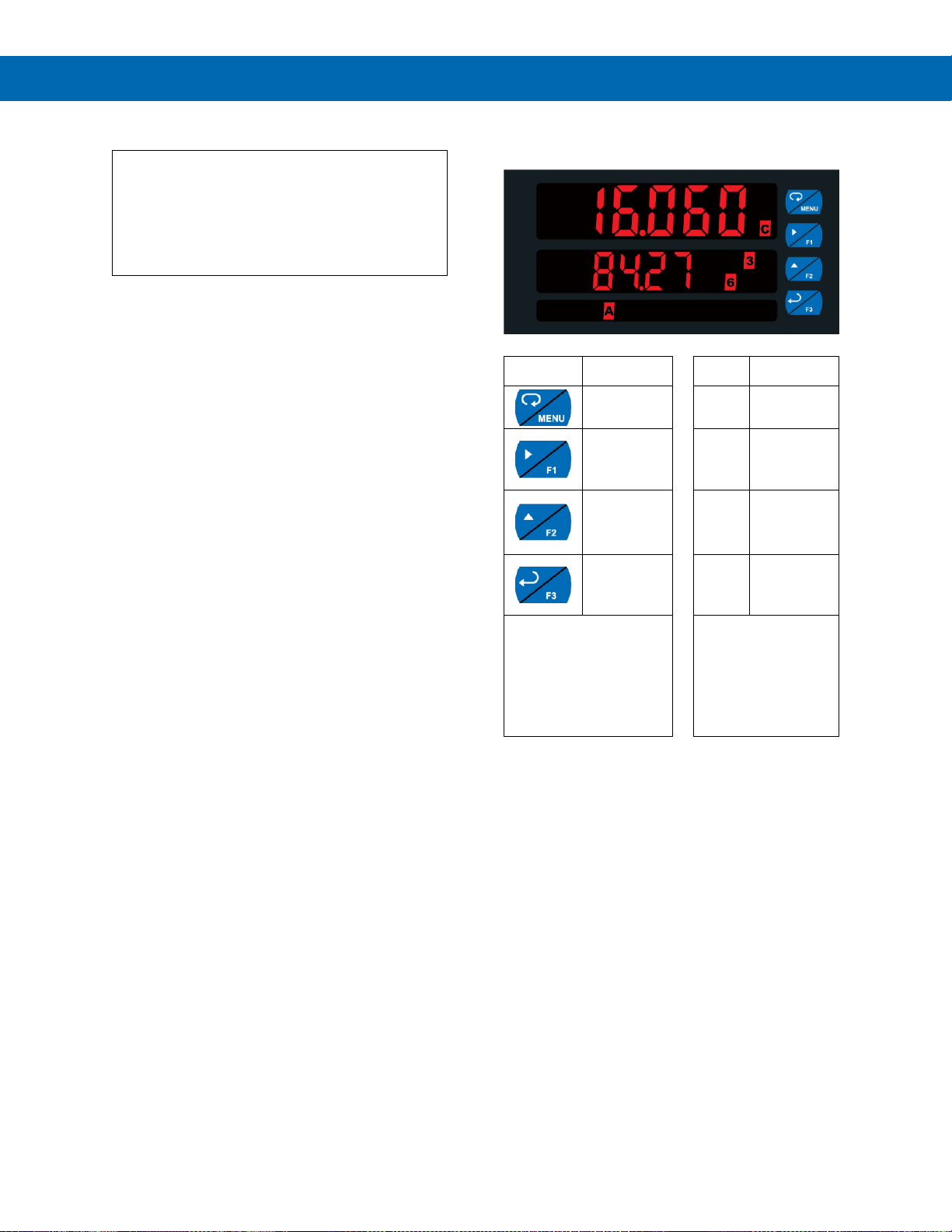

Front Panel Buttons and Status LED Indicators

Button

Symbol

Description

LED

Status

Menu 1-8

Alarm 1-8 indicator

Right arrow/F1

1-8

Flashing: Relay in manual control mode

Up arrow/F2

A, B,

Channel displayed

Flashing: Tare

Enter/F3

1-8

Flashing: Relay interlock switch open

Note: F4 is a digital input. Alarms

5-8 are enabled when relay expansion module is installed.

Note: LEDs for relays in

manual mode flash

with the “M” LED every 10 seconds. “M”

flashing by itself indicates Aout – manual control is used.

• Press the Menu button to enter or exit the Programming Mode at any time.

• Press the Right arrow button to move to the next digit during digit or decimal point programming.

• Press or hold the Up arrow button to scroll through the menus, decimal point, or to increment the value of a digit.

• Press the Enter button to access a menu or to accept a setting.

• Press and hold the Menu button for three seconds to access the advanced features of the meter.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 19

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Display Functions & Messages

The following table shows the main menu functions and messages in the order they appear in the menu.

Display Functions & Messages

Display

Parameter

Action/Setting Description

setup

Setup

Enter Setup menu

Input

Enter Input selection menu

Ch-A*

Input

Set input type for channel A (*or B)

nmA

4-20 mA

Set meter for 4-20 mA input

Volt

0-10 VDC

Set meter for 10 VDC input

units

Unit

Select the display units/tags

Ch-A*

Unit

Set unit or tag for channel A (*or B or C)

Dec pt

Decimal point

Set decimal point

Ch-A*

Decimal point

Set decimal point for channel A (*or B or C)

prog

Program

Enter the Program menu

InCAL

Input calibration

Enter the Input Calibration menu

Ch-A*

Input A

Set input type for channel A (*or B)

SCAL A

Scale A

Enter the Scale menu for channel A

SCAl B

Scale B

Enter the Scale menu for channel B

Cal A

Calibrate A

Enter the Calibration menu for channel A

Cal B

Calibrate B

Enter the Calibration menu for channel B

Inp 1

Input 1

Calibrate input 1 signal or program input 1 value

Dis 1

Display 1

Program display 1 value

Inp 2

Input 2

Calibrate input 2 signal or program input 2 value (up to 32 points)

Dis 2

Display 2

Program display 2 value (up to 32 points)

Error

Error, calibration not successful, check signal or programmed value

dsplay

Display

Enter the Display menu

Line 1

Assign line 1 parameter

Line 2

Assign line 2 parameter

D Ch-A

Display Ch-A

Assign display to channel A

D Ch-B

Display Ch-B

Assign display to channel B

D Ch-C

Display Ch-C

Assign display to channel C (math)

D Ab

Display AB

Alternate display of channel A & B

D AC

Display AC

Alternate display of channel A & C

D BC

Display BC

Alternate display of channel B & C

Display Functions & Messages

Display

Parameter

Action/Setting Description

D AbC

Display ABC

Alternate display of channel A, B, & C

D set1*

Display set 1*

Displays relay 1(*through 8) set point.

D Hi-A

Display high A

Display high value of channel A

D Lo-A

Display low A

Display low value of channel A

D HL-A

Display hi/low A

Alternate between high/low value of channel A

D Hi-B

Display high B

Display high value of channel B

D Lo-B

Display low B

Display low value of channel B

D HL-B

Display high/low B

Alternate between high/low value of channel B

D Hi-C

Display high C

Display high value of channel C

D Lo-C

Display low C

Display low value of channel C

D HL-C

Display high/low C

Alternate between high/low value of channel C

D a-u

Display A and units/tags

Alternate display of channel A and the unit/tag

D B-u

Display B and units/tags

Alternate display of channel B and the unit/tag

D C-u

Display B and units/tags

Alternate display of channel C and the unit/tag

A Gros

Display A gross

Display input channel A gross (no tare)

A nt-G

Display A net and gross

Alternate display of channel A net (tare) and gross (no tare)

B Gros

Display B gross

Display input channel B gross (no tare)

B nt-G

Display B net and gross

Alternate display of channel B net (tare) and gross (no tare)

nm bus

Display Modbus

Display Modbus input register

D off

Display off

Display blank (line 2)

D unit

Display unit

Display line 1 channel units

d-Inty

Display intensity

Set display intensity level from 1 to 8

RELaY

Relay

Enter the Relay menu

Assign

Assignment

Assign relays to channels or Modbus

Asign1

Assign 1

Relay 1 assignment

Ch-A*

Channel A*

Assign relay to channel A (*or B or C)

nm bus

Modbus

Assign relay to Modbus register

RLY 1

Relay 1

Relay 1 setup

Act 1

Action 1

Set relay 1 action

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 20

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Display Functions & Messages

Display

Parameter

Action/Setting Description

Auto

Automatic

Set relay for automatic reset

A-nman

Auto-manual

Set relay for auto or manual reset any time

LatCH

Latching

Set relay for latching operation

Lt-CLr

Latchingcleared

Set relay for latching operation with manual reset only after alarm condition has cleared

Altern

Alternate

Set relay for pump alternation control

SAnmpl

Sample

Set relay for sample time trigger control

Off

Turn relay off

FaiLSF

Fail-safe

Enter Fail-safe menu

FLS 1*

Fail-safe 1

Set relay 1 (*through 8) fail-safe operation

Enable fail-safe operation

off

Off

Disable fail-safe operation

DeLAY

Delay

Enter relay Time Delay menu

DLY 1

Delay 1

Enter relay 1 time delay setup

On 1

Set relay 1 On time delay

OFF 1

Off 1

Set relay 1 Off time delay

DLY 2

Delay 2

Enter relays 2-8 time delay setup

break

Loop break

Set relay condition if loop break detected

ignore

Ignore

Ignore loop break condition (Processed as a low signal condition)

Relay goes to alarm condition when loop break detected

Off

Relay goes to non-alarm condition when loop break detected

Aout

Analog output

Enter the Analog output scaling menu

AOut 1*

Aout channel

Analog Output source channel (*1-3)

Dis 1

Display 1

Program display 1 value

Out 1

Output 1

Program output 1 value (e.g. 4.000 mA)

Dis 2

Display 2

Program display 2 value

Out 2

Output 2

Program output 2 value (e.g. 20.000 mA)

reset

Reset

Press Enter to access the Reset menu

Rst Hi

Reset high

Press Enter to reset max display

Rst Lo

Reset low

Press Enter to reset min display

Display Functions & Messages

Display

Parameter

Action/Setting Description

Rst HL

Reset high & low

Press Enter to reset max & min displays

Rst tr

Reset tare

Press Enter to reset (cancel) tare

Contrl

Control

Enter Control menu

Auto

Automatic

Press Enter to set meter for automatic operation

nmAn

Manual

Press Enter to manually control relays or analog output operation

pass

Password

Enter the Password menu

Pass 1*

Password 1*

Set or enter Password 1 (*through 3)

unloc

Unlocked

Program password to lock meter

locd

Locked

Enter password to unlock meter

999999

-99999

Flashing

Over/under range condition

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 21

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

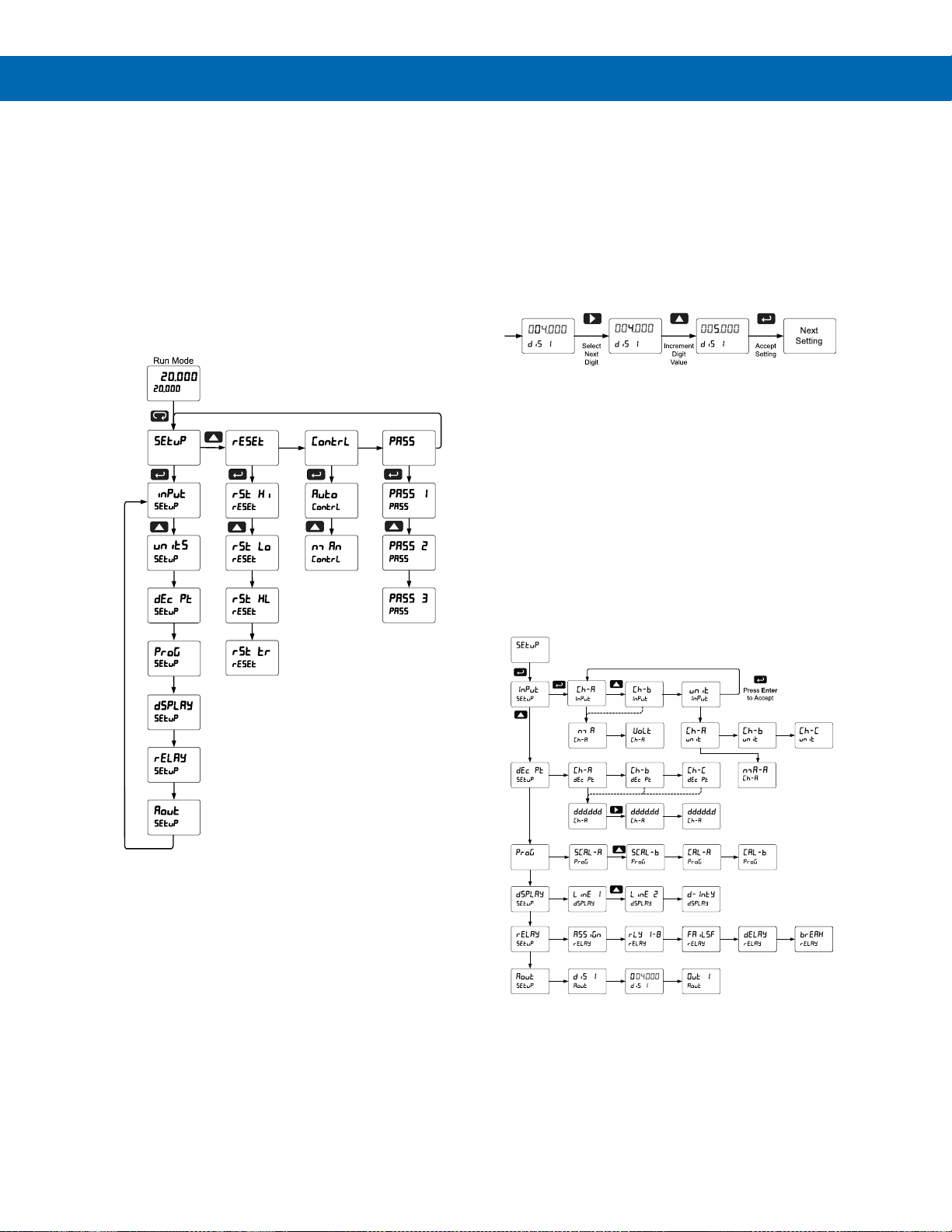

Main Menu

The main menu consists of the most commonly used functions: Reset, Control, Setup, and Password.

• Press Menu button to enter Programming Mode then press the Up arrow button to scroll main menu.

• Press Menu, at any time, to exit and return to Run Mode. Changes made to settings prior to pressing Enter are not saved.

• Changes to the settings are saved to memory only after pressing Enter.

• The display moves to the next menu every time a setting is accepted by pressing Enter.

Setting Numeric Values

The numeric values are set using the Right and Up arrow buttons. Press Right arrow to select next digit and Up arrow to increment digit value. The digit being changed is displayed brighter than the rest. Press and hold Up to auto-increment the display value. If negative numbers are allowed, the first digit position will include a negative symbol (-) after the 9.

Press the Enter button, at any time, to accept a setting or Menu button to exit without saving changes.

Setting Up the Meter (setup)

The Setup menu is used to select:

1. Input signal the meter will accept for channel A and channel B

2. Units for A, B, and C

3. Decimal point position for A, B, and C

4. Program the meter using the Scale or Calibrate functions

5. Display parameter and intensity

6. Relay assignment and operation

7. 4-20 mA analog output scaling

Press the Menu button to exit at any time.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 22

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

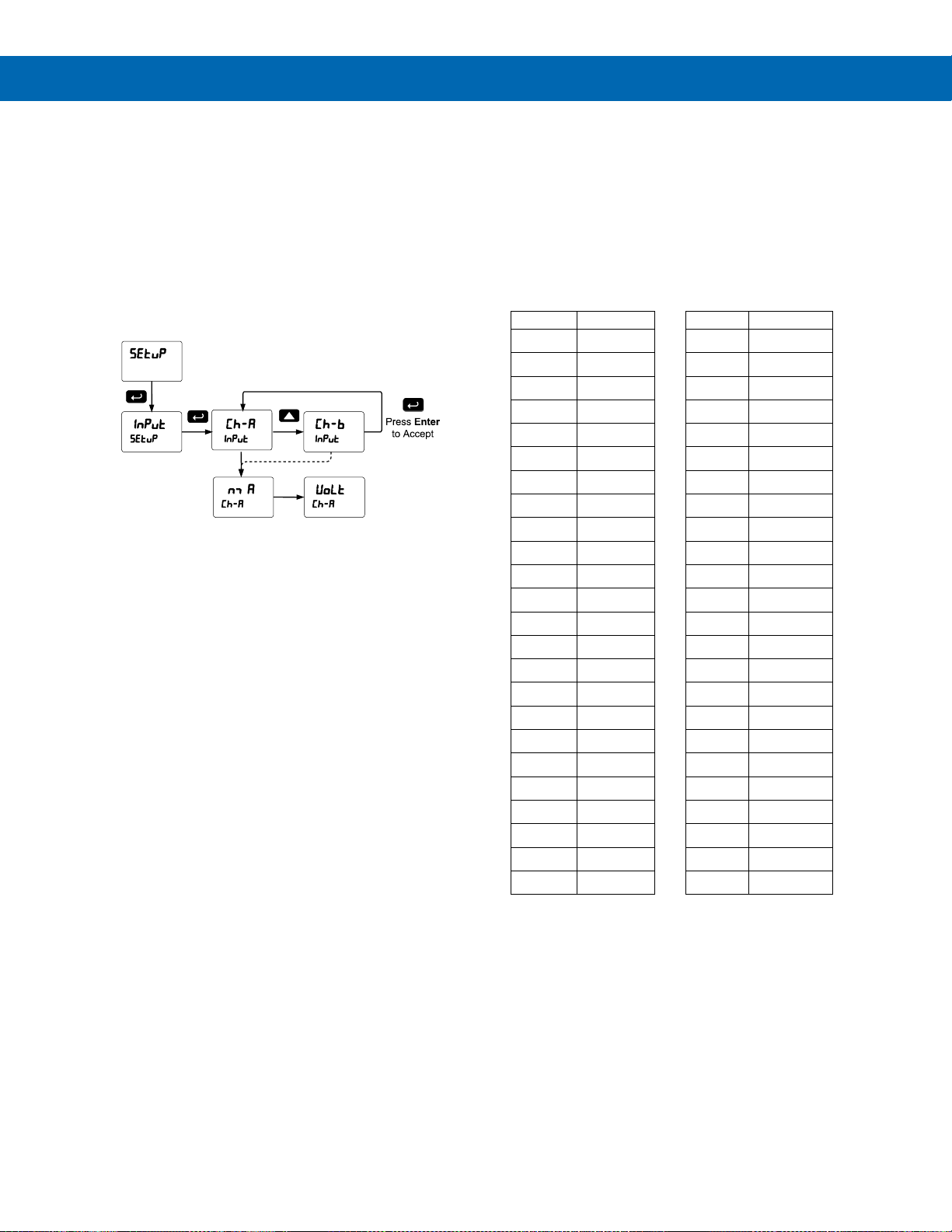

Setting the Input Signal (Input)

Enter the Input menu to set up the meter to display current (nmA) or voltage (Volt) inputs for channel A and channel B.

The current input is capable of accepting any signal from 0 to 20 mA. Select current input to accept 0-20 mA or 4-20 mA signals.

The voltage input is capable of accepting any signal from -10 to +10 VDC. Select voltage input to accept 0-5, 1-5, 0-10, or 10 VDC signals.

Channel C is the Math Function calculation, which is set up in the Advanced Features menu.

Setting the Display Units or Custom Tags (units)

Enter the display unit or custom tag that will be displayed if alternating process input and units is selected in the units menu, or d unit is selected as the lower display parameter. See the Setting the Display Parameter & Intensity (dsplay) flow chart on page 25 to access the display menu to show the unit or tag on display line 2. The engineering units or custom legends can be set using the following 7-segment character set:

Display

Character

Display

Character

n m

s S A

x X e

[

]

[

Degree(<)

Space

Notes: Degree symbol represented by (<) if programming with

MeterView Pro. The letters “m” and “w” use two 7-segment LEDs each;

when selected the characters to the right are shifted one position.

Press and hold up arrow to auto-scroll the characters in the display.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 23

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

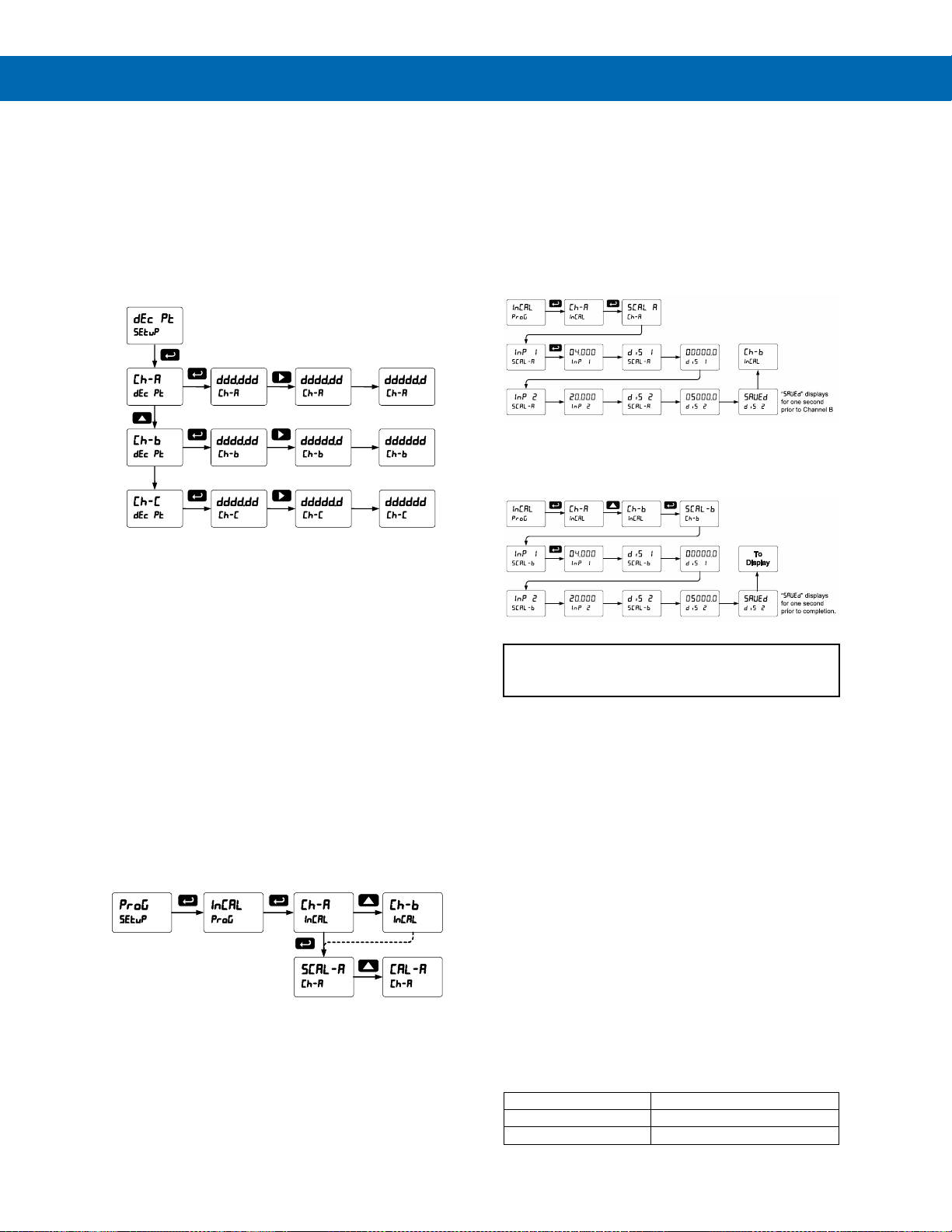

Setting the Decimal Point (dEc pt)

The decimal point may be set with up to five decimal places or with no decimal point at all.

Pressing the Right arrow moves the decimal point one place to the right until no decimal point is displayed, and then it moves to the leftmost position.

There are three decimal points to set up for three channels: Ch-A, Ch-B, and Ch-C.

After the decimal points are set up, the meter moves to the Program menu.

Programming the Meter (prog)

The meter may either be scaled (SCALE) without applying an input or calibrated (Cal) by applying an input. The meter comes factory calibrated to NIST standards, so for initial setup, it is recommended to use the (SCALE) function.

The Program menu contains the Scale (SCALE) and the Calibrate (Cal) menus.

Process inputs may be scaled or calibrated to any display within the range of the meter.

Note: The Scale and Calibrate functions are exclusive of each other. The meter uses the last function programmed. Only one of these methods can be employed at a time. The Scale and Calibrate functions can use up to 32 points (default is 2). The number of points should be set in the Advanced Menu prior to scaling and calibration of the meter. See Multi-Point Linearization (Linear) on page 38 for details.

Multi-Point Linearization (Linear)

The process inputs may be calibrated or scaled to any display value within the range of the meter. The meter is set up at the factory for 2-point linear calibration.

Up to 32 linearization points may be selected. See

Multi-Point Linearization (Linear) on page 38 for details.

Scaling the Meter (SCalE)

The process inputs (4-20 mA, 10 VDC) can be scaled to display the process variables in engineering units.

A signal source is not needed to scale the meter; simply program the inputs and corresponding display values.

Scaling the Meter for Channel A (SCal-A)

Scaling the Meter for Channel B (SCal-B)

For instructions on how to program numeric values

see Setting Numeric Values, page 21.

Error Message (Error)

An error message indicates that the calibration or scaling process was not successful.

After the error message is displayed, the meter reverts to input 2 during calibration or scaling and to input 1 during internal calibration, allowing the appropriate input signal to be applied or programmed.

The error message might be caused by any of the following conditions:

1. Input signal is not connected to the proper terminals or it is connected backwards.

2. Wrong signal selection in Setup menu.

3. Minimum input span requirements not maintained.

4. Input 1 signal inadvertently applied to calibrate input 2.

Minimum Input Span

The minimum input span is the minimum difference between input 1 and input 2 signals required to complete the calibration or scaling of the meter.

Input Range

Input 1 & Input 2 Span

4-20 mA

0.15 mA

10 VDC

0.10 VDC

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 24

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Calibrating the Meter with External Source (Cal)

Note: To scale the meter without a signal source, refer to Scaling the Meter (SCalE) on page 23.

The meter can be calibrated to display the process variable in engineering units by applying the appropriate input signal and following the calibration procedure.

The use of a calibrated signal source is strongly recommended to calibrate the meter.

Warm up the meter for at least 15 minutes before

performing calibration to ensure specified

accuracy.

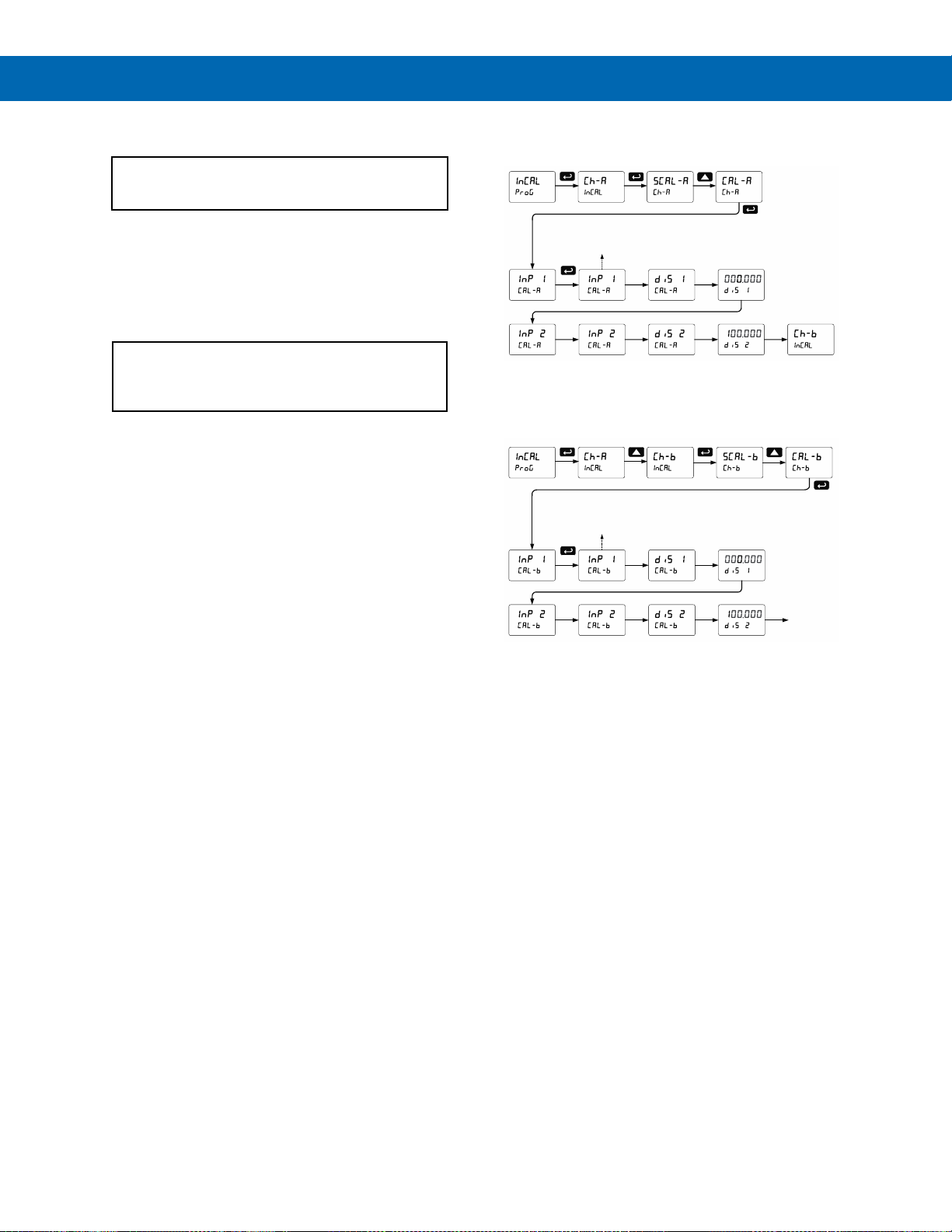

Calibrating the Meter for Channel A (CAL-A)

Calibrating the Meter for Channel B (CAL-B)

Display flashes

while sensing

the inputs

Display flashes

while sensing

the inputs

Calibration Complete

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 25

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

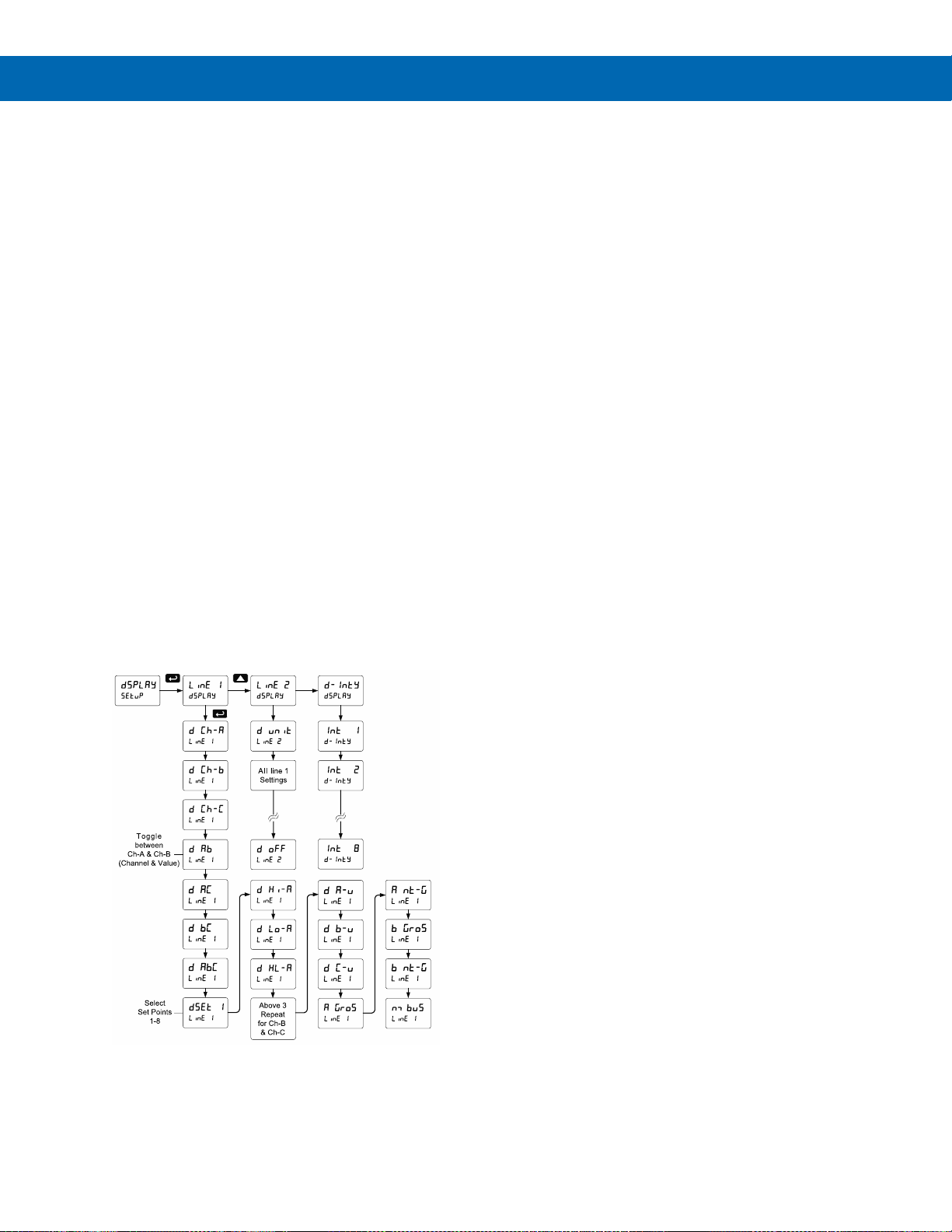

Setting the Display Parameter & Intensity (dsplay)

Display line 1 can be programmed to display:

1. Process value Ch-A

2. Process value Ch-B

3. Process value Ch-C

4. Toggle between Ch-A & Ch-B, Ch-A & Ch-C, Ch-B & Ch-C, and Ch-A, Ch-B, & Ch-C

5. Relay set points

6. Max & min values for each channel

7. Toggle between Channel & units

8. Channel gross value (no tare) or toggle net (tare) and gross values

9. Modbus input

Display line 2 can be programmed to display:

1. Process value Ch-A

2. Process value Ch-B

3. Process value Ch-C

4. Toggle between Ch-A & Ch-B, Ch-A & Ch-C, Ch-B & Ch-C, and Ch-A, Ch-B, & Ch-C

5. Relay set points

6. Max & min values for each channel

7. Toggle between Channel & units

8. Channel gross value (no tare) or toggle net (tare) and gross values

9. Modbus input

10. Off (no display)

11. Engineering units or custom legends

After setting up the input and display, press the Menu button to exit programming and skip the rest of the setup menu.

The displays can be set up to read channels A, B, or C, toggle between A & B, B & C, A & C, A & B & C, toggle between channels A, B, or C & units, the max/min of any of the channels, including the math channel (C), set points, gross (without tare) or net (with tare) & gross values of channel A or B, or the Modbus input. In addition to the parameters available on the Upper display, the Lower display can display Engineering units or it could be turned off.

Display Intensity (d-Inty)

The meter has eight display intensity levels to give the best performance under various lighting conditions. Select intensity 8 for outdoor applications. The default intensity is 6.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 26

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

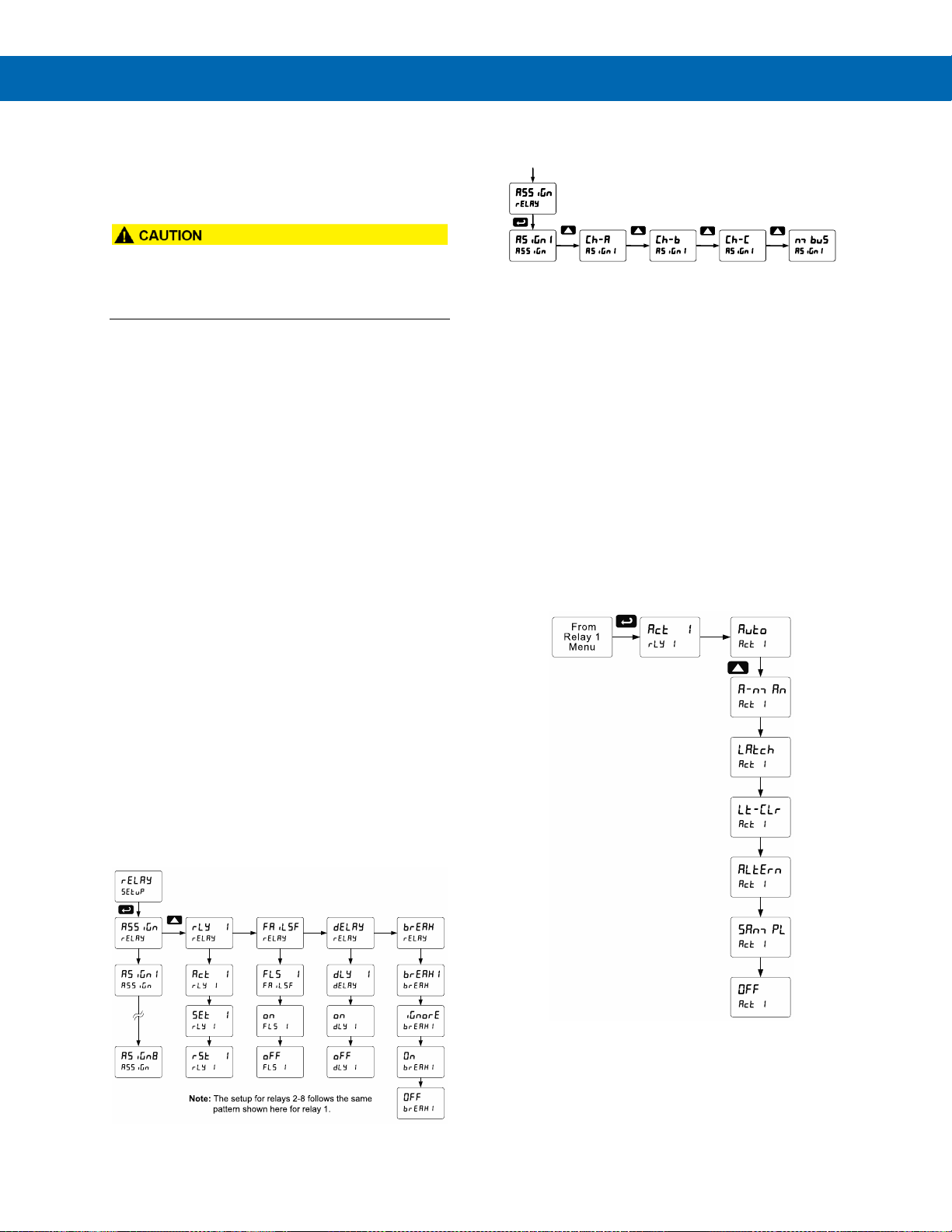

Setting the Relay Operation (relay)

This menu is used to set up the assignment and operation of the relays.

• During setup, the relays do not follow the input and they will remain in the state found prior to entering the Relay menu.

1. Relay assignment

a. Channel A b. Channel B c. Channel C (Math channel) d. Modbus

2. Relay action

a. Automatic reset only (non-latching) b. Automatic + manual reset at any time

(non-latching) c. Latching (manual reset only) d. Latching with Clear (manual reset only

after alarm condition has cleared) e. Pump alternation control (automatic

reset only) f. Sampling (the relay is activated for a

user-specified time) g. Off (relay state controlled by Interlock

feature)

3. Set point

4. Reset point

5. Fail-safe operation a. On (enabled) b. Off (disabled)

6. Time delay a. On delay (0-999.9 seconds) b. Off delay (0-999.9 seconds)

7. Relay action for loss (break) of 4-20 mA input (ignore, on, off)

Setting the Relay Assignment (asSign)

Setting the Relay Action

Operation of the relays is programmed in the Action menu. The relays may be set up for any of the following modes of operation:

1. Automatic reset (non-latching)

2. Automatic + manual reset at any time (nonlatching)

3. Latching (manual reset only, at any time)

4. Latching with Clear (manual reset only after alarm condition has cleared)

5. Pump alternation control (automatic reset only)

6. Sampling (the relay is activated for a userspecified time)

7. Off (relay state controlled by Interlock feature)

The following graphic shows relay 1 action setup; relay 2-8 are set up in a similar fashion.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 27

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

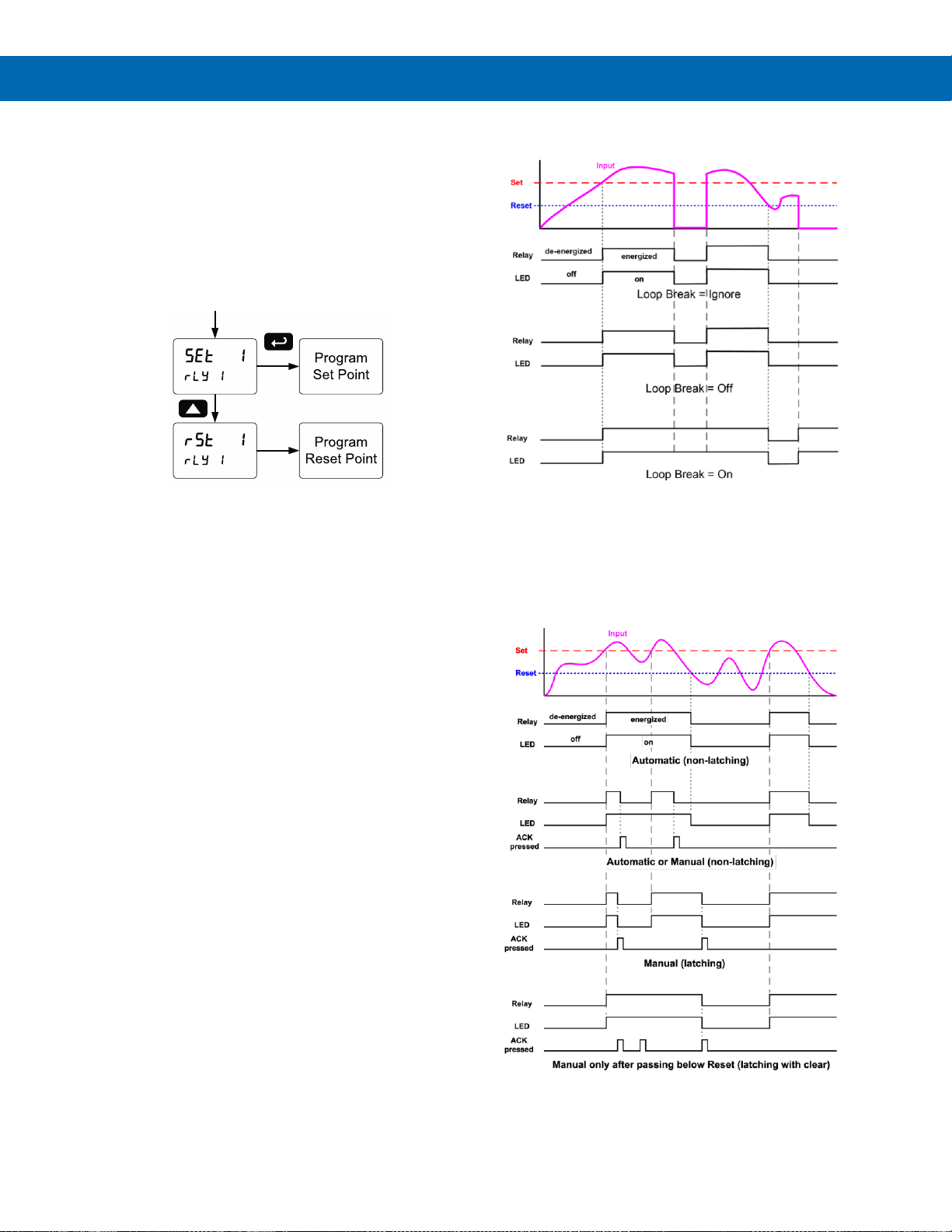

Programming Set and Reset Points

High alarm indication: program set point above reset point. Low alarm indication: program set point below reset point. The deadband is determined by the difference between set and reset points. Minimum deadband is one display count. If the set and reset points are programmed with the same value, the relay will reset one count below the set point.

Note: Changes are not saved until the reset point has been accepted.

Setting Fail-Safe Operation

In fail-safe mode of operation, the relay coil is energized when the process variable is within safe limits and the relay coil is de-energized when the alarm condition exists. The fail-safe operation is set independently for each relay. Select on to enable or select off to disable fail-safe operation.

Programming Time Delay

The On and Off time delays may be programmed for each relay between 0 and 999.9 seconds. The relays will transfer only after the condition has been maintained for the corresponding time delay.

The On time delay is associated with the set point. The Off time delay is associated with the reset point.

Relay Action for Loss of 4-20 mA Input (Loop Break)

The loop break feature is associated with the 4-20 mA input. Each relay may be programmed to go to one of the following conditions when the meter detects the loss of the input signal (i.e. < 0.005 mA):

1. Turn On (Go to alarm condition)

2. Turn Off (Go to non-alarm condition)

3. Ignore (Processed as a low signal condition)

Note: This is not a true loop break condition; if the signal drops below 0.005 mA, it is interpreted as a “loop break” condition.

The following graph shows the loop break relay operation for a high alarm relay.

Relay and Alarm Operation Diagrams

The following graphs illustrate the operation of the relays, status LEDs, and ACK button.

High Alarm Operation (Set > Reset)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay. To detect a new alarm condition, the signal must go below the set point, and then go above it.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 28

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

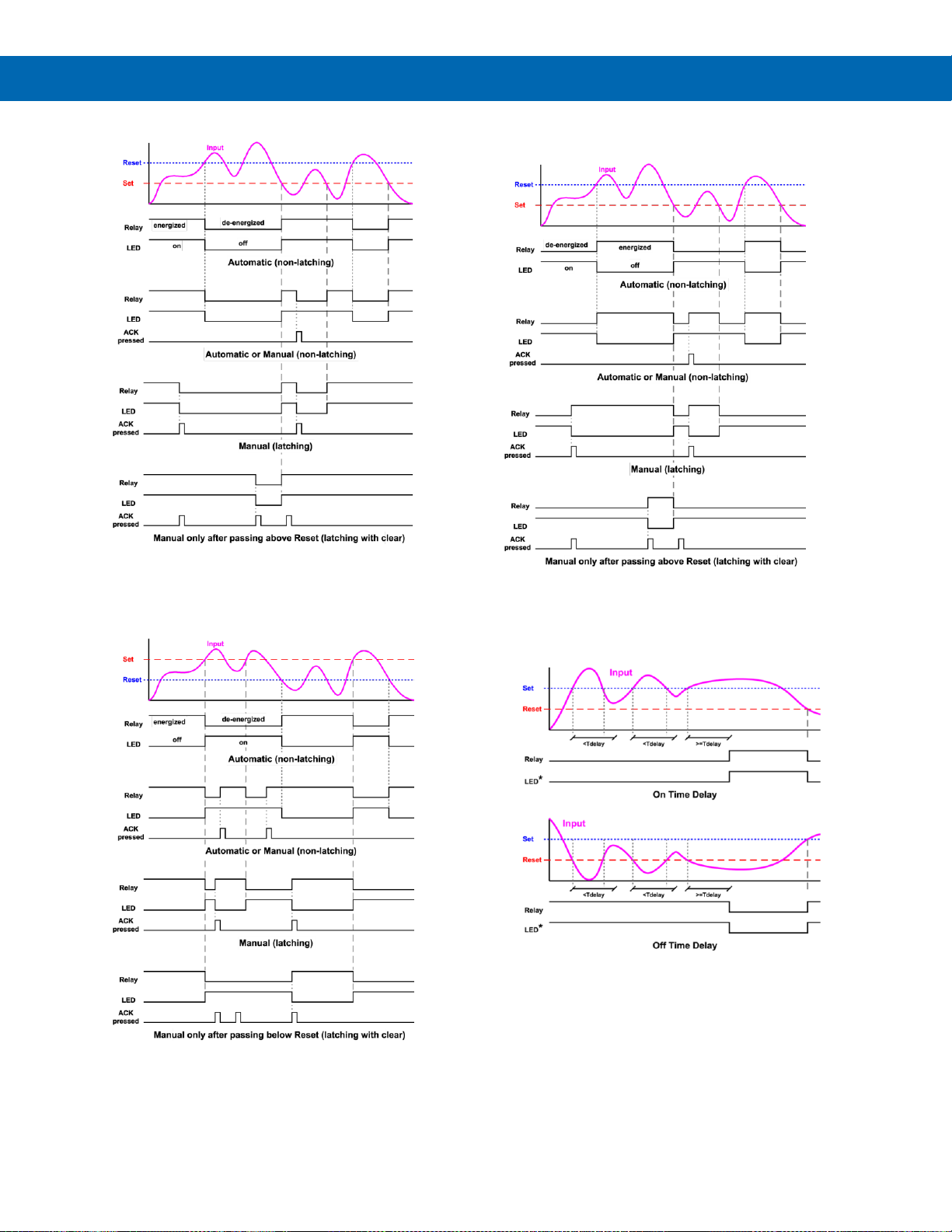

Low Alarm Operation (Set < Reset)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay. For relay to turn back “on”, signal must go above set point and then go below it.

High Alarm with Fail-Safe Operation (Set > Reset)

Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.

Low Alarm with Fail-Safe Operation (Set < Reset)

Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.

Time Delay Operation

The following graphs show the operation of the time delay function.

When the signal crosses the set point, the On time delay timer starts and the relay trips when the time delay has elapsed. If the signal drops below the set point (high alarm) before the time delay has elapsed, the On time delay timer resets and the relay does not change state. The same principle applies to the Off time delay.

Note: If “Automatic or Manual (A-nmAn)” reset mode is selected, the LED follows the reset point and not the relay state when the relay is acknowledged.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 29

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

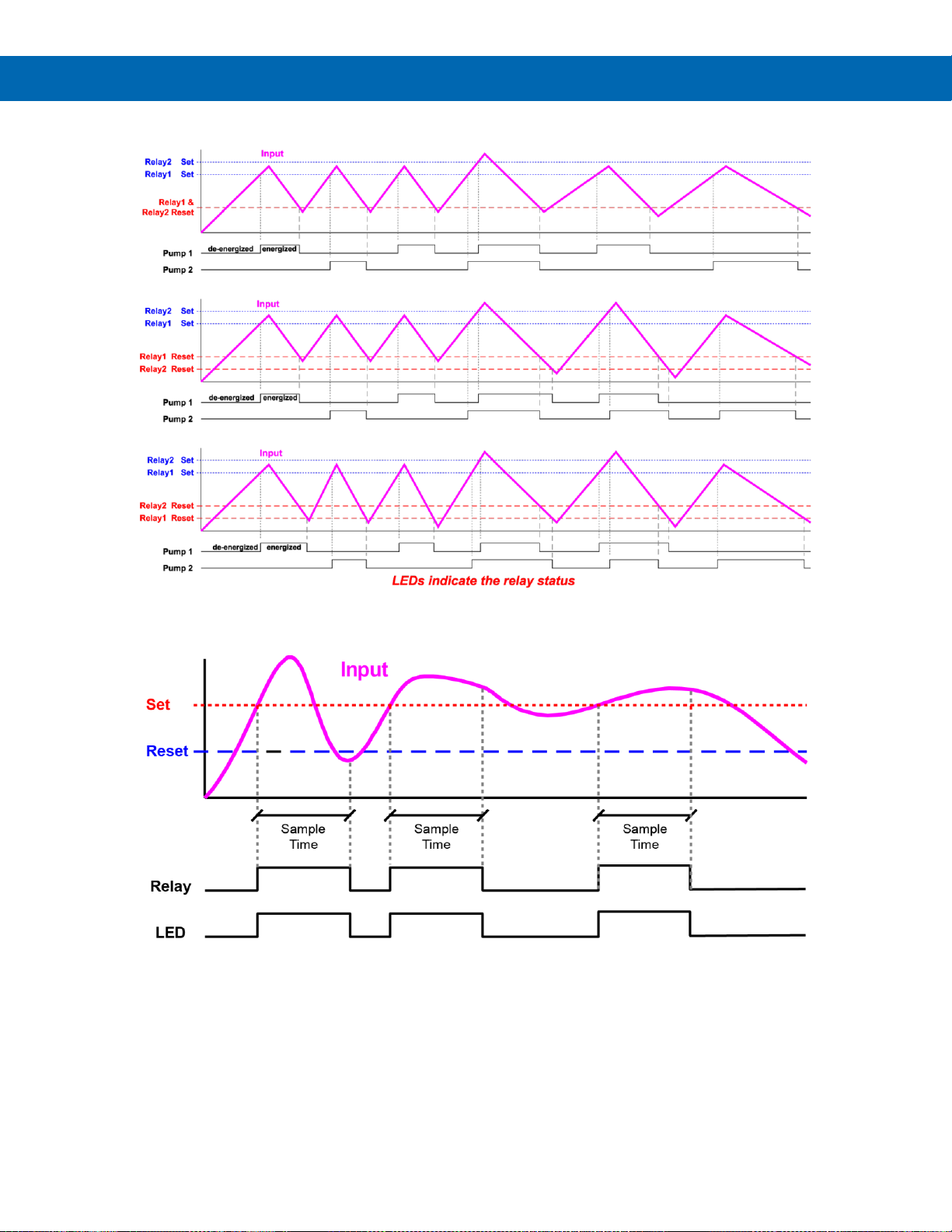

Pump Alternation Control Operation

Relay Sampling Operation

When the signal crosses the set point, the relay trips and the sample time starts. After the sample time has elapsed, the relay resets. The cycle repeats every time the set point is crossed, going up for high alarms and going down for low alarms.

The sample time can be programmed between 0.1 and 5999.9 seconds.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 30

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Relay Operation Details

Overview

The relay capabilities of the meter expand its usefulness beyond simple indication to provide users with alarm and control functions. These capabilities include front panel alarm status LEDs as well as either 2 or 4 optional internal relays and/or 4 external relays expansion module. Typical applications include high or low temperature, level, pressure or flow alarms, control applications such as simple on/off pump control, and pump alternation control for up to 8 pumps. There are four basic ways the relays can be used:

1. High or Low Alarms with Latching or NonLatching Relays

2. Simple On/Off Control with 100% Adjustable Deadband

3. Sampling (Based on Time)

4. Pump Alternation Control for up to 8 Pumps

Relays Auto Initialization

When power is applied to the meter, the front panel LEDs and alarm relays will reflect the state of the input to the meter. The following table indicates how the alarm LEDs and relays will react on power-up based on the set and reset points:

Fail-Safe Operation

The following table indicates how the relays behave based on the fail-safe selection for each relay:

Fail-Safe Selection

Non-Alarm State

Alarm State

Power Failure

Off

Open

Closed

Open

Relays go to nonalarm state

Closed

Open

Closed

Relays go to alarm state

Note: NO = Normally Open, NC = Normally Closed.

This refers to the condition of the relay contacts when the power to the meter is off.

Front Panel LEDs

The LEDs on the front panel provide status indication for the following:

LED

Status

LED

Status

Alarm 1

5 Alarm 5

Alarm 2

6 Alarm 6

Alarm 3

7 Alarm 7

Alarm 4

8 Alarm 8

The meter is supplied with four alarm points that include front panel LEDs to indicate alarm conditions. This standard feature is particularly useful for alarm applications that require visual-only indication. The LEDs are controlled by the set and reset points programmed by the user. When the display reaches a set point for a high or low alarm, the corresponding alarm LED will turn on. When the display returns to the reset point the LED will go off. The front panel LEDs responds differently for latching and nonlatching relays.

For non-latching relays, the LED is always off during normal condition and always on during alarm condition, regardless of the state of the relay (e.g. Relay acknowledged after alarm condition).

For latching relays, the alarm LEDs reflects the status of the relays, regardless of the alarm condition. The following tables illustrate how the alarm LEDs function in relation to the relays and the acknowledge button (Default: F3 key assigned to ACK).

Latching and Non-Latching Relay Operation

The relays can be set up for latching (manual reset) or non-latching (automatic reset) operation.

Relay terminology for following tables

Terminology

Relay Condition

Alarm (Tripped)

Off

Normal (Reset)

Ack

Acknowledged

The On and Off terminology does not refer to the status of the relay’s coil, which depends on the failsafe mode selected.

• In latching relay mode, if Fail-Safe is off, latched relays will reset (unlatch) when power is cycled.

Alarm #

HI or LO

Alarm

Set

Point

Reset

Point

Power-

Reading

Relay &

LED

1000

500

499

Off 2 LO

700

900

499

250

400

499

Off

450

200

499

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 31

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

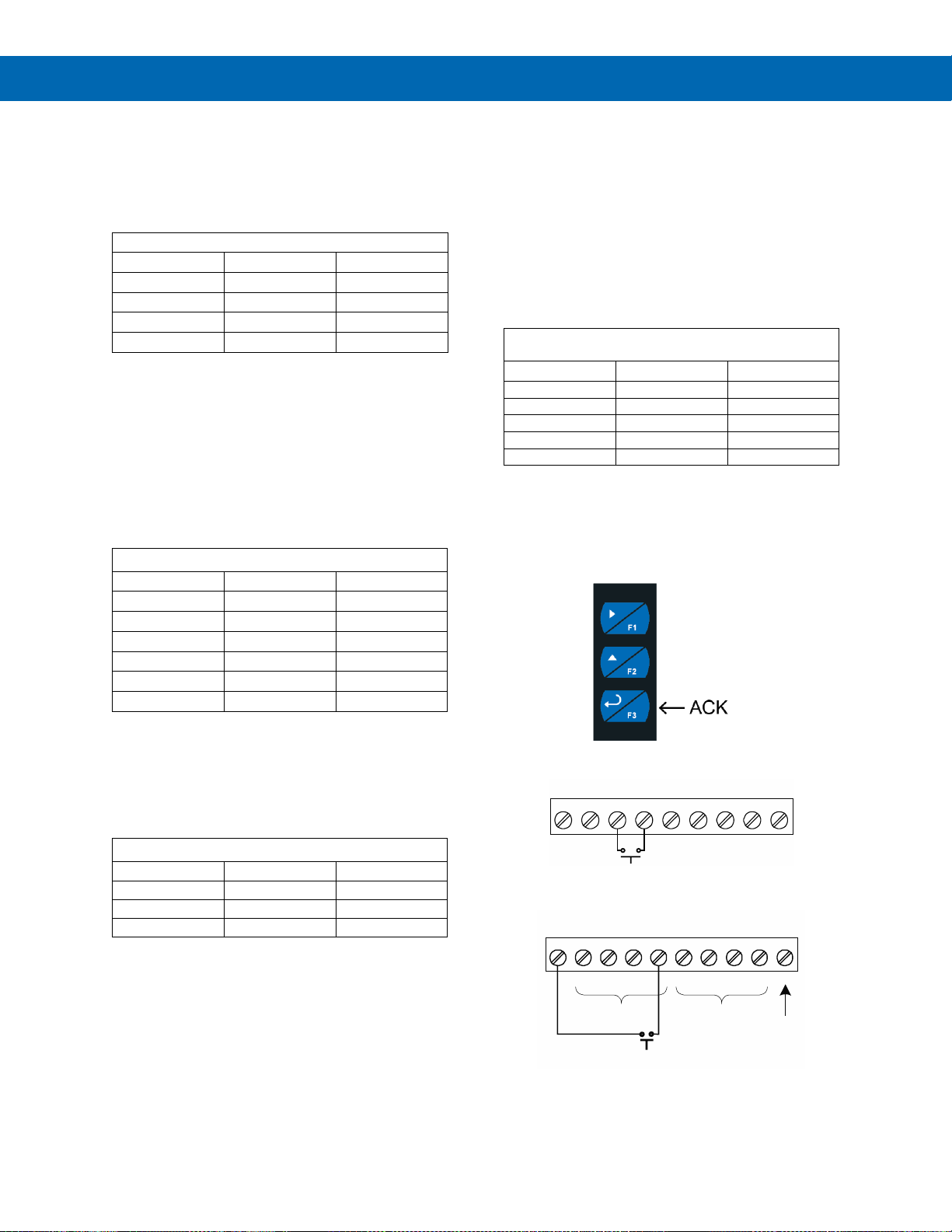

Non-Latching Relay (Auto)

In this application, the meter is set up for automatic reset (non-latching relay). Acknowledging the alarm while it is still present has no effect on either the LED or the relay. When the alarm finally goes away, the relay automatically resets and the LED also goes off.

Non-Latching Relay with Manual Reset (A-nman)

In this application, the meter is set up for automatic and manual reset at any time (non-latching relay). The LED and the relay automatically reset when the meter returns to the normal condition.

In addition, the relay can be manually reset while the alarm condition still exists, but the LED will stay on until the meter returns to the normal condition.

Automatic + manual reset at any time

Condition

LED

Relay

Normal

Off

Alarm

Normal

Off

Next Alarm

Ack

Off

Normal

Off

Latching Relay (LatcH)

In this application, the meter is set up for manual reset at any time. Acknowledging the alarm even if the alarm condition is still present resets the relay and turns off the LED.

Manual reset any time

Condition

LED

Relay

Normal

Off

Alarm

Ack

Off

Latching Relay with Clear (Lt-Clr)

In this application, the meter is set up for manual reset only after the signal passes the reset point (alarm condition has cleared). Acknowledging the alarm while it is still present has no effect on either the LED or the relay. When the alarm is acknowledged after it returns to the normal state, the LED and the relay go off. Notice that the LED remains on, even after the meter returns to the normal condition. This is because, for latching relays, the alarm LED reflects the status of the relay, regardless of the alarm condition.

Manual reset only after

alarm condition has cleared

Condition

LED

Relay

Normal

Off

Alarm

Ack (No effect)

Normal

Ack

Off

Acknowledging Relays

There are three ways to acknowledge relays programmed for manual reset:

1. Via the programmable front panel function keys F1-F3 (Example: F3 assigned to ACK).

2. Remotely via a normally open pushbutton wired to the F4 terminal at the rear of the instrument.

3. One of the digital inputs and the +5 V terminals on the digital I/O expansion module.

When the ACK button or the assigned digital input is closed, all relays programmed for manual reset are acknowledged.

P- F4P+ COM V+

3412 5

mA+ COM V+ mA+

7869

I1 I2 I3 I4

O1 O2 O3 O4 G

DO 1-4

GND

ACK

Digital I/O Module

1 2345 6 78910

DI 1-4

Automatic reset only

Condition

LED

Relay

Normal

Off

Alarm

Ack (No effect)

Normal

Off

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 32

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Pump Alternation Control Applications (Altern)

For pump control applications where two or more similar pumps are used to control the level of a tank or a well, it is desirable to have all the pumps operate alternately. This prevents excessive wear and overheating of one pump over the lack of use of the other pumps.

Up to 8 relays can be set up to alternate every time an on/off pump cycle is completed. The set points and reset points can be programmed, so that the first pump on is the first pump off.

Application #1: Pump Alternation Using Relays 1 & 2

1. Relays 1 and 2 are set up for pump alternation.

2. Relays 3 and 4 are set up for low and high alarm indication.

Set and Reset Point Programming

Relay

Set Point

Reset Point

Function

30.000

10.000

Controls pump #1

35.000

5.000

Controls pump #2

4.000

9.000

Controls low alarm

40.000

29.000

Controls high alarm

Pump Alternation Operation

1. Pump #1 turns on when level reaches 30.000, when level drops below 10.000 pump #1 turns off.

2. The next time level reaches 30.000, pump #2 turns on, when level drops below 10.000, pump #2 turns off.

3. If the level doesn’t reach 35.000 pump #1 and pump #2 will be operating alternately.

4. If pump #1 cannot keep the level below 35.000 pump #2 will turn on at 35.000, then as the level drops to 10.000 pump #1 turns off, pump #2 is still running and shuts off below 5.000.

5. Notice that with the set and reset points of pump #2 outside the range of pump #1, the first pump on is the first pump to go off. This is true for up to 8 alternating pumps, if setup accordingly.

6. Relay #3 will go into alarm if the level drops below 4.000 and relay #4 will go into alarm if the level exceeds 40.000.

7. Adding the 4 external relays expansion module allows using the 4 SPDT internal relays for pump alternation and the 4 SPST external relays for high, high-high, low, and low-low alarm indication.

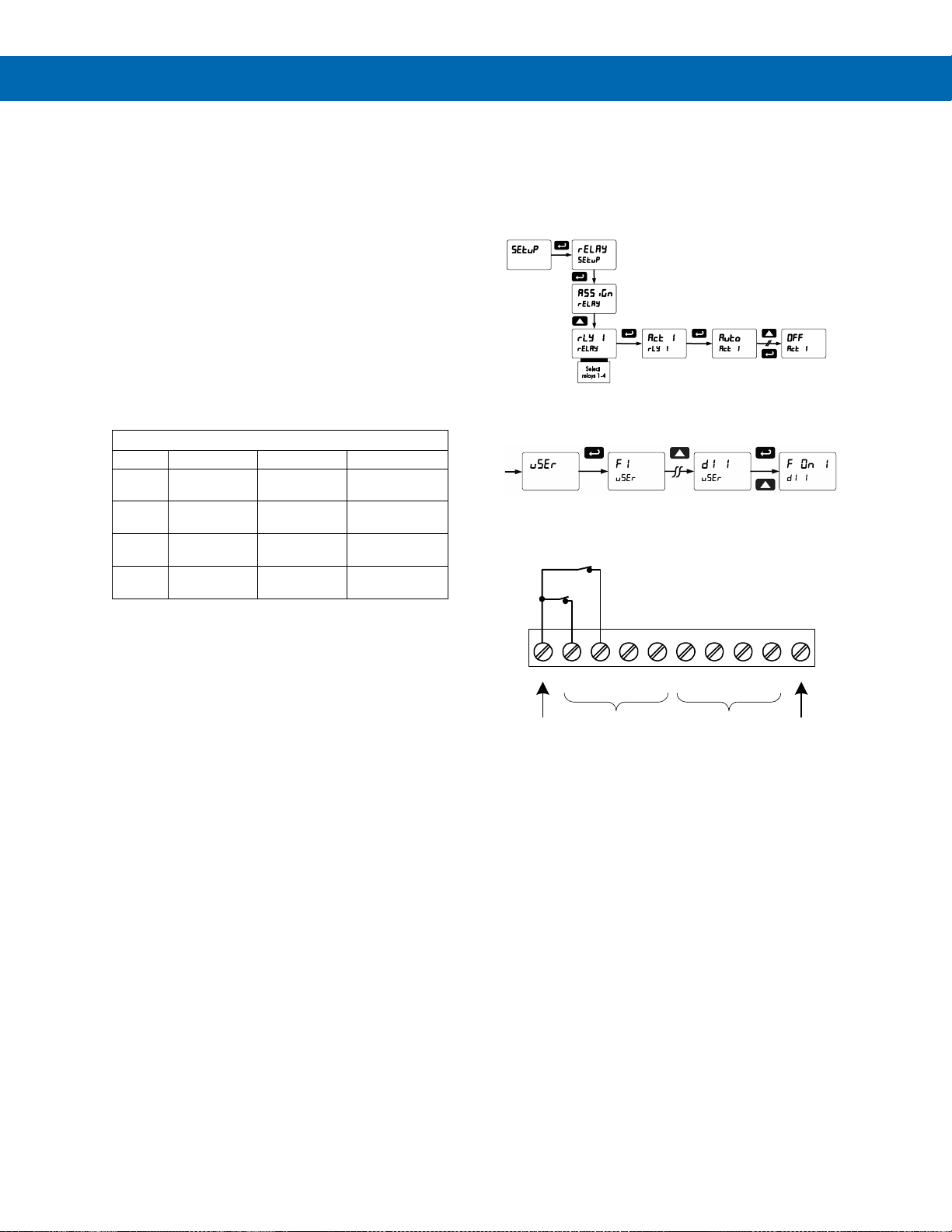

Setting Up the Interlock Relay (Force On) Feature

Relays 1-4 can be set up as interlock relays. To set up the relays for the interlock feature:

1. Access the Setup – Relay – Action menu and set the action to off.

2. In the Advanced features – User menu program

any of the digital inputs to Force On any of the internal relays (1-4).

3. Connect a switch or dry contact between the +5V

terminal and the corresponding digital input (dI-1 to dI-4) terminal.

Interlock Relay Operation Example

Relays 1 & 2 are configured to energize (their front panel LEDs are steady on) when SW1 & SW2 switches (above) are closed. If the contacts to these digital inputs are opened, the corresponding front panel LEDs flash, indicating this condition. The processes being controlled by the interlock relay will stop, and will re-start only after the interlock relay is re-activated by the digital inputs (switches).

Note: If multiple digital inputs are assigned to the same relay, then the corresponding logic is (AND) – i.e. both switches must be closed to trip the relay.

1 2 3 4 5 6

+5 I1 I2 I3 I4 O1

7 8

O2 O3

9 10

O4 G

DI 1-4 DO 1-4

5 VDC GND

SW2

SW1

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 33

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

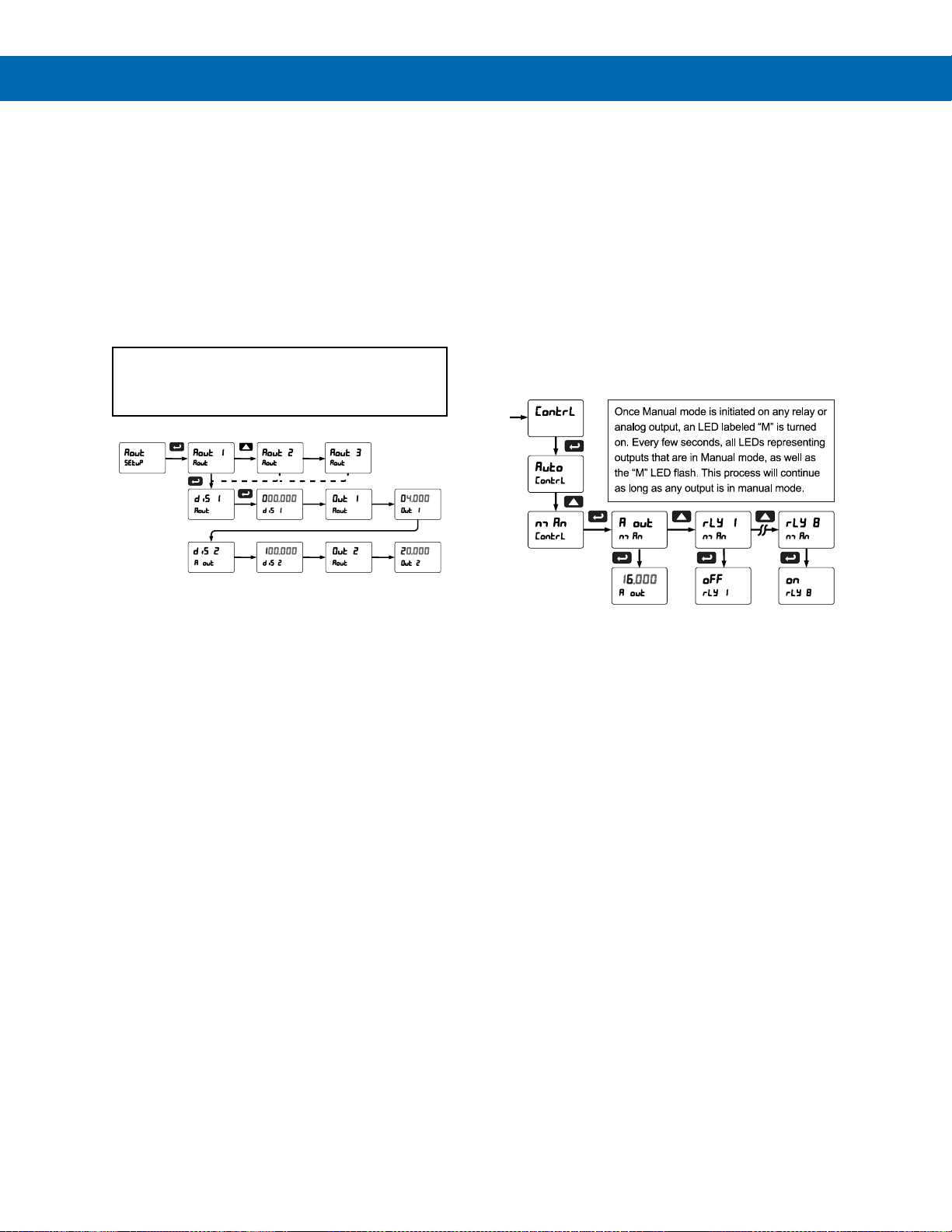

Scaling the 4-20 mA Analog Output (Aout)

The 4-20 mA analog outputs can be scaled to provide a 4-20 mA signal for any display range selected. To select the channel and source assignments the analog outputs are assigned to, see Analog Output Source on page 39.

No equipment is needed to scale the analog outputs; simply program the display values to the corresponding mA output signal.

The Analog Output menu is used to program the 4-20 mA outputs based on display values.

For further details , see Setting Numeric Values, page 21, Relay Action for Loss of 4-20 mA Input (Loop Break), page 27.

Reset Menu (reset)

The Reset menu is used to reset the maximum or minimum reading (peak or valley) reached by the process; both may be reset at the same time by selecting “reset high & low” (rst HL). The tare value used to zero the display may be reset by selecting “reset tare” (rst tr).

Manual Control Menu (Contrl)

The Manual Control menu is used to control the 4-20 mA analog output and the relays manually, ignoring the input. Each relay and analog output can be programmed independently for manual control. Selecting automatic control sets all relays and analog output for automatic operation.

* I f I nstalled

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 34

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

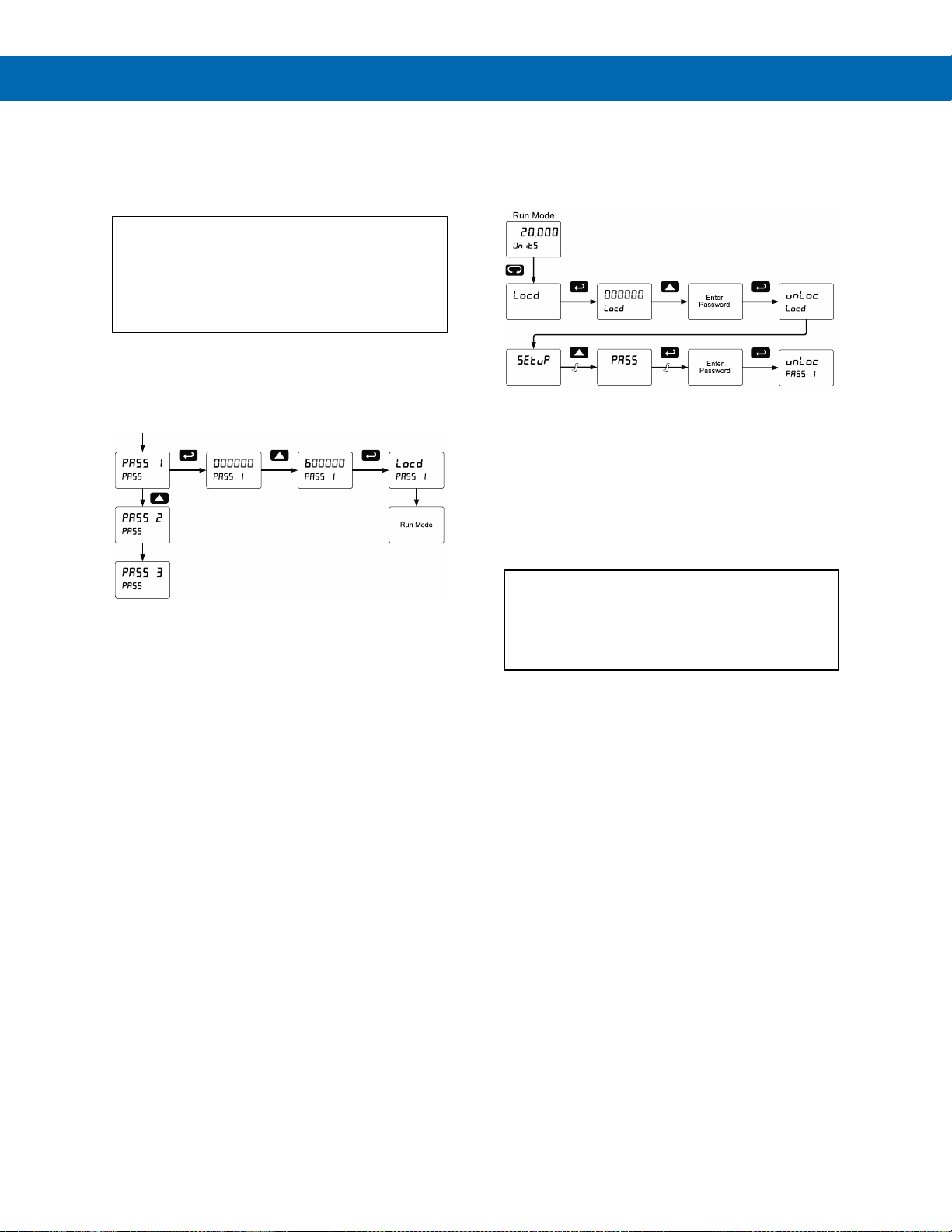

Setting Up the Password (pass)

The Password menu is used for programming three levels of security to prevent unauthorized changes to the programmed parameter settings.

Protecting or Locking the Meter

Enter the Password menu and program a six-digit password.

For instructions on how to program numeric values see Setting Numeric Values, page 21.

Making Changes to a Password Protected Meter

If the meter is password protected, the meter will display the message Locd (Locked) when the Menu button is pressed. Press the Enter button while the message is being displayed and enter the correct password to gain access to the menu. After exiting the programming mode, the meter returns to its password protected condition.

Disabling Password Protection

To disable the password protection, access the Password menu and enter the correct password twice, as shown below. The meter is now unprotected until a new password is entered.

If the correct six-digit password is entered, the meter displays the message unLoc (Unlocked) and the protection is disabled until a new password is programmed.

If the password entered is incorrect, the meter displays the message Locd (Locked) for about two seconds, and then it returns to Run Mode. To try again, press Enter while the Locked message is displayed.

Did you forget the password?

The password may be disabled by entering a master password once. If you are authorized to make changes, enter the master password 508655 to unlock the meter.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 35

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

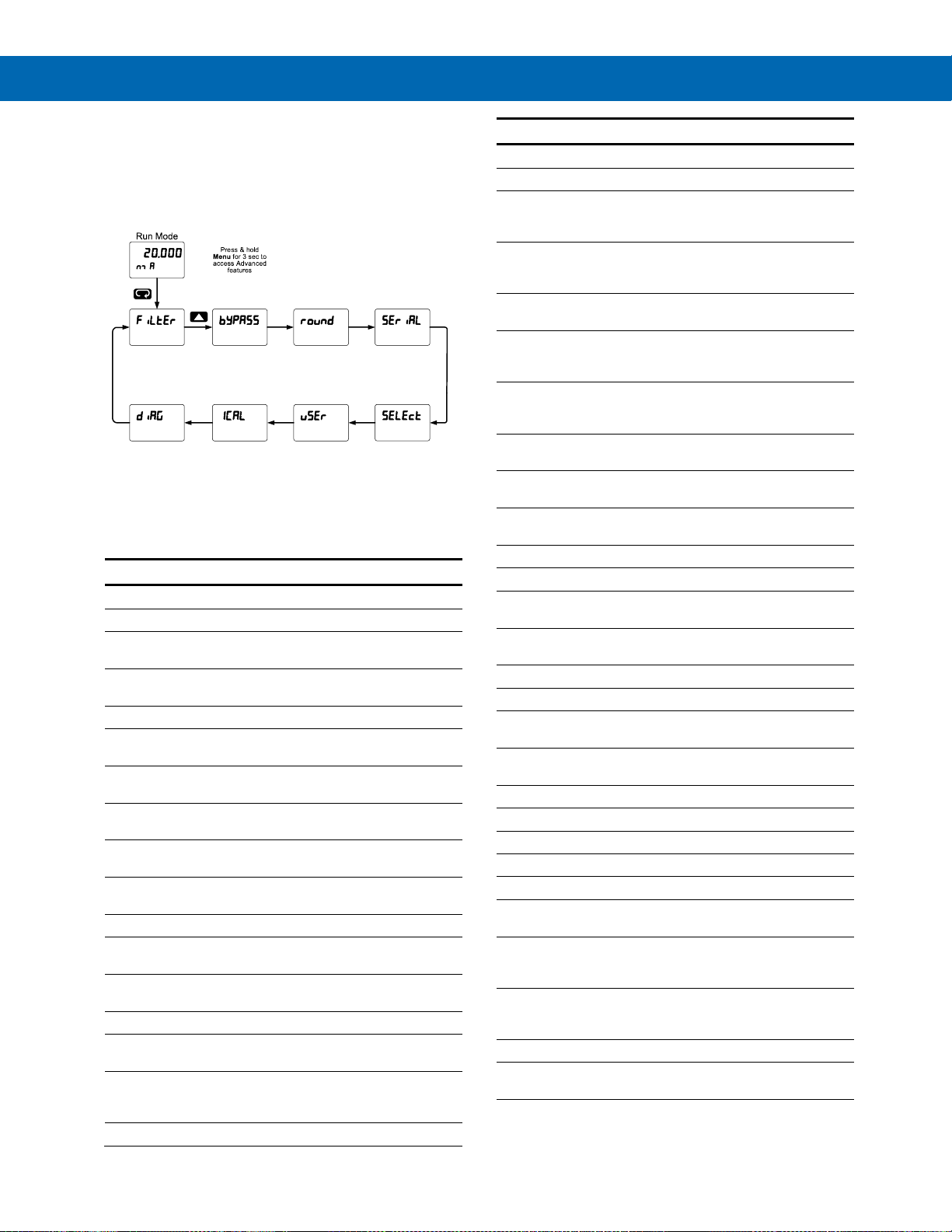

Advanced Features Menu

To simplify the setup process, functions not needed for most applications are located in the Advanced Features menu.

Press and hold the Menu button for three seconds to access the advanced features of the meter.

Advanced Features Menu & Display Messages

The following table shows the functions and messages of the Advanced Features menu in the order they appear in the menu.

Advanced Features Menu & Display Messages

Display

Parameter

Action/Setting

filtEr

Filter

Set noise filter value

Ch-A

Channel A

Set filter value for channel A

Ch-b

Channel B

Set filter value for channel B

bypASs

Bypass

Set filter bypass value

Ch-A

Channel A

Set filter bypass value for channel A

Ch-b

Channel B

Set filter bypass value for channel B

Round

Set the rounding value for display variables

seriAl

Serial

Set serial communication parameters

SlaveId

Slave ID

Set slave ID or meter address

Baud

Baud rate

Select baud rate

Tr dLY

Transmit delay

Set transmit delay for serial communication

Parity

Select parity Even, Odd, or None with 1 or 2 stop bits

t-byt

Time byte

Set byte-to-byte timeout

SelEct

Select

Enter the Select menu (function, cutoff, out)

Functn

Input signal conditioning

Select linear, square root, programmable exponent, or round horizontal tank

Ch-A

Channel A

Select menu for channel A

Advanced Features Menu & Display Messages

Display

Parameter

Action/Setting

Ch-b

Channel B

Select menu for channel B

Linear

Set meter for linear function and select number of linearization points

No pts

Number of points

Set the number of linearization points (default: 2)

Square

Square root

Set meter for square root extraction

Prog E

Programmable exponent

Set meter for programmable exponent and enter exponent value

Rht

Round horizontal tank

Set meter for round horizontal tank volume calculation

Length

Enter the tank’s length in

inches

dianmr

Diameter

Enter the tank’s diameter in

inches

nmath

Math

Enter the setup menu for channel C math functions

Sunm

Sum

Channel C = (A+B+P)*F

Dif

Difference

Channel C = (A-B+P)*F

difabs

Absolute difference

Channel C = ((Absolute value of (A-B))+P)*F

Avg

Average

Channel C = (((A+B)/2)+P)*F

nmulti

Multiplication

Channel C = ((A*B)+P)*F

Divide

Channel C = ((A/B)+P)*F

Hi-ab

Max of A or B

C = ((High value of channel A or B)+P)*F

Lo-ab

Min of A or B

C = ((Low value of channel A or B)+P)*F

Drauw

Draw

Channel C = ((A/B)-1)*F

uwAvg

Weighted avg.

Channel C = ((B-A)*F)+A

ratio

Ratio

Channel C = (A/B)*F

Ratio2

Ratio 2

C = ((B-A)/A)+P)*F

Concen

Concentration

Channel C = (A/(A+B))*F

Const

Constant

Constant used in channel C math

adder

Adder

Addition constant used in channel C math calculations (P)

factor

Factor

Multiplication constant used in channel C math calculations (F)

CutofF

Cutoff

Set low-flow cutoff

Ch-A

Channel A

Set low-flow cutoff for Channel A

Ch-b

Channel B

Set low-flow cutoff for Channel B

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 36

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

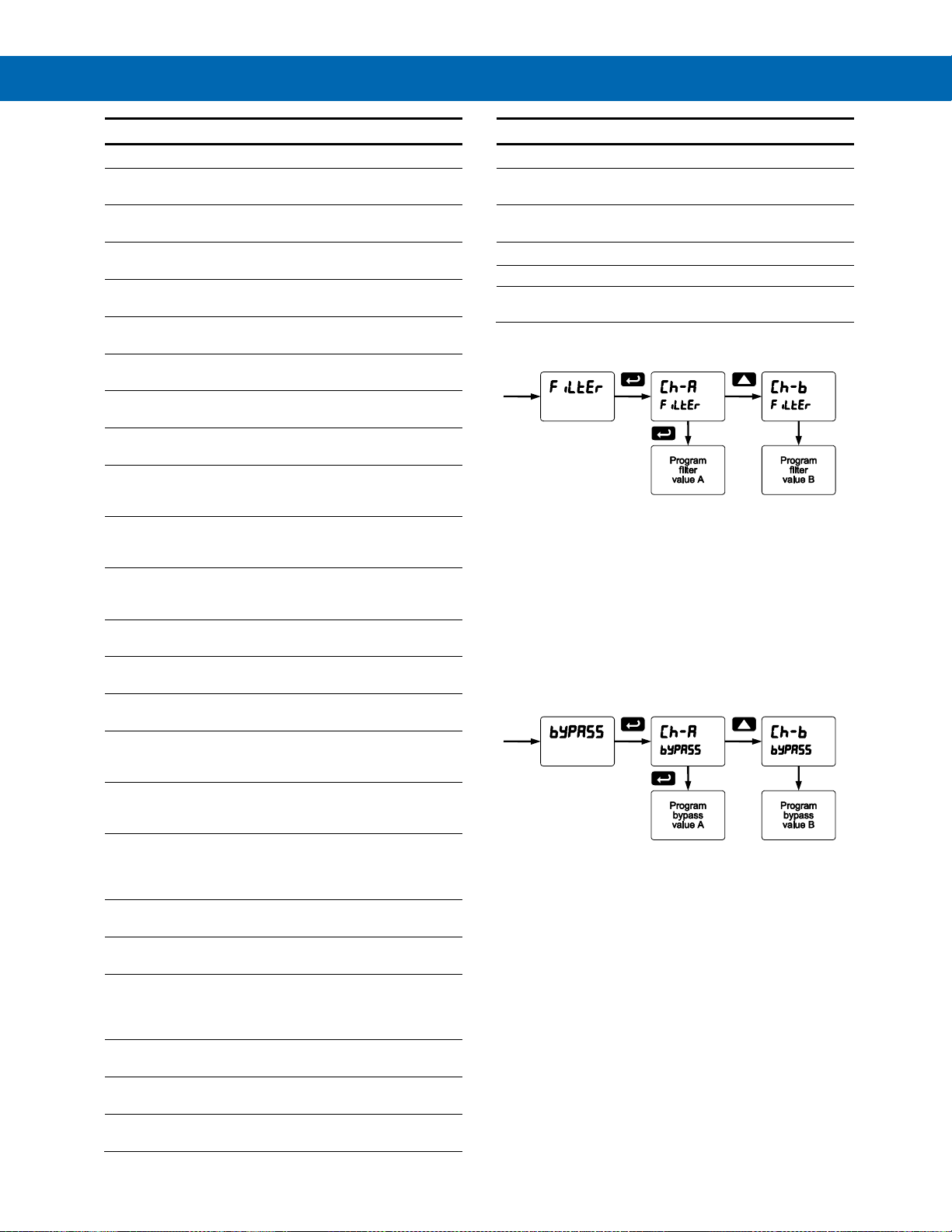

Advanced Features Menu & Display Messages

Display

Parameter

Action/Setting

AoutPr

Analog output programming

Program analog output parameters

AOut 1*

Analog output 1

Program analog output 1 (*1-3) parameters

Source

Select source for the 4-20 mA output

break

Loop break

Set relay condition if loop break detected

O-rang

Overrange

Program mA output for display overrange

u-rang

Underrange

Program mA output for display underrange

nmAx

Maximum

Program maximum mA output allowed

nmin

Minimum

Program minimum mA output allowed

Calib

Calibrate

Calibrate 4-20 mA output (internal reference source used for scaling the output)

4 nmA

4 mA output

Enter mA output value read by milliamp meter with at least 0.001 mA resolution

20 nmA

20 mA output

Enter mA output value read by milliamp meter with at least 0.001 mA resolution

User

User I/O

Assign function keys and digital I/O

F1*

F1* function key

Assign F1 function key (*F1/F2/F3)

F4 function

Assign F4 function (digital input)

dI I

Digital input 1

Assign digital input 1 – 8, if expansion modules are connected

dO 1

Digital output 1

Assign digital output 1 – 8, if expansion modules are connected

ICal

Internal calibration

Enter internal calibration (used for recalibrating the meter with a calibrated signal source)

Ch-A

Channel A

Perform calibration on channel A

Ch-b

Channel B

Perform calibration on channel B

C CAL

Current calibration

Calibrate 4-20 mA current input (internal reference source used for scaling the input)

C lo

Current low

Calibrate low current input (e.g. 4 mA)

C Hi

Current high

Calibrate high current input (e.g. 20 mA)

V CAL

Voltage calibration

Calibrate voltage input

Advanced Features Menu & Display Messages

Display

Parameter

Action/Setting

V Lo

Voltage low

Calibrate low voltage input (e.g. 0 V)

V Hi

Voltage high

Calibrate high voltage input (e.g. 10 V)

Diag

Diagnostics

Display parameter settings

LED t

LED test

Test all LEDs

Info

Information

Display software and S/N information

Noise Filter (filter)

The noise filter is available for unusually noisy signals that cause an unstable process variable display. The noise filter averages the input signal over a certain period. The filter level determines the length of time over which the signal is averaged. The filter level can be set between 2 and 199. The higher the filter level, the longer the averaging time and so the longer it takes the display to settle to its final value. Setting the filter level to zero disables the filter function.

Noise Filter Bypass (bypass)

The noise filter bypass changes the behavior of the meter so that small variations in the signal are filtered out but large abrupt changes in the input signal are displayed immediately. The bypass value determines the minimum amount of signal change to be displayed immediately. All signal changes smaller than the bypass value are filtered or averaged by the meter. The noise filter bypass may be set between 0.1 and

99.9% of full scale.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 37

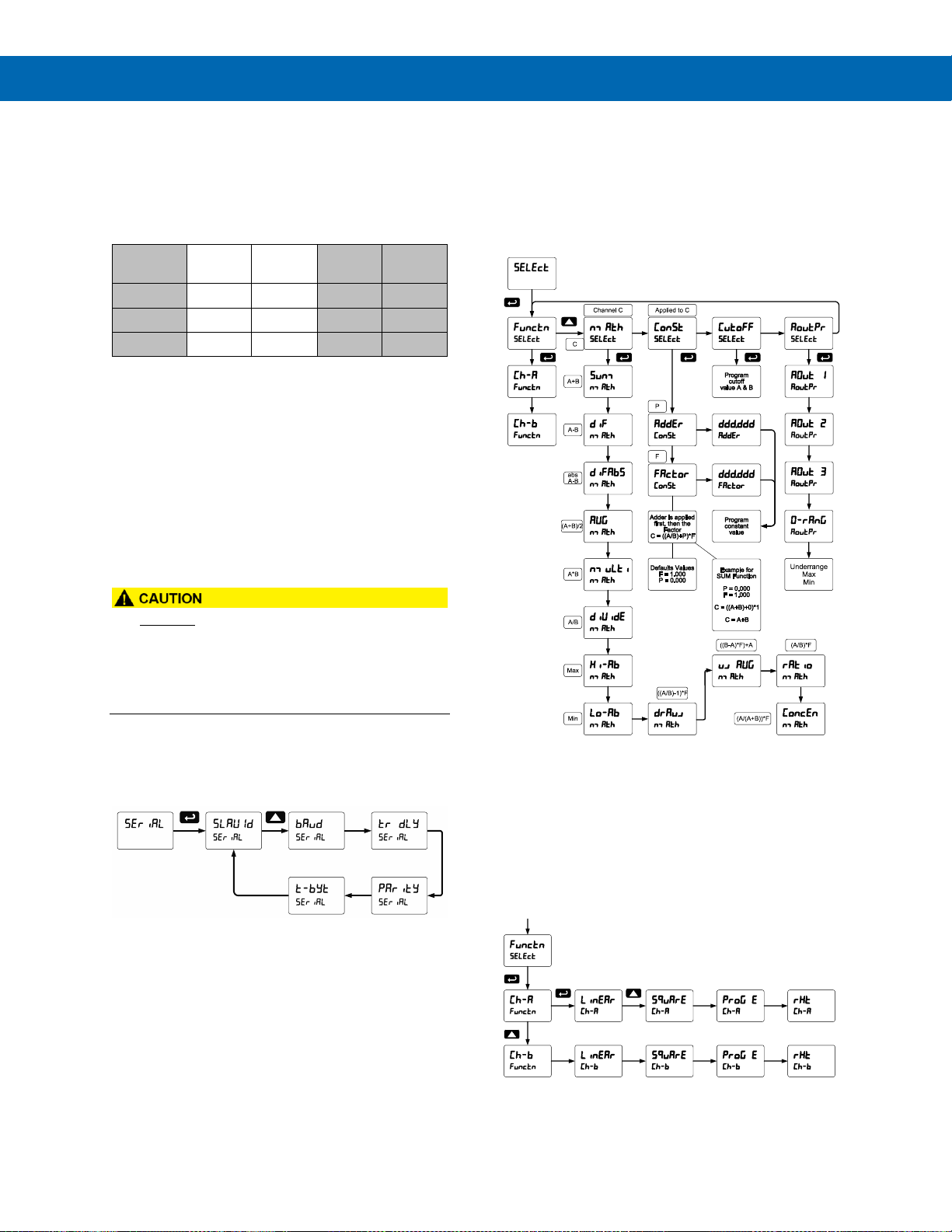

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Rounding Feature (round)

Rounding Selection

Actual Value

Display Value

Actual Value

Display Value

12.022

12.023

12.022

12.020

12.023

12.025

12.024

12.020

12.025

12.030

The rounding feature is used to give the user a steadier display with fluctuating signals. Rounding is used in addition to the filter function.

Rounding causes the display to round to the nearest value according to the rounding selected. See examples below:

Modbus RTU Serial Communications (serial)

The meter is equipped with serial communications capability as a standard feature using Modbus RTU Serial Communication Protocol.

The meter may be connected to a PC for initial configuration via the onboard micro USB connection. For ongoing digital communications with a computer or other data terminal equipment, an RS-232, or RS-485 option is required; see Ordering Information on page 6 for details.

Select Menu (SElect)

The Select menu is used to select the input signal conditioning function applied to the inputs (linear, square root, programmable exponent, or round horizontal tank), math function for A & B, constants, low-flow cutoff, and analog output programming. Multi-point linearization is part of the linear function selection.

• DO NOT connect any equipment other than

Precision Digital’s expansion modules, cables, or

meters to the RJ45 M LINK connector. Otherwise damage will occur to the equipment and the meter.

Note: More detailed instructions are provided with

each optional serial communications adapter.

When using more than one meter in a multi-drop mode, each meter must be provided with its own unique address. The meter address (Slave ID) may be programmed between 1 and 247. The transmit delay may be set between 0 and 199 ms. The parity can be set to even, odd, or none with 1 or 2 stop bits.

Changes made to the Serial menu are initialized after the MENU key is pressed or after navigating through the t-byte parameter.

Input Signal Conditioning (Functn)

The Function menu is used to select the input-tooutput transfer function applied to the input signal: linear, square root, programmable exponent, or round horizontal tank volume calculation. Multi-point linearization is part of the linear function selection.

Meters are set up at the factory for linear function with 2-point linearization. The linear function provides a display that is linear with respect to the input signal.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 38

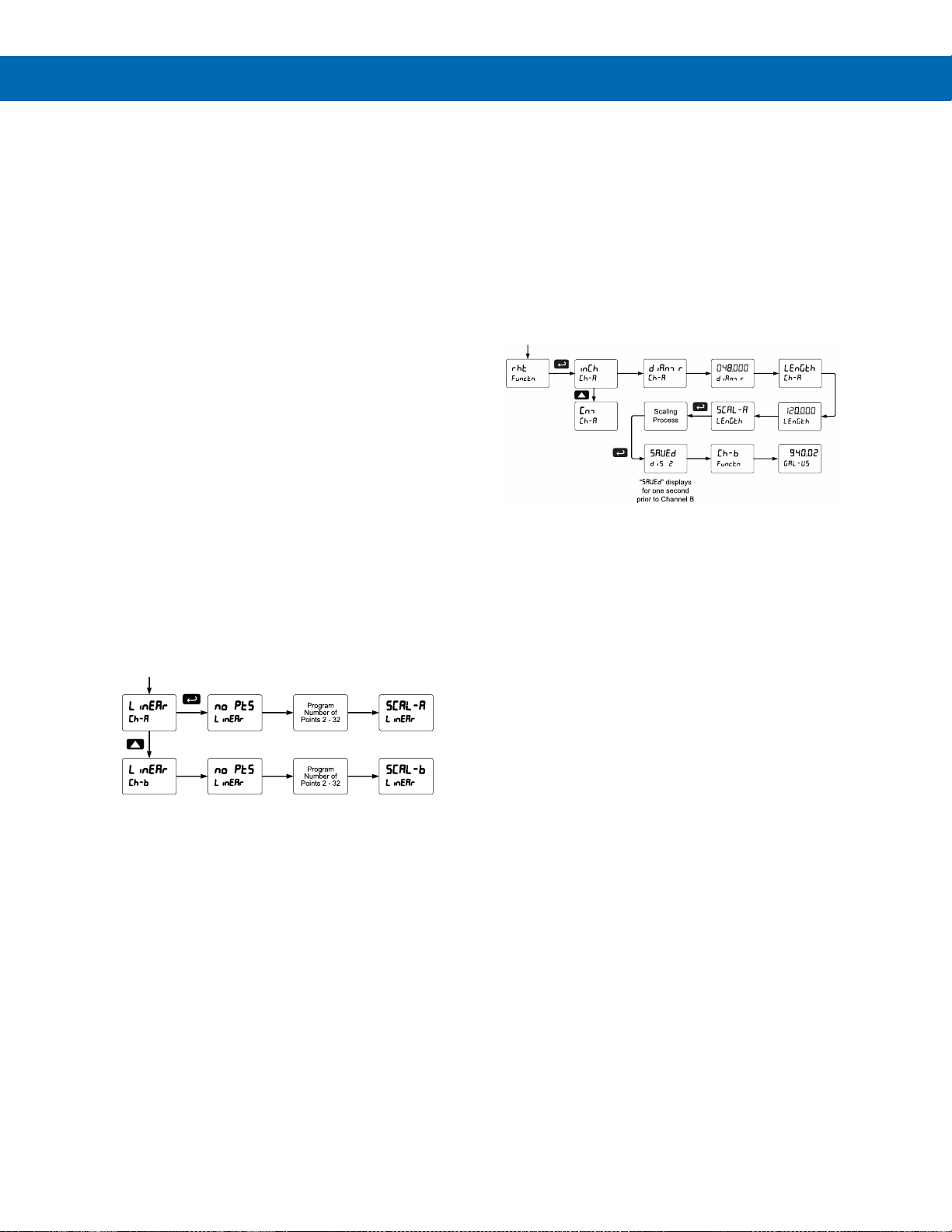

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Square Root Linearization (Square)

The square root function is used to calculate flow measured with a differential pressure transmitter. The flow rate is proportional to the square root of the differential pressure. Scale the meter so that the low input signal (e.g. 4 mA) is equal to zero flow and the high input signal (e.g. 20 mA) is equal to the maximum flow.

Programmable Exponent Linearization (Prog E)

The programmable exponent function is used to calculate open-channel flow measured with a level transmitter in weirs and flumes. The flow rate is proportional to the head height. Scale the meter so that the low input signal (e.g. 4 mA) is equal to zero flow and the high input signal (e.g. 20 mA) is equal to the maximum flow. This method works well for all weirs and flumes that have a simple exponent in the flow calculation formula. For weirs and flumes with complex exponents it is necessary to use a strapping table and the 32-point linearization of the meter.

Multi-Point Linearization (Linear)

Meters are set up at the factory for linear function with 2-point linearization. Up to 32 linearization points can be selected for each channel under the linear function. The multi-point linearization can be used to linearize the display for non-linear signals such as those from level transmitters used to measure volume in odd-shaped tanks or to convert level to flow using weirs and flumes with complex exponent.

Round Horizontal Tank Linearization (rHt)

This function is used to calculate volume in a round horizontal tank with flat ends. The volume is calculated based on the diameter and length of the

tank. The tank’s dimensions can be entered in inches

or centimeters; the meter automatically calculates the volume in gallons or liters. After entering the dimensions, complete the scaling process with the display values calculated by the meter. The meter can be re-scaled to display the volume in any engineering unit without the need to re-enter the dimensions again.

Note: After Scale is displayed continue pressing the

Enter button until the meter completes the scaling of the input and display values.

Changing the Volume from Gallons to Liters

In the above graphic, entering the 48" for the diameter and 120" for the length of the round horizontal tank, the meter automatically calculates that the volume of the tank is 940.02 gallons.

1. Convert gallons to liters

1 US gallon = 3.7854 L

940.02 gal = 3558.4 L

2. Go to the Setup menu and change the decimal

point to 1 decimal.

3. Go to the Program – Scale menu and press Enter

until dis 2 is shown on the Upper display.

4. Press Enter and change the display 2 value to

3558.4.

5. The meter is now displaying the volume in liters.

Note: The display can be scaled to display the volume

in any engineering units.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 39

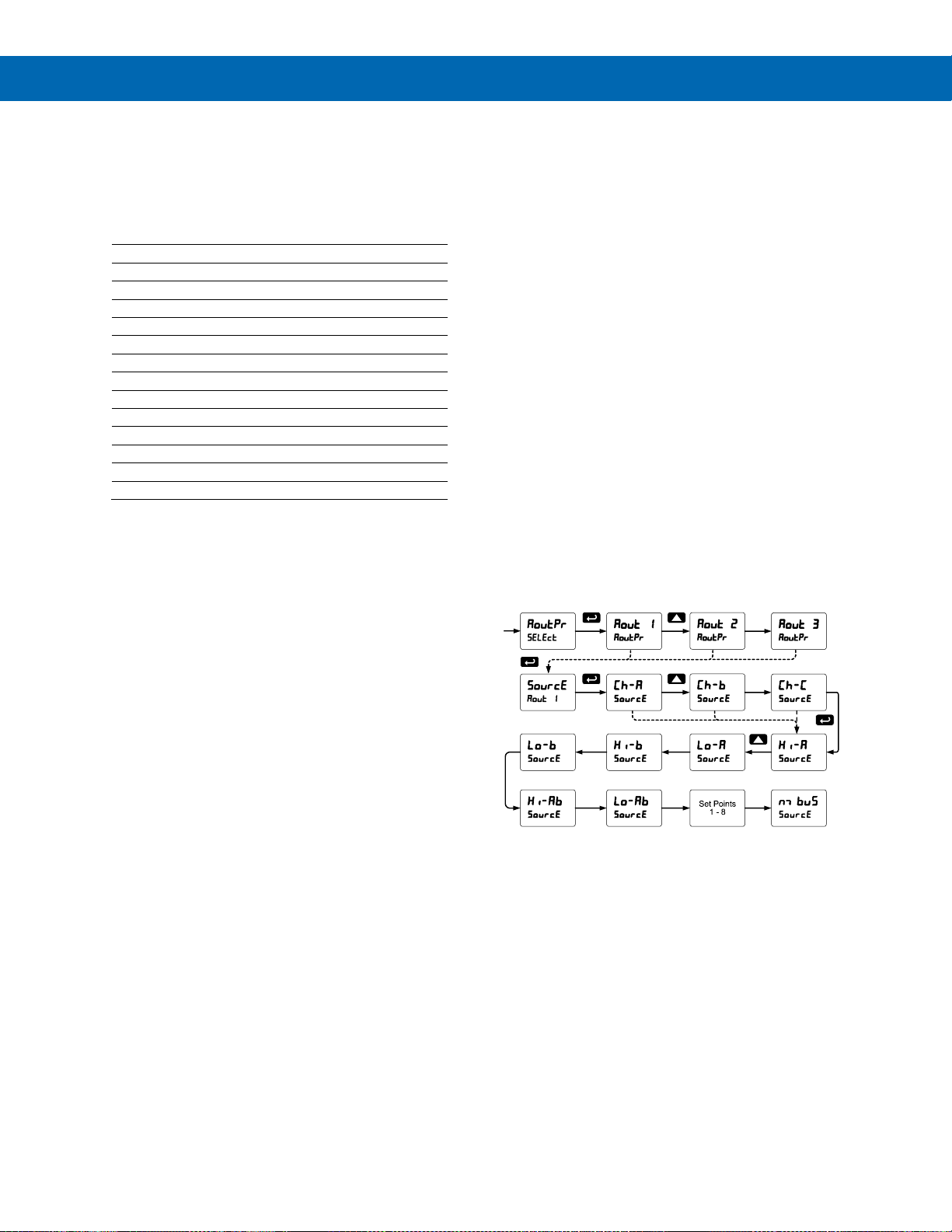

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Math Function (nmath)

The Math menu is used to select the math function that will determine the channel C value. These math functions are a combination of input channels A and B, and will display when channel C is selected in the Display menu.

The following math functions are available.

Name

Function

Setting

Addition

(A+B+P)*F

Sunm

Difference

(A-B+P)*F

diF

Absolute diff.

((Abs(A-B))+P)*F

diFAbS

Average

(((A+B)/2)+P)*F

AvG

Multiplication

((A*B)+P)*F

nmulti

Division

((A/B)+P)*F

diVide

Max of A or B

((AB-Hi)+P)*F

Hi-Ab

Min of A or B

((AB-Lo)+P)*F

Lo-Ab

Draw

((A/B)-1)*F

drAuw

Weighted avg.

((B-A)*F)+A

uw avg

Ratio

(A/B)*F

ratio

Ratio 2

((B-A)/A)+P)*F

ratio2

Concentration

(A/(A+B))*F

Concen

Math Constants (Const)

The Math Constants menu is used to set the constants used in channel C math. The math functions include input channel A and B, as well as the adder constant P, and factor constant F.

The Adder constant (P) may be set from -99.999 to

999.999. The Factor constant (F) may be set from 0.001 to

999.999. The Math Function (nmath) chart above details the

math functions that may be selected in the Math Function menu.

Low-Flow Cutoff (CutofF)

The low-flow cutoff feature allows the meter to be programmed so that the often-unsteady output from a differential pressure transmitter, at low flow rates, always displays zero on the meter.

The cutoff value may be programmed from 0 to

999999. The meter will display zero below the cutoff value. Programming the cutoff value to zero disables the cutoff feature.

Analog Output Programming (AoutPr)

The Analog Output Programming menu is used to program the behavior of the 4-20 mA output. The following parameters and functions are programmed in this menu:

1. Source: Source for generating the 4-20 mA

output

2. Overrange: Analog output value with display in

overrange condition

3. Underrange: Analog output value with display in

underrange condition

4. Break: Analog output value when loop break is

detected

5. Max: Maximum analog output value allowed

regardless of input

6. Min: Minimum analog output value allowed

regardless of input

7. Calibrate: Calibrate the internal 4-20 mA source

reference used to scale the 4-20 mA output

Analog Output Source

The analog output source can be based on either of the input channels (Ch-A, Ch-B), the math channel (Ch-C), maximum stored value of either input channel (Hi-A, Hi-B), minimum stored value of either input channel (Lo-A, Lo-B), relay set points, or the Modbus input.

Analog Output Calibration

To perform the analog output calibration, it is recommended to use a milliamp meter with a resolution of at least 0.1 µA to measure the output current. The values saved internally during this procedure are used for scaling the 4-20 mA output in the Setup menu.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 40

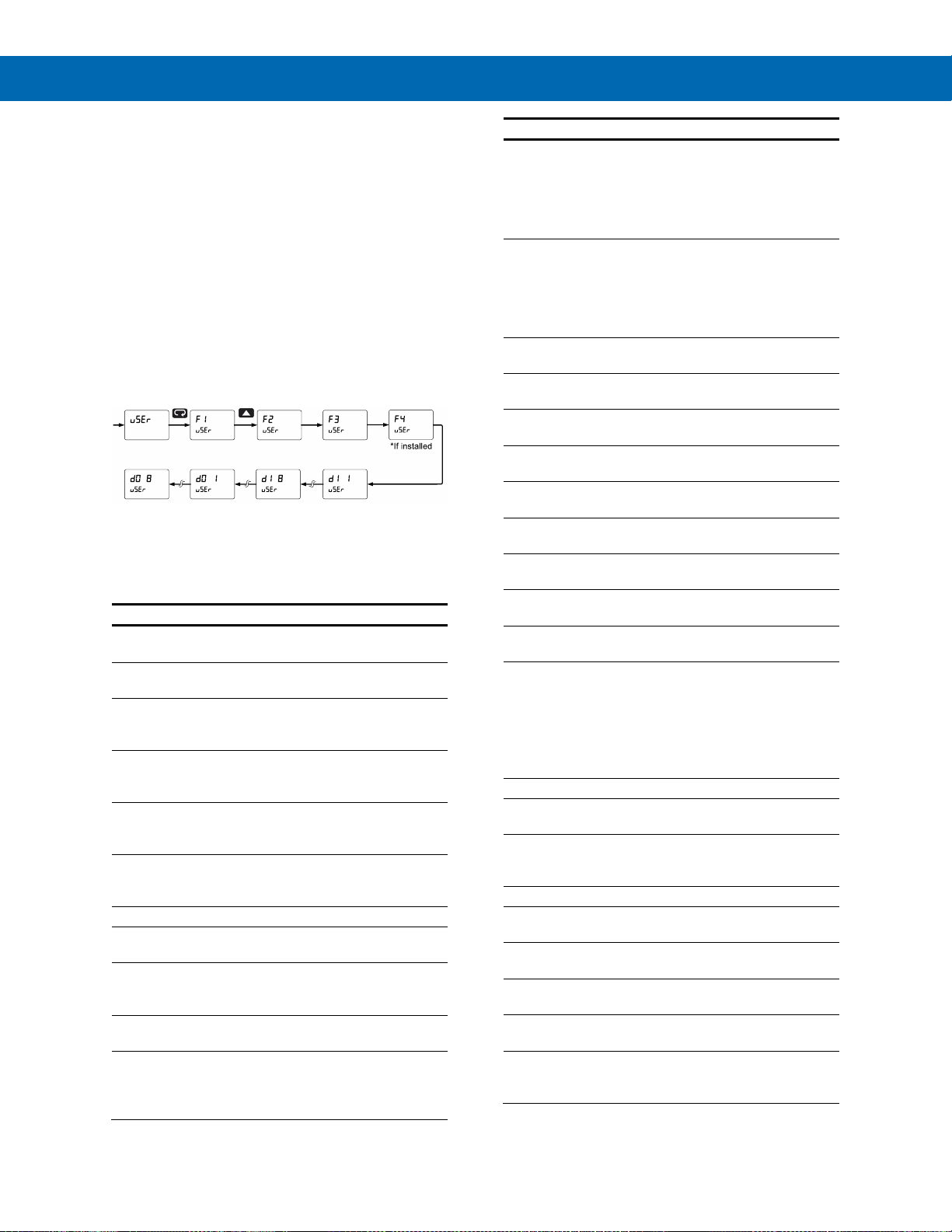

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Programmable Function Keys User Menu (user)

The User menu allows the user to assign the front panel function keys F1, F2, and F3, the digital input F4 (a digital input located on the input signal connector), and up to eight additional digital inputs to access most of the menus or to activate certain functions immediately (e.g. reset max & min, hold relay states, etc.). This allows the meter to be greatly customized for use in specialized applications.

Up to eight digital outputs can be assigned to a number of actions and functions executed by the meter (i.e. alarms, relay acknowledgement, reset max, min, or max & min, tare, and reset tare). The digital outputs can be used to trigger external alarms or lights to indicate these specific events.

Function Keys & Digital I/O Available Settings

Refer to the following table for descriptions of each available function key or digital I/O setting.

Display

Description

Rst Hi

Reset the stored maximum display values for all channels

Rst Lo

Reset the stored minimum display values for all channels

Rst HL

Reset the stored maximum & minimum display values for all channels

Tare A

Capture tare and zero the display for channel A (A LED flashes – same rate as M)*

Tare B

Capture tare and zero the display for channel B (B LED flashes – same rate as M)*

Rst tr

Reset captured tare and resume normal operation for both channels A & B

relay

Directly access the relay menu

Set 1*

Directly access the set point menu for relay 1 (*through 8)

Rly d

Disable all relays until a button assigned to enable relays (Rly E) is pressed

Rly E

Enable all relays to function as they have been programmed

O Hold

Hold current relay states and analog output as they are until a button assigned to enable relays (Rly E) is pressed

Display

Description

d Hold

Hold the current display value, relay states, and analog output momentarily while the function key or digital input is active. The process value will continue to be calculated in the background.

D AbC

Scrolls values for A, B & C when activated. Keeps the last value for 10 seconds and then it returns to its assignment. Values are displayed on display line 1 and the corresponding channel and units on display line 2.

Ln1 Hi

Display maximum channel A display value on line 1

Ln1 Lo

Display minimum channel A display value on line 1

Ln1 HL

Display maximum & minimum channel A display values on line 1

Ln2 Hi

Display maximum channel B display value on line 2

Ln2 Lo

Display minimum Channel B display value on line 2

Ln2 HL

Display maximum & minimum channel B display values on line 2

LitHLC

Display maximum channel C display value on line 2

Ln2 HC

Display minimum channel C display value on line 2

Ln2 HC

Display maximum & minimum channel C display values on line 2

F On 1*

Force relay 1 (*through 4) into the on state. This function is used in conjunction with a digital input expansion module to achieve interlock functionality. See Setting

Up the Interlock Relay (Force On) Feature on page 32 for details.

Contrl

Directly access the control menu

disabl

Disable the selected function key or digital I/O

AcH

Acknowledge all active relays that are in a manual operation mode such as auto-manual or latching

Reset

Directly access the reset menu

nmenu

Mimic the menu button functionality (digital inputs only)

rigHt

Mimic the right arrow/F1 button functionality (digital inputs only)

Mimic the up arrow/F2 button functionality (digital inputs only)

Enter

Mimic the enter/F3 button functionality (digital inputs only)

Alnm 1*

Provide indication when alarm 1 (*through 8) has been triggered (digital outputs only)

* If math functions are displayed, the math function

indicator LED “C” will flash when either A or B

channel is using a tare value (net value).

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 41

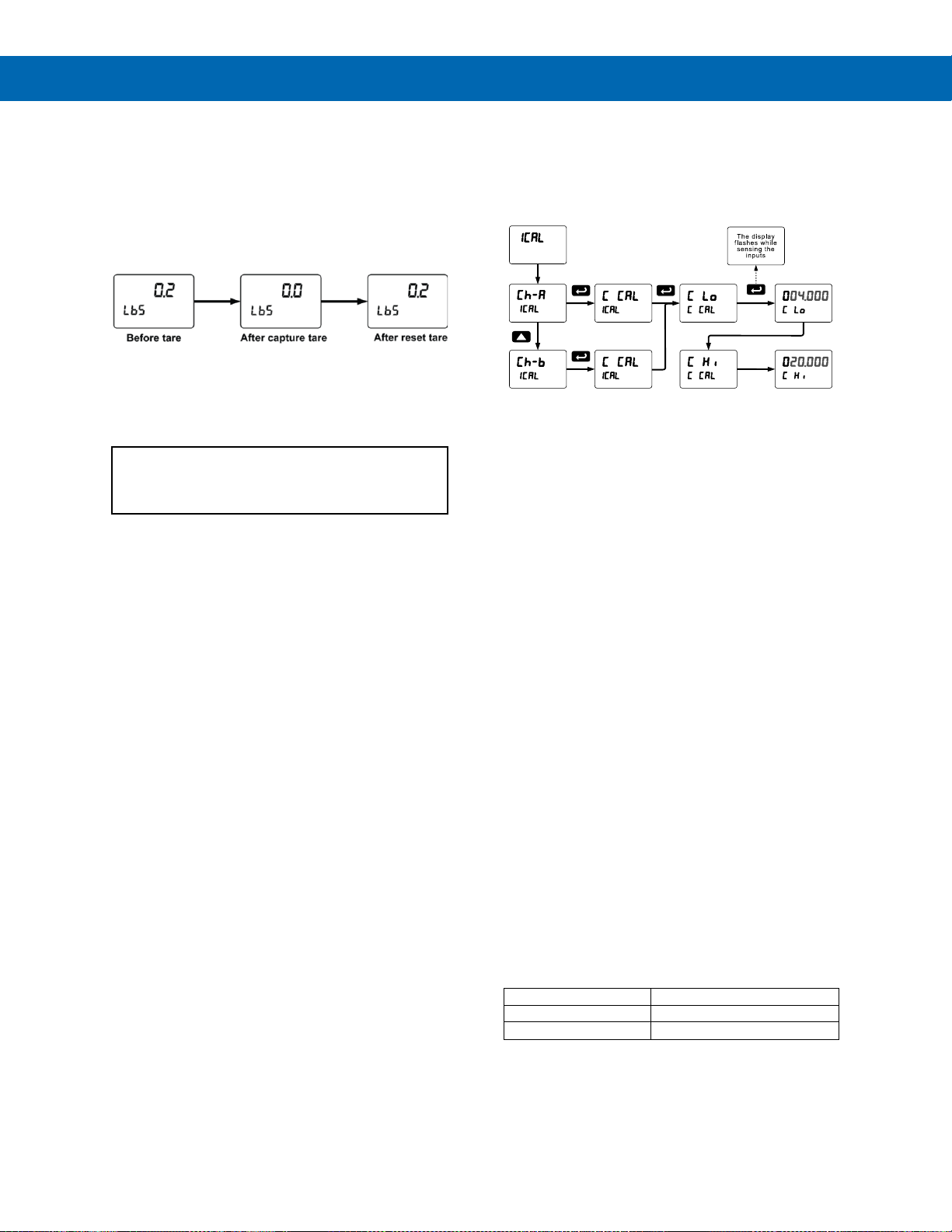

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Tare (tare A, tare B)

The tare function zero’s out the display. In the case of

scale weight, tare is used to eliminate container weight and provide net weight readings. There are two tare functions; Capture Tare for channel A and B, and Reset Tare. Display channel indicator letter flashes when a tare is used. It will flash until the tare is reset. The tare can be reset via the Reset menu, a function key, or a digital input.

Gross (without tare) and net (with tare) values can be viewed simultaneously. See Setting the Display Parameter & Intensity (dsplay) on page 25.

Internal Calibration (ICAL)

The meter is factory calibrated prior to shipment for milliamps and volts with calibration equipment that is certified to NIST standards.

The use of calibrated signal sources is necessary to perform the internal calibration of the meter.

Check calibration of the meter at least every 12 months. Each input and input type must be recalibrated separately.

Notes:

1. If meter is in operation and it is intended to accept only one input type (e.g. 4-20 mA), recalibration of other input is not necessary.

2. Allow the meter to warm up for at least 15 minutes before performing the internal calibration procedure.

The Internal calibration menu is part of the Advanced Features menu.

1. Press and hold the Menu button for three seconds to access the advanced features of the meter.

2. Press the Up arrow button to scroll to the Internal calibration menu (ICAL) and press Enter.

3. Select channel A (Ch-A) or channel B (Ch-b) and press enter.

4. The meter displays either current calibration (C CAL) or voltage calibration (V CAL), according to the input setup. Press Enter to start the calibration process.

Example of Internal Calibration for current input:

5. The meter displays low input current message (C lo). Apply the low input signal and press Enter. The display flashes for a moment while the meter is accepting the low input signal.

6. After the display stops flashing, a number is displayed with the leftmost digit brighter than the rest. The bright digit is the active digit that can be changed by pressing the Up arrow button. Press the Right arrow button to move to the next digit.

7. Set the display value to correspond to the input signal being calibrated, typically 4.000 mA.

8. The display moves to the high input calibration (C Hi). Apply the high input signal and press Enter.

9. Set the display for the high input calibration, in the same way as it was set for the low input calibration, typically 20.000 mA.

The graphic shows the calibration of the current input. The voltage input is calibrated in a similar way.

Tips:

• Low and high input signals can be any valid

values within the range of the meter.

• Observe minimum input span requirements

between input 1 and input 2.

• Low input should be less than high input

signal.

Error Message (Error)

An error message indicates that the calibration or scaling process was not successful.

The error message might be caused by any of the following conditions:

5. Input signal is not connected to the proper terminals or it is connected backwards.

6. Wrong signal selection in Setup menu.

7. Minimum input span requirements not maintained.

8. Input 1 signal inadvertently applied to calibrate input 2.

Minimum Input Span

The minimum input span is the minimum difference between input 1 and input 2 signals required to complete the calibration or scaling of the meter.

Input Range

Input 1 & Input 2 Span

4-20 mA

0.15 mA

10 VDC

0.10 VDC

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 42

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Meter Operation

The meter is capable of accepting two input channels (A and B) of either current (0-20 mA, 4-20 mA) or voltage signals (0-5 V, 1-5 V, 0-10 V,  10 V) and displaying these signals in engineering units from 99999 to 999999 (e.g. a 4-20 mA signal could be displayed as -50.000 to 50.000).

A math function channel (C) is available to perform operations on channel A and B, with adder and factor constants, and display the results. Engineering units or tags may be displayed with these three channels.

The dual-line display can be customized by the user. Typically, the upper display is used to display the math channel C, while the lower display is used to alternate between displaying input channels A and B.

Additionally, the meter can be set up to display any input or math channel on the upper display and a unit or tag on the lower display. The relays and analog output can be programmed to operate based on any input or math channel.

Front Panel Buttons Operation

Button Symbol

Description

Press to enter or exit Programming Mode, view settings, or exit max/min readings

Press to reset max/min readings or other parameter/function assigned through the User menu

Press to display max/min readings or other parameter/function assigned through the User menu

Press to acknowledge relays or other parameters/function assigned through the User menu

Function Keys Operation

During operation, the programmable function keys operate according to the way they have been programmed in the Advanced Features – User menu. See Programmable Function Keys User Menu (user) on page 40 for details.

The table above shows the factory default settings for F1, F2, and F3.

F4 Operation

A digital input, F4, is standard on the meter. This digital input is programmed identically to function keys F1, F2, and F3. The input is triggered with a contact closure to COM, or with an active low signal. During operation, F4 operates according to the way is has been programmed in the Advanced Features – User menu. See Programmable Function Keys User Menu (user) on page 40 for details.

Maximum/Minimum Readings

The max & min readings (peak & valley) reached by the process can be displayed either continuously or momentary:

1. Display briefly by assigning to the F1-F3

function keys or to the digital inputs in the User menu.

2. Display continuously by assigning either

display to max/min through the Display menu.

Any of the F1-F3 function keys (buttons) and the digital inputs can be programmed to reset the max & min readings. The meters are set at the factory to display the max reading by pressing the Up arrow/F2 button and to use the Right arrow/F1 button to access the Reset menu.

To display max and min channel A reading using function key with factory defaults:

1. Press Up arrow/F2 button to display minimum reading of channel A since the last reset/powerup. The display will then display the maximum reading of channel A since the last reset/powerup.

2. Press the Up arrow/F2 button again to display the minimum reading of channel A since the last reset/power up.

3. To reset max/min press Right arrow/F1 button to access the Reset menu. The max & min displays are reset to actual values.

4. Press Menu to exit max/min display reading.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 43

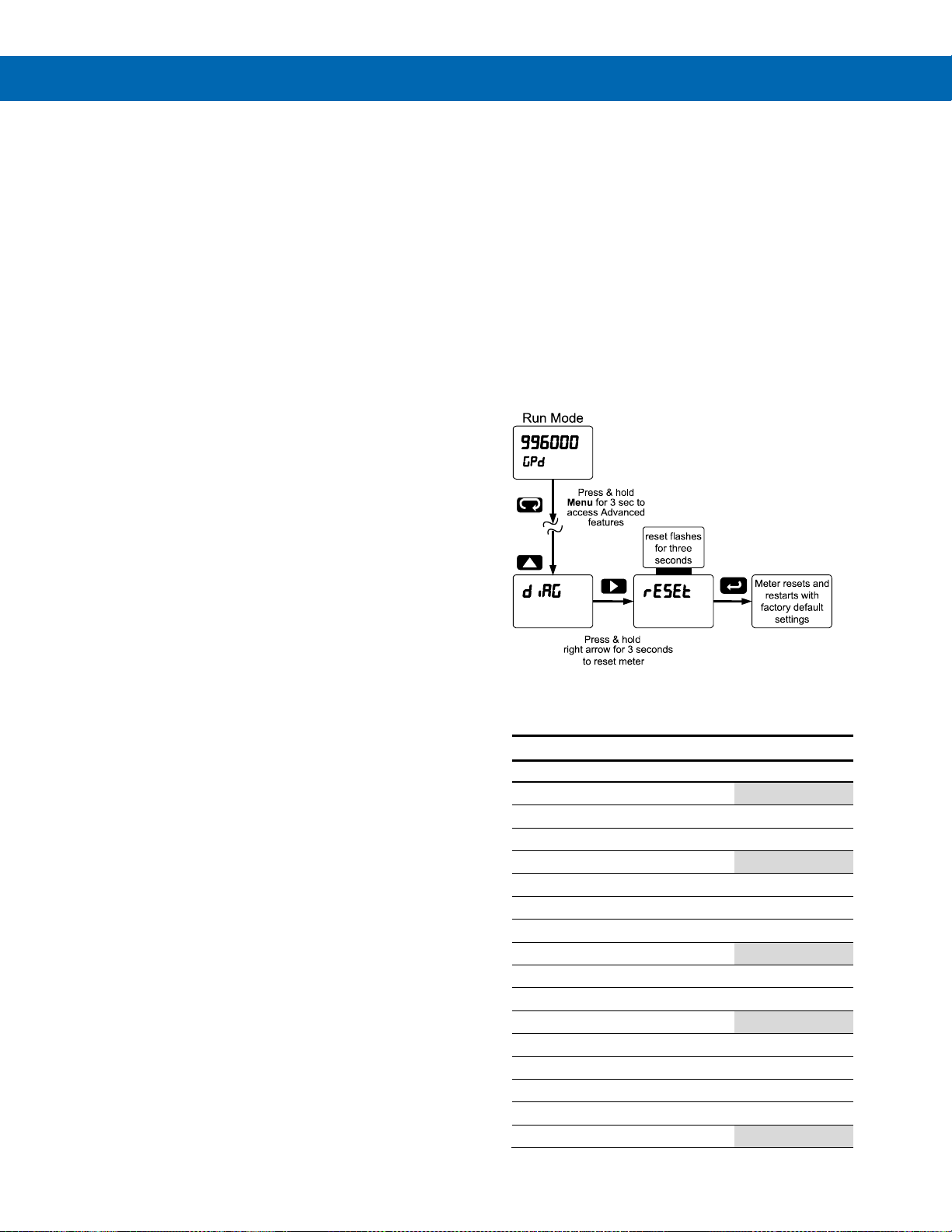

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Troubleshooting

The rugged design and the user-friendly interface of the meter should make it unusual for the installer or operator to refer to this section of the manual. However, due to the many features and functions of the meter, it’s possible that the setup of the meter does not agree with what an operator expects to see.

If the meter is not working as expected, refer to the Diagnostics menu and recommendations below.

Diagnostics Menu (diag)

The Diagnostics menu is located in the Advanced Features menu, to access Diagnostics menu see Advanced Features Menu, page 35.

This menu allows the user to test the functionality of

all the meter LEDs, check the meter’s software and

version information, and erase the MeterView Pro software installation files from the meter. Press the Enter button to view the settings and the Menu button to exit at any time.

For a description of the diagnostic messages, see Advanced Features Menu & Display Messages, page

35.

Determining Software Version

To determine the software version of a meter:

1. Go to the Diagnostics menu (diAG) and press Enter button.

2. Press Up arrow button and scroll to Information menu (Info).

3. Press Enter to access the software number (SFT) and version (UER) information. Write down the information as it is displayed. Continue pressing Enter until all the information is displayed.

4. The meter returns to Run Mode after displaying all the settings.

Reset Meter to Factory Defaults

When the parameters have been changed in a way

that is difficult to determine what’s happening, it might

be better to start the setup process from the factory defaults.

Instructions to load factory defaults:

1. Enter the Advanced Features menu. See Advanced Features Menu, page 35.

2. Press Up arrow to go to Diagnostics menu

3. Press and hold Right arrow for three seconds, press Enter when display flashes reset. Note: If Enter is not pressed within three seconds, the display returns to Run Mode.

4. The meter goes through an initialization sequence (similar as on power-up), and loads the factory default settings.

Factory Defaults & User Settings

The following table shows the factory setting for most of the programmable parameters on the meter.

Factory Defaults & User Settings

Parameter

Display

Default Setting

Input type

Input

Input type, channel A

Ch-A

4-20 mA

Input type, channel B

Ch-B

4-20 mA

Unit

unit

Unit, channel A

Ch-A

mA-A

Unit, channel B

Ch-B

mA-b

Unit, channel C

Ch-C

mA-C

Number of points

No pts

Number of points, ch A

Ch-A

Number of points, ch B

Ch-B

Scaling, (channel A)

Scal a

Input 1, channel A

InP 1

4.000 mA

Display 1, channel A

Dis 1

4.000

Input 2, channel A

InP 2

20.000 mA

Display 2, channel A

Dis 2

20.000

Scaling (channel B)

Scal b

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 44

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Factory Defaults & User Settings

Parameter

Display

Default Setting

Input 1, channel B

InP 1

4.000 mA

Display 1, channel B

Dis 1

4.000

Input 2, channel B

InP 2

20.000 mA

Display 2, channel B

Dis 2

20.000

Math, channel C

Sum

Adder (constant P)

Adder

0.000

Factor (constant F)

Factor

Filter

Filter, channel A

Ch-A

Filter, channel B

Ch-B

Bypass, channel A

bypass

0.2

Bypass, channel B

bypass

0.2

Round

Cutoff

Cutoff value, channel A

Ch-a

0.000 (disabled)

Cutoff value, channel B

Ch-b

0.000 (disabled)

Display assignment

Dsplay

Display line 1

D Ch-A

Channel A

Display line 2

d Ch-B

Channel B

Display intensity

d-Inty

Relay 1 assignment

Ch-A

Channel A

Relay 1 action

Act 1

Automatic

Relay 1 set point

Set 1

1.000

Relay 1 reset point

RSt 1

0.500

Relay 2 assignment

Ch-A

Channel A

Relay 2 action

Act 2

Automatic

Relay 2 set point

Set 2

2.000

Relay 2 reset point

RSt 2

1.500

Relay 3 assignment

Ch-A

Channel A

Relay 3 action

Act 3

Automatic

Relay 3 set point

Set 3

3.000

Relay 3 reset point

RSt 3

2.500

Relay 4 assignment

Ch-A

Channel A

Relay 4 action

Act 4

Automatic

Relay 4 set point

Set 4

4.000

Relay 4 reset point

RSt 4

3.500

Fail-safe relay 1

Fls 1

Off

Fail-safe relay 2

Fls 2

Off

Fail-safe relay 3

Fls 3

Off

Fail-safe relay 4

Fls 4

Off

On delay relay 1

On 1

0.0 sec

Off delay relay 1

Off 1

0.0 sec

On delay relay 2

On 2

0.0 sec

Factory Defaults & User Settings

Parameter

Display

Default Setting

Off delay relay 2

Off 2

0.0 sec

On delay relay 3

On 3

0.0 sec

Off delay relay 3

Off 3

0.0 sec

On delay relay 4

On 4

0.0 sec

Off delay relay 4

Off 4

0.0 sec

Loop break relay 1

ignore

Ignore

Loop break relay 2

ignore

Ignore

Loop break relay 3

ignore

Ignore

Loop break relay 4

ignore

Ignore

Display 1 analog out

Dis 1

4.000

Output 1 value

Out 1

4.000 mA

Display 2 analog out

Dis 2

20.000

Output 2 value

Out 2

20.000 mA

Source analog output

Source

Channel A

Overrange output

O-rang

21.000 mA

Underrange output

u-rang

3.000 mA

Loop break output

break

3.000 mA

Maximum output

nmAx

23.000 mA

Minimum output

nmin

3.000 mA

Slave ID (Address)

SlavId

247

Baud rate

baud

9600

Transmit delay

Tr dly

50 ms

Parity

Even

Byte-to-byte timeout

t-byt

010 (0.1 sec)

F1 function key

Reset max & min

F2 function key

Upper Max & Min

F3 function key

Acknowledge relays

F4 function (digital input)

Acknowledge relays

Digital input 1

DI 1

Digital input 2

DI 2

Right arrow

Digital input 3

DI 3

Up arrow

Digital input 4

DI 4

Enter

Digital output 1

DO 1

Alarm 1

Digital output 2

DO 2

Alarm 2

Digital output 3

DO 3

Alarm 3

Digital output 4

DO 4

Alarm 4

Password 1

Pass 1

000000 (unlocked)

Password 2

Pass 2

000000 (unlocked)

Password 3

Pass 3

000000 (unlocked)

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 45

PROVU™ PD6060 Dual Analog Input Process Meter

Instruction Manual

Troubleshooting Tips

This meter is a highly sophisticated instrument with an extensive list of features and capabilities. If the front panel buttons are used to program the meter, it may be a difficult task to keep everything straight. That is why we strongly recommend the use of the free MeterView Pro software for all programming activities. A cable is provided with the meter for programming with MeterView Pro software.

If you have programmed the meter with the front panel buttons and it is not working as intended, try re-programming the meter using MeterView Pro software.

Symptom

Check/Action

No display at all

Check power at power connector

Not able to change setup or programming, Locd is displayed

Meter is password-protected, enter correct six-digit password to unlock

Meter does not respond to input change

If a Low-Flow Cutoff Value has been programmed, the meter will display zero below that point, regardless of the input – which can appear like the meter is not responding to an input change. Check to make sure the problem is not being caused by an undesired low-flow cutoff value.

Meter displays error message during calibration (Error)

Check:

1. Signal connections

2. Input selected in Setup menu

3. Minimum input span requirements

Meter displays

1. 999999

2. -99999

Check:

1. Input selected in Setup menu

2. Corresponding signal at Signal connector

Display is unstable

Check:

1. Input signal stability and value

2. Display scaling vs. input signal

3. Filter and bypass values (increase)

Display response is too slow

Check filter and bypass values

Display reading is not accurate

Check:

1. Input signal conditioner selected: Linear, square root, etc.

2. Scaling or calibration

Display does not respond to input changes, reading a fixed number

Check:

1. Display assignment, it might be displaying max, min, or set point.

Display alternates between

1. Hi and a number

2. Lo and a number

Press Menu to exit max/min display readings.

Relay operation is reversed

Check:

1. Fail-safe in Setup menu

2. Wiring of relay contacts

Relay and status LED do not respond to signal

Check:

1. Relay action in Setup menu

2. Set and reset points

Flashing relay status LEDs

Relays in manual control mode or relay interlock switches opened.

Meter not communicating with application programs

Check:

1. Serial adapter and cable

2. Serial settings

3. Meter address and baud rate

If the display locks up or the meter does not respond at all

Cycle the power to reboot the microprocessor.

Other symptoms not described above

Call Technical Support for assistance.

Note: Certain sequences of events can cause unexpected results. To solve these issues, it is best to start fresh from factory defaults and use the manual as a step by step programming guide, rather than a random approach to programming. To reset the meter to factory defaults, see Reset Meter to Factory Defaults on page 43. In addition, for best results, we recommend using the free MeterView Pro software for all programming needs.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com
