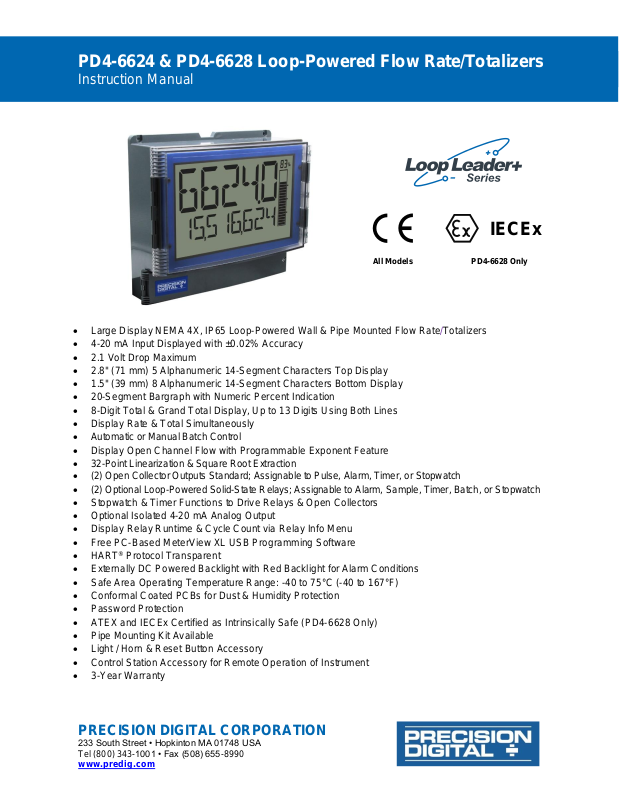

PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
• Large Display NEMA 4X, IP65 Loop-Powered Wall & Pipe Mounted Flow Rate/Totalizers
• 4-20 mA Input Displayed with ±0.02% Accuracy
• 2.1 Volt Drop Maximum
• 2.8" (71 mm) 5 Alphanumeric 14-Segment Characters Top Display
• 1.5" (39 mm) 8 Alphanumeric 14-Segment Characters Bottom Display
• 20-Segment Bargraph with Numeric Percent Indication
• 8-Digit Total & Grand Total Display, Up to 13 Digits Using Both Lines
• Display Rate & Total Simultaneously
• Automatic or Manual Batch Control
• Display Open Channel Flow with Programmable Exponent Feature
• 32-Point Linearization & Square Root Extraction
• (2) Open Collector Outputs Standard; Assignable to Pulse, Alarm, Timer, or Stopwatch
• (2) Optional Loop-Powered Solid-State Relays; Assignable to Alarm, Sample, Timer, Batch, or Stopwatch
• Stopwatch & Timer Functions to Drive Relays & Open Collectors
• Optional Isolated 4-20 mA Analog Output
• Display Relay Runtime & Cycle Count via Relay Info Menu
• Free PC-Based MeterView XL USB Programming Software
• HART® Protocol Transparent
• Externally DC Powered Backlight with Red Backlight for Alarm Conditions
• Safe Area Operating Temperature Range: -40 to 75°C (-40 to 167°F)
• Conformal Coated PCBs for Dust & Humidity Protection
• Password Protection
• ATEX and IECEx Certified as Intrinsically Safe (PD4-6628 Only)
• Pipe Mounting Kit Available
• Light / Horn & Reset Button Accessory
• Control Station Accessory for Remote Operation of Instrument
• 3-Year Warranty
IECEx
All Models
PD4-6628 Only
Page 2
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
2

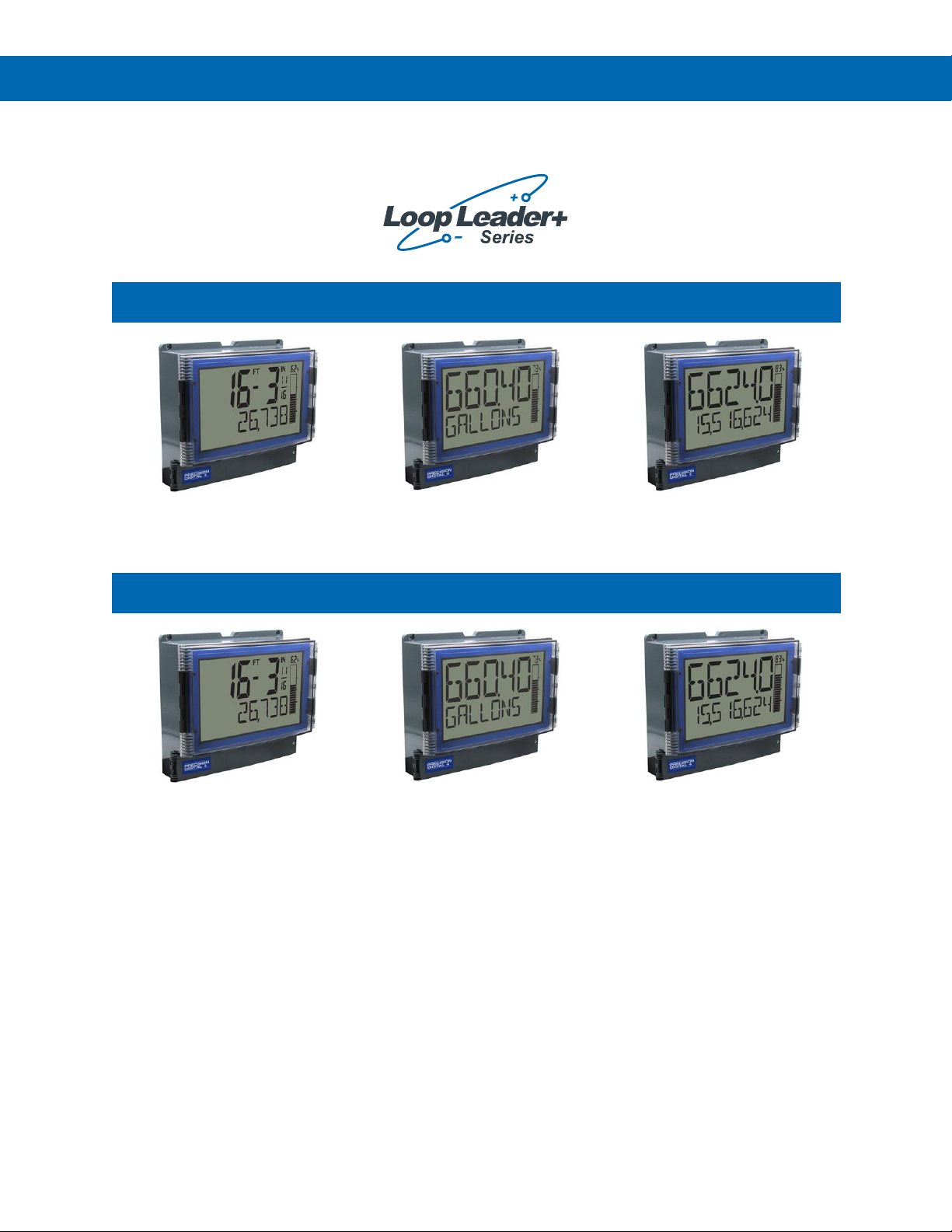

The Complete PD4-6600 Series
General Purpose
PD4-6603
Feet & Inches Meter
PD4-6604
Process Meter
PD4-6624
Flow Rate/Totalizer
Hazardous Area
PD4-6607
Feet & Inches Meter
PD4-6608
Process Meter
PD4-6628
Flow Rate/Totalizer
Page 3
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
3
Table of Contents
Introduction ......................................................................................................... 6
Key Features ....................................................................................................... 7
Ordering Information ........................................................................................ 11
Accessories .................................................................................................. 11
Specifications ................................................................................................... 14
Display .......................................................................................................... 14
General ................................................................................................ .......... 14
Input .............................................................................................................. 15
Rate/Totalizer ................................................................................................ 15
Batch Control ............................................................................................... 15
Common Open Collector & Relay Specifications ...................................... 16
Open Collector Outputs ............................................................................... 16
Solid-State Relays ........................................................................................ 16
4-20 mA Transmitter Output ........................................................................ 16
On-Board Digital Input ................................................................................. 16
Remote Contacts .......................................................................................... 17
MeterView XL Programming Software ........................................................ 17
General Compliance Information .................................................................... 17
Electromagnetic Compatibility .................................................................... 17
PD4-6628 Compliance Information ................................................................. 18
Hazardous Area Approvals ......................................................................... 18
EU Declaration of Conformity ............................................................................. 19
Safety Information ............................................................................................ 19
Field Modification ......................................................................................... 19
Installation......................................................................................................... 19
Unpacking ..................................................................................................... 19
Wall Mounting Instructions ......................................................................... 20
Mounting Dimensions ................................................................................ 20
Conduit Holes Location .............................................................................. 20
Pipe Mounting Instructions ......................................................................... 21
MeterView XL Programming Software ........................................................ 22
MeterView XL Software Installation ........................................................... 22
Connecting to the Computer ...................................................................... 23
Specifications ............................................................................................. 23
Connections ...................................................................................................... 24
Connectors Labeling .................................................................................. 24
Wiring Diagrams ............................................................................................... 25
I/O Parameter Table .................................................................................. 25
Safe Area Current Loop (4-20 mA) Connections ....................................... 25
Safe Area Digital Input Connections .......................................................... 25
Safe Area 4-20 mA Output Connections .................................................... 26
Safe Area Solid-State Relay Connections ................................................. 26
Safe Area Open Collector Output Connections .......................................... 26
Remote Operation of Meter........................................................................ 26
Wiring Connections for MOD-PD2LH Models ............................................ 27
Setup and Programming .................................................................................. 28
Overview ....................................................................................................... 28
MeterView XL Programming Software ........................................................ 28
Programming Buttons ...................................................................................... 29
Display Functions & Messages ................................................................... 30
Main Menu ..................................................................................................... 34
Setting Numeric Values ............................................................................. 35
Scaling the 4-20 mA Input (INPUT) .................................................................. 36
Available Engineering Units ....................................................................... 37
Setting Custom Units (CUSTOM) ................................................................. 37
Scaling Example ........................................................................................ 38
Page 4
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
4
Setting the Display Features (DISPLAY) .................................................... 38
Changing the Engineering Units (UNITS) .................................................. 38
Changing the Decimal Point (DEC.PT) ........................................................ 38
Enabling or Disabling the Commas on the Bottom Display (COMMA) ......... 39
Display Capabilities Optimization (TOP and BOTTOM)................................ 39
Using 13 Digits to Display Total ................................................................. 39
Configuring the Display (TOp and BOTTOM) .............................................. 40
Programming the Bargraph ........................................................................ 40
Programming the Outputs (OUTPUT) .......................................................... 41
Open Collector Outputs (OPEN COLLECTR) ............................................. 42
Solid-State Relay Outputs (RELAY) ........................................................... 47
Isolated 4-20 mA Output (4-20 mA) ......................................................... 52
Output Manual Control (CONTROL) ............................................................ 52
Advanced Features Menu (ADVANCED) ....................................................... 53
Advanced Rate Setup (ADV RATE) ........................................................... 53
Input Signal Conditioning Functions (FUNCTION) ..................................... 54
Additional Engineering Units ...................................................................... 61
Low-Flow Cutoff (CUTOFF) ........................................................................ 62
Noise Filter (FILTER) ................................................................................ 62
Enabling Password Protection (PASSWRD) ................................................ 62
Programmable Function Keys User Menu (USER) ..................................... 63
Changing System Settings (SYSTEM) ........................................................ 65
Meter Operation ................................................................................................ 67
Front Panel Buttons Operation ................................................................... 67
Function Keys Operation ............................................................................. 67
Digital Input Operation ................................................................................. 67
Maximum/Minimum Readings ..................................................................... 67
Total Reset Capabilities ................................ ................................ ............... 68
Total Reset via Button Under Lower Panel Door ....................................... 68
Total Reset via Remote Contact ................................................................ 68
Total Reset via Digital Input ....................................................................... 68
Total Reset Password Protection ............................................................... 68
Runtime & Cycle Count (INFO) ................................................................... 68
Changing Engineering Units ....................................................................... 68
Batch Controller Operation.............................................................................. 69
Default Batch Control Operation................................................................. 69
Batch Control Operation Example .............................................................. 69
Manual Batch Control .................................................................................. 71
Automatic Batch Control ............................................................................. 72
Troubleshooting ............................................................................................... 73
Reset Meter to Factory Defaults.................................................................. 73
Determining Software Version .................................................................... 73
Factory Default Settings ............................................................................. 74
Troubleshooting Tips ................................................................................... 75
Page 5
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
5
Table of Figures

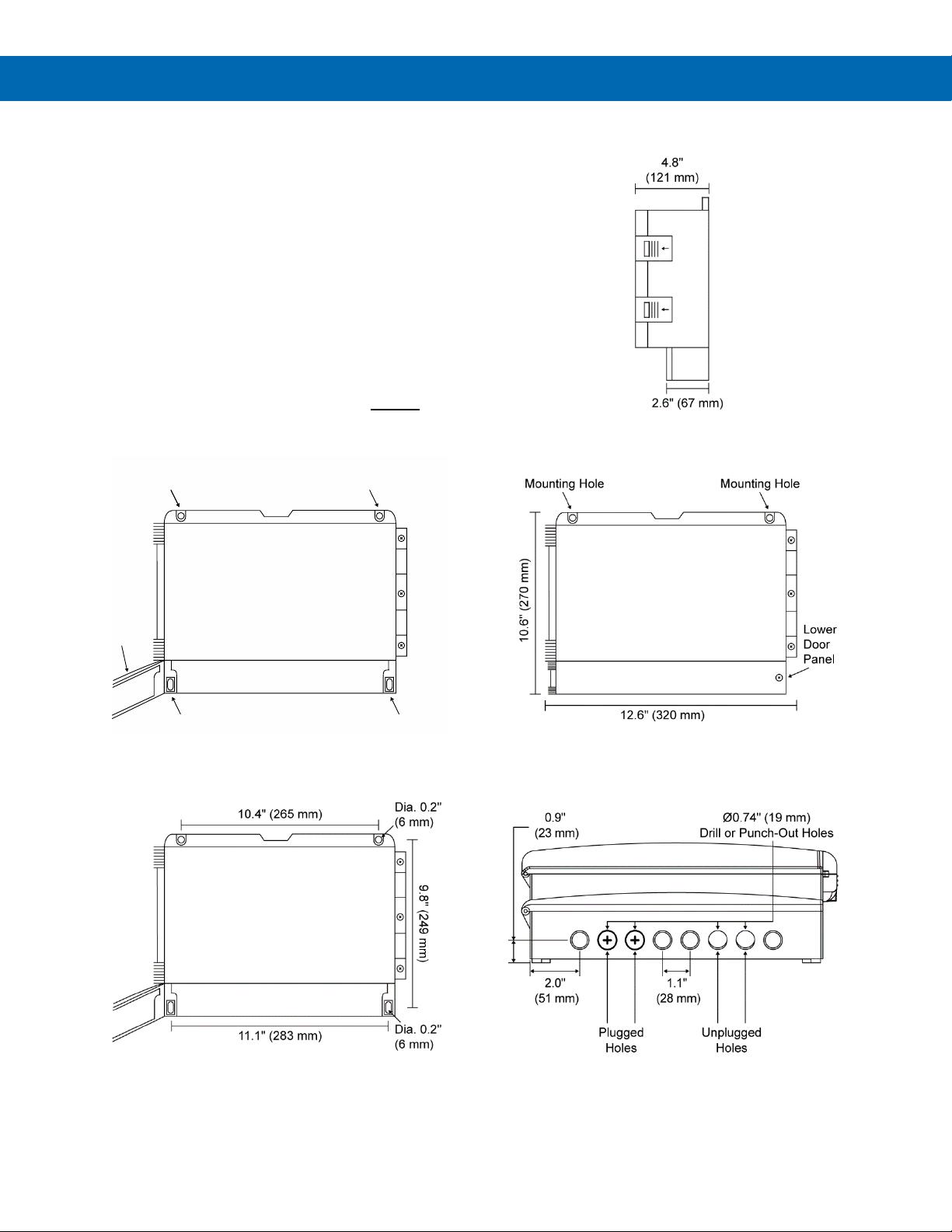

Figure 1. Meter Mounting Holes Location .......................................................... 20
Figure 2. Meter Mounting Holes Dimensions ..................................................... 20
Figure 3. Meter Dimensions – Side View ............................................................ 20
Figure 4. Meter Dimensions - Front View ........................................................... 20
Figure 5. Conduit Holes Location – Bottom View .............................................. 20
Figure 6. Vertical Pipe Mount Assembly............................................................. 21
Figure 7. Horizontal Pipe Mount Assembly ........................................................ 21
Figure 8. Connector Labeling for PD4-66XX-LNN .............................................. 24
Figure 9. Connector Labeling for PD4-66XX-L5N .............................................. 24
Figure 10. 4-20 mA Input Connection without Backlight................................... 25
Figure 11. 4-20 mA Input Connection with Backlight ........................................ 25
Figure 12. Digital Input Connections .................................................................. 25
Figure 13. 4-20 mA Output Connections ............................................................ 26
Figure 14. Solid-State Relay Connections .......................................................... 26
Figure 15. Open Collector Output Connections ................................................. 26
Figure 16. PDA2364-MRUE Control Station Connected
to Remote Contacts on PD4 ........................................................................ 26
Figure 17. Light / Horn and Button (MOD-PD2LH) Connected to PD4 ............. 27
Video
Watch the Loop-Powered Meters Video
Click or Scan
Page 6
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
6
Disclaimer
The information contained in this document is
subject to change without notice. Precision Digital
Corporation makes no representations or warranties
with respect to the contents hereof; and specifically
disclaims any implied warranties of merchantability or
fitness for a particular purpose.
• Read complete instructions prior to installation and
operation of the meter.
• Risk of electric shock or personal injury.
• This product is not recommended for life support
applications or applications where malfunctioning
could result in personal injury or property loss.
Anyone using this product for such applications
does so at his/her own risk. Precision Digital
Corporation shall not be held liable for damages
resulting from such improper use.
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Limited Warranty
Precision Digital Corporation warrants this
product against defects in material or
workmanship for the specified period under
“Specifications” from the date of shipment from
the factory. Precision Digital’s liability under this
limited warranty shall not exceed the purchase
value, repair, or replacement of the defective unit.
See Warranty Information and Terms &
Conditions on www.predig.com for complete
details.
Registered Trademarks
All trademarks mentioned in this document are
the property of their respective owners.
© 2022 Precision Digital Corporation.
All rights reserved.
Introduction
The Loop Leader+ loop-powered large display flow
rate/totalizers can be installed virtually anywhere to
provide convenient and informative display of any
4-20 mA signal. One of the most convenient features of
these instruments is their large, dual-line display which is
typically used to display flow rate on the 2.8" 5-character
alphanumeric top display and flow total, flow grand total,
or a tag on the 1.5" 8-character alphanumeric bottom
display. Both display lines use 14-segment,
alphanumeric characters that provide much clearer
indication of tags, units, or alarm messages than
7-segment characters do.
Further enhancing the display on these instruments is
a 20-segment bargraph that also includes a numeric
value of the percentage the bargraph represents.
These flow rate/totalizers can be installed virtually
anywhere because they get their power from the
4-20 mA loop and therefore require no separate
power source, and they only drop 2.1 V, so they add
very little burden to the loop. Additional features that
allow these instruments to be installed virtually
anywhere include a NEMA 4X, IP65 rated enclosure,
an operating temperature range of -40 to 167°F (-40
to 75°C) (for safe area products), conformally coated
PCBs, and a backlit LCD that can be read in bright
sunlight or dimly lit areas. The PD4-6628 model is an
intrinsically safe and nonincendive version of the Loop
Leader+ that is agency approved for installation in
hazardous areas. It also carries electrical safety
approvals.

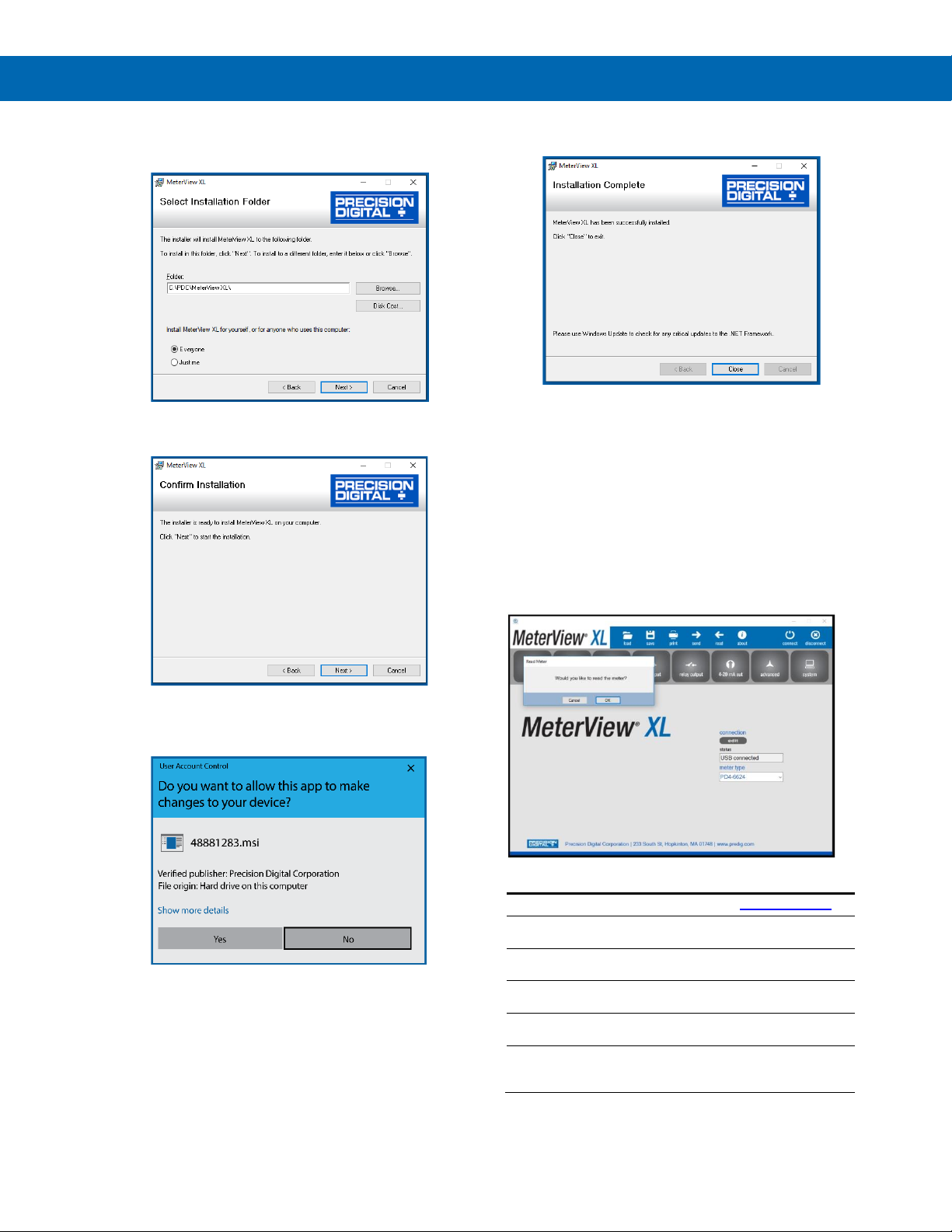

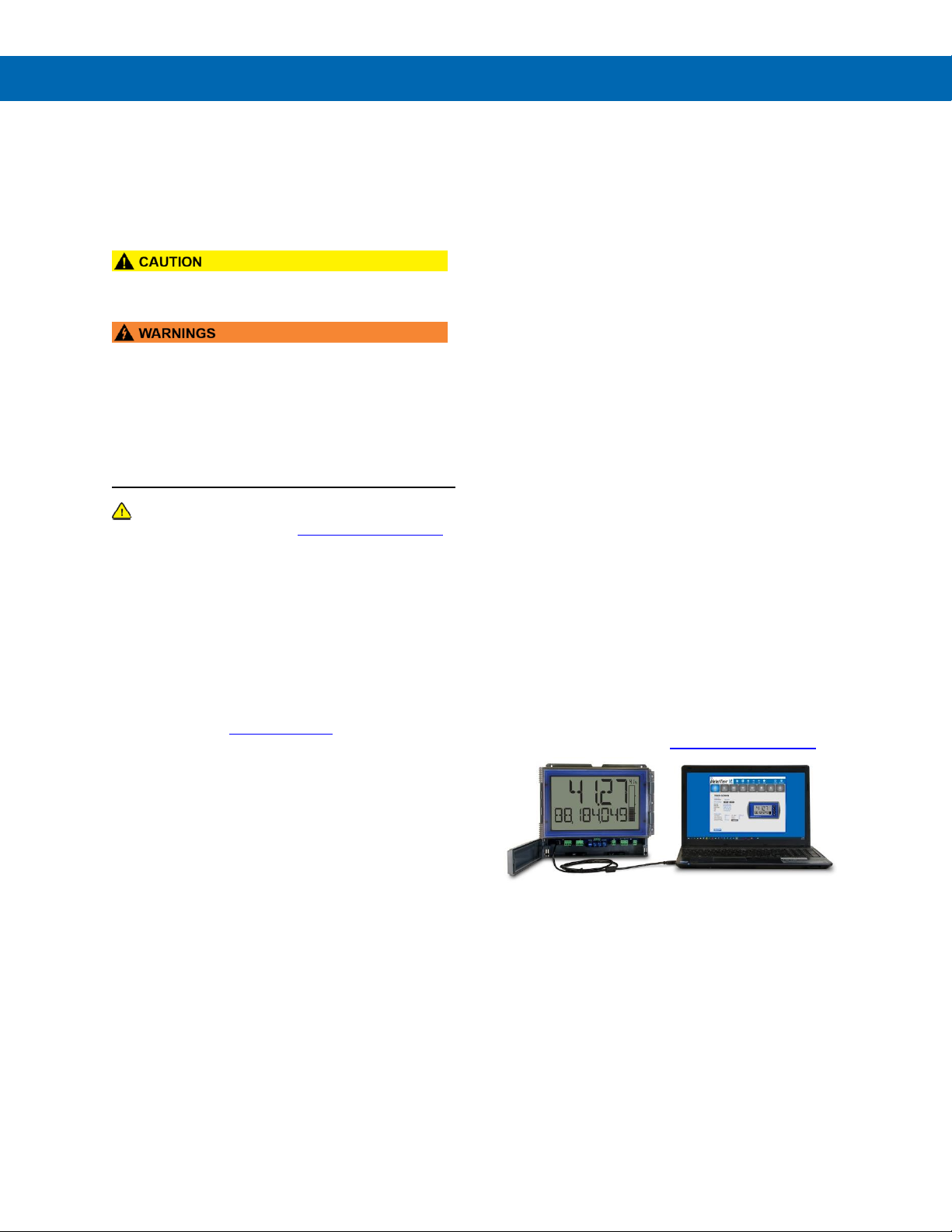

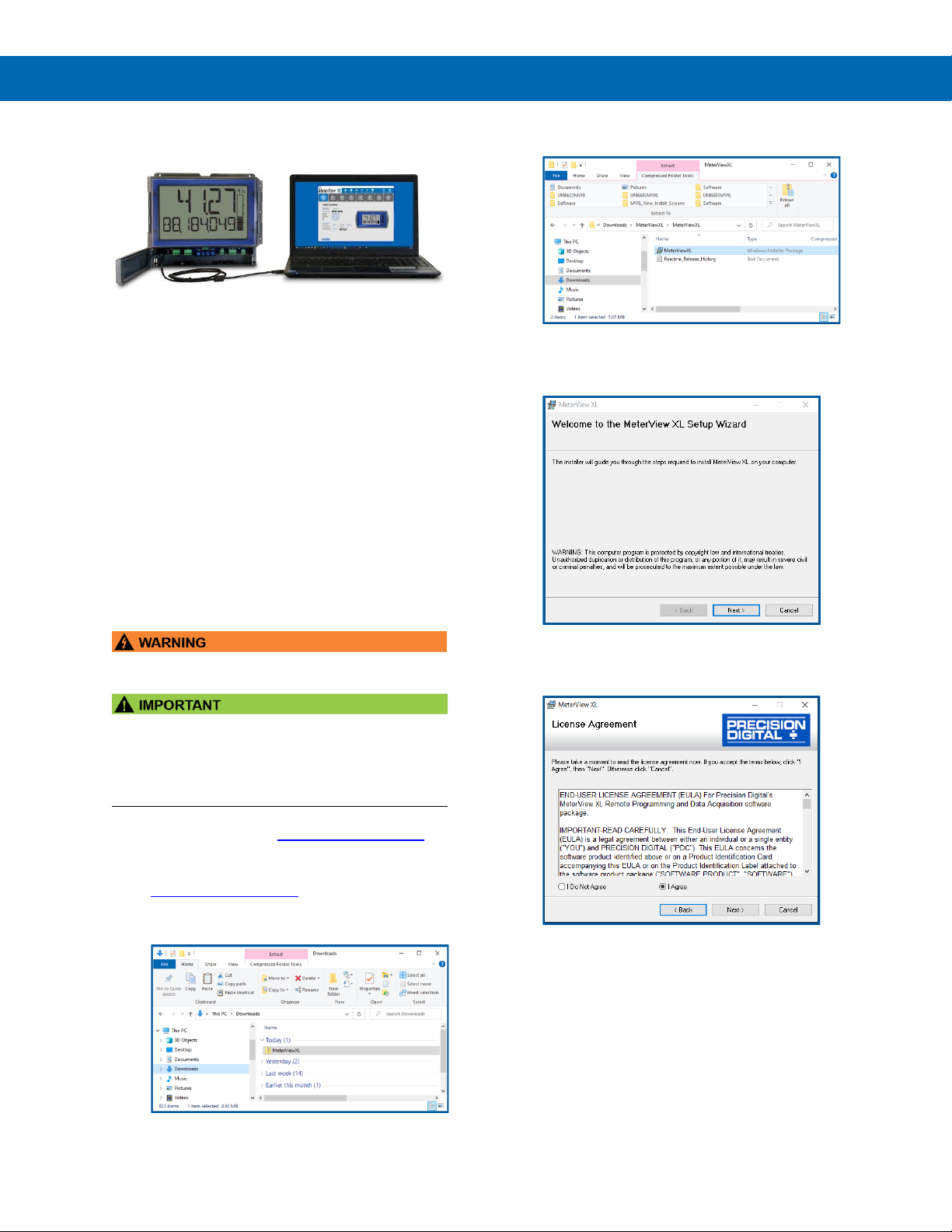

Free, PC-based, MeterView XL software that
connects to the meter via a micro USB cable is
available for programming and setup of the meters.
To download the latest MeterView XL programming
software and manual, visit predig.com/meterviewxl.
All models come equipped with two open collector
outputs and remote contacts. There are also models
available with two solid-state relays and isolated
4-20 mA analog output options. The open collector
outputs are useful for alarm indication or pulse output.
The remote contacts can be used to remotely operate
the four programming buttons, to reset the total, to
start/stop a timer/stopwatch, and more. The relays
can be programmed for alarm indication, on/off
control, or simple batch control.
Page 7
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
7

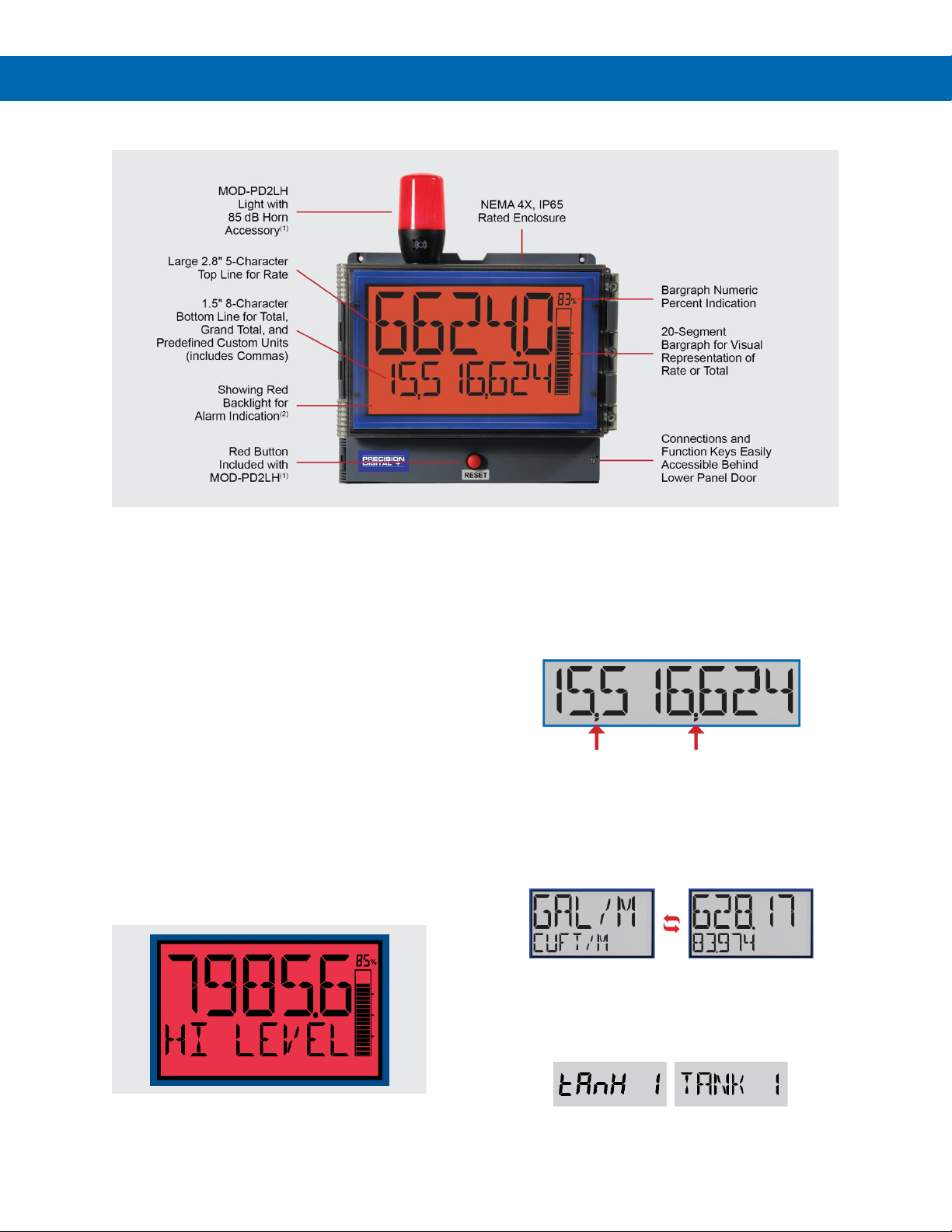

Key Features
1. Available on PD4-6624 only. Requires external 24 VDC power.
2. Backlight requires external 24 VDC power.
Large Informative Display
One of the most convenient features of the PD4 Loop
Leader+ Series is its large, dual-line display. The
PD4’s whopping 2.8" 5-character alphanumeric top
display and 1.5" 8-character alphanumeric bottom
display, plus a 20-segment bargraph with percentage
indication on top, makes reading and understanding
process values easier than ever.
Predefined display units give users even more display
flexibility. Plus, the high contrast backlit LCD display
is readable from far away and under various lighting
conditions.

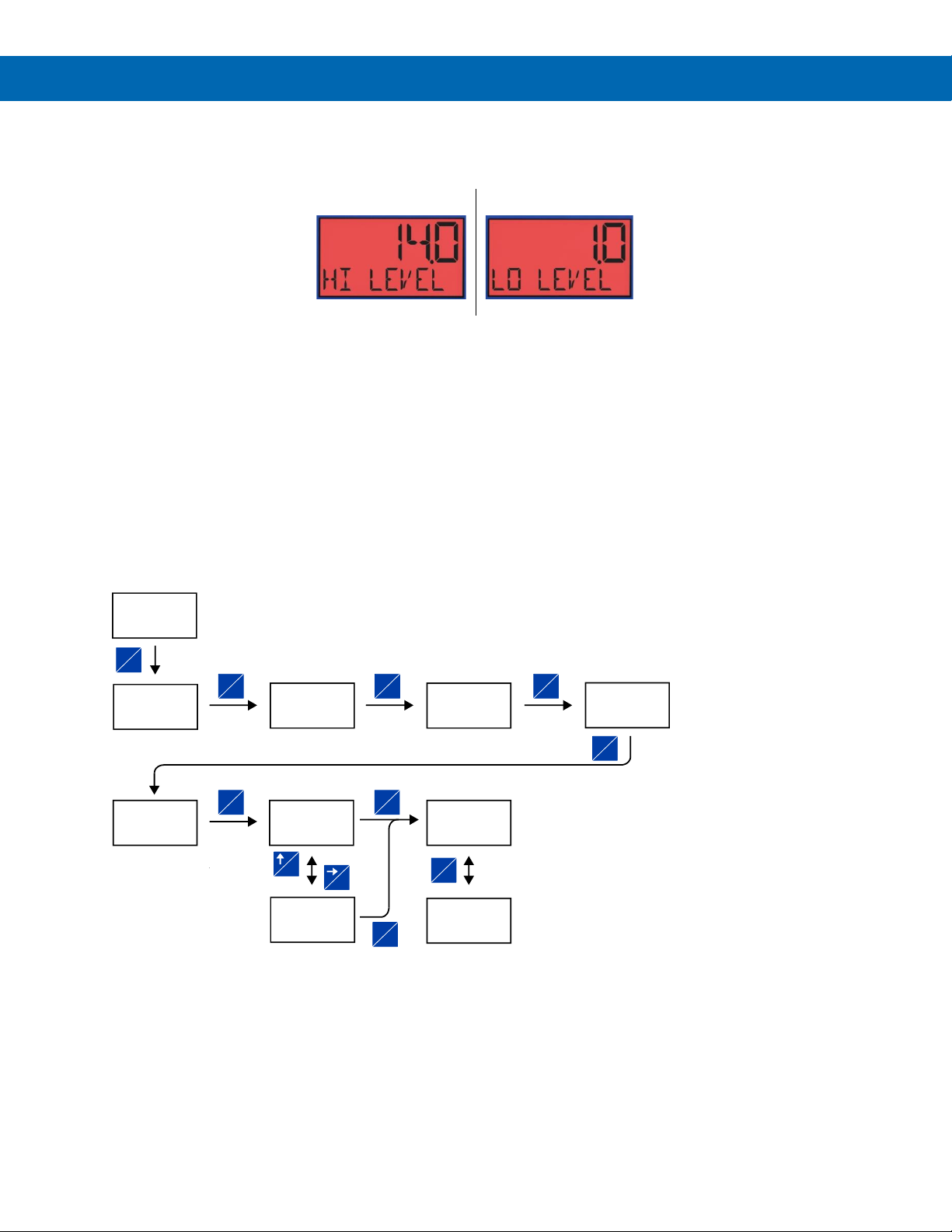

Backlight Turns Red on Alarm
When an alarm occurs, the display can be
programmed to turn red and flash. In addition, a
unique custom alarm message for each of the two
relays and two open collectors can be displayed on
the bottom display. These features can be activated
even if no relay or open collector is connected.
Commas on 8-Digit Totalizer for
Easy Reading
It may seem like a simple thing, but adding commas
to an eight-digit number makes it easier to read:
Dual-Scale Feature
Users can use the dual-scale feature to display
the input in two different scales. For instance, the
example below shows an application where the Loop
Leader+ displays the input in gallons per minute and
cubic feet per minute.
14-Segment Characters
Notice how much better letters like “T”, “N” and “K”
appear as 14-segment characters on the Loop Leader+
vs 7-segment characters found on many other meters.
Page 8
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
8

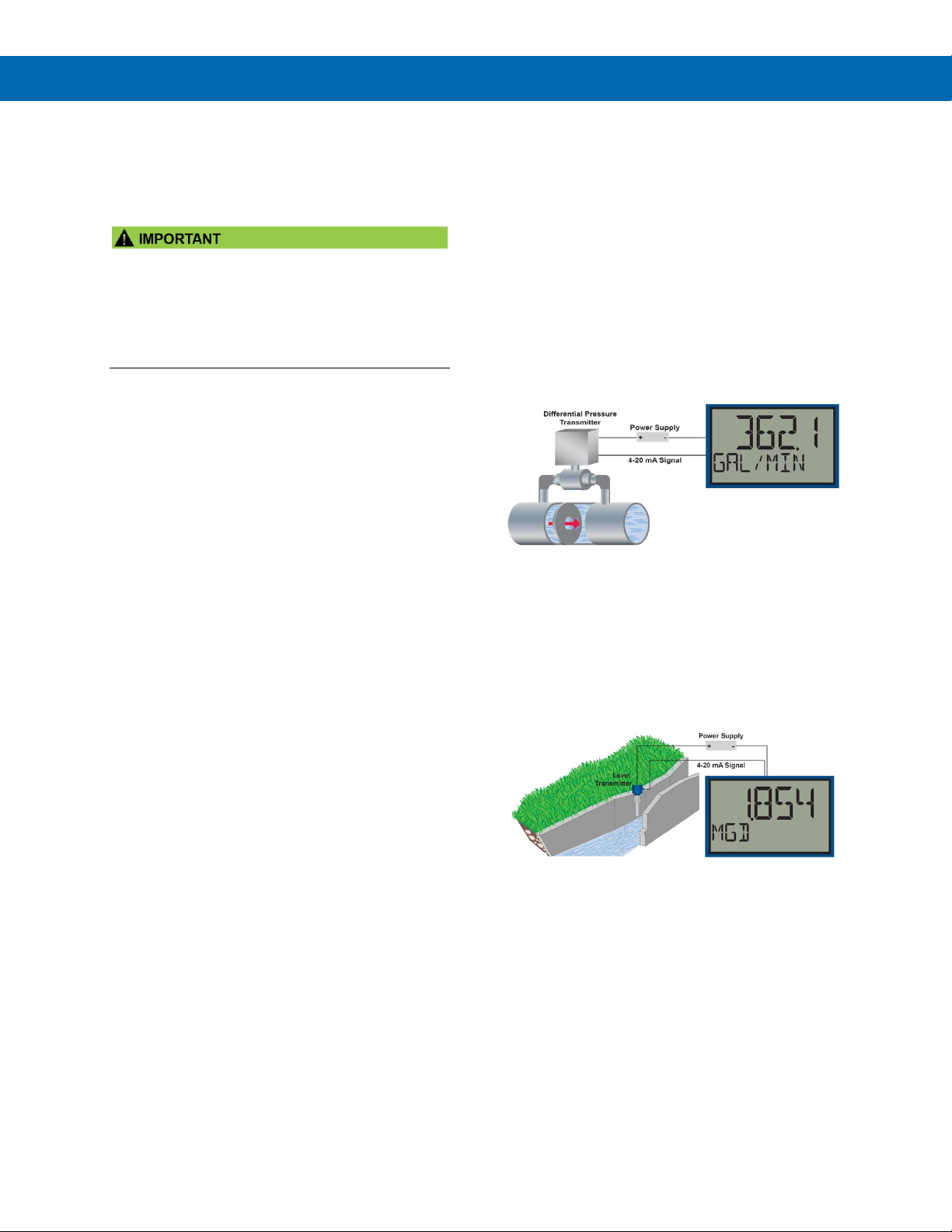

Predefined and Custom Units
The PD4-6624/28 flow rate/totalizers have the most
common predefined rate and volume units. If the
desired unit is not available, the user can program a
custom unit.
• If the total is disabled in the System – Total
menu, the meter has six available
preprogrammed unit classes: volume, height,
temperature, pressure, weight, and rate. When
the desired unit class or unit of measure within a
class is not available, a custom unit may be
programmed.
Password Protection
A password can be set up for programming security to
prevent unauthorized changes to the programmed
parameter settings.

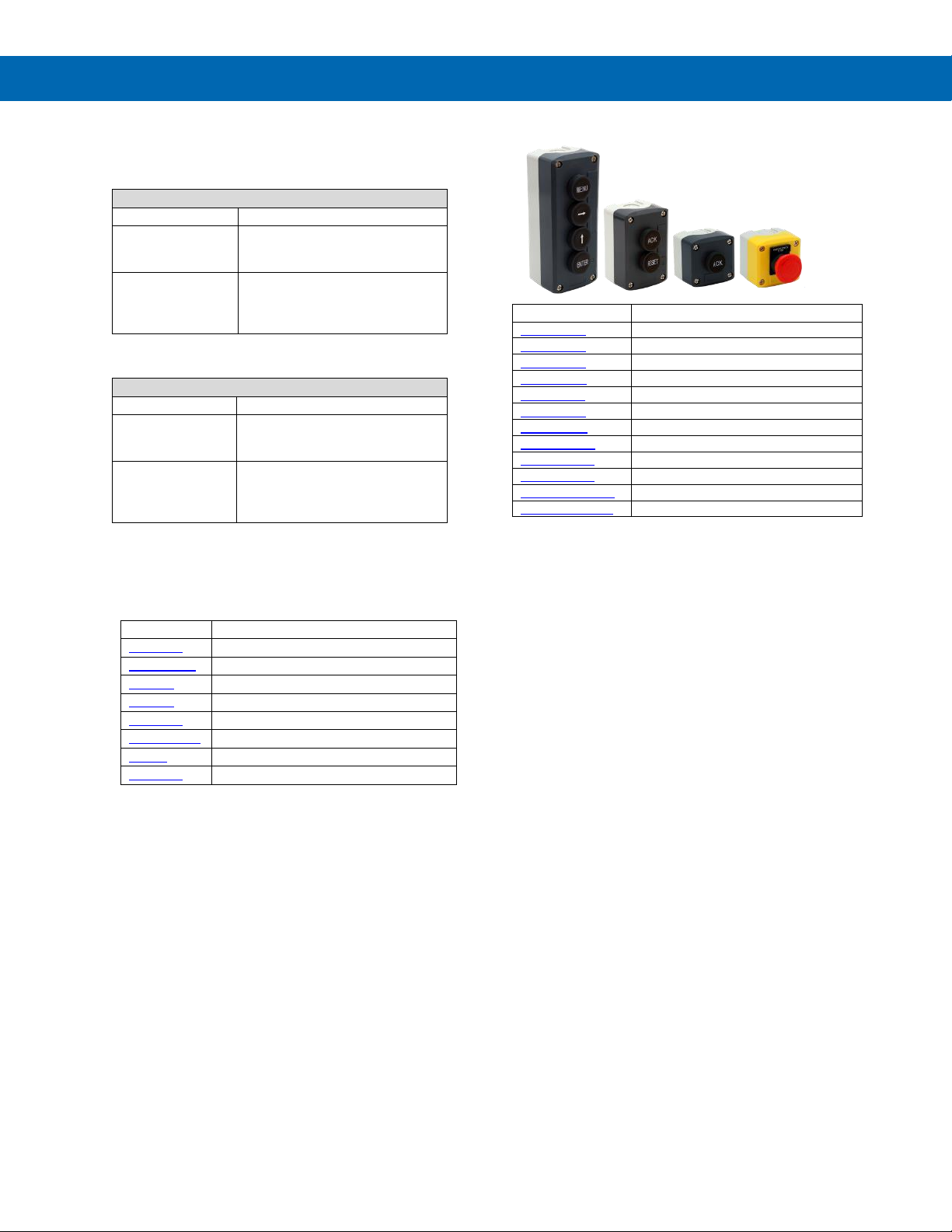

Remote Contacts
Remote Contacts are standard on the PD4 and the
meter can be operated via a remote control station
(PDA2364-MRUE). The PDA2364-MRUE mimics the
PD4 meter’s four programming buttons: Menu, Right
Arrow, Up Arrow, and Enter.
Multiple Outputs
• Two open collector outputs (standard)
• Two solid-state relays (optional)
• One 4-20 mA output (optional)
The open collector outputs and relays generally
operate in the same manner, with the major exception
being the open collectors are not available for pump
alternation and the relays are not available with pulse
features. The open collectors and relays can be
controlled either automatically or manually.
The isolated analog output signal can be configured
to represent the process variable (rate, total, or
retransmit). It can also be reverse scaled such that
the meter’s high calibration value outputs 4 mA and
the meter’s low calibration outputs 20 mA.
Input Signal Conditioning
Functions (FUNCTION)
The Function menu is used to select the input signal
conditioner applied to the input: linear, square root,
programmable exponent, or round horizontal tank
volume calculation. Multi-point linearization is part of
the linear function selection.
Meters are set up at the factory for linear function with
2-point linearization. The linear function provides a
display that is linear with respect to the input signal.

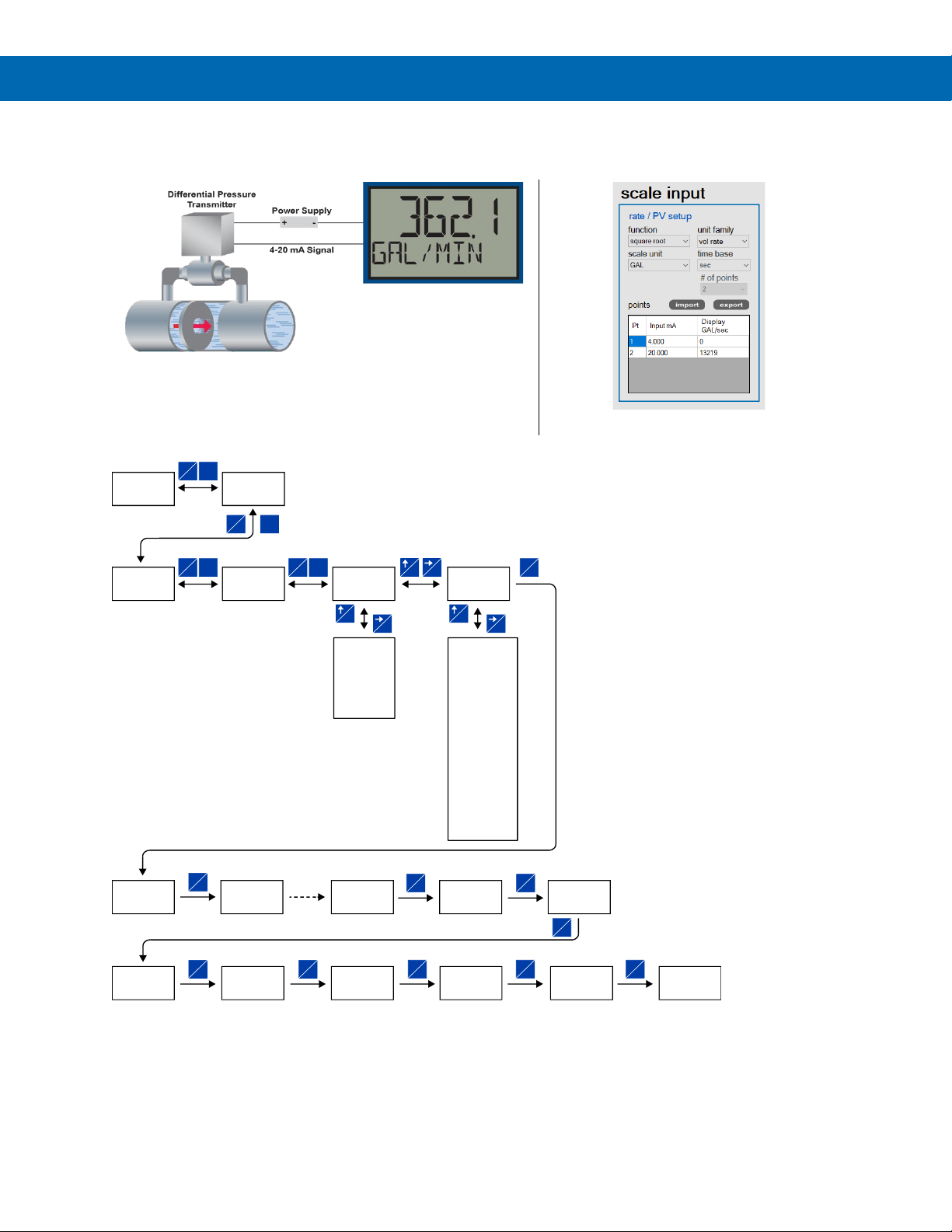

Square Root Linearization (SQROOT)
The square root function can be used to linearize the
signal from a differential pressure transmitter and
display flow rate in engineering units.
PD4-6624 Displaying Flow Rate by Applying the Square
Root Function to the Output of a DP Transmitter.

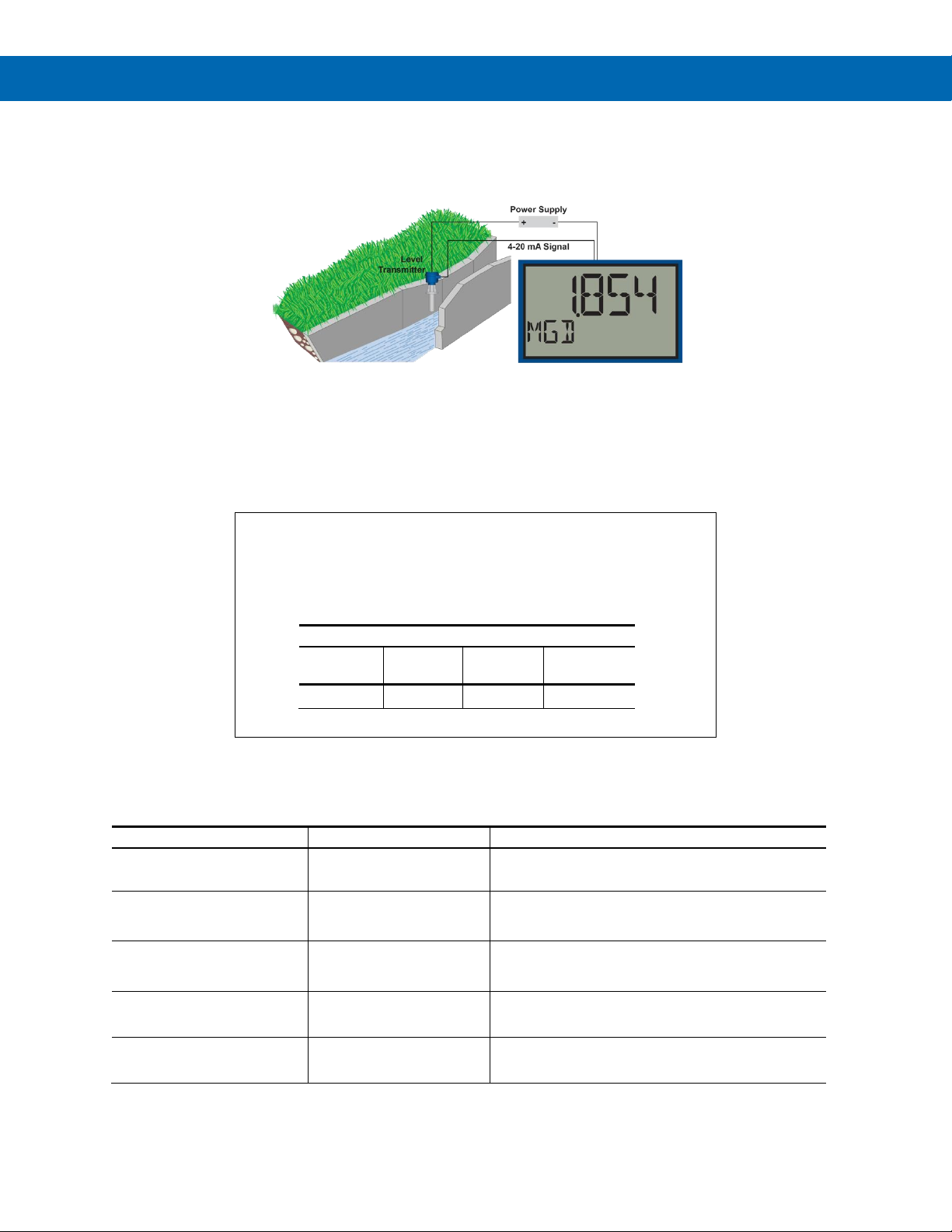

Programmable Exponent
Linearization (EXPONENT)
The programmable exponent can be used to linearize
the signal from level transmitters in open-channel flow
applications using weirs and flumes.
The PD4-6624, in combination with an ultrasonic level
transmitter, makes for an economical way to measure
and display open channel flow rate in most weirs and
flumes. A guide such as the ISCO Open Channel
Flow Measurement Handbook can provide the user
with all the information needed: the exponent used in
the flow equation for the desired flow units and the
flow rate for any given head height. For example, to
display the open channel flow rate from a 3" Parshall
flume, the ISCO handbook advises the exponent is
1.547 and at the maximum head height of 3.0 feet,
the flow rate is 3.508 MGD.
Page 9
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
9

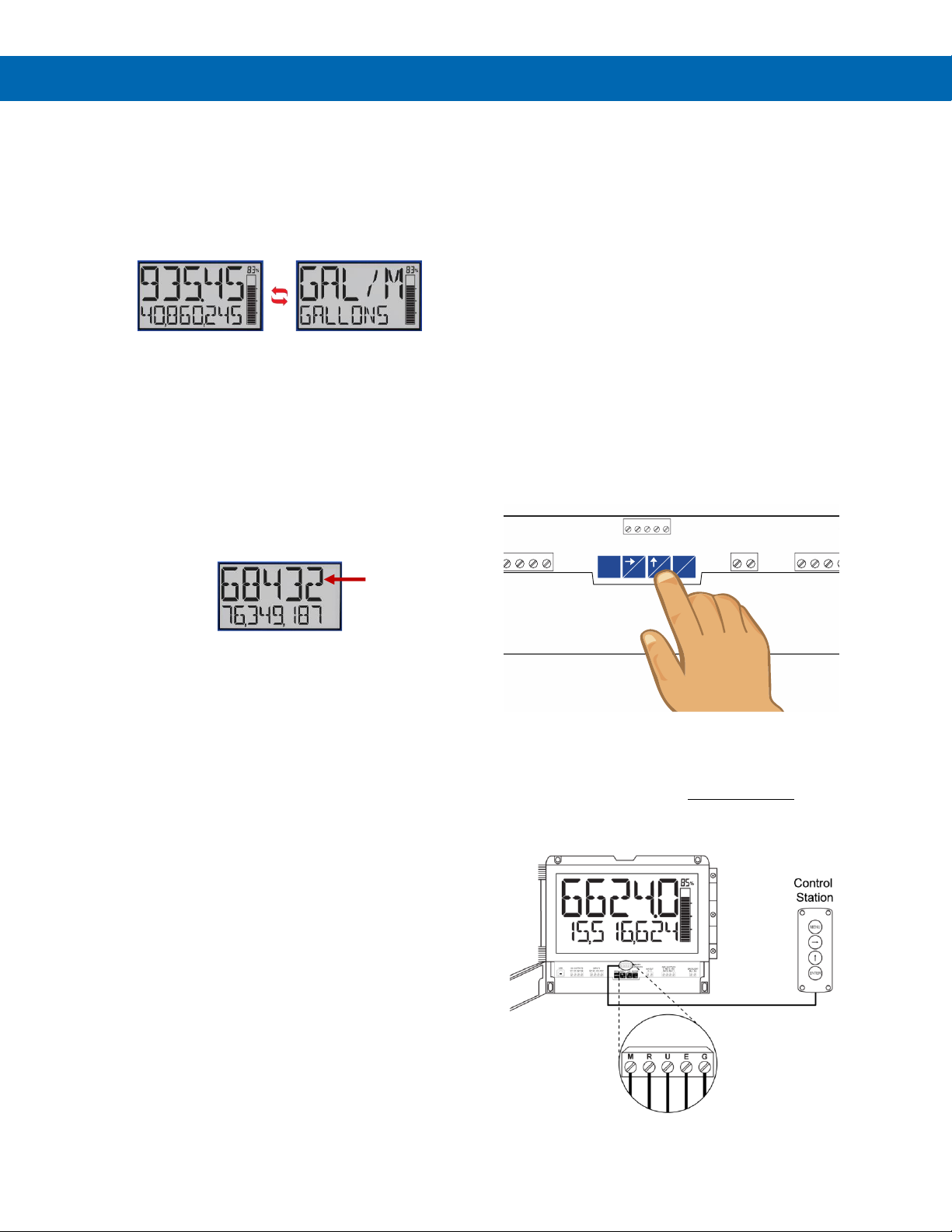

Rate/Totalizer Features

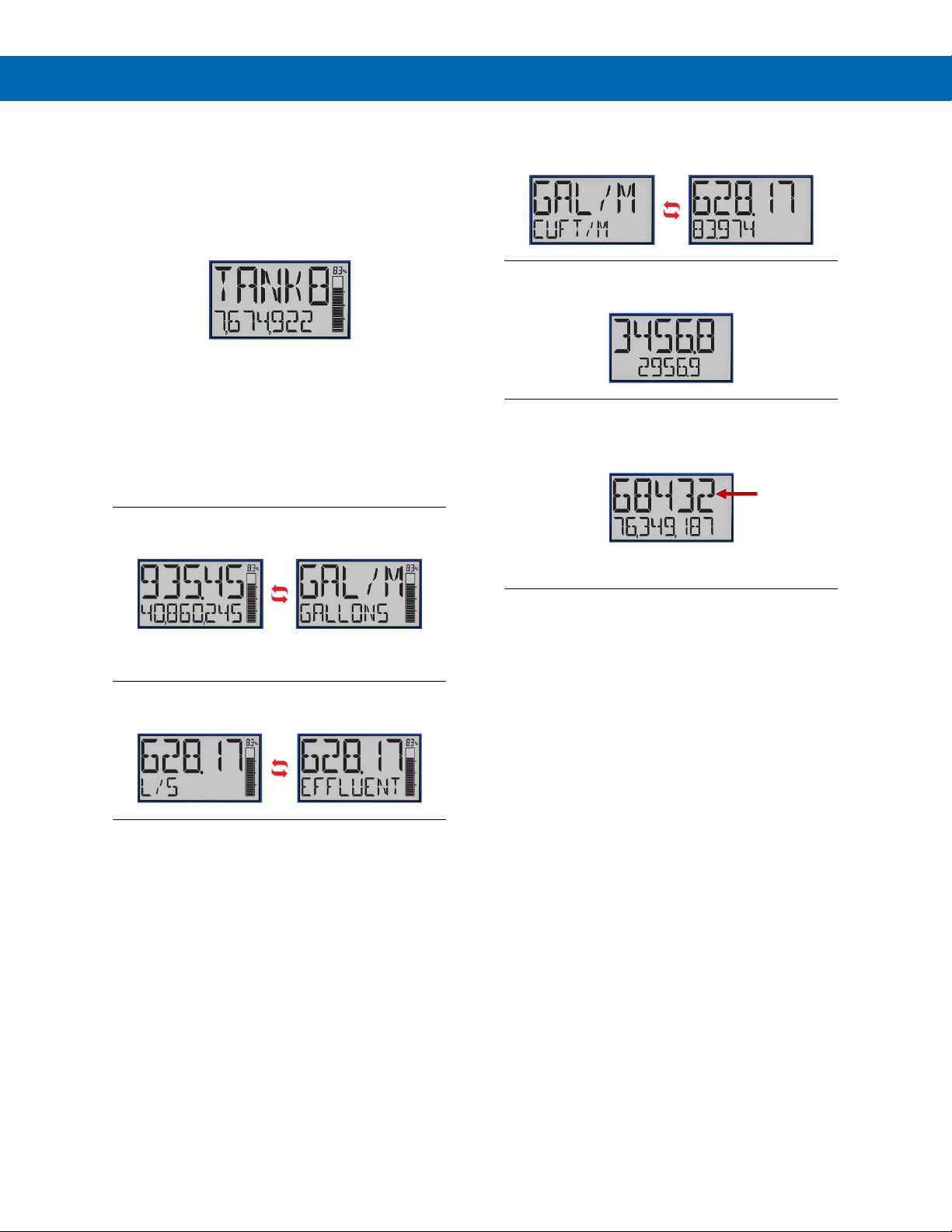

Display Flow Rate & Total at the
Same Time
The PD4-6624 can display flow rate and total at the
same time. In addition, the meter can toggle between the
rate and total and their corresponding units as the
following example illustrates.
Total Limit & Initial Value
The Advanced – Total Count menu allows the digit limit
to be selected between 8-digit (bottom display only) and
13-digit (uses top and bottom display to display the full
number).
The user can set the initial value at which the total and
grand total should start counting.
Using 13 Digits to Display Total
The top and bottom displays can be set up to display
a 13-digit total.
Note: The number above should be read as
6,843,276,349,187.
Total & Rate in Different Units
The user can select to display total in different units
than the rate. For instance, a customer could
measure flow rate in gallons per minute and total in
acre-feet by simply selecting AF (acre-feet) units for
the total. Additionally the user can enter a custom unit
and conversion factor to display the total in any unit of
measure.
Rate in Units Per Second, Minute,
Hour, or Day
The user may select a rate time base in units per
second, minute, hour, or day. The time base is the
amount of time over which the rate parameter will
totalize. For example, if the rate was 10 gallons/min
(and stayed constant for one minute), then the total
would increase by 10 every minute.
4-20 mA Output for Rate or Total
The 4-20 mA output can be assigned to the rate or
total.
Total Stored in Non-Volatile
Memory
Total and grand total values, and all programmed
settings are stored in non-volatile memory for a
minimum of ten years if power is lost.
Total Reset Capabilities
The total and grand total can be reset using a button
behind the lower panel door, the remote contacts
connected to a control station, an external contact
closure on the digital input, or MeterView XL. In
addition, both total and grand total reset can be
password protected to prevent unauthorized resets.

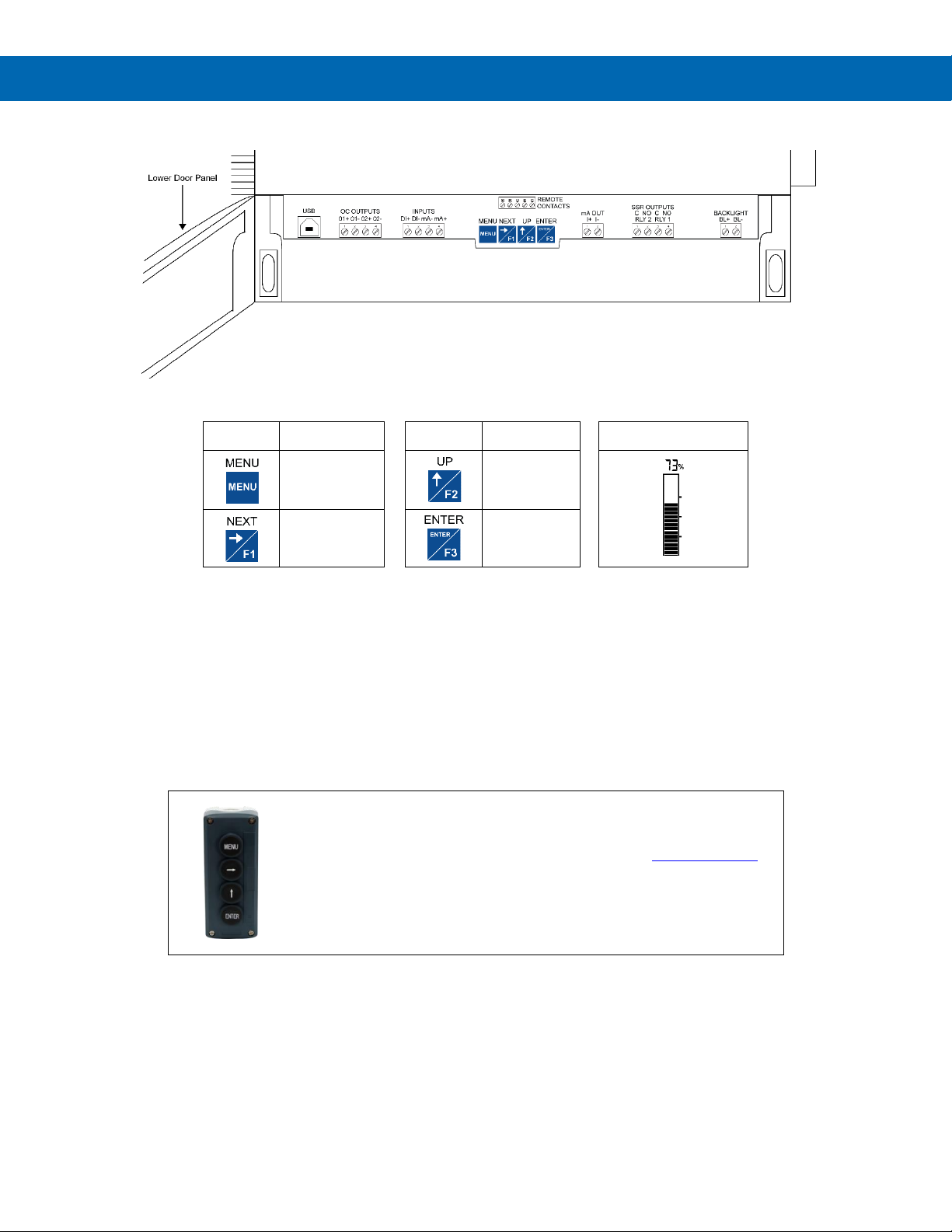

Total Reset via Button Under
Lower Panel Door
The PD4-6624 is equipped with four buttons located
under the lower panel door. The F2 function key is set
up to reset the total. If reset grand total is enabled, it
is possible for the user to reset either the total or the
grand total.

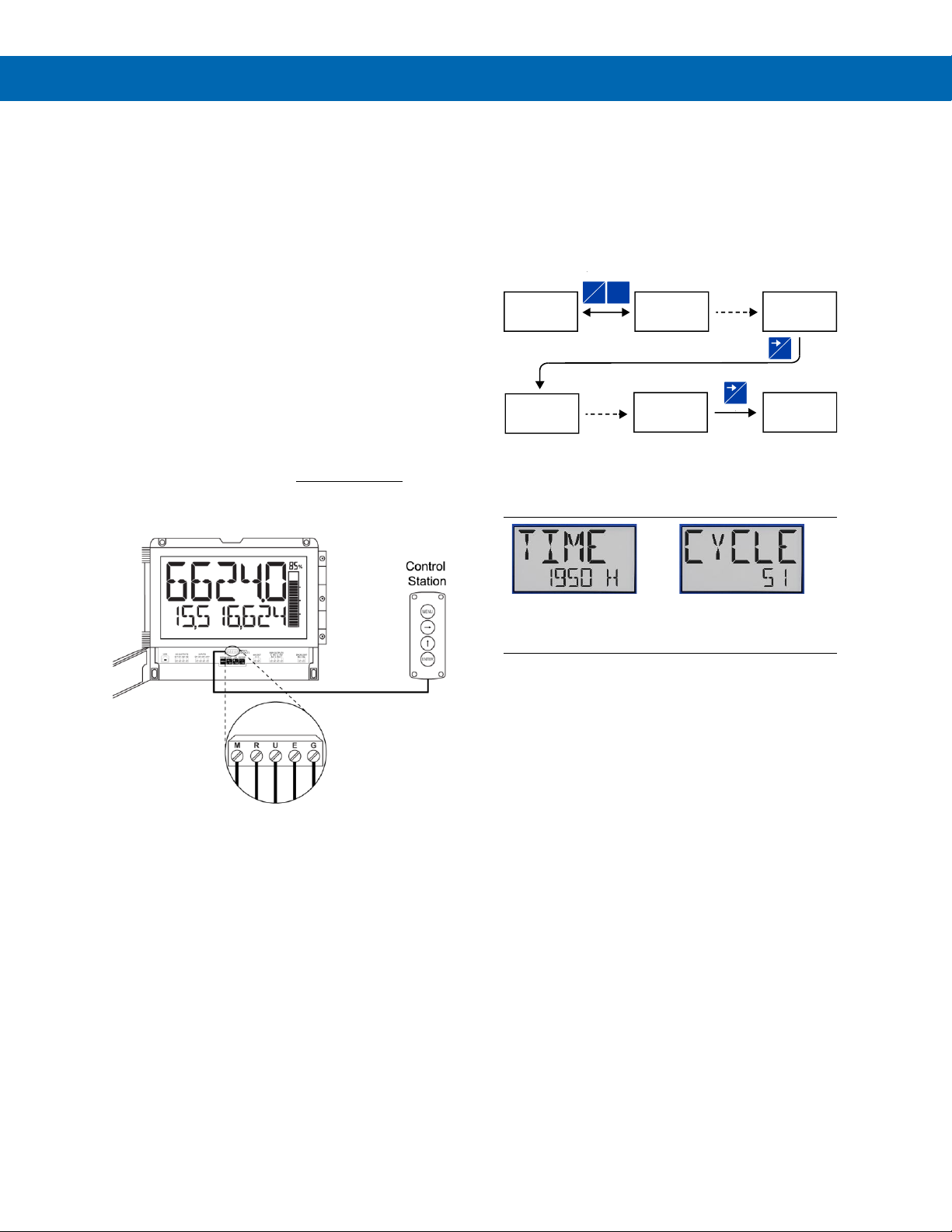

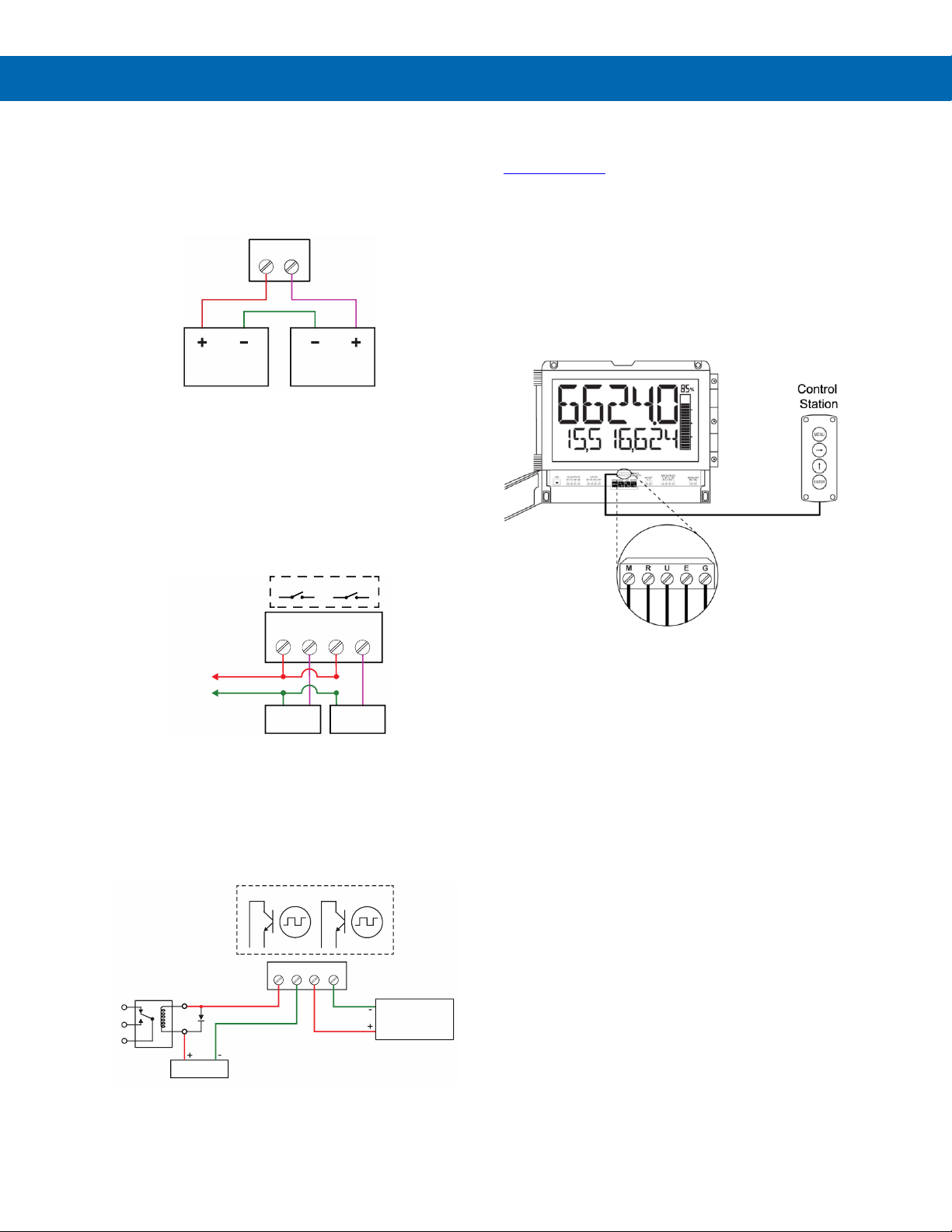

Total Reset via Remote Contact
The PD4-6624 is equipped with remote contacts
located behind the lower panel door of the meter.
These can be connected to a PDA2364-MRUE
control station for remote operation of all four
programming / operation buttons. The F2 function key
is set by default to reset the total and grand total.
4321
INPUTS
+ DI- mA- mA+
4
321
SSR OUTPU
T
C NO C N
O
RLY 2 RLY
21
mA OUT
I+ I-
MENU
MENU
F1
ENTER
NEXT UP ENTER
F2 F3
REMOTE
CONTACTS
M R U E G
Page 10
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
10
Total Reset via Digital Input
The PD4-6624’s digital input may also be used to reset
the total or grand total using a PDA2361-R control
station.
Total Reset Password Protection
Total and grand total passwords can be set to prevent
resetting the total or grand total unless a password is
entered. Grand total reset can be disabled through
the meter interface, and it can also be permanently
disabled.
Non-Resettable Grand Total
The user can set up the grand total to be non-resettable by
selecting YES at the PERMLOC menu; see page 59 for
details. Once this is done, the grand total can never be reset.

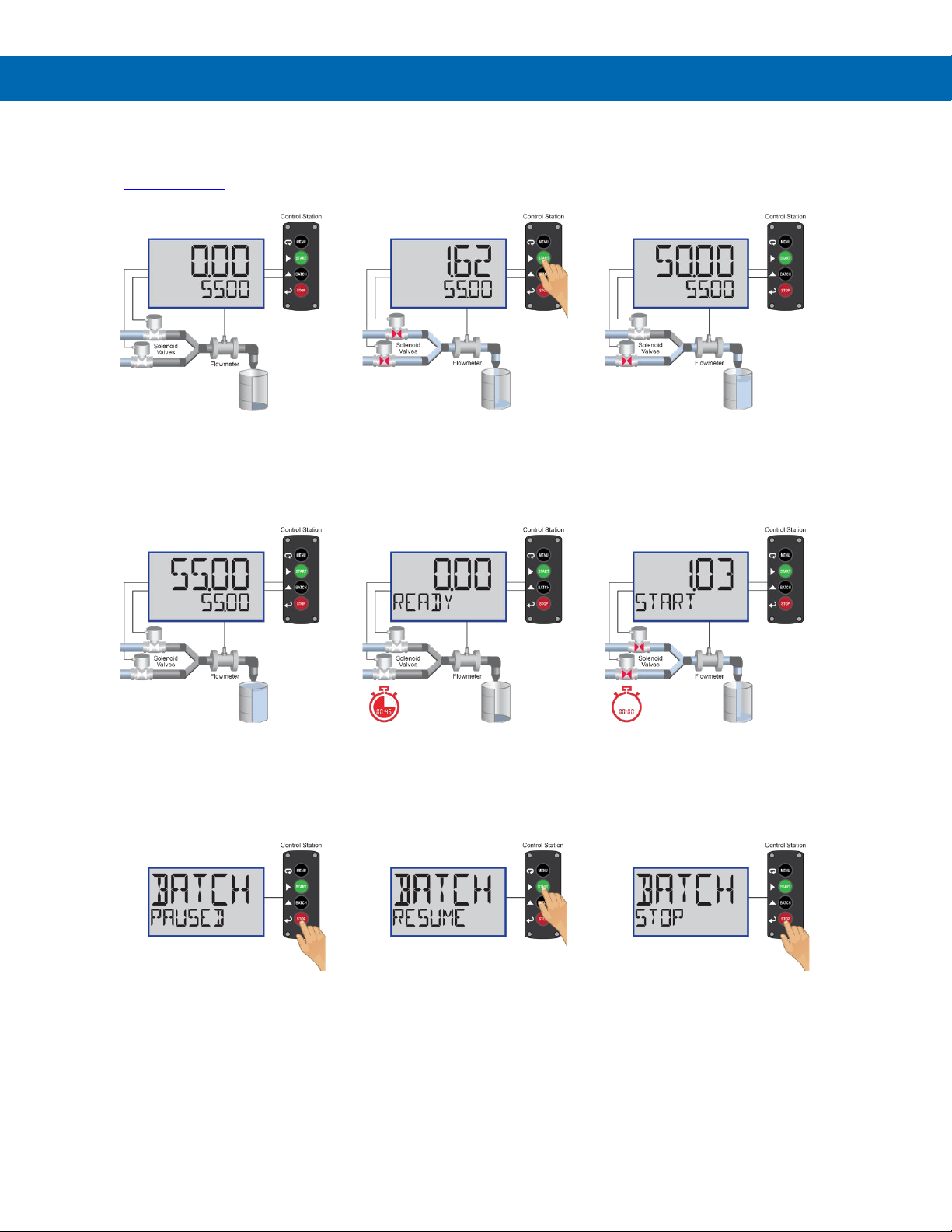

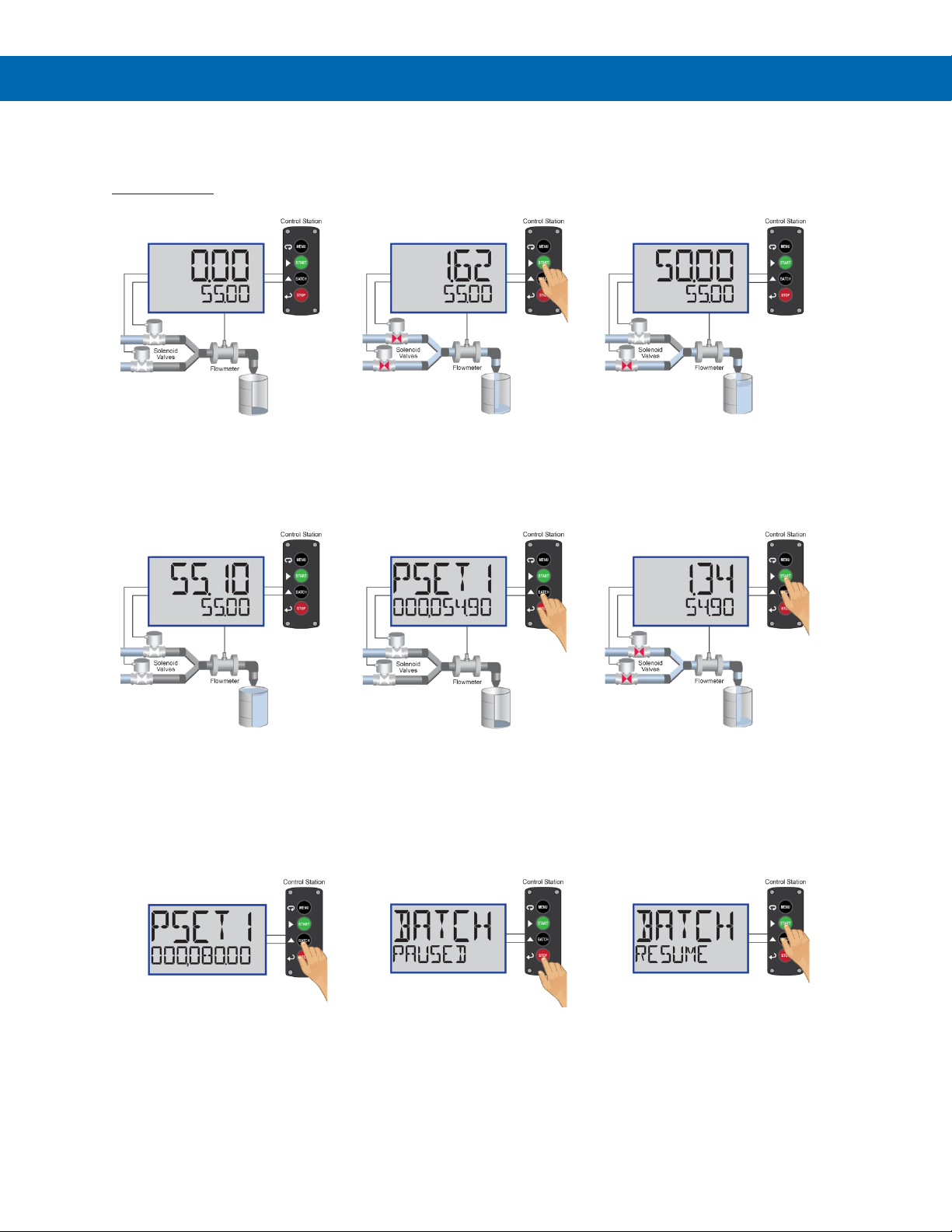

Batch Control Capabilities
The meter can be equipped with two solid-state relays
that may be set up for batch control. Selecting batch
control for relay 1 enables the batching features on the
meter. The top display changes to show the total and the
bottom display changes to show the batch preset. The
function keys also change for batch control functions
such as F1 starts a batch, F2 opens the preset menu to
allow the preset value to be changed, and F3 stops the
currently running batch. Enabling batch control for
relay 1 allows access to the batch menu under relay 2.
The second relay may be programmed as a preclose
relay or as another batching relay with its own preset
amount.
Manual or Automatic Operation
Batching can be set to either manual or automatic
operation.
If set to automatic, then a delay before the next batch
starts must be programmed.
Count Up or Down Batching
The batch total can be set to count up or down.
DI+ DI- mA- mA+
Page 11
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
11
Ordering Information
General Purpose Instruments
Loop Leader+ PD4-6624 • General Purpose
Model
Description
PD4-6624–LNN
Large Display Loop-Powered
Rate/Totalizer, General Purpose,
No Options
PD4-6624–L5N
Large Display Loop-Powered
Rate/Totalizer, General Purpose,
Two Solid-State Relays and
4-20 mA Analog Output
Hazardous Area Instruments
Loop Leader+ PD4-6628 • Hazardous Area
Model
Description
PD4-6628–LNN
(1)
Large Display Loop-Powered
Rate/Totalizer, Hazardous Area,
No Options
PD4-6628–L5N
(1)
Large Display Loop-Powered
Rate/Totalizer, Hazardous Area,
Two Solid-State Relays and
4-20 mA Analog Output
1. Electrical Safety and Hazardous Area Approvals
Note: All models come standard with two open collector
outputs and contacts for remote operation.
Accessories
Model
Description
PDA0004
Cable Gland
PDAPLUG2
Plastic Conduit Plug
PD9501
Multi-Function Calibrator
PD9502
Low-Cost Signal Generator
PDA1002
6" DIN Rail Mounting Kit
PDA1024-01
24 VDC Power Supply for DIN Rail
PD659
Signal Isolators, Splitters, and Conditioners
PDA2360
Plastic Control Stations
PDA2360 Plastic Control Stations
Model
Description
PDA2360-E
Emergency Button
PDA2361-A
Ack Button
PDA2361-B
Blank Button
PDA2361-R
Reset Button
PDA2361-T
Tare Button
PDA2361-S
Stop Button
PDA2361-Q
Silence Button
PDA2362-AR
Ack And Reset Buttons
PDA2362-BB
Two Blank Buttons
PDA2362-SS
Start and Stop Buttons
PDA2364-MRUE
Menu, Right, Up, Enter Buttons
PDA2364-MSBS
Menu, Start, Batch, Stop Buttons
Notes:
1. These control stations do not carry hazardous area
approvals and are thus not suitable for location in
hazardous areas. The use of additional protective
devices may allow them to be installed in a safe area
and connected to a device in a hazardous area. User
should consult a professional engineer to determine
suitability of these products for their specific application.
2. Control stations can be connected directly to the PD4
meter’s Remote Contacts. See Remote Operation of
Meter on page 26 for details.
Page 12
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
12

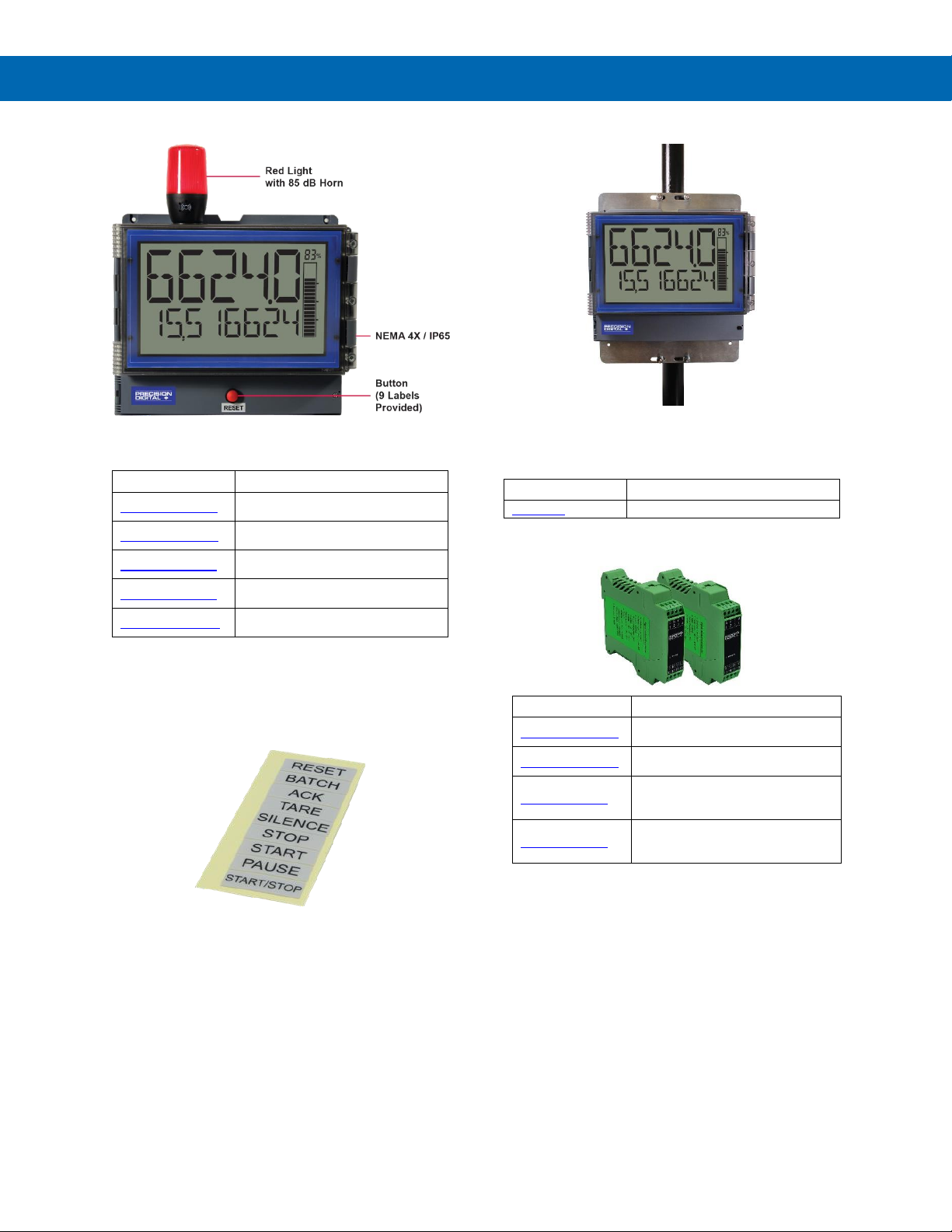

Light / Horn & Button Accessories
(2)
PD4-6624 meter shown with MOD-PD2LHRB1 Red Light /
Horn and Button. Meter sold separately.
Model
Description
MOD-PD2LHRB1
Red Light / Horn and Button
Mounted and Wired to PD4
(1)
MOD-PD2LHGB1
Green Light / Horn and Button
Mounted and Wired to PD4
(1)
MOD-PD2LHYB1
Yellow Light / Horn and Button
Mounted and Wired to PD4
(1)
MOD-PD2LHBB1
Blue Light / Horn and Button
Mounted and Wired to PD4
(1)
MOD-PD2LHWB1
White Light / Horn and Button
Mounted and Wired to PD4
(1)
Note:
1. Specify MOD-PD2LH model as a separate item on the
order for the PD4 meter to order the Light / Horn & Button
accessory installed and wired. Meter is sold separately.
2. Light / Horn & Button accessory available only on
PD4-6624 units.
Each Light / Horn accessory comes with
9 labels for the button.
Pipe Mounting Kit
PD4-6624 Meter Shown mounted to pipe using
PDA6260 pipe mounting kit. See Pipe Mounting
Instructions on page 21 for details.
Model
Description
PDA6260
2" Pipe Mounting Kit for PD4
Signal Splitter & Conditioner Accessories
Model
Description
PD659-1MA-1MA
Signal Isolator with One 4-20 mA
Input and One 4-20 mA Output
PD659-1MA-2MA
Signal Splitter with One 4-20 mA
Input and Two 4-20 mA Outputs
PD659-1V-1MA
Signal Conditioner with One 0-10
VDC Input and One 4-20 mA
Output
PD659-1MA-1V
Signal Conditioner with One
4-20 mA Input and One 0-10 VDC
Output
Note: These signal splitters and conditioners do not carry
hazardous area approvals and are thus not suitable for
location in hazardous areas. The use of additional protective
devices may allow them to be installed in a safe area and
connected to a device in a hazardous area. User should
consult a professional engineer to determine suitability of
these products for their specific application.
Page 13
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
13

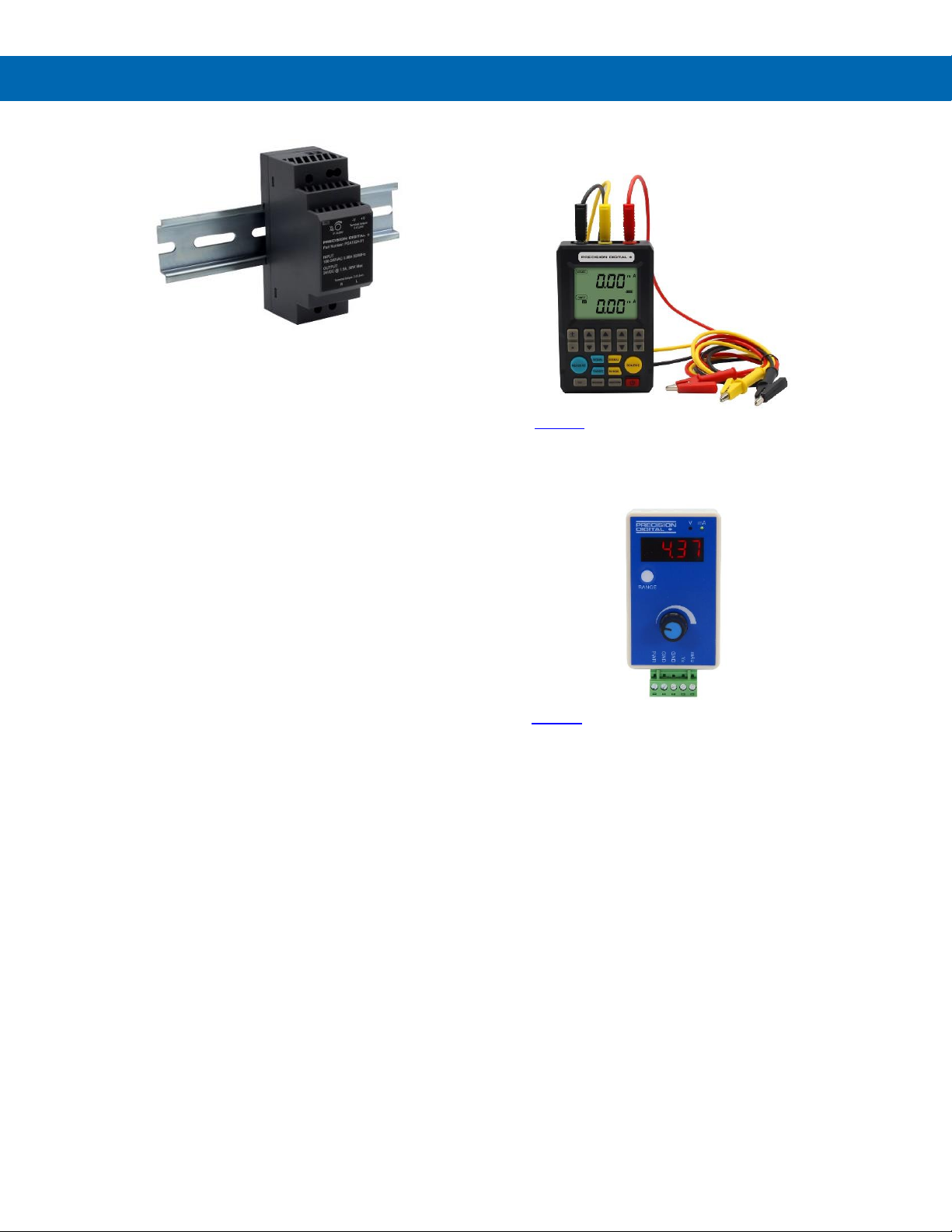

PDA1024-01 24 VDC Power Supply
The PDA1024-01 is a DIN rail mounted 1.5 A,
24 VDC power supply that can be used to power
the 4-20 mA transmitter.
Useful Tools
PD9501 Multi-Function Calibrator
This PD9501 Multi-Function Calibrator has a variety
of signal measurement and output functions, including
voltage, current, thermocouple, and RTD.
PD9502 Low-Cost Signal Generator
The PD9502 is a low-cost, compact, simple to use
4-20 mA or 0-10 VDC signal generator. It can easily
be set for 0-20 mA, 4-20 mA, 0-10 V or 2-10 V
ranges. Signal adjustment is made with a one-turn
knob. A wall plug is provided with the instrument.
Optional USB power bank is available.
Page 14
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
14
Specifications
Except where noted all specifications apply to operation at +25°C.
Display
Display
Dual-line LCD with backlight.
Top: 2.8" (71 mm),
5 alphanumeric 14-segment characters.
Bottom: 1.5" (39 mm),
8 alphanumeric 14-segment characters.
Display may be programmed to turn red
and flash a user-defined message on
alarm condition.
Top Display
5 digits (-9999 to 99999) or 5 characters
(all capital & most lower-case letters)
Bottom Display
8 digits (-9,999,999 to 99,999,999;
separated by commas) or 8 characters
(all capital & most lower-case letters)
Backlight Power
Requirement
24 VDC @ 46 mA, typical
Bargraph
20 segments, numeric percent indication
at top
Decimal Point
Up to four decimal places on top display and
up to seven decimal places on bottom display
Commas
Commas to indicate 1000s
(e.g. 88,987,628) on bottom display only
Dual-Scale
Feature
The input can be displayed in different
scales on the top and bottom displays.
For instance, the top display could display
the flow in GPM and the bottom display
could display that same input in CFM.
Alarm Indication
Programmable: red backlight, flashing
display, Bargraph segment flashes on alarm.
Backlight requires external 24 VDC.
Custom Alarm
Messages
Programmable for each relay/open collector:
8 characters maximum; displayed every 10 sec
for 1 sec on bottom display. May be turned off.
Display Update
Rate
Ambient > -10°C: 1 Update/Second
Ambient = -20°C: 1 Update/2 Seconds
From -20°C to -40°C the update rate
slows down 1 second for every -2°C
(e.g. at -24°C, 1 update/4 seconds).
Overrange
Top: 99999; Bottom: 99,999,999 (flashing)
Underrange
Top: -9999; Bottom: -9,999,999 (flashing)
General
Programming
Method
Buttons behind lower panel door & Free
PC-based USB programming software
Enclosure &
Materials
Material: High impact Polycarbonate with
UV stabilizer enclosure, UL 94V-0
Rating: NEMA 4X / IP65
Gasket: Polyurethane
Color: gray
Includes four PG11 through-hole conduit
openings, with two factory installed PG11,
IP68, black nylon threaded hole plugs with
backing nuts.
Environmental
Operating temperature range:
-40 to 75°C (-40 to 167°F)
Storage temperature range:
-40 to 85°C (-40 to 185°F)
Relative humidity: 0 to 90% non-condensing;
Printed circuit boards are conformally coated.
Noise Filter
Averages the input signal over a period of
time between 1 and 16 seconds to
dampen the effects of a noisy signal that
causes a jumpy display.
Filter Bypass
0.0 to 99.9% of full scale. Input signal
changes greater than bypass value are
displayed immediately.
Recalibration
Recalibration is recommended at least
every 12 months.
Max/Min
Display
Max/min readings reached by the process
are stored until reset by the user or until
power to the meter is turned off.
Tare
If the totalizer is disabled, the Tare
function zeros out the meter to remove
the weight of a container. Tare function
can be assigned to a function key or the
digital input.
Password
There are three separate passwords
available that can be set independently of
each other: Main, Total, and Grand Total.
The Main password prevents access to
the meter Programming Mode. Total and
Grand Total passwords prevent resetting
the total and grand total, respectively.
Non-Volatile
Memory
Total and Grand Total values, and all
programmed settings are stored in nonvolatile memory for a minimum of ten
years if power is lost.
Normal Mode
Rejection
64 dB at 50/60 Hz
Connections
Removable screw terminals accept 12 to
22 AWG wire
Remote contacts: Accept 16 to 30 AWG wire.
Tightening
Torque
Screw terminal connectors: 4.5 lb-in (0.5 Nm)
Mounting screws: 8.0 lb-in max. (0.9 Nm)
Remote contacts: 2.5 lb-in (0.28 Nm)
Overall
Dimensions
10.6" x 12.6" x 4.8"
(270 mm x 320 mm x 121 mm) (H x W x D)
Weight
5.5 lbs (2.5 kg)
Warranty
3 years parts and labor. See Warranty
Information and Terms & Conditions on
www.predig.com for complete details.
Page 15
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
15
Input
Input
4-20 mA
Accuracy
±0.02% of span ±1 count,
Square root and
programmable exponent: 10-100% FS
Voltage Drop
2.1 V maximum
Equivalent
Resistance
105 Ω @ 20 mA
Input Overload
Over current protection to 1 A maximum
Over voltage protection to 30 VDC max
(between mA+ and mA-)
Temperature
Drift
25 PPM/°C from -40 to 75°C ambient
Function
Linear (2-32 points), square root, or
programmable exponent
PV2: Linear (2-32 points) or round horizontal
tank (If total is disabled and PV2 is enabled)
Low-Flow Cutoff
0.1 to 999,999 or disable. Point below at
which the display always shows zero.
HART
Transparency
The meter does not interfere with existing
HART communications; it displays the
4-20 mA primary variable and it allows the
HART communications to pass through
without interruption. The meter is not
affected if a HART communicator is
connected to the loop. The meter does
not display secondary HART variables.
Rate/Totalizer
Rate Display
Top display: -9999 to 99999;
Bottom display: -9,999,999 to 99,999,999
(with commas)
Total & Grand
Total Display
Top display: 0 to 99999;
Bottom display: 0 to 99,999,999
(with commas)
13-Digit Total &
Grand Total
Up to 9,999,999,999,999 using both lines
with 13-digit total feature enabled.
Total Decimal
Point
Up to four decimal places on top, up to
seven decimal places on bottom. Total
decimal point is independent of rate
decimal point.
Totalizer
Calculates total based on rate and rate
units to display total in engineering units. A
custom factor must be programmed if using
custom defined units.
Time Base
Seconds, Minutes, Hours, Days
Totalizer
Rollover
Totalizer rolls over when display exceeds
99,999,999 (9,999,999,999,999 if 13-digit
limit enabled). Relay status reflects display.
Total & Grand
Total Reset
Via front panel button, external contact
closure on digital input, or MeterView XL.
Total & Grand
Total Reset
Passwords
Total and grand total passwords may be
entered to prevent resetting the total or
grand total unless a password is entered.
Non-Resettable
Grand Total
Grand total reset may be disabled through
the meter interface. Grand total reset may
be permanently disabled by selecting YES
at the PERMLOCK menu.
• Once the Grand Total has been programmed as
“non-resettable” the feature CANNOT be disabled.
Non-Volatile
Memory
Total and Grand Total values are stored in
non-volatile memory for a minimum of ten
years if power is lost.
Batch Control
Methods
Automatic or Manual,
count up or count down
Manual Batch
Start
Pressing F1 function key starts the batch
Manual Batch
Pause/Stop
Pressing F3 once pauses the batch,
pressing it twice cancels the batch
Automatic
Batching
The Loop Leader+ can be used as an
automatic batch controller where batches
run continuously without operator input
Batching Relay
Operation
Single or dual-relay batching with optional
preclose for two-stage operation
Batch Preset
Set via F2 function key anywhere between
0.0001 to 99,999 based on batch total
decimal point. If batch total is assigned to
bottom, the preset can be up to 8 digits.
Batch Preclose
For two-stage batch application, a preclose
value can be set to close the main flow line.
Automatic Batch
Restart Delay
1 to 9,999 seconds. The batch will
automatically restart after completion
of the last batch.
Page 16
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
16
Common Open Collector & Relay Specifications
Number
Two open collectors & two relays
High or Low
Alarm
User programmable for high or low alarm
Alarm Deadband
0-100% FS, user programmable
Output
Assignment
Alarm, Timer, Stopwatch, or Disable
Alarm Output
Source
Assign to rate, total, grand total, or digital
input
On & Off Time
Delay
0 to 9,999 seconds
Fail-Safe
Operation
Independent for each open collector
and relay.
Fail-safe on, the output is on under
normal conditions.
Fail-safe off, the output is on under
alarm conditions.
Alarm Operation
Automatic, automatic with manual
override, latching (manual reset
anytime), latching with reset after
cleared (manual reset only after alarm
has cleared)
Alarm Indication
Programmable: red backlight, flashing
display, Bargraph segment flashes on alarm.
Backlight requires external 24 VDC.
Custom Alarm
Messages
Programmable for each relay/open collector:
8 characters maximum; displayed every 10
sec for 1 sec on bottom display. May be
turned off.
Alarm
Acknowledge
Front panel ACK button or external
digital input resets output and screen
indication.
Auto Initialization
When power is applied to the meter,
open collectors and relays will reflect
the state of the input to the meter.
Timer Output
One-shot or Continuous
Off Time Delay: 1 sec to 99:59:59
(hrs:min:sec)
On Time: 1 sec to 99:59:59 (hrs:min:sec)
Stopwatch
Output turns on when started and off
when stopped.
Open Collector Outputs
Rating
Isolated open collector, sinking NPN
5-30 VDC @ 150 mA maximum
Output
Assignment
Pulse, Alarm, Timer, Total Reset,
Stopwatch on/off, or Disable
Pulse Output
Source
Pulse output based on Rate, Total,
Grand Total, or Test Frequency, Alarm,
Timer, Total Reset, Stopwatch on/off, or
Disable
Pulse Output
Factor
0.000001 to 999,999.9
Pulse Width
0.5 ms @ 1 kHz; 500 ms @ 1 Hz;
50% duty cycle
Pulse Output
Frequency
1,000 Hz maximum
Quadrature Pulse
Output
Available for Output 2 (90° behind
Output 1) 500 Hz max
Alarm Output
Source
Assign to Rate, Total, Grand Total or
Digital Input
Solid-State Relays
Rating
250 VAC/VDC @ 1A resistive
75VA; 250VAC; 0.6A pilot duty
(inductive)
25VA; 250VDC; 0.6A pilot duty
(inductive)
Noise
Suppression
Metal oxide varistors across outputs
Relay
Assignment
Alarm, Sample, Timer, Batch, Stopwatch
on/off, or Disable
Alarm Output
Source
Assign to Rate, Total, Grand Total, or
Digital Input
Relay Runtime
Meter will keep track of how long each
relay has operated and display this
information.
Relay Cycles
Meter will keep track of how many times
the relays have cycled and display this
information.
4-20 mA Transmitter Output
Accuracy
±0.05% FS ±0.001mA
Output Source
Rate, total, re-transmit; reverse scaling
allowed
Scaling Range
1.00 to 23.0 mA
Disable
High impedance state, less than 1 mA
Calibration
Factory calibrated 4.00 to 20.00 mA
Underrange
1.0 mA, 3.5 mA, or 3.8 mA
(If input < 3.5 mA); or Off;
user selectable
Overrange
20.5 mA, 20.8 mA, or 23.0 mA
(If input > 20.5 mA); or Off;
user selectable
Isolation
500 V input-to-output
Temperature Drift
0.5 µA/°C max from -40 to 75°C ambient
External Loop
Power Supply
7.0 VDC to 30.0 VDC maximum
Output Loop
Resistance
10-750 Ω @ 24 VDC; 10-1100 Ω @ 30 VDC
On-Board Digital Input
Function
Remote operation of front-panel buttons,
acknowledge/reset relays, reset total,
reset max/min values, etc. See User
section of Display Functions &
Messages on page 30 for a complete list
of capabilities.
Contacts
2.1 VDC on contact. Connect normally
open contacts across DI+ and DI-
Logic Levels
Logic High: 2.4 to 30 VDC (max)
Logic Low: 0 to 0.9 VDC
Page 17
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
17
Remote Contacts
Function
Terminals provided for remote operation of
all four programming / operation buttons
(use PDA2364-MRUE control station).
Remote
Buttons
Menu, Right, Up, Enter
Remote
Function
Keys
F1 / Display*
F2 / Reset*
F3 / Ack*
*Defaults
• DO NOT connect anything else, other than
normally open switch contacts, to the Remote
Contacts terminals.

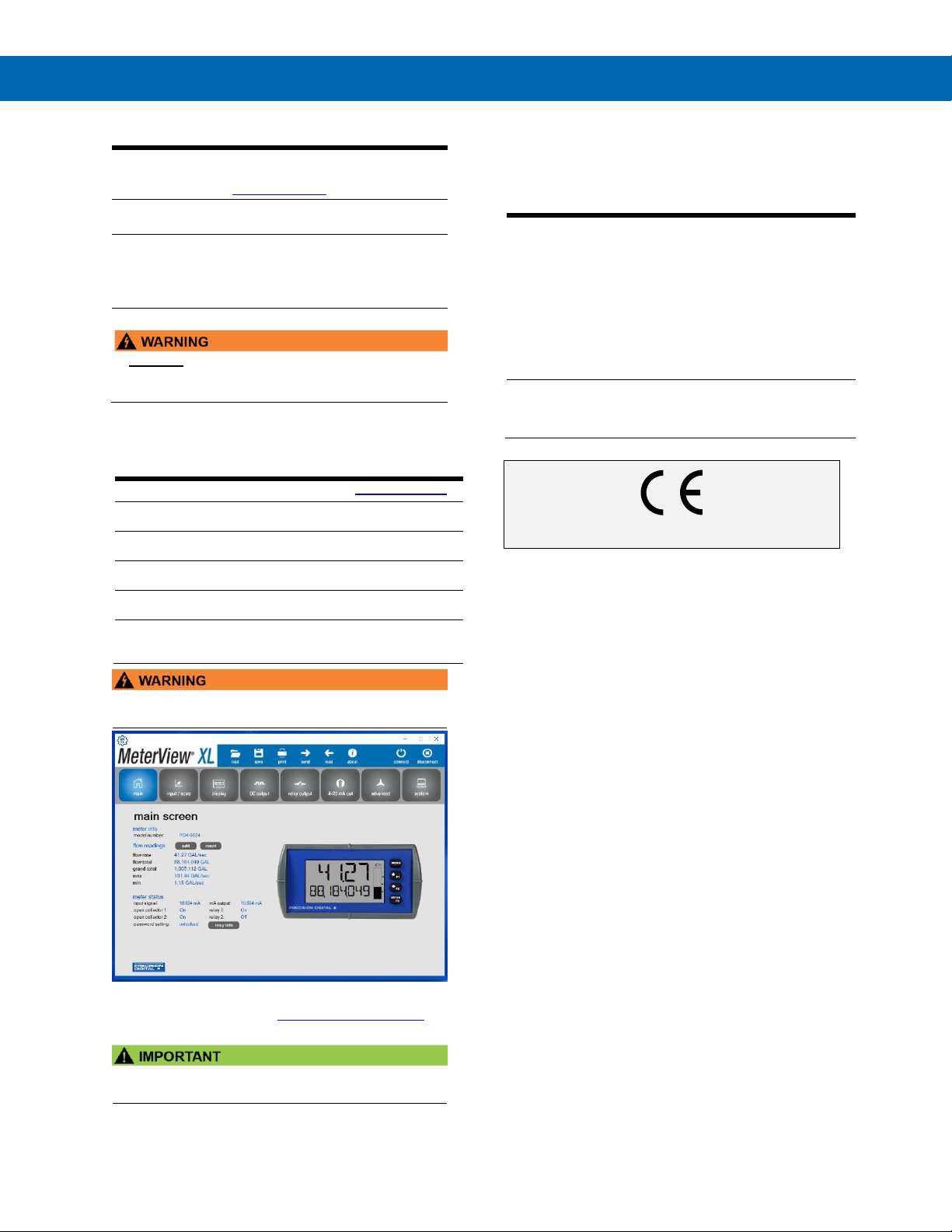

MeterView XL Programming Software
Availability
Free download from www.predig.com
System
Requirements
Microsoft® Windows® 7 & 10
Communications
USB 2.0 (Standard USB A to Micro USB B)
Cable provided
Configuration
Configure all parameters on the meter.
Configure meters one at a time.
Configuration Files
Generate with or without meter
connected; Save to file for later use.
USB Power
Connection
Meter is powered by USB connection
during programming, if 4-20 mA loop is
not connected.
• The meter should only be connected to a computer
while it is located in a safe area.
To download the latest MeterView XL programming
software and manual, visit predig.com/meterviewxl.
• The image in the software shows the panel meter
version. The same software is used for the PD4.
General Compliance Information
Electromagnetic Compatibility
EMC Emissions
• CFR 47 FCC Part 15 Subpart B Class A
emissions requirements (USA)
• AS/NZS CISPR 11
Class A ISM emissions requirements
(Australia)
• EN 55011
Group 1 Class A ISM emissions
requirements (EU)
• ICES-001 Issue 4 ISM emissions
requirements (Canada)
EMC Emissions
and Immunity
EN 61326-1
EMC requirements for Electrical equipment
for measurement, control, and laboratory
use – inductrial use
All PD4 Models
Page 18
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
18
PD4-6628 Compliance
Information
Hazardous Area Approvals
ATEX
II 1 G D
Ex ia IIC T4 Ga
Ex ia IIIC T200°C Da
-40°C ≤ Ta ≤ 75°C
Certificate Number: CML 18ATEX2091X
IECEx
Ex ia IIC T4 Ga
Ex ia IIIC T200°C Da
-40°C ≤ Ta ≤ 75°C
Certificate Number: IECEx CML 18.0051X
PD4-6628 Only
ATEX/IECEx Special Conditions for Safe Use
The following conditions relate to safe installation
and/or use of the equipment.
• The equipment loop/power port must be
connected to an intrinsically safe barrier with
Uo ≥ 5.8V.
• The PD4 enclosure is non-metallic. Under certain
extreme circumstances, the plastic enclosure may
store an ignition-capable level of electrostatic
charge. Therefore, the user/installer shall
implement precautions to prevent the build-up of
electrostatic charge, e.g. locate the equipment
where a charge-generating mechanism (such as
wind-blown dust) is unlikely to be present and
clean with a damp cloth.
• All cable entries into the equipment shall be via
cable glands or conduit which provide a minimum
degree of protection of IP54.
• The equipment shall not be opened when a
hazardous atmosphere is present.
• The remote contact port shall only be connected to
voltage free contacts.
For European Community:
The PD4-6628 must be installed in accordance with
the ATEX directive 2014/34/EU, the product
certificates CML 18ATEX2091X, IECEx CML
18.0051X and the product manual.
There is no need to remove the meter from its case to
complete the installation, wiring, and setup of the
meter for most applications.
I.S. Equipment
Entity
Parameters
Required
Relationship
Between Entity
Parameters
I.S. Barrier Entity
Parameters
V max (or Ui)
≥
Voc or Vt (or Uo)
I max (or Ii)
≥
Isc or It (or Io)
P max, Pi
≥
Po
Ci + Ccable
≤
Ca (or Co)
Li + Lcable
≤
La (or Lo)
For North American Community:
Installation and service of this device and/or
associated apparatus (barrier) should be performed
only by trained service personnel
and must be installed in accordance with the
manufacturer’s control drawing, Article 504 of the
National Electric Code (ANSI/NFPA 70) for installation
in the United States, or Section 18 of the Canadian
Electrical Code for installations in Canada.
• EXPLOSION HAZARD – Do not disconnect
equipment unless power has been removed or the
area is known to be non-hazardous
• RISQUE D’EXPLOSION – NE PAS BRANCHER NI
DÉBRANCHER SOUS TENSION.
Year of Construction
This information is contained within the serial number
with the first four digits representing the year and
month in the YYMM format.
IECEx
Page 19
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
19
EU Declaration of Conformity
For shipments to the EU and UK, a Declaration of
Conformity was printed and included with the product.
For reference, a Declaration of Conformity is also
available on our website www.predig.com/docs.
Safety Information
• Read complete instructions prior to installation and
operation of the meter.
• Installation and service should be performed only
by trained service personnel.
• Service requiring replacement of internal
components must be performed at the factory.
• Control room equipment must not use or generate
more than 250 VRMS or VDC.
• Hazardous location installation instructions for
associated apparatus (barrier) must be followed
when installing this equipment.
• For safe installation of an ATEX approved
transmitter in series with PD4-6628 loop-powered
meters, the hazardous location installation
instructions for the transmitter, PD4-6628 looppowered meter, and associated apparatus (barrier)
must be compatible.
• PD4-6628 Series Loop-Powered meters do not add
capacitance or inductance to the loop under normal
or fault conditions.
• Substitution of components may impair hazardous
location safety.
• Equipment contains non-metallic materials and
therefore special care and consideration should be
made to the performance of these materials with
respect to chemicals which may be present in a
hazardous environment.
Field Modification
Service requiring replacement of internal components
must be performed at the factory.
Entire meter assembly (electronic assembly) may be
replaced within the field with a unit supplied from the
factory labeled “Field Modification”.
Installation
There is no need to open the clear plastic front cover
in order to complete the installation, wiring, and setup
of the meter.
All programming is done using MeterView XL
software or through the buttons and switches located
behind the lower panel door and are accessible by
removing the single securing screw. Wires should be
run through the knockout holes located on the bottom
of the meter, see Figure 5. Conduit Holes Location –
Bottom View on page 20 for details.
There are a total of four pre-drilled conduit entry holes
located at the bottom of the meter. If the need to drill
additional holes arises, make sure you will have the
clearance necessary for conduit mounting hardware.
The PD4 comes with two factory installed PG11,
IP68, black nylon threaded hole plugs with backing
nuts for unused conduit holes.
• PD4-6628 installation must be performed in
accordance with Control Drawing DW2638
(contained within LIM4-6600-2) in order to meet
agency approval ratings.
Unpacking
Remove the meter from box. Inspect the packaging
and contents for damage. Report damages, if any,
to the carrier.
If any part is missing or the meter malfunctions,
please contact your supplier or the factory for
assistance.
Page 20
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
20
Wall Mounting Instructions
The meter can be mounted to any wall using the four
provided mounting holes. Note that the bottom mounting
holes are located underneath the lower door panel. To
mount the meter to a wall, follow these instructions
• Prepare a section of wall approximately 11" x 13"
(280 mm x 330 mm) for meter mounting by marking
with a pencil the mounting holes (shown in Figure 1)
on the wall.
• Select the appropriate mounting screws for the
mounting surface to be used. The mounting holes
diameter is shown on Figure 2.
Note: Mounting screws are not included.
• Using a drill bit slightly smaller than the girth of the
mounting screws, pre-drill holes at the mounting
locations previously marked.
• Insert mounting screws into the four mounting holes
and screw them into the pre-drilled holes. DO NOT
overtighten the mounting screws as it is possible that
the enclosure could crack and become damaged.
Figure 1. Meter Mounting Holes Location
Figure 2. Meter Mounting Holes Dimensions
Mounting Dimensions
Figure 3. Meter Dimensions – Side View
Figure 4. Meter Dimensions - Front View
Conduit Holes Location
Figure 5. Conduit Holes Location – Bottom View
Mounting Hole
Mounting Hole
Mounting Hole
Mounting Hole
Lower
Door
Panel
Page 21
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
21
Pipe Mounting Instructions
The meter can also be mounted to a pipe using the optional
pipe mounting kit (PDA6260). This kit includes two mounting
plates, two U-bolts, and the necessary nuts and bolts. To
mount the meter to a pipe using the pipe mounting kit
accessory, follow these instructions.
• Secure the mounting plates to the top and bottom (for
vertical pipes) or left and right (for horizontal pipes) of
the reverse side of the meter enclosure using the
provided fasteners.
DO NOT overtighten the fasteners as it could cause
damage to the enclosure.
• Using the provided nuts and U-bolts, secure the
mounting plates to the pipe applying enough torque
such that the meter cannot be moved up or down (or
side to side).

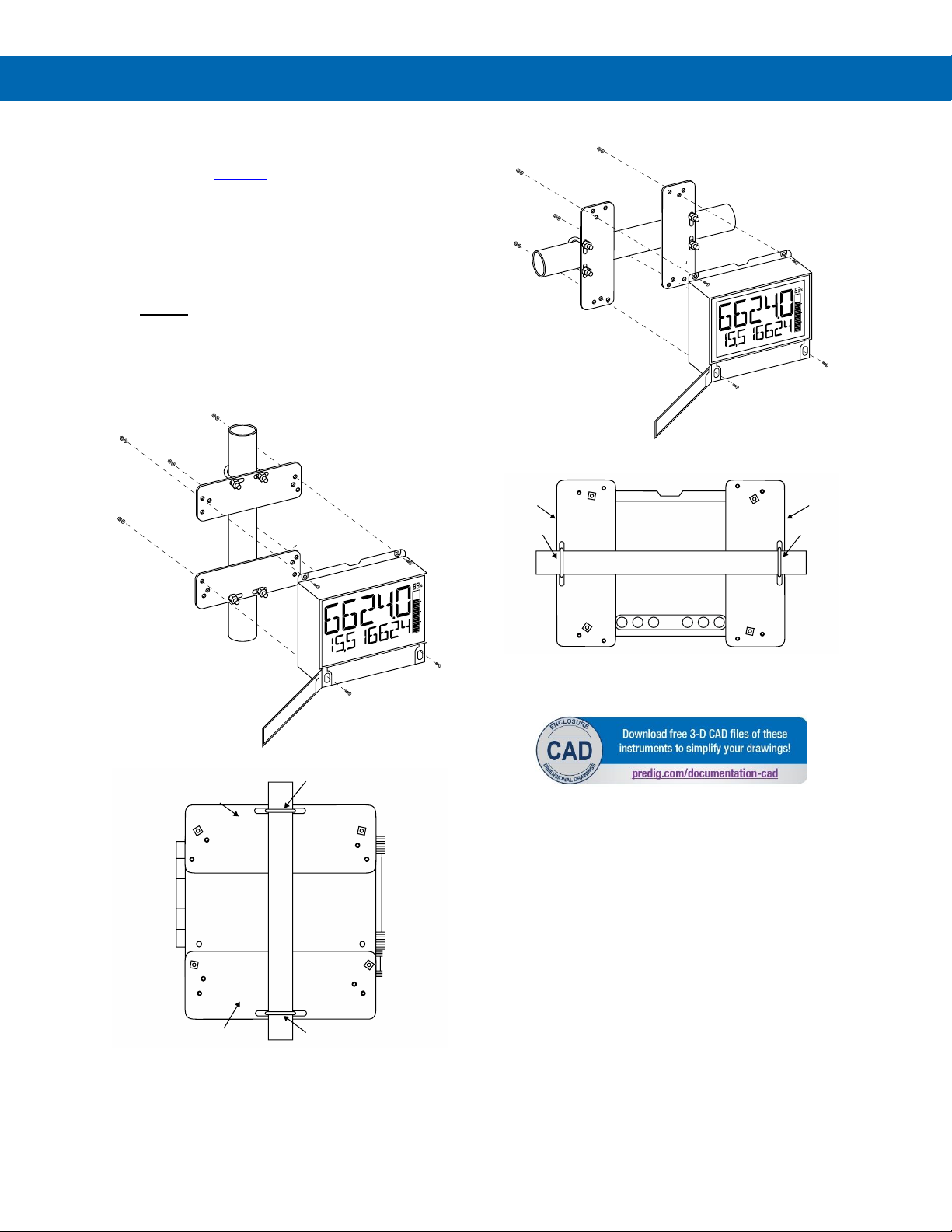

Figure 6. Vertical Pipe Mount Assembly
Figure 7. Horizontal Pipe Mount Assembly
Mounting Plate
U-Bolt
Pipe
U-Bolt
Back of
Meter
Mounting Plate
Mounting
Plate
Mounting
Plate
Pipe
Back of
Meter
U-BoltU-Bolt
Page 22
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
22
MeterView XL Programming Software
Free, PC-based, MeterView XL software that connects
to the meter via a USB cable is available for
programming and setup of the meters. This software
greatly simplifies the programming process and allows
the user to save configuration files for later use. The
meter will also be powered by the USB connection so
no additional power is needed during programming.
• Free PC-Based USB Programming Software
• Easy Programming of Feature-Packed
Product
• USB Connection Provides Power to the
Meter During Programming
• Save & Print Configuration Files without
Meter Connected
• USB Cable Provided with Meter
• PC Data Logging for One or Multiple
Variables
MeterView XL Software Installation
• The meter should only be connected to a computer
while it is located in a safe area.
• Please uninstall previous versions of this software
prior to downloading, installing, and running the
latest version.
• The image in the software shows the panel meter
version. The same software is used for the PD4
1. For complete instructions on how to use
MeterView XL go to predig.com/meterviewxl.
2. Download MeterView XL Installation file to your
PC from the included CD or go to
predig.com/meterviewxl
3. Locate the MeterView XL zipped folder on your
PC and double-click to extract and open:
4. Double-click MeterView XL Windows Installer
Package file to open:
5. The MeterView XL Setup Wizard window will
appear. Click “Next” to start the installation
process:
6. The MeterView XL License Agreement window
appears next. Select “I agree” and click “Next”
to continue the installation process:
Page 23
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
23
7. Choose the folder location where you would
like the software to be installed to and select
options for use. Then click “Next” to continue:
8. Confirmation window will appear. Click “Next”
to confirm the installation:
9. The User Account Control message is
displayed. Click “Yes” to proceed with the
installation:
10. Finally, the Installation Complete window will
appear. Click “Close” to exit:
Now you are ready to open the MeterView XL software
to begin programming your Loop Leader+ meter.
Connecting to the Computer
Loop Leader+ series meters may be connected to any
Windows 7 or Windows 10 PC via the provided USB
cable by following these steps:
1. Open the MeterView XL software.
2. Connect the Loop Leader+ meter to the PC
with the provided USB cable.
3. The software will ask if you would like to
read the meter. Click OK.
Specifications
Availability
Free download from www.predig.com
System
Requirements
Microsoft® Windows® 7 & 10
Communications
USB 2.0
(Standard USB A to USB B)
Configuration
Configure all parameters on the meter.
Configure meters one at a time.
Configuration
Files
Generate with or without meter
connected; Save to file for later use.
USB Power
Connection
Meter is powered by USB connection
during programming, if 4-20 mA loop is
not connected.
Page 24
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
24
Connections
All connections are made to screw terminal connectors located behind the lower panel door. Remove the single
securing screw in order to access the wiring terminals.
This section is only intended for PD4-6624 safe area installations.
• Use copper wire with 60°C or 60/75°C insulation for all line voltage connections. Observe all safety regulations.
Electrical wiring should be performed in accordance with all applicable national, state, and local codes to prevent
damage to the meter and ensure personnel safety.
• PD4-6628 installation must be performed in accordance with Control Drawing LIM4-6600-2 in order to meet agency
approval ratings.
Connectors Labeling
The graphics below show the location of all connectors available with requested configuration.

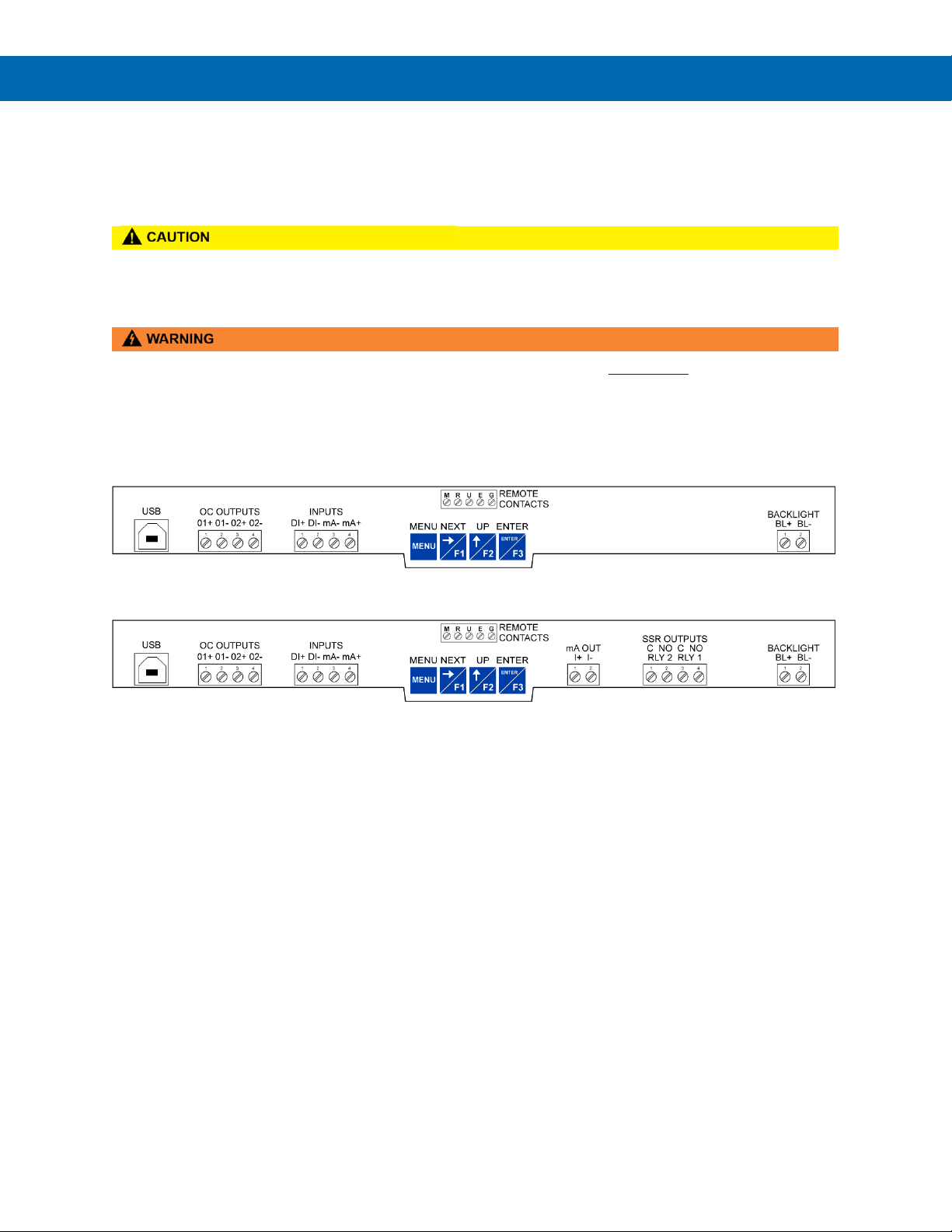

Figure 8. Connector Labeling for PD4-66XX-LNN
Figure 9. Connector Labeling for PD4-66XX-L5N
Page 25
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
25

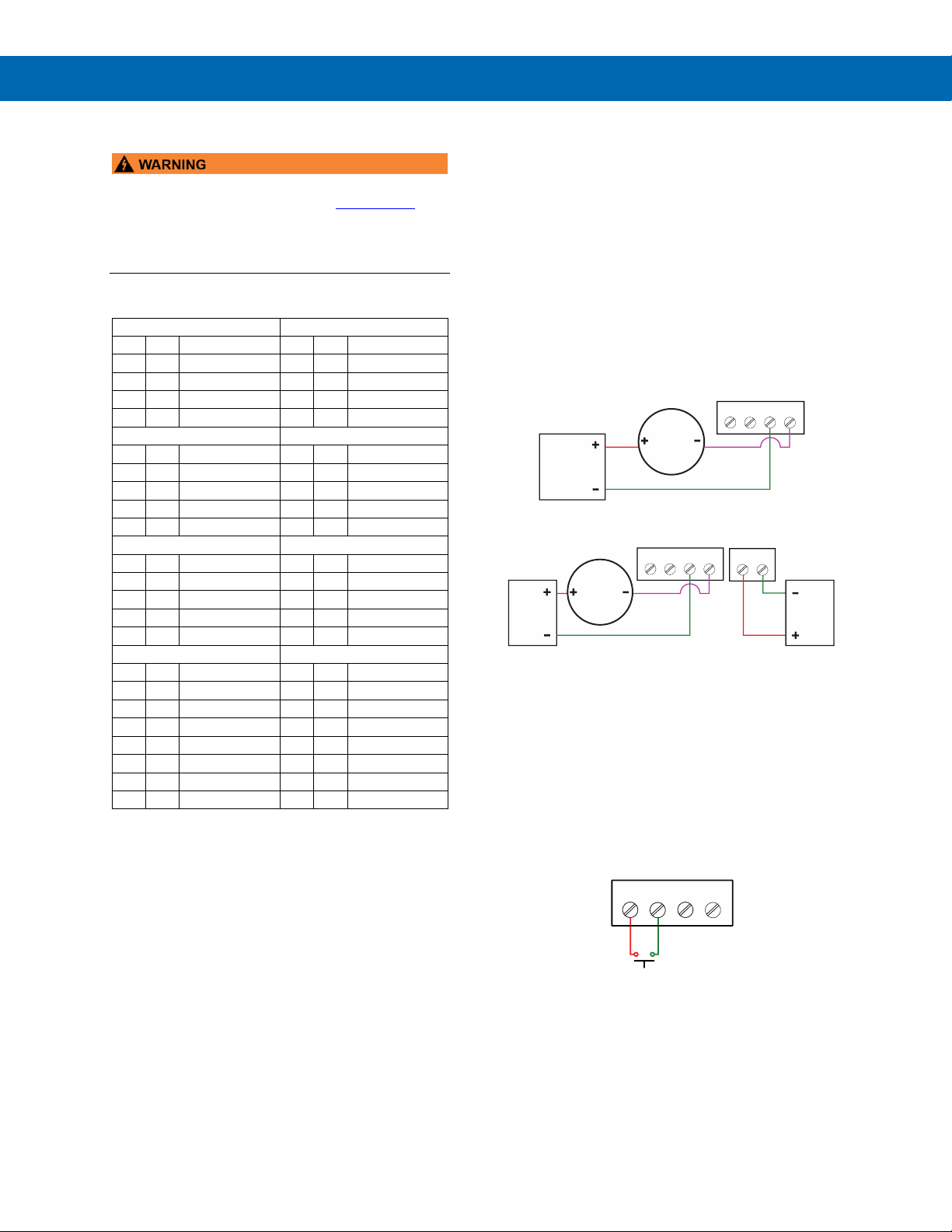

Wiring Diagrams
• PD4-6628 installation must be performed in
accordance with Control Drawing LIM4-6600-2 in
order to meet agency approval ratings.
• For ATEX certification, barrier and transmitter must be
ATEX Certified with Entity Parameters and must be
connected per manufacturer’s instructions.
I/O Parameter Table
Loop/Power Connection
4-20 mA HART Output
Ui = 30 V
Ui = 30 V
Ii = 175 mA
Ii = 175 mA
Pi = 1 W
Pi = 1 W
Ci = 0
Ci = 0
Li = 0
Li = 0
Open Collector Outputs
Switch Port
Ui = 30 V
Ui = 30 V
Ii = 175 mA
Ii = 175 mA
Pi = 1 W
Pi = 1 W
Ci = 0
Ci = 0
Li = 0
Li = 0
4-20 mA Linear Output
Backlight Supply
Ui = 30 V
Ui = 30 V
Ii = 175 mA
Ii = 175 mA
Pi = 1 W
Pi = 1 W
Ci = 0
Ci = 0
Li = 0
Li = 0
Relay Outputs
Remote Contacts
Ui = 30 V Ii = 1.0 A
Pi = 1 W Ci = 0.013 µF
Ci = 0.013 µF
Li = 0
Li = 0
Uo = 11.55 V
Uo = 7.01 V
Io = 0.001 A
Io = 0.193 A
Po = 0.012 W
Po = 0.265 W
Safe Area Current Loop (4-20 mA) Connections
Signal connections are made to a four-terminal
connector labeled INPUTS. See Connectors Labeling
on page 24. The following figures show a 4-20 mA
current loop connected to the meter. Figure 10 shows
the connection without the backlight and Figure 11
shows the connection with the backlight (the backlight
can be disabled/enabled in the SYSTEM menu). The
backlight can be powered from the same DC power
source that powers the 4-20 mA loop, but requires
additional wiring as shown in Figure 11.
There are no switches or jumpers to set up for the
input. Setup and programming is performed through
the programming buttons or MeterView XL software.
Figure 10. 4-20 mA Input Connection without Backlight
Figure 11. 4-20 mA Input Connection with Backlight
The current input is protected against current
overload up to 1 amp. The display may or may not
show a fault condition depending on the nature of the
overload.
Safe Area Digital Input Connections
A digital input is standard on the meter. This digital
input is connected with a normally open contact
across DI+ and DI-, or with an active low signal
applied to DI+ and DI-.
Figure 12. Digital Input Connections
DI+ DI- mA- mA+
4-20 mA
Transmitter
Power
Supply
DI+ DI- mA- mA+
BL-BL+
4-20 mA
Transmitter
Power
Supply
24 VDC
Power
Supply
DI+ DI- mA- mA+
Page 26
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
26
Safe Area 4-20 mA Output Connections
Connections for the 4-20 mA transmitter output are
made to the connector terminals labeled mA OUT.
The 4-20 mA output must be powered from an
external power supply.
Figure 13. 4-20 mA Output Connections
Safe Area Solid-State Relay Connections
Relay connections are made to a four-terminal
connector labeled SSR OUTPUTS on Figure 14.
Solid-State Relay Connections. Each relay’s C
terminal is common only to the normally open (NO)
contact of the corresponding relay.
Figure 14. Solid-State Relay Connections
Safe Area Open Collector Output Connections
Open collector output 1 and 2 connections are made to
terminals labeled O1+ and O1-, and O2+ and O2-.
Connect the alarm or pulse input device as shown below.
Figure 15. Open Collector Output Connections
Remote Operation of Meter
The meter can be operated remotely by connecting a
PDA2364-MRUE control station to the Remote Contacts
located behind the lower panel door of the meter as
illustrated in Figure 16. PDA2364-MRUE Control
Station Connected to Remote Contacts on PD4.
Note: The control station does not carry hazardous area
approvals and thus is not suitable for location in hazardous
areas. The use of additional protective devices may allow it
to be installed in a safe area and connected to a device in a
hazardous area. User should consult a professional engineer
to determine suitability of this product for their specific
application.
Figure 16. PDA2364-MRUE Control Station Connected to
Remote Contacts on PD4
I+ I-
Power
Supply
Device with
4-20 mA Input
CNO C NO
Internal
Load Load
POWER
RLY 2 RLY 1
O1+ O1- O2+ O2-
Alarm Indicator/
Pulse Counter
5-30 VDC
150 mA MAX
External DC
Relay
Power Supply
Internal
Page 27
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
27
Wiring Connections for MOD-PD2LH Models
The following diagram is for MOD-PD2LH models with a single color light.
The Light / Horn cannot be powered by the 4-20 mA loop. To use the Light / Horn an external power supply must
be used such as the PDA1024-01 as the following diagram illustrates.
Light / Horn & Button accessory available only on PD4-6624 units.

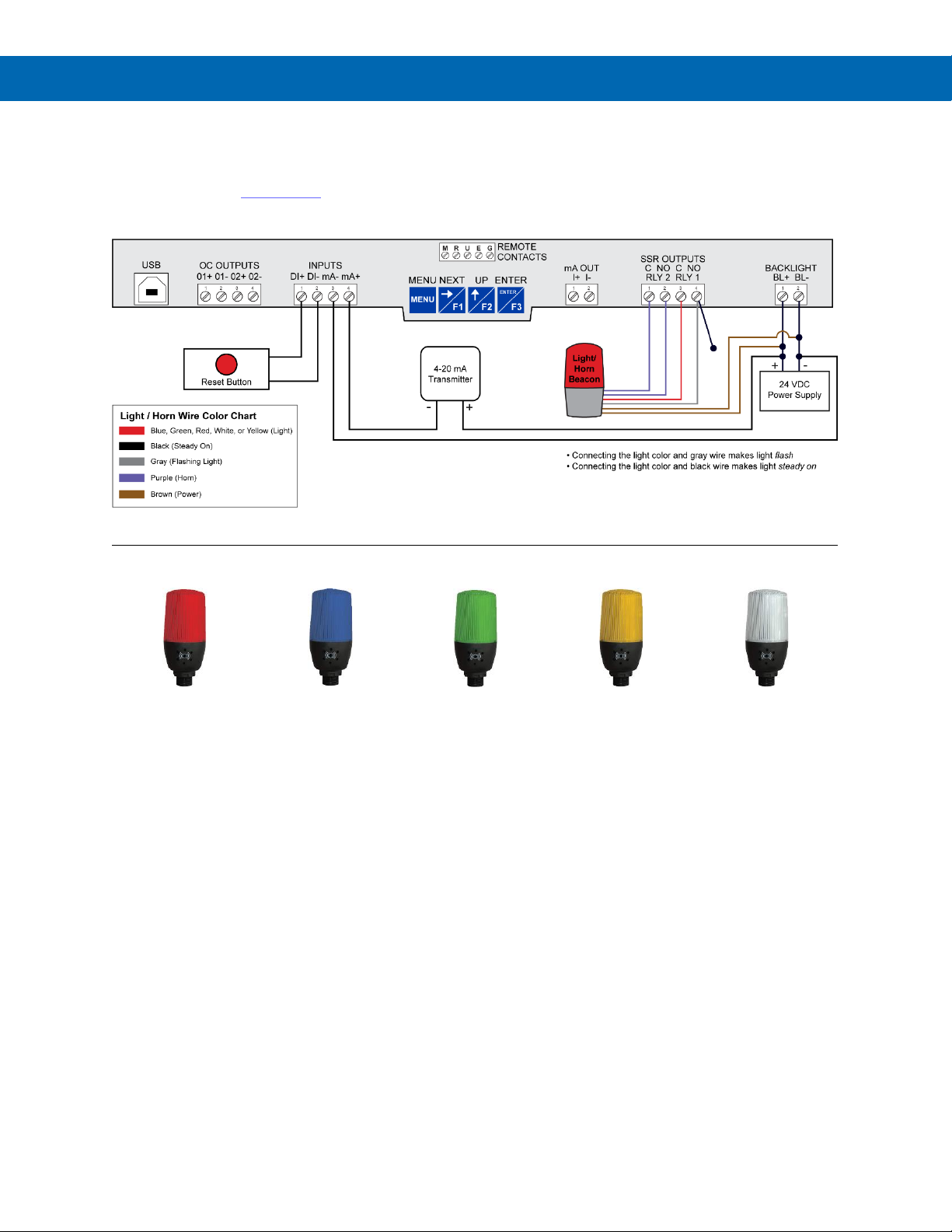

Figure 17. Light / Horn and Button (MOD-PD2LH) Connected to PD4
Available Light / Horn Colors
PDA-LHR
PDA-LHB
PDA-LHG
PDA-LHY
PDA-LHW
Page 28
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
28
Setup and Programming
Overview
There are no jumpers to set; setup and programming
is done by using the buttons (MENU, NEXT, UP,
ENTER) located behind the lower panel door of the
meter or PC-based software.
The meter may be powered via the USB connection
located behind the lower panel door of the meter for
the purposes of programming only. The backlight
requires an external power source. If the meter is
powered from the USB, the backlight will only work if
it is powered separately from a DC supply.

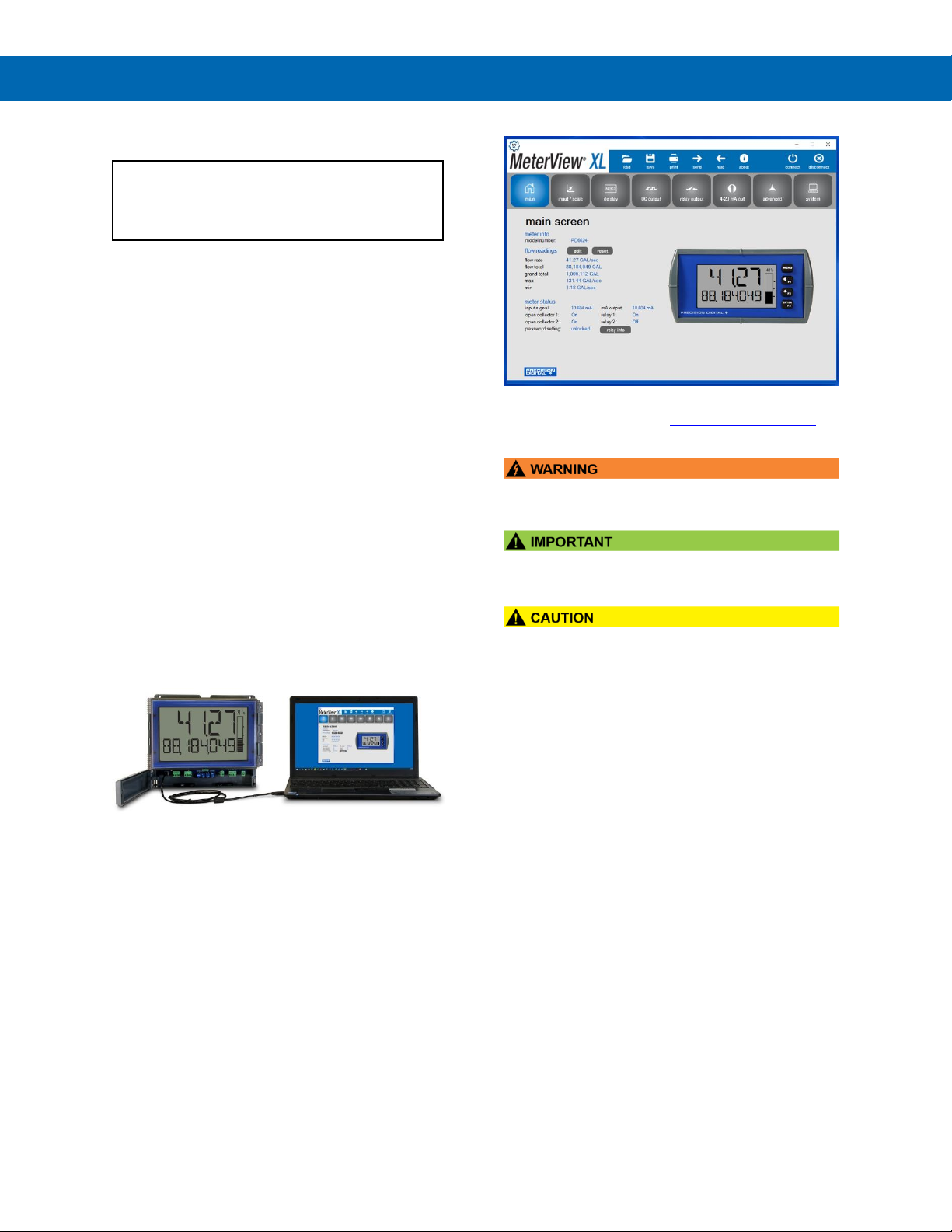

MeterView XL Programming Software
The meter can also be programmed using PC-based
MeterView XL software. This software greatly
simplifies the programming process and allows the
user to save configuration files for later use.
The meter connects to the PC via a provided microUSB cable and is powered by the USB connection so
no additional power is needed during programming.
To download the latest MeterView XL programming
software and manual, visit predig.com/meterviewxl.
• The meter should only be connected to a computer
while it is located in a safe area.
• The image in the software shows the panel meter
version. The same software is used for the PD4.
• Care should be exercised to avoid ground loops
when connecting the USB to an active loop (e.g.
power supply, transmitter, loop-powered meter,
etc.). It is recommended to connect the (mA+)
terminal of the meter to the (-) terminal of a twowire transmitter and the (mA-) to the (+) of the next
device in the loop or to the (-) terminal of the power
supply.
The meter is factory calibrated prior to shipment
to display 0.00 to 100.00, which corresponds to
the 4-20 mA input. The calibration equipment is
traceable to NIST standards.
Page 29
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
29
Programming Buttons
Button
Description
Button
Description
Bargraph with
Percentage Indication
Menu
Up Arrow/F2
Right
Arrow/F1
Acknowledge
(Enter)/F3
• Press the Menu button to enter or exit the Programming Mode at any time.
• Press or hold the Right-Arrow button to scroll forward through the menus, select digits during numeric
programming, select characters during text programming, or decrement the value of a digit or character
selected with the Up-Arrow button.
• Press and hold the Right-Arrow button to zero or clear digits/characters while in data-entry mode.
• Press or hold the Up-Arrow button to scroll backwards through the menus or to increment the value of
a digit or character.
• Press the Enter button to access a menu or to accept a setting or programmed digit/character value.
Remote Buttons
The meter can be operated via a remote control station (PDA2364-MRUE)
using the Remote Contacts. The PDA2364-MRUE mimics the PD4 meter’s
four programming buttons: Menu, Right Arrow, Up Arrow, and Enter.
See Remote Operation of Meter on page 26 for details.
Page 30
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
30
Display Functions & Messages
The meter displays various functions and messages during
setup, programming, and operation. The following table
shows the main menu functions and messages in the order
they appear in the menu.
Parameter
Action/Setting Description
INPUT
Program the meter 4-20 mA input
SCALE RATE
Scale the rate input
UNITS
Select the display units
/SECOND
Units per second
/MINUTE
Units per minute
/HOUR
Units per hour
/DAY
Units per day
GAL/(T)
Gallons per time unit (T)
L/(T)
Liters per time unit (T)
IGAL/(T)
Imperial gallons per time unit (T)
M3/(T)
Cubic meters per time unit (T)
BBL/(T)
Barrels per time unit (T)
BUSH/(T)
Bushels per time unit (T)
cuYD/(T)
Cubic Yards per time unit (T)
cuFt/(T)
Cubic Feet per time unit (T)
cuIn/(T)
Cubic Inches per time unit (T)
LiBBL/(T)
Liquid barrels per time unit (T)
BBBL/(T)
Beer barrels per time unit (T)
HECtL/(T)
Hectoliter per time unit (T)
AF/(T)
Acre-Foot per time unit (T)
CUSTOM/(T)
Custom unit per time unit (T)
INPUT 1
Program input 1 value
INP 1
Enter the input 1 value
DISP 1
Program display 1 value
DSP 1
Enter the display 1 value
INPUT 2
Program input 2 value (up to 32
points)
INP 2
Enter the input 2 value
DISP 2
Program display 2 value (up to 32
points)
DSP 2
Enter the display 2 value
SAVE?
Save programmed units, input,
and display values
OUTPUT
Program the meter’s available
outputs
OPEN COLLECTR
Program the meter’s open
collector outputs
OUTPUT1
Open collector 1 setup
OUTPUT2
Open collector 2 setup
DISABLE
Disable the open collector
Parameter
Action/Setting Description
PULSE
Program the open collector for
pulse output
ALARM
Program the open collector for
alarm output
TIMER
Program the open collector as a
timer
TOT RST
Program the open collector for
total reset
STPWATCH
Program the open collector to turn
on while the stopwatch is running
RELAY
Program the meter’s relay outputs
OUTPUT1
Relay 1 setup
OUTPUT2
Relay 2 setup
DISABLE
Disable the relay
ALARM
Program relay for alarm
functionality
SAMPLE
Program relay for sample
functionality
TIMER
Program relay as a timer
BATCH
Program the relay for batch control
functionality
STPWATCH
Program relay to turn on while the
stopwatch is running
INFO
View relay run time and cycle
count
4-20 mA
Program the meter’s 4-20 mA
output
RATE
Transmit a value based on the rate
display
TOTAL
Transmit a value based on the
total display
RETRANS
Retransmit the 4-20 mA input
signal
DISABLE
Disable the 4-20 mA output
CONTROL
Program manual or automatic
operation for the outputs
OC1
Open collector 1
OC2
Open collector 2
RELAY1
Relay 1
RELAY2
Relay 2
4-20 mA
4-20 mA output
AUTO
Set selected output to automatic
operation
MANUAL
Manually control selected output
operation
ADVANCED
Program the meter’s advanced
features
RATE
Advanced 4-20 mA rate input
programming
Page 31
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
31
Parameter
Action/Setting Description
FUNCTION
Select linear, square root, or
programmable exponent function
LINEAR
Set meter for linear function and
select number of linearization
points
SQROOT
Set meter for square root
extraction
EXPONENT
Set meter for programmable
exponent and enter exponent
value
SCALE.CAL
Scale or calibrate the 4-20 mA
input
SCALE RATE
Scale the rate 4-20 mA input
CAL RATE
Calibrate the rate 4-20 mA input
TOTAL
Advanced total programming
COUNT
Program the totalizer functionality
LIMIT
Set the number of digits used for
the total
8-DIGIT
Eight digits max (99,999,999)
13-DIGIT
Thirteen digits max
(9,999,999,999,999) Requires top
and bottom display to display
entire number, total will roll over to
zero when it exceeds the limit.
INITIAL
Set the total to start at a specific
number
RESET
Enable or disable the ability to
reset the total
ENABLE
Enable total reset (default)
DISABLE
Disable total reset
GTOTAL
Advanced grand total
programming
COUNT
Program the totalizer functionality
LIMIT
Set the number of digits used for
the total
8-DIGIT
Eight digits max (99,999,999)
13-DIGIT
Thirteen digits max
(9,999,999,999,999) Requires top
and bottom display to display
entire number, total will roll over to
zero when it exceeds the limit.
INITIAL
Set the total to start at a specific
number
RESET
Enable or disable the ability to
reset the grand total
ENABLE
Enable grand total reset (default)
DISABLE
Disable grand total reset
PERMLOCK
Set grand total as non-resettable
CUTOFF
Set low-flow cutoff
DISABLE
Disable low-flow cutoff
ENABLE
Enable low-flow cutoff
Parameter
Action/Setting Description
FILTER
Set noise filter value
1.0 SEC
1 second
2.0 SEC
2 seconds
4.0 SEC
4 seconds
8.0 SEC
8 seconds
16.0 SEC
16 seconds
OFF
Turn filter off
BYPASS
Set filter bypass (0.0 to 99.9% FS)
PASSWRD
Set a password for the meter
MAIN
Program the main meter password
TOTAL
Program the total reset password
GTOTAL
Program the grand total reset
password

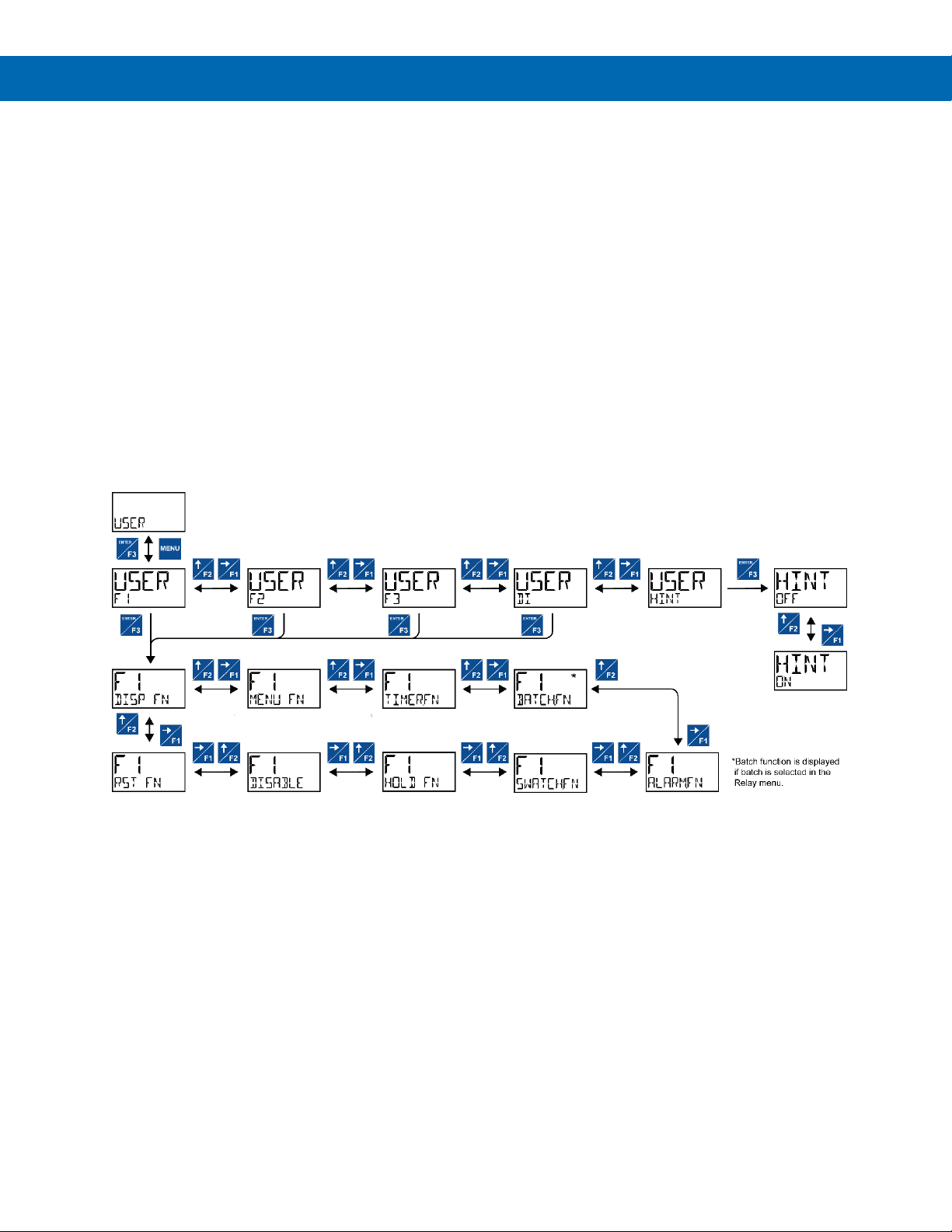

USER
Assign function keys and digital
input
F1
Assign F1 function key
F2
Assign F2 function key
F3
Assign F3 function key
DI
Assign digital input
DISP FN
Set the function key or digital input
to display a value
DISPLAY
Cycle max, min, rate, total, and
grand total
D RATE
Display the rate
D TOTAL
Display the total
DISP GT
Display the grand total
PCT.RATE
Display the rate’s percentage of
max (20 mA)
D UNITS
Display the rate, total, and grand
total units
D TAG
Display the tags
DISPMIN
Display the minimum rate value
DISPMAX
Display the maximum rate value
MIN MAX
Display the minimum and
maximum rate value
D mA IN
Display the current mA input value
D mAOUT
Display the current mA output
value
MENU FN
Set the function key or digital input
to access a menu
RLYINFO
Go to relay information menu
(INFO)
MANCTRL
Go to output control menu
(CONTROL)
TIMR OC1
Open collector 1 timer
TIMR OC2
Open collector 2 timer
TIMER R1
Relay 1 timer
Page 32
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
32
Parameter
Action/Setting Description
TIMER R2
Relay 2 timer
TIMER.FN
Set the function key or digital input
to start or stop a timer
STRT.ALL
Start all timers
STOP.ALL
Stop all timers
S.STP.ALL
Start or stop all timers
OC1
Start/stop open collector 1 timer
OC2
Start/stop open collector 2 timer
RLY1
Start/stop relay 1 timer
RLY2
Start/stop relay 2 timer
START
Start the selected timer output
STOP
Stop the selected timer output
STR-STP
Start or stop the selected timer
output
BATCH.FN
Set the function key or digital input
to batch control
START
Start a batch
STOP
Stop a batch
STR-STP
Start or stop a batch
PRESET
Preset batch amount
ALARM.FN
Set the function key or digital input
to acknowledge an alarm or
access set points
ACK
Acknowledge all active alarms
SETPOINT
Access all output set points
SETPT.OC1
Access open collector 1 set point
SETPT.OC2
Access open collector 2 set point
SETPT.R1
Access relay 1 set point
SETPT.R2
Access relay 2 set point
SWATCH.FN
Set the function key or digital input
to activate stopwatch
START
Start the stopwatch
STOP
Pause/Stop the stopwatch
STR-STP
Start or stop the stopwatch
HOLD FN
Set the function key or digital input
to hold an output
HOLD.OUT
Hold all outputs
HLD.UNHLD
Hold or un-hold all outputs
OC1+2
Hold/un-hold open collector
outputs
RLY1+2
Hold/un-hold relay outputs
mAOUT
Hold/un-hold 4-20 mA output
HOLD
Hold selected output
HLD.UNHLD
Hold or un-hold selected output
DISABLE
Disable the function key or digital
input
Parameter
Action/Setting Description
RST FN
Set the function key or digital input
to reset a value
RESET
Reset min, max, or max/min rate
value
R MIN.MAX
Reset max and min rate value
RST T
Reset the total
RST GT
Reset the grand total
RST T.GT
Reset the total and grand total
HINT
Display hint text on first key press
and execute action on second key
press
OFF
Turn the hint function off
ON
Turn the hint function on
SYSTEM
Program system settings
AOUTCAL
Calibrate the analog output
DEFAULT
Reset meter to factory defaults
TOTAL
Enable or disable the totalizer
ENABLE
Enable the totalizer (Default)
DISABLE
Disable the totalizer
(see PD4-6604 manual)
BACKLITE
Enable or disable the display
backlight
ENABLE
Enable the backlight (default)
DISABLE
Disable the backlight
INFO
View meter software version and
model, and change the meter
identifier tag
SFT
The software ID number
VER
The software version
MODEL
The meter hardware model
number
ID.TAG
The meter identifier tag
Press Enter to edit tag
ICAL
Internal calibration used for scaling
DISPLAY
Program the meter’s display
UNITS
Change the display units within the
selected unit class
DEC.PT
Change the decimal point location
RATE
Program the rate decimal point
TOTAL
Program the total decimal point
GTOTAL
Program the grand total decimal
point
COMMA
Enable or disable the use of a
comma to separate the thousands
place on the bottom display
ENABLE
Enable comma (default)
DISABLE
Disable comma
BARGRAPH
Turn off or change the bargraph
Page 33
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
33
Parameter
Action/Setting Description
RATE PCT
Set the bargraph to display the
rate percentage of full scale
RATE
Set the bargraph to display the
rate percentage of a user-selected
range
TOTAL
Set the bargraph to display the
total percentage of a user-selected
range
OFF
Turn off the bargraph

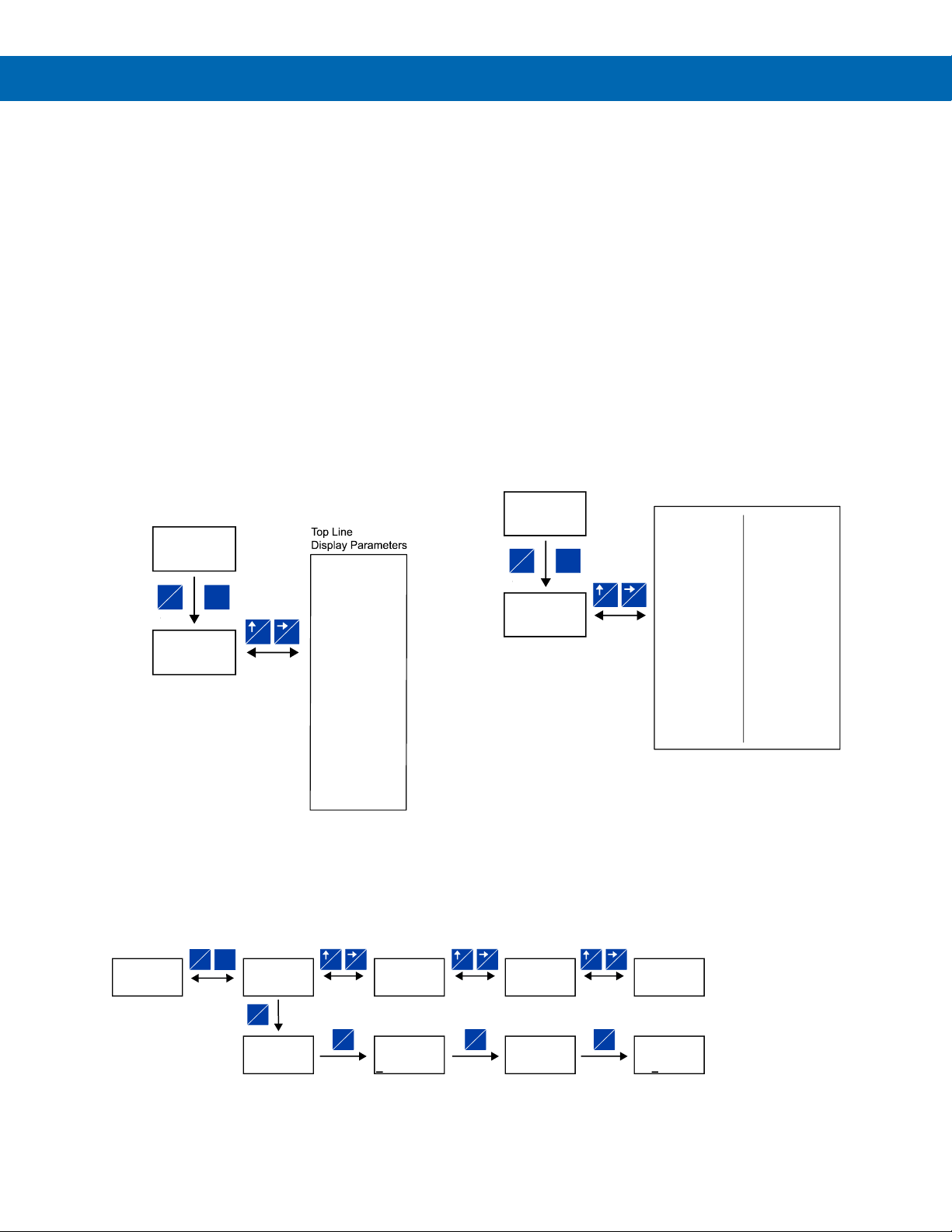

TOP
Select what to display on the top
display
RATE
Display the rate
RATE+U
Display the rate and its units
alternating
TOTAL
Display the total
TOTAL+U
Display the total and its units
alternating
GTOTAL
Display the grand total
TAG
Display the tag
UNITS
Display the units
PRESET
Display the preset value
STPWATCH
Display the stopwatch
TIMR OC1
Display open collector 1 timer
TIMR OC2
Display open collector 2 timer
TIMER R1
Display relay 1 timer
TIMER R2
Display relay 2 timer
MIN
Display minimum value
MAX
Display maximum value
MIN MAX
Display alternating min and max
OFF
Disable the top display
BOTTOM
Select what to display on the
bottom display
TOTAL
Display the total
TOTAL+U
Display the total and its units
alternating
TOT+TAG
Display the total and its tag
alternating
T+U+RU
Display the total, its units, and the
rate units alternating
GTOTAL
Display the grand total
GT+UNITS
Display the grand total and its
units alternating
GT+TAG
Display the grand total and its tag
alternating
GT+U+RU
Display the grand total, units, and
rate units alternating
RATE
Display the rate
Parameter
Action/Setting Description
RATE+TU
Display the rate and the total’s
units alternating
RATE+U
Display the rate and its units
alternating
RATE+TAG
Display the rate and its tag
alternating
R UNITS
Display the rate units
T UNITS
Display the total units
TAG
Display the tag
UNITS
Display the units
PRESET
Display the preset value
STPWATCH
Display the stopwatch
TIMR OC1
Display open collector 1 timer
TIMR OC2
Display open collector 2 timer
TIMER R1
Display relay 1 timer
TIMER R2
Display relay 2 timer
TAG+RU
Display the tag and rate units
alternating
TAG+TU
Display the tag and total units
alternating
OFF
Disable the bottom display
R PCT
Display the rate’s percentage of
full scale
ma IN
Display the current mA input value
mA OUT
Display the current mA output
value
Page 34
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
34

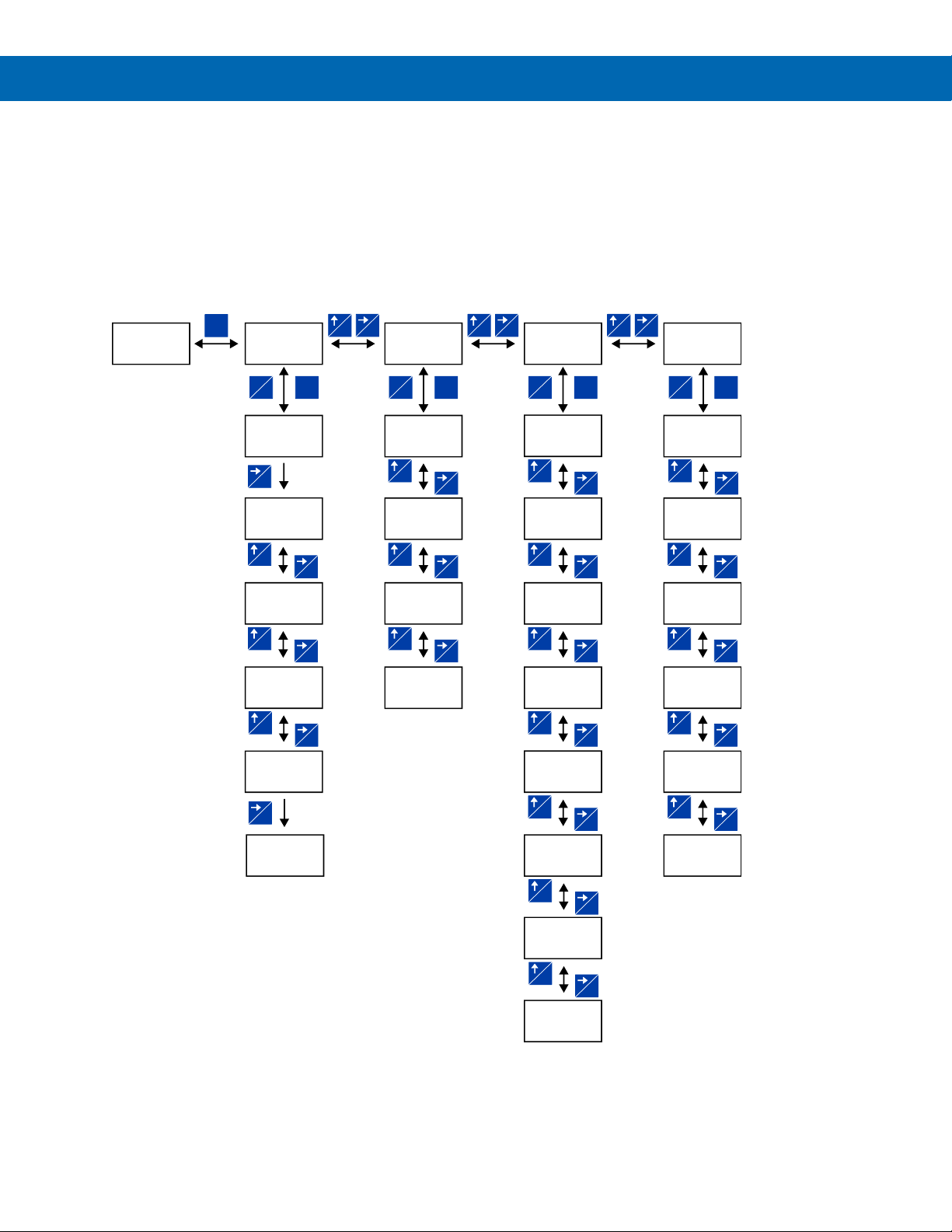

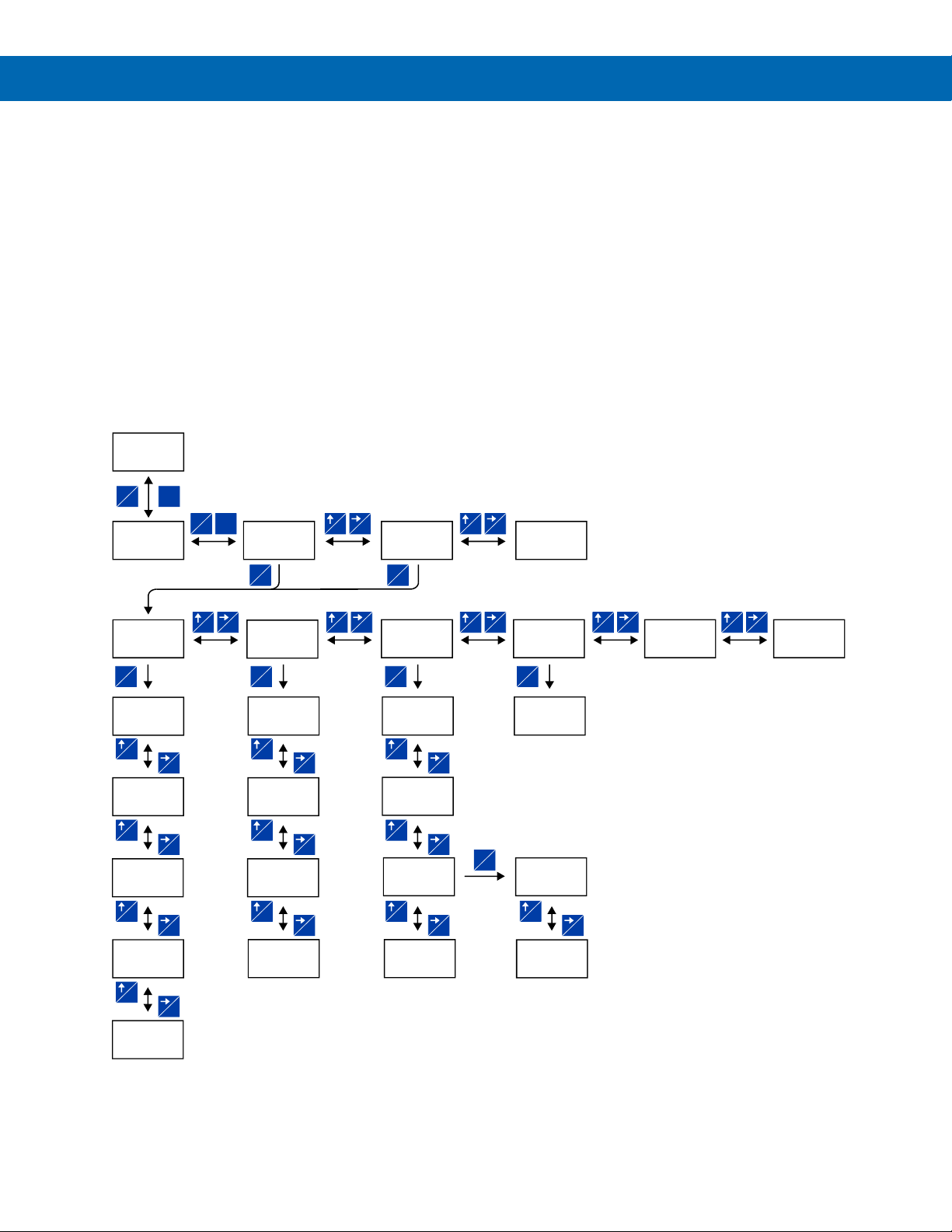

Main Menu
The main menu consists of all the meter’s programmable functions: Input, Output, Advanced, and Display.
• Press Menu button to enter Programming Mode then press the Right-Arrow button to move forward through
the menu and the Up-Arrow button to move back.
• Press Menu at any time to go back one level or press & hold to exit and return to Run Mode. Changes made
to settings prior to pressing Enter are not saved.
• Changes to the settings are saved to memory only after pressing Enter/F3 to confirm the setting or pressing
Enter/F3 at the SAVE? screen when available.
SETUP
INPUT
SETUP
OUTPUT
SETUP
ADVANCED
SETUP
DISPLAY
OPEN
COLLECTR
DSPLY
UNITS
OUT
RELAY
OUT
4-20 mA
OUT
CONTROL
DSPLY
DEC.PT
DSPLY
COMMA
SCALE
UNITS
SCALE
INPUT 1
SCALE
DISP 1
SCALE
INPUT 2
SCALE
DISP 2
52.86
GAL
Run Mode
ENTER
F3
MENU
ENTER
F3
MENU
ENTER
F3
MENU
ENTER
F3
MENU
F2 F1
F1
F2 F1 F2 F1
F2
F1
ADV
RATE
F2
F1
F2
F1
CUTOFF
FILTER
PASSWRD
USER
SYSTEM
F2
F1
F2
F1
F2
F1
F2
F1
DSPLY
TOP
DSPLY
BOTTOM
DSPLY
BARGRAPH
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F1
SETUP
INPUT
MENU
ADV
TOTAL
F2
F1
ADV
GTOTAL
F2
F1
Page 35
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
35

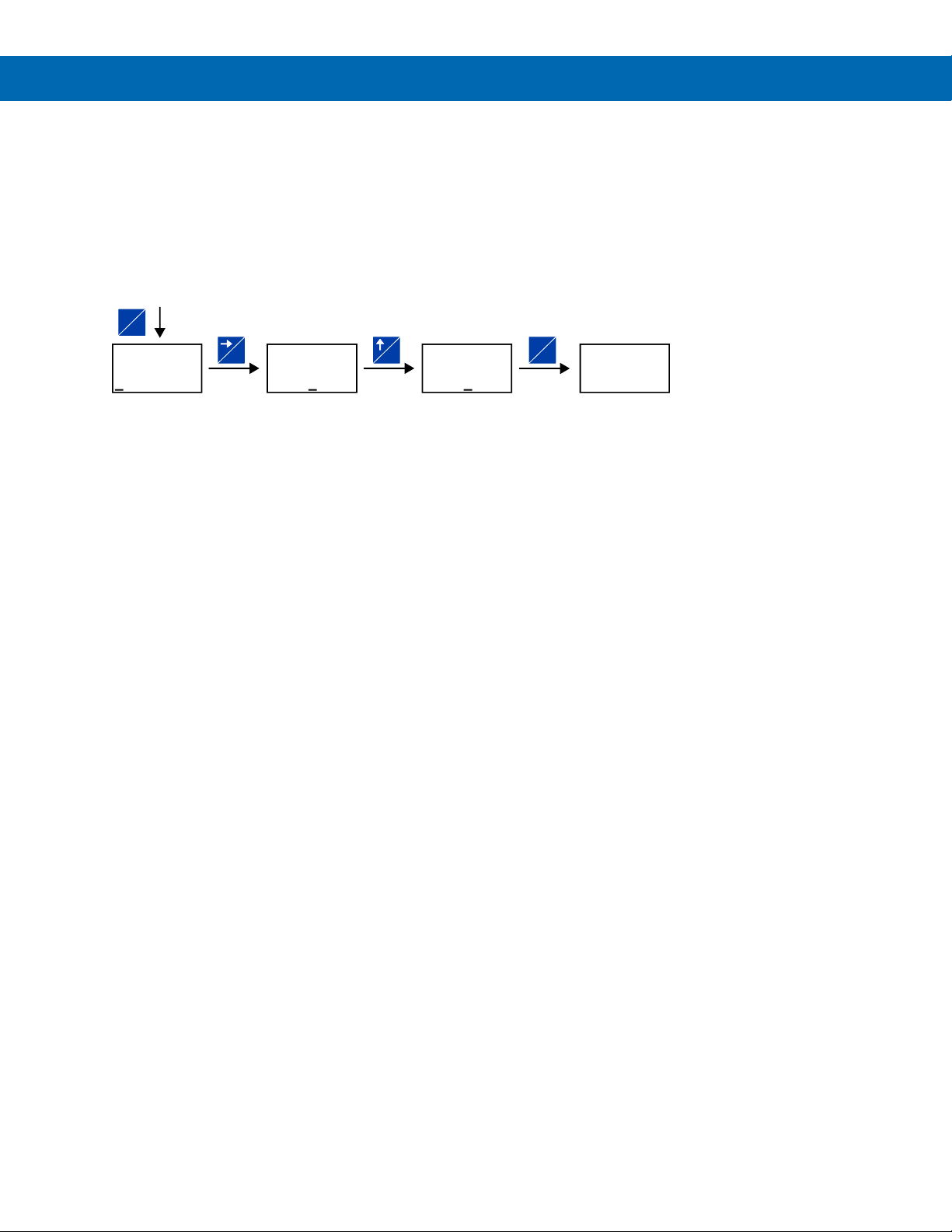

Setting Numeric Values
The numeric values are set using the Right and Up-Arrow buttons.
1. Press Right-Arrow to select next digit and Up-Arrow to increment digit value. The selected digit will flash.
2. Press and hold Up-Arrow to auto-increment the display value. If you have made a mistake or would like to
enter a new value, select the left-most digit and press and hold the Right-Arrow button until all digits reset
to zero.
3. Press the Enter button at any time to accept a setting or Menu button to exit without saving changes.
Note: The underscore in the graphic below is provided to show which digit would be flashing.
DSP 1
+00,000.00
DSP 1
00,000.00
Select
Digit to
Change
DSP 1
00,050.00
Increment
Selected
Digit
SCALE
INPUT 2
Accept
Setting
ENTER
F3
F1 F2
ENTER
F3
Page 36
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
36

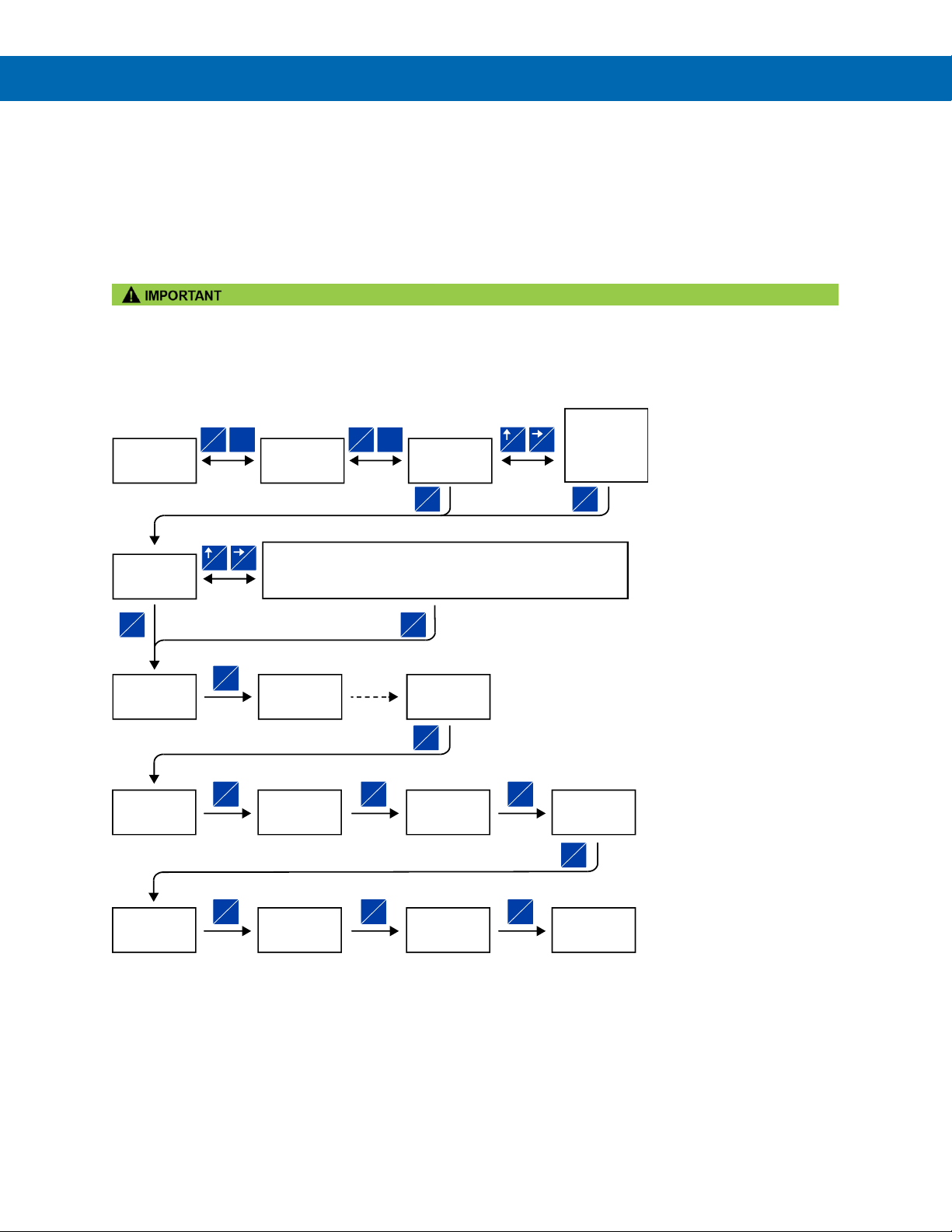

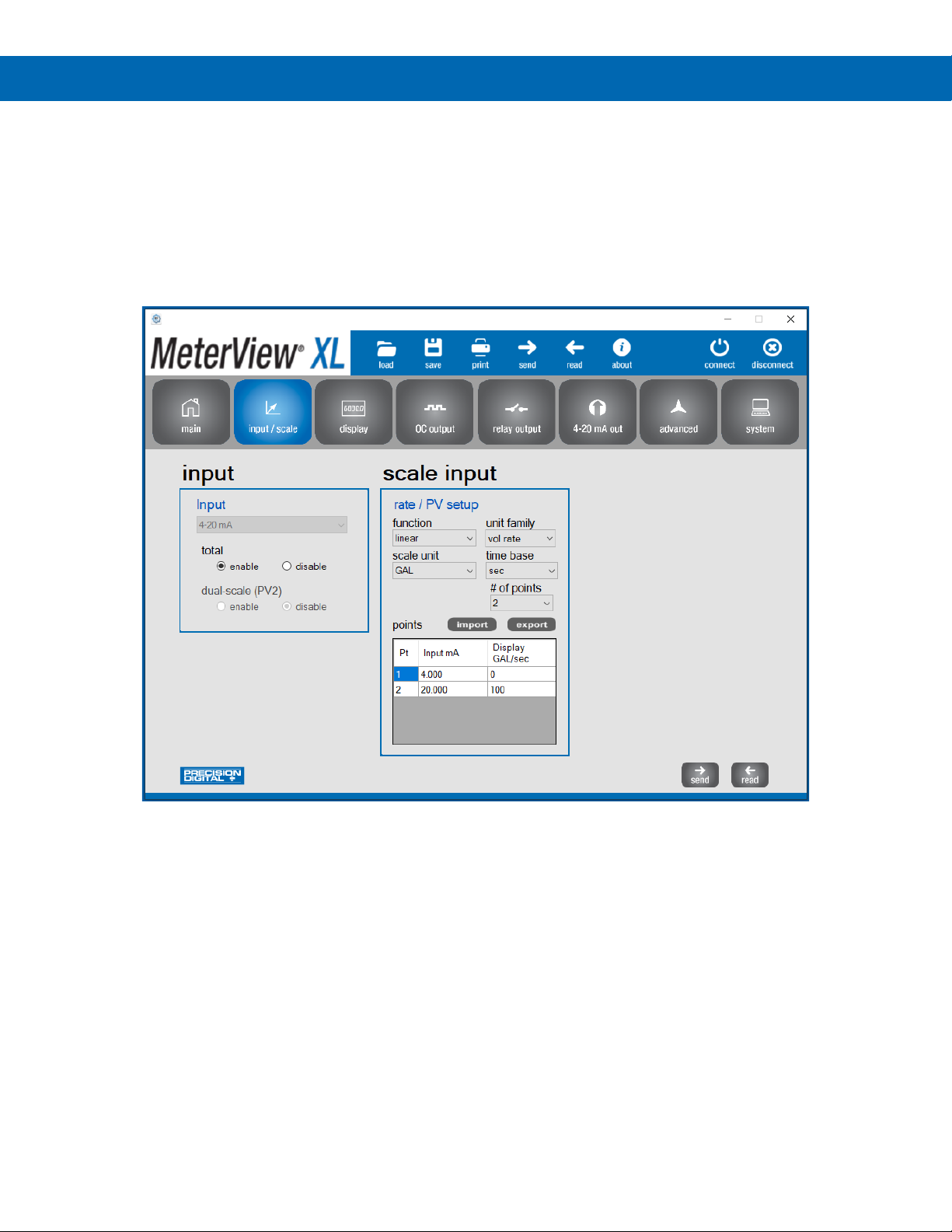

Scaling the 4-20 mA Input (INPUT)
It is very important to read the following information before proceeding to program the meter:
• The meter is factory calibrated prior to shipment to display 0.00 to 100.00 gal/s, which corresponds to the
4-20 mA input. The calibration equipment is traceable to NIST standards.
• A calibrated signal source is not needed to scale the meter.
Enter the Input menu to scale the meter to display the 4-20 mA input. The input can accept any signal from
4 to 20 mA.
• Reverse Scaling
The meter can be scaled so that 4 mA represents the high end of the process value range being measured by the
transmitter and 20 mA represents the low end of the process value range.
SETUP
INPUT
SCALE
UNITS
SCALE
INPUT 1
SCALE
DISP 1
TIME
/SECOND
UNIT
GAL/S
/SECOND
/MINUTE
/HOUR
/DAY
Rate Time
Bases
INP 1
04.000
INP 1
mA
Flashes Units
Momentarily
DSP 1
+00,000.00
SCALE
INPUT 2
INP 2
20.000
SCALE
DISP 2
DSP 2
+00,100.00
SAVE? SETUP
INPUT
GAL/(T)
L/(T)
IGAL/(T)
Rate Units
M3/(T)
BBL/(T)
BUSH/(T)
cuYD/(T)
cuFt/(T)
cuIn/(T)
LiBBL/(T)
BBBL/(T)
HECtL/(T)
AF/(T)
CUSTM/(T)
MENU
ENTER
F3 F1F2
MENU
ENTER
F3
F1F2
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
Page 37
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
37

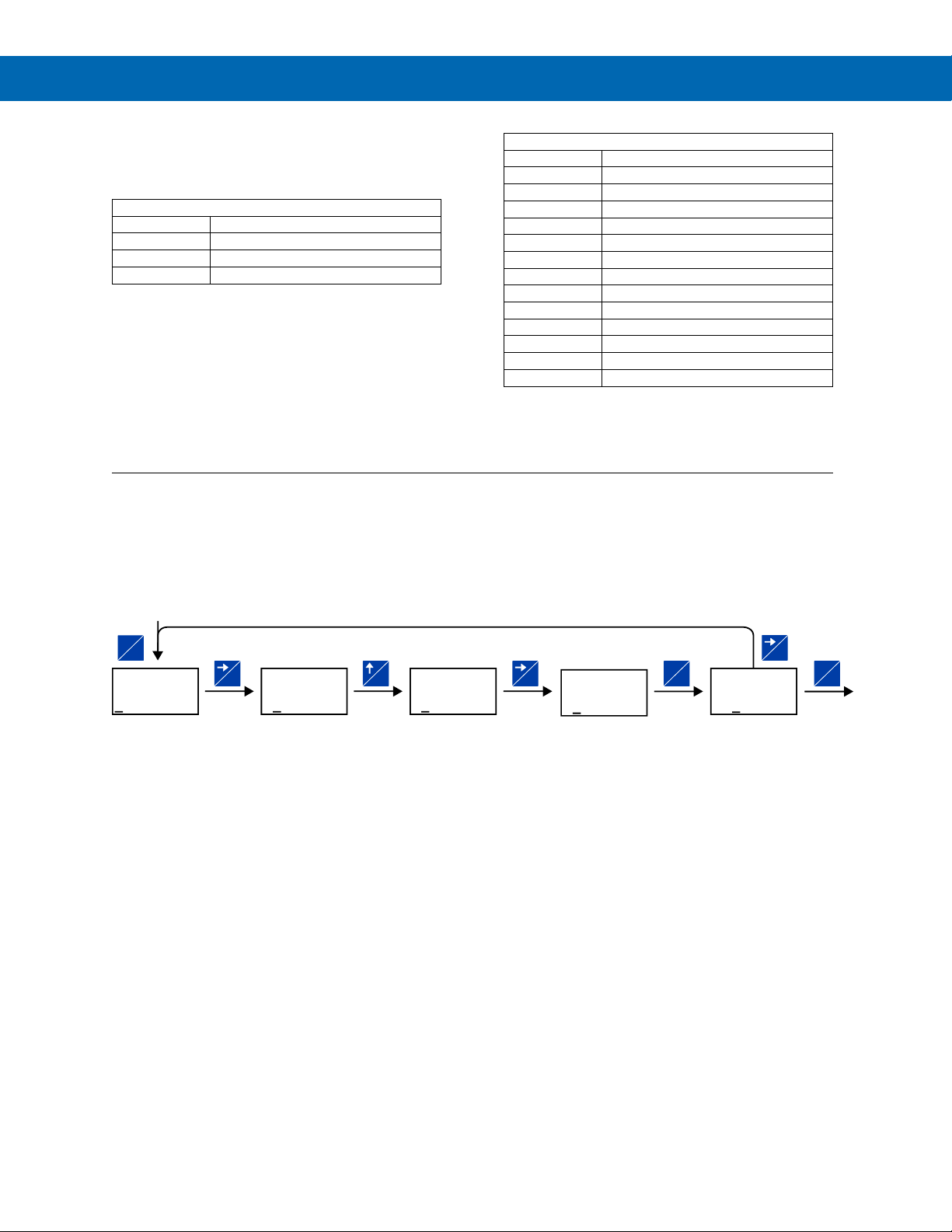

Available Engineering Units
The meter has preprogrammed rate and time base
units. The following are the available units to choose
from:
Rate Time Bases (TIME)
/SECOND
Units per second
/MINUTE
Units per minute
/HOUR
Units per hour
/DAY
Units per day
Rate Units (RATE)
GAL/(T)
Gallons per time unit (T)
L/(T)
Liters per time unit (T)
IGAL/(T)
Imperial gallons per time unit (T)
M3/(T)
Cubic meters per time unit (T)
BBL/(T)
Barrels per time unit (T)
BUSH/(T)
Bushels per time unit (T)
cuYD/(T)
Cubic Yards per time unit (T)
cuFt/(T)
Cubic Feet per time unit (T)
cuIn/(T)
Cubic Inches per time unit (T)
LiBBL/(T)
Liquid barrels per time unit (T)
BBBL/(T)
Beer barrels per time unit (T)
HECtL/(T)
Hectoliter per time unit (T)
AF/(T)
Acre-Foot per time unit (T)
CUSTOM/
Custom unit per time unit (T)
Note: For access to additional predefined units, you must
disable the totalizer. See Disabling the Totalizer (TOTAL) on
page 65
.
Setting Custom Units (CUSTOM)
When the desired unit of measure is not available, a custom unit may be programmed. Select the CUSTOM menu
to enter a custom unit name.
Text values are set using the Right and Up-Arrow buttons. Press Right-Arrow to select next character and
Up-Arrow to increment character value. The selected character will flash. Press and hold the Up or Right-Arrow
buttons to auto-increment or decrement the character. Press Enter to accept the character.
Notes:
• Press and hold the Right-Arrow while no character is being edited to erase all characters to the right of the flashing character
• Press and hold Up or Right-Arrow to auto-increment or decrement a selected character.
• All text values, including tags and alarm messages, are set in a similar fashion.
C.UNIT
ABC
C.UNIT
ABC
Select
Character
to Change
C.UNIT
ACC
Increment
Selected
Character
Decrement
Selected
Character
ENTER
F3
F1 F2
C.UNIT
ABC
C.UNIT
ABC
Accept
Character
Change
Accept
Custom Unit
Name
ENTER
F3
ENTER
F3
F1
F1
Page 38
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
38

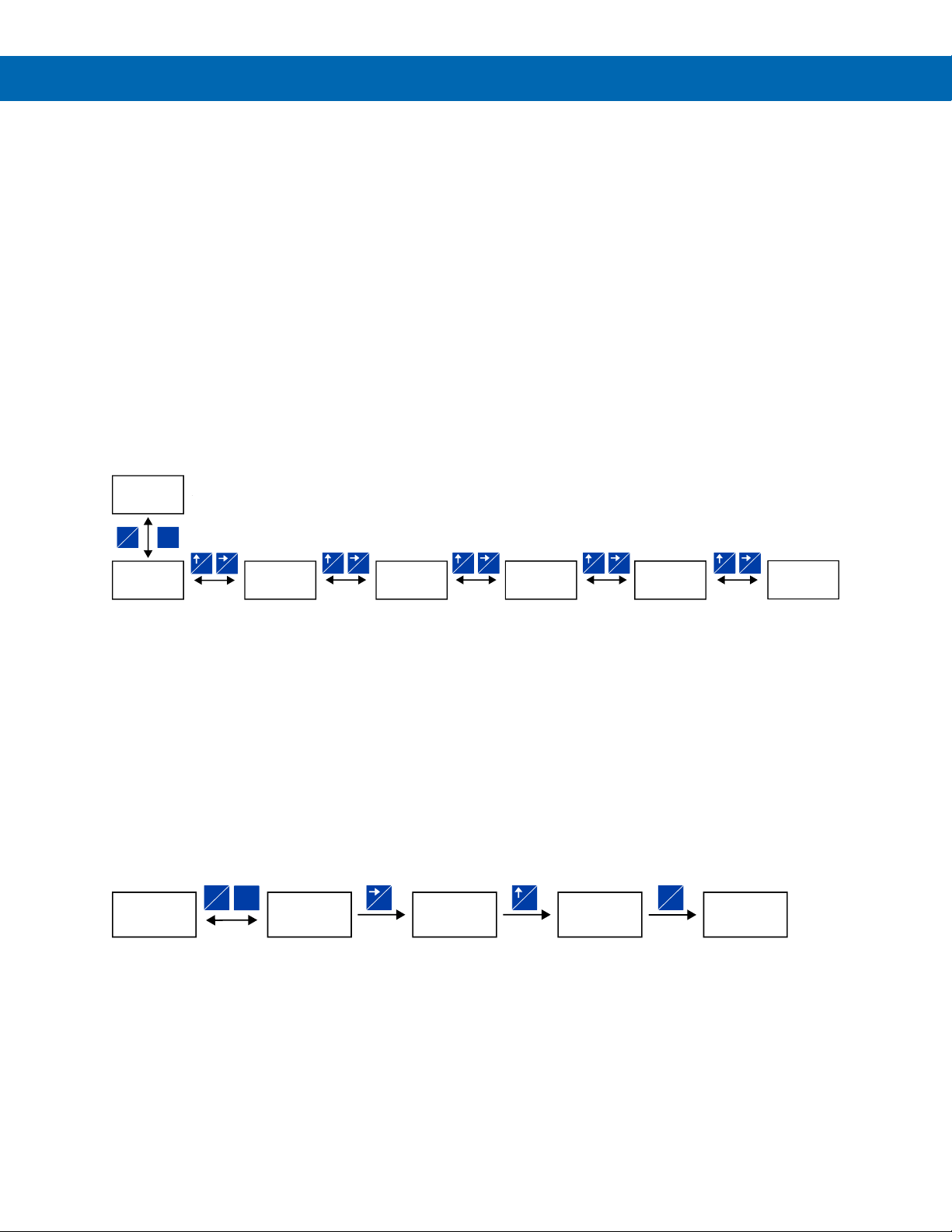

Scaling Example
The 4-20 mA input can be scaled to the appropriate values for a given application. The 4 mA input (input 1) should
have a corresponding display value (display 1) which represents the low end of the process value range being
measured by the transmitter. Likewise, the 20 mA input (input 2) should have a display value (display 2) which
represents the high end of the process value range.
For example: If the meter is setup to accept a 4-20 mA input and display the flow of a pipe whose rate of flow is
between 0 and 100 gal/s, the transmitter would send a 4 mA signal when there is zero flow and a 20 mA signal when
there is maximum flow. The meter should be programmed to interpret these inputs on a display range of 0-100, so
that at 4 mA the meter will display 0 and at 20 mA the meter will display 100.
Processes which require a non-linear scale can be accommodated using the linear (LINEAR), exponent (EXPONENT),
and square root (SQROOT) functions available in the Advanced menu. See Input Signal Conditioning Functions
(FUNCTION) on page 54.
A signal source is not needed to scale the meter; simply program the inputs and corresponding display values.

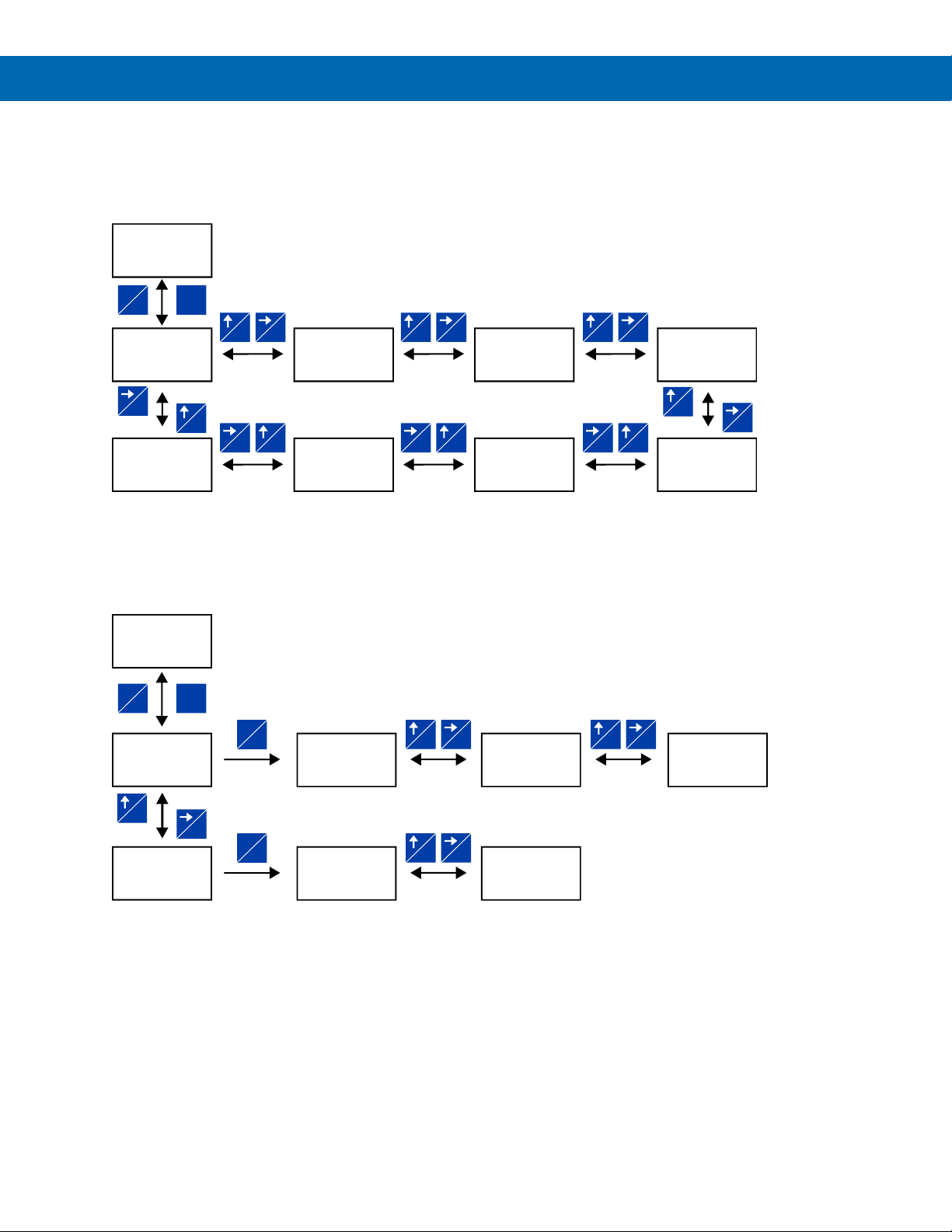

Setting the Display Features (DISPLAY)
The meter’s display functions may be programmed using the Display menu. This menu consists of the following
submenus: Units, Decimal Point, Comma, Bargraph, Top, and Bottom.
Changing the Engineering Units (UNITS)
It is possible to change the display units without the need to re-scale the meter. When selecting a new unit from
within the DISPLAY menu (e.g. changing from gallons/sec. (GAL/s) to liters/sec. (L/s)), the meter will automatically
convert the display values to display the new unit. Enter the UNITS menu, select a new unit of measure from the list
of predefined units, and press the Enter button. If entering a custom unit (CUSTM), a custom conversion factor will
need to be entered.
Changing the Decimal Point (DEC.PT)
The decimal point may be set with up to seven decimal places or with no decimal point at all.
Pressing the Right-Arrow moves the decimal point one place to the right until no decimal point is displayed,
and then it moves to the left most position. Pressing the Up-Arrow moves the decimal point one place to the left.
The decimal point location is set independently for the rate, total and grand total.
DSPLY
UNITS
DSPLY
DEC.PT
DSPLY
COMMA
F2 F1
F2 F1
DSPLY
TOP
DSPLY
BOTTOM
DSPLY
BARGRAPH
F2 F1F2 F1
SETUP
DISPLAY
MENU
ENTER
F3
F2 F1
DSPLY
DEC.PT
DEC.PT
222222.22
DEC.PT
1111111.1
Move Decimal
to the Right
DEC.PT
222222.22
DSPLY
COMMA
Accept
Decimal
Location
Move Decimal
to the Left
F1 F2
ENTER
F3
ENTER
F3
MENU
Page 39
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
39
Enabling or Disabling the Commas on the Bottom Display (COMMA)
The bottom display is set to show a comma
separating the thousands and millions place by
default if a numeric value is being displayed. This
feature can be disabled or enabled using the Comma
menu.
Display Capabilities Optimization (TOP and BOTTOM)
Display Configuration Examples
The meter’s dual-line display can be setup in multiple
ways to provide an extremely informative view of the
process variable being monitored. The following
graphics show typical configurations:
Top Display: Toggle Flow Rate and Rate Units
Bottom Display: Toggle Total Flow and Total Units
Note: To display units as GALLONS, select custom units
and enter the desired text.
Top Display: Flow Rate
Bottom Display: Toggling Between Units and Tag
Dual-Scale Mode:
Top Display: Toggle Rate and GPM Units
Bottom Display: Toggle Rate and CFM Units
Top Display: Maximum Value
Bottom Display: Process Value
Using 13 Digits to Display Total
The top and bottom displays can be setup to display a
13-digit total:
Note: The number above should be read as
6,843,276,349,187.
Most
Significant
Digits on Top
Page 40
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
40
Configuring the Display (TOp and BOTTOM)
The two display lines (Top and Bottom) can be
programmed to display different values. Use the Top
and Bottom menus to make these changes. If PV2 is
enabled, additional options will be available for
displaying the second PV on the bottom display.
The top display (TOP) can display:
• Rate
• Rate and its units alternating
• Total
• Total and its units alternating
• Grand Total
• Tag
• Units
• Preset batch value
• Stopwatch
• Open Collector 1 or 2 Timer
• Relay 1 or 2 Timer
• Minimum Value, Maximum Value, or Both
• Off (Blank)
The bottom display (BOTTOM) can display:
• Total (with units or tag alternating)
• Total, its units, and the rate units alternating
• Grand total (with units or tag alternating)
• Grand total, units, and rate units alternating
• Rate (with units or tag alternating)
• Rate and the total’s units alternating
• Rate or total units
• Tag
• Units
• Preset batch value
• Stopwatch
• Open Collector 1 or 2 Timer
• Relay 1 or 2 Timer
• Tag and rate units alternating
• Tag and total units alternating
• Off (Blank)
• Rate's percentage of max scale
• mA input value
• mA output value
Programming the Bargraph
The Loop Leader+ Rate / Totalizers come equipped with a bargraph display for applications where a visual
representation of the rate or total’s percentage of full scale is desirable. This feature can be changed to represent
either rate, a percentage of the rate, total, or it can be disabled, using the Bargraph menu (BARGRAPH). If the
bargraph is set to represent total, the total full scale will need to be set.
DSPLY
TOP
DSPLY
RATE
RATE+U
TOTAL
TOTAL+U
TAG
PRESET
UNITS
TIMR OC1
STPWATCH
TIMR OC2
TIMER R1
TIMER R2
MIN
MIN MAX
MAX
OFF
MENU
ENTER
F3
F1F2
TOTAL+U
TOT+TAG
T+U+TAG
GTOTAL
GT+UNITS
GT+TAG
GT+U+RU
RATE
RATE+U
RATE+TU
RATE+TAG
R UNITS
T UNITS
TAG
DSPLY
BOTTOM
DSPLY
TOTAL
TAG+TU
TAG+RU
R PCT
OFF
mA OUT
mA IN
UNITS
PRESET
TIMR OC1
STPWATCH
TIMR OC2
TIMER R1
TIMER R2
Bottom Line Display Parameters
MENU
ENTER
F3
F1F2
DSPLY
BARGRAPH
GRAPH
RATE
GRAPH
RATE PCT
GRAPH
TOTAL
ENTER
F3
MENU
F2 F1 F2 F1
RATE
0 PCT
RATE
00,000,00
ENTER
F3
RATE
100 PCT
ENTER
F3
RATE
00,100,00
ENTER
F3
GRAPH
OFF
F2 F1
ENTER
F3
Page 41
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
41
Programming the Outputs (OUTPUT)
All models come with two open collectors. Depending on the model purchased, the meter may include two solid-state
relays, and one 4-20 mA output. The Output menu will only show options for the available outputs. See Ordering
Information on page 11 for details.
SETUP
OUTPUT
OPEN
COLLECTR
OUT
RELAY
OUT
4-20 mA
OUT
CONTROL
OC.OUT
OUTPUT1
OC.OUT
OUTPUT2
RELAY
OUTPUT1
RELAY
OUTPUT2
RELAY
INFO
CTRL
OC1
CTRL
OC2
CTRL
RELAY1
CTRL
RELAY2
CTRL
4-20 mA
ENTER
F3
MENU
F2 F1 F2 F1 F2 F1
ENTER
F3
MENU
F2
F1
F2
F1
4-20
RATE
F2
F1
F2
F1
ENTER
F3
MENU
ENTER
F3
MENU
ENTER
F3
MENU
F2
F1
4-20
RETRANS
4-20
DISABLE
F2
F1
F2
F1
F2
F1
F2
F1
4-20
TOTAL
F2
F1
Page 42
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
42
Open Collector Outputs (OPEN COLLECTR)
The meter is equipped with two NPN open collector outputs that may be set up for pulse outputs, alarms, timed
pulses, total reset, or disabled.
Pulse outputs can be set to transmit the rate, total, or grand total. Output 2 may be used to generate a quadrature
output based on the other open collector output. An output test mode is also selectable to generate pulses at a
constant programmable frequency.
Alarms are available based on the rate value or the digital input. The alarm status will show on the display even if
the output is not wired.
A timer output (TIMER) turns the open collector on and off at the specified time intervals. The timer can be set as
single-shot or continuous timer.
A total reset output generates a pulse whenever the total is reset, regardless of the reset method used. The On time
is programmable between 0 and 9,999 seconds.
The stopwatch output (STPWATCH) allows the open collector to be manually activated by starting the stopwatch. The
stopwatch count can be displayed on the top or bottom display.
The output may be disabled by selecting DISABLE.

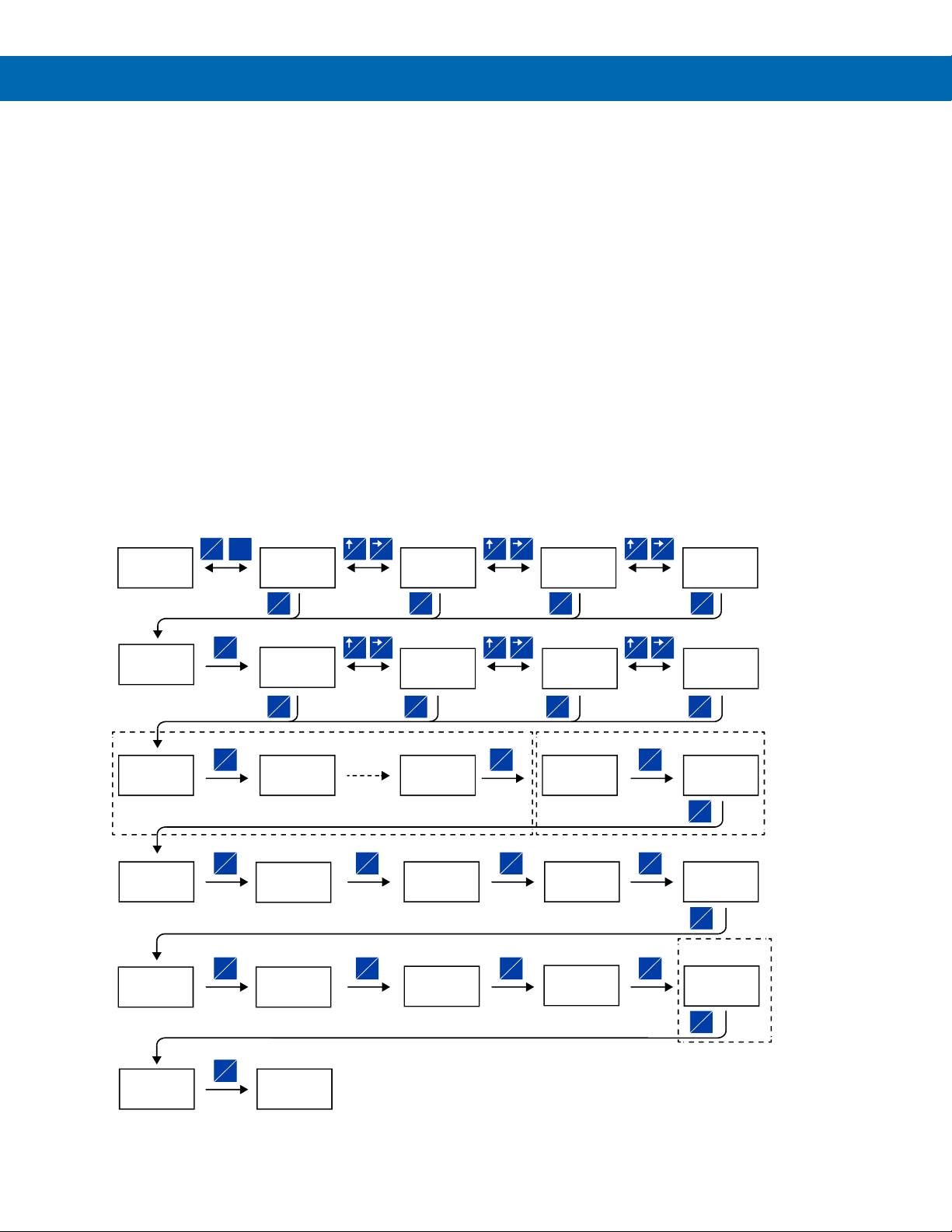

The Open Collector Outputs are programmed in the following manner:
SETUP
OUTPUT
OPEN
COLLECTR
OC.OUT
OUTPUT1
OC.OUT
OUTPUT2
OUT 1
PULSE
PULSE
RATE
PULSE
QUAD
*Available
for output
2 only.
*
OC.OUT
MESSAGE
OUT 1
ALARM
OUT 1
TIMER
OUT 1
DISABLE
ALARM
RATE
ALARM
D.INPUT
TIMER
OFF.DLAY
TIMER
ON TIME
TIMER
MODE
TIMER
START
MODE
CONT
MODE
ONE.SHOT
PULSE
TEST
OUT 1
TOT RST
TIME
0000 SEC
PULSE
TOTAL
PULSE
GTOTAL
ALARM
TOTAL
ALARM
GTOTAL
MENU
ENTER
F3 F1F2
ENTER
F3
MENU
F1F2 F1F2 F1F2 F1F2
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
F1F2
OUT 1
STPWATCH
F1F2
Page 43
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
43
Pulse Output (PULSE)
Pulse outputs may be assigned to output the rate, total, or grand total at a programmable factor. If the output is
assigned to rate, the factor is a multiplier that determines the number of pulses generated based on the rate. For
example, if the meter display shows 100 gallons/second and the factor is set to 2, the number of pulses generated
per second would be 200. If the output is assigned to total or grand total, the k-factor corresponds to the number of
pulses generated per unit of measure. For example, if the k-factor is 0.001 and the units are gallons, one pulse will
be generated for every 1,000 gallons. The maximum frequency is 1,000 Hz.
Setting output 2 to quadrature will duplicate the other open collector output, but lag by 90 degrees out of phase. The
other output should be programmed as desired for the quadrature output function and must be a pulse (PULSE)
output selection. The quadrature maximum frequency for both outputs is 500 Hz.
The TEST option will output a fixed number of pulses per second based on the FREQ value entered.
OUT 1
PULSE
PULSE
TEST
PULSE
QUAD
*Available
for output
2 only.
*
FACTR
GAL/S
Flashes
Units
FACTR
+0,001.000
FREQ
100.0
PULSE
RATE
PULSE
TOTAL
PULSE
GTOTAL
KFACT
P/GAL
Flashes
Units
KFACT
001.0000
ENTER
F3
MENU
F2
F1
F2
F1
F2
F1
F2
F1
ENTER
F3
ENTER
F3
ENTER
F3
Page 44
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
44

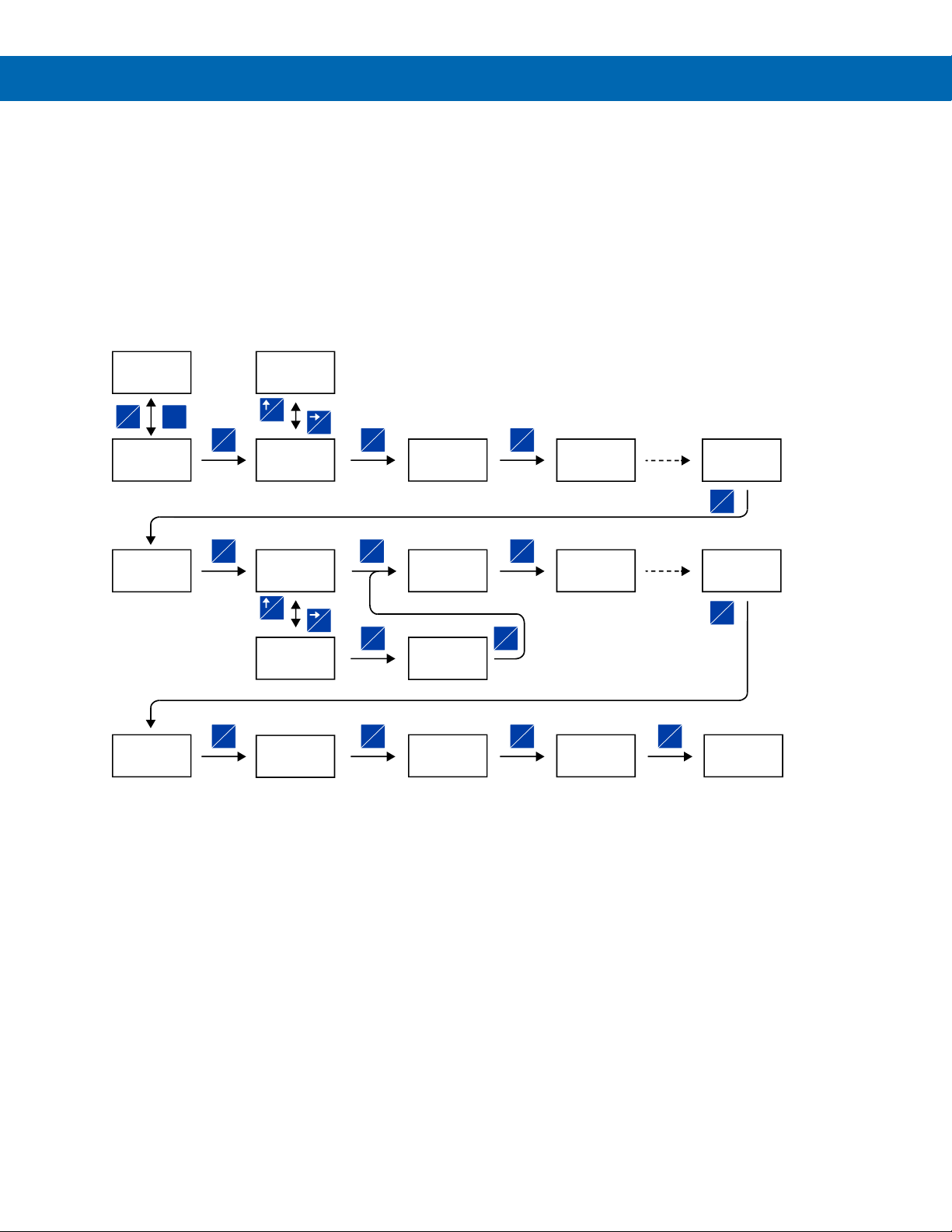

Alarm (ALARM)
Alarm outputs may be assigned to the rate, total, grand total, or the digital input. When assigned to the rate, the alarm
may be set as either a high alarm or a low alarm. Alarm actions (AUTO, AUTO.MAN, LATCH, L-CLEAR) determine how
and when the alarm should be reset. They operate as follows:
• Automatic (AUTO): Alarm will reset automatically once the alarm condition has cleared.
• Automatic/Manual (AUTO.MAN): Alarm will reset automatically once the alarm condition has cleared but can
also be reset using the Enter (ACK) button (or whichever function key is set to acknowledge) at any time.
• Latching (LATCH): Alarm must be reset manually and can be done so at any time. Press the Enter (ACK)
button at any time to clear the alarm.
• Latching with Reset after Clear (L-CLEAR): Alarm must be reset manually and can only be done so after
the alarm condition has cleared. Press the Enter (ACK) button after the alarm condition has cleared to reset
the alarm.
If the alarm is set to rate, a set and reset point must be programmed. The set point is the display value at which the
alarm will turn on and the reset point is the display value at which the alarm will turn off. If the set point is lower than
the reset point, the alarm will be a low alarm; if the set point is higher than the reset point, the alarm will be a high
alarm. The digital input alarm will trigger whenever the digital input is triggered.
For both the rate and digital input alarms, a delay before the alarm is turned on or off may be set, as well as a
fail-safe feature which reverses the on/off operation of the open collectors.
Alarm states will be displayed on the meter even if no open collector output is physically connected. These may
include a red LED backlight, flashing the rate value (rate alarm only), and a programmable alarm message.
OUT 1
ALARM
ALARM
D.INPUT
ALARM
ACTION
ACTN
AUTO
ACTN
AUTO.MAN
ACTN
LATCH
ACTN
L-CLEAR
SET
+00,040.00
SET
GAL
Flashes
Units
ALARM
RESET
ALARM
SET
RESET
+00,030.00
ALARM
DELAY
DELAY
ON
TIME
0000 SEC
DELAY
OFF
TIME
0000 SEC
ALARM
FAILSAFE
Rate, Total, GTotalAlarm Only
FSAFE
OFF
ALARM
DISPLAY
RED
ON
FLASH
ON
ALARM
GTOTAL
Rate Alarm Only
Rate, Total, Gr.
ALARM
RATE
ALARM
TOTAL
MSG
ON
MSG
ALARM 1
Total Alarm Only
ENTER
F3
MENU
F2 F1 F2 F1 F2 F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
F2 F1 F2 F1 F2 F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
Page 45
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
45
Flashing Red Alarm (RED)
The last two lines in the preceding menu flow chart show how to program the display to turn red, flash, and display a
message when an alarm occurs.
Alarm 1 is High Alarm:
Alarm 2 is Low Alarm:
Timer (TIMER)
The timer output may be set to generate the timed pulse only once (ONESHOT) or continuously (CONT).
The timer output produces a constant width pulse at a constant frequency, if set as continuous timer. Program the
Off Delay (OFF.DLAY) from 1 second to 99 hours 59 minutes and 59 seconds. This is the time it takes from selecting
START to turning on the output and for how long the output is off in continuous mode.
Program the On Time (ONTIME) for the active low pulse from 1 second to 99 hours 59 minutes and 59 seconds
(pulse width). This is the period of time for which the output will remain on.
Select Start (START) to begin outputting the constant timed pulse.
Select Stop (STOP) to end outputting the constant timed pulse.
Function keys or the digital input may be assigned to start and stop timer functions (see the USER menu in
Advanced).
OUT 1
TIMER
TIMER
OFF.DLAY
TIMER
ON TIME
TIMER
MODE
TIMER
START
MODE
CONT
MODE
ONE.SHOT
H.MM.SS
00.01.00
H.MM.SS
00.00.01
TIMER
STOP
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
F2
F1
ENTER
F3
ENTER
F3
ENTER
F3
Page 46
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
46
Stopwatch (STPWATCH)
The stopwatch function may be used to manually run and control a process for a specific time interval up to 99 hrs,
59 min, and 59 seconds. The stopwatch function may be assigned to any open collector. There are three settings
needed to use the function effectively.
1. Assign stopwatch to either top or bottom display
2. Assign the open collector or relay to control the process (on/off)
3. Assign a function key or digital input to start/stop the stopwatch
Application Example
To maintain consistency of a product, it is necessary to take and test samples at different times throughout the day.
The stopwatch function is used to open and close a solenoid valve to know the exact amount of time needed to
complete the desired sample. Once this is determined, the timer function can be used to automatically take a sample
(batch) based on the time determined using the stopwatch function.
Setup: Assign the following to Stopwatch Function
• Bottom display
(see pages 38 & 40 for details how to change the display)
• Relay 1
(see pages 42 & 47 how to change Open Collector and or Solid-State Relay functionality)
• F3: Start/Stop
(see pages 63 & 64 for details on how to change the function keys)
Procedure
• Press F3 to start the stopwatch; relay 1 turns on and the process starts running.
• Press F3 to stop the stopwatch; relay 1 turns off and the process stops.
• The bottom display indicates the time it took to complete the sample.
Page 47
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
47

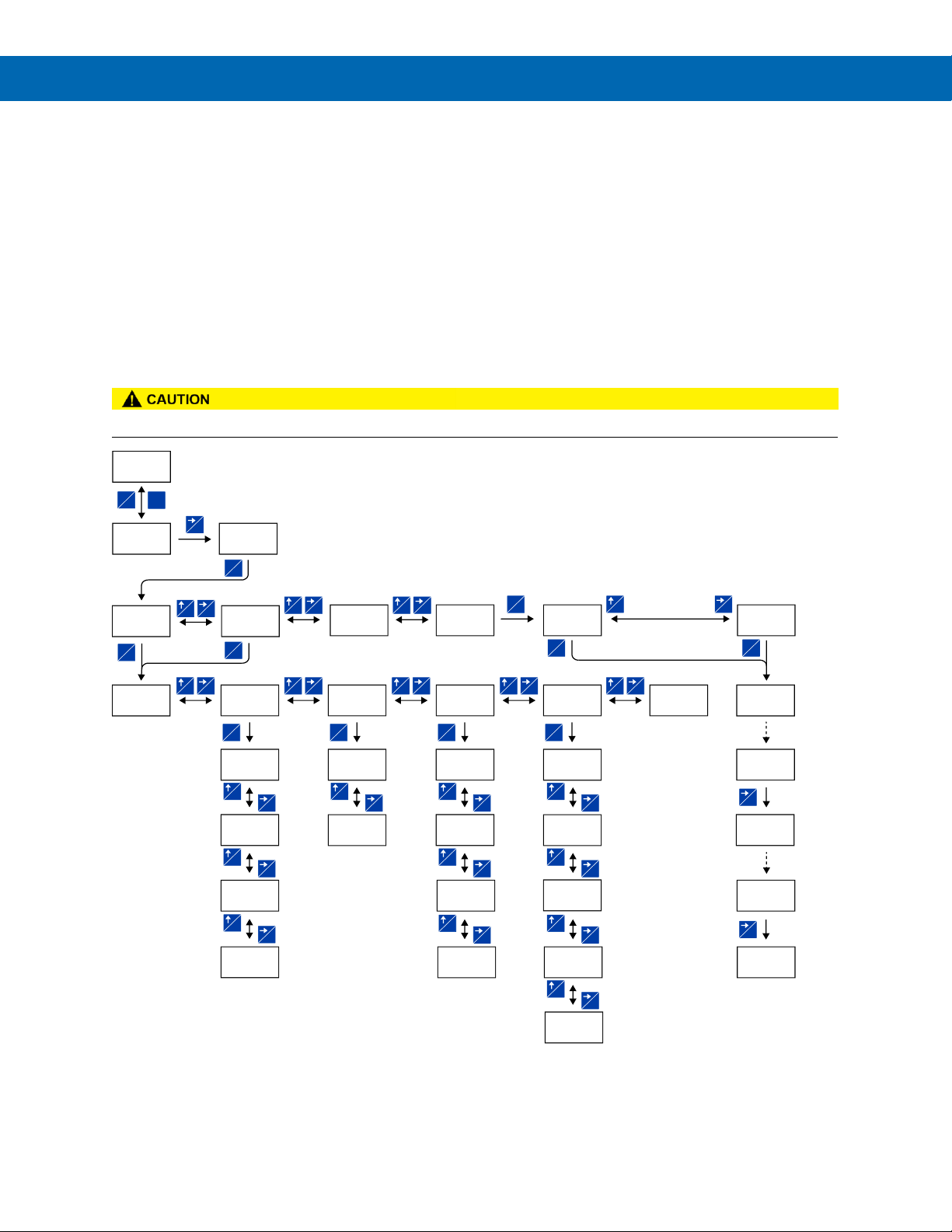

Solid-State Relay Outputs (RELAY)
The meter is optionally equipped with two solid-state relays that may be set up for alarms, sample, timer, batch
control, or stopwatch. Alternatively, they may be disabled.
Alarms are available based on the rate, total, grand total, or the digital input. The alarm status will show on the
display even if the output is not wired.
Sample will engage the relay for a programmed period of time when either the total or the grand total have reached
a programmed amount.
A timer output (TIMER) turns the relay on and off at the specified time intervals. The timer can be set as single-shot
or continuous timer.
For use in batch control applications, the meter relays must be set to batch. This will enable the batch control features
of the meter.
The stopwatch output (STPWATCH) allows the relay to be manually activated by starting the stopwatch. The
stopwatch count can be displayed on the top or bottom display.
The output may be disabled by selecting DISABLE.
• During setup, the relays do not follow the input and they will remain in the state found prior to entering the Relay menu.
SETUP
OUTPUT
OPEN
COLLECTR
OUT
RELAY
RELAY
OUTPUT1
RELAY
OUTPUT2
RLY 1
DISABLE
RLY 1
ALARM
RLY 1
SAMPLE
RLY 1
TIMER
ALARM
RATE
ALARM
D.INPUT
TIMER
OFF.DLAY
TIMER
ON TIME
TIMER
MODE
TIMER
START
SAMPL
TOTAL
SAMPL
GTOTAL
BATCH
COUNT
BATCH
MAXIMUM
BATCH
MODE
BATCH
PRESET
BATCH
DELAY
ALARM
TOTAL
ALARM
GTOTAL
ENTER
F3
MENU
F1
F2 F1
ENTER
F3
F2 F1
RELAY
INFO
INFO
RELAY 1
INFO
RELAY 2
F2 F1
ENTER
F3
ENTER
F3
F2 F1F2 F1 F2 F1
RLY 1
BATCH
F2 F1
ENTER
F3
F2
F1
ENTER
F3
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
RELAY
RUNTIME
Flashes
Momentarily
TIME
195.0 H
CYCLE
COUNT
Flashes
Momentarily
CYCLE
51
RLY 1
CLEAR?
F1
F1
RELAY
MESSAGE
F2 F1
RLY 1
STPWATCH
F2 F1
Page 48
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
48
Alarm (ALARM)
Alarm outputs may be assigned to the rate, total, grand total, or the digital input. When assigned to the rate, the alarm
may be set as either a high alarm or a low alarm. Alarm actions (AUTO, AUTO.MAN, LATCH, L-CLEAR) determine how
and when the alarm should be reset. They operate as follows:
• Automatic (AUTO): Alarm will reset automatically once the alarm condition has cleared.
• Automatic/Manual (AUTO.MAN): Alarm will reset automatically once the alarm condition has cleared but can
also be reset using the Enter button (or whichever function key is set to acknowledge).
• Latching (LATCH): Alarm will not reset automatically even if the alarm condition has cleared. Press the
Enter button at any time to acknowledge the alarm.
• Latching with Reset after Clear (L-CLEAR): Alarm must be reset manually and can only be done so after
the alarm condition has cleared. Press the Enter (ACK) button after the alarm condition has cleared to reset
the alarm.
If the alarm is set to rate, a set and reset point must be programmed. The set point is the display value at which the
alarm will turn on and the reset point is the display value at which the alarm will turn off. If the set point is lower than
the reset point, the alarm will be a low alarm; if the set point is higher than the reset point, the alarm will be a high
alarm. If the alarm is set to total or grand total, only a set point needs to be programmed. The digital input alarm will
trigger whenever the digital input is triggered.
For all alarms, a delay before the alarm is turned on or off may be set, as well as a failsafe feature which will inverse
the on/off programming.
Alarm states will be displayed on the meter even if no relay output is physically connected. The alarm indicator (!)
(only on meters with no bargraph) will display as well as optional red LED backlight, flashing rate, total, or grand total
value (rate, total, or grand total alarms only), and a programmable alarm message.
RLY 1
ALARM
ALARM
D.INPUT
ALARM
ACTION
ACTN
AUTO
ACTN
AUTO.MAN
ACTN
LATCH
ACTN
L-CLEAR
SET
+00,040.00
SET
GAL
Flashes
Units
ALARM
RESET
ALARM
SET
RESET
+00,030.00
ALARM
DELAY
DELAY
ON
TIME
0000 SEC
DELAY
OFF
TIME
0000 SEC
ALARM
FAILSAFE
Rate, Total, GTotal Alarm Only
FSAFE
OFF
ALARM
DISPLAY
RED
ON
FLASH
ON
ALARM
GTOTAL
Rate Alarm Only
Rate, Total, Gr.
ALARM
RATE
ALARM
TOTAL
MSG
ON
MSG
ALARM 1
Total Alarm Only
ENTER
F3
MENU
F2 F1 F2 F1 F2 F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
F2 F1 F2 F1 F2 F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
Page 49
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
49
Sample (SAMPLE)
A relay set to sample will trigger when the total or grand total value has incremented by a programmed amount.
The relay can be programmed to stay on for a specified amount of time.
For example: if a relay is set to sample the total with a COUNT of 1,000 and a TIME of 10 seconds, the relay will
engage for 10 seconds whenever the total has incremented by 1,000 (e.g. 1000, 2000, 3000).
Timer (TIMER)
The timer output may be set to generate the timed pulse only once (ONESHOT) or continuously (CONT).
The timer output produces a constant width pulse at a constant frequency, if set as continuous timer. Program the
Off Delay (OFF.DLAY) from 1 second to 99 hours 59 minutes and 59 seconds. This is the time it takes from selecting
START to turning on the output and for how long the output is off in continuous mode.
Program the On Time (ONTIME) for the active low pulse from 1 second to 99 hours 59 minutes and 59 seconds
(pulse width). This is the period of time for which the output will remain on.
Select Start (START) to begin outputting the constant timed pulse.
Select Stop (STOP) to end outputting the constant timed pulse.
Function keys or the digital input may be assigned to start and stop timer functions (see the USER menu in
Advanced).
TOTAL
COUNT
COUNT
GAL
COUNT
0,001,000.0
SAMPL
TIME
TIME
0010 SEC
RLY 1
SAMPLE
SAMPL
TOTAL
SAMPL
GTOTAL
Flashes
Units
ENTER
F3
MENU
F2 F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
RLY 1
TIMER
TIMER
MODE
TIMER
START
MODE
CONT
MODE
ONE.SHOT
TIMER
OFF.DLAY
TIMER
ON TIME
H.MM.SS
00.01.00
H.MM.SS
00.00.01
TIMER
STOP
ENTER
F3
ENTER
F3
MENU
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
F2
F1
Page 50
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
50

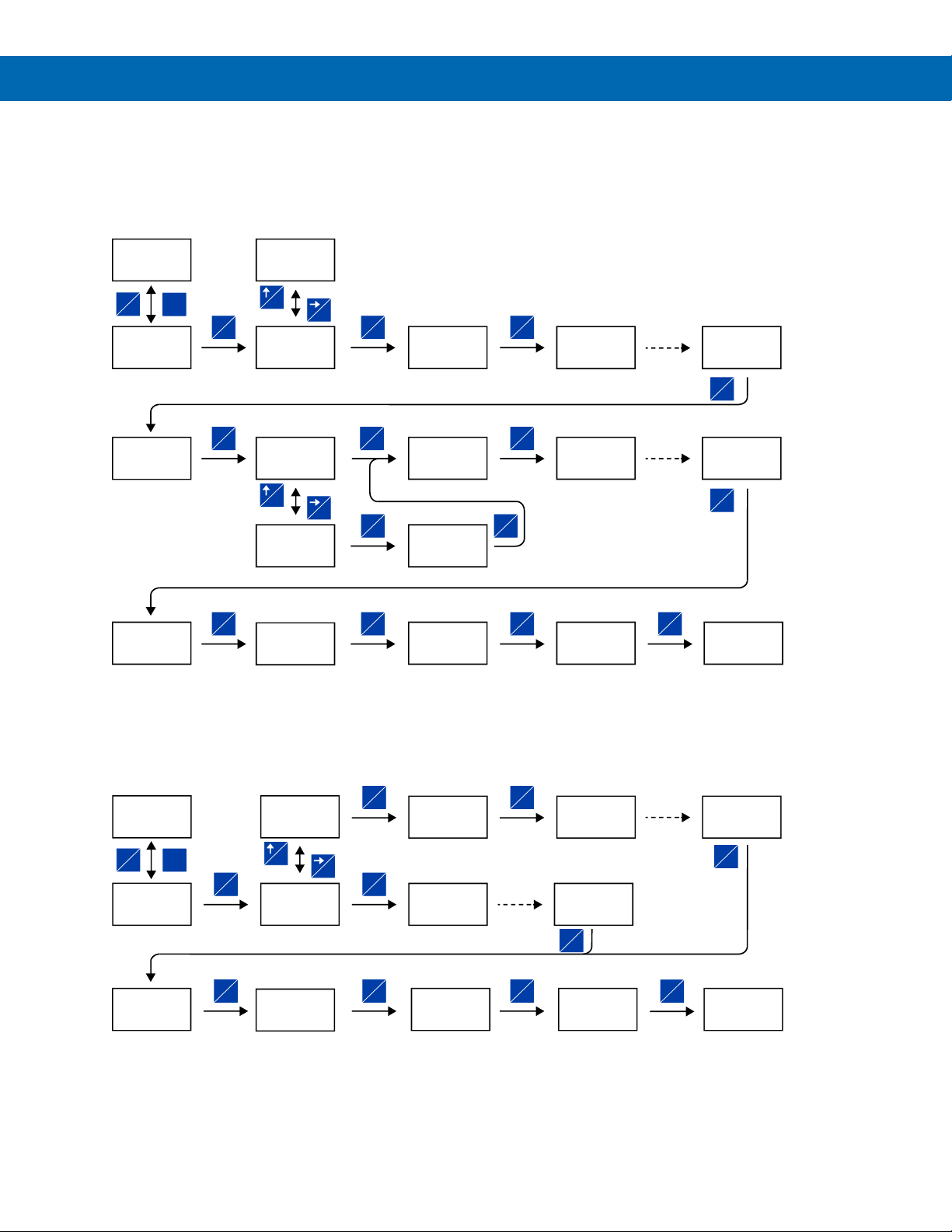

Batch Control (BATCH)
Selecting batch control for relay 1 enables the batching features on the meter. The top display is changed to show the
total and the bottom display is changed to display the preset batch amount. The function keys are changed so that F1
starts a batch, F2 opens the preset menu to allow the preset value to be changed, and F3 stops the currently running
batch. Enabling batch control for relay 1 allows access to the batch menu under relay 2 (this menu does not appear
by default).
Batch Control Relay 1
The batch total can be set to count UP or DOWN. The batch MAXIMUM is the max preset amount that can be batched.
Batching can be set to either manual or automatic operation (MANUAL or AUTO). If setting batching to automatic, a
delay before the next batch is started must be programmed. The PRESET amount is the value at which the batch will
stop and can be programmed up to the value assigned in the MAXIMUM menu. An on and off delay may be set for
batching relays.
RLY 1
BATCH
BATCH
COUNT
BATCH
MAXIMUM
BATCH
MODE
BATCH
PRESET
COUNT
UP
COUNT
DOWN
MAX
GAL
MAX
000,100.00
Flashes
Units
MODE
MANUAL
MODE
AUTO
PSET
GAL
PSET
000,055.00
Flashes
Units
BATCH
DELAY
DELAY
ON
TIME
0000 SEC
DELAY
OFF
TIME
0000 SEC
DELAY
0060 SEC
ENTER
F3
MENU
F2
F1
ENTER
F3
ENTER
F3
ENTER
F3
F2
F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
Page 51
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
51
Batch Control Relay 2
The BATCH option only appears under relay 2 if relay 1 has also been set to batch control. The second relay may be
programmed as a preclose relay or as another batching relay with its own preset amount.
Stopwatch (STPWATCH)
The stopwatch function may be used to manually run and control a process for a specific time interval up to 99 hrs,
59 min, and 59 seconds. The stopwatch function may be assigned to any relay. There are three settings needed to
use the function effectively.
1. Assign stopwatch to either top or bottom display
2. Assign the open collector or relay to control the process (on/off)
3. Assign a function key or digital input to start/stop the stopwatch
Application Example
To maintain consistency of a product, it is necessary to take and test samples at different times throughout the day.
The stopwatch function is used to open and close a solenoid valve to know the exact amount of time needed to
complete the desired sample. Once this is determined, the timer function can be used to automatically take a sample
(batch) based on the time determined using the stopwatch function.
Setup: Assign the following to Stopwatch Function
• Bottom display
(see pages 38 & 40 for details how to change the display)
• Relay 1
(see pages 42 & 47 how to change Open Collector and or Solid-State Relay functionality)
• F3: Start/Stop
(see pages 63 & 64 for details on how to change the function keys)
Procedure
• Press F3 to start the stopwatch; relay 1 turns on and the process starts running.
• Press F3 to stop the stopwatch; relay 1 turns off and the process stops.
The bottom display indicates the time it took to complete the sample.
Runtime & Cycle Count (INFO)
The relay information menu shows runtime and cycle count for each relay. These values may be cleared at any time
by selecting the Clear option (CLEAR?).
RLY 2
BATCH
BATCH
PRECLOSE
YES
PRECLOSE
NO
PRECLOSE
CLOSE
GAL
CLOSE
000,005.00
Flashes
Units
BATCH
DELAY
DELAY
ON
TIME
0060 SEC
DELAY
OFF
TIME
0000 SEC
BATCH
PRESET2
PSET2
GAL
PSET2
000,050.00
Flashes
Units
ENTER
F3
MENU
F2
F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
INFO
RELAY 1
RELAY
RUNTIME
TIME
195.0 H
CYCLE
COUNT
ENTER
F3
MENU
F1
CYCLE
51
RLY 1
CLEAR?
F1
Flashes
Briefly
Flashes
Briefly
Page 52
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
52
Isolated 4-20 mA Output (4-20 mA)
The 4-20 mA menu is used to scale the 4-20 mA output based on display values. This menu is not present on models
without a 4-20 mA output option.
The 4-20 mA analog output (if equipped) can be scaled to provide a 4-20 mA signal for the rate or total display range
or to simply retransmit the 4-20 mA input. The output may be disabled (DISABLE) and will only output the minimum
signal.
Overrange and underrange values determine what mA signal the meter will output if the mA input is underrange
(<3.5 mA) or overrange (>20.5 mA). This value may be set to 1 mA, 3.5 mA, 3.8 mA, 20.5 mA, 20.8 mA, 23 mA,
or disabled.
No equipment is needed to scale the analog output; simply program two display values and corresponding mA output
signals.
Rate or Total (RATE or TOTAL)
To scale the analog output, enter display value 1 and a corresponding analog output value for this display, then enter
display value 2 and a corresponding analog output value for this display value. This will provide a linearly scaled
analog output.
Retransmit (RETRANS)
This option will retransmit the 4-20 mA analog input without the need to scale the output.
Output Manual Control (CONTROL)
The Control menu is used to control the open collector outputs, 4-20 mA analog output, or the relays manually,
ignoring the input. Each open collector, relay, and analog output can be programmed independently for manual
control. Selecting automatic control sets all relays and analog output for automatic operation.
After selecting manual control for a specific output, you can set the output value. To change the output value, return
to the Control menu, select the output to control, select manual control, and enter a new input.
SETUP
OUTPUT
OPEN
COLLECTR
OUT
RELAY
OUT
4-20 mA
4-20
RATE
DSP 1
+00,000.00
DSP 1
GAL
Flashes
Units
OUT 1
04.000
DSP 2
+00,100.00
OUT 2
20.000
AOUT
UNDER
U-RNG
DISABLE
AOUT
OVER
O-RNG
DISABLE
AOUT
SCALE
ENTER
F3
MENU
F1 F1
ENTER
F3
F2 F1
4-20
RETRANS
4-20
DISABLE
F2 F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
4-20
TOTAL
F2 F1
ENTER
F3
OUT
CONTROL
CTRL
OC 1
CTRL
AUTO
CTRL
MANUAL
ENTER
F3
MENU
F2 F1
CTRL
ON
CTRL
OFF
F2 F1
ENTER
F3
ENTER
F3
MENU
Page 53
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
53
Advanced Features Menu (ADVANCED)
To simplify the setup process, functions not needed for most applications are located in the Advanced Features
menu. The options under advanced features include advanced rate, total, and grand total setup, cutoff, filter,
password, function key programming, and system settings.
Advanced Rate Setup (ADV RATE)
The Advanced Rate menu contains options to apply input signal conditioning functions to the input and scale/calibrate
the input signal.
SETUP
ADVANCED
ADV
RATE
SYSTEM
ADV
TOTAL
ADV
GTOTAL CUTOFF
FILTERUSER PASSWRD
ENTER
F3
MENU
F2 F1 F2 F1
F2F1
F2
F1
F2
F1
F2 F1
F2F1 F2F1
ADV
RATE
RATE
FUNCTION
RATE
SCALE.CAL
RATE
LINEAR
RATE
SQROOT
RATE
EXPONENT
SCALE
RATE
CAL
RATE
ENTER
F3
MENU
F2 F1
F2 F1
F2 F1
F2
F1
ENTER
F3
ENTER
F3
Page 54
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
54
Input Signal Conditioning Functions (FUNCTION)
The Function menu is used to select the input signal conditioner applied to the input: linear, square root, programmable
exponent, or round horizontal tank volume calculation. Multi-point linearization is part of the linear function selection.
Meters are set up at the factory for linear function with 2-point linearization. The linear function provides a display that is
linear with respect to the input signal.
Using MeterView XL
MeterView XL makes programming the input signal conditioning functions quick and easy. Go to the input/scale menu
and select the desired function from the drop down menu in the “scale input” section.
Page 55
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
55
Square Root Linearization (SQROOT)
The square root function can be used to linearize the signal from a differential pressure transmitter and display flow rate
in engineering units.
PD4-6624 Displaying Flow Rate by Applying the Square
Root Function to the Output of a DP Transmitter.
MeterView XL Square Root Function Setup
SCALE
UNITS
SCALE
INPUT 1
GAL/(T)
L/(T)
IGAL/(T)
M3/(T)
BBL/(T)
BUSH/(T)
cuYD/(T)
cuFt/(T)
cuIn/(T)
LiBBL/(T)
BBBL/(T)
HECtL/(T)
AF/(T)
CUSTOM/(T)
Rate Units
INP 1
04.000
INP 1
mA
Flashes Units
Momentarily
SCALE
INPUT 2
RATE
sqROOT
RATE
SCALE.CAL
SCALE
RATE
TIME
/SECOND
UNIT
GAL/S
ENTER
F3
MENU
ENTER
F3
ENTER
F3
ENTER
F3
SCALE
DISP 1
DSP 1
+00,000.00
ENTER
F3
INP 2
20.000
ENTER
F3
SCALE
DISP 2
DSP 2
+00,100.00
SAVE? SETUP
INPUT
ENTER
F3
ENTER
F3
ENTER
F3
Rate Time
Bases
/SECOND
/MINUTE
/HOUR
/DAY
F2
F1
F2 F1
F2
F1
ENTER
F3
ENTER
F3
ENTER
F3
MENU
ENTER
F3
MENU
ENTER
F3
MENU
Page 56
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
56
Programmable Exponent Linearization (EXPONENT)
The programmable exponent can be used to linearize the signal from level transmitters in open-channel flow
applications using weirs and flumes.
The PD4-6624, in combination with an ultrasonic level transmitter, makes for an economical way to measure and
display open channel flow rate and total in most weirs and flumes. A guide such as the ISCO Open Channel Flow
Measurement Handbook can provide the user with all the information needed: the exponent used in the flow equation
for the desired flow units and the flow rate for any given head height.
For example, to display the open channel flow rate from a 3" Parshall flume, the ISCO handbook advises the
exponent is 1.547 and at the maximum head height of 3.0 feet, the flow rate is 3.508 MGD.
3" Parshall Flume Discharge Table
Formula: CFS = 0.9920 H
1.547
GPM = 445.2 H
1.547
MGD = 0.6411 H
1.547
Where: H = Head in feet
Table 12-3
Head
(Feet)
CFS
GPM
MGD
3.00
5.428
2436
3.508
ISCO Open Channel Flow Measurement Handbook, 3rd edition
With this information the PD4-6624 should be programmed in the following fashion. This setup assumes the level
transmitter is programmed to output 20 mA at the maximum head height of 3.00 feet; but any mA value at a head
height with a known flow rate may be used.
Function
Desired
Programming
Open Channel Flow
3" Parshall flume
Set Programmable Exponent to 1.547
Flow Rate
Millions of Gallons per Day
(MGD)
Set 4 mA = 0
20 mA = 3.508
Time base = Day
Total
Millions of Gallons
Set Totalizer Conversion Factor = 1
(password protect “total” to avoid accidental reset)
Non-Resettable Grand Total
Program meter so grand
total can never be reset
Set non-resettable grand total password
Display
Display Flow Rate, Total,
and Grand Total
Set upper display for Grand Total and lower display
to toggle between rate and total.
Page 57
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
57
The Programmable Exponent function is programmed in the following manner:
SCALE
UNITS
SCALE
INPUT 1
SCALE
DISP 1
UNITS
RATE
/SECOND
/MINUTE
/HOUR
/DAY
Rate Time
Bases
GAL/(T)
L/(T)
IGAL/(T)
M3/(T)
BBL/(T)
BUSH/(T)
cuYD/(T)
cuFt/(T)
cuIn/(T)
LiBBL/(T)
BBBL/(T)
HECtL/(T)
AF/(T)
CUSTOM/(T)
Rate Units
INP 1
04.000
INP 1
mA
Flashes Units
Momentarily
DSP 1
+00,000.00
SCALE
INPUT 2
INP 2
20.000
SCALE
DISP 2
DSP 2
+00,100.00
SAVE? SETUP
INPUT
RATE
EXPONENT
1.5000
EXPONENT
RATE
SCALE.CAL
SCALE
RATE
TIME
/SECOND
UNIT
GAL/S
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
F2 F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
Page 58
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
58

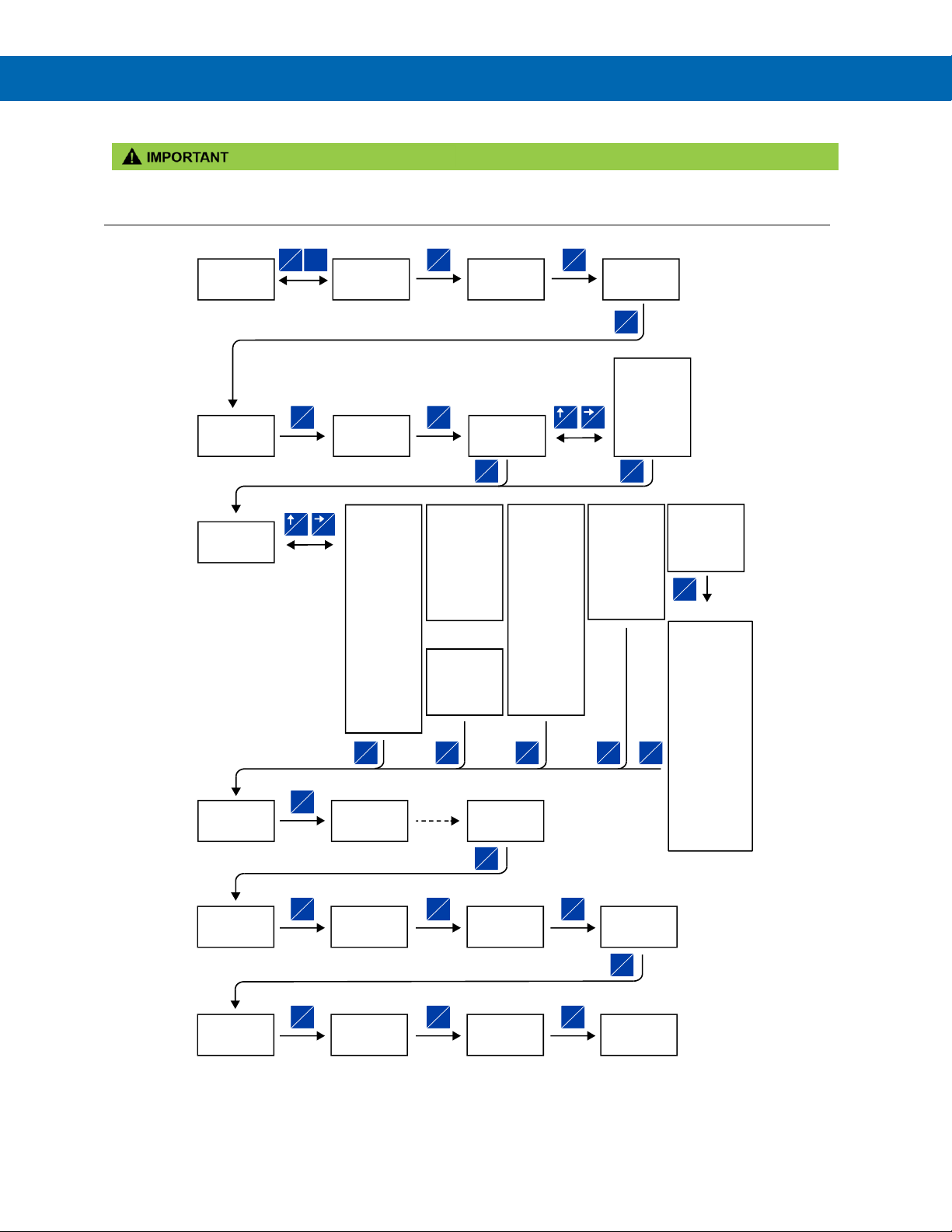

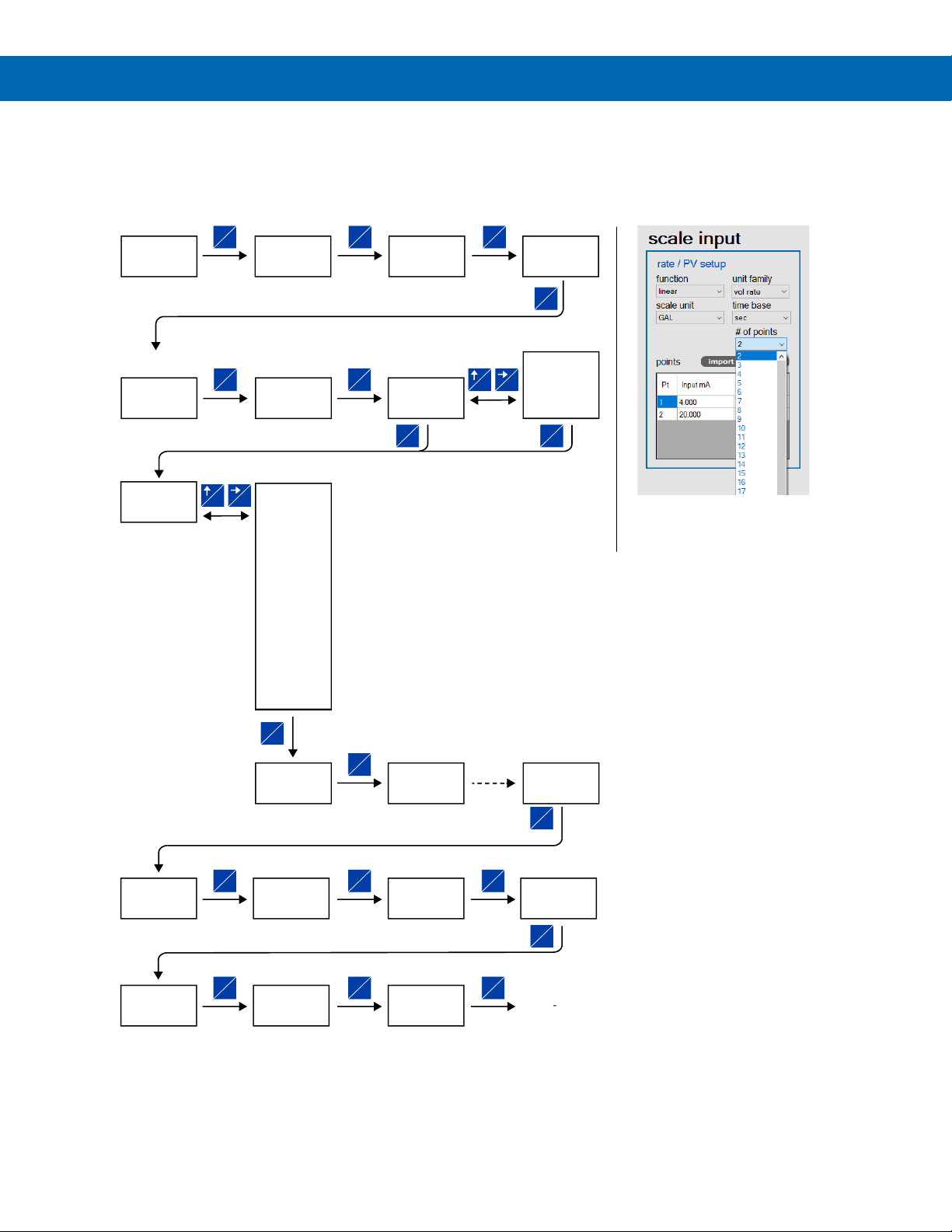

Multi-Point Linearization (LINEAR)
Up to 32 linearization points can be selected for rate under the LINEAR function. Multi-point linearization can be used
to linearize the input for non-linear signals to convert level to flow using weirs and flumes with complex equations.
These points are established via direct entry (SCALE) or with a live calibration signal source (CAL).
MeterView XL showing the linear
points setup feature. Up to 32
points can be selected.
SCALE
UNITS
SCALE
DISP 1
TIME
/SECOND
/SECOND
/MINUTE
/HOUR
/DAY
Rate Time
Bases
DSP 1
+00,000.00
SCALE
INPUT 2
INP 2
5.600
SCALE
DISP 2
DSP 2
+00,100.00
INP 3
RATE
FUNCTION
RATE
LINEAR
12
NO. PTS
RATE
SCALE.CAL
SCALE
RATE
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
SCALE
INPUT 1
INP 1
04.000
INP 1
mA
Flashes Units
Momentarily
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
F2 F1
Enter
Multi Point
Values
ENTER
F3
GAL
L
IGAL
M3
BBL
BUSH
cuYD
cuFt
cuIn
LiBBL
BBBL
HECtL
AF
CUSTOM
Volume Units
UNIT
GAL/s
F2 F1
Page 59
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
59

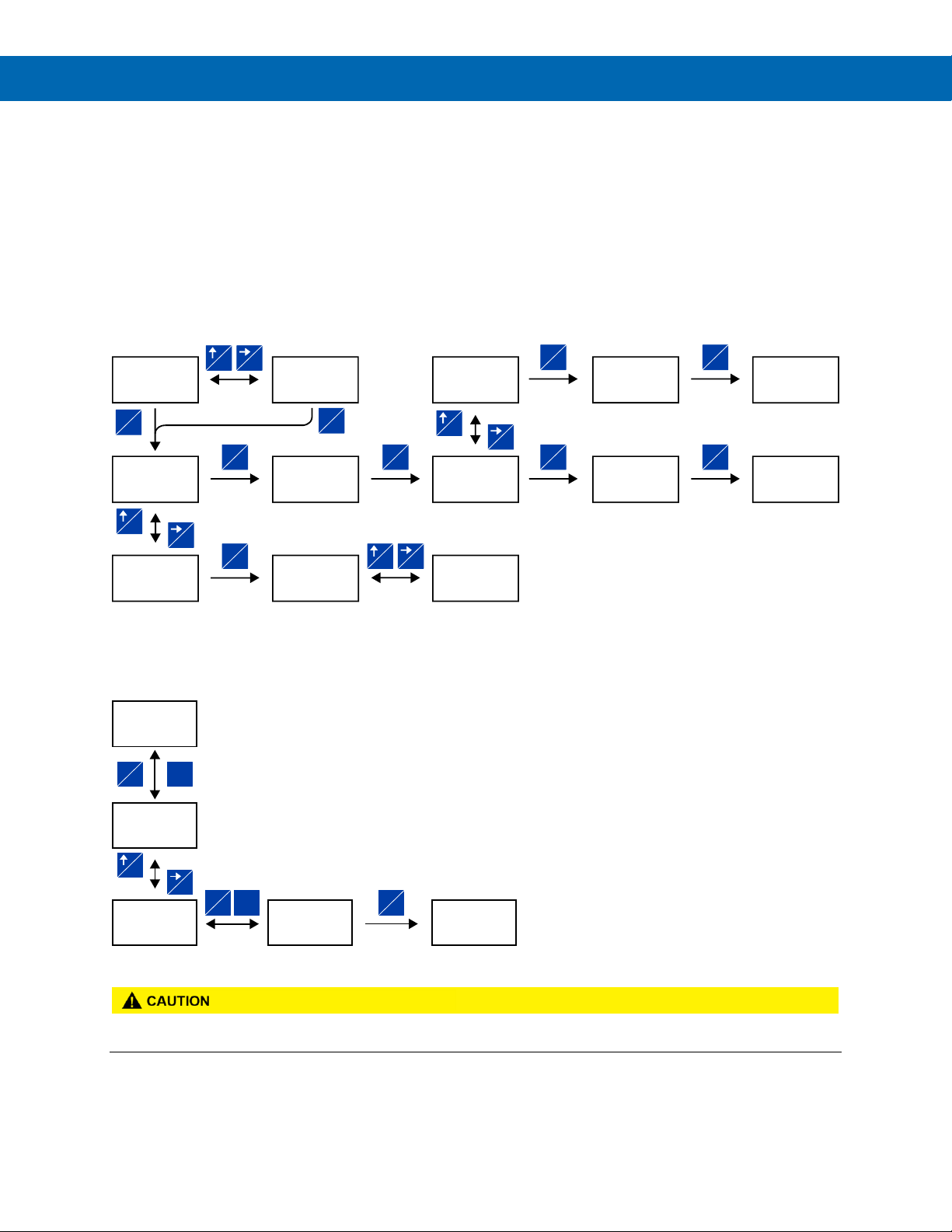

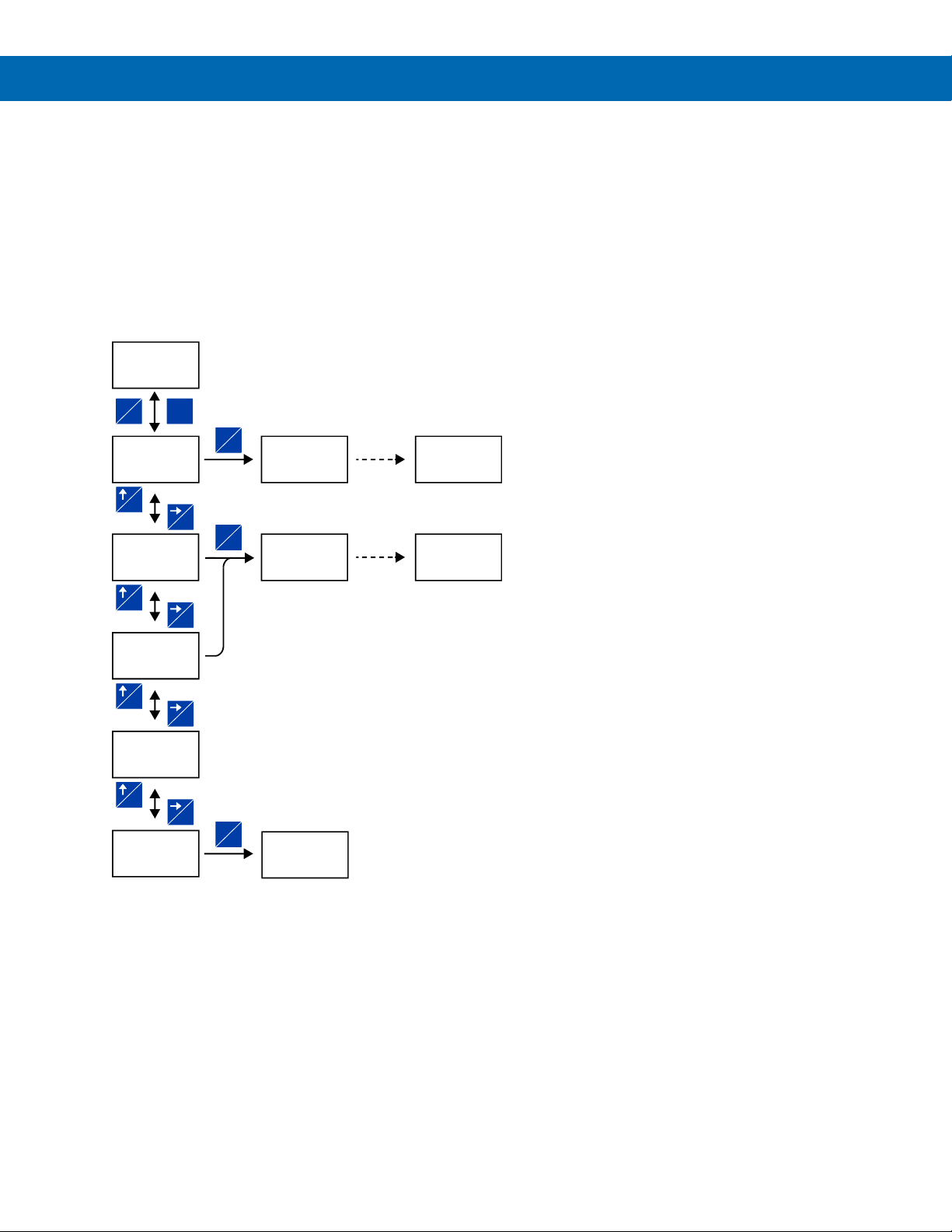

Advanced Total and Grand Total Setup (ADV TOTAL & ADV GTOTAL)
The advanced total and grand total menu contain the count (COUNT) and reset (RESET) menus. The count menu
allows the digit limit to be selected between 8-digit (bottom display only) and 13-digit (uses top and bottom display to
display full number) and the initial value at which the total or grand total should start counting.
When using a 13-digit total or grand total, press the function key assigned to display (default: F1) to view the full
amount once the value has exceeded 100,000,000 (decimal places are automatically truncated). If a 13-digit total or
grand total is displayed on the bottom display and the value has exceeded eight digits, the truncated value will flash
to indicate that it is not the complete value. To display 13-digit grand total, assigned the top and bottom display to
grand total.
The reset menu is used to enable or disable the reset of the total and grand total.
Advanced Total Setup (ADV TOTAL)
Non-Resettable Grand Total
The grand total reset may be permanently disabled by selecting YES at the PERMLOCK menu after disabling grand
total reset.
• Use caution when selecting the PERMLOC feature as once the grand total reset has been permanently locked, it
cannot be unlocked.
ADV
TOTAL
LIMIT
13-DIGIT
ADV
GTOTAL
TOTAL
COUNT
TOTAL
RESET
COUNT
LIMIT
LIMIT
8-DIGIT
COUNT
INITIAL
COUNT
INITIAL
00000
0,000,000.0
COUNT
0,000,000.0
RESET
ENABLE
RESET
DISABLE
ENTER
F3
F2
F1
F2 F1
F2 F1
F2
F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ADV
GTOTAL
GTOT
COUNT
RESET
DISABLE
NO
PERMLOCK
MENU
ENTER
F3
ENTER
F3
MENU
GTOT
RESET
F2
F1
ENTER
F3
Page 60
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
60

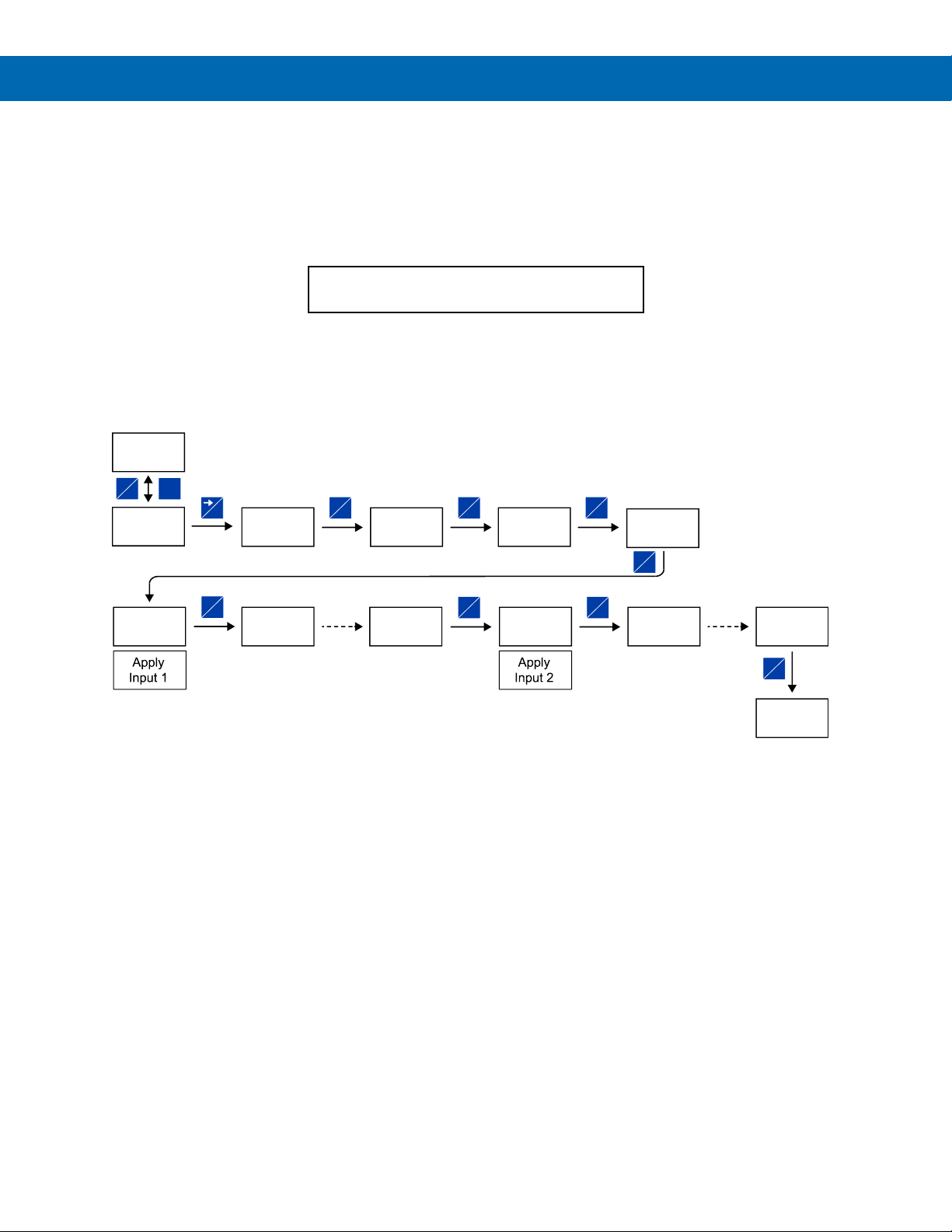

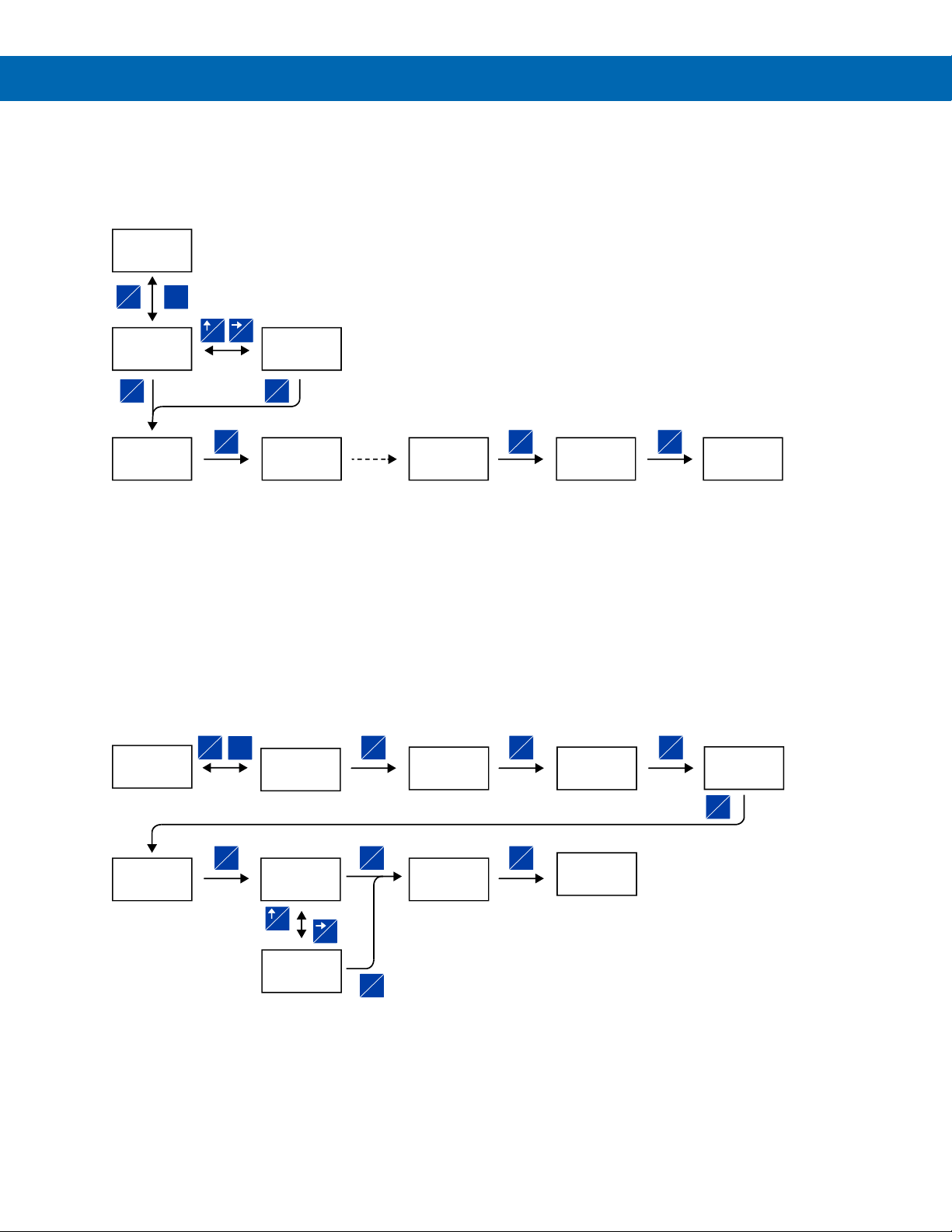

Advanced Scaling and Calibration (SCALE.CAL)
This menu offers options to scale or calibrate the meter.
Scaling the Input (SCALE)
The scale menu in the Advanced menu is the same as the scale menu in the Input menu. See Scaling the 4-20 mA
Input (INPUT) on page 36 for details about scaling the meter.
Calibrating the Input (CAL)
To scale the meter without a signal source, refer to
Scaling the 4-20 mA Input (INPUT) on page 36
The meter can be calibrated to display the process in engineering units by applying the appropriate input signal
and following the calibration procedure. The CAL menu should be used with a live signal coming from a 4-20 mA
transmitter connected to the process being measured.
During calibration, the mA input value will be displayed as INP 1 and INP 2. Adjust the input source until the
desired mA value is shown. The use of a calibrated signal source is strongly recommended.
Follow these steps to calibrate the input:
1. After accessing the SCALE.CAL menu, press the Right-Arrow button to scroll to the Calibration menu (CAL RATE)
and press Enter.
2. Select the appropriate units for the desired process variable, then press Enter. For information on units,
see Available Engineering Units on page 37.
3. The meter displays INP 1. Apply a known signal and press Enter. The display will flash while accepting
the signal.
4. After the signal is accepted, the meter displays DSP 1. Enter a corresponding display value for the input
signal , and press Enter to accept.
5. The meter displays INP 2. Apply a known signal and press Enter. The display will flash while accepting
the signal.
6. After the signal is accepted, the meter displays DSP 2. Enter a corresponding display value for the input
signal and press Enter to accept.
7. After completing calibration, the SAVE? display will need to be acknowledged using the Enter key before
calibration will take effect.
RATE
SCALE.CAL
CAL
UNITS
TIME
/SECOND
UNIT
GAL/S
SCALE
RATE
CAL
RATE
SAVE?
ENTER
F3
MENU
F1
ENTER
F3
ENTER
F3
DSP 1
GAL/S
Flashes
Units
INP 1
04.000 mA
DSP 1
+00,000.00
ENTER
F3
DSP 2
GAL/S
Flashes
Units
INP 2
20.000 mA
DSP 2
+00,100.00
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
Note: The SAVE? prompt is not displayed if no changes have been made to the scaling.
Page 61
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
61

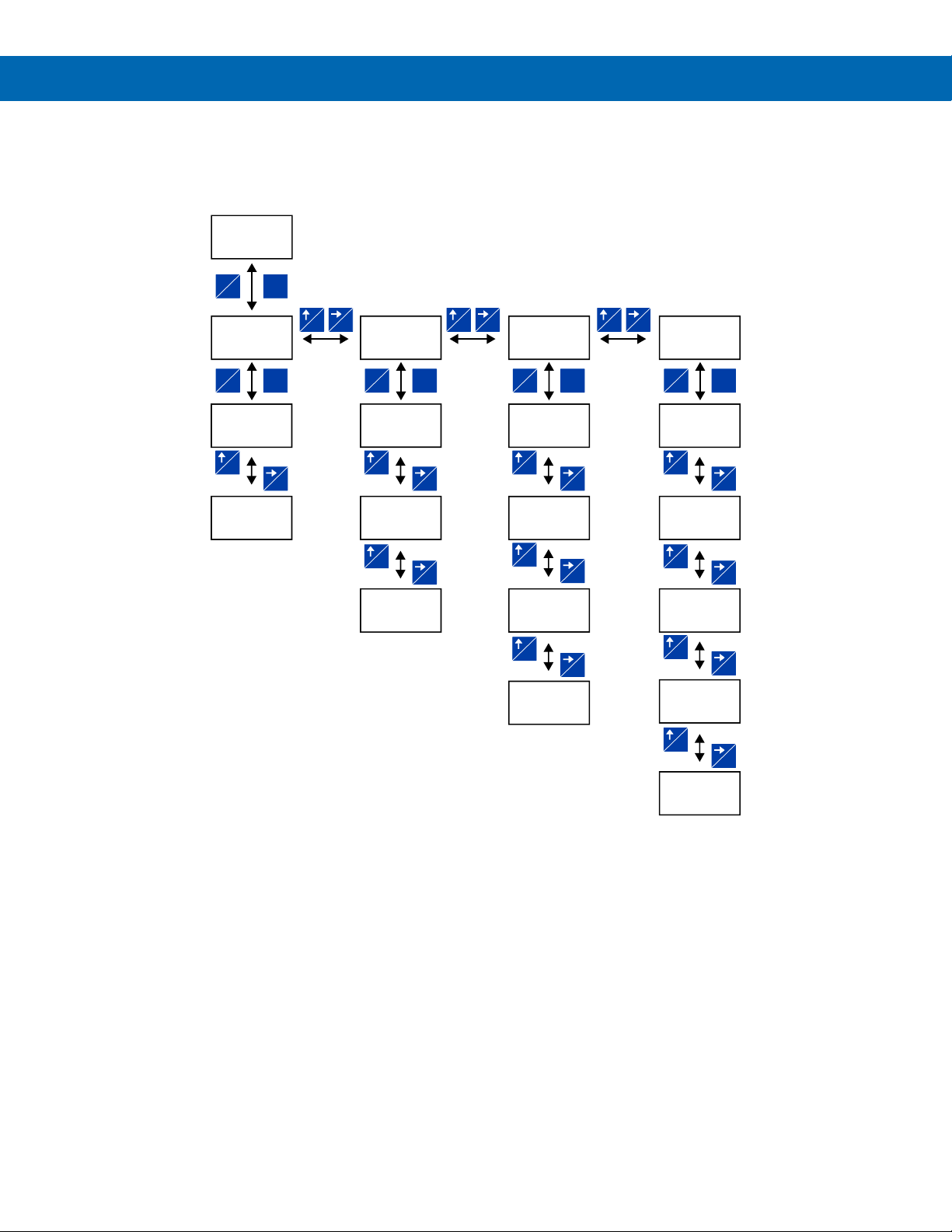

Additional Engineering Units
• If the total is disabled and the dual-scale level feature has been selected, the menus for PV1 & PV2 are enabled.
• Additional engineering units become available as shown below.
SCALE
UNITS
SCALE
INPUT 1
SCALE
DISP 1
UNITS
VOLUME
HEIGHT
TEMP
PRESSURE
WEIGHT
RATE
CUSTOM
UNIT
GAL
GAL
L
IGAL
M3
BBL
BUSH
cuYD
cuFt
cuIn
LiBBL
BBBL
HECtL
AF
CUSTOM
INCH
FEET
FT-IN
YARD
CM
M
CUSTOM
~F
~C
K
~RA
PSI
InHg
InH2O
mmHg
kg/CM2
kg/M2
mBAr
Bar
PA
hPA
kPA
MPA
CUSTOM
gm
kg
tonne
oz
1b
ton
CUSTOM
/SECOND
/MINUTE
/HOUR
/DAY
GAL/(T)
L/(T)
IGAL/(T)
M3/(T)
BBL/(T)
BUSH/(T)
cuYD/(T)
cuFt/(T)
cuIn/(T)
LiBBL/(T)
BBBL/(T)
HECtL/(T)
AF/(T)
CUSTOM/(T)
Volume Units
Height Units Pressure Units Weight Units
Rate Time
Bases
Rate Units
Temperature
Units
INP 1
04.000
INP 1
mA
Flashes Units
Momentarily
DSP 1
+00,000.00
SCALE
INPUT 2
INP 2
20.000
SCALE
DISP 2
DSP 2
+00,100.00
SAVE? SETUP
INPUT
PV
LINEAR
02
NO. PTS
PV
SCALE.CAL
SCALE
PV
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTERF3ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
F2 F1
F2 F1
PV
FUNCTION
ENTER
F3
MENU
Page 62
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
62
Low-Flow Cutoff (CUTOFF)
The low-flow cutoff feature allows the meter to be programmed so that the often-unsteady output from a differential
pressure transmitter at low flow rates always displays zero on the meter.
The cutoff value may be programmed from 0.1 to 99999. The meter will display zero below the cutoff value. The
cutoff can be disabled to display negative values.
Noise Filter (FILTER)
The noise filter is available for unusually noisy signals that cause an unstable process variable display. The noise
filter averages the input signal over a certain period. The filter level determines the length of time over which the
signal is averaged. The filter level can be set between 1 and 16 seconds or turned off. The higher the filter level, the
longer the averaging time and so the longer it takes the display to settle to its final value. Setting the filter level to off
disables the filter function.
Noise Filter Bypass (BYPAS)
The noise filter bypass changes the behavior of the meter so that small variations in the signal are filtered out but
large abrupt changes in the input signal are displayed immediately. The bypass value determines the minimum
amount of signal change to be displayed immediately. All signal changes smaller than the bypass value are filtered
or averaged by the meter. The noise filter bypass may be set between 0.0 and 99.9% of full scale.

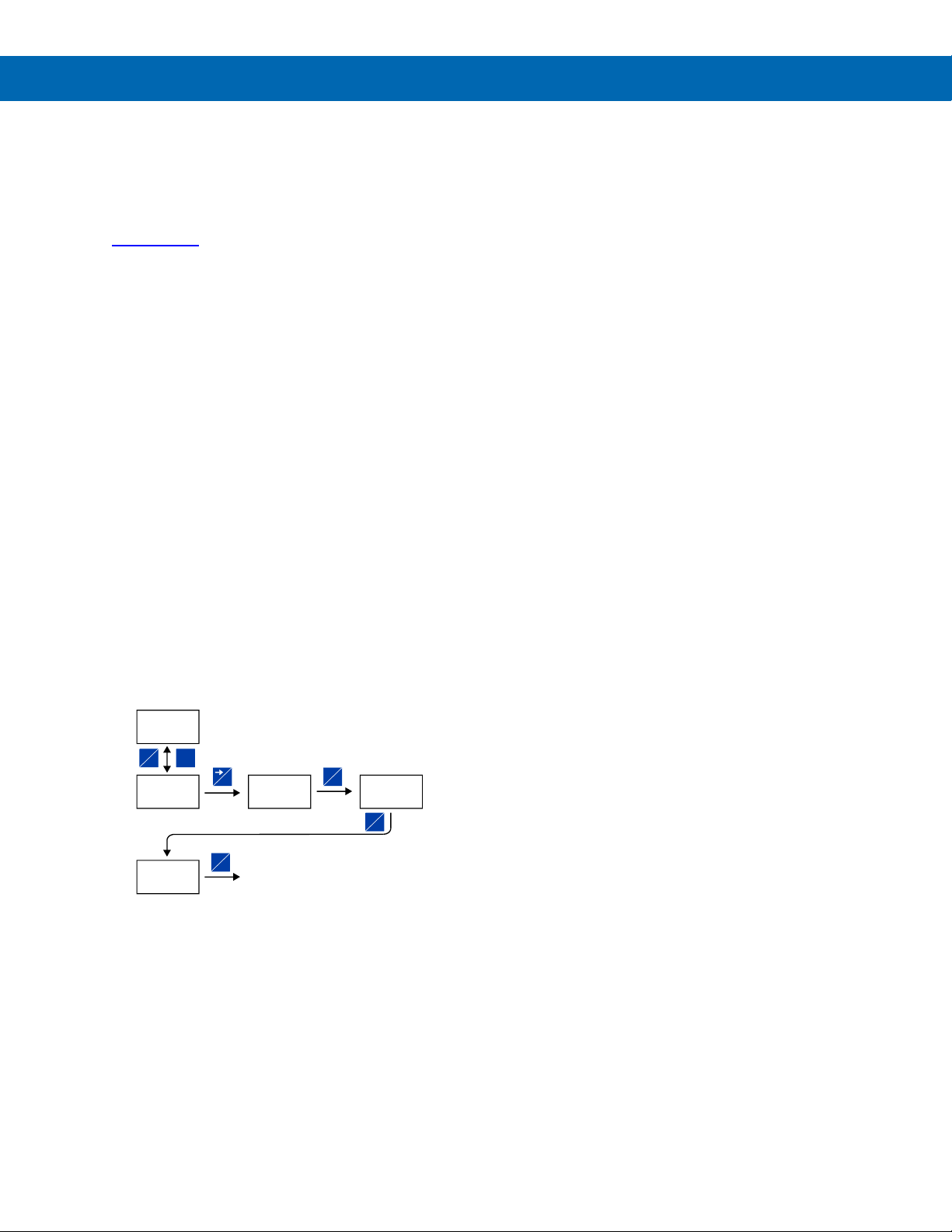

Enabling Password Protection (PASSWRD)
The Password menu is used for programming security to prevent unauthorized changes to the programmed
parameter settings or undesired resetting of the total or grand total. There are three separate passwords available
that can be set independently of each other: Main, Total, and Grand Total. The Main, Total, and Grand Total
passwords prevent access to the meter Programming Mode. Total and Grand Total passwords prevent resetting of
the total and grand total, respectively.
To set a password, enter the Password menu and program a five-digit password.
For instructions on how to program numeric values see Setting Numeric Values, page 35.
LOCKED
LOCK
00000
LOCK
12345
Enter
Numeric
Password
PASSWRD
Flashes
Momentarily
PASSWRD
ENTER
F3
MENU
ENTER
F3
ENTER
F3
PASS
MAIN
F2
F1
PASS
TOTAL
F2
F1
PASS
GTOTAL
Page 63
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
63
Making Changes to a Password Protected Meter
If the Main password is enabled, the meter will display the message LOCKED when the Menu button is pressed. If
the Total or Grand Total passwords are enabled, the meter will display the message LOCKED when trying to reset or
change the total or grand total. Press the Enter button while the message is being displayed and enter the correct
password to gain access to the menu. After exiting Programming Mode, the meter returns to its password protected
condition.
Disabling Password Protection
To disable the Main, Total, or Grand Total passwords, access the Password menu and clear the desired password
either by pressing and holding the Right Arrow button until all digits reset to zero or manually changing all of the digits
to zero. When the Enter button is pressed, the meter will display UNLOCKED and will no longer require a password to
access Programming Mode, or a password to reset or change the total or grand total, depending on which password
was cleared.
Note: If the meter is password protected and the password has been forgotten, the password may be overridden using the master
password: 50865
Programmable Function Keys User Menu (USER)
The User menu allows the user to assign the front panel function keys F1, F2, and F3, and the digital input (a digital
input located on the input signal connector) to access some of the menus or to activate certain functions immediately
(e.g. reset max & min, hold relay states, etc.). This allows the meter to be greatly customized for use in specialized
applications.
Page 64
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
64
Function Keys & Digital Input Available Settings
Refer to the following table for descriptions of each
available function key or digital input setting.
Display
Description
DISP FN
Set the function key or digital input to
display a value
DISPLAY
Cycle max, min, rate, total, and grand
total
D RATE
Display the rate
D TOTAL
Display the total
DISP GT
Display the grand total
PCT.RATE
Display the rate’s percentage of max
(20 mA)
D UNITS
Display rate, total, and grand total
units
D TAG
Display the tags
DISPMIN
Display the minimum rate value
DISPMAX
Display the maximum rate value
MIN MAX
Display the minimum and maximum
rate value
D mA IN
Display the current mA input value
D mAOUT
Display the current mA output value
MENU FN
Set the function key or digital input to
access a menu
RLYINFO
Go to relay information menu (INFO)
MANCTRL
Go to output control menu (CONTROL)
TIMR OC1
Open collector 1 timer
TIMR OC2
Open collector 2 timer
TIMER R1
Relay 1 timer
TIMER R2
Relay 2 timer
TIMER.FN
Set the function key or digital input to
start or stop a timer
STRT.ALL
Start all timers
STOP.ALL
Stop all timers
S.STP.ALL
Start or stop all timers
OC1
Start/stop open collector 1 timer
OC2
Start/stop open collector 2 timer
RLY1
Start/stop relay 1 timer
RLY2
Start/stop relay 2 timer
START
Start the selected timer output
STOP
Stop the selected timer output
STR-STP
Start or stop the selected timer output
BATCH.FN
Set the function key or digital input to
batch control
START
Start a batch
STOP
Stop a batch
STR-STP
Start or stop a batch
PRESET
Preset batch amount
ALARM.FN
Set the function key or digital input to
acknowledge an alarm
ACK
Acknowledge all active alarms
SETPOINT
Set all output set points
SETPT.OC1
Set open collector 1 set point
SETPT.OC2
Set open collector 2 set point
Display
Description
SETPT.R1
Set relay 1 set point
SETPT.R2
Set relay 2 set point
SWATCH.FN
Set the function key or digital input to
activate stopwatch
START
Start the stopwatch
STOP
Pause/Stop the stopwatch
STR-STP
Start or stop the stopwatch
HOLD FN
Set the function key or digital input to
hold an output
HOLD.OUT
Hold all outputs
HLD.UNHLD
Hold or un-hold all outputs
OC1+2
Hold/un-hold open collector outputs
RLY1+2
Hold/un-hold relay outputs
mAOUT
Hold/un-hold 4-20 mA output
HOLD
Hold selected output
HLD.UNHLD
Hold or un-hold selected output
DISABLE
Disable function key or digital input
RST FN
Set the function key or digital input to
reset a value
RESET
Reset min, max, or max/min rate value
R MIN.MAX
Reset max and min rate value
RST T
Reset the total
RST GT
Reset the grand total
RST T.GT
Reset the total and grand total
Page 65
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
65
Enabling the Function Key Hint Feature (HINT)
Enabling the function key hint feature will cause a hint
message to be displayed when pressing the F1, F2,
or F3 function keys. This text gives a brief description
of what the button is programmed to do. Pressing that
function key a second time will execute that action.
The hint feature does not affect the digital input (DI)
which is intended for immediate execution.

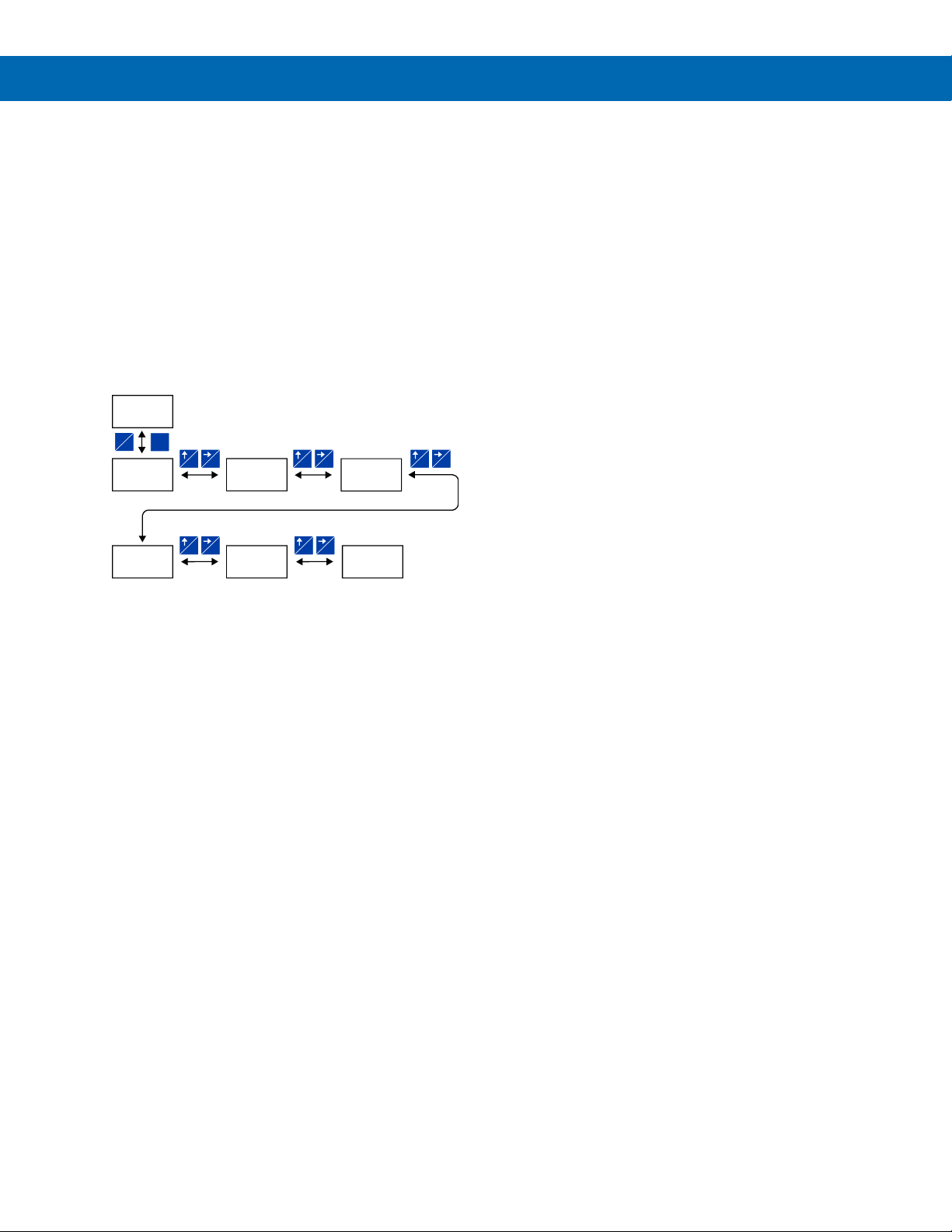

Changing System Settings (SYSTEM)
The System menu contains the following menus:
Analog Output Calibration, Restore Factory Defaults,
Totalizer, Backlight, Information, and Internal
Calibration.
Analog Output Calibration (AOUTCAL)
To perform the analog output calibration, it is
recommended to use a milliamp meter with a
resolution of at least 0.1 µA to measure the output
current. The values saved internally during this
procedure are used for scaling the 4-20 mA output in
the Setup menu.
4-20 mA Output Calibration Procedure
1. Go to the Advanced Features menu and
navigate to the SYSTEM menu and press
Enter. Navigate to AOUTCAL and press Enter.
2. The display will show 4 mA. The Loop Leader+
mA output should now be close to 4 mA. Enter
the actual value read by the digital mA meter
on the second line of the display and press
Enter.
3. The display will show 20 mA. The Loop
Leader+ mA output should now be close to 20
mA. Enter the actual value read by the digital
mA meter on the second line of the display
and press Enter.
4. The Loop Leader+ will now calculate the
calibration factors and store them.
5. Press Menu to exit.
Disabling the Totalizer (TOTAL)
The totalizer can be disabled using the SYSTEM TOTAL menu. With the totalizer disabled, the meter
will behave as a PD4-6604 process meter. Refer to
the PD4-6604 instruction manual for instructions
about programming a PD4-6604 process meter.
Enabling or Disabling the Backlight (BACKLITE)
The backlight may be enabled or disabled using the
Backlight menu. The backlight is enabled by default,
but the input must be wired appropriately for the backlight to function. The backlight must be powered by an
external power source. See Wiring Diagrams on page
25. The voltage drop is the same if the backlight is not
wired or if it is disabled in the System menu.
Viewing System Information (INFO)
System information, such as software (firmware)
number and version, model number, and system tag,
may be viewed in the INFO menu. Press the Right
Arrow button to cycle through all available meter
information. Press Menu to go back to the previous
menu.
SYSTEM
SYSTM
AOUTCAL
SYSTM
DEFAULT
SYSTM
TOTAL
SYSTM
BACKLITE
SYSTM
INFO
SYSTM
ICAL
ENTER
F3
MENU
F2 F1 F2 F1 F2 F1
F2 F1 F2 F1
Page 66
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
66

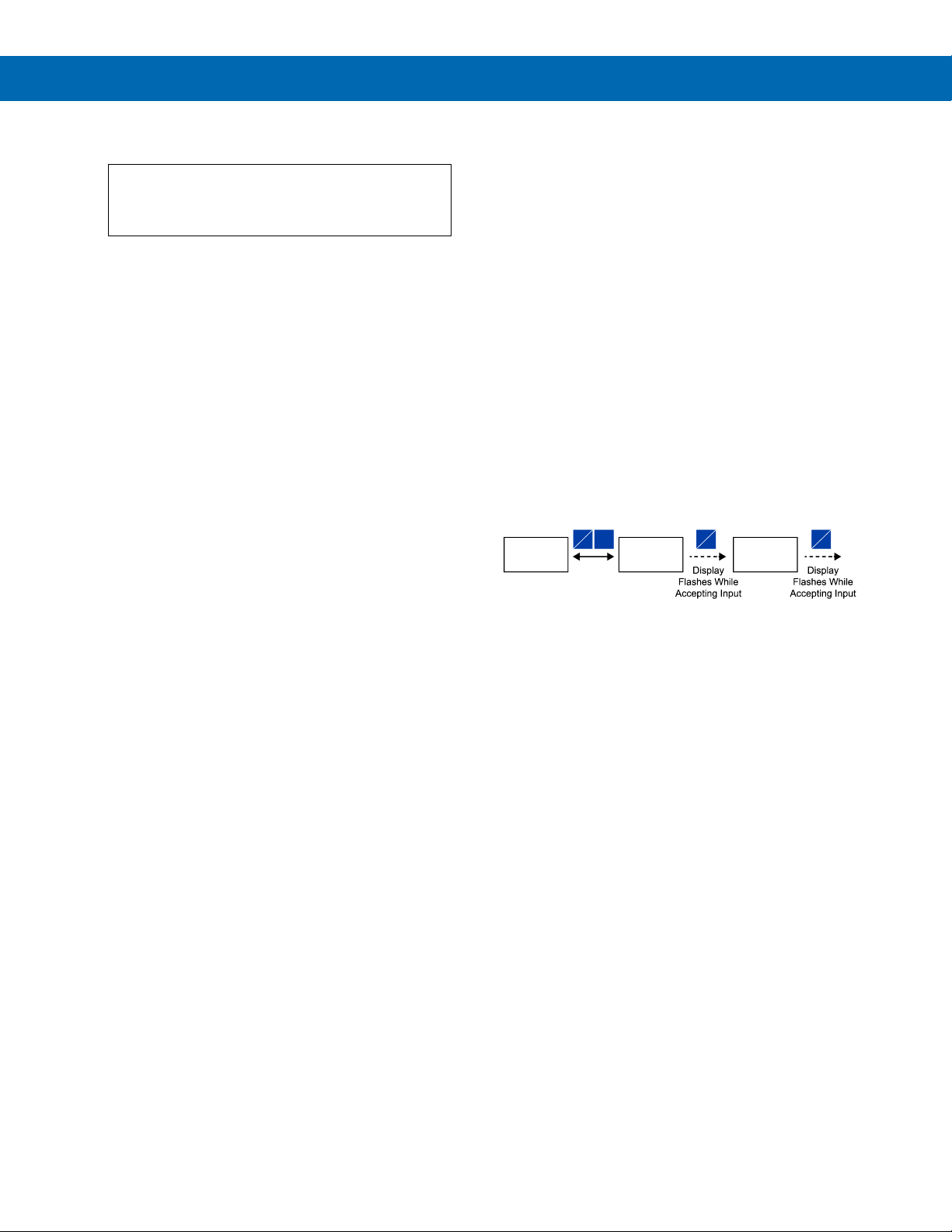

Calibrating the Internal mA Reference (ICAL)
The meter is factory calibrated prior to shipment to
display 0 to 100, which corresponds to the 4-20 mA
input. The calibration equipment is traceable to
NIST standards.
The use of calibrated signal sources is necessary to
calibrate the internal source of the meter. The meter’s
internal source is what allows the user to scale the
meter without applying a signal.
Check calibration of the meter at least every 12
months.
Note: Allow the meter to warm up for at least 15 minutes
before performing the internal source calibration procedure.
The Internal Calibration menu is part of the Advanced
menu. Internal Calibration is performed as follows:
1. Press the Menu button to enter
Programming Mode.
2. Press the Up-Arrow button twice and press
Enter to access the Advanced menu.
3. Press the Up-Arrow button and press Enter
to access the System menu.
4. Press the Up-Arrow button and press Enter
to access the ICAL menu.
5. The meter displays low input current
message (4.000 mA). Apply a 4 mA signal
and press Enter. The display flashes for a
moment while the meter is accepting the low
input signal.
6. After the display stops flashing, the display
moves to the high input calibration (20.000 mA).
Apply the high input signal and press Enter. The
display will flash again while the meter is
accepting the high input signal.
SYSTM
ICAL
ICAL
4.000 mA
ICAL
20.000 mA
Apply 4-mA
Signal
Apply 20-mA
Signal
ENTER
F3
MENU
ENTER
F3
ENTER
F3
Page 67
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
67

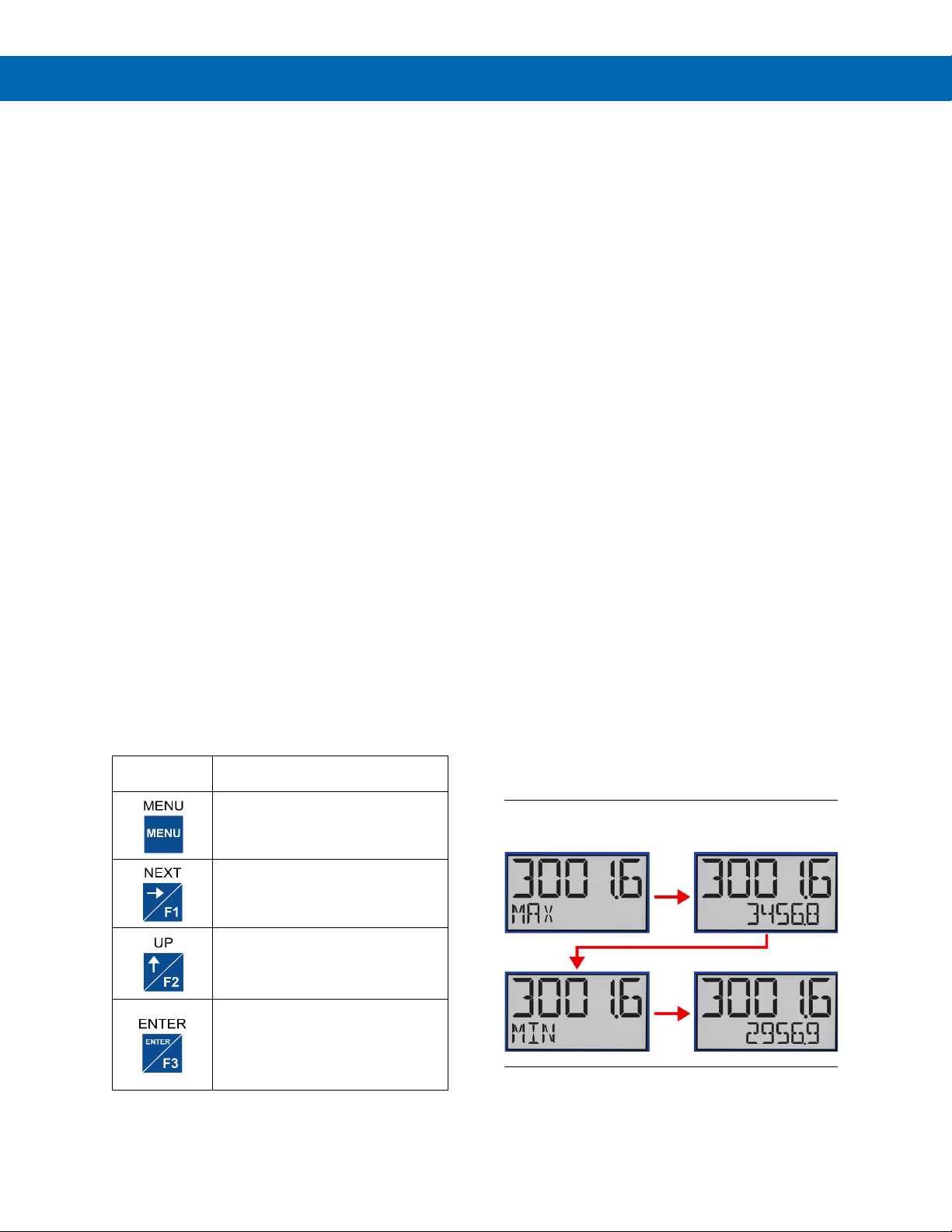

Meter Operation
The meter is equipped with four buttons behind the
lower panel door used for operation of the meter.
Three buttons labeled F1, F2, and F3 can be
programmed as function keys to perform a variety of
meter functions with a simple push of a button. These
include resetting the total, resetting the meter’s relays
or open collectors, starting and stopping timers,
displaying max/min values and starting/stopping
batches. See Function Keys & Digital Input Available
Settings on page 64 for a complete list of settings
available.
A digital input is available on the meter and it may
function in a similar fashion as the function keys to
allow remote operation of a single task.
The max & min readings (peak & valley) reached by
the process can be displayed either continuously by
assigning it to a display line in the Display menu, or
momentarily by pressing the F1 key (default) or
assign it to any of the other function key or the digital
input.
Pressing the F1 key cycles through various display
values (e.g. Grand total, max, min); press the Enter
key to lock the display in the current process value
and press the Enter key again to unlock the display.
The relay information menu shows runtime and cycle
count for each relay.
Change the display units within the selected unit class
at any time without the need to re-scale the meter.
Select the desired units via the UNITS menu in the
DISPLAY menu, and the meter automatically
converts the display values to the new unit of
measure.
Front Panel Buttons Operation
Button
Symbol
Description
(Default Settings)
Press to enter or exit Programming
Mode, view settings, or exit
max/min readings
Press to display grand total.
Continue pressing to cycle through
max, min, rate, and total displays.
Press to access the Reset menu.
Press F1 to scroll through the
options. Press F3 to reset the
currently displayed parameter.
Press to acknowledge all manually
resettable relays or open
collectors.
Press to lock/unlock the display
value after pressing the F1 key.
Function Keys Operation
During operation, the programmable function keys
operate according to the way they have been
programmed in the Advanced Features – User menu.
The table above shows the factory default settings for
F1, F2, and F3.
A hint message may be enabled to provide a
description of what each function key does prior to
executing their assigned function. See Enabling the
Function Key Hint Feature (HINT) on page 65.
Digital Input Operation
A digital input is standard on the meter. This digital
input is programmed identically to function keys F1,
F2, and F3. The input is triggered with a contact
closure between DI+ and DI-, or with an active low
signal. During operation, the digital input operates
according to the way it has been programmed in the
Advanced Features – User menu.
Maximum/Minimum Readings
The max & min readings (peak & valley) reached by
the process can be displayed either continuously or
momentarily.
Display momentarily by pressing the F1 function key
(default) or assigning to any of the other function keys
or to the digital input in the User menu.
Display continuously by pressing the Enter button
while the max/min is being displayed to lock the
display. Press Enter again to unlock.
Any of the F1-F3 function keys (buttons) and the
digital input can be programmed to reset the max &
min readings. The meters are set at the factory to
display the max reading by pressing the Right
Arrow/F1 button and to use the Up-Arrow/F2 button to
access the Reset menu. Press the Right Arrow button
to cycle through the available parameters to reset.
Top Display: Process Value
Bottom Display: Max & Min
Page 68
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
68
Total Reset Capabilities
The total and grand total can be reset using a button
behind the lower panel door (F2 default), the remote
contacts connected to a control station, an external
contact closure on the digital input, or MeterView XL.
In addition, both total and grand total reset can be
password protected to prevent unauthorized resets.
Total Reset via Button Under Lower Panel Door
The PD4-6624 is equipped with four buttons located
under the lower panel door. The F2 function key is set
up to reset the total. If reset grand total is enabled, it
is possible for the user to reset either the total or the
grand total.
Total Reset via Remote Contact
The PD4-6624 is equipped with remote contacts
located behind the lower panel door of the meter.
These can be connected to a PDA2364-MRUE
control station for remote operation of all four
programming / operation buttons. The F2 function key
is set by default to reset the total and grand total.
Total Reset via Digital Input
The PD4-6624’s digital input may also be used to reset
the total or grand total.
Total Reset Password Protection
Total and grand total passwords may be set to
prevent resetting the total or grand total unless a
password is entered. Grand total reset may be
disabled through the meter interface, and it may also
be permanently disabled. See Enabling Password
Protection (PASSWRD) on page 62 for details.
Runtime & Cycle Count (INFO)
The relay information menu shows runtime and cycle
count for each relay. These values may be cleared at
any time by selecting the Clear option (CLEAR?). If
the cycle count or runtime values need to be changed
on a frequent basis, it would be convenient to set up a
front panel button or the digital input to simplify this
process.
Note: See the menu tree under Solid-State Relay Outputs
(RELAY) on page 47 for complete menu structure on this
feature.
Meter displaying the
amount of time a relay
has been activated
Meter displaying the
number of times a relay
has cycled
Changing Engineering Units
It is possible to change the display units without the
need to re-scale the meter. The UNITS menu in the
DISPLAY menu allows the unit of measure to be
changed (e.g. from gallons/second (GAL/s) to
liters/second (L/s)) and the meter will automatically
convert the display values to the new unit of measure.
If entering a custom unit (CUSTOM), a custom
conversion factor will need to be entered. See
Changing the Engineering Units (UNITS) on page 38.
INFO
RELAY 1
RELAY
RUNTIME
TIME
195.0 H
ENTER
F3
MENU
F1
Flashes
Briefly
CYCLE
COUNT
CYCLE
51
RLY 1
CLEAR?
F1
Flashes
Briefly
Page 69
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
69
Batch Controller Operation
Selecting batch control for relay 1 enables the
batching features on the meter. The top display is
changed to show the total and the bottom display is
changed to display the preset batch amount. The
function keys are changed so that F1 starts a batch,
F2 opens the preset menu to allow the preset value to
be changed, and F3 stops the currently running batch.
Enabling batch control for relay 1 allows access to the
batch menu under relay 2 (this menu does not appear
by default).
Refer to page 70 for details to setup the batch
controller features.
The PD4-6624 has two open collector outputs that
can used for alarm indication. A 4-20 mA output
option is also available for retransmitting the process
variable.
Default Batch Control Operation
The following describes the operation of the three
operating keys (located behind the lower panel door
of the PD4-6624) as programmed with default
settings. A more convenient way to achieve batch
control operation with the PD4 is to use a control
station such as the PDA2364-MSBS. See examples
for Manual Batch Control on page 71 and Automatic
Batch Control on page 72.
START Button
Press the START button to begin a new batch
process. Press the START button to resume a batch
that has been stopped.
BATCH Button
Press the Batch button to access the Preset (batch
amount) menu. Program the batch with the arrow
keys, and confirm with the Enter key.
STOP Button
Press the STOP key once during a batch to pause.
Press the STOP key while paused to stop and cancel
the batch.
• Only the STOP Key is Enabled if a Batch is
Running. During a batch process, only the
pause/stop functions are operational, other
buttons are deactivated.
Batch Control Operation Example
The following example shows how two stage batch
control functions with a Loop Leader+. This setup will
establish a 55-gallon preset for the batch, with a main
valve (high flow) that will close at 50 gallons, and a
trickle valve (low or restricted flow) that will close at
55 gallons. Because the first batch overruns by 0.10,
the batch preset will be changed to 54.90 for the next
batch to compensate for overrun.
Two-Stage Manual Batch Control Setup Using Relays 1 & 2
The following table shows the parameters as they
appear within the OUT RELAY menu.
Parameter
Setting
Function
RELAY
OUTPUT 1
RLY 1
BATCH
Press Enter to assign relay
1 batch parameters.
BATCH
COUNT
UP or
DOWN
Setup batch to count up
or down.
BATCH
MAXIMUM
100.00
GAL
This setting prevents the
operator from entering a
preset value that exceeds
a safety limit for the batch
process.
BATCH
MODE
MANUAL
AUTO
Press Enter to select
manual or automatic batch
control.
BATCH
PRESET
55.00 GAL
Enter the batch size.
BATCH
DELAY
ON & OFF
Enter the On & Off time
delays for relay 1,
if desired.
RELAY
OUTPUT 2
RLY 2
BATCH
Press Enter to assign relay
2 batch parameters.
BATCH
PRECLOSE
YES
PRECLOSE
5.00
Set the pre-close value to
5 to close the valve being
controlled by relay 2 so it
closes five gallons before
reaching the preset.
BATCH
DELAY
ON & OFF
Enter the On & Off time
delays for relay 2,
if desired.
RELAY
MESSAGE
MSG
RELAY 1
Enter a message to be
displayed while relay 1 is
on, if desired.
MSG
RELAY 2
Enter a message to be
displayed while relay 2 is
on, if desired.
If only one-stage batch control is desired, do not
assign relay 2 to batch. The following pages show
illustrations of how the above settings control the
batch operation. The display assignment shown is the
default.
Page 70
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
70
Batch Control Relay 1
The batch total can be set to count UP or DOWN. The batch MAXIMUM is the max preset amount that can be batched.
Batching can be set to either manual or automatic operation (MANUAL or AUTO). If setting batching to automatic, a
delay before the next batch is started must be programmed. The PRESET amount is the value at which the batch will
stop and can be programmed up to the value assigned in the MAXIMUM menu. An on and off delay may be set for
batching relays.
Batch Control Relay 2
The BATCH option only appears under relay 2 if relay 1 has also been set to batch control. The second relay may be
programmed as a preclose relay or as another batching relay with its own preset amount.
RLY 1
BATCH
BATCH
COUNT
BATCH
MAXIMUM
BATCH
MODE
BATCH
PRESET
COUNT
UP
COUNT
DOWN
MAX
GAL
MAX
000,100.00
Flashes
Units
MODE
MANUAL
MODE
AUTO
PSET
GAL
PSET
000,055.00
Flashes
Units
BATCH
DELAY
DELAY
ON
TIME
0000 SEC
DELAY
OFF
TIME
0000 SEC
DELAY
0060 SEC
ENTER
F3
MENU
F2
F1
ENTER
F3
ENTER
F3
ENTER
F3
F2
F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
RLY 2
BATCH
BATCH
PRECLOSE
YES
PRECLOSE
NO
PRECLOSE
CLOSE
GAL
CLOSE
000,005.00
Flashes
Units
BATCH
DELAY
DELAY
ON
TIME
0060 SEC
DELAY
OFF
TIME
0000 SEC
BATCH
PRESET2
PSET2
GAL
PSET2
000,050.00
Flashes
Units
ENTER
F3
MENU
F2
F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
Page 71
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
71
Manual Batch Control
The manual batch control feature is used for batch processes that the operator wants to start manually. It can also be
used where the batch size needs to be manually adjusted for each batch. The batch can be controlled using a
PDA2364-MSBS control station connected to the remote contacts.
System Setup
Both valves are closed with an
empty barrel in place. The batched
total is displayed in the upper
display, the preset is selected for
the lower display.
Batch Start
The START button or (F1) is
pressed. Both valves open. The
barrel begins to fill.
Preclose Valve
When the batch total reaches a
value of 50.00 (Preset [55.00] –
Pre-close [5.00]) the full-flow valve
closes. The fill rate of the tank slows
as a result.
Completed Batch
When the batch is complete, the
restricted-flow valve closes. If
overrun occurs, then the preset
must be adjusted to compensate for
the overrun. The next batch will only
start after the START button or (F1)
is pressed.
Overrun Correction
To compensate for overrun in the
previous batch, adjust the preset to
54.90, so that the next batch is
accurate (55.00).
Manual Start of Next Batch
A new, empty, barrel is put in place
and the START button or (F1) is
pushed to manually start the next
batch.
Change Batch Size
While the process is stopped, a new
preset fill amount may be selected
with the Batch key (F2) for a
different size barrel.
Pause/Stop
At any time, press the STOP button
or Stop key (F3) once to pause the
process, or twice to cancel the
batch, which stops the process.
Resume Batch
If the batch has been paused, then
press START button or (F1) to
resume the batch process.
Page 72
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
72
Automatic Batch Control
The automatic batch control feature is used for batches that start automatically once the previous batch is completed.
There is no opportunity for the operator to change the batch size between batches. The batch can be controlled using
a PDA2364-MSBS control station connected to the remote contacts.
System Setup
Both valves are closed with an
empty barrel in place. The batched
total is displayed in the upper
display, the preset is selected for
the lower display.
Batch Start
The START button or (F1) is
pressed. Both valves open. The
barrel begins to fill.
Preclose Valve
When the batch total reaches a
value of 50.00 (Preset [55.00] –
Pre-close [5.00]) the full-flow valve
closes. The fill rate of the tank slows
as a result.
Completed Batch
When the batch is complete, the
restricted-flow valve closes. If
overrun occurs, then the preset
must be adjusted to compensate for
the overrun.
Start Delay
After the batch is completed, the
operator removes the full barrel and
places an empty barrel; the new
batch starts automatically after 60
seconds (Time Delay).
Automatic Start of Next Batch
The next batch begins automatically
after 60 seconds, both relays
activate and both valves open.
Pause
At any time, press the STOP button
or Stop key (F3) once to pause the
process.
Resume Batch
If the batch has been paused, then
press START button or (F1) to
resume the batch process.
Stop Process
At the end of the shift, press STOP
button or Stop key (F3) twice to stop
the batch process.
Page 73
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
73
Troubleshooting
This product is a highly sophisticated instrument with
an extensive list of features and capabilities. If the
front panel buttons are used to program the meter, it
can be a difficult task to keep everything straight. That
is why we strongly recommend the use of the free
MeterView XL software for all programming activities.
A cable is provided to use the MeterView XL software
for programming the meter.
If you have programmed the meter with the front
panel buttons and it is not working as intended, try
re-programming the meter using the MeterView XL
software.
Reset Meter to Factory Defaults
When the parameters have been changed in a way
that is difficult to determine what’s happening, it might
be better to start the setup process from the factory
defaults.
To load factory defaults:
1. Press the Menu button to enter
Programming Mode.
2. Press the Up-Arrow button twice and press
Enter to access the Advanced menu.
3. Press the Up-Arrow button and press Enter
to access the System menu.
4. Press the Right-Arrow button and press
Enter to access the Default menu.
5. Press Enter twice in quick succession. The
meter will load default settings and restart.
Determining Software Version
To determine the software (firmware) version of a
meter:
1. Press the Menu button to enter
Programming Mode.
2. Press the Up-Arrow button twice and press
Enter to access the Advanced menu.
3. Press the Up-Arrow button and press Enter
to access the System menu.
4. Press the Up-Arrow button twice and press
Enter to access the Info menu.
5. Press the Right-Arrow button to cycle
through the meter information. When done,
press the Menu button to return to the
previous menu.
SYSTEM
SYSTM
AOUTCAL
SYSTM
DEFAULT
LOAD?
DEFAULT
RESET
DFAULT?
Meter Loads
Default Settings
and Restarts
ENTER
F3
MENU
F1
ENTER
F3
ENTER
F3
ENTER
F3
Page 74
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
74
Factory Default Settings
The following table shows the factory setting for most
of the programmable parameters on the meter.
Parameter
Display
Default Setting
Input Menu
Rate Units
UNITS
Gallons/second
Input 1
INP 1
4.000 mA
Display 1
DSP 1
0.00
Input 2
INP 2
20.000 mA
Display 2
DSP 2
100.00
Output Menu
Open Collector
Output 1
OUTPUT 1
Disabled
Pulse Factor
FACTOR
1.0
Test Frequency
FREQ
100
Alarm
ALARM
Rate
Alarm Action
ACTION
AUTO
Set Point
SET
20.00
Reset Point
RESET
10.00
Alarm On Delay
DELAY ON
0 seconds
Alarm Off Delay
DELAY OFF
0 seconds
Alarm Failsafe
FAILSAFE
OFF
Red LED
RED
ON
Flash rate
FLASH
ON
Alarm Message
MSG
ON
Message Text
MSG EDIT
ALARM 1
Timer Off Delay
OFF.DLAY
1 minute
Timer On Time
ON TIME
1 second
Timer Mode
MODE
Continuous
Open Collector
Output 2
OUTPUT 2
Disabled
Set Point
SET
40.00
Reset Point
RESET
30.00
Message Text
MSG EDIT
ALARM 2
Relay Output 1
RELAY 1
Disabled
Alarm
ALARM
Rate
Alarm Action
ACTION
AUTO
Set Point
SET
70.00
Reset Point
RESET
60.00
Alarm On Delay
DELAY ON
0 seconds
Alarm Off Delay
DELAY OFF
0 seconds
Alarm Failsafe
FAILSAFE
OFF
Red LED
RED
ON
Flash rate
FLASH
ON
Alarm Message
MSG
ON
Message Text
MSG EDIT
ALARM 3
Sample Count
TOTAL COUNT
1,000 gallons
Parameter
Display
Default Setting
Sample Time
TOTAL TIME
10 seconds
Batch Count
BATCH COUNT
Up
Batch Max
BATCH MAXIMUM
10,000
Batch Mode
BATCH MODE
Manual
Batch Preset
BATCH PRESET
1,000
Batch On Delay
DELAY ON
0 seconds
Batch Off Delay
DELAY OFF
0 seconds
Timer Off Delay
OFF.DLAY
1 minute
Timer On Time
ON TIME
1 second
Timer Mode
MODE
Continuous
Relay Output 2
RELAY 2
Disabled
Set Point
SET
90.00
Reset Point
RESET
80.00
Message Text
MSG EDIT
ALARM 4
4-20 mA Output
4-20 mA
Rate
Advanced Menu
Signal
Conditioning
Function
FUNCTION
Linear (2 pts)
Count Limit
COUNT LIMIT
8-Digit
Count Initial
COUNT INITIAL
0
Total Reset
TOTAL RESET
Enabled
GTotal Reset
GTOT RESET
Disabled
Non-Resettable
Grand Total
PERMLOCK
No
Low Cutoff
CUTOFF
Enabled: 0
Filter
FILTER
2.0 seconds
Filter Bypass
BYPAS
0.4 PCT
Main Password
MAIN
00000 (Unlocked)
Total Password
TOTAL
00000 (Unlocked)
GTot Password
GTOTAL
00000 (Unlocked)
Function Key 1
F1
Display
Function Key 2
F2
Reset
Function Key 3
F3
Acknowledge
Digital Input
DI
Reset Total
Function Key
Hint Feature
HINT
Disabled
Totalizer
TOTAL
Enabled
Backlight
BACKLIGHT
Enabled
Display Menu
Unit of Measure
UNITS
Gallons
Decimal Point
Location
DEC.PT
Rate: 2; Total: 1;
Grand Total: 0
Comma
COMMA
Enabled
Top Display
TOP
Rate
Bottom Display
BOTTOM
Total
Page 75
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
75
Troubleshooting Tips
Certain sequences of events can cause unexpected results. To solve these issues, it is best to start fresh from factory
defaults and use the manual as a step by step programming guide, rather than a random approach to programming.
See Reset Meter to Factory Defaults on page 73 for details on resetting the meter to factory defaults. In addition, for
best results, we recommend using the free MeterView XL software for all programming needs.
Symptom
Check/Action
No display at all
Check:
1. The 4-20 mA current loop is providing at least 3.5 mA to the meter.
2. The voltage drop of all devices connected to the 4-20 mA current loop does not
exceed the max rating of the loop power supply.
Not able to change setup or
programming, LOCKED is
displayed
Meter is password-protected, enter correct five-digit password to unlock.
Meter display flashes:
1. 99999
2. -9999
Check that the number of digits required for the scaled value does not exceed the
maximum digits for the display line. If it does, try adjusting the decimal point location for
less precision or changing the rate display to the bottom display.
Display is unstable
Check:
1. Input signal stability and value.
2. Display scaling vs. input signal.
3. Filter and bypass values (increase).
Display response is too slow
Check filter and bypass values
Display reading is not accurate
Check:
1. Input signal conditioner selected: Linear, square root, etc.
2. Scaling or calibration
Display does not respond to input
changes, reading a fixed number
Check display assignment. It might be displaying max, min, or set point.
Display shows:
MAX, MIN, RATE, TOTAL,
or GTOT and a number
Max or min display has been locked. Press Enter to unlock max/min display readings.
Relay operation is reversed
Check fail-safe settings in Output menu
Relays do not respond to signal
Check:
1. Relay action in Output menu
2. Set and reset points
3. Check manual control menu
If the display locks up or the meter
does not respond at all
Cycle the power to reboot the microprocessor.
Other symptoms not described
above
Call Technical Support for assistance.
Page 76
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
76
Notes
Page 77
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
77
Page 78
PD4-6624 & PD4-6628 Loop-Powered Flow Rate/Totalizers
Instruction Manual
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
LIM4-6624_A
SFT124 Ver 2.000 & up
11/22
Contact Precision Digital
Technical Support
Call: (800) 610-5239 or (508) 655-7300
Fax: (508) 655-8990
Email: [email protected]
Sales Support
Call: (800) 343-1001 or (508) 655-7300
Fax: (508) 655-8990
Email: [email protected]
Place Orders
Email: [email protected]
For the latest version of this manual please visit
www.predig.com
