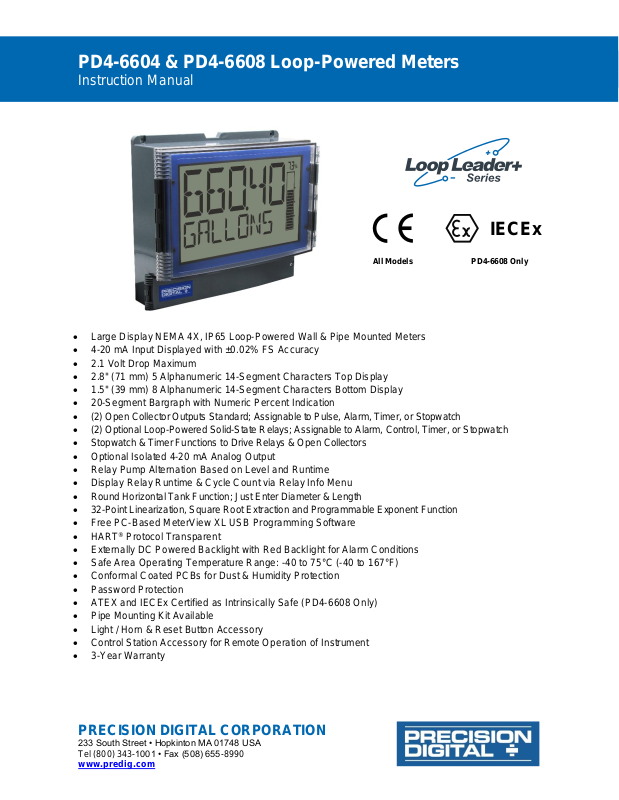

PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com

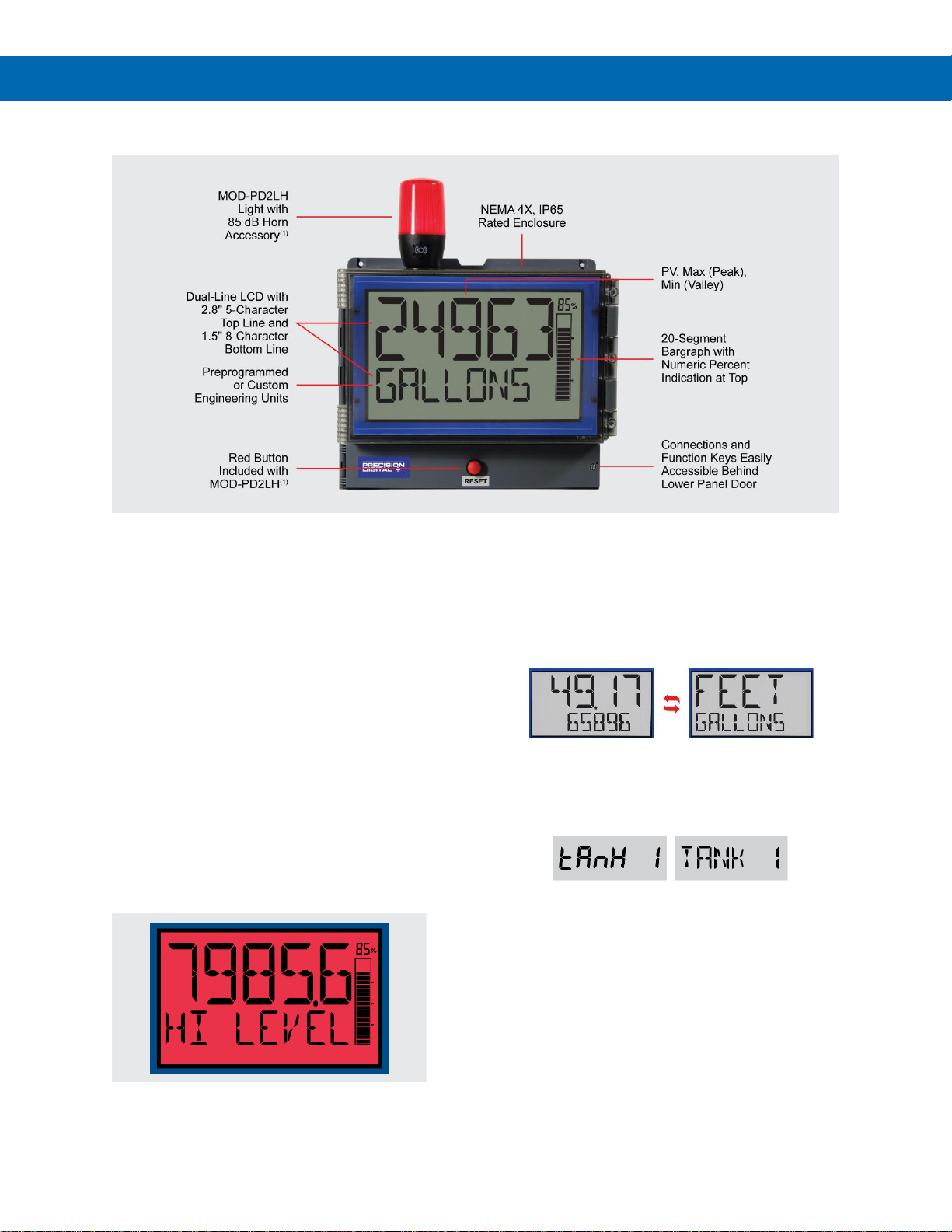

• Large Display NEMA 4X, IP65 Loop-Powered Wall & Pipe Mounted Meters
• 4-20 mA Input Displayed with ±0.02% FS Accuracy
• 2.1 Volt Drop Maximum
• 2.8" (71 mm) 5 Alphanumeric 14-Segment Characters Top Display
• 1.5" (39 mm) 8 Alphanumeric 14-Segment Characters Bottom Display
• 20-Segment Bargraph with Numeric Percent Indication
• (2) Open Collector Outputs Standard; Assignable to Pulse, Alarm, Timer, or Stopwatch
• (2) Optional Loop-Powered Solid-State Relays; Assignable to Alarm, Control, Timer, or Stopwatch
• Stopwatch & Timer Functions to Drive Relays & Open Collectors
• Optional Isolated 4-20 mA Analog Output
• Relay Pump Alternation Based on Level and Runtime
• Display Relay Runtime & Cycle Count via Relay Info Menu
• Round Horizontal Tank Function; Just Enter Diameter & Length
• 32-Point Linearization, Square Root Extraction and Programmable Exponent Function
• Free PC-Based MeterView XL USB Programming Software
• HART® Protocol Transparent
• Externally DC Powered Backlight with Red Backlight for Alarm Conditions
• Safe Area Operating Temperature Range: -40 to 75°C (-40 to 167°F)
• Conformal Coated PCBs for Dust & Humidity Protection
• Password Protection
• ATEX and IECEx Certified as Intrinsically Safe (PD4-6608 Only)
• Pipe Mounting Kit Available

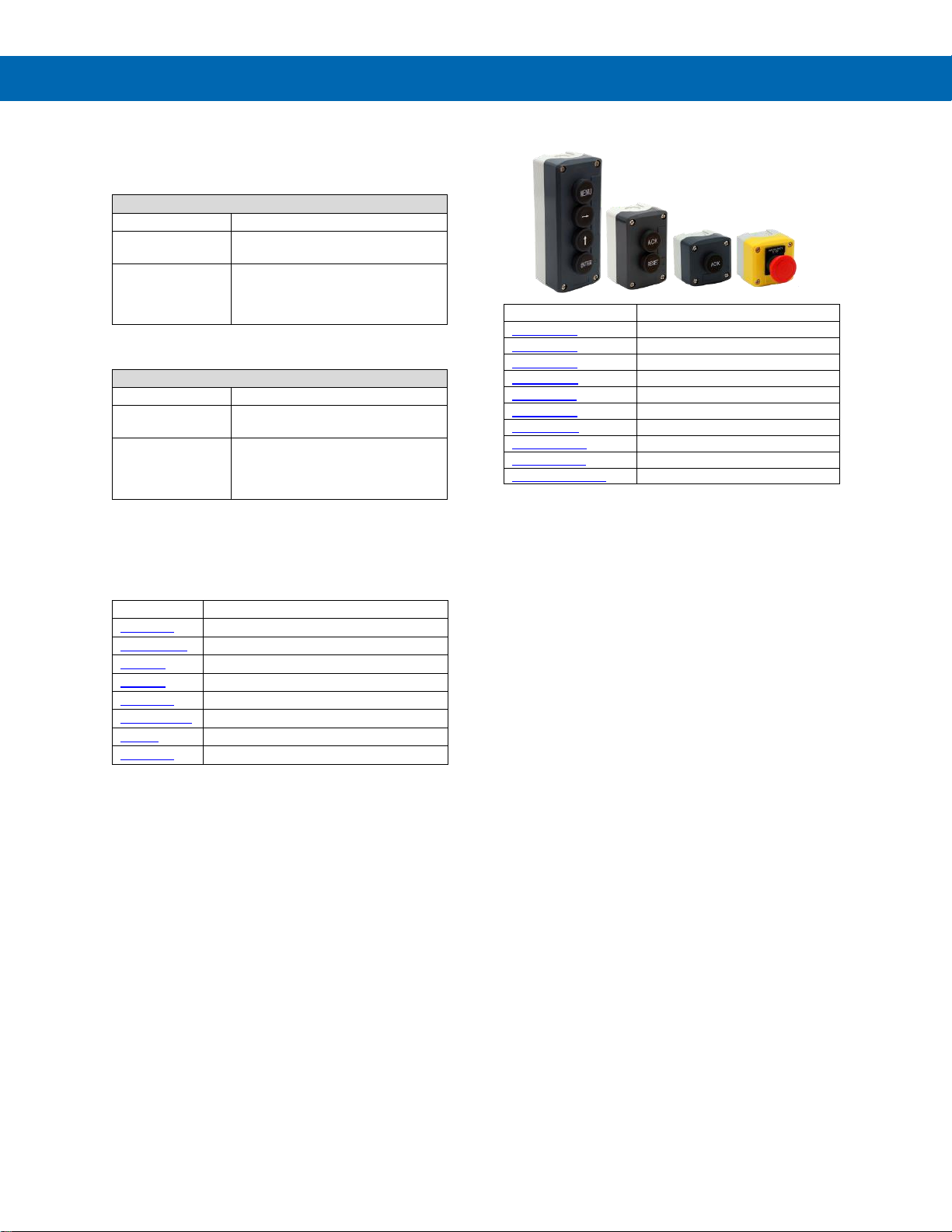

• Light / Horn & Reset Button Accessory
• Control Station Accessory for Remote Operation of Instrument
• 3-Year Warranty
IECEx
All Models
PD4-6608 Only
Page 2
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
2

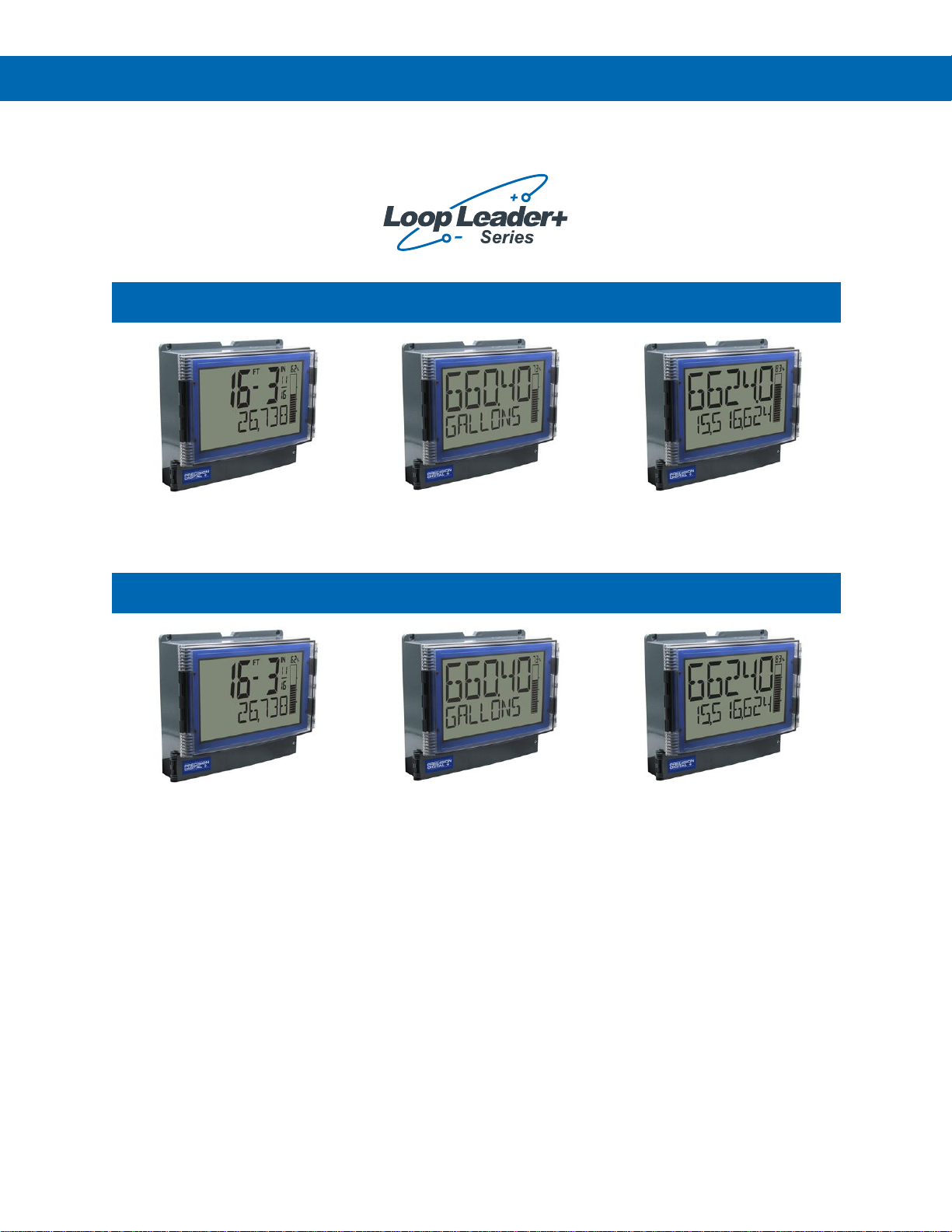

The Complete PD4-6600 Series
General Purpose
PD4-6603
Feet & Inches Meter
PD4-6604
Process Meter
PD4-6624
Flow Rate/Totalizer
Hazardous Area
PD4-6607
Feet & Inches Meter
PD4-6608
Process Meter
PD4-6628
Flow Rate/Totalizer
Page 3
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
3
Table of Contents
Introduction ......................................................................................................... 6
Key Features ....................................................................................................... 7
Ordering Information ........................................................................................ 10
Accessories .................................................................................................. 10
Specifications ................................................................................................... 13
Display .......................................................................................................... 13
General ................................................................................................ .......... 13
Input .............................................................................................................. 14
Common Open Collector & Relay Specifications ...................................... 14
Open Collector Outputs ............................................................................... 14
Solid-State Relays ........................................................................................ 15
4-20 mA Transmitter Output ........................................................................ 15
On-Board Digital Input ................................................................................. 15
Remote Contacts .......................................................................................... 15
MeterView XL Programming Software ........................................................ 16
General Compliance Information .................................................................... 16
Electromagnetic Compatibility .................................................................... 16
PD4-6608 Compliance Information ................................................................. 17
Hazardous Area Approvals ......................................................................... 17
EU Declaration of Conformity ............................................................................. 18
Safety Information ............................................................................................ 18
Field Modification ......................................................................................... 18
Installation......................................................................................................... 18
Unpacking ..................................................................................................... 18
Wall Mounting Instructions ......................................................................... 19
Mounting Dimensions ................................................................................ 19
Conduit Holes Location .............................................................................. 19
Pipe Mounting Instructions ......................................................................... 20

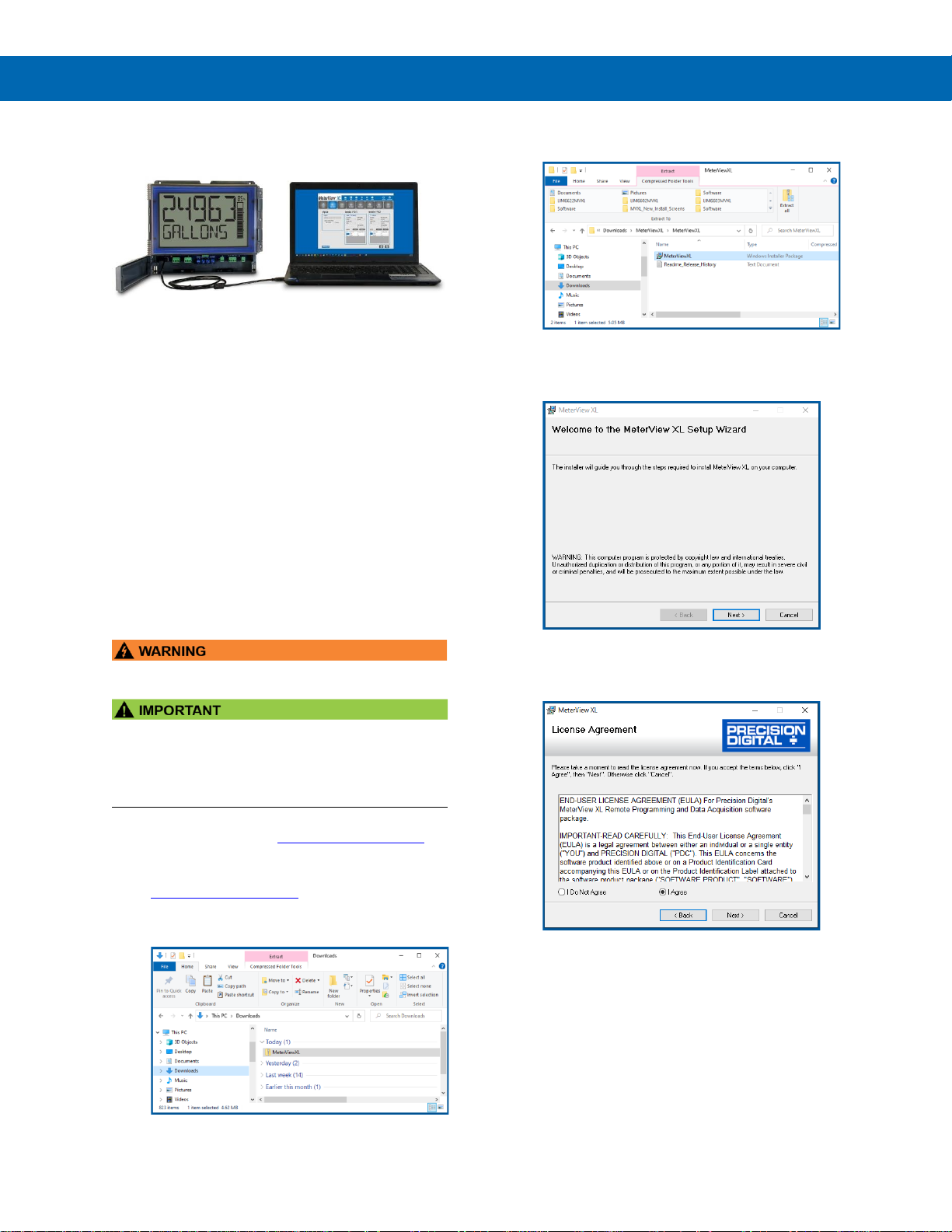

MeterView XL Programming Software ........................................................ 21
MeterView XL Software Installation ........................................................... 21
Connecting to the Computer ...................................................................... 22
Specifications ............................................................................................. 22
Connections ...................................................................................................... 23
Connectors Labeling .................................................................................. 23
Wiring Diagrams ............................................................................................... 24
I/O Parameter Table .................................................................................. 24
Safe Area Current Loop (4-20 mA) Connections ....................................... 24
Safe Area Digital Input Connections .......................................................... 24
Safe Area 4-20 mA Output Connections .................................................... 25
Safe Area Solid-State Relay Connections ................................................. 25
Safe Area Open Collector Output Connections .......................................... 25
Remote Operation of Meter........................................................................ 25
Wiring Connections for MOD-PD2LH Models ............................................ 26
Setup and Programming .................................................................................. 27
Overview ........................................................................................................... 27
MeterView XL Programming Software ........................................................ 27
Programming Buttons ................................................................................. 28
Display Functions & Messages ................................................................... 29
Main Menu ..................................................................................................... 33
Setting Numeric Values ............................................................................. 34
Scaling the 4-20 mA Input (INPUT) .................................................................. 35
Available Unit Classes and Units ............................................................... 36
Setting Custom Units (CUSTOM) ................................................................. 37
Page 4
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
4
Setting the Display Features (DISPLAY) .................................................... 37
Changing the Engineering Units (UNITS) .................................................. 37
Changing the Decimal Point (DEC.PT) ........................................................ 37
Enabling or Disabling Commas on the Bottom Display (COMMA) ............... 38
Display Capabilities Optimization (TOP and BOTTOM)................................ 38
Configuring the Display (TOp and BOTTOM) ............................................... 39
Programming the Bargraph (BARGRAPH) ................................................... 40
Programming the Outputs (OUTPUT) .......................................................... 40
Open Collector Outputs
(
OPEN COLLECTR
)
................................................ 41
Solid-State Relay Outputs (RELAY) ........................................................... 46
Isolated 4-20 mA Output (4-20 mA) ......................................................... 52
Output Manual Control (CONTROL) ............................................................ 52
Advanced Features Menu (ADVANCED) ....................................................... 53
Advanced Process Variable Setup (ADV PV SETUP) ............................... 54
Low-Flow Cutoff (CUTOFF) ........................................................................ 61
Noise Filter (FILTER) ................................................................................ 61
Enabling Password Protection (PASSWRD) ................................................ 61
Programmable Function Keys User Menu (USER) ..................................... 62
Tare (TARE) ................................ ............................................................... 62
Changing System Settings (SYSTEM) ........................................................ 64
Meter Operation ................................................................................................ 66
Button Operation .......................................................................................... 66
Function Keys Operation ............................................................................. 66
Digital Input Operation ................................................................................. 66
Maximum/Minimum Readings ..................................................................... 66
Runtime & Cycle Count (INFO) ................................................................... 67
Changing Engineering Units ....................................................................... 67
Troubleshooting ............................................................................................... 68
Reset Meter to Factory Defaults.................................................................. 68
Determining Software Version .................................................................... 68
Factory Default Settings ............................................................................. 69
Troubleshooting Tips ................................................................................... 70
Page 5
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
5
Table of Figures
Figure 1. Meter Mounting Holes Location .......................................................... 19
Figure 2. Meter Mounting Holes Dimensions ..................................................... 19

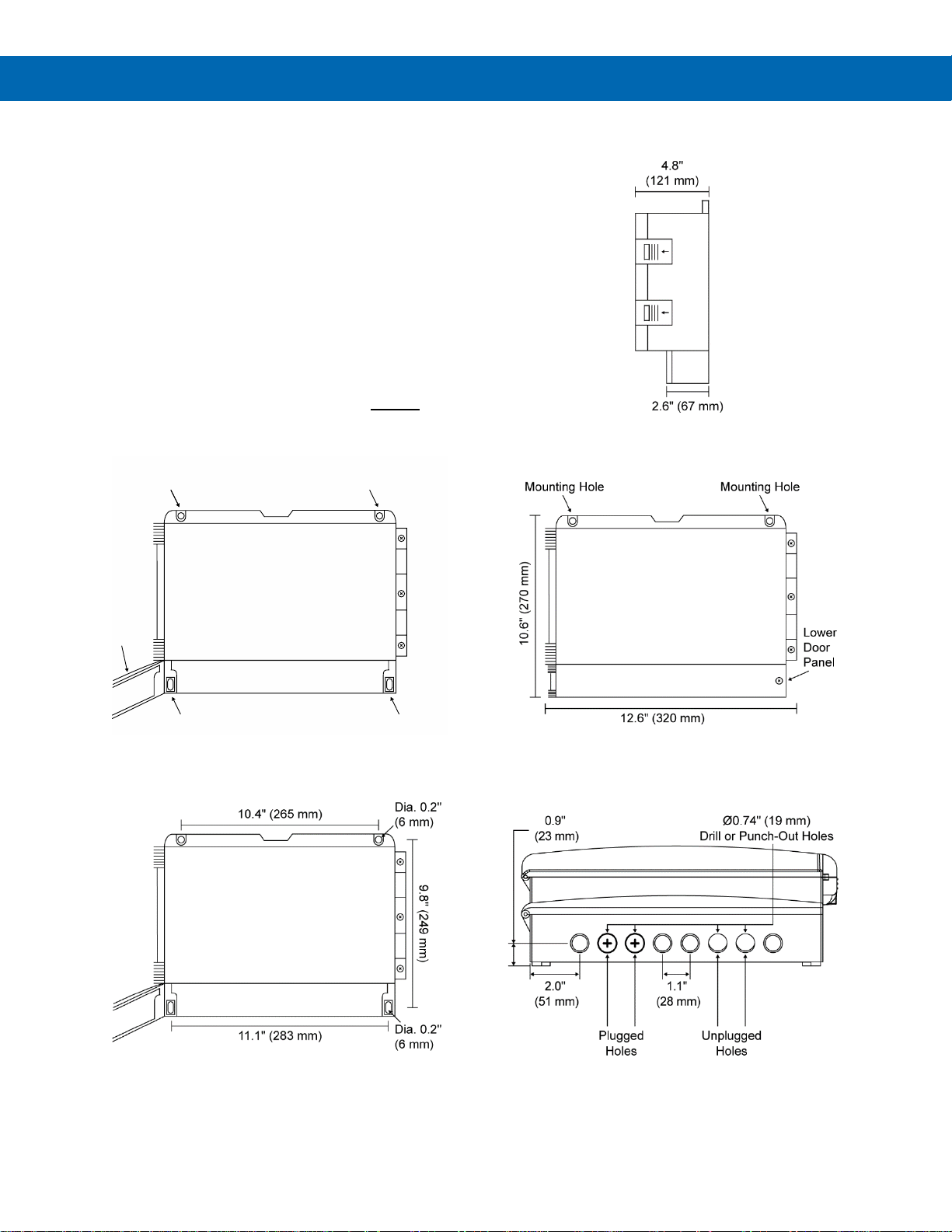

Figure 3. Meter Dimensions – Side View ............................................................ 19
Figure 4. Meter Dimensions - Front View ........................................................... 19
Figure 5. Conduit Holes Location – Bottom View .............................................. 19

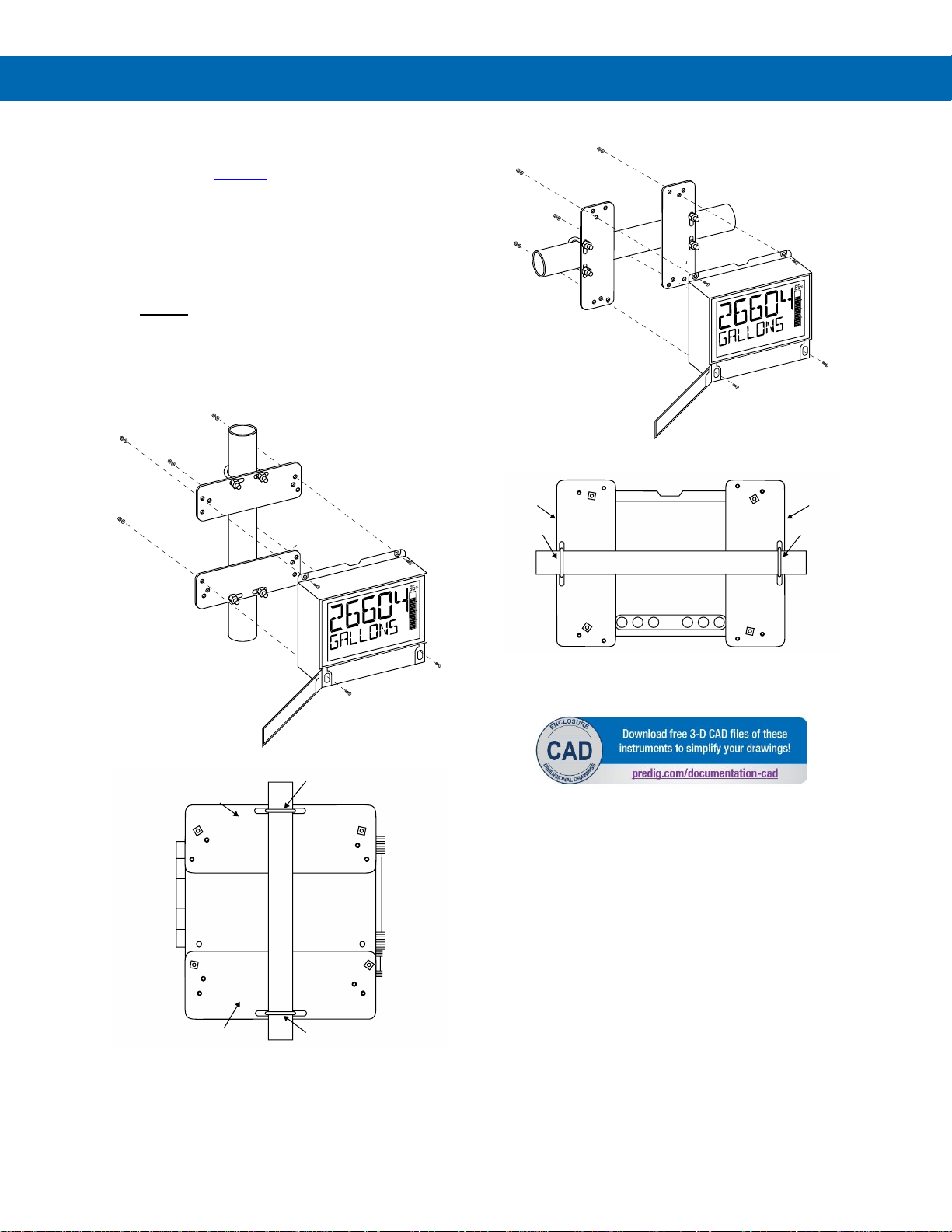

Figure 6. Vertical Pipe Mount Assembly............................................................. 20
Figure 7. Horizontal Pipe Mount Assembly ........................................................ 20
Figure 8. Connector Labeling for PD4-66XX-LNN .............................................. 23
Figure 9. Connector Labeling for PD4-66XX-L5N .............................................. 23
Figure 10. 4-20 mA Input Connection without Backlight................................... 24
Figure 11. 4-20 mA Input Connection with Backlight ........................................ 24
Figure 12. Digital Input Connections .................................................................. 24
Figure 13. 4-20 mA Output Connections ............................................................ 25
Figure 14. Solid-State Relay Connections .......................................................... 25
Figure 15. Open Collector Output Connections ................................................. 25
Figure 16. PDA2364-MRUE Control Station Connected
to Remote Contacts on PD4 ....................................................................... 25
Figure 17. Light / Horn and Button (MOD-PD2LH) Connected to PD4 ............. 26
Video
Watch the Loop-Powered Meters Video
Click or Scan
Page 6
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
6
Disclaimer
The information contained in this document is
subject to change without notice. Precision Digital
Corporation makes no representations or
warranties with respect to the contents hereof;
and specifically disclaims any implied warranties
of merchantability or fitness for a particular
purpose.
• Read complete instructions prior to installation
and operation of the meter.
• Risk of electric shock or personal injury.
• This product is not recommended for life support
applications or applications where malfunctioning
could result in personal injury or property loss.
Anyone using this product for such applications
does so at his/her own risk. Precision Digital
Corporation shall not be held liable for damages
resulting from such improper use.
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Limited Warranty
Precision Digital Corporation warrants this
product against defects in material or
workmanship for the specified period under
“Specifications” from the date of shipment from
the factory. Precision Digital’s liability under this
limited warranty shall not exceed the purchase
value, repair, or replacement of the defective unit.
See Warranty Information and Terms &
Conditions on www.predig.com for complete
details.
Registered Trademarks
All trademarks mentioned in this document are
the property of their respective owners.
© 2022 Precision Digital Corporation.
All rights reserved.
Introduction
The Loop Leader+ PD4-6600 Series of loop-powered
large display meters can be installed virtually
anywhere to provide convenient and informative
display of any 4-20 mA signal. One of the most
convenient features of these instruments is their
large, dual line display which is typically used to
display the process variable on the 2.8" 5-character
alphanumeric top display and the units of measure or
a tag on the 1.5" 8-character alphanumeric bottom
display. Another common setup is to display the input
in one scale on the top display (such as feet) and in
another scale on the bottom display (such as gallons).
Both display lines use 14-segment, alphanumeric
characters that provide much clearer indication of
tags, units, or alarm messages than 7-segment
characters do.
Further enhancing the display on these instruments is
a 20-segment bargraph that also includes a numeric
value of the percentage the bargraph represents.
These loop-powered meters can be installed virtually
anywhere because they get their power from the
4-20 mA loop and therefore require no separate power
source and they only have a voltage drop of 1.5 V, so
they add very little burden to the loop. Additional features
that allow these instruments to be installed virtually
anywhere include a NEMA 4X, IP65 rated enclosure, an
operating temperature range of -40 to 167°F (-40 to
75°C) (for safe area products), conformally coated
PCBs, and a backlit LCD that can be read in bright
sunlight or dimly lit areas. The PD4-6608 model is an
intrinsically safe and nonincendive version of the Loop
Leader+ that is agency approved for installation in
hazardous areas. It also carries electrical safety
approvals.
Free, PC-based, MeterView XL software that
connects to the meter via a USB cable is available for
programming and setup of the meters.
To download the latest MeterView XL programming
software and manual, visit predig.com/meterviewxl.
All models come equipped with two open collector
outputs and remote contacts. There are also models
available with two solid-state relays and isolated
4-20 mA analog output options. The open collector
outputs are useful for alarm indication. The remote
contacts can be used to remotely operate the four
programming buttons, to acknowledge the relays, to
start/stop a timer/stopwatch, and more. The relays
can be programmed for alarm indication, on/off
control, or pump alternation.
Page 7
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
7
Key Features
1. Available on PD4-6604 only. Requires external 24 VDC power.
Large Informative Display
One of the most convenient features of the PD4
Loop Leader+ Series is its large, dual line display.
The PD4’s whopping 2.8" 5-character alphanumeric
top display and 1.5" 8-character alphanumeric bottom
display, plus a 20-segment bargraph with percentage
indication on top, makes reading and understanding
process values easier than ever.
Predefined display units give users even more display
flexibility. Plus, the high contrast backlit LCD display
is readable from far away and under various lighting
conditions.
Backlight Turns Red on Alarm
When an alarm occurs, the display can be
programmed to turn red and flash. In addition, a
unique custom alarm message for each of the two
relays and two open collectors can be displayed on
the bottom display. These features can be activated
even if no relay or open collector is connected.

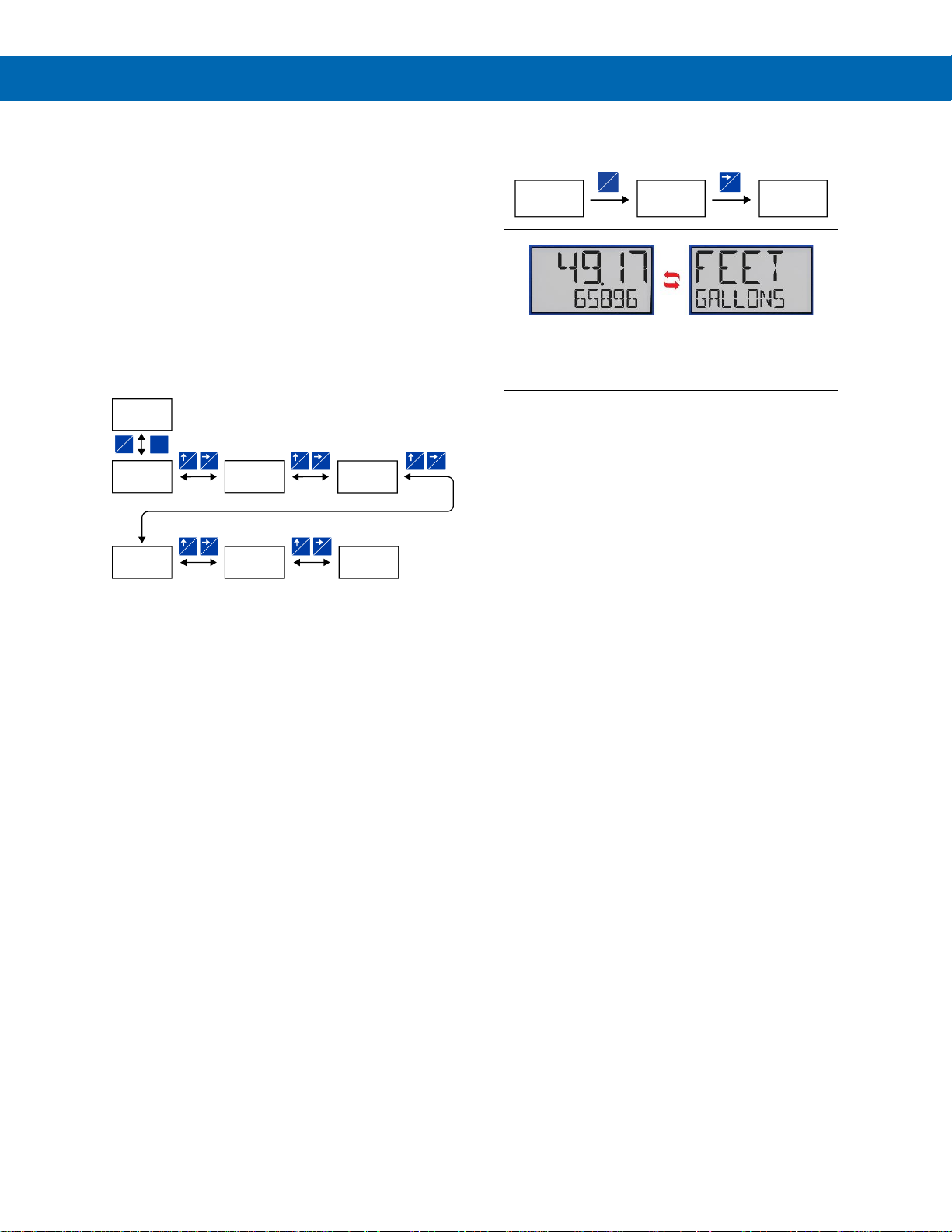

Dual-Scale Feature
Users can use the dual-scale feature to display the
input in two different scales. For instance, the
example above shows an application where the
display shows the input in feet and gallons while the
display toggles between process values and units.
14-Segment Characters
Notice how much better letters like “T”, “N” and “K”
appear as 14-segment characters on the Loop Leader+
vs 7-segment characters found on many other meters.
Predefined and Custom Units
The meter has six available preprogrammed unit
classes: volume, height, temperature, pressure,
weight, and rate. When the desired unit class or unit
of measure within a class is not available, a custom
unit may be programmed.
Page 8
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
8
Password Protection
A password can be set up for programming security to
prevent unauthorized changes to the programmed
parameter settings.
Remote Contacts
Remote Contacts are standard on the PD4 and the
meter can be operated via a remote control station
(PDA2364-MRUE). The PDA2364-MRUE mimics the
PD4 meter’s four programming buttons: Menu, Right
Arrow, Up Arrow, and Enter.
Multiple Outputs
• Two open collector outputs (standard)
• Two solid-state relays (optional)
• One 4-20 mA output (optional)
The open collector outputs and relays generally
operate in the same manner, with the major exception
being the open collectors are not available for pump
alternation and the relays are not available with pulse
features. The open collectors and relays can be
controlled either automatically or manually.
The isolated analog output signal can be configured
to represent the process variable (PV1, PV2, or
retransmit). It can also be reverse scaled such that
the meter’s high calibration value outputs 4 mA and
the meter’s low calibration outputs 20 mA.
Pump Alternation (ALTERN)
The PD4-6604 and PD4-6608 can be used as a pump
controller to alternate two pumps and indicate high and
low alarm conditions. The pumps can be programmed
to alternate on level and runtime and the display can be
programmed to turn red and flash a message on alarm

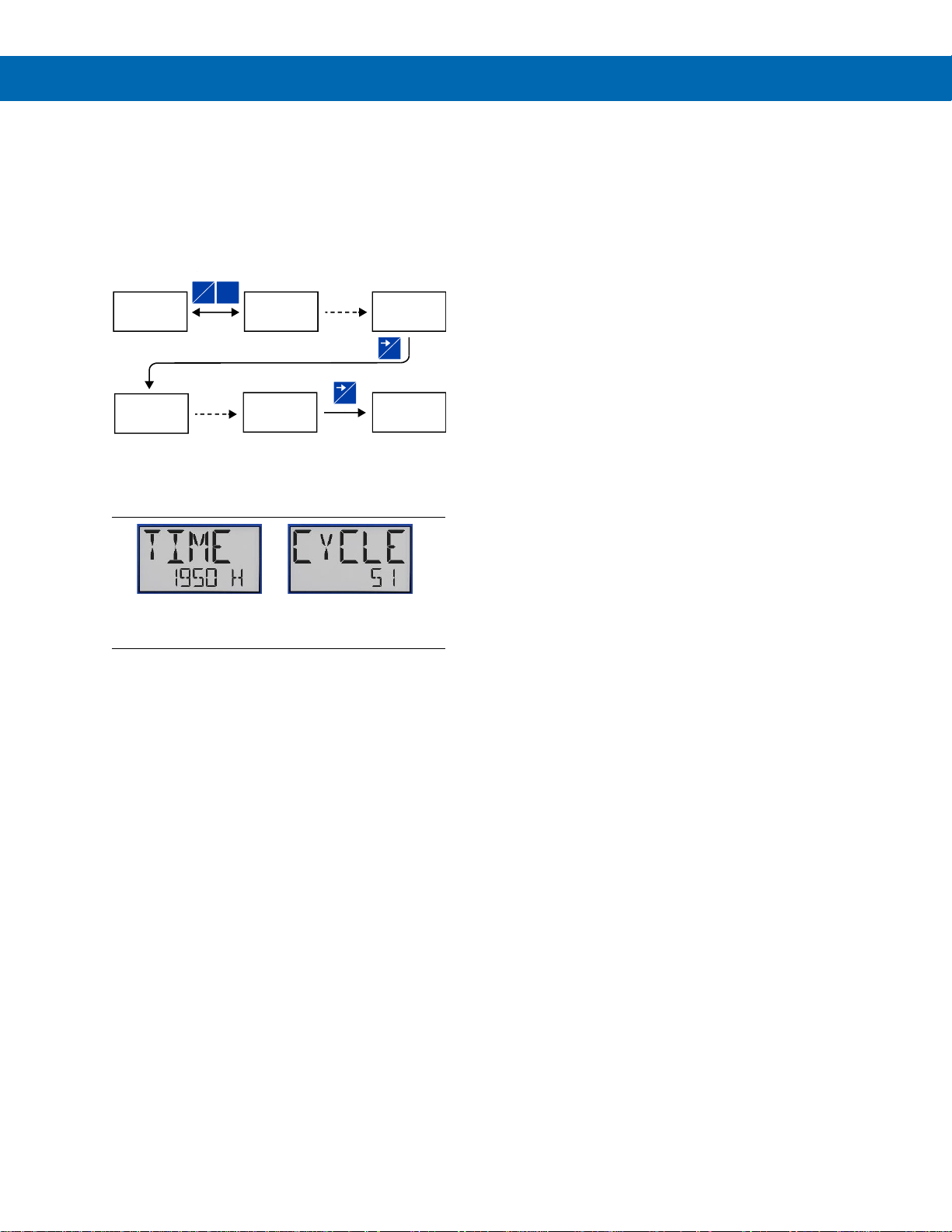

conditions. The meter can display the pump runtimes
and the number of times they have cycled.
See the Pump Control with Alternation & Alarm
Example on page 50 for full details.

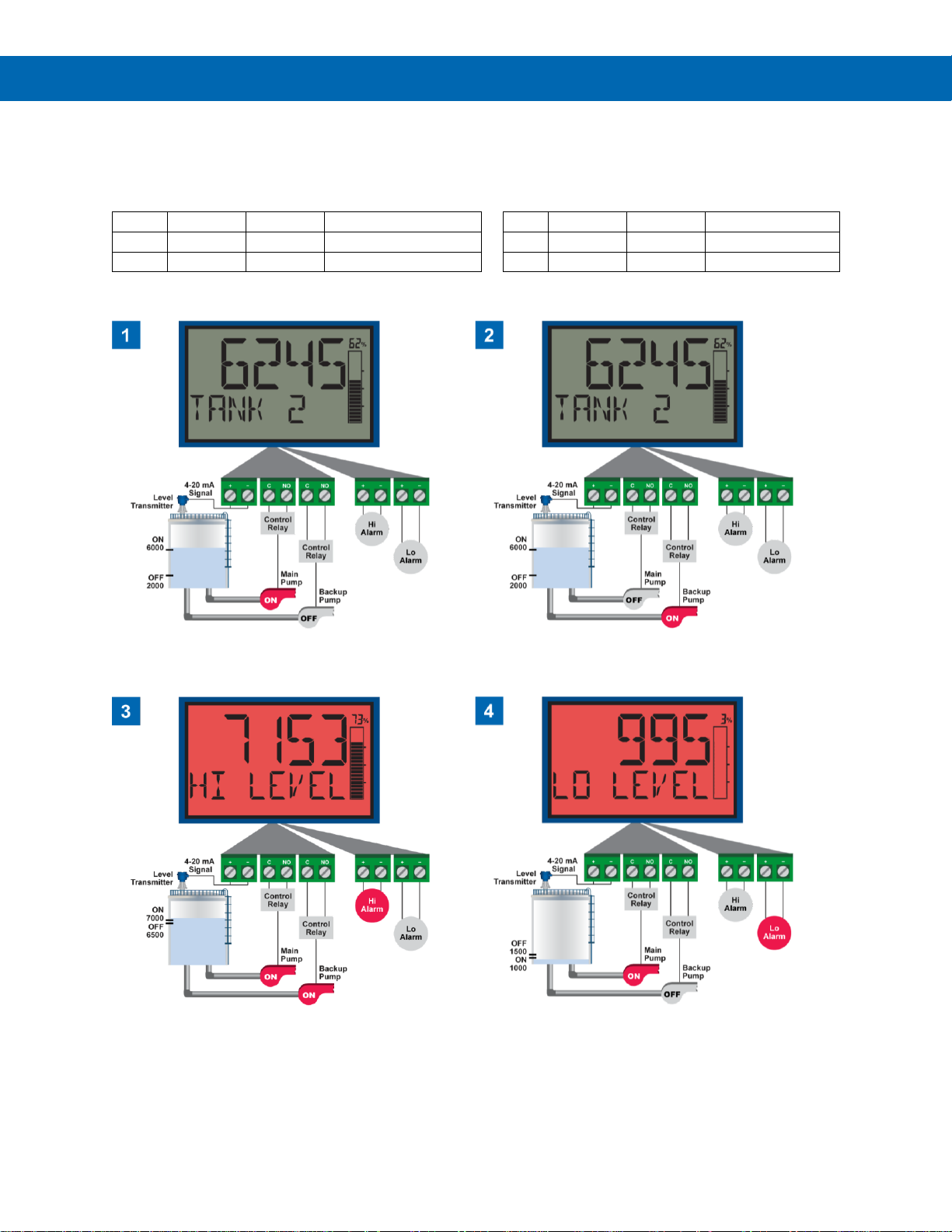

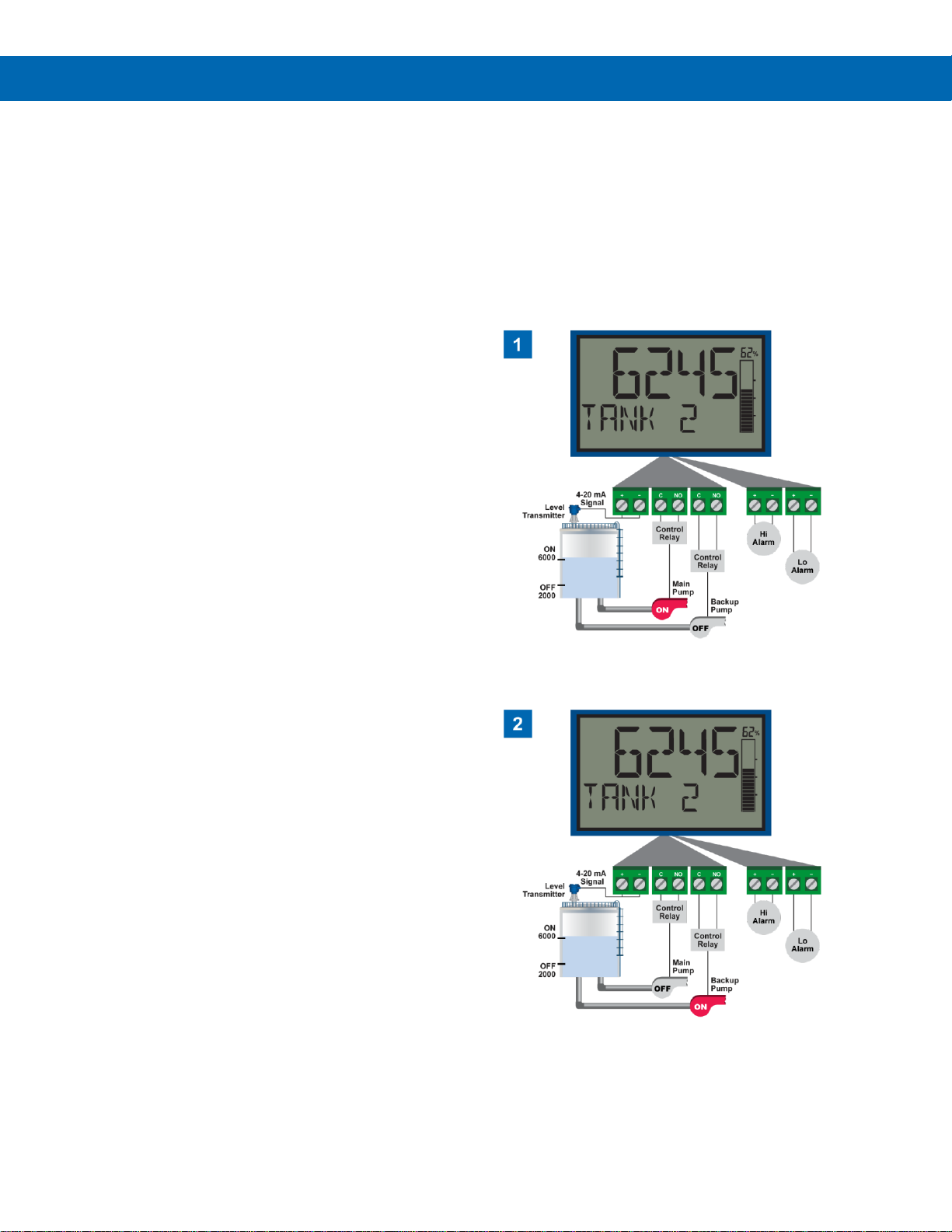

Relay #2 turns the main pump on at 6000 gallons and
turns it off at 1000 gallons.
With the Pump Alternation feature activated, the next
time the level reaches 6000 gallons, relay #1 transfers
and starts the backup pump.
Page 9
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
9
Input Signal Conditioning
Functions (FUNCTION)
The Function menu is used to select the input signal
conditioner applied to the input: linear, square root,
programmable exponent, or round horizontal tank
volume calculation. Multi-point linearization is part of
the linear function selection.
Meters are set up at the factory for linear function with
2-point linearization. The linear function provides a
display that is linear with respect to the input signal.
Square Root Linearization (SQROOT)
The square root function can be used to linearize the
signal from a differential pressure transmitter and
display flow rate in engineering units.

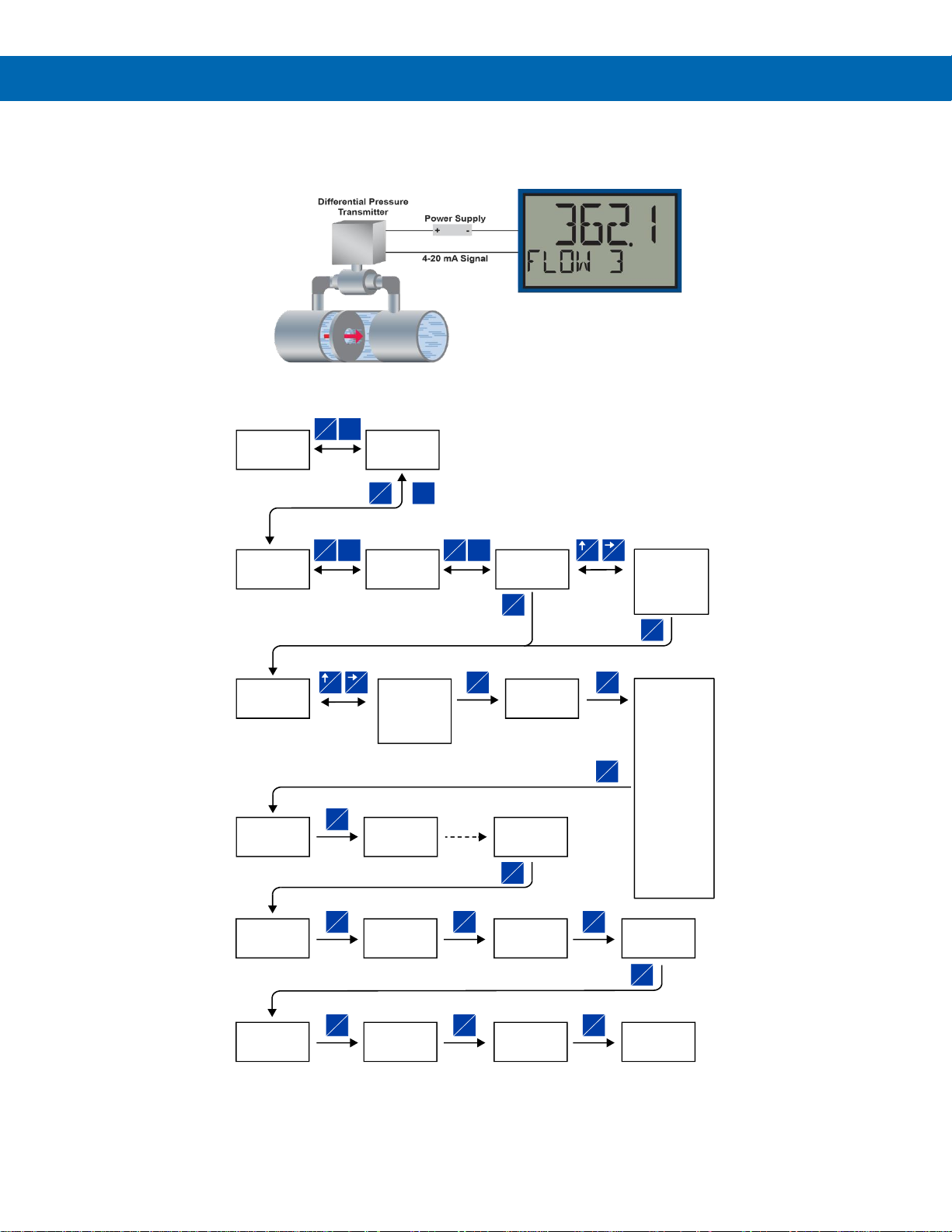

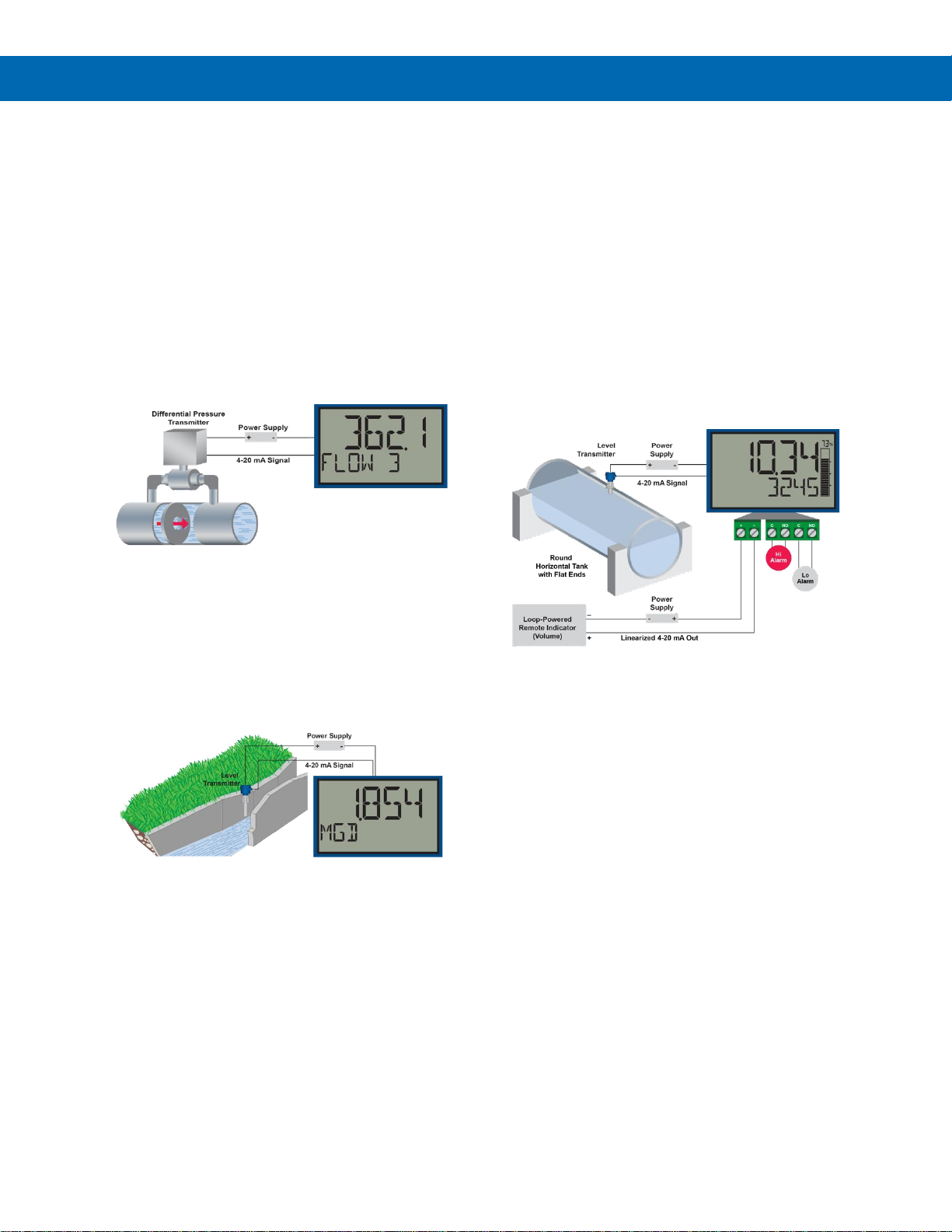

PD4-6604 Displaying Flow Rate by Applying the Square
Root Function to the Output of a DP Transmitter.
Programmable Exponent
Linearization (EXPONENT)
The programmable exponent can be used to linearize
the signal from level transmitters in open-channel flow
applications using weirs and flumes.

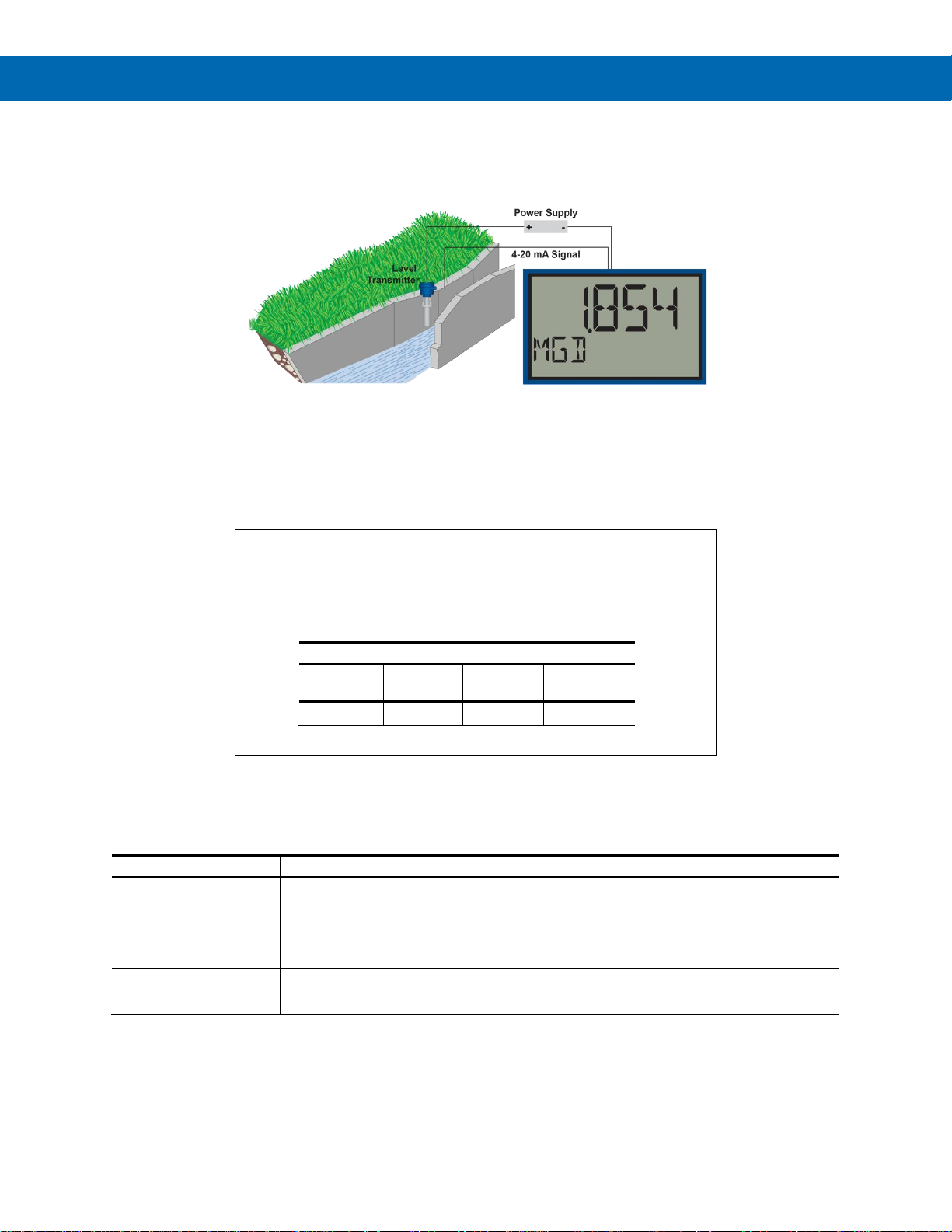

The PD4-6604, in combination with an ultrasonic level
transmitter, makes for an economical way to measure
and display open channel flow rate in most weirs and
flumes. A guide such as the ISCO Open Channel
Flow Measurement Handbook can provide the user
with all the information needed: the exponent used in
the flow equation for the desired flow units and the
flow rate for any given head height. For example, to
display the open channel flow rate from a 3" Parshall
flume, the ISCO handbook advises the exponent is
1.547 and at the maximum head height of 3.0 feet,
the flow rate is 3.508 MGD.
Round Horizontal Tank Linearization
(RH TANK)
This function automatically calculates the volume in a
round horizontal tank with flat ends and allows that
reading to be displayed on the bottom display. This
results in a meter that displays the height of the tank
on the top display and volume on the lower display.
The user only needs to enter the diameter and length
of the tank and meter takes care of the rest.
Set the display for the desired decimal point and
engineering units before entering the round horizontal
tank function. Select units (inches or cm) for the tank
dimensions. Enter the diameter and the length in
inches or cm and the results will be calculated
automatically in US gallons or liters. The unit of
measure for the volume can be changed using the
display menu.
PD4-6604 Displaying Height in Feet and Volume in
Gallons in a Round Horizontal Tank Using
the RHT Linearization Feature.
Page 10
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
10
Ordering Information
General Purpose Instruments
Loop Leader+ PD4-6604 • General Purpose
Model
Description
PD4-6604–LNN
Large Display Loop-Powered Meter,
General Purpose, No Options
PD4-6604–L5N
Large Display Loop-Powered Meter,
General Purpose,
Two Solid-State Relays and
4-20 mA Analog Output
Hazardous Area Instruments
Loop Leader+ PD4-6608 • Hazardous Area
Model
Description
PD4-6608–LNN
(1)
Large Display Loop-Powered Meter,
Hazardous Area, No Options
PD4-6608–L5N
(1)
Large Display Loop-Powered Meter,
Hazardous Area,
Two Solid-State Relays and
4-20 mA Analog Output
1. Electrical Safety and Hazardous Area Approvals
Note: All models come standard with two open collector
outputs and contacts for remote operation.
Accessories
Model
Description
PDA0004
Cable Gland
PDAPLUG2
Plastic Conduit Plug
PD9501
Multi-Function Calibrator
PD9502
Low-Cost Signal Generator
PDA1002
6" DIN Rail Mounting Kit
PDA1024-01
24 VDC Power Supply for DIN Rail
PD659
Signal Isolators, Splitters, and Conditioners
PDA2360
Plastic Control Stations
PDA2360 Plastic Control Stations
Model
Description
PDA2360-E
Emergency Button
PDA2361-A
Ack Button
PDA2361-B
Blank Button
PDA2361-R
Reset Button
PDA2361-T
Tare Button
PDA2361-S
Stop Button
PDA2361-Q
Silence Button
PDA2362-AR
Ack and Reset Buttons
PDA2362-BB
Two Blank Buttons
PDA2364-MRUE
Menu, Right, Up, Enter Buttons
Notes:
1. These control stations do not carry hazardous area
approvals and are thus not suitable for location in
hazardous areas. The use of additional protective
devices may allow them to be installed in a safe area
and connected to a device in a hazardous area. User
should consult a professional engineer to determine
suitability of these products for their specific application.
2. Control stations can be connected directly to the PD4
meter’s Remote Contacts. See Remote Operation of
Meter on page 25 for details.
Page 11
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
11

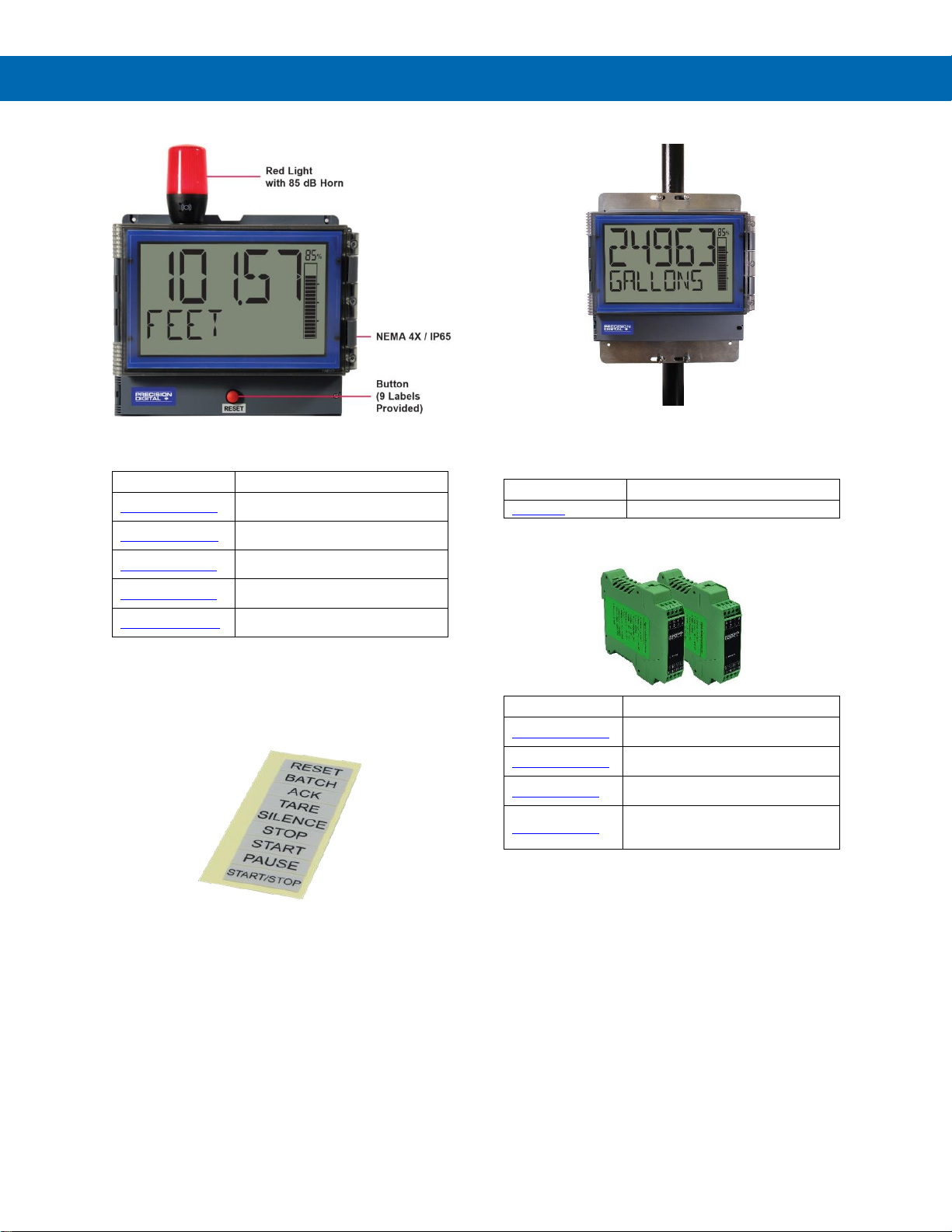

Light / Horn & Button Accessories
(2)

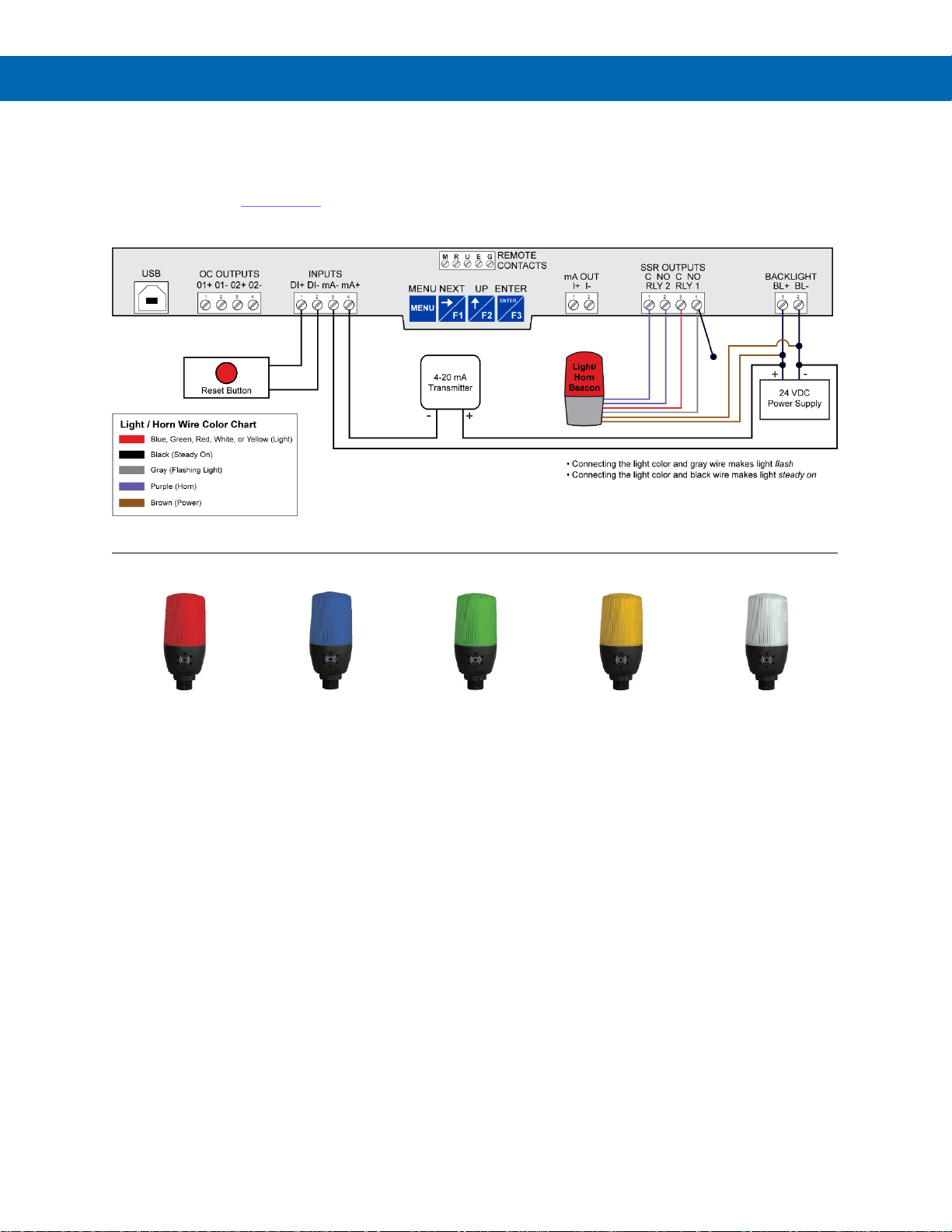

PD4-6604 meter shown with MOD-PD2LHRB1 Red Light /
Horn and Button. Meter sold separately.
Model
Description
MOD-PD2LHRB1
Red Light / Horn and Button
Mounted and Wired to PD4
(1)
MOD-PD2LHGB1
Green Light / Horn and Button
Mounted and Wired to PD4
(1)
MOD-PD2LHYB1
Yellow Light / Horn and Button
Mounted and Wired to PD4
(1)
MOD-PD2LHBB1
Blue Light / Horn and Button
Mounted and Wired to PD4
(1)
MOD-PD2LHWB1
White Light / Horn and Button
Mounted and Wired to PD4
(1)
Note:
1. Specify MOD-PD2LH model as a separate item on the
order for the PD4 meter to order the Light / Horn & Button
accessory installed and wired. Meter is sold separately.
2. Light / Horn & Button accessory available only on
PD4-6604 units.
Each Light / Horn accessory comes with
9 labels for the button.
Pipe Mounting Kit
PD4-6604 Meter Shown mounted to pipe using
PDA6260 pipe mounting kit. See Pipe Mounting
Instructions on page 20 for details.
Model
Description
PDA6260
2" Pipe Mounting Kit for PD4
Signal Splitter & Conditioner Accessories
Model
Description
PD659-1MA-1MA
Signal Isolator with One 4-20 mA
Input and One 4-20 mA Output
PD659-1MA-2MA
Signal Splitter with One 4-20 mA
Input and Two 4-20 mA Outputs
PD659-1V-1MA
Signal Conditioner with One 0-10
VDC Input and One 4-20 mA Output
PD659-1MA-1V
Signal Conditioner with One
4-20 mA Input and One 0-10 VDC
Output
Note: These signal splitters and conditioners do not carry
hazardous area approvals and are thus not suitable for
location in hazardous areas. The use of additional protective
devices may allow them to be installed in a safe area and
connected to a device in a hazardous area. User should
consult a professional engineer to determine suitability of
these products for their specific application.
Page 12
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
12

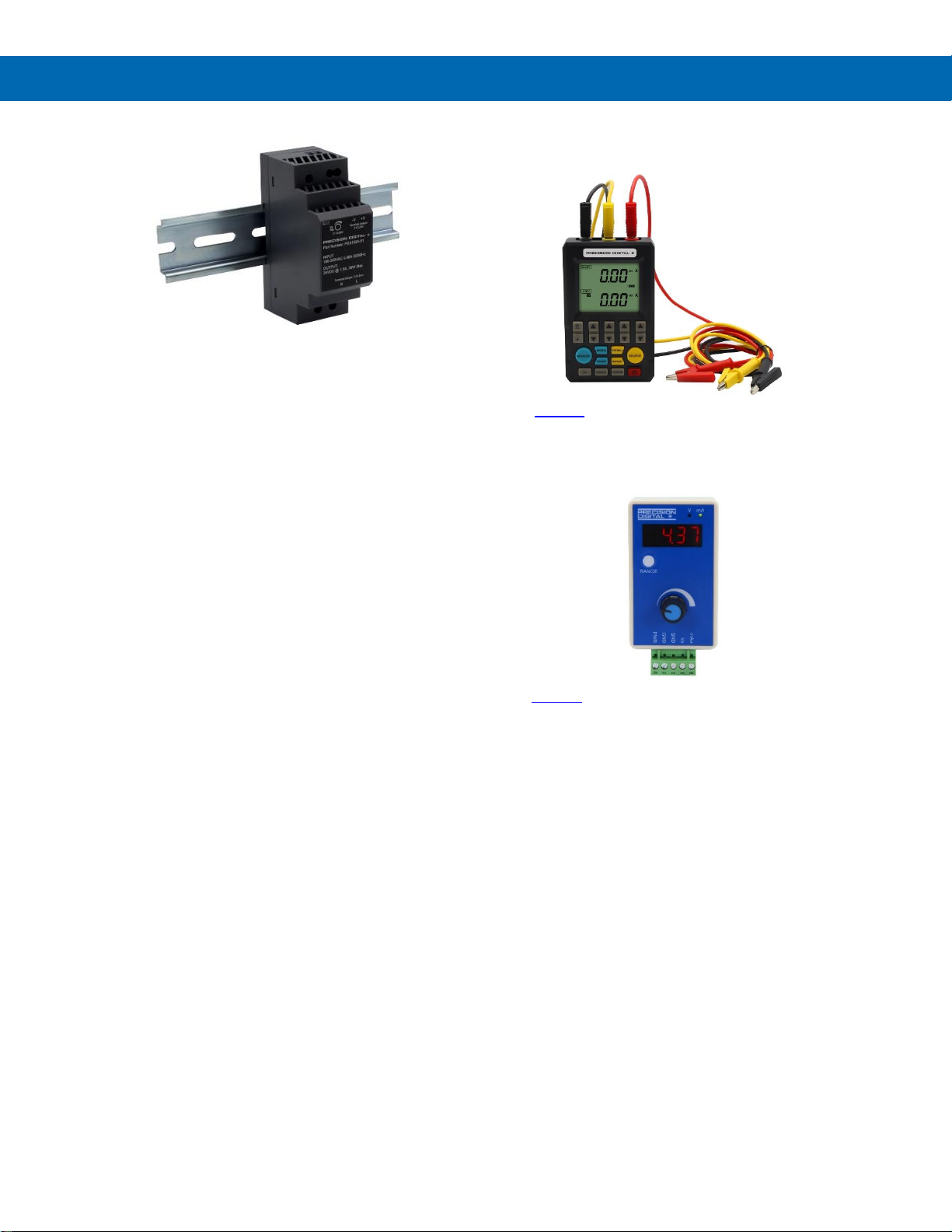

PDA1024-01 24 VDC Power Supply
The PDA1024-01 is a DIN rail mounted 1.5 A,
24 VDC power supply that can be used to power
the 4-20 mA transmitter.
Useful Tools
PD9501 Multi-Function Calibrator
This PD9501 Multi-Function Calibrator has a variety
of signal measurement and output functions, including
voltage, current, thermocouple, and RTD.
PD9502 Low-Cost Signal Generator
The PD9502 is a low-cost, compact, simple to use
4-20 mA or 0-10 VDC signal generator. It can easily
be set for 0-20 mA, 4-20 mA, 0-10 V or 2-10 V
ranges. Signal adjustment is made with a one-turn
knob. A wall plug is provided with the instrument.
Optional USB power bank is available.
Page 13
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
13
Specifications
Except where noted all specifications apply to operation at +25°C.
Display
Display
Dual-line LCD with backlight.
Top: 2.8" (71 mm),
5 alphanumeric 14-segment characters.
Bottom: 1.5" (39 mm),
8 alphanumeric 14-segment characters.
Display may be programmed to turn red and
flash a user-defined message on alarm
condition.
Top Display
5 digits (-9999 to 99999) or 5 characters (all
capital & most lower-case letters)
Bottom
Display
8 digits (-9,999,999 to 99,999,999; separated
by commas) or 8 characters
(all capital & most lower-case letters)
Backlight
Power
Requirement
24 VDC @ 46 mA, typical
Bargraph
20 segments, numeric percent indication
at top
Decimal Point
Up to four decimal places on top display and
up to seven decimal places on bottom display
Commas
Commas to indicate 1000s
(e.g. 88,987,628) on bottom display only
Dual-Scale
Feature
The input can be displayed in different scales
on the top and bottom displays. For instance,
the top display could display the
input in height and the bottom display could
display that same input in volume.
Alarm
Indication
Programmable: red backlight, flashing display,
Bargraph segment flashes on alarm.
Backlight requires external 24 VDC.
Custom
Alarm
Messages
Programmable for each relay/open collector:
8 characters maximum; displayed every 10 sec for
1 sec on bottom display. May be turned off.
Display
Update Rate
Ambient > -10°C: 1 Update/Second
Ambient = -20°C: 1 Update/2 Seconds
From -20°C to -40°C the update rate slows
down 1 second for every -2°C
(e.g. at -24°C, 1 update/4 seconds).
Overrange
Top: 99999; Bottom: 99,999,999 (flashing)
Underrange
Top: -9999; Bottom: -9,999,999 (flashing)
General
Programming
Method
Buttons behind lower panel door & Free
PC-based USB programming software
Enclosure &
Materials
Material: High impact Polycarbonate with UV
stabilizer enclosure, UL 94V-0
Rating: NEMA 4X / IP65
Gasket: Polyurethane
Color: gray.
Includes four PG11 through-hole conduit
openings, with two factory installed PG11,
IP68, black nylon threaded hole plugs with
backing nuts.
Environmental
Operating temperature range:
-40 to 75°C (-40 to 167°F)
Storage temperature range:
-40 to 85°C (-40 to 185°F)
Relative humidity: 0 to 90% non-condensing;
Printed circuit boards are conformally coated.
Noise Filter
Averages the input signal over a period of
time between 1 and 16 seconds to dampen
the effects of a noisy signal that causes a
jumpy display.
Filter Bypass
0.0 to 99.9% of full scale. Input signal
changes that are greater than bypass value
are displayed immediately.
Recalibration
Recalibration is recommended at least every
12 months.

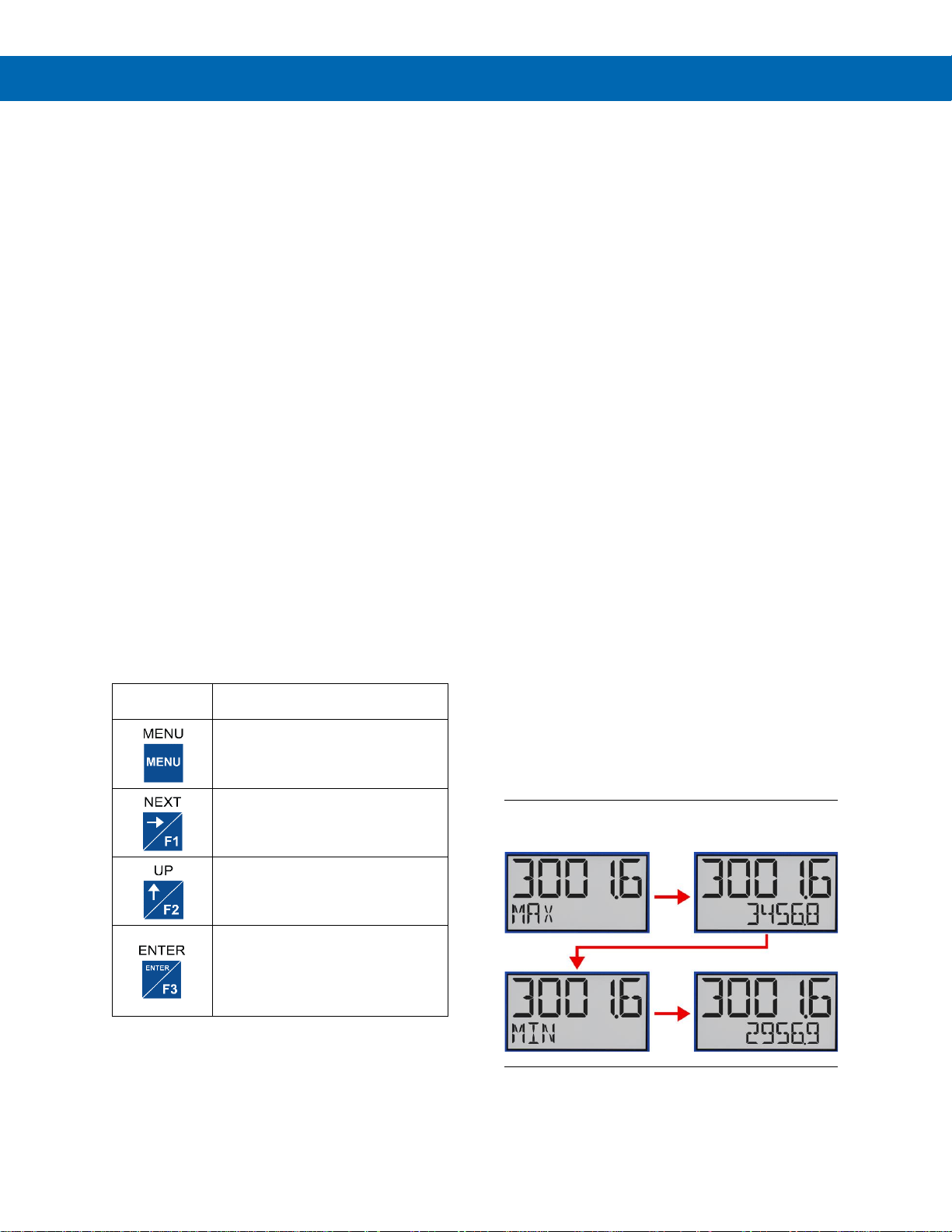

Max/Min
Display
Max/min readings reached by the process are
stored until reset by the user or until power to
the meter is turned off.
Tare
Tare function zeros out the meter to
accommodate for weight of a container.
Tare function can be assigned to a function
key or a digital input.
Password
Programmable password restricts
modification of programmed settings.
Non-Volatile
Memory
All programmed settings are stored in nonvolatile memory for a minimum of ten years if
power is lost.
Normal Mode
Rejection
64 dB at 50/60 Hz
Connections
Removable screw terminals accept 12 to 22
AWG wire
Remote contacts: Accept 16 to 30 AWG wire.
Tightening
Torque
Screw terminal connectors: 4.5 lb-in (0.5 Nm)
Mounting screws: 8.0 lb-in max. (0.9 Nm)
Remote contacts: 2.5 lb-in (0.28 Nm)
Overall
Dimensions
10.6" x 12.6" x 4.8"
(270 mm x 320 mm x 121 mm)
(H x W x D)
Weight
5.5 lbs (2.5 kg)
Warranty
3 years parts and labor. See Warranty
Information and Terms & Conditions on
www.predig.com for complete details.
Page 14
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
14
Input
Input
4-20 mA
Accuracy
±0.02% of span ±1 count,
Square root and
programmable exponent: 10-100% FS
Voltage Drop
2.1 V maximum
Equivalent
Resistance
105 Ω @ 20 mA
Input
Overload
Over current protection to 1 A maximum,
Over voltage protection to 30 VDC max
(between mA+ and mA-)
Temperature
Drift
25 PPM/°C from -40 to 75°C ambient
Function
PV1: Linear (2 -32 points), square root, or
programmable exponent
PV2: Linear (2 -32 points) or
round horizontal tank
Low-Flow
Cutoff
0.1 to 999,999 or disable. Point below at which
the display always shows zero.
HART
Transparency
The meter does not interfere with existing
HART communications; it displays the
4-20 mA primary variable and it allows the
HART communications to pass through without
interruption. The meter is not affected if a
HART communicator is connected to the loop.
The meter does not display secondary HART
variables.
Common Open Collector & Relay Specifications
Number
Two open collectors & two relays
High or Low
Alarm
User programmable for high or low alarm
Alarm Deadband
0-100% FS, user programmable
Output
Assignment
Alarm, Timer, Stopwatch, or Disable
Alarm Output
Source
Assign to PV (PV1, PV2) or Digital Input
On & Off Time
Delay
0 to 9,999 seconds
Fail-Safe
Operation
Independent for each open collector
and relay.
Fail-safe on, the output is on under
normal conditions.
Fail-safe off, the output is on under
alarm conditions.
Alarm Operation
Automatic, automatic with manual
override, latching (manual reset
anytime), latching with reset after
cleared (manual reset only after alarm
has cleared)
Alarm Indication
Programmable: red backlight, flashing
display, Bargraph segment flashes on alarm.
Backlight requires external 24 VDC.
Custom Alarm
Messages
Programmable for each relay/open collector:
8 characters maximum; displayed every 10 sec
for 1 sec on bottom display. May be turned off.
Alarm
Acknowledge
Front panel ACK button or external
digital input resets output and screen
indication.
Auto Initialization
When power is applied to the meter,
open collectors and relays will reflect
the state of the input to the meter.
Timer Output
One-shot or Continuous
Off Time Delay: 1 sec to 99:59:59
(hrs:min:sec)
On Time: 1 sec to 99:59:59 (hrs:min:sec)
Stopwatch
Output turns on when started and off
when stopped.
Open Collector Outputs
Rating
Isolated open collector, sinking NPN
5-30 VDC @ 150 mA maximum
Output
Assignment
Pulse, Alarm, Timer, Stopwatch, or
Disable
Pulse Output
Source
PV (PV1, PV2) or Test Frequency
Pulse Output
Factor
0.000001 to 999,999.9
Pulse Width
0.5 ms @ 1 kHz; 500 ms @ 1 Hz;
50% duty cycle
Pulse Output
Frequency
1,000 Hz maximum
Quadrature Pulse
Output
Available for Output 2
(90° behind Output 1) 500 Hz max
Alarm Output
Source
Assign to PV (PV1, PV2)
or Digital Input
Page 15
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
15
Solid-State Relays
Rating
250 VAC/VDC @ 1 A resistive
75 VA; 250 VAC; 0.6 A pilot duty
(inductive)
25 VA; 250 VDC; 0.6 A pilot duty
(inductive)
Noise
Suppression
Metal oxide varistors across outputs
Relay
Assignment
Pump Alternation, Alarm, Timer,
Stopwatch on/off, or Disable
Alarm Output
Source
Assign to PV (PV1, PV2) or Digital Input
Pump Alternation
Relays may be programmed to alternate
with each pump cycle with an elapsed
time override where the pumps will
alternate regardless of level. Pump
alternation time can be programmed for
0 to 999:59 (hrs:min)
Relay (Pump)
Runtime
Meter will keep track of how long each
relay (pump) has operated and display
this information.
Relay (Pump)
Cycles
Meter will keep track of how many times
the relays (pumps) have cycled and
display this information.
4-20 mA Transmitter Output
Accuracy
±0.05% FS ±0.001mA
Output Source
PV1, PV2, re-transmit; reverse scaling
allowed
Scaling Range
1.00 to 23.0 mA
Disable
High impedance state, less than 1 mA
Calibration
Factory calibrated 4.00 to 20.00 mA
Underrange
1.0 mA, 3.5 mA, or 3.8 mA
(If input < 3.5 mA); or disable
underrange; user selectable
Overrange
20.5 mA, 20.8 mA, or 23.0 mA
(If input > 20.5 mA); or disable
overrange; user selectable
Isolation
500 V input-to-output
Temperature Drift
0.5 µA/°C max from -40 to 75°C ambient
External Loop
Power Supply
7.0 VDC to 30.0 VDC maximum
Output Loop
Resistance
10-750 Ω @ 24 VDC; 10-1100 Ω @ 30 VDC
On-Board Digital Input
Function
Remote operation of front-panel buttons,
acknowledge/reset relays, reset max/min
values, etc. See User section of Display
Functions & Messages on page 29 for a
complete list of capabilities.
Contacts
2.1 VDC on contact. Connect normally
open contacts across DI+ and DI-
Logic Levels
Logic High: 2.4 to 30 VDC (max)
Logic Low: 0 to 0.9 VDC
Remote Contacts
Function
Terminals provided for remote operation of
all four programming / operation buttons
(use PDA2364-MRUE control station).

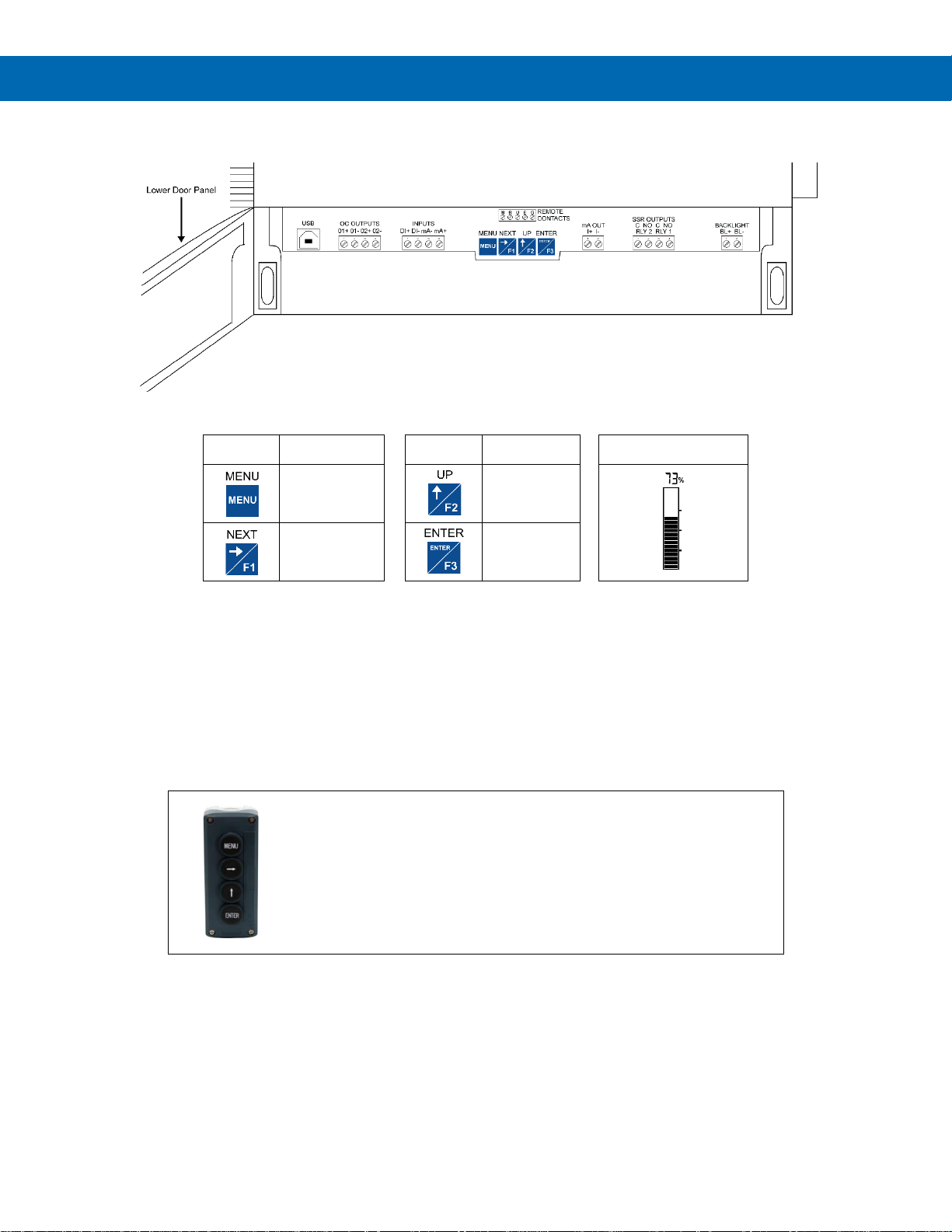

Remote
Buttons
Menu, Right, Up, Enter
Remote
Function
Keys
F1 / Reset*
F2 / Max*
F3 / Ack*
*Defaults
• DO NOT connect anything else, other than
normally open switch contacts, to the Remote
Contacts terminals.
Page 16
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
16

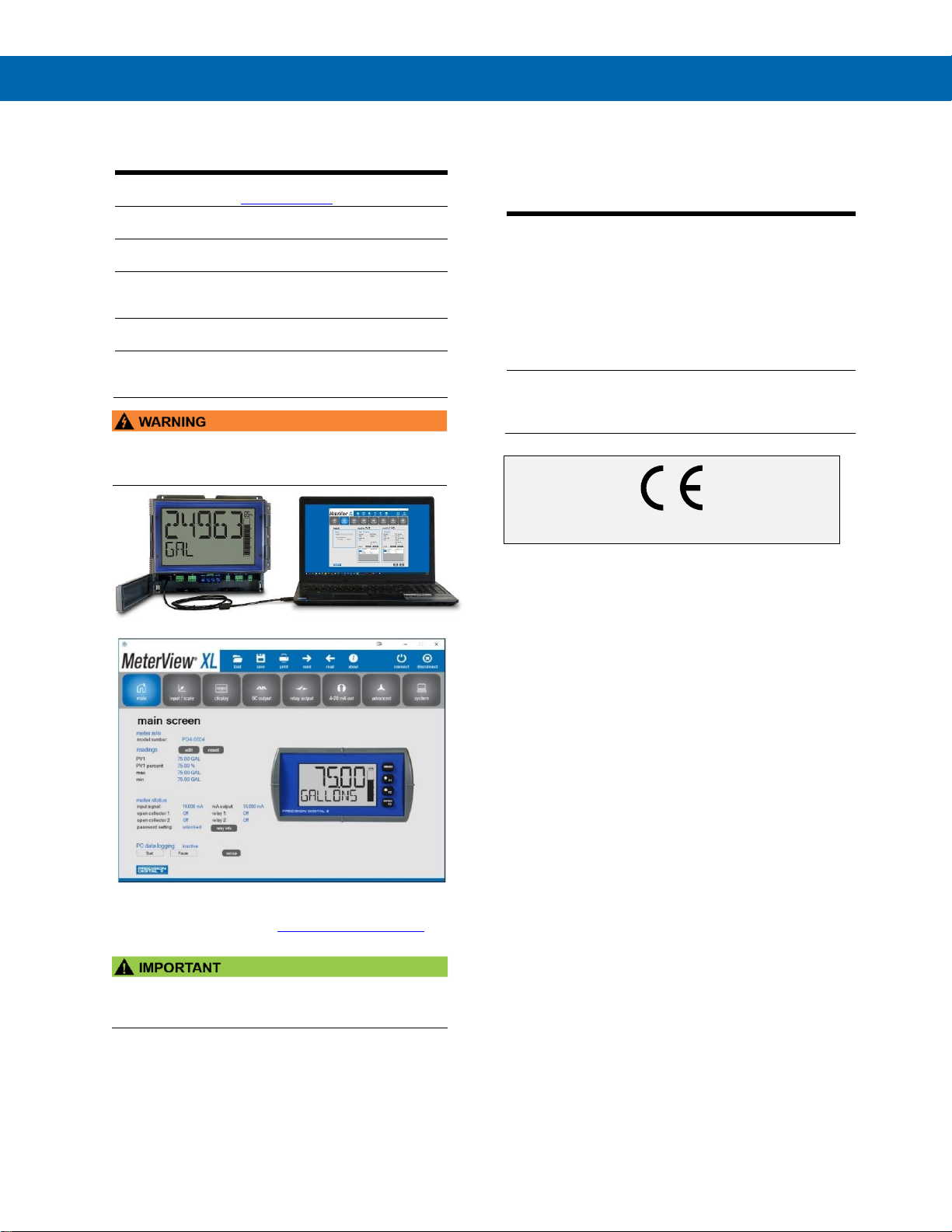

MeterView XL Programming Software
Availability
Free download from
www.predig.com
System
Requirements
Microsoft® Windows® 7 & 10
Communications
USB 2.0 (Standard USB A to USB B)
Cable provided
Configuration
Configure all parameters on the
meter. Configure meters one at a
time.
Configuration Files
Generate with or without meter
connected; Save to file for later use.
USB Power
Connection
Meter is powered by USB
connection during programming,
if 4-20 mA loop is not connected.
• The meter should only be connected to a
computer while it is located in a safe area.
To download the latest MeterView XL programming
software and manual, visit predig.com/meterviewxl.
• The image in the software shows the panel meter
version. The same software is used for the PD4.
General Compliance
Information
Electromagnetic Compatibility
EMC Emissions
• CFR 47 FCC Part 15 Subpart B Class A
emissions requirements (USA)
• AS/NZS CISPR 11
Class A ISM emissions requirements
(Australia)
• EN 55011
Group 1 Class A ISM emissions
requirements (EU)
• ICES-001 Issue 4 ISM emissions
requirements (Canada)
EMC Emissions
and Immunity
EN 61326-1
EMC requirements for Electrical equipment
for measurement, control, and laboratory
use – industrial use
All PD4 Models
Page 17
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
17
PD4-6608 Compliance
Information
Hazardous Area Approvals
ATEX
II 1 G D
Ex ia IIC T4 Ga
Ex ia IIIC T200°C Da
-40°C ≤ Ta ≤ 75°C
Certificate Number: CML 18ATEX2091X
IECEx
Ex ia IIC T4 Ga
Ex ia IIIC T200°C Da
-40°C ≤ Ta ≤ 75°C
Certificate Number: IECEx CML 18.0051X
PD4-6608 Only
ATEX/IECEx Special Conditions for Safe Use
The following conditions relate to safe installation
and/or use of the equipment.
• The equipment loop/power port must be
connected to an intrinsically safe barrier with
Uo ≥ 5.8V.
• The PD4 enclosure is non-metallic. Under certain
extreme circumstances, the plastic enclosure may
store an ignition-capable level of electrostatic
charge. Therefore, the user/installer shall
implement precautions to prevent the build-up of
electrostatic charge, e.g. locate the equipment
where a charge-generating mechanism (such as
wind-blown dust) is unlikely to be present and
clean with a damp cloth.
• All cable entries into the equipment shall be via
cable glands or conduit which provide a minimum
degree of protection of IP54.
• The equipment shall not be opened when a
hazardous atmosphere is present.
• The remote contact port shall only be connected to
voltage free contacts.
For European Community:
The PD4-6608 must be installed in accordance with
the ATEX directive 2014/34/EU, the product
certificates CML 18ATEX2091X, IECEx CML
18.0051X and the product manual.
There is no need to remove the meter from its case to
complete the installation, wiring, and setup of the
meter for most applications.
I.S. Equipment
Entity
Parameters
Required
Relationship
Between Entity
Parameters
I.S. Barrier Entity
Parameters
V max (or Ui)
≥
Voc or Vt (or Uo)
I max (or Ii)
≥
Isc or It (or Io)
P max, Pi ≥ Po
Ci + Ccable
≤
Ca (or Co)
Li + Lcable
≤
La (or Lo)
For North American Community:
Installation and service of this device and/or
associated apparatus (barrier) should be performed
only by trained service personnel
and must be installed in accordance with the
manufacturer’s control drawing, Article 504 of the
National Electric Code (ANSI/NFPA 70) for installation
in the United States, or Section 18 of the Canadian
Electrical Code for installations in Canada.
• EXPLOSION HAZARD – Do not disconnect
equipment unless power has been removed or
the area is known to be non-hazardous.
• RISQUE D’EXPLOSION – NE PAS BRANCHER
NI DÉBRANCHER SOUS TENSION.
Year of Construction
This information is contained within the serial number
with the first four digits representing the year and
month in the YYMM format.
IECEx
Page 18
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
18
EU Declaration of Conformity
For shipments to the EU and UK, a Declaration of
Conformity was printed and included with the product.
For reference, a Declaration of Conformity is also
available on our website www.predig.com/docs.
Safety Information
• Read complete instructions prior to installation
and operation of the meter.
• Installation and service should be performed only
by trained service personnel.
• Service requiring replacement of internal
components must be performed at the factory.
• Control room equipment must not use or
generate more than 250 VRMS or VDC.
• Hazardous location installation instructions for
associated apparatus (barrier) must be followed
when installing this equipment.
• For safe installation of an ATEX approved
transmitter in series with PD4-6608 loop-powered
meters, the hazardous location installation
instructions for the transmitter, PD4-6608 looppowered meter, and associated apparatus
(barrier) must be compatible.
• PD4-6608 Series Loop-Powered meters do not
add capacitance or inductance to the loop under
normal or fault conditions.
• Substitution of components may impair
hazardous location safety.
• Equipment contains non-metallic materials and
therefore special care and consideration should
be made to the performance of these materials
with respect to chemicals which may be present
in a hazardous environment.
Field Modification
Service requiring replacement of internal components
must be performed at the factory.
Entire meter assembly (electronic assembly) may be
replaced within the field with a unit supplied from the
factory labeled “Field Modification”.
Installation
There is no need to open the clear plastic front cover
in order to complete the installation, wiring, and setup
of the meter.
All programming is done using MeterView XL
software or through the buttons and switches located
behind the lower panel door and are accessible by
removing the single securing screw. Wires should be
run through the knockout holes located on the bottom
of the meter, see Figure 5. Conduit Holes Location –
Bottom View on page 19 for details.
There are a total of four pre-drilled conduit entry holes
located at the bottom of the meter. If the need to drill
additional holes arises, make sure you will have the
clearance necessary for conduit mounting hardware.
The PD4 comes with two factory installed PG11,
IP68, black nylon threaded hole plugs with backing
nuts for unused conduit holes.
• PD4-6608 installation must be performed in
accordance with Control Drawing DW2638
(contained within LIM4-6600-2) in order to meet
agency approval ratings.
Unpacking
Remove the meter from box. Inspect the packaging
and contents for damage. Report damages, if any,
to the carrier.
If any part is missing or the meter malfunctions,
please contact your supplier or the factory for
assistance.
Page 19
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
19
Wall Mounting Instructions
The meter can be mounted to any wall using the four
provided mounting holes. Note that the bottom mounting
holes are located underneath the lower door panel. To
mount the meter to a wall, follow these instructions
• Prepare a section of wall approximately 11" x 13"
(280 mm x 330 mm) for meter mounting by marking
with a pencil the mounting holes (shown in Figure 1)
on the wall.
• Select the appropriate mounting screws for the
mounting surface to be used. The mounting holes
diameter is shown on Figure 2.
Note: Mounting screws are not included.
• Using a drill bit slightly smaller than the girth of the
mounting screws, pre-drill holes at the mounting
locations previously marked.
• Insert mounting screws into the four mounting holes
and screw them into the pre-drilled holes. DO NOT
overtighten the mounting screws as it is possible that
the enclosure could crack and become damaged.
Figure 1. Meter Mounting Holes Location
Figure 2. Meter Mounting Holes Dimensions
Mounting Dimensions
Figure 3. Meter Dimensions – Side View
Figure 4. Meter Dimensions - Front View
Conduit Holes Location
Figure 5. Conduit Holes Location – Bottom View
Mounting Hole
Mounting Hole
Mounting Hole
Mounting Hole
Lower
Door
Panel
Page 20
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
20
Pipe Mounting Instructions
The meter can also be mounted to a pipe using the optional
pipe mounting kit (PDA6260). This kit includes two mounting
plates, two U-bolts, and the necessary nuts and bolts. To
mount the meter to a pipe using the pipe mounting kit
accessory, follow these instructions.
• Secure the mounting plates to the top and bottom (for
vertical pipes) or left and right (for horizontal pipes) of
the reverse side of the meter enclosure using the
provided fasteners.
DO NOT overtighten the fasteners as it could cause
damage to the enclosure.
• Using the provided nuts and U-bolts, secure the
mounting plates to the pipe applying enough torque
such that the meter cannot be moved up or down (or
side to side).
Figure 6. Vertical Pipe Mount Assembly
Figure 7. Horizontal Pipe Mount Assembly
Mounting Plate
U-Bolt
Pipe
U-Bolt
Back of
Meter
Mounting Plate
Mounting
Plate
Mounting
Plate
Pipe
Back of
Meter
U-BoltU-Bolt
Page 21
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
21

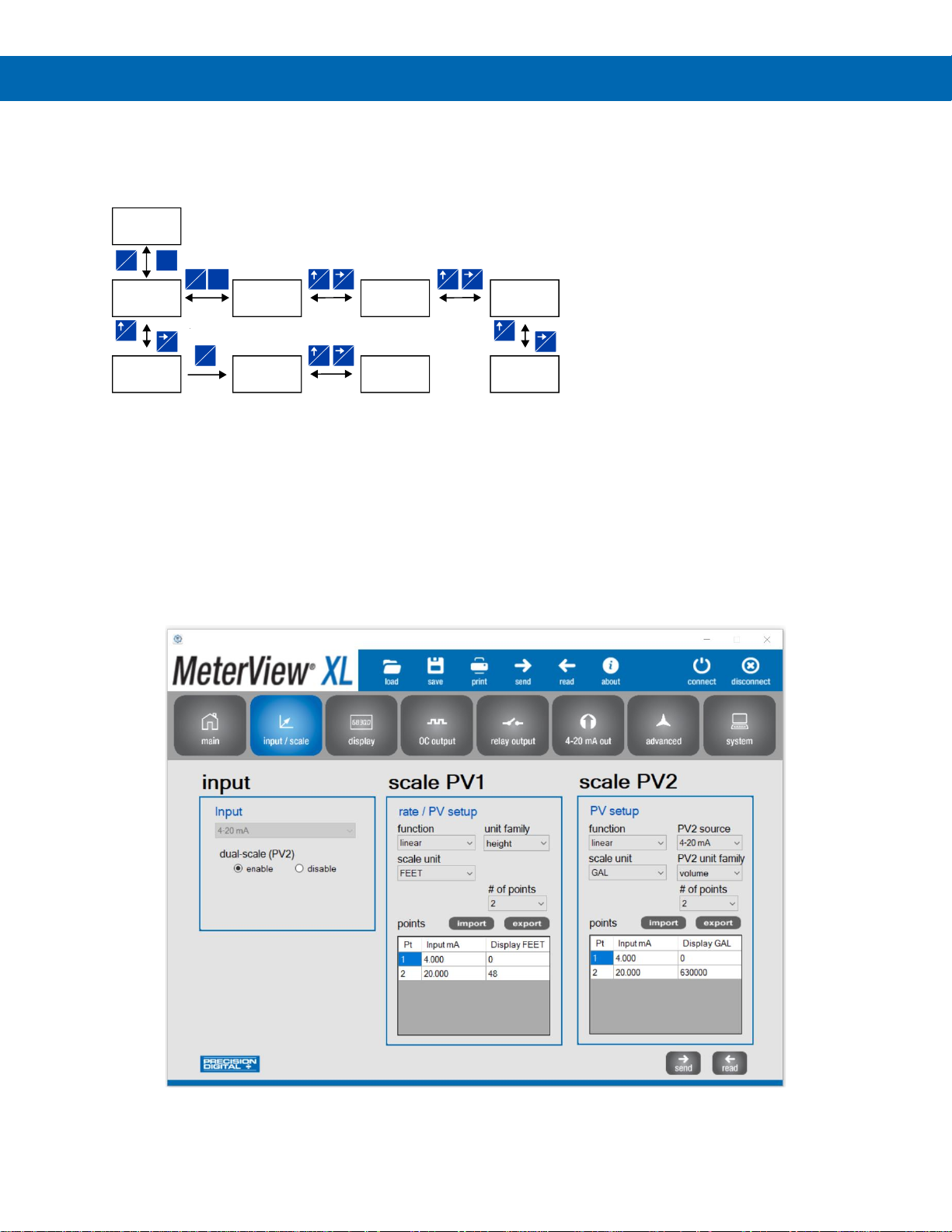

MeterView XL Programming Software
Free, PC-based, MeterView XL software that connects
to the meter via a USB cable is available for
programming and setup of the meters. This software
greatly simplifies the programming process and allows
the user to save configuration files for later use. The
meter will also be powered by the USB connection so
no additional power is needed during programming.
• Free PC-Based USB Programming Software
• Easy Programming of Feature-Packed
Product
• USB Connection Provides Power to the
Meter During Programming
• Save & Print Configuration Files without
Meter Connected
• USB Cable Provided with Meter
• PC Data Logging for One or Multiple
Variables

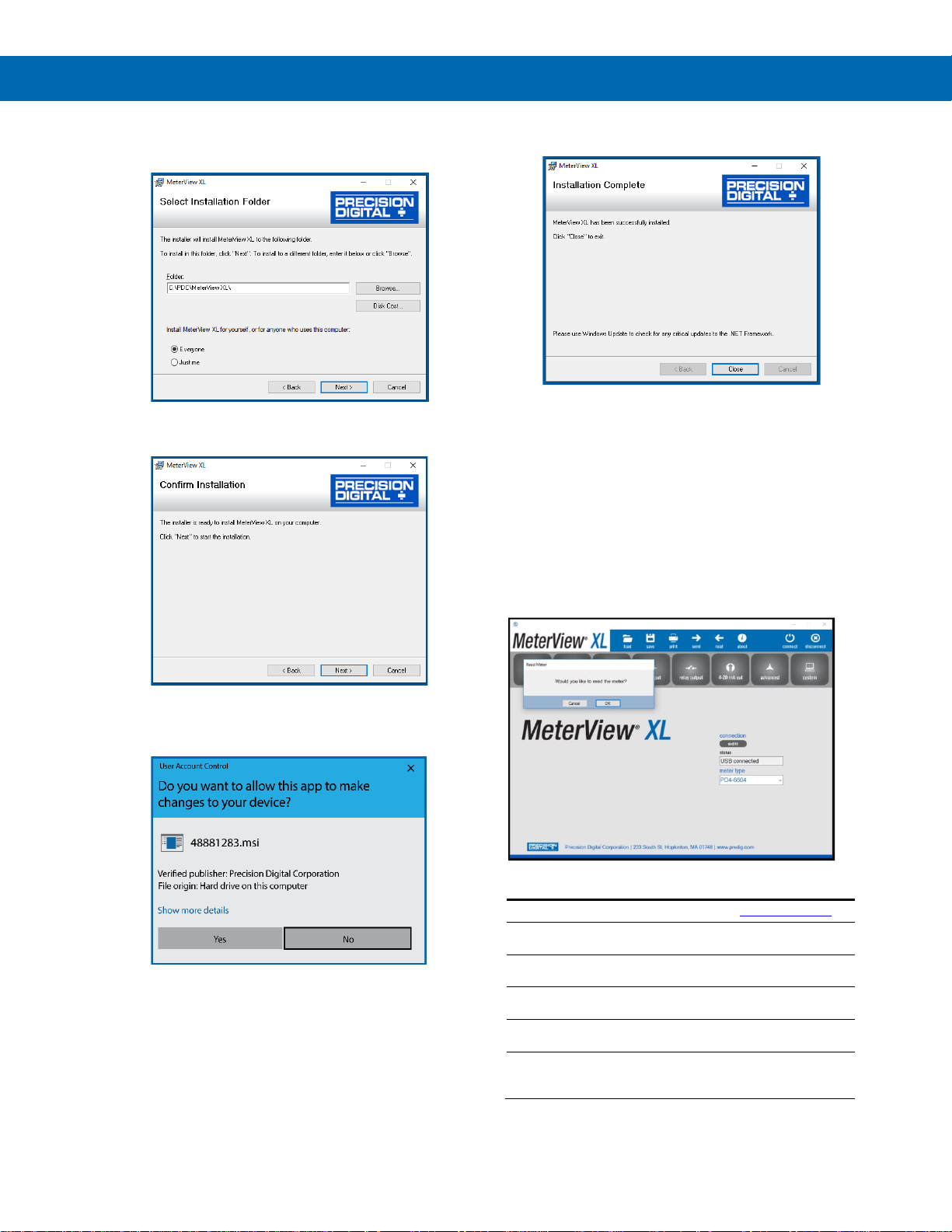

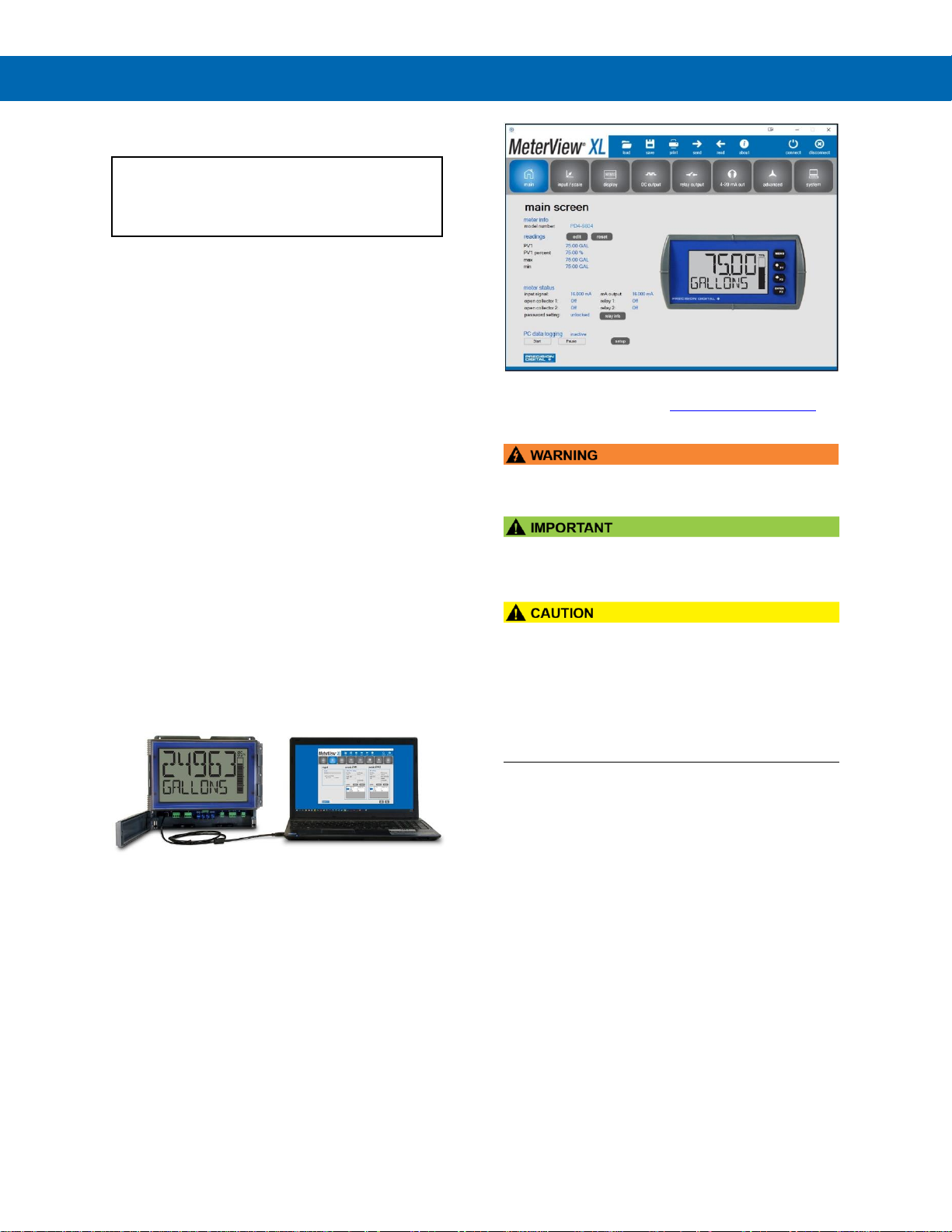

MeterView XL Software Installation
• The meter should only be connected to a
computer while it is located in a safe area.
• Please uninstall previous versions of this
software prior to downloading, installing, and
running the latest version.
• The image in the software shows the panel meter
version. The same software is used for the PD4.
1. For complete instructions on how to use
MeterView XL go to predig.com/meterviewxl.
2. Download MeterView XL Installation file to your
PC from the included CD or go to
predig.com/meterviewxl
3. Locate the MeterView XL zipped folder on your
PC and double-click to extract and open:
4. Double-click MeterView XL Windows Installer
Package file to open:
5. The MeterView XL Setup Wizard window will
appear. Click “Next” to start the installation
process:
6. The MeterView XL License Agreement window
appears next. Select “I agree” and click “Next”
to continue the installation process:
Page 22
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
22
7. Choose the folder location where you would
like the software to be installed to and select
options for use. Then click “Next” to continue:
8. Confirmation window will appear. Click “Next”
to confirm the installation:
9. The User Account Control message is
displayed. Click “Yes” to proceed with the
installation:
10. Finally, the Installation Complete window will
appear. Click “Close” to exit:
Now you are ready to open the MeterView XL software
to begin programming your Loop Leader+ meter.
Connecting to the Computer
Loop Leader+ series meters may be connected to any
Windows 7 or Windows 10 PC via the provided USB
cable by following these steps:
1. Open the MeterView XL software.
2. Connect the Loop Leader+ meter to the PC
with the provided USB cable.
3. The software will ask if you would like to
read the meter. Click OK.
Specifications
Availability
Free download from www.predig.com
System
Requirements
Microsoft® Windows® 7 & 10
Communications
USB 2.0
(Standard USB A to USB B)
Configuration
Configure all parameters on the meter.
Configure meters one at a time.
Configuration
Files
Generate with or without meter
connected; Save to file for later use.
USB Power
Connection
Meter is powered by USB connection
during programming, if 4-20 mA loop is
not connected.
Page 23
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
23

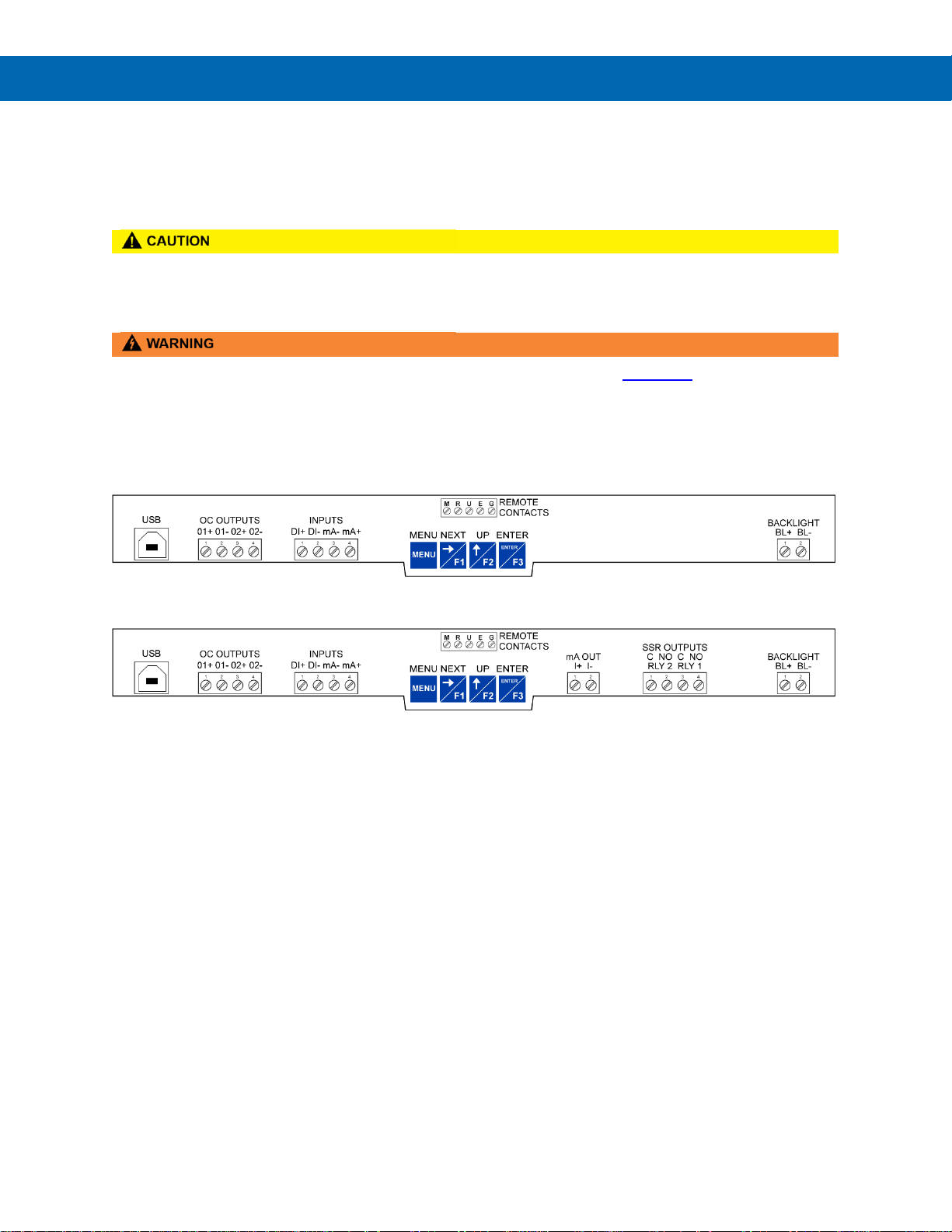

Connections
All connections are made to screw terminal connectors located behind the lower panel door. Remove the single
securing screw in order to access the wiring terminals.
This section is only intended for PD4-6604 safe area installations.
• Use copper wire with 60°C or 60/75°C insulation for all line voltage connections. Observe all safety regulations.
Electrical wiring should be performed in accordance with all applicable national, state, and local codes to prevent
damage to the meter and ensure personnel safety.
• PD4-6608 installation must be performed in accordance with Control Drawing LIM4-6600-2 in order to meet
agency approval ratings.
Connectors Labeling
The graphics below show the location of all connectors available with requested configuration.
Figure 8. Connector Labeling for PD4-66XX-LNN
Figure 9. Connector Labeling for PD4-66XX-L5N
Page 24
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
24

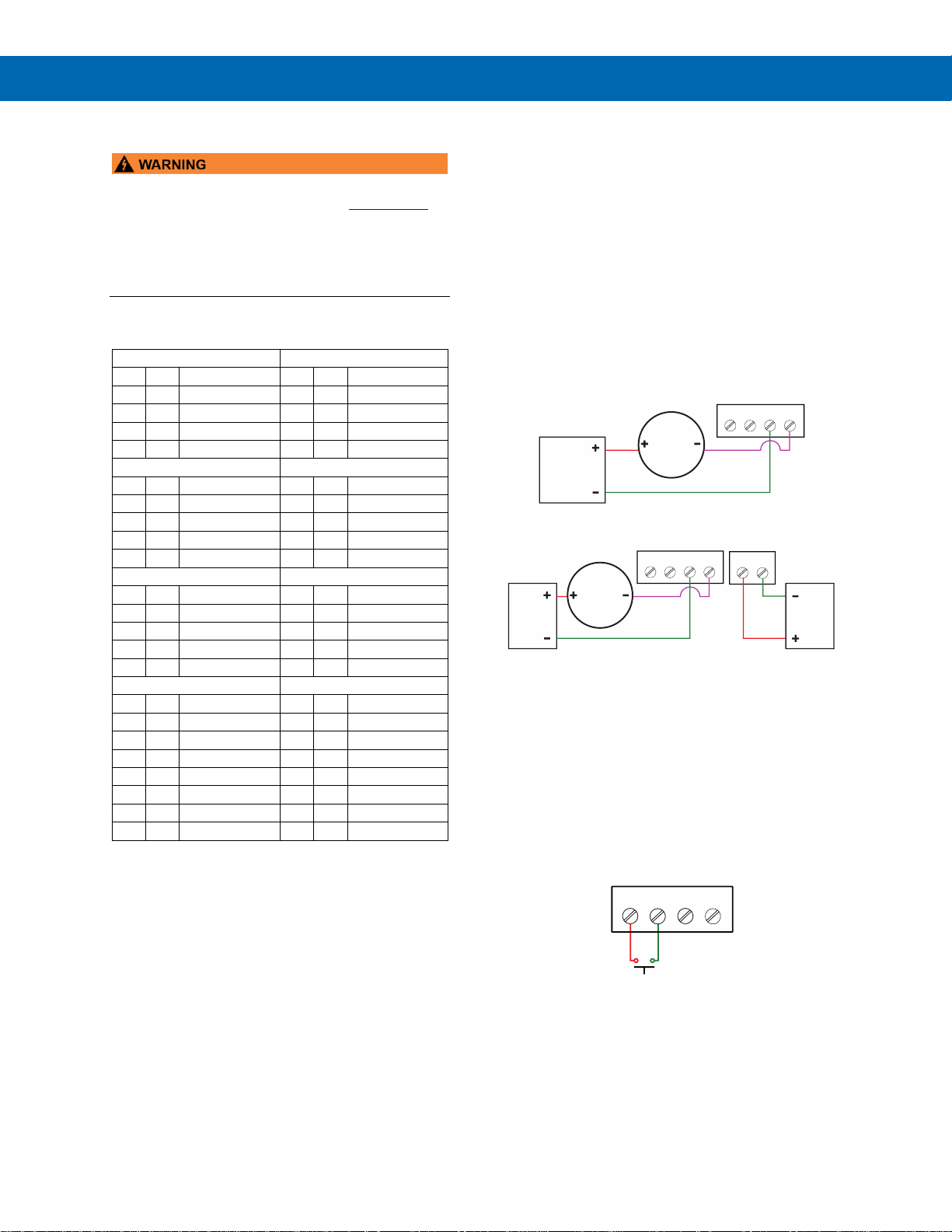

Wiring Diagrams
• PD4-6608 installation must be performed in
accordance with Control Drawing LIM4-6600-2 in
order to meet agency approval ratings.
• For ATEX certification, barrier and transmitter
must be ATEX Certified with Entity Parameters
and must be connected per manufacturer’s
instructions.
I/O Parameter Table
Loop/Power Connection
4-20 mA HART Output
Ui = 30 V
Ui = 30 V
Ii = 175 mA
Ii = 175 mA
Pi = 1 W
Pi = 1 W
Ci = 0
Ci = 0
Li = 0
Li = 0
Open Collector Outputs
Switch Port
Ui = 30 V
Ui = 30 V
Ii = 175 mA
Ii = 175 mA
Pi = 1 W
Pi = 1 W
Ci = 0
Ci = 0
Li = 0
Li = 0
4-20 mA Linear Output
Backlight Supply
Ui = 30 V
Ui = 30 V
Ii = 175 mA
Ii = 175 mA
Pi = 1 W
Pi = 1 W
Ci = 0
Ci = 0
Li = 0
Li = 0
Relay Outputs
Remote Contacts
Ui = 30 V Ii = 1.0 A
Pi = 1 W Ci = 0.013 µF
Ci = 0.013 µF
Li = 0
Li = 0
Uo = 11.55 V
Uo = 7.01 V
Io = 0.001 A
Io = 0.193 A
Po = 0.012 W
Po = 0.265 W
Safe Area Current Loop (4-20 mA) Connections
Signal connections are made to a four-terminal
connector labeled INPUTS. See Connectors Labeling
on page 23. The following figures show a 4-20 mA
current loop connected to the meter. Figure 10 shows
the connection without the backlight and Figure 11
shows the connection with the backlight (the backlight
can be disabled/enabled in the SYSTEM menu). The
backlight can be powered from the same DC power
source that powers the 4-20 mA loop, but requires
additional wiring as shown in Figure 11.
There are no switches or jumpers to set up for the
input. Setup and programming is performed through
the programming buttons or MeterView XL software.
Figure 10. 4-20 mA Input Connection without Backlight
Figure 11. 4-20 mA Input Connection with Backlight
The current input is protected against current
overload up to 1 amp. The display may or may not
show a fault condition depending on the nature of the
overload.
Safe Area Digital Input Connections
A digital input is standard on the meter. This digital
input is connected with a normally open contact
across DI+ and DI-, or with an active low signal
applied to DI+ and DI-.
Figure 12. Digital Input Connections
DI+ DI- mA- mA+
4-20 mA
Transmitter
Power
Supply
DI+ DI- mA- mA+
BL-BL+
4-20 mA
Transmitter
Power
Supply
24 VDC
Power
Supply
DI+ DI- mA- mA+
Page 25
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
25

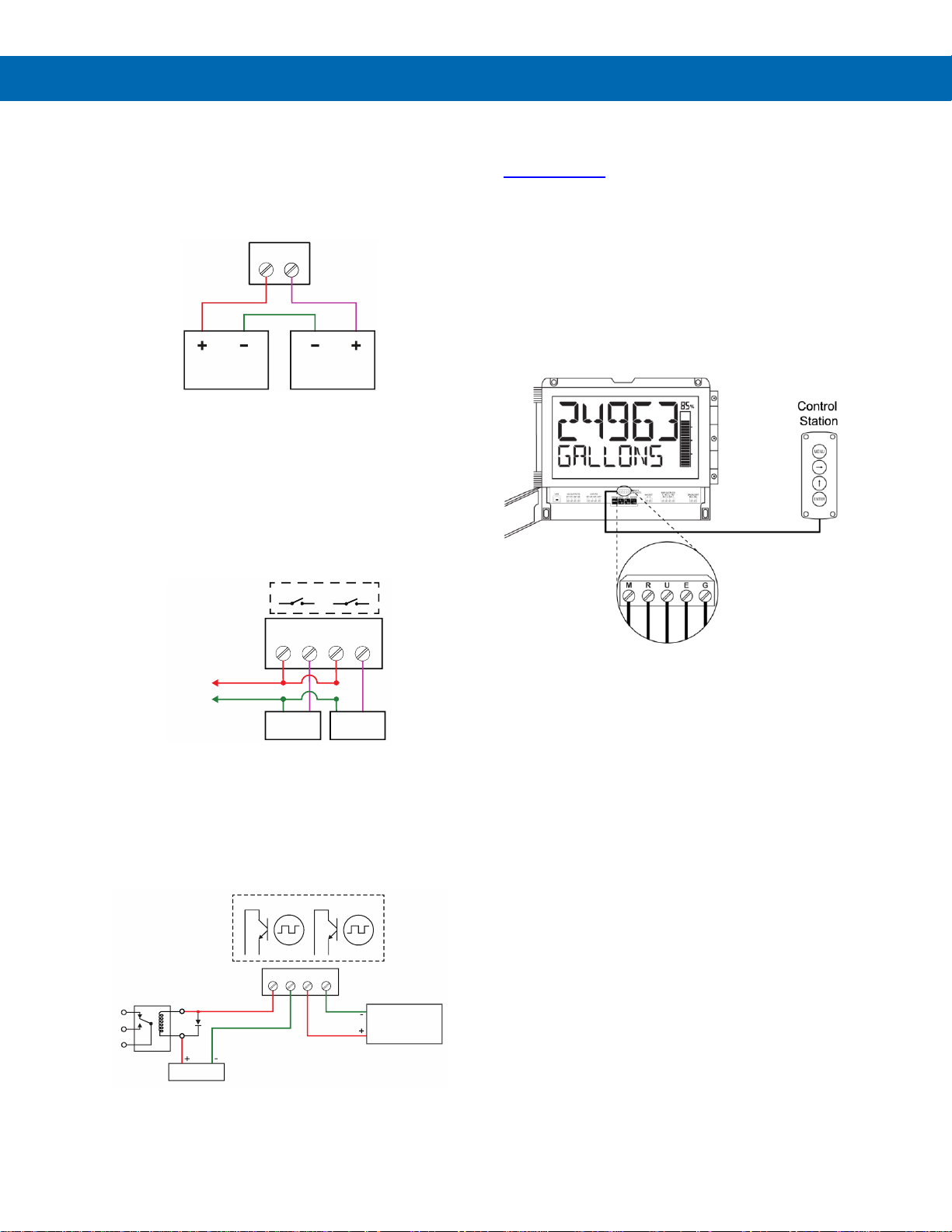

Safe Area 4-20 mA Output Connections
Connections for the 4-20 mA transmitter output are
made to the connector terminals labeled mA OUT.
The 4-20 mA output must be powered from an
external power supply.
Figure 13. 4-20 mA Output Connections
Safe Area Solid-State Relay Connections
Relay connections are made to a four-terminal
connector labeled SSR OUTPUTS on Figure 14.
Solid-State Relay Connections. Each relay’s C
terminal is common only to the normally open (NO)
contact of the corresponding relay.
Figure 14. Solid-State Relay Connections
Safe Area Open Collector Output Connections
Open collector output 1 and 2 connections are made to
terminals labeled O1+ and O1-, and O2+ and O2-.
Connect the alarm or pulse input device as shown below.
Figure 15. Open Collector Output Connections
Remote Operation of Meter
The meter can be operated remotely by connecting a
PDA2364-MRUE control station to the Remote Contacts
located behind the lower panel door of the meter as
illustrated in Figure 16. PDA2364-MRUE Control Station
Connected to Remote Contacts on PD4.
Note: The control station does not carry hazardous area
approvals and thus is not suitable for location in hazardous
areas.
The use of additional protective devices may allow it to be
installed in a safe area and connected to a device in a
hazardous area. User should consult a professional engineer
to determine suitability of this product for their specific
application.
Figure 16. PDA2364-MRUE Control Station Connected to
Remote Contacts on PD4
I+ I-
Power
Supply
Device with
4-20 mA Input
CNO C NO
Internal
Load Load
POWER
RLY 2 RLY 1
O1+ O1- O2+ O2-
Alarm Indicator/
Pulse Counter
5-30 VDC
150 mA MAX
External DC
Relay
Power Supply
Internal
Page 26
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
26
Wiring Connections for MOD-PD2LH Models
The following diagram is for MOD-PD2LH models with a single color light.
The Light / Horn cannot be powered by the 4-20 mA loop. To use the Light / Horn an external power supply must
be used such as the PDA1024-01 as the following diagram illustrates.
Light / Horn & Button accessory available only on PD4-6604 units.
Figure 17. Light / Horn and Button (MOD-PD2LH) Connected to PD4
Available Light / Horn Colors
PDA-LHR
PDA-LHB
PDA-LHG
PDA-LHY
PDA-LHW
Page 27
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
27
Setup and Programming
Overview
There are no jumpers to set; setup and programming
is done by using the buttons (MENU, NEXT, UP,
ENTER) located behind the lower panel door of the
meter or PC-based software.
The meter may be powered via the USB connection
located behind the lower panel door of the meter for
the purposes of programming only. The backlight
requires an external power source. If the meter is
powered from the USB, the backlight will only work if
it is powered separately from a DC supply.
MeterView XL Programming Software
The fastest and easiest way to program the meter is
using the free Meterview XL programming software.
This software greatly simplifies the programming
process and allows the user to save configuration files
for later use.
The meter connects to the PC via a provided USB
cable and is powered by the USB connection, so no
additional power is needed during programming.
To download the latest MeterView XL programming
software and manual, visit predig.com/meterviewxl.
• The meter should only be connected to a
computer while it is located in a safe area.
• The image in the software shows the panel meter
version. The same software is used for the PD4.
• Care should be exercised to avoid ground loops
when connecting the USB to an active loop (e.g.
power supply, transmitter, loop-powered meter,
etc.). It is recommended to connect the (mA+)
terminal of the meter to the (-) terminal of a twowire transmitter and the (mA-) to the (+) of the
next device in the loop or to the (-) terminal of the
power supply.
The meter is factory calibrated prior to shipment
to display 0.00 to 100.00, which corresponds to
the 4-20 mA input. The calibration equipment is
traceable to NIST standards.
Page 28
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
28
Programming Buttons
Button
Description
Button
Description
Bargraph with
Percentage Indication
Menu
Up Arrow/F2
Right
Arrow/F1
Acknowledge
(Enter)/F3
• Press the Menu button to enter or exit the Programming Mode at any time.
• Press or hold the Right-Arrow button to scroll forward through the menus, select digits during numeric
programming, select characters during text programming, or decrement the value of a digit or character
selected with the Up-Arrow button.
• Press and hold the Right-Arrow button to zero or clear digits/characters while in data-entry mode.
• Press or hold the Up-Arrow button to scroll backwards through the menus or to increment the value of
a digit or character.
• Press the Enter button to access a menu or to accept a setting or programmed digit/character value.
Remote Buttons
The meter can be operated via a remote control station (PDA2364-MRUE)
using the Remote Contacts. The PDA2364-MRUE mimics the PD4 meter’s
four programming buttons: Menu, Right Arrow, Up Arrow, and Enter.
See Remote Operation of Meter on page 25 for details.
Page 29
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
29
Display Functions & Messages
The meter displays various functions and messages during
setup, programming, and operation. The following table
shows the main menu functions and messages in the order
they appear in the menu.
Display Functions & Messages
Parameter
Action/Setting Description
INPUT (PV1 and PV2)
Program the meter 4-20 mA input
(two menus, PV1 and PV2, are
available if in dual-scale mode;
see PV2 under advanced features
menu)
SCALE PV (1 or 2)
Scale the selected PV
UNITS
Select the display units
VOLUME
Volume unit class
GAL
Gallons
L
Liters
IGAL
Imperial Gallons
M3
Cubic Meters
BBL
Barrels
BUSH
Bushels
cuYD
Cubic Yards
cuFt
Cubic Feet
cuIn
Cubic Inches
LiBBL
Liquid barrels
BBBL
Beer barrels
HECtL
Hectoliter
AF
Acre-Foot
CUSTM
Custom Unit
HEIGHT
Height unit class
INCH
Inches
FEET
Feet
YARD
Yards
CM
Centimeters
M
Meters
CUSTOM
Custom unit
TEMP
Temperature unit class
~F
Degrees Fahrenheit
~C
Degrees Celsius
K
Kelvin
~RA
Degrees Rankine
PRESSURE
Pressure unit class
PSI
Pounds per square inch
InHg
Inches of mercury
InH2O
Inches of water
mmHg
Millimeters of mercury
Kg/CM2
Kilograms per square centimeter
Display Functions & Messages
Parameter
Action/Setting Description
Kg/M2
Kilograms per square meter
mBAr
Millibar
Bar
Bar
PA
Pascal
hPA
Hectopascal
KPA
Kilopascal
MPA
Megapascal
CUSTM
Custom unit
WEIGHT
Weight unit class
gm
Grams
Kg
Kilograms
tonnE
Tonnes (metric)
oz
Ounces
1b
Pounds
ton
Tons
CUSTOM
Custom unit
RATE
Rate unit class
/SECOND
Units per second
/MINUTE
Units per minute
/HOUR
Units per hour
/DAY
Units per day
GAL/(T)
Gallons per time unit (T)
L/(T)
Liters per time unit (T)
IGAL/(T)
Imperial gallons per time unit (T)
M3/(T)
Cubic meters per time unit (T)
BBL/(T)
Barrels per time unit (T)
BUSH/(T)
Bushels per time unit (T)
cuYD/(T)
Cubic Yards per time unit (T)
cuFt/(T)
Cubic Feet per time unit (T)
cuIn/(T)
Cubic Inches per time unit (T)
LiBBL/(T)
Liquid barrels per time unit (T)
BBBL/(T)
Beer barrels per time unit (T)
HECtL/(T)
Hectoliter per time unit (T)
AF/(T)
Acre-Foot per time unit (T)
CUSTOM/
Custom unit per time unit (T)
CUSTOM
Custom unit class
C.UNIT
Custom unit
INPUT 1
Program input 1 value
INP 1
Enter the input 1 value
DISP 1
Program display 1 value
DSP 1
Enter the display 1 value
INPUT 2
Program input 2 value
(up to 32 points)
INP 2
Enter the input 2 value
Page 30
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
30
Display Functions & Messages
Parameter
Action/Setting Description
DISP 2
Program display 2 value
(up to 32 points)
DSP 2
Enter the display 2 value
SAVE?
Save programmed units, input,
and display values
OUTPUT
Program the meter’s available
outputs
OPEN COLLECTR
Program the meter’s open
collector outputs
OUTPUT1
Open collector 1 setup
OUTPUT2
Open collector 2 setup
DISABLE
Disable the open collector
PULSE
Program the open collector for
pulse output
ALARM
Program the open collector for
alarm output
TIMER
Program the open collector as a
timer
STPWATCH
Program the open collector to turn
on while the stopwatch is running
RELAY
Program the meter’s relay outputs
OUTPUT1
Relay 1 setup
OUTPUT2
Relay 2 setup
DISABLE
Disable the relay
ALARM
Program relay for alarm
functionality
PUMPCTRL
Program relay for pump control
application
TIMER
Program relay as a timer
STPWATCH
Program relay to turn on while the
stopwatch is running
RELAY INFO
View relay runtime and cycle count
4-20 Ma
Program the meter’s 4-20 mA
output
PV
Program a range to transmit based
on the display value
RETRANS
Retransmit the mA input signal
DISABLE
Disable the 4-20 mA output
CONTROL
Program manual or automatic
operation for the outputs
OC1
Open collector 1
OC2
Open collector 2
RELAY1
Relay 1
RELAY2
Relay 2
4-20 mA
4-20 mA output
AUTO
Set selected output to automatic
operation
MANUAL
Manually control selected output
operation
Display Functions & Messages
Parameter
Action/Setting Description
ADVANCED
Program the meter’s advanced
features
PV SETUP
(PV 1 & PV 2)
Advanced input programming
(two menus, PV 1 and PV 2, are
available if in dual-scale mode;
see PV 2 under advanced
features menu)
SOURCE
Select PV 2 source (dual-scale
only; see PV 2 under advanced
features menu)
4-20 ma
Source PV 2 from the mA input
PV1
Source PV 2 from PV 1
FUNCTION
Select linear, square root, or
programmable exponent function
LINEAR
Set meter for linear function and
select number of linearization
points
SQROOT
Set meter for square root
extraction
EXPONENT
Set meter for programmable
exponent and enter exponent
value
RH TANK
Round horizontal tank (dual-scale
only; see PV2 under advanced
features menu)
SCALE.CAL
Scale or calibrate the mA input
SCALE PV
Scale the input
CAL PV
Calibrate the input
CUTOFF
Set low-flow cutoff
DISABLE
Disable low-flow cutoff
ENABLE
Enable low-flow cutoff
FILTER
Set noise filter value
1.0 SEC
1 second
2.0 SEC
2 seconds
4.0 SEC
4 seconds
8.0 SEC
8 seconds
16.0 SEC
16 seconds
OFF
Turn filter off
BYPASS
Set filter bypass (0.0 to 99.9% FS)
PASSWRD
Set a password for the meter
PASS MAIN
Program the main meter password
USER
Assign function keys / digital input
F1
Assign F1 function key
F2
Assign F2 function key
F3
Assign F3 function key
DI
Assign digital input
DISP FN
Set the function key or digital input
to display a value
DISPLAY
Cycle max, min, and PV(s)
Page 31
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
31
Display Functions & Messages
Parameter
Action/Setting Description
DISP PV
Display the PV
PCT PV
Display the PV’s percentage of
max (20 mA)
D UNITS
Display the PV’s units
D TAG
Display the PV’s tag
DISPMIN
Display the PV’s minimum value
DISPMAX
Display the PV’s maximum value
MIN MAX
Display the PV’s minimum and
maximum value
D mA IN
Display the current mA input value
D mAOUT
Display the current mA output
value
MENU FN
Set the function key or digital input
to access a menu
RLYINFO
Go to relay information menu
(INFO)
MANCTRL
Go to output control menu
(CONTROL)
TIMR OC1
Open collector 1 timer
TIMR OC2
Open collector 2 timer
TIMER R1
Relay 1 timer
TIMER R2
Relay 2 timer
TIMER.FN
Set the function key or digital input
to start or stop a timer
STRT.ALL
Start all timers
STOP.ALL
Stop all timers
S.STP.ALL
Start or stop all timers
OC1
Start/stop open collector 1 timer
OC2
Start/stop open collector 2 timer
RLY1
Start/stop relay 1 timer
RLY2
Start/stop relay 2 timer
START
Start the selected timer output
STOP
Stop the selected timer output
STR-STP
Start or stop the selected timer
output
ALARM.FN
Set the function key or digital input
to acknowledge an alarm or
access set points
ACK
Acknowledge all active alarms
SETPOINT
Access all output set points
SETPT.OC1
Access open collector 1 set point
SETPT.OC2
Access open collector 2 set point
SETPT.R1
Access relay 1 set point
SETPT.R2
Access relay 2 set point
SWATCH.FN
Set the function key or digital input
to activate stopwatch
START
Start the stopwatch
STOP
Pause/Stop the stopwatch
Display Functions & Messages
Parameter
Action/Setting Description
STR-STP
Start or stop the stopwatch
TARE.FN
Set the function key or digital input
to tare the display
TARE
Tare the display value
RST TARE
Reset the display value
HOLD FN
Set the function key or digital input
to hold an output
HOLD.OUT
Hold all outputs
HLD.UNHLD
Hold or un-hold all outputs
OC1+2
Hold/un-hold open collector
outputs
RLY1+2
Hold/un-hold relay outputs
mAOUT
Hold/un-hold 4-20 mA output
HOLD
Hold selected output
HLD.UNHLD
Hold or un-hold selected output
DISABLE
Disable function key or digital input
RST FN
Set the function key or digital input
to reset a value
RESET
Reset min, max, or max/min PV
R MIN.MAX
Reset max and min PV value
HINT
Display hint text on key press and
execute action on next key press
OFF
Turn the hint function off
ON
Turn the hint function on
SYSTEM
Program system settings
AOUTCAL
Calibrate the analog output
DEFAULT
Reset meter to factory defaults
PV 2
Enable the meter to scale a
second PV based on the same
4-20 mA input
DISABLE
Disable dual-scale feature (default)
ENABLE
Enable dual-scale feature
BACKLITE
Enable/disable display backlight
ENABLE
Enable the backlight (default)
DISABLE
Disable the backlight
INFO
View meter software version and
model; change the identifier tag
SFT
The software ID number
VER
The software version
MODEL
The meter model number
ID.TAG
The meter identifier tag
Press Enter to edit tag
ICAL
Internal calibration used for scaling
DISPLAY
Program the meter’s display
UNITS
Change the display units within the
selected unit class
DEC.PT
Change the decimal point location
Page 32
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
32
Display Functions & Messages
Parameter
Action/Setting Description
COMMA
Enable or disable the use of a
comma on the bottom display
ENABLE
Enable comma (default)
DISABLE
Disable comma
BARGRAPH
Turn off or change the bargraph
PV
Set the bargraph to display the
percentage of a user-selected
range
PV PCT
Set the bargraph to display the PV
percentage of full scale
OFF
Turn off the bargraph
TOP
Select what to display on the top
display
PV (1 or 2)
Display the process variable
PV+UNIT (1 or 2)
Display the process variable and
units alternating
PV+TAG (1 or 2)
Display the process variable and
tag alternating
TAG+UNIT
Display tag and units alternating
PV+U+TAG (1 or 2)
Display the process variable, unit,
and tag alternating
PV1+PV2
Display both process variables
(dual-scale only; see PV 2 under
advanced features menu)
TAG
Display the tag
STPWATCH
Display the stopwatch
TIMR OC1
Display open collector 1 timer
TIMR OC2
Display open collector 2 timer
TIMER R1
Display relay 1 timer
TIMER R2
Display relay 2 timer
MIN
Display minimum value
MAX
Display maximum value
MIN MAX
Display alternating min and max
OFF
Turn top display off
UNITS
Display the units
BOTTOM
Select what to display on the
bottom display
UNITS
Display the units
PV (1 or 2)
Display the process variable
PV+UNIT (1 or 2)
Display the process variable and
unit alternating
PV+TAG (1 or 2)
Display the process variable and
tag alternating
TAG+UNIT
Display the tag and unit alternating
PV+U+TAG (1 or 2)
Display the process variable, unit,
and tag alternating
PV1+PV2
Display both process variables
(dual-scale only; see PV 2 under
advanced features menu)
Display Functions & Messages
Parameter
Action/Setting Description
TAG
Display the tag
STPWATCH
Display the stopwatch
TIMR OC1
Display open collector 1 timer
TIMR OC2
Display open collector 2 timer
TIMER R1
Display relay 1 timer
TIMER R2
Display relay 2 timer
OFF
Turn bottom display off
PV PCT (1 or 2)
Display the process variable
percentage of full scale
mA IN
Display the current mA input value
mA OUT
Display the current mA output
value
Page 33
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
33
Main Menu
The main menu consists of all the meter’s programmable functions: Input, Output, Advanced, and Display.
• Press Menu button to enter Programming Mode then press the Right-Arrow button to move forward through
the menu and the Up-Arrow button to move back.
• Press Menu at any time to go back one level or press & hold to exit and return to Run Mode. Changes made
to settings prior to pressing Enter are not saved.
• Changes to the settings are saved to memory only after pressing Enter/F3 to confirm the setting or pressing
Enter/F3 at the SAVE? screen when available.
52.86
GAL
SETUP
INPUT
SETUP
OUTPUT
SETUP
ADVANCED
SETUP
DISPLAY
OPEN
COLLECTR
ADV
PV SETUP
DSPLY
UNITS
OUT
RELAY
OUT
4-20 mA
OUT
CONTROL
CUTOFF
FILTER
PASSWRD
USER
SYSTEM
DSPLY
DEC.PT
DSPLY
COMMA
DSPLY
TOP
DSPLY
BOTTOM
SCALE
UNITS
SCALE
INPUT 1
SCALE
DISP 1
SCALE
INPUT 2
SCALE
DISP 2
DSPLY
BARGRAPH
Run Mode
MENU
ENTER
F3
MENU
ENTER
F3
MENU
ENTER
F3
MENU
ENTER
F3
MENU
F2 F1
F1
F2 F1 F2 F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F1
SETUP
INPUT
Page 34
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
34
Setting Numeric Values
The numeric values are set using the Right and
Up-Arrow buttons.
1. Press Right-Arrow to select next digit and Up-Arrow to increment digit value. The selected digit will flash.
2. Press and hold Up-Arrow to auto-increment the display value. If you have made a mistake or would like to
enter a new value, select the left-most digit, and press and hold the Right-Arrow button until all digits reset
to zero.
3. Press the Enter button at any time to accept a setting or Menu button to exit without saving changes.
Note: the underscore in the graphic below is provided to show which digit would be flashing.
DSP 1
+00,000.00
DSP 1
00,000.00
Select
Digit to
Change
DSP 1
00,050.00
Increment
Selected
Digit
SCALE
INPUT 2
Accept
Setting
ENTER
F3
F1 F2
ENTER
F3
Page 35
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
35
Scaling the 4-20 mA Input (INPUT)
It is very important to read the following information before proceeding to program the meter:
• The meter is factory calibrated prior to shipment to display 0.00 to 100.00 gal, which corresponds to the 4-20 mA
input. The calibration equipment is traceable to NIST standards.
• A calibrated signal source is not needed to scale the meter.
Enter the Input menu to scale the meter to display the 4-20 mA input. The input can accept any signal from 4 to 20 mA.
• Reverse Scaling
The meter can be scaled so that 4 mA represents the high end of the process value range being measured by the
transmitter and 20 mA represents the low end of the process value range.
SETUP
INPUT
SCALE
UNITS
SCALE
INPUT 1
SCALE
DISP 1
UNITS
VOLUME
HEIGHT
TEMP
PRESSURE
WEIGHT
RATE
CUSTOM
UNIT
GAL
GAL
L
IGAL
M3
BBL
BUSH
cuYD
cuFt
cuIn
LiBBL
BBBL
HECtL
AF
CUSTOM
INCH
FEET
FT-IN
YARD
CM
M
CUSTOM
~F
~C
K
~RA
PSI
InHg
InH2O
mmHg
kg/CM2
kg/M2
mBAr
Bar
PA
hPA
kPA
MPA
CUSTOM
gm
kg
tonne
oz
1b
ton
CUSTOM
/SECOND
/MINUTE
/HOUR
/DAY
GAL/(T)
L/(T)
IGAL/(T)
M3/(T)
BBL/(T)
BUSH/(T)
cuYD/(T)
cuFt/(T)
cuIn/(T)
LiBBL/(T)
BBBL/(T)
HECtL/(T)
AF/(T)
CUSTOM/(T)
Volume Units
Height Units Pressure Units Weight Units
Rate Time
Bases
Rate Units
Temperature
Units
INP 1
04.000
INP 1
mA
Flashes Units
Momentarily
DSP 1
+00,000.00
SCALE
INPUT 2
INP 2
20.000
SCALE
DISP 2
DSP 2
+00,100.00
SAVE? SETUP
INPUT
F1F2
MENU
ENTER
F3
MENU
ENTER
F3
MENU
ENTER
F3
MENU
ENTER
F3
F1F2
ENTER
F3
ENTER
F3
ENTER
F3
ENTERF3ENTER
F3
MENU
ENTER
F3
ENTER
F3
MENU
ENTER
F3
ENTER
F3
MENU
ENTER
F3
ENTER
F3
MENU
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
Page 36
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
36
Available Unit Classes and Units
The meter has six available preprogrammed unit
classes: volume, height, temperature, pressure,
weight, and rate. Each unit class has the following
available units to choose from:
Volume Units (VOLUME)
GAL
Gallons
L
Liters
IGAL
Imperial Gallons
M3
Cubic Meters
BBL
Barrels
BUSH
Bushels
cuYD
Cubic Yards
cuFt
Cubic Feet
cuIn
Cubic Inches
LiBBL
Liquid barrels
BBBL
Beer barrels
HECtL
Hectoliter
AF
Acre-Foot
CUSTOM
Custom Unit
Height Units (HEIGHT)
INCH
Inches
FEET
Feet
FT-IN
Feet & Inches
YARD
Yards
CM
Centimeters
M
Meters
CUSTOM
Custom unit
Temperature Units (TEMP)
~F
Degrees Fahrenheit
~C
Degrees Celsius
K
Kelvin
~RA
Degrees Rankine
Pressure Units (PRESSURE)
PSI
Pounds per square inch
InHg
Inches of mercury
InH2O
Inches of water
mmHg
Millimeters of
mercury
Kg/CM2
Kilograms per square centimeter
Kg/M2
Kilograms per square meter
mBAr
Millibar
Bar
Bar
PA
Pascal
hPA
Hectopascal
KPA
Kilopascal
MPA
Megapascal
CUSTOM
Custom unit
Weight Units (WEIGHT)
gm
Grams
Kg
Kilograms
tonnE
Tonnes (metric)
oz
Ounces
1b
Pounds
ton
Tons
CUSTOM
Custom unit
Rate Time Bases (TIME)
/SECOND
Units per second
/MINUTE
Units per minute
/HOUR
Units per hour
/DAY
Units per day
Rate Units (RATE)
GAL/(T)
Gallons per time unit (T)
L/(T)
Liters per time unit (T)
IGAL/(T)
Imperial gallons per time unit (T)
M3/(T)
Cubic meters per time unit (T)
BBL/(T)
Barrels per time unit (T)
BUSH/(T)
Bushels per time unit (T)
cuYD/(T)
Cubic Yards per time unit (T)
cuFt/(T)
Cubic Feet per time unit (T)
cuIn/(T)
Cubic Inches per time unit (T)
LiBBL/(T)
Liquid barrels per time unit (T)
BBBL/(T)
Beer barrels per time unit (T)
HECtL/(T)
Hectoliter per time unit (T)
AF/(T)
Acre-Foot per time unit (T)
CUSTOM/
Custom unit per time unit (T)
Page 37
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
37

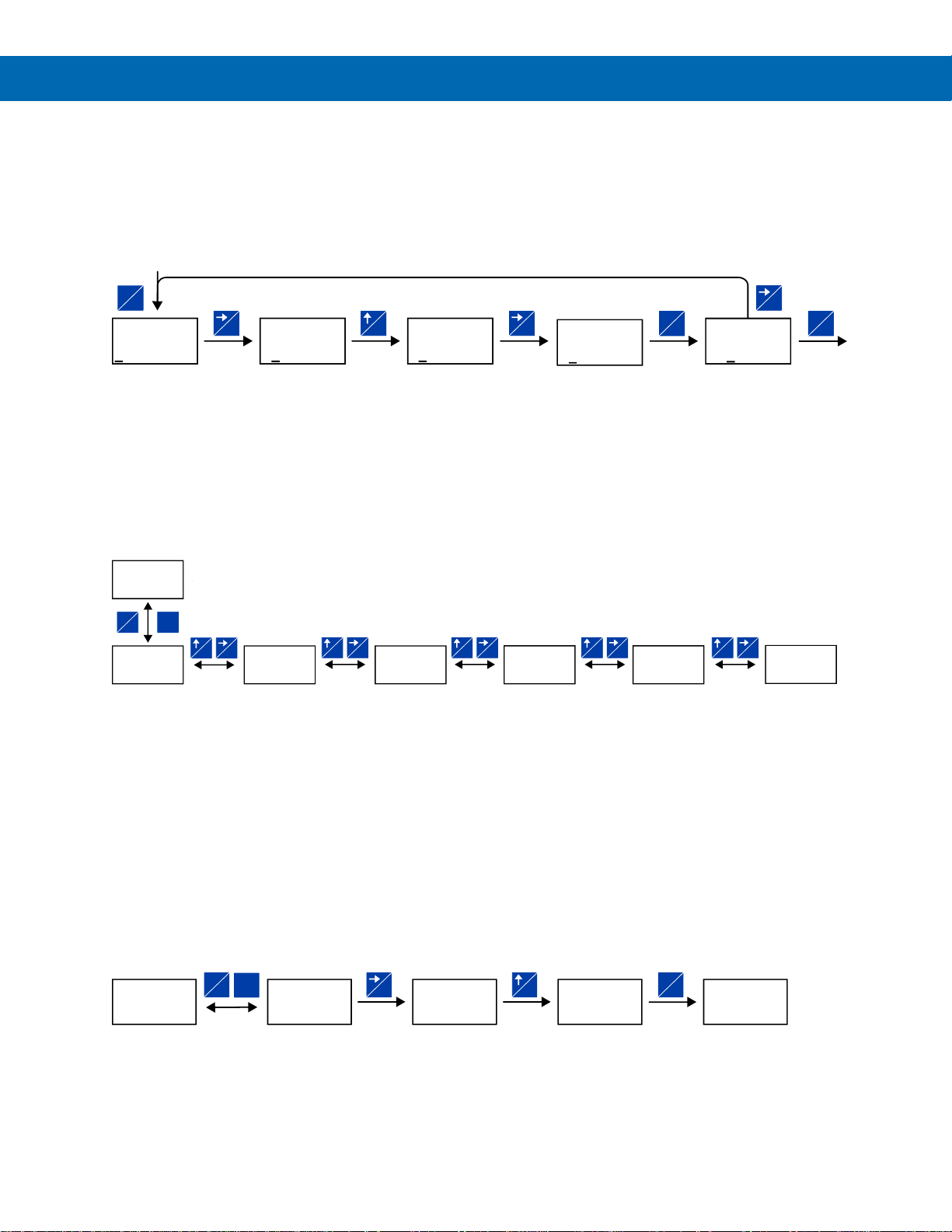

Setting Custom Units (CUSTOM)
When the desired unit class or unit of measure within a class is not available, a custom unit may be programmed.
Select the CUSTOM menu (or CUSTOM unit within a unit class) to enter a custom unit name.
Text values are set using the Right and Up arrow buttons. Press Right arrow to select next character and Up arrow to
increment character value. The selected character will flash. Press and hold the Up or Right arrow buttons to autoincrement or decrement the character. Press Enter to accept the character.
Notes:
• Press and hold the Right-Arrow while no character is being edited to erase all characters to the right of the flashing character
• Press and hold Up or Right-Arrow to auto-increment or decrement a selected character.
• All text values, including tags and alarm messages, are set in a similar fashion.
Setting the Display Features (DISPLAY)
The meter’s display functions may be programmed using the Display menu. This menu consists of the following
submenus: Units, Decimal Point, Comma, Bargraph, Top, and Bottom.
Changing the Engineering Units (UNITS)
It is possible to change the engineering units within the selected unit class without the need to re-scale the meter.
When selecting a new unit from within the DISPLAY menu (e.g. changing from gallons (GAL) to liters (L)), the meter
will automatically convert the display values to display the new unit. Enter the UNITS menu, select a new unit of
measure from the list of predefined units, and press the Enter button. If entering a custom unit (CUSTOM), a custom
conversion factor will need to be entered.
Changing the Decimal Point (DEC.PT)
The decimal point may be set with up to seven decimal places or with no decimal point at all.
Pressing the Right-Arrow moves the decimal point one place to the right until no decimal point is displayed, and then
it moves to the left most position. Pressing the Up-Arrow moves the decimal point one place to the left.
If the dual-scale level feature is selected, the decimal point selections for PV1 & PV2 are enabled.
C.UNIT
ABC
C.UNIT
ABC
Select
Character
to Change
C.UNIT
ACC
Increment
Selected
Character
Decrement
Selected
Character
ENTER
F3
F1 F2
C.UNIT
ABC
C.UNIT
ABC
Accept
Character
Change
Accept
Custom Unit
Name
ENTER
F3
ENTER
F3
F1
F1
DSPLY
UNITS
DSPLY
DEC.PT
DSPLY
COMMA
F2 F1
F2 F1
DSPLY
TOP
DSPLY
BOTTOM
DSPLY
BARGRAPH
F2 F1F2 F1
SETUP
DISPLAY
MENU
ENTER
F3
F2 F1
DSPLY
DEC.PT
DEC.PT
222222.22
DEC.PT
1111111.1
Move Decimal
to the Right
DEC.PT
222222.22
DSPLY
COMMA
Accept
Decimal
Location
Move Decimal
to the Left
F1 F2
ENTER
F3
ENTER
F3
MENU
Page 38
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
38
Enabling or Disabling Commas on the Bottom Display (COMMA)
The bottom display is set to show a comma
separating the thousands and millions place by
default if a numeric value is being displayed. This
feature can be disabled or enabled using the Comma
menu.
Display Capabilities Optimization (TOP and BOTTOM)

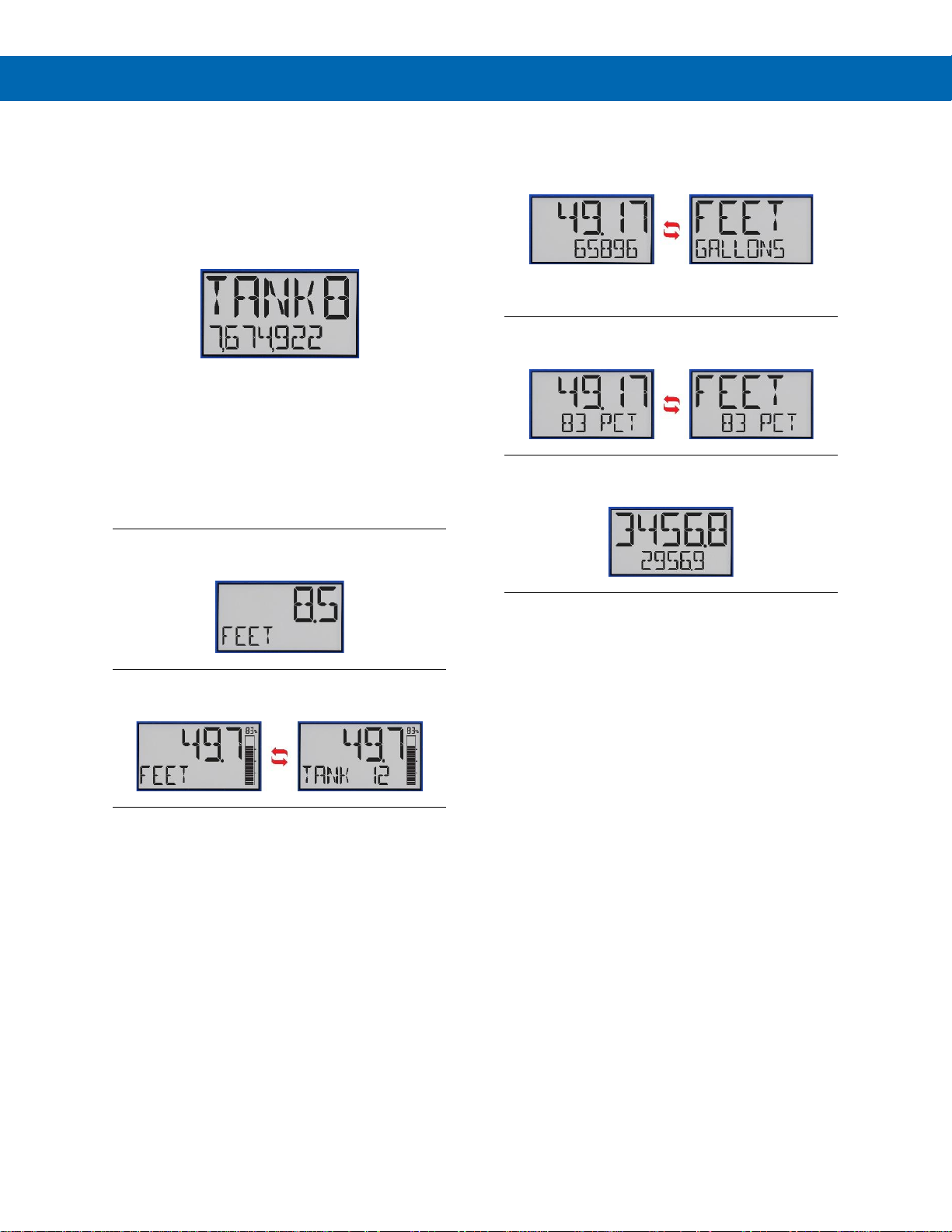

Display Configuration Examples
The meter’s dual-line display can be setup in multiple
ways to provide an extremely informative view of the
process variable being monitored. The following
graphics show typical configurations:
Top Display: Process Variable
Bottom Display: Engineering Units or Tag
Top Display: Process Variable
Bottom Display: Toggling Between Units and Tag
Dual-Scale Mode:
Top Display: Toggling Between Process Variable and Units
Bottom Display: Toggling Between Process Variable
(in different scale) and Different Units
Note: To display units as GALLONS, select custom units
and enter the desired text.
Top Display: Toggling Between Process Variable and Units
Bottom Display: Percent
Top Display: Maximum Value
Bottom Display: Process Value
Page 39
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
39
Configuring the Display (TOp and BOTTOM)
The display is configured using the TOP and BOTTOM menus in the DISPLY menu. Additional menus are available if
the meter is in dual-scale mode to allow the second PV to be displayed on either the top or bottom display.
The top display (TOP) can display:
• Process Value (PV)
• Process Value 2 (dual-scale only; see PV 2
under advanced features menu)
• Alternating PV and Units
• Alternating PV and Tag
• Alternating PV, Units, and Tag
• Tag
• Stopwatch
• Open Collector 1 or 2 Timer
• Relay 1 or 2 Timer
• Minimum Value, Maximum Value, or Both
• Off (Blank)
• Units
The bottom display (BOTTOM) can display:
• Units
• Process Value (PV)
• Process Value 2 (dual-scale only; see PV 2
under advanced features menu)
• Alternating PV and Units
• Alternating PV and Tag
• Alternating Tag and Units
• Alternating PV, Units, and Tag
• Tag
• Stopwatch
• Open Collector 1 or 2 Timer
• Relay 1 or 2 Timer
• Off (Blank)
• PV’s Percentage of Full Scale
• The mA Input
• The mA Output
PV+UNIT
DSPLY
TOP
DSPLY
PV
PV+TAG
PV+U+TAG
TAG
TIMR OC1
STPWATCH
TIMR OC2
TIMER R1
TIMER R2
MIN
MIN MAX
MAX
UNITS
OFF
PV
F2 F1
ENTER
F3
MENU
DSPLY
BOTTOM
DSPLY
UNITS
PV+UNIT
PV+TAG
PV+U+TAG
TAG
TIMR OC1
STPWATCH
TIMR OC2
TIMER R1
TIMER R2
OFF
mA IN
PV PCT
mA OUT
PV
UNITS
ENTER
F3
F2 F1
Page 40
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
40
Programming the Bargraph (BARGRAPH)
The bargraph is a standard feature on all PD4 models and is useful in applications where a visual representation
of the process variable’s percentage of full scale is desirable. This feature can be enabled or disabled using the
Bargraph menu (BARGRAPH). The value displayed on the bargraph can be the percentage of full scale (PV PCT)
or the percentage of a user-programmable range (PV). If the meter is in dual-scale mode, the bargraph can be
assigned to display either PV1 or PV2 using this menu.
Programming the Outputs (OUTPUT)
All models come with two open collectors. Depending on the model purchased, the meter may include two solid-state
relays, and one 4-20 mA output. The Output menu will only show options for the available outputs. See Ordering
Information on page 10 for details.
DSPLY
BARGRAPH
GRAPH
PV
GRAPH
PV PCT
GRAPH
OFF
ENTER
F3
MENU
F2 F1 F2 F1
PV
0 PCT
PV
00,000,00
ENTER
F3
PV
100 PCT
ENTER
F3
PV
00,100,00
ENTER
F3
SETUP
OUTPUT
OPEN
COLLECTR
OUT
RELAY
OUT
4-20 mA
OUT
CONTROL
OC.OUT
OUTPUT1
OC.OUT
OUTPUT2
RELAY
OUTPUT1
RELAY
OUTPUT2
RELAY
INFO
4-20
PV
4-20
RETRANS
4-20
DISABLE
CTRL
OC1
CTRL
OC2
CTRL
RELAY1
CTRL
RELAY2
CTRL
4-20 mA
ENTER
F3
MENU
F2 F1 F2 F1 F2 F1
ENTER
F3
MENU
F2
F1
F2
F1
F2
F1
F2
F1
ENTER
F3
MENU
ENTER
F3
MENU
ENTER
F3
MENU
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
Page 41
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
41
Open Collector Outputs
(
OPEN COLLECTR
)
The meter is equipped with two NPN open collector outputs as a standard feature that may be set up for pulse
outputs, alarms, timed pulses, or disabled.
Pulse outputs can be set to transmit the PV value (PV1 or PV2 if meter is in dual-scale mode). Output 2 may be used
to generate a quadrature output based on the other open collector output. An output test mode is also selectable to
generate pulses at a constant programmable frequency.
Alarms are available based on the PV value or the digital input. The alarm status will show on the display even if the
output is not wired.
A timer output (TIMER) turns the open collector on and off at the specified time intervals. The timer can be set as
single-shot or continuous timer.
The stopwatch output (STPWATCH) allows the open collector to be manually activated by starting the stopwatch. The
stopwatch count can be displayed on the top or bottom display.
The output may be disabled by selecting DISABLE.
The Open Collector Outputs are programmed in the following manner:
SETUP
OUTPUT
OPEN
COLLECTR
OC.OUT
OUTPUT1
OC.OUT
OUTPUT2
OUT 1
PULSE
PULSE
PV
PULSE
QUAD
*Available
for output
2 only.
*
OUT 1
ALARM
OUT 1
TIMER
OUT 1
STPWATCH
ALARM
PV
ALARM
D.INPUT
TIMER
OFF.DLAY
TIMER
ON TIME
TIMER
MODE
TIMER
START
MODE
CONT
MODE
ONE.SHOT
PULSE
TEST
OUT 1
DISABLE
ENTER
F3
MENU
ENTER
F3
MENU
F2 F1
ENTER
F3
MENU
ENTER
F3
MENU
F2 F1 F2 F1 F2 F1 F2 F1
ENTER
F3
MENU
ENTER
F3
MENU
ENTER
F3
MENU
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
ENTER
F3
MENU
OC.OUT
MESSAGE
F2 F1
Page 42
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
42
Pulse Output (PULSE)
The pulse outputs may be programmed to generate a scaled frequency based on the PV and a programmable factor.
The factor determines the number of pulses per second generated per unit of measure. For example, if the meter
display shows 100 gallons and the factor is set to 2, the number of pulses generated per second would be 200. The
maximum frequency is 1,000 Hz.
Setting output 2 to quadrature will duplicate the other open collector output, but lag by 90 degrees out of phase. The
other output should be programmed as desired for the quadrature output function and must be a pulse (PULSE)
output selection. The quadrature maximum frequency for both outputs is 500 Hz.
The TEST option will output a fixed number of pulses per second based on the FREQ value entered.
OUT 1
PULSE
PULSE
TEST
*Available
for output
2 only.
PULSE
QUAD
*
FREQ
100.0
PULSE
PV
FACTR
GAL
Flashes
Units
FACTR
+0,001.000
ENTER
F3
MENU
F2 F1F2 F1
ENTER
F3
ENTER
F3
Page 43
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
43
Alarm (ALARM)
Alarm outputs may be assigned to the PV or the digital input. When assigned to the PV, the alarm may be set as
either a high alarm or a low alarm. Alarm actions (AUTO, AUTO.MAN, LATCH, L-CLEAR) determine how and when the
alarm should be reset. They operate as follows:
• Automatic (AUTO): Alarm will reset automatically once the alarm condition has cleared.
• Automatic/Manual (AUTO.MAN): Alarm will reset automatically once the alarm condition has cleared but can
also be reset using the Enter (ACK) button (or whichever function key is set to acknowledge) at any time.
• Latching (LATCH): Alarm must be reset manually and can be done so at any time. Press the Enter (ACK)
button at any time to clear the alarm.
• Latching with Reset after Clear (L-CLEAR): Alarm must be reset manually and can only be done so after
the alarm condition has cleared. Press the Enter (ACK) button after the alarm condition has cleared to reset
the alarm.
If the alarm is set to PV, a set and reset point must be programmed. The set point is the display value at which the
alarm will turn on and the reset point is the display value at which the alarm will turn off. If the set point is lower than
the reset point, the alarm will be a low alarm; if the set point is higher than the reset point, the alarm will be a high
alarm. The digital input alarm will trigger whenever the digital input is triggered.
For both the PV and digital input alarms, a delay before the alarm is turned on or off may be set, as well as a fail-safe
feature which reverses the on/off operation of the open collectors.
Alarm states will be displayed on the meter even if no open collector output is physically connected. These may include
a red LED backlight, flashing PV value (PV alarm only), and a programmable alarm message.
OUT 1
ALARM
ALARM
PV
ALARM
D.INPUT
ALARM
ACTION
ACTN
AUTO
ACTN
AUTO.MAN
ACTN
LATCH
ACTN
L-CLEAR
SET
+00,040.00
SET
GAL
Flashes
Units
ALARM
RESET
ALARM
SET
RESET
+00,030.00
ALARM
DELAY
DELAY
ON
TIME
0000 SEC
DELAY
OFF
TIME
0000 SEC
ALARM
FAILSAFE
PV Alarm Only
FSAFE
OFF
ALARM
DISPLAY
RED
ON
FLASH
ON
PV Alarm Only
MSG
ON
MSG
ALARM 1
ENTER
F3
MENU
F2 F1
F2 F1 F2 F1 F2 F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
Page 44
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
44

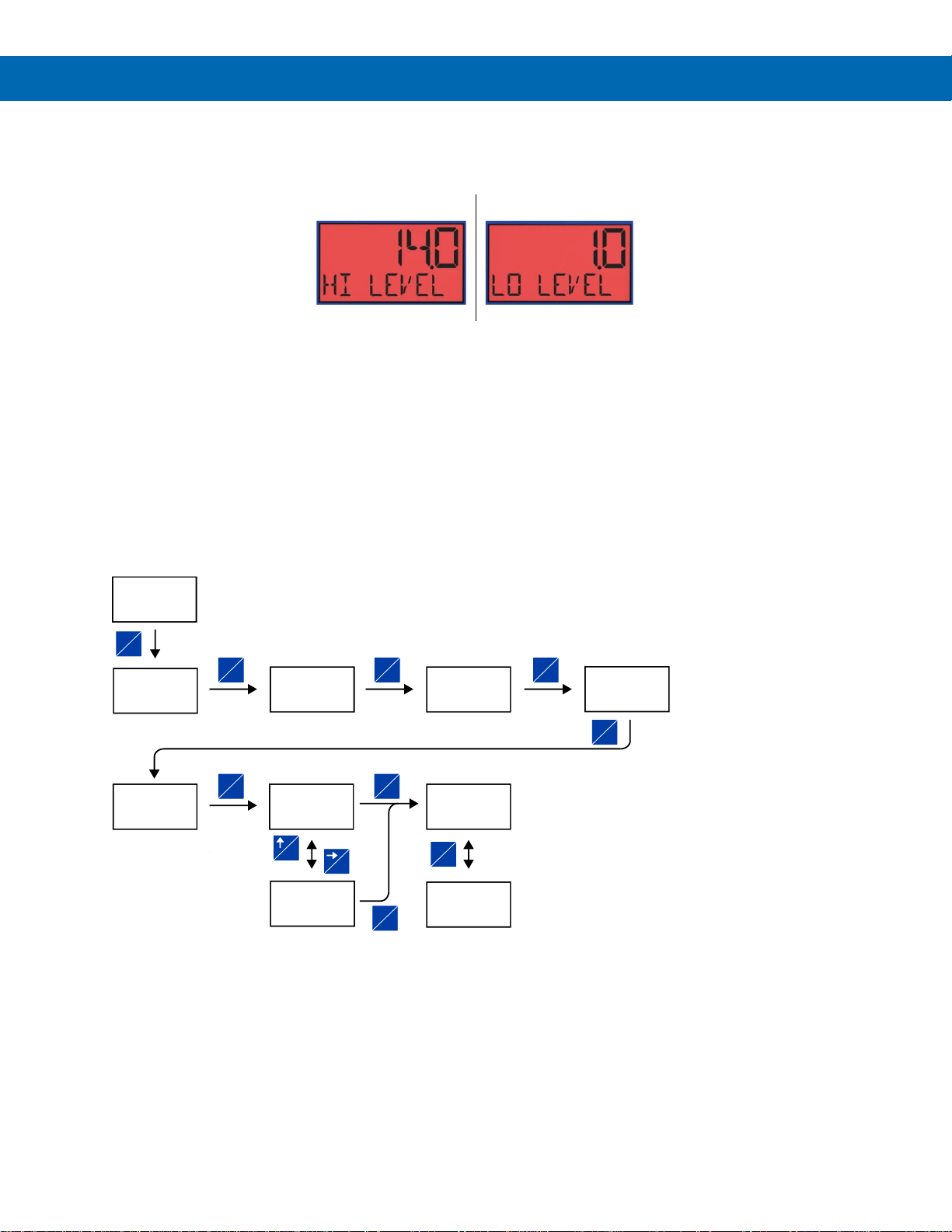

Flashing Red Alarm (RED)
The last two lines in the preceding menu flow chart show how to program the display to turn red, flash, and display a
message when an alarm occurs.
Alarm 1 is High Alarm:
Alarm 2 is Low Alarm:
Timer (TIMER)
The timer output may be set to generate the timed pulse only once (ONESHOT) or continuously (CONT).
The timer output produces a constant width pulse at a constant frequency, if set as continuous timer. Program the
Off Delay (OFF.DLAY) from 1 second to 99 hours 59 minutes and 59 seconds. This is the time it takes from selecting
START to turning on the output and for how long the output is off in continuous mode.
Program the On Time (ON TIME) for the active low pulse from 1 second to 99 hours 59 minutes and 59 seconds
(pulse width). This is the period of time for which the output will remain on.
Select Start (START) to begin outputting the constant timed pulse.
Select Stop (STOP) to end outputting the constant timed pulse.
Function keys or the digital input may be assigned to start and stop timer functions (see the USER menu in the
Advanced Menu).
OUT 1
TIMER
TIMER
OFF.DLAY
TIMER
ON TIME
TIMER
MODE
TIMER
START
MODE
CONT
MODE
ONE.SHOT
H.MM.SS
00.01.00
H.MM.SS
00.00.01
TIMER
STOP
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
F2
F1
ENTER
F3
ENTER
F3
ENTER
F3
Page 45
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
45
Stopwatch (STPWATCH)
The stopwatch function may be used to manually run and control a process for a specific time interval up to 99 hrs.,
59 min, and 59 seconds. The stopwatch function may be assigned to any open collector. There are three settings
needed to use the function effectively.
1. Assign stopwatch to either top or bottom display line
2. Assign the open collector to control the
process (on/off)
3. Assign a function key or digital input to start/stop the stopwatch
Application Example
To maintain consistency of a product, it is necessary to take and test samples at different times throughout the day.
The stopwatch function is used to open and close a solenoid valve to know the exact amount of time needed to
complete the desired sample. Once this is determined, the timer function can be used to automatically take a sample
(batch) based on the time determined using the stopwatch function.
Setup: Assign the following to Stopwatch Function
• Bottom display line
(see pages 37 & 39 for details how to change the display)
• Relay 1
(see pages 41 & 46 how to change Open Collector and or Solid-State Relay functionality)
• F3: Start/Stop
(see pages 62 & 63 for details on how to change the function keys)
Procedure
• Press F3 to start the stopwatch; relay 1 turns on and the process starts running.
• Press F3 to stop the stopwatch; relay 1 turns off and the process stops.
• The bottom display indicates the time it took to complete the sample.
Page 46
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
46
Solid-State Relay Outputs (RELAY)
The meter can be optionally equipped with two solid-state relays that may be set up for alarms, timer, stopwatch, or
pump control. Alternatively, they may be disabled.
Alarms are available based on the PV value or the digital input. The alarm status will show on the display even if the
output is not wired.
Pump control allows the relay to turn on and off a pump at specified on and off points. This can be done using only
one of the relays to control one pump (ON-OFF) or using both relays in tandem to alternate between two pumps
(ALTERN).
A timer output (TIMER) turns the relay on and off at the specified time intervals. The timer can be set as single-shot
or continuous timer.
The stopwatch output (STPWATCH) allows the relay to be manually activated by starting the stopwatch. The
stopwatch count can be displayed on the top or bottom display.
The output may be disabled by selecting DISABLE.
• During setup, the relays do not follow the input and they will remain in the state found prior to entering the Relay menu.
SETUP
OUTPUT
OPEN
COLLECTR
OUT
RELAY
RELAY
OUTPUT1
RELAY
OUTPUT2
RELAY
INFO
RLY 1
DISABLE
RLY 1
ALARM
ALARM
PV
ALARM
D.INPUT
ENTER
F3
F1
F2 F1
ENTER
F3
F2 F1
ENTER
F3
ENTER
F3
F2
F1
RLY 1
PUMPCTRL
RLY 1
TIMER
TIMER
OFF.DLAY
TIMER
ON TIME
TIMER
MODE
TIMER
START
PUMP
ON-OFF
PUMP
ALTERN
PUMP
DELAY
F2 F1
ENTER
F3
ENTER
F3
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
INFO
RELAY 1
INFO
RELAY 2
RELAY
RUNTIME
Flashes
Momentarily
TIME
195.0 H
CYCLE
COUNT
Flashes
Momentarily
CYCLE
51
RLY 1
CLEAR?
F2 F1
ENTER
F3
ENTER
F3
F1
F1
ENTER
F3
ENTER
F3
F2 F1
RELAY
MESSAGE
F2 F1
RLY 1
STPWATCH
F2 F1 F2 F1
Page 47
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
47
Alarm (ALARM)
Alarm outputs may be assigned to the PV or the digital input. When assigned to the PV, the alarm may be set as
either a high alarm or a low alarm. Alarm actions (AUTO, AUTO.MAN, LATCH, L-CLEAR) determine how and when
the alarm should be reset. They operate as follows:
• Automatic (AUTO): Alarm will reset automatically once the alarm condition has cleared.
• Automatic/Manual (AUTO.MAN): Alarm will reset automatically once the alarm condition has cleared but can
also be reset using the Enter (ACK) button (or whichever function key is set to acknowledge) at any time.
• Latching (LATCH): Alarm must be reset manually and can be done so at any time. Press the
Enter (ACK) button at any time to clear the alarm.
• Latching with Reset after Clear (L-CLEAR): Alarm must be reset manually and can only be done so after
the alarm condition has cleared. Press the Enter (ACK) button after the alarm condition has cleared to reset
the alarm.
If the alarm is set to PV, a set and reset point must be programmed. The set point is the display value at which the
alarm will turn on and the reset point is the display value at which the alarm will turn off. If the set point is lower than
the reset point, the alarm will be a low alarm; if the set point is higher than the reset point, the alarm will be a high
alarm. The digital input alarm will trigger whenever the digital input is triggered.
For both the PV and digital input alarms, a delay before the alarm is turned on or off may be set, as well as a fail-safe
feature which reverses the on/off operation of the relays.
Alarm states will be displayed on the meter even if no relay output is physically connected. These may include a red
LED backlight, flashing PV value (PV alarm only), and a programmable alarm message.
RLY 1
ALARM
ALARM
PV
ALARM
D.INPUT
ALARM
ACTION
ACTN
AUTO
ACTN
AUTO.MAN
ACTN
LATCH
ACTN
L-CLEAR
SET
+00,040.00
SET
GAL
Flashes
Units
ALARM
RESET
ALARM
SET
RESET
+00,030.00
ALARM
DELAY
DELAY
ON
TIME
0000 SEC
DELAY
OFF
TIME
0000 SEC
ALARM
FAILSAFE
PV Alarm Only
FSAFE
OFF
ALARM
DISPLAY
RED
ON
FLASH
ON
PV Alarm Only
MSG
ON
MSG
ALARM 1
ENTER
F3
MENU
F2 F1
ENTER
F3
MENU
ENTER
F3
MENU
ENTER
F3 F2 F1 F2 F1 F2 F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
Page 48
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
48
Pump Control (PUMPCTRL)
The pump control output is used in situations where the relays are used to control pumps. There are two options
available for controlling pumps: on-off (ON-OFF) and pump alternation (ALTERN).
ON-OFF will turn the relay on at a programmed on point and off at a programmed off point. Setting the on point higher
than the off point will make the output activate on a high PV value; setting the on point lower than the off point will
make the output activate on a low PV value. The relay will reset automatically.
For pump control applications where two similar pumps are used to control the level of a tank or a well, it may be
desirable to have the pumps operate alternately. This prevents excessive wear and overheating of one pump over the
lack of use of the other pump. Pump alternation uses both relays in tandem to alternate between two similar pumps.
The ALTERN menu is only available under Output 1 and will automatically set Output 2 to pump alternation as well.
Use the pump Alternation Time setting (ALT.TIME) to control the alternation based on runtime in addition to level
cycles.
On/Off Pump Control (ON-OFF)
When programming a single pump to turn on and off, the on and off points must be programmed. The relay will
activate at the on point and deactivate at the off point. On and off delays may be programmed to delay the activation
or deactivation of the relay by a certain number of seconds after reaching either the on point or off point.
RLY 1
PUMPCTRL
PUMP
ON-OFF
PUMP
DELAY
DELAY
ON
TIME
0000 SEC
DELAY
OFF
TIME
0000 SEC
ON
+00,070.00
ON
GAL
Flashes
Units
OFF
GAL
OFF
+00,060.00
Flashes
Units
MENU
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
Page 49
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
49
Pump Alternation (ALTERN)
Pump alternation sets the two relays to alternate every time the first on point (ON 1) is reached. The active relay will
turn off once the first off point (OFF 1) is reached. If the PV reaches the second on point (ON 2), the other relay will
also turn on. The second relay will turn off once the second off point (OFF 2) is reached and the first relay will remain
active until the first off point (OFF 1) is reached.
On and off delays may optionally be programmed for each on and off point to delay the activation or deactivation of
the relays by a certain number of seconds after reaching either the on point or off point.
For pumps that typically remain on extensively, the alternation time (ALT.TIME) parameter sets a period of relay ontime after which the relays should alternate. For example, if the alternation time is set to one hour, pump 1 will turn off
after one hour of runtime regardless of the level reading, at which point pump 2 becomes the active pump. Pump 2
will run until one hour has passed, or the tank has reached a desirable level; whichever happens first. By using the
proper on/off points, the alternation can be set up so that the first pump on is the first pump off. This is desirable when
the two pumps are of similar rating.
RLY 1
PUMPCTRL
PUMP
DELAY2
DELAY
ON
TIME
0000 SEC
DELAY
OFF
TIME
0000 SEC
ON 2
+00,090.00
ON 2
GAL
Flashes
Units
OFF 2
GAL
OFF 2
+00,080.00
Flashes
Units
ON 1
+00,070.00
ON 1
GAL
Flashes
Units
OFF 1
GAL
OFF 1
+00,060.00
Flashes
Units
PUMP
DELAY1
DELAY
ON
TIME
0000 SEC
DELAY
OFF
TIME
0000 SEC
PUMP
ALT.TIME
000.00
HHH.MM
PUMP
ON-OFF
PUMP
ALTERN
F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
Page 50
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
50
Pump Control with Alternation & Alarm Example
The following is a typical application where the relays and open collectors are used for pump alternation and high and
low level alarm.
Pump and Alarm On & Off Point Programming
Relay
On Point
Off Point
Function
OC
On Point
Off Point
Function
1
7000
2000
Controls backup pump
1 7000
6500
Trips high alarm
2
6000
2000
Controls main pump
2 1000
1500
Trips low alarm
The following graphics provide a visual representation of a typical pump alternation application:
Relay #2 turns the main pump on at 6000 gallons and
turns it off at 1000 gallons.
With the Pump Alternation feature activated, the next time
the level reaches 6000 gallons, relay #1 transfers and
starts the backup pump.
If the backup pump is not able to keep up, and the level
reaches 7000 gallons, relay #2 transfers and starts the
main pump as well. Open collector #1 trips the High
Level Alarm, the display turns red and flashes “Hi Level”
message indicating an alarm condition. The High Level
Alarm resets at 6500 gallons.
Once the level has dropped below the reset points, both
relays will turn off. If the Main Pump fails to turn off, open
collector #2 trips the Low Level Alarm at 1000 gallons to
warn against the pump running dry. The Low Level Alarm
resets at 1500 gallons.
Page 51
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
51
Timer (TIMER)
The timer output may be set to generate the timed pulse only once (ONESHOT) or continuously (CONT). The timer
output produces a constant width pulse at a constant frequency, if set as continuous timer.
Program the Off Delay (OFF.DLAY) from 1 second to 99 hours 59 minutes and 59 seconds. This is the time it takes
from selecting START to turning on the output and for how long the output is off in continuous mode.
Program the On Time (ONTIME) for the active low pulse from 1 second to 99 hours 59 minutes and 59 seconds
(pulse width). This is the period of time for which the output will remain on.
Select Start (START) to begin outputting the constant timed pulse. Select Stop (STOP) to end outputting the constant
timed pulse. Function keys or the digital input may be assigned to start and stop timer functions (see the USER menu
in Advanced).
Stopwatch (STPWATCH)
The stopwatch function may be used to manually run and control a process for a specific time interval up to 99 hrs.,
59 min, and 59 seconds. The stopwatch function may be assigned to any relay. There are three settings needed to
use the function effectively.
1. Assign stopwatch to either top or bottom display line
2. Assign the relay to control the process (on/off)
3. Assign a function key or digital input to start/stop the stopwatch
Application Example
To maintain consistency of a product, it is necessary to take and test samples at different times throughout the day.
The stopwatch function is used to open and close a solenoid valve to know the exact amount of time needed to
complete the desired sample. Once this is determined, the timer function can be used to automatically take a sample
(batch) based on the time determined using the stopwatch function.
Setup: Assign the following to Stopwatch Function
• Bottom display line
(see pages 37 & 39 for details how to change the display)
• Relay 1
(see pages 41 & 46 how to change Open Collector and or Solid-State Relay functionality)
• F3: Start/Stop
(see pages 62 & 63 for details on how to change the function keys)
Procedure
• Press F3 to start the stopwatch; relay 1 turns on and the process starts running.
• Press F3 to stop the stopwatch; relay 1 turns off and the process stops.
• The bottom display indicates the time it took to complete the sample.
OUT 1
TIMER
TIMER
OFF.DLAY
TIMER
ON TIME
TIMER
MODE
TIMER
START
MODE
CONT
MODE
ONE.SHOT
H.MM.SS
00.01.00
H.MM.SS
00.00.01
TIMER
STOP
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
F2
F1
ENTER
F3
ENTER
F3
ENTER
F3
Page 52
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
52
Runtime & Cycle Count (INFO)
The relay information menu shows runtime and cycle count for each relay. These values may be cleared at any time
by selecting the Clear option (CLEAR?).
Isolated 4-20 mA Output (4-20 mA)
The 4-20 mA menu is used to scale the isolated 4-20 mA output based on display values. This menu is not present on
models without a 4-20 mA output option.
The 4-20 mA analog output can be scaled to provide a 4-20 mA signal for any PV display range or to simply
retransmit the 4-20 mA input. The output may be disabled (DISABLE), and will only output the minimum signal.
Overrange and underrange values determine what mA signal the meter will output if the mA input is underrange
(<3.5 mA) or overrange (>20.5 mA). This value may be set to 1 mA, 3.5 mA, 3.8 mA, 20.5 mA, 20.8 mA, 23 mA, or
disabled.
No equipment is needed to scale the analog output; simply program two display values and corresponding mA output
signals.
Process Variable (PV)
To scale the analog output, enter display value 1 and a corresponding analog output value for this display, and enter
display value 2 and a corresponding analog output value for this display value. This will provide a scaled linear
analog output.
Retransmit (RETRANS)
This option will retransmit the 4-20 mA analog input without the need to scale the output.
Output Manual Control (CONTROL)
The Control menu is used to control the open collector outputs, 4-20 mA analog output, and the relays manually,
ignoring the input. Each open collector, relay, and analog output can be programmed independently for manual
control. Selecting automatic control sets all relays and analog output for automatic operation.
After selecting manual control for a specific output, you can set the output value. To change the output value, return
to the Control menu, select the output to control, select manual control, and enter a new value.
INFO
RELAY 1
RELAY
RUNTIME
TIME
195.0 H
CYCLE
COUNT
ENTER
F3
MENU
F1
CYCLE
51
RLY 1
CLEAR?
F1
Flashes
Briefly
Flashes
Briefly
SETUP
OUTPUT
OPEN
COLLECTR
OUT
RELAY
OUT
4-20 mA
4-20
PV
4-20
RETRANS
4-20
DISABLE
DSP 1
+00,000.00
DSP 1
GAL
Flashes
Units
OUT 1
04.000
DSP 2
+00,100.00
OUT 2
20.000
AOUT
UNDER
U-RNG
DISABLE
AOUT
OVER
O-RNG
DISABLE
AOUT
SCALE
ENTER
F3
MENU
F1 F1
ENTER
F3
F2 F1 F2 F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
OUT
CONTROL
CTRL
OC 1
CTRL
AUTO
CTRL
MANUAL
ENTER
F3
MENU
F2 F1
CTRL
ON
CTRL
OFF
F2 F1
ENTER
F3
ENTER
F3
MENU
Page 53
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
53
Advanced Features Menu (ADVANCED)
To simplify the setup process, functions not needed for most applications are located in the Advanced Features
menu. The options under advanced features include advanced PV setup, cutoff, filter, password, function key
programming, and system settings.
SETUP
ADVANCED
ADV
PV SETUP CUTOFF FILTER PASSWRD USER
SYSTEM
PV
FUNCTION
PV
SCALE.CAL
CUTOF
DISABLE
CUTOF
ENABLE
FILTR
2.0 SEC
FILTR
4.0 SEC
FILTR
8.0 SEC
FILTR
16.0 SEC
FILTR
OFF
FILTR
1.0 SEC
LOCK
00000
USER
F1
USER
F2
USER
F3
USER
DI
USER
HINT
SYSTM
AOUTCAL
SYSTM
DEFAULT
SYSTM
PV2
SYSTM
BACKLITE
SYSTM
INFO
SYSTM
ICAL
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
00.4 PCT
BYPAS
ENTER
F3
MENU
F2 F1 F2 F1 F2 F1 F2 F1 F2 F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
Page 54
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
54
Advanced Process Variable Setup (ADV PV SETUP)
The Advanced PV Setup menu contains options to apply input signal conditioning functions to the input and to
scale/calibrate the input signal.
Input Signal Conditioning Functions (FUNCTION)
The Function menu is used to select the input signal conditioner applied to the input: linear, square root, programmable
exponent, or round horizontal tank volume calculation. Multi-point linearization is part of the linear function selection.
Meters are set up at the factory for linear function with 2-point linearization. The linear function provides a display that
is linear with respect to the input signal.
Using MeterView XL
MeterView XL makes programming the input signal conditioning functions quick and easy. Go to the input/scale menu
and select the desired function from the drop down menu in the “scale input” section.
ADV
PV SETUP
PV
FUNCTION
PV
SCALE.CAL
FUNCT
LINEAR
FUNCT
SQROOT
FUNCT
EXPONENT
*Available for
PV2 only.
FUNCT
RH TANK
*
SCALE
PV
CAL
PV
ENTER
F3
MENU
ENTER
F3
MENU
F2 F1 F2 F1
F2 F1
F2
F1
F2
F1
ENTER
F3
Page 55
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
55
Square Root Linearization (SQROOT)
The square root function can be used to linearize the signal from a differential pressure transmitter and display flow
rate in engineering units.
PD4-6604 Displaying Flow Rate by Applying the Square Root Function to the Output of a DP Transmitter.
SCALE
UNITS
SCALE
INPUT 1
SCALE
DISP 1
UNITS
RATE
/SECOND
/MINUTE
/HOUR
/DAY
Rate Time
Bases
GAL/(T)
L/(T)
IGAL/(T)
M3/(T)
BBL/(T)
BUSH/(T)
cuYD/(T)
cuFt/(T)
cuIn/(T)
LiBBL/(T)
BBBL/(T)
HECtL/(T)
AF/(T)
CUSTOM/(T)
Rate Units
INP 1
04.000
INP 1
mA
Flashes Units
Momentarily
DSP 1
+00,000.00
SCALE
INPUT 2
INP 2
20.000
SCALE
DISP 2
DSP 2
+00,100.00
SAVE? SETUP
INPUT
FUNCT
sqROOT
PV
SCALE.CAL
SCALE
pV
TIME
/SECOND
UNIT
GAL/S
RATE
CUSTOM
ENTER
F3
MENU
ENTER
F3
MENU
ENTER
F3
MENU
ENTER
F3
MENU
F2 F1
ENTER
F3
ENTER
F3
F2 F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
Page 56
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
56
Programmable Exponent Linearization (EXPONENT)
The programmable exponent can be used to linearize the signal from level transmitters in open-channel flow
applications using weirs and flumes.
The PD4-6604, in combination with an ultrasonic level transmitter, makes for an economical way to measure and
display open channel flow rate in most weirs and flumes. A guide such as the ISCO Open Channel Flow
Measurement Handbook can provide the user with all the information needed: the exponent used in the flow equation
for the desired flow units and the flow rate for any given head height. For example, to display the open channel flow
rate from a 3" Parshall flume, the ISCO handbook advises the exponent is 1.547 and at the maximum head height of
3.0 feet, the flow rate is 3.508 MGD.
3" Parshall Flume Discharge Table
Formula:CFS= 0.9920 H
1.547
GPM= 445.2 H
1.547
MGD= 0.6411 H
1.547
Where: H = Head in feet
Table 12-3
Head
(Feet)
CFS
GPM
MGD
3.00
5.428
2436
3.508
ISCO Open Channel Flow Measurement Handbook, 3rd edition
With this information the PD4-6604 should be programmed in the following fashion. This setup assumes the level
transmitter is programmed to output 20 mA at the maximum head height of 3.00 feet; but any mA value at a head
height with a known flow rate may be used.
Function
Desired
Programming
Open Channel Flow
3" Parshall flume
Set Programmable Exponent to 1.547
Flow Rate
Millions of Gallons per
Day (MGD)
Set 4 mA = 0
20 mA = 3.508
Display
Display Flow Rate
Set upper display for flow rate display and lower display
units/tag for MGD.
To display both flow rate and total, consider Precision Digital’s Model PD4-6624 Flow Rate Totalizer.
Page 57
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
57
The Programmable Exponent function is programmed in the following manner:
SCALE
UNITS
SCALE
INPUT 1
SCALE
DISP 1
UNITS
RATE
RATE
CUSTOM
/SECOND
/MINUTE
/HOUR
/DAY
Rate Time
Bases
GAL/(T)
L/(T)
IGAL/(T)
M3/(T)
BBL/(T)
BUSH/(T)
cuYD/(T)
cuFt/(T)
cuIn/(T)
LiBBL/(T)
BBBL/(T)
HECtL/(T)
AF/(T)
CUSTOM/(T)
Rate Units
INP 1
04.000
INP 1
mA
Flashes Units
Momentarily
DSP 1
+00,000.00
SCALE
INPUT 2
INP 2
20.000
SCALE
DISP 2
DSP 2
+00,100.00
SAVE? SETUP
INPUT
FUNCT
EXPONENT
1.5000
EXPONENT
PV
SCALE.CAL
SCALE
pV
TIME
/SECOND
UNIT
GAL/S
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
F2 F1
ENTER
F3
ENTER
F3
F2 F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
Page 58
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
58

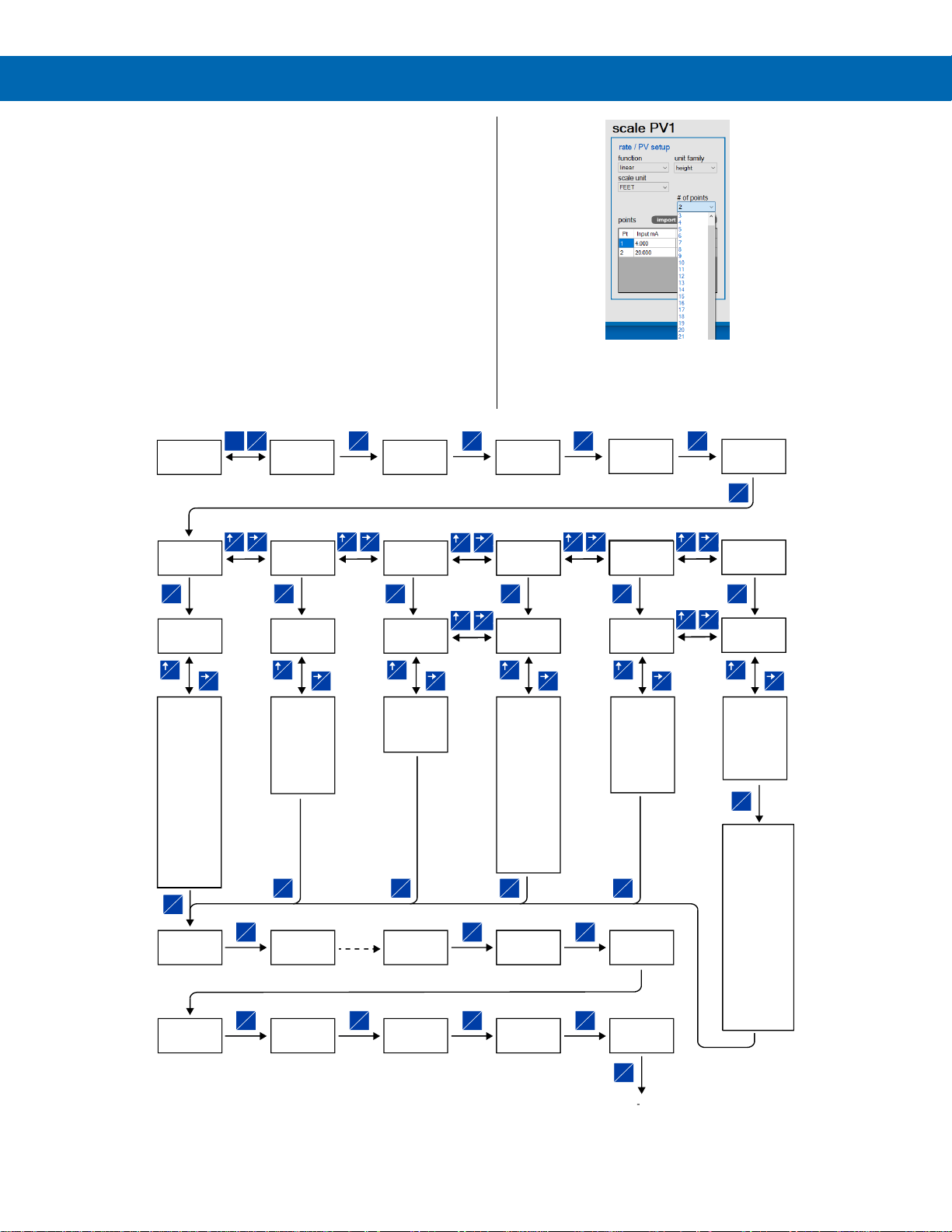

Multi-Point Linearization (LINEAR)
Up to 32 linearization points can be selected for PV1 and
PV2 under the LINEAR function. Multi-point linearization
can be used to linearize the input so the meter can display
volume from non-linear tanks or to convert level to flow
using weirs and flumes with complex exponent. These
points are established via direct entry (SCALE) or with a
live calibration signal source (CAL).
If the dual-scale level feature has been selected, the
menus for PV1 & PV2 are enabled.
MeterView XL showing the linear points
setup feature. Up to 32 points can
be selected for PV1 and PV2.
UNITS
VOLUME
GAL
L
IGAL
M3
BBL
BUSH
cuYD
cuFt
cuIn
LiBBL
BBBL
HECtL
AF
CUSTOM
INCH
FEET
FT-IN
YARD
CM
M
CUSTOM
~F
~C
K
~RA
PSI
InHg
InH2O
mmHg
kg/CM2
kg/M2
mBAr
Bar
PA
hPA
kPA
MPA
CUSTOM
gm
kg
tonne
oz
1b
ton
CUSTOM
/SECOND
/MINUTE
/HOUR
/DAY
Rate
Time Bases
GAL/(T)
L/(T)
IGAL/(T)
M3/(T)
BBL/(T)
BUSH/(T)
cuYD/(T)
cuFt/(T)
cuIn/(T)
LiBBL/(T)
BBBL/(T)
HECtL/(T)
AF/(T)
CUSTOM/(T)
Rate Units
PV
FUNCTION
FUNCT
LINEAR
12
NO. PTS
PV
SCALE.CAL
ENTER
F3
ENTER
F3
SCALE
UNITS
SCALE
pV
ENTER
F3
ENTER
F3
Enter Multi Point Values
ENTER
F3
F2 F1
UNITS
HEIGHT
UNITS
TEMP
F2 F1
F2 F1
UNITS
PRESSURE
F2 F1
UNITS
PRESSURE
F2 F1
UNITS
PRESSURE
F2 F1
UNITS
WEIGHT
F2 F1
UNITS
PRESSURE
F2 F1
UNITS
RATE
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
UNIT
GAL
UNIT
INCH
UNIT
~F
F2 F1
UNITS
PRESSURE
F2 F1
UNIT
PSI
UNIT
9m
F2 F1
UNITS
PRESSURE
F2 F1
UNIT
/SECOND
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
F2
F1
SCALE
INPUT 1
1NP 1
mA
1NP 1
04.000
UNITS
PRESSURE
SCALE
DISP 1
dSP 1
+00,000.00
ENTER
F3
SCALE
INPUT 2
1NP 2
05.600
SCALE
DISP 2
UNITS
PRESSURE
dSP 2
+00,100.00
SCALE
INPUT 3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
Flashes
Units
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
MENU
ENTER
F3
ENTER
F3
ENTER
F3
Page 59
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
59

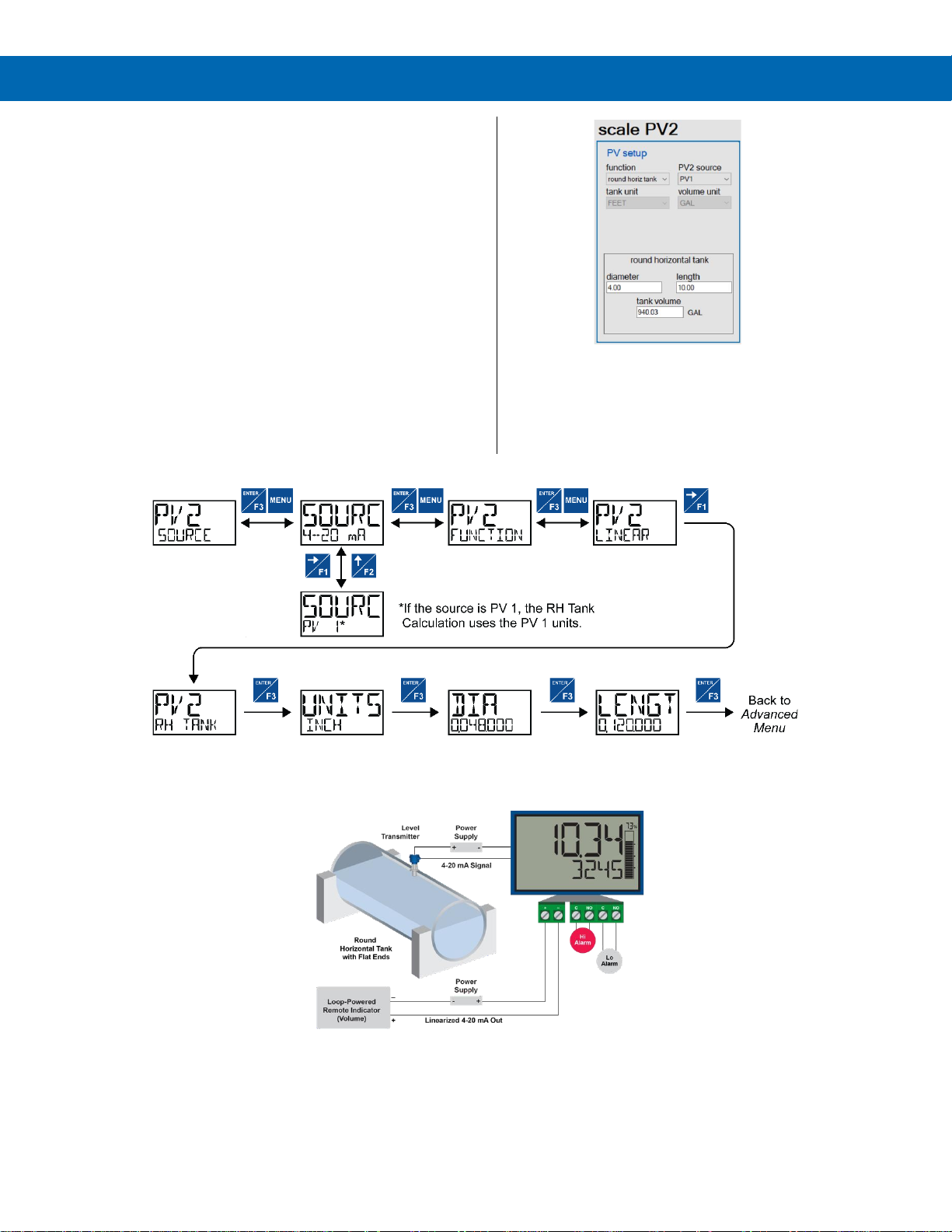

Round Horizontal Tank
Linearization (RH TANK)
This function automatically calculates the volume in a
round horizontal tank with flat ends. It is only available for
PV2 while the meter is in dual-scale mode.
For instructions on how to enable PV2 see Changing
System Settings (SYSTEM) on page 64.
Set the display for the desired decimal point and
engineering units before entering the round horizontal tank
function. Select units (inches or cm) for the tank
dimensions. Enter the diameter and the length in inches or
cm and the results will be calculated automatically in US
gallons or liters. The unit of measure for the volume can be
changed using the display menu.
See Changing the Engineering Units (UNITS) on page 37
and Available Unit Classes and Units on page 36 for a list
of available volume units. There is no need to enter scaling
values.
MeterView XL Round Horizontal Tank Function
Automatically Calculates the Volume Once the
Diameter and the Length of the Tank are Entered.
PD4-6604 Displaying Height in Feet and Volume in Gallons in a
Round Horizontal Tank Using the RHT Linearization Feature.
Page 60
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
60
Advanced Scaling and Calibration (SCALE.CAL)
This menu offers options to scale or calibrate the meter.
Scaling the Input (SCALE)
The scale menu in the Advanced menu is the same as the scale menu in the Input menu. See Scaling the 4-20 mA
Input (INPUT) on page 35 for details about scaling the meter.
Calibrating the Input (CAL)
To scale the meter without a signal source, refer to
Scaling the 4-20 mA Input (INPUT), page 35.
The meter can be calibrated to display the process in engineering units by applying the appropriate input signal and
following the calibration procedure. The CAL menu can be used either with a calibrated current source or with a live
signal coming from a 4-20 mA transmitter connected to the process being measured.
During calibration, the mA input value will be displayed as INP 1 and INP 2. Adjust the input source until the
desired mA value is shown.
The use of a calibrated signal source is required.
Follow these steps to calibrate the input:
1. After accessing the SCALE.CAL menu, press the Right-Arrow button to scroll to the Calibration menu (CAL
PV) and press Enter.
2. Select the appropriate units for the desired process variable, then press Enter. For information on units,
see Available Unit Classes and Units on page 36.
3. The meter displays INP 1. Apply a known signal and press Enter. The display will flash while accepting the
signal.
4. After the signal is accepted, the meter displays DSP 1. Enter a corresponding display value for the input
signal, and press Enter to accept.
5. The meter displays INP 2. Apply a known signal and press Enter. The display will flash while accepting the
signal.
6. After the signal is accepted, the meter displays DSP 2. Enter a corresponding display value for the input signal
and press Enter to accept.
7. After completing calibration, the SAVE? display will need to be acknowledged using the Enter key before
calibration will take effect.
PV
SCALE.CAL
CAL
UNITS
UNITS
VOLUME
UNIT
GAL
SCALE
PV
CAL
PV
SAVE?
ENTER
F3
MENU
F1
ENTER
F3
ENTER
F3
DSP 1
GAL
Flashes
Units
INP 1
04.000 mA
DSP 1
+00,000.00
ENTER
F3
DSP 2
GAL
Flashes
Units
INP 2
20.000 mA
DSP 2
+00,100.00
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
Note: The SAVE? prompt is not displayed if no changes have been made to the scaling.
Page 61
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
61
Low-Flow Cutoff (CUTOFF)
The low-flow cutoff feature allows the meter to be programmed so that the often-unsteady output from a differential
pressure transmitter at low flow rates always displays zero on the meter. The cutoff value may be programmed from 0.1
to 99999. The meter will display zero below the cutoff value. The cutoff can be disabled to display negative values.
Noise Filter (FILTER)
The noise filter is available for unusually noisy signals that cause an unstable process variable display. The noise
filter averages the input signal over a certain period of time. The filter level determines the length of time over which
the signal is averaged. The filter level can be set between 1 and 16 seconds or turned off. The higher the filter level,
the longer the averaging time and so the longer it takes the display to settle to its final value. Setting the filter level to
off disables the filter function.
Noise Filter Bypass (BYPAS)
The noise filter bypass changes the behavior of the meter so that small variations in the signal are filtered out but
large abrupt changes in the input signal are displayed immediately. The bypass value determines the minimum
amount of signal change to be displayed immediately. All signal changes smaller than the bypass value are filtered or
averaged by the meter. The noise filter bypass may be set between 0.1 and 99.9% of full scale.
Enabling Password Protection (PASSWRD)
The Password menu is used for programming security to prevent unauthorized changes to the programmed
parameter settings.
To set a password, enter the Password menu and program a five-digit password. For instructions on how to program
numeric values see Setting Numeric Values on page 34.
Making Changes to a Password Protected Meter
If the meter is password protected, the meter will display the message LOCKED when the Menu button is pressed.
Press the Enter button while the message is being displayed and enter the correct password to gain access to the
menu. After exiting Programming Mode, the meter returns to its password protected condition.
Disabling Password Protection
To disable password protection, access the Password menu and clear the entered password either by pressing and
holding the Right Arrow button until all digits reset to zero or manually changing all the digits to zero. When the Enter
button is pressed, the meter will display UNLOCKED and will no longer require a password to access Programming
Mode.
Note: If the meter is password protected and the password has been forgotten, the password may be overridden using the master
password: 50865
LOCKED
LOCK
00000
LOCK
12345
Enter
Numeric
Password
PASSWRD
Flashes
Momentarily
PASSWRD
ENTER
F3
MENU
ENTER
F3
Page 62
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
62
Programmable Function Keys User Menu (USER)
The User menu allows the user to assign the front panel function keys F1, F2, and F3, and the digital input (located
on the input signal connector) to access some of the menus or to activate certain functions immediately (e.g. reset
max & min, hold relay states, etc.). This allows the meter to be greatly customized for use in specialized applications.
Tare (TARE)
The tare function zero’s out the display. In the case of scale weight, tare is used to eliminate container weight and
provide net weight readings. There are two tare functions; Tare and Reset Tare. When the tare function is used, the
display reading is offset by the displayed amount to make the displayed value zero. Reset tare removes the display
offset of the net value, and the gross and net values become the same until a new capture tare is entered.
Program a function key or the digital input for the tare and reset tare.
USER
USER
F1
USER
F2
USER
F3
USER
DI
USER
HINT
F1
DISP FN
F1
MENU FN
F1
TIMER.FN
F1
ALARM.FN
F1
HOLD FN
F1
RST FN
F1
DISABLE
HINT
OFF
HINT
ON
F1
TARE.FN
ENTER
F3
MENU
F2 F1 F2 F1 F2 F1 F2 F1
F2 F1 F2 F1 F2 F1
F2
F1
F2
F1
F2
F1
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
ENTER
F3
F1 F2 F1 F2 F1 F2
0.2
LBS
0.0
LBS
Before Tare
0.2
LBS
After Capture Tare After Reset Tare
Page 63
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
63
Function Keys & Digital Input Available Settings
Refer to the following table for descriptions of each
available function key or digital input setting.
Display
Description
DISP FN
Set the function key or digital input to
display a value
DISPLAY
Cycle max, min, and PV(s)
DISP PV
Display the PV
PCT PV
Display the PV’s percentage of max
(20 mA)
D UNITS
Display the PV’s units
D TAG
Display the PV’s tag
DISPMIN
Display the PV’s minimum
DISPMAX
Display the PV’s maximum
MIN MAX
Display the PV’s minimum and
maximum value
D mA IN
Display the mA input value
D mAOUT
Display the mA output value
MENU FN
Set the function key or digital input to
access a menu
RLYINFO
Go to relay information menu (INFO)
MANCTRL
Go to output control menu
(CONTROL)
TIMR OC1
Open collector 1 timer
TIMR OC2
Open collector 2 timer
TIMER R1
Relay 1 timer
TIMER R2
Relay 2 timer
TIMER.FN
Set the function key or digital input to
start or stop a timer
STRT.ALL
Start all timers
STOP.ALL
Stop all timers
S.STP.ALL
Start or stop all timers
OC1
Start/stop open collector 1 timer
OC2
Start/stop open collector 2 timer
RLY1
Start/stop relay 1 timer
RLY2
Start/stop relay 2 timer
START
Start the selected timer output
STOP
Stop the selected timer output
STR-STP
Start or stop the selected timer
output
ALARM.FN
Set the function key or digital input to
acknowledge an alarm
ACK
Acknowledge all active alarms
SETPOINT
Set all output set point
SETPT.OC1
Set open collector 1 set point
SETPT.OC2
Set open collector 2 set point
SETPT.R1
Set relay 1 set point
Display
Description
SETPT.R2
Set relay 2 set point
SWATCH.FN
Set the function key or digital input to
activate stopwatch
START
Start the stopwatch
STOP
Pause/Stop the stopwatch
STR-STP
Start or stop the stopwatch
TARE.FN
Set the function key or digital input to
tare the display value
TARE
Tare the display value
RST TARE
Reset the display value
HOLD FN
Set the function key or digital input to
hold an output
HOLD.OUT
Hold all outputs
HLD.UNHLD
Hold or un-hold all outputs
OC1+2
Hold/un-hold open collector outputs
RLY1+2
Hold/un-hold relay outputs
mAOUT
Hold/un-hold 4-20 mA output
HOLD
Hold selected output
HLD.UNHLD
Hold or un-hold selected output
DISABLE
Disable the function key or digital
input
RST FN
Set the function key or digital input to
reset a value
RESET
Reset min, max, or max/min PV
value
R MIN.MAX
Reset max and min PV value
Page 64
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
64
Enabling the Function Key Hint Feature (HINT)
Enabling the function key hint feature will cause a hint
message to be displayed when pressing the F1, F2,
or F3 function keys. This text gives a brief description
of what the button is programmed to do. Pressing that
function key a second time will execute that action.
The hint feature does not affect the digital input (DI)
which is intended for immediate execution.
Changing System Settings (SYSTEM)
The System menu contains the following menus:
Analog Output Calibration, Restore Factory Defaults,
Dual-Scale (PV2), Backlight, Information, and Internal
Calibration.
Analog Output Calibration (AOUTCAL)
To perform the analog output calibration, it is
recommended to use a milliamp meter with a
resolution of at least 0.1 µA to measure the output
current. The values saved internally during this
procedure are used for scaling the 4-20 mA output in
the Setup menu.
4-20 mA Output Calibration Procedure
1. Go to the Advanced Features menu and
navigate to the SYSTEM menu and press
Enter. Navigate to AOUTCAL and press Enter.
2. The display will show 4 mA. The Loop Leader+
mA output should now be close to 4 mA. Enter
the actual value read by the digital mA meter
on the second line of the display and press
Enter.
3. The display will show 20 mA. The Loop
Leader+ mA output should now be close to
20 mA. Enter the actual value read by the
digital mA meter on the second line of the
display and press Enter.
4. The Loop Leader+ will now calculate the
calibration factors and store them.
5. Press Menu to exit.
Enabling the Dual-Scale Feature (PV2)
Dual-Scale Mode
Top Display: Toggling Between Process Variable and Units
Bottom Display: Toggling Between Process Variable
(in different scale) and Different Units
For some level applications, such as displaying the
height and volume of a tank, a second PV can be
enabled which can be scaled to display a different
value based on the same 4-20 mA input. This is
accomplished by enabling the dual-scale feature
(PV2).
When the dual-scale feature is enabled, additional
menus will be displayed to allow for the programming
of the second PV. The input menu will display PV1
and PV2 for scaling and the display menu will allow
both PVs to be displayed on either line, for example.
See Display Functions & Messages on page 29 for
additional information on where additional dual-scale
specific menus will appear.
PV2 must be enabled to use the Round Horizontal
Tank feature. See Round Horizontal Tank
Linearization (RH TANK) on page 59.
Enabling or Disabling the Backlight (BACKLITE)
The backlight may be enabled or disabled using the
Backlight menu. The backlight is enabled by default,
but the input must be wired appropriately for the backlight to function. The backlight must be powered by an
external power source. See Wiring Diagrams on page
24. The voltage drop is the same if the backlight is not
wired or if it is disabled in the System menu.
Viewing System Information (INFO)
System information, such as software (firmware)
number and version, model number, and system tag,
may be viewed in the INFO menu. Press the Right
Arrow button to cycle through all available meter
information. Press Menu to go back to the previous
menu.
SYSTEM
SYSTM
AOUTCAL
SYSTM
DEFAULT
SYSTM
PV2
SYSTM
BACKLITE
SYSTM
INFO
SYSTM
ICAL
ENTER
F3
MENU
F2 F1 F2 F1 F2 F1
F2 F1 F2 F1
SYSTM
PV2
PV2
DISABLE
PV2
ENABLE
F1
ENTER
F3
Page 65
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
65
Calibrating the Internal mA Reference (ICAL)
The meter is factory calibrated prior to shipment to display
0.00 to 100.00, which corresponds to the 4-20 mA input.
The calibration equipment is traceable to NIST standards.
The use of calibrated signal sources is necessary to
calibrate the internal source of the meter. The meter’s
internal source is what allows the user to scale the
meter without applying a signal.
Check calibration of the meter at least every
12 months.
Note: Allow the meter to warm up for at least 15 minutes
before performing the internal source calibration procedure.
The Internal Calibration menu is part of the Advanced
menu. Internal Calibration is performed as follows:
1. Press the Menu button to enter
Programming Mode.
2. Press the Up-Arrow button twice and press
Enter to access the Advanced menu.
3. Press the Up-Arrow button and press Enter
to access the System menu.
4. Press the Up-Arrow button and press Enter
to access the ICAL menu.
5. The meter displays low input current
message (4.000 mA). Apply a 4 mA signal
and press Enter. The display flashes for a
moment while the meter is accepting the low
input signal.
6. After the display stops flashing, the display
moves to the high input calibration (20.000 mA).
Apply the high input signal and press Enter. The
display will flash again while the meter is
accepting the high input signal.
SYSTM
ICAL
ICAL
4.000 mA
ICAL
20.000 mA
Apply 4-mA
Signal
Apply 20-mA
Signal
ENTER
F3
MENU
ENTER
F3
ENTER
F3
Page 66
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
66
Meter Operation
The meter is equipped with four buttons behind the
lower panel door used for operation of the meter.
Three buttons labeled F1, F2, and F3 can be
programmed as function keys to perform a variety of
meter functions with a simple push of a button. These
include operation of the tare function, resetting the
tare, resetting the meter’s relays or open collectors,
starting and stopping timers, and displaying max/min
values. See Function Keys & Digital Input Available
Settings on page 63 for a complete list of settings
available.
A digital input is available on the meter and it may
function in a similar fashion as the function keys to
allow remote operation of a single task.
The max & min readings (peak & valley) reached by
the process can be displayed either continuously by
assigning it to a display line in the Display menu, or
momentarily by pressing the F1 key (default) or
assign it to any of the other function key or the digital
input.
The relay information menu shows runtime and cycle
count for each relay.
Change the display units within the selected unit class
at any time without the need to re-scale the meter.
Select the desired units via the UNITS menu in the
DISPLAY menu, and the meter automatically
converts the display values to the new unit of
measure.
Button Operation
Button
Symbol
Description
(Default Settings)
Press to enter or exit Programming
Mode, view settings, or exit
max/min readings
Press to display max/min readings.
Press to reset max/min readings.
Press to acknowledge all manually
resettable relays or open
collectors.
Press to lock/unlock the display
value after pressing the F1 key.
Note: Buttons are located behind the lower panel door of the
meter. See Programming Buttons on page 28.
Function Keys Operation
During operation, the programmable function keys
operate according to the way they have been
programmed in the Advanced Features – User menu.
The table under Button Operation shows the factory
default settings for F1, F2, and F3.
A hint message may be enabled to provide a
description of what each function key does prior to
executing their assigned function. See Enabling the
Function Key Hint Feature (HINT) on page 64.
Digital Input Operation
A digital input is standard on the meter. This digital
input is programmed identically to function keys F1,
F2, and F3. The input is triggered with a contact
closure between DI+ and DI-, or with an active low
signal. During operation, the digital input operates
according to the way it has been programmed in the
Advanced Features – User menu.
Maximum/Minimum Readings
The max & min readings (peak & valley) reached by
the process can be displayed either continuously or
momentarily.
Display momentarily by pressing the F1 function key
(default) or assigning to any of the other function keys
or to the digital input in the User menu.
Display continuously by pressing the Enter button
while the max/min is being displayed to lock the
display. Press Enter again to unlock.
Any of the F1-F3 function keys (buttons) and the
digital input can be programmed to reset the max &
min readings. The meters are set at the factory to
display the max reading by pressing the Right
Arrow/F1 button and to use the Up-Arrow/F2 button to
access the Reset menu. Press the Right Arrow button
to cycle through the available parameters to reset.
Top Display: Process Value
Bottom Display: Max & Min
Page 67
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
67
Runtime & Cycle Count (INFO)
The relay information menu shows runtime and cycle
count for each relay. These values may be cleared at
any time by selecting the Clear option (CLEAR?). If
the cycle count or runtime values need to be changed
on a frequent basis, it would be convenient to set up a
front panel button or the digital input to simplify this
process.
Note: See the menu tree under Solid-State Relay Outputs
(RELAY) on page 46 for complete menu structure on this
feature.
Meter displaying the
amount of time a relay
has been activated
Meter displaying the
number of times a relay
has cycled
Changing Engineering Units
During operation of the meter, it is possible to change
the display units within the selected unit class without
the need to re-scale the meter. The UNITS menu in the
DISPLAY menu allows the unit of measure to be
changed (e.g. from gallons/second (GAL/s) to
liters/second (L/s)) and the meter will automatically
convert the display values to the new unit of measure.
If entering a custom unit (CUSTOM), a custom
conversion factor will need to be entered. See
Changing the Engineering Units (UNITS) on page 37.
INFO
RELAY 1
RELAY
RUNTIME
TIME
195.0 H
ENTER
F3
MENU
F1
Flashes
Briefly
CYCLE
COUNT
CYCLE
51
RLY 1
CLEAR?
F1
Flashes
Briefly
Page 68
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
68
Troubleshooting
This product is a highly sophisticated instrument with
an extensive list of features and capabilities. If the
front panel buttons are used to program the meter, it
can be a difficult task to keep everything straight. That
is why we strongly recommend the use of the free
MeterView XL software for all programming activities.
A cable is provided to use the MeterView XL software
for programming the meter.
If you have programmed the meter with the front
panel buttons and it is not working as intended, try
re-programming the meter using the MeterView XL
software.
Reset Meter to Factory Defaults
When the parameters have been changed in a way
that is difficult to determine what’s happening, it might
be better to start the setup process from the factory
defaults. This can be accomplished using MeterView
XL software or with the front panel buttons.
To load factory defaults:
1. Press the Menu button to enter
Programming Mode.
2. Press the Right-Arrow button twice and
press Enter to access the Advanced menu.
3. Press the Up-Arrow button and press Enter
to access the System menu.
4. Press the Right-Arrow button and press
Enter to access the Default menu.
5. Press Enter twice in quick succession. The
meter will load default settings and restart.
Determining Software Version
To determine the software (firmware) version of a
meter:
1. Press the Menu button to enter
Programming Mode.
2. Press the Up-Arrow button twice and press
Enter to access the Advanced menu.
3. Press the Up-Arrow button and press Enter
to access the System menu.
4. Press the Up-Arrow button twice and press
Enter to access the Info menu.
5. Press the Right-Arrow button to cycle
through the meter information. When done,
press the Menu button to return to the
previous menu or press & hold Menu to exit
to Run mode.
SYSTEM
SYSTM
AOUTCAL
SYSTM
DEFAULT
LOAD?
DEFAULT
RESET
DFAULT?
Meter Loads
Default Settings
and Restarts
ENTER
F3
MENU
F1
ENTER
F3
ENTER
F3
ENTER
F3
Page 69
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
69
Factory Default Settings
The following table shows the factory setting for most
of the programmable parameters on the meter.
Parameter
Display
Default Setting
Input Menu
Unit Class
UNITS
Volume
Unit of Measure
UNIT
Gallons
Input 1
INP 1
4.000 mA
Display 1
DSP 1
0.00
Input 2
INP 2
20.000 mA
Display 2
DSP 2
100.00
Output Menu
Open Collector
Output 1
OUTPUT 1
Disabled
Pulse Factor
FACTOR
1.0
Test Frequency
FREQ
100
Alarm
ALARM
PV
Alarm Action
ACTION
AUTO
Set Point
SET
20.00
Reset Point
RESET
10.00
Alarm On Delay
DELAY ON
0 seconds
Alarm Off Delay
DELAY OFF
0 seconds
Alarm Fail-safe
FAILSAFE
OFF
Red LED
RED
ON
Flash PV
FLASH
ON
Alarm Message
MSG
ON
Message Text
MSG EDIT
ALARM 1
Timer Off Delay
OFF.DLAY
1 minute
Timer On Time
ON TIME
1 second
Timer Mode
MODE
Continuous
Open Collector
Output 2
OUTPUT 2
Disabled
Set Point
SET
40.00
Reset Point
RESET
30.00
Message Text
MSG EDIT
ALARM 2
Relay Output 1
RELAY 1
Disabled
Alarm
ALARM
PV
Alarm Action
ACTION
AUTO
Set Point
SET
70.00
Reset Point
RESET
60.00
Alarm On Delay
DELAY ON
0 seconds
Alarm Off Delay
DELAY OFF
0 seconds
Alarm Fail-safe
FAILSAFE
OFF
Red LED
RED
ON
Flash PV
FLASH
ON
Alarm Message
MSG
ON
Message Text
MSG EDIT
ALARM 3
Pump Ctrl On
ON
70.00
Pump Ctrl Off
OFF
60.00
Pump Ctrl On
Delay
DELAY ON
0 seconds
Pump Ctrl Off
Delay
DELAY OFF
0 seconds
Pump Alt On 1
ON 1
70.00
Pump Alt Off 1
OFF 1
60.00
Pump Alt On 2
ON 2
90.00
Pump Alt Off 2
OFF 2
80.00
Pump Alt
On Delay 1
DELAY 1 ON
0 seconds
Pump Alt
Off Delay 1
DELAY 1 OFF
0 seconds
Pump Alt
On Delay 2
DELAY 2 ON
0 seconds
Pump Alt
Off Delay 2
DELAY 2 OFF
0 seconds
Timer Off Delay
OFF.DLAY
1 minute
Timer On Time
ON TIME
1 second
Timer Mode
MODE
Continuous
Relay Output 2
RELAY 2
Disabled
4-20 mA Output
4-20 mA
PV
Advanced Menu
Signal
Conditioning
Function
FUNCTION
Linear (2 pts)
Low Cutoff
CUTOFF
Enabled: 0
Filter
FILTER
2.0 seconds
Filter Bypass
BYPAS
0.4 PCT
Password
PASSWRD
00000
(Unlocked)
Function Key 1
F1
Display
Function Key 2
F2
Reset
Function Key 3
F3
Acknowledge
Digital Input
DI
Acknowledge
Function Key
Hint Feature
HINT
Disabled
Dual-Scale
PV 2
Disabled
Backlight
BACKLIGHT
Enabled
Display Menu
Unit of Measure
UNITS
Gallons
Decimal Point
Location
DEC.PT
2
Comma
COMMA
Enabled
Top Display
TOP
PV
Bottom Display
BOTTOM
Units
Signal
Conditioning
Function
FUNCTION
Linear (2 pts)
Low Cutoff
CUTOFF
Enabled: 0
Page 70
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
70
Troubleshooting Tips
Certain sequences of events can cause unexpected results. To solve these issues, it is best to start fresh from factory
defaults and use the manual as a step by step programming guide, rather than a random approach to programming.
See Reset Meter to Factory Defaults on page 68 for details on resetting the meter to factory defaults. In addition, for
best results, we recommend using the free MeterView XL software for all programming needs.
Symptom
Check/Action
No display at all
Check
1. The 4-20 mA current loop is providing at least 3.5 mA to the meter.
2. The voltage drop of all devices connected to the 4-20 mA current loop does not
exceed the max rating of the loop power supply.
Not able to change setup or
programming, LOCKED is
displayed
Meter is password-protected, enter correct five-digit password to unlock.
Meter display flashes:
1. 99999
2. -9999
Check that the number of digits required for the scaled value does not exceed the
maximum digits for the display line. If it does, try adjusting the decimal point location for
less precision or changing the PV display to the bottom display.
Display is
unstable
Check:
1. Input signal stability and value.
2. Display scaling vs. input signal.
3. Filter and bypass values (increase).
Display response is too slow
Check filter and bypass values
Display reading is not accurate
Check:
1. Input signal conditioner selected: Linear, square root, etc.
2. Scaling or calibration
Display does not respond to input
changes, reading a fixed number
Check display assignment. It might be displaying max, min, or set point.
Display shows:
1. MAX and a number
2. MIN and a number
Press Menu to exit max/min display readings.
Relay operation is reversed
Check fail-safe settings in Output menu
Relays do not respond to signal
Check:
1. Relay action in Output menu
2. Set and reset points
3. Check manual control menu
If the display locks up or the meter
does not respond at all
Cycle the power to reboot the microprocessor.
Other symptoms not described
above
Call Technical Support for assistance.
Page 71
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
71
Page 72
PD4-6604 & PD4-6608 Loop-Powered Meters
Instruction Manual
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
LIM4-6604_A
SFT124 Ver 2.000 & up
11/22
Contact Precision Digital
Technical Support
Call: (800) 610-5239 or (508) 655-7300
Fax: (508) 655-8990
Email: [email protected]
Sales Support
Call: (800) 343-1001 or (508) 655-7300
Fax: (508) 655-8990
Email: [email protected]
Place Orders
Email: [email protected]
For the latest version of this manual please visit
www.predig.com
Loading...
