Powerware Power Supply 15 KVA User Manual

Powerware 9355 UPS

®

10/15 kVA
User’s Guide

Class A EMC Statements

FCC Part 15

NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.

ICES-003

This Class A Interference Causing Equipment meets all requirements of the Canadian Interference Causing
Equipment Regulations ICES-003.

Cet appareil numérique de la classe A respecte toutes les exigences du Reglement sur le matériel brouilleur du
Canada.

IEC 62040-2

Some configurations are classified under IEC 62040-2 as “Class-A UPS for Unrestricted Sales Distribution.” For
these configurations, the following applies:

WARNING This is a Class A-UPS Product. In a domestic environment, this product may cause radio interference, in

which case, the user may be required to take additional measures.

Powerware, ABM, and Powerware Hot Sync are registered trademarks and X-Slot, ConnectUPS, and LanSafe are
trademarks of Eaton Power Quality Corporation.
Greenlee is a registered trademark of Greenlee Textron.
Modbus is a registered trademark of Modicon.

ECopyright 2005 Eaton Corporation, Raleigh, NC, USA. All rights reserved. No part of this document may be
reproduced in any way without the express written approval of Eaton Corporation.

Requesting a Declaration of Conformity

Units that are labeled with a CE mark comply with the following harmonized standards and EU directives:

S Harmonized Standards: IEC 62040-1-1 and IEC 62040-2; IEC 60950 Third Edition

S EU Directives:

The EC Declaration of Conformity is available upon request for products with a CE mark. For copies of the EC
Declaration of Conformity, contact:

Eaton Power Quality Oy
Koskelontie 13
FIN-02920 Espoo
Finland
Phone: [phone]
Fax: [phone]

73/23/EEC, Council Directive on equipment designed for use within certain

voltage limits
93/68/EEC, Amending Directive 73/23/EEC
89/336/EEC, Council Directive relating to electromagnetic compatibility
92/31/EEC, Amending Directive 89/336/EEC relating to EMC

Special Symbols

The following are examples of symbols used on the UPS to alert you to important information:

RISK OF ELECTRIC SHOCK - Indicates that a risk of electric shock is present and the associated

warning should be observed.

CAUTION: REFER TO OPERATOR’S MANUAL - Refer to your operator’s manual for additional

information, such as important operating and maintenance instructions.

This symbol indicates that you should not discard the UPS or the UPS batteries in the trash. This
product contains sealed, lead-acid batteries and must be disposed of properly. For more information,
contact your local recycling/reuse o r hazardous waste center.

This symbol indicates that you should not discard waste electrical or electronic equipment (WEEE) in
the trash. For proper disposal, contact your local recycling/reuse or hazardous waste center.

ON - Indicates that the switch is in the ON position.

OFF - Indicates that the switch is in the OFF position.

PHASE - The word “phase.”

Table of Contents

1 Introduction 1.........................................................

2 Safety Warnings 5.....................................................

3 UPS Setup 9..........................................................

Inspecting the Equipment 9..................................................

Floor Loading 10............................................................

Clearances 10...............................................................

Unloading the Cabinet(s) 11...................................................

Three-High Cabinets 11....................................................

Two-High UPS Cabinet 14..................................................

Selecting an Installation Option 17.............................................

4 UPS Installation 19......................................................

5 Wall-Mounted Bypass Switch Installation 29.................................

6 Stabilizing the Cabinet 39................................................

7 Extended Battery Module Installation 43.....................................

8 Communication 47......................................................

Installing Communication Options and Control Terminals 48.......................

Communication Options 51...................................................

DB-9 Communication Port 51...............................................

X-Slot Cards 52...........................................................

Remote Monitor Panel 54..................................................

Industrial Relay Card 58....................................................

Powerware LanSafe Power Management Software 59.........................

Control Terminals 60.........................................................

Remote Emergency Power-off 61...........................................

Relay Output Contacts 62..................................................

Programmable Signal Inputs 62.............................................

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

i

TABLE OF CONTENTS

9 Operation 65...........................................................

Control Panel Functions 65...................................................

Changing the Language 66.................................................

Display Functions 66......................................................

User Settings 68..........................................................

Initial Startup 70.............................................................

UPS Startup 70..............................................................

Maintenance Bypass Startup 70.............................................

Internal Bypass Startup 71.................................................

Normal Mode Startup 72...................................................

Starting the UPS on Battery 73..............................................

Configuring the UPS for EBMs 73.............................................

UPS Shutdown 75...........................................................

10 UPS Maintenance 77....................................................

UPS and Battery Care 77.....................................................

Storing the UPS and Batteries 77............................................

When to Replace Batteries 78.................................................

Recycling the Used Battery or UPS 78..........................................

Using the UPS Maintenance Bypass Switch 79..................................

11 Specifications 81.......................................................

12 Troubleshooting 87......................................................

Typical Alarms and Conditions 87..............................................

Silencing the Alarm 88.......................................................

Service and Support 89.......................................................

13 Limited Warranty 91.....................................................

ii

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Chapter 1 Introduction

The Powerware®9355 uninterruptible power supply (UPS) is a true
online, double-conversion three-phase system that can be used to
prevent loss of valuable electronic information and minimize equipment
downtime. It is ideal for protecting essential information technology and
electrical engineering infrastructure in corporate, telecom, health care,
banking, and industrial applications.

The Powerware 9355 UPS continually monitors incoming electrical
power and removes the surges, spikes, sags, and other irregularities
that are inherent in commercial utility power. Working with a building’s
electrical system, the UPS supplies clean, consistent power that
sensitive electronic equipment requires for reliable operation. During
brownouts, blackouts, and other power interruptions, batteries provide
emergency power to safeguard operation.

With the Powerware 9355 UPS, you can safely eliminate the effects of
electrical line disturbances and guard the integrity of your systems and
equipment. Figure 1 shows the Powerware 9355 UPS and an optional
Extended Battery Module (EBM).

Figure 1. The Powerware 9355 UPS and EBM (3-High Cabinets Shown)

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

1

INTRODUCTION

Providing outstanding performance and reliability, the Powerware 9355
UPS’s unique benefits including the following:

S Online UPS design with pure sine wave output. The UPS filters and

regulates incoming AC power and provides consistent power to your
equipment without draining the battery.

S More wattage in less space with a 0.9 power factor – protecting more

equipment and leaving more room for expansion.

S A UPS maintenance bypass switch provides a Make-Before-Break

(MBB) wrap-around bypass for UPS maintenance or service without
shutting down the load.

S Support for Powerware Hot Sync

®

paralleling of multiple modules for

redundancy or extra capacity.

S Input current total harmonic distortion (THD) of less than five percent,

using active input power factor correction.

S ABM

®

technology that uses advanced battery management to
increase battery service life, optimize recharge time, and provide a
warning before the end of useful battery life.

S Up to three hours of extended runtime with added EBMs.

S Advanced power management with the Software Suite CD for

graceful shutdowns and power monitoring.

S Emergency shutdown control through the Remote Emergency

Power-off (REPO) port.

S Start-on-battery capability for powering up the UPS even if utility

power is not available.

S Standard communication options with a DB-9 serial port, relay output

contacts, and programmable signal inputs.

S Optional X-Slott cards enhance communication capabilities for

increased power protection and control.

2

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

INTRODUCTION

The following options for the Powerware 9355 are available:

S Remote Monitor Panel (RMP)

The optional RMP provides monitoring of the operational status and
alarm condition of the UPS from virtually any location within the
facility. You can install multiple RMPs at remote locations to increase
your monitoring capabilities.

S Power Distribution Module (PDM)

The optional PDM comes equipped with several different types of
output receptacles.

S Parallel Tie Cabinet

An optional parallel system with up to four UPSs can be installed to
provide a parallel capacity and/or redundant system. This load sharing
system provides more capacity than a single UPS and can provide
backup, depending on the load and configuration. In addition, when
one UPS is taken out of service for maintenance or is not operating
properly, a redundant UPS continues to supply uninterrupted power
to the critical load. A parallel Powerware Hot Sync Computer Area
Network (CAN) Bridge Card provides connectivity for system
metering and operational mode control. The parallel system consists
of two to four UPSs, each with a parallel

CAN Bridge Card, and a parallel

tie cabinet. Refer to the Powerware 9355 Parallel UPS (10/15 kVA)
User’s Guide for more information.

S Wall-Mounted Bypass Switch

The optional wall-mounted bypass switch is used to bypass the UPS
during maintenance or servicing, providing wrap-around bypass for
UPS service without shutting down the load.

S Input Isolation Transformer

The optional input isolation transformer is located at the bottom of a
3-high UPS model. The isolation transformer allows operation from a
480V or 600V 60-Hz source.

S Seismic Kit

The optional seismic kit secures the UPS and optional EBMs for
Zone 4 seismic installations.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

3

INTRODUCTION

4

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Chapter 2 Safety Warnings

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

This manual contains important instructions that you should follow during installation and
maintenance of the UPS and batteries. Please read all instructions before operating the
equipment and save this manual for future reference.

This UPS contains LETHAL VOLTAGES. All repairs and service should be performed by
AUTHORIZED SERVICE PERSONNEL ONLY. There are NO USER SERVICEABLE PARTS
inside the UPS.

S This UPS contains its own energy source (batteries). The UPS output may carry live

voltage even when the UPS is not connected to an AC supply.

S To reduce the risk of fire or electric shock, install this UPS in a temperature and humidity

controlled, indoor environment, free of conductive contaminants. Ambient temperature
must not exceed 40°C (104°F). Do not operate near water or excessive humidity (95%
maximum).

S To reduce the risk of fire, connect only to a circuit provided with 100 amperes maximum

branch circuit overcurrent protection in accordance with the National Electrical Code,
ANSI/NFPA 70.

S Output overcurrent protection and disconnect switch must be provided by others.

DANGER

WARNING

CAUTION

S Batteries can present a risk of electrical shock or burn from high short circuit current.

Observe proper precautions. Servicing should be performed by qualified service
personnel knowledgeable of batteries and required precautions. Keep unauthorized
personnel away from batteries.

S Proper disposal of batteries is required. Refer to your local codes for disposal

requirements.

S Never dispose of batteries in a fire. Batteries may explode when exposed to flame.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

5

SAFETY WARNINGS

Consignes de Sécurité

CONSIGNES DE SÉCURITÉ IMPORTANTES
CONSERVER CES INSTRUCTIONS
CE MANUEL CONTIENT DES CONSIGNES DE SÉCURITÉ
IMPORTANTES

Cet onduleur contient des TENSIONS MORTELLES. Toute opération d’entretien et de
réparation doit être EXCLUSIVEMENT CONFIÉE A UN PERSONNEL QUALIFIÉ AGRÉÉ.
AUCUNE PIÈCE RÉPARABLE PAR L’UTILISATEUR ne se trouve dans l’onduleur.

S Cet onduleur renferme sa propre source d’éner gie (batteries). Les prises de sortie

S Pour réduire les risques d’incendie et de décharge électrique, installer l’onduleur

S La protection contre une surintensité pour le(s) circuit(s) de sortie de courant alternatif

S Les interrupteurs de déconnexion convenables pour le(s) circuit(s) de sortie de courant

DANGER!

WARNING

peuvent être sous tension même lorsque l’onduleur n’est pas branché sur le secteur.

uniquement à l’intérieur, dans un lieu dépourvu de matériaux conducteurs, où la
température et l’humidité ambiantes sont contrôlées. La température ambiante ne doit
pas dépasser 40 °C. Ne pas utiliser à proximité d’eau ou dans une atmosphère
excessivement humide (95 % maximum).

doit être fournie par un autre fournisseur.

alternatif doivent être fournie par un autre fournisseur.

ATTENTION!

S Les batteries peuvent présenter un risque de décharge électrique ou de brûlure par des

courts-circuits de haute intensité. Prendre les précautions nécessaires.

S Une mise au rebut réglementaire des batteries est obligatoire. Consulter les règlements

en vigueur dans votre localité.

S Ne jamais jeter les batteries au feu. L’exposition aux flammes risque de les faire

exploser.

6

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Advertencias de Seguridad

INSTRUCCIONES DE SEGURIDAD IMPORTANTES
GUARDE ESTAS INSTRUCCIONES
ESTE MANUAL CONTIENE INSTRUCCIONES DE SEGURIDAD
IMPORTANTES

Este SIE contiene VOLTAJES MORTALES. Todas las reparaciones y el servicio técnico deben
ser efectuados SOLAMENTE POR PERSONAL DE SERVICIO TÉCNICO AUTORIZADO. No hay
NINGUNA PARTE QUE EL USUARIO PUEDA REPARAR dentro del SIE.

S Este SIE contiene su propia fuente d e energía (las baterías). Los receptáculos de salida

pueden transmitir corriente eléctrica aun cuando el SIE no esté conectado a un
suministro de corriente alterna (c.a.).

S Para reducir el riesgo de incendio o de choque eléctrico, instale este SIE en un lugar

cubierto, con temperatura y humedad controladas, libre de contaminantes conductores.
La temperatura ambiente no debe exceder los 40°C. No trabaje cerca del agua o con
humedad excesiva (95% máximo).

S La protección contra exceso de corriente para el/los circuito(s) de CA de salida será

suministrada por terceros.

S Los interruptores de desconexión debidamente clasificados para el/los circuito(s) de CA

de salida serán suministrados por terceros.

SAFETY WARNINGS

PELIGRO

WARNING

PRECAUCIÓN

S Las baterías pueden presentar un riesgo de descargas eléctricas o de quemaduras

debido a la alta corriente de cortocircuito. P reste atención a las instrucciones
correspondientes.

S Es necesario desechar las baterías de un modo adecuado. Consulte las normas locales

para conocer los requisitos pertinentes.

S Nunca deseche las baterías en el fuego. Las baterías pueden explotar si se las expone a

la llama.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

7

SAFETY WARNINGS

8

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Chapter 3 UPS Setup

This chapter describes:

S Equipment inspection

S Floor loading and clearances

S Unloading the cabinet(s)

The instructions are intended for the chief operator/system supervisor,
electrical consultants, and installation electricians. Local regulations and
electrical code must be followed during the UPS installation.

Inspecting the Equipment

If any equipment has been damaged during shipment, keep the shipping
and packing materials for the carrier or place of purchase and file a claim
for shipping damage. If you discover damage after acceptance, file a
claim for concealed damage.

To file a claim for shipping damage or concealed damage: 1) File with
the carrier within 15 days of receipt of the equipment; 2) Send a copy of
the damage claim within 15 days to your service representative.

NOTE Check the battery recharge date on the packaging label. If the date has expired and
the batteries were never recharged, do not use the UPS. Contact your service representative.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

9

UPS SETUP

Floor Loading

When planning the installation, consider the UPS weight for floor
loading. The strength of the installation surface must be adequate for
point and distributed loadings. The approximate weights are shown in
the following table.

Standard Model Floor Loadings

Clearances

Powerware 9355

2-High UPS 381 lb (173 kg) 95 (6.7)

3-High UPS-32 587 lb (266 kg) 147 (10.3)

3-High UPS-64 619 lb (281 kg) 155 (10.9)

2-High EBM 480 lb (218 kg) 120 (8.4)

3-High EBM 710 lb (322 kg) 178 (12.5)

Maximum

Weight (lb)

Point Loading

2

lb/in

(kg/cm2)

The following clearances are recommended for the Powerware 9355
UPS:

From Front of Cabinet 36” (91.4 cm) working space

From Back of Cabinet 6” (15.2 cm) without PDM installed; with PDM installed,

clearance determined by customer-supplied mating plug

10

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Unloading the Cabinet(s)

The following tools are required for unloading the cabinet(s):

S 15 mm wrench or socket

S 7 mm nut driver or socket

The UPS and EBM are heavy (see page 10). Unloading the cabinets requires at least two
people to safely remove the cabinets from t he pallet.

Three-High Cabinets

To remove a three-high UPS or EBM from the shipping pallet:

1. Remove the two M10 bolts securing the stabilizing bracket to the

pallet (see Figure 2).

UPS SETUP

CAUTION

M10 Bolts

Figure 2. Removing the Stabilizing Bracket Bolts

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

11

UPS SETUP

2. Remove the four M4 screws securing the stabilizing bracket to the

cabinet rear panel and remove the bracket (see Figure 3). Retain the
hardware for later use.

NOTE Be sure to retain the stabilizing bracket and hardware for later re-assembly onto the
cabinet.

3. Remove the three M10 bolts securing the rear shipping pad to the

pallet and remove the shipping pad.

NOTE Hold the back of the cabinet so that the bolts can be removed easily without the
cabinet rolling backward.

4. Remove the two M10 bolts securing the front shipping bracket and

remove the bracket.

Front Shipping
Bracket

12

M10 Bolts

Stabilizing Bracket

M10 Bolts

M4 Screws

Shipping Pad

Figure 3. Removing the Brackets and Shipping Pad

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

UPS SETUP

NOTE Be sure to support the front and back of the cabinet when rolling it off the pallet to
prevent tipping.

5. Slowly roll the cabinet toward the rear of the pallet. Once the pallet

tilts, continue rolling the cabinet down the pallet until the cabinet
touches the floor (see Figure 4).

Figure 4. Unloading the Cabinet

6. With the UPS supported, slowly pull the pallet away from the UPS

(see Figure 5).

Figure 5. Removing t he Pallet

7. Roll the cabinet to the desired location.

8. Continue to “Selecting an Installation Option” on page 17.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

13

UPS SETUP

Two-High UPS Cabinet

To remove a two-high UPS from the shipping pallet:

1. Remove the M10 bolt securing the vertical bracket to the pallet (see

Figure 6).

2. Remove and retain the three M4 screws securing the vertical

bracket to the UPS. Remove the vertical bracket.

M4 Screws

M10 Bolt

14

Figure 6. Removing t he Vertical Bracket

3. Reinstall the M4 screws to the UPS (see Figure 7).

M4 Screws

Figure 7. Reinstalling the M4 Screws

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

UPS SETUP

4. Repeat Steps 1 through 3 to remove the vertical bracket on the

other side.

5. Remove the three M10 bolts securing the rear shipping pad to the

pallet and remove the shipping pad (see Figure 8).

NOTE Hold the back of the cabinet so that the bolts can be removed easily without the
cabinet rolling backward.

6. Remove the two M10 bolts securing the front shipping bracket and

remove the bracket.

Front Shipping
Bracket

M10 Bolts

M10 Bolts

Shipping Pad

Figure 8. Removing the Front Bracket and Shipping Pad

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

15

UPS SETUP

NOTE Be sure to support the front and back of the cabinet when rolling it off the pallet to
prevent tipping.

7. Slowly roll the cabinet toward the rear of the pallet. Once the pallet

tilts, continue rolling the cabinet down the pallet until the cabinet
touches the floor (see Figure 9).

16

Figure 9. Unloading the Cabinet

8. With the UPS supported, slowly pull the pallet away from the UPS

(see Figure 10).

Figure 10. Removing the Pallet

9. Roll the cabinet to the desired location.

10. Continue to the following section, “Selecting an Installation

Option.”

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

UPS SETUP

Selecting an Installation Option

You are now ready to install the Powerware 9355 UPS. Select one of the
following installation options according to your UPS configuration:

UPS Configuration Installation Chapter

UPS only Chapter 4, “UPS Only Installation” on page 19

UPS with an optional input isolation transformer Chapter 4, “Input Isolation Transformer Installation” on page 19

UPS with an optional wall-mounted bypass switch Chapter 5, “Wall-Mounted Bypass Switch Installation” on page 29

Parallel UPS configuration Refer to the Powerware 9355 Parallel UPS (10/15 kVA) User’s

Guide

.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

17

UPS SETUP

18

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Chapter 4 UPS Installation

The Powerware 9355 has the following power connections:

S 3-phase (L1, L2, and L3), neutral, and ground connection for

rectifier/bypass input

S 3-phase (L1, L2, and L3), neutral, and ground connection for load

output

The nominal input/output voltages are:

S 120/208 or 127/220 Vac with 120° phase displacement

S 480V or 600V 60-Hz input is available using the optional input isolation

transformer module

Output overcurrent protection and disconnect switch must be provided
by others.

Figure 15 through Figure 17 beginning on page 25 show the oneline
diagrams.

Only qualified service personnel (such as a licensed electrician) should perform the UPS
installation and initial startup. Risk of electrical shock.

WARNING

Use the following procedure to hardwire the UPS:

1. Verify that the electrical connections to the installation site have

been properly installed.

2. A wall-mounted, user-supplied, readily-accessible disconnection

device must be incorporated in the input wiring.

Compare the circuit breaker ratings to the ones in Table 1 on
page 22.

3. Switch off utility power to the distribution point where the UPS will

be connected. Be absolutely sure there is no power.

4. Determine your equipment’s grounding requirements according to

your local electrical code.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

19

UPS INSTALLATION

5. Verify that the UPS battery circuit breaker is in the OFF position

(see Figure 11).

Battery Circuit Breaker

UPS Wiring
Access Cover

20

Conduit Landing Plates

Figure 11. UPS Rear View (3-High Shown)

6. For UPS only installations, continue to Step 7; for UPS installations

with an input isolation transformer, proceed to Step 10.

7. Remove the UPS wiring access cover and one of the conduit

landing plates and retain (see Figure 11).

8. Punch two holes in the conduit landing plate for the input and

®

output conduit using a Greenlee

punch or similar device.

9. Proceed to Step 12.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

UPS INSTALLATION

10. Verify that the input circuit breaker is in the OFF position (see

Figure 12).

11. Remove the input isolation transformer wiring access cover and

retain.

Battery Circuit Breaker

Input Isolation
Transformer
Wiring Access Cover

Input Circuit Breaker

Figure 12. UPS with Input Isolation Transformer Rear View

12. Hardwire the input, output, and ground terminations for t he UPS or

input isolation transformer. See Table 1 for wiring specifications.

For a detailed view of the terminal block, see Figure 13 or Figure 14
on page 23.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

21

UPS INSTALLATION

p

120lbin

p

120lbin

p

120lbin

p

120lbin

NOTE Input neutral must be wired for proper operation. Failure to connect an input neutral
will void the warranty.

NOTE The Powerware 9355 UPS is a single-feed UPS only.

Table 1. Terminal Block Wiring

10 kVA

Input Voltage

208

220

480 (with transformer) 20A

600

(with transformer) 20A

208

220

480 (with transformer)

600

(with transformer)

15 kVA

Input Voltage

208

220

480 (with transformer) 30A

600 (with transformer) 25A

208

220

480 (with transformer)

600

(with transformer)

1

Use only 90°C-rated copper wire. Minimum wire size is based on 120/208 full load ratings applied to NEC Code Table

Wire

Function

Input

Output

Wire

Function

Input

Output

Input Circuit

Breaker Size

45A

45A

Input Circuit

Breaker Size

60A

60A

L1, L2, L3, N

Wire Size

1

Ground

Wire Size

Tightening

1

Torque

Conduit Size

(Number of Conduits)

6AWG 10 AWG

8AWG 10 AWG

12 AWG 12 AWG

(13.5 Nm)

1.00” conduit (1)

12 AWG 14 AWG

8AWG 10 AWG

8AWG 10 AWG

8AWG 10 AWG

(13.5 Nm)

1.00” conduit (1)

8AWG 10 AWG

L1, L2, L3, N

Wire Size

1

Ground

Wire Size

Tightening

1

Torque

Conduit Size

(Number of Conduits)

4AWG 10 AWG 1.25” conduit (1)

4AWG 10 AWG

10 AWG 10 AWG

(13.5 Nm)

1.25” conduit (1)

1.00” conduit (1)

10 AWG 10 AWG 1.00” conduit (1)

6AWG 10 AWG

6AWG 10 AWG

6AWG 10 AWG

(13.5 Nm)

1.00” conduit (1)

6AWG 10 AWG

2, 3

2, 3

310-16. Code may require a larger AWG size than shown in this table because of temperature, number of conductors in
the conduit, or long service runs. Follow local requirements.

2

Per NEC article 300-20(a), all three-phase conductors must be run in the same conduit. Neutral and ground must be

run in the same conduit as the phase conductors.

3

Conduit is sized to accommodate one neutral conductor the same size as the phase conductor and one #8 AWG
ground conductor. If two neutral conductors or an oversized neutral conductor are to be installed, check the size of the
conduit needed to accommodate the extra wire or size and use that conduit size in place of the conduit size listed.
Conduit sizes were chosen from NEC Table C1, type letters RHH, RHW, RHW-2, TW, THW, THHW, THW-2.

22

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

UPS INSTALLATION

Ground

Figure 13. UPS Terminal Block (3-High Shown)

L1L2L3 N

INPUT

L1

L3

L2
OUPUT

N

N

Figure 14. Input Isolation Transformer Terminal Block

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

23

UPS INSTALLATION

13. For UPS only installations, replace the UPS wiring access cover and

conduit landing plate.

For UPS installations with an input isolation transformer, replace the
transformer’s wiring access cover.

14. Continue to “Stabilizing the Cabinet” on page 39 to complete the

UPS installation.

24

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

UPS INSTALLATION

*

*

Figure 15. UPS Wiring Diagram

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

25

UPS INSTALLATION

*

*

26

Figure 16. UPS with Extended Battery Modules Wiring Diagram

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

UPS INSTALLATION

*

*

Figure 17. UPS with Input Isolation Transformer Wiring Diagram

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

27

UPS INSTALLATION

28

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Chapter 5 Wall-Mounted Bypass Switch Installation

This chapter describes installing the wall-mounted bypass switch with
the UPS. The wall-mounted bypass switch is a Make-Before-Break
maintenance bypass switch.

NOTE The input isolation transformer cannot be used with the wall-mounted bypass
switch.

The Powerware 9355 has the following power connections:

S 3-phase (L1, L2, and L3), neutral, and ground connection for

rectifier/bypass input

S 3-phase (L1, L2, and L3), neutral, and ground connection for load

output

The nominal input/output voltages are:

S 120/208 or 127/220 Vac with 120° phase displacement

Output overcurrent protection and disconnect switch must be provided
by others.

WARNING

Only qualified service personnel (such as a licensed electrician) should perform the UPS
installation and initial startup. Risk of electrical shock.

Use the following procedure to hardwire the bypass cabinet:

1. Verify that the electrical connections to the installation site have

been properly installed.

2. A wall-mounted, user-supplied, readily-accessible disconnection

device must be incorporated in the input wiring.

Compare the circuit breaker ratings to the ones in Table 2 on
page 33.

3. Switch off utility power to the distribution point where the bypass

cabinet and UPS will be connected. Be absolutely sure there is no
power.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

29

WALL-MOUNTED BYPASS SWITCH INSTALLATION

4. Determine your equipment’s grounding requirements according to

your local electrical code.

5. Remove the bypass cabinet front cover (see Figure 18).

Figure 18. Bypass Cabinet Front Cover

30

6. Remove the internal cover to gain access to the breakers (see

Figure 19).

Internal
Cover

Figure 19. Internal Cover

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

WALL-MOUNTED BYPASS SWITCH INSTALLATION

7. Punch holes for the conduit (AC input, UPS output, load connection,

and maintenance bypass contact wires) using a Greenlee punch or
similar device.

8. Verify that the bypass breaker is in the OFF position (see Figure 20).

9. Mount the bypass cabinet to the wall and install the conduit.

Figure 20. Bypass Breaker

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

31

WALL-MOUNTED BYPASS SWITCH INSTALLATION

10. Verify that the UPS battery circuit breaker is in t he OFF position

(see Figure 21).

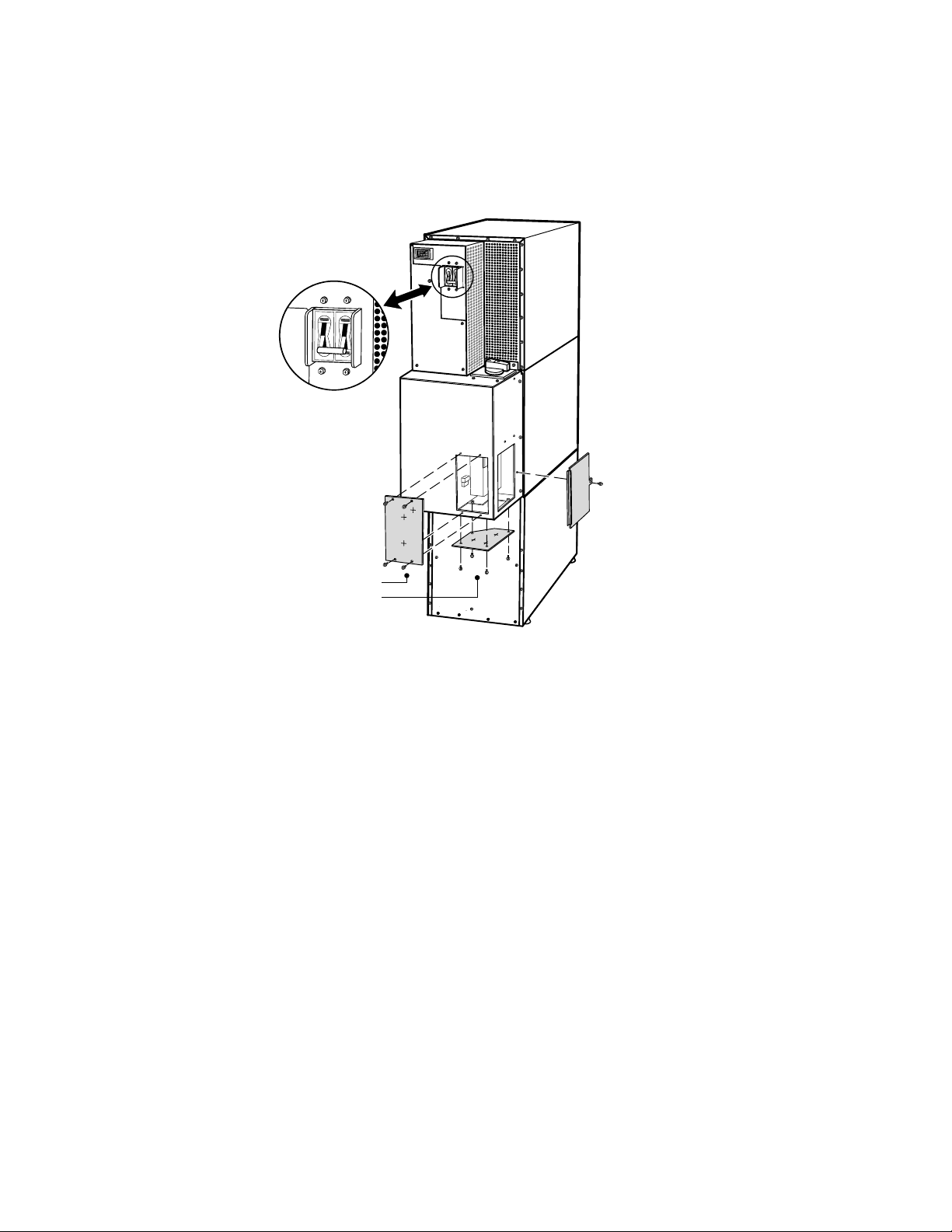

11. Remove the UPS wiring access cover and one of the conduit

landing plates and retain.

Battery Circuit Breaker

32

UPS Wiring
Access Cover

Conduit Landing Plates

Figure 21. UPS Rear View (3-High Shown)

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

WALL-MOUNTED BYPASS SWITCH INSTALLATION

p

120lbin

p

120lbin

p

120lbin

p

120lbin

12. Hardwire the UPS input terminations.

See Table 2 for specifications and Figure 22 for a detailed view of
the UPS terminal block.

NOTE Input neutral must be wired for proper operation. Failure to connect an input neutral
will void the warranty.

NOTE The Powerware 9355 UPS is a single-feed UPS only.

Table 2. UPS Terminal Block Wiring

10 kVA

Input Voltage

208

220

208

220

15 kVA

Input Voltage

208

220

208

220

1

Use only 90°C-rated copper wire. Minimum wire size is based on 120/208 full load ratings applied to NEC Code Table

Wire

Function

Input

Output

Wire

Function

Input

Output

Input Circuit

Breaker Size

45A

45A

Input Circuit

Breaker Size

60A

60A

L1, L2, L3, N

Wire Size

1

Ground

Wire Size

6AWG 10 AWG

8AWG 10 AWG

8AWG 10 AWG

8AWG 10 AWG

L1, L2, L3, N

Wire Size

1

Ground

Wire Size

4AWG 10 AWG

4AWG 10 AWG

6AWG 10 AWG

6AWG 10 AWG

Tightening

1

Tightening

1

Torque

(13.5 Nm)

(13.5 Nm)

Torque

(13.5 Nm)

(13.5 Nm)

Conduit Size

(Number of Conduits)

1.00” conduit (1)

1.00” conduit (1)

Conduit Size

(Number of Conduits)

1.25” conduit (1)

1.25” conduit (1)

1.00” conduit (1)

2, 3

2, 3

310-16. Code may require a larger AWG size than shown in this table because of temperature, number of conductors in
the conduit, or long service runs. Follow local requirements.

2

Per NEC article 300-20(a), all three-phase conductors must be run in the same conduit. Neutral and ground must be

run in the same conduit as the phase conductors.

3

Conduit is sized to accommodate one neutral conductor the same size as the phase conductor and one #8 AWG
ground conductor. If two neutral conductors or an oversized neutral conductor are to be installed, check the size of the
conduit needed to accommodate the extra wire or size and use that conduit size in place of the conduit size listed.
Conduit sizes were chosen from NEC Table C1, type letters RHH, RHW, RHW-2, TW, THW, THHW, THW-2.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

33

WALL-MOUNTED BYPASS SWITCH INSTALLATION

Figure 22. UPS Terminal Block (3-High Shown)

Maintenance
Bypass
Contacts

TB2

Ground

34

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

WALL-MOUNTED BYPASS SWITCH INSTALLATION

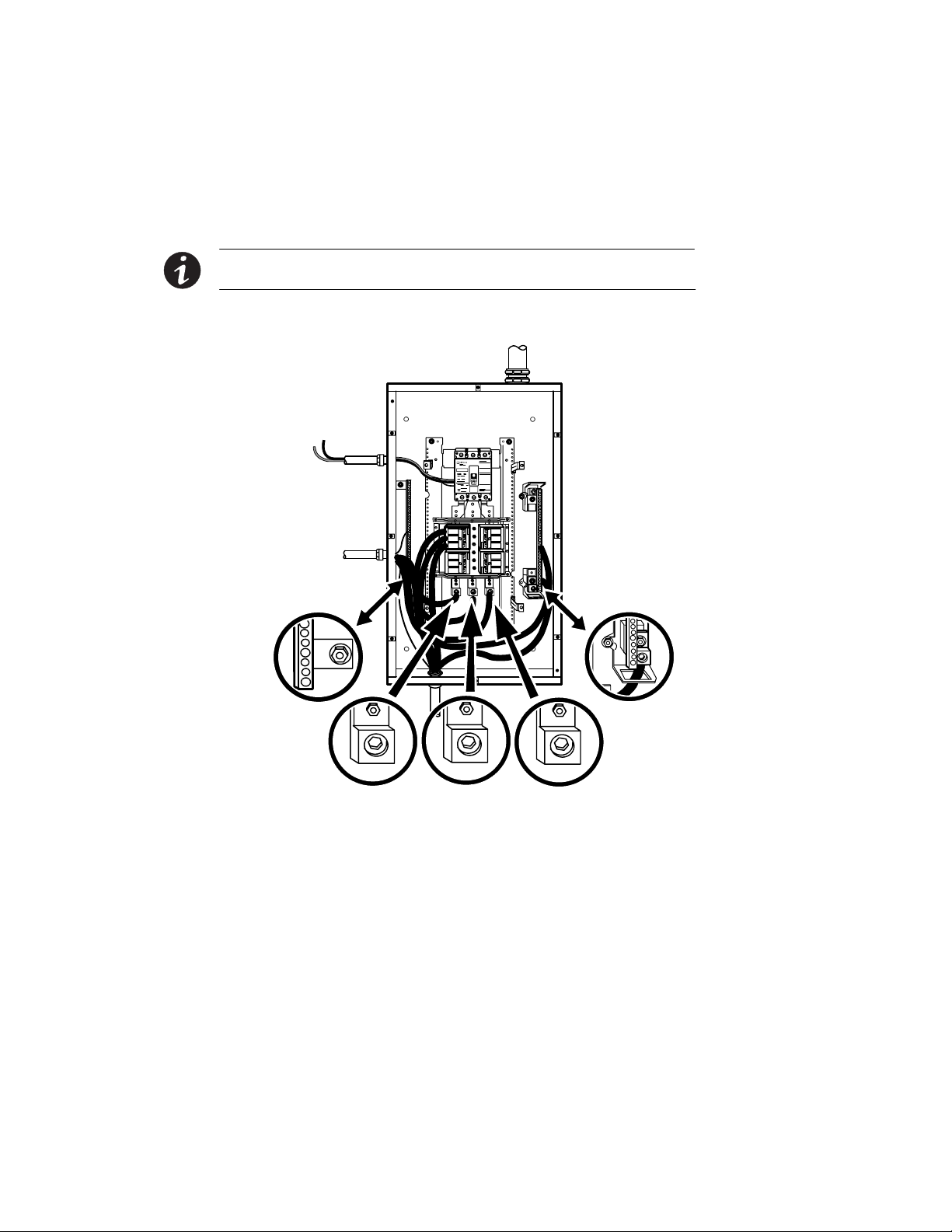

13. Hardwire the output terminations from the UPS to the bypass

cabinet (see Figure 23).

Ground

Neutral

Line 1
Line 2
Line 3

Figure 23. UPS Output to Bypass Cabinet Wiring

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

35

WALL-MOUNTED BYPASS SWITCH INSTALLATION

14. Hardwire the load to the bypass cabinet (see Figure 24).

15. Route the maintenance bypass wires through the conduit to the

UPS terminal block (see Figure 22 on page 36).

Connect the black wire to TB2-2 and the blue wire to TB2-3. Cap
the red wire.

NOTE The maintenance bypass contacts are normally-closed. To ensure proper bypass
operation, DO NOT use the red wire (it is normally-open).

16. Replace the UPS wiring access cover and conduit landing plate.

Maintenance Bypass
Wiring to UPS TB2

36

Ground

Line 1

Line 2 Line 3

Figure 24. Load Connections

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Neutral

WALL-MOUNTED BYPASS SWITCH INSTALLATION

17. Wire the AC input to the bypass breaker (see Figure 25).

Line 1

Line 2

Line 3

Figure 25. Bypass AC Input Wiring

18. Verify the bypass input.

19. Reinstall the internal cover.

20. Reinstall the bypass cabinet front cover.

21. Continue to “Stabilizing the Cabinet” on page 39 to complete the

UPS installation.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

37

WALL-MOUNTED BYPASS SWITCH INSTALLATION

225A

Bypass Input

80A (4X)

From UPS 1 Output

Not Used

Not Used

Not Used

Figure 26. Bypass Wiring Diagram

Red Wire
(open when breaker is open)

Black Wire
(common)

Blue Wire
(closed when breaker is open)

LOAD

38

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Chapter 6 Stabilizing the Cabinet

NOTE For seismic installations, you MUST order and install a Powerware 9355 UPS
seismic kit; do not use the following instructions.

NOTE For non-seismic installations, you MUST install the stabilizing bracket on all 3-high
cabinets. The stabilizing bracket is optional for 2-high cabinets.

1. Lower the leveling feet to prevent the cabinet from rolling.

Figure 27. Lowering the Leveling Feet

2. Attach the stabilizing bracket to the bottom of the cabinet rear panel

using the retained hardware from the shipping pallet according to
the cabinet configuration:

S For one cabinet, see Figure 28.

S For two cabinets, see Figure 29.

S For three cabinets, see Figure 30.

NOTE No more than three cabinets can be attached together. For four cabinets, use two of
the two-cabinet installations. For five cabinets, use one three-cabinet and one two-cabinet
installation.

3. Use the holes and slots in the bottom of the bracket to attach the

cabinet to the flooring if desired.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

39

STABILIZING THE CABINET

4. Continue to one of the following sections:

S “Extended Battery Module Installation” on page 43 to install

optional EBMs.

S “Communication” on page 47 to install UPS communication

options, such as X-Slot cards or Remote Emergency Power-off.

S “Operation” on page 65 to start up the UPS.

40

M4 Screws

Figure 28. Stabilizing Bracket with One Cabinet

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

M4 Screws

Figure 29. Stabilizing Bracket with Two Cabinets

STABILIZING THE CABINET

M4 Screws

Figure 30. Stabilizing B racket with Three Cabinets

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

41

STABILIZING THE CABINET

42

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Chapter 7 Extended Battery Module Installation

NOTE A maximum of 22 battery strings can be installed in one configuration, including
UPS batteries (4 EBM-64 models or 3 EBM-96 models). UPS-32 models contain 2 strings;
UPS-64 models contain 4 strings; EBM-64 models contain 4 strings; and EBM-96 models
contain 6 strings.

NOTE For non-seismic installations, you MUST install the stabilizing bracket on all 3-high
cabinets. The stabilizing bracket is optional for 2-high cabinets.

If you are installing an optional EBM(s), use the following steps:

1. Position the EBM adjacent to the next cabinet.

2. Verify that all battery circuit breakers are in the OFF position (see

Figure 31).

3. Remove the two ground straps from the EBM rear panel(s).

4. Install one ground strap between the UPS and the EBM rear panels

as shown in Figure 31.

5. If additional EBMs are installed, attach another ground strap

between the first and second EBM as shown in Figure 31. Repeat
for each additional EBM.

6. Plug the EBM cable into the UPS battery connector.

7. If additional EBMs are installed, plug the EBM cable of the second

cabinet into the battery connector on the first EBM. Repeat for each
additional EBM.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

43

EXTENDED BATTERY MODULE INSTALLATION

EBM Battery
Circuit Breaker

Rear Ground Strap

EBM Cable

EBM Battery Connector

Figure 31. Typical EBM Installation (2-High Cabinets Shown)

UPS Battery Connector

UPS Battery Circuit Breaker

44

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

EXTENDED BATTERY MODULE INSTALLATION

8. Remove the top front covers of all cabinets.

9. Install the remaining ground straps between each cabinet (see

Figure 32).

Front Ground Strap

Figure 32. Front Ground Strap Installation (2-High Cabinets Shown)

10. Continue to one of the following sections:

S “Communication” on page 47 to install UPS communication

options, such as X-Slot cards or Remote Emergency Power-off.

S “Operation” on page 65 to start up the UPS.

NOTE After UPS startup, ensure maximum battery runtime by configuring the UPS for the
correct number of EBMs (see page 73).

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

45

EXTENDED BATTERY MODULE INSTALLATION

46

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Chapter 8 Communication

This section describes the:

S DB-9 communication port

S X-Slot cards

S Remote Monitor Panel and Industrial Relay Card (IRC)

S Powerware LanSafe Power Management Software

S Remote Emergency Power-off

S Relay output contacts

S Programmable signal inputs

Figure 33 shows the location of the communication options and control
terminals on the UPS.

X-Slot Communication Bay #1

Signal Input 1

X-Slot Communication Bay #2

Signal Input 2

REPO (normally open)

REPO (normally closed)

DB-9 Communication Port

Relay Contact

Figure 33. Communication Options and Control Terminals

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

47

COMMUNICATION

Installing Communication Options and Control Terminals

To access and install the communication options and control terminals:

1. Remove the front covers of all cabinets, starting with the top

cabinet. Press and release the handle latch at the bottom of each
cover and then lift the cover up and off the cabinet (see Figure 34).

48

Figure 34. Removing the Front Covers

2. Install the appropriate X-Slot card and/or necessary cable(s) into the

top cabinet (see Figure 33 and Figure 35).

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

COMMUNICATION

Figure 35. Installing Communication Cables

3. On the bottom cover (and also the middle cover if 3-high), remove a

knockout tab in the top edge of the cover for each cable:

With wire cutters, cut either side of the tab and twist down to
remove the tab (see Figure 36).

Figure 36. Removing Knockout Tabs

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

49

COMMUNICATION

4. Route the cable(s) to the approximate location of the cover access

holes.

5. Connect the cables to the appropriate location.

See “Communication Options” on page 51 or “Control Terminals”
on page 60 for detailed information.

6. Reinstall the front covers, starting with the bottom cabinet (see

Figure 37).

Hang the top edge of the cover on the cabinet first, then lower the
bottom edge and snap into place. Be sure the cables fit in the
access holes in the covers.

50

Figure 37. Reinstalling t he Front Covers

7. Continue to “Operation” on page 65 to start up the UPS.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Communication Options

The Powerware 9355 has serial communication capabilities through the
DB-9 communication port or through an X-Slot card in one of the
available bays. In addition, the Powerware LanSafe Power Management
Software can be installed and used to communicate with the UPS via
one of the serial communication connections.

The UPS supports two serial communication devices according to the
following table:

Independent Multiplexed

X-Slot 1 X-Slot 2 DB-9 Communication Port

COMMUNICATION

Any X-Slot card Any X-Slot card except the Modem

Card

Any X-Slot card Powerware Relay Interface Card

Powerware Hot Sync CAN Bridge Card

Any X-Slot card Not i n use Available

NOTE You can configure relays, signal inputs, and the serial port baud rate through the
front panel menus (see Table 8 on page 68).

Not in use

Available

DB-9 Communication Port

To establish communication between the UPS and a computer, connect
your computer to the UPS communication port using the supplied
communication cable.

When the communication cable is installed, power management
software can exchange data with the UPS. The software polls the UPS
for detailed information on the status of the power environment. If a
power emergency occurs, the software initiates the saving of all data
and an orderly shutdown of the equipment.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

51

COMMUNICATION

The cable pins are identified in Figure 38 and the pin functions are
described in Table 3. See Figure 33 on page 47 for serial port location.

5

9

4

8

3

7

2

6

1

Figure 38. Communication Port

Table 3. Communication Port Pin Assignment

Pin Number Signal Name Function Direction from the UPS

2 TxD Transmit to external device Out

3 RxD Receive from external device In

5 GND Signal common (tied to chassis) —

52

X-Slot Cards

X-Slot cards allow the UPS to communicate in a variety of networking
environments and with different types of devices. The Powerware 9355
has two available communication bays for any X-Slot card, including:

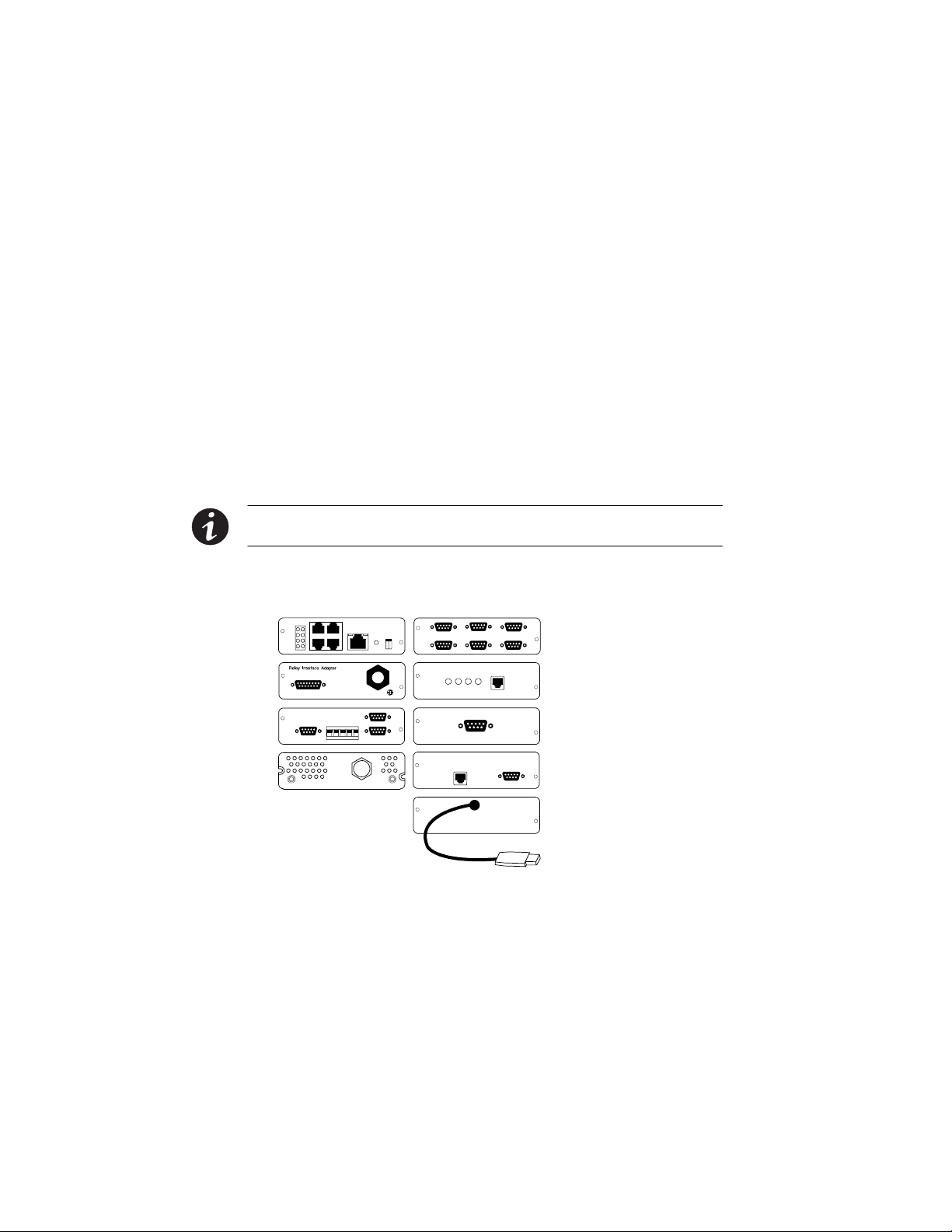

S ConnectUPS -X Web/SNMP Card - has SNMP and HTTP capabilities

t

as well as monitoring through a Web browser interface; connects to a
twisted-pair Ethernet (10/100BaseT) network. It has a built-in
switching hub that allows three additional network devices to be
connected to the network without the requirement of additional
network drops. In addition, a Powerware Environmental Monitoring
Probe can be attached to obtain humidity, temperature, smoke alarm,
and security information.

S Relay Interface Card - has isolated dry contact (Form-C) relay outputs

for UPS status: Utility failure, Low battery, UPS alarm/OK, or On
bypass.

S Modbus

UPSs in your Building Management System (BMS).

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

®

Card - allows you to continuously and reliably monitor the

COMMUNICATION

S Industrial Relay Card - is used to indicate the operating status of the

UPS using the customer’s monitoring equipment and to connect an
optional RMP. The IRC uses four isolated normally-open or
normally-closed dry relay contacts to indicate the UPS status. Normal,
Bypass, Battery, and Alarm mode can be monitored (see page 58 for
more information).

S Multi-Server Card - has six serial communication ports that can

communicate simultaneously with other computers using Powerware
LanSafe Power Management Software (provided on the Software
Suite CD).

S Modem Card - provides out-of-band remote notification and

monitoring using modem communication directly to cell phones and
pagers.

S Single-Port Card - connects to the Powerware Expansion Chassis to

enable multiple communication options or to a PC for power
management control.

S ConnectUPS-MX SNMP Card - has Ethernet, modem, and SNMP

capabilities.

S USB Card - connects to a USB port on your computer.

ConnectUPS-X Web/SNMP Card

Relay Interface Card

Modbus Card

Industrial Relay Card ConnectUPS-MX SNMP Card

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

NOTE The Powerware 9355 does not detect plug-and-p lay hardware. Before installing the
USB Card, set the UPS baud rate to 1200 through the front panel (see Table 8 on page 68).

SeeFigure33onpage47forthelocationofthetwoX-Slot
communication bays.

Multi-Server Card

Modem Card

Single-Port Card

USB Card

Figure 39. Optional X-Slot Cards

53

COMMUNICATION

Remote Monitor Panel

The optional RMP can be installed to monitor the operation of the UPS
from virtually any location within your facility, up to 152.4m (500 ft) from
the UPS. You can surface-mount an RMP on a desktop or on a wall,
wherever you have a serial interface line. Figure 40 shows an RMP.
Figure 41 shows the enclosure dimensions and cable exit openings.

Cable Exit Opening for 1/2” Conduit

or Provided Strain Relief

Horn Silence Button

54

Figure 40. Remote Monitor Panel

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Cable Exit Openings
for 1/2” Conduit or
Provided Strain Relief
(3 places)

COMMUNICATION

Mounting Slots
(6 places)

Dimensions are in mm [inches]

double-gang electrical box.

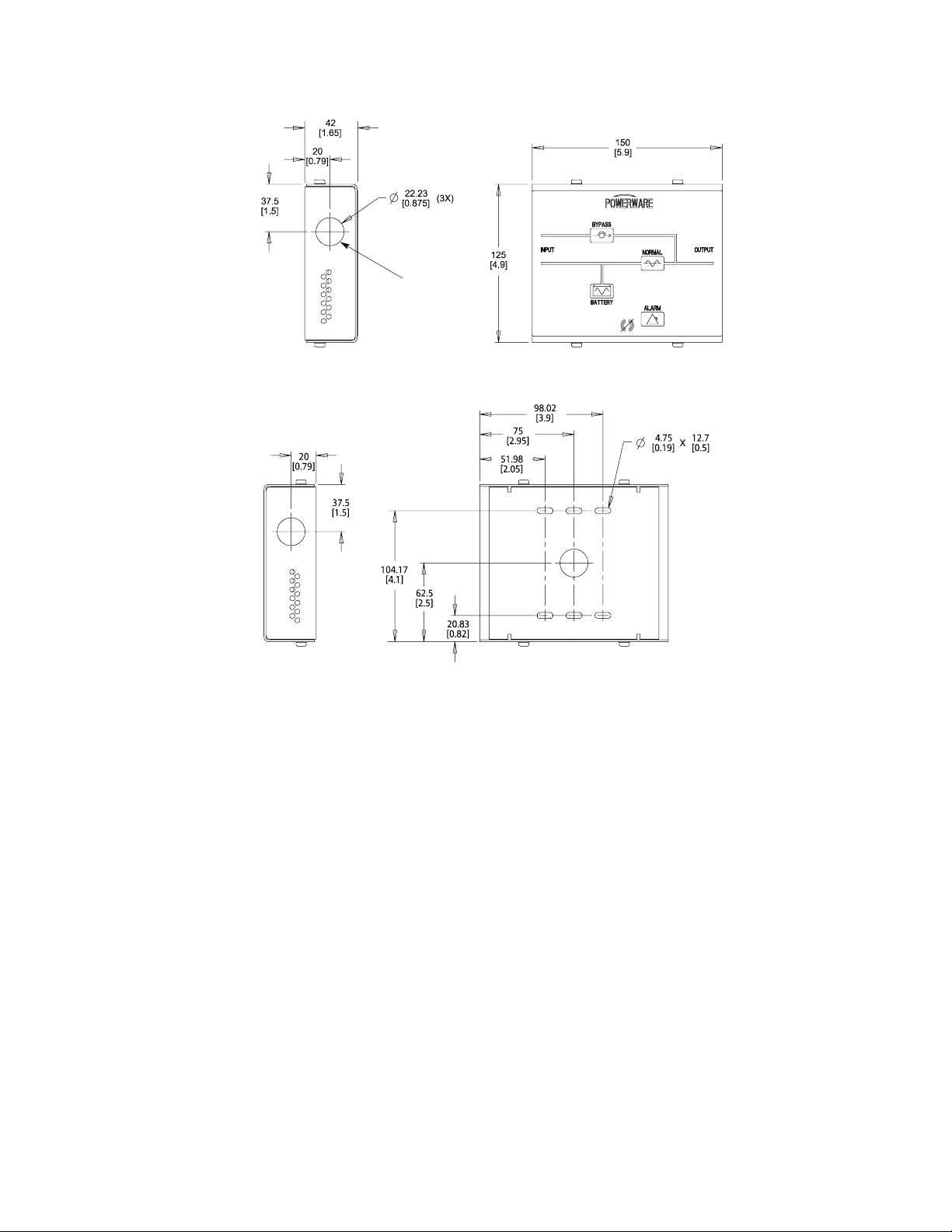

Figure 41. RMP Dimensions

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

NOTE Matches mounting holes on a single- or

55

COMMUNICATION

b

l

To install an RMP:

NOTE If mounting to a hollow wall, secure the enclosure bottom to a wood or metal stud
within the wall. Do not use hollow wall anchors. The RMP can also be mounted to a single­or double-gang electrical box.

1. If wall mounting, securely mount the RMP. Continue to Step 2.

If desk mounting, install the provided bumpers to the bottom of the
RMP enclosure. Proceed to Step 3.

2. Install 1/2” conduit from the RMP to the IRC through the cable exit

openings (see Figure 41). Proceed to Step 4.

3. Install wiring from the RMP to the IRC using the cable listed in

Table 4 and the provided strain relief bushings in the cable exit
openings in the IRC (see Figure 43) and the RMP.

4. Connect the wiring between the RMP and the IRC plug-in terminal

blocks using terminations shown in Table 4. See Figure 42 and
Figure 43 for plug-in terminal block locations.

56

Table 4. RMP Wire Terminations

From RMP Terminal To IRC Terminal Remarks

J1-1 J1-1

J1-3 J1-3

J1-4 J1-4

J1-5 J1-5

J1-6

J1-6

Use Beldon 8690 060 or

equivalentca

5. Install the IRC into an open X-Slot communication bay (see

page 48).

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

e

COMMUNICATION

6. To check the operation of the RMP, ensure that the UPS is

supplying the load via the inverter or bypass. If the indicators on the
RMP show the appropriate status, then it is operating correctly.

If the RMP is not operating correctly, check the wiring, the fuse on
the IRC, and the plug-in terminal blocks for proper seating. If all
connections are secure but the RMP still does not operate
correctly, replace the fuse. If this does not correct the problem,
contact your service representative for verification that the RMP is
working correctly.

Plug-in Terminal Block J1
to Industrial Relay Card

NOTE Conduit and wiring
supplied by the customer. The
maximum distance between
the RMP and the UPS is not to
exceed 152.4m (500 ft).

Figure 42. RMP Top Internal View

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

57

COMMUNICATION

Industrial Relay Card

The IRC uses normally-open or normally-closed dry relay contacts to
indicate the UPS status as listed in Table 5. Figure 43 shows an IRC.

Plug-in Terminal Block J1 to RMP

Cable Exit Opening for 1/2” Conduit

or Provided Strain Relief

Figure 43. Industrial Relay Card

Plug-in Terminal Block J2
from Relay Contacts
to Customer Monitoring Equipment

1. Verify that the UPS is turned off and all power sources are

removed.

2. Install wiring from the IRC to the monitoring equipment using 1/2”

conduit through the cable exit opening in the IRC (see Figure 43).

3. Connect wiring between the IRC and the monitoring equipment

using terminations shown in Table 5. See Figure 43 for plug-in
terminal block locations.

4. Install the IRC into an open X-Slot communication bay (see

page 48).

5. To check the operation of the IRC, ensure that the UPS is supplying

the load via the inverter or bypass. If the indicators on the
customer’s monitoring equipment show the appropriate status,
then it is operating correctly.

If the IRC is not operating correctly, check the wiring, the fuse on
the IRC, and the plug-in terminal blocks for proper seating. If all
connections are secure but the IRC still does not operate correctly,
replace the fuse. If this does not correct the problem, contact your
service representative for verification that the IRC is working
correctly.

58

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

COMMUNICATION

Normalmod

e

Bypassmod

e

Batterymode

Alarmmode

Table 5. IRC Wire Terminations

IRC Terminal Function Remarks

J2-1 NC

J2-2 COM

J2-3

J2-4 NC

J2-5 COM

J2-6

J2-7 NC

J2-8 COM

J2-9

J2-10 NC

J2-11 COM

J2-12

NO

NO

NO

NO

Normal mode

Bypass mode

Battery mode

Alarm mode

NOTE Maximum contact rating: 250 Vac, 30 Vdc @ 5A; Wire range: 16–24 AWG

Powerware LanSafe Power Management Software

Each Powerware 9355 UPS ships with Powerware LanSafe Power
Management Software and an interface cable. To begin installing
Powerware LanSafe software, see the instructions accompanying the
Software Suite CD.

NOTE Use only the supplied communication cable to connect the UPS to your computer.

Powerware LanSafe software provides up-to-date graphics of UPS
power and system data and power flow. It also gives you a complete
record of critical power events, and it notifies you of important UPS or
power information. If there is a power outage and the Powerware 9355
UPS battery power becomes low, Powerware LanSafe software can
automatically shut down your computer system to protect your data
before the UPS shutdown occurs.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

59

COMMUNICATION

Control Terminals

The cables should be connected to the control terminals with a mating
connector. Input and output terminals have a functional isolation from
terminal to terminal. They are connected to the UPS chassis through
individual 1 MΩ resistors.

+ Polarity

UPS
Connectors
(see Figure 33 on
page 47)

2

– Polarity

1

+ Polarity

2

– Polarity

1

2

REPO Normally Open

1

2

REPO Normally Closed

1

Common

3

Normally Closed

2

Normally Open

1

Signal Input 1 (programmable)

Signal Input 2 (programmable)

Relay Output

60

Figure 44. External Control Terminal Connections

NOTE If using a semiconductor switch type, pay attention to the proper polarity. A relay or
other mechanical control is preferred.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

COMMUNICATION

12–22AW

G

Remote Emergency Power-off

REPO is used to shut down the UPS from a distance. This feature can
be used for shutting down the load and the UPS by thermal relay, for
instance in the event of room overtemperature. When REPO is
activated, the UPS shuts down all converters, de-energizes all system
relays, and fully powers down within 10-15 seconds.

There are two REPO positions that may be used, normally-open or
normally-closed.

The pins on the normally-closed REPO connector are connected
together. When this connection is open, the logic circuitry completely
shuts down the UPS, thus preventing the power from supplying the
load.

If the use of normally-closed REPO operation is desired, replace the
connector with a normally-closed external switch (see Figure 33 on
page 47).

If the use of normally-open REPO operation is desired, connect a
normally-open external switch (see Figure 33 on page 47).

NOTE To restart the UPS, reconnect the REPO connector pins and turn on the UPS
manually. The pins must be shorted to keep the UPS running. Maximum resistance is 10 ohm.

NOTE Leave the REPO connector installed in the REPO port on the UPS rear panel even if
the REPO function is not needed.

CAUTION

The REPO must not be connected to any utility connected circuits. Reinforced insulation to
the utility is required. The REPO switch must have a minimum rating of 24 Vdc and 20 mA.

To ensure the UPS stops supplying power to the load during any mode of operation, the
input power must be disconnected from the UPS when the emergency power-off function is
activated.

REPO Connections

Wire Function Terminal Wire Size Rating Suggested Wire Size

REPO

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

L1

L2

(4–0.32 mm2)

18 AWG (0.82 mm2)

61

COMMUNICATION

Relay Output Contacts

The UPS incorporates a programmable relay output with potential free
contacts for remote alarm indications (see Figure 33 on page 47). An
additional four relay outputs can be obtained with the X-Slot compatible
Relay Interface Card.

WARNING

The relay contacts must not be connected to any utility connected circuits. Reinforced
insulation to the utility is required. The relay contacts must have a maximum rating of
30 Vdc/1A and 60 Vdc/2A nominal values.

Programmable Signal Inputs

The UPS incorporates two programmable signal inputs (see Figure 33 on
page 47). Use of non-polar (relay) control input is recommended. The
pins must be shorted with maximum resistance of 10 ohm in order to
activate the specific input.

NOTE See Figure 44 on page 60 for the polarity and verify these connections if polarity
control is required.

62

The default and programmable settings for the signal inputs are shown
in Table 6.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

COMMUNICATION

Table 6. Programmable Signal Inputs

Signal Description

Disable Bypass Operation If active, the automatic transfer to the static bypass is prevented.

Charger Off If active, the battery charge function is disabled. In a utility power outage, the

discharge of batteries is supported.

Remote ON/OFF If active, the UPS output turns off regardless of the mode of operation.

Auxiliary power, fan, communication, and rectifier/battery charger remain
functional. Restart is initiated immediately when this signal is inactive.

Request Bypass If active, the UPS transfers to bypass if the bypass voltage, frequency, and

synchronization are all okay.

Request Normal If active, the UPS transfers to inverter operation if not prohibited by REPO or an

alarm condition.

Force Bypass If active, the UPS is forced to static bypass operation regardless of the bypass

status.

External Battery Breaker Status If active, the UPS knows that the batteries are disconnected.

Building Alarm 1–6 These alarms can be activated separately or at the same time with other

building alarms.

Not in Use Default

Shutdown If active, the UPS shuts down immediately.

Delayed Shutdown If active, the UPS shuts down after a user-configured delay time. Default

shutdown delay is 120 seconds. The UPS automatically restarts when the
signal changes to inactive.

Normal/Bypass If active, the UPS transfers to bypass if okay. If inactive, the UPS transfers to

the inverter when possible.

On Generator If active, the UPS knows that input is fed from the generator. Bypass is

disabled; the automatic battery test is disabled.

External Transformer

This option is not used.

Overtemperature

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

63

COMMUNICATION

64

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Chapter 9 Operation

This chapter contains information on how to use the Powerware 9355,
including front panel operation, UPS startup and shutdown, and
configuring the UPS for Extended Battery Modules.

Control Panel Functions

The UPS has a four-button graphical LCD with backlight. It provides
useful information about the UPS itself, load status, events,
measurements, and settings (see Figure 45).

for the LCD Menu Options

Power On Indicator (Green)
On Battery Indicator (Yellow)

Bypass Indicator (Yellow)
Alarm Indicator (Red)

Control Buttons

Figure 45. Powerware 9355 Control Panel

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

65

OPERATION

The following table shows the indicator status and description.

Indicator Status Description

On The UPS is operating normally.

Green

Yellow

Yellow

Red

Flashing

Off The UPS is turned off and will not turn on automatically.

On The UPS is in Battery mode.

On The UPS is in Bypass mode.

On The UPS has an active alarm.

Flashing There is a new UPS alarm condition. See “Troubleshooting” on page 87 for

S The UPS is starting up or is shut down and waiting for power to return.
S A new information message is active.
S Bypass is not available.

additional information.

66

Changing the Language

Press and hold the first button on the left for approximately five seconds
to select the language menu. This action is possible from any LCD menu
screen.

Display Functions

As the default or after 15 minutes of inactivity, the LCD displays the
selectable startup screen. The default is the Eaton Powerware logo and
can be changed to the Mimic screen in the User Settings menu.

The backlit LCD automatically dims after a long period of inactivity. Press
any button to restore the screen.

Use the two middle buttons (
structure. Press the

button to enter a submenu. Press the button
to select an option. Press the
previous menu.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

and ) to scroll through the menu

ESC

button to cancel or return to the

OPERATION

g

The following table shows the basic menu structure.

Table 7. Menu Map for Display Functions

Main Menu Submenu Display Information or Menu Function

UPS Status UPS off / System normal / UPS supporting load / UPS on

battery / UPS on bypass / Active alarm list / Battery status

Event Log Displays up to 100 events and alarms

Measurements

Output L-N and L-L / Current / Frequency / Power

Battery Voltage / Current / Runtime

Input L-N and L-L / Current / Frequency

Bypass L-N and L-L / Frequency

Control

Go to Bypass Mode Forces the UPS to go to Bypass.

When this command is active, the option changes to Go to
Normal Mode.

Start Battery Test Initiates a battery test

Display Test Four different selectable tests for the front panel

functions: the LEDs cycle through, the alarm beep sounds,
the backlight turns off and on, and the pixels scroll
through to test the LCD.

Settings

User Settings See Table 8 for detail.

Service Settings This screen is password-protected.

Identification UPS Type / Part Number / Serial Number / Firmware /

Display / CAN Bridge

Turn UPS ON/OFF ON and OFF Options

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

67

OPERATION

User Settings

The following table displays the options that can be changed by the
user.

NOTE Changes to the output voltage or frequency options should be made before turning
on the UPS; otherwise, the changes do not take effect.

Table 8. User Settings

Description Available Settings Default Setting

Set Date and Time Set Month

Date: mm/dd/yyyy
Time: 24:00

Display Contrast Adjust contrast with up/down arrow

buttons

Change Language Select Language:

<English> or <Spanish>

Set Nominal Input Voltage Output:

[120V/208V] [127V/220V]

Relay Config Relay: [Alarm 1] [X-Slot 1-1/2/3/4] or

[X-Slot 2-1/2/3/4]
Setup: [Battery Low] [On Battery] [On

Bypass] [UPS ok] [custom] [empty]

Signal Inputs [empty] [Logic]

(see “Programmable Signal Inputs”
on page 62)

Serial Port Config Port: [X-Slot-1] [X-Slot-2/Serv]

Speed: [19200] [9600] [2400] [1200]

Start Screen Eaton Powerware logo

Mimic Screen

User Password Enabled/Disabled

If Enabled is selected, the password is
USER.

Audible Alarms Normal Sound/Disabled Normal Sound

Battery Charging ABM cycling/constant ABM cycling

01/01/2003
00:00

Moderate

English

120V/208V

Alarm1:empty
X-Slots(1or2)
#1: UPS ok
#2: On Bypass
#3: Summary Alarm
#4: On Battery

Empty

19200

Eaton Powerware logo

Disabled

68

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Table 8. User Settings (continued)

OPERATION

Default SettingAvailable SettingsDescription

Automatic Battery Tests Enabled/Disabled

Enabled
Enabled automatically runs the
battery test once a month.

Full Power Battery Test Enabled/Disabled Enabled

Number of Battery Strings 0 through 22

(see “Configuring the UPS for EBMs”

2 strings for UPS-32 models

4 strings for UPS-64 models
on page 73)

Battery Capacity 1 through 65535 watts per cell 34 W/cell

Battery Low Alarm Level 1.750 through 1.950 volts per cell 1.880 V/cell

Bypass Voltage High Limit +1 through +20% (1% increments) 120V +10%

Bypass Voltage Low Limit -1 through -20% (1% increments) 120V -15%

Nominal Output Frequency 50 Hz or 60 Hz 60 Hz

Synchronization Enabled/Disabled Enabled

Synchronization Window ±0.5 through ±3.0 Hz

±2.0 Hz
(0.1 Hz increments)

Unsynchronized Transfer to Bypass Allowed/Not Allowed Not Allowed

Usage of Bypass Enabled/Disabled Enabled

Transfer to Bypass When Overload After a delay/Immediately After a delay

Automatic Start Delay -1 through 32767 seconds

0s
(-1 means disabled)

Control Commands from X-Slot1 Allowed/Disabled Allowed

Control Commands from X-Slot2/Serv Allowed/Disabled Allowed

X-Slot Signal Input Activation Delay 0 through 65 seconds 5s

Input signal delayed shutdown delay 1 through 65535 seconds 120s

Site Wiring Fault Notice Enabled/Disabled Enabled

Reset Custom Event Settings 0 through 32 Empty

Auto Output Configuration Enabled/Disabled Enabled for initial startup

Disabled after initial startup

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

69

OPERATION

Initial Startup

UPS Startup

Startup and operational checks must be performed by an authorized
Eaton Customer Service Engineer, or the warranty terms as specified on
page 91 become void. This service is offered as part of the sales
contract for the UPS. Contact service in advance (usually a two-week
notice is required) to reserve a preferred startup date.

WARNING

Only qualified service personnel (such as a licensed electrician) should perform the UPS
installation and initial startup. Risk of electrical shock.

Verify that UPS installation has been carried out correctly and the UPS
ground has been connected.

Maintenance Bypass Startup

To start up the UPS in maintenance bypass:

1. Verify that the maintenance bypass switch is in the BYPASS

position(seeFigure46onpage79).

70

2. Switch on utility power where the UPS is connected. The load is

now powered by utility power.

To switch to Normal mode from maintenance bypass:

1. If an optional isolation transformer is installed, switch the input

circuit breaker to the ON position.

2. Turn the maintenance bypass switch to the SERVICE position.

The UPS starts up in Bypass mode, with the load still powered by
utility power.

3. Remove the breaker tie from all battery circuit breakers.

4. Switch all battery circuit breakers to the ON position.

NOTE Wait until the indicator illuminates before proceeding to Step 5; otherwise,
power to the load may be lost.

5. Turn the maintenance bypass switch to the UPS position to return

to Normal mode. The UPS is now powering the load.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

OPERATION

Internal Bypass Startup

To start up the UPS in Bypass mode:

1. Verify that the maintenance bypass switch is in the UPS position

(see Figure 46 on page 79).

2. If an optional isolation transformer is installed, switch the input

circuit breaker to the ON position.

3. Switch on utility power where the UPS is connected.

4. Wait for the front panel LCD to illuminate.

The

indicator flashes.

5. Remove the breaker tie from all battery circuit breakers.

6. Switch all battery circuit breakers to the ON position.

The

indicator stops flashing.

7. Press any button on the front panel display to activate the menu

options.

8. Using the

menu option and press the

9. Press the

The

button on the front panel display, scroll to the Control

button.

button to select the Go to Bypass Mode option.

and

indicators illuminate, indicating the UPS is

μ

operating in Bypass mode. The load is now powered by utility
power.

To switch to Normal mode from internal Bypass mode:

1. Press the

2. Press the

button to select the Go To Normal Mode option.

ESC

button until the Eaton Powerware logo appears.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

71

OPERATION

Normal Mode Startup

To start up the UPS:

1. Verify that the maintenance bypass switch is in the UPS position

(see Figure 46 on page 79).

2. If an optional isolation transformer is installed, switch the input

circuit breaker to the ON position.

3. Switch on utility power where the UPS is connected.

4. Wait for the front panel LCD to illuminate.

The

5. Remove the breaker tie from all battery circuit breakers.

6. Switch all battery circuit breakers to the ON position.

The

7. Press any button on the front panel display to activate the menu

options.

8. Press the

button to select the TURN UPS ON/OFF menu.

9. Select the ON option. Press and hold the

seconds, until the UPS stops beeping.

The

If the
panel to view the active alarms. Correct the alarms and restart if
necessary.

indicator flashes.

indicator stops flashing.

button on the front panel display and then press the

button for three

indicator illuminates. The UPS is now powering the load.

μ

indicator is flashing, check the UPS status from the front

72

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

OPERATION

Starting the UPS on Battery

NOTE Before using this feature, the UPS must have been powered by utility power at least
once.

To start the UPS on battery:

1. Verify that the maintenance bypass switch is in the UPS position

(see Figure 46 on page 79).

2. Switch all battery circuit breakers to the ON position.

NOTE Leave the battery circuit breaker(s) in the ON position during this operation. If you
need to cancel this operation, wait until the front panel LCD illuminates before switching the
battery circuit breaker(s) o ff.

3. Wait for the front panel LCD to illuminate.

4. Press any button on the front panel display to activate the menu

options.

5. Within three minutes, press the

and then press the
menu.

6. Select the ON option. Press and hold the

seconds, until the UPS stops beeping.

The UPS starts within two minutes. The UPS supplies power to
your equipment and goes into Battery mode.

Configuring the UPS for EBMs

To ensure maximum battery runtime, configure the UPS for the correct
number of EBMs:

1. Press any button on the front panel display to activate the menu

options.

2. Using the

3. Press the

4. Using the

and press the

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

button on the front panel display

button to select the TURN UPS ON/OFF

button for three

button, scroll to the Settings menu.

button twice to select the User Settings menu.

button, scroll to the Number of Battery Strings option

button.

73

OPERATION

5. Use the or arrow buttons to select the number of strings

according to your UPS configuration:

All 2-High UPS and EBM Cabinets*

Number of Strings

UPS + 1 EBM 6

UPS + 2 EBMs 10

UPS + 3 EBMs 14

UPS + 4 EBMs 18

All 3-High UPS and EBM Cabinets* Number of Strings

UPS + 1 EBM 10

UPS + 2 EBMs 16

UPS + 3 EBMs 22

*UPS-32 models contain 2 strings; EBM-64 models contain 4 strings.
UPS-64 models contain 4 strings; EBM-96 models contain 6 strings.

6. Press the button to save the setting.

ESC

7. Press the

button until the Eaton Powerware logo appears.

74

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

UPS Shutdown

OPERATION

To shut down the UPS:

1. Press any button on the front panel display to activate the menu

options.

2. Press the

button on the front panel display and then press the

button to select the TURN UPS ON/OFF menu.

3. Select the OFF option; press the

4. Confirm the selection; press the

5. Press and hold the

button for three seconds, until the UPS stops

button.

button.

beeping.

The input contactor opens.

6. Switch the UPS battery circuit breaker to the OFF position.

The UPS is disconnected from the batteries and is on logic power
only.

7. Switch off utility power where the UPS is connected.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

75

OPERATION

76

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Chapter 10 UPS Maintenance

This section explains how to:

S Care for the UPS and batteries

S Recycle used batteries

S Use the maintenance bypass switch

UPS and Battery Care

For the best preventive maintenance, keep the area around the UPS
clean and dust-free. If the atmosphere is very dusty, clean the outside of
the system with a vacuum cleaner.

For full battery life, keep the UPS at an ambient temperature of
77°F(25°C).

NOTE The batteries in the UPS are rated for a 3–5 year service life. The length of
service life varies, depending on the frequency of usage and ambient temperature.
Batteries used beyond expected service life will often have severely reduced runtimes.
Replace batteries at least every 5 years to keep units running at peak efficiency.

Storing the UPS and Batteries

When storing the UPS and optional cabinets, the following requirements
should be met:

S Verify that the battery circuit breaker is in the OFF position.

S Avoid temperature and humidity extremes. To maximize battery life,

the recommended storage temperature is 59°F(15°C) to 77°F(25°C).

S If you store the UPS for a long period, recharge the batteries every

10 months by applying utility power. The batteries charge to 80%
capacity in approximately 3 hours. However, it is recommended that
the batteries charge for 48 hours after long-term storage.

S Check the battery recharge date on the shipping carton label. If the

date has expired and the batteries were never recharged, do not use
the UPS. Contact your service representative.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

77

UPS MAINTENANCE

When to Replace Batteries

When the indicator flashes and the LCD panel displays Battery
Failure, the batteries may need replacing. Contact your service
representative to order new batteries.

Change the batteries approximately every five years.

Recycling the Used Battery or UPS

Contact your local recycling or hazardous waste center for information
on proper disposal of the used battery or UPS.

S Do not dispose of the battery or batteries in a fire. Batteries may explode. Proper

disposal of batteries is required. Refer to your local codes for disposal requirements.

S Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the

skin and eyes. It may be toxic.

Do not discard the UPS or the UPS batteries in the trash. This product contains sealed,
lead-acid batteries and must be disposed of properly. For more information, contact your
local recycling/reuse or hazardous waste center.

WARNING

CAUTION

78

CAUTION

Do not discard waste electrical or electronic equipment (WEEE) in the trash. For proper
disposal, contact your local recycling/reuse or hazardous waste center.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Using the UPS Maintenance Bypass Switch

The UPS maintenance bypass switch is located on the back of the UPS
(see Figure 46).

The maintenance bypass switch is used to bypass the UPS during
maintenance or servicing. The switch provides a wrap-around bypass
without shutting down the load. The SERVICE position on the switch
allows a service engineer to apply power to the UPS input and verify its
operation while the load is powered through bypass.

UPS MAINTENANCE

Figure 46. Maintenance Bypass Switch

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

79

UPS MAINTENANCE

To switch the UPS to maintenance bypass from Normal mode:

1. Turn the maintenance bypass switch through the SERVICE position

to the BYPASS position.

The battery circuit breaker trips, and the UPS is now bypassed, with
the load powered by utility power.

2. The UPS automatically shuts down.

To return to Normal mode from maintenance bypass:

1. Turn the maintenance bypass switch to the SERVICE position.

The UPS starts up in Bypass mode, with the load still powered by
utility power.

2. Switch the UPS battery circuit breaker to the ON position.

NOTE Wait until the indicator illuminates before proceeding to Step 3; otherwise,
power to the load may be lost.

80

3. Turn the maintenance bypass switch to the UPS position to return

to Normal mode. The UPS is now powering the load.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Chapter 11 Specifications

This section provides the following specifications for the Powerware
9355 models:

S Model list

S Dimensions and weights

S Environmental and safety specifications

S Technical specifications

S Model specifications

S Battery specifications

S Battery runtimes

Table 9. Model List

UPS Description Power Rating

PW9355-10-32 2-high: UPS with one battery section

3-high: UPS with one battery and one isolation transformer section

PW9355-10-64 3-high: UPS with two battery sections 10 kVA, 9 kW

PW9355-15-32 2-high: UPS with one battery section

3-high: UPS with one battery and one isolation transformer section

PW9355-15-64 3-high: UPS with two battery sections 15 kVA, 13.5 kW

EBM Description

EBM-64 2-high: two battery sections

EBM-96 3-high: three battery sections

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

10 kVA, 9 kW

15 kVA, 13.5 kW

81

SPECIFICATIONS

Table 10. Dimensions and Weights

Dimensions (H × W × D)

Weight

2-High UPS

3-High UPS-32

3-High UPS-64

2-High EBM

3-High EBM

32.2” × 12” × 33.5”
(81

× 30 × 85 cm)

47.8” × 12” × 33.5”
(121.5

× 30 × 85 cm)

47.8” × 12” × 33.5”
(121.5

× 30 × 85 cm)

32.2” × 12” × 30.3”
(81

× 30 × 77 cm)

47.8” × 12” × 30.3”
(121.5

× 30 × 77 cm)

381 lb (173 kg)

587 lb (266 kg)

619 lb (281 kg)

480 lb (218 kg)

710 lb (322 kg)

Table 11. Environmental and Safety Specifications

Operating Temperature 10°Cto40°C(50°F to 104°F)

Optimal battery performance: 25°C(77°F)

Transit Temperature -25°Cto55°C(-13°F to 131°F)

Storage Temperature 0°Cto25°C(32°Fto77°F)

Recommended battery storage: 15°Cto25°C(59°Fto77°F)

Ventilation Front air intake, forced air, two fans, positive pressurization,

temperature UPS-monitored

Altitude 9,843 ft (3,000m) operating without derating

32,810 ft (10,000m) during transportation

Relative Humidity 5–95% noncondensing

Audible Noise <56 dBA at 1 meter distance, typical loads

<62 dBA for heavy load, high ambient or high altitude, on battery

Surge Suppression ANSI C62.41 Category B3

Safety Conformance NOM-019-SCFI, UL 1778, CSA C22.2, No. 107.3;

EN 55022 Class A (CISPR22 Class A) and IEC 60950; IEC 62040-1-1

Agency Markings UL, cUL, CE (pending)

EMC (Class A) IEC 62040-2, FCC Part 15, ICES-003

82

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

SPECIFICATIONS

Table 12. Technical Specifications

Technology Online, double-conversion topology with static bypass switch and 3-position

maintenance bypass switch.

Frequency independent operation.

Input Voltage Range 75/130–144/249 Vac per phase

Input Power Factor >0.99 at full load nominal line conditions

Input Rated Voltage 120/208 or 127/220 Vac three-phase

Isolation Transformer Input
Voltage Range

480V or 600V ±20%

60 Hz only

Input Frequency Range 45–65 Hz

Input Rated Frequency 50/60-Hz selectable, auto-configuring

Output Voltage Regulation ±1% static, Phase to Neutral

±2% static, Phase to Phase

±5% dynamic at 100% resistive load change

Response time <1 ms

Output Voltage Distortion <2% THD linear load

<5% THD non-linear load

Output Frequency 50/60-Hz selectable or auto-configuring

Output Frequency

Synchronization to line

Regulation

Output Overload 101–110% for 10 minutes

111–125% for 60 seconds

126–149% for 5 seconds

>150% for 300 milliseconds

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

83

SPECIFICATIONS

Table 13. Model Specifications

10 kVA Model

Output Voltage (Line–Line) 208 208 208 220

Output Voltage (Line–Neutral) 120 120 120 127

Input Voltage 208 480 (with input

isolation

transformer)

600V (with input

isolation

transformer)

220

Input Current 32.2A 16A 13.3A 30.5A

Output Current 27.8A 27.8A 27.8A 26.2A

Output kVA 10 10 10 10

Output kW 9 9 9 9

Efficiency (Minimum) 89% 83% 83% 89%

Heat Rejection [BTU/hr (kg-cal/hr)] 3798 (956) 6294 (1585) 6294 (1585) 3798 (956)

15 kVA Model

Output Voltage (Line–Line) 208 208 208 220

Output Voltage (Line–Neutral) 120 120 120 127

Input Voltage 208 480 (with input

isolation

transformer)

600 (with input

isolation

transformer)

220

Input Current 48A 24A 20A 45.7A

Output Current 41.6A 41.6A 41.6A 39.4A

Output kVA 15 15 15 15

Output kW 13.5 13.5 13.5 13.5

Efficiency (Minimum) 90% 85% 85% 90%

Heat Rejection [BTU/hr (kg-cal/hr)] 5122 (1290) 8134 (2048) 8134 (2048) 5122 (1290)

84

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

SPECIFICATIONS

Table 14. Battery Specifications

Battery Type 9 Ah sealed, valve-regulated lead acid (VRLA), maintenance-free, minimum 3-year float

servicelifeat25°C(77°F), voltage 192 Vdc (96 cells per string)

Number of Strings Maximum of 22 strings per full configuration, including UPS batteries

(4 EBM-64 cabinets or 3 EBM-96 cabinets, plus UPS batteries)

UPS-32: 2 strings; UPS-64: 4 strings

EBM-64: 4 strings; EBM-96: 6 strings

Battery Replacement Must be replaced by a qualified service technician

Charger Service configurable 0.5–34A per string, with overall maximum of 34A (limited by input

current). Default: 3.4A per string

Charging Internal battery: approximately 3 hours to 80% usable capacity at nominal line voltage

after full load discharge
External battery: no more than 10x discharge time to 90% usable capacity at nominal line

voltage after full load discharge

Start-on-Battery Allows start of UPS without utility input

Performance ABM technology increases battery service life, optimizes recharge time, and provides a

warning before the end of useful battery life

Protection Extended Battery Module output protected by 100A circuit breaker

Table 15. Battery Runtimes (in Minutes) at Full Load

2-High Cabinets

Load

32 Internal UPS

Batteries

(1) EBM-64 (2) EBM -64 (3) EBM-64 (4) EBM-64

15 kVA/13.5 kW 4 23 43 65 88

10 kVA/9 kW 8 37 69 106 144

3-High Cabinets

Load

64 Internal UPS

Batteries

(1) EBM-96 (2) EBM -96 (3) EBM-96

15 kVA/13.5 kW 13 43 76 113

10 kVA/9 kW 22 69 124 184

NOTE Battery times are approximate and vary depending on the load configuration and battery charge.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

85

SPECIFICATIONS

86

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Chapter 12 Troubleshooting

The Powerware 9355 is designed for durable, automatic operation and
also alerts you whenever potential operating problems may occur.
Usually the alarms shown by the control panel do not mean that the
output power is affected. Instead, they are preventive alarms intended
to alert the user. Use the following troubleshooting chart to determine
the UPS alarm condition.

Typical Alarms and Conditions

The following table describes typical alarms and conditions; check the
Event Log through the control panel for a list of active alarms. If an alarm
appears with a service code, please contact the Help Desk (see
page 89).

Alarm or Condition Possible Cause Action

On Battery

LED is on.
1 beep every second.

Battery Low

LED is on.
Continuous beep for
10 seconds.

Battery Breaker

LED is on.
1 beep every second.

Overload

LED is on.
1 beep every second.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

A utility failure has occurred and the
UPS is in Battery mode.

The battery is running low. Five minutes or less of battery power remains

The UPS does not recognize the
internal batteries.

Power requirements exceed the UPS
capacity (greater than 100% of
nominal; see page 83 for specific
output overload ranges).

The UPS is powering the equipment with battery
power. Prepare your equipment for shutdown.

(depending on load configuration and battery
charge). Save your work and turn off your
equipment.

When utility power is restored, the UPS restarts
automatically, provides power to the load, and
charges the battery.

Verify the battery circuit breaker is in the ON
position. If the condition persists, contact your
service representative.

Remove some of the equipment from the UPS. The
UPS continues to operate, but may switch to
Bypass mode if the load increases. The alarm
resets when the condition becomes inactive.

87

TROUBLESHOOTING

p

ActionPossible CauseAlarm or Condition

Overtemperature

LED is on.
1 beep every second.

Battery test failed The batteries need service. Contact your service representative.

The UPS does not start.

Power is not available to
the UPS output.

The UPS does not
provide the expected
backup time.

UPS internal temperature is too high
or the fan has failed.

The main utility breaker is off. Verify that the main utility breaker is on.

If an optional isolation transformer is
installed, the input circuit breaker is
off.

The Remote Emergency Power-off
switch is active or the REPO
connector is missing.

The UPS is in Standby mode. Supply power to the connected equipment: Press

The batteries need charging or
service.

Battery circuit breakers are in the OFF
position.

Turn the maintenance bypass switch to the
SERVICE position. Otherwise, shut down the UPS.
Clear vents and remove any heat sources. Allow
the UPS to cool. Ensure the airflow around the UPS
is not restricted.

If the alarm disappears, turn the maintenance
bypass switch back to the UPS position.

If the condition persists, contact your service
representative.

Verify that the isolation transformer input circuit
breaker is on.

Reset the REPO switch and restart the UPS. Verify
that the REPO connector is present.

any button on the front panel display to activate the
menu options. Press the button on the front panel
display and then press
the button to select the TURN UPS ON/OFF
menu. Select the ON option. Press and hold the
button for three seconds, until the UPS stops
beeping.

Apply utility power for 48 hours to charge the
batteries. If the condition persists, contact your
service representative.

Switch all battery circuit breakers to the ON
position.

Silencing the Alarm

Before silencing an alarm, check the alarm condition and perform the
applicable action to resolve the condition.

Press any button on the front panel display to silence the alarm. If the
alarm status changes, the alarm beeps again, overriding the previous
alarm silencing.

88

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Service and Support

If you have any questions or problems with the UPS, call your Local
Distributor or the Help Desk at one of the following telephone numbers

and ask for a UPS technical representative.

TROUBLESHOOTING

United States:
Canada: 1-800-461-9166 ext 260
All other countries: Call your local service representative

Please have the following information ready when you call for service:

1-800-843-9433 or 1-919-870-3028

S Model number

S Serial number

S Firmware version number

S Date of failure or problem

S Symptoms of failure or problem

S Customer return address and contact information

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

89

TROUBLESHOOTING

90

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

Chapter 13 Limited Warranty

WARRANTOR: The warrantor for the limited warranties set forth herein is Eaton Power Quality Corporation, a

Delaware Corporation (“Eaton”).

LIMITED WARRANTY: This limited warranty (this “Warranty”) applies only to the original end-user (the “End-User”)

of the Powerware 3 Phase UPS Products (the “Product”) and cannot be transferred. This Warranty applies even in
the event that the Product is initially sold by Eaton for resale to an End-User.

LIMITED WARRANTY PERIOD: The period covered by this Warranty for Product installed [and currently located] in

the fifty (50) United States and the District of Columbia is twelve (12) months from the date of Product start-up or
eighteen (18) months from date of Product shipment, whichever occurs first. The period covered by this Warranty
for Product installed [and currently located] outside of the fifty (50) United States and the District of Columbia is
twelve (12) months from the date of Product start-up or eighteen (18) months from date of Product shipment,
whichever occurs first.

WHAT THIS LIMITED WARRANTY COVERS: The warrantor warrants that the Powerware three-phase UPS

electronics, Eaton-built accessories, and Powerware-built battery cabinets, (individually and collectively, the
“Warranted Items”) are free from defects in material and workmanship. If, in the opinion of Eaton, a Warranted
Item is defective and the defect is within the terms of this Warranty, Eaton’s sole obligation will be to repair or
replace such defective item (including by providing service, parts and labor, as applicable), at the option of Eaton.
The Warranted Item will be repaired or replaced onsite at the End -User’s location or such other location as
determined by Eaton. Any parts that are replaced may be new or reconditioned. All parts replaced by Eaton shall
become the property of Eaton.

WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Warranty does not cover any defects or damages

caused by: (a) failure to properly store the Product before installation, including the “trickle charge” of batteries no
later than the date indicated on the packaging; (b) shipping and delivery of the Product if shipping is FOB Factory; (c)
neglect, accident, abuse, misuse, misapplication, incorrect installation; (d) repair or alteration, not authorized in
writing by Eaton personnel or performed by an authorized Eaton Customer Service Engineer or Agent; or (e)
improper testing, operation, maintenance, adjustment, or any modification of any kind not authorized in writing by
Eaton personnel or performed by an authorized Eaton Customer Service Engineer or Agent.

This Warranty is not valid: (a) unless an authorized Eaton Customer Service Engineer (in USA) or Agent (outside of
USA) performs start-up and commissioning of the Product; (b) if the Product is moved to a new location by
someone other than an authorized Eaton Customer Service Engineer (in USA) or Agent (outside of USA); or (c) if the
Product’s serial numbers have been removed or are illegible. Any Warranted Items repaired or replaced pursuant to
this Warranty will be warranted for the remaining portion of the original Warranty subject to all the terms thereof.
Labor warranty is not provided for Product located outside of the fifty (50) United States or the District of Columbia.

Any equipment, parts or materials included in the Product and not manufactured by Eaton are warranted solely by
the manufacturer of such equipment, parts or materials and are not included as part of this warranty. Batteries
are not warranted by Eaton.

THIS WARRANTY IS THE END-USER’S SOLE REMEDY AND IS EXPRESSLY IN LIEU OF, AND THERE ARE NO OTHER,
EXPRESSED OR IMPLIED GUARANTEES OR WARRANTIES (INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR ANY PURPOSE, WHICH ARE EXPRESSLY DISCLAIMED).

LIMITATION OF LIABILITY:

damages of any kind or type whatsoever, or based on any claim or cause of action, however denominated. Eaton
shall not be responsible for failure to provide service or parts due to causes beyond Eaton’s reasonable control. In
no case will Eaton’s liability under this Warranty exceed the replacement value of the Warranted Items.

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com

In no event shall Eaton be liable for any indirect, incidental, special or consequential

91

LIMITED WARRANTY

END-USER’S OBLIGATIONS: In order to receive the benefits of this Warranty, the End -User must use the Product

in a normal way; follow the Product’s operators and maintenance manual; and protect against further damage to the
Product if there is a covered defect.

OTHER LIMITATIONS: Eaton’s obligations under this Warranty are expressly conditioned upon receipt by Eaton of

all payments due to it (including interest charges, if any). During such time as Eaton has not received payment of
any amount due to it for the Product, in accordance with the contract terms under which the Product is sold, Eaton
shall have no obligation under this Warranty. Also during such time, the period of this Warranty shall continue to run
and the expiration of this Warranty shall not be extended upon payment of any overdue or unpaid amounts.

COSTS NOT RELATED TO WARRANTY: The End-User shall be invoiced for, and shall pay for, all services not

expressly provided for by the terms of this Warranty, including without limitation, site calls involving an inspection
that determines no corrective maintenance is required. Any costs for replacement equipment, installation,
materials, freight charges, travel expenses or labor of Eaton representatives outside the terms of this Warranty will
be borne by the End-User.

OBTAINING WARRANTY SERVICE: In the USA, call the Eaton Customer Reliability Center 7x24 at 800-843-9433.

Outside of the USA, call your local Eaton sales or service representative, or call the Eaton Customer Reliability
Center in the USA at 919-870-3028. For comment or questions about this Limited Factory Warranty, write to the
Customer Quality Representative, 3301 Spring Forest Road, Raleigh, North Carolina 27616 USA.

92

EATON Powerware®9355 UPS (10/15 kVA) User’s Guide S 164201594 Rev B www.powerware.com
