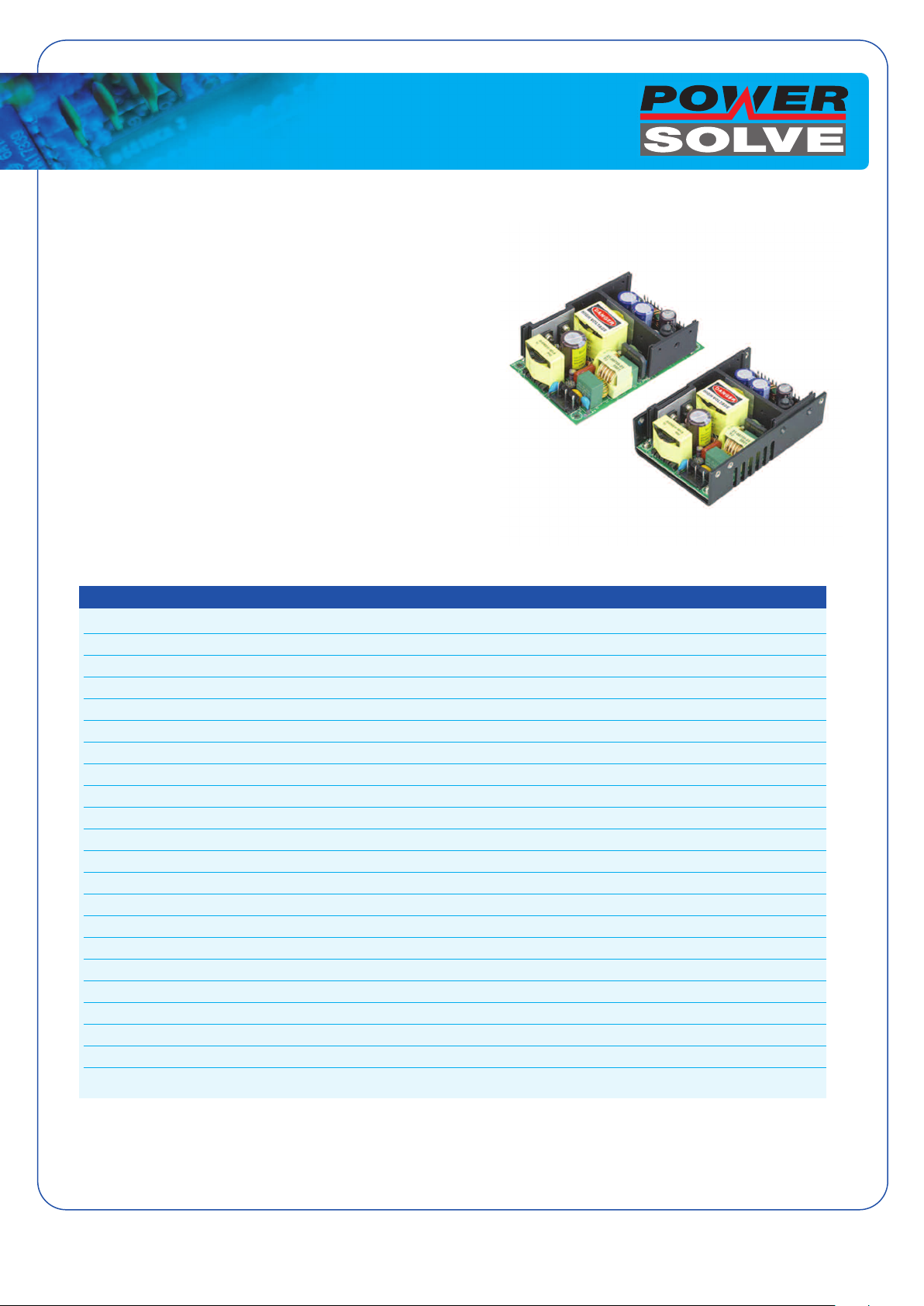

AACC--DDCC CCoonnvveerrtteerrs
s
PSO120/PSU120 Series
Single, Dual & Triple Outputs
Up to 120 Watts
Features
• Power Factor Correction
• Wide Universal Input Voltage of 90-264VAC
• Single, Dual or Triple DC Outputs
• Optional Power Fail Detection
• Industry Standard 5 x 3” footprint
• Available as Open PCB or in Aluminium U Channel
• Full Safety Approvals
• EMC to FCC Part 15 Class B & CISPR-22 Class B
• Single Output versions available with any voltage from 3V to 50V DC
www.powersolve.co.uk
Electrical Specification
INPUT
AC Input 90-264VAC, 47-63Hz
Power Factor Correction 0.95 Minimum
Input Current 2A Max, Low Line, Full Load
Inrush Current 30A Max, Cold Start, 230VAC Input
Efficiency 80% Typical
DC Outputs See table
Line Regulation 0.5% Typical, 1% Max
Load Regulation
Over Voltage Protection Single Output Models & Output 1 of Multi Output Models, 112-132% V Nominal
otection 110-150% Nominal Output Power
ent Pr
Over Cur
T
Hold Up Time 16mS Min, 110V AC Input, Full Load Output
Start Up Time 1 Sec Typical, 2 Sec Max
Ripple & Noise 1% Typical, 2% Max
Earth Leakage Current 0.45mA Max
Operating Temperature 0 to 70ºC, Derate Linearly from 100% Load at 50ºC to 50% Load at 70ºC
Storage T
Relative Humidity 95% Max Non Condensing
EMC
Safety Approvals UL, cUL60950, TUV/GS(EN60950), CE
r
ransient Response
emperatur
e
See table
4mS, Full Load to 50% Load
-40 to +85ºC
FCC Par
t 15 Class B, CISPR-22 Class B
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
AACC--DDCC CCoonnvveerrtteerrs
s
www.powersolve.co.uk
MODEL MODEL DC OUTPUT TOTAL MAXIMUM
(OPEN PCB VERSION) (U CHANNEL VERSION) REGULATION OUTPUT POWER
PSO120-3V3 PSU120-3V3 3.3V 20A 5% 66 Watts
PSO120-05 PSU120-05 5V 20A 5% 100 Watts
PSO120-09 PSU120-09 9V 12.77A 5% 115 Watts
PSO120-12 PSU120-12 12V 10A 3% 120 Watts
PSO120-15 PSU120-15 15V 8A 3% 120 Watts
PSO120-18 PSU120-18 18V 6.67A 3% 120 Watts
PSO120-24 PSU120-24 24V 5A 2% 120 Watts
PSO120-36 PSU120-36 36V 3.33A 2% 120 Watts
PSO120-48 PSU120-48 48V 2.5A 2% 120 Watts
Note:
Single output models available in any voltage between 3V and 50V - consult sales office for details.
MODEL MODEL OUTPUT 1 MAX OUTPUT 2 MAX OUTPUT 3 MAXIMUM
(OPEN PCB VERSION) (U CHANNEL VERSION) REG. REG. OUTPUT POWER
PSO120-3V312 PSU120-3V312 +3.3V 1.5A-15A 5% +12V 0.6A-6A 5% 120 Watts
PSO120-512 PSU120-512 +5V 1.5A-15A 5% +12V 0.8A-6A 5% 120 Watts
PSO120-515 PSU120-515 +5V 1.5A-15A 5% +15V 0.6-6A 5% 120 Watts
PSO120-524 PSU120-524 +5V 1.5A-15A 5% +24V 0.4A-3.5A 5% 120 Watts
PSO120-3V35 PSU120-3V35 +3.3V 1.5A-15A 5% +5V 0.6A-6A 5% 79.5 Watts
PSO120-524N PSU120-524N +5V 1.5A-15A 5% -24V 0.2A-2A 5% 120 Watts
PSO120-285 PSU120-285 +28V 0.4A-3.92A 5% +5V 0A-2A 5% 120 Watts
PSO120-3V31212 PSU120-3V31212 +3.3V 1.5A-15A 5% +12V 0.6A-6A 5% -12V 0A-0.8A 5% 120 Watts
PSO120-3V31212P
PSO120-5125 PSU120-5125 +5V 1.5A-15A 5% +12V 0.8A-6A 5% -5V 0A-0.8A 5% 120 Watts
PSO120-5125P
PSO120-51212 PSU120-51212 +5V 1.5A-15A 5% +12V 0.8A-6A 5% -12V 0A-0.8A 5% 120 Watts
PSO120-51212P PSU120-51212P +5V 1.5A-15A 5% +12V 0.8A-6A 5% +12V 0A-0.8A 5% 120 Watts
PSO120-51515 PSU120-51515 +5V 1.5A-15A 5% +15V 1A-6A 5% -15V 0A-0.8A 5% 120 Watts
PSO120-51515P PSU120-51515P +5V 1.5A-15A 5% +15V 1A-6A 5% +15V 0A-0.8A 5% 120 Watts
PSO120-52424
PSO120-52424P
PSO120-52412 PSU120-52412 +5V 1.5A-15A 5% +24V 0.45A-3.5A 5% -12V 0A-0.8A 5% 120 Watts
PSO120-52412P
PSO120-3V3125 PSU120-3V3125 +3.3V 1.5A-15A 5% +12V 0.8A-6A 5% -5V 0A-0.8A 5% 120 Watts
PSO120-3V3125P PSU120-3V3125P +3.3V 1.5A-15A 5% +12V 0.8A-6A 5% +5V 0A-0.8A 5% 120 Watts
PSO120-51010 PSU120-51010 +5V 1.5A-15A 5% +10V 0.6A-6A 5% -10V 0A-1.0A 5% 120 Watts
PSO120-51010P PSU120-51010P +5V 1.5A-15A 5% +10V 0.6A-6A 5% +10V 0A-1.0A 5% 120 Watts
PSO120-3V3512
PSO120-3V3512P
PSU120-3V31212P
PSU120-5125P
PSU120-52424
PSU120-52424P +5V 1.5A-15A 5% +24V 0.45A-3.5A 5% +24V 0.25A-0.8A 5% 120 Watts
PSU120-52412P
PSU120-3V3512
PSU120-3V3512P +3.3V 1.5A-15A 5% +5V 0.8A-6A 5% +12V 0A-1.0A 5% 91.5 Watts
+3.3V 1.5A-15A
+5V 1.5A-15A
+5V 1.5A-15A
+5V 1.5A-15A 5% +24V 0.45A-3.5A 5% +12V 0A-0.8A 5% 120 Watts
+3.3V 1.5A-15A
5% +12V 0.6A-6A 5% +12V 0A-0.8A 5% 120 Watts
5% +12V 0.8A-6A 5% +5V 0A-0.8A 5% 120 Watts
+24V 0.45A-3.5A
5%
+5V 0.8A-6A 5% -12V 0A-1.0A 5% 91.5 Watts
5%
5% -24V 0.25A-0.8A 5% 120 Watts
Mating Connectors: Input: Molex Housing 09-50-3051 Crimp Terminals: Molex 2478
Output: Molex Housing 09-50-3131
Options: Power Fail Detect – Consult sales office for details
erminals: Molex 2478
Crimp T
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
echanical Specification - PSU120
M
ote:
N
. Dimensions are shown in inches or mm.
1
. Weight: 330~380gs approx.
2
Mechanical Specification - PSO120
www.powersolve.co.uk
Note:
1. Dimensions are shown
2. Weight: 450~550gs approx.
Pin Connection
Pin 1 2 3 4 5 6 7 8 9 10 11 12 13
(optional)
Model
SINGLE OUTPUT OUT OUT OUT OUT OUT OUT RTN RTN RTN RTN RTN RTN PFD
PSO/PSU120-285
DUAL OUTPUT Vo2 Vo2 Vo1 Vo1 Vo1 Vo1 COM COM COM N/C COM COM PFD
TRIPLE OUTPUT Vo2 Vo2 Vo1 Vo1 Vo1 Vo1 COM COM COM Vo3 COM COM PFD
V
COM
COM
COM
o1
V
o1
Vo2 PFD
