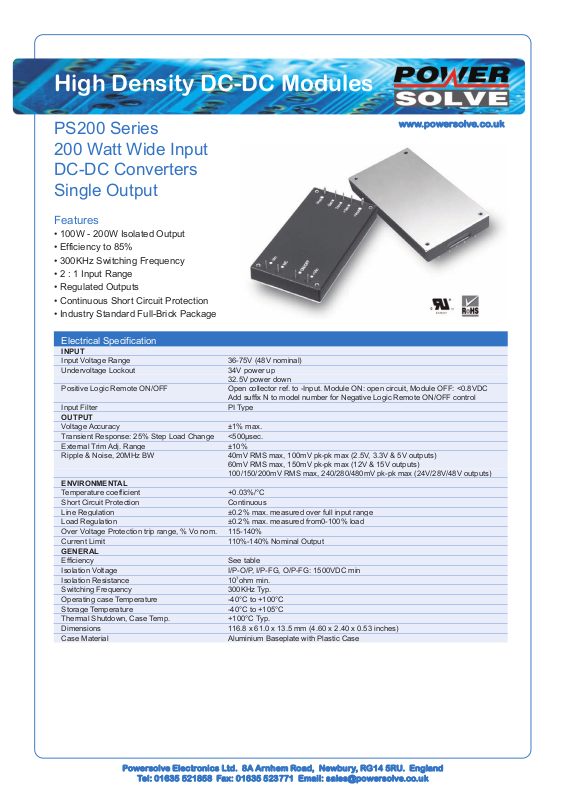

Powersolve PS200 User Manual

High Density DC-DC Modules

PS200 Series

www.powersolve.co.uk

200 Watt Wide Input
DC-DC Converters
Single Output

Features

• 100W - 200W Isolated Output

• Efficiency to 85%

• 300KHz Switching Frequency

• 2 : 1 Input Range

• Regulated Outputs

• Continuous Short Circuit Protection

• Industry Standard Full-Brick Package

Electrical Specification

INPUT

Input Voltage Range 36-75V (48V nominal)
Undervoltage Lockout 34V power up

Positive Logic Remote ON/OFF Open collector ref. to -Input. Module ON: open circuit, Module OFF: <0.8VDC

Input Filter PI Type

OUTPUT

Voltage Accuracy ±1% max.
Transient Response: 25% Step Load Change <500µsec.
External Trim Adj. Range ±10%
Ripple & Noise, 20MHz BW 40mV RMS max, 100mV pk-pk max (2.5V, 3.3V & 5V outputs)

ENVIRONMENTAL

Temperature coefficient +0.03%/°C
Short Circuit Protection Continuous
Line Regulation ±0.2% max. measured over full input range
Load Regulation ±0.2% max. measured from0-100% load
Over Voltage Protection trip range, % Vo nom. 115-140%
Current Limit 110%-140% Nominal Output

GENERAL

Efficiency See table
Isolation Voltage I/P-O/P, I/P-FG, O/P-FG: 1500VDC min
Isolation Resistance 107ohm min.
Switching Frequency 300KHz Typ.
Operating case Temperature -40°C to +100°C
Storage Temperature -40°C to +105°C
Thermal Shutdown, Case Temp. +100°C Typ.
Dimensions 116.8 x 61.0 x 13.5 mm (4.60 x 2.40 x 0.53 inches)
Case Material Aluminium Baseplate with Plastic Case

32.5V power down

Add suffix N to model number for Negative Logic Remote ON/OFF control

60mV RMS max, 150mV pk-pk max (12V & 15V outputs)
100/150/200mV RMS max, 240/280/480mV pk-pk max (24V/28V/48V outputs)

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

High Density DC-DC Modules

www.powersolve.co.uk

Output Voltage and Current Ratings

MODEL INPUT OUTPUT OUTPUT INPUT CURRENT % EFF.

PS200-48S25 36-75 VDC 2.5 VDC 40A 25mA 2.8A 74
PS200-48S33 36-75 VDC 3.3 VDC 40A 25mA 3.5A 79
PS200-48S05 36-75 VDC 5 VDC 40A 25mA 5A 83
PS200-48S12 36-75 VDC 12 VDC 17A 25mA 5A 85
PS200-48S15 36-75 VDC 15 VDC 13.3A 25mA 5A 85
PS200-48S24 36-75 VDC 24 VDC 8.33A 25mA 5A 85
PS200-48S28 36-75 VDC 28 VDC 7.14A 25mA 5A 85
PS200-48S48 36-75 VDC 48 VDC 4.2A 25mA 5A 85

NOTE: Nominal Input Voltage 48VDC

Mechanical and Connection Details

All dimensions in inches (mm)
Tolerances Inches x.xx ±0.02 x.xxx ±0.010 Pin ±0.02

VOLTAGE VOLTAGE CURRENT NO LOAD FULL LOAD

Millimeters x.x ±0.5 x.xx ±0.25 Pin ±0.5

Remote ON/OFF Control

The PS200 Series allows the user to switch the module on and off electronically with the remote on/off feature.
The PS200 Series are available with “positive logic” or “negative logic” (option).

Logic Table

Logic State

(Pin 2)

Logic low-

Switch closed

Logic high-

Switch open

Negative

Logic

Module on Module off

Module off Module on

Pin Function

Pin Connection

1 +Vin
2 ON/OFF
3 CASE
4 -Vin
5 -Vout
6 -Sense
7 Trim
8 +Sense
9 +Vout

Positive

Logic

External Output Trim

The output can be trimmed externally (±10%) using a fixed resistor or
a trimpot as shown.

All specifications typical at nominal line, full load and 25°C unless otherwise stated.

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

The output noise is measured with a 10µF tantalum and a 1.0µF
ceramic capacitor across the output.

Output Noise

High Density DC-DC Modules

www.powersolve.co.uk

Application Note

Derating:
The case operating temperature range of the PS200 series is -40°C to +100°C. When operating the PS200 series, proper derating or
cooling is required.

Following is the derating curve for the PS200 without a heatsink; airflow along width (transverse).

Where:

The power dissipated (Pd):
Pd = Pi - Po = Po (1-n) / n

The thermal resistances are listed below:

Chart of Thermal Resistance vs Air Flow:

AIR FLOW RATE TYPICAL Rca

Natural Convection 20ft/min. (0.1m/s) 3.82°C/W
100ft./min. (0.5m/s) 3.23°C/W
200ft./min. (1.0m/s) 2.71°C/W
300ft./min. (1.5m/s) 2.28°C/W
400ft./min. (2.0m/s) 1.92°C/W
500ft./min. (2.5m/s) 1.68°C/W
600ft./min. (3.0m/s) 1.50°C/W
700ft./min. (3.5m/s) 1.35°C/W
800ft./min. (4.0m/s) 1.23°C/W

The temperature rise (∆T):

∆T = Pd * Rca
