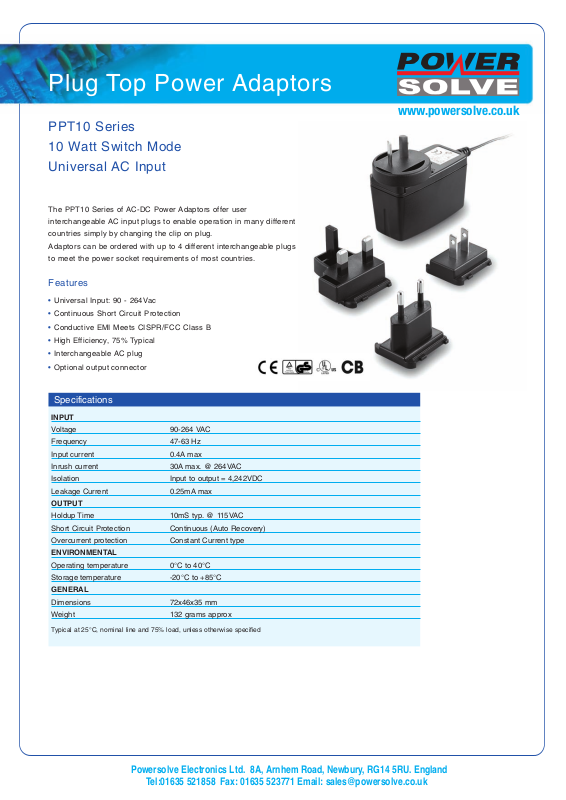

Plug Top Power Adaptors

PPT10 Series

10 Watt Switch Mode

Universal AC Input

The PPT10 Series of AC-DC Power Adaptors offer user

interchangeable AC input plugs to enable operation in many different

countries simply by changing the clip on plug.

Adaptors can be ordered with up to 4 different interchangeable plugs

to meet the power socket requirements of most countries.

Features

• Universal Input: 90 - 264Vac

• Continuous Short Circuit Protection

• Conductive EMI Meets CISPR/FCC Class B

• High Efficiency, 75% Typical

• Interchangeable AC plug

• Optional output connector

Specifications

INPUT

Voltage 90-264 VAC

Frequency 47-63 Hz

Input current 0.4A max

Inrush current 30A max. @ 264VAC

Isolation Input to output = 4,242VDC

Leakage Current 0.25mA max

OUTPUT

Holdup Time 10mS typ. @ 115VAC

Short Circuit Protection Continuous (Auto Recovery)

Overcurrent protection Constant Current type

ENVIRONMENTAL

Operating temperature 0°C to 40°C

Storage temperature -20°C to +85°C

GENERAL

Dimensions 72x46x35 mm

Weight 132 grams approx

Typical at 25°C, nominal line and 75% load, unless otherwise specified

www.powersolve.co.uk

Powe rsolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England

Tel:[phone] Fax: [phone] Email: [e-mail]

11

16

(0.63)

39

(1.54)

18

(0.71)

4

(0.16)

6.3

(0.25)

22.2(0.87)

UNIT: mm (Inches)

Plug Top Power Adaptors

MODEL OUTPUT VOLTAGE MAX LOAD MIN LOAD RIPPLE & NOISE VOLTAGE LINE LOAD

ACCURACY REGULATION REGULATION

PPT10-033 3.3V 1600mA 0A 50mV ±3% ±1% ±4%

PPT10-050 5V 1600mA 0A 50mV ±2% ±1% ±4%

PPT10-060 6V 1500mA 0A 1% ±2% ±1% ±3%

PPT10-075 7.5V 1200mA 0A 1% ±2% ±1% ±3%

PPT10-090 9V 1100mA 0A 1% ±2% ±1% ±2%

PPT10-120 12V 850mA 0A 1% ±2% ±1% ±2%

PPT10-136 13.6V 750mA 0A 1% ±2% ±1% ±2%

PPT10-150 15V 700mA 0A 1% ±2% ±1% ±2%

PPT10-180 18V 550mA 0A 1% ±2% ±1% ±2%

PPT10-240 24V 400mA 0A 1% ±2% ±1% ±2%

Note:

1. Voltage setpoint at 60% load.

2. Add a 0.1mF ceramic capacitor and a 10mF E.L. capacitor to output for Ripple & Noise measurement @20MHz BW.

3. Line regulation measured from 100Vac to 240Vac, full load.

4. Load regulation measured from 60% to full load and from 60% to 20% load (60% ± 40% load)

Stock items will be fitted with 5.5x2.5x9.5mm barrel connector, centre positive.
Options: Alternative output connectors are available - consult sales office for details.

In-line ferrite core on output cable - consult sales office for details.
