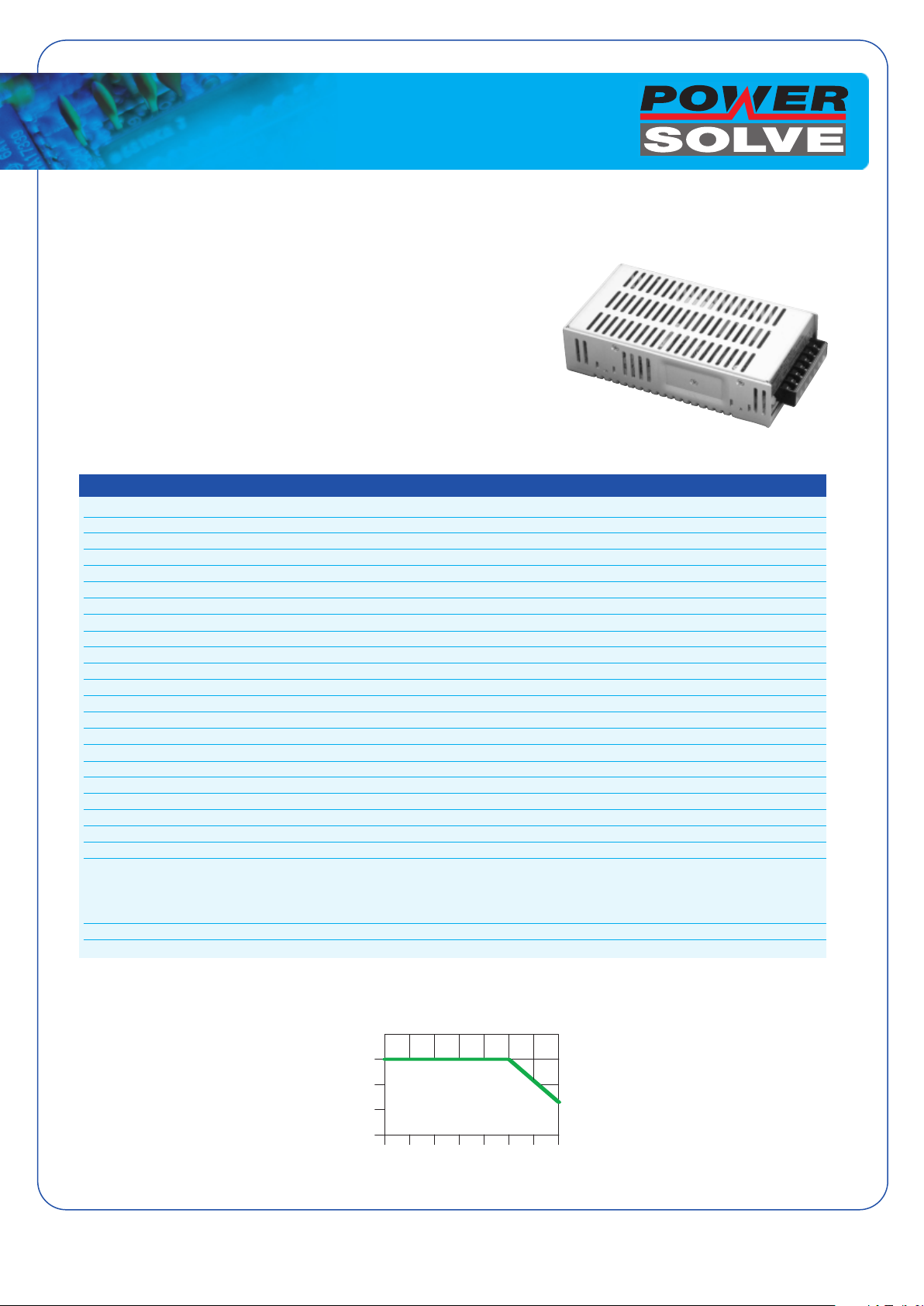

Powersolve PPS100LBP User Manual

AC-DC Converters

0W

30W

60W

100W

120W

0 10 20 30 40 50 60 70

50W

Power Derating Curve

Ambient Temperature (°C)

Natural

Convection

Cooling

Output

Power

(Watts)

www.powersolve.co.uk

PPS100LBP Series

100 Watts

Single, Dual, Triple & Quad Outputs

Features

• Built-in EMI filter

• Low cost

• Active PFC

Electrical Specification

INPUT

Input range 90~264 VAC
Frequency 47~63Hz
Inrush current 38A typical, Cold start @ 25°C, 115 VAC
Efficiency 65% ~ 85% typical at full load
EMI filter FCC Class B conducted, CISPR 22 Class B conducted, EN55022 Class B Conducted
Line regulation ± 0.5% typical

OUTPUT

Maximum power 100W convection
Peak power 130 watts
Hold-up time 10ms typical at full load and 115 VAC nominal line
Overload protection Short circuit protection
Overvoltage protection Main output 20% to 40% above nominal output
Ripple/Noise ± 1% Max. @ full load
Output adjustment ± 10% on output 1

ENVIRONMENTAL

Operating temperatur
Humidity Operating; non-condensing, 5% to 95%
Vibration 10~55 Hz at 1G 3 minutes period, 30 minutes along X, Y and Z axis
Storage temperatur
Temperature coefficient ± 0.05% per degree C
MTBF demonstrated >100,000 hours at full load and 25°C ambient conditions
EMI & EMC

Safety approval UL / cUL, TUV EN60950

e

e

0 to 50°C ambient; derate each output at 2.5% per degree from 50°C to 70°C

C

-40 to 85

FCC par
CISPR 22 / EN55022, Class B
VCCI, Class 2
CE, EN 61000-3-2 (Class D) and –3; EN 61000-4-2, -3,-4.-5,-6 and -11

°

t 15, Class B

Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England

Tel:[phone] Fax: [phone] Email: [e-mail]

AC-DC Converters

www.powersolve.co.uk

MODEL OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 TOTAL REGULATION

PPS100LBP-10 5V 20A ±3%

PPS100LBP-11 12V 8.33A ±3%

PPS100LBP-12 15V 6.67A ±3%

PPS100LBP-13 24V 4.17A ±3%

PPS100LBP-14

PPS100LBP-15 3.3V 20A ±3%

PPS100LBP-20* +5V 11A +12V 4.5A ±5% both outputs

PPS100LBP-21* +5V 11A +24V 2.5A ±5% both outputs

PPS100LBP-22*

PPS100LBP-23* +12V 4.5A -12V 4.5A ±5% both outputs

PPS100LBP-24* +15V 3.8A -15V 3.8A ±5% both outputs

PPS100LBP-25*

PPS100LBP-26* +5V 1A +48V 2A ±5% both outputs

PPS100LBP-30* +5V 11A +12V 4.5A -5V 0.7A O/P 1&2 ±5%, O/P 3 ±10%

PPS100LBP-31* +5V 11A +12V 4.5A -12V 0.7A O/P 1&2 ±5%, O/P 3 ±10%

PPS100LBP-32* +5V 11A +15V 3A -15V 0.7A O/P 1&2 ±5%, O/P 3 ±10%

PPS100LBP-33* +5V 15A +15V 2A -5V 0.6A O/P 1&2 ±5%, O/P 3 ±10%

PPS100LBP-34* +5V 14A +15V 2A -12V 0.6A O/P 1&2 ±5%, O/P 3 ±10%

PPS100LBP-35* +5V 10A +24V 2A -12V 0.6A O/P 1&2 ±5%, O/P 3 ±10%

PPS100LBP-36* +5V 4A +12V 7A -12V 0.6A O/P 1&2 ±5%, O/P 3 ±10%

PPS100LBP-37* +5V 10A +12V 4A +24V 0.3A O/P 1&2 ±5%, O/P 3 ±10%

PPS100LBP-38* +5V 7A +12V 2A +48V 1A O/P 1&2 ±5%, O/P 3 ±10%

PPS100LBP-40* +5V 11A +12V 4A -12V 0.6A -5V 0.6A O/P 1&2 ±5%, O/P 3&4 ±10%

PPS100LBP-41*

PPS100LBP-42* +5V 11A +12V 2A -15V 1A +15V 1A O/P 1&2 ±5%, O/P 3&4 ±10%

PPS100LBP-43*

PPS100LBP-44* +5V 8A +12V 1A -12V 1A +48V 1A O/P 1&2 ±5%, O/P 3&4 ±10%

PPS100LBP-45* +5V 8A +12V 2A -12V 1A +24V 2A O/P 1&2 ±5%, O/P 3&4 ±10%

PPS100LBP-46* +3.3V 15A +5V 3A +12V 2A -12V 1A O/P 2&3 ±5%, O/P 1&4 ±10%

PPS100LBP-47* +3.3V 10A +5V 8A +12V 2A -12V 1A O/P 1&2 ±5%, O/P 3&4 ±10%

48V 2.08A ±3%

+5V 11A -5V 11A ±5% both outputs

+3.3V 15A +12V 4.5A ±5% both outputs

+5V 11A +12V 3A -12V 1A -5V 1A O/P 1&2 ±5%, O/P 3&4 ±10%

+5V 8A +12V 3A -15V 1A -12V 1A O/P 1&2 ±5%, O/P 3&4 ±10%

Note:

atts convection cooled, 130 Watts peak for <30 seconds with a maximum 10% duty cycle.

MAX POWER:

RIPPLE & NOISE:

LOAD REGULATION: Load test conditions are from minimum, 50% and 100% load conditions on each output.

100 W

Maximum peak to peak noise expr

0.1uF and 47uF capacitor on outputs.

*Minimum loading of 10% r

essed as a per

ed on all outputs, to achieve r

equir

centage of output voltage, 20 MHz bandwidth, input at nominal line voltage,

egulation specified.

Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England

Tel:[phone] Fax: [phone] Email: [e-mail]
