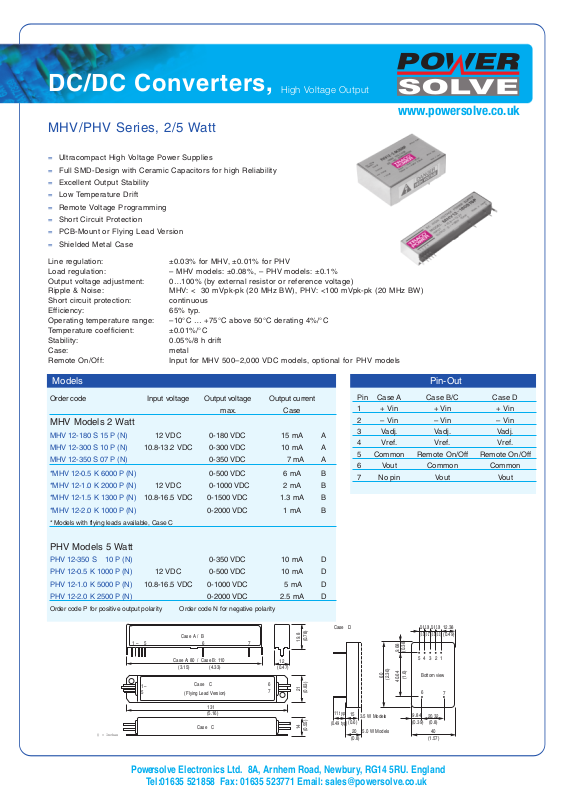

DC/DC Converters,
Case A: 80 / Case B: 110
21
12
131
14
19. 8
Case A / B
Case C
Case C
60
40
12345
7
6
Bottom view
40.64
5.08
9.68
11 typ
20.32
9.84
5.08 5.08 5.08
12.38
15
20
3.5 W Models
5.0 W Models
1 – 5
6
7
6
7
1–
5
Case D
(0.78)
(0.83)
(0.55)
(1.57)
(0.8)
(0.49 typ)
(0.8)
(0.39)
(0.6)
(2.36)
(1.6)
(0.38)
(0.47)
(0.2) (0.2) (0.2)(0.2)
(0.49)
(3.15) (4.33)
(5.16)
(Flying Lead Version)
() = Inches
High Voltage Output
MHV/PHV Series, 2/5 Watt
= Ultracompact High Voltage Power Supplies
= Full SMD-Design with Ceramic Capacitors for high Reliability
= Excellent Output Stability
= Low Temperature Drift
= Remote Voltage Programming
= Short Circuit Protection
PCB-Mount or Flying Lead Version
=
= Shielded Metal Case
Line regulation: ±0.03% for MHV, ±0.01% for PHV
Load regulation: – MHV models: ±0.08%, – PHV models: ±0.1%
Output voltage adjustment: 0…100% (by external resistor or reference voltage)
Ripple & Noise: MHV: < 30 mVpk-pk (20 MHz BW), PHV: <100 mVpk-pk (20 MHz BW)
Short circuit protection: continuous
Efficiency: 65% typ.
Operating temperature range: –10°C … +75°C above 50°C derating 4%/°C
Temperature coefficient: ±0.01%/°C
Stability: 0.05%/8 h drift
Case: metal
Remote On/Off: Input for MHV 500–2,000 VDC models, optional for PHV models
Models
Order code Input voltage Output voltage Output current
max. Case
MHV Models 2 Watt
MHV 12-180 S 15 P (N) 12 VDC 0-180 VDC 15 mA A
MHV 12-300 S 10 P (N) 10.8-13.2 VDC 0-300 VDC 10 mA A
MHV 12-350 S 07 P (N) 0-350 VDC 7 mA A
*MHV 12-0.5 K 6000 P
(N)
0-500 VDC
6 mA B
*MHV 12-1.0 K 2000 P (N) 12 VDC 0-1000 VDC 2 mA B
10.8-16.5 VDC 0-1500 VDC 1.3 mA B
*MHV 12-1.5 K 1300 P
(N)
*MHV 12-2.0 K 1000 P (N) 0-2000 VDC 1 mA B
* Models with flying leads available, Case C
PHV Models 5 Watt
PHV 12-350 S 10 P
(N)
0-350 VDC
PHV 12-0.5 K 1000 P (N) 12 VDC 0-500 VDC 10 mA D
PHV 12-1.0 K 5000 P (N) 10.8-16.5 VDC 0-1000 VDC 5 mA D
PHV 12-2.0 K 2500 P (N) 0-2000 VDC 2.5 mA D
Order code P
for positive output polarity
Order code N for negative polarity
10 mA
Pin-Out
Pin Case A Case B/C Case D
1 + Vin + Vin + Vin
2 – Vin – Vin – Vin
3 Vadj. Vadj. Vadj.
4 Vref. Vref. Vref.
5 Common Remote On/Off Remote On/Off
6 Vout Common Common
7 No pin Vout Vout
