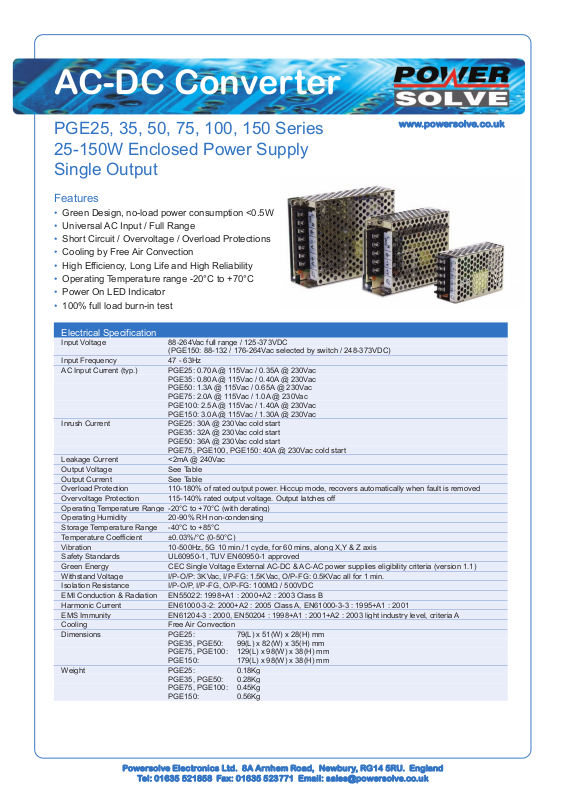

Powersolve PGE150 User Manual

AC-DC Converter

PGE25, 35, 50, 75, 100, 150 Series

www.powersolve.co.uk

25-150W Enclosed Power Supply
Single Output

Features

• Green Design, no-load power consumption <0.5W

• Universal AC Input / Full Range

• Short Circuit / Overvoltage / Overload Protections

• Cooling by Free Air Convection

• High Efficiency, Long Life and High Reliability

• Operating Temperature range -20°C to +70°C

• Power On LED Indicator

• 100% full load burn-in test

Electrical Specification

Input Voltage 88-264Vac full range / 125-373VDC

Input Frequency 47 - 63Hz
AC Input Current (typ.) PGE25: 0.70A @ 115Vac / 0.35A @ 230Vac

Inrush Current PGE25: 30A @ 230Vac cold start

Leakage Current <2mA @ 240Vac
Output Voltage See Table
Output Current See Table
Overload Protection 110-180% of rated output power. Hiccup mode, recovers automatically when fault is removed
Overvoltage Protection 115-140% rated output voltage. Output latches off
Operating Temperature Range -20°C to +70°C (with derating)
Operating Humidity 20-90% RH non-condensing
Storage Temperature Range -40°C to +85°C
Temperature Coefficient ±0.03%/°C (0-50°C)
Vibration 10-500Hz, 5G 10 min./1 cycle, for 60 mins, along X,Y & Z axis
Safety Standards UL60950-1, TUV EN60950-1 approved
Green Energy CEC Single Voltage External AC-DC & AC-AC power supplies eligibility criteria (version 1.1)
Withstand Voltage I/P-O/P: 3KVac, I/P-FG: 1.5KVac, O/P-FG: 0.5KVac all for 1 min.
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100MΩ / 500VDC
EMI Conduction & Radiation EN55022: 1998+A1 : 2000+A2 : 2003 Class B
Harmonic Current EN61000-3-2: 2000+A2 : 2005 Class A, EN61000-3-3 : 1995+A1 : 2001
EMS Immunity EN61204-3 : 2000, EN50204 : 1998+A1 : 2001+A2 : 2003 light industry level, criteria A
Cooling Free Air Convection
Dimensions PGE25: 79(L) x 51(W) x 28(H) mm

Weight PGE25: 0.18Kg

(PGE150: 88-132 / 176-264Vac selected by switch / 248-373VDC)

PGE35: 0.80A @ 115Vac / 0.40A @ 230Vac
PGE50: 1.3A @ 115Vac / 0.65A @ 230Vac
PGE75: 2.0A @ 115Vac / 1.0A @ 230Vac
PGE100: 2.5A @ 115Vac / 1.40A @ 230Vac
PGE150: 3.0A @ 115Vac / 1.30A @ 230Vac

PGE35: 32A @ 230Vac cold start
PGE50: 36A @ 230Vac cold start
PGE75, PGE100, PGE150: 40A @ 230Vac cold start

PGE35, PGE50: 99(L) x 82(W) x 35(H) mm
PGE75, PGE100: 129(L) x 98(W) x 38(H) mm
PGE150: 179(L) x 98(W) x 38(H) mm

PGE35, PGE50: 0.28Kg
PGE75, PGE100: 0.45Kg
PGE150: 0.56Kg

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

AC-DC Converter

www.powersolve.co.uk

Output Voltage and Current Ratings

MODEL OUTPUT VOLTAGE MAX OUTPUT VOLTAGE RIPPLE & LINE LOAD POWER EFF.

PGE25-3V3 3.3V ±10% 6A ±3% 80mV ±0.5% ±2% 19.8W 74%
PGE25-05 5V ±10% 5A ±2% 80mV ±0.5% ±1% 25W 83%
PGE25-12 12V ±10% 2.1A ±1% 120mV ±0.5% ±0.5% 25.2W 85%
PGE25-15 15V ±10% 1.7A ±1% 120mV ±0.5% ±0.5% 25.5W 86%
PGE25-24 24V ±10% 1.1A ±1% 120mV ±0.5% ±0.5% 26.4W 87%
PGE25-48 48V ±10% 0.57A ±1% 200mV ±0.5% ±0.5% 27.3W 88%
PGE35-3V3 3.3V ±10% 7A ±3% 80mV ±0.5% ±2% 23.1W 79%
PGE35-05 5V ±10% 7A ±2% 80mV ±0.5% ±1% 35W 84%
PGE35-12 12V ±10% 3A ±1% 120mV ±0.5% ±0.5% 36W 89%
PGE35-15 15V ±10% 2.4A ±1% 120mV ±0.5% ±0.5% 36W 89%
PGE35-24 24V ±10% 1.5A ±1% 120mV ±0.5% ±0.5% 36W 88%
PGE35-48 48V ±10% 0.8A ±1% 200mV ±0.5% ±0.5% 38.4W 90%
PGE50-3V3 3.3V ±10% 10A ±3% 80mV ±0.5% ±2% 33W 78%
PGE50-05 5V ±10% 10A ±2% 80mV ±0.5% ±1% 50W 83%
PGE50-12 12V ±10% 4.2A ±1% 120mV ±0.5% ±0.5% 50.4W 88%
PGE50-15 15V ±10% 3.4A ±1% 120mV ±0.5% ±0.5% 51W 89%
PGE50-24 24V ±10% 2.2A ±1% 120mV ±0.5% ±0.5% 52.8W 90%
PGE50-48 48V ±10% 1.1A ±1% 200mV ±0.5% ±0.5% 52.8W 90%
PGE75-3V3 3.3V ±10% 15A ±3% 80mV ±0.5% ±2% 49.5W 73%
PGE75-05 5V ±10% 15A ±2% 80mV ±0.5% ±1% 75W 81%
PGE75-12 12V ±10% 6.25A ±1% 120mV ±0.5% ±0.5% 75W 87%
PGE75-15 15V ±10% 5A ±1% 120mV ±0.5% ±0.5% 75W 87%
PGE75-24 24V ±10% 3.2A ±1% 120mV ±0.5% ±0.5% 76.8W 88%
PGE75-48 48V ±10% 1.6A ±1% 200mV ±0.5% ±0.5% 76.8W 90%
PGE100-3V3 3.3V ±10% 20A ±3% 80mV ±0.5% ±2% 66W 70%
PGE100-05 5V ±10% 16A ±2% 80mV ±0.5% ±1% 80W 80%
PGE100-12 12V ±10% 8.5A ±1% 120mV ±0.5% ±0.5% 102W 86%
PGE100-15 15V ±10% 7A ±1% 120mV ±0.5% ±0.5% 105W 88%
PGE100-24 24V ±10% 4.5A ±1% 120mV ±0.5% ±0.5% 108W 88%
PGE100-48 48V ±10% 2.3A ±1% 200mV ±0.5% ±0.5% 110W 89%
PGE150-3V3 3.3V ±10% 30A ±3% 80mV ±0.5% ±2% 99W 70%
PGE150-05 5V ±10% 26A ±2% 80mV ±0.5% ±1% 130W 83%
PGE150-12 12V ±10% 12.5A ±1% 120mV ±0.5% ±0.5% 150W 85%
PGE150-15 15V ±10% 10A ±1% 120mV ±0.5% ±0.5% 150W 87%
PGE150-24 24V ±10% 6.5A ±1% 120mV ±0.5% ±0.5% 156W 87%
PGE150-48 48V ±10% 3.3A ±1% 200mV ±0.5% ±0.5% 158.4W 89%

Preset Range CURRENT TOLERANCE NOISE REG. REG. Max.

Derating Curves (all models)

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

AC-DC Converter

Mechanical & Connection Details

PGE25 models (dimensions in mm)

www.powersolve.co.uk

PGE35 & PGE50 models (dimensions in mm)

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

AC-DC Converter

Mechanical & Connection Details (cont.)

PGE75 & PGE100 models (dimensions in mm)

www.powersolve.co.uk

PGE150 models (dimensions in mm)
