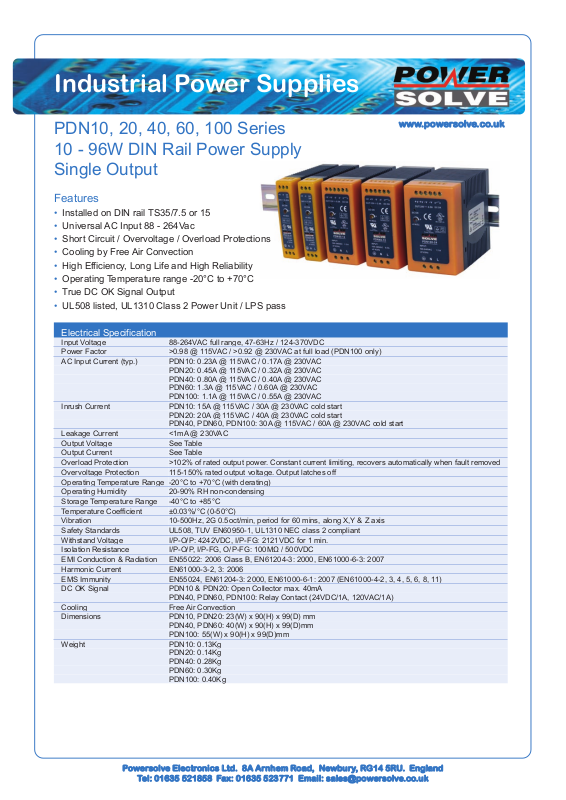

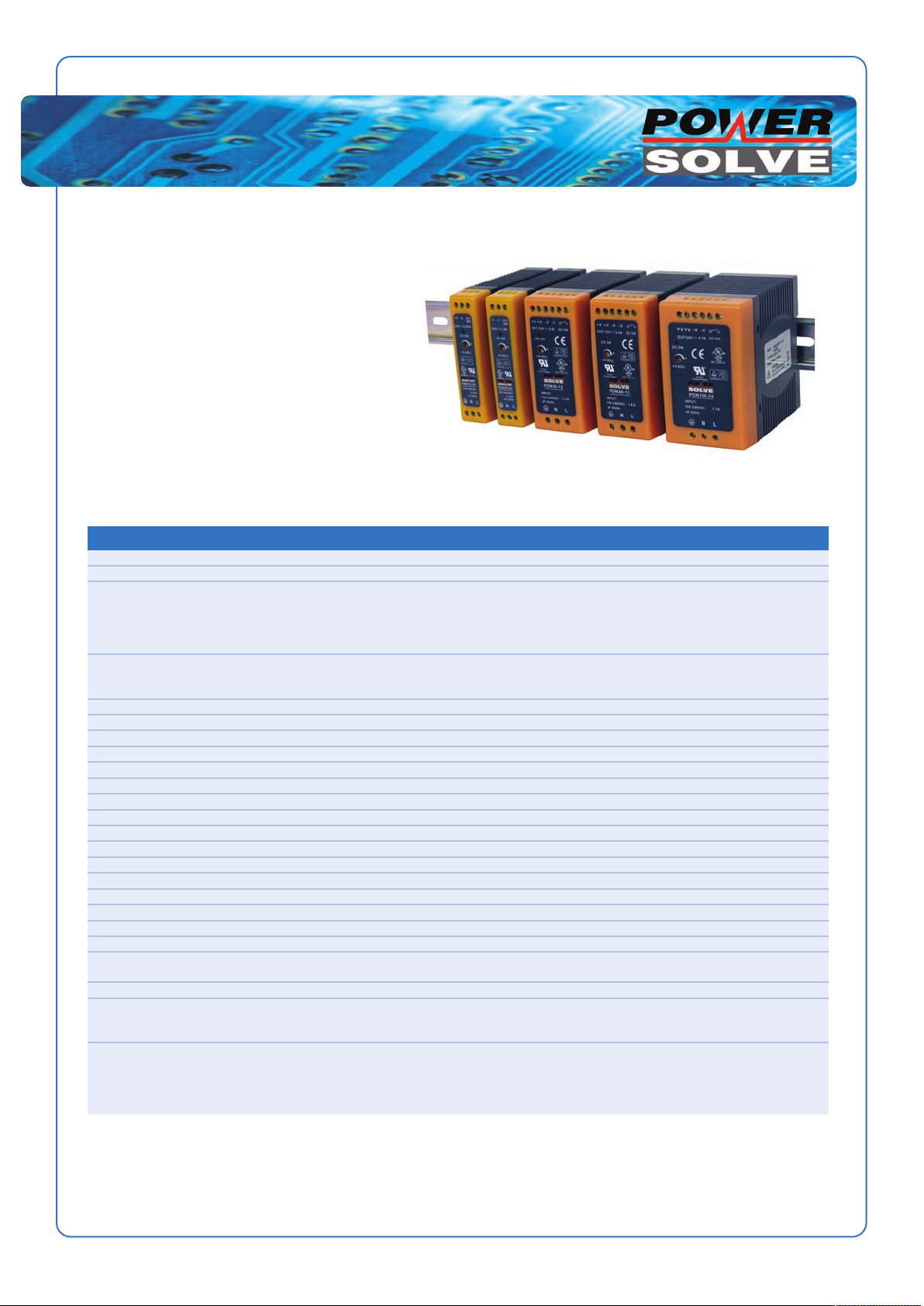

Powersolve PDN100 User Manual

Industrial Power Supplies

PDN10, 20, 40, 60, 100 Series

www.powersolve.co.uk

10 - 96W DIN Rail Power Supply
Single Output

Features

• Installed on DIN rail TS35/7.5 or 15

• Universal AC Input 88 - 264Vac

• Short Circuit / Overvoltage / Overload Protections

• Cooling by Free Air Convection

• High Efficiency, Long Life and High Reliability

• Operating Temperature range -20°C to +70°C

• True DC OK Signal Output

• UL508 listed, UL1310 Class 2 Power Unit / LPS pass

Electrical Specification

Input Voltage 88-264VAC full range, 47-63Hz / 124-370VDC
Power Factor >0.98 @ 115VAC / >0.92 @ 230VAC at full load (PDN100 only)
AC Input Current (typ.) PDN10: 0.23A @ 115VAC / 0.17A @ 230VAC

Inrush Current PDN10: 15A @ 115VAC / 30A @ 230VAC cold start

Leakage Current <1mA @ 230VAC
Output Voltage See Table
Output Current See Table
Overload Protection >102% of rated output power. Constant current limiting, recovers automatically when fault removed
Overvoltage Protection 115-150% rated output voltage. Output latches off
Operating Temperature Range -20°C to +70°C (with derating)
Operating Humidity 20-90% RH non-condensing
Storage Temperature Range -40°C to +85°C
Temperature Coefficient ±0.03%/°C (0-50°C)
Vibration 10-500Hz, 2G 0.5oct/min, period for 60 mins, along X,Y & Z axis
Safety Standards UL508, TUV EN60950-1, UL1310 NEC class 2 compliant
Withstand Voltage I/P-O/P: 4242VDC, I/P-FG: 2121VDC for 1 min.
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100MΩ / 500VDC
EMI Conduction & Radiation EN55022: 2006 Class B, EN61204-3: 2000, EN61000-6-3: 2007
Harmonic Current EN61000-3-2, 3: 2006
EMS Immunity EN55024, EN61204-3: 2000, EN61000-6-1: 2007 (EN61000-4-2, 3, 4, 5, 6, 8, 11)
DC OK Signal PDN10 & PDN20: Open Collector max. 40mA

Cooling Free Air Convection
Dimensions PDN10, PDN20: 23(W) x 90(H) x 99(D) mm

Weight PDN10: 0.13Kg

PDN20: 0.45A @ 115VAC / 0.32A @ 230VAC
PDN40: 0.80A @ 115VAC / 0.40A @ 230VAC
PDN60: 1.3A @ 115VAC / 0.60A @ 230VAC
PDN100: 1.1A @ 115VAC / 0.55A @ 230VAC

PDN20: 20A @ 115VAC / 40A @ 230VAC cold start
PDN40, PDN60, PDN100: 30A @ 115VAC / 60A @ 230VAC cold start

PDN40, PDN60, PDN100: Relay Contact (24VDC/1A, 120VAC/1A)

PDN40, PDN60: 40(W) x 90(H) x 99(D)mm
PDN100: 55(W) x 90(H) x 99(D)mm

PDN20: 0.14Kg
PDN40: 0.28Kg
PDN60: 0.30Kg
PDN100: 0.40Kg

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

Industrial Power Supplies

www.powersolve.co.uk

Output Voltage and Current Ratings

MODEL OUTPUT VOLTAGE MAX OUTPUT VOLTAGE RIPPLE & LINE LOAD POWER EFF.

PDN10-12 12V 10.8 - 13.2V 0.84A ±1% 100mV ±1.0% ±1.0% 10.08W 81%
PDN10-15 15V 13.5 - 16.5V 0.67A ±1% 100mV ±1.0% ±1.0% 10.05W 81%
PDN10-24 24V 21.6 - 26.4V 0.42A ±1% 120mV ±1.0% ±1.0% 10.08W 81%
PDN20-12 12V 10.8 - 13.2V 1.7A ±1% 100mV ±1.0% ±1.0% 20.4W 83%
PDN20-15 15V 13.5 - 16.5V 1.4A ±1% 100mV ±1.0% ±1.0% 21W 85%
PDN20-24 24V 21.6 - 26.4V 1A ±1% 120mV ±1.0% ±1.0% 24W 86%
PDN40-12 12V 10.8 - 13.2V 3.4A ±1% 100mV ±1.0% ±1.0% 40.8W 84%
PDN40-15 15V 13.5 - 16.5V 2.7A ±1% 100mV ±1.0% ±1.0% 40.5W 84%
PDN40-24 24V 21.6 - 26.4V 1.7A ±1% 120mV ±1.0% ±1.0% 40.8W 84%
PDN40-48 48V 43.2 - 52.8V 0.85A ±1% 180mV ±1.0% ±1.0% 40.8W 85%
PDN60-12 12V 10.8 - 13.2V 5A ±1% 100mV ±1.0% ±1.0% 60W 86%
PDN60-15 15V 13.5 - 16.5V 4A ±1% 100mV ±1.0% ±1.0% 60W 87%
PDN60-24 24V 21.6 - 26.4V 2.5A ±1% 120mV ±1.0% ±1.0% 60W 87%
PDN60-48 48V 43.2 - 52.8V 1.25A ±1% 180mV ±1.0% ±1.0% 60W 88%
PDN100-12 12V 10.8 - 13.2V 7.5A ±1% 180mV ±1.0% ±2.0% 90W 87%
PDN100-15 15V 13.5 - 16.5V 6.4A ±1% 180mV ±1.0% ±2.0% 96W 87%
PDN100-24 24V 21.6 - 26.4V 4A ±1% 180mV ±1.0% ±2.0% 96W 88%
PDN100-48 48V 43.2 - 52.8V 2A ±1% 250mV ±1.0% ±2.0% 96W 87%

Notes.

1. All parameters NOT specifically mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1µF ceramic & 47µF electrolytic parallel capacitors.

3. Tolerance includes set up tolerance, line regulation and load regulation.

4. De-rating mat be needed under low input voltages. Check the de-rating curve for more details.

5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

6. In parallel connection, only one unit may operate if the output load is less than 5% of rated output load.

Preset Range CURRENT TOLERANCE NOISE REG. REG. Max.

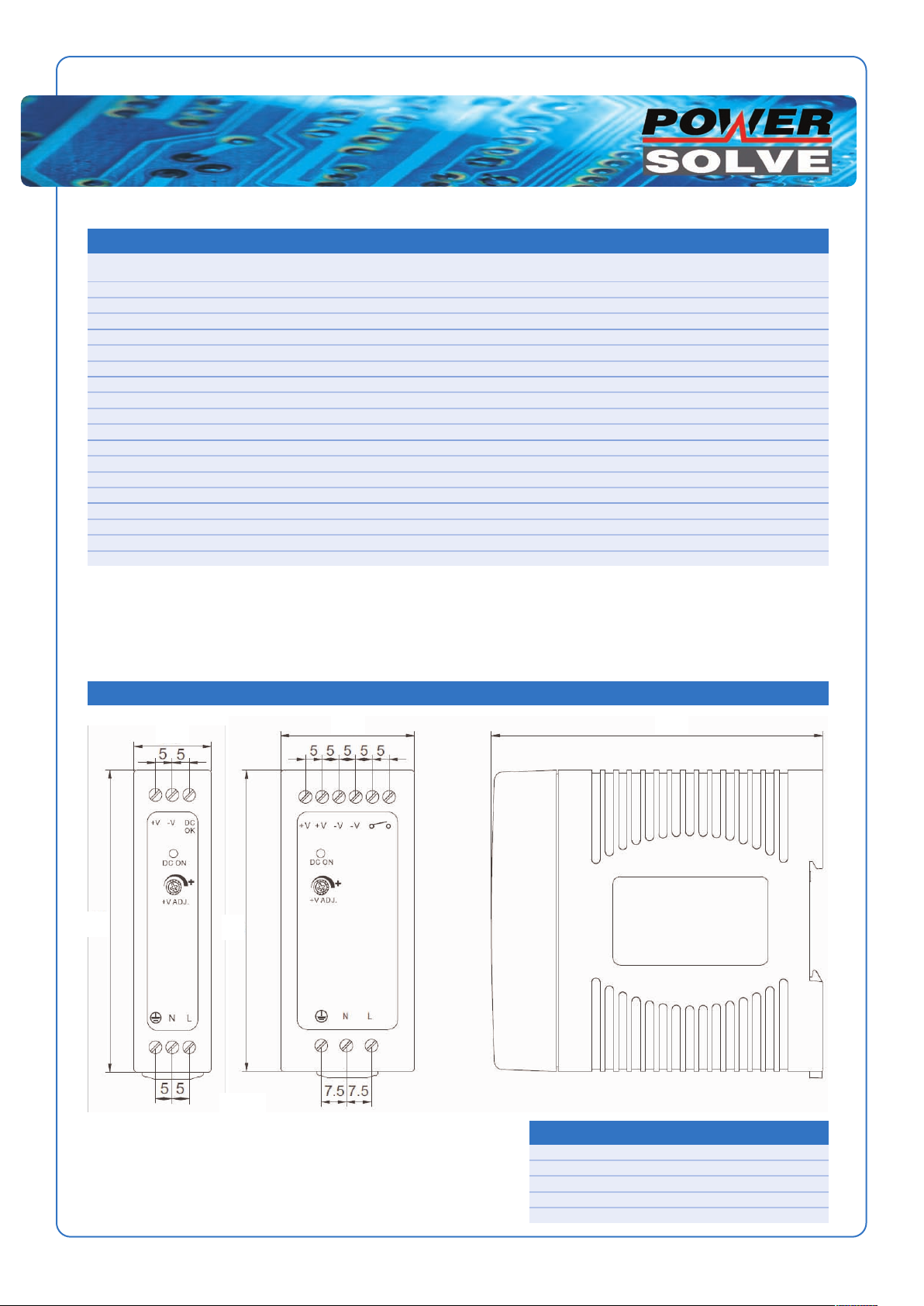

Mechanical & Connection Details

W

H

H

W

PDN10, PDN20 PDN40, PDN60, PDN100

D

Dimensions

Model Width (W) Height (H) Depth (D)

PDN10 & PDN20 23 90 99
PDN40 & PDN60 40 90 99
PDN100 55 90 99

All dimensions in mm

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

Industrial Power Supplies

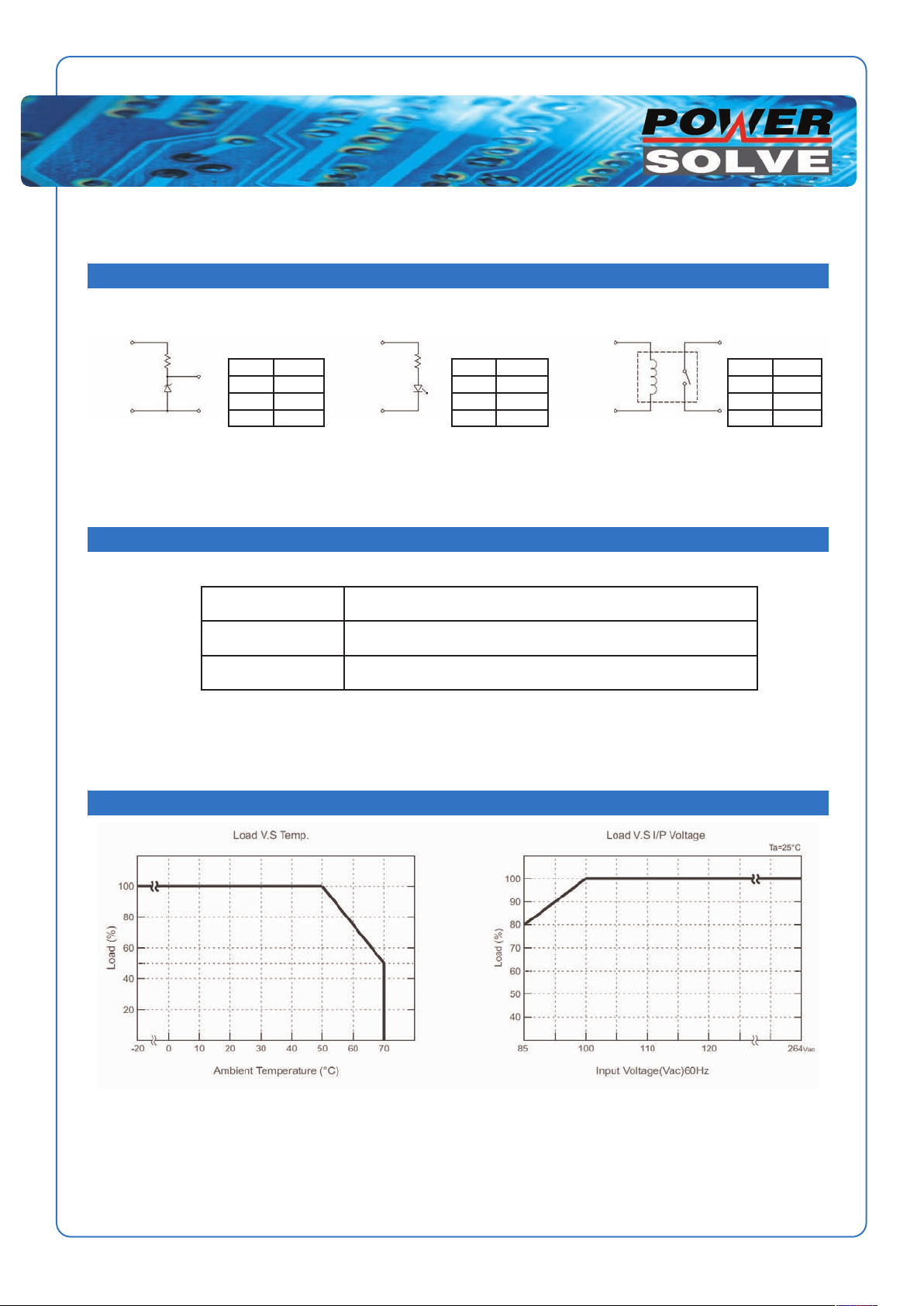

Application of DC OK Active Signal (PDN10, PDN20)

www.powersolve.co.uk

(a) 5V Signa

DC OK DC OK DC OK

-V -V -V

l (b) LED (c) Relay

RR

5.1V

Model R

12V ≥1.5KΩ
15V ≥2KΩ
24V ≥3.9KΩ

Model R

12V ≥2.4KΩ
15V ≥3KΩ
24V ≥4.7KΩ

Relay

DC OK Relay Contact (PDN40, PDN60, PDN100)

Contact Closed When the output voltage reaches the adjusted output voltage

Contact Open When the output voltage drops below 90% of the adjusted output voltage

Contact Rating (max.) 24V / 1A resistive load

Model Coil R

12V ≥700Ω
15V ≥700Ω
24V ≥1.2KΩ

De-rating Curves
