Keep This Manual For Future Reference
©2014 Powersoft
powersoft_MSeries_uguide_en_v2.9
USER GUIDE
M Series Ampliers
DO000100
March 2014
M30D / M30D HDSP+ETH
M20D / M20D HDSP+ETH
M14D / M14D HDSP+ETH
M50Q / M50Q HDSP+ETH
M28Q / M28Q HDSP+ETH
Table of contents
1 Important safety instructions 4
2 Precautions regarding installation 4
2.1 Location 4
2.2 Inrush current 5
2.3 Wiring 5
2.4 Main power switch 5
2.5 Speker damage 5
3 Technical drawings 6
4 Interfaces 7
5 Welcome 9
6 The M Series 9
6.1 More sound and less weight 9
7 Installation 9
7.1 Unpacking 9
8 Connections and Operation 10
8.1 Front panel air lters access 10
7.2 Mounting 10
7.3 Cooling 10
7.4 Operating precautions 10
7.5 Grounding 10
7.6 AC mains connection 10
8.2 Front panel adjustments 11
8.3 Front panel monitoring 11
8.4 Connecting audio inputs 11
8.4.1 MxxD models 11
8.4.2 MxxQ models 11
8.5 Connecting audio outputs 11
8.5.1 Lo-Z and 70V/100V operations 11
8.5.2 Bridge Mode Connection 11
9 M Series HDSP+ETH operation 12
9.1 Rear Panel LEDs 12
9.2 Ethernet por t and remote ID selection 12
9.3 V Ext 12
9.4 DSP features and operations 12
9.4.1 DSP Features 12
9.4.2 Input routing selection and internal signal route 13
9.4.3 Input section 13
9.4.4 Output section 13
9.5 Internal processing layout 13
9.5.1 Input routing 13
9.5.2 Input section 13
9.5.3 Output section 13
9.6 Locking 14
9.7 On/Off 14
9.8 Preset Management 14
10 Remote control 14
10.1 Networking 14

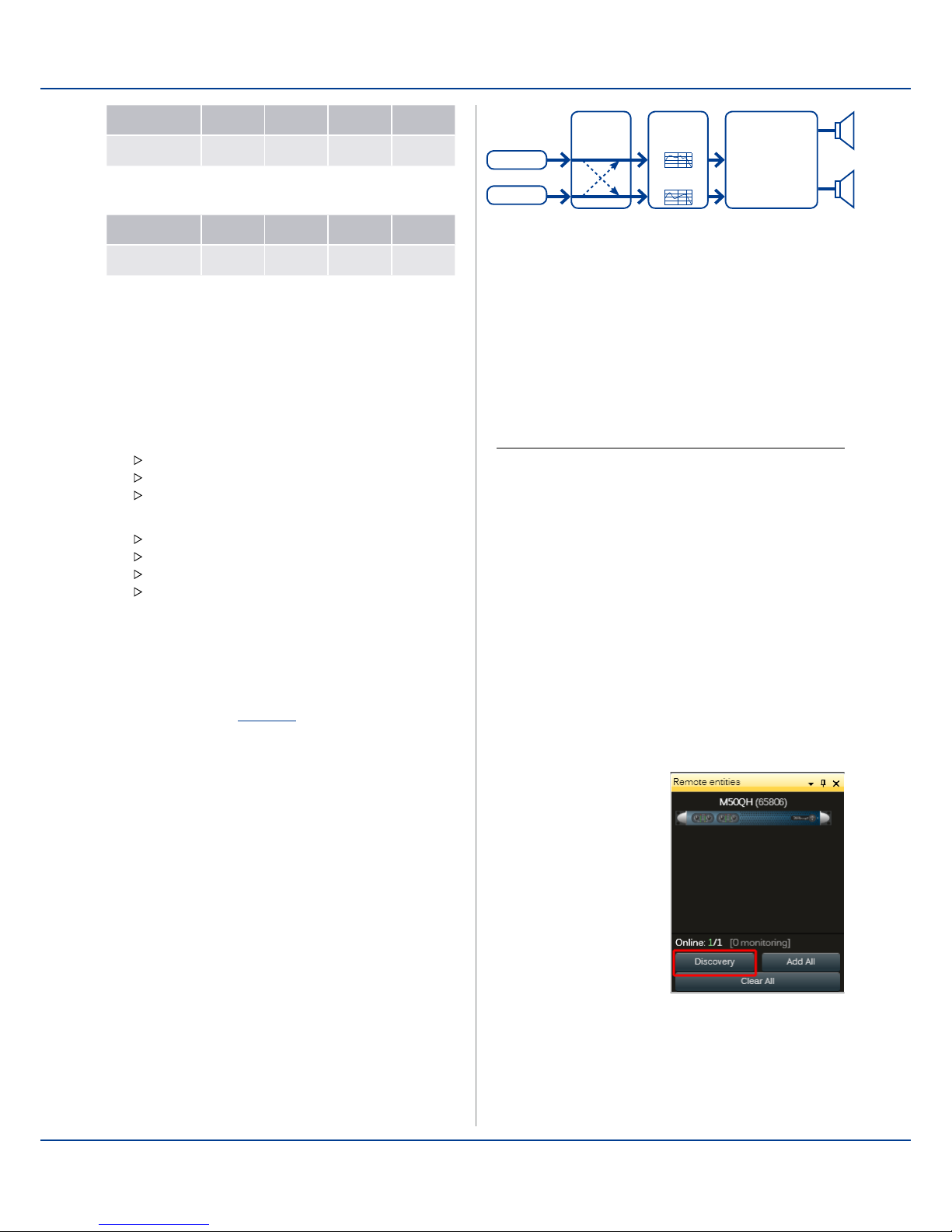

10.1.1 Discovery device 14
10.1.2 DHCP 14
10.1.3 AUTOIP 15
10.1.4 Static IP 15
10.1.5 Rever t from static IP 15

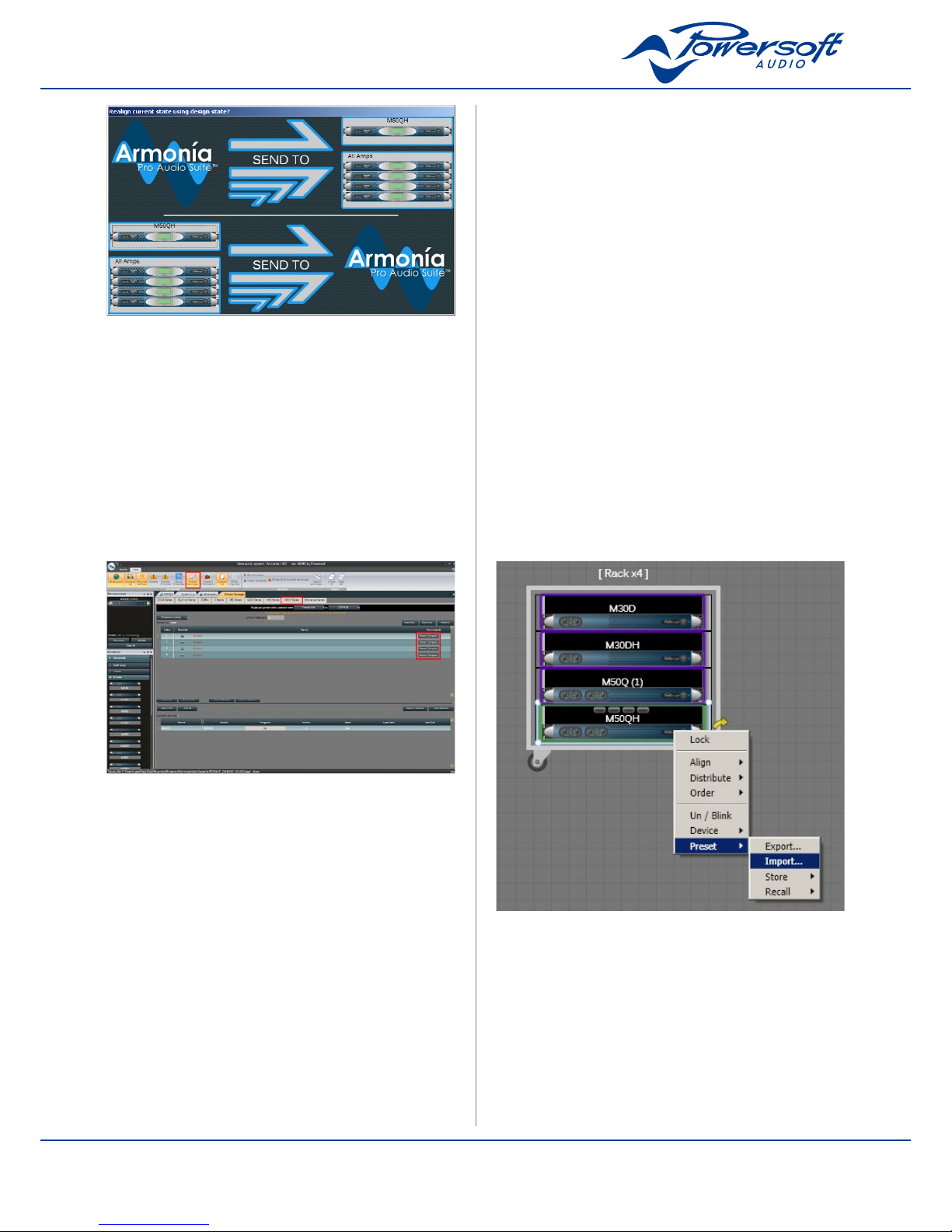

10.2 Setup device 16
10.2.1 Vir tual device 16
10.2.2 Congure layout 16
10.2.3 Real device 16
10.3 File operations 17
10.3.1 Binary preset le .preset 17
10.4 Input/output curves .icp, .ocp 17
10.5 Channel preset .chp 17
10.6 Device preset le .pam 17
10.7 System File .paw 18
M Series
User guide
2
10.8 DSP remote operations 18
10.8.1 Routing 18
10.8.2 Input eq 18
10.8.3 Output eq 19
10.8.4 Limiters 19
10.8.5 RMS limiter 19
10.8.6 Peak limiter 19

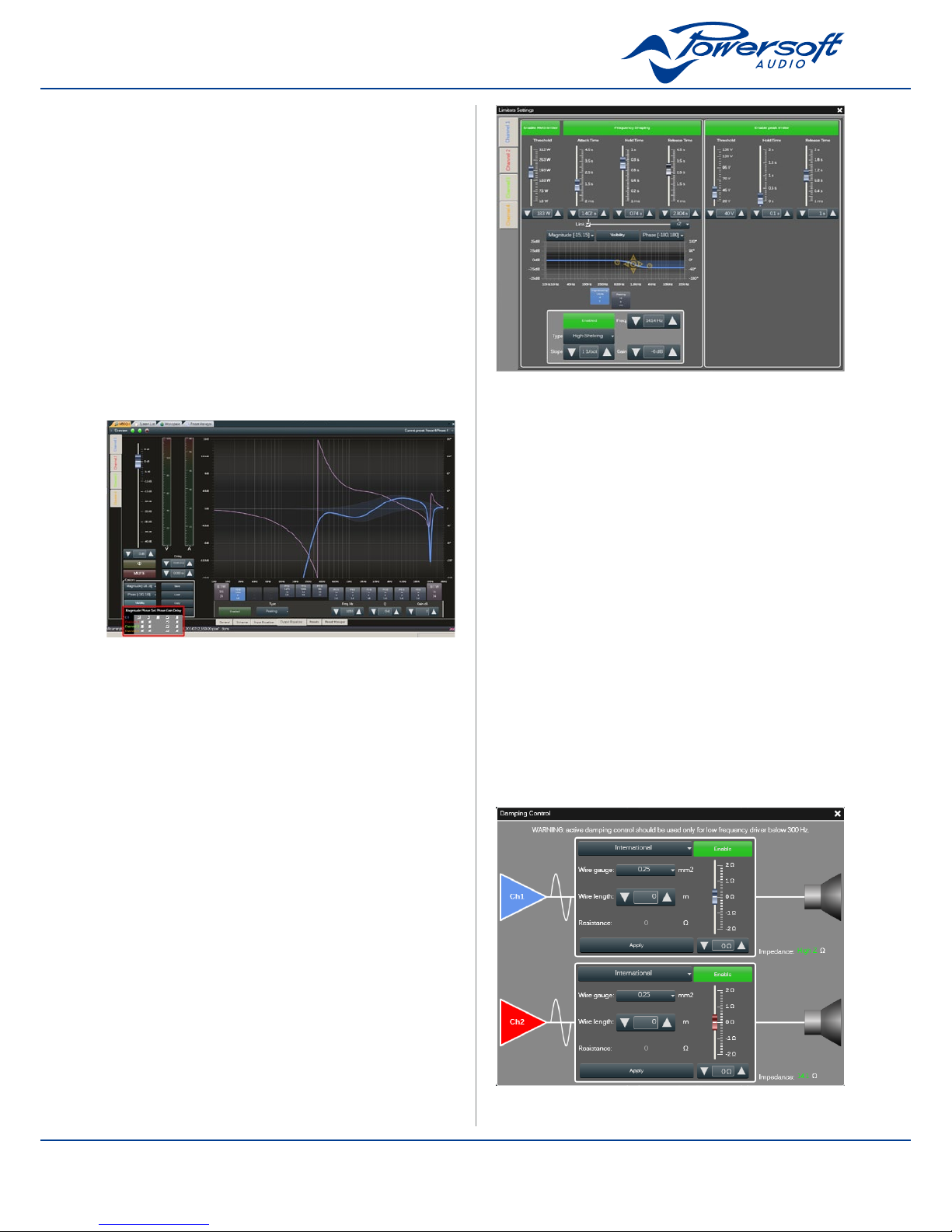

10.14.1 Damping factor correction 20
10.9 Locking 20
10.10 On board preset operations 20
10.11 Copy and paste operations 20
10.12 Input/output eq cur ves 20
10.13 Channels 21
10.14 Work space 21
11 Protection 21
11.1 Turn on/Turn off muting 21
11.2 Shor t circuit protection 21
11.3 Thermal protection 21
11.4 Thermal warning 21
11.5 Thermal shutdown 21
14 Assistance 22
11.6 DC fault protection 22
11.7 Input/output protection 22
12 User Maintenance 22
12.1 Cleaning 22
12.2 Service 22
12.3 Dust Removal 22
13 Warranty 22
13.1 Product warranty 22
13.2 Return of Goods 22
13.3 Repair or replacement 22
13.4 Cost and responsibility of transpor t 22

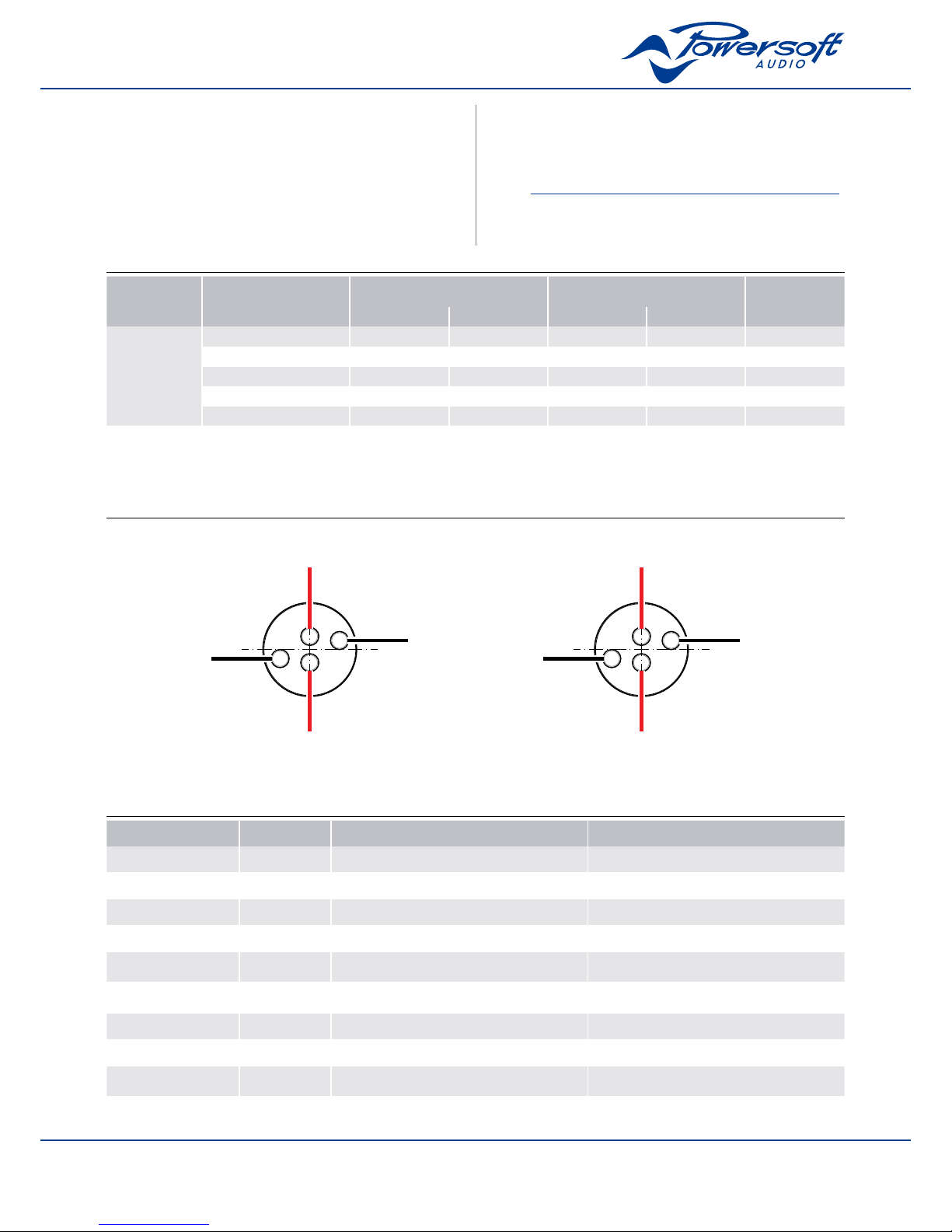

15 M Series power rating 23
16 Output SpeakON connection polarities 23
17 M Series load compatibility chart 23

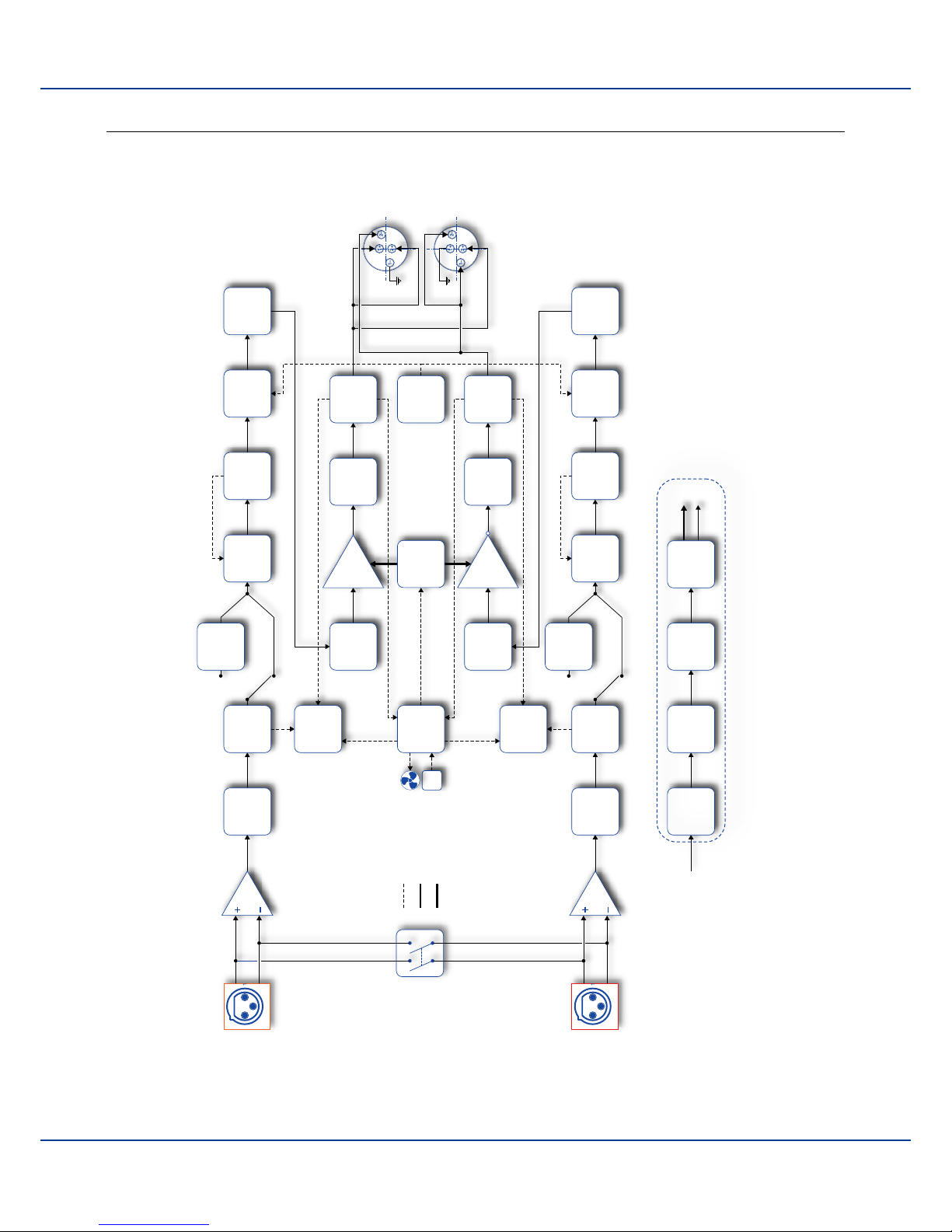

18 M Series block diagram 24
19 Specications 25

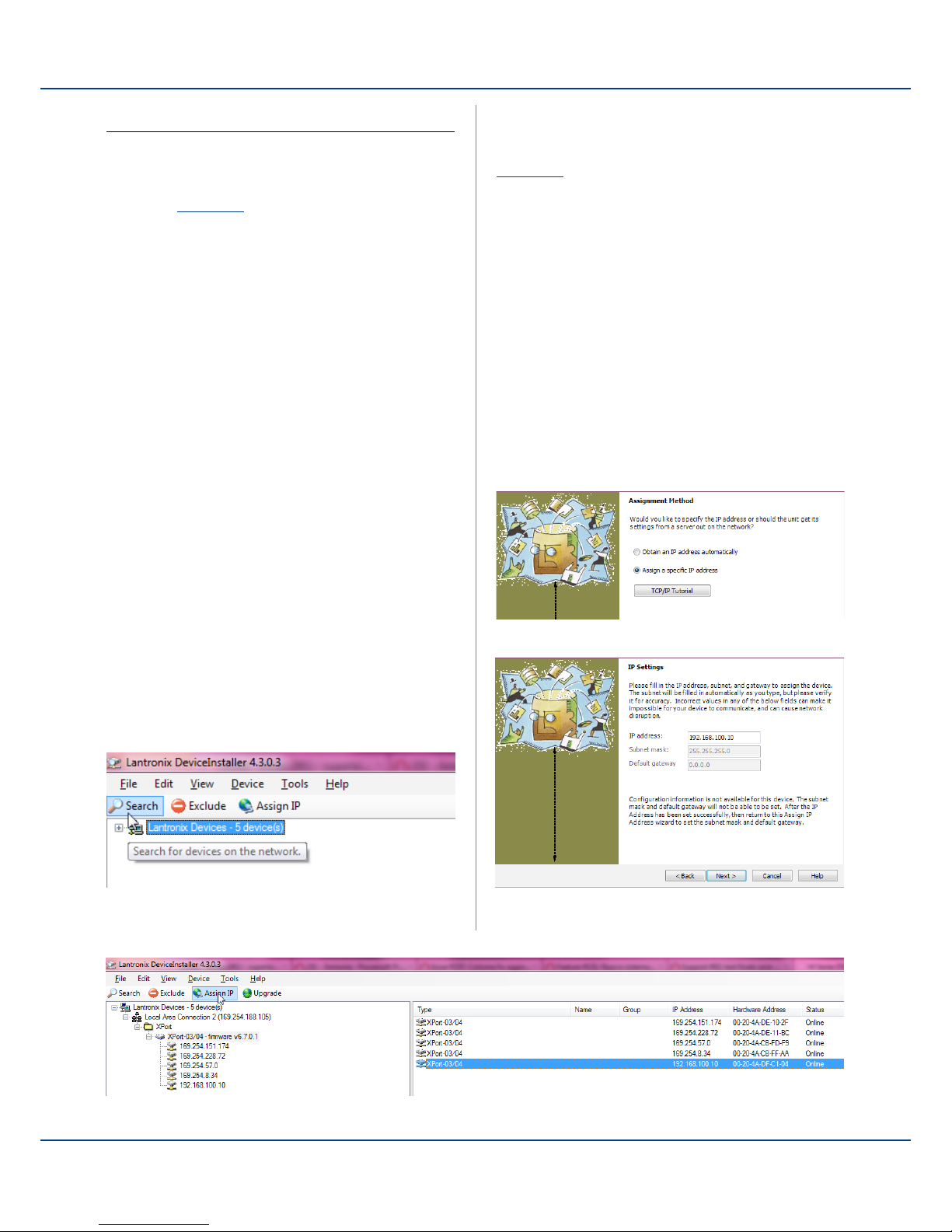

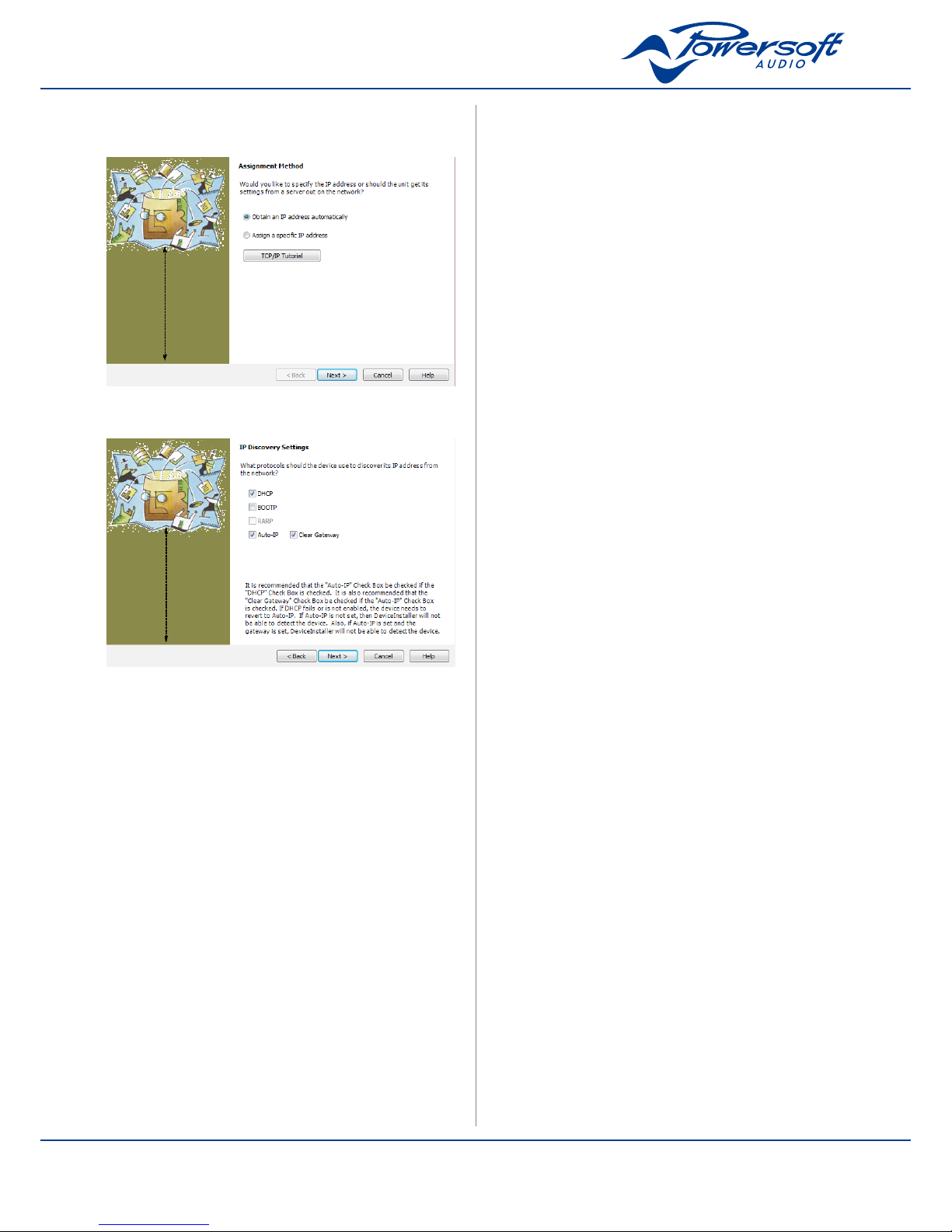

Annex A: IP management and recovery 30
A.1 Setting an IP policy on Adau based devices
with an external Lantronix tool 30
A.1.1 Reset IP conguration 30
3
1 Important safety instructions
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK ,
DO NOT ATTEMPT TO OPEN ANY PART OF THE UNIT. NO
USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK , DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE. OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.
TO COMPLETELY DISCONNECT THIS APPARATUS FROM
THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD
PLUG FROM THE AC RECEPTACLE.
THE MAINS PLUG OF THE POWER SUPPLY CORD MUST
REMAIN READILY ACCESSIBLE.
SAFEGUARDS: This unit has been engineered and manufactured
to assure your personal safety. Improper use can result in potential
electrical shock or re hazards. In order not to defeat the safeguards, observe the following instructions for its installation, use
and servicing.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this amplier near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stover or other apparatus (including ampliers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specied by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket or
table specied by the manufacturer, or sold with
the apparatus. When a car t is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
NOTES: This equipment has been tested and found to comply
by Competent Body (Directive 2004 /108 / EC) pursuant to the
product family standard for audio professional use: EN 55103-1
and EN 55103-2 standard.
This equipment has been tested and found to comply by Notied
Body 2014 (Directive 2006 / 95 / EC) pursuant to the audio appa-
ratus safety requirements: EN 60065 and EN 6006/A1 standard.
Electromagnetic environments E4, E5.
This equipment has been tested and found to comply with the
limits for Class A digital device, pursuant to Par t 15 of the FCC
rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment in question is
used in a commercial environment.
This equipment generates and uses radio frequency energy and
may cause harmful interference to radio communications if not
installed and used in accordance with the recommendations of the
instruction manual.
The use of this equipment in a residential area may cause harmful
inter ference that the user will be required to correct at his own
expense if necessary.
User instructions
Alterations or modications to the equipment without
proper authorization can void the user’s authority to operate the
equipment and/or the equipment warranty.
EXPLANATIONS OF GRAPHICAL SYMBOLS
The Lightning Flash with arrowhead symbol within an
equilateral triangle is intended to aler t the user to the
presence of uninsulated “dangerous voltage” within the
product enclosure that may be of sufcient magnitude to
constitute a risk of shock to persons.
The Exclamation Point within an equilateral triangle is
intended to alert the user to the presence of impor tant
operating and maintenance (servicing) instructions in the
literature accompanying the product.
2 Precautions regarding installation
2.1 Location
Install the amplier in a well-ventilated location where it
will not be exposed to high temperature or humidity.
Do not install the amplier in a location that is exposed to direct
sun rays, or near hot appliances or radiators. Excessive heat can
adversely affect the cabinet and internal components. Installation
of the amplier in a damp or dusty environment may result in
malfunction or accident.
Placing and using the amplier for long periods of time on
heat generating sources will affect its performance. Avoid
placing the amplier on heat generating sources. Install this amplier as far as possible from tuners and T V sets. An amplier
installed in close proximity of such equipment may experience
noise or generic performance degradation.
4
CAUTION
RISK OF ELECTRICK SHOCK
DO NOT OPEN
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
!
No naked ame sources such as lighted candles should be
placed on the amplier.
Do not spill water or other liquids into or on the amplier.
WARNING
To prevent re or electric shock:
f The ventilation openings must not be impeded by any item
such as newspapers, tablecloths, cur tains etc; keep a distance
of at least 50 cm from the front and rear ventilation openings
of the amplier.
f Do not expose this amplier to rain or moisture.
f This equipment must not be exposed to dripping or splashing
liquids: objects lled with liquids, such as vases, must not be
placed on the amplier.
2.2 Inrush current
Average half-cycle r.m.s. inrush current on initial
switch-on:
M14D and M14D HDSP+ETH: 28 A
rms
M20D and M20D HDSP+ETH: 35 A
rms
M30D and M30D HDSP+ETH: 36 A
rms
M28Q and M28Q HDSP+ETH: 30 A
rms
M50Q and M50Q HDSP+ETH: 39 A
rms
Average half-cycle r.m.s. inrush current after a supply
interruption of 5 seconds:
M14D and M14D HDSP+ETH: 13 A
rms
M20D and M20D HDSP+ETH: 15 A
rms
M30D and M30D HDSP+ETH: 16 A
rms
M28Q and M28Q HDSP+ETH: 14 A
rms
M50Q and M50Q HDSP+ETH: 18 A
rms
2.3 Wiring
This device must be powered exclusively by earth con-
nected mains sockets in electrical networks compliant to
the IEC 364 or similar rules. It is absolutely necessary to verify this
fundamental requirement of safety and, in case of doubt, require
an accurate check by qualied personnel.
POWERSOFT cannot be considered responsible for eventual
damages caused to persons, things or data due to an improper
or missing ground connection.
f Before powering this amplier, verify that the correct voltage
rating is being used.
f Verify that your mains connection is capable of satisfying the
power ratings of the device.
f Do not use this ampliler if the electrical power cord is frayed
or broken.
f Do not remove the cover. Failing to do so will expose you to
potentially dangerous voltage.
f Provide a sectioning breaker between the mains connections
and the amplier. The suggested device is a 16A/250V AC, C
or D curve, 10 kA.
f Switching mode amplier is capable of producing hazardous
output voltages. To avoid electrical shock, do not touch any
exposed speaker wiring while the amplier is operating.
CLA SS 2 WIRIN G
Output terminals are hazardous: wiring connection to
these terminals require installation by an instructed person and the use of ready made leads.
Take care to secure the output terminal before switching the
device on.
2.4 Main power switch
The main power switch on this unit does not provides
a complete insulation of the equipment from the main
power. You must disconnect the main power source to turn off
all power. So make sure that the unit has been installed so that
the power cord can be easily disconnected from the outlet in case
of accident. To avoid re hazard, the power cord should also be
unplugged from the outlet when the device is not used for a long
period (for example, when you go on vacation).
2.5 Speker damage
Powersof t switching mode ampliers are among the most
powerful professional ampliers available and are capable
of producing much more power than many loudspeakers can handle. It is the user’s responsibility to use speakers suitable to the
amplier and to use them in a sensible way that will not cause
damage
Powersoft will not be held responsible for damaged speakers.
Consult the speaker manufacturer for power handling recommendations.
Even if you reduce the output volume using the amplier’s
front panel attenuation controls, it is still possible to reach full
output power if the input signal level is high enough.
A single high-power tone can damage high frequency drivers
almost instantaneously, while low frequency drivers can usually
withstand very high, continuous power levels for a few seconds
before they fail. Reduce power immediately if you hear any
speaker “bottoming out”: harsh pops or cracking distortion that
indicate that the speaker voice coil or diaphragm is striking the
magnet assembly.
This manual contains important information on operating your
Powersoft amplier correctly and safely. Please read it carefully
before operating your amplier. If you have any questions, con-
tact your Powersoft dealer.
5
3 Technical drawings
337,3
44,1
437,6
379,5
482
FIGURE 1: M Series mechanical drawing. All dimensions in millimiters.
6
7
4 Interfaces
1. Channel 1 input attenuator
2. Channel 1 meter LEDs
3. Channel 2 meter LEDs
4. Channel 2 input attenuator
5. On/off power switch
6. Channels 1&2 ready LED
7. Channels 1&2 temperature warning LED
8. AC mains power plug
9. Air vents
10. Channels 1&2 line output XLR connector
11. Channels 1&2 line input XLR connector
12. Channel 2 output Speakon connector
13. Link switch channels 1-2
14. Channel 1 output Speakon connector
15. Amplier’s remote ID selector
16. Preset LEDs
17. Preset selector button
18. AUX supply plug
19. Ethernet port
FIGURE 2: M Series – MxxD front panel view.
FIGURE 3: M Series – MxxD (non HDSP+ETH) rear panel view.
0
5
9
4
8
3
7
2
6
1
0
5
9
4
8
3
7
2
6
1
FIGURE 4: M Ser ies
HDSP+ETH rear panel view.
1 2 3 4
6 7
5
8
13 14
15 16 17 18 19
9
10 11
12
1. Channel 1 input attenuator
2. Channel 1 meter LEDs
3. Channel 2 meter LEDs
4. Channel 2 input attenuator
5. On/off power switch
6. Channels 1&2 ready LED
7. Channels 1&2 temperature warning LED
8. AC mains power plug
9. Air vents
10. Channels 3&4 line input XLR connector
11. Channels 1&2 line input XLR connector
12. Channel 4 output Speakon connector
13. Link switch channels 3- 4
14. Channel 3 output Speakon connector
15. Channel 2 output Speakon connector
16. Link switch channels 1-2
17. Channel 1 output Speakon connector
18. Amplier’s remote ID selector
19. Preset LEDs
20. Preset selector bu tton channels 3&4
21. Preset selec tor but ton channels 1&2
22. AUX supply plug
23. Ether net port
FIGURE 5: M Ser ies – MxxQ front panel view.
FIGURE 6: M Series – MxxQ (non HDSP+ETH) rear panel view.
FIGURE 7: M Series
HDSP+ETH rear panel view.
8
1 2 3 4
6 7
5
8
1613 1714
18 2019 21 22 23
9
10 11
1512
M Series
User guide
5 Welcome
Congratulations on buying a Powersoft M Series amplier!
Powersof t is a leading company in the eld of high efciency
audio power management. The Powersoft Class D technology
has changed the way the world looks at professional audio
amplication: no other amplier’s performance comes close for
applications demanding high power and long term reliability.
Thanks to amazing reductions in heat output and weight,
without sacricing output powers, Powersoft ampliers can
be used in an unlimited range of PA applications such as opera
houses, theaters, churches, cinema, and theme parks.
6 The M Series
M Series ampliers are specically designed for touring and live
applications. The ampliers in this series offer smaller dimensions,
lighter weight and the traditionally amazing sound quality and
reliability of all Powersoft products. M Series ampliers have
power ratings suitable for a vast range of common applications
including 70V/100V distributed line systems.
6.1 More sound and less weight
Switching mode technology based amplier s are highly
efcient, delivering greater power to speakers with reduced heat
dissipation: typical running efciency of output stages is 95%, with
only 5% of input energy dissipated as heat. This allows for smaller
dimensions, weight and power consumptions.
Contrary to conventional ampliers which achieve highest
efciency only at full rated power output, Class D efciency is
almost independent of output level. Music has an average power
density of 40% of its peak value; this means that other (nonClass D) ampliers can easily generate 10 times more heat than
Powersof t products for the same sound pressure level.
The units in the M Series are designed to work with lo-Z
(star ting from 4 �) and with 70V/100V distributed lines. They
can deliver up to 1500 W @ 4 � per channel or 3000 W in
bridge mode on 8 �. The HDSP+ETH versions of all ampliers
in this series allow single channel processing and remote control
capabilities.
Powersof t ampliers deliver crystal-clear highs, and a tight,
well-dened low end: the most accurate reproduction of an audio
signal. Solid time proven design features ensure extremely high
performance in terms of super low total harmonic distortion,
optimal frequency response, high power bandwidth and damping
factor across a vast number of application scenarios. Powersof t’s
multi patented application of Pulse Width Modulation (PWM)
high frequency sampling techniques is just one of the many factors
contributing to the M Series’ high performance ratings across the
audio bandwidth.
The M Series offers complete protection against any possible
operation error. Ever y amplier in this series is designed to work
under a large range of possible conditions, delivering maximum
power with maximum safety and an outstanding long term
reliability. Anticipating potential problems at the design stage
means your show always goes on!
7 Installation
7.1 Unpacking
The FIGURE 8 shows the packing view. Every Powersoft
amplier is completely tested and inspected before leaving the
factory and should arrive in pristine condition. In the unlikely event
that you should encounter any damage, please notify the shipping
company immediately. Be sure to save all packing materials for the
carrier’s inspection.
Every M Series amplier box contains the following:
f 1 M Series amplier.
f 1 x AC Mains cord with 3-pin plug 15 A for US or
IEC ‘Schuko’ 16 A for every other nation.
f 1 x User Guide.
manual
amplifier
mains cable
FIGURE 8: M Series package.
9
7.2 Mounting
All Powersof t ampliers are designed for standard 19” rack
mounting with four front panel holes and two rear-lateral holes. In
order to limit the risk of mechanical damages, ampliers must be
xed to the rack using both frontal as well as rear mounting holes
(ref. FIGURE 9).
7.3 Cooling
All Powersoft ampliers implement a forced-air cooling system
to maintain low and constant operating temperatures. Drawn by
an internal fan, air enters through the slots in the front panel and
is forced over all components, exiting at the back of the amplier.
Th e ampli er’s cooling sy s tem fe ature s an “int elli gent ” var iabl e -
speed DC fan which is controlled by heat sink temperature sensing
circuits: the fan speed will increase only when the temperature
recorded by the sensors rises over carefully predetermined values.
This ensures that fan noise and internal dust accumulation are kept
to a strict minimum. Should however the amplier be subject to
an extreme thermal load, the fan will force a ver y large volume
of air through the heat sink. In the extremely rare event that the
amplier should dangerously overheat, sensing circuits shut down
all channels until the amplier cools down to a safe operating
temperature. Normal operation is resumed automatically without
the need for user intervention.
Caution regarding heat escape should be exercised when
mounting M Series ampliers. Exhaust cooling air is forced out
through the rear of the chassis (ref. FIGURE 9); make sure there
is enough space around the back of the amplier for this air to
escape. M Series ampliers can be stacked one on top of the other
due to the efcient cooling system they are equipped with. There
is however a safety limit to be observed: in case a rack with closed
back panels is used, leave one rack unit empty every four installed
ampliers to guarantee adequate air ow.
7.4 Operating precautions
Make sure the power switch is off before attempting to make
any input or output connections.
Make sure the AC mains voltage used is within the acceptable
operating voltage range specied in the M Series documentation
(factor y selected 115 V / 230 V ±15%), depending on your country
mains standard. Damage caused by connecting the amplier to an
improper AC mains voltage is not covered by the warranty.
By using good quality input and speaker cables, the likelihood
of erratic signal behavior is reduced to a minimum. Whether you
make them or buy them, look for good quality wires, connectors
and soldering techniques.
7.5 Grounding
There is no ground switch or terminal on the M Series ampliers.
All shield terminals of input connections are directly connected to
the chassis. This means that the unit’s signal grounding system is
automatic. In order to limit hum and/or inter ference entering the
signal path, use balanced input connections.
In the interests of safety, the unit MUST always operate with
electrical safety ear th connected to the chassis via the dedicated
wire in the 3-wire cable. Never disconnect the ground pin on the
AC mains power cord.
7.6 AC mains connection
The AC Mains connection is made via the IEC type connector
on the back of the amplier. Please make sure your AC mains
power source operates within the voltage limits indicated on this
manual (factor y selected 115 V / 230 V ±15%).
Safety warning!
Ground wires must be connected!
Do not use adapters that disable grounding.
8 Connections and Operation
This section provides information on amplier connection and
operation. For optimal amplier per formance, it is impor tant to
understand the meaning of the information that each M Series
amplier can provide regarding its status and conguration. This
information is available to the user via front panel indicators as well
as through specic LEDs the back of the unit (for HDSP versions
only). This chapter will break down all the front panel and back
panel functions. The remaining part of the chapter will explain
how to correctly connect the amplier’s inputs and outputs.

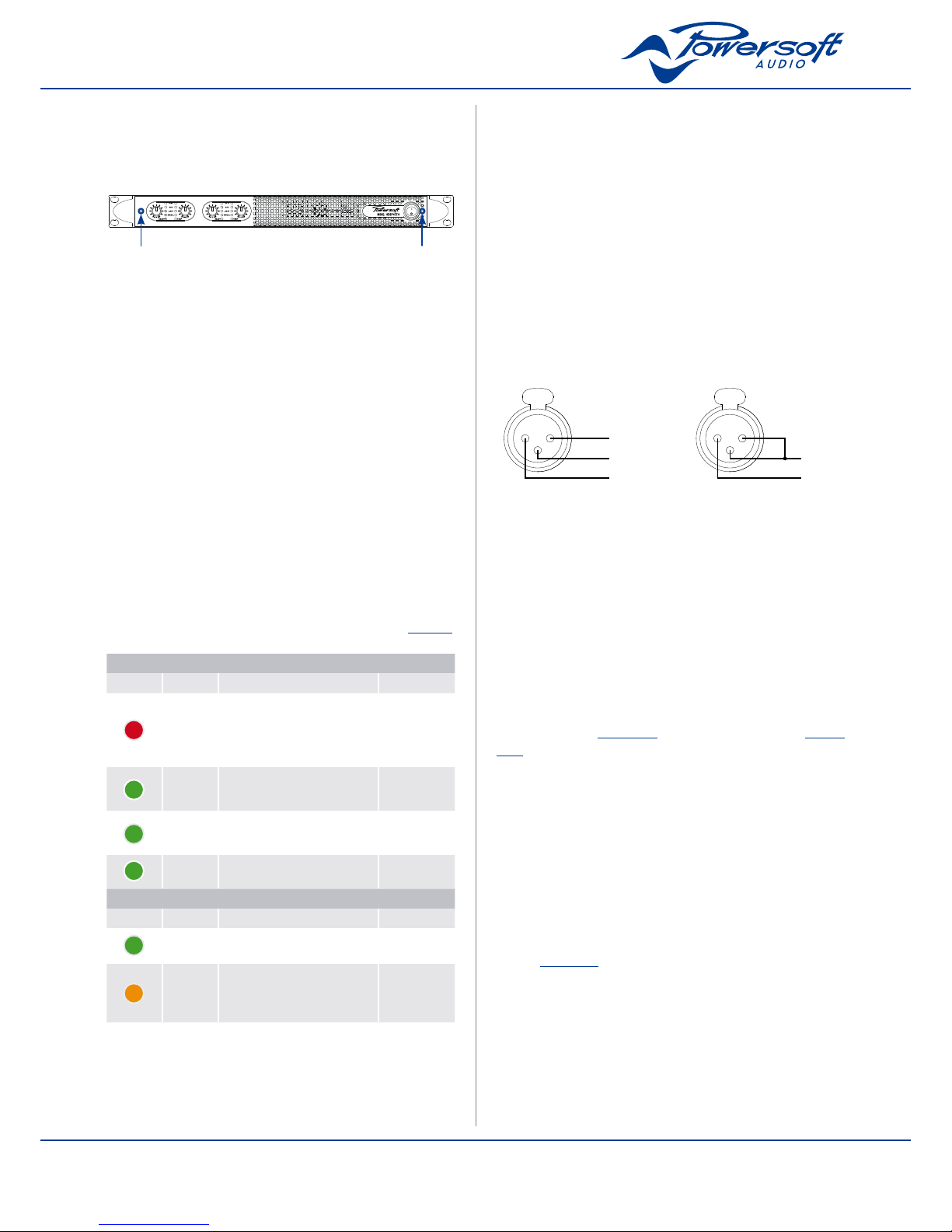

8.1 Front panel air lters access
The blue front panel of all M Series ampliers can be removed
to access the air lters. This is useful when the air lters need to
be cleaned due to dust accumulating and clogging the lters thus
hindering proper air circulation vital for cooling purposes.
To take off the blue colored front panel, remove the two
screws highlighted in with a Philips screwdriver. The panel will easily
separate from the amplier exposing the sponge-like air lters.
air flow
mounting
holes
brackets
FIGURE 9: Circulation d’air des M Series.
open the lock and
insert the plug
lock the plug
FIGURE 10: AC mains plug connection.
10
Loading...
