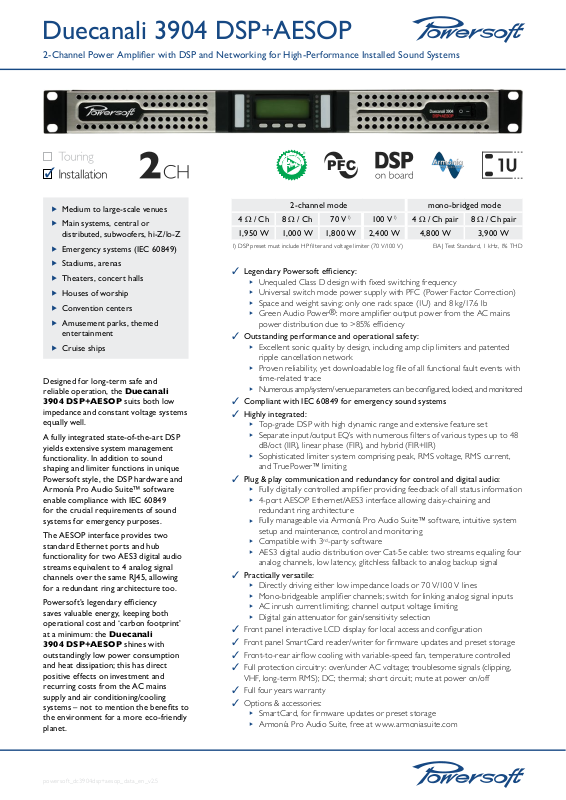

Powersoft Duecanali 3904 DSP+AESOP Data Sheet
Duecanali 3904 DSP+AESOP
2-Channel Power Amplier with DSP and Networking for High-Performance Installed Sound Systems
®
▶ Medium to large-scale venues
▶ Main systems, central or
distributed, subwoofers, hi-Z/lo-Z
▶ Emergency systems (IEC 60849)
▶ Stadiums, arenas
▶ Theaters, concert halls
▶ Houses of worship
▶ Convention centers
▶ Amusement parks, themed
entertainment
▶ Cruise ships
Designed for long-term safe and
reliable operation, the Duecanali
3904 DSP+AESOP suits both low
impedance and constant voltage systems
equally well.
A fully integrated state-of-the-art DSP
yields extensive system management
functionality. In addition to sound
shaping and limiter functions in unique
Powersoft style, the DSP hardware and
Armonía Pro Audio Suite™ software
enable compliance with IEC 60849
for the crucial requirements of sound
systems for emergency purposes.
The AESOP interface provides two
standard Ethernet ports and hub
functionality for two AES3 digital audio
streams equivalent to 4 analog signal
channels over the same RJ45, allowing
for a redundant ring architecture too.
Powersoft’s legendary efciency
saves valuable energy, keeping both
operational cost and ‘carbon footprint’
at a minimum: the Duecanali
3904 DSP+AESOP shines with
outstandingly low power consumption
and heat dissipation; this has direct
positive effects on investment and
recurring costs from the AC mains
supply and air conditioning/cooling
systems – not to mention the benets to
the environment for a more eco-friendly
planet.
2-channel mode mono-bridged mode
4 Ω / Ch 8 Ω / Ch 70 V
1)
100 V
1)
4 Ω / Ch pair 8 Ω / Ch pair
1,950 W 1,000 W 1,800 W 2,400 W 4,800 W 3,900 W
1) DSP preset mus t include HP l ter an d volt age limiter (70 V/100 V) EIAJ Test Stan dard, 1 kHz, 1% THD
Legendary Powersoft efciency:
▶
Unequaled Class D design with xed switching frequency
▶
Universal switch mode power supply with PFC (Power Factor Correction)
▶
Space and weight saving: only one rack space (1U) and 8 kg/17.6 lb
▶
Green Audio Power®: more amplier output power from the AC mains
power distribution due to >85% efciency
Outstanding performance and operational safety:
▶
Excellent sonic quality by design, including amp clip limiters and patented
ripple cancellation network
▶
Proven reliability, yet downloadable log le of all functional fault events with
time-related trace
▶
Numerous amp/system/venue parameters can be congured, locked, and monitored
Compliant with IEC 60849 for emergency sound systems
Highly integrated:
▶
Top-grade DSP with high dynamic range and extensive feature set
▶
Separate input/output EQ’s with numerous lters of various types up to 48
dB/oct (IIR), linear phase (FIR), and hybrid (FIR+IIR)
▶
Sophisticated limiter system comprising peak, RMS voltage, RMS current,
and TruePower™ limiting
Plug & play communication and redundancy for control and digital audio:
▶
Fully digitally controlled amplier providing feedback of all status information
▶
4-port AESOP Ethernet/AES3 interface allowing daisy-chaining and
redundant ring architecture
▶
Fully manageable via Armonía Pro Audio Suite™ software, intuitive system
setup and maintenance, control and monitoring
▶
Compatible with 3rd-par ty software
▶
AES3 digital audio distribution over Cat-5e cable: two streams equaling four
analog channels, low latency, glitchless fallback to analog backup signal
Practically versatile:
▶
Directly driving either low impedance loads or 70 V/100 V lines
▶
Mono-bridgeable amplier channels; switch for linking analog signal inputs
▶
AC inrush current limiting; channel output voltage limiting
▶
Digital gain attenuator for gain/sensitivity selection
Front panel interactive LCD display for local access and conguration
Front panel SmartCard reader/writer for rmware updates and preset storage
Front-to-rear air ow cooling with variable-speed fan, temperature controlled
Full protection circuitry: over/under AC voltage; troublesome signals (clipping,
VHF, long-term RMS); DC; thermal; shor t circuit; mute at power on/off
Full four years warranty
Options & accessories:
▶
Smar tCard, for rmware updates or preset storage
▶
Armonía Pro Audio Suite, free at www.armoniasuite.com
powersoft_dc3904dsp+aesop_data_en_v2.5
Duecanali 3904 DSP+AESOP
2-Channel Power Amplier with DSP and Networking for High-Performance Installed Sound Systems
Specications
General
AC Mains Power
Thermal
Audio
DSP
Pilot Tone De tection, Generation and Output Load Monitor
Front Panel
Rear Panel
Construction
1) DSP preset must include H P lter and vo lta ge limiter ( 70 V/100 V)
Number of channels 2
Output power stereo mode mono-bridged mode
EIAJ Test Stan dard, 1 kHz, 1% THD 2 Ω/ch 4 Ω/ch 8 Ω/ch 70 V/ch
Max output volta ge / current 140 V
Power supply Universal, regulated switch mode with PFC (Power Factor Correction)
Operating voltage 100 - 240 V ±10%, 50/60 H z
Power fac tor cos (
Consumptio n / curre nt draw @ 230 V @ 115 V
Idle 88 W 1.35 A 69 W 1.2 A
I/8 of max out put power @ 4 Ω 609 W 3.1 A 609 W 6.3 A
I/4 of ma x output power @ 4 Ω 1,219 W 5.7 A 1, 219 W 11.4 A
Environmental operating temper ature 0° - 45° C / 32° - 113° F
Thermal dissipation Fan, continuously var iable speed, te mperature con trolled, fron t to rear air ow
Idle 382 BTU /h 96 kcal/h
I/8 of max out put power @ 4 Ω 722 BT U/h 182 kcal/ h
I/4 of ma x output power @ 4 Ω 1,062 BTU/h 268 kcal/h
Gain, selectable 26 dB 29 dB 32 dB 35 dB
Input Sensitivi ty @ 8 Ω 4.48 V 3.17 V 2.2 5 V 1. 59 V
Max input level 27 dBu 24 dBu 21 dBu 18 dBu
Gate -54 dBu -57 dBu - 60 dB u -63 dBu
Frequency response 20 Hz - 20 kHz (1 W @ 8 Ω, ±0. 5 dB)
S/N ratio (amp lier section) >110 dBA (20 H z - 20 kHz, A weig hted )
Crosstalk se paration > 70 dB @ 1 kHz
Input Impedance 10 k Ω balanced
THD+N /SM PTE IMD/DIM 100 IMD <0.2% from 1 W to full power (ty pically <0.05%)
Slew rate 50 V/µs @ 8 Ω, inpu t lter bypassed
Damping fac tor @ 8 Ω >500 0 @ 20-200 Hz
A/D converter
D/A converter
Memor y & presets 8 MB (R AM) plus 2 MB (ash for presets); 50 presets s tored locally + 150 stored on a sma rtcard
Digit al audio inpu t AES3 (gli tchless fallback to analog aud io sel ect able)
Delay for time alignment up to 4 s on the input sec tion, up to 32 ms per outpu t, sample-by-sam ple stepping
Crossover lters But ter wor th, Link wit z-R iley, B essel, ar bitrar y as ymmetric, 6 dB /oct to 48 dB/oct (I IR), linear phase (FIR), hybr id (F IR+II R)
Output equalizer 16 fully parametric lters per cha nnel, IIR: peaking, hi/lo shelving, hi /lo pa ss eq , band pass, band s top, all pass. Custom F IR up
Input equalizer Three layers (PEQ, raised cosine , shel ving ), 32 lters each + group lter s, up to 256 lter s per channel
Cable compensation net work up to 2 Ω neg ative/pos itive wire compe nsation (Ac tive DampingContr ol
Limiters
Input pilot tone det ection 0 V
Output pilot tone detection 0 V
Impedance alarm 20 Ω - 1000 Ω in s teps of 0.1 Ω; 20 Hz - 22 k Hz in s teps of 10 Hz; Impedance vs fr equency m easurement
Output generator 1 V
Indicators 7 meter LEDs: 5 x green, 1 x yellow, 1 x re d, top yellow a nd red show al arm w ith protect descri ption on LCD panel
Controls
Maintenance
Audio signal input connectors
Loudspeake r output connectors
Fault alarm connec tor 1 x 4 -pi n Phoe nix type MC1.5/2-ST-3.81
Aux command input 1 x 2-pin Phoenix MC1.5/ 2-ST-3.81
Aux external voltage 1 x 2-pin Phoenix MC1.5/2-ST-3.81
Network dat a por t Ethernet 2 x RJ45 with activity LEDs
Network dat aport AESOP incl. AES3
AC mains
Controls
Dimensions W 483 mm / 19”, H 44.5 mm / 1 RU, D 360 mm / 14.2”
Chassis 1 mm / 0.04” s teel chass is; 3 mm / 0 .12” screw hole protec tion, side reinforce ment & rear support , 0.8 mm (0. 03”) s teel
Weig ht
φ) >0.95 @ >50 0 W
2,40 0 W 1,950 W 1,00 0 W 1,800 W 2,400 W 4,800 W 3,900 W
Dual 24bit 96 kHz Tandem® archi tec ture with 127 dBA of dynamic range and THD <0.0 05% (20 Hz - 20 kHz)
Dual 24bit 96 kHz Tandem® archi tec ture with 122 dBA of dynamic range and THD <0.003% (20 Hz - 20 kHz)
to 384 t aps @ 48 or 96 kHz
Power limite r (TruePower™, RMS vol tage, RMS current) + Peak Limiter
- 1 V
RMS
- 30 V
- 10 V
in ste ps of 10 mV
in ste ps of 0.1 V
RMS
in ste ps of 1 V
RMS
RMS
RMS
RMS
4 pushbut tons , function depending on user menu; mains swi tch
Smar tCard reader/writer for rmware updates and preset storage. Dust l ter foam behind front panel
Analog: main & aux each 2 x 3- pin Ph oeni x MC1.5/3-ST-3.81, electron ical ly balanced (au x act ivated per aux vol tage)
4 x 2-pin Phoenix type GMSTB2 .5/ 2-ST
AES3: m ain & au x each 2 x 3 -pin Phoenix MC1.5/3-ST-3.81, elec tronically balanced (aux ac tivated per aux volta ge)
IEC C19/22.2 20 A , AC mains cord with 20 A 3 -pi n plug 20 A for US , IEC Schuko 16 A for ever y othe r nati on
1 x link switch, lin king analog inpu ts 1 and 2
removable dust cover
8 kg (17.7 lb)
; 20 Hz - 22 k Hz in s teps of 10 Hz
RMS
; 20 Hz - 22 k Hz in s teps of 10 Hz
RMS
; 20 Hz - 22 k Hz in s teps of 10 Hz, one indep endent generator for each ch anne l
RMS
peak
1)
/ 102 A
peak
1)
100 V /ch
TM
)
Data is subjec t to change with out notice.
Data is subjec t to change with out notice.
© 2012 Powersof t • All rights reserved.
© 2012 Powersof t • All rights reserved.
4 Ω 8 Ω
Powersoft • Via Enrico Conti, 5 • 50018 Scandicci (FI) • Italy
+39 055 735 0230 • sales@powersoft.it • www.powersoft-audio.com
