OES9138

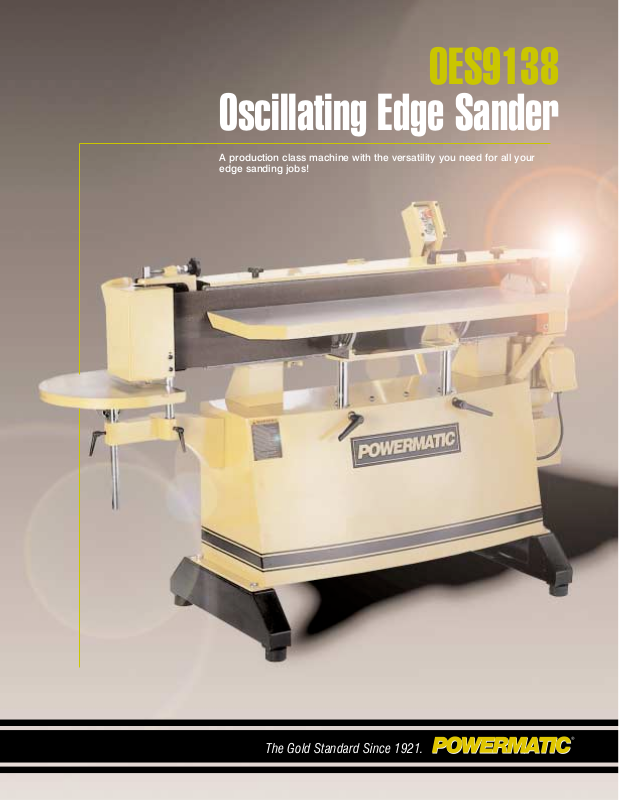

Oscillating Edge Sander
A production class machine with the versatility you need for all your
edge sanding jobs!
The Gold Standard Since 1921.
OES9138 Oscillating Edge Sander
The Gold Standard Since 1921.
The new oscillating edge sander
from Powermatic is full of features
to handle all your edge sanding
needs. ■ The large 11
3
/4" x 48"
table travels a full 8" in vertical
height to accommodate all parts
from tall to small. It will also
tilt in — 5 degrees and out to
45 degrees for all the angles
you need to run. ■ The cast iron
platen is a generous 48" x 9
1
/2"
and covered with graphite for
production sanding offering super
support and cooler running to
extend belt life. With 24 oscillations per minute you can use the
entire belt face without burning.
■ A 3HP motor powers the belt
and runs a large gearbox to
provide the oscillating action. The
entire head pivots on a massive
shaft with 2 sealed ball bearings
for trouble-free performance. ■
Dual dust collection ports keep
the work area clean and extends
the life of your abrasive belt.
FEATURE
3HP motor with 9" x 138"
abrasive belt
Oscillates 24 cycles per minute
9" x 48" platen with graphite pad
Dual dust collection
Large 11
3
/4" x 48" front worktable with 8" vertical travel and
tilt from -5 to +45 degrees
and includes miter head for
angle work
Big 18" radius end worktable
has 6" vertical travel and tilts
-40 to +45 degrees
Precision balanced 9" diameter
drive drum and 4" diameter.
Rubber coated idler pulley
Rugged bearing assisted
tensioning device
Convenient on/off controls
Heavy duty oscillating gearbox
and shaft
BENEFIT
Power to handle the largest work pieces
Keeps belt cleaner for longer abrasive
life and better finish
Gives the largest work surface
in its class
Keeps work area clean and extends
abrasive life
Supports the largest work pieces
at a comfortable work height and
accommodates virtually any angle
Allows for any angle radius work at
the optimum height
Gives positive drive and rigid tracking
Fast belt changing and quick
adjust tracking
Ease of use for operator
For long maintenance-free use
Belt changing is fast with
the ball bearing tension
lever — after changing
belt, perfect tracking is
restored.
Both tables tilt in and
out and have complete
vertical travel for maximum
versatility.
The 3HP motor with large
9
" diameter drive drum
is perfectly balanced
and pivots through the
oscillation cycle on a
massive shaft with double
bearings for trouble-free
performance.
WMH TOOL GROUP

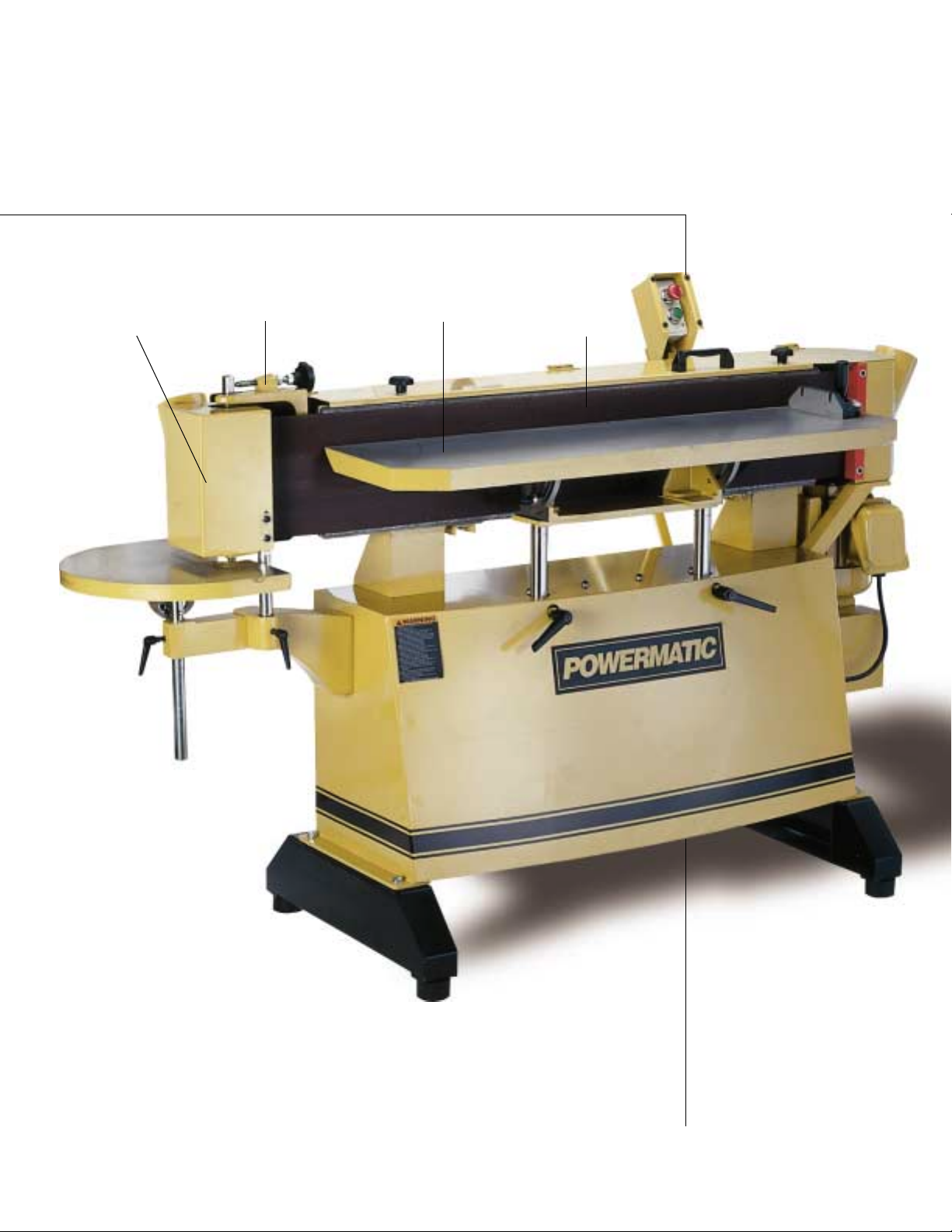

Swing away end guard
for contour sanding on
the large radius end table
Fast and easy belt
changing and tracking
Large main table travels
and tilts easily
Oversize platen
for full support
at work surface
Heavy duty motor and
oscillating gearbox for
trouble-free performance
Precision balanced drive
drums eliminate vibration
OES9138 Oscillating Edge Sander
The Gold Standard Since 1921.
Model/Mfg OES9138
Stock Number 1PH 1791282
Stock Number 3PH TBD
Motor HP/Voltage/Phase 3HP 230V 1PH
Motor HP/Voltage/Phase 3HP 230/460V 3PH
Elect. Controls 24V Magnetic
Belt Size 9"x 138
"
Platen Size 9
1
/2
"
x 48
"
Table Working Height 34
1
/2
"
to 40
3
/4
"
Main Table Size L x W 11
3
/4
"
x 48
"
Main Table Tilt 5 deg. in 45 deg. out
End Table Tilt 40 deg. in 45 deg. out
End Table Size 18" Radius
Belt Speed 4000 SFM
Osc. Per Minute 24
Drum Diameter 4" Outboard, 9"Drive
Dust Connect Diameter 2) 4
"
CFM 1100
Shipping Weight Lbs 870 lbs
Net Weight Lbs 800 lbs
Overall Dimensions L x W x H 83" x 32" x 50
"
Shipping Dimensions L x W x H 86" x 27" x 44
1
/2
"
PN Accy. Sanding Belt (1) 60 Grit 9" x 138
"
6078029
PN Accy, Sanding Belt (1) 80 Grit 9" x 138
"
6078030
PN Accy, Sanding Belt (1) 100 Grit 9" x 138"6078031
PN Accy, Sanding Belt (1) 120 Grit 9" x 138"6078032
PN Accy, Sanding Belt (1) 150 Grit 9" x 138"6078033
PN Accy, Sanding Belt (1) 180 Grit 9" x 138"6078034
PN Accy, Sanding Belt (1) 220 Grit 9" x 138"6078035
