Powermate PW0872402 User Manual

PW0872402

Operator Manual

Manuel de L’opérateur

Manual del operador

0063995 02/06

STOP

¡PRIMERO LLÁMENOS!

ARRÊT

Coleman® Powermate® lea y

entienda todas las instrucciones

ALTO

DO NOT RETURN TO STORE!

CALL US FIRST!

CUSTOMER HOTLINE

1-800-445-1805

or 1-308-237-2181

FOR QUESTIONS OR

SERVICE INFORMATION

IMPORTANT - Please make

certain that everyone who uses

the Coleman® Powermate®

Pressure Washer thoroughly
reads and understands these

instructions prior to operation.

www.powermate.com

NE PAS RETOURNER AU MAGASIN!

APPELEZ–NOUS D’ABORD!

ASSISTANCE TELEPHONIQUE

A LA CLIENTELE

1-800-445-1805

ou 1-308-237-2181

POUR L'INFORMATION DE

QUESTIONS OU SERVICE

IMPORTANT - Veiller à ce que

toute personne amenée à utiliser cet

appareil de Coleman® Powermate®

lise soigneusement ces instructions

et les comprenne avant de procéder

à son utilisation.

NO LO DEVUELVA A LA TIENDA!

LÍNEA DIRECTA DE ATENCIÓN

AL CLIENTE

1-800-445-1805

o 1-308-237-2181

PARA la INFORMACION de

PREGUNTAS O SERVICIO

IMPORTANTE - Favor de

ceciorarse de que toda persona

que use el Lavador de presión

antes de la operación.

TABLE OF CONTENTS

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

CUSTOMER SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

General Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

SAFETY FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Thermal Relief Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Safety Lock Off Latch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Low Oil Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Spark Arresting Muffler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HIGH PRESSURE/LOW PRESSURE . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ADJUSTABLE SPRAY NOZZLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

BEFORE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Pre-Start preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Hose and Gun Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATING CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

High Pressure Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

TABLE DES MATIÈRES

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

SERVICE CLIENTELE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

SÉCURITÉ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Symboles utilisés . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Précautions Générales de Sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

MESURES DE SÉCURITÉ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Soupape de surpression thermique . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Loquet de sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Arrêt suite au bas niveau d’huile . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Silencieux Pare-étincelles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

SPÉCIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

HAUTE PRESSION/BASSE PRESSION . . . . . . . . . . . . . . . . . . . . . . . . .15

JET REGLABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

AVANT TOUTE UTILISATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Préparation précédant la mise en marche . . . . . . . . . . . . . . . . . . . . . .16

Montage du tuyau et du pistolet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Lubrification du moteur . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Carburant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

RACCORDEMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Tuyau haute pression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Racordement d’eau . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

UTILISATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Start-up Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Starting the Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

CHEMICAL INJECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

CLEANING TECHNIQUES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Application of Soap or Degreaser . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Application of Wax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

END OF OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Nozzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Water Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Engine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Pump Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Engine Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

PERIODIC MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

ENGINE MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

ENGINE TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

ENGINE SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

PARTS LIST AND PARTS DRAWING . . . . . . . . . . . . . . . . . . . . . . .35-39

Procédure de lancement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Mise en marche du moteur . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

UTILISATION DE PRODUITS CHIMIQUES . . . . . . . . . . . . . . . . . . . .17

TECHNIQUE DE NETTOYAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Application de Savon ou de Dégraissant . . . . . . . . . . . . . . . . . . . . . . .18

Application de Cire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

APRES UTILISATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

ENTRETIEN DE L'APPAREIL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Raccords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Ajutage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Filtre à eau . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Entretien du moteur . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

RANGEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Rangement de la pompe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Rangement du moteur . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

DÉPANNAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

GARANTIE LIMITÉE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

ENTRETIEN PÉRIODIQUE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

ENTRETIEN DU MOTEUR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

DÉPANNAGE DU MOTEUR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

CARACTERISTIQUES DU MOTEUR . . . . . . . . . . . . . . . . . . . . . . . . . .23

LISTE DES PIÈCES ET SCHEMA DES PIÈCES . . . . . . . . . . . . . .35-39

INDICE

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

SERVICIO PARA LOS CLIENTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

SEGURIDAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Símbolos de seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Precauciones generales de seguridad . . . . . . . . . . . . . . . . . . . . . . . . . .25

CARACTERÍSTICAS DE SEGURIDAD . . . . . . . . . . . . . . . . . . . . . . . .26

Válvula de descarga de calor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Dispositivo de seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Apagado por bajo nivel de aceite . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Silenciador apagachispas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

ESPECIFICACIONES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

ALTA PRESIÓN/BAJA PRESIÓN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

BOQUILLA AJUSTABLE DE ROCIAR . . . . . . . . . . . . . . . . . . . . . . . . .26

ANTES DE LA OPERACIÓN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Preparación incial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Ensamblado de manguera y pistola . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Lubricación del motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Combustible . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

CONEXIONES DE OPERACIÓN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Manguera de alta presión . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Conexion de agua . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

INSTRUCCIONES DE OPERACIÓN . . . . . . . . . . . . . . . . . . . . . . . . . . .28

2

Procedimiento de arranque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Encendido del motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

INYECCION DE QUIMICOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

TÉCNICAS DE LIMPIEZA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Aplicación de jabón y desgrasador . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Aplicación de cera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

FIN DE LA APLICACIÓN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

MANTENIMENTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Conexiones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Boquilla . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Rejilla de agua . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Mantenimiento del motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

ALMACENAMIENTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Almacenamiento de la bomba . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Almacenamiento del motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

RESOLUCION DE PROBLEMAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

GARANTIA LIMITADA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

MANTENIMIENTO PERIÓDICO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

MANTENIMIENTO DEL MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

DETECCION DE FALLOS DEL MOTOR . . . . . . . . . . . . . . . . . . . . . . .34

ESPECIFICACIONES DEL MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . . .34

LISTA DE PIEZAS Y DIAGRAMA DE PIEZAS . . . . . . . . . . . . . . .35-39

www.powermate.com

Congratulations on purchasing a Coleman®
Powermate® Pressure Washer. Whether you are
doing light cleaning at home or are needing power
to do the tough jobs, Coleman® Powermate®
pressure washers are built to give you the power
you need. By following proper break-in
procedures, using recommended set-up and
operating procedures, and performing preventive
maintenance as specified in this manual, your
Coleman® Powermate® pressure washer will serve
you for years to come.

Most important is the safety of you and those
around you. Remember that while the Coleman®
Powermate® pressure washer gives you the power
you need to complete your job, safety rules should
always be followed.

Thank you for selecting our product.

English

Safety Symbols

The following symbols are used throughout this
manual. Follow listed instructions to ensure your
safety.

Indicates an imminently hazardous situation which,

if not avoided, will result in death or serious injury

Powermate Corporation

CUSTOMER SERVICE

Call our toll free number

1-800-445-1805

8 a.m. to 5 p.m. C.S.T.

or www.powermate.com

to obtain warranty service information or

order replacement parts or accessories.

Please have the following information available:

1.Model Number.

2.Serial Number.

3.Date and where purchased.

4.Replacement numbers if you are ordering parts.

Powermate Corporation

4970 Airport Road

P.O. Box 6001

Kearney, NE 68848

Attention: Warranty Service Department

Indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation exists,
which if not avoided, may result in minor or
moderate injury or product damage.

NOTE: Indicates operation or maintenance

information helpful to improve performance or
operation.

www.powermate.com

www.powermate.com

3

English

The following Safety Precautions apply whenever using,

storing or servicing Coleman® Powermate® Pressure Washers
or their engines to reduce the possibility of personal injury.
Overlooking or ignoring these precautions can lead to personal
injury or product damage.

•Read this manual carefully. Know your equipment.
Consider applications, potential hazards and
limitations for your unit.

•Do not touch nozzle or water spray while operating.

•Wear safety goggles while operating.

•Only approved hoses and nozzles should be used.

•The trigger gun must not be jammed in position
during operation.

•Know your equipment. Consider the applications,
limitations, and the potential hazards specific to your
unit.

•Store the Pressure washer in a well ventilated area
with the fuel tank empty. Fuel should not be stored
near the pressure washer.

•Never operate under theses conditions:
a.A noticeable change in engine speed.
b.A noticeable loss of pressure.
c.The engine misfires.
d.Smoke or flames are present.
e.Enclosed compartment.
f.Excessive vibration.
g.Rain or inclement weather.

•Water spray must never be directed towards any
electric wiring or directly towards the pressure
washer.

•Do not allow the hose to come in contact with hot
muffler.

•Equipment must be placed on a firm, supporting
surface.

•Never tie knots or kink the high pressure hose.

•All hose connections must be properly sealed.

•Prior to starting the pressure washer in cold weather,
be sure ice has not formed in any part of the
equipment.

•Use only recommended chemicals.

•Outdoors use only.

•Place the pressure washer away from cleaning site
during operation.

•To prevent accidental discharge, the spray gun should
be secured by locking trigger when not in use.

•Do not run the pressure washer for more than five
minutes without depressing the trigger or damage to
the pump may result.

•Check the fuel system periodically for leaks or signs
of deterioration such as chafed or spongy hose, loose
or missing clamps, or damaged tank or cap. All
defects should be corrected before operation.

•Remove the spark plug or cable from the spark plug
to prevent accidental starting, when not in use, or
prior to detaching the high pressure hose.

•Keep the pressure washer clean and free of oil, mud
and other foreign matter.

•Do not wear loose clothing , jewelry, or anything that
may be caught in the engine.

•Never direct spray at people or pets.

•Never allow children to operate pressure washer at
any time.

•Use both hands to control the wand.

4

•Do not touch hot muffler.

•Service, operate and refuel under the following
conditions.
a.Good ventilation.
b.Refuel the pressure washer in a well lighted area.
c.Avoid fuel spills and never refuel while the

pressure washer is running.
d.Avoid an ignition source when refueling.
e.Use lead free fuel with a minimum of 85 octane.

•Do not smoke near the pressure washer.

•Do not use damaged high-pressure hoses.

www.powermate.com

4.7 fl. oz.

SAE 30W Nondetergent

is very aggressive. We recommend that for most

SAFETY FEATURES

English

Crankcase oil Capacity . . . . . . . . . . . . . . . . . . . . . . . .

Pump oil . . . . . . . . . . . . . . . . . . . . . . .

THERMAL RELIEF VALVE

A thermal relief valve is provided to protect the pump
from overheating if the spray gun is closed for an extended
length of time or the nozzle becomes plugged. However, it is
intended to be used as a backup system and every effort
should be made to not permit the pump to heat up.

We recommend turning the pressure washer off if it will
not be used for more than five minutes. This saves wear on
the unit, reduces fuel consumption and extends the life of the
pump by avoiding heat.

SAFETY LOCK OFF LATCH

To prevent accidental discharge of high pressure water,
the safety latch on the trigger should be engaged whenever the
pressure washer is not in use. (Refer to Operating
Instructions.)

LOW-OIL SHUTDOWN

The unit is equipped with a low oil sensor. If the engine
oil level becomes lower than required, the pressure washer
will automatically shut off. This protects your pressure
washer engine from operating without proper lubrication.

If the pressure washer engine shuts off and the oil level is
according to specification, check to see if the pressure washer
is setting at an angle that forces oil to shift. Place on an even
surface to correct this. If the engine fails to start, the oil level
may not be sufficient to deactivate low oil level switch. Be
sure the sump is completely full of oil.

Consult the factory for special requirements that must be met
if the pump is to operate beyond one or more of the limits
specified above.

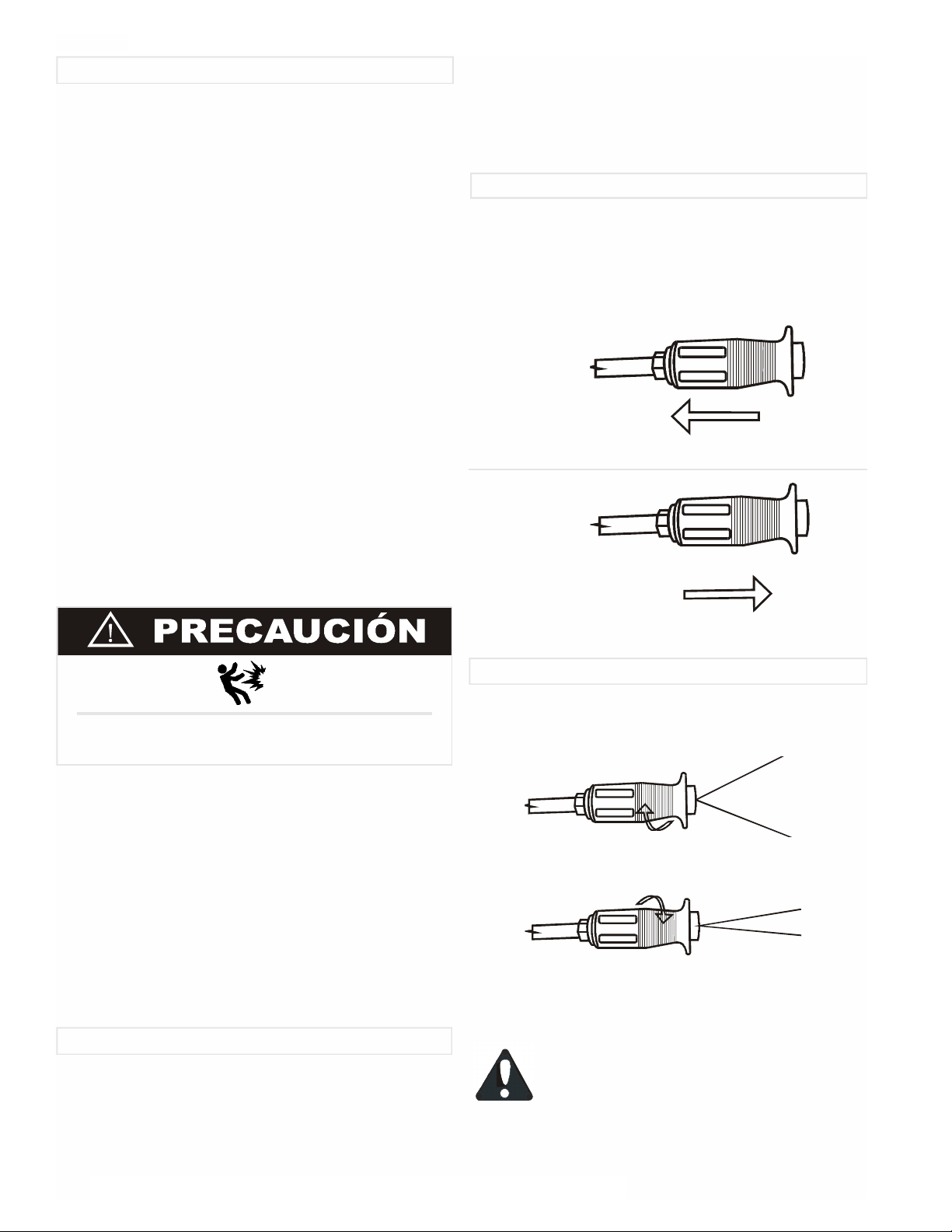

HIGH PRESSURE/LOW PRESSURE

The high pressure nozzle position is intended for cleaning.
When high pressure is required, grasp collar and slide the
collar and nozzle toward the gun.

NOTE: Make sure the nozzle cover is pulled to the
extreme rear position to lock the nozzle in the high
pressure position.

High Pressure

Low Pressure

The pump will overheat and may be damaged, or cause
damage if allowed to circulate more that five minutes.

SPARK ARRESTING MUFFLER

YOUR PRODUCT MAY NOT BE EQUIPPED WITH A SPARK
ARRESTING MUFFLER. If the product will be used around
flammable materials, such as agricultural crops, forests, brush, grass,
or other similar items, then an approved spark arrester should be
installed and is legally required in the State of California. The
California statutes requiring a spark arrester are Sections 13005(b),
4442 and 4443. Spark Arresters are also required on some U.S. Forest
Service land and may also be legally required under other statutes and
ordinances. An approved spark arrester is available from your
Coleman® Powermate® product dealer, or may be ordered from
Powermate Corporation, P.O. Box 6001, Kearney, Nebraska 68848.
1-800-445-1805.

SPECIFICATIONS

Maximum Inlet Pressure . . . . . . . . . . . . . . . . . .Up to 90 PSIG

RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3600 RPM

Temperature of Pumped Fluids . . . . . . . . . . . . . . . .Up to 80°F

Inlet Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3/8” BSP

Discharge Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3/8” BSP

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 lbs.

When low pressure is required, grasp and slide the nozzle

cover away from the gun.

ADJUSTABLE SPRAY NOZZLE

The adjustable spray nozzle can adjust spray from fan to
pencil point in both the high and low pressure positions. The
spray is adjusted by turning the nozzle cover.

FanSpray

To increase angle to a fan spray,
turn counterclockwise.

Pin Point Spray

To decrease angle to a pencil point
spray, turn clockwise.

CAUTION: The pencil point spray adjustment

cleaning applications, a twenty degree (20°)
spray angle be used to avoid damage to the
surface being sprayed.

www.powermate.com

5

English

BEFORE OPERATION

NOTE: The engine and pump on your Coleman®
Powermate® Pressure Washer will often have improved
performance after a break-in period of several hours.

PRE-START PREPARATION

Before starting the pressure washer, check for loose or
missing parts and for any damage which may have occurred
during shipment.

HOSE AND GUN ASSEMBLY

NOTE: Align threaded connections carefully to
prevent damaging threads during assembly. Tighten
connections securely to prevent leaks during operation.

LUBRICATION

DO NOT attempt to start the pressure washer engine

without filling the engine crank case with the proper amount
and type of oil (See pages 11 and 12 and Figure 2). Your
pressure washer engine has been shipped from the factory
without oil in the engine crankcase. Operating the unit with­out oil will ruin the engine.

The pump has been shipped with oil. Before operating
the pressure washer check the oil level of the pump to make
sure the oil level is to pump manufacturer’s required level.
(See Figure 2). Use oil that is recommended from the pump
manufacturer. DO NOT OVERFILL!

If the pump is not equipped with a dipstick or side glass
window check oil leaks from the pump. Pump oil is shipped
in the pump from factory. Follow pump manufacturer’s
maintenance schedule for proper care.

Attach the hose to the inlet of the trigger gun.

Handle Installation

Install handle and hose hook as shown in Figure 1.

Figure 1

FUEL

Fill the tank with clean, fresh unleaded automotive
gasoline. (See Figure 2). Regular grade gasoline may be used
provided a high octane rating is obtained (at least 85 pump
octane).

Gasoline is very dangerous. Serious injury may result from
fire caused by gasoline contacting hot surfaces.

Do not overfill the tank. Keep maximum fuel level 1/2
inch below the bottom of the filler neck. This will allow
expansion in hot weather and prevent overflow.

Figure 2

www.powermate.com6

when operating the chemical injector to apply chemicals.

When low pressure is required, grasp and slide the nozzle

English

OPERATING CONNECTIONS

HIGH PRESSURE HOSE

Attach the high pressure hose to the fitting located on the

pump. (See Figure 2, page 6).

NOTE: DO NOT use a high pressure hose from

another manufacturer.

WATER CONNECTION

Before connecting to unit, run water through the garden
hose (not supplied) to flush out any foreign matter. Check that
the screen is clean and is in the inlet of the pump. Attach
garden hose to the pressure washer water inlet. (See Figure 2,
page 6).

NOTE: The water supply must provide a minimum of
4 g.p.m. at 20 p.s.i. or the pump will be damaged.

OPERATING INSTRUCTIONS

START-UP PROCEDURE

1.Make sure water supply is connected and turned on.

2.Release gun safety if locked.

3.To allow air to escape from the hose, squeeze trigger on

the gun until there is a steady stream of water coming

from the nozzle.

4.Remove any dirt or foreign matter from the gun outlet and

the male connector of the wand.

5.Insert the nozzle wand into the gun wand and tighten the

twistfast fitting securely by hand.

CHEMICAL INJECTION

This pressure washer is intended for use only with
liquid car wash detergents, developed specifically for
pressure washer and with mild soaps. We recommend the
use of Coleman® Powermate® Pressure Washer Chemicals.
Only use chemicals compatible with the aluminum and brass
parts of the pressure washer. Powdered soaps may clog the
injection system. Always use chemicals according to
manufacturer directions. Powermate Corporation assumes
no responsibility for any damages caused by chemicals
injected through this pressure washer.

1.Attach injection tube assembly to the siphon injector on
the pump. (See Figure 2, page 6).

2.Open a container of Coleman® Powermate® Pressure
Washer Chemical and place next to the unit near the
injection tube.

3.Visually inspect strainer at the end of the injection tube to
verify that it is not clogged.

4.Insert the injection tube into the container all the way to
the bottom.

5.If chemical injection is adjustable, set injection rate by
turning valve clockwise until it is tight. Then turn valve
counterclockwise to increase injector rate and clockwise
to decrease injector rate.

If the wand is not securely locked into place, it could be
ejected under high pressure when operating the gun,
possibly causing injury or damage.

STARTING THE ENGINE (See Figure 2, page 6)

1.Check oil and fuel level.

2.Adjust choke prime as necessary.

3.Set the engine switch to the “ON” position.

4.Squeeze trigger on pressure washer to release pressure
while pulling on the engine starter rope with a fast steady
pull. Pressure may otherwise build up making starting the
unit difficult.

5.As the engine warms up, readjust the choke.

6.If your pressure washer is equipped with removable
nozzles, remove the high-pressure nozzle from the wand
and install the black injection nozzle. The solution will
automatically be mixed with the water and discharged
through the nozzle.

7.If your pressure washer is equipped with an adjustable
nozzle, the low pressure nozzle position should be used

cover away from the gun.

NOTE:For certain models, if the engine throttle is not in

the “fast” position, the injection of the solution
may be decreased or stopped.

www.powermate.com

7

English

CLEANING TECHNIQUES

Cleaning Techniques

When cleaning with the pressure washer, many cleaning
tasks can be solved with water alone, but for most tasks it is
advantageous to use a detergent also. A detergent ensures a
quick soaking of the dirt allowing the high pressure water to
penetrate and remove the dirt more effectively.

Coleman® Powermate® Pressure Washer Chemicals are
specially formulated to be used with your pressure washer.

APPLICATION OF SOAP OR DEGREASER

1.Apply the solution to a DRY work surface.
On a vertical surface, apply horizontally from side to side
starting from the bottom to avoid streaking.

NOTE: Wetting the surface first is not recommended, as it
dilutes the detergent and reduces its cleaning ability.
Avoid working on hot surfaces or in direct sunlight to
minimize the chances of the chemical damaging painted
surfaces. Damage may occur to painted surface if
chemical is allowed to dry on the surface. Hold nozzle far
enough away from surface to prevent damage to the
surface.

MAINTENANCE

CONNECTIONS

Connections on pressure washer hoses, gun and spray
wand should be cleaned regularly and lubricated with the
manufacturer’s recommended grease to prevent leakage and
damage to the o-rings.

NOZZLE

If the high pressure/low pressure adjustment of the nozzle
becomes difficult, please contact Coleman® Powermate®
Customer Service Department for proper cleaning and
lubrication procedures.

Clogging of the nozzle causes the pump pressure to be too
high and cleaning is immediately required.

A nozzle cleaner must only be used when the spray wand is
disconnected from the gun or personal injury could result.

2.Allow chemical to remain on the surface for a short time
before rinsing.

3.Rinse with clean water under high pressure. On a vertical
surface, first rinse from the bottom up, then rinse from the top
down. Hold nozzle 6 to 8 inches from the work surface at a
45° angle using the flat spray as a peeling tool rather than a
scrub brush.

APPLICATION OF WAX

1.Immediately after cleaning, apply Coleman®
Powermate® Pressure Washer Wax. Place injection tube
in container of wax.

2.Apply the wax sparingly in an even layer. Apply to wet
surfaces from the bottom up for even distribution and to
avoid streaking.

3.Remove the suction tube from the wax bottle and rinse off
the surplus wax.

NOTE: IF SURPLUS WAX IS NOT REMOVED, A
HAZY FINISH MAY RESULT.

4.Wipe dry to reduce water spotting.

END OF OPERATION

End of Operation

When you have completed use of the chemical injection

system, remove tube from container. Continue to run in low
pressure position and inject clean water through the tube and
injection system by placing end of tube in a container of clean
water. Continue to run until it is thoroughly cleaned.

1.Separate the wand from the gun.

2.Clear the nozzle with a small rigid piece of wire such as a
paper clip.

3.Flush the nozzle backwards with water.

4.Reconnect the wand to the gun.

Restart the pressure washer and depress the trigger on the

spray gun. If the nozzle is still plugged or partially plugged,
repeat above items 1-4.

If the previous procedure does not clear the nozzle,

replace with a new nozzle.

WATER SCREEN

The pressure washer is equipped with a water inlet screen

to protect the pump. If the screen is not kept clean, it will
restrict the flow of water to the pressure washer and may
cause damage to the pump. Do not damage the screen while
removing or cleaning screen. Any foreign particles entering
the pump may damage the pump. Do not operate pressure
washer without the screen in place.

Remove the screen and back flush to remove impurities

from screen. Replace immediately.

ENGINE MAINTENANCE

During the winter months, rare atmospheric conditions

may develop which will cause an icing condition in the
carburetor. If this develops, the engine may run rough, lose
power, and may stall. This temporary condition can be
overcome by deflecting some of the hot air from the engine
over the carburetor area.

NOTE: Refer to pages 11 and 12 for service and

maintenance of the engine.

www.powermate.com8

Engine may be covered exclusively by a separate warranty from

Warranty applies only if the product is used solely for consumer

STORAGE LIMITED WARRANTY

English

PUMP STORAGE

If you must store your pressure washer in a location where the
temperature is below 32°F, you can minimize the chance of damage
to your machine by utilizing the following procedure:

1.Shut off water supply and relieve pressure in the spray gun

by depressing the trigger. Disconnect the garden hose

from the pressure washer, but leave the high-pressure hose

connected.

2.Tip the unit on its side with the inlet connection pointing up.

3.Insert a small funnel (to prevent spilling) into the inlet

and pour in approximately 1/4 cup of RV antifreeze.

4.Disconnect spark plug wire.

5.Without connecting garden hose pull the recoil several

times to circulate the antifreeze in the pump system.

Continue to add antifreeze and pull the recoil until the

antifreeze is expelled when the trigger is pulled.

6.Turn the unit upright.

Prior to restarting, thaw out any possible ice from the
pressure washer hoses, spray gun and wand.

Another method of reducing risks of freeze damage is to drain
your pressure washer as follow:

1.Stop the pressure washer and detach supply hose and high

pressure hose. Squeeze the trigger of the discharge gun to

drain all water from the wand and hose.

2.Restart the pressure washer and let it run briefly (about 5

seconds) until water no longer discharges from the high

pressure outlet.

ENGINE STORAGE

When the pressure washer is not being operated or is being
stored more than one month, follow these instructions:

1.Replenish engine oil to upper level.

2.Drain gasoline from fuel tank, fuel line, fuel valve and

carburetor.

3.Pour about one teaspoon of engine oil through the spark

plug hole, pull the recoil starter several times and replace

the plug. Then pull the starter slowly until you feel

increased pressure which indicates the piston is on its

compression stroke and leave it in that position. This

closes both the intake and exhaust valves to prevent the

inside of the cylinder from rusting.

Warranty Coverage: Powermate Corporation (the Company)
warrants to the original retail customer in North America that it will
repair or replace, free of charge, any parts found by the Company or
its authorized service representative to be defective in material or
workmanship. This warranty covers the cost of replacement parts
and labor for defects in material or workmanship.

Not Covered:

· Transportation charges for sending the product to the Company

or its authorized service representative for warranty service, or
for shipping repaired or replacement products back to the
customer; these charges must be borne by the customer.

·

the engine manufacturer as set forth in the engine Manual (if
included).

· Damages caused by abuse or accident, and the effects of

corrosion, erosion and normal wear and tear.

· Warranty is void if the customer fails to maintain and operate

the product as instructed and recommended by the Company in
the owner's manual.

·

applications, and does not apply if the product is used for
commercial or business applications, or as rental equipment.

· The Company will not pay for repairs or adjustments to the

product, or for any costs or labor, performed without the
Company's prior authorization.

Warranty Period: One (1) year from the date of purchase. For
warranty service, the customer must provide dated proof of purchase
and must notify the Company within the warranty period.

For warranty service: Call toll free 800-445-1805, or write to

Powermate Corporation, Product Services, 4970 Airport Road, P. O.
Box 6001, Kearney, NE 68848.

EXCLUSIONS AND LIMITATIONS: THE COMPANY MAKES

NO OTHER WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED. IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR
A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED. THE
WARRANTY SERVICE DESCRIBED ABOVE IS THE
EXCLUSIVE REMEDY UNDER THIS WARRANTY; LIABILITY
FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES IS
EXCLUDED TO THE EXTENT PERMITTED BY LAW.

This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state. Some states do not allow
a disclaimer of implied warranties, or the exclusion or limitation of
incidental and consequential damages, so the above disclaimers and
exclusions may not apply to you.

4.Cover the pressure washer and store in a clean, dry place

that is well ventilated away from open flame or sparks.

NOTE: The use of a fuel additive, such as Coleman®
Powermate® Generator Fuel Additive, or an equivalent, will
minimize the formulation of fuel gum deposits during storage,
Such an additive may be added to the gasoline in the fuel tank of
the engine, or to the gasoline in a storage container.

www.powermate.com

9

English

PROBLEM

POSSIBLE CAUSE

CORRECTION

Engine will not start or stops while
operating.

Engine is overloaded.

Water or oil leaking from bottom of pump.

Pressure increases when gun is closed.

Engine running but pump not building
maximum pressure or has irregular
pressure.

Low-oil shutdown.
Engine switch not in the “ON” position.
Pressure build up in hose.

Nozzle partially blocked.
Excessive pressure.

A small amount of leakage is normal.

Bypass valve not operating properly.

Faucet closed
Unit has been stored in freezing
temperatures.
Inadequate water supply.
Water inlet screen clogged.
Kink in garden hose.
Wand nozzle worn or damaged.
Air in pump.

Adjustable pressure knob not set to
maximum position.
Suction or discharge valves clogged or
worn out.
By-pass valve not operating effectively.

Fill engine with oil.
Turn switch “ON”.
Squeeze trigger.

Clean nozzle.
Reduce pressure by using pressure
adjustment knob

If excessive leaking occurs call the
Customer Service Department.
Call the Customer Service Department.

Open faucet.
Thaw out unit completely including hose,
gun and wand.
Provide a minimum of 4 gpm at 20 psi.
Clean screen.
Straighten hose
Replace nozzle,
Let run with gun open and wand removed
until steady stream of water is released.
Set to maximum position.

Call the Customer Service Department.

Call the Customer Service Department.

No intake of chemicals

Trigger will not move.

Water in crankcase.

Noisy operation.

Rough/pulsating operation with pressure
drop.

Injection tube not securely inserted into
unit.
Tube cracked or split.
Wrong nozzle.
Injector turned off.
Injection tube strainer clogged.
Nozzle blocked.
Dried chemicals injector.

Gun safety lock engaged.

High humidity.
Worn seals.

Worn bearings
Air mixed with water.

Worn packing.
Inlet restriction.

Unloader.
Air mixed in water.

Push firmly into injector.

Replace tubing.
Switch to low pressure nozzle.
Turn collar counter clockwise.
Clean strainer.
Clean nozzle.
Dissolve by running warm water trough the
injection tube.

Release safety lock.

Change oil more frequently.
Call the Customer Service Department.

Call the Customer Service Department.
Check inlet lines for restrictions and /or
proper sizing.

Call the Customer Service Department.
Check system for stoppage, air leaks,
correctly sized inlet plumbing to pump.
Check unloader for proper operation.
Check inlet lines for restrictions and/or
proper sizing.

High crankcase temperatures.

Wrong grade of oil.
Improper amount of oil in crankcase.

Use recommended oil.
Adjust oil level to proper amount.

www.powermate.com10

Open the oil drain plug and let oil drain completely into a

PERIODIC MAINTENANCE

English

ITEM NOTES

Spark Plug

Engine Oil Check oil level.

Air Filter Clean, replace if necessary.

Fuel Filter

Fuel Line

Exhaust
System

Carburetor Check choke operation.
Starting

System
Fittings/

Fasteners

Check condition. Adjust gap and
clean. Replace if necessary.

Replace.

Clean fuel filter and fuel tank strainer.
Replace if necessary.

Check fuel hose for cracks or other
damage. Replace if necessary.

Check for leakage. Retighten or
replace gasket if necessary.

Check muffler screen. Clean/replace
if necessary.

Check recoil starter operation.

Check. Replace if necessary.

Daily (Before
operation)

ü

ü

ü

ü
ü

Initial

20 hours

Every

50 hours

ü

ü ü

ü

Every

100 hours

ü

ü

ü

ENGINE MAINTENANCE

SPARK PLUG

Remove the spark plug and clean the electrodes section
with a wire brush or sandpaper. Next, set the gap at .028/.031
inches (0.7-0.8 mm) by adjusting the negative electrode.
Replace the spark plug with correct torque: 14 ft-lb (20 N.m)

Replace with only the same type of spark plug which
was removed. An improper spark plug can cause the
engine to overheat, emit smoke, or otherwise perform
poorly.

OIL TYPE

Use new good quality oil, SE, SF, or SD grade. The oil to
be used depends upon the temperature at which the engine is
operated:

Below 32° F (0° C) . . . . . . . . .SAE 10W, 10W-30, or 10W-40

32 to 80° F (0 to 25° C) . . . . . .SAE 20W, 10W-30, or 10W-40

80 to 95° F (25 to 35° C) . . . . .SAE 30W, 10W-30, or 10W-40

Above 95° F (35° C) . . . . . . . . . . . . . . . . . . . . . . . . .SAE 40W

OIL REPLACEMENT

1.Change oil while engine is warm.

2.Place the generator unit on a level surface.

3.Remove the oil filler cap.

4.
pan placed under the engine.

5.Check gaskets. Replace if required.

6.Reinstall the oil drain plug and refill engine with clean
oil.

7.Replace the oil filler cap.

AIR FILTER CLEANING

1.Unscrew the air filter cover.

2.Remove filter element and wash well in solvent.

3.Pour a small amount of oil onto the filter element and
gently squeeze out any excess oil.

4.Replace the filter element and air filter cover.

5.Be sure the filter cover seals properly all around.

FUEL VALVE FILTER CLEANING

1.Remove the cup at the bottom of the fuel valve with a
small wrench.

2.Remove the fuel valve filter.

3.Clean and wash out the filter and cup and replace.

FUEL STRAINER CLEANING

1.Remove the plastic fuel strainer, located below the fuel
tank cap.

2.Wash the strainer in solvent and replace.

11www.powermate.com

English

ENGINE TROUBLESHOOTING

ENGINE SPECIFICATIONS

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-stroke, single cylinder, gasoline, OHV

Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .171 cc, 10.44 cubic inches

Maximum HP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.5 HP @ 3600 rpm

Starting System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Recoil (electronic ignition)

Driving System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Direct coupling, tapered crank

Oil Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . 20 oz.

Spark Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Champion RN14YC or equivalent

Governor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Mechanical (adjustable)

Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Forced air cooling

Bore x Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66.0 X 50.0 mm (2.60 x 1.97 in.)

Carburetor Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Float

Air Cleaner Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Foam element

www.powermate.com12
