Powermate CX6500E, CX8000E User Manual
CX6500E and CX8000E
001602
(000209a)
This product is not intended to be used in
a critical life support application. Failure to
adhere to this warning could result in
death or serious injury.
Portable Generator
Owner’s Manual
MODEL:________________________
SERIAL:________________________
DATE PURCHASED:______________
WARNING
Register your Powermate product at:
www.powermate.com
1-800-445-1805
SAVE THIS MANUAL FOR FUTURE REFERENCE
SAVE THIS MANUAL FOR FUTURE REFERENCE
Table of Contents
Section 1 Introduction and Safety 1
Introduction ..................................... 1
Safety Rules .................................... 1
Safety Symbols and Meanings ........ 1
Exhaust and Location Hazards ....... 2
Electrical Hazards ...........................3
Fire Hazards .................................... 3
Standards Index .............................. 3
Section 2 General Information and
Setup .............................................. 4
Know Your Generator ..................... 5
Emissions ........................................ 5
Connection Plugs ............................ 6
Remove Contents from Carton ....... 6
Assembly ......................................... 7
Battery Cable Connection (electric
start only) ........................................8
Add Engine Oil ................................8
Fuel ................................................. 9
Section 3 Operation ....................10
Operation and Use Questions ....... 10
Before Starting Engine ..................10
Prepare Generator for Use ............ 10
Grounding the Generator When In Use
10
Know Generator Limits .................. 11
Transporting/Tipping of the Unit .... 11
Starting Pull Start Engines ............ 12
Starting Electric Start Engines ......12
Generator Shut Down ................... 12
Low Oil Level Shutdown System ... 12
Section 4 Maintenance and
Troubleshooting ..........................13
Maintenance ..................................13
Maintenance Schedule ..................13
Preventive Maintenance ................13
Engine Maintenance ......................13
Battery Replacement (if applicable) 15
Inspect Muffler and Spark Arrester 15
Valve Clearance ............................16
Storage ..........................................16
Troubleshooting .............................17
Notes .............................................19
California Proposition 65. Engine exhaust and some
of its constituents are known to the state of California
to cause cancer, birth defects, and other reproductive
harm.
California Proposition 65. This product contains or
emits chemicals known to the state of California to
cause cancer, birth defects, and other reproductive
harm.
WARNING
(000004)
WARNING
(000005)
Section 1 Introduction and Safety
(000100a)
WARNING
Consult Manual. Read and understand manual
completely before using product. Failure to
completely understand manual and product
could result in death or serious injury.
(000001)
DANGER
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
(000002)
WARNING
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
(000003)
CAUTION
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Introduction
Thank you for purchasing a Powermate product. This unit has been designed to provide
high-performance, efficient operation, and
years of use when maintained properly.
If any section of the manual is not understood,
contact your nearest Independent Authorized
Service Dealer (IASD), or contact Powermate
Customer Service at 1-800-445-1805, or
www.powermate.com with any questions or
concerns.
The owner is responsible for proper maintenance and safe use of the equipment. Before
operating, servicing or storing this generator:
• Study all warnings in this manual and on
the product carefully.
• Become familiar with this manual and the
unit before use.
• Refer to the Assembly section of the manual for instructions on final assembly procedures. Follow the instructions completely.
Save these instructions for future reference.
ALWAYS supply this manual to any individual
that will use this machine.
THE INFORMATION CONTAINED HEREIN
WAS BASED ON MACHINES IN PRODUCTION AT THE TIME OF PUBLICATION.
POWERMATE RESERVES THE RIGHT TO
MODIFY THIS MANUAL AT ANY TIME.
Safety Rules
The manufacturer cannot anticipate every
possible circumstance that might involve a
hazard. The warnings in this manual, and on
tags and decals affixed to the unit are, therefore, not all inclusive. If using a procedure,
work method or operating technique that the
manufacturer does not specifically recommend, verify that it is safe for others. Also
make sure the procedure, work method or
operating technique utilized does not render
the equipment unsafe.
Throughout this publication, and on tags and
decals affixed to the generator, DANGER,
WARNING, CAUTION and NOTE blocks are
used to alert personnel to special instructions
about a particular operation that may be hazardous if performed incorrectly or carelessly.
Observe them carefully. Their definitions are
as follows:
NOTE: Notes contain additional information
important to a procedure and will be found
within the regular text of this manual.
These safety warnings cannot eliminate the
hazards that they indicate. Common sense
and strict compliance with the special instructions while performing the action or service
are essential to preventing accidents.
Safety Symbols and Meanings
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is
a poison you cannot see or smell.
NEVER use inside a home
or garage, EVEN IF doors
and windows are open.
Asphyxiation. Running engines produce carbon
monoxide, a colorless, odorless, poisonous gas.
Carbon monoxide, if not avoided,
will result in death or serious injury.
• If you start to feel sick, dizzy, or weak after
the generator has been running, move to
fresh air IMMEDIATELY. See a doctor, as
you could have carbon monoxide poisoning.
DANGER
Only use OUTSIDE and
far away from windows,
doors, and vents.
DANGER
000657
(000103)
Owner’s Manual for Portable Generator 1
(000179a)
DANGER
The exhaust system must be properly maintained. Do
not alter or modify the exhaust system as to render it
unsafe or make it noncompliant with local codes and/or
standards. Failure to do so will result in death
or serious injury.
Electrocution. Water contact with a power source,
(000116)
DANGER
Electrocution. Turn utility and emergency
power supplies to OFF before connecting power
source and load lines. Failure to do so will result
in death or serious injury.
(000146)
WARNING
Equipment and property damage. Do not alter
construction of, installation, or block ventilation for
generator. Failure to do so could result in unsafe
operation or damage to the generator.
(000178a)
Asphyxiation. Always use a battery operated carbon
monoxide alarm indoors and installed according to
the manufacturer’s instructions. Failure to do so
could result in death or serious injury.
WARNING
(000250)
WARNING
Equipment and property damage. Do not operate unit on
uneven surfaces, or areas of excessive moisture, dirt, dust
or corrosive vapors. Doing so could result in death, serious
injury, property and equipment damage.
(000111)
WARNING
Moving Parts. Keep clothing, hair, and appendages
away from moving parts. Failure to do so could
result in death or serious injury.
WARNING
Risk of injury. Do not operate or service this
machine if not fully alert. Fatigue can impair the
ability to service this equipment and could result
in death or serious injury.
(000215)
(000103)
DANGER
Asphyxiation. Running engines produce carbon
monoxide, a colorless, odorless, poisonous gas.
Carbon monoxide, if not avoided,
will result in death or serious injury.
(000178a)
Asphyxiation. Always use a battery operated carbon
monoxide alarm indoors and installed according to
the manufacturer’s instructions. Failure to do so
could result in death or serious injury.
WARNING
DANGER
if not avoided, will result in death or serious injury.
(000104)
Injury and equipment damage. Do not use
generator as a step. Doing so could result in falling,
damaged parts, unsafe equipment operation,
and could result in death or serious injury.
WARNING
Equipment damage. Do not attempt to start or operate
a unit in need of repair or scheduled maintenance.
Doing so could result in serious injury, death, or
equipment failure or damage.
• For safety reasons, it is recommended that
the maintenance of this equipment be performed by an IASD. Inspect the generator
regularly, and contact the nearest IASD for
parts needing repair or replacement.
CAUTION
(000216)
(000291)
000406
Exhaust and Location Hazards
WARNING
DANGER
WARNING
Hot Surfaces. When operting machine, do not
WARNING
touch hot surfaces. Keep machine away from
combustables during use. Hot surfaces
could result in severe burns or fire.
(000108)
The exhaust system must be properly maintained. Do
not alter or modify the exhaust system as to render it
unsafe or make it noncompliant with local codes and/or
standards. Failure to do so will result in death
or serious injury.
Equipment and property damage. Do not alter
construction of, installation, or block ventilation for
generator. Failure to do so could result in unsafe
operation or damage to the generator.
WARNING
Do not insert any object through the air cooling slots.
Generator can start at any time and could result in
death, serious injury, and unit damage.
2 Owner’s Manual for Portable Generator
(000142)
• If you start to feel sick, dizzy, or weak after
the generator has been running, move to
fresh air IMMEDIATELY. See a doctor, as
you could have carbon monoxide poisoning.
(000179a)
(000146)
Electrical Hazards
(000144)
DANGER
Electrocution. Contact with bare wires,
terminals, and connections while generator
is running will result in death or serious injury.
(000104)
DANGER
Electrocution. Water contact with a power source,
if not avoided, will result in death or serious injury.
(000145)
DANGER
Electrocution. In the event of electrical accident,
immediately shut power OFF. Use non-conductive
implements to free victim from live conductor. Apply
first aid and get medical help. Failure to do so will
result in death or serious injury.
(000130)
WARNING
Accidental Start-up. Disconnect the negative battery
cable, then the positive battery cable when working
on unit. Failure to do so could result in death
or serious injury.
(000105)
DANGER
Explosion and Fire. Fuel and vapors are extremely
flammable and explosive. Add fuel in a well
ventilated area. Keep fire and spark away. Failure to
do so will result in death or serious injury.
(000166)
DANGER
Do not overfill fuel tank. Fill to 1/2 in. of top of tank to
allow for fuel expansion. Overfilling may cause fuel to
spill onto engine causing fire or explosion, which will
result in death or serious injury.
(000142)
Do not insert any object through the air cooling slots.
Generator can start at any time and could result in
death, serious injury, and unit damage.
WARNING
WARNING
Fire risk. Fuel and vapors are extremely
flammable. Do not operate indoors. Doing so
could result in death, serious injury, or
property or equipment damage.
(000281)
WARNING
Explosion and fire risk. Do not smoke near unit.
Keep fire and spark away. Failure to do so could
result in death, serious injury, or property or
equipment damage.
(000282)
• The National Electric Code (NEC) requires
the frame and external electrically conductive parts of the generator be properly connected to an approved earth ground. Local
electrical codes may also require proper
grounding of the generator. Consult with a
local electrician for grounding requirements
in the area.
• Use a ground fault circuit interrupter in any
damp or highly conductive area (such as
metal decking or steel work).
Fire Hazards
WARNING
Explosion and fire risk. Do not smoke while
refueling unit. Failure to do so could result in
death, serious injury, or property or equipment
damage.
• Wipe up any fuel or oil spills immediately.
Verify that no combustible materials are left
on or near the generator. Keep the area
surrounding the generator clean and free
from debris and keep a clearance of five (5)
feet on all sides to allow for proper ventilation of the generator.
• Do not operate the generator if connected
electrical devices overheat, if electrical output is lost, if engine or generator sparks or if
flames or smoke are observed while unit is
running.
• Keep a fire extinguisher near the generator
at all times.
(000284)
Standards Index
1. National Fire Protection Association
(NFPA) 70: The NATIONAL ELECTRIC
CODE (NEC) available from www.nfpa.org
2. National Fire Protection Association
(NFPA) 5000: BUILDING CONSTRUCTION AND SAFETY CODE available from
www.nfpa.org
3. International Building Code available from
www.iccsafe.org
4. Agricultural Wiring Handbook available
from www.rerc.org, Rural Electricity
Resource Council P.O. Box 309 Wilmington, OH 45177-0309
5. ASAE EP-364.2 Installation and Mainte-
nance of Farm Standby Electric Power
available from www.asabe.org, American
Society of Agricultural & Biological Engineers 2950 Niles Road, St. Joseph, MI
49085
This list is not all inclusive. Check with the
Authority Having Jurisdiction (AHJ) for any
local codes or standards which may be applicable to your jurisdiction.
Owner’s Manual for Portable Generator 3
Section 2 General Information and Setup
001602
9
8
15
12
11
13
10
16
14
17
001603
1 441
5
3
67
001523
4 3
6
41
57
41 2
Figure 2-1. Features and Controls
TABLE 1. Generator Components
1 120 Volt AC, 20 Amp GFCI Duplex
Receptacle
2 120 Volt AC, 30 Amp Locking
Receptacle (NEMA L5-30) (CX8000E
only)
3 120/240 Volt AC, 30 Amp Locking
Receptacle (NEMA L14-30R)
4 Circuit Breakers (AC)
5 Off/On/Start Switch
6 Hour Meter
7 Ground Terminal
8 Choke Lever
9 Fuel Tank
10 Oil Drain
11 Oil Fill
12 Air Cleaner
13 Recoil Handle
14 Fuel Shutoff Valve
15 Fuel Cap
16 Fuel Gauge
17 Battery
Figure 2-2. CX6500E Control Panel
Figure 2-3. CX8000E Control Panel
4 Owner’s Manual for Portable Generator
Know Your Generator
(000100a)
WARNING
Consult Manual. Read and understand manual
completely before using product. Failure to
completely understand manual and product
could result in death or serious injury.
Emissions
The United States Environmental Protection
Agency (US EPA) (and California Air
Resources Board (CARB), for engines/equipment certified to California standards) requires
that this engine/equipment complies with
exhaust and evaporative emissions standards. Locate the emissions compliance decal
Replacement owner’s manuals are available
at www.powermate.com.
on the engine to determine applicable standards. For emissions warranty information,
please reference the included emissions warranty. It is important to follow the maintenance
specifications in the manual to ensure that the
engine complies with the applicable emissions
standards for the duration of the product’s life.
TABLE 2. Product Specifications
6.5 kW / 8.0 kW Generator Specifications
Rated Power 6500 Watt** / 8000 Watt**
Surge Power 8125 Watt** / 10000 Watt**
Rated AC Voltage (6.5 and 8.0 kW) 120/240
Rated AC Load
6.5 kW
8.0 kW
Rated Frequency 60 Hz @ 3600 RPM
Phase Single Phase
Unit Weight
6.5 kW
8.0 kW
** Operating Temperature Range: -18 deg. C (0 deg. F) to 40 Deg. C (104 Deg. F). When operated
above 25 deg. C (77 deg. F) there may be a decrease in power.
** Maximum wattage and current are subject to, and limited by, such factors as fuel Btu content, ambi-
ent temperature, altitude, engine condition, etc. Maximum power decreases about 3.5% for each
1,000 feet above sea level; and will also decrease about 1% for each 6° C (10° F) above 16° C (60°
F) ambient temperature.
6.5 kW / 8.0 kW Engine Specifications
Displacement 420 cc / 445 cc
Spark Plug Part No. 0J00620106
Spark Plug Type F7TC or Equivalent
Spark Plug Gap 0.028-0.031 inch or (0.7-0.8 mm)
Gasoline Capacity 26.5 L (7.0 U.S. gallons)
Oil Type
Oil Capacity 1.1 L (1.1 qt.)
Run Time at 50% Load 9.75 Hours / 9.4 Hours
* Go to www.powermate.com or contact an IASD for replacement parts.
54.2 / 27.1 Amps**
66.6 / 33.3 Amps**
202 lbs. (91.6 kg)
219 lbs. (99.2 kg)
See chart in
Add Engine Oil.
Owner’s Manual for Portable Generator 5
Connection Plugs
000203
120 VAC, 20 Amp, GFCI Duplex
Receptacle
The 120 Volt outlet is overload protected by a
20 Amp push-to-reset circuit breaker. See Fig-
ure 2-4. Each receptacle will power 120 Volt
AC, single phase, 60 Hz electrical loads
requiring up to 2400 watts (2.4 kW) or 20
Amps of current. Use only high quality, wellinsulated, 3-wire grounded cord sets rated for
125 Volts at 20 Amps (or greater).
NOTE: Limit length of extension cords to fifteen feet, or less, to prevent voltage drop and
overheating of wires.
Figure 2-4. 120 VAC, 20 Amp, GFCI Duplex
Receptacle NEMA 5-20R
120/240 VAC, 30 Amp Receptacle
Use a NEMA L14-30 plug with this receptacle
(rotate to lock/unlock). Connect a suitable 4wire grounded cord set to plug and desired
load. The cord set should be rated 250 Volts
AC at 30 Amps (or greater). See Figure 2-5.
• CX6500E: Use this receptacle to operate
120 Volt AC, 60 Hz, single phase loads
requiring up to 3240 Watts (3.2 kW) of
power at 27 Amps or 240 Volt AC, 60 Hz,
single phase loads requiring up to 6480
watts (6.4 kW) of power at 27 Amps. The
outlet is protected by two 27 Amp 2-pole
connected toggle circuit breakers.
• CX8000E: Use this receptacle to operate
120 Volt AC, 60 Hz, single phase loads
requiring up to 3600 watts (3.6 kW) of
power at 30 Amps or 240 Volt AC, 60 Hz,
single phase loads requiring up to 7200
watts (7.2 kW) of power at 30 Amps. The
outlet is protected by two 30 Amp push-toreset circuit breakers.
000204
Figure 2-5. 120/240 VAC, 30 Amp Receptacle
NEMA L14-30R
120 VAC, 30 Amp Receptacle
Use a NEMA L5-30 plug with this receptacle
(rotate to lock/unlock). Connect a suitable 3wire cord set to the plug and to desired load.
The cord set should be rated for 125 Volts AC
at 30 Amps (or greater). See Figure 2-6.
Use this receptacle to operate 120 Volt AC,
60Hz, single phase loads requiring up to 3600
watts (3.6kW) of power at 30 Amps. The outlet
is protected by a 30 Amp push-to-reset circuit
breaker.
000844
Figure 2-6. 120 VAC, 30 Amp Receptacle
NEMA L5-30
Remove Contents from Carton
1. Open carton completely by cutting each
corner from top to bottom.
2. Remove and verify carton contents prior to
assembly. Carton contents should contain
the following:
6 Owner’s Manual for Portable Generator
TABLE 3. Accessories
(000100a)
WARNING
Consult Manual. Read and understand manual
completely before using product. Failure to
completely understand manual and product
could result in death or serious injury.
Item Qty.
Main Unit 1
Owner’s Manual 1
Liter SAE Oil 1
Oil Funnel 1
Wheel (1) 2
Handle (2) 2
Hardware Bag Qty.
Axle Pin (3) 2
Foot Spacer (4) 2
Rubber Feet (5) 2
M12 x 4mm Flat Washer (6) 2
M12 x 1.5mm Flat Washer (7) 2
M8 Flat Washer (8) 2
M8 x 50 Bolt (9) 2
M8 x 80 Bolt (10) 2
M8 Nyloc Nut (11) 4
Cotter Pin (12) 2
Handle Grip (13) 2
Too l K it Qt y.
5mm Hex Key 1
10 x 13mm Wrench 1
Spark Plug Wrench with Rod 1
Assembly
Call Powermate Customer Service at 1-800445-1805 for any assembly issues or concerns. Please have model and serial number
available.
The following tools are required to install the
accessory kit.
•See Table 3: Accessories (Tool Kit)
NOTE: The wheels are not intended for overthe-road use.
See Figure 2-7.
Install wheels as follows:
1. Slide axle pin (3) through wheel (1), M12 x
4mm flat washer (6), and frame.
2. Install M12 x 1.5mm flat washer (7) and
insert cotter pin (12) through axle (4).
Bend tabs (of cotter pins) outward to lock
into place.
Install frame foot assembly as follows:
1. Slide M8 flat washer (8), rubber foot (5),
foot spacer (4) onto M8 x 80 bolt (10).
2. Align through holes in frame rail and
secure with M8 nyloc nut (11).
Install handle as follows:
1. Slide M8 x 50 bolt (9) through handle
bracket and handle (2). Secure with M8
nyloc nut (11).
3. Call Powermate Customer Service at 1800-445-1805 with the unit model and
serial number for any missing carton contents.
4. Record model, serial number, and date of
purchase on front cover of this manual.
Owner’s Manual for Portable Generator 7
.
001597
4
12
1
7
5
11
9
2
8
3
10
6
11
13
(000167)
CAUTION
Do not make battery connections
in reverse. Doing so will result in
equipment damage.
Figure 2-7. Wheel, Handle and Foot Assembly
Battery Cable Connection (electric start only)
NOTE: If the battery is unable to start the
engine, charge it with an appropriate 12V
charger or manually start the generator and let
run until charged.
Add Engine Oil
CAUTION
The unit has been shipped with the battery
cables disconnected.
You will need two 8mm box wrenches to connect the battery cables. See Figure 4-5.
1. Cut off cable ties securing battery cables
and remove red cover from battery terminal.
2. First, connect the red cable to the positive
(+) battery terminal with the bolt and nut
supplied.
3. Make sure connections are secure and
slide rubber boot over the positive (+) battery terminal and connection hardware.
4. Connect the black cable to the negative (-)
battery terminal with the bolt and nut supplied. Slide rubber boot over the negative
(-) battery terminal and connection hardware.
5. Make sure all connections are secure.
8 Owner’s Manual for Portable Generator
Engine damage. Verify proper type and quantity of
engine oil prior to starting engine. Failure to do so
could result in engine damage.
1. Place generator on a level surface.
2. Verify oil fill area is clean.
3. Remove oil fill cap and wipe dipstick clean.
See Figure 2-8.
(000135)
Figure 2-8. Remove Dipstick
000115
SAE 30
10W-30
Synthetic 5W-30
000399
000116
(000105)
DANGER
Explosion and Fire. Fuel and vapors are
extremely flammable and explosive. Add fuel
in a well ventilated area. Keep fire and spark
away. Failure to do so will result in death
or serious injury.
A
4. Add recommended engine oil. Climate
determines proper engine oil viscosity.
See chart to select correct viscosity.
NOTE: Use petroleum based oil (supplied) for
engine break-in before using synthetic oil.
.
NOTE: Some units have more than one oil fill
location. It is only necessary to use one oil fill
point.
5. Thread dipstick into oil filler neck. Oil level
is checked with dipstick fully installed.
6. See Figure 2-9. Remove dipstick and verify
oil level is within safe operating range.
Figure 2-9. Safe Operating Range
7. Install oil fill cap/dipstick and hand-tighten.
Fuel
DANGER
Do not overfill fuel tank. Fill to 1/2 in. of top of tank to
allow for fuel expansion. Overfilling may cause fuel to
spill onto engine causing fire or explosion, which will
result in death or serious injury.
(000166)
Fuel requirements are as follows:
• Clean, fresh, unleaded gasoline.
• Minimum rating of 87 octane/87 AKI (91
RON).
• Up to 10% ethanol (gasohol) is acceptable
(where available; non-ethanol-premium fuel
is recommended).
• DO NOT use E85.
• DO NOT use a gas oil mix.
• DO NOT modify engine to run on alternate
fuels. Stabilize fuel prior to storage.
1. Verify unit is OFF and cooled for a mini-
mum of two minutes prior to fueling.
2. Place unit on level ground in a well venti-
lated area.
3. Clean area around fuel cap and remove
cap slowly.
4. Slowly add recommended fuel. Do not fill
above red fuel indicator (A). See Figure 2-
10.
5. Install fuel cap.
000206
Figure 2-10. Add Recommended Fuel
NOTE: Allow spilled fuel to evaporate before
starting unit.
IMPORTANT NOTE: It is important to prevent gum deposits from forming in fuel
system parts such as the carburetor, fuel
hose or tank during storage. Alcoholblended fuels (called gasohol, ethanol or
methanol) can attract moisture, which
leads to separation and formation of acids
during storage. Acidic gas can damage the
fuel system of an engine while in storage.
To avoid engine problems, the fuel system
should be emptied before storage of 30
days or longer. See the Storage section.
Never use engine or carburetor cleaner
products in the fuel tank as permanent
damage may occur.
Owner’s Manual for Portable Generator 9
Section 3 Operation
(000179a)
The exhaust system must be properly maintained. Do
not alter or modify the exhaust system as to render it
unsafe or make it noncompliant with local codes and/or
standards. Failure to do so will result in death
or serious injury.
WARNING
(000118a)
Risk of fire. Do not use generator without
spark arrestor installed. Failure to do so
could result in death or serious injury.
(000178a)
Asphyxiation. Always use a battery operated carbon
monoxide alarm indoors and installed according to
the manufacturer’s instructions. Failure to do so
could result in death or serious injury.
WARNING
(000110)
WARNING
Risk of Fire. Hot surfaces could ignite
combustibles, resulting in fire. Fire could
result in death or serious injury.
(000108)
WARNING
Hot Surfaces. When operating machine, do not
touch hot surfaces. Keep machine away from
combustibles during use. Hot surfaces
could result in severe burns or fire.
(000136)
CAUTION
Equipment and property damage. Disconnect electrical
loads prior to starting or stopping unit. Failure to do so
could result in equipment and property damage.
001603
Operation and Use Questions
Call Powermate Customer Service at 1-800445-1805 with questions or concerns about
equipment operation and maintenance.
Before Starting Engine
1. Verify engine oil level is correct.
2. Verify fuel level is correct.
3. Verify unit is secure on level ground, with
proper clearance and is in a well ventilated
area.
Prepare Generator for Use
Asphyxiation. Running engines produce
carbon monoxide, a colorless, odorless,
poisonous gas. Carbon monoxide, if not
avoided, will result in death or serious injury.
DANGER
(000103)
DANGER
Grounding the Generator When In Use
The generator is equipped with a terminal for
the connection of a grounding electrode system. NEC Article 250.34 (A) does not require
the frame of the generator to be connected to
a grounding electrode system when the generator only supplies power to cord and plug
connected equipment through the receptacles
on the generator.
When the generator supplies power to a 3
pole manual transfer switch or distribution
panel boards for temporary power, a grounding electrode system shall be installed and
connected to the grounding electrode terminal
on the generator. See NEC 250.30, 250.34
and 250.52 for clarification. See Figure 3-1.
• Neutral Bonded to Frame
Figure 3-1.Grounding the Generator
Special Requirements
Review all Federal or State Occupational
Safety and Health Administration (OSHA) regulations, local codes, or ordinances that apply
to the intended use of the generator.
Consult a qualified electrician, electrical
inspector, or the local agency having jurisdiction:
• In some areas, generators are required to
be registered with local utility companies.
• If the generator is used at a construction
site, there may be additional regulations
which must be observed.
Connecting the Generator to a
Building Electrical System
When connecting directly to a building electrical system, it is recommended that a manual
transfer switch be used. Connections for a
portable generator to a building electrical system must be made by a qualified electrician
and in strict compliance with all national and
local electrical codes and laws.
10 Owner’s Manual for Portable Generator
Know Generator Limits
Overloading a generator can result in damage
to the generator and connected electrical
devices. Observe the following to prevent
overload:
• Add up the total wattage of all electrical
devices to be connected at one time. This
total should NOT be greater than the generator's wattage capacity.
• The rated wattage of lights can be taken
from light bulbs. The rated wattage of tools,
appliances, and motors can be found on a
data label or decal affixed to the device.
• If the appliance, tool, or motor does not
give wattage, multiply volts times ampere
rating to determine watts (volts x amps =
watts).
• Some electric motors, such as induction
types, require about three times more watts
of power for starting than for running. This
surge of power lasts only a few seconds
when starting such motors. Make sure to
allow for high starting wattage when selecting electrical devices to connect to the generator:
1. Figure the watts needed to start the largest
motor.
2. Add to that figure the running watts of all
other connected loads.
The Wattage Reference Guide is provided to
assist in determining how many items the generator can operate at one time.
NOTE: All figures are approximate. See data
label on appliance for wattage requirements.
Table 3. Wattage Reference Guide
Device Running
*Air Conditioner (12,000 Btu) 1700
*Air Conditioner (24,000 Btu) 3800
*Air Conditioner (40,000 Btu) 6000
Battery Charger (20 Amp) 500
Belt Sander (3") 1000
Chain Saw 1200
Circular Saw (6-1/2") 800 to 1000
*Clothes Dryer (Electric) 5750
*Clothes Dryer (Gas) 700
*Clothes Washer 1150
Coffee Maker 1750
*Compressor (1 HP) 2000
*Compressor (3/4 HP) 1800
*Compressor (1/2 HP) 1400
Curling Iron 700
*Dehumidifier 650
Disc Sander (9") 1200
Watts
Edge Trimmer 500
Electric Blanket 400
Electric Nail Gun 1200
Electric Range (per element) 1500
Electric Skillet 1250
*Freezer 700
*Furnace Fan (3/5 HP) 875
*Garage Door Opener 500 to 750
Hair Dryer 1200
Hand Drill 250 to 1100
Hedge Trimmer 450
Impact Wrench 500
Iron 1200
*Jet Pump 800
Lawn Mower 1200
Light Bulb 100
Microwave Oven 700 to 1000
*Milk Cooler 1100
Oil Burner on Furnace 300
Oil Fired Space Heater (140,000
Btu)
Oil Fired Space Heater (85,000 Btu) 225
Oil Fired Space Heater (30,000 Btu) 150
*Paint Sprayer, Airless (1/3 HP) 600
Paint Sprayer, Airless (hand-held) 150
Radio 50 to 200
*Refrigerator 700
Slow Cooker 200
*Submersible Pump (1-1/2 HP) 2800
*Submersible Pump (1 HP) 2000
*Submersible Pump (1/2 HP) 1500
*Sump Pump 800 to 1050
*Table Saw (10") 1750 to 2000
Television 200 to 500
Toaster 1000 to 1650
Weed Trimmer 500
* Allow 3 times the listed watts for starting these
devices.
400
Transporting/Tipping of the Unit
Do not store or transport the unit at an angle
greater than 15 degrees.
Owner’s Manual for Portable Generator 11
Starting Pull Start Engines
(000183)
WARNING
Recoil Hazard. Recoil could retract unexpectedly.
Kickback could result in death or serious injury.
(000136)
CAUTION
Equipment and property damage. Disconnect electrical
loads prior to starting or stopping unit. Failure to do so
could result in equipment and property damage.
001602
A
D
B
C
(000136)
CAUTION
Equipment and property damage. Disconnect electrical
loads prior to starting or stopping unit. Failure to do so
could result in equipment and property damage.
(000136)
CAUTION
Equipment and property damage. Disconnect electrical
loads prior to starting or stopping unit. Failure to do so
could result in equipment and property damage.
1. Unplug all electrical loads from the unit's
receptacles before starting engine.
2. Place generator on a level surface.
3. See Figure 3-2. Open the fuel shut-off
valve (A).
4. Turn engine OFF/ON/START switch (B) to
ON. See Figure 3-2.
.
IMPORTANT NOTE:Do not overload generator or individual panel receptacles. These
outlets are overload protected with pushto-reset circuit breakers. If amperage rating of any circuit breaker is exceeded, that
breaker opens and electrical output to that
receptacle is lost. Read Know Generator
Limits carefully.
Starting Electric Start Engines
1. Unplug all electrical loads from the unit's
receptacles before starting the engine.
2. Place generator on a level surface.
3. Open the fuel shut-off valve. See Figure 3-
2.
4. Move engine choke knob outward to Full
Choke. See Figure 3-3.
5. Turn and hold OFF/ON/START switch in
the START position. When engine starts,
release the switch to the ON position.
6. When engine starts, move choke knob to
1/2 choke position until engine runs
smoothly, then fully to ON position. If
engine falters, move choke knob back to
1/2 choke position until engine runs
smoothly, then move to ON position.

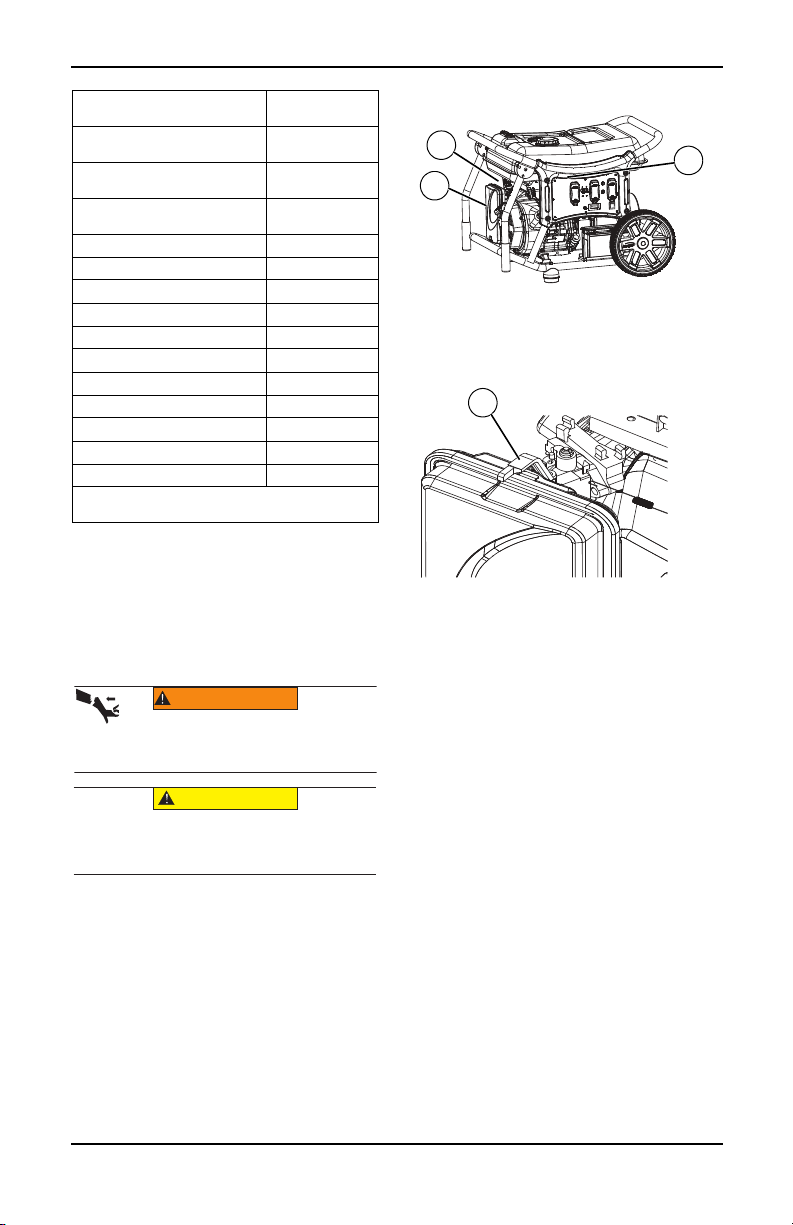

Figure 3-2.Engine Controls
5. Slide engine choke (C) to Full CHOKE
position (left). See Figure 3-3.
Generator Shut Down
1. Shut off all loads and unplug electrical
loads from generator panel receptacles.
2. Let engine run at no-load for several minutes to stabilize internal temperatures of
engine and generator.
3. Move OFF/ON/START switch to OFF.
4. Close fuel valve.
NOTE: Under normal conditions, close fuel
000209
Figure 3-3.Choke Position
6. See Figure 3-2. Firmly grasp recoil handle
(D) and pull slowly until increased resistance is felt. Pull rapidly up and away.
7. When engine starts, move choke lever to
1/2 CHOKE position until engine runs
smoothly, then fully into ON position. If
engine falters, move choke back to 1/2CHOKE position until engine runs
smoothly, then to ON position.
NOTE: If engine fires, but does not continue to
run, move choke lever to Full CHOKE and
repeat starting instructions.
12 Owner’s Manual for Portable Generator
valve and allow generator to run carburetor
bowl out of fuel. For emergencies, switch to
Stop.
Low Oil Level Shutdown System
The engine is equipped with a low oil level
sensor that shuts down the engine automatically when the oil level drops below a specified level. The engine will not run until the oil
has been filled to the proper level.
If the engine shuts down and there is sufficient
fuel, check engine oil level.
Section 4 Maintenance and Troubleshooting
Maintenance
Regular maintenance will improve performance and extend engine/equipment life. The
manufacturer recommends that all maintenance work be performed by an Independent
Authorized Service Dealer (IASD). Regular
maintenance, replacement or repair of the
emissions control devices and systems may
be performed by any repair shop or person of
the owner’s choosing. However, to obtain
emissions control warranty service free of
charge, the work must be performed by an
IASD. See the emissions warranty.
NOTE: Call Powermate Customer Service at
1-800-445-1805 with questions about component replacement.
Maintenance Schedule
Follow maintenance schedule intervals,
whichever occurs first according to use.
NOTE: Adverse conditions will require more
frequent service.
NOTE: All required service and adjustments
should be each season as detailed in the following chart.
At Each Use
Check engine oil level
Every 100 Hours or Every Season*
Change oil ǂ
Change fuel filter
Every Season
Replace spark plug
Check valve clearance***
Every 200 Hours or Every Season
Inspect/clean air filter**
ǂ Change oil after first 30 hours of operation,
then every season.
C
hange oil and oil filter every month when
*
operating under heavy load or in high temperatures.
** Clean more often under dirty or dusty oper-
ating conditions. Replace air filter parts if
they cannot be adequately cleaned.
*** Check valve clearance and adjust if neces-
sary after first 50 hours of operation and
every 100 hours thereafter.
Preventive Maintenance
Dirt or debris can cause improper operation
and equipment damage. Clean generator
daily or before each use. Keep area around
and behind muffler free from combustible
debris. Inspect all cooling air openings on
generator.
WARNING
Do not insert any object through the air cooling slots.
Generator can start at any time and could result in
death, serious injury, and unit damage.
• Use a damp cloth to wipe exterior surfaces
clean.
• Use a soft bristle brush to loosen caked on
dirt, oil, etc.
• Use a vacuum to pick up loose dirt and
debris.
• Low pressure air (not to exceed 25 psi)
may be used to blow away dirt. Inspect
cooling air slots and openings on generator.
These openings must be kept clean and
unobstructed.
(000142)
NOTE: DO NOT use a garden hose to clean
generator. Water can enter engine fuel system
and cause problems. If water enters generator
through cooling air slots, some water will be
retained in voids and crevices of rotor and stator winding insulation. Water and dirt buildup
on generator internal windings will decrease
insulation resistance of windings.
Engine Maintenance
WARNING
Accidental start-up. Disconnect spark plug wires
when working on unit. Failure to do so could result
in death or serious injury.
Engine Oil Recommendations
To maintain the product warranty, the engine
oil should be serviced in accordance with the
recommendations of this manual. For your
convenience, maintenance kits designed and
intended for use on this product are available
from the manufacturer that include engine oil,
oil filter, air filter, spark plug(s), a shop towel
and funnel. These kits can be obtained from
an Independent Authorized Service Dealer
(IASD).
(000141)
Owner’s Manual for Portable Generator 13
.
SAE 30
10W-30
Synthetic 5W-30
000399
(000139)
WARNING
Risk of burns. Allow engine to cool before
draining oil or coolant. Failure to do so
could result in death or serious injury.
000115
000116
000379
A
Inspect Engine Oil Level
Inspect engine oil level prior to each use, or
every 8 hours of operation.
1. Place generator on a level surface.
2. Clean area around oil fill.
3. See Figure 4-1. Remove oil fill cap and
wipe dipstick clean.
Figure 4-1. Engine Oil Fill
4. Screw dipstick into filler neck. Remove
dipstick and verify oil level is within safe
operating range. See Figure 4-2.
Change Engine Oil
WARNING
Accidental start-up. Disconnect spark plug wires
when working on unit. Failure to do so could result
in death or serious injury.
When using generator under extreme, dirty,
dusty conditions, or in extremely hot weather,
(000141)
change oil more frequently.
NOTE: Don’t pollute. Conserve resources.
Return used oil to collection centers.
Change oil while engine is still warm from run-
ning, as follows:
1. Place generator on a level surface.
2. Disconnect the spark plug wire from the
spark plug and place the wire where it
cannot contact spark plug.
3. Clean area around oil fill, and oil drain
plug.
4. Remove oil fill cap.
5. Remove oil drain plug and drain oil completely into a suitable container.
6. Install oil drain plug and tighten securely.
7. Slowly pour oil into oil fill opening until oil
level is within safe operating range. DO
NOT overfill.
8. Install oil fill cap, and hand-tighten.
9. Wipe up any spilled oil.
10. Properly dispose of oil in accordance with
all applicable regulations.
Air Filter
Engine will not run properly and may be damaged if run with a dirty air filter. Service air filter more frequently in dirty or dusty conditions.
To service air filter:
1. See Figure 4-3. Turn knob (A) and remove
air filter cover.
2. Wash in soapy water. Squeeze filter dry in
clean cloth (DO NOT TWIST).
3. Clean air filter cover before re-installing it.
NOTE: To order a new air filter, contact the
nearest authorized service center at 1-888436-3722.
Figure 4-2. Safe Operating Range
5. Add recommended engine oil as necessary.
6. Install oil fill cap and hand-tighten.
NOTE: Some units have more than one oil fill
location. It is only necessary to use one oil fill
point.
14 Owner’s Manual for Portable Generator
Figure 4-3. Air Filter Assembly
Service Spark Plug
000211
(000130)
WARNING
Accidental Start-up. Disconnect the negative battery
cable, then the positive battery cable when working
on unit. Failure to do so could result in death
or serious injury.
(000167)
CAUTION
Do not make battery connections
in reverse. Doing so will result in
equipment damage.
001796
+
-
WARNING
Environmental Hazard. Always recycle batteries at an
official recycling center in accordance with all local
laws and regulations. Failure to do so could result in
environmental damage, death or serious injury.
(000228)
(000108)
WARNING
Hot Surfaces. When operating machine, do not
touch hot surfaces. Keep machine away from
combustibles during use. Hot surfaces
could result in severe burns or fire.
To service spark plug:
1. Clean area around spark plug.
2. Remove and inspect spark plug.
3. Inspect electrode gap with wire feeler
gauge and reset spark plug gap to
0.028-0.031 in (0.7-0.8 mm). See Figure
4-4.
Figure 4-4. Spark Plug
NOTE: Replace spark plug if electrodes are
pitted, burned or porcelain is cracked. Use
ONLY recommended replacement plug. See
Specifications.
4. Install spark plug finger tight, and tighten
an additional 3/8 to 1/2 turn using spark
plug wrench.
Figure 4-5. Battery Connection
3. Install new battery. Install hold down
bracket and tighten.
4. Connect positive (+) battery terminal (red
wire) FIRST (red wire). Slide rubber boot
over connection hardware.
5. Connect negative (-) battery terminal
(black wire) SECOND.
6. Slide rubber boot over connection hardware.
Battery Replacement (if applicable)
NOTE: The battery shipped with the generator
has been fully charged. A battery may lose
some charge when not in use for prolonged
periods of time.
WARNING
(000138a)
See Figure 4-5.
1. Disconnect negative (-) battery terminal
FIRST (black wire).
2. Disconnect positive (+) battery terminal
SECOND (red wire).
Inspect Muffler and Spark Arrester
NOTE: It is a violation of California Public
Resource Code, Section 4442, to use or operate the engine on any forest-covered, brushcovered, or grass-covered land unless the
exhaust system is equipped with a spark
arrester, as defined in Section 4442, maintained in effective working order. Other states
or federal jurisdictions may have similar laws.
Contact original equipment manufacturer,
retailer, or dealer to obtain a spark arrester
designed for exhaust system installed on this
engine.
NOTE: Use ONLY original equipment replacement parts.
Inspect muffler for cracks, corrosion, or other
damage. Remove spark arrester, if equipped,
inspect for damage or carbon blockage.
Replace parts as required.
Inspect Spark Arrester Screen
(CARB models)
1. See Figure 4-6. Loosen screw and remove
retainer clamp (A) and retainer (B).
Owner’s Manual for Portable Generator 15
2. Remove retainer screw (C) from muffler
001530
A
B
D
C
(000181)
WARNING
Vision Loss. Eye protection is required to avoid
spray from spark plug hole when cranking engine.
Failure to do so could result in vision loss.
outlet tube.
3. Remove screen (D) and replace if torn,
perforated or otherwise damaged. If
screen is not damaged, clean with commercial solvent.
4. Replace screen and retainer, secure with
screw.
5. Install clamp.
• Replace fuel container if rust is present.
Rust in fuel will cause fuel system problems.
• Cover unit with a suitable protective, moisture resistant cover.
• Store unit in a clean and dry area.
• Always store generator and fuel away from
heat and ignition sources.
Prepare Unit for Storage
Fuel stored over 30 days can go bad and
damage fuel system components. Keep fuel
fresh, use fuel stabilizer.
If fuel stabilizer is added to fuel system, prepare and run engine for long term storage.
Run engine for 10-15 minutes to circulate stabilizer throughout fuel system. Adequately
prepared fuel can be stored up to 24 months.
NOTE: If fuel has not been treated with fuel
stabilizer, it must be drained into an approved

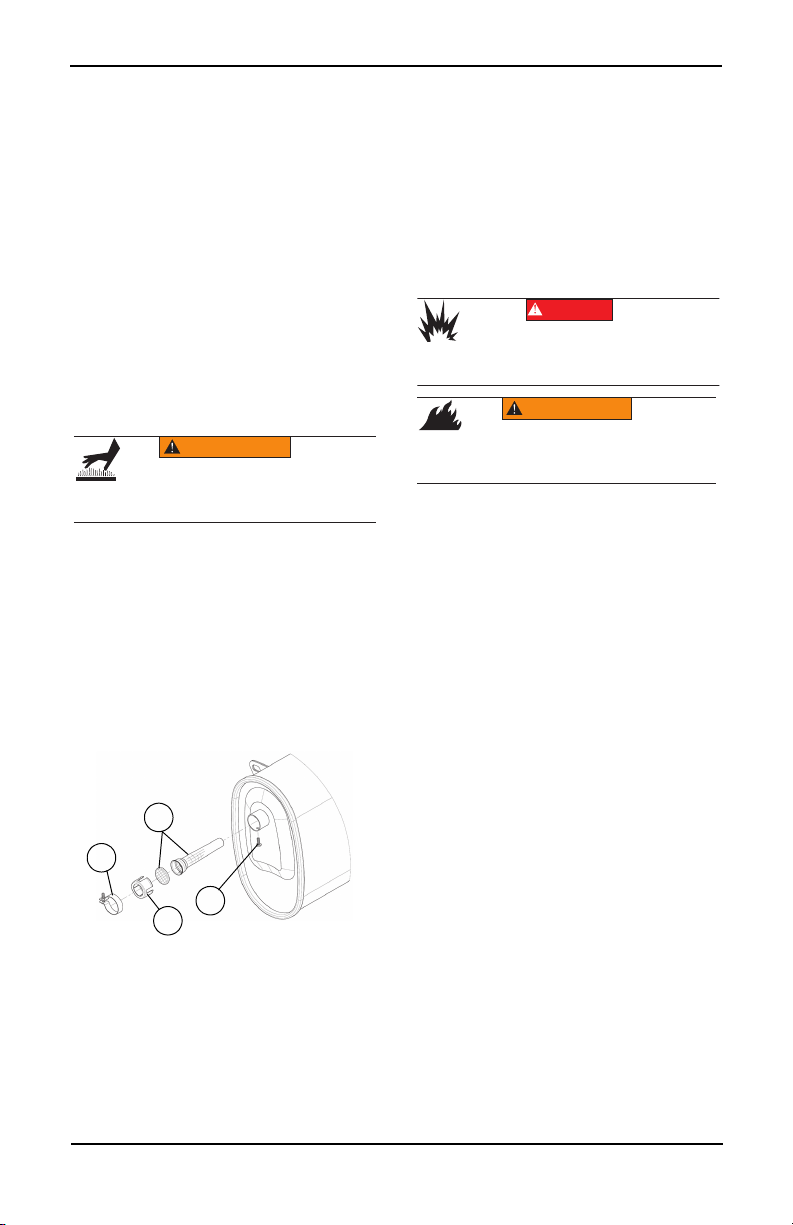

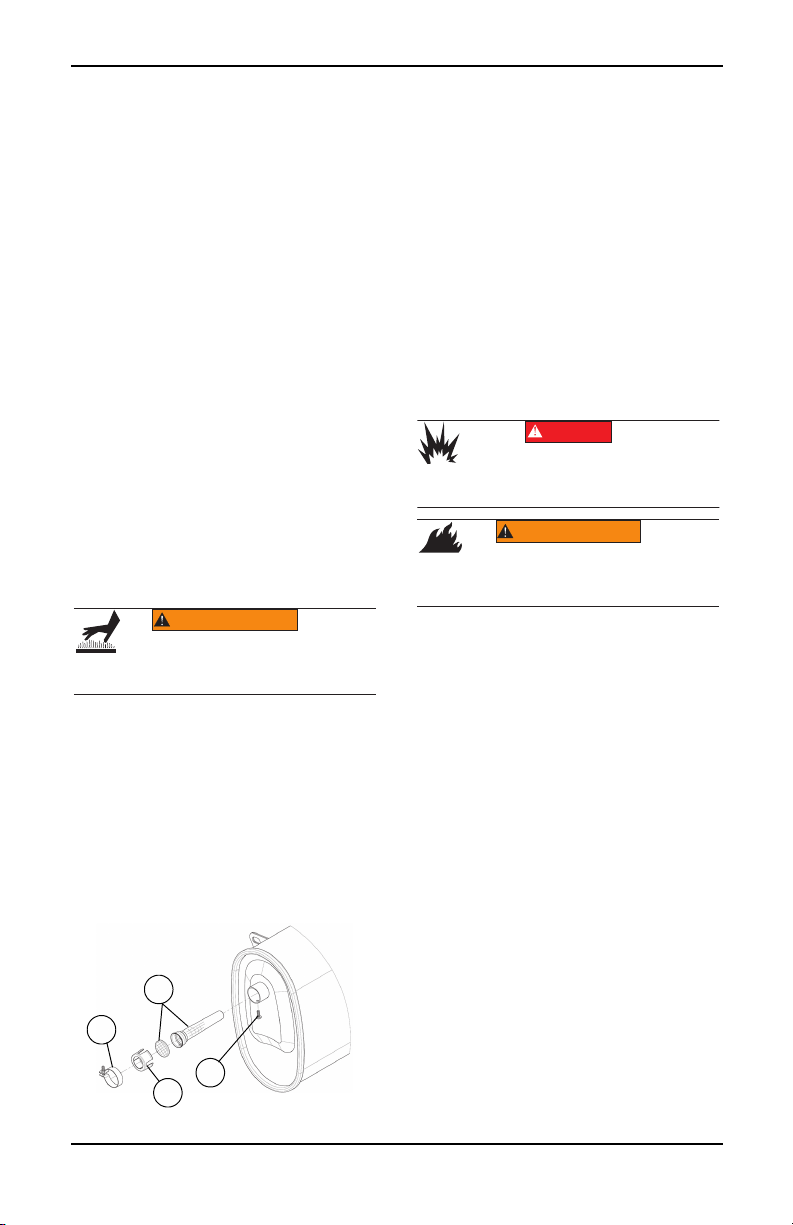

Figure 4-6. Spark Arrestor Screen
Valve Clearance
IMPORTANT NOTE: If uncomfortable about
doing this procedure, or the proper tools
are not available, take generator to the
nearest service center to have valve clearance adjusted.
Check valve clearance after the first fifty-hours
of operation. Adjust as necessary.
• Intake — 0.15 ± 0.02mm (cold), (0.006" ±
0.001" inches)
• Exhaust — 0.20 ± 0.02mm (cold) (0.008" ±
0.001" inches)
Storage
General
Explosion and Fire. Fuel and vapors are extremely
flammable and explosive. Store fuel in a well
ventilated area. Keep fire and spark away. Failure
to do so will result in death or serious injury.
Risk of Fire. Verify machine has properly
cooled before installing cover and storing
machine. Hot surfaces could result in fire.
It is recommended to start and run the generator for 30 minutes, every 30 days. If this is not
possible, refer to the following list to prepare
unit for storage.
• DO NOT place a storage cover on a hot
generator. Allow unit to cool to room temperature before storage.
• DO NOT store fuel from one season to
another unless properly treated.
16 Owner’s Manual for Portable Generator
DANGER
WARNING
(000143)
(000109)
container. Run engine until it stops from lack
of fuel. Use of fuel stabilizer in fuel storage
container is recommended to keep fuel fresh.
1. Change engine oil.
2. Remove spark plug.
3. Pour tablespoon (5-10cc) of clean engine
oil or spray a suitable fogging agent into
cylinder.
4. Pull starter recoil several times to distribute oil in cylinder.
5. Install spark plug.
6. Pull recoil slowly until resistance is felt.
This will close valves so moisture cannot
enter engine cylinder. Gently release
recoil.
7. Disconnect negative (-) battery terminal
FIRST (black wire).
8. Disconnect positive (+) battery terminal
SECOND (red wire).
9. Remove battery from generator.
10. Charge the battery.
11. Clean the battery and store in a dry clean
environment.
Change Oil
Change engine oil before storage. See
Change Engine Oil.
Troubleshooting
PROBLEM CAUSE CORRECTION
Engine is running, but
AC output is not
available.
1. Circuit breaker OPEN.
2. Poor connection or defective
cord set.
3. Connected device is bad.
4. Fault in generator.
5. GFCI receptacle is OPEN (if
equipped).
1. Reset circuit breaker.
2. Check and repair.
3. Connect another device that
is in good condition.
4. Contact IASD.
5. Correct ground fault and
press reset button on GFCI
receptacle (if equipped).
Engine runs well at
no-load, but bogs when
load is applied.
Engine will not crank. 1. 10 Amp fuse has melted open.
Engine will not start; or
starts and runs rough.
Engine shuts down
during operation.
Engine lacks power. 1. Load is too high.
1. Short circuit in a connected
load.
2. Generator is overloaded.
3. Engine speed is too slow.
4. Shorted generator circuit.
5. Dirty fuel filter.
2. Battery weak or dead.
1. Off/On/Start Switch is OFF.
2. Fuel shut-off is OFF.
3. Dirty air filter.
4. Out of fuel.
5. Stale fuel.
6. Dirty fuel filter.
7. Spark plug wire not connected
to spark plug.
8. Bad spark plug.
9. Water in fuel.
10. Overchoking.
11. Low oil level.
12. Excessive rich fuel mixture.
13. Intake valve stuck open or
closed.
14. Engine lost compression.
1. Out of fuel.
2. Dirty fuel filter.
3. Low oil level.
4. Fault in engine.
2. Dirty air filter.
3. Dirty fuel filter.
4. Engine needs to be serviced.
1. Disconnect shorted electr
.
load
2. See
Know Generator Limits.
3. Contact IASD.
4. Contact IASD.
5. Replace fuel filter.
1. Replace fuse.
2. Charge or replace battery.
1. Turn Off/On/Start Switch ON.
2. Turn fuel shut-off ON.
3. Clean or replace air filter.
4. Fill fuel tank.
5. Drain fuel tank and fill with
fresh fuel.
6. Replace fuel filter.
7. Connect wire to spark plug.
8. Replace spark plug.
9. Drain fuel tank; fill with fresh
fuel.
10. Set choke to no choke posi-
tion.
11. Fill crankcase to correct level.
12. Contact IASD.
13. Contact IASD.
14. Contact IASD.
1. Fill fuel tank.
2. Replace fuel filter.
3. Fill crankcase to correct level.
4. Contact IASD.
1. Reduce load (see
ical
Know Gen-
erator Limits).
2. Clean or replace air filter.
3. Dirty fuel filter.
4. Contact IASD.
Engine surges or
stumbles.
Owner’s Manual for Portable Generator 17
1. Choke is opened too soon.
2. Carburetor is running too rich
or too lean.
3. Dirty fuel filter.
1. Set choke to halfway position
until engine runs smoothly.
2. Contact IASD.
3. Dirty fuel filter.
PROBLEM CAUSE CORRECTION
No battery charge DC
output.
1. Battery posts corroded.
2. Bad battery cable.
3. Defective battery.
4. Bad receptacle.
1. Clean battery posts.
2. Replace cable.
3. Check battery condition.
Replace if defective.
4. Contact IASD.
Owner’s Manual for Portable Generator 18
