For Parts Call K&T 606-678-9623 or 606-561-4983

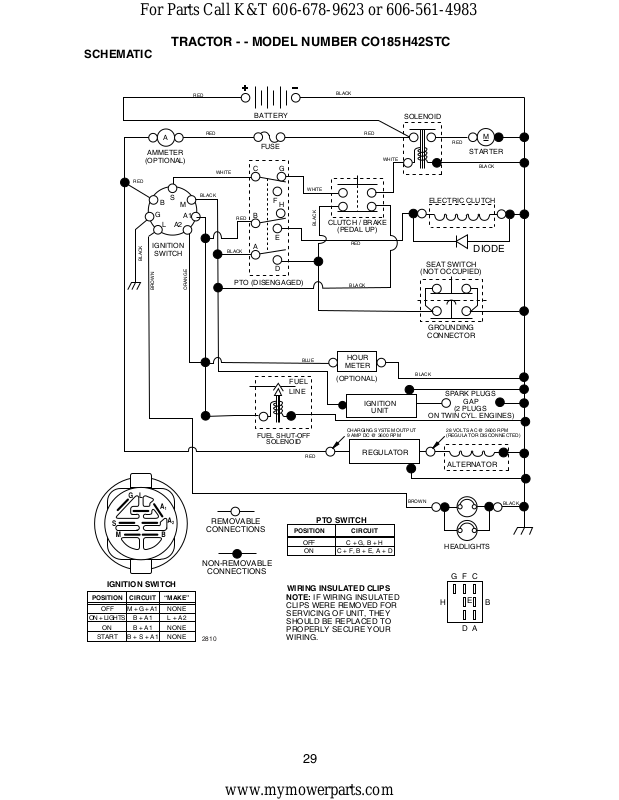

SCHEMATIC
TRACTOR - - MODEL NUMBER CO185H42STC
AMMETER
(OPTIONAL)
RED
IGNITION
SWITCH
BLACK
BROWN
RED
BATTERY
A
RED
FUSE
WHITE
BLACK
S
B
M
G
A1
A2L
CG
B
RED
F
H
E
A
BLACK
D
ORANGE
PTO (DISENGAGED)
BLUE
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
RED
BLACK
WHITE
CLUTCH / BRAKE
BLACK
(PEDAL UP)
(OPTIONAL)
SOLENOID
RED
WHITE
RED
BLACK
HOUR
METER
IGNITION
UNIT
CHARGING SYSTEM OUTPUT
9 AMP DC @ 3600 RPM
REGULATOR
RED
STARTER
BLACK
ELECTRIC CLUTCH
DIODE
SEAT SWITCH
(NOT OCCUPIED)
GROUNDING
CONNECTOR
BLACK
SPARK PLUGS
GAP
(2 PLUGS
ON TWIN CYL. ENGINES)
28 VOLTS AC @ 3600 RPM
(REGULATOR DISCONNECTED)
M
ALTERNATOR
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1ON + LIGHTS
B+A1ON
B+S+A1START
“MAKE”
NONE
L+A2
NONE
NONE
REMOVABLE
CONNECTIONS
NON-REMOVABLE
CONNECTIONS
PTO SWITCH
OFF
C+F,B+E,A+DON
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR
2810
WIRING.
29
www.mymowerparts.com
CIRCUITPOSITION
C+G,B+H
BROWN
HEADLIGHTS
G
FC
E
H
A
D
BLACK
B
22
79
21
For Parts Call K&T 606-678-9623 or 606-561-4983
ELECTRICAL
REPAIR PARTS
TRACTOR - - MODEL NUMBER CO185H42STC
33
24
30
27
43
42
27
41
80
40
26
27
25
16
12
50
28
89
46
29
55
D
.
C
.
A
M
P
E
R
E
S
10
45
11
27
192936
2
1
8
12
30
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
ELECTRICAL
TRACTOR - - MODEL NUMBER CO185H42STC
KEY PART
NO. NO. DESCRIPTION
1 163465 Battery
2 74760412 Bolt, Hex 1/4-20 x 3/4
8 7603J Tray, Battery
10 145211 Bolt, Btr Front 1/4-20 x 7-1/2
11 150109 Holddown Battery Front Mount
12 145769 Nut, Push Nylon Battery Front 1/4
16 176138 Switch Interlock
21 175688 Harness, Light
22 4152J Light Bulb
24 8860R Cable, Starter
25 146148 Cable, Battery
26 175158 Fuse
27 73510400 Nut Keps Hex 1/4-20 unc
28 145491 Cable, Ground
29 121305X Switch, Seat
30 175566 Switch, Ignition
33 140401 Key, Molded
40 192936 Harness, Ignition
41 17720408 Screw Thd Cut 1/4-20 x 1/2
42 131563 Cover, Terminal
43 178861 Solenoid
45 122822X Ammeter
46 169635 Hourmeter
50 174653 Switch, PTO
55 17490508 Screw Thdrol 5/16-18 x 1/2
79 175242 Socket Asm bulb Twistlock
80 146685 Harness Clutch EVX
89 169639 Bracket Snap-In
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
31
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
TRACTOR - - MODEL NUMBER CO185H42STC
CHASSIS AND ENCLOSURES
17
155
10
161
10
30
159
9
54
58
158
64
209
166
54
209
217
90
31
209
209
166
11
209
166
213
20
29
28
166
214
59
209
chassis-stealth.stlt_27
206
209
209
2
209
142
60
26
143
74
144
26
144
60
142
14
38
37
209
38
26
26
14
145
1
154
209
166
13
37
209
32
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
TRACTOR - - MODEL NUMBER CO185H42STC
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 174619 Chassis
2 176554 Drawbar
9 161566X428 Dash
10 72140608 Bolt RDHD SQNK 3/8-16 x 1
11 167203 Panel, Dash, LH
13 188702X010 Panel, Dash, RH
14 17490608 Screw Thdrol 3/8-16 x 1/2
17 175260X428 Hood Assembly
20 162026 Plate Battery
26 73800600 Locknut, Hex, with Insert 3/8-16 unc
28 175289X428 Grille
29 161840 Lens, Bar
30 188572X428 Fender/Footrest
31 139976 Bracket, Fender/Support
37 17490508 Screw, Thdrol. 5/16-18 x 1/2 TYT
38 175710 Bracket Asm Pivot Mower Rear
54 161464 Screw Hex Wshd 8-18 x 7/8
58 175351 Duct Hood
59 187495 Bushing 1.375 OD
60 72140606 Bolt Rdhd Sqnk 3/8-16 unc x 3/4
64 174997 Dash Lower
74 73680600 Nut Crownlock 3/8-16 unc
90 124346X Nut Self Thrd Wshd 1/4 Zinc
142 175702 Plate Reinforcement
143 186689 Bracket Swaybar Chassis
144 175582 Bracket Footrest
145 156524 Rod Pivot Chassis/Hood
154 161897 Bracket Dash Rh
155 161900 Bracket Dash Lh
158 162037 Parking Brake Bkrt
159 179950X428 Cupholder
161 164655 Bumper Extrusion .600 x 3.50
166 191611 Screw 10 x 3/4 Single Lead-Hex
206 170165 Bolt Shoulder 5/16-18
209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4
213 169848X428 Skirt Grille LH
214 169847X428 Skirt Grille RH
217 179132X428 Console Fuel Window
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
33
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
GROUND DRIVE
TRACTOR - - MODEL NUMBER CO185H42STC
57
120
16
197
69
32
81
30
89
52
95
169
10
16
21
198
112
8
161
14
163
82
30
159
165
52
158
29
162
83
156
62
59
32
168
166
61
36
35
38
41
28
22
56
16
34
39
84
26
37
64
65
17
27
66
49
27
63
9
47
120
50
36
23
254
202
150
48
151
51
35
53
55
77
15
96
26
19
26
74
75
24
78
263
200
71
73
76
25
26
77
1
199
263
16
drive-hydro.stlt_73
34
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
GROUND DRIVE
TRACTOR - - MODEL NUMBER CO185H42STC
KEY PART
NO. NO. DESCRIPTION
1 - - - Transaxle, HydroGear, Model
Number 314-0510 (Order parts
from transaxle manufacturer)
8 165866 Rod Shift Fend.
9 180505 Clutch Electric
10 76020416 Pin Cotter 1/8 x 1
14 10040400 Washer Lock Hvy 1/4
15 74490544 Bolt Hex Flghd 5/16-18 Gr. 5
16 73800500 Nut Lock Hex W/Ins. 5/16-18 unc
17 126197X Washer 1-1/2 x 15/32 x .250
19 73800600 Nut Lock Hex W/Wsh 3/8-16 unc
21 106933X Knob
22 169498 Rod, Brake
23 190736 Bracket Asm Anti-Rotation
24 73350600 Nut, Hex Jam 3/8-16 unc
25 106888X Spring, Brake Rod
26 19131316 Washer
27 76020412 Pin Cotter 1/8 x 3/4 CAD.
28 175765 Rod, Parking Brake
29 71673 Knob Brake Parking
30 169592 Bracket, Transaxle
32 74760512 Bolt Hex Hd 5/16-18 unc x 3/4
34 175578 Shaft, Foot Pedal
35 120183X Bearing, Nylon
36 19211616 Washer
37 1572H Pin, Roll
38 179114 Pulley, Composite
39 72110622 Bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5
41 175556 Keeper, Belt Idler Flat
47 127783 Pulley, Idler, V-Groove
48 154407 Bellcrank Clutch Grnd Drw Stl
49 123205X Retainer, Belt
50 72110612 Bolt
51 73680600 Nut Crownlock 3/8-16 unc
52 73680500 Nut, Crownlock 5/16-18 unc
53 105710X Link, Clutch
55 105709X Spring, Return, Clutch
56 17060620 Screw 3/8-16 x 1-1/4
57 140294 V-Belt, Ground Drive
59 169691 Keeper, Center Span
61 17120614 Screw 3/8-16 x .875
62 123533X Cover, Pedal
63 174607 Pulley, Engine
KEY PART
NO. NO. DESCRIPTION
64 173937 Bolt, Hex 7/16-20 x 4 Gr. 5-1.5 Thr
65 10040700 Washer
66 154778 Keeper Belt Engine
69 142432 Screw Hex Wsh H-Lo 1/4-1/2 unc
71 169183 Strap Torque LH
73 169182 Strap Torque RH
74 137057 Spacer, Axle
75 121749X Washer 25/32 x 1-1/4 x 16 Ga.
76 12000001 E-Ring
77 123583X Key, Square
78 121748X Washer 25/32 x 1-5/8 x 16 Ga.
81 165596 Shaft Assy. Cross Taper
82 165711 Spring Torsion
83 19171216 Washer 17/32 x 3/4 x 16 Ga.
84 169594 Link Transaxle
89 188309X428 Console, Shift
95 170201 Rod Bypass
96 4497H Retainer Spring 1" Zinc/Cad
112 19091210 Washer 9/32 x 3/4 x 10 Ga.
120 73900600 Nut Lock Flg 3/8-16 unc
144 19111016 Washer 11/32 x 5/8 x 16 Ga.
150 175456 Spacer Retainer
151 19133210 Washer 13/32 x 2 x 10 Ga.
156 166002 Washer 5/16 ID x 1.0 x .125
158 165589 Bracket Shift Mount
159 183900 Hub Shift
161 72140406 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
162 73680400 Nut Crownlock 1/4-20 unc
163 74780416 Bolt Hex Fin 1/4-20 unc x 1 Gr. 5
165 165623 Bracket Pivot Lever
166 17490510 Screw 5/16-18 x 5/8
168 165492 Bolt Shoulder 5/16-18 x .561
169 165580 Plate Fastener Cross Shf.
197 169613 Nyliner Snap-in 5/8 ID
198 169593 Washer Nyl 7/8 ID x .105"
199 169612 Bolt Shoulder 5/16-18 unc
200 72140508 Bolt Rdhd Sqnk 5/16-18 unc x 1
202 72110614 Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5
254 17000616 Screw 3/8-16 x 1
263 17000612 Screw 3/8-16 x .75
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
35
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
TRACTOR - - MODEL NUMBER CO185H42STC
STEERING ASSEMBLY
37
38
12
39
1
73
41
42
37
36
91
43
68
29
15
88
71
68
29
17
82
29
46
8
6
2
87
5
3
11
40
10
13
65
32
33
34
35
67
46
8
6
67
67
87
5
4
43
43
95
8
36
www.mymowerparts.com
steering_stealth_prem_3
For Parts Call K&T 606-678-9623 or 606-561-4983
TRACTOR - - MODEL NUMBER CO185H42STC
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 159944X428 Wheel Steering
2 184706 Axle Asm
3 169840 Spindle Asm LH
4 169839 Spindle Asm RH
5 6266H Bearing Race Thrust Harden
6 121748X Washer 25/32 x 1-5/8 x 16 Ga.
8 12000029 Ring Klip #t5304-75
10 175121 Link Drag
11 10040600 Washer Lock Hvy Hlcl Spr 3/8
12 73940800 Nut Hex Jam Toplock 1/2-20 unf
13 136518 Spacer Bearing Axle Front
15 145212 Nut Hex Flange Lock
17 177883 Shaft Asm. Steering
29 17000612 Screw 3/8-16 x 3/4
32 171888 Rod Tie
33 19111216 Washer 11/32 x 3/4 x 16 Ga.
34 10040500 Washer Lock Hlcl Spr 5/16
35 73540500 Crownlock Nut 5/16-24 unf
36 155105 Bushing Strg
37 152927 Screw
38 159946X428 Insert Cap Strg Wh
39 19182411 Washer 9/16 ID x 1-1/2 OD 11Ga.
40 73540600 Nut Crownlock 3/8-24
41 159945 Adaptor Wheel Strg
42 163888X428 Boot Steering
43 121749X Washer 25/32 1 1/4 x 16 Ga.
46 184946X505 Cap Spindle
65 160367 Spacer Brace Axle
67 72110618 Bolt, Rdhd Sq 3/8-16 unc x 2-1/4
68 169827 Axle, Brace
71 175146 Steering Asm.
73 160135X428 Extension Steering Stealth
82 169835 Bracket Susp. Chassis Front
87 173966 Washer Flat .781 x 1-1/2 x .15
88 175118 Bolt Shoulder 7/16-20 unc
91 175553 Clip Steering
95 188967 Washer Harden .793 x 1.637 x .060
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
www.mymowerparts.com
ENGINE
For Parts Call K&T 606-678-9623 or 606-561-4983
TRACTOR - - MODEL NUMBER CO185H42STC
14
3
72
81
78
13
4
2
1
78
38
32
31
33
37
29
41
33
112
OPTIONAL EQUIPMENT
Spark Arrester
KEY PART
NO. NO. DESCRIPTION
1 176636X428 Control Throttle/Choke
2 171875 Screw Hwhd Hi-Lo #13-16 x 3/4
3 - - - - - - - - Engine, Briggs Model 31P777
(Order parts for Engine Manufac
turer)
4 137352 Muffl er Asm Twin Lo-Tone
13 165291 Muffl er Gasket
14 148456 Tube Drain oil
23 169837 Shield Heat
29 137180 Kit Spark Arrestor (Flat Scrn)
31 179022 Tank Fuel
32 179124X428 Cap Asm Fuel
33 123487X Clamp Hose Black
37 8543R Line Fuel
38 181654 Plug Drain Oil Easy
45
23
engine-bs.1cyl_51
KEY PART
NO. NO. DESCRIPTION
41 139277 Stem Tank Fuel
45 17000612 Screw Hexwsh Thdr
3/8-16 x 3/4
72 183906 Screw 5/16-18 x 1
78 17060620 Screw 3/8-16 x 1-1/4
81 73510400 Nut Keps Hex 1/4-20 unc
112 3645J Bushing
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll
free number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
Kohler Co. 1-800-544-2444
Tecumseh Products 1-800-558-5402
Honda Engines 1-800-426-7701
Kawasaki 1-800-460-5688
38
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
TRACTOR - - MODEL NUMBER CO185H42STC
SEAT ASSEMBLY
14
10
1
18
8
9
8
9
7
7
5
6
22
16
15
13
17
seat_lt.knob_2
24
12
11
25
2
21
5
4
3
KEY PART
NO. NO. DESCRIPTION
1 189022 Seat
2 140551 Bracket Pivot Seat
3 71110616 Bolt Fin Hex 3/8-16 unc x 1
4 19131610 Washer 13/32 x 1 x 10 Ga
5 145006 Clip Push-In
6 73800600 Nut Hex w/Ins. 3/8-16 unc
7 124181X Spring Seat Cprsn
8 17000616 Screw 3/8-16 x 1-1/2
9 19131614 Washer 13/32 x 1 x 14 Ga.
10 182493 Pan Seat
11 166369 Knob Seat Adj. Wingnut
12 121246X Bracket Mounting Switch
www.mymowerparts.com
KEY PART
NO. NO. DESCRIPTION
13 121248X Bushing Snap Blk Nyl 50 Id
14 72050412 Bolt Rdhd Sqnk 1/4-20 x 1-1/2
15 121249X Spacer Split 28x .88 Zinc
16 123740X Spring Cprsn Plate 1.310 Ga
17 123976X Nut Lock 1/4 Lge Flg Gr. 5 Zinc
18 124238X Cap Spring Seat
21 171852 Bolt Shoulder 5/16-18 unc
22 73800500 Nut Hex Lock W/Ins 5/16-18
24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.
25 127018X Bolt Shoulder 5/16-18 x 62
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
DECALS
5
For Parts Call K&T 606-678-9623 or 606-561-4983
TRACTOR - - MODEL NUMBER CO185H42STC
11
9
16
23
3
21
20
21
4
11
10
18
15
1
KEY PART
KEY PART
NO. NO. DESCRIPTION
NO. NO. DESCRIPTION
1 187407 Refl ector, LH
3 176272 Decal, Hood RH
4 176273 Decal, Hood LH
5 172740 Decal, Fender
8 179128 Decal, Deck, Caution
9 189342 Decal, Replacement Hood
10 157141 Decal, Fender, Danger
11 191648 Decal, Panel, Dash
14 160396 Decal, V-Belt, Schematic
15 187408 Decal, Refl ector, RH
WHEELS & TIRES
1
2
6
5,8
4,10
7
3,9
8
14
KEY PART
NO. NO. DESCRIPTION
16 172743 Decal, Steering Wheel
18 156811 Decal, Fender Opr.
20 145004 Decal, Battery
21 189289 Decal, Hood, Side Panel
23 189288 Decal, Engine
- - 184310X428 Pad, Footrest, ST/LT, LH
- - 184311X428 Pad, Footrest, ST/LT, RH
- - 166960 Decal By-Pass
- - 193282 Manual, Owner's, English
- - 193283 Manual, Owner's, Spanish
KEY PART
NO. NO. DESCRIPTION
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 106222X Tire F Ts 15 x 6.0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X421 Rim Asm 6" front Service
6 278H Fitting Grease (Front Wheel Only)
7 9040H Bearing Flange (Front Wheel
11
Only)
8 106108X421 Rim Asm 8" rear Service
9 122082X Tire R Ts 20 x 10-8 C Service
10 7152J Tube Rear (Service Item Only)
11 104757X421 Cap Axle 1 50 x 1 00
- - 144334 Sealant, Tire (10 oz. Tube)
wheel_1
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
40
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
LIFT ASSEMBLY
41
37
38
40
36
TRACTOR - - MODEL NUMBER CO185H42STC
5
3
4
13
6
7
1
11
12
13
19
13
31
13
32
31
32
19
KEY PART
NO. NO. DESCRIPTION
1 179504 Plunger Assembly
2 159476 Shaft Assembly, Lift
3 188822 Pin, Groove
4 12000002 E-Ring
5 19211621 Washer 21/32 x 1 x 21 Ga.
6 120183X Bearing, Nylon
7 175830 Grip, Handle, Fluted
11 139865 Link, Lift, L.H.
12 139866 Link, Lift, R.H.
13 4939M Retainer Spring
15 173288 Link Front Sus.
16 73350800 Nut Hex Jam 1/2-13 unc
17 175689 Trunnion Front Susp.
6
20
5
4
18
17
16
20
15
lift-rh.1piece_24
2
15
20
KEY PART
NO. NO. DESCRIPTION
18 73800800 Nut Lock w/Wsh 1/2-13 unc
19 139868 Arm Asm. Suspension Mower
20 163552 Retainer Spring
31 169865 Bearing Pivot Lift
32 73540600 Nut Crownlock 3/8-24
36 155097 Pointer Height Indicator
37 123935X Plug Hole
38 17060516 Screw 5/16-18 x 1
40 19112410 Washer 11/32 x 1-1/2 x 10 Ga.
41 155098 Indicator Height Stlt
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
20
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
MOWER DECK
134
135
136
116
117
119
113
2
TRACTOR - - MODEL NUMBER CO185H42STC
68
40
36
144
40
40
54
143
150
184
59
146
32
31
30
33
45
145
21
148
2
21
106
105
104
103
101
21
102
132
102
139
42
21
91
_mulch_pl
2
94
118
at
119
118
184
159
46
44
56
55
21
5
140
34
1
138
e
21
103
104
117
21
105
106
5
136
23
182
183
95
132
134
116
24
25
26
113
2
29
28
27
16
92
130
15
61
14
18
131
129
3
92
149
4
20
18
13
5
6
19
21
10
9
11
8
42_D.elec.t-path.adjwl.stlt_3
42
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
MOWER DECK
TRACTOR - - MODEL NUMBER CO185H42STC
KEY PART
NO. NO. DESCRIPTION
1 182032 Mower Housing
2 72140506 Bolt
3 138017 Bracket Assembly,Sway Bar, Front
4 165460 Bracket Sway Bar 38/42”
5 4939M Retainer Spring
6 178024 Bar Sway Deck
8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8
9 10030600 Washer, Lock
10 140296 Washer, Hardened
(The following blades are
available)
11 134149 Blade, 42" Mulching STD
(For mulching mowers only)
- - 139775 Blade, 42" Mulching Premium
(For better wear when mulching)
- - 138971 Blade, 42" Hi-Lift
(For bagging or discharge)
13 137645 Shaft Assembly, Mandrel, Vented
(Incl. Key Number 6)
14 128774 Housing, Mandrel, Vented
15 110485X Bearing, Ball, Mandrel
16 174493 Stripper, Mower Deck
18 72140505 Bolt, Carriage 5/16-18 x 5/8
19 132827 Bolt, Shoulder
20 159770 Baffl e, Vortex
21 73680500 Nut, Crownlock 5/16-18 unc
23 177563 Bracket, Defl ector
24 105304X Cap, Sleeve
25 123713X Spring, Torsion, Defl ector
26 110452X Nut, Push
27 130968X428 Shield, Defl ector
28 19111016 Washer 11/32 x 5/8 x 16 Ga.
29 131491 Rod, Hinge
30 173984 Screw Thdrol Rolling Wsh Hd
31 187690 Washer, Spacer
32 173436 Pulley, Mandrel
33 178342 Nut, Toplock, Flanged
34 72110612 Bolt
36 173438 Pulley, Idler, Flat
37 19131316 Washer 13/32 x 13/16 x 16 Ga.
40 73900600 Nut, Lock 3/8-16 unc
44 140088 Guard, Mandrel, L.H.
45 4497H Retainer
46 137729 Screw, Thd. Roll 1/4-20 x 5/8
54 178515 Washer, Hardened
55 155046 Arm, Idler
56 122052X Spacer, Retainer
59 173442 Guard, Tuv Idler
61 174882 Spring Ext Elect Clutch
68 174883 V-Belt
91 180532 Bracket Roller Nose LH
KEY PART
NO. NO. DESCRIPTION
92 73800600 Locknut, Hex W/Wsh 3/8-16 unc
94 132264 Roller Nose
95 180533 Bracket Roller Nose RH
101 136420 Cover Mulching 42" Black
102 71081010 Screw Truss Hd Phil10-24 x 5/8
103 19061216 Washer #10
104 10071000 Washer Lock
105 160793 Latch Asm Bagger
106 2029J Nut Weld
113 17060512 Screw 5/16-18
116 4898H Bolt, Shoulder
117 165746 Wheel, Gauge
118 73930600 Nut, Crownlock 3/8-1
119 19121414 Washer 13/32 x 7/8 x 14 Ga.
129 19131312 Washer 13/32 x 13/16 x 12 Ga.
130 74780616 Bolt, Fin Hex 3/8-16 unc x 1Gr. 5
131 72140608 Bolt Rdhd Sqnk 3/8-16 unc x 1
132 17000612 Screw 3/8-16 x 3/4
134 156941 Pin Head Rivet
135 159765 Bracket Asm. Wheel Gauge
Rear LH
136 155986 Bar Adj. Gauge Wheel
138 159763 Bracket Asm. Wheel Gauge
Rear RH
139 159767 Bracket Asm. Wheel Gauge
Front RH
140 159768 Bracket Asm. Wheel Gauge
Front LH
143 157109 Bracket Arm Idler 42”
144 173441 Keeper Belt 42” Clutch Cable
145 173437 Pulley Idler Flat
146 173443 Bolt Carraige Idler
148 169022 Spring Return Idler
149 165898 Retainer Spring Yellow Zinc
150 19091210 Washer 9/32 x 3/4 x 10 Ga.
159 72140614 Bolt Rdhd Sqn 3/8-16 unc x 1-3/4
182 179126 Rod Roller Nose
183 163552 Retainer Spring
184 19131410 Washer 3/8
- - 130794 Mandrel Assembly (Includes
housing, shaft and shaft hardware
only-pulley not included)
- - 181542 Replacement Mower, Complete
(Std. Deck-Order separately
mulch cover, gauge wheels and
nose roller components key nos.
101 - 106, 5, 116 - 119, 134, 136
and 91, 94, 95, 132, 182, 183).
NOTE: All component dimensions given in U.S.inches
1 inch = 25.4 mm
43
www.mymowerparts.com
Loading...
