SCHEMATIC
TRACTOR - - MODEL NUMBER CO18542STA
AMMETER
(OPTIONAL)
RED
IGNITION
SWITCH
BLACK
BROWN
WHITE
CLUTCH / BRAKE
BLACK
RED
BLACK
RED
WHITE
(PEDAL UP)
RED
BLACK
HOUR
METER
(OPTIONAL)
IGNITION
UNIT
CHARGING SYSTEM OUTPUT
9 AMP DC @ 3600 RPM
REGULATOR
SOLENOID
RED
ELECTRIC CLUTCH
SEAT SWITCH
(NOT OCCUPIED)
GROUNDING
CONNECTOR
BLACK
SPARK PLUGS
(2 PLUGS
ON TWIN CYL. ENGINES)
28 VOLTS AC @ 3600 RPM
(REGULATOR DISCONNECTED)
M
STARTER
BLACK
DIODE
GAP
RED
BATTERY
A
RED
FUSE
WHITE
BLACK
S
B
M
G
A1
A2L
CG
B
RED
F
H
E
A
BLACK
D
ORANGE
PTO (DISENGAGED)
BLUE
FUEL
LINE
RED
FUEL SHUT-OFF
SOLENOID
ALTERNATOR
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1ON + LIGHTS
B+A1ON
B+S+A1START
“MAKE”
NONE
L+A2
NONE
NONE
REMOVABLE
CONNECTIONS
NON-REMOVABLE
CONNECTIONS
02781
PTO SWITCH
CIRCUITPOSITION
OFF
C+G,B+H
C+F,B+E,A+DON
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR
WIRING.
29
BROWN
HEADLIGHTS
G
FC
E
H
D
BLACK
B
A
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
ELECTRICAL
REPAIR PARTS
TRACTOR - - MODEL NUMBER CO18542STA
22
33
24
27
42
43
27
25
41
27
26
79
21
80
40
16
12
30
50
D
.C
10
. A
M
P
E
R
E
S
45
89
46
29
11
55
27
28
2
1
8
12
30
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
ELECTRICAL
TRACTOR - - MODEL NUMBER CO18542STA
KEY PART
NO. NO. DESCRIPTION
1 163465 Battery
2 74760412 Bolt, Hex 1/4-20 x 3/4
8 7603J Tray, Battery
10 145211 Bolt, Battery, Front 1/4-20 x 7-1/2
11 150109 Holddown, Battery, Front
12 145769 Nut, Push, Nylon, Battery, Front 1/4
16 176138 Switch, Interlock
21 175688 Harness, Light
22 4152J Bulb Light #1156
24 8860R Cable Starter
25 146148 Cable
26 175158 Fuse
27 73510400 Nut, Hex, Keps 1/4-20 unc
28 145491 Cable, Ground
29 121305X Switch, Seat
30 175566 Switch, Ignition
33 140403 Key
40 188031 Harness, Ignition
41 17720408 Screw Thd Cut 1/4-20 x 1/2
42 131563 Cover Terminal
43 178861 Solinoid w/brass plunger
45 122822X Ammeter
46 169635 Hourmeter
50 174652 Switch, PTO
55 17490508 Screw, Thd. Roll. 5/16-18 x 1/2
79 175242 Socket Asm Bulb Twistlock
80 146685 Harness Clutch EXV
89 169639 Bracket Snap-In Hourmeter
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
31
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
TRACTOR - - MODEL NUMBER CO18542STA
CHASSIS AND ENCLOSURES
17
155
10
161
10
30
159
9
54
58
158
64
209
166
54
213
209
217
90
31
209
209
166
11
209
166
214
29
28
166
20
59
209
chassis-stealth.stlt_25
206
209
148
2
209
114
211
209
142
60
26
143
74
144
26
142
14
38
209
37
38
14
145
1
154
209
166
13
37
209
32
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
TRACTOR - - MODEL NUMBER CO18542STA
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 174619 Chassis
2 176554 Drawbar
9 161566X428 Dash
10 72140608 Bolt RDHD SQNK 3/8-16 x 1
11 167203 Panel, Dash, LH
13 188702X010 Panel, Dash, RH
14 17490608 Screw Thdrol 3/8-16 x 1/2
17 175260X428 Hood Assembly
20 162026 Plate Battery
26 73800600 Locknut, Hex, with Insert 3/8-16 unc
28 175289X428 Grille
29 161840 Lens Bar
30 188572X428 Fender/Footrest
31 139976 Bracket, Fender/Support
37 17490508 Screw, Thdrol. 5/16-18 x 1/2 TYT
38 175710 Bracket Asm Pivot Mower Rear
54 161464 Screw 8-18 x 7/8
58 175351 Duct Hood
59 187495 Bushing
60 72140606 Bolt Rdhd Sqnk 3/8-16 unc x 3/4
64 174997 Dash Lower
74 73680600 Nut Crownlock 3/8-16 unc
90 124346X Nut Self Thrd Wshd 1/4 Zinc
114 158112 Keeper Belt Rear LH
142 175702 Plate Reinforcement
143 186689 Bracket Swaybar Chassis
144 175582 Bracket Footrest
145 156524 Rod Pivot Chassis/Hood
148 17060620 Screw 3/8-16 x 1-1/4
154 161897 Bracket Dash Rh
155 161900 Bracket Dash Lh
158 162037 Parking Brake Bkrt
159 179950X428 Cupholder
161 164655 Bumper
166 191611 Screw 10 x 3/4 Single Lead Hex
206 170165 Bolt Shoulder 5/16-18
209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4
211 145212 Nut Hexfl ange Lock
213 169848X428 Skirt Grille LH
214 169847X428 Skirt Grille RH
217 179132X428 Console Fuel Window
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
33
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
GROUND DRIVE
89
69
TRACTOR - - MODEL NUMBER CO18542STA
57
120
33
100
52
63
84
13
16
77
15
14
112
85
11
52
26
80
85
30
32
81
10
8
170
21
1
23
55
202
150
48
151
51
53
26
20
65
66
27
49
9
27
47
120
50
36
35
drive-fender.stlt_40
59
159
158
161
160
18
26
32
25
5
77
30
164
26
2
163
51
52
74
14
82
19
165
5
18
6
24
78
76
169
4
3
6
79
6
75
162
83
156
62
168
166
35
29
61
36
56
41
38
39
37
34
28
22
34
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
GROUND DRIVE
TRACTOR - - MODEL NUMBER CO18542STA
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - Transaxle Peerless 206-545C
(Order parts from Transaxle
manufacturer)
2 146682 Spring, Return, Brake
3 123666X Pulley, Transaxle
4 12000028 Ring, Retainer
5 121520X Strap, Torque
6 17060512 Screw 5/16-18 x 3/4
8 165866 Rod Shifter Fender STLT
9 160889 Clutch
10 76020416 Pin, Cotter
11 105701X Washer, Shift Plate
13 74550412 Bolt 1/4-28 UNF W/Patch Gr. 8
14 10040400 Wash er Lock Hvy Helical
15 74490544 Bolt Hex FLGHD 5/16-18 Gr. 5
16 73800500 Nut Lock Hx W/Ins 5/16-18 unc
18 7478616 Bolt Fin Hex 3/8-16 unc x 1 Gr. 5
19 73350600 Nut
20 150280 Bolt 7/16-20 x 4-1/4 Gr. 5
21 106933X Knob
22 130804 Rod, Brake
23 171258 Bracket Anti-Rotation
24 73800600 Nut
25 106888X Spring, Brake Rod
26 19131316 Wash er
27 76020412 Pin
28 175765 Rod, Parking Brake
29 71673 Cap, Parking Brake
30 169592 Bracket, Transaxle
32 74760512 Bolt
33 72140506 Bolt Rdhd Sqnk 5/16-18 unc x 3/4
34 175578 Shaft Assembly, Foot Pedal
35 120183X Bearing, Nylon
36 19211616 Washer
37 1572H Roll Pin
38 179114 Pulley, Composite, Flat
39 72110622 Bolt Rdhd 3/8-16 unc x 2-3/4
41 175556 Keeper, Belt, Idler
47 127783 Pulley, Idler, V-Groove, Plastic
48 154407 Bellcrank Clutch Grnd Drv Stl
49 123205X Retainer, Belt
50 72110612 Bolt
51 73680600 Nut Crown Lock 3/8-16 unc
52 73680500 Nut Crown Lock 5/16-18 unc
53 105710X Link, Clutch
55 105709X Spring, Clutch Return
KEY PART
NO. NO. DESCRIPTION
56 17060620 Screw 3/8-16 x 1-1/4
57 130801 V-Belt, Ground Drive
59 169691 Keeper, Belt, Center Span
61 17120614 Screw 3/8-16 x .875
62 123533X Cover, Pedal
63 175414 Pulley, Engine
65 10040700 Washer
66 154778 Keeper, Belt, Engine, Fool Proof
69 142432 Screw Hex Wsh Hi-Lo 1/4-1/2 unc
74 137057 Spacer, Axle
75 121749X Washer 25/32 x 1-1/4 x 16 Ga.
76 12000001 E-Ring
77 123583X Key, Square 2.0 x .1845/1865
78 121748X Washer 25/32 x 1-5/8 x 16 Ga.
79 2228M Key Woodruff
80 145090 Arm, Shift
81 165593 Shaft Asm Cross Tapered 20
82 165711 Spring, Torsion
83 19171216 Washer 17/32 x 3/4 x 16 Ga.
84 166231 Link Transaxle
85 150360 Nut, Nylock
89 188310X428 Console, Shift, STLT
96 4497H Retainer Spring 1”
100 19111016 Washer 11/32 x 5/8 x 16 Ga.
112 19091210 Washer 9/32 x 3/4 x 10 Ga.
113 127285X Strap Torque 90 Degrees
120 73900600 Nut Lock Flg. 3/8-16 unc
150 175456 Spacer Retainer
151 19133210 Washer 13/32 x 2 x 10 Ga.
156 166002 Washer Srrted 5/16 ID x 1.125
158 165589 Bracket Shift Mount
159 183900 Hub Shift
161 72140406 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr.5
162 73680400 Nut Crownlock 1/4-20 unc
163 74780416 Bolt Hex Fin 1/4-20Unc x 1 Gr. 5
165 165623 Bracket Pivot Lever
166 17490510 Screw 5/16-18 x 5/8 TT Yellow
168 165492 Bolt Shoulder 5/16-18 x .561
169 165580 Plate Fastening Lt
170 187414 Keeper Belt Transaxle Gear
197 169613 Nyliner Snap-In 5/8 ID
198 169593 Washer Nyliner 7/8 ID x .105 Hd
202 72110614 Bolt Carr. SH 3/8-16 x 1-3/4 Gr. 5
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
35
www.mymowerparts.com
STEERING
For Parts Call K&T 606-678-9623 or 606-561-4983
TRACTOR - - MODEL NUMBER CO18542STA
38
12
72
1
73
41
42
37
37
36
91
43
68
29
15
88
71
68
29
17
82
29
46
8
6
2
87
5
3
11
40
10
13
65
32
94
34
40
67
46
8
6
67
67
87
5
4
43
43
95
8
36
www.mymowerparts.com
steering_stealth_prem_7
STEERING
For Parts Call K&T 606-678-9623 or 606-561-4983
TRACTOR - - MODEL NUMBER CO18542STA
KEY PART
NO. NO. DESCRIPTION
1 159944X428 Wheel Steering
2 184706 Axle Asm
3 169840 Spindle Asm LH
4 169839 Spindle Asm RH
5 6266H Bearing Race Thrust Harden
6 121748X Washer 25/32 x 1-5/8 x 16 Ga.
8 12000029 Ring Klip #t5304-75
10 175121 Link Drag
11 10040600 Washer Lock Hvy Hlcl Spr 3/8
12 73940800 Nut Hex Jam Toplock 1/2-20 unf
13 136518 Spacer Bearing Axle Front
15 145212 Nut Hex Flange Lock
17 177883 Shaft Asm. Steering
29 17000612 Screw 3/8-16 x 3/4
32 171888 Rod Tie
34 10040500 Washer Lock 5/16
36 155105 Bushing Strg
37 152927 Screw
38 159946X428 Insert Cap Strg Wh
40 73540500 Crownlock Nut 5/16-24 unf
41 159945 Adaptor Wheel Strg
42 163888X428 Boot Steering
43 121749X Washer 25/32 1 1/4 x 16 Ga.
46 184946X505 Cap Spindle
65 160367 Spacer Brace Axle
67 72110618 Bolt Rdhd Sqnk 3/8-16 x 2-1/4
68 169827 Axle, Brace
71 175146 Steering Asm.
72 19182411 Washer 9/16 ID x 1-1/2 OD 11 Ga.
73 160135X428 Extension Steering
82 169835 Bracket Susp. Chassis Front
87 173966 Washer Flat .781 x 1-1/2 x .15
88 175118 Bolt Shoulder 7/16-20 unc
91 175553 Clip Steering
94 19111216 Washer 11/32 x 3/4 x 16 Ga.
95 188967 Washer Hardened
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983
SEAT ASSEMBLY
14
TRACTOR - - MODEL NUMBER CO18542STA
1
18
8
9
7
10
8
9
7
5
6
22
24
16
25
15
11
13
17
seat_lt.knob_2
KEY PART
NO. NO. DESCRIPTION
1 189022 Seat
2 140551 Bracket Pivot Seat
3 71110616 Bolt Fin Hex 3/8-16 unc x 1
4 19131610 Washer 13/32 x 1 x 10 Ga.
5 145006 Clip Push-In
6 73800600 Nut Hex w/Ins. 3/8-16 unc
7 124181X Spring Seat Cprsn
8 17000616 Screw 3/8-16 x 1-1/2
9 19131614 Washer 13/32 x 1 x 14 Ga.
10 182493 Pan Seat
11 166369 Knob Seat Adj. Wingnut
12 121246X Bracket Mounting Switch
13 121248X Bushing Snap Blk Nyl 50 Id
12
2
21
5
4
3
KEY PART
NO. NO. DESCRIPTION
14 72050412 Bolt Rdhd Sqnk 1/4-20 x 1-1/2
15 121249X Spacer Split 28x .88 Zinc
16 123740X Spring Cprsn Plate 1.310 Ga.
17 123976X Nut Lock 1/4 Lge Flg Gr. 5 Zinc
18 124238X Cap Spring Seat
21 171852 Bolt Shoulder 5/16-18 unc
22 73800500 Nut Hex Lock W/Ins 5/16-18
24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.
25 127018X Bolt Shoulder 5/16-18 x 62
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
38
www.mymowerparts.com
DECALS
18
For Parts Call K&T 606-678-9623 or 606-561-4983
TRACTOR - - MODEL NUMBER CO18542STA
9
17
24
16
23
3
21
20
5
21
7
4
15
1
10
KEY PART
NO. NO. DESCRIPTION
1 187407 Refl ector, LH
3 176272 Decal, Hood RH
4 176273 Decal, Hood LH
5 160396 Decal, Deck Sch.
7 179128 Decal, Deck "B" "42"
9 189340 Decal, Replacement Hood
10 157141 Decal, Fender, Danger
15 187408 Decal, Refl ector, RH
16 172743 Decal, Steering Wheel
17 156368 Decal, Fender, Operator
Instructions
WHEELS & TIRES
1
2
6
5,8
4,10
7
3,9
KEY PART
NO. NO. DESCRIPTION
18 172740 Decal, Fender
20 145005 Decal, Battery
21 189290 Decal, Hood, Side Panel
23 189288 Decal, Engine
24 191643 Decal, Dash
- - 184310X428 Pad, Footrest, ST/LT, LH
- - 184311X428 Pad, Footrest, ST/LT, RH
- - 191616 Manual, Owner's, English
- - 191617 Manual, Owner's, Spanish
KEY PART
NO. NO. DESCRIPTION
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 106222X Tire F Ts 15 x 6 0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X421 Rim Asm 6" front Service
6 278H Fitting Grease (Front Wheel Only)
7 9040H Bearing Flange (Front Wheel
Only)
11
8 106108X421 Rim Asm 8" rear Service
9 122082X Tire R Ts 20 x 10-8 C Service
10 7152J Tube Rear (Service Item Only)
11 104757X421 Cap Axle
- - 144334 Sealant, Tire ( 10 oz. Tube)
wheel_1
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
www.mymowerparts.com
ENGINE
For Parts Call K&T 606-678-9623 or 606-561-4983
TRACTOR - - MODEL NUMBER CO18542STA
14
3
72
81
78
13
4
2
1
78
38
32
31
33
37
29
41
33
112
OPTIONAL EQUIPMENT
Spark Arrester
KEY PART
NO. NO. DESCRIPTION
1 176636X505 Control Throttle
2 171875 Screw Hwhd Hi-Lo #13-16 x 3/4
3 - - - - - - - - Engine, Briggs Model 31P777
(Order parts from engine Manu
facturer)
4 137352 Muffl er
13 165291 Muffl er Gasket
14 148456 Tube Drain oil
23 169837 Shield Heat
29 137180 Kit Spark Arrestor (Flat Scrn)
31 179022 Tank Fuel 4.0 Rear
32 179124X428 Cap Asm Fuel
33 123487X Clamp Hose Black
37 8543R Line Fuel
38 181654 Plug Drain Oil Easy
45
23
engine-bs.1cyl_51
KEY PART
NO. NO. DESCRIPTION
41 139277 Stem Tank Fuel
45 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4
72 183906 Screw 5/16-18 x 1
78 17060620 Screw 3/8-16 x 1-1/4
81 73510400 Nut Keps Hex 1/4-20 unc
112 3645J Bushing
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll
free number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
Kohler Co. 1-800-544-2444
Tecumseh Products 1-800-558-5402
Honda Engines 1-800-426-7701
Kawasaki 1-800-460-5688
40
www.mymowerparts.com
For Parts Call K&T 606-678-9623 or 606-561-4983

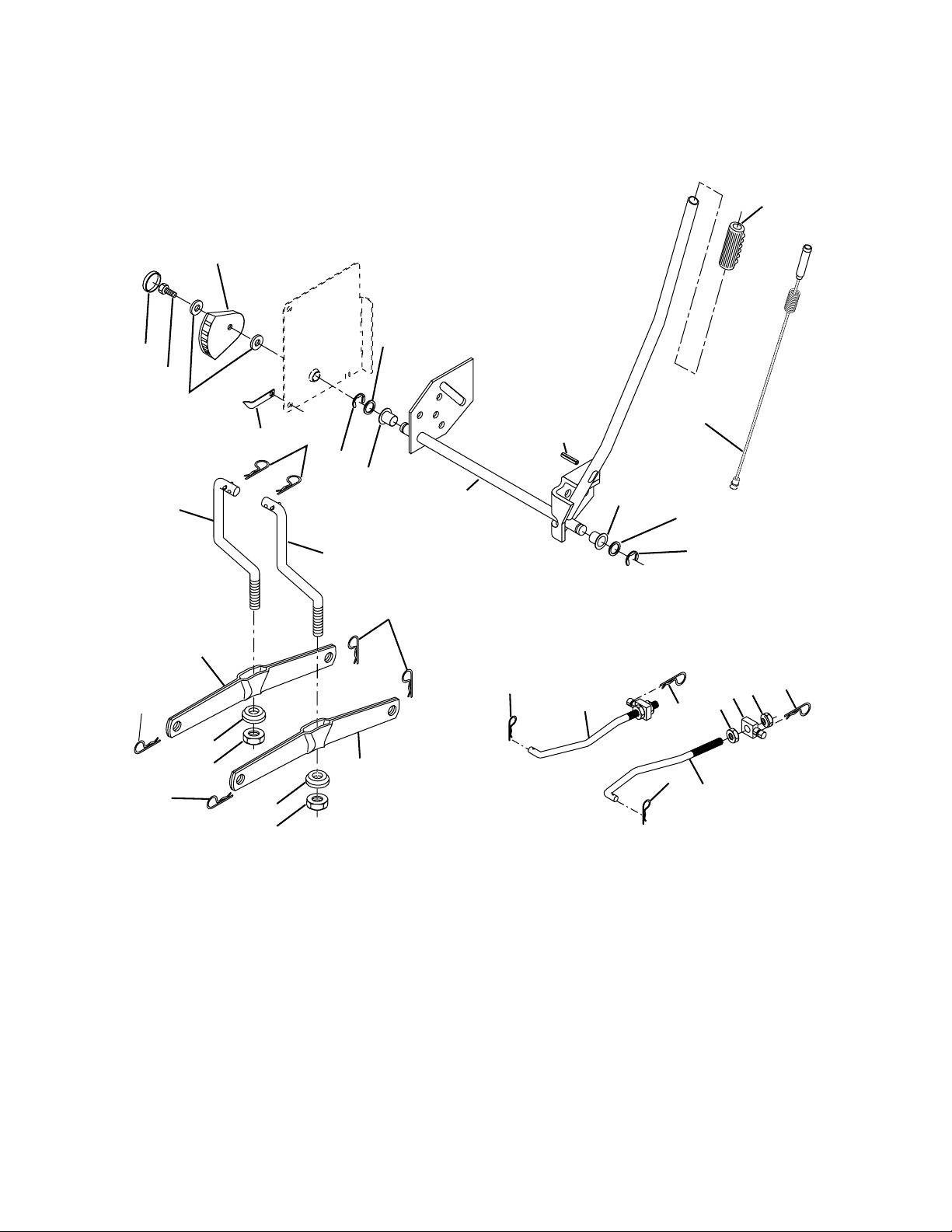

LIFT ASSEMBLY
41
37
38
40
36
11
TRACTOR - - MODEL NUMBER CO18542STA
5
13
4
6
2
3
6
7
1
5
12
13
19
13
31
13
32
31
19
32
KEY PART
NO. NO. DESCRIPTION
1 179504 Plunger Assembly
2 159476 Shaft Assembly, Lift
3 188822 Pin, Groove
4 12000002 E-Ring
5 19211621 Washer 21/32 x 1 x 21 Ga.
6 120183X Bearing, Nylon
7 175830 Grip, Handle, Fluted
11 139865 Link, Lift, L.H.
12 139866 Link, Lift, R.H.
13 4939M Retainer Spring
15 173288 Link, Front
16 73350800 Nut, Hex, Jam 1/2-13 unc
17 175689 Trunnion
4
20
15
20
16
17
18
20
15
lift-rh.1pc.stlt_9
KEY PART
NO. NO. DESCRIPTION
18 73800800 Locknut, Hex, with Washer Insert
1/2-13 unc
19 139868 Arm, Suspension, Rear
20 163552 Retainer Spring
31 169865 Bearing, Pvt, Lift
32 73540600 Nut, Crownlock 3/8-24
36 155097 Pointer Height Indicator
37 123935X Plug Hole
38 17060516 Screw 5/16-18 x 1
40 19112410 Washer 11/32 x 1-1/2 10 Ga.
41 155098 Indicator Height
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
20
www.mymowerparts.com
102
102
104
103
105
106
104
105
106
103
101
42
_mulch_pl
at
e
132
95
94
182
91
183
132
For Parts Call K&T 606-678-9623 or 606-561-4983
MOWER DECK
134
135
136
116
117
119
113
2
TRACTOR - - MODEL NUMBER CO18542STA
68
40
36
144
40
40
54
143
150
184
59
146
32
31
30
33
45
145
21
148
2
21
21
139
118
184
159
46
44
56
55
21
5
140
34
1
138
21
2
118
21
119
117
21
5
136
23
134
116
24
25
26
113
2
29
28
27
16
92
130
15
61
14
18
131
129
3
92
149
4
20
18
13
5
6
19
21
www.mymowerparts.com
10
9
42
11
8
42_D.elec.t-path.adjwl.stlt_3
For Parts Call K&T 606-678-9623 or 606-561-4983
MOWER DECK
TRACTOR - - MODEL NUMBER CO18542STA
KEY PART
NO. NO. DESCRIPTION
1 182032 Mower Housing
2 72140506 Bolt
3 138017 Bracket Assembly,Sway Bar, Fr.
4 165460 Bracket Sway Bar 38/42”
5 4939M Retainer Spring
6 178024 Bar Sway Deck
8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8
9 10030600 Washer, Lock
10 140296 Washer, Hardened
(The following blades are
available)
11 134149 Blade, 42" Mulching STD
(For mulching mowers only)
- - 139775 Blade, 42" Mulching Premium (For
better wear when mulching)
- - 138971 Blade, 42" Hi-Lift
(For bagging or discharge)
13 137645 Shaft Assembly, Mandrel, Vented
(Incl. Key Number 6)
14 128774 Housing, Mandrel, Vented
15 110485X Bearing, Ball, Mandrel
16 174493 Stripper, Mower Deck
18 72140505 Bolt, Carriage 5/16-18 x 5/8
19 132827 Bolt, Shoulder
20 159770 Baffl e, Vortex
21 73680500 Nut, Crownlock 5/16-18 unc
23 177563 Bracket, Defl ector
24 105304X Cap, Sleeve
25 123713X Spring, Torsion, Defl ector
26 110452X Nut, Push
27 130968X428 Shield, Defl ector
28 19111016 Washer 11/32 x 5/8 x 16 Ga.
29 131491 Rod, Hinge
30 173984 Screw Thdrol Rolling Wsh Hd
31 187690 Washer, Spacer
32 173436 Pulley, Mandrel
33 178342 Nut, Toplock, Flanged
34 72110612 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5
36 173438 Pulley, Idler, Flat
40 73900600 Nut, Lock Flg. 3/8-16 unc
44 140088 Guard, Mandrel, L.H.
45 4497H Retainer
46 137729 Screw, Thd. Roll 1/4-20 x 5/8
54 178515 Washer, Hardened
55 155046 Arm, Idler
56 122052X Spacer, Retainer
59 173442 Guard, Tuv Idler
61 174882 Spring Ext Elect Clutch
68 174883 V-Belt
91 180532 Bracket Roller Nose LH
92 73800600 Locknut, Hex W/Wsh 3/8-16 unc
KEY PART
NO. NO. DESCRIPTION
94 132264 Roller Nose
95 180533 Bracket Roller Nose RH
101 136420 Cover Mulching 42" Black
102 71081010 Screw Truss Hd Phil10-24 x 5/8
103 19061216 Washer #10
104 10071000 Washer Lock
105 160793 Latch Asm Bagger
106 2029J Nut Weld
113 17060512 Screw 5/16-18 x 3/4
116 4898H Bolt, Shoulder
117 165746 Wheel, Gauge
118 73930600 Nut, Crownlock 3/8-1
119 19121414 Washer 13/32 x 7/8 x 14 Ga.
129 19131312 Washer 13/32 x 13/16 x 12 Ga.
130 74780616 Bolt, Fin Hex 3/8-16 unc x 1Gr. 5
131 72140608 Bolt Rdhd Sqnk 3/8-16 unc x 1
132 17000612 Screw Hexwsh Th
134 156941 Pin Head Rivet
135 159765 Bracket Asm. Wheel Gauge
Rear LH
136 155986 Bar Adj. Gauge Wheel
138 159763 Bracket Asm. Wheel Gauge
Rear RH
139 159767 Bracket Asm. Wheel Gauge
Front RH
140 159768 Bracket Asm. Wheel Gauge
Front LH
143 157109 Bracket Arm Idler 42”
144 173441 Keeper Belt 42” Clutch Cable
145 173437 Pulley Idler Flat
146 173443 Bolt Carraige Idler
148 169022 Spring Return Idler
149 165898 Retainer Spring Yellow Zinc
150 19091210 Washer 9/32 x 3/4 x 10 Ga.
159 72140614 Bolt Rdhd Sqn 3/8-16 unc x 1-3/4
182 179126 Rod Roller Nose
183 163552 Retainer Spring
184 19131410 Washer 3/8
- - 130794 Mandrel Assembly (Includes
housing, shaft and shaft hardware
only-pulley not included)
- - 181542 Replacement Mower, Complete
(Std. Deck-Order separately
mulch cover, guage wheels and
nose roller components key nos.
101 - 106, 5, 116 - 119, 134, 136
and 91, 94, 95, 132, 182, 183)
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
43
www.mymowerparts.com
Loading...
