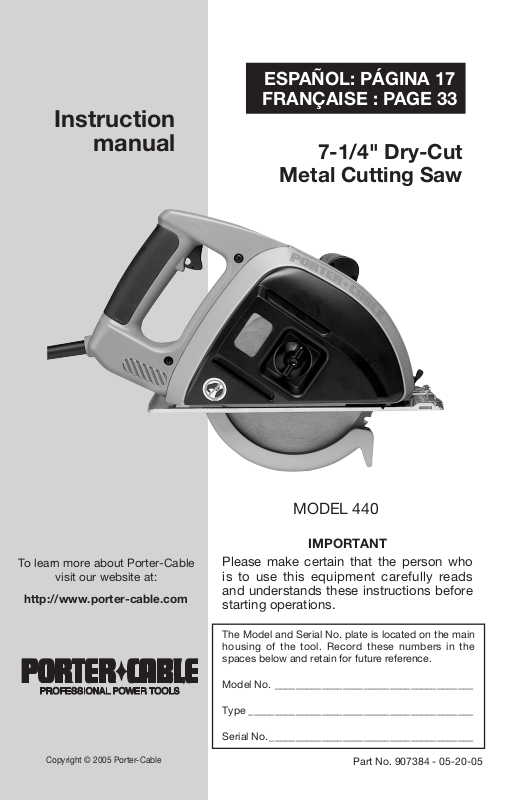

Porter-Cable 440 User Manual

7-1/4" Dry-Cut
Metal Cutting Saw
Part No. 907384 - 05-20-05
MODEL 440
Instruction
manual
The Model and Serial No. plate is located on the main housing of the tool. Record these numbers in the spaces below and retain for future reference.
Model No. ______________________________________
Type ___________________________________________
Serial No. _______________________________________
IMPORTANT
Please make certain that the person who is to use this equipment carefully reads and understands these instructions before starting operations.
ESPAÑOL: PÁGINA 17
FRANÇAISE : PAGE 33
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
Copyright © 2005 Porter-Cable
2
Read and understand all warnings and operating instructions before using any tool or equipment. When using tools or equipment, basic safety precautions should always be followed to reduce the risk of personal injury. Improper operation, maintenance or modification of tools or equipment could result in serious injury and property damage. There are certain applications for which tools and equipment are designed. Porter-Cable strongly recommends that this product NOT be modified and/or used for any application other than for which it was designed.
If you have any questions relative to its application DO NOT use the product until you have written Porter-Cable and we have advised you.
Online contact form at www.porter-cable.com Postal Mail: Technical Service Manager
Porter-Cable
4825 Highway 45 North Jackson, TN 38305
Information regarding the safe and proper operation of this tool is available from the following sources:
Power Tool Institute 1300 Sumner Avenue, Cleveland, OH 44115-2851
www.powertoolinstitute.org
National Safety Council 1121 Spring Lake Drive, Itasca, IL 60143-3201
American National Standards Institute, 25 West 43rd Street, 4 floor, New York, NY 10036 www.ansi.org
ANSI 01.1Safety Requirements for Woodworking
Machines, and the U.S. Department of Labor regulations www.osha.gov
SAVE THESE INSTRUCTIONS!
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . .2
SAFETY GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
GENERAL SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ADDITIONAL SPECIFIC SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . .6
FUNCTIONAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
CARTON CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
FRANÇAISE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
SERVICE CENTER LOCATIONS . . . . . . . . . . . . . . . . . . . . . . .back cover
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
3
Some dust created by power sanding, sawing, grinding, drilling,
and other construction activities contains chemicals known (to the State of California) to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
lead from lead-based paints
crystalline silica from bricks and cement and other masonry products
arsenic and chromium from chemically-treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, always wear NIOSH/OSHA approved, properly fitting face mask or respirator when using such tools.
indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
indicates a potentially hazardous situation which, if not avoided,could result in death or serious injury.
indicates a potentially hazardous situation which, if not avoided,may result in minor or moderate injury.
used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in property damage.
CALIFORNIA PROPOSITION 65
It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information.
SAFETY GUIDELINES - DEFINITIONS
4
Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric
shock.
b) Avoid body contact with earthed or grounded surfaces such as
pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk
of electric shock.
e) When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
3) Personal safety a) Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection. Safety equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in the off-position
before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.
GENERAL SAFETY RULES
5
d) Remove any adjusting key or wrench before turning the power tool
on. A wrench or a key left attached to a rotating part of the power tool
may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your
hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used.
Use of these devices can reduce dust-related hazards.
4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power
tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools
with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance
with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5) Service a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the
power tool is maintained.
GENERAL SAFETY RULES
continued
6
ADDITIONAL SPECIFIC SAFETY RULES
a) Keep hands away from cutting area and the blade. Keep your second
hand on auxiliary handle, or motor housing. If both hands are holding the
saw, they cannot be cut by the blade.
b) Do not reach underneath the workpiece. The guard cannot protect you
from the blade below the workpiece.
c) Adjust the cutting depth to the thickness of the workpiece. Less than a
full tooth of the blade teeth should be visible below the workpiece.
d) Never hold piece being cut in your hands or across your leg. Secure
the workpiece to a stable platform. It is important to support the work properly to minimize body exposure,blade binding, or loss of control.
e) Hold power tool by insulated gripping surfaces when performing an
operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will also make exposed metal parts of the
power tool "live" and shock the operator.
f) When ripping always use a rip fence or straight edge guide. This
improves the accuracy of cut and reduces the chance of blade binding.
g) Always use blades with correct size and shape (diamond versus round)
of arbor holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
h) Never use damaged or incorrect blade washers or bolt. The blade
washers and bolt were specially designed for your saw, for optimum performance and safety of operation.
Kickback Safety Instructions
Causes and Operator Prevention of Kickback: – Kickback is a sudden reaction to a pinched, bound or misaligned saw blade,
causing an uncontrolled saw to lift up and out of the workpiece toward the operator.
– When the blade is pinched or bound tightly by the kerf closing down, the
blade stalls and the motor reaction drives the unit rapidly back toward the operator.
– If the blade becomes twisted or misaligned in the cut, the teeth at the back
edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.
Kickback is the result of saw misuse and/or incorrect operating procedures or
conditions and can be avoided by taking proper precautions as given below:
i) Maintain a firm grip with both hands on the saw and position your arms
to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to
jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.
j) When blade is binding, or when interrupting a cut for any reason,
release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate
the cause of blade binding.
7
k) When restarting a saw in the workpiece, centre the saw blade in the
kerf and check that saw teeth are not engaged into the material. If saw
blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.
l) Support large panels to minimize the risk of blade pinching and
kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.
m)Do not use dull or damaged blades. Unsharpened or improperly set
blades produce narrow kerf causing excessive friction, blade binding and kickback.
n) Blade depth and bevel adjusting locking levers must be tight and
secure before making cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
o) Use extra caution when making a "plunge cut" into existing walls or
other blind areas. The protruding blade may cut objects that can cause kickback.
Lower Guard Safety Instructions
p) Check lower guard for proper closing before each use. Do not
operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If
saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.
q) Check the operation of the lower guard spring. If the guard and the
spring are not operating properly, they must be serviced before use.
Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
r) Lower guard should be retracted manually only for special cuts such
as "plunge cuts" and "compound cuts." Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released. For all other sawing, the lower guard should
operate automatically.
s) Always observe that the lower guard is covering the blade before
placing saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.
Other Safety Instructions
t) Wear eye and hearing protection. Always use safety glasses.
Everyday eyeglasses are NOT safety glasses. USE CERTIFIED SAFETY EQUIPMENT. Eye protection equipment should comply with ANSI Z87.1 standards. Hearing equipment should comply with ANSI S3.19 standards.
u) Use of this tool can generate and disburse dust or
other airborne particles, including wood dust, crystalline silica dust and asbestos dust. Direct particles away from face and body. Always
operate tool in well ventilated area and provide for proper dust removal. Use dust collection system wherever possible. Exposure to the dust may cause serious and permanent respiratory or other injury, including silicosis (a serious lung disease), cancer, and death. Avoid breathing the dust, and avoid prolonged contact with dust. Allowing dust to get into your mouth or eyes, or lay on your skin may promote absorption of harmful material. Always use properly fitting NIOSH/OSHA approved respiratory protection appropriate for the dust exposure, and wash exposed areas with soap and water.
8
SYMBOL DEFINITION
V ........................ volts
A ........................ amperes
Hz ........................ hertz
W ........................ watts
kW ........................ kilowatts
F ........................ farads
µF ........................ microfarads
l ........................ litres
g ........................ grams
kg ........................ kilograms
bar ........................ bars
Pa ........................ pascals
h ........................ hours
min ........................ minutes
s ........................ seconds
n
0
........................ no-load speed
…/min or …min
-
1
......... Revolutions or reciprocations per minute
or d.c. ................ direct current
or a.c. ................ alternating current
2 ........................ two-phase alternating current
2N ........................ two-phase alternating current with neutral
3 ........................ three-phase alternating current
3N ........................ three-phase alternating current with neutral
........................ rated current of the appropriate fuse-link in amperes
........................ time-lag miniature fuse-link where X is the symbol
for the time/current characteristic, as given in IEC 60127
........................ protective earth
........................ class II tool
IPXX ........................ IP symbol
9
EXTENSION CORD SELECTION
If an extension cord is used, make sure the conductor size is large enough to prevent excessive voltage drop which will cause loss of power and possible motor damage. A table of recommended extension cord sizes will be found in this section. This table is based on limiting line voltage drop to 5 volts (10 volts for 230 volts) at 150% of rated amperes.
If an extension cord is to be used outdoors, it must be marked with the suffix W­A or W following the cord type designation. For example – SJTW-A to indicate it is acceptable for outdoor use.
Length of Cord in Feet
115V 25 Ft. 50 Ft. 100 Ft. 150 Ft. 200 Ft. 250 Ft. 300 Ft. 400 Ft. 500 Ft. 230V 50 Ft. 100 Ft. 200 Ft. 300 Ft. 400 Ft. 500 Ft. 600 Ft. 800 Ft. 1000 Ft.
0-2 18 18 18 16 16 14 14 12 12 2-3 18 18 16 14 14 12 12 10 10 3-4 18 18 16 14 12 12 10 10 8 4-5 18 18 14 12 12 10 10 8 8 5-6 18 16 14 12 10 10 8 8 6 6-8 18 16 12 10 10 8 6 6 6
8-10 18 14 12 10 8 8 6 6 4 10-12 16 14 10 8 8 6 6 4 4 12-14 16 12 10 8 6 6 6 4 2 14-16 16 12 10 8 6 6 4 4 2 16-18 14 12 8 8 6 4 4 2 2 18-20 14 12 8 6 6 4 4 2 2
Nameplate Ampere Rating
MOTOR
Many Porter-Cable tools will operate on either D.C., or single phase 25 to 60 cycle A.C. current and voltage within plus or minus 5 percent of that shown on the specification plate on the tool. Several models, however, are designed for A.C. current only. Refer to the specification plate on your tool for proper voltage and current rating.
Do not operate your tool on a current on which the voltage is not within correct limits. Do not operate tools rated A.C. only on D.C. current. To do so may seriously damage the tool.
SAVE THESE INSTRUCTIONS!
RECOMMENDED EXTENSION CORD SIZES FOR USE WITH PORTABLE ELECTRIC TOOLS
10
CARTON CONTENTS
1
2
3
4
1. 7-1/4" Metal Cutting Saw
2. Cutting Guide
3. Blade Wrench
4. Hex Wrench
Do not operate this tool until you read and understand the entire instruction manual.
FOREWORD
Porter-Cable Model 440 is a 7-1/4" Dry-Cut Metal Cutting Saw designed to cut ferrous metals. This saw uses blades that have a 20mm arbor, and that are rated for 4200 rpm or higher.
UNPACKING
Carefully remove the tool and all loose items from the shipping container. Retain all packing materials until after you have inspected and satisfactorily operated the machine.
FUNCTIONAL DESCRIPTION
NOTE: This tool is shipped completely assembled. No assembly time or tools are required.
ASSEMBLY
OPERATION
STARTING AND STOPPING TOOL
Make sure that the power circuit voltage is the same as that shown on the specification plate of the machine and that switch is “OFF” before connecting the tool to the power circuit.
REMOVING DEBRIS
This dry-cut metal saw has an internal debris collector (A) Fig. 5. The cover for the collector has a window (B). When the debris covers half of the window, remove the cover to empty the collector.
Recently-cut debris can be very hot. Take care when removing the cover to keep the chips or shavings away from your hands or other body parts. Do not throw hot debris where paper or other flammable materials are located.
To remove the debris collector cover:
.
1. Turn the knob (A) Fig. 6 counter-clockwise to loosen the cover (C) Fig. 5.
2. Remove the cover (C).
3. Empty the debris collector. Use a brush to thoroughly remove all chips,
shavings, and/or any other debris.
4. Install the collector cover by securely turning the knob (A) Fig. 6
clockwise. Tighten securely.
Avoid contact with the blade teeth to prevent personal injury.
11
Fig. 3
A
B
A
Fig. 4
Depress the safety (A) Fig. 3, and squeeze the trigger switch (B) Fig. 3 to start the motor. Release the trigger switch to stop the motor.
IMPORTANT: When the machine is not in use, the switch should be locked in the “OFF” position to prevent unauthorized use, using a padlock (A) Fig. 4 with a 3/16" diameter shackle.
Fig. 6
A
Fig. 5
A
B
C
DISCONNECT TOOL FROM POWER SOURCE
Avoid contact with the blade teeth to prevent personal injury.
5. While holding the arbor lock (B) Fig. 7, use the provided wrench to
loosen the blade retaining bolt (A) Fig. 9.
6. Remove the blade retaining bolt by turning it counter-clockwise,
release the arbor lock, and remove the outer blade flange (B) Fig. 9.
7. Remove the blade.
INSTALLING THE BLADE
1. Remove any accumulated debris in the guards and around the arbor.
Check the telescoping guard to ensure that it is in working order.
2. Clean the inner blade flange and place the new blade on the arbor,
making sure that the teeth point up as in (D) Fig. 9. NOTE: Use blades that have a 20mm arbor, and that are rated for 4200 rpm or higher.
Avoid contact with blade teeth to prevent personal injury.
3. Place the outer blade flange (B) Fig. 9 on the arbor with the flange
toward the blade and with the flats matching those on the arbor.
4. Replace and finger-tighten the blade retaining bolt (A) Fig. 9 by turning it
clockwise.
5. Push in the arbor lock (A) Fig. 7, and rotate the arbor by hand until the
lock engages the arbor. Tighten the blade retaining bolt securely with the provided wrench and release the arbor lock (A) Fig. 7.
6. Install the debris collector.
7. Install the debris collector cover.
12
Fig. 7
Fig. 8
Fig. 9
A
A
A
B
A
C
B
D
REMOVING THE BLADE
DISCONNECT TOOL FROM POWER SOURCE.
1. Remove the debris collector cover.
2. Use the supplied hex wrench to remove the two bolts (A) Fig. 7 that hold the debris collector.
3. Remove the debris collector (A) Figure 8.
4. Push in the arbor lock (B) Fig. 7, and rotate the blade by hand until the lock engages the blade arbor.
DISCONNECT TOOL FROM POWER SOURCE.
The telescoping guard (C) Fig. 9 is a safety device important for your protection. Every time you use the saw, make sure that the telescoping guard rotates freely and returns quickly and completely to its closed position. Before each use, remove any accumulated chips, or shavings from the area around the hub (B) Fig. 9 of the telescoping guard. (Refer to “REMOVING DEBRIS”). DO NOT LUBRICATE THIS AREA. The hub has a dry film lubricated surface that does not need oiling. NEVER block or wedge the telescoping guard in the open position.
NEVER use your saw if the telescoping guard is not in working order. If telescoping guard movement is sluggish or if binding exists, return the saw to your nearest AUTHORIZED PORTER-CABLE SERVICE STATION or PORTER-CABLE SERVICE CENTER for repair.
13
TO ADJUST DEPTH OF CUT
Adjust the depth of cut so that the saw blade protrudes through the thickness of workpiece. To adjust the depth of cut:
1. Lift the depth-adjusting locking lever (A) Fig. 10 at the rear of the saw.
2. Raise or lower the saw housing until the blade extends the desired depth below the base.
3. Press the depth-adjusting locking lever down firmly, locking the saw in the selected position.
Do not cut material thicker than 1/4".
HOW TO USE THE TOOL
Effective control of this powerful saw requires two-handed operation for maximum protection.
Do not use this tool continuously over 30 minutes. Support the work properly and to hold the saw firmly
WITH BOTH HANDS to prevent loss of control which could cause personal injury. See Fig. 11 for proper hand support of the saw.
Protect your eyes from injury with safety glasses or goggles. (See Rule 7 under “PERSONAL SAFETY).
Do not use cutting fluids or lubricants on the blade.
DISCONNECT TOOL FROM POWER SOURCE.
Fig. 11
A
Fig. 10
TELESCOPING GUARD
14
HOW TO USE THE CUTTING GUIDE
Using the cutting guide (A) Fig. 12 will provide more accurate cuts than by cutting free-hand.
For installation, insert the cutting guide (A) Fig. 12 in the mounting slot (B) at the front of the base plate (C). Select the desired cut width on the cutting guide and tighten the wing nut (D) to lock.
A
B
C
D
Fig. 12
HOW TO USE THE SIGHTING NOTCH
To aid in free-hand cutting, a triangle­shaped sighting notch (A) Fig. 13 is located at the front of the base plate (C) Fig. 13. Align the cutting line on the workpiece with the sighting notch. Make the cut.
Fig. 13
A
C
CLAMP THE WORKPIECE
Secure the workpiece properly. The workpiece should be straight and firmly clamped to avoid possible movement and pinching as the cut nears completion. Provide adequate support for long or wide workpieces.
Confirm that the blade has come to a complete stop before removing or securing the workpiece, or changing the workpiece angle. Press the safety, then the trigger switch. Move the saw forward to contact the workpiece
.
Clamp the workpiece on a rigid support, such as a bench or saw horses. Mark the line of cut on the workpiece. Be sure that the cut-off line is far enough on the workpiece to allow proper operation of the telescoping guard. Place the front edge of the saw squarely on workpiece before starting the motor. Sight the cutting line with the sighting notch indicator or use the cutting guide. Be certain that the blade is not contacting the workpiece. Press the safety, then the trigger switch, and move the saw forward to begin the cut.
Keep the cord away from cutting area to prevent it from becoming entangled in the workpiece.
Do not force the saw. Let the saw do the cutting at the rate of speed permitted by the type of cut and workpiece to minimize sparking and to avoid overloading the tool. After completing the cut, release the power switch and wait for the coasting blade to stop completely before putting the saw down.
15
For assistance with your tool, visit our website at www.porter-cable.com for a list of service centers or call the Porter-Cable help line at 1-800-487-8665.
TROUBLESHOOTING
MAINTENANCE
KEEP TOOL CLEAN
Periodically blow out all air passages with dry compressed air. All plastic parts should be cleaned with a soft damp cloth. NEVER use solvents to clean plastic parts. They could possibly dissolve or otherwise damage the material.
Wear ANSI Z87.1 safety glasses while using compressed air.
FAILURE TO START
Should your tool fail to start, check to make sure the prongs on the cord plug are making good contact in the outlet. Also, check for blown fuses or open circuit breakers in the line.
LUBRICATION
This tool has been lubricated with a sufficient amount of high grade lubricant for the life of the unit under normal operating conditions. No further lubrication is necessary.
BRUSH INSPECTION (If applicable)
For your continued safety and electrical protection, brush inspection and replacement on this tool should ONLY be performed by an AUTHORIZED PORTER-CABLE SERVICE STATION or a PORTER-CABLE
DELTA FACTORY
SERVICE CENTER. At approximately 100 hours of use, take or send your tool to your nearest
authorized Porter-Cable Service Station to be thoroughly cleaned and inspected. Have worn parts replaced and lubricated with fresh lubricant. Have new brushes installed, and test the tool for performance.
Any loss of power before the above maintenance check may indicate the need for immediate servicing of your tool. DO NOT CONTINUE TO OPERATE TOOL UNDER THIS CONDITION. If proper operating voltage is present, return your tool to the service station for immediate service.
