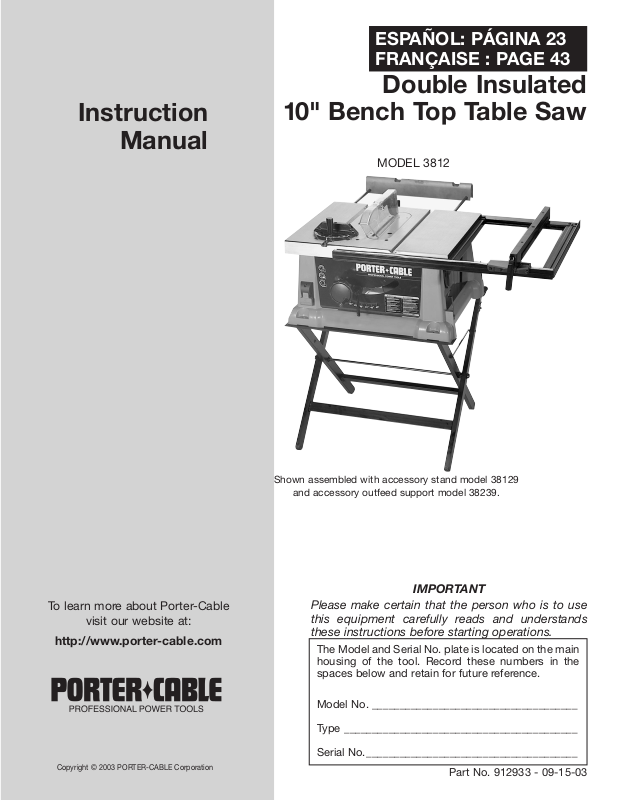

Porter-Cable 38239, 38129 User Manual

ESPAÑOL: PÁGINA 23 FRANÇAISE : PAGE 43

Double Insulated

10" Bench Top Table Saw

Instruction

Manual

Part No. 912933 - 09-15-03

The Model and Serial No. plate is located on the main housing of the tool. Record these numbers in the spaces below and retain for future reference.

Model No. _____________________________________

Type __________________________________________

Serial No.______________________________________

IMPORTANT

Please make certain that the person who is to use this equipment carefully reads and understands these instructions before starting operations.

MODEL 3812

To learn more about Porter-Cable

visit our website at:

http://www.porter-cable.com

Shown assembled with accessory stand model 38129

and accessory outfeed support model 38239.

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may

result in property damage.

This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the symbols to the right. Please read the manual and pay attention to these sections.

SAFETY GUIDELINES - DEFINITIONS

GENERAL SAFETY RULES

READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT. Failure to follow all instructions listed below, may result in electric shock, fire, and/or serious personal injury or property damage.

IMPORTANT SAFETY INSTRUCTIONS

Woodworking can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there are certain hazards involved with the operation of the product. Using the machine with respect and caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result. Safety equipment such as guards, push sticks, hold-downs, featherboards, goggles, dust masks and hearing protection can reduce your potential for injury. But even the best guard won’t make up for poor judgment, carelessness or inattention. Always use common sense and exercise caution in the workshop. If a procedure feels dangerous, don’t try it. Figure out an alternative procedure that feels safer. REMEMBER: Your personal safety is your responsibility. For additional information please visit our website www

.portercable.com.

This machine was designed for certain applications only. Porter-Cable strongly recommends that this

machine not be modified and/or used for any application other than that for which it was designed. If you have any questions relative to a particular application, DO NOT use the machine until you have first contacted Porter-cable to determine if it can or should be performed on the product.

Technical Service Manager Porter-Cable 4825 Highway 45 North Jackson, TN 38305

(IN CANADA: 505 SOUTHGATE DRIVE, GUELPH, ONTARIO N1H 6M7)

SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER

CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm.

Some examples of these chemicals are:

· lead from lead-based paints,

· crystalline silica from bricks and cement and other masonry products, and

· arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, always wear MSHA/NIOSH approved, properly fitting face mask or respirator when using such tools.

1. FOR YOUR OWN SAFETY, READ THE INSTRUC-

TION MANUAL BEFORE OPERATING THE MACHINE. Learning the machine’s application,

limitations, and specific hazards will greatly minimize the possibility of accidents and injury.

2. USE CERTIFIED SAFETY EQUIPMENT. Eye

protection equipment should comply with ANSI Z87.1 standards, hearing equipment should comply with ANSI S3.19 standards, and dust mask protection should comply with MSHA/NIOSH certified respirator standards. Splinters, air-borne debris, and dust can cause irritation, injury, and/or illness.

3. DRESS PROPERLY. Do not wear tie, gloves, or

loose clothing. Remove watch, rings, and other jewelry. Roll up your sleeves. Clothing or jewelry caught in moving parts can cause injury.

4. DO NOT USE THE MACHINE IN A DANGEROUS ENVIRONMENT. The use of power tools in damp or wet locations or in rain can cause shock or electrocution. Keep your work area well-lit to prevent tripping or placing arms, hands, and fingers in danger.

5. MAINTAIN ALL TOOLS AND MACHINES IN PEAK CONDITION. Keep tools sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories. Poorly maintained tools and machines can further damage the tool or machine and/or cause injury.

6. CHECK FOR DAMAGED PARTS. Before using the machine, check for any damaged parts. Check for alignment of moving parts, binding of moving parts, breakage of parts, and any other conditions that may affect its operation. A guard or any other part that is damaged should be properly repaired or replaced. Damaged parts can cause further damage to the machine and/or injury.

7. KEEP THE WORK AREA CLEAN. Cluttered areas and benches invite accidents.

8. KEEP CHILDREN AND VISITORS AWAY. Your shop is a potentially dangerous environment. Children and visitors can be injured.

9. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure that the switch is in the “OFF” position before plugging in the power cord. In the event of a power failure, move the switch to the “OFF” position. An accidental start-up can cause injury.

10. USE THE GUARDS. Check to see that all guards are in place, secured, and working correctly to prevent injury.

11. REMOVE ADJUSTING KEYS AND WRENCHES BEFORE STARTING THE MACHINE. Tools, scrap pieces, and other debris can be thrown at high speed, causing injury.

12. USE THE RIGHT MACHINE. Don’t force a machine or an attachment to do a job for which it was not designed. Damage to the machine and/or injury may result.

13. USE RECOMMENDED ACCESSORIES. The use

of accessories and attachments not recommended by Porter-Cable may cause damage to the machine or injury to the user.

14. USE THE PROPER EXTENSION CORD. Make

sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. See the Extension Cord Chart for the correct size depending on the cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.

15. SECURE THE WORKPIECE. Use clamps or a vise to

hold the workpiece when practical. Loss of control of a workpiece can cause injury.

16. FEED THE WORKPIECE AGAINST THE DIRECTION

OF THE ROTATION OF THE BLADE, CUTTER, OR ABRASIVE SURFACE. Feeding it from the other

direction will cause the workpiece to be thrown out at high speed.

17. DON’T FORCE THE WORKPIECE ON THE MACHINE. Damage to the machine and/or injury may result.

18. DON’T OVERREACH. Loss of balance can make you fall into a working machine, causing injury.

19. NEVER STAND ON THE MACHINE. Injury could occur if the tool tips, or if you accidentally contact the cutting tool.

20. NEVER LEAVE THE MACHINE RUNNING UNATTEN- DED. TURN THE POWER OFF. Don’t leave the machine until it comes to a complete stop. A child or visitor could be injured.

21. TURN THE MACHINE “OFF”, AND DISCONNECT THE MACHINE FROM THE POWER SOURCE before installing or removing accessories, before adjusting or changing set-ups, or when making repairs. An accidental start-up can cause injury.

22. MAKE YOUR WORKSHOP CHILDPROOF WITH

PADLOCKS, MASTER SWITCHES, OR BY REMOVING STARTER KEYS. The accidental

start-up of a machine by a child or visitor could cause injury.

23. STAY ALERT, WATCH WHAT YOU ARE DOING,

AND USE COMMON SENSE. DO NOT USE THE MACHINE WHEN YOU ARE TIRED OR UNDER THE INFLUENCE OF DRUGS, ALCOHOL, OR MEDICATION. A moment of inattention while

operating power tools may result in injury.

24. THE DUST GENERATED by certain woods and wood products can be injurious to your health. Always operate machinery in well-ventilated areas, and provide for proper dust removal. Use wood dust collection systems whenever possible.

FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.

ADDITIONAL SAFETY RULES FOR

TABLE SAWS

1. DO NOT OPERATE THIS MACHINE until it is assembled and installed according to the

instructions.

2. OBTAIN ADVICE FROM YOUR SUPERVISOR, instructor, or another qualified person if you are not familiar with the operation of this machine.

3. FOLLOW ALL WIRING CODES and recommended electrical connections.

4. USE THE GUARDS WHENEVER POSSIBLE. Check to see that they are in place, secured, and working correctly.

5. AVOID KICKBACK by: A. keeping blade sharp and free of rust and pitch. B. keeping rip fence parallel to the saw blade. C. using saw blade guard and spreader for every

possible operation, including all through sawing.

D. pushing the workpiece past the saw blade prior

to release.

E. never ripping a workpiece that is twisted or

warped, or does not have a straight edge to guide along the fence.

F. using featherboards when the anti-kickback

device cannot be used.

G. never sawing a large workpiece that cannot be

controlled.

H. never using the fence as a guide when

crosscutting.

I. never sawing a workpiece with loose knots or

other flaws.

6. ALWAYS USE GUARDS, SPLITTER, AND ANTI- KICKBACK FINGERS whenever possible.

7. REMOVE CUT-OFF PIECES AND SCRAPS from the table before starting the saw. The vibration of the machine may cause them to move into the saw blade and be thrown out. After cutting, turn the machine off. After the blade has come to a

complete stop, remove all debris.

8. NEVER START THE MACHINE with the workpiece against the blade.

9. NEVER run the workpiece between the fence and a moulding cutterhead.

10. NEVER perform “free-hand” operations. Use either

the fence or miter gauge to position and guide the workpiece.

11. HOLD THE WORKPIECE FIRMLY against the miter

gauge or fence.

12. USE PUSH STICK(S) for ripping a narrow

workpiece.

13. AVOID AWKWARD OPERATIONS AND HAND POSITIONS where a sudden slip could cause a hand to move into the blade.

14. KEEP ARMS, HANDS, AND FINGERS away from the blade.

15. NEVER have any part of your body in line with the path of the saw blade.

16. NEVER REACH AROUND or over the saw blade.

17. NEVER attempt to free a stalled saw blade without first turning the machine “OFF”.

18. PROPERLY SUPPORT LONG OR WIDE workpieces.

19. NEVER PERFORM LAYOUT, assembly or set-up work on the table/work area when the machine is running.

20. TURN THE MACHINE “OFF” AND DISCONNECT THE MACHINE from the power source before installing or removing accessories, before adjusting or changing set-ups, or when making repairs.

21. TURN THE MACHINE “OFF”, disconnect the machine from the power source, and clean the table/work area before leaving the machine. LOCK THE SWITCH IN THE “OFF” POSITION to prevent unauthorized use.

22. ADDITIONAL INFORMATION regarding the safe and proper operation of power tools (i.e. a safety video) is available from the Power Tool Institute, 1300 Sumner Avenue, Cleveland, OH 44115-2851 (www.powertoolinstitute.com). Information is also available from the National Safety Council, 1121 Spring Lake Drive, Itasca, IL 60143-3201. Please refer to the American National Standards Institute ANSI 01.1 Safety Requirements for Woodworking Machines and the U.S. Department of Labor OSHA

1910.213 Regulations.

SAVE THESE INSTRUCTIONS.

Refer to them often

and use them to instruct others.

FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.

FOREWORD

The Porter-Cable Model 3812 is a 10" Bench Top Table Saw. The saw comes with a 26"x20" table surface with a rip fence extension wing which provides a 24½" rip capacity for ripping 4x8 sheets. The Model 3812 comes with a Riptide™ 24 tooth carbide-tipped blade, miter gauge, rip fence, quick release blade guard, and blade changing wrenches.

Use proper extension cords. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current of the machine. An undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. Fig. D, shows the correct gauge to use depending on the cord length. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.

Fig. D

MINIMUM GAUGE EXTENSION CORD

RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES

Ampere Total Length Gauge of

Rating Volts of Cord in Feet Extension Cord

0-6 120

up to

25 18 AWG 0-6 120 25-50 16 AWG 0-6 120 50-100 16 AWG 0-6 120 100-150 14 AWG

6-10 120

up to

25 18 AWG 6-10 120 25-50 16 AWG 6-10 120 50-100 14 AWG 6-10 120 100-150 12 AWG

10-12 120

up to

25 16 AWG 10-12 120 25-50 16 AWG 10-12 120 50-100 14 AWG 10-12 120 100-150 12 AWG

12-16 120

up to

25 14 AWG 12-16 120 25-50 12 AWG 12-16 120 GREATER THAN 50 FEET NOT RECOMMENDED

A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3prong grounding type plugs and matching receptacle which will accept the machine’s plug. Before connecting the machine to the power line, make sure the switch (s) is in the “OFF” position and be sure that the electric current is of the same characteristics as indicated on the machine. All line connections should make good contact. Running on low voltage will damage the machine.

DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP LOCATIONS.

POLARIZED PLUGS: To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than

the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

MOTOR

Many Porter-Cable tools will operate on either D.C., or single phase 25 to 60 cycle A.C. current and voltage within plus or minus 5 percent of that shown on the specification plate of the tool. Several models, however, are designed for A.C. current only. Refer to the specification plate on your tool for proper voltage and current rating.

Do not operate your tool on a current where the voltage is not within correct limits. Do not operate tools rated A.C. on a D.C. current. To do so may seriously damage the tool.

REPLACEMENT PARTS

When servicing, use only identical replacement parts.

POWER CONNECTIONS

EXTENSION CORDS

FUNCTIONAL DESCRIPTION

UNPACKING AND CLEANING

Carefully unpack the machine and all loose items from the shipping container. Remove the protective coating from all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone, gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household floor paste wax.

NOTICE: THE MANUAL COVER PHOTO ILLUSTRATES THE CURRENT

PRODUCTION MODEL. ALL OTHER ILLUSTRATIONS ARE REPRESENTATIVE

ONLY AND MAY NOT DEPICT THE ACTUAL COLOR, LABELING OR

ACCESSORIES AND MAY BE INTENDED TO ILLUSTRATE TECHNIQUE ONLY.

CARTON CONTENTS

Fig. 2

1. Saw

2. Fence

3. Table Insert

4. Blade Guard and Spreader Assembly

5. Blade Wrench (2)

6. Miter Gauge

7. Anchor Block Shim (3)

8. Handle

9. 1/4"-20x1-3/4" Screw

ASSEMBLY

BLADE RAISING AND LOWERING HANDWHEEL

Insert the 1-3/4" screw (D) Fig. 4, through handle (E). Assemble handle (E) to handwheel (A) by threading screw (D) clockwise into handwheel as shown in Fig. 5. Handle (E) should rotate freely on screw (D).

Fig. 4

Fig. 5

BLADE GUARD AND SPREADER ASSEMBLY

1. DISCONNECT MACHINE FROM POWER SOURCE.

2. THE BLADE GUARD AND SPREADER

ASSEMBLY MUST BE PROPERLY ALIGNED TO THE SAW BLADE IN ORDER TO HELP PREVENT KICKBACK.

3. Position the blade 90 degrees to the table and lock

in place.

4. Insert spreader end (A) Fig. 6, of blade guard into

anchor block (B). Push spreader (A) down into holder until you hear a click, indicating that the spreader is secured. NOTE: It is important that the spreader (A) be in the vertical position and pushed straight down into the spreader anchor block (B) during the assembly procedure.

5. Fig. 7 illustrates the blade guard in place.

Fig. 6

Fig. 7

FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL THE MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL.
