Circulating Baths with
MX Temperature Controller
Operator’s Manual
Models:
MX07R-20
MX7LR-20
MX15R-30
MX20R-30
MX07H135
MX15H135
MX20H135
MX06S135
MX10S135
MX20S135
MX28S135
MX08P100
MX11P100
MX14P100
MX17P100
MX23P100
MX28P100
MX17VB6G
MX27VB6G
MX28C135
110-509 PSC/EN 09.15.11
Table of Contents
Introduction .................................................................................................................................................2
PolyScience Circulating Baths with the MX Temperature Controller .......................................................2
General Safety Information.......................................................................................................................3
Safety Recommendations.........................................................................................................................4
Regulatory Compliance and Testing ........................................................................................................5
Unpacking Your Circulator........................................................................................................................5
Package Contents ....................................................................................................................................6
Controls and Components........................................................................................................................7
Quick-Start.................................................................................................................................................11
Installation and Startup............................................................................................................................13
General Site Requirements ....................................................................................................................13
Adding Liquid to the Bath Reservoir.......................................................................................................13
External Closed Loop Circulation...........................................................................................................14
Refrigeration Control Connections (Refrigerating/Heating Circulators only)..........................................15
Electrical Power......................................................................................................................................16
Controller Setup......................................................................................................................................17
Normal Operation......................................................................................................................................18
Keys and Controls ..................................................................................................................................18
Turning Your Circulator ON....................................................................................................................18
Main Operational Display........................................................................................................................18
Set-Up Sub-Menus.................................................................................................................................19
Adjusting the Temperature Set Point......................................................................................................19
Selecting the Temperature Unit..............................................................................................................20
Setting the Offset Calibration..................................................................................................................21
Setting the Low Limit Temperature.........................................................................................................22
Setting the High Limit Temperature........................................................................................................23
Adjusting the Auto Cool Temperature ....................................................................................................24
Resetting the Factory Default Values.....................................................................................................25
Loss of Power Restart ............................................................................................................................25
Tap Water Cooling..................................................................................................................................26
ervoir Cover Storage........................................................................................................................26
Res
Display Messages and Alarms ................................................................................................................27
Routine Maintenance and Troubleshooting...........................................................................................28
Maintaining Clear Bath Water.................................................................................................................28
Draining the Bath Reservoir ...................................................................................................................28
Checking the Over-Temperature Safety System....................................................................................29
Cleaning Your Circulator.........................................................................................................................30
Temperature Controller......................................................................................................................30
Bath Reservoir....................................................................................................................................30
Condenser, Air Vents, and Reusable Filter (Refrigerated Models only)............................................30
Temperature Controller Removal and Re-Installation............................................................................31
Troubleshooting Chart............................................................................................................................33
Technical Information...............................................................................................................................35
Performance Specifications....................................................................................................................35
Reservoir Fluids......................................................................................................................................37
Application Notes....................................................................................................................................38
Equipment Disposal (WEEE Directive)...................................................................................................39
Replacement Parts and Accessories......................................................................................................40
PolyScience Circulating Bath Fluids ......................................................................................................41
Service and Technical Support ...............................................................................................................42
Warranty.....................................................................................................................................................42
110-509 PSC/EN 1
Introduction
Thank you for choosing a PolyScience Circulating Bath with MX Temperature Controller. It is intended for
the precise temperature control of suitable liquids in a reservoir. Extremely easy to use and maintain, it
combines design innovation with highly intuitive operation to deliver convenient and versatile liquid
temperature control for a wide range of applications.
WARNING: PolyScience Circulating Baths are not intended for directly controlling the temperature of
foods, pharmaceuticals, medicines, or other objects which may be ingested by or injected in humans
or animals. Any such objects must be isolated from contact with the bath fluid and bath surfaces.
Here are some of the features that make your Circulating Bath so user-friendly:
• Simple, intuitive operation
• Displays actual and set point temperature simultaneously
• Powerful pump, easy flow adjustment
• External circulation capability
• Fully enclosed housing prevents direct contact with pump and heater, yet provides quick
access for inspection and cleaning
• Suitable for use with Class I non-flammable fluids per DIN 12876-1
It will take you very little time to get your new Circulating Bath installed and running. This Instruction
Manual is designed to guide you quickly through the process. We recommend that you read it thoroughly
before you begin.
PolyScience Circulating Baths with the MX Temperature Controller
Model Type
MX07R-20 Refrigerating / Heating Bath 7 liters -20° to 135°C -4° to 275°F
MX7LR-20 Refrigerating / Heating Bath 7 liters -20° to 135°C -4° to 275°F
MX15R-30 Refrigerating / Heating Bath 15 liters -30° to 135°C -22° to 275°F
MX20R-30 Refrigerating / Heating Bath 20 liters -30° to 135°C -22° to 275°F
MX07H135 Heating Only Bath 7 liters Ambient +10° to 135°C Ambient +20° to 275°F
MX15H135 Heating Only Bath 15 liters Ambient +10° to 135°C Ambient +20° to 275°F
MX20H135 Heating Only Bath 20 liters Ambient +10° to 135°C Ambient +20° to 275°F
MX06S135 Stainless Steel Open Tank Bath 6 liters Ambient +10° to 135°C Ambient +20° to 275°F
MX10S135 Stainless Steel Open Tank Bath 10 liters Ambient +10° to 135°C Ambient +20° to 275°F
MX20S135 Stainless Steel Open Tank Bath 20 liters Ambient +10° to 135°C Ambient +20° to 275°F
MX28S135 Stainless Steel Open Tank Bath 28 liters Ambient +10° to 135°C Ambient +20° to 275°F
MX08P100 Polycarbonate Open Tank Bath 8 liters Ambient +10° to 85°C
MX11P100 Polycarbonate Open Tank Bath 11 liters Ambient +10° to 85°C
MX14P100 Polycarbonate Open Tank Bath 14 liters Ambient +10° to 85°C
MX17P100 Polycarbonate Open Tank Bath 17 liters Ambient +10° to 85°C
MX23P100 Polycarbonate Open Tank Bath 23 liters Ambient +10° to 85°C
MX28P100 Polycarbonate Open Tank Bath 28 liters Ambient +10° to 85°C
MX17VB6G Glass Viscosity Bath 17 liters Ambient +10° to 135°C Ambient +20° to 275°F
MX27VB6G Glass Viscosity Bath 27 liters Ambient +10° to 135°C Ambient +20° to 275°F
MX28C135 Coliform Bath 28 liters Ambient +10° to 135°C Ambient +20° to 275°F
1. Maximum operating temperature for polycarbonate tank; MX Controller is capable of higher temperatures.
Reservoir
Capacity
Temperature Range
°C °F
(1)
Ambient +20° to 185°F
(1)
Ambient +20° to 185°F
(1)
Ambient +20° to 185°F
(1)
Ambient +20° to 185°F
(1)
Ambient +20° to 185°F
(1)
Ambient +20° to 185°F
(1)
(1)
(1)
(1)
(1)
(1)
110-509 PSC/EN 2
General Safety Information
When installed, operated, and maintained according to the directions in this manual and common safety
procedures, your Circulating Bath should provide safe and reliable temperature control. Please ensure
that all individuals involved in the installation, operation, or maintenance of this Circulating Bath read this
manual thoroughly prior to working with the unit.
This symbol alerts you to a wide range of potential dangers.
This symbol advises danger from electricity or electric shock.
This symbol indicates that a hot surface may be present.
This symbol marks information that is particularly important.
/
This symbol indicates alternating current.
These symbols on the Power Switch / Circuit Breaker indicate that they place the main power supply
ON / OFF.
This symbol on the Power Key indicates that it places the unit in a standby mode. It DOES NOT fully
disconnect the unit from the power supply.
This symbol indicates a protective conductor terminal.
Read all instructions pertaining to safety, set-up, operation, and maintenance.
Proper operation is the user’s responsibility.
110-509 PSC/EN 3
Safety Recommendations
To prevent injury to personnel and/or damage to property, always follow your workplace’s safety
procedures when operating this equipment. You should also comply with the following safety
recommendations:
WARNING:
• This Circulating Bath is suitable only for use with Class I non-flammable fluids (per DIN 12876-1).
• Be aware of the chemical hazards that may be associated with the bath fluid used. Observe all
safety warnings for the fluids used as well as those contained in the material safety data sheet.
• Use only recommended bath fluids; see Technical Information in the rear of this manual for
recommended fluids.
• Use only non-acid bath fluids.
WARNING:
• Always connect the power cord on this Circulator to a grounded (3-prong) power outlet. Make
certain that the outlet is the same voltage and frequency as your unit.
• Never operate the Circulator with a damaged power cord.
• Always turn the Circulator OFF and disconnect mains power before performing any maintenance
or service.
WARNING:
• Never operate the Circulator without bath fluid in the reservoir. Periodically check the reservoir to
ensure that the liquid depth is within acceptable levels. Always refill the reservoir using the same
bath fluid that is already in the reservoir. Bath oil must not contain any water contaminants and
should be preheated to the actual bath temperature before adding as there is an e xp losion hazard
at high temperatures.
• Always drain all fluid from the reservoir before moving or lifting your Circulator. Be sure to follow
your organization’s procedures and practices regarding the safe lifting and relocation of heavy
objects.
WARNING:
• Always allow the bath fluid to cool to ambient temperature before draining.
• The reservoir cover, top deck, and/or external pump connections may become hot with continuous
use. Exercise caution when touching these parts.
• Always keep within the 85°C maximum operating temperature limit if using a polycarbonate open
bath tank.
WARNING: It is the user’s responsibility to properly decontaminate the unit in the event hazardous
materials are spilled on exterior or interior surfaces. Consult manufacturer if there is any doubt
regarding the compatibility of decontamination or cleaning agents.
110-509 PSC/EN 4
Regulatory Compliance and Testing
This equipment is compliant with the European Directive 2002/95/EC and its latest amendments on
Restrictions on Hazardous Substances (RoHS) and below the given limits of hazardous sub stances.
ETL Intertek (60 Hz units)
UL 61010-1 / CSA C22.2 No. 61010-1 — Safety Requirements for Measurement, Control, and
Laboratory Use; Part 1: General Requirements
UL 61010A-2-010 / CSA C22.2 No. 61010-2-010:04 — Safety Requirements for Measurement, Control,
and Laboratory Use; Part 2-010: Particular Requirements for Laboratory Equipment for the Heating of
Materials
UL 61010A-2-051 / CSA C22.2 No. 61010-2-051:04 — Safety Requirements for Measurement, Control,
and Laboratory Use; Part 2-051: Particular Requirements for Laboratory Equipment for the Mixing and
Stirring
CE (all units)
EC Low Voltage Directive 2006/95/EC
EC Electromagnetic Compatibility Directive 2004/108/EC
IEC 61010-1-2001
IEC 61010-2-2001
IEC 61326:2005 / EN 61326 : 2006
Unpacking Your Circulator
Your Circulator is packed in a special carton or cartons. You should keep the packaging, along with all
packing materials, until the unit has been installed and you are certain it is working properly.
CAUTION: Remove any loose packing material that may have fallen into the heater/pump housing
during shipping. Before powering up, check that nothing remains around the heater or Circulator
pump.
We recommend that you begin using your Circulator immediately to confirm proper operation, since
beyond one week you may be eligible for warranty repair only (rather than replacement). You’ll find
complete warranty information in the back of this manual.
In the unlikely event that the unit was damaged or does not operate properly, immediately contact the
transportation company, file a damage claim, and contact the company where your Circulator was
purchased.
110-509 PSC/EN 5
Package Contents
The items included with your Circulator will vary depending on which model Circulating Bath you
purchased.
Refrigerating
Resource Disk (with
Operator’s Manual)
/ Heating
Bath
Heating Only
Bath
● ● ● ● ● ●
Stainless
Steel Open
Tank Bath
Polycarbonate
Open Tank
Bath
Glass
Viscosity
Bath
Coliform
Bath
Reservoir Lid ● ● ● ● ●
Gable Cover ●
3-ft. / 0.91 m IEC to
IEC Power Cord
6-ft. / 1.82 m IEC to
Mains Power Cord
Refrigeration Control
Cable
Fitting Kit for External
Applications
Cooling Coil N/A Integral Optional
Qualification Test
Results
●
● ● ● ● ● ●
●
● ● ● ●
(1)
Optional
(2)
●
● Optional
● ● ● ● ● ●
Quick-Start Guide ● ● ● ● ● ●
1. 10, 20 and 28 liter Stainless Steel Open Tank Baths have a lidded opening that accommodates an optional cooling coil.
2. The Coliform Bath and 17, 23 and 28 liter Polycarbonate Open Tank Baths have a lidded opening that accommodates an
optional cooling coil.
(2)
110-509 PSC/EN 6
Controls and Components
MX Controller
Heating
Refrigerating
Circulating
Up Arrow Button
Down Arrow Button
Refrigerating/Heating Baths
MX Controller
Reservoir Cover
Backlit Digital Display
Actual Bath Temperature
Set Point Temperature
Menu Button
Power Button
Safety Thermostat
(under cover plate)
Power Switch / Circuit Breaker
IEC Power Connection to
Washable Air Filter
(behind access panel)
Reservoir Drain Valve and
Port (behind access panel)
Side access on MX7LR-20
Mains
(on rear of unit)
Drain Valve and Port
(right side on MX7LR-20 only)
110-509 PSC/EN 7
Heating Only Baths
MX Controller
Reservoir Cover
Reservoir Drain and Port
(behind access panel)
Open Bath Systems (stainless steel)
Reservoir Cover
WARNING: The top deck on Open Bath Systems is not attached. Do not remove deck while
Circulator is operating. Do not lift bath by grasping the Temperature Controller or top deck. Always
disconnect electrical power and drain fluid from bath before moving.
MX Controller
Cooling Coil Opening
with Cover
(10L, 20L and 28L models)
WARNING: To avoid the potential for burns, allow the Circulator to cool completely before cleaning
or performing any maintenance.
110-509 PSC/EN 8
Open Bath Systems (polycarbonate)
Reservoir Cover
CAUTION: The top deck on Open Bath Systems is not attached. Do not remove deck while
Circulator is operating. Do not lift bath by grasping the Temperature Controller or top deck. Always
disconnect electrical power and drain fluid from bath before moving.
MX Controller
Cooling Coil Opening with Cover
(17L, 23L and 28L models)
Reservoir Drain Port
(17L, 23L and 28 L models)
WARNING: To avoid the potential for burns, allow the Circulator to cool completely before cleaning
or performing any maintenance.
Viscosity Baths (glass)
Tap Water Cooling Coil
WARNING: The top deck on Viscosity Baths is not attached. Do not remove deck while Circulator is
operating. Do not lift bath by grasping the Temperature Controller or top deck. Always disconnect
electrical power and drain fluid from bath before moving.
MX Controller
Lidded Viscometer Ports
WARNING: To avoid the potential for burns, allow the Circulator to cool completely before cleaning
or performing any maintenance.
110-509 PSC/EN 9
Coliform Bath
MX Controller
Hinged Gable
Cover
Lidded Port for Optional
Cooling Coil
110-509 PSC/EN 10
Quick-Start
Unless otherwise specified, quick-start instructions apply to all models.
See Installation & Startup for additional information.
Fill reservoir with fluid
1
Maximum: 1 in / 2.54 cm
below the underside of the
top deck
Minimum: 2.6 in. / 6.7 cm
below the underside of the
top deck
Heat only Circulators
Connect all power cords and
2
control cables
Turn Power Switch / Circuit
Breaker ON
3
(Refrigerating/Heating Baths
only)
Refrigeration
Control Cable
(Temperature
Controller to
Refrigeration
Power
Module)
IEC Power Cord
(Temperature
Controller to
Refrigeration
Power Module
Refrigerated
Circulators
IEC Power
Cord to Mains
110-509 PSC/EN 11
Turn Controller ON
4
Enter temperature
5
set point
Set safety thermostat once
6
unit reaches set point
¨
110-509 PSC/EN 12
Installation and Startup
Your Circulating Bath with MX Temperature Controller is designed to be simple to set-up and install. The
only tools required are a flat-head screwdriver and a container for adding water or another suitable fluid to
the bath reservoir.
General Site Requirements
Locate your Circulator on a level surface free from drafts and direct sunlight. Do not place it where there
are corrosive fumes, excessive moisture, high room temperatures, or in excessively dusty areas.
Refrigerating / Heating Circulators must be 10.2 cm / 4 inches or more away from walls or vertical
surfaces so that airflow is not restricted.
Avoid voltage drops by using properly grounded power outlets wired with 14 gauge or larger diameter
wire and if possible, be close to the power distribution panel. The use of extension co rds is not
recommended; this will reduce the potential for problems caused by low line voltage.
Adding Liquid to the Bath Reservoir
WARNING: Read the safety data sheet for the bath fluid being used carefully before filling reservoir.
WARNING: See Technical Information in the rear of this manual for a list of compatible liquids.
WARNING: If the proper fluid level is not maintained, the heater coil may become exposed and
possibly damaged (fluid level too low) or the bath may overflow (fluid level too high).
The liquid in the reservoir should be maintained at a depth between 1 inch / 2.54 cm and 2.6 inches / 6.7
cm below the underside of the bath’s top deck. Upon start up, it may be necessary to add fluid to the bath
to compensate for the fluid required for external circulation. Likewise, be sure to comp ensate for fluid
displacement when placing samples or other materials in the Circulator’s reservoir.
Maximum Liquid Level:
1 in. / 2.54 cm
below the underside of the top deck
Minimum Liquid Level:
2.6 in. / 6.7 cm below the
underside of the top deck
WARNING: Always drain all fluid from the reservoir before moving or lifting your Circulator. Be sure
to follow your organization’s procedures and practices regarding the safe lifting and relocation of
heavy objects.
WARNING: To avoid the potential for burns, allow the Circulator to cool completely before cleaning
or performing any maintenance.
110-509 PSC/EN 13
External Closed Loop Circulation
WARNING: When connecting tubing to an external application, it is the user’s responsibility to make
sure that the tubing and fittings connected to the Circulator are suitable for the fluid being used and
the temperature range of operation.
CAUTION: The Circulator’s bypass tubing is secured to the fluid inlet and outlet connections by high
temperature nylon hose clamps, which can be removed by carefully cutting them with diagonal
cutters.
CAUTION: Secure the tubing to the inlet and outlet fittings using hose clamps with a minimum ID of
7/8 inch (22 mm). Do not operate the unit without hose clamps.
WARNING: If the Circulating Bath will not be used for external circulation, the inlet and outlet ports
should remain connected using the Buna N bypass tubing provided with the unit.
The single speed pump on your Circulating Bath permits closed loop circulation to an external apparatus
via the ½ inch / 12.7 mm OD pump inlet and outlet ports on the rear of the MX Controller. To maintain
adequate flow, avoid restrictions in the tubing.
The control stability of a closed loop system is better at the external apparatus than in the immediate
vicinity of the heater (provided the apparatus control point represents a constant load and is well
insulated). For example, if you circulate through a viscometer at 50°C the temperature variation observed
in the reservoir may be ±0.1°C, whereas in the viscometer it may be only ±0.05°C.
Although stability is better at the external apparatus control point, depending on the insulation and length
of tubing used, the accuracy of temperature may be slightly different than the temperature indicated in the
reservoir.
NOTE: Viscosity Baths and the Coliform Bath are not equipped for external circulation.
110-509 PSC/EN 14
Refrigeration Control Connections (Refrigerating/Heating Circulators only)
Attach the Refrigeration Control Cable connected to the rear of the Temperature Controller to the
Refrigeration Control Connection on the Refrigeration Power Module.
Refrigeration
Control Cable
Refrigeration Control
Connection
110-509 PSC/EN 15
Electrical Power
WARNING: The Circulator’s power cord must be connected to a properly grounded electrical
receptacle. Make certain that this electrical outlet is the same voltage and frequency as your
Circulator. The correct voltage and frequency for your Circulator are indicated on the identification
label on the back of the Controller.
CAUTION: The use of an extension cord is not recommended. If one is necessary, it must be
properly grounded and capable of handling the total wattage of the unit. The extension cord must not
cause more than a 10% drop in voltage to the unit.
Refrigerating / Heating Circulators
Attach the Temperature Controller’s power cord to the female IEC connector on the Refrigeration Power
Module.
Attach the 6-ft / 1.8 m power cord to the IEC electrical connection on the Refrigeration Power Module and
then plug the male connector into the Mains electrical outlet.
Place the Power Switch / Circuit Breaker on the Refrigeration Power Module in the ON position. The LCD
on the Controller will light and “Standby” will appear on the display.
IEC power cord
(Temperature
Controller to
Refrigeration Power
Module)
All Other Circulators
Plug the male connector on the Temperature Controller’s
power cord into the Mains electrical outlet. The LCD on
the Controller will light and “Standby” will appear on the
display.
NOTE: 50 Hz models supplied with a country
specific electrical cord and plug.
IEC electrical connections
6 ft. / 1.82 m
IEC power cord
(Refrigeration Power
Module to Mains)
IEC to IEC connector
(50 Hz models only)
Power cord to Mains
110-509 PSC/EN 16
Controller Setup

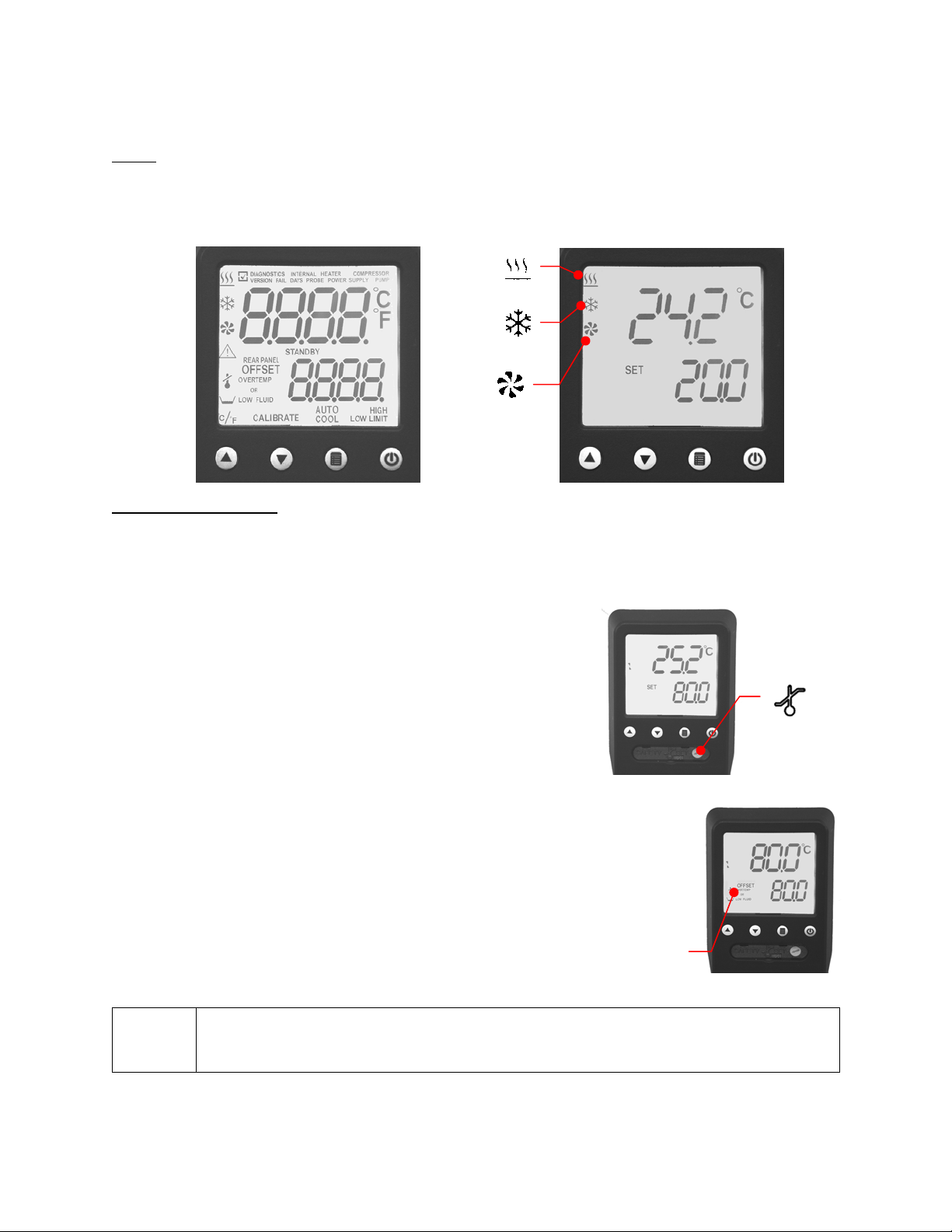

Power
Press
actual and set point temperatures will be displayed, and the word “SET” will be continuously lit. The
circulating symbol will also be lit and the heating or refrigerating symbol may be lit or flashing.
Safety Set Temperature
This is a “Do Not Exceed” temperature setting for your Circulator and is the temperature at which the
heater will be turned OFF should the liquid level in the bath drop too low or the Circulator malfunctions. It
is normally set about 5° higher than the desired operating temperature. Setting the Safety Set
temperature is a four-step process.
; all characters and symbols on the LCD will momentarily light. The Circulator will begin running,
Heating
Refrigerating
Circulatingl
1. Usi ng a flat blade screwdriver, rotate the Safety Thermostat
(located beneath the cover plate) clockwise until it stops.
2. Press the
pressing the
is equal to your desired Safety Set temperature. “SET” will
stop flashing approximately 10 seconds after the desired
temperature has been entered. Allow the Circulator to
stabilize at this temperature.
3. Once the bat h temperature has stabilized, slowly rotate the Safety
Thermostat counter-clockwise until you hear a soft “click;” the OVERTEMP
or LOW FLUID alarm symbol will appear on the display approximately 5-10
seconds later. At this point, the heater will also turn OFF.
4. Slowly rotate the Safety Thermostat cloc kwise until the alarm symbol
extinguishes (you may also hear a soft “click”). The heater should turn back
ON. You are now ready to start normal operation.
WARNING: The Safety Thermostat is user-adjustable from approximately 40° to 210°C. Do not force
the indicator dial beyond the stops at either end of the dial’s range.
or key; “SET” will begin flashing. Continue
and keys until the set point temperature
OVERTEMP / LOW FLUID Alarm
¨
110-509 PSC/EN 17
Normal Operation
Keys and Controls
Power
Turns the Circulator’s Temperature Controller ON.
Accesses the Temperature Controller’s set-up sub-menus. The items in
Menu
Up Arrow
these sub-menus are used to configure the Controller’s general
operational parameters (temperature unit, upper and lower temperature
limits, offset calibration, etc.).
Used to increase temperature set point and other operational
settings/values.
Down Arrow
Used to decrease temperature set point and other operational
settings/values.
Turning Your Circulator ON
Press the key.
All characters/symbols on the LCD will momentarily light. When the Circulator begins running, the actual
and set point temperatures will be displayed and the circulating symbol will be lit.
If the actual bath temperature is lower than the set point temperature, the heating symbol will also be lit.
Refrigerating/Heating Models: If the actual bath temperature is higher than the set point temperature, the
refrigerating symbol will be lit. It is normal for both the heating and refrigerating symbols to be lit
simultaneously when nearing or maintaining the set point temperature.
Main Operational Display
Heating
Refrigerating
Circulating
Actual Bath
Temperature
Set Point
Temperature
110-509 PSC/EN 18
Set-Up Sub-Menus
Press the
to change the current setting / value in the sub-menu.
Sub-Menu Selection / Range
Temperature unit °C or °F
Offset Calibration -3.0°C to +3.0°C Press or
Low Limit -55° to +10°C / -65° to +50°F Press or
High Limit +40° to +155°C / +100 to +305°F Press or
Auto Cool 1° to 135°C / 34° to 275°F Press or
To accept a value in a sub-menu, press
key to access the Temperature Controller’s set-up sub-menus. The or
To Change
Current Value
Press for °C
for °F
Press
or allow the display to ‘time out’ (approximately 10 seconds).
keys are used
Adjusting the Temperature Set Point
This is the temperature at which the fluid in your Circulating Bath will be maintained. It may be set to onetenth of a degree over a range of -50.0° to +135.0°C / -60.0° to +275.0°F. The factory default set point is
+20.0°C / +68.0°F.
Flashes when set
point is being
changed
To Change: Press the
or repeatedly press
To Accept: Press
(approximately 10 seconds).
110-509 PSC/EN 19
or key. The word “SET” will begin flashing. Continue holding
or
until the desired set point temperature is displayed.
or allow the LCD to return to the main operational display
Selecting the Temperature Unit
The temperature units sub-menu (°C / °F) allows you to select the temperature unit in which the actual
bath temperature and set point temperature are displayed. The factory default is °C.
Appears when in
Temperature Units
sub-menu
To Access: Press the
To Change: Press
To Accept: Press
key until °
to select °C; press
or allow the LCD to return to the main operational display
(approximately 10 seconds).
C/°F appears on the display.
to select °F.
110-509 PSC/EN 20
Setting the Offset Calibration
This sub-menu allows you to match the Circulator’s temperature display to an external reference
thermometer. A value from -3.0° to +3.0°C may be entered; the factory default is 0.0°C.
IMPORTANT: To prevent the Offset Calibration value from being changed unintentionally, the
following power down/power up sequence is required to enable the Offset Calibration function.
Refrigerating Circulators:
1. Place the power switch/circuit breaker on the rear of the unit in the OF F position.
2. Return the power switch/circuit breaker to the ON position while pressing and holding the
key.
When STANDBY appears on the display, release the key and press . You can no w
3.
proceed as outlined below.
Heat Only Circulators:
1. Disconnect the power cord from the electrical outlet.
2. Plug the power cord back into the electrical outlet while pressing and holding the
When STANDBY appears on the display, release the key and press . You can no w
3.
proceed as outlined below.
The Offset Calibration function will remain enabled until the electrical power is turned OFF by
pressing the
key.
key.
Appears when in
Offset Calibrate sub-menu
To Access: Press the
To Change: Press
To Accept: Press
key until OFFSET CALIBRATE appears on the display.
or .
or allow the LCD to return to the main operational display
(approximately 10 seconds).
CAUTION: The Offset Calibration value is always shown in degrees C, even if degrees F is selected as
the temperature unit in which the control and actual bath temperatures are displayed. Your Circulator
will automatically convert the °C offset calibration value to the correct °F display offset value.
110-509 PSC/EN 21
Setting the Low Limit Temperature
This sub-menu allows you to limit how low the temperature set point may be set. It also serves as a low
limit safety, alerting you if bath temperature falls below the low limit temperature setting. The Low Limit
value may be set from -55° to +10°C / -65° to +50°F; the factory default is -50°C / -60°F.
To avoid unwanted alarms or shutdowns during regular operation, the Low Limit value should be set at
least 5° lower than the selected control temperature.
Appears when in the Low
Limit sub-menu
To Access: Press the
To Change: Press
To Accept: Press
(approximately 10 seconds).
key until LOW LIMIT appears on the display.
or .
or allow the LCD to return to the main operational display
110-509 PSC/EN 22
Setting the High Limit Temperature
This sub-menu allows you to limit how high the temperature set point may be set. It also serves as a high
limit safety, alerting you if bath temperature rises above the high limit temperature setting. The High Limit
value may be set from +40° to +155°C / +100° to +305°F; the factory default is +150°C / +300°F.
To avoid an unwanted shutdown during regular operation, the High Limit value should be set at least 5°
higher than the selected control temperature.
Appears when in the
High Limit sub-menu
To Access: Press the
key until HIGH LIMIT appears on the display.
To Change: Press
To Accept: Press
or .
or allow the LCD to return to the main operational display
(approximately 10 seconds).
110-509 PSC/EN 23
A
Adjusting the Auto Cool Temperature
This sub-menu is displayed only on Refrigerating / Heating Circulators. It determines the bath
temperature at which refrigeration will be activated and permits more precise control when operating at
high temperatures as well as more rapid cool downs. For most applications, an Auto Cool set point 15°C
above room temperature is recommended. The Auto Cool range is from 1° to 135°C. The factory default
is 30°C.
Cool Command™ Refrigeration
— Refrigerating/Heating Circulators with 15 liter and larger reservoirs
feature the Cool Command™ modulating refrigeration control system. Cool Command™ allows the
refrigeration system to turn on at a fluid temperature up to 135°C when the temperature set point is
changed to or below the Auto Cool set point (135°C maximum). As a result, bath fluid cools more quickly.
Conventional Refrigeration
— Refrigerating/Heating Circulators with 7 liter reservoirs use a conventional
refrigeration system. The refrigeration system will turn on when the bath temperature and set point are
below the Auto Cool set point (85°C maximum).
UTO
COOL

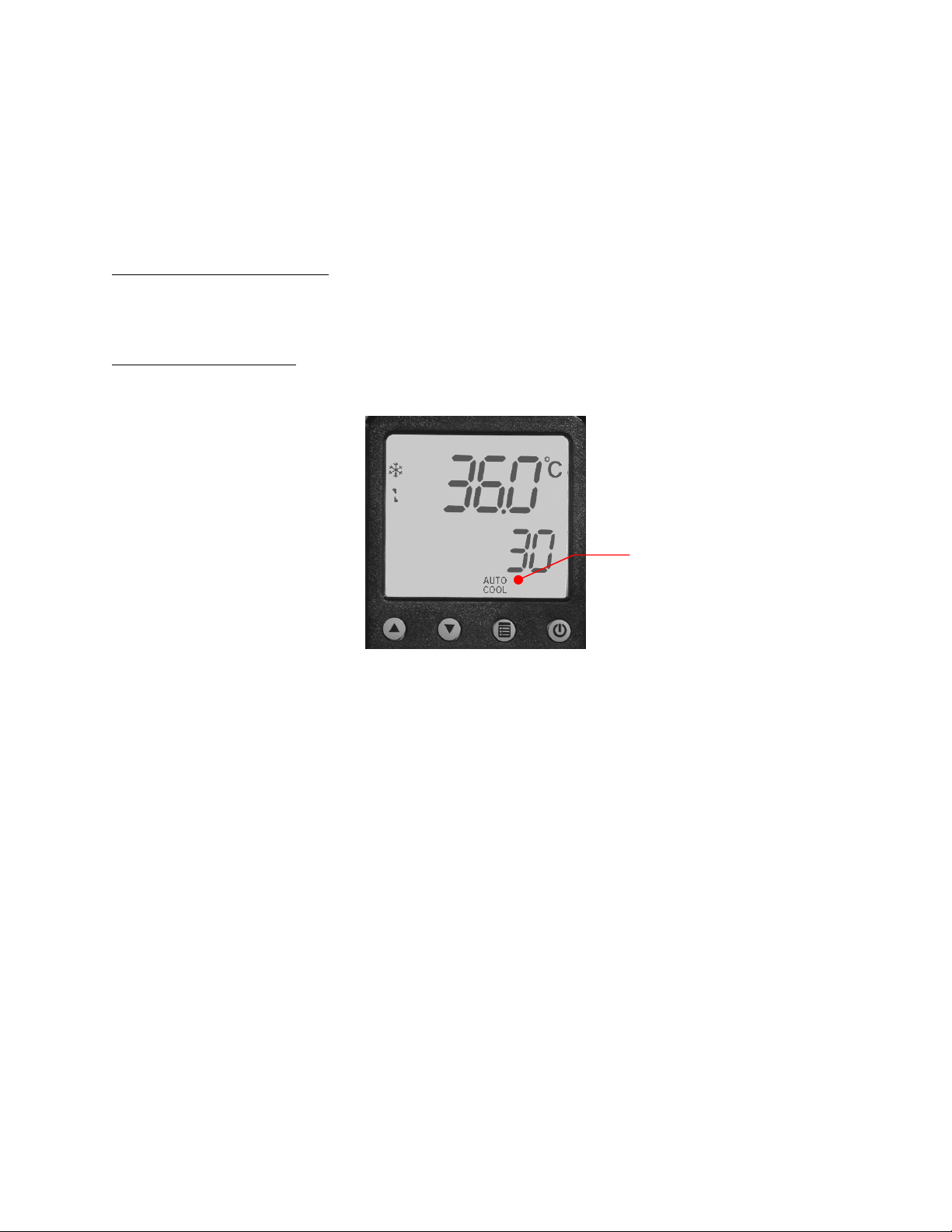

Appears when in the
AUTO COOL menu
To Access: This Press the
key until AUTO COOL appears on the display.
To Change: Press
To Accept: Press
or .
or allow the LCD to return to the main operational display
(approximately 10 seconds).
110-509 PSC/EN 24
Resetting the Factory Default Values
You can return your Circulator to all factory-set defaults as follows:
1. Press the
key to turn the Circulator OFF.
2. Turn M ains power OFF by unplugging the power cord from the electrical outlet or
(Refrigerating/Heating Circulators) placing the power switch/ci rcuit brea ker on the Refrigeration
Power Module in the OFF position.
3. Turn M ains power ON while pressing either the
or
button.
The factory default values are:
Operational Parameter Factory Default Value
Temperature Scale °C
Temperature Set Point 20°C / 68°F
Calibration Offset 0.0°C
Low Limit -50°C / -60°F
High Limit 150°C / 300°F
Auto Cool 30°C
Loss of Power Restart
WARNING: The unit will start automatically after a disruption in electrical power.
In the event that electrical power is lost while your Circulator is in use, it will begin operating automatically
once power is restored. FAIL POWER will appear on the display to alert you that there was a power
disruption. To clear the message, turn the Circulator OFF and then back ON again using the
FAIL POWER
Indicates electrical power was
disrupted during operation
key.
110-509 PSC/EN 25
Tap Water Cooling
Tap water cooling allows for more rapid bath cool down from high temperatures and/or mo re precise
operation at temperatures near ambient.
Heat only Circulating Baths feature an integrated cooling coil as standard equipment. The tap water
connections are made on the rear of the unit. Two 0.25 inch / 6.4 mm female NPT fittings are provided for
these connections.
Glass Viscosity Baths feature a cooling coil with two 0.375 inch / 9.5 mm OD straight barb fittings at
which the fluid inlet and outlet connections can be made. Either connection may serve as the fluid inlet or
outlet. Be sure to secure the tubing with the appropriate size hose clamps.
An optional cooling coil is available for use on the Coliform Bath and Stainless Steel Open Bath Systems.
This cooling coil has two 0.375 inch / 9.5 mm OD straight barb fittings at which the fluid inlet and outlet
connections can be made. Either connection may serve as the fluid inlet or outlet. Be sure to secure the
tubing with the appropriate size hose clamps.
WARNING: The fluid outlet must be connected and flow to a suitable drain or vessel located at a
level below that of the inlet.
Reservoir Cover Storage
Refrigerating/Heating and Heat Only Circulating Baths feature the LidDock® system to eliminate mess
when adding fluid or samples to the reservoir. Specially positioned notches in the inner lip of the top de ck
allow you to stand the reservoir cover up upright over the bath opening, allowing condensate to flow back
into the bath.
Lid Positioning
Notch
Lid Positioning
Notch
110-509 PSC/EN 26
Display Messages and Alarms
Alarm
Symbol
FAIL POWER
(flashing)
(flashing)
Description Corrective Action
Informational Message:
Indicates that electrical power
was lost during operation.
Warning: The temperature set
point is below the Low Limit
temperature value.
Warning: The temperature set
point is above the High Limit
temperature value.
Alarm: The bath temperature
has fallen below the Low Limit
temperature value. Power to
the compressor and pump will
remain OFF until the problem
is corrected.
Alarm: The bath temperature
has risen above the High Limit
temperature value. Power to
the heater and pump will
remain OFF until the problem
is corrected.
Fault: The liquid in the bath
has dropped too low or the
temperature of the bath fluid
has exceeded the Safety Set
temperature. Power to the
heater will remain OFF until the
problem is corrected.
Using the
key, turn the Circulator OFF and then back ON.
This will clear the message.
Decrease the Low Limit temperature value or increase the
temperature set point.
Increase the High Limit temperature value or decrease the set
point temperature.
Allow bath to warm or add heat load.
Decrease the Low Limit temperature value.
Allow bath to cool or increase High Limit temperature value.
Replace fluid.
Fluid level in reservoir has fallen below minimum level;
add fluid as required.
Fluid temperature is higher than Safety Set temperature;
increase Safety Set temperature setting.
Controller failure; consult factory.
Fault: The Circulator’s
temperature sensor has failed.
Fault: The Circulator’s heater
has failed.
Consult factory.
Consult factory.
110-509 PSC/EN 27
Routine Maintenance and Troubleshooting
WARNING: Always turn your Circulating Bath OFF and disconnect it from the electrical power outlet
before performing any maintenance or service.
WARNING: To avoid the potential for burns, allow the Circulating Bath to cool completely before
cleaning or performing any maintenance.
WARNING: Always drain all fluid from the reservoir before moving or lifting your Circulator. Be sure
to follow your organization’s procedures and practices regarding the safe lifting and relocation of
heavy objects.
Maintaining Clear Bath Water
Optimum temperature and moisture conditions for algae growth exist when using water as a bath fluid. To
prevent algae contamination and minimize the frequency of draining the reservoir, an algaecid e such as
polyclean Algaecide (004-300040) should be used.
WARNING: Do not use chlorine bleach.
Draining the Bath Reservoir
WARNING: Bath fluids should be stored and disposed of according to applicable laws and
regulations.
Refrigerated / Heating and Heat only Circulating Baths
Refrigerated / Heating and Heat only Circulating Baths are equipped with a drain valve and port located
either behind the front access panel or on the right hand side of the unit.
To drain fluid from the bath, attach a short length of suitable 11.5 mm ID / 0.45 inch ID tubing to the drain
port and secure it using a hose clamp with a minimum ID of 18 mm / 0.7 inch. Open the drain valve using
a flat blade screwdriver. When closing the valve, do not over tighten.
Drain Port Drain Valve
WARNING: Be sure to close the drain valve before refilling the bath reservoir. Do not over tighten.
110-509 PSC/EN 28
Polycarbonate Open Tank Circulators
Larger capacity (17 liter and above) polycarbonate open tank Circulating Baths are equi pped with a drain
port. To drain fluid from these baths, remove the knurled cap. When replacing the cap, do not over
tighten.
WARNING: Be sure to replace and tighten knurled cap before refilling the bath reservoir.
Checking the Over-Temperature Safety System
Your Circulator incorporates over-temperature protection according to IEC 61010. For optimum safety,
this system should be checked for proper operation at least every six months. This check must be
performed with the unit running.
1. Enter a temperature set point of approximately 50°C and then allow the bath to stabilize at that
temperature. The amount of time this will take will depend on the size of the bath and the difference
between the initial bath temperature and the Safety Set temperature.
2. Once the bat h temperature has stabilized, slowly rotate the Safety Thermostat
counter-clockwise until you hear a soft “click;” the OVERTEMP or LOW FLUID
alarm symbol will appear on the display approximately 5-10 seconds later. At
this point, the heater will also turn OFF.
3. Slowly rotate the Safety Thermostat cloc kwise until the alarm symbol
extinguishes (you may also hear a soft “click”). The heater should turn back
ON.
4. Reset the Safety Set temperature to the desired temperature value
(see Controller Setup, Safety Set Temperature).
¨
110-509 PSC/EN 29
Cleaning Your Circulator
WARNING: It is the user’s responsibility to properly decontaminate the unit in the event hazardous
materials are spilled on exterior or interior surfaces. Consult the manufacturer if there is any doubt
regarding the compatibility of decontamination or cleaning agents.
Temperature Controller
Turn the Temperature Controller OFF by pressing
and unplug power cord from the electrical outlet.
Wipe the housing with a clean cloth dampened with a mild detergent and water or mild all-purpose
cleaner.
CAUTION: Do not spray cleaning liquids directly onto the Temperature Controller or allow them to
enter the Controller’s vents. Do not use abrasives as these could scratch the housing or the digital
display.
Bath Reservoir
CAUTION: Do not use steel wool to clean your Circulator’s bath reservoir.
Bath Reservoir and Wetted Components — A concentrated bath cleaner (polycle an Bath Cleaner, part
number 004-300050) is available to remove mineral deposits from the stainless steel reservoir and the
Temperature Controller’s wetted parts. The cleaner should be added to the bath reservoir at the
prescribed dosage and circulated at 60°C / 140°F until the scale is removed.
External Surfaces — Only mild detergents and water or an approved cleaner should be used on the top
deck and other external surfaces of your Circulator.
Pump Impeller
be used to remove any lodged particles. If necessary, soak in a solution of distilled water and polyclean
Bath Cleaner to soften before brushing.
— In the unlikely event that debris becomes lodged in the pump impeller, a soft brush can
CAUTION: Do not use hard utensils or abrasive pads to remove trapped debris.
Condenser, Air Vents, and Reusable Filter
(Refrigerated Models only)
To keep the refrigeration system operating at optimum cooling
capacity, the condenser, removable air filter, and all air vents
(front, side, back) should be kept free of dust and dirt. Be sure to
check them on a regular basis and clean as required.
The reusable filter is easily accessed from the front of the unit by
simply removing the access panel. Use a mild detergent and
water solution to wash off any accumulated dust and dirt. Rinse
and dry thoroughly before reinstalling.
110-509 PSC/EN 30
Reusable
Filter
Temperature Controller Removal and Re-Installation
Removal
The Temperature Controller on your Circulating Bath is designed to be easily removed from the top deck
without the use of special tools. It is removed as follows:
1. Place the tip of a small flat blade screwdriver under the retaining ring locking tab and pry up
gently.
Locking Tab
2. Rotate the Temperature Controller clockwise until it stops (about 0.75 inch / 1.9 cm).
3. Lift the Controller st raight up and out of the opening of the Circulator’s top deck.
110-509 PSC/EN 31
Re-Installation
The top deck of your Circulator incorporates four alignment pins to facilitate positioning of the
Temperature Controller when it is being reinstalled. These pins correspond to keyhole slots on the interior
of the Circulator’s retaining ring.
1. With the retai ning ring locking tab oriented above one of the indents on the top deck, slowly lower
the Temperature Controller into the top deck opening until it is resting on top of the positioning
pins.
Keyhole Slot
(cutaway)
Positioning Pins
(4 total)
Indent
Locking Tab
2. Gently rotate the Temperature Controller until it drops down on the Positioning Pins.
3. Rotate the Te mperature Controller counterclockwise until the Locking Tab engages the indent on
the top deck.
110-509 PSC/EN 32
Troubleshooting Chart
Problem Possible Causes Corrective Action
Unit does not run
(Digital Display is
blank)
Unit does not run
(STANDBY appears
on Digital Display)
No fluid circulation Insufficient fluid in reservoir
Insufficient circulation Fluid viscosity too high
Unit does not heat Insufficient fluid in reservoir
Insufficient heating Insufficient circulation
Temperature
unstable
Unit does not cool
No power to unit
Refrigerated units only
Electrical cord between
Control Head and
Refrigeration Power Module
loose or unplugged
Power Switch / Circuit
Breaker in OFF position
Unit in Standby mode Press Power Key on front panel.
Pump impeller jammed
External tubing diameter
too small
Low line voltage
Temperature set point too
low
Safety Set Temperature too
low
Low line voltage
Ambient temperature too
cool
Excessive heat loss
Insufficient circulation
Debris or mineral build-up
on pump, heater, or
temperature sensor.
Dust build up on air filter or
condenser
Blocked air ventilation
screens
Temperature set point is
too high
Excessive heat load
Ambient air temperature too
high (>35°C / 95°F)
Low or high line voltage
Check that the electrical cord is secure and
connected to an operating electrical outlet.
Check that the electrical cord is secure and
properly connected.
Place Power Switch / Circuit Breaker in ON
position.
Add fluid to reservoir.
Inspect pump and remove debris as required.
Replace with lower viscosity bath fluid.
Replace with larger diameter tubing.
Check and correct as required.
Add fluid to reservoir.
Increase temperature set point.
Increase Safety Set temperature.
See Insufficient circulation, above.
Check and correct as required.
Increase ambient temperature or relocate unit.
Check for heat loss from external tanks and
hoses;
Check for vapor/heat loss from internal
reservoir.
Check pump flow and operation.
Clean as required.
Clean air filter and/or condenser as required.
Remove blockages as required.
Decrease temperature set point.
Check that heat load does not exceed capacity
of bath; correct as required.
Decrease ambient air temperature.
Check and correct as required.
110-509 PSC/EN 33
Problem Possible Causes Corrective Action
Insufficient cooling
Unable to achieve
low end extreme
temperatures
Dust build up on air filter or
condenser
Blocked air ventilation
screens
Temperature set point is
too high
Excessive heat load
Ambient air temperature too
high (>35°C / 95°F)
Low or high line voltage
Pump speed too high
Incorrect bath fluid
Insufficient insulation on
external fluid lines
Ambient air temperature too
high (>35°C / 95°F)
Low or high line voltage
Dust build up on air filter or
condenser
Blocked air ventilation
screens
Excessive heat load
Clean air filter and/or condenser as required.
Remove blockages as required.
Decrease temperature set point.
Check that heat load does not exceed capacity
of bath; correct as required.
Decrease ambient air temperature.
Check and correct as required.
Reduce pump speed.
Check that the fluid being circulated is capable
of reaching the required temperature.
Check external fluid lines for proper insulation.
Decrease ambient air temperature as required.
Check and correct as required.
Clean air filter or condenser as required.
Remove blockages as required.
Check that heat load does not exceed capacity
of bath; correct as required.
110-509 PSC/EN 34
Technical Information
Performance Specifications
Operating Temperature Range: Model dependent; see table below
Temperature Stability: ±0.07C (±0.13°F)
Pump Type: 1-speed pressure
60Hz models
50Hz models
Maximum Pressure: 1.8 psi (0.12 bar) 1.5 psi (0.10 bar)
Maximum Pressure Flow Rate: 3.4 gpm (12.8 lpm) 2.8 gpm (10.6 lpm)
Heater Wattage: 1100 watts 1100 watts
Model Type
MX07R-20 Refrigerating / Heating Bath 7 liters
MX7LR-20 Refrigerating / Heating Bath 7 liters
MX15R-30 Refrigerating / Heating Bath 15 liters
MX20R-30 Refrigerating / Heating Bath 20 liters
MX07H135 Heating Only Bath 7 liters
MX15H135 Heating Only Bath 15 liters
MX20H135 Heating Only Bath 20 liters
MX06S135 Stainless Steel Open Tank Bath 6 liters
MX10S135 Stainless Steel Open Tank Bath 10 liters
MX20S135 Stainless Steel Open Tank Bath 20 liters
MX28S135 Stainless Steel Open Tank Bath 28 liters
MX08P100 Polycarbonate Open Tank Bath 8 liters
MX11P100 Polycarbonate Open Tank Bath 11 liters
MX14P100 Polycarbonate Open Tank Bath 14 liters
MX17P100 Polycarbonate Open Tank Bath 17 liters
MX23P100 Polycarbonate Open Tank Bath 23 liters
MX28P100 Polycarbonate Open Tank Bath 28 liters
Reservoir
Capacity
Temperature
Range
-20° to 135°C
-4° to 275°F
-20° to 135°C
-4° to 275°F
-30° to 135°C
-22° to 275°F
-30° to 135°C
-22° to 275°F
Ambient +10° to 135°C
Ambient +20° to 275°F
Ambient +10° to 135°C
Ambient +20° to 275°F
Ambient +10° to 135°C
Ambient +20° to 275°F
Ambient +10° to 135°C
Ambient +20° to 275°F
Ambient +10° to 135°C
Ambient +20° to 275°F
Ambient +10° to 135°C
Ambient +20° to 275°F
Ambient +10° to 135°C
Ambient +20° to 275°F
Ambient +10° to 85°C
Ambient +20° to 185°F
Ambient +10° to 85°C
Ambient +20° to 185°F
Ambient +10° to 85°C
Ambient +20° to 185°F
Ambient +10° to 85°C
Ambient +20° to 185°F
Ambient +10° to 85°C
Ambient +20° to 185°F
Ambient +10° to 85°C
Ambient +20° to 185°F
(1)
(1)
(1)
(1)
(1)
(1)
Electrical Requirements
60Hz Units 50Hz Units
120V, 60Hz, 12A 240V, 50Hz, 8A
120V, 60Hz, 12A 240V, 50Hz, 8A
120V, 60Hz, 13A 240V, 50Hz, 10A
120V, 60Hz, 13A 240V, 50Hz, 10A
120V, 60Hz, 10A 240V, 50Hz, 6A
120V, 60Hz, 10A 240V, 50Hz, 6A
120V, 60Hz, 10A 240V, 50Hz, 6A
120V, 60Hz, 10A 240V, 50Hz, 6A
120V, 60Hz, 10A 240V, 50Hz, 6A
120V, 60Hz, 10A 240V, 50Hz, 6A
120V, 60Hz, 10A 240V, 50Hz, 6A
120V, 60Hz, 10A 240V, 50Hz, 6A
120V, 60Hz, 10A 240V, 50Hz, 6A
120V, 60Hz, 10A 240V, 50Hz, 6A
120V, 60Hz, 10A 240V, 50Hz, 6A
120V, 60Hz, 10A 240V, 50Hz, 6A
120V, 60Hz, 10A 240V, 50Hz, 6A
110-509 PSC/EN 35
Model Type
MX17VB6G Glass Viscosity Bath 17 liters
MX27VB6G Glass Viscosity Bath 27 liters
MX28C135 Coliform Bath 28 liters
1. Maximum operating temperature for polycarbonate tank; MX Controller is capable of higher temperatures.
Environmental Conditions Indoor use only
Maximum Altitude: 2000 meter
Operating Ambient: 5° to 35°C (41° to 95°F)
Relative Humidity: 80%, non-condensing
Installation Category: II
Pollution Degree: 2
Ingress Protection: IP 31
Climate Class: SN
Software Class: B
Output Waveform: Sinusoidal
Specifications subject to change without notice.
Reservoir
Capacity
Temperature
Range
Ambient +10° to 135°C
Ambient +20° to 275°F
Ambient +10° to 135°C
Ambient +20° to 275°F
Ambient +10° to 135°C
Ambient +20° to 275°F
Electrical Requirements
60Hz Units 50Hz Units
120V, 60Hz, 10A 240V, 50Hz, 6A
120V, 60Hz, 10A 240V, 50Hz, 6A
120V, 60Hz, 10A 240V, 50Hz, 6A
110-509 PSC/EN 36
Reservoir Fluids
Depending on your needs, a variety of fluids can be used with your Circulator. No matter what bath fluid is
selected, it must be chemically compatible with the reservoir and the materials in your Circulator. It must
also be suitable for the desired temperature range.
WARNING: Do not use a flammable liquid as a bath fluid as a fire hazard may result.
WARNING: Always use fluids that satisfy safety, health, and equipment compatibility requirements.
For optimum temperature stability, the fluid’s viscosity should be 50 centistokes (cSt) or less at its lowest
operating temperature. This permits good fluid circulation and minimizes heating from the pump.
For temperatures from 10°C to 90°C, distilled water is recommended. For temperatures below 10°C, a
mixture of laboratory grade ethylene glycol and water should be used. Do not use deionized water.
The following chart is intended to serve as a guide in selecting a bath fluid for your application. For
optimum temperature stability and low vaporization, be sure to stay within the fluid's normal temperature
range.
You are responsible for proper selection and use of the fluids. Avoid extreme range operation.
Viscosity
Fluid Description
distilled water 1 50°C 1.00 4.18 10° to 90°C 2° to 100°C
polyclear MIX 30 1 50°C 1.00 4.18 15° to 90°C 2° to 100°C
polytherm S150 50 100°C 0.41 1.71 50° to 150°C 5° to 270°C*
polytherm S200 125 150°C 0.40 1.67 100° to 200°C 80° to 232°C*
polytherm S250 500 200°C 0.39 1.63 150° to 250°C 125° to 260°C*
polytherm M170 40 85°C 0.40 1.67 50° to 170°C 25° to 190°C
polycool HC -50 3 -30°C 0.62 2.59 -50° to 100°C -62° to 118°C
polycool EG -25
(50/50 mix with distilled H
polycool EG -25
(30/70 mix with distilled H
polycool PG -20
(50/50 mix with distilled H
polycool PG -20
(30/70 mix with distilled H
polycool MIX -25
(50/50 mix with distilled H
polycool MIX -25
(30/70 mix with distilled H
2
2
2
2
2
2
O)
O)
O)
O)
O)
O)
(cSt)
@ 25°C
20 -20°C 0.78 3.26 -25° to 100°C -30° to 115°C
12 0°C 0.89 3.72 0° to 95°C -15° to 107°C
20 -10°C 0.83 3.47 -20° to 100°C -30° to 115°C
12 5°C 0.92 3.85 5° to 90°C -10° to 107°C
20 -20°C 0.78 3.26 -25° to 100°C -30° to 115°C
12 0°C 0.89 3.72 0° to 95°C -15° to 107°C
@ Fluid
Temperature
Specific Heat
BTU/lb°F KJ/Kg°C
Normal
Temperature
Range
Extreme
Temperature
Range
*WARNING: This is the fluid’s flash point temperature.
110-509 PSC/EN 37
WARNING: DO NOT USE THE FOLLOWING LIQUIDS:
• Automotive antifreeze with additives**
• Hard tap water**
• Deionized water with a spec ific resistance > 1 meg ohm
• Any flammable fluids
• Concentrations of acids or bases
• Solutions with halides: chlorides, fluorides, bromides, iodides or sulfur
• Bleach (Sodium Hypochlorite)
• Solutions with chromates or chromium salts
• Glycerine
• Syltherm fluids
At temperatures above 40°C, additives or mineral deposits can adhere to the heater. If deposits are allowed
**
to build up, the heater may overheat and fail. Higher temperatures and higher concentrations of additives
will hasten deposit build up.
Application Notes
At a fluid's low temperature extreme:
• The presence of ice or slush adversely affects temperature stability.
• A viscosity above 10 centistokes adversely affects temperature uniformity.
• A high fluid viscosity and high pump speed adds heat to the fluid being pumped.
At a fluid's temperature above ambient without refrigeration:
• If your set point temperature is less than 15°C above the ambient temperature, the
viscosity of the fluid should be 10 centistokes or less to minimize friction heating of the fluid.
• Heat loss should be encouraged by uncovering the fluid and lowering the pump speed.
At fluid's high temperature extreme:
• Heat loss from vapor adversely affects temperature stability.
• To prevent the accumulation of vapors inside the room, the reservoir may need to be
placed in a fume hood.
• Use a cover and/or floating hollow balls to help prevent heat and vapor loss.
• Replenish fluid lost from vapor frequently.
110-509 PSC/EN 38
Equipment Disposal (WEEE Directive)
or
This equipment is marked with the crossed out wheeled bin symbol to indicate it is covered by the Waste
Electrical and Electronic Equipment (WEEE) Directive and is not to be disposed of as unsorted municipal
waste. Any products marked with this symbol must be collected separately, according to the
regulatory guidelines in your area.
It is your responsibility to correctly dispose of this equipment at lifecycle-end by handing it over to an
authorized facility for separate collection and recycling. It is also your responsibility to decontaminate the
equipment in case of biological, chemical and/or radiological contamination, so as to protect the persons
involved in the disposal and recycling of the equipment from health hazards. By doing so, you will help to
conserve natural and environmental resources and you will ensure that your equipment is recycled in a
manner that protects human health.
Requirements for waste collection, reuse, recycling, and recovery program s vary by regulatory authority
at your location. Contact your local responsible body (e.g., your laboratory manager) or authorized
representative for information regarding applicable disposal regulations.
110-509 PSC/EN 39
Replacement Parts and Accessories
Description
IEC to IEC Power Cord (Refrigerating/Heating Circulators) 225-661
IEC to Mains Power Cord, U.S. plug type, 120V, 60Hz (Refrigerating/Heating Circulators) 225-473
IEC to Mains Power Cord, European plug type, 240V, 50Hz (Refrigerating/Heating
Circulators)
Refrigeration Control Cable (Refrigerating/Heating Circulators) 525-879
Line Cord with European type Plug; 240V, 50Hz 225-346
Reservoir Cover for 7L Refrigerating/Heating and Heat only Circulators 300-674
Reservoir Cover for 15L Refrigerating/Heating and Heat only Circulators 300-694
Reservoir Cover for 20L Refrigerating/Heating and Heat only Circulators 300-697
Bath Cover for 8L Polycarbonate Open Bath 510-693
Bath Cover for 11L Polycarbonate Open Bath 510-694
Bath Cover for 14L Polycarbonate Open Bath 510-695
Bath Cover for 17L Polycarbonate Open Bath 510-696
Bath Cover for 23L Polycarbonate Open Bath 510-697
Bath Cover for 28L Polycarbonate Open Bath 510-698
Part
Number
225-228
Bath Cover for 6L Stainless Steel Open Bath 510-700
Bath Cover for 10L Stainless Steel Open Bath 510-701
Bath Cover for 20 and 28L Stainless Steel Open Baths 510-702
Lid for Viscosity Tube Opening, round, 2.25 inch diameter 300-760
Lid for Cooling Coil Opening, round, 3.63 inch diameter (for 10L, 20L and 28L Stainless
Steel Open Baths; 17L, 23L and 28L Polycarbonate Open Baths; and Coliform Bath
Lid for Cooling Coil Opening with slots for cooling coil; round, 3.63 inch diameter (f or
10L, 20L and 28L Stainless Steel Open Baths; 17L, 23L and 28L Polycarbonate Open
Baths; and Coliform Bath
Cooling Coil Kit for 10L, 20L and 28L Stainless Steel Open Baths; 17L, 23L and 28L
Polycarbonate Open Baths; and Coliform Bath
Fitting, 1/2” (13 mm) barb to 1/4” (5 mm) barb; glass-filled nylon (1 each) 776-207
Fitting, 1/2” (13 mm) barb to 3/8” (9.5 mm) barb; glass-filled nylon (1 each) 776-205
Fitting, 1/2” (13 mm) barb to 5/16” (8 mm) barb; glass-filled nylon (1 each) 776-206
Fitting Kit for external applications 510-737
Bypass Kit, silicone tubing ½” ID x 6” 510-713
300-749
300-779
510-649
110-509 PSC/EN 40
Description
Pump Blades 702-894
Housing Assembly, bottom rear with slider 530-134
Safety Thermostat Cover Plate 300-717
Power Switch / Circuit Breaker (Refrigerated models) 215-330
Reusable Air Filter for MX7LR-20 Refrigerating/Heating Circulator 305-057
Reusable Air Filter for MX07R-20 Refrigerating/Heating Circulator 305-054
Reusable Air Filter for MX15R-30 and MX20R-30 Refrigerating/Heating Circulators 305-055
O-Ring for Drain Valve; Refrigerating/Heating and Heat only Circulators 400-843
Drain Cap for Polycarbonate Open Baths 510-756
Resource Disk (with Operator’s Manual) 110-815
Part
Number
PolyScience Circulating Bath Fluids
Circulating Bath Fluids Quantity Part Number
polyclean Algaecide 8 oz / 236 ml 004-300040
polyclean Algaecide Twelve 8 oz / 236 ml bottles 004-300041
polyclean Bath Cleaner 8 oz / 236 ml 004-300050
polyclean Bath Cleaner Twelve 8 oz / 236 ml bottles 004-300051
polycool EG -25 (ethylene glycol) 1 gal / 4.5 liter 060340
polycool PG -20 (propylene glycol) 1 gal / 4.5 liter 060320
polycool HC -50 (water-based heat transfer fluid) 1 gal / 4.5 liter 060330
polytherm S150 (silicone oil) 1 gal / 4.5 liter 060326
polytherm S200 (silicone oil) 1 gal / 4.5 liter 060327
polytherm S250 (silicone oil) 1 gal / 4.5 liter 060328
polytherm M170 (mineral oil) 1 gal / 4.5 liter 060321
polycool MIX -25
(50/50 blend polycool EG -25 / H2O plus polyclean
algaecide)
polyclear MIX 30
(distilled water plus polyclean algaecide)
0.5 gal / 2.27 liter bottles
0.5 gal / 2.27 liter bottles
Five
Five
004-300060
004-300062
110-509 PSC/EN 41
Service and Technical Support
If you have followed the troubleshooting steps outlined previously and your Circulator still fails to operate
properly, contact the supplier from whom the unit was purchased. Have the following information
available for the customer service person:
• Model, Serial Number, and Voltage (from back panel label)
• Date of purchase and purchase order number
• Supplier’s order number or invoice number
• A summary of the problem
Warranty
The manufacturer agrees to correct for the original user of the product, either by repair (using new or
refurbished parts), or at the manufacturer’s election, by replacement (with a new or refurbished product),
any defects in material or workmanship which develop during the warranty period. The standard warranty
is twenty-four (24) months after delivery of the product. In the event of replacement, the replacement unit
will be warranted for the remainder of the original warranty period or ninety (90) days, whichever is
longer. For purposes of this limited warranty, “refurbished” means a product or part that has been
returned to its original specifications. In the event of a defect, these are your exclusive remedies.
If the product should require service, contact the manufacturer’s/supplier’s office for instructions. When
return of the product is necessary, a return authorization number is assigned and the product should be
shipped, transportation charges pre-paid, in either its original packaging or packaging affording an equal
degree of protection to the indicated service center. To insure prompt handling, the return authorization
number must be placed on the outside of the package. A detailed explanation of the defect should be
enclosed with the item.
The warranty shall not apply if the defect or malfunction was caused by accident, neglect, unreasonable
use, improper service, acts of God, modification by any party other than PolyScience, or other causes not
arising out of defects in material or workmanship.
EXCLUSION OF IMPLIED WARRANTIES. THERE ARE NO WARRANTIES, EXPRESSED OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THOSE OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE WHICH EXTEND BEYOND THE DESCRIPTION AND PERIOD AS STATED
IN THE OPERATOR’S MANUAL INCLUDED WITH EACH PRODUCT.
LIMITATION ON DAMAGES. THE MANUFACTURER’S SOLE OBLIGATION UNDER THE WARRANTY
IS LIMITED TO THE REPAIR OR REPLACEMENT OF A DEFECTIVE PRODUCT AND POLYSCIENCE
SHALL NOT, IN ANY EVENT, BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
OF ANY KIND RESULTING FROM USE OR POSSESSION OF THIS PRODUCT.
Some states do not allow: (A) limitations on how long an implied warranty lasts; or (B) the exclusion or
limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to
you. This warranty gives you specific legal rights and you may have other rights that vary from state to
state.
Manufactured by:
PolyScience
6600 W. Touhy Avenue Niles, IL 60714 U.S.A.
1-800-229-7569 ● 1-847-647-0611
www.polyscience.com
110-509 PSC/EN 42
Loading...
