Introduction

Introduction

The Polaroid Polaview 330 LCD projector is designed for the traveling
presenter. Its light weight, small size, and easy-to-use features make it a
premium portable presentation system that is ideally suited to small
group meetings or large formal presentations. A true XGA (1024x768)
projector at 700 lumens, it produces images bright enough to be used in
any normal room lighting conditions.

The Polaview 330 LCD projector is compatible with IBM-compatible
personal computers and Macintosh computers.

The Polaroid Polaview 330 LCD projector has the following features:

• Stereo audio

• Three-panel polysilicon active matrix liquid crystal display (LCD)

• Palette capable of 16.7 million colors

• Backlit keyboard

• Optical zoom

• Adjustable front foot used to set the projected image height

• Adjustable back feet used to level the projected image

• Startup logo that you can customize

• Automatic projector settings storage and use for up to 10 computers

• Remote control
The Polaroid Polaview 330 LCD projector is a true XGA projector; you do

not need to turn off your laptop computer display to see your entire screen
in the projected image.

The advanced broadcast video technology allows the Polaview 330 LCD
projector to provide bright, sharp NTSC, P AL, and SECAM video images.
S-Video and composite inputs insure compatibility with any video source.

The ultra high pressure lamp insures true color rendition with truer
whites. With 2000 hours of typical lamp life, you can be on the road for
months before you need to replace the lamp.

English 1

Getting Started

Getting Started

This section explains how to set up and connect the projector, including
information about basic adjustments and interfacing with peripherals.

Connecting to
Power

Important

To connect to power:
1 Connect the power cord to the AC socket on the projector.
2 Connect the power cord plug to an AC outlet.

Figure 1: Connecting the Power Cord

: To avoid damage to electronic components, first connect the

power cord to the AC socket on the projector , then connect the
plug to an AC outlet.

AC socket

The projector enters the
Power On/Standby LED, the Lamp Age LED, and the Lamp Status LED
on the projector keypad are on while the projector is in the
more information on the projector’s operating states, see “Operating
States” on page 14.

Direction

keys

Menu

Figure 2: Projector Keypad

sleep state

, with the fans and lamp off. The

sleep state

Power On/Standby

LED

Lamp Status LED

Lamp Age LED

Source

. For

2 English

Getting Started

Connecting to an
IBM-compatible
Desktop PC

To connect to an IBM-compatible desktop computer:
1 Set the computer display resolution to XGA (1024x768).
2 Disconnect the PC monitor cable from the monitor output connector

on the computer.

3 Connect the VGA/SVGA cable to the Computer In connector on the

projector and to the monitor output connector on the computer.

Monitor Out

connector

Computer In

connector

Figure 3: Connecting to an IBM-compatible Desktop PC

If the computer resolution is lower than XGA, the projector automatically
resizes the image to fill the screen. If the resolution is higher than XGA,
the projector displays a compressed SXGA image or a cropped 1024x768
window of an SXGA screen. If the image is cropped, use the direction keys
on the projector or remote control to adjust the display.

If you need to view the computer monitor and the projected image
simultaneously, using the 15connect the display to the built-in Monitor
Loop-Through connector on the projector.

To use the Monitor Loop-Through connection:
1 Attach the 15-pin HD gender changer to the Monitor Out connector on

the projector.

2 Connect the PC monitor cable to the 15-pin HD gender changer.

English 3

Getting Started

Connecting to an
IBM-compatible
Laptop PC

To connect to an IBM-compatible laptop computer:
1 Set the computer display resolution to XGA (1024x768) or lower.
2 Connect the VGA/SVGA cable to the Computer In connector on the

projector and to the external monitor output connector on the laptop
computer.

Computer In

connector

Figure 4: Connecting to an IBM-compatible Laptop PC

3 Activate the VGA external monitor port on the laptop computer.

Connecting to a
Macintosh
Desktop PC

Note: For a list of laptop manufacturers and more information on the

method you use to activate the VGA external monitor port, see
“Activating the Laptop External Video Port” on page 32.

If your Macintosh desktop computer has a separate VGA output port:
1 Connect the VGA cable to the Computer In connector on the projector

and to the VGA output connector on the computer.

Monitor Out

connector

Computer In

connector

Figure 5: Connecting to a Macintosh Desktop PC

4 English

Getting Started

2 In the Control Panel of the Macintosh operating system, set the

Mirroring option to “On” and select the external monitor as the active
monitor. For more information on the Mirroring function, see
“Macintosh PowerBook Series 160, 165, 180, 185, 500, 520, 540” on
page 31.

If your Macintosh desktop computer does not have a separate VGA output
port:

1 Disconnect the monitor cable from the monitor output connector on

the computer.

2 Connect the Macintosh adapter to the monitor output connector on the

computer .

3 Connect the monitor cable to the output side of the Macintosh adapter.
4 Set the DIP switches on the Macintosh adapter to match the output

settings of the computer. For more information on the correct DIP
switch settings, see “Macintosh Issues” on page 30.

Connecting to a
Macintosh Laptop
PC

If you need to view the computer monitor and the projected image
simultaneously , connect the display to the built-in Monitor Loop-Through
connector on the projector.

To use the Monitor Loop-Through connection:
1 Connect the Macintosh loop-through adapter to the monitor out

connector on the computer.

2 Connect the Macintosh monitor cable to the output side of the loop-

through adapter.

To connect to a Macintosh laptop computer:
1 Connect the Macintosh adapter to the external monitor output

connector on the laptop computer.

2 Connect the VGA cable to the Computer In connector on the pr ojector

and to the output side of the Macintosh adapter.

Computer In

connector

Figure 6: Connecting to a Macintosh Laptop PC

English 5

Getting Started

3 Set the DIP switches on the Macintosh adapter to match the output

settings of the laptop. For more information on the correct DIP switch
settings, see “Macintosh Issues” on page 30.

4 In the Control Panel of the Macintosh operating system, set the

Mirroring option to “On” and select the external monitor as the active
monitor. For more information on the Mirroring function, see
“Macintosh PowerBook Series 160, 165, 180, 185, 500, 520, 540” on
page 31.

Connecting to
Audio

You can connect the projector to computer audio output and, once
connected, you can provide an audio signal to powered external speakers.
Note that there are separate audio input connections for a computer and
VCR on the projector.

To connect to computer audio:
1 Connect one end of the stereo audio cable (3.5 mm male plugs on each

end) to the audio output connector on your computer’s sound card or
the speaker output connector on your laptop computer.

2 Connect the other end of the stereo audio cable to the Audio In

connector on the projector.

Audio In

connector

Audio Out

connector

Connecting to a
Video Player

6 English

Figure 7: Connecting to Audio

To provide an audio signal to powered external speakers:

• Connect the powered external speaker cable plug to the Audio Out
connector on the projector.

You can connect either composite video/stereo audio or S-video signal
inputs to the projector.

To connect to composite video:
1 Connect the red and white audio plugs on the three-wire composite

audio/video cable to the left and right audio connectors on the
projector and to the audio output connectors on the video player.

Getting Started

2 Connect the yellow video plug to the Composite Video In connector on

the projector and to the video output connector on the video player.

Left Audio connector
Right Audio connector

Composite Video In

connector

Figure 8: Connecting to Composite Video/Audio

To connect to S-video:
1 Connect the audio plugs on the audio/video cable to the left and right

audio connectors on the projector and to the audio output connectors
on the video player.

Connecting to the
Remote Mouse

2 Connect the S-video plug to the S-Video connector on the projector

and to the video output connector on the video player. Note that the
composite video cable remains unused.

Left Audio connector

S-Video

Right Audio connector

connector

Unused composite

video cable

Figure 9: Connecting to S-Video Video/Audio

You can use the joystick on the projector’s remote control to control your
computer mouse. To use the joystick, connect the remote mouse.

Note: If the remote mouse does not work after you follow these

instructions, see “Configuring the Remote Mouse” on page 28.

To connect to the remote mouse:
1 Turn off the computer.
2 Disconnect the mouse from the mouse connector on your computer.

English 7

Getting Started

3 Connect the remote mouse interface cable to the Mouse connector on

the projector and to the mouse connector (serial, PS/2, ADB) on your
computer.

Mouse

connector

Figure 10: Connecting to the Remote Mouse

8 English

Operating the Projector

This section explains how to turn on the projector and adjust the
projected image.

Operating the Projector

Turning On the
Projector

Use the Power On/Standby button to turn on the projector.
To turn on the projector:

1 Check that the projector is connected to AC power and the projector is

in the

sleep state

2 Press the Power On/Standby button on the projector keypad.

Figure 11: Power On/Standby Button

as described on page 14.

Power On/Standby

button

The projector enters the
speed. The lamp takes approximately 30 seconds to reach full brightness.

The start-up sequence that the projector follows depends on the selections
that you make in the projector system menus. For more information on
how to modify these choices, see “Using the Menus” on page 18.

By default, the projector displays the startup logo for five seconds then
selects the data input source. If no data input source is present, the
projector selects a video player input source. If no video player input
source is present, it displays the startup logo. If you did not select a
startup logo in the Features menu, the projector displays a blank screen.

CAUTION:

Ultra high pressure lamps need to be in a stable condition
prior to turning them on or off. To protect the lamp and the
projector, the power up and power down circuitry contain
built-in protective delays. After you turn on the lamp, a
timer prevents you from turning it off for at least 30 seconds.
After you turn off the lamp, a timer prevents you from
turning it on for at least 60 seconds. Do not attempt to
bypass these delays.

live state

with the lamp on and the fan at high

English 9

Operating the Projector

For more information on the projector’s operating states, see “Operating
States” on page 14.

Tip: If the projector is connected to a laptop computer but is not project-

ing an image, make sure that you have activated the external video
output port correctly. For more information, see “Activating the
Laptop External Video Port” on page 32.

Focusing the

Adjusting the
Image Size

Use the Focus Ring to focus the projected image.
To focus the image:

• Rotate the Focus Ring until the image is clear.

Focus Ring

Figure 12: Focusing the Image

Use the Zoom Ring Tab to adjust the size of the projected image.
To adjust the image size:

10 English

• Move the Zoom Ring Tab until the image is the desired size.

Zoom Ring

Tab

Figure 13: Adjusting the Image Size

Refer to the Distance to Screen vs. Image Size chart below to help you
make the adjustment.

Operating the Projector

Distance to
Screen vs. Image
Size

Use the following chart and tables to determine the distance between the
projector and the screen for a desired screen image size.

The top line in the graph indicates the image size with the lens at the
maximum zoom position. The bottom line in the graph indicates the
image size with the lens at the minimum zoom position.

Lens at maximum zoom

Lens at minimum zoom

Image Size (inches diagonal)

Distance to Screen (feet)

Figure 14: Distance to Screen vs. Image Size

The following table contains information about image size with the zoom
lens at the minimum zoom position.

Distance to

Screen (feet)

5 301824
10 60 36 48
15 90 54 72
20 120 72 96
25 150 90 120
30 180 108 144
35 210 126 168
40 240 144 192

Diagonal

(inches)

Height

(inches)

Width

(inches)

Table 1: Distance to Screen vs. Image Size, Lens at Minimum Zoom

English 11

Operating the Projector

The following table contains information about image size with the zoom
lens at the maximum zoom position.

Adjusting the
Image Height

Distance to

Screen (feet)

5 402432
10 80 48 64
15 120 72 96
20 160 96 128
25 200 120 160
30 240 144 192
35 280 168 224
40 320 192 256

Diagonal

(inches)

Height

(inches)

Width

(inches)

Table 2: Distance to Screen vs. Image Size, Lens at Maximum Zoom

Use the quick-release Elevator Foot Release under the front of the
projector to adjust the height of the projected image.

To adjust the image height:
1 Press the Elevator Foot Release and lift the front of the projector.
2 Release the Elevator Foot Release to lock the elevator foot in place.

Elevator
Foot
Release

Figure 15: Adjusting the Image Height

12 English

Operating the Projector

Leveling the

Use the leveling feet, located on both rear corners of the projector, to level
the projected image.

To level the image:

• Rotate one or both leveling feet until the projected image is level.

Leveling Foot

Figure 16: Leveling the Image

English 13

Operating States

Operating States

The Polaview 330 LCD projector has five operating states:
1 Sleep state - The lamp, all fans, and keypad lighting are off. The

2 Live state - The lamp and keypad lighting are on. The fans are on at

3 Standby state - If the lamp has been on for more than 30 seconds,

4 Startup pending state - Turning on the lamp within 60 seconds after

Power On/Standby LED, Lamp Age LED, and Lamp Status LED are
on.

high speed. The projector displays either the source video or the logo.

pressing the Power On/Standby button causes the projector to enter
the

standby state

. The lamp and keypad lighting are off. The fans are

on at low speed.

turning it off can damage the lamp or power supply. The

pending state

prevents this by preventing the lamp from being turned

startup

on for 60 seconds after turning it off. If you press the Power On/
Standby button within 60 seconds after turning off the lamp, the
projector turns on the keypad lighting and sets the fans to high speed.
The Power On/Standby LED flashes. After 60 seconds, the projector
turns on the lamp and enters the

live state

.

5

Standby pending state

can cause damage to the lamp. The

- Turning off the lamp before it has stabilized

standby pending state

prevents
this by preventing the lamp from being turned off for 30 seconds after
turning it on. If you press the Power On/Standby button within 30
seconds after turning on the lamp, the projector displays a “Will Shut
Down In...” message and a 30-second countdown timer. The Power
On/Standby LED flashes. After 30 seconds, the projector turns off the
lamp and enters the
inactivity, the projector enters the

standby state

. After another five minutes of

sleep state

.

The following table summarizes the projector operating states.

Operating

State

Sleep On Off Off Off Off

Live On Source/Logo On High On

Standby On Off Off Low Off

Startup Pending Flashing Off Off High On

Standby Pending Flashing Message On High On

Power On/

Standby

LED

Display Lamp Fans

Keypad

Lighting

14 English

Table 3: Projector Operating States

Using the Remote Control

This section explains how to use the remote control.
The wireless remote control that comes with the Polaview 330 LCD

projector is similar to a remote control for a television or VCR. Use the
remote control to set up and adjust the image settings and to control
interactive presentations.

Using the Remote Control

On/Standby

Source

Menu

Direction keys

Joystick

Left mouse

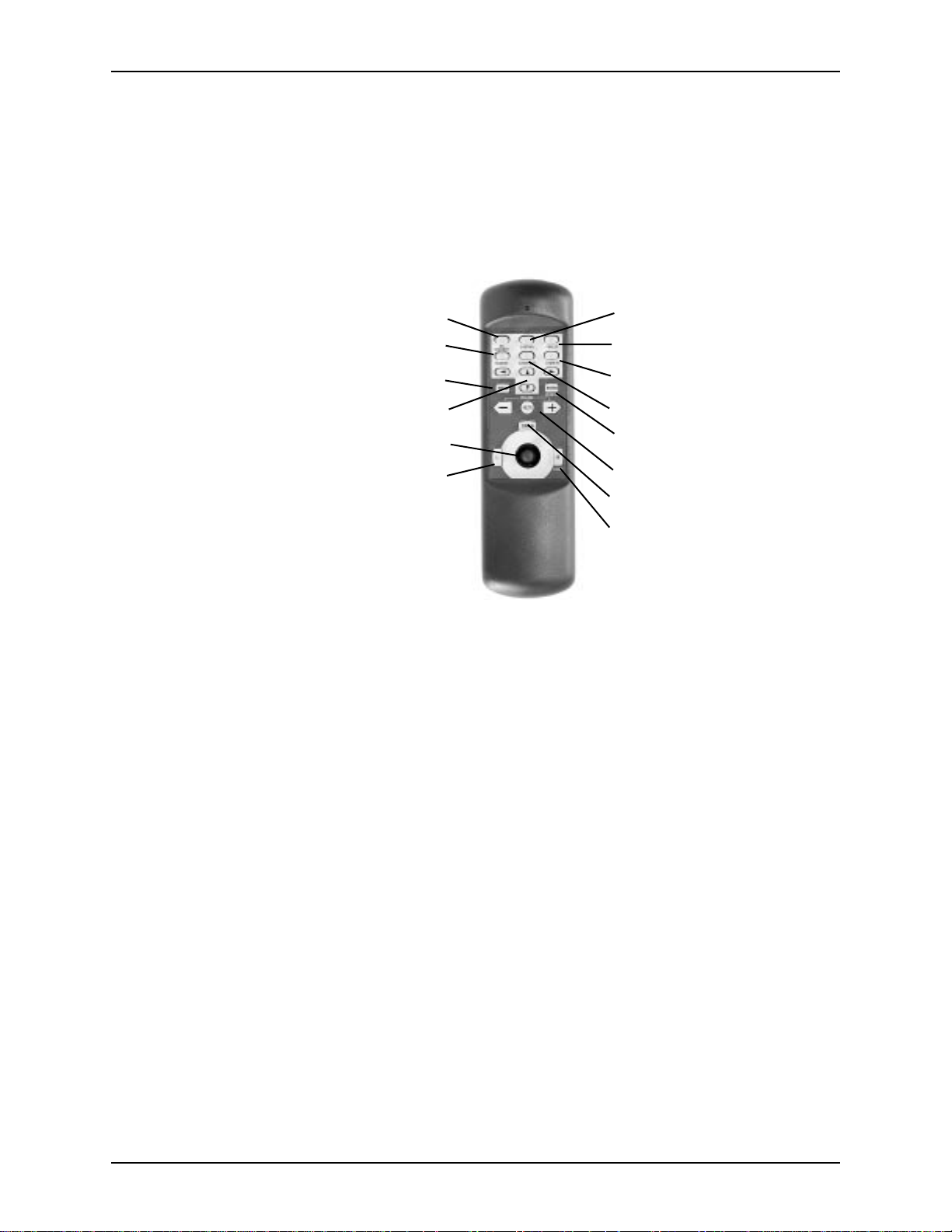

Figure 17: Remote Control

Use the projector control buttons on the remote control to control
projector functions. Use the built-in joystick and the mouse buttons to
remotely control the computer mouse.

For more information on how to configure the remote mouse, see
“Configuring the Remote Mouse” on page 28.

Curtain
Freeze
Zoom In

Zoom Out
Pointer
Audio controls

Drag
Right mouse and

remote backlight

Remote Control
Functions

On/Standby

This section describes the projector functions that you can control from
the remote control. Functions that are also available from the projector
keypad are noted.

Press the On/Standby button on the remote control (Power On/Standby
button on the projector keypad) to change the projector operating state.

If the projector is in the
change the projector to the
and the lamp has been on for more than 30 seconds, press the On/
Standby button to change the projector to the
has been on for less than 30 seconds, the projector changes to the

pending state

For more information on the projector’s operating states, see “Operating
States” on page 14.

prior to changing to the

sleep state

live state

, press the On/Standby button to

. If the projector is in the

standby state

standby state

.

live state

. If the lamp

standby

English 15

,

Using the Remote Control

Source

Menu

Direction Keys

Joystick

Press the Source button on either the remote control or the projector
keypad to toggle the input signal source between computer, composite
video, and S-video. If there are no other active input signal sources
connected, the projector displays an error message.

Press the Menu button on either the remote control or the projector
keypad to display the on-screen main menu. Press the Menu button again
to exit the menu.

Use the direction keys on either the remote control or the projector
keypad to control these functions:

• Menu navigation and selection

• Projected image positioning

• Zoomed or cropped image panning

• Pointer movement

• Slide control adjustment

• Curtain operation

Use the joystick on the remote control to move the cursor just as you use
the mouse attached to your computer.

Left Mouse

Curtain

Freeze

Zoom In/Zoom Out

Pointer

Use the left mouse button on the remote control just as you use the left
mouse button on the mouse attached to your computer.

Press the Curtain button on the remote control to overlay a curtain on the
projected image. Use the direction keys to move the curtain and reveal
portions of the display.

Press the Freeze button on the remote control to freeze the current
projected image until you press the Freeze button again.

Tip:

You can use the Freeze button to hold an image on the projected
screen while making changes to your presentation or checking notes
on your computer screen. Once the adjustments are made, press the
Freeze button again to return to your presentation.

Press the Zoom In button on the remote control to zoom in on the center
of the projected image (up to 8X magnification in 1X increments). Press
the Zoom Out button to zoom out of the center of the projected image (in
1X increments). While in the zoom mode, use the direction keys to move
the zoom window around the full screen.

Press the Pointer button on the remote control to display a pointer in the
center of the projected image. Use the direction keys to move the pointer.

16 English

Using the Remote Control

Audio Controls Press the + button on the remote control to increase the audio volume.

Press the - button to decrease the audio volume. Press the Mute button to
mute the audio.

Drag Use the Drag button in combination with the joystick to drag an item. Y ou

can also use this button to “Drag & Drop” items.

Right Mouse and

Remote Backlight

Use the right mouse button on the remote control just as you use the right
mouse button on the mouse attached to your computer.

To activate the backlight for the remote control buttons, press and hold
the right mouse button on the remote control for several seconds.

English 17

Using the Menus

Using the Menus

Main Menu This section intr oduces you to the main menu and explains how to use the

projector menu system.
1 Press the Menu button on either the remote control or on the projector

keypad to display the main menu. Each menu item has a submenu.

Help

Audio

Source

Features

Custom Modes

Service

Reset

4

4
4

4
4

4
4

4

Figure 18: Main Menu

2 Press the up and down direction keys to highlight a menu item. When

a menu item is highlighted, the system displays a submenu containing
a list of choices.

3 Press the right direction key to move the highlight to the submenu.
4 Press the up or down direction keys to highlight a choice.
5 Press the right direction key to display either a slide-rule control used

to adjust the level/value of the choice or a second submenu containing
a list of additional choices.

18 English

6 Press the up or down direction keys to adjust the level/value of the

choice or to highlight a submenu choice.

7 If you highlight a submenu choice, pr ess the up or down direction keys

to adjust the level/value of the choice.

8 Press the Menu button, or the left direction key repeatedly, to confirm

your selection and exit the menu system.

Using the Menus

Use the Reset menu item to reset these submenu values to default values:

Submenu Effect of Reset

Audio Resets all values.

Picture Resets all values.

Source Resets to Computer.

Features Resets Compression, Ceiling Mount, Rear Projection values.

Does not reset Language, Startup Logo, or Curtain values.

Custom Modes Clears all saved custom modes.

Table 4: Effect of Reset by Submenu

Use the Reset item on a submenu to reset values for all submenu items.

Audio Menu Use the Audio menu to control presentation sound characteristics.

Help

Audio


Source

Features

Custom Modes

Service

Reset

4

4

4
4

4

4

4

4

Figure 19: Audio Menu

• Once you have highlighted the Audio menu item, press the right
direction key to display the Audio submenu.

Volume

Bass
Treble
Stereo Mode
Mute
Balance
Reset

4

4
4

4

Figure 20: Audio Submenu

English 19

Using the Menus

Volume Use Volume to increase or decrease the volume level.

Treble Use Treble to increase or decrease the treble level.

Stereo Mode Use Stereo Mode to select mono or stereo audio effects.

Balance Use Balance to adjust the balance of the sound between stereo speakers.

Bass Use Bass to increase or decrease the bass level.

The choices are:

• Mono: Mixes contents of right and left channels

• Linear Stereo: Normal stereo sound without any extra processing

• Pseudo Stereo: Creates “like stereo” effect from mono source

• Spatial Stereo: Simulates “3D space” sound from stereo source

Mute Use Mute to turn off the sound.

Reset Use Reset to reset all values on the Audio menu to default values.

Picture Menu Use the Picture menu to control the appearance of the projected image.

Help

Audio


Source

Features

Custom Modes

Service

Reset

4

4

4

4
4
4
4
4

Figure 21: Picture Menu

20 English

Using the Menus

• Once you have highlighted the Picture menu item, press the right
direction key to display the Picture submenu.

Frequency

Tracking
Contrast
Brightness
Sharpness
Room Light
Color
Tint

4

4
4

4
4

4
4

4

Reset

4

Figure 22: Picture Submenu

Frequency The Polaview 330 LCD projector automatically adjusts the frequency

based on detected input signals. However, in some cases you may need to
manually adjust the frequency.

Use Frequency to eliminate evenly spaced dark vertical lines or distortions
on the projected image. Adjust the frequency until the vertical lines or
distortions disappear.

If you have adjusted the frequency but there are still vertical lines or
distortions on the projected image, follow the Tracking instructions to
adjust tracking.

Tip: If your computer is running Windows 95, the Shut Down screen is

the best place to adjust frequency. To display the Shut Down screen,
click on the Start button in the lower left-hand corner of the screen.
Click on Shut Down. Adjust the frequency, then click on No to re­turn to the display screen.

Tracking The Polaview 330 LCD projector automatically adjusts the tracking

based on the detected input signals. However , in some cases you may need
to manually adjust the tracking.

Use Tracking to remove distortions or shaded areas that remain on the
screen after adjusting the frequency . Do not adjust tracking until you have
finished adjusting the frequency. You may need to adjust the frequency
and tracking values a few times to completely eliminate vertical lines,
distortions, and shaded areas. Adjust the tracking until all distortions
and/or shaded areas disappear.

Contrast Use Contrast to increase or decrease the contrast level.

English 21

Using the Menus

Brightness Use Brightness to increase or decrease the brightness level.

Sharpness Use Sharpness to increase or decrease the sharpness.

Room Light Use Room Light to compensate for differences in room lighting

conditions. The three Room Light values provide the best levels of
brightness, contrast, and color saturation for different lighting conditions.

The choices are:

• Dark Room

• Normal

• Bright Room

Color Use Color to adjust the color intensity.

Tint Use Tint to adjust the red/green tint level.

Reset Use Reset to return all values on the Picture menu to default settings.

Source Menu Use the Source menu to select the input signal source. The choices include

the computer, composite video, or S-video input signals.

Help
Audio

Source

Features

Custom Modes

Service

Reset

4
4

4

4

4
4

4
4

Figure 23: Source Menu

• Once you have highlighted the Source menu item, press the right
direction key to display the Source submenu.

Computer

22 English

Composite
S-Video

Figure 24: Source Submenu

Using the Menus

Computer Use Computer to select the computer as the signal source.

Composite Use Composite to select composite video as the signal source.

S-Video Use S-Video to select s-video as the signal source.

Note: If the system does not detect a computer or video source, it

displays a message that indicates that the TV/VCR or computer
source was not detected.

Features Menu Use the Features menu to select top-level usage preferences for the

projector.

Help
Audio
Source

Features

Custom Modes

Service

Reset

4
4

4
4

4

4
4

4

Figure 25: Features Menu

• Once you have highlighted the Features menu item, press the right
direction key to display the Features submenu.

Language

Startup Logo
Curtain Style
Compression
Ceiling Mount
Rear Projection
Reset

4

4

4

4

4

4

Figure 26: Features Submenu

Language Use Language to display on-screen menus in English, French, German,

Spanish, Italian, or Chinese.

English 23

Using the Menus

Startup Logo Use Startup Logo to select the logo displayed during projector startup.

Curtain Style Use Curtain Style to select curtain appearance.

The choices are:

• Default Logo

• Custom Logo

• Blank

For more information on how to install a custom logo in projector
memory, see “Installing a Custom Startup Logo” on page 28.

The choices are:

• Red

• Green

• Blue

• Yellow

• Cyan

• Magenta

• Black

• White

• Default Logo

• Custom Logo

Compression Use Compression to enable or disable image compression for SXGA image

resolution and above. Enabling compression compresses the SXGA image
to fit the XGA screen. Disabling compression displays a 1024x768
window on the SXGA screen.

Ceiling Mount Use Ceiling Mount to vertically reverse the projected image to allow for an

upside down ceiling mount of the projector.

Rear Projection Use Rear Projection to horizontally reverse the projected image to allow

for rear projection.

Reset Use Reset to return all values on the Features menu to default settings.

24 English

Using the Menus

Custom Modes
Menu

Use the Custom Modes menu to save the current projector settings as one
of four custom modes or to activate a previously saved custom mode.

Help
Audio
Source
Features

Custom Modes

Service

Reset

4

4

4
4
4

4

4
4

Figure 27: Custom Modes Menu

• Once you have highlighted the Custom Modes menu item, press the
right direction key to display the Custom Modes submenu.

Mode 1

4

4

Mode 2
Mode 3
Mode 4
Reset

4
4
4
4

Figure 28: Custom Modes Submenu

Saving the current projector settings as a custom mode saves these
parameters:

• Frequency

• Tracking

• Vertical position

• Horizontal position

• Contrast

• Brightness

• Room light

• Zoom setting

• Tint

• Color

• Sharpness

English 25

Using the Menus

Mode 1 Use Mode 1 to save the current projector settings as a custom mode or to

Mode 2 Use Mode 2 to save the current projector settings as a custom mode or to

Mode 3 Use Mode 3 to save the current projector settings as a custom mode or to

Mode 4 Use Mode 4 to save the current projector settings as a custom mode or to

activate the previously saved Mode 1 settings.

activate the previously saved Mode 2 settings.

activate the previously saved Mode 3 settings.

activate the previously saved Mode 4 settings.

Reset Use Reset to return all values on the Custom Modes menu to default

settings.
To save a custom mode from the Custom Modes submenu:

1 Use the up or down direction keys to highlight the mode number under

which you want to save the current projector settings.
2 Highlight the Set to Current item.
3 Press the left direction key to exit the menu and save the custom mode.

To activate a custom mode from the Custom Modes submenu:
1 Use the up or down direction keys to highlight the mode number that

you want to activate.
2 Highlight the Active item.
3 Press the left direction key to exit the menu and activate the custom

mode.

Service Menu Use the Service menu to display information on the lamp life and/or

projector life, to reset the lamp life timer, or to display test patterns.

Help
Audio
Source
Features
Custom Modes

Service

Reset

4
4

4
4
4

4

4

4

26 English

Figure 29: Service Menu

Using the Menus

• Once you have highlighted the Service menu item, press the right
direction key to display the Service submenu.

Lamp Life

Reset Lamp Timer
Projector Life
Test Pattern

4

4
4

4
4

Figure 30: Service Submenu

Lamp Life Use Lamp Life to display the number of hours left in the life of the lamp.

Reset Lamp Timer Use Reset Lamp Timer to reset the lamp life timer after you install a new

lamp.

Projector Life Use Projector Life to display information about total projector usage.

Test Pattern Use Test Pattern to display patterns you can use to evaluate the condition

of the projector. The Color Cycle option displays the patterns in sequence.
The choices are:

• Pattern 1

• Pattern 2

• Pattern 3

• Solid Red

• Solid Green

• Solid Blue

• Solid White

• Solid Black

• Ramp Red

• Ramp Green

• Ramp Blue

• Ramp Grey

• Color Cycle

• Off

English 27

Advanced Configuration

Advanced Configuration

This section gives you more detailed information about various projector
setup, peripheral connection, and projector usage issues.

Installing a
Custom Startup
Logo

You can create a custom startup logo, save it as a standard 16-color
Windows bitmap (BMP) file, and install it in projector memory. You use
the Startup Logo item on the Features menu to replace the default logo
displayed during projector startup with the custom logo. Use the
LOADLOGO.EXE program, on the Polaview 330 Tools diskette included
with the projector, to download a custom logo to the projector.

To install a custom startup logo:
1 Connect an RS232 cable to the projector’ s RS232 connector and to the

computer serial port.

2 Start the LOADLOGO.EXE program.
3 Select a communications port from the on-screen menu.
4 Click on the Download menu on the menu bar.
5 Click on Custom Logo.
6 Select the directory in which the custom logo is stored, and click on

Open.

The LOADLOGO.EXE program installs the custom startup logo in
projector memory.

If you need LOADLOGO.EXE, visit Polaroid’s web site
(www.polaroid.com/service/sfwdownload/index.html).

Configuring the
Remote Mouse

Windows 95 1 Click on the Start button in the lower left-hand corner of the Windows

28 English

Windows 95 comes with standard serial or PS/2 mouse drivers that may
not be compatible with the projector’s remote mouse. These drivers are
most likely to be compatible with the Polaview 330 LCD projector:

• Microsoft serial mouse

• Microsoft PS/2 port mouse

• Logitech serial mouse

• Logitech PS/2 port mouse.

To change to a Microsoft or Logitech mouse driver:
Note: The Windows and menu choices that different manufacturers use

sometimes vary greatly in appearance. The procedure below may
not apply to all situations.

95 screen. Highlight Settings, and select Control Panel.

2 Double-click on the Mouse icon.

3 In the Mouse Properties window, click on the General tab. Windows

indicates the driver that is currently in use.

4 Click on the Change button.
5 Click on the Show All Devices radio button.
6 Under Manufacturers, select either Microsoft or Logitech.
7 Under Models, select either Microsoft Serial Mouse or Microsoft PS/2

Port Mouse or the Logitech Serial Mouse or Logitech PS/2 Port Mouse.

8 Click on OK, then click on Close.

Windows 3.x 1 Open the Program Manager Main group.

2 Run the Windows Setup program.
3 Pull down the Options menu and select Change System Settings.
4 In the Mouse dialogue box, click the down direction key and select the

appropriate driver as described above.

If the remote mouse still does not work correctly, use the IPSETUP.EXE
program, on the included Polaview 330 Tools diskette, to install the
IPOINT .EXE driver. Then, load the driver from the command line or from
the Windows 95 Start Menu. If you need IPSETUP.EXE, visit Polaroid’s
web site (www.polaroid.com/service/sfwdownload/index.html).

Advanced Configuration

Using the Internal
Pointer and
Remote Mouse
Simultaneously

Note: The driver supplied by IPOINT.EXE is only present when the

program is running. If you close the program, it no longer sends a
driver to the serial port. It does not load automatically when you
boot the system. You can load it automatically by installing it in
the W indows 95 Start Menu and selecting “Run Minimized” in the
I-Point properties shortcut menu.

Warning: Do not use IPOINT.EXE program to reconfigure the mouse.

There is no reset to bring the remote back to the original
configuration.

Laptop computers with an internal pointing device will usually work with
both internal and external mouse control.

To use the internal pointer and remote mouse simultaneously:
1 Set up the internal pointing device to use a PS/2 driver and load

IPOINT.EXE to send a mouse driver to the serial port.

2 Use the procedure above for changing mouse drivers and select a PS/2

driver for the internal pointing device. Then connect the projector’s
remote mouse interface cable to the computer’s serial port.

3 Reboot the computer for the changes to take effect. Then install

IPOINT.EXE, as described above, to use both the internal pointing
device and the external mouse.

English 29

Advanced Configuration

Some computers require you to make changes in the BIOS to allow use of
an external mouse or simultaneous use of both an internal and external
mouse. If the internal pointing device and the external mouse do not work
after following the steps above, see your computer’s manual to determine
how to make these changes in the BIOS.

Possible Problem
Using the Remote

A problem can occur while using Microsoft PowerPoint®. Each click of
the left remote mouse button may show two slides.

Mouse

To correct this problem:
1 In Windows 95 or Windows 3.x, choose the Mouse icon from the

Control Panel window. Windows displays a dialog box with a scroll
arrow that determines the double-click speed.

2 Move the scroll arrow to the left to slow down the double-click speed.
If this does not correct the problem, it may be due to fluorescent lighting.

In this case, shade the infrared receiver on the projector or turn down the
lights in the room.

Macintosh Issues Most Macintosh computers require an adapter to connect the video output

of the computer to the Polaview 330 LCD projector. Enhance Cable’s
Liberty Lite adapter is included. This table shows Liberty Lite switch
settings used to adapt to various display resolutions.

Display Mode Selection Guide

123456789
VGA/SVGA Multi • • • •
640x480 • • • •
832x624 • • • •
1024x768 @ 75Hz • • • •
1152x870 •••• ••
Multisync-832 • • • • • •
Multisync-1024 • • • • •
Multisync-1280 • • • • •

•: On
#7: Composite Sync #8: Horizontal Sync #9: Vert Sync

Table 5: Liberty Lite Switch Settings

For computers such as the Macintosh 7500 or 8500 that use composite
sync for the external monitor, set switch 7 to On and switches 8 and 9 to
Off.

30 English

Advanced Configuration

Macintosh computers use several methods to connect to an external
monitor or projector. The following paragraphs describe the different
models and methods used as of this printing.

Macintosh

PowerBook Series

140, 145, 145B,

150, 170

Macintosh

PowerBook Series

200, 230, 250,

280, 2300

Macintosh

PowerBook 5300

These do not include video out support. Contact a third-party supplier for
an interface adapter for these computers.

The following companies supply the necessary adapters:

• Power-R Corporation 1-800-729-6970

• Griffin Technologies 1-800-255-0990

• Enhance Cable Technologies 1-800-343-2425

• Novaid Tower Company 1-800-255-0990

These systems must be connected to a docking station. The docking
station has the external video out port that allows connection to the
projector.

The PowerBook 5300 uses a Processor Direct Slop (PDS) to implement
external video. This card provides an external connection for video at the
back of the computer . It provides resolutions up to 832x624 at 256 colors.

All 5300 series PowerBooks require a video adapter cable to connect to an
external display. The part number is M3927LL/A*. For more
information, call your local Macintosh dealer.

Macintosh

PowerBook Series

160, 165, 180,

185, 500, 520, 540

The 5300ce provides SVGA (800x600) at thousands of colors for the
internal display only . The external display is limited to 256 colors unless a
third-party video card has been installed.

These systems use Macintosh Video Mirroring to send an image to an
external monitor or projector.

To set up these systems:
1 Connect the Macintosh video cable supplied with your PowerBook to

its external video out port.

2 Connect the switchable Macintosh adapter to the PowerBook video

cable.
3 Connect the VGA cable to the Macintosh Adapter.
4 Connect the other end of the VGA cable to the projector.
5 Turn on the projector.
6 Turn on the Macintosh PowerBook.
7 From the Macintosh PowerBook desktop Apple symbol, choose Control

Panel.

English 31

Advanced Configuration

8 Choose Monitors in the Control Panel. Within the Monitors Setup

screen you will see two center squares. They represent the internal

display and the external monitor or projector. Each square has a

number . The number 1 represents the primary display and the number

2 represents the secondary display.
9 The primary display square (1) contains a small menu bar. Drag this

square to the secondary display square (2). You may also need to drag

the Happy Macintosh icon onto the desired monitor. To see the Happy

Macintosh icon, hold down the Option key while the Monitor’s Control

Panel is open. This change will switch the primary display (1), to the

secondary display (2), activating the external video port and sending

video to the projector.
Note: Y ou may need to restart the Macintosh PowerBook for the changes

to take effect.

Macintosh

PowerBook 1400

Macintosh

PowerBook 3400

and G3

Activating the
Laptop External
Video Port

The PowerBook 1400 uses the “Monitors and Sound” Control Panel.
When the Macintosh PowerBook computer recognizes a second monitor or
projector, the “Monitors and Sound” Control Panel contains an Arrange
button.

To use the Mirroring feature:
1 Click on Arrange. A window below it shows an icon representing each

monitor.
2 Drag one icon on top of the other.

The PowerBook 3400 and G3 have a standard DB9/15 VGA connector
built into the backplane for an external video monitor or projector. It is
capable of resolutions up to 1024x768. There is no Video Mirroring
Control Panel. The mode of display called Simulscan can only display
800x600 at 60Hz (refresh rate) simultaneously. If the external monitor
has any other resolution or refresh rate, the external monitor will be the
only display available.

Most laptop computers have a method for activating the VGA external
video port.

To activate the VGA port on IBM-compatible laptop personal computers,
use the function (Fn) key on the computer’s keyboard with one of the
regular function keys (for example, hold down the Fn key while pressing
F12). Some laptop computers need to be rebooted to allow the computer
to check for an attached external monitor, and then activate the external
port.

32 English

The following table describes, by computer manufacturer , how to activate
the external video port. Some manufacturers have several models that
require different activation methods; those methods are listed.

Advanced Configuration

On some laptop computers, you need to use a separate setup menu to
activate the external video port.

Computer

Manufacturer

Acer Ctrl-Alt-Esc (for Setup menu)

Fn-F5

AST Fn-F5

Fn-D
Fn-F1
Fn-F12
Ctrl-Fn-D

Ctrl-D
AT&T Fn-F6
Austin Ctrl-Alt-Shift
Altima Shift-Ctrl-Alt-C
Ambra Ctrl-Alt-Esc (for Setup menu)
Amrel Shift-Ctrl-D (for Setup menu)
AMS Fn-F2
AMT Setup Screen Display Mode select CRT
Award Fn-F6

Port Activation Keys

BCC Automatic when computer is booted
Bondwell LCD/CRT options after computer is booted
Canon Fn-F6

Fn-F7

Setup menu

Select CRT in CMOS
Chaplet Setup menu
Chembook Fn-F6
Commax Ctrl-Alt-#6
Compaq Fn-F4

Ctrl-Alt-<
CompuAdd Fn-F3 (for Setup menu)

Alt-F (for Setup menu)
Compudyne Ctrl-Shift D

Setup Screen

Fn-F8
Data General Ctrl-Alt-Command
Datavue Ctrl-Shift-M

English 33

Advanced Configuration

Computer

Manufacturer

DEC Fn-F5

Fn-F4
Dell Ctrl-Alt-F10

Ctrl-Alt-<

Fn-F12

Fn-F8

Fn-D
Dolch Set DIP switch to CRT before the computer is

booted
Epson Set DIP switch to CRT when the computer is booted

Automatic

Setup Icon

Fn-F10
Everex Setup Screen
For-A Ctrl-Alt-Shift-C
Fujitsu Fn-F10
Gateway Fn-F1

Fn-F5

Fn-F3

Port Activation Keys

Grid Fn-F2 (for Setup menu)

Automatic

Ctrl-Alt-Tab
Hitachi Fn-F12

Fn-F7
Honeywell Fn-F10
Hyundai Setup screen
Hewlett-Packard Automatic when computer is booted

Fn-F5
IBM Fn-F7

Fn-F1 (for Setup menu)

Ctrl-Alt-S

Automatic when computer is booted
Infotel Fn-F12
Jetbook Fn-F6
Kaypro Automatic when computer is booted
Kris Tech Fn-F8
Keynote Fn-F7

34 English

Advanced Configuration

Computer

Manufacturer

Leading Edge Fn-T
Macintosh See “Macintosh Issues” on page 30.
Magitronic Fn-F4
Mastersport Fn-F2
Micro Express Automatic when computer is booted
Micron Fn-F2
Microslate Automatic when computer is booted
Midwest Micro Fn-F11
Mitsubishi SW2 on-off-off-off
NCR Setup screen
NEC Setup screen

Fn-F2

Fn-F3

Fn-F10
Olivetti Automatic when computer is booted

FN-O

Port Activation Keys

Packard Bell Fn-F0

Ctrl-Alt-<
Panasonic Fn-F2
ProStar Ctrl-Alt-S (when computer is booted)

Fn-F6
Sager Fn-F6

Fn-F9
Samsung Fn-F4

Fn-F6

Setup screen with DIP switch #10 on
Sanyo Setup screen
Sharp Automatic when computer is booted

Fn-F5

DIP switch to CRT
Sun Sparc Ctrl-Shift-M
Tandy Ctrl-Alt-Insert

Setup screen
Tangent Fn-F5

English 35

Advanced Configuration

Computer

Manufacturer

Texas Instruments Setup (on keyboard)

Ctrl-Alt-Setup

Ctrl-Alt-Esc

Control Panel-TIsetup-Sys config-

display device, LCD/CRT

Fn-F10

Fn-F12
Top Link Setup screen

Fn-F6
Toshiba Fn-F5

Fn-F6

Ctrl-Alt-End

Fn-End

Tsetup Utility

Automatic when computer is booted
Twinhead Fn-F5

Fn-F7

Automatic when computer is booted
Winbook Ctrl-Alt-F10

Fn-F10

Fn-F6

Fn-F12

Port Activation Keys

Wyse Software driver
Zenith Fn-F10

Fn-F2

Fn-F1

Fn-F7
Zeos Ctrl-Shift-D

Fn-F1

Table 6: External Video Port Activation Keys

36 English

Maintaining the Projector

This section explains how to replace the lamp module and clean the
projector dust filters.

Maintaining the Projector

Replacing the
Lamp Module

To replace the lamp module:
1 Press the catch on the lamp door to release the lamp door.
2 Lift out the lamp door.
3 Grasp the wire bale and remove the lamp module.

Lamp door catch

Wire bale

Replacement lamp module

Cleaning the Dust
Filters

Figure 31: Replacing the Lamp Module

4 Insert the replacement lamp module.
5 Replace the lamp door.
6 Turn on the projector.
7 Use the Reset Lamp Timer option in the Service menu to reset the

lamp life counter.

The Polaview 330 LCD projector has two dust filters to protect the optical
components and electronics. The best procedure for cleaning the filters is
to use a vacuum cleaner from the outside of the filter covers. If the filters
need a more thorough cleaning or replacement, follow these procedures.

English 37

Maintaining the Projector

Back Filter To clean the back filter:

1 Remove the three retaining screws located on the back of the projector.

Rear filter cover

Retaining

screws

Figure 32: Replacing the Back Filter

2 Lift and remove the rear filter cover.
3 Remove the foam filter from the filter cover.
4 Clean the foam filter with soap and water, rinse, and dry thoroughly.
5 Replace the filter in the filter cover and reinstall it in the projector.

Bottom Filter To clean the bottom filter:

1 Remove the four retaining screws located on the bottom of the

projector.

Figure 33: Replacing the Bottom Filter

2 Remove the bottom filter cover.
3 Use a vacuum cleaner to remove dust from the exposed filter.
4 Replace the bottom filter cover.

Retaining

screws

Bottom filter cover

Retaining

screws

38 English

Troubleshooting

This section outlines problems you might encounter while using the
projector and tells you how to solve them.

Warning: Except to replace the lamp or dust filter, do not attempt to

If you need technical help with the projector:
1 Check the table below to see if you can solve the problem.
2 Call your dealer’s technical support line and explain your problem.
3 Call Polaroid Corporation. Refer to the listing of Polaroid offices and

Maintaining the Projector

open the projector cabinet to service it yourself. Doing so will
subject you to dangerous voltages and other hazards.

service centers on page 41.

Problem Solution

When using a laptop, only
the logo or blank screen is
projected.

The projected image has ver­tical lines or vertical shaded
areas in the background.

• Check that you have activated the video
output port on the laptop computer. The
logo will only appear if there is no signal
present on the computer or video input. See
“Activating the Laptop External Video
Port” on page 32.

• Activate the external port on Macintosh
computers by opening the Macintosh Con­trol Panel and selecting Video Mirroring.
See “Macintosh PowerBook Series 160, 165,
180, 185, 500, 520, 540” on page 31.

The frequency of the projector does not match
the frequency of the computer.

1 Press the Menu button on the remote con-

trol or on the projector keypad.
2 Select Picture from the menu.
3 Select Frequency from the menu.
4 Use the up and down direction keys on the

remote control or on the projector keypad

to adjust the frequency until the vertical

lines and/or shaded areas disappear.

Tip: On a PC that is running W indows 95,

use the Shut Down screen to adjust
the frequency. To display this screen,
click on the Start button in the lower
left-hand corner of the screen. Click
on Shut Down. When you finish the
Frequency adjustment, click on No to
return to the display screen.

English 39

Maintaining the Projector

Problem Solution

When viewing text on the
projected image, some of the
characters seem darker or
thicker than others.

The image is noisy in video
mode.

The image lacks red, blue, or
green color.

The bottom of the projected
image is straight but the top
is crooked.

The remote control does not
work correctly.

The frequency of the projector does not match
the frequency of the computer.

1 Press the Menu button on the remote con-

trol or the keypad on the projector.
2 Select Picture from the menu.
3 Select Frequency from the menu.
4 Use the left and right direction keys on the

remote control or on the projector keypad

to adjust the frequency up or down until all

of the text characters are the same.
Use a continuity tester to check for poor or

open ground on the video cable.
Check the contrast adjustment. Also, check

the VGA cable for broken or bent pins.
Align the projector so that it directly faces the

screen. See “Leveling the Image” on page 13.

Check that the IR (infrared) window on the
front of the projector is not blocked. Check
that the red power LED is energized when any
button is pushed. If not, check the batteries in
the remote control.

The projected image is rolling
vertically or horizontally.

Check for broken or bent pins on the VGA
cable. The problem may also be related to the
computer refresh rate. The projector is able to
synchronize with a refresh rate between

55.378 and 85Hz. Any refresh rate outside
these limits will cause problems with the pro­jected image. Check the refresh rate of the
computer and adjust it if necessary.

Table 7: Troubleshooting Procedures

40 English

Polaroid Offices
and Service
Centers

Maintaining the Projector

Country Address

Australia Polaroid Australia Pty. Ltd.

13–15 Lyonpark Road
P.O. Box 163
North Ryde, N.S.W. 2113
Tel.: [phone]
Fax: [phone]

Belgique/België Polaroid (Belgium) N.V.–S.A.

Rue Colonel Bourg 111
Kolonel Bourgstraat 111
1140 Bruxelles–1140 Brussel
Tel.: [phone]
Fax: [phone]
Toll free: 32 78 155 905

Brasil Polaroid do Brasil Ltda.

Av. Paulista, 1776–11º andar
Cerqueira Cesar
São Paulo–Capital
01310-921
Tel.: [phone]
Fax: [phone]

288.6521

287.5393

Canada Polaroid Canada Inc.

350 Carlingview Drive
Etobicoke, Ontario M9W 5G6
Toll free: 1-800-268-6970

Danmark Polaroid a.s.

Blokken 75
3460 Birkerød
Tlf.: 42 81 75 00
Fax: [phone]

Deutschland Polaroid GMBH

Sprendlinger Landstrasse 109
63069 Offenbach
Tel.: [phone]
Fax: [phone]

España Polaroid (España), S.A

Calle Orense, 16
2a planta
28020 Madrid
Tno: 34-1-597.02.52
Fax: [phone]

English 41

Maintaining the Projector

Country Address

France Polaroid (France) S.A.

12 Bis Ave. Gay Lussac
La Clef de Saint-Pierre, B.P. 7
78996 Elancourt Cédex
Tel.: [phone]
Fax: [phone]

Hong Kong Polaroid (Far East) Ltd.

32/F Windsor House
311 Gloucester Road
Causeway Bay
Tel.: [phone]
Fax: [phone]

Italia Polaroid (Italia) S.p.A.

Via Piave 11
21051 Arcisate (Varese)
Tel.: [phone]
Fax: [phone]

Japan Nippon Polaroid

Kabushiki Kaisha
Mori Building No. 30
Toranomon 3-2-2
Minato-ku
Tokyo 105
Tel.: [phone]
Fax: [phone]

México Polaroid de México S.A. de C.V.

Paseo de la Reforma 195
Piso 17
C.P. 06500 México, D.F.
Tel.: [phone]
Fax: [phone]
Del interior al 91 (800) 70-727
Ventas 91 (800) 70-747

Nederland Polaroid Nederland B.V.

Zonnebaan 45
3606 CH Maarssen
PO Box 1219
3600 BE Maarssen
Tel.: [phone]
Fax: [phone]
Reparaties:
Polaroid (Europe) B.V.
Hoge Bothofstraat 45
7511 ZA Enschede
Tel.: [phone]
Tel.: [phone]

42 English

Country Address

New Zealand Polaroid New Zealand Ltd.

24-26 Anzac Avenue
Auckland
Tel.: [phone]

Norge Polaroid (Norge) A/S

Industriveien 8B,
1473 Skårer, Norway
Tlf: (47-67) 90 47 10
Fax: [phone]

Österreich Polaroid Ges.m.b.H.

Eitnergasse 5A
1231 Wien, Austria
Tel.: [phone]
Fax: [phone]

Portugal Polaroid (España) S.A.

Sucursal em Portugal
Edificio Monumental
Avenida Praia da Vitória, 71-A 4º B
1050 Lisboa
Tel.: [phone]
Fax: [phone]

Maintaining the Projector

Puerto Rico Polaroid Caribbean Corporation

Centro de Seguros
Ave. Ponce de León 701
Miramar, Santurce 00907
Tel.: [phone]
Fax: [phone]

Schweiz/Suisse/
Svizzera

Suomi Polaroid Oy

Sverige Polaroid AB

Polaroid AG
Hardturmstrasse 133
8037 Zürich, Switzerland
Tel.: [phone]
Fax: [phone]

Sinikalliontie 10
02630 Espoo
Tel.: [phone]
Fax: [phone]

Ekholmsvägen 34
Box 204
127 24 Skärholmen
Tel.: [phone]
Fax: [phone]

English 43

Maintaining the Projector

Country Address

U.K. Polaroid (U.K.) Ltd. &

Polaroid Export Operations
Wheathampstead House
Codicote Road
Wheathampstead
Hertfordshire AL4 8SF U.K.
Tel: [phone]
Freefone: (800) 010119

U.S.A. Polaroid Corporation

Technical Assistance
Tel.: Toll free 1-800-432-5355
Call for the nearest Polaroid location

Table 8: Polaroid Offices and Service Centers

44 English

Appendix A - Parts and Accessories

Parts

Part Part Number

Rear air filter 39-0001-1A0
Bottom air filter 39-0003-1A0
Soft nylon carrying case 91-0003
Projector/computer mouse remote control 91-0001-000
PS2 remote mouse adaptor 91-0006
ADB mouse adaptor 91-0005
Macintosh monitor adaptor 91-0004
AC power cord - North America 22-0005-000
AC power cord - Europe 22-0012-000

Appendix A - Parts and Accessories

Accessories

AC power cord - UK 22-0015-000
Remote mouse computer/projector interface cable 22-0010

3.5mm composite video/stereo audio cable 22-0009
RCA cable 22-0008
S-video signal cable 22-0007
VGA video signal cable 22-0006
15-pin HD gender changer 91-0007-000
Polaview 330 Tools diskette 92-0003-000
Polaroid Polaview 330 LCD Projector User’s Guide PW-20287M-0
Quick Reference card PW-20287Q-0
Registration card PW-20287R-0

Table 9: Parts List

Accessory Part Number

PV330 ATA case with wheels 627193
PV330 Interlink RemotePoint Cordless Mouse 627194
PV330 Spare lamp assembly 627237

Table 10: Accessories List

English 45

Appendix B - Specifications

Appendix B - Specifications

Computer Compatibility IBM-compatible computers

Video Compatibility NTSC-M/N/4.43

Audio Built-in stereo audio system with two internal 3

Number of colors 16.7 million
Display type 3-panel polysilicon LCD
Display format SXGA (with compression)

Apple Macintosh computers

PAL-M/N/B/D/G/H/IK/L
SECAM (B,D,G,K,K1,L)
Composite and S-Video

watt amplifiers and speakers.

XGA (1024x768)
SVGA (800x600) resized to XGA

VGA (640x480) resized to XGA
Contrast ratio 150 to 1
Lens zoom ratio 1.4 to 1
Light source 120 watt Ultra High Pressure Lamp
Lamp life 2000 hours
Brightness 700 lumens
Horizontal frequency 24.366 - 70 kHz
Vertical frequency 55.378 - 85.000 Hz
Cooling Internal fans and ventilation
Electrical supply AC 110/220V, 50 to 60 Hz
Power consumption 200 watts
Temperature Ambient operating 50 ˚F to 89.6˚F (10˚C to 32˚C)

Ambient storage -4˚F to 140˚F (-20˚C to +60˚C)

Dimensions 14 x 11 x 5 inches (35.56 cm x 27.94 cm x 12.7

cm)
Weight 13 lbs. (5.9 kilograms)

46 English

Table 11: Specifications

Appendix C - Notices, Warranties, Safety Precautions

Appendix C - Notices, Warranties, Safety Precautions

Notices The information in this document is subject to change without prior

notification for the sake of improving reliability, design and function.
This document contains proprietary information that is protected by

copyright laws. All rights are reserved. No part of this manual may be
reproduced by any mechanical, electronic, or other means in any form
without obtaining prior written permission from the developer.

All brand or product names are trademarks or registered trademarks of
their respective companies.

Personal computers and computer software referred to in this manual are
not included with this unit.

FCC Statement Warning: This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance
with the instruction manual, may cause interference to radio
communications. It has been tested and found to comply with
limits for a Class “A” computing device pursuant to Subpart
B of Part 15 of the FCC Rules, which are designed to provide
reasonable protection against such interference when
operated in a commercial environment. Operation of this
equipment in a residential area is likely to cause interference
in which case the user , at his own expense, will be requir ed to
take whatever measures may be necessary to correct the
interference.

Warning: Changes or modifications to this unit not expressly approved

by Polaroid could void the user’s authority to operate the
equipment.

Canadian Notice This digital apparatus does not exceed the Class A limits for radio noise

emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de la classe A
prescrites dans le Règlement sur le brouillage radioélectrique edicté par le
ministère des Communications du Canada.

European Notice Warning: This is a Class A product. In a domestic environment this

product may cause radio interference in which case the user
may be required to take adequate measures. The “CE” mark
certifies that this product satisfies the requirements of the EU
(European Union) regarding safety, public health,
environment and consumer protection. (“CE” is the
abbreviation of Conformité Européenne.) This product is in

English 47

Appendix C - Notices, Warranties, Safety Precautions

conformity with the following directives: 73/23/EEC, low
voltage directive; 89/33/EEC, EMC directive; 93/68/EEC,
“CE” marking directive.

Declaration of
Conformity for
U.S.A

Model Number: PV330
Trade Name: Polaroid
Responsible Party: Polaroid Corporation
Address: 784 Memorial Drive

Cambridge, MA 02139

Telephone Number: 1-800-343-5000

This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:

1 This device may not cause armful interference, and
2 This device must accept any interference received, including

interference that may cause undesired operation.

Declaration of
Conformity

Model Number: PV330
Trade Name: Polaroid
Responsible Party: Polaroid (Europa) BV
Address: Hoge Botofstraat 45 7511 ZA

Enschede, The Netherlands

Telephone Number: 31-53-486-5050

This device complies with the following directives and standards:
89/336/EEC
EN50081-1
EN55022 - (Class A) IT equipment emissions EN50082-1
IEC801-2
IEC801-3
IEC801-4

48 English

73/23/EEC
EN60950 - Safety of IT Equipment

Appendix C - Notices, Warranties, Safety Precautions

Warranties Polaroid Corporation warrants your Polaview Projector equipment

against defects in manufacture for a period of one year from the date of
purchase. To verify the warranty period, you should keep the sales slip or
other proof of the purchase date.

Should this product, or any component or accessory included with it,
become defective at any time during the warranty period, Polaroid
Corporation will, at its discretion, either replace or repair this item,
without charge, provided the product is returned to a designated servicing
location (prepaid and insured). To ship the unit, pack the carrying case in
the original carton or equivalent, with plenty of padding.

This Limited Warranty does not apply to product damage resulting from
accident, incorrect installation, unauthorized modification, misuse or
abuse.

U.S.A. and Canada Before you return your equipment for repair, please call Polaroid

Electronic Imaging Technical Support from within the U.S.A. at 1-800­432-5355, Monday through Friday, 8 a.m. to 8 p.m., Eastern Time. In
Canada, call 1-800-268-6970. We can help you determine what is at
fault, and advise you on how and where to get service in the quickest and
most convenient way.

Outside the U.S.A.

and Canada

THIS WARRANTY EXCLUDES ALL INCIDENTAL AND
CONSEQUENTIAL DAMAGES. ALL EXPRESSED OR IMPLIED
LIABILITY FOR THIS EQUIPMENT INCLUDING BUT NOT LIMITED
TO THE IMPLIED WARRANTY OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN
DURATION TO THE ONE-YEAR WARRANTY PERIOD.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR THE
DURATION OF IMPLIED WARRANTIES SO THE ABOVE
LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES
YOU SPECIFIC LEGAL RIGHTS, AND YOU MA Y ALSO HA VE OTHER
RIGHTS WHICH MAY VARY FROM STATE TO STATE.

THIS WARRANTY EXCLUDES ALL INCIDENTAL AND
CONSEQUENTIAL DAMAGES AND DOES NOT AFFECT YOUR
STATUTORY RIGHTS.

Note: No user-serviceable parts inside, with the exception of the lamp

and air filter which can be replaced as described in this manual.
Attempts to modify mechanical or electronic parts inside will void
your warranty, and may be hazardous.

English 49

Appendix C - Notices, Warranties, Safety Precautions

Safety
Precautions

To prevent accidents caused by improper handling or operation, please
take note of the following precautions.

Be careful when handling UHP lamps.
There is a serious risk of eye damage from the intense illumination

provided by the UHP lamp. Avoid direct viewing or unprotected viewing
back into the projection lens.

While operating, UHP lamps are under very high internal pressure.
Even after you turn off the lamp, the pressure remains high until the lamp
cools down. At room temperature the internal pressure drops to about one
atmosphere.

Handle the UHP lamp by the metal parts only. Do not get fingerprints on
the glass of the lamp. This could adversely affect its operation. If
fingerprints get on the glass, clean it with alcohol and a clean, lint free
cloth or tissue. Clean the lamp before turning it on. A hot lamp will etch
the fingerprint permanently into the glass and affect performance.

Do not attempt to repair the product yourself. Opening the case may
expose the user to dangerous voltage or other hazards.

Keep the product away from dirt and dust, and periodically wipe its
surface with a soft, dry cloth. You can remove stubborn marks by using a
soft cloth moistened with a mild detergent.

Avoid condensation that is caused by moving the projector from a cold
environment to a warm, humid environment. If condensation occurs,
allow the projector to dry out completely before powering it up.

If the product will not be in use for a long period of time, disconnect the
power plug from the AC outlet.

Avoid using the product under the following conditions:

• Extremely hot, cold or humid environments

• Areas susceptible to dust

• Near an appliance that generates a strong magnetic field

• In direct sunlight

50 English

Index

Index

Numerics

800 number for Technical Support, 49

A

AC power

connecting
specifications, 46

Accessories and parts, 45
Adapters

Macintosh computers
remote mouse, 45

Adjusting

for room lighting
image height, 12
image size, 10

Alignment problems, 40
Audio

connecting

specifications, 46
Audio In connector, 6
Audio Menu options, 19
Audio Out connector, 6

, 2

, 30

, 22

, 6

B

Back filter, cleaning/replacing, 37
Balance feature, 20
Bass, controlling, 20
BIOS, changing, 30
Blank screen, 39
Bright Room, 22
Brightness

adjusting

specifications, 46
Bulb, replacing light, 37
Buttons

Arrange

Change Driver, 29

On/Standby, 14

remote control, 15

, 22

, 32

C

Cables

monitor, connecting

parts and accessories, 45

stereo audio, 6

VGA, connecting, 5

, 3, 5

Canadian notice, 47
Care and use precautions, 50
Ceiling Mount, controlling, 24
Characters, dark, 40
Cleaning precautions, 50
Cleaning/replacing filters, 37
Color specifications, 46
Colors, poor, 40
Composite

inputs

, 1, 46

video cable, 46
Composite video, as input signal source, 23
Compressed image, 3
Compression

enable, disable
Computer

activating external video port

as input signal source, 23

compatibility, 1, 46
Computer In connection, 3, 5
Configuration problems, 39
Configuring remote mouse, 28
Connecting

audio

, 6

Computer In, 3, 5

Macintosh computers, 4, 5, 30

Monitor Out, 3

personal computers, 3, 4, 5

power, 2

remote mouse, 7

VGA cable, 5
Contrast ratio, 46
Contrast, adjusting, 21
Control, remote, 15
Cooling specifications, 46
Copyright information, 47
Cords, 45
Crooked display, 40
Cropped image, 3
Curtain Style

adjusting, menu
Custom logo, 24
Custom Modes Menu options, 25
Custom Startup Logo, installing, 28

, 24

, 32

, 24

English 1

Index

D

Dark characters, 40
Dark Room, 22
Dimensions of projector, 46
DIP switches, setting, 5, 30
Display

crooked
formats, 3, 46
noisy in video mode, 40
poor colors, 40
problems, 39, 40
specifications, 46
switch settings, 30

Displaying

lamp life
projector usage, 27

test pattern, 27
Drivers, mouse, 28
Dust filters, cleaning/replacing, 37

, 40

, 27

E

Electrical specifications, 46
Elevator foot, 12
Elevator Foot Release, 12
Environment specifications, 46
European notice, 47
External speakers, connecting to, 6
External video port, activating, 32

I

IBM-compatible computers. See Personal com-

puters
Icon, Happy Macintosh

compressed
focus, 10
height, 12
leveling, 13
reversing, 24
rolling, 40

size, 10
Image compression, enabling or disabling, 24
Image height, adjusting, 12
Image size, adjusting, 10
Image, leveling, 13
Input signal source

computer, composite video, S-video
Installing custom startup logo, 28
Interface adapters for Macintosh computers, 31
Internal pointer, using with remote mouse, 29

, 3

, 32

, 23

J

Joystick, 15

K

Keys, port activation, 32

F

Fan specifications, 46
FCC statement, 47
Features Menu options, 23
Features of projector, 1
Filters, cleaning/replacing, 37
Flipping image, 24
Focus Ring, 10
Focus, adjusting, 10
Focusing


, 10

Frequency

adjusting
problems, 39
specifications, 46

Functions, remote control, 15

, 21

H

Happy Macintosh icon, 32
Help, getting technical, 49

L

Lamp, 14, 46

replacing, 37

specifications, 46

ultra high pressure, 1

won’t turn on, 14
Lamp life, displaying, 27
Lamp timer, resetting, 27
Language, on-screen menus, 23
Laptop personal computer, connecting to, 4
Legal notices, 47
Lens zoom ratio, 46
Leveling

feet

, 13

Foot, 13

image, 13
Light bulb, replacing, 37
Light source specifications, 46
Linear Stereo, 20
Lines, vertical in background, 39
Live state, 14

2 English

Index

Logo

choosing startup
custom, 24, 28
default, 24
off, 24
startup, 9

, 24

M

Macintosh computers, connecting to, 4, 30
Main menu, use of Reset, 19
Maintaining projector, 37
Manufacturers, activate external video port, 32
Menus, 18–27
Message, Will Shut Down In..., 14
Microsoft PowerPoint®, problem using remote

mouse

Mirroring option, 31
Monitor cable, connecting, 3, 5
Monitor Out, connecting, 3
Mono, 20
Mouse, remote, 7, 28
Multisync switch settings, 30
Mute feature, 20

, 30

N

Noisy display in video mode, 40
Normal room, 22
Notices, legal, 47
NTSC, 1, 46

O

On/Standby button, 14, 15
On-screen menus, language choices, 23
Operating

specifications
states, 14

, 46

P

PAL, 1, 46
Parts and accessories, 45
Personal computers

activating external video port
connecting to, 3, 4, 5

Picture Menu options, 20
Polaroid Polaview 330 LCD projector. See Pro-

jector

Polaroid Technical Support
Poor display quality, 40
Port, activating external video, 32

, 32

, 49

Portable Macintosh computer, connecting to, 5
Power

connecting

specifications, 46
Powered external speakers, connecting to, 6
Powering up the projector, 9
PowerPoint®, problems with, 30
Precautions, safety, 50
Problems

PowerPoint®

projector, 39
Processor Direct Slot (PDS), 31
Projecting images

from behind screen

from upside down ceiling mount, 24
Projector

alignment problems

audio, connecting, 6

cleaning precautions, 50

connecting to Macintosh computers, 4, 30

connecting to personal computer, 3, 5

dimensions, 46

features, 1

filters, cleaning/replacing, 37

focus, adjusting, 10

image height, adjusting, 12

image level, adjusting, 13

image size, adjusting, 10

lamp, 1, 37

legal notices, 47

Macintosh issues, 30

maintaining, 37

operating states, 14

parts and accessories, 45

powering up, 9

safety precautions, 50

setting up, 28, 30

troubleshooting, 39

warranties, 49
Projector life, displaying, 27
Projector usage, displaying, 27
Pseudo Stereo, 20

, 2

, 30

, 24

, 40

Q

Quality problems with display, 39

R

Ratio specifications, 46
Rear Projection, controlling, 24

English 3

Index

Remote control, 15, 40
Remote mouse

configuring
connecting, 7
problem using Microsoft PowerPoint®, 30
using with internal pointer, 29

Replacing lamp module, 37
Reset

use on main menu

use on submenu, 19
Resetting lamp life timer, 27
Resolution, setting, 3
Reversing image, 24
Room Light menu, 22
Room lighting, adjusting for, 22

, 28

, 19

S

Safety precautions, 50
Screen, blank, 39
SECAM, 1, 46
Service Menu options, 26
Setting

DIP switches

up projector, 28, 30
Sharpness, adjusting, 22
Slanted display, 40
Sleep state, 14
Source Menu options, 22
Spare parts, 45
Spatial Stereo, 20
Standby state, 14
Startup logo, 9

menu, 24

selecting, 24
Startup pending state, 14
Start-up sequence, and selections in projector

system menus

States, operating, 14
Stereo audio

connecting

specifications, 46
Stereo Mode menu, 20
Storage specifications, 46
Submenu, use of Reset, 19
SVGA

DIP switch settings

display format, 46
S-video

compatibility

, 5, 30

, 9

, 6

, 30

, 1, 46

specifications, 46
S-video, as input signal source, 23
SXGA display format, 3, 46

T

Technical Support, 49
Temperature specifications, 46
Test pattern, displaying, 27
Tint, adjusting, 22
Tracking, adjusting, 21
Treble, controlling, 20
Troubleshooting, 39

U

Ultra high pressure lamp, 1

V

Vertical lines in background, 39
VGA

cable problems

cable, connecting, 5

DIP switch settings, 30

display format, 46

port, activating, 32
Video

card, PDS

compatibility, 1, 46

out for Macintosh PowerBooks, 31

port, activating external, 32

problems, 40

specifications, 46
Video Mirroring, 31
Volume, controlling, 20

, 40

, 31

W

Warnings, 50
Warranties, 49
Weight of projector, 46
Will Shut Down In... message, 14

X

XGA display format, 1, 3, 46

Z

Zoom Ring Tab, 10
Zoom, lens ratio, 46

4 English
