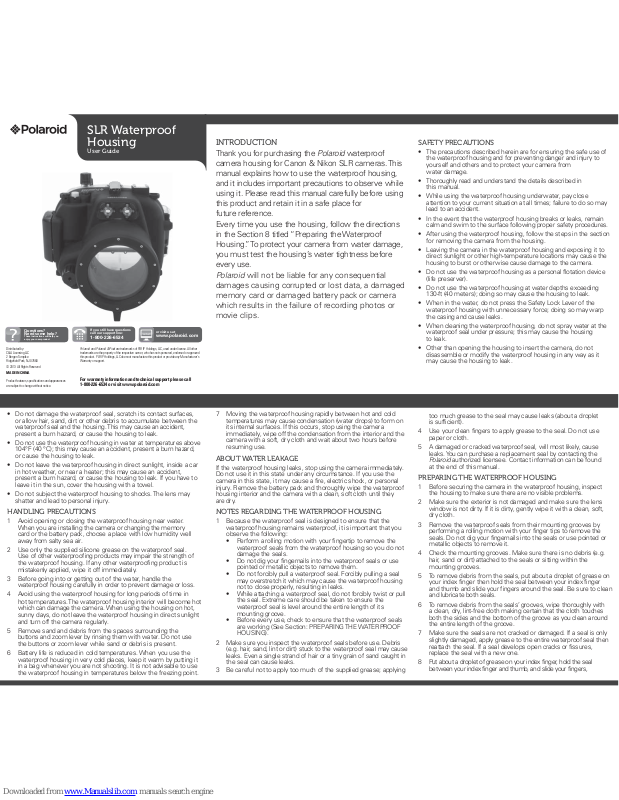

Page 1
SLR Waterproof
Housing
User Guide
Polaroid and Polaroid & Pixel are trademarks of PLR IP Holdings, LLC, used under license. All other
trademarks are the property of the respective owner, who has not sponsored, endorsed or approved
this product. PLR IP Holdings, LLC does not manufacture this product or provide any Manufacturer’s
Warranty or support.
For warranty information and technical support please call
1-800-226-6534 or visit www.polaroid.com
Questions?
Need some help?
These instructions will help you
enjoy your new product
If you still have questions
call our support line:
1-800-226-6534
or visit us at
www.polaroid.com
Distributed by:
C&A Licensing LLC
2 Bergen Turnpike
Ridgefield Park, NJ 07660
© 2013 All Rights Reserved
MADE IN CHINA
Product features, specifications and appearances
are subject to change without notice.
INTRODUCTION
Thank you for purchasing the Polaroid waterproof
camera housing for Canon & Nikon SLR cameras. This
manual explains how to use the waterproof housing,
and it includes important precautions to observe while
using it. Please read this manual carefully before using
this product and retain it in a safe place for
future reference.
Every time you use the housing, follow the directions
in the Section 8 titled “Preparing the Waterproof
Housing.” To protect your camera from water damage,
you must test the housing’s water tightness before
every use.
Polaroid will not be liable for any consequential
damages causing corrupted or lost data, a damaged
memory card or damaged battery pack or camera
which results in the failure of recording photos or
movie clips.
SAFETY PRECAUTIONS
• The precautions described herein are for ensuring the safe use of
the waterproof housing and for preventing danger and injury to
yourself and others and to protect your camera from
water damage.
• Thoroughly read and understand the details described in
this manual.
• While using the waterproof housing underwater, pay close
attention to your current situation at all times; failure to do so may
lead to an accident.
• In the event that the waterproof housing breaks or leaks, remain
calm and swim to the surface following proper safety procedures.
• After using the waterproof housing, follow the steps in the section
for removing the camera from the housing.
• Leaving the camera in the waterproof housing and exposing it to
direct sunlight or other high-temperature locations may cause the
housing to burst or otherwise cause damage to the camera.
• Do not use the waterproof housing as a personal flotation device
(life preserver).
• Do not use the waterproof housing at water depths exceeding
130-ft (40 meters); doing so may cause the housing to leak.
• When in the water, do not press the Safety Lock Lever of the
waterproof housing with unnecessary force; doing so may warp
the casing and cause leaks.
• When cleaning the waterproof housing, do not spray water at the
waterproof seal under pressure; this may cause the housing
to leak.
• Other than opening the housing to insert the camera, do not
disassemble or modify the waterproof housing in any way as it
may cause the housing to leak.
HANDLING PRECAUTIONS
1 Avoid opening or closing the waterproof housing near water.
When you are installing the camera or changing the memory
card or the battery pack, choose a place with low humidity well
away from salty sea air.
2 Use only the supplied silicone grease on the waterproof seal.
Use of other waterproofing products may impair the strength of
the waterproof housing. If any other waterproofing product is
mistakenly applied, wipe it off immediately.
3 Before going into or getting out of the water, handle the
waterproof housing carefully in order to prevent damage or loss.
4 Avoid using the waterproof housing for long periods of time in
hot temperatures. The waterproof housing interior will become hot
which can damage the camera. When using the housing on hot,
sunny days, do not leave the waterproof housing in direct sunlight
and turn off the camera regularly.
5 Remove sand and debris from the spaces surrounding the
buttons and zoom lever by rinsing them with water. Do not use
the buttons or zoom lever while sand or debris is present.
6 Battery life is reduced in cold temperatures. When you use the
waterproof housing in very cold places, keep it warm by putting it
in a bag whenever you are not shooting. It is not advisable to use
the waterproof housing in temperatures below the freezing point.
ABOUT WATER LEAKAGE
If the waterproof housing leaks, stop using the camera immediately.
Do not use it in this state under any circumstance. If you use the
camera in this state, it may cause a fire, electric shock, or personal
injury. Remove the battery pack and thoroughly wipe the waterproof
housing interior and the camera with a clean, soft cloth until they
are dry.
NOTES REGARDING THE WATERPROOF HOUSING
1 Because the waterproof seal is designed to ensure that the
waterproof housing remains waterproof, it is important that you
observe the following:
• Perform a rolling motion with your fingertip to remove the
waterproof seals from the waterproof housing so you do not
damage the seals.
• Do not dig your fingernails into the waterproof seals or use
pointed or metallic objects to remove them.
• Do not forcibly pull a waterproof seal. Forcibly pulling a seal
may overstretch it which may cause the waterproof housing
not to close properly, resulting in leaks.
• While attaching a waterproof seal, do not forcibly twist or pull
the seal. Extreme care should be taken to ensure the
waterproof seal is level around the entire length of its
mounting groove.
• Before every use, check to ensure that the waterproof seals
are working (See Section: PREPARING THE WATERPROOF
HOUSING).
2 Make sure you inspect the waterproof seals before use. Debris
(e.g. hair, sand, lint or dirt) stuck to the waterproof seal may cause
leaks. Even a single strand of hair or a tiny grain of sand caught in
the seal can cause leaks.
3 Be careful not to apply too much of the supplied grease; applying
7 Moving the waterproof housing rapidly between hot and cold
temperatures may cause condensation (water drops) to form on
its internal surfaces. If this occurs, stop using the camera
immediately, wipe off the condensation from the interior and the
camera with a soft, dry cloth and wait about two hours before
resuming use.
too much grease to the seal may cause leaks (about a droplet
is sufficient).
4 Use your clean fingers to apply grease to the seal. Do not use
paper or cloth.
5 A damaged or cracked waterproof seal, will most likely, cause
leaks. You can purchase a replacement seal by contacting the
Polaroid authorized licensee. Contact information can be found
at the end of this manual.
• Do not damage the waterproof seal, scratch its contact surfaces,
or allow hair, sand, dirt or other debris to accumulate between the
waterproof seal and the housing. This may cause an accident,
present a burn hazard, or cause the housing to leak.
• Do not use the waterproof housing in water at temperatures above
104°F (40 °C); this may cause an accident, present a burn hazard,
or cause the housing to leak.
• Do not leave the waterproof housing in direct sunlight, inside a car
in hot weather, or near a heater; this may cause an accident,
present a burn hazard, or cause the housing to leak. If you have to
leave it in the sun, cover the housing with a towel.
• Do not subject the waterproof housing to shocks. The lens may
shatter and lead to personal injury.
PREPARING THE WATERPROOF HOUSING
1 Before securing the camera in the waterproof housing, inspect
the housing to make sure there are no visible problems.
2 Make sure the exterior is not damaged and make sure the lens
window is not dirty. If it is dirty, gently wipe it with a clean, soft,
dry cloth.
3 Remove the waterproof seals from their mounting grooves by
performing a rolling motion with your finger tips to remove the
seals. Do not dig your fingernails into the seals or use pointed or
metallic objects to remove it.
4 Check the mounting grooves. Make sure there is no debris (e.g.
hair, sand or dirt) attached to the seals or sitting within the
mounting grooves.
5 To remove debris from the seals, put about a droplet of grease on
your index finger then hold the seal between your index finger
and thumb and slide your fingers around the seal. Be sure to clean
and lubricate both seals.
6 To remove debris from the seals’ grooves, wipe thoroughly with
a clean, dry, lint-free cloth making certain that the cloth touches
both the sides and the bottom of the groove as you clean around
the entire length of the groove.
7 Make sure the seals are not cracked or damaged. If a seal is only
slightly damaged, apply grease to the entire waterproof seal then
reattach the seal. If a seal develops open cracks or fissures,
replace the seal with a new one.
8 Put about a droplet of grease on your index finger, hold the seal
between your index finger and thumb, and slide your fingers,
Page 2
Warranty Card
Limited Warranty: C&A Licensing LLC (”C&A”) warrants this product to the original consumer only and is not
transferable. This warranty covers products that fail to function properly UNDER NORMAL USAGE, due to
defects in material or workmanship. Your product will be repaired or replaced at no charge for parts or labor for a
period as outlined below (the “Warranty Period”) from your date of purchase. You will be responsible for shipping
the product to C&A or its authorized servicer for warranty support.
Warranty Period
1 year limited warranty: NON-CARBON FIBER TRIPODS, CARD READERS, CASES, CLEANING ACCESSORIES,
TRIGGER REMOTES, CORDS, FLASH UNITS, LED LIGHTS, BATTERY GRIPS, REPLACEMENT BATTERIES, LENS
EXTENSION TUBES, WATERPROOF ACCESSORIES
5 year limited warranty: CARBON FIBER TRIPODS, ALL TERRAIN TRIPOD, LENS CAP, WHITE BALANCE CAPS,
CAMERA FILTERS AND LENSES
What is Not Covered by Warranty
All other situations, including but not limited to damages or malfunctions not resulting from defects in material or
workmanship and damages or malfunctions from other than normal use, including but not limited to, repair by
unauthorized parties, tampering, modification or accident.
What To Do When Service Is Required
When returning your defective product (postage pre-paid) for service, your package should include:
1. Copy of original bill of sale
2. A detailed written description of the problem
3. Your return address and telephone number (Daytime)
4. The defective product
5. Mail to: C&A Licensing LLC, 2 Bergen Turnpike, Ridgefield Park, NJ 07660
-You may also visit www.polaroid.com for further assistance if necessary or call our technical support
department toll free at 1-800-226-6534
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE, AND
NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL
APPLY AFTER THE EXPRESS WARRANTY PERIOD STATED ABOVE, AND NO OTHER EXPRESS
WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR ENTITY WITH RESPECT TO THE
PRODUCT SHALL BE BINDING ON C&A. THIS WARRANTY IS THE EXCLUSIVE WARRANTY WITH
RESPECT TO THE PRODUCT AND C&A IS THE EXCLUSIVE WARRANTY PROVIDER FOR THE
PRODUCT. REPAIR OR REPLACEMENT IS THE EXCLUSIVE REMEDY OF THE CONSUMER. IN NO
EVENT WILL C&A, ITS MANUFACTURERS, DISTRIBUTORS OR PLR IP HOLDINGS, LLC BE LIABLE FOR
ANY INCIDENTAL, DIRECT, INDIRECT, SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES (SUCH
AS, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF PROFITS, BUSINESS, SAVINGS, DATA OR
RECORDS) RELATED TO THIS PRODUCT. EXCEPT AS STATED HEREIN, NO OTHER WARRANTIES
SHALL APPLY. NOTWITHSTANDING THE FOREGOING, CONSUMER’S RECOVERY AGAINST C&A
SHALL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT SOLD BY C&A. THIS WARRANTY
SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL CONSUMER WHO PURCHASED THE
PRODUCT AND IS NOT TRANSFERABLE.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow
limitations on warranties, so the above limitations or exclusions may not apply to you. This Warranty
gives you specific rights, and you may have other rights, which vary from state to state.
SPECIFICATIONS*
Maximum Depth: 130-ft (40-m)
Waterproofing: waterproof seal
Construction Materials: polycarbonate, plate glass, EPDM
rubber, steel
Filter Diameter: 55-mm
Dimensions (LxWxH): 8.66-in x 6.3-in x 6.3-in
Weight: 1. 8 7 - l b
Safe Operating Temperatures: 32°-104°-F (0-40°-C)
*Specifications subject to change without notice
around the seal so the grease is applied evenly.
9 Do not damage the seal when applying the grease.
10 Do not forcibly pull the seal when putting it in the mounting groove.
11 Close the waterproof housing without the camera inside.
12 Submerge the closed housing slowly in a tub, deep sink or large
pail filled with clean water for about 10 seconds. Remove the
housing from the water then place it underwater again for one
minute. Remove it from the water then submerge it yet again for
five minutes. During each submersion, operate the buttons
and dials.
13 Remove the housing from the water and wipe the exterior with a
soft, dry cloth. Open the housing and inspect the interior for water.
It should be dry. If water has leaked in, determine the cause by
carefully repeating all of the preceding steps in this section.
NOTE:
• When using commercially available anti-condensation products,
the anti-condensation solution should be applied only to the inside
surface of the lens window using a soft, dry cloth. If the solution
comes in contact with any other surface, wipe it off immediately
as it could lead to deterioration of the waterproof housing.
• Never clean the interior of the housing with water. Use only a
clean, soft, dry, and lint-free cloth.
• Do not allow the housing to dry in direct sunlight. This may cause
discoloration of the housing and/or the water seals to degrade.
4 If attached, remove the camera’s grip belt and the optional wrist
or shoulder strap.
5 Turn on the camera and change the camera's settings
as necessary.
6 Check that the image stabilizer is set to “Dynamic.” Refer to
advanced image stabilization in the camera's instruction manual.
7 Check that simultaneous recording is not turned off if you want
to take photos with an aspect ratio of 16:9 while you record movie
clips. Refer to the camera’s instruction manual for procedures on
taking photos while recording movies.
8 Check that the wireless controller is turned on if you want to
access menus and settings while the camera is secured in the
waterproof housing and not in the water. See “Wireless Remote
Control” under the system setup menu in the camera's
instruction manual.
9 lf necessary, adjust the LCD's brightness. See “Adjusting the
Position and Brightness of the LCD Screen in the camera's
instruction manual.
10 Turn off the camera before placing it in the waterproof housing.
NOTE:
For important details about the camera's settings and restrictions
while the recording program is set to “underwater” or “surface”,
see the “Power/Others” sections of the specifications in the camera's
instruction manual.
RECORDING MOVIES AND TAKING PHOTOS
After the camera is secured in the waterproof housing, you are ready
to start recording movies and taking photos.
1 Turn on the camera. Refer to Section 6 or 7 for parts locations.
• Press the "POWER" button.
• The ON/OFF charge indicator on the camera will light up green.
2 Make a recording
• Press "START/STOP" to begin/end recording a movie.
• Press "PHOTO" to take a photo.
• Use the wrist strap and hold the waterproof housing with
both hands. (For best stability, use the Polaroid st abilizer
mount made for this waterproof housing (available from your
Polaroid retailer).
CHANGING CAMERA SETTINGS WHEN SECURED IN THE
HOUSING
While the camera is out of water and secured in the waterproof
housing, several settings can only be accessed using the camera's
wireless controller. Make sure your hands are dry when you use the
wireless controller.
1 To switch between recording and playback mode, Press and hold
“K” on the wireless controller for more than two seconds.
2 To switch the recording program between “Underwater” and
“Surface”, turn on the camera while holding down the “PHOTO”
button.
STORING THE WATERPROOF HOUSING
1 Keep the waterproof housing open when storing it. This will
prevent the waterproof seals from deforming, ensuring that the
waterproof housing remains waterproof. Keep dust off by enclosing
it open in a plastic bag or plastic kitchen wrap.
2 Do not store the waterproof housing in hot, cold or humid places
or near substances such as naphthalene or insecticides.
3 Do not store the waterproof seals in a place in which they can
accumulate dust or become scratched.
4 If you do not plan to use the waterproof housing for over a month,
remove the waterproof seals and wipe off the grease. To wipe off
the grease, hold a seal between your index finger and thumb and
slide your fingers around the seal. Place the seals in a clean plastic
bag and make sure weight is not placed on them during storage.
Also, make sure it is not twisted when stored.
5 If using the waterproof seals after it has been in storage, make
sure they are not deformed, cracked, or otherwise damaged. If a
seal is damaged, do not use it under any circumstance. Replace it.
REMOVING THE CAMERA FROM THE WATERPROOF
HOUSING
Make sure you wash the exterior of the waterproof housing before
removing the camera.
1 Make sure the Safety Lock Lever and both Lock Buckles remain
securely latched.
2 Wash the exterior of the waterproof housing in fresh water.
To do this:
• Submerge the waterproof housing in tub of
fresh water (i.e. tap water that is 86°F/
30°C or less).
• Clean the waterproof housing by moving
it back and forth, up and down, and left
and right at least 10 times.
• During the rinsing, operate all the buttons
and dials.
3 If the waterproof housing was used in salt water, let it soak in fresh
water for several hours to remove salt deposits. If salt deposits
remain on the housing, metal parts may rust and/or push buttons
may become difficult to press.
1. Squeeze at both arrows
2. Pull outward
Push to
close
c) Pull the Safety Lock Release
(located on the right side of the
housing) in the direction of the
arrow as shown.
d) Release the Safety Lock Lever.
e) Open the housing.
To close and seal the housing:
a) Close the housing pressing the
housing halves together.
b) Using the palm of your hand, press
the Safety Lock Lever toward the
housing until it clicks into its secure
and locked position.
c) Fasten the Lock Buckles located
on the center-top and center bottom of the housing.
2 Make certain all the buttons, dials,
and zoom lever are operating correctly.
3 If any of the buttons or dials are not
operating correctly, remove the camera
from the housing and secure the camera back in
the housing in a slightly different position.
PREPARING THE CAMERA
1 Set the camera's recording program to “underwater” to ensure
your recordings have natural-looking colors with toned-down blues.
See the special scene recording procedure in the camera's
instruction manual.
2 Before using the camera underwater, make sure you save your
important recordings to a computer. See saving and sharing your
recordings in the camera's instruction manual.
3 Insert a memory card (if necessary) and attach a fully-charged
battery pack.
SECURING THE CAMERA IN THE WATERPROOF HOUSING
1 The camera must be secured in the waterproof housing before
recording underwater. Perform the following procedure to secure
the camera properly.
To open the housing:
a) Release the Lock Buckles located on the center-top and center bottom of the housing.
b) Open the waterproof housing by first looking for the the word
“OPEN” on the locking lever and squeezing the top and bottom
tabs inward as shown by the two arrows.
3 Turn off the camera
• Press the "POWER" button.
• The "ON/OFF” charge indicator on the camera will go out.
4 Remove the housing from the clean water bath and wipe the
exterior with a clean, soft, dry cloth.
5 Open the waterproof housing and remove the camera.
Loading...
