Polaroid I0312, I0313 User Manual

1300 366 144

USER MANUAL

LED TV with DVD Combo

-1-

Contents

INTRODUCTION..............................................................................1

SAFETY AND WARNINGS............................................................. 2-4

INSTALLATION.............................................................................5-8

BASE STAND ASSEMBLY INSTRUCTION..........................................5

REMOTE CONTROL................................................................

...9-10

OPERATION.............................................................................1

1-20

DVD OPERATION..................................................

....................21-23

DVD TROUBLE SHOOTING............................................................ 24

TROUBLE SHOOTING................................................................... 25

TECHNICAL SPECIFICATIONS.......................................................26

SAFETY AND WARNINGS

IMPORTANT SAFETY INSTRUCTIONS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN!

CAUTION

CAUTION

This symbol indicates that dangerous
voltages, constituting a risk of electric
shock are present within this unit.

This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.

To reduce the risk of fire or electric
shock, do not expose this product to rain
or moisture.

WARNING:

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this Television near water.

6) Clean only with a dry cloth.

7) Do not block any ventilation openings,
install in accordance with the instructions.

8) Do not install near any heat sources such
as radiators, air conditioners, stoves or
other devices (including amplifiers) that
produce heat.

9) Protect the power cord from being
walked on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the product.

10) Only use attachments/accessories
specified by the manufacturer.

11) Unplug the Television before lightning
storms or when unused for long periods of
time.

12) Refer all servicing to qualified service
personnel. Servicing is required when the
product has been damaged in any way,
such as when the power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the Television,
exposed to rain or moisture, does not
operate normally, or has been dropped.

13) The Mains plug is used as the power
disconnect device, and should remain
readily accessible and operable.

14) The ventilation should not be impeded
by covering the ventilation openings with
items such as newspapers, table-cloth,
curtains, etc.

15) No naked flame sources, such as
lighted candles, should be placed on or
near the device.

16) This device is not warranted for use in
unreasonably hot, cold, or humid

environments.

17) The Television shall not be exposed to
dripping or splashing and no objects filled
with liquids, such as vases, shall be placed
on or near the product.

This symbol indicates that this product
incorporates double insulation between
hazardous mains voltage and user
accessible parts. When servicing use only

identical replacement parts.

The batteries shall not be exposed to
excessive heat such as sunshine, fire or
the like.

WARNING:

Polaroid • I0312/I0313

-2-

This DVD Player has a Class 1 laser which
may be harmful to your eyes. Do not
attempt to disassemble the cabinet or make
any adjustments.

Refer all servicing to a qualified
professional.

CAUTION:

High voltage is used in the operation of this
television. Do not remove the rear cabinet
cover from your television set. Refer all
servicing to qualified service personnel.

To prevent fire or electrical shock hazard, do not
expose the television to rain or moisture.

Do not drop or push objects into the television
cabinet slots or openings. Never spill any kind
of liquid on the television.

Do not block the ventilation holes in the back
cover.
Adequate ventilation is essential to prevent
failure of electrical components.

Do not trap the power supply cord under the
television.

Never stand on, lean on, or suddenly push the
television or its stand. You should pay special
attention to children. Serious injury may result if it
falls.

Do not place your television on an unstable cart,
stand, shelf or table. Serious injury to an individual,
and damage to the television may result if it falls.

When the television is not used for an
extended period of time, it is advisable to
disconnect the from theAC outlet.AC power cord

Avoid exposing the television to direct sunlight
and other sources of heat. Do not stand the television
directly on other products which give off heat, e.g. video
cassette players and audio amplifiers. Do not place naked
flame sources, such as lighted candles on the television.

Dim:515*320mm(）

SAFETY AND WARNINGS

If the television is to be housed in a cabinet or similar
enclosure, the minimum distances in the above
picture must be maintained. Heat build-up can reduce
the service life of your television, and can also be
dangerous.

Polaroid • I0312/I0313

-3-

SAFETY AND WARNINGS

CAUTION:CAUTION:

Polaroid • I0312/I0313

WARNING:

CAUTION:

NOTE:

pictures. Occasionally, a few non-active pixels may appear on the screen as a fixed point of

permanent after-image to remain on the screen.

The display panel is a very sensitive high technology product, giving you finely detailed

black, blue, green or red. Please note that this does not affect the performance of your product.

Examples of still pictures include logos,

video games, computer images, teletext and images displayed in 4:3 mode.

Important Information Regarding Use of Video Games, Computers, Captions or Other Fixed
Image Displays

Do not allow a still picture to be displayed for an extended period, as this can cause a

Never tamper with any components inside the TV, or any other adjustment controls not
mentioned in this manual.

All LCD-TVs are high voltage instruments. When you clean up dust or water drops on the
LCD PANELor CABINET, the power cord should be physically removed from the mains outlet.

You may then wipe the TV with a dry soft cloth. In the event of thunder and lightning storms,
unplug the power cord and antenna cord to prevent damage to your television.Any repairs to
this TV should only be performed by qualified TV service personnel.

Any change or modifications to this unit carried out by a non-licensed repair centre could
void the user's warranty.

The permanent after-image on the screen resulting from fixed image use is not an
operating defect.This product is not designed to display fixed images for extended

periods of time

-4-

INSTALLATION

Base Stand Assembly Instruction

Place the TV with the display side down on a flat surface. Ensure the table or desk you use provides
a flat, totally clean surface.
Use a cloth between the face of the TV and the table to protect the TV screen.

1. Attach the stand base plate to the stand pole by firmly tightening the supplied screw to form a
completed stand.

2.Place the TV with the display side facing down on a flat surface. Lay a cloth on the flat surface to
protect the display. Position the completed stand into the recess on the bottom of the television.

Polaroid • I0312/I0313

CAUTION:

This stand is not a swivel stand. Do not attempt to rotate the TV.

-5-

REAR AV Connections

INSTALLATION

Front Panel

Side Control Panel

1: Remote control sensor.
2: Indicator LED:

BLUE = POWER ON.

RED = Stand-by.
3: Keypad (on side panel of TV).

4: Main power switch (on bottom

panel of TV)

30 30

Terminal Lay-out is below (from left to right) :

YPbPr (component video) inputs, L+R Audio inputs,

, (composite video and L+R audio).

2. The AV output sockets are only functional when an external device is plugged in.

AC Power Input, AV composite video
input AV output

SIDE AV Connections

Terminal Lay-out is below (from left to right):
USB, HDMI2 input, HDMI1 input, HEADPHONE output, PC Audio input, VGA input,

by the PC Audio input.

2. When the HDMI2 port receives a DVI signal, the matching audio signal is received
by the YPbPr/AV Audio input.

Antenna socket.

YPbPr

RL

VIDEO

R

L

VIDEO

AV OUT P UT

1. VIDEO and YPbPr share the same L+R audio inputs.

NOTE:

1. When the HDMI1 input receives a DVI signal, the matching audio signal is received

NOTE:

1.

2. PLAY/PAUSE
PLAY or PAUSE playback.
3．SOURCE：
Displays the input source Menu.
4．MENU：
Displays the main MENU.
5．CH+/CH-

In TV mode, press "CH+" or "CH-" to change the
channel up or down.

In MENU mode, press "CH+" or "CH-" to select items.

6．VOL+/VOL-

Adjusts the sound level.
In MENU mode, press "VOL+" or "VOL-" to adjust the
item that you have selected.

7. STANDBY

Once the TV's main power switch has been activated,
press this button to turn the unit ON from STANDBY mode.
Press it again to return the set back to STANDBY.

SOURCE (Input selection)

MENU

CH+

CH-

VOL+

VOL-

STANDBY (Power ON/Stand-by select)

PLAY/PAUSE

Polaroid • I0312/I0313

-6-

EJECT

EJECT

To eject the disc from the disc tray

PRESET MODE

1

2

3

4

5

6

7

720*400

640*480

800*600

800*600

800*600

1024*768

1024*768

70

60

56

60

72

60

70

31.47

31.47

35.156

37.88

48.08

48.36

56.48

RESOLUTION V.Freq.(Hz) H.Freq.(kHz)

INSTALLATION

ANTENNA

NOTE:

Aerial connections: IEC (PAL-type, female).
Input impedance: 75 unbalanced.

Plug (not supplied)

Outdoor antenna (not supplied)

For optimum digital TV reception,
the use of high quality shielded 75
coax cable is recommended.

AV EQUIPMENT

You can use the input and output terminals on the TV set as follows.

HDMI

be selected at a time.

-OR-

NOTE:

Only one HDMI input can

Polaroid • I0312/I0313

-7-

INSTALLATION

W R

Yellow (Composite video)

White (audio L)

Red (audio R or Pr)

Y

W

R

Blue (Pb)

Green (Y)

B

G

VIDEO EQUIPMENT with YPbPr output (Component video output)

G

B

R

W

R

W R

TO AUDIO OUTPUTS

VIDEO EQUIPMENT

TO VIDEO
OUTPUT

Y

Y

W

R

W R

TO AUDIO INPUTS

VIDEO EQUIPMENT

TO VIDEO
INPUTS

Y

Y

W R

Audio

G

B

R

Component video

YPbPr

RL

VIDEO

R

L

VIDEO

AV OU T PUT

VIDEO EQUIPMENT (Composite video output)

PC

Be sure both the TV and PC are set to the
OFF position.

1.Connect a VGA and audio cable.

2.Connect the power cord.

3.Power on the TV, switch to PC mode.

4.Power on the PC.
This connection and power-up sequence
is very important as it will ensure both
devices are protected from power spikes.

Polaroid • I0312/I0313

-8-

The following devices can be connected to your TV: VCR, Media Player, DVD Player,
Camcorder, Video Game Console, Stereo System etc.
YPbPr (component video) can support these video formats: 480i, 576i, 480p, 576p, 720p.
Use an HDMI connection to view 1080i material.

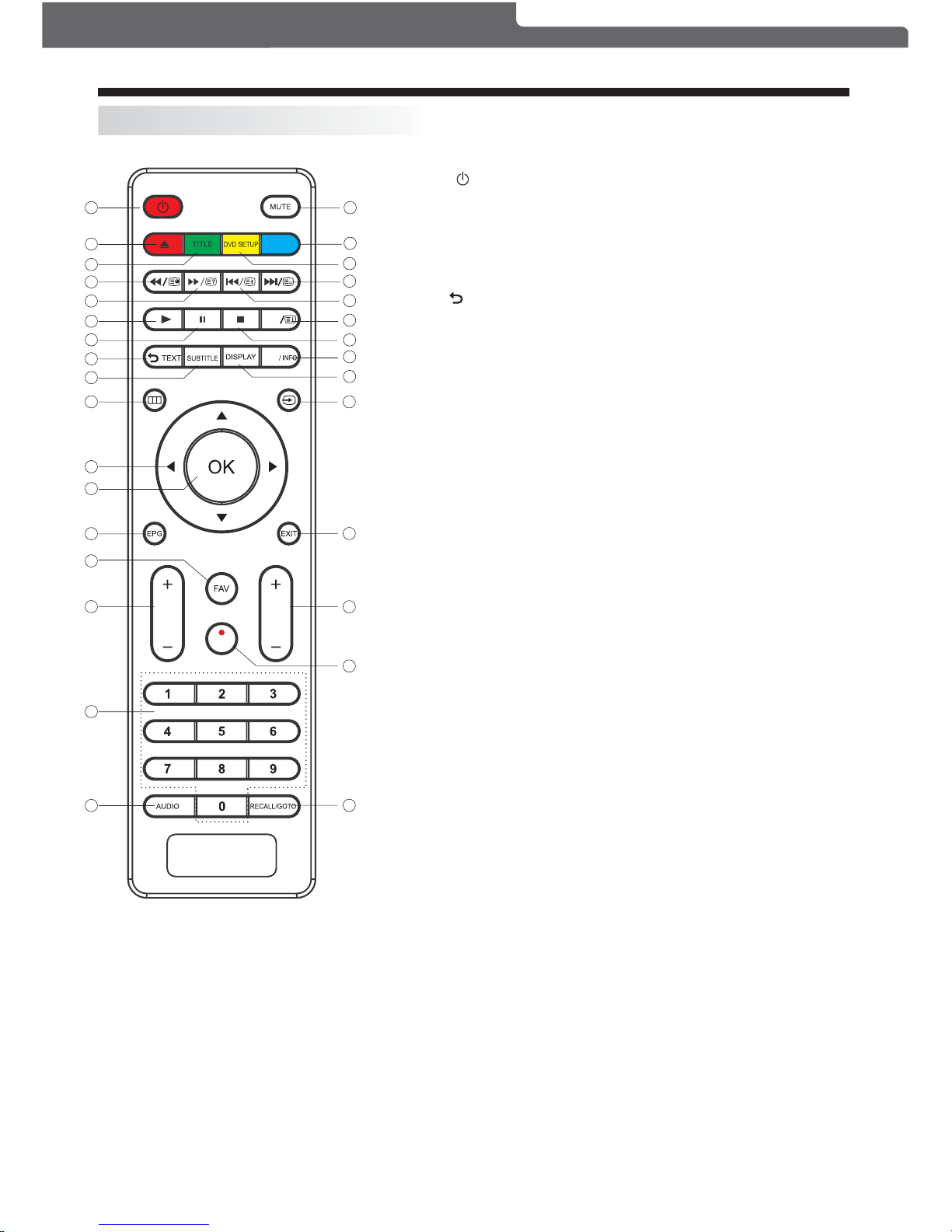

REMOTE CONTROLREMOTE CONTROL

REMOTE CONTROL

POWER :To set the TV t o standby or power on.

FAV: To access yo ur fav ourite ch anne ls lis t in TV o r DTV mode.
VOL+/- : To adj ust so und le vel.

MUTE: To disable or enable the sound output.

1

VOL

CH

2

4

5

7

6

8

9

10

11

12

13

15

14

16

17

3

18

19

20

21

22

23

24

25

26

27

28

29

30

31

MENU

/

ANGLE

REP

A-B

Polaroid • I0312/I0313

-9-

RETURN

:

2. EJECT: To eject the disc from the disc tray slot.

3. TITLE: In DVD mode, return to the TITLE menu.

4. REV: In DVD or USB mode, press to scan in reverse.

5. FWD: In DVD or USB mode. press to scan forward.

6. PAUSE: Press to pause playback.

7. PLAY: Press to commence playback (from Pause or Stopped state)

9. SUBTITLE: Press to choose different captions (requires the disc to

10. MENU: Displays the main on screen menu.

11. CURSOR KEYS: Use these keys to navigate up/down/left/right within

12. OK: Press to confirm your selection.

13. EPG: The Electronic Program Guide lists all programming information

support subtitles)

the menu.

in DTV mode.

16. NUMERIC KEYS: For direct access to channels. Also used to input

17. AUDIO: To select the available audio languages (In DTV mode or DVD

selections)

time, title, chapter and track numbers.

mode if the disc has different language

19. A-B: Press to repeat a segment of the disc between 2 parts (A and B)

20. DVD SETUP: Press to enter the System Settings menu. Press again

21. PREV: In DVD or USB mode used as previous key.

22. NEXT: In DVD or USB mode, used as next key.

in DVD mode.
to exit the menu.

23. ANGLE: Press to view scenes shot from different angles (only if
supported on DVD)

24. STOP: Press once to stop (will be in memory stop state, whereby pressing
the PLAY button will resume at the

same position). Press this button

again to cancel memory stop state.

25. MENU/INFO: During DVD playback, press MENU to display the disc
Mode, press to provide control tab at the bottom of the screen.

menu of the current title. In DTV mode,

press to display INFO. In USB

26. DISPLAY: Press to display information of the current disc playing (eg.

27. SOURCE: Enables you to view and select the various devices hooked

if it is turned on.

time, track, chapter)
up to the television. Please note the

device will only be accessible

EXIT: To return to the previous menu or exit menu.
CH+/CH-: To access t he next or prev ious channel s.

1.

8.

14.

15.

18.

28.

29.

In DVD/VCD mode, press the RETURN button to return to
the main menu.
(Please note for VCD mode this only works when PBC is on)

REMOTE CONTROLREMOTE CONTROL

REMOTE CONTROL

+/-

Picture 1:

Picture 2:

NOTE:

1

VOL

CH

2

4

5

7

6

8

9

10

11

12

13

15

14

16

17

3

18

19

20

21

22

23

24

25

26

27

28

29

30

31

MENU

/

ANGLE

REP

A-B

-10-

Polaroid • I0312/I0313

30. REC/REP: Press to record the TV program you are watching in DTV

of this manual for further instructions on how to record). In DVD or
the different types of

REPEAT modes – Repeat

Chapter/Repeat

Title/Repeat Off (for DVDs) or Repeat Single/Repeat Folder/Repeat

mode. (Please refer to the PVR Function

section found on page 17-18

USB mode, this will

select the REPEAT mode. Press to select between

All/Repeat Off (for VCD/CD/MP3 discs)

31. RECALL/GO TO: In DTV mode, RECALL jumps to last channel
select the Chapter/Title/

viewed. In DVD mode, GO TO allows you to

Track/Time.

Note: During VCD playback, the PBC mode must be set to OFF.

Remote Control Battery Installation

The remote control requires two AAA batteries. Below are steps to

assist you with replacing the batteries.

1. Open the back cover of the battery compartment.

2. Install the batteries into the battery tray. There are
markings in the battery compartment. Please ensure the battery

polarity

is correct.

3. Close the battery cover.

There are two battery cover types that may be used.
Please refer to picture 1 or picture 2 as applicable to the Remote
Control supplied with your TV.

OPERATION

TV Setup Guide

This screen only appears when the TV is turned on for the first time, or after a reset to default factory settings.
You can choose language, country and auto tuning programs. After tuning, the screen will skip to the first DTV
program.

1.CHANNEL MENU

The first item found in the MENU is CHANNEL MENU (for ATV or DTV source only). ATV = Analogue TV,
DTV = Digital TV.

ATV Manual Tuning

Programme Edit

Signal Information

< >

CHANNEL

Auto Tuning

DTV Manual Tuning

Software Update(USB)

Software Update(OAD)Off

Dansk

Deutsch

Hrvatski

Italiano

Please select an OSD Language

OK

Magyar

Nederlands

Norsk

PolskiEnglish

Cesky

E ka

Espanol

~

Fran ais

Portugues

Pycck

Austria

Belgium

Country

OK

Australia

Croatia Finland Greece

Luxembourg

Czech France Hungary

Netherlands

Bulgaria Denmark Germany Italy

To select the MENU mode, press the menu button on the side control panel of the TV, or press the Menu button
on the remote control.

Press to select search type, then press to select country (eg. Australia), then press the OK
button to start auto tuning.

You can search channels and edit programs here.

1).Auto Tuning:

Search all the channels automatically (you can select ATV, DTV, or DTV+ATV searching).

Tun e Type D TV +AT V

MENU

Austria

Belgium

Australia

Croatia

Czech

Bulgaria

Finland

France

Denmark

Channel Tuning

TV : 0 Pro gr am me (s)
DTV : 0 Pr og ra mm e(s )
Radio : 0 Programme(s)

96% UH F CH 6 8 DT V

NOTE:

All the channels including ATV, DTV and Radio can be tuned at once, if the Tune Type is set to DTV+ATV.

Any previously stored channels will be deleted after auto tuning is carried out.

After auto tuning, the receiver will skip to the first DTV channel.
The radio channels are the ones provided by some TV stations. This unit does not receive
DAB+Digital Radio broadcasts.

-11-

Polaroid • I0312/I0313

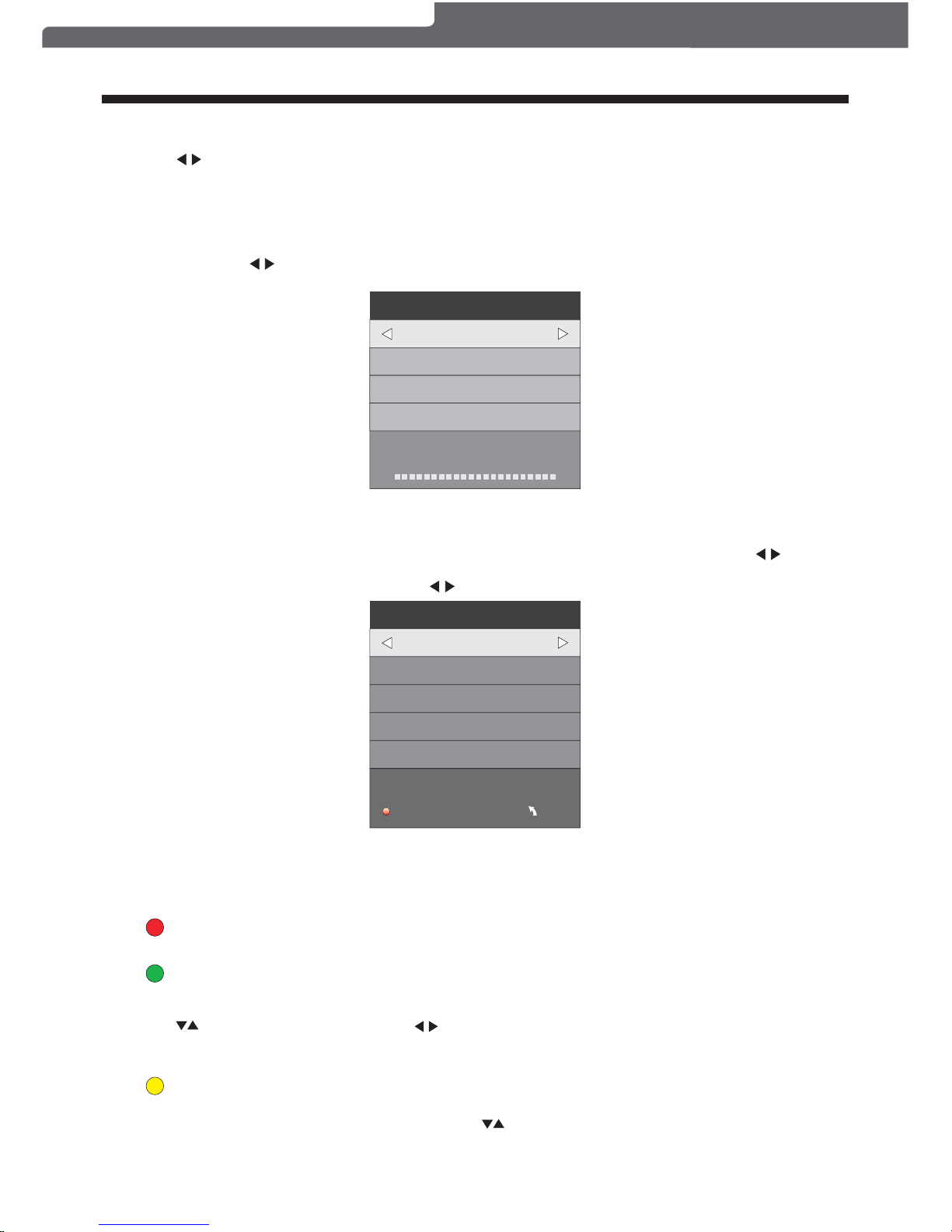

2).DTV Manual tuning:

You can select a DTV channel then find the program in this channel menu section.

Press to select the channel, then press OK to search the programs .

OPERATION

NOTE:

The Reception Quality Meter (Bad/Normal/Good Graph) on this screen shows signal intensity during DTV
reception only.

To fine tune the current channel you are watching, select MENU, then CHANNEL, scroll

through by using and then press

O

K to tune. Please note you need to select theTV Channe

l

(be watching it) first to ensure this is the channel that will be fine tuned.

3). ATV Manual tuning :

You can change the BG System selection, search the Analog TV channels and fine tune them, then store
the channels you selected in this menu.
In Australia ensure the System BG pre-set is selected (row 5) to maximise picture quality.
To fine tune the next or previous channel select the "CURRENT CH1" option (row 3) - use the
buttons to manually tune.
Select "FINE-TUNE" option (row 5) and use buttons to manually tune.

ATV Manual Tuning

Storage To 1

System BG

Current CH 1

Search

Fine-Tune

Frequency 255.25 MHz

Sav e MENU

_

+

DTV Manual Tuning

VHF CH 5

_

+

Bad Nomal

Good

Press OK to search

NOTE:

Press the Red Coloured Mode Button at the top of your remote to store the channels after manual tuning.

4).
You can Delete, Rename, Move, Skip, or FAV most TV programs.

Program edit:

Rename:

You can only rename ATV programs.
Move the cursor to the program, press the Green Coloured Mode Button to rename the program.
Press to choose the character. Press to move the cursor .
Press MENU button to exit edit, Press EXIT to exit the menu.
Note: ATV program names can only be 5 characters long, DTV program names can be up to 25 characters.

Delete

Press t he Red Coloured Mode Button, the program in the cursor will be deleted.

Move

You can move the programs.
Press the Yellow Coloured Mode Button, then press to choose the program you prefer and press OK.

through by using and then press OK to tune. Please note you need to select the TV Channel

-12-

Polaroid • I0312/I0313

OPERATION

Displays the signal information in DTV (digital TV) mode only.

Please note Software Updates are only to be performed when instructed by a qualified service technician

and an updated USB Flash Drive has been supplied and is connected to the television. Please remove the
antenna cable from theTVRF port, go to the channel Menu, select "Software Update (USB)" and press OK
to run the software update.

5). Signal Information:

6). Software Update:
WARNING:

The second item found in the MENU is the PICTURE MENU. You can adjust picture effects here, such as
contrast, brightness, etc.
Press to move, press OK to adjust.

2. PICTURE MENU

Color Temperature

Aspect Ratio

Noise Reduction
Screen

Picture Mode Standard

< >


MENU

Picture Mode Standard

Contrast 50

Brightness 50

Color 50

Sharpness 50

Tint 50

Color Temperature Medium

Red 50

Green 50

Blue 30

MENU

NOTE:

1).Tint is available in NTSC system only.

2).There are four colour temperature modes that can be selected: medium, warm, cool, user.

3).The Screen op t i o n is only available once the Input Source is set to PC , which allows you to adjust
Horizontal position, vertical position, size and phase or select an Auto Adjust mode.
TV default mode setting is standard mode and it is recommended for use at home..

""

""

3.SOUND MENU

The third item found in the MENU is the SOUND MENU.
You can adjust the sound effect here such as treble, bass, balance etc.
Press to move, press OK to adjust.

< >

Balance

Auto Volume

Sound Setting Standard

SOUND

Favourite

Use the to select a program, then press the FAV button. This will bring up the on the right hand
side of the program. To remove a program from FAV list, select the program, then press the FAV button,
the will then disappear.

Once your favorite group is created, you can press the FAV key to quickly access your favourite channels.

Press to choose the program, press the Blue Coloured Mode Button at the top of your remote to skip this
program, the symbol will show on the right side of the program.
Choose the skipped program, press the blue button again, you can cancel the skip and the symbol will
disappear.

-13-

Polaroid • I0312/I0313

NOTE:

Auto volume: only available when the input signal volume is too high or there is distortion.

4.TIME MENU

The fourth item found in the MENU is the TIME MENU. You can adjust the clock, power on/off time, sleep
time etc Press to move, press OK to adjust.

Off Time
On Time
Sleep Timer

Auto Sleep
Time Zone

Clock -- -- -- --

TIME

< >

NOTE:

The clock time is automatically set by the Digital TV transmission.

OPERATION

< >

PVR File System

OSD Language English

OPTION

Audio Languages
Subtitle Language
Country

Australia

Restore Factory Default

Check PVR File System Start

USB Disk

Format

Time Shift Size
Speed

Free R eco rd Li mit 6 H r.

Select Disk C:

In PVR File System Sub-menu you will be asked to format your USB 2.0 Flash Drive or Hard Drive for
PVR Operation. If you are not familiar with the various drive or Flash drive or Hard Drive, start this process
using a blank device (ie. unused storage device), or one which does not hold sensitive or required data.

To view and select the USB file or the allocated space on your Hard Drive that you would like to record to,
press OK button to enter the Select Disk sub-menu and then press or buttons on your remote control
to select the particular partition/file for recording.
Press the Menu Button to return to the Main Menu.

Press the OK Button to start checking the file system of your USB Flash Drive or Hard Drive. Once
SUCCESS is shown after checking, you will then be able to begin recording or use the Time Shift function.
If FAIL is shown after checking, you then need to format your USB Flash Drive or Hard Drive before being
able to record or use Time Shift feature.

When you format your USB Flash or Hard Drive any saved data will be lost. Please ensure that you
start with a blank partition on your Hard Drive to ensure you don't lose any data.

the

Drive

5.OPTION MENU

The fifth item found in the MENU is the OPTION MENU. You can adjust the languages and restore factory
defaults in this menu. Press MENU button and then press or buttons to select the Option Menu.
Once in Option Menu, press or buttons to select the settings you wish to adjust. Press MENU button
to return to the Main Menu.

Restore Factory Default will clear all the programs and password.

NOTE:

Select Disc

Check PVR File System

Format

-14-

Polaroid • I0312/I0313

OPERATION

6.LOCK MENU

This sixth item found in the MENU is the LOCK MENU. To enter the LOCK Menu, press MENU button
and then press or buttons to select the LOCK Menu.
The default password is 6666.

Set Password

Lock System

LOCK

< >

Block Program

Parental Guidance No Block

7. APPLICATIONS MENU

The seventh item found in the MENU is the APPLICATIONS MENU. To enter theApplications Menu, press
MENU button and then press or buttons to select the Applications Menu. This is where you will be
able to view and play various low data-rate USB media files or DTV programs recorded using your TV.

< >

APPLICATIONS

DMP

Once the Parental Guidance mode is turned on, you can set viewing restrictions during DTV TV reception
based on the programs classification (eg. G, PG, M, MA etc).

The viewing restrictions do not apply to the DVD player or ATV reception.

FACTORY RESET NOTE:

If you wish to reset your TV, please select the Restore Factory Default option, this will clear all settings.

File System Size

PVR Fi le S ys te m Typ e FAT3 2

MENU

PVR File System Size All

SD 13 Mins

HD 3 Mins

There are two types of supported formats: FAT32 and Hi Speed Format. You can press or buttons to
choose the type of formatting. If FAT32 is selected, you will have to format the whole size of your USB
Flash Drive or the allocated partition for recording. If Hi Speed Format is selected, you will then be able
to press or buttons to select the size you wish to use (for example 1G, 10G, 20G... or All). Once a
particular size is booked for recording, you will be able to use the remaining space of your USB Flash
Drive or Hard Drive for other data storage.

Hard Drive will be lost after formatting.

This will show the supported speed of recording, and whether your storage device can support HD DTV

recording.

This will show the approximate time you will be able to record on to your USB Flash Drive or Hard Drive.

PVR File System Type

Please note no matter what size is booked for recording, all the data in the allocated partition of the

WARNING:

Speed

Record Limit

NOTE:

-15-

Polaroid • I0312/I0313

Change Password – To change the password, please follow the steps below:

Press the OK button to enter the basic DMP (Digital Media Player) Menu and then use the or buttons
on the remote control to select the file playback type (eg. Photo, Music, Movie, Text), then press OK. You
can preview a selected file by highlighting it using the cursor arrows and pressing OK. Press the Play
button on the Remote Control to show it in full-screen size. Press the MENU/INFO button to bring up a
controls tab at the bottom of the screen, allowing easier control of play, pause, stop and repeat modes.
Press the EXIT button repeatedly to progressively return back to the DMP menu.

PHO TO MUSI C MO VIE TE XT

The supported formats are as below:
Photo: JPEG (Press Play to start slideshow. For best results use 1920 x 1080 pixel images).
Music: MP3
Movie: SmallAVI files (Not all .AVI formats are supported).
Text: TXT (eg. Windows Notepad).

OPERATION

8.EPG Menu (Electronic Program Guide).

The EPG Menu is used to look at what is being broadcast by DTV stations. After you turn the TV on
and select the DTV input, your TV will commence receiving EPG data progressively over a period of
time (typically up to half an hour, depending on the number of stations being received). Press the
EPG Button to access the EPG Menu. You will receive detailed program information of the channel
you are currently watching as well as programs in the near future. Press the cursor to move to the
top of the EPG screen to the Programme Guide tab, then press the cursor to select either Time or
Channel listings, depending on if you wish to list information for all the channels or just the selected
channel.

In the Time mode, move the highlighted tab down to the date line using the cursor keys, then press
the cursor keys to select the desired reception date. Use the down cursor to move through
the available programs for the selected date and time.

In the Channel mode, use the cursor keys to select the desired DTV channel, then scroll through
the upcoming scheduled programs. Once the highlighted program is chosen you can select to tag it
for either Reminder or Record activity using the Blue or Red buttons on the bottom of the display
and then view the planned activity in the Schedule List.

1.
Use to select a program and then press the Green Coloured Mode Button at the top of your remote or
the INFO key on the remote to display the highlighted program's information (if transmitted by the TV station).

INFO

28 Apr

04:39

800 SZTVM01 No Information

801 SZTVM02

802 SZTVM03

803 SZTVM04

804 Date

No Information

No Information

No Information

No Information

PROGRAMME GUIDE TIME

ScheduleINFO

Remind

OK

INDEX

Record

-16-

Polaroid • I0312/I0313

OPERATION

Schedule List 04:55 28thApr Delete

Time Date

Programme Title

Channel Name

3.
Press the Blue Coloured Mode Button at the top of the remote to book a DTV program for future viewing
and add to the Schedule List. Ensure that the program is highlighted in yellow first, then press the BLUE
Coloured Mode Button. The CHANNEL button will assist you in recording programs on the specific channel
that you are watching, in the future. Please note that a USB Flash Drive or other storage device needs to be
attached to use the recording function. Please see next page for formatting information.

Remind

802 SZTVM03

08 Minute

05 Hour

Apr Month

28 Date

Once Mode

Reminder setting

BACK

OK

_

+

4.
Press the Red Coloured Mode Button at the top of your remote or Round Record button on the remote to
book a DTV program for future recording and add it to the scheduled list.

Record

9. PVR function

1). Prepare to record the program

From OPTION found in the MENU display, enter into the PVR File System and choose "check PVR File
System". Click "OK", and wait until "checking" changes into "Success".
Note: please check the result marked "Speed". If it is "HD support", that means the speed of your USB
device is suitable for time shift and record functions. If not, please format the device, to make sure the USB
device is capable of handling the recording functions. The default "Free Record Limit" is 6 hours, if the
space on the disk is big enough. If the space is not big enough, the record time will be shorter, depending on
the capacity of the device. During the "check PVR File System" checking, please do not request any other
operations until it is finished.

The recording has to be executed from within the TV PVR system, and can only be played on the same
TV, and not on any other devices (Computer, DVD etc) which are not compatible with the .TS file format.

In order to carry out any kind of recording, the TV will request you to format the connected USB device
to store the recording. The High Speed format option is recommended for better HDTV recording results.

From the OPTION MENU, enter into the PVR File System as below:

< >

PVR File System

OSD Language English

OPTION

Audio Languages
Subtitle Language
Country

Australia

Restore Factory Default

MENU

Check PVR File System Start

USB Disk

Format

Time Shift Size

Speed

Free R ec or d Li mit 6 Hr.

Select Disk C:

2.

Press the Yellow Coloured Mode Button at the top of the remote to view the stored reminder schedule,
press to select a program from the list, press red key to delete the schedule list, Press EPG
to return to EPG menu.

Schedule

DELETE

WARNING:

When you format the external USB device, you will lose all the files and information stored on the device.

-17-

Polaroid • I0312/I0313

Select Disk

USB 0

Disk C :

Select Disk: select which drive to save the record file onto, then press OK to return to the PVR menu.

Check PVR File System: check if the PVR File System set up will work with your USB device or not.

Format: Refer to the details on formatting on page 14-15 before using this option for the first
time. Once you have selected the type of formatting of your USB storage device, your TV
will show various progress screens (see next page).

OPERATION

When the Format process has finished, you can then run the “Check PVR File System” option to show the
speed ability of your USB storage device. Press EXIT to return to TV mode.

If you selected the "Hi Speed FS" format mode, you can then change the time shift memory size:

When viewing a DTV program, click the "record" button on the remote control and the record control tab will
pop up and the PVR will commence recording. Click the "record" button again and the record control tab will
disappear while the "REC" icon will remain on the top left of the screen. It will disappear when you click "stop",
and the PVR will finish recording.

PVR recording of DTV programs can also be accessed through the EPG, and future recordings can be
accessed using the Schedule List option. Refer to the EPG Menu section on page 16-17.

2). Recording a DTV program

Warning! All data will be lost.

Start Exit

Format disk

Format disk

Do not unplug USB device.

Formatting,please wait

Format disk

MENU

Check PVR File System Checking

Free R ec or d Li mit 6 Hr.

Select Disk C:

USB Di sk P as s

Form at P as s

Time Shift Size All

Speed Checking

MENU

Check PVR File System SUCCESS

Free R ec or d Li mit 6 Hr.

Select Disk C:

USB Di sk P as s

Form at P as s

Time Shift Size All
Speed HD support 2048 KB/s

Time Shift Size

Tim e Sh if t Disk Si ze 5 12 M B

SB 14 Mi ns

HD 4 Min s

A USB Flash Drive or other storage device needs to be connected to use the recording function.

NOTE:

-18-

Polaroid • I0312/I0313

OPERATION

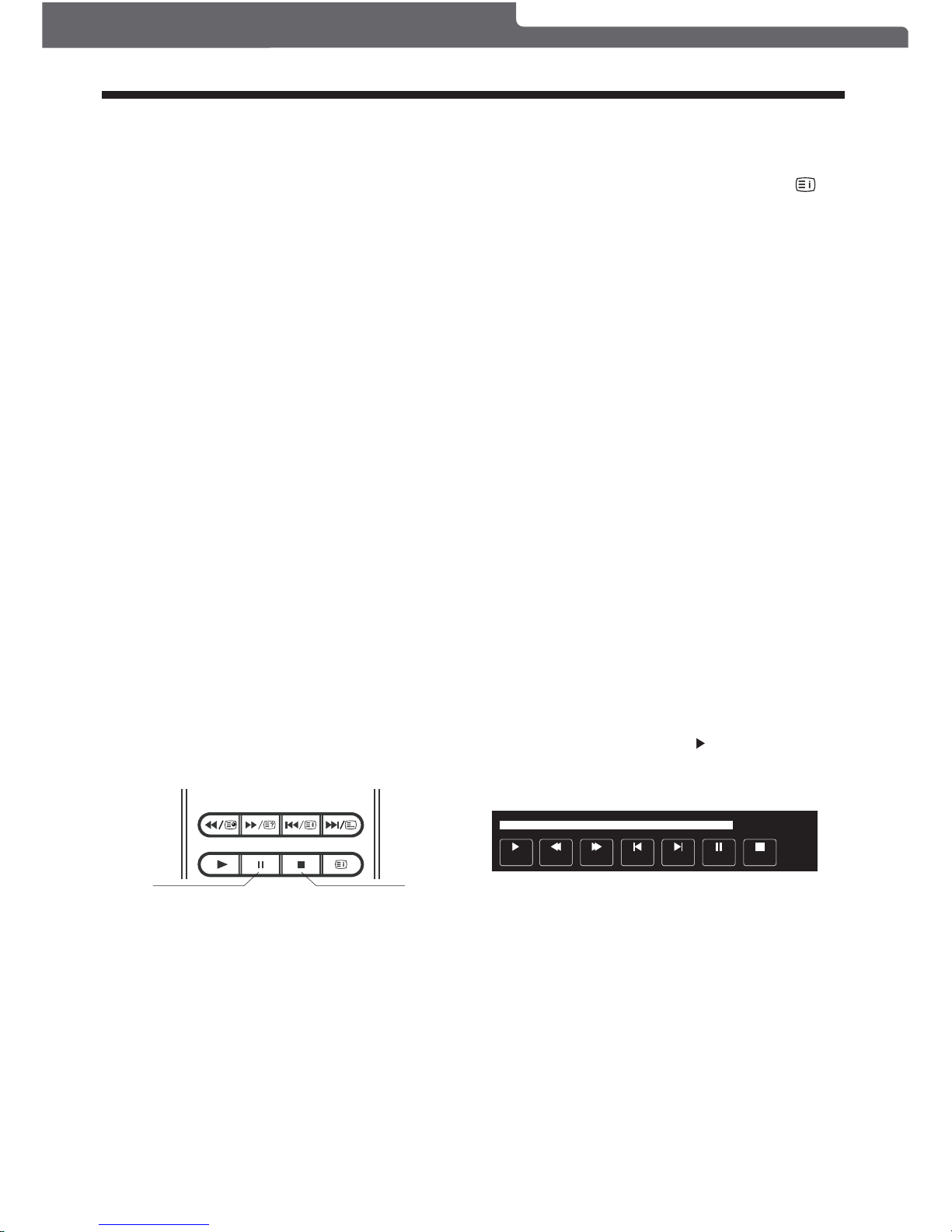

FF Prev. NextFB

Pause

00:00:33/00:04:22

Play Stop

Record a paused DTV program to USB storage device

PAUSE

STOP

NOTE:

1. While in the DTV input source, insert USB storage device to the USB port on the side of your TV.

2. Select a DTV channel, then press to start the Time Shift function. The TV program will be
paused on screen; the Time Shift OSD appears and recording commences. Press play to playback the
time-paused material.

3. Press to stop the Time Shift function and stop recording program.

Please do not unplug the USB storage device when the Time Shift function is activated, as damage to the
recorded file or the USB storage device may occur.

Approximately 4GB of memory buffers about 30-40 minutes of DTV material.

10. Timeshift function

Prepare to record the program

NOTE:

USB Drive Storage Format

NOTE:

This TV allows you to pause and record the currently watched digital TV program to a USB storage device,
and to resume viewing at the point where it was paused.

Formatting a USB 2.0 storage device will be needed. Save the original data on your USB device before
formatting. All the data stored in the USB device will be erased after formatting.

Follow the Format instructions on page 18 of this Manual to format the USB device and allocate the
amount of space for the Time Shift function.

The format process will take at least 2 minutes depending on the capacity of your USB device. Please do
not turn off the power or remove the USB device during formatting. The High Speed format option is
recommended for better HDTV recording results.

During formatting, a speed test will be done on the USB device. If it fails, it means the USB device may
not support the Time Shift function.

In the USB drive, the recorded program will be saved in the folder "_MSTPVR" on the device. To play back
the.TS format files, use the DMP (Digital Media Player) function found in "Applications" in the MAIN MENU
as shown on page 15-16, and select Movie as the type of file to play back. Alternatively, press the " "

1. Video may become pixelated if the video bit rate is too high for the USB drive. If this occurs, try using a

This may make the drive un-readable in other USB devices.

2. The USB PVR function relies on the use of high quality USB drives, and as such may not be compatible with
some specific USB devices.

3). Playing back the recording:

(Angle Button) repeatedly on the Remote Control to display the saved Recorded List in either Program,
Channel or Time order.

faster USB drive, or re-format it using the High Speed Format option.

NOTE:

-19-

Polaroid • I0312/I0313

OPERATION

Select the media file by pressing or , then press and the preview frame will pop up if the file
is playable. Press the play button to play the media file in full screen mode. When the media file
(Photo, Music, Movie, or Text type) is playing, press the or Info button to display the control bar at the
bottom of the screen.

OK

OK

Pause FF Prev. NextFB Stop

Repeat ALL

00:00:33/00:04:22

Set A

AB

In the control bar, press to select the function icon, then press the OK button to confirm the function.
Press or EXIT button to exit t he con trol bar.

OKPress the cursor buttons to select the correct disk and press to display the media files and folder
list or press EXIT to return to the media type selection menu. Once you have selected the required media
type and drive details, you can view the various files and folders on screen.

Ret urn C

1/1

Sample1.ts Sample2.ts

Return

Movies

1/1

Sample3.ts Sample4.ts

Resolution: 688x412
AudioTrack: 1/2
Subt it le : 1/1
Prog ra m: 1 /5
Size: 511457 KBytes

Sample1.ts

PHO TO MUSI C MO VIE TE XT

USB 2.0

Firstly, make sure that the USB device is plugged in the slot. There are four media types that can be
selected: Photo; Music; Movie and Text. such as Photo, Music, Movie, and Text. Select the type of
media by pressing , press button to enter the disk selection menu.OK

11. Digital Media Player (DMP)

To play and view low data-rate USB media files as well as DTV recordings made using this TV, use the
DMP function that is accessible from the Applications Menu. For playback of high data-rate media files
the use of an external Media Player is recommended.

-20-

Polaroid • I0312/I0313

DVD OPERATION

Caution

This DVD Player has a Class 1 laser which
may be harmful to your eyes. Do not
attempt to disassemble the cabinet or make
any adjustments.
Refer all servicing to a qualified
professional.

Features

Disc formats supported by this player:

This product incorporates copyright
protection technology that is protected by
U.S. patents and other intellectual property
rights. Use of this copyright protection
technology must be authorized by Rovi
Corporation, and is intended for home and
other limited viewing uses only unless
otherwise authorized by Rovi Corporation.
Reverse engineering or disassembly is
prohibited.

The product complies with the KODAK
Picture CD format and will display
KODAK Picture CDs. The "KODAK
Picture CD Compatible" logo is a
trademark of Eastman Kod ak Company
and is used with permission.

Manufactured under license from Dolby
Laboratories."Dolby" and the double-D
symbol are trademarks of Dolby
Laboratories. Confidential Unpublished
Works. 1992-1997 Dolby Laboratories, Inc.
All rights reserved.

-21-

Polaroid • I0312/I0313

Dolby Digital

Subtitle choices

KODAK pi cture CD

Audio choices

MP3 files on
CD-R/CD-RW

16:9

LB

TV Aspect
Ratio modes

DVD video

Multi-angle

DVD OPERATION

LANGUAGE SETUP
Select Language in the setup menu, and display
the Language submenu:

Audio

DVD menu

OSD Language

Use this item to select the language of the setup
menu and screen display.

Subtitle

This option pr ovides the pr eset subtit le
language.

Audio

Select the built-in disc dubbing language
options. Not all DVDs will provide multi-language
support.

DVD Menu

This option provides the film's menu language
options.

VIDEO SETUP
Select Video in the set up men u, and displa y the
Video submenu:

Aspect Ratio

Select the aspect ratio.

TV System

Select a different TV sys tem.

The image display ratio is related to the
recorded disc format. Some discs can not
display images in the aspect ratio you choose. If
you play a d isc re corded in 4:3 f ormat on a wide
screen TV, black bars will appear on the left and
right side of the screen. You must adjust the
screen setting depending on the type of the
television you have.

This DVD player setting should be
matched to your TV set (for Australia, most
DVDs wil l be in PAL fo rmat).

-22-

DVD Operation

1. Press the Button on the remote control (or TV
mode,

then press .

control panel), use the UP/DOWN arrows ( )

2.

3. Press the button to eject the disc. The disc

e disc must be manually pushed into the tray until

automatically.

button again.

Th

drawn in

Menu Operation

To access Menu Operation in DVD Mode, follow the

above to select DVD Mode.

1. Press the button on the remote and the
will be displayed.

2. Use the cursor keys on the remote to select the desired
the

then press the RIGHT

3. Press to confirm. Press the LEFT direction button

return to the upper level menu.

4. To exit the setup, press the button again.

In the , you may choose any of the
following options:

SUB- MENU

NOTE:

NOTE:

RATING SETUP

Polaroid • I0312/I0313

keypad
to choose DVD

cannot be

drawn into the disc tray by pressing the

instructions

item,

direction button ( ) to select

it is

( ) to

Gently insert the disc with the label side away from the
television into the disc tray slot.
automatically into the disc tray.

The disc will be drawn

Select Rating in the setup menu to display the Rating
parental control for the DVD

player. The default setting

select

2. Enter the password – please note the default

3. Select the desired parental control level and then

submenu.

This option allows you to set the level of

is level 8 – Adult.

then press OK.

password is “6666”, and then press OK.

.

press

OK. The default setting is level 8 – Adult.

– To change the password, please

1. Use the Down direction button

2. Enter the current password then press OK.

3. Select “Enter Password” then enter a new password

4. Enter the new password again then press OK to set.

follow the steps below:

to select and then press

OK.

password and then press OK.

1. Use the Right direction button to

( )

( )

OK

OK

SOURCE

EJ

ECT

EJ

ECT

DVD SETUP

SETUP MENU

DVD SETUP

SETUP MENU

"

"Control

Ch ange Password

“Set Password”

Parental

DVD OPERATION

PICTURE CD PLAYBAC K

-23-

MP3/WMA Playback

If you load an MP3/WMA disc, you will see a directory

the picture above.

structure like

1. Use the cursor keys on the remote to select the
button to enter into a

directory, then press the

sub-directory.

2. Use the cursor keys to select the desired track,

then press

or to listen to the desired song.

3. If you want to return to the upper menu, use the cursor

keys to choose the icon and then press the
button.

MISC SETUP

Use Defa ult Se ttings

Reset se tup da ta to factory d efau lt value.

Polaroid • I0312/I0313

OK

PLAY

Select in the setup menu to display the submenu:

Filter: Allows you to select the category of files to be

Repeat: To select different repeat modes (OFF/single

Mode: Select between normal playing mode and shuffle

1. Normal Mode – Tracks are played in sequential

2. Shuffle Mode – Playback of tracks randomly

displayed in the browser list (audio/photo/video).

track/folder)

play mode.

order.

Edit Mode: Allows you to program a playback list:

1. Use the down direction key
“Edit Mode” then press OK.

2. Use the left direction key to get back to the

) to select the

desired tracks then

3. Use the right direction key ( ) to select “Add

4. Select “Program View” to display the

5. Select “Browser View” to display the track list

6. To play your programmed list, use the left

) to the directory list and then

to select

folder list and then use the up/down direction
keys (

OK.

program” and then press OK.

programmed track.

in the directory.
direction key (

press OK to commence playback.

Clear Program: To clear the tracks from the program list:

1. Press STOP twice.

2. Use the direction keys to select “Edit Mode”
then press OK.

3. Use the left direction key ( ) to select the tracks

4. Select “Clear Program” to remove the selected

you wish to remo

ve from the programmed list

OK.

then press
tracks.

If you load a picture CD/DVD disc, you will see a similar

To play your photos on the TV, follow the directions below:

1. Use the direction keys to select the ROOT directory,

2. Use the direction keys to select the picture then press OK

3. Press the RETURN button on the remote control to

4. If you require to return to the upper level menu, select

5. In picture play mode, you can rotate the image by

directory structure as below:

then press OK to enter Sub-directory.

return to the sub-directory from the image.
the icon.

using the direction keys.

( )

( )

press

OK

ROOT

MISC

OK

DVD Trouble shooting

If you have any questions, please consult the troubleshooting guide below:

NO PICTURE OR SOUND

Ensure the TV is switched on (ie. not in

Stand-by mode).

Ensure the power outlet is operationa l.

Ensure the power cord is not damaged.

Ensure the power plug is connected

firmly to the mains outlet.

REMOTE NOT WORKING

Make sur e the Ma in unit s POWER b utto n is on

Ensure the remote batteries are working.

Point th e remo te control di rectly at the p laye r's

IR sensor.

Remove a ny obs tacles betw een the remote

and the IR se nsor.

UNIT NOT WORKING

Turn off the power, and then turn it on

again.

“NO DISC”DISPLAYED

Ensure you have put the disc in the slot.

Ensure the disc is not upside down (the silver

data side should be facing you when viewed

from the front of the TV).

Ensure the disc is not distorted, stained or

scratched.

Ensure you have set the player s AUDIO
settings correctly.

PICTURE BUT NO SOUND

Ensure the audio is not set to mute.

POOR PICTURE OR SOUND

Ensure you have set the player s AUDIO
settings correctly

Ensure the disc is not scratched or
stained.

“BAD DISC”DISPLAYED

Ensure the disc is not warped,
damaged or deformed.

Ensure the disc is not badly stained or
damaged.
Ensure the disc format is compatible
with the player.

,

Polaroid • I0312/I0313

-24-

TROUBLE SHOOTING

Picture Audio

Snow Noise

Antenna position, direction
or connection

Inspection Check

Interference

Noise

Electronic equipment, car/
motorcycle, fluorescent lights

Normal Picture

Mute

Volume (check if mute is
activated or if the audio system
connections are not correct)

No picture Mute

Mains Power cord is not inserted
Mains Power switch is not
activated
Contrast and brightness/volume
setup
Press Power/Stand-by key on the
remote control

No colour Normal audio

Colour control

breaking up

Normal audio

or weak

Retune channel

No colour

Noise

TV system

Normal audio

Antenna position, direction
or connection

Troubleshooting Symptoms

Ghost

Mosaic

Antenna Loose

Please turn on the main power switch at the bottom right-hand side of the TV
before attempting to turn on the TV via the Standby button or the Remote
Control.

Noise

Polaroid • I0312/I0313

-25-

Resolution

Aspect Ratio

HDMI

Inputs

Composite Video Input (RCA)

1

(L+R)

2

Composite Video Output (RCA)

1

1

USB (media play, HDTV record/play) input

1

1

1

LED :

Display colours

Brightness

Contrast ratio

Response time

View angle (max)

TV:

DVB-T decode

DVB-T de-modulation

Terminals:

Others:

TV system

Y PbPr (Component vide o) Input

VGA Input (15 pin D-type)
Audio Input (RCA sockets)

Digital TV: DVB-T
Analog TV: PAL

Audio: MPEG2 Audio Layer I&II
Video: MPEG2 Transport MP@HL

Demodulator : COFDM
OFDM Mod.: 2K, 8K FFT, SFN and MFN
Packed Carriers: 2K/8K
Guard Interval: 1/4, 1/8, 1/16, 1/32

Viewing Picture Size (diagonal)

Input Power Voltage

100V-240V~ 50/60Hz

2 x 3W

Audio Output Power (THD 7%)

PC Audio Input (3.5mm socket)

1

Audio Output

(RCA sockets)

1 (L+R)

Power consumption

30 W

18.5 (47cm)

1366x768

1000:1

5ms

SPECIFICATIONS

16.7M

200 cd/m

2

160(H)/150(V)

16:9

Headphone Out

put

1

21.5 (54.6cm)

1920x1080

1000:1

5ms

16.7M

250 cd/m

2

160(H)/150(V)

16:9

2 x 3W

38 W

Polaroid • I0312/I0313

-26-

I0312 I0313

DVD Video (original)，DVD Video (Original
Zone 1)，DVD+R ，DVD+RW，DVD-R ，
DVD-RW，DVD+R double layer，DVD-R
double layer，Audio-CD (original)，CD-R
audio，CD-RW audio，VCD，SVCD，DVCD

DISKS SUPPORTS READ

Copyright

Model No.

For Customer Service and Technical Support, please email

or telephone Australia on 1300 366 144.

– Copyright © 2013 All Rights Reserved

This product is manufactured, distributed and sold by:
POLAROID AUTHORIZED LICENSEE:
ATICO AUSTRALIA PTY. LTD.
UNIT 1, NO. 4 JABEZ ST.
MARRICKVILLE, NSW 2204
AUSTRALIA

Polaroid, Polaroid & Pixel and Polaroid Classic Border Logo are trademarks of PLR
IP Holdings, LLC, used under license.All other trademarks are the property of the
respective owner, who has not sponsored, endorsed or approved this product. PLR
IP Holding, LLC does not manufacture this product or provide any Manufacturer's
Warranty or support.

Disclaimer - Product features, specifications, and appearances are subject to
change without notice.

PLR IP Holdings, LLC, its licensees and affiliates, fully supports all electronic waste
initiatives. As responsible stewards of the environment, and to avoid violating established
laws, you should properly dispose of this product in compliance with all applicable regulations,
directives or other governances in the area where you reside. Please check with local
authorities or the retailer where you purchased this product to determine a location where you
can appropriately dispose of the product.

You may also go to and reference Social Responsibility

to learn more about the specific laws in your area and to locate a collection facility near your
home.

If your electronic device has internal memory on which personal or other confidential data may
be stored, you may want to perform a data sanitization process before you dispose of your
device to assure another party cannot access your personal data. Data sanitization varies by
the type of product and its software, and you may want to research the best sanitization
process for your device before disposal. You may also check with your local recycling facility
to determine their data sanitization procedures during the recycling process.”

：

www.polaroid.com

http://www.polaroid.com/social-responsiblity

[e-mail]

I0312 / I0313

-27-

1300 366 144

Model No.:

Made in China

Polaroid Authorized Licensee
Atico Australia Pty Ltd
Unit 1, 4 Jabez Street
Marrickville, NSW 2204
Australia

I0312 / I0313
