2006 LCD Models – North America
FLM-2632, FLM-2632M, FLM-2634B, FLM-3232, FLM-3232M, FLM-323B,
FLM-3234B, FLM-3732, FLM-3732M, FLM-373B, FLM-3734B, FLX-374
SERVICE MANUAL
Bezel covers vary by model
20070411
Important Service and Safety Information
Prior to using this service manual, please ensure that you have carefully
followed all the procedures outlined in the user's manual for this product.
(1) Read all of these instructions.
(2) Save these instructions.
(3) Follow all warnings and instructions marked on the product.
(4) Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners; use a
damp cloth for cleaning.
(5) Do not use this product near water.
(6) Do not place this product on an unstable cart, stand or table. The product may fall, causing serious damage to the
product.
(7) Slots and openings in the cabinet and the back or bottom are provided for ventilation, to ensure reliable operation
of the product and to protect it from overheating, those openings must not be blocked or covered. The openings
should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should
not be placed in a built-in installation unless proper ventilation is provided.
(8) This product should be operated from the type of power source indicated on the marketing label. If you are not
sure of the type of power available, consult your dealer or local power company.
(9) This product is equipped with a 3-wire grounding type plug, a plug having a third (grounding) pin. This plug will
only fit into a grounding-type power outlet. This is a safety feature, if you are unable to insert the plug into the
outlet, contact your electrician to replace your obsolete outlet. Do not ignore the purpose of the grounding-type
plug.
(10) Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.
(11) If an extension cord is used with this product, make sure that the total of the ampere ratings on the product
plugged into the extension cord does not exceed 15 ampere.
(12) Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points
or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product.
(13) Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous
voltage points or other risks. Refer all servicing to service personnel.
(14) Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following
conditions: (0)
a.
When the power cord or plug is damaged or frayed.
b.
If liquid has been spilled into the product.
c.
If the product has been exposed to rain or water.
d.
If the product does not operate normally, when the operating instructions are followed. Adjust only
those controls that are covered by the operating instructions since improper adjustment of other
controls may result in damage and will often require extensive work by a qualified technician to
restore the product to normal operation.
e.
If the product has been dropped or the cabinet has been damaged.
f.
If the product exhibits a distinct change in performance, indicating a need for service. .
2
www.polaroid.com
Important Service and Safety Information
Service work should be performed only by qualified service technicians familiar with all safety
checks and these service guidelines:
ELECTRIC SHOCK HAZARD
Always disconnect AC power before servicing!
Never modify any circuit!
Never insert any objects into the holes in the TV case!
ELECTROSTATIC DISCHARGE (ESD)
Components inside an LCD or plasma TV are sensitive to static electricity. Before servicing the TV, follow these
guidelines:
• Avoid static-causing surfaces such as carpeted floors, plastic, and packing foam.
• Remove replacement components from their antistatic bags only when you are ready to use them. Do
not lay components on the outside of antistatic bags because only the inside of the bags provide
electrostatic protection.
• Always hold components by their edges. Avoid touching the edge connectors. Never slide components
over any surface.
• Wear a grounding wrist strap (available at most electronics stores) and attach it to a bare metal part of
your workbench or other grounded connection.
• Touch a bare metal surface on your workbench or other grounded object before touching any
components.
PRECAUTIONS FOR USING LEAD-FREE SOLDER
Components within this television use lead-free solder (Sn-Ag-Cu). Look at the markings on board and
components within the television to determine the correct solder type and match to the table below:
5 LEAD-FREE (Pb-Free) CATEGORIES
The following categories are meant to describe the Pb-free 2nd level interconnect terminal
finish, component material, and/or the solder paste/solder used in board assembly:
e1 - SnAgCu (shall not be included in category e2)
e2 - Sn alloys with no Bi or Zn excluding SnAgCu
e3 - Sn
e4 - Precious metal (e.g., Ag, Au, NiPd, NiPdAu) (no Sn)
e5 - SnZn, SnZnx (no Bi)
e6 - contains Bi
e7 - low temperature solder (≤ 150 °C) containing Indium (no Bi)
e0, e8, e9 symbols are unassigned at this time.
When repairing components soldered with lead-free solder, ONLY use lead-free solder that matches the
symbol on the component. Using conventional lead solder may lead to damage or a short, which could result
in fire, electric shock, or other hazards.
Because the melting point of lead-free solder is higher than conventional lead solder, observe the following
guidelines when soldering with lead-free solder:
3
www.polaroid.com
(1) Always use a dedicated soldering bit for different types of solder. If a different type of solder comes in contact with
a lead-free solder bit, subsequent solder joints will no longer be lead free. Always clean the soldering bit after
every use.
(2) Keep the soldering bit in contact with the just long enough to confirm a good solder joint. Leaving the bit in contact
with parts for an extended period may damage the components.
(3) Because lead-free solder contains a higher concentration of tin, the tip of the soldering bit may be easily corroded
or damaged. Do not leave the bit powered on for extended periods. When the tip of the soldering bit is blackened
during use, clean the bit with steel wool or fine sandpaper. (0)
NOTICE ABOUT REPLACEMENT PARTS
Many electrical and mechanical parts within LCD or plasma televisions are chosen for their
specific safety characteristics within the overall system. Replacing individual parts with
components rated for higher voltage or wattage can be dangerous!
Replacement parts must always be identical to those originally used in the television. Unauthorized substitute
parts may result in fire, electric shock, or other hazards.
4
www.polaroid.com
Table of Contents
1. Operation ....................................................................................................................................... 6
2. Troubleshooting / Flow Charts ....................................................................................................... 14
3. Polaroid Display Cell Defect Specification ........................................................................................ 18
4. Before Returning This Product to the User ...................................................................................... 19
5. Disassembly Procedure.................................................................................................................. 20
Rear Cover Removal ................................................................................................................ 21

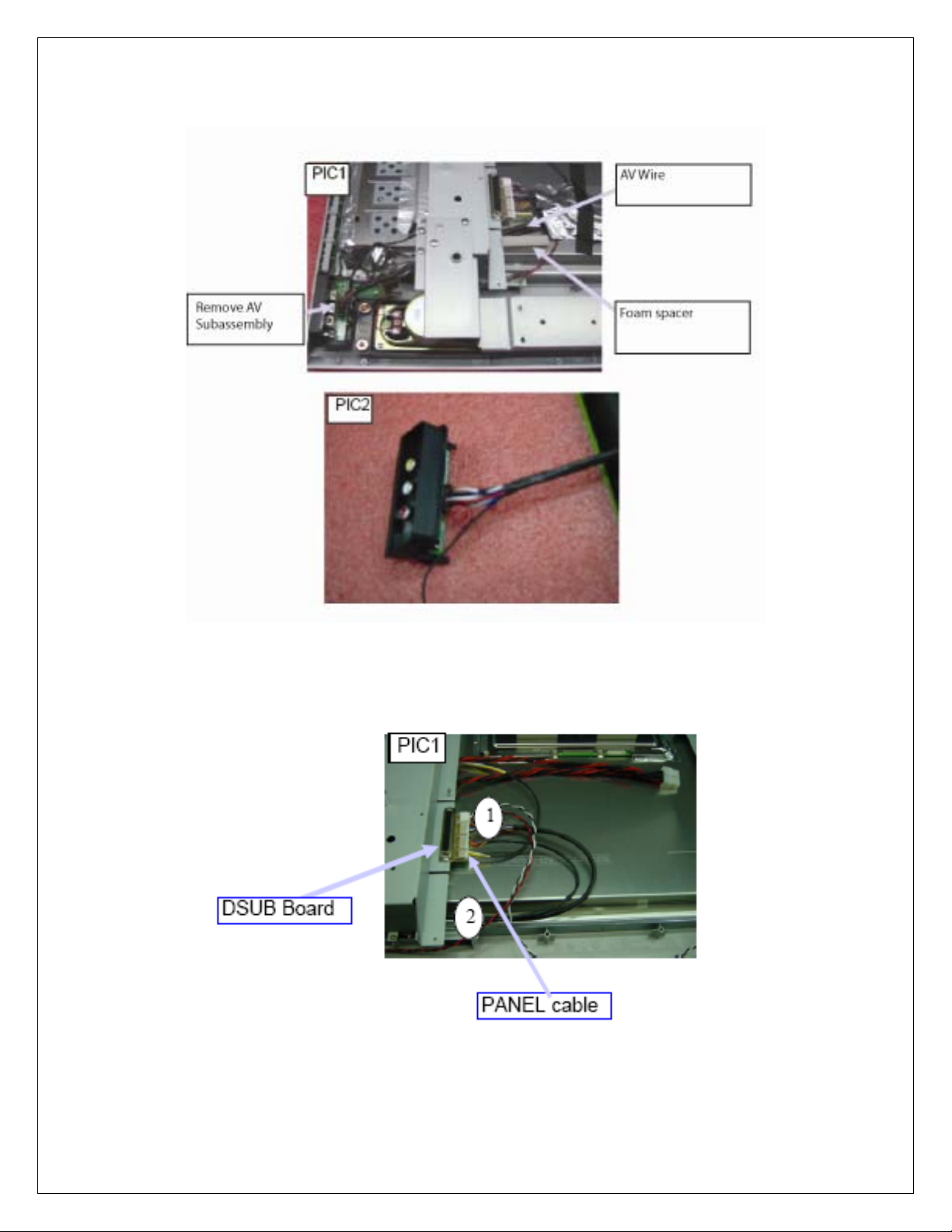

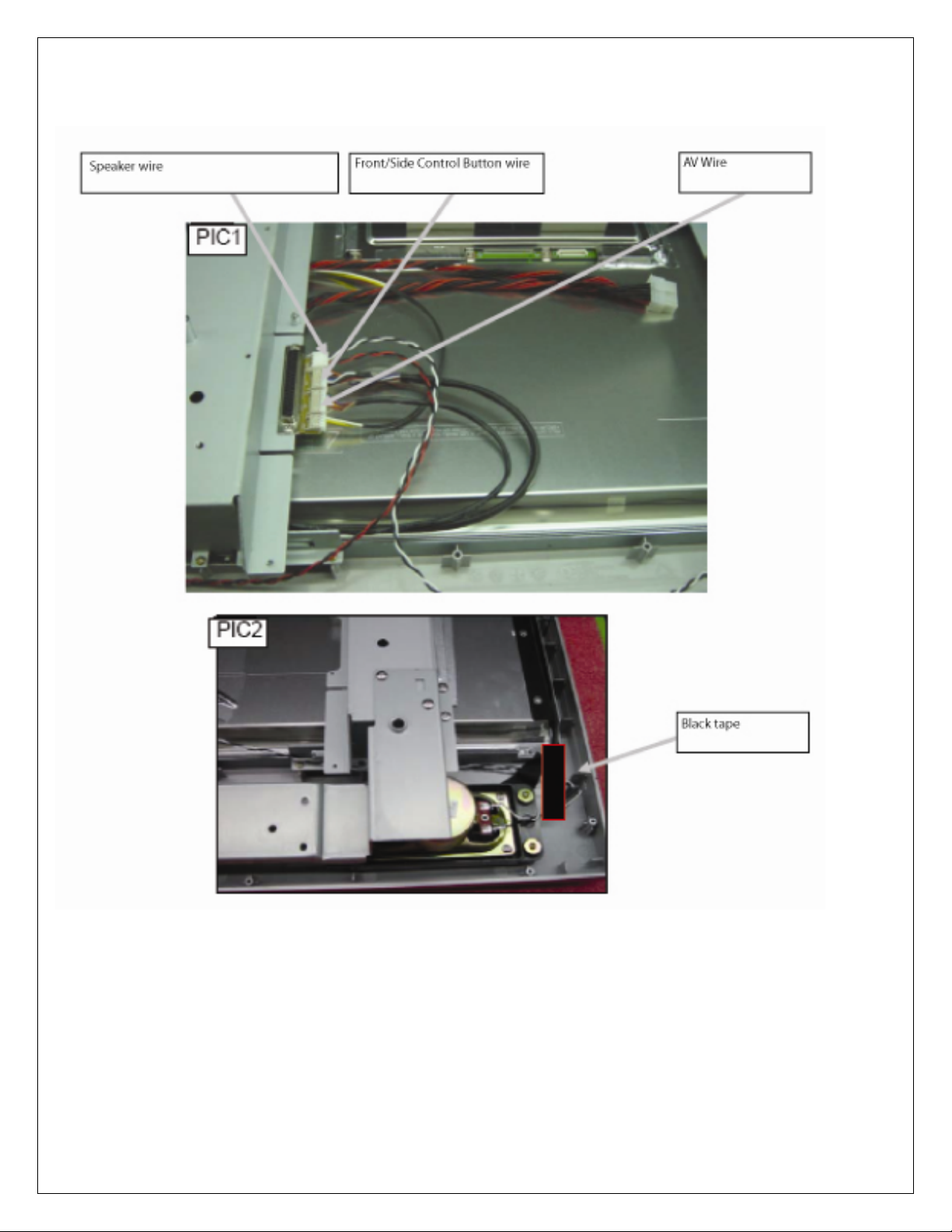

Rear Cabinet Cover LCD Panel and Front Bezel .......................................................................... 23

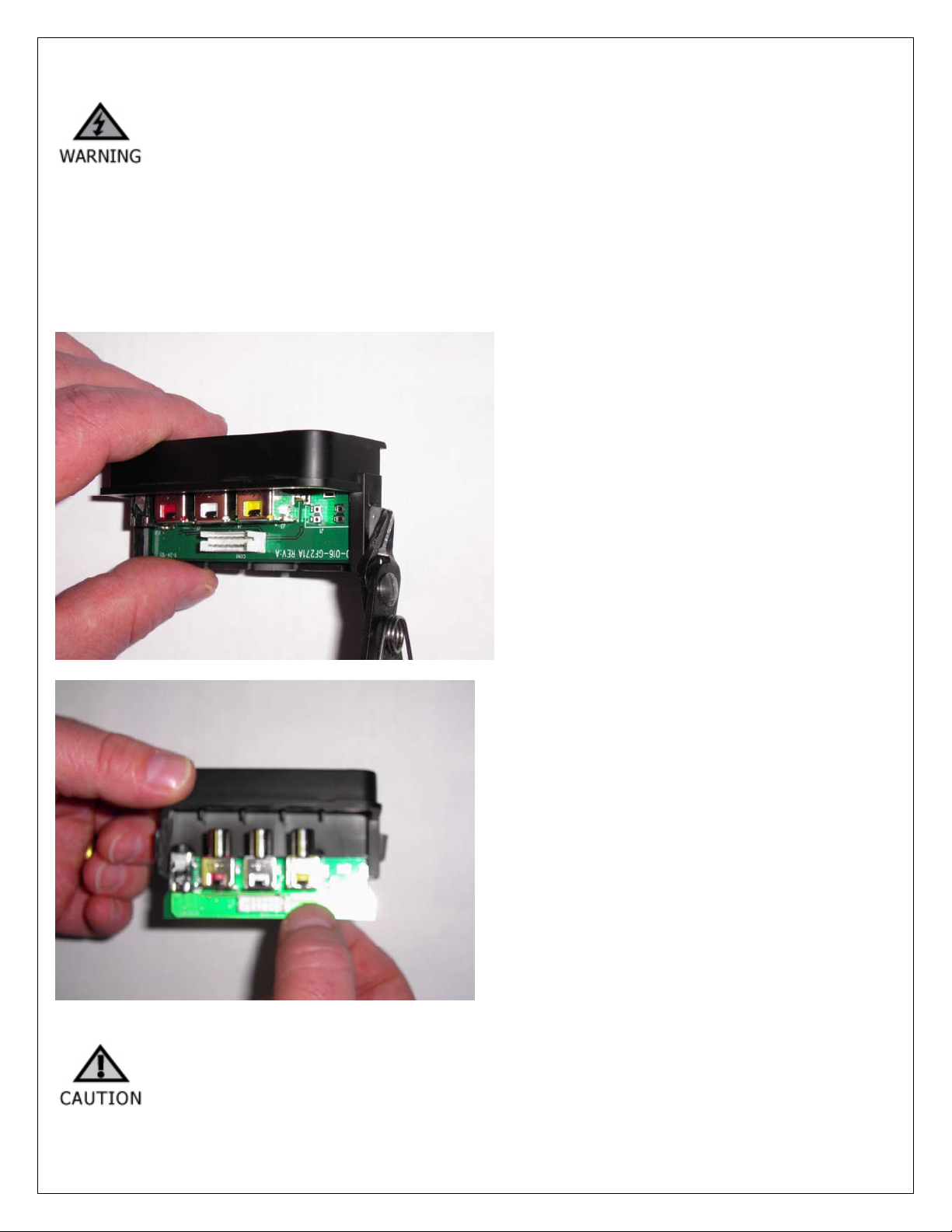

A/V Board Removal and Replacement ....................................................................................... 29

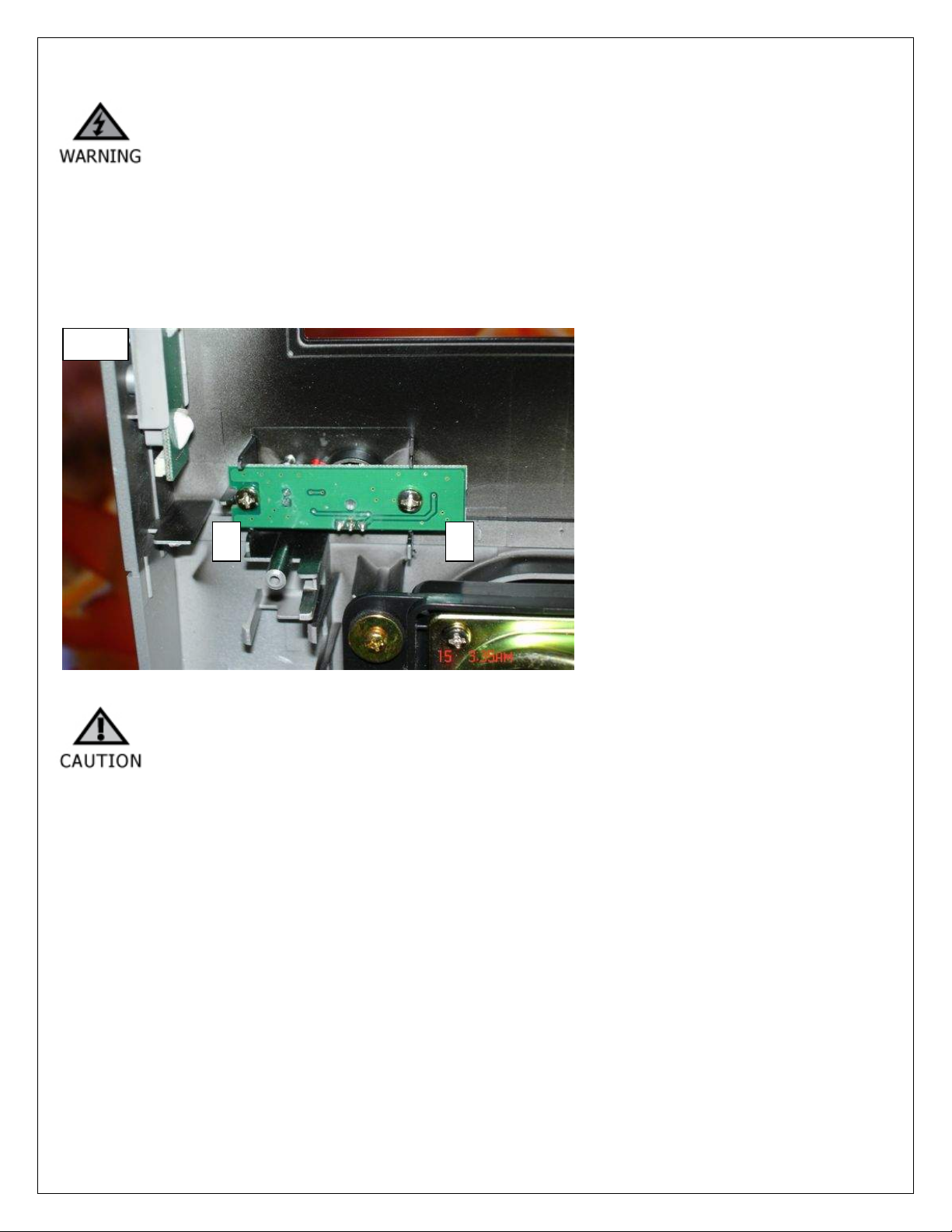

IR Board Removal and Replacement ......................................................................................... 30

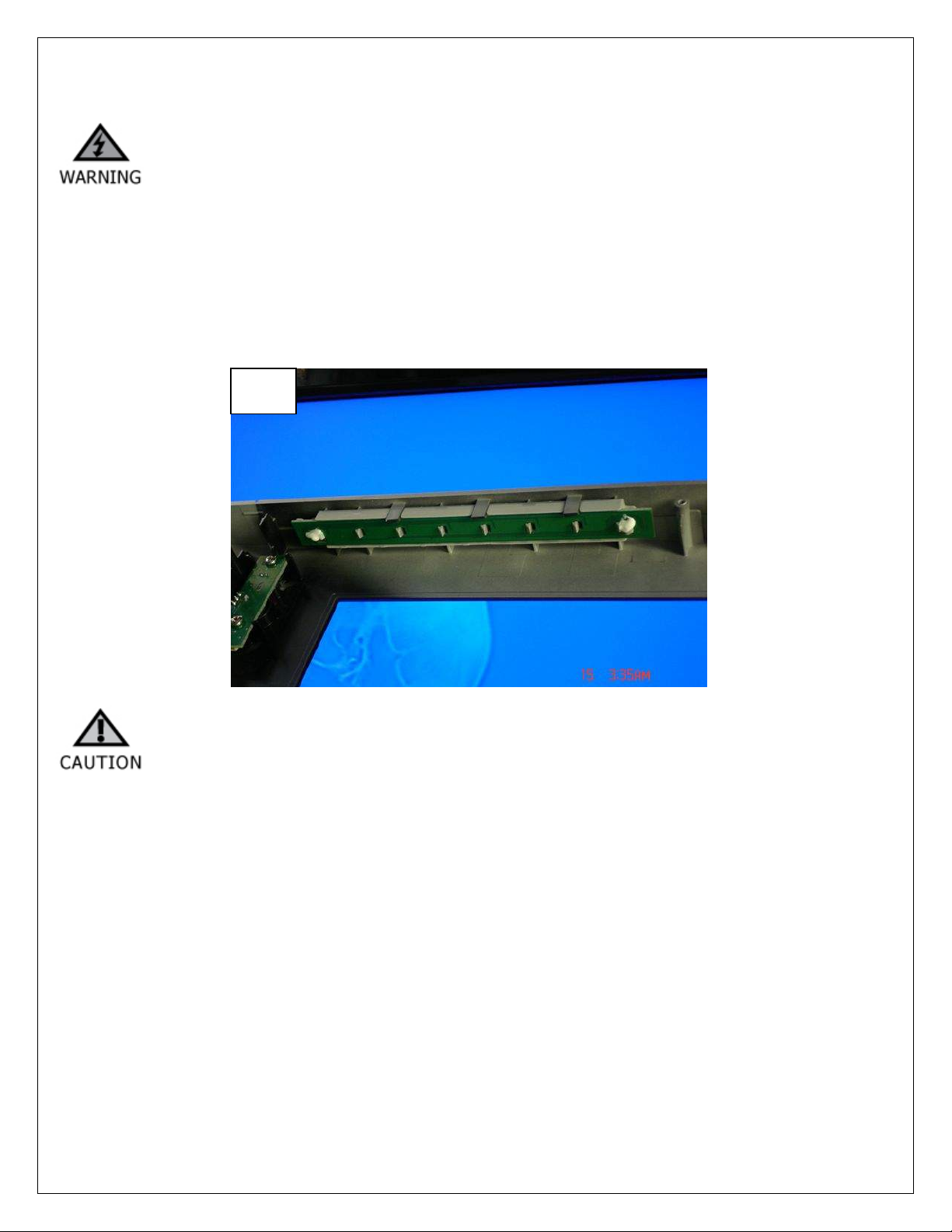

Front/Side Control Buttons Removal and Replacement ............................................................... 31
6. Spare Parts Lists – FLM-Series 26, 32, 37 ....................................................................................... 32
7. Exploded View Diagram ................................................................................................................. 39

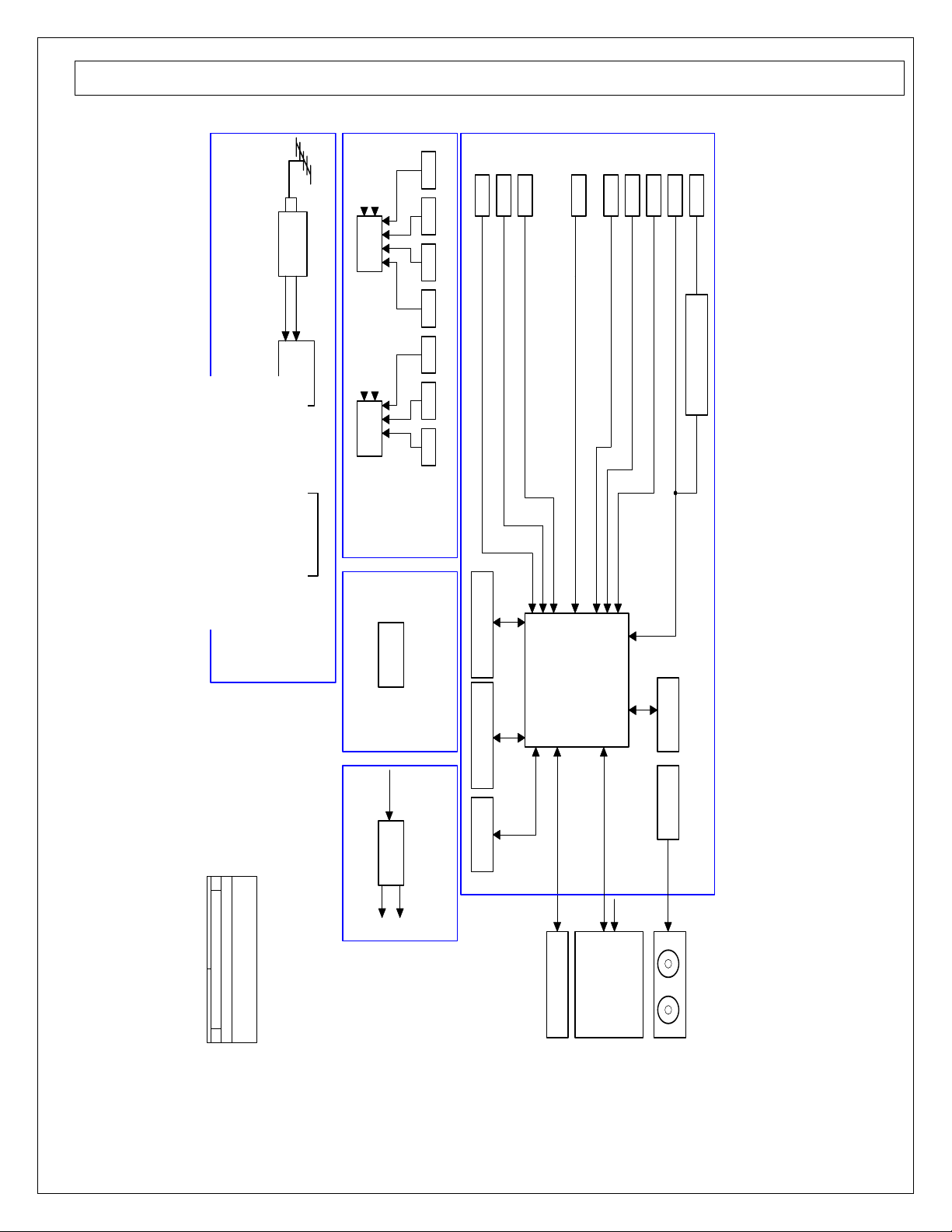

8. Block Diagram – FLM-Series 26, 32, 37........................................................................................... 42

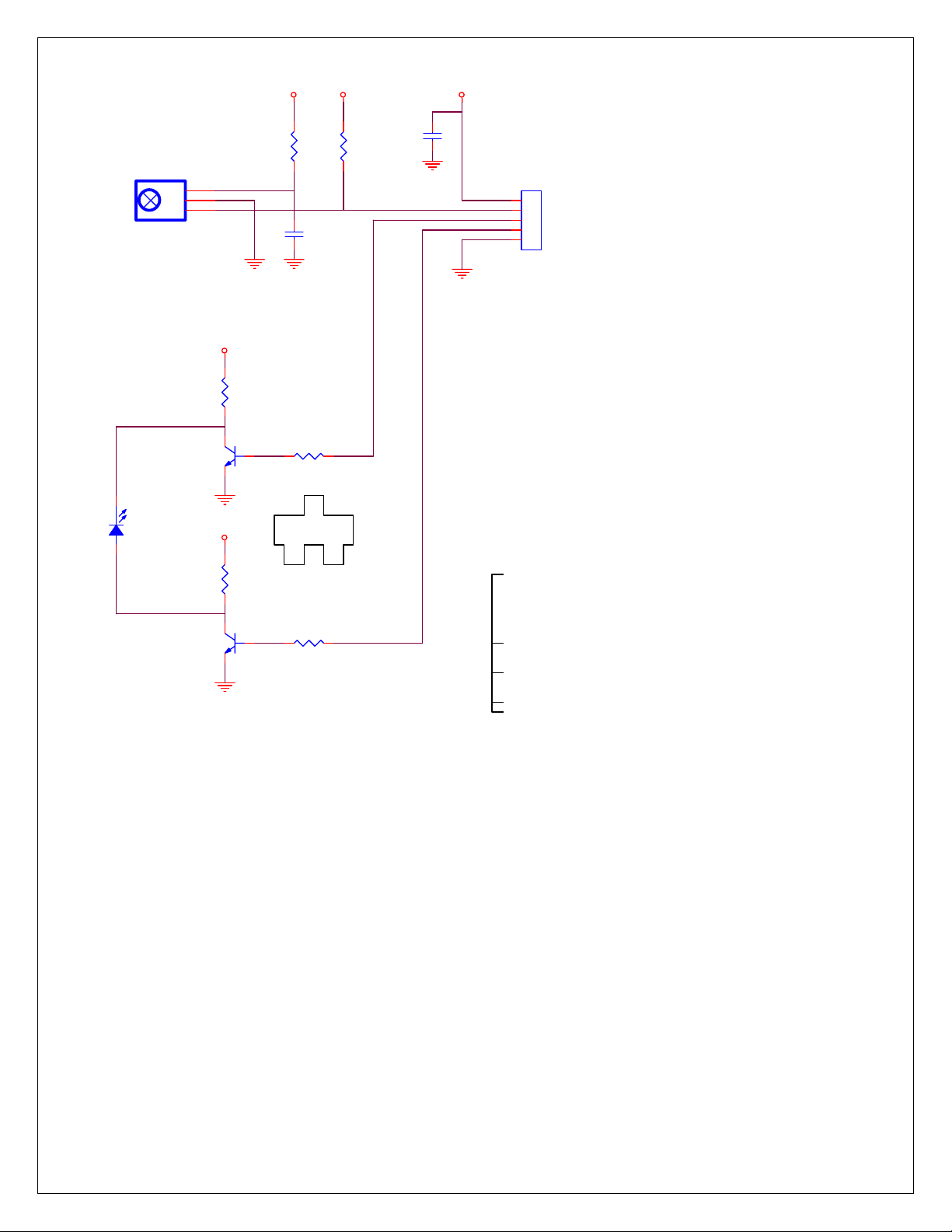

9. Schematics ................................................................................................................................... 43
10. PCB Layout Diagrams .................................................................................................................... 51
Model Specifications are located in User Manual. Go to polaroid.com to obtain User Manual.
5
www.polaroid.com
1. Operation
6
www.polaroid.com
7
www.polaroid.com
Original Remote Control
8
www.polaroid.com
9
www.polaroid.com
New Remote Control
10
www.polaroid.com
Factory Mode Procedure
1. Power on TV.
2. Press volume up and channel up buttons on the TV simultaneously and release.
3. Power off TV with remote or power button to exit.
11
www.polaroid.com
The operation of each OSD control is described in the following table:
Menu Options Sub-Options Function and Description
VIDEO
AUDIO
TV
Picture Mode
Contrast 0…100 (75) Fine tune the contrast.
Brightness 0…100 (50) Fine tune the brightness.
Saturation 0…100 (50) Fine tune the contrast.
Hue -30…+30 (0) Fine tune the contrast.
Sharpness 0…7 (4) Fine tune the contrast.
Color Temperature
Bass 0…100 (50) Fine tune the bass value.
Treble 0…100 (50) Fine tune the treble value.
Balance -20…+20 (0) Fine tune the balance value.
Effect
MTS
Auto Search Auto search
Tuner Mode
Vivid →Hi-Bright
→Cinema
→Sport→User.
Cool
Nature
Warm
User Red/Green/Blue: -19…+19
Live
Dance
Techno
Classic
Soft
Rock
POP
Off Close this function.
Mono
Stereo
Sap
channels.
Cable-STD / Cable-
HRC / Cable-IRC
Air
Press repeatedly for different picture
modes: Vivid →Hi-Bright →Cinema→Sport
→User.
Set the color temperature type.
Select the preset effect mode to match
your music type and achieve stunning
effects.
Set the sound type, which is only
available when input source is TV.
Auto-search channels and put the
programs into memory.
Select the tuner mode.
SETUP
Channel Skip Set the channel that
you want to skip.
Channel Name Edit the channel
name.
Language English/
Spanish/French
Timer
Auto Sleep
Time Input current time
Start Time Input the TV start playing time.
Stop Time Input the TV stop playing time.
Channel Input the channel No. for desired TV
Activate On/Off/Once
Display On/Off
30,60,90,120 Min Preset the auto sleep time. The TV will
Off Set auto sleep function off.
12
If a channel is set to SKIP, when
scanning up/down channels the
selected channel will be skipped.
It will be invalid if the current input
source is not TV.
Set language.
program.
Set the timer alarm on/off.
automatically go into standby state
when the preset time is up.
www.polaroid.com
HDTV
Closed Caption C1,C2,C3,C4,T1,T2,
TT4,and Off
V-chip
Reset Reset to default
Audio Language To set the audio language to English,
Time Zone Set the Time Zone value to Eastern
Auto Scan Auto-search channels and put the
Manual Scan Add-on mode: To search channels that
Channel Skip If a channel is set to SKIP, when
Analog Closed
Caption
Digital Closed
Caption
Digital Caption
Style
Block Channel To setup the block channel.
Input Password Input the 4-digit password. “0000”
Block MPAA Rating Set the input source that you want to
Block TV Rating Input the old password first, and then
Block MPAA Unrated Block all unrated movies.
Block TV None Rating Block all unrated TV programs.
value.
Set the analog closed caption value to
Set the digital closed caption value to
To set the values of caption style.
Set the closed caption mode.
lock.
input the new password.
Reset the items in the setup menu
except the protected items.
French, or Spanish.
Time, Indiana, Central Time, Mountain
Time, Arizona, Pacific Time, Alaska
and Hawaii.
programs into memory.
had not searched last time.
Range mode: To search receivable
channels in the setting range.
scanning up/down channels the
selected channel will be skipped.
OFF,CC1,CC2,CC3,CC4,TEXT1,TEXT2,
TEXT3 and TEXT4.
OFF, Service1, Service2, Service3,
Service4, Service5 and Service6.
13
www.polaroid.com
2. Troubleshooting / Flow Charts
Note: Reseat all cables, check fuse by AC plug, perform a clear or reset in factory mode and
retest before ordering parts.
Can’t power on your TV?
This TV is equipped with a safety fuse. In the event of an electrical storm or power outage the safety fuse is
designed to protect your TV. If your TV has no power, check the fuse by prying the cover off, following the
illustration below. If the fuse is blown, visit your local hardware store and ask for a 4A 250V - 5x20mm Time
Lag Fuse (Slow Blow) to replace the fuse.
Having trouble with setting your Parental Controls (V-Chip)?
The factory preset password is 0000. This password must be used first before setting your own personal
password. It is recommended that you keep your personal password in a safe place and away from children.
In the event you loose your personal password the master password is 8202. The master password overrides
all passwords. The master password can’t be changed and should be kept in a safe place away from children.
Having trouble with setting Picture-in-Picture settings?
The Picture-in-Picture will not work using Component 1 and Component 2 as the input sources.
14
www.polaroid.com
15
www.polaroid.com
16
www.polaroid.com
17
www.polaroid.com
3. Polaroid Display Cell Defect Specification
In some cases, a panel may have defective cells that cannot be controlled.
These defective cells can be categorized into two types;
(1) Non-lighting or dark cell defect:
(2) Non-extinguishing or bright cell defect: defect in which the cell is always on
The
Polaroid Display Cell Defect Specifications below define the allowed limits for display cell defects and are
used as the criteria in determining whether an LCD panel is replaced.
7 or more defective pixels across the entire LCD screen Polaroid will repair (replace LCD panel) or replace the
TV.
defect in which the cell is always off
18
www.polaroid.com
4. Before Returning This Product to the User
Before returning this product to the user, always perform the following safety checks:
(1) Inspect all wiring to be sure no wires are pinched between the chassis or any metal parts.
(2) Inspect all protective devices for proper installation, including non-metallic controls, insulation materials, cabinet
backs, compartment covers, and shields.
(3) Verify that no shock hazard exists on any part of the chassis, especially any metal components including cable
connection points, chassis hardware, or antennas (if equipped). Use the following procedure:
a.
Plug the AC cord directly into a 120 V AC outlet.
b.
Create a test circuit consisting of a 1.5k ohm, 10
watt resistor paralleled by a 0.15 µF capacitor.
c.
Using an AC voltmeter (sensitivity of 5000 ohm per
volt or higher), measure the voltage drop across
the test circuit between all exposed metallic parts
and a known earth ground. Measurement points
include antenna, metal cabinet parts, screw heads,
and metal knobs or controls.
can vary slightly even between revisions of the
same model, so always conduct a thorough review
of the chassis to locate metal points that a user
may touch.
d.
Any voltage reading of 0.375 Vrms AC (0.25
mArms) or higher indicates a potential shock
hazard. THIS CONDITION MUST BE
CORRECTED BEFORE RETURNING THE
PRODUCT TO THE USER!
e.
Repeat the above checks with the AC polarity
reversed. A non-polarized adapter is required to
reverse the polarity; DO NOT LEAVE THIS
ADAPTER WITH THE USER! Under normal
operation the product must use the proper polarity.
Measurement points
19
www.polaroid.com
5. Disassembly Procedure
Note: Before disassembly of any part the TV, make sure the power is OFF, and the
power cord is removed from the wall outlet. Allow time for power within all system
boards to discharge before you begin disassembly. Never insert any objects into the
vent holes in the TV case.
Note: Before returning this product to the end user, you must follow the steps
outlined in the section,
procedure ensures that the chassis will not cause electric shock.
When servicing an LCD or plasma TV, always observe the following safety guidelines:
• Wear a grounding (ESD) wrist strap, and use a grounded or dissipative work mat.
• Use a stable and strong work surface that is large enough to hold components you might remove.
• When removing components that are attached with a cable, unplug the cable before removing the
screws to avoid damaging the cable.
• Use a magnetized screwdriver for removing screws.
• To help keep track of screws, place each component’s screws next to the component on your work
surface.
ELECTROSTATIC DISCHARGE (ESD)
Components inside an LCD or plasma TV are sensitive to static electricity. Before servicing the TV, follow these
guidelines:
• Avoid static-causing surfaces such as carpeted floors, plastic, and packing foam.
• Remove replacement components from their antistatic bags only when you are ready to use them. Do
not lay components on the outside of antistatic bags because only the inside of the bags provide
electrostatic protection.
• Always hold components by their edges. Avoid touching the edge connectors. Never slide components
over any surface.
• Wear a grounding wrist strap (available at most electronics stores) and attach it to a bare metal part of
your workbench or other grounded connection.
• Touch a bare metal surface on your workbench or other grounded object before touching any
components.
Before Returning This Product to the User, on page 19. This
20
www.polaroid.com
Rear Cover Removal
Lay TV flat on workbench. Be careful to protect the front bezel and LCD screen from being scratched. Use
protective cloth between work bench and TV front.
Note: Before disassembly of any part the TV, make sure the power is OFF, and the
power cord is removed from the wall outlet. Allow time for power within all system
boards to discharge before you begin disassembly. Never insert any objects into the
vent holes in the TV case.
Stand Removal
(1) Lay TV flat on workbench. Be careful to protect the front bezel and LCD screen from being scratched. Use
protective cloth between work bench and TV front.
(2) Remove screws in the sequence indicated below (1 thru 6).
(3) Remove stand.
*NOTE: Pictured is a 26” model. 32” and 37” models will have different stand screw
quantities and locations.
Rear Cover Removal
(4) Remove control box cover screws (PIC1 item 1, 2)
(5) Remove control box cover screws (PIC1 item 3)
(6) Remove control box cover- slide toward bottom of TV and lift off.
21
www.polaroid.com
(7) Lift up the control box from the A/V connector side (PIC1). There are cables underneath that are connected so be
careful. Release control box from back hinges and tilt to the left (PIC3).
(8) Tear off the Aluminum foil covering the LVDS connector. Disconnect LVDS cable connector from LCD panel (PIC2).
(9) Disconnect the LCD Panel power cord from bottom side of control box
(PIC3).
Note: Before returning this product to the end user, you must follow the steps
outlined in the section,
Before Returning This Product to the User, on page 19. This
procedure ensures that the chassis will not cause electric shock.
22
www.polaroid.com
Rear Cabinet Cover LCD Panel and Front Bezel
Note: Before disassembly of any part the TV, make sure the power is OFF, and the
power cord is removed from the wall outlet. Allow time for power within all system
boards to discharge before you begin disassembly. Never insert any objects into the
vent holes in the TV case.
Note: OEM LCD panels were used in production. The following LCD panel
disassembly/removal instructions may not apply to all models. Ensure LCD panel is
completely detached from the bezel before removing so the bezel is not damaged.
(1) Remove screws (PIC1) in the sequence of 1, A.
(2) Remove screws (PIC1) in sequence of 2, 3, 4, B, C, D
(3) Remove screws which fasten rear cabinet to front frame (PIC1) in the following sequence: AÆBÆCÆDÆEÆF
then 1Æ2Æ3Æ4Æ5
(4) Remove rear cabinet cover. Only the rear cabinet cover will come off.
*NOTE: Pictured is a 26” model. 32” and 37” models will have some different rear cabinet
cover screw quantities and locations.
23
www.polaroid.com
(5) Remove screws from TV stand support frame (PIC1)
(6) Remove screws from TV stand support frame (PIC1).
(7) Remove TV stand support frame.
24
www.polaroid.com
(8) Remove the EMI Aluminum Foil Sheilding Tape from the LCD Panel (PIC1, 2)
(9) EMI Aluminum Foil Sheilding Tape must be replaced during assembly.
Remove the EMI Aluminum
Foil Shielding Tape which
secures the Keyboard wiring
to the panel.
25
www.polaroid.com
(10) Remove from the D-sub board Speaker wire, Front/Side Control Button wire, and A/V wire connectors (PIC1)
(11) Remove the black tape from the Speaker wire and Ceramic ring (PIC2)
(12) Replace black tape during assembly.
26
www.polaroid.com
(13) Remove the foam spacer from LCD Panel and remove the A/V wire under the frame (PIC1).
(14) Save foam spacer and place in position during assembly.
(15) Remove the A/V subassembly from the bezel (PIC2).
(16) Remove screws (PIC1) in the sequence: 1-2
(17) Disconnect the LCD Panel cable from the D-SUB board (PIC1)
27
www.polaroid.com
(18) Remove screws that secure the LCD panel to the bezel (PIC1, PIC2)
TWO MEN REQUIRED!! Lift LCD Panel from the bezel
(19)
(20) Replace LCD panel.
(21) The front bezel can now be replaced if needed.
Note: Before returning this product to the end user, you must follow the steps
outlined in the section,
Before Returning This Product to the User, on page 19. This
procedure ensures that the chassis will not cause electric shock.
28
www.polaroid.com
A/V Board Removal and Replacement
Note: Before disassembly of any part the TV, make sure the power is OFF, and the
power cord is removed from the wall outlet. Allow time for power within all system
boards to discharge before you begin disassembly. Never insert any objects into the
vent holes in the TV case.
(1) Disassemble control box cover and rear cabinet cover and remove A/V assembly.
(2) Using a small pair of wire cutters grip the side-locking tab and pivot back towards the A/V cable connector (PIC1).
Locking tabl should only pivot about 45 degrees. Do the same for the opposite side of the A/V assembly.
(3) Slide out A/V board and replace (PIC2).
(4) Push locking tabs in to secure replaced A/V board.
PIC1
PIC2
Note: Before returning this product to the end user, you must follow the steps
outlined in the section,
Before Returning This Product to the User, on page 19. This
procedure ensures that the chassis will not cause electric shock.
29
www.polaroid.com
IR Board Removal and Replacement
Note: Before disassembly of any part the TV, make sure the power is OFF, and the
power cord is removed from the wall outlet. Allow time for power within all system
boards to discharge before you begin disassembly. Never insert any objects into the
vent holes in the TV case.
(1) Disassemble rear control box cover and rear cabinet cover.
(2) 2. Remove screws 1 and 2 and replace IR board (PIC1).
PIC1
PIC1
1
Note: Before returning this product to the end user, you must follow the steps
outlined in the section,
Before Returning This Product to the User, on page 19. This
procedure ensures that the chassis will not cause electric shock.
2
30
www.polaroid.com
Front/Side Control Buttons Removal and Replacement
Note: Before disassembly of any part the TV, make sure the power is OFF, and the
power cord is removed from the wall outlet. Allow time for power within all system
boards to discharge before you begin disassembly. Never insert any objects into the
vent holes in the TV case.
(1) Disassemble control box cover and rear cabinet cover.
(2) The control button board is attached with glue. Use alcohol to soften the glue and remove the control button
board (PIC1).
(3) Replace control button board and use glue to fasten to front bezel.
Note: Before returning this product to the end user, you must follow the steps
outlined in the section,
procedure ensures that the chassis will not cause electric shock.
PIC1
Before Returning This Product to the User, on page 19. This
31
www.polaroid.com
6. Spare Parts Lists – FLM-Series 26, 32, 37
Attention Service Centers
Some models consist of parts with multiple versions. Replacement parts in the spare part lists with an asterisk
(*) are multiple version parts. The TV serial number
needed for repair. Below is the Polaroid serial number format breakdown with a sample serial number.
Reference the serial number format details below to identify the correct replacement part(s) before placing
replacement part orders.
In the event the TV Model Version is not present in the part lists please review service bulletins for this model.
Service bulletins can be obtained through your Polaroid service contact.
SAMPLE SERIAL NUMBER FORMAT - DETAILS
C0600012720000001
Month of Production
Year of Production
Model Version
Unique 7 digit Serial Number
Model Version is used to identify the replacement part(s)
Non RoHS Serial Number Example - C0600012720000001
RoHS Compliant Serial Number Example - CR600012720000001 - the 0 in Year of Production is replaced with R.
Production Month Designator s:
A = January D = April G = July K = October
B = February E = May H = August M = November
C = March F = June J = September P = December
Note: Reseat all cables, check fuse by AC plug, perform a clear or reset in factory mode and
retest before ordering parts.
32
www.polaroid.com
Polaroid FLM-323B Part List
Model Version Part Number Description
600-181-3200-LIH AC Power Cord
621-181-60002H Audio Cable
621-181-2000H Composite Video Cable
621-181-3020P-1H Component Cable
845-C45-GF1XA-PH Remote Control
00, 01, 02, 03, 04,
06
A6 *909-KE0-GF321XAH Control Box Assembly (AUO V0)
C1, C2, C3, C6
899-K00-GF271XAH Front/Side Control Button Bd.
154-501-GF370-AH Front/Side Control Button Cover Silver
899-E00-GF271XAH IR Board
899-A00-GF271XAH Front/Side A/V Input Bd.
00, 01, 02, 03, 04,
06
A6 *705-532-050A-V5H 32" LCD Panel (AUO V0)
C1, C2, C3, C6 *705-532-001QTH 32" LCD Panel (QDI) (F1)
C1, C2, C3, C6 *705-132-HA32H 32" LCD Panel (QDI) (F2)
00, 01, 02, 03, 04,
06
A6, C1, C2, C3, C6 *151-113-FPH8BEH Front Bezel Black/Silver (QDI) (AUO)
151-002-FPH7GH Rear Cabinet Black
154-004-GF32WH Rear Cabinet Control Box Cover Black
151-700-GF321XAH Stand Assembly Silver
824-015-GF321L-KH Speaker (right or Left)
00, 01, 02, 03, 04,
06
A6, C1, C2, C3, C6 *631-030-GF321-A5H LVDS Cable (AUO QDI)
631-012-GF321H Power Inverter Cable (AUO CMO QDI)
*Note - Model Version column - see “Attention Service Centers” info before ordering part.
*909-KS0-GF321XA Control Box Assembly (CMO L01)
*909-KQ0GF321XA3H
*705-532-050C-4AH 32" LCD Panel (CMO L01)
*151-103-FPH8BH Front Bezel Black/Silver (CMO L01)
*631-030-GF321XAH LVDS Cable (CMO )
Control Box Assembly (QDI)
33
www.polaroid.com
Polaroid FLM-373B Part List
Model Version Part Number Description
600-181-3200-LIH AC Power Cord
621-181-60002H Audio Cable
621-181-2000H Composite Video Cable
621-181-3020P-1H Component Cable
845-C45-GF1XA-PH Remote Control
00, 01, 02, 03, A1, 23 *909-KS0-GF371XAH Control Box Assembly (AUO V1 V2)
12, 13, A2 *909-TE1-GF378XCH Control Box Assembly (AUO V0)
899-K00-GF271XAH Front/Side Control Button Bd.
154-501-GF370-AH Front/Side Control Button Cover Silver
899-E00-GF271XAH IR Board
899-A00-GF271XAH Front/Side A/V Input Bd.
23 *705-137-G01AH 37" LCD Panel (AUO V2)
A1 *705-537-401AX1H 37" LCD Panel (AUO V1)
12, 13, A2 *705-537-401A0H 37" LCD Panel (AUO V0)
23 *151-113-FC58BH Front Bezel Black/Silver (AUO V2)
12, 13, A1, A2 *151-103-FC58BH Front Bezel Black/Silver (AUO V0 V1)
151-002-FC57GH Rear Cabinet Black
154-004-GF32WH Rear Cabinet Control Box Cover Black
151-700-GF371XAH Stand Assembly Silver
824-015-GF321L-KH Speaker (right or Left)
12, 13, A2 *631-030-JK378H LVDS Cable (AUO V0)
00, 01, 02, 03, A1, 23 *631-030-GF371XAH LVDS Cable (AUO V1 V2)
*Note - Model Version column - see “Attention Service Centers” info before ordering part.
Polaroid FLM-2632 Part List
Model
Version
600-181-3200-LIH AC Power Cord
621-181-60002H Audio Cable
621-181-2000H Composite Video Cable
621-181-3020P-1H Component Cable
845-B45-GF1XA-PH Remote Control
03 *909-KC0-GF271XA-3H Control Box Assembly (CMO L03)
00, 01, 04 *909-KS0-GF271XAH Control Box Assembly (CMO L01)
899-K00-GF271XAH Front/Side Control Button Bd.
154-501-GF370-AH Front/Side Control Button Cover Silver
899-E00-GF271XAH IR Board
899-A00-GF271XAH Front/Side A/V Input Bd.
03 *705-526-002CH 26" LCD Panel (CMO L03)
00, 01, 04 *705-526-051C-1H 26" LCD Panel (CMO L01)
03 *151-113-FL98BH Front Bezel Black/Silver (CMO L03)
00, 01, 04 *151-103-FL98BH Front Bezel Black/Silver (CMO L01/L03)
151-002-FL97GH Rear Cabinet Black
154-004-GF32WH Rear Cabinet Control Box Cover Black
151-700-GF271XAH Stand Assembly Silver
824-015-GF271H Speaker (right or Left)
03 *631-030-GF321XA-04H LVDS cable (CMO L03)
00, 01, 04 *631-030-GF321XAH LVDS Cable (CMO L01 , L03)
631-N28-GF321XAH Power Inverter Cable (CMO L01, L03)
Part Number Description
34
www.polaroid.com
Polaroid FLM-2632M Part List
Part Number Description
600-181-3200-LIH AC Power Cord
621-181-60002H Audio Cable
621-181-2000H Composite Video Cable
621-181-3020P-1H Component Cable
845-B45-GF1XA-PH Remote Control
909-KS0-GF271XAH Control Box Assembly (CMO L01)
899-K00-GF271XAH Front/Side Control Button Bd.
154-501-GF370-AH Front/Side Control Button Cover Silver
899-E00-GF271XAH IR Board
899-A00-GF271XAH Front/Side A/V Input Bd.
705-526-051C-1H 26" LCD Panel (CMO L01)
151-103-FL98BH Front Bezel Black/Silver (CMO L01/L03)
151-002-FL97GH Rear Cabinet Black
154-004-GF32WH Rear Cabinet Control Box Cover Black
151-700-GF271XAH Stand Assembly Silver
824-015-GF271H Speaker (right or Left)
631-030-GF321XA-04H LVDS cable (CMO L03)
631-030-GF321XAH LVDS Cable (CMO L01 , L03)
631-N28-GF321XAH Power Inverter Cable (CMO L01, L03)
*Note - Model Version column - see “Attention Service Centers” info before ordering part.
Polaroid FLM-2634B Part List
Part Number Description
600-181-3200-LIH AC Power Cord
621-181-60002H Audio Cable
621-181-2000H Composite Video Cable
621-181-3020P-1H Component Cable
845-B45-GF1XA-PH Remote Control
909-KS0-GF271XAH Control Box Assembly (CMO L01)
899-K00-GF271XAH Front/Side Control Button Bd.
154-500-GF321H Front/Side Control Button Cover Black
899-E00-GF271XAH IR Board
899-A00-GF271XAH Front/Side A/V Input Bd.
705-526-051C-1H 26" LCD Panel (CMO L01)
151-103-FL97WH Front Bezel Black/Black (CMO L01)
151-002-FL97GH Rear Cabinet Black
154-004-GF32WH Rear Cabinet Control Box Cover Black
151-701-GF271XAH Stand Assembly Black
824-015-GF271H Speaker (right or Left)
631-030-GF321XAH LVDS Cable (CMO L01 , L03)
631-N28-GF321XAH Power Inverter Cable (CMO L01, L03)
35
www.polaroid.com
Polaroid FLM-3232 Part List
Model
Version
600-181-3200-LIH AC Power Cord
621-181-60002H Audio Cable
621-181-2000H Composite Video Cable
621-181-3020P-1H Component Cable
845-C45-GF1XA-PH Remote Control
00, 01, 02, 06 *909-KS0-GF321XA Control Box Assembly (CMO L01)
A3 *909-KE0-GF321XAH Control Box Assembly (AUO V5)
C3 *909-KQ0-GF321XA3H Control Box Assembly (QDI)
899-K00-GF271XAH Front/Side Control Button Bd.
154-501-GF370-AH Front/Side Control Button Cover Silver
899-E00-GF271XAH IR Board
899-A00-GF271XAH Front/Side A/V Input Bd.
A3 *705-532-050A-V5H 32" LCD Panel (AUO V5)
00, 01, 02, 06 *705-532-050C-4AH 32" LCD Panel (CMO L01)
C3 *705-532-001QTH 32" LCD Panel (QDI) (F1)
C3 *705-132-HA32H 32" LCD Panel (QDI) (F2)
00, 01, 02, 06 *151-103-FPH8BH Front Bezel Black/Silver (CMO L01)
A3 *151-000-FPH8BEH Front Bezel Black/Silver (AUO V5)
C3 *151-110-FPH8BEH Front Bezel Black/Silver (QDI)
151-002-FPH7GH Rear Cabinet Black
154-004-GF32WH Rear Cabinet Control Box Cover Black
151-700-GF321XAH Stand Assembly Silver
824-015-GF321L-KH Speaker (right or Left)
00, 01, 02, 06 *631-030-GF321XAH LVDS Cable (CMO L01 )
A3, C3 *631-030-GF321-A5H LVDS Cable (AUO QDI)
631-012-GF321H Power Inverter Cable (AUO CMO QDI)
*Note - Model Version column - see “Attention Service Centers” info before ordering part.
Part Number Description
Polaroid FLM-3232M Part List
Part Number Description
600-181-3200-LIH AC Power Cord
621-181-60002H Audio Cable
621-181-2000H Composite Video Cable
621-181-3020P-1H Component Cable
845-C45-GF1XA-PH Remote Control
909-KS0-GF321XA Control Box Assembly (CMO L01)
899-K00-GF271XAH Front/Side Control Button Bd.
154-501-GF370-AH Front/Side Control Button Cover Silver
899-E00-GF271XAH IR Board
899-A00-GF271XAH Front/Side A/V Input Bd.
705-532-050C-4AH 32" LCD Panel (CMO L01)
151-103-FPH8BH Front Bezel Black/Silver (CMO L01)
151-002-FPH7GH Rear Cabinet Black
154-004-GF32WH Rear Cabinet Control Box Cover Black
151-700-GF321XAH Stand Assembly Silver
824-015-GF321L-KH Speaker (right or Left)
631-030-GF321XAH LVDS Cable (CMO L01 )
631-012-GF321H Power Inverter Cable (AUO CMO QDI)
36
www.polaroid.com
Polaroid FLM-3234B Part List
Model
Version Part Number Description
600-181-3200-LIH AC Power Cord
621-181-60002H Audio Cable
621-181-2000H Composite Video Cable
621-181-3020P-1H Component Cable
845-C45-GF1XA-PH Remote Control
00, 01, 03 *909-KS0-GF321XA Control Box Assembly (CMO L01/L04)
C3 *909-KQ0-GF321XA3H Control Box Assembly (QDI)
899-K00-GF271XAH Front/Side Control Button Bd.
154-500-GF321H Front/Side Control Button Cover Black
899-E00-GF271XAH IR Board
899-A00-GF271XAH Front/Side A/V Input Bd.
00, 01, 03 *705-532-050C-4AH 32" LCD Panel (CMO L01/L04)
C3 *705-532-001QTH 32" LCD Panel (QDI) (F1)
C3 *705-132-HA32H 32" LCD Panel (QDI) (F2)
00, 01, 03 *151-114-FPH7WJH Front Bezel Black/Black (CMO L01/L04)
C3 *151-113-FPH7WEH Front Bezel Black/Black (QDI)
151-002-FPH7GH Rear Cabinet Black
154-004-GF32WH Rear Cabinet Control Box Cover Black
151-701-GF321-XAH Stand Assembly Black
824-015-GF321L-KH Speaker (right or Left)
00, 01 *631-030-GF321XAH LVDS Cable (CMO L01)
C3 *631-030-GF321-A5H LVDS Cable (AUO QDI)
631-012-GF321H Power Inverter Cable (AUO CMO QDI)
03 *631-030-GF321XA-04A LVDS CBL (CMO-L04)
*Note - Model Version column - see “Attention Service Centers” info before ordering part.
Polaroid FLM-3732/3732M Part List
Model
Version
600-181-3200-LIH AC Power Cord
621-181-60002H Audio Cable
621-181-2000H Composite Video Cable
621-181-3020P-1H Component Cable
845-C45-GF1XA-PH Remote Control
00, 01, 02, 03 *909-KS0-GF371XA Control Box Assembly (AUO V1)
12 *909-TE1-GF378XCH Control Box Assembly (AUO V0)
899-K00-GF271XAH Front/Side Control Button Bd.
154-501-GF370-AH Front/Side Control Button Cover Silver
899-E00-GF271XAH IR Board
899-A00-GF271XAH Front/Side A/V Input Bd.
12 *705-537-401A0H 37" LCD Panel (AUO V0)
00, 01, 02, 03 *705-537-401AX1H 37" LCD Panel (AUO V1)
151-103-FC58BH Front Bezel Black/Silver (AUO V0, V1)
151-002-FC57GH Rear Cabinet Black
154-004-GF32WH Rear Cabinet Control Box Cover Black
151-700-GF371XAH Stand Assembly Silver
824-015-GF321L-KH Speaker (right or Left)
00, 01, 02, 03 *631-030-GF371XAH LVDS Cable (AUO V1, V2)
12 *631-030-JK378H LVDS Cable (AUO V0)
Part Number Description
37
www.polaroid.com
Polaroid FLM-3734B, FLX-374 Part List
Part Number Description
600-181-3200-LIH AC Power Cord
621-181-60002H Audio Cable
621-181-2000H Composite Video Cable
621-181-3020P-1H Component Cable
845-C45-GF1XA-PH Remote Control
909-KS0-GF371XA Control Box Assembly (AUO V1)
899-K00-GF271XAH Front/Side Control Button Bd.
154-500-GF321H Front/Side Control Button Cover Black
899-E00-GF271XAH IR Board
899-A00-GF271XAH Front/Side A/V Input Bd.
705-537-401AX1H 37" LCD Panel (AUO V1)
151-103-FC57WH Front Bezel Black/Black (AUO V1)(F1)
151-113-FC57WH Front Bezel Black/Black (AUO V1)(F2)
151-002-FC57GH Rear Cabinet Black
154-004-GF32WH Rear Cabinet Control Box Cover Black
151-701-GF371XAH Stand Assembly Black
824-015-GF321L-KH Speaker (right or Left)
631-030-GF371XAH LVDS Cable (AUO V1 V2)
38
www.polaroid.com
Exploded View Diagram
Model Numbers: FLM-2632, FLM-2632M, FLM-2634B
39
www.polaroid.com
Model Number: FLM-3232, FLM-323B, FLM-3232M, FLM-3234B
40
www.polaroid.com
Model Number: FLM-3732, FLM-373B, FLM-3732M, FLM-3734B, FLX-374
41
www.polaroid.com
7. Block Diagram – FLM-Series 26, 32, 37
COMPUTER
ATSC Board
H
L
U10
GPIO- 3
TUNER
PI
5V330
VIDEO1
VIDEO3
S-VideoComposit e
VIDEO4
YPb P r 1
(HDTV1)
I/O Connector
AGC_IF
AGC_RF
VIDEO5
(HDTV2)
YPb P r 2
VIDEO2
TV
Composite
Tuner
TU_AV1
AVCVBS1
VIDEO3
VIDEO1
Composite
AVCVBS1
S-Video
AVSY0/C0
Demodulator
MT5111
TS OUTPUT
H
L
U10
GPIO-3
PI
5V330
COMPUTER
VGA
HDMI-D VI
VIDEO6
VIDEO2
Composite
VIDEO5
VIDEO4
HDTV
HDMI
GF ATSC LCD TV MT8202E+MT5111+MT5351 BOARD 4 LAYERS
MODULE
YPb P r 2 Y1/ P b 1 / P r 1
(HDTV2)
YPb P r 1
(HDTV1)
Y0/Pb0/Pr0
HDMI
ATSC
VGA
VI[23...0]
R/G/B
DATA+/-[2...0]
U20
M
T8293
VI[23...0]
FLASH RAM
DTV Backend
Decoder SOC
MT5351
Video (AD Board)
DDR RAM
CVBS0
VI[23...0]
Analog Tuner Board
M13L128168
U10
CVBS1
CVBS2
Y1/PB1/PR1
Y0/PB0/PR0
SY0/C0
R/G/B
D_DQ[15...0]
NTSC Tune r
NTSC TV
D_RA[11...0]
388 Pin BGA
U11
M13L128168
U8
( Scaler )
MT-8202
VI[23...0]
MTK
AUDIO DAC. AUDIO AMP.
8Mx16 SDRA M8Mx16 SDRAM
D_RA[11...0]
D_DQ[31...16]
IOA[7...0]
Title
Size Document Number Rev
Date: Sheet
C
Proview Electronics (Taiwan) Co., LTD.
6F, NO.1, Pau-Sheng Rd., Y ung-Ho City,
Taipei County, Taiwan R.O.C.
Tel: 886-2-2231-6789 Fax: 886-2-2231-5678
INDEX & BLOCK DIAGRAM
GF LCD TV
AC 110~240V
Power Module
AC TO DC Power
Power
+24V
Panel
AD Board
+24V
U9
29LV160
16M
AP[7...0]
LVDS
+24V
112Monday, December 19, 2005
of
B
Keypad & IR & LE D
LCD PANEL
(1366x768 )
10W~ 15W Speaker
42
www.polaroid.com
8. Schematics
HMDI connector is a type A receptacle for video/audio mode.
1. TMDS Data 2+ 9. TMDS Data 0- 17. CEC/GND
2. TMDS Data 2 shield 10. Clock + 18. +5V Power
3. TMDS Data 2- 11. Clock shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. Clock -
5. TMDS Data 1 shield 13. CEC
6. TMDS Data 1- 14. NC
7. TMDS Data 0+ 15. DDC CLK
8. TMDS Data 0 shield 16. DDC DATA
D-Sub Connector IN. (This function also can provides to HDTV.)
D-Sub type Connector pin assignment
1. Red Video 6. Red Ground 11. GND
2. Green Video 7. Green Ground 12. SDA For DDC1/2B
3. Blue Video 8. Blue Ground 13. H-sync.
4. GND 9. +5V from PC 14. V-sync.
5. Vdd from PC for DDC 10. Sync. GND 15. SCL For DDC1/2B
RCA jacks are all female type.
Mini DIN CNC 4 Pins (SCN570S3NS00000) for S-video, the pin assignment is described as below:
1: Ground
2: Ground
3: Y
4: C
43
www.polaroid.com
Format
Level/Impedance
TMDS Mode
Frequency
Maximum Pixel Clock
DDC 1/2B
Connector
Format
Level/Impedance
DDC 1/2B
Sync
Frequency
Maximum Pixel Clock
Connector
HDMI
DVI 1.0
0.5~3.0Vp-p/100 Ohm (Differential),50 Ohm (Single ending)
Single Link
Fh = 31~80 kHz
Fv = 56~76 Hz
135 MHz
Compliant with Revision 1.0
HDMI x 1
Analog HD15 PC Signal (RGB)
R, G, B Analog
0.7Vp-p / 75Ω
Compliant with Revision 1.0
H/V separate
3V TTL level / 1kΩ
Fh = 31~80 kHz
Fv = 56~76 Hz
135 Mhz
Mini D-Sub 15 pin (female) x 1
Video (Composite) CVBS Signal
Format
Level / Impedance
Format
Level / Impedance Y: 1.0Vp-p / 75Ω
NTSC, 4.43NTSC, PAL_M, PAL(B,G,H,D,N), SECAM
1.0Vp-p / 75Ω
S-Video (Y/C) Signal
Y, C
C: ± 286 mV/ 75Ω
Analog HD15 Video Signal (YPbPr/YCbCr)
Format
Level / Impedance Y: 1.0Vp-p / 75Ω
STANDARD RESOLUTION
ATSC, 480i 720x480 60 15.7 27
ATSC, 480p 720x480 60 31.5 27
ATSC, 1080i 1920x1080 60 33.7 74.2
ATSC, 720p 1280x720 60 45.0 74.2
Y, Pb, Pr or Y, Cb, Cr
Pb/Cb, Pr/Cr: 0.7 ± 0.035Vp-p / 75Ω
HDMI Timing
V FREQ
Hz
H FREQ
kHz
CLK
MHz
ATSC, 576i 720x576 50 15.6 27
44
www.polaroid.com
RGB PC Timing
STANDARD RESOLUTION
VGA 640x480 60 31.47 25.16
VGA 640x480 75 37.5 31.5
SVGA 800x600 60 37.88 40
SVGA 800x600 75 46.9 49.5
XGA 1024x768 60 48.36 65.0
XGA 1024x768 75 60.02 78.75
SXGA 1280x1024 60 64 108
SXGA 1280x1024 75 80 135
MAC 640x480 67 35 30.24
Non-VESA 720x400 70 31.5 28
Video & S-Video AV Timing
V FREQ
Hz
H FREQ
kHz
CLK
MHz
STANDARD RESOLUTION
NTSC 525 60 15.734 12.65
PAL(B,G,H,D,I) 625 50 15.625 14.50
SECAM 625 50 15.625 14.50
4.43NTSC 525 60 15.734 12.65
PAL-M 525 60 15.734 12.65
PAL-N 625 50 15.625 14.50
HDTV/Component AV Timing
SDTV 525i 720x525 60 15.735 27
SDTV 625i 720x625 50 15.625 27
SDTV 480p 720x480 60 31.5 27
HDTV 720p 1280x720 60 50.0 74.2
HDTV 1080i 1920x1080 60 33.7 74.2
V FREQ
Hz
H FREQ
kHz
CLK
MHz
45
www.polaroid.com

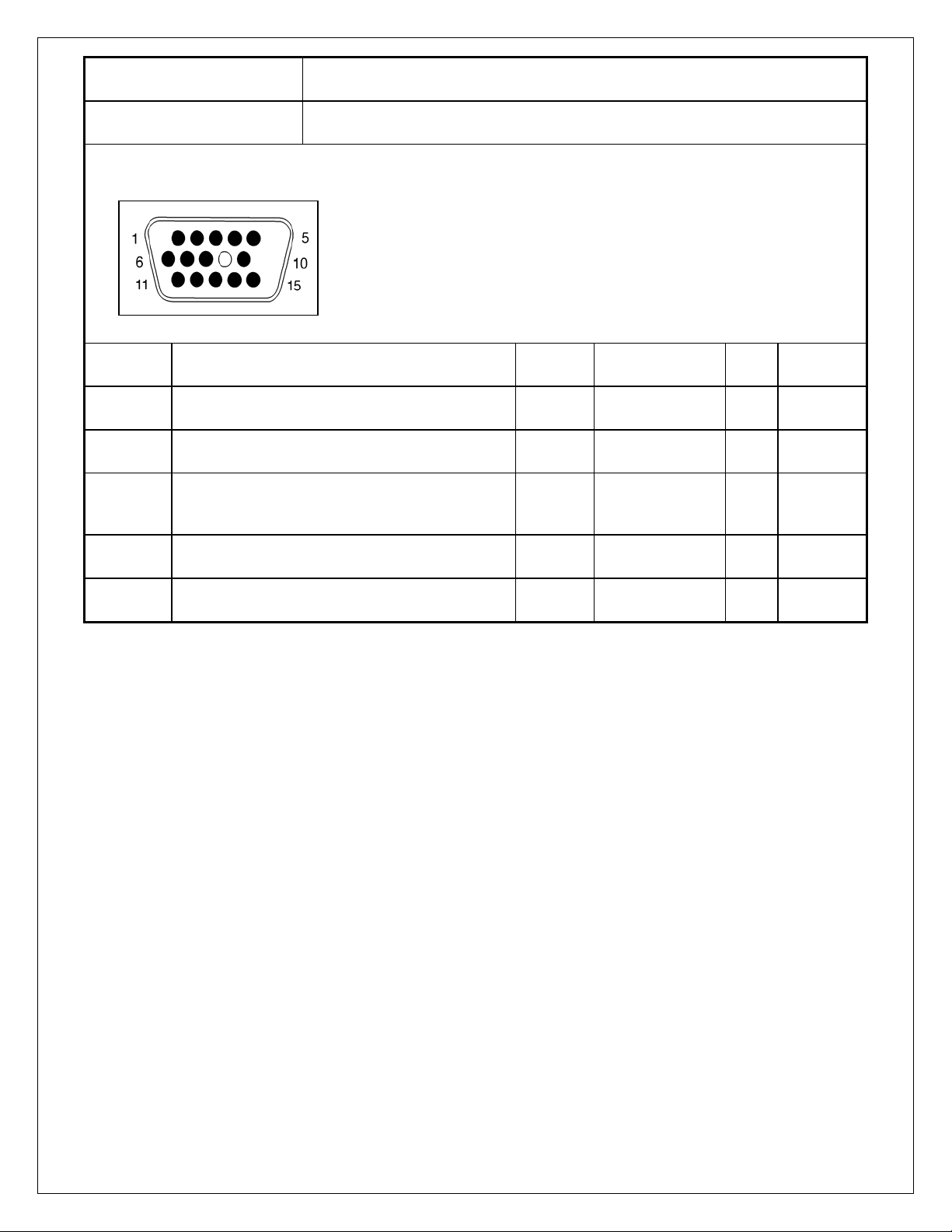

Power Source AC100 – 240 V, 60/50 Hz
Sound Output
Signal Connector Pin Assignment
10W X2, 8 Ohm.
Pin Assignment Pin Assignment Pin Assignment
1. Red 6. Red Ground 11. Ground
2. Green 7. Green Gro und 12. SDA
3. Blue 8. Blue Ground 13.
4. Ground 9. Not Connected
Horizontal Sync.
14.
Vertical
Sync.
5. Self Test 10. Sync. Ground 15. SCL
46
www.polaroid.com
IR Board
VCC VCC
VCC
DIP LED-D3
C1
0.1uF
VCC
IR-OUT
LED_O
LED_G
GND
J1
1
2
3
4
5
CON5
U1
V
G
O
IR-SEN SOR
R1
100
3
2
1
C2
10uF-0805
R2
10K
Hous5P-1.0h
VCC
R3
560
LED_O
Q1
B
R5
560
R4 47
R6 47
B
C
MMBT3904
B
E
Proview Electronics (Taiwan) Co., LTD.
6F, NO.1, Pau-Sheng Rd., Yung-Ho City,
Taipei County , Taiwan R.O.C.
Tel: 886-2-2231-6789 Fax: 886-2-2232-4613
Tit le
IR SENSOR PCB
Size D ocum ent N umber Rev
A
GF371-XU
11Tuesday , D ecem ber 20, 2005
Date: Sheet
of
A
MMBT3904
E C
D1
LED_G
Q2
MMBT3904
VCC
E C
47
www.polaroid.com
Front/Side Control Buttons
SW1
POWER-ON
SW2
SOURCE
SW3
MEN U
SW4
CH-UP
SW5
CH-DOWN
SW6
VOL-UP
SW7
VOL-DOWN
R1
4.7KR24.7KR34.7KR44.7KR54.7K
ZD2
ZD1
5.6V
5.6V
ZD3
5.6V
ZD4
5.6V
ZD5
5.6V
R6
4.7KR74.7K
ZD7
ZD6
5.6V
5.6V
VCC
VCC
POWER-ON
SOERCE
MEN U
CH-UP
CH-DOWN
VOL-UP
VOL-DOWN
C1
0.1uF
J1
1
2
3
4
5
6
7
8
GND
9
CON9
Hous 9P-1.0
Proview Electronics (Taiwan) Co., LTD.
6F, NO.1, Pau-Sheng Rd., Yung-Ho City,
Taipei County, Taiwan R.O. C.
Tel: 886-2-2231-6789 Fax: 886-2-2232-4613
Tit le
KEYPA D PCB
Size D ocum ent N umber Rev
A
Date: Sheet
GF371-XU
11Friday , September 30, 2005
of
A
48
www.polaroid.com
AV AUX Board
FRONT_S_CHROMA FRON T_S_LUMA
FRONT_A_R_IN
FRONT_COMPOSITE
PHONE_A_R_O
LINK TO A UX AV PC B 1
13
11
97531
200PHD-14LT
1412108642
FRONT_A_L_I N
PHONE_A_D_ O
PHONE_A_L_O
DIN4
75
12pF
12pF
75
FRONT_S_CH ROMA
R1
C1
L1
S_C FRON T_S_LUMA
3 4
1 2
GG
CY
S_Y
L2
C2
R2
FB-40-0805-700MA
S-Video Input
J1
FB-40-0805-700MA
CON1 : FRONT AV INPUT/OUTPUT
C6
C0603_NC
200PHD Series 2X8 (16pin)
C7
C0603_NC
AUX AV
CON1
PJ1
PHONE J ACK-3.5
124
3
PHONE_A_D
PHONE_A_R
PHONE_A_L
R8 0-R0603
PHONE_A_L_O
R6 0-R0603
R7 0-R0603
PHONE_A_R_ O
PHONE_A_D_ O
AV Input
RCA JACK
12pF
75
J3
21
CVBS
L4
FB-40-0805-700MA
C4
R4
FRONT_COMPOSITE
PHONE_A_L
S_Y
3
LINE11GND2LINE3
RClamp 0504F
Titl e
Size D ocument Num ber Rev
Date: Sheet
B
AUX AV PCB
GF371-XU
11Thursday , Nove mber 24, 2005
of
Proview Electronics (Taiwan) Co., LTD.
6F, NO.1, Pau-Sheng Rd., Yung-Ho Cit y,
Taipei County, Taiwan R.O.C.
Tel: 886-2-2231-6789 Fax: 886-2-2232-4613
RClamp0 504F
U2
LINE4
LINE2
VCC
4
6
5
PHONE_A_DPHONE_A_R
FRONT_A_L
FRONT_A_R
3
LINE11GND2LINE3
U3
LINE4
LINE2
VCC
4
6
5
Audio Input
RCA JACK
12pF
75
RCA JACK
12pF
75
J2
21
FRONT_A_R
L3
FB-40-0805-700MA
C3
R3
FRONT_A_R_IN
J4
21
FRONT_A_L
L5
FB-40-0805-700MA
C5
R5
FRONT_A_L_IN
RClam p0504F
LINE33GND2LINE1
LINE4
VCC
4
1
U1
LINE2
6
5
CVBSS_C
A
49
www.polaroid.com
D-SUB 37 PIN Board
SPK_R_OUT+
SPK_L_OUT+
SPK_R_OUT-
SPK_L_OUT-
200PHD Series 2X4 (8pin)
ADJ_I NV
VBLON
SW4-CH-U P
SW2-SOURC E
LED_G
IR-OUT
LTDC_DATA
LTDC_INT
SW6-VOL-UP
200PHD Series 2X8 (16pin)
250XH Series 1X4 (4pin)
SPK OU T
123
4
250XH-4LT
D-SUB 37P F EMALE
CON4
LTDC_DATA
LTDC_IN T
SW2-SOURC E
IR-OUT
LED_G
VCCSB
2021222324252627282930313233343536
6
54321
INVERTER CTRL.
753
1
200PHD-8LT
CON3
864
2
SW6-VOL-UP
SW4-CH-U P
12
11
10
987
FRONT_A_L_IN
SPK_L_OUT+
SPK_L_OUT-
PHONE_A_D_O
FRONT_COMPOSITE
FRONT_S_CH ROMA
37
J1
19
18
17
16
15
14
13
CTRL. Key
AUX AV
151311
200PHD-16LT
97531
CON1
2
16141210864
VCCSB
SW5-CH-D OWN
SW7-VOL-DOWN
SW1-POWER
SW3-MENU
LTDC_ADD R
LTDC_CLK
LED_O
FRONT_S_CH ROMA
FRONT_COMPOSITE
FRONT_A_L_IN
PHONE_A_D_O
200PHD Series 2X7 (14pin)
13
11
200PHD-14LT
97531
CON2
SW5-CH-DOWN
SW7-VOL-DOWN
FRONT_S_LUMA
FRONT_A_R_IN
PHONE_A_R_O
SPK_R_OUT+
SPK_R_OUT-
SW1-POWER
LTDC_CLK
LTDC_ADDR
ADJ_IN V
VBLON
Titl e
Size Document Num ber Rev
Date: Sheet
Custom
Proview Electronics (Taiwan) Co., LTD.
6F, NO.1, Pau-Sheng Rd., Yung-Ho City,
Taipei County, Taiwan R.O.C.
Tel: 886-2-2231-6789 Fax: 886-2-2232-4613
SW3-MENU
LED_O
PHONE_A_L_O
1412108642
FRONT_S_LUMA
FRONT_A_R_IN
PHONE_A_R _O
PHONE_A_L_O
CON JUNCT D-SUB 37Pin
JK379-UD
11Friday , September 09, 2005
of
A
50
www.polaroid.com
9. PCB Layout Diagrams
Front/Side Control Button Board (Component Side Top)
Front/Side Control Button Board (Component Side Bottom)
IR/LED Board (Component Side Top)
AUX AV Board (Component Side Top)
51
www.polaroid.com
D-SUB 37 Pin Board (Component Side Top)
D-SUB 37 Pin Board (Component Side Bottom)
52
www.polaroid.com
Loading...
