Polaroid FLM-3225 User Manual

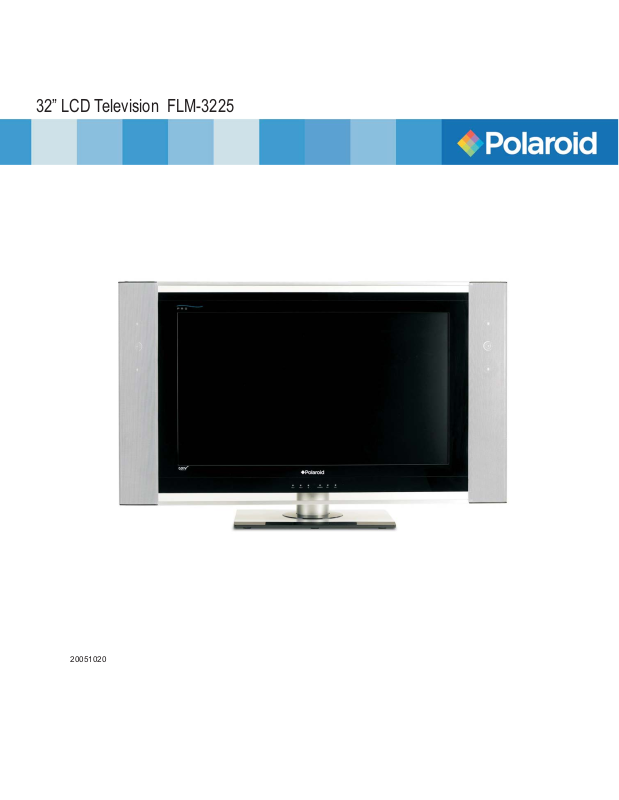

32” LCD Television FLM-3225
20051020
Table of Contents
Important Information..........................................................................................................................................................1
Important Safety Precautions .............................................................................................................................................2
Preparations .......................................................................................................................................................................5
Using the Remote Control........................................................................................................................................5
Batteries for the Remote Control .............................................................................................................................5
Power Connection....................................................................................................................................................5
Antenna Connection ................................................................................................................................................6
Identification of Controls.....................................................................................................................................................7
Main Unit..................................................................................................................................................................7
Remote Control........................................................................................................................................................9
Connections......................................................................................................................................................................11
Cautions Before Connecting ..................................................................................................................................11
Connect a VCR ......................................................................................................................................................11
Connect a Camcorder ............................................................................................................................................12
Connect a DVD player............................................................................................................................................13
Connect a product to HDMI....................................................................................................................................14
Connect a PC.........................................................................................................................................................15
Connect a VCR for Recording...............................................................................................................................16
Turning the Unit On and Off..............................................................................................................................................17
Turning the Unit On and Off ...................................................................................................................................17
Viewing the Menus and Displays ...........................................................................................................................17
Memorizing the Channels.................................................................................................................................................18
Selecting the Signal Source ...................................................................................................................................18
Storing Channels in Memory Automatically............................................................................................................18
Adding and Erasing Channels................................................................................................................................19
Basic Operations ..............................................................................................................................................................20
Changing Channels................................................................................................................................................20
Adjusting the Volume..............................................................................................................................................20
Select Input Source Signal.....................................................................................................................................21
Selecting a Menu Language...................................................................................................................................21
Setting Picture ..................................................................................................................................................................22
Customizing the Picture .........................................................................................................................................22
Using the Preset Picture Mode...............................................................................................................................22
Adjusting Screen Aspect ........................................................................................................................................23
Reducing Picture Noise..........................................................................................................................................23
Freezing Picture .....................................................................................................................................................23
Setting Timer ....................................................................................................................................................................24
Setting Clock Time .................................................................................................................................................24
Setting ON timer.....................................................................................................................................................24
Setting OFF timer...................................................................................................................................................24
Setting Sleep Timer................................................................................................................................................25
Setting Sound ...................................................................................................................................................................26
Customizing the Sound ..........................................................................................................................................26
Using the Preset Sound Mode ...............................................................................................................................26
Selecting Stereo Mode...........................................................................................................................................27
Adjusting On-Screen Display ...........................................................................................................................................28
Adjusting OSD Position..........................................................................................................................................28
Adjusting OSD Transparency.................................................................................................................................28
Table of Contents (continued)
Setting OSD Timeout .............................................................................................................................................28
PIP Operations ................................................................................................................................................................29
Viewing and Changing the Position of the PIP Frame ...........................................................................................29
Selecting the Signal Source for the PIP Frame......................................................................................................29
Selecting Sound Source for PIP Frame .................................................................................................................29
Viewing Closed Caption....................................................................................................................................................30
Selecting Closed Caption.......................................................................................................................................30
Adjustment in VGA Mode .................................................................................................................................................31
Adjusting the Picture ..............................................................................................................................................31
Adjusting Image Size..............................................................................................................................................31
Changing the Position of Image .............................................................................................................................32
Adjusting the CLOCK and PHASE.........................................................................................................................32
Adjusting the Picture Automatically........................................................................................................................32
Adjusting Parental Control Settings..................................................................................................................................33
Parental Control .....................................................................................................................................................33
Accessing PARENTAL CONTROL .........................................................................................................................34
Changing the Password .........................................................................................................................................35
Turning PARENTAL CONTROL ON or OFF...........................................................................................................35
Adjusting the TV RATING.......................................................................................................................................35
Adjusting the MOVIE RATING................................................................................................................................35
Adjusting ENGLISH RATING..................................................................................................................................36
Adjusting FRENCH RATING...................................................................................................................................36
Troubleshooting................................................................................................................................................................37
Specification .....................................................................................................................................................................38
Programming the Universal Remote Control....................................................................................................................39
ImportantInformation
WARNING:
CAUTION-To reduce the risk of electric shock, do not perform any
"Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electrical
Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system
of the building,as close tothe point ofcable entry aspractical.”
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE.
The lightning flash with arrowhead symbol,
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
servicing other than that contained in the operating
instructions unless youare qualified todo so.
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
dangerous voltage within the product's
enclosure that may be of sufficient magnitude to
constitute a riskof electric shockto persons
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying theappliance.
.
This product utilizes tin-lead solder, and fluorescent lamp containing asmall amount of mercury.Disposal ofthese materials may be regulateddue
to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic IndustriesAlliance:
www.eia.org
FCC STATEMENT
FCC Notice
LCD TV: A CLASS B digital device
This equipment has been testedand found to comply with thelimits for a Class B digitaldevice, pursuant to part 15 ofthe FCC Rules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference inwhich case theuser will berequired to correctthe interference athis own expense.
FCC CAUTION:
Pursuant to 47CFR, Part 15.21 of the FCC rules, any changes or modifications to this monitor not expressly approved by the
manufacturer could causeharmful interference andwould void theuser's authority tooperate this device.
WARNING: This is a CLASS B product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures to counter interference.
1
ImportantSafety Precautions
Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly handled.
This product has been engineered and manufactured with the highest priority on safety. But IMPROPER USE CAN RESULT IN
POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order to prevent potential danger, please observe the following instructions
when installing, operating and cleaning the product. To ensure your safety and prolong the service lifeof yourLCD TVproduct, pleaseread
the following precautionscarefully before usingthe product.
1. Read theseinstructions---All operating instructionsmust be readand understood beforethe product isoperated.
2. Keep theseinstructions---These safety andoperating instructions mustbe kept ina safe placefor future reference.
3. Heed allwarnings---All warnings onthe product andin the instructionsmust be observedclosely.
4. Follow allinstructions---All operating instructionsmust be followed.
5. Do not use this apparatus near water---for example, near a bathtub, washbowl,
kitchen sink, orlaundry tub, ina wet basement,or near aswimming pool, andthe like.
Do not use immediately after moving from a low temperature to high temperature
environment, as this causes condensation, which may result in fire, electric shock, or
other hazards.
Apparatus shallnot be exposed to dripping orsplashing and no objects filled with liquids,
such as vases,shall be placedon the apparatus.
6. Clean only with dry cloth---Unplug this product from the wall outlet before cleaning.
Do not useliquid cleaners oraerosol cleaners. Usea damp clothfor cleaning ifrequired.
Ventilation---
7. Do not block any ventilation openings. Install in accordance with the
manufacturer instructions. The vents and other openings in the cabinet are designed for
ventilation. Do not cover or block these vents and openings since insufficient ventilation
can causeoverheating and/or shorten the life ofthe product. Do not place theproduct on
a bed, sofa, rug or other similar surface, since they can block ventilation openings. This
product is not designed for built-in installation; do not place the product in an enclosed
place such as a bookcase or rack, unless proper ventilation is provided or the
manufacturer’s instructions are followed.
8.Heat sources---Do not install near any heat sources such as radiators, heat registers,
stoves, or otherapparatus (including amplifiers)that produce heat.
9.Grounding or Polarization---Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are
provided for yoursafety.If the providedplug does notfit into youroutlet, consult anelectrician for replacementof the obsoleteoutlet.
10.Power cord protection---Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point wherethey exit fromthe apparatus.
11. Only use attachments/accessories specified by the manufacturer. Do not use attachments not recommended by the
Attachments---
manufacturer.Use of improperattachments can resultin accidents.
2
ImportantSafety Precautions (continued)
12. Stand Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,or
sold with the apparatus. Do not place the product on an unstable trolley, stand, tripod or table.
Placing theproduct on an unstable basecan cause the product tofall, resulting inserious personal
injuries as well as damage to the product. When mounting the product on a wall, be sure to follow
the manufacturer’s instructions. Use only the mounting hardware recommended by the
manufacturer.
13. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury fromtip-over. Sudden stops,excessive forceand uneven floor surfaces
can cause theproduct to fallfrom the trolley.
14. Lightning---Unplug this apparatus during lightning storms or when unused for long periods of
time.
For added protection for this television equipment during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the
antenna. This willprevent damage tothe equipment dueto lightning andpower-line surges.
---
Move Carefully---
15. Servicing---Refer all servicingto qualifiedservice personnel.Servicing isrequired whenthe apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rainor moisture, doesnot operate normally, or hasbeen dropped.
16. Replacement parts---In case the product needs replacement parts, make sure that the service person uses
replacement parts specified by the manufacturer, or those with the same characteristics and performance as the
original parts. Useof unauthorized partscan result infire, electric shockand/or other danger.
17.Overloading---Do not overload wall outlets, extension cords, or convenience receptacles on other
equipment as thiscan result ina risk offire or electricshock.
18.Entering ofobjects and liquids---Never insert an objectinto the product through vents or openings. With high voltage in the product,
inserting an objectcan cause electricshock and/or shortinternal parts .For the same reason,do not spillwater or liquidon the product.
19.Damage requiring service---If any ofthe followingconditions occurs, unplug the powercord fromtheAC outlet,and request a qualified
service person toperform repairs.
a. When thepower cord orplug is damaged.
b. When aliquid is spilledon the productor when objectshave fallen intothe product.
c. When theproduct has beenexposed to rainor water.
d. When theproduct does notoperate properly asdescribed in theoperating instructions.
Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the
instructions can causedamage, which oftenrequires extensive adjustmentwork by aqualified technician.
e. If theproduct has beendropped or thecabinet has beendamaged in anyway.
f. When the productdisplays anabnormal conditionor exhibitsa distinct change in performance. Any noticeable abnormality in the product
indicates that theproduct needs servicing.
20.Safety checks---Upon completion of service or repair work, request the service technician to perform safety
checks to ensurethat the productis in properoperating condition.
21.Wall or ceiling mounting---When mounting the product on a wall or ceiling, be sure to install the product according to the method
recommended by themanufacturer.This is asafety feature.
3
ImportantSafety Precautions (continued)
22. Power source---Thisproduct is intendedto be suppliedby a listed powersupply indicated onthe marking label.If you are notsure of the
type of power supply to your home, consult your product dealer or local power company. For added protection for this product during a
lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable
system. This will prevent damage to the product due to lightning and power line surges. When the unit has to be used with another power
supply voltage, the power cable must be changed. Consult your product dealer. The socket outlet should be installed near the equipment
and easily accessible. Useonly thepower corddesignated byour dealerto ensuresafety andEMC. Whenconnecting otherproducts such
as VCRs andpersonal computers, youshould turn offthe power ofthe unit forprotection against electricshock.
23.Panel protection---The LCDpanel usedin this productis madeof glass. Therefore,it can break
when the product is dropped or impacted upon by other objects. Be careful not to be injured by
broken glass piecesin case theLCD panel breaks.
24.Pixel defect---The LCD panel is a very high technology product, giving you finely detailed pictures. Occasionally, a few non-active
pixels may appearon the screenas a fixedpoint of blue,green or red.Please note that thisdoes not affectthe performance ofyour product.
<If an outside antenna isconnected tothe television equipment, be sure the antennasystem isgrounded so as to provide some protection
against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to
proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location ofantenna-discharge unit, connectionto grounding electrodes,and requirements forthe grounding electrode.
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL
ELECTRICAL CODE
NEC—NATIONAL ELECTRICAL CODE
<An outside antenna system should not be located in the vicinity of overheadpower linesor other
electric light or power circuits, or where it can collide with such power lines or circuits. When
installing anoutside antennasystem, extreme care should be taken to keep from touchingsuch
power lines orcircuits, as contactwith them mightbe fatal.
4
Preparations
Using the Remote Control
<Use the remote control bypointing it towards the remotesensor window of theset. Objectsbetween
the remote controland sensor windowmay prevent properoperation.
Note: This illustration is for reference only. The remote sensor may be in different locations on
different models.
30
30
Cautions regarding use of remote control
<Do not expose the remotecontrol to shock. In addition, do not expose the remote control to liquids,
and do notplace in anarea with highhumidity.
<Do not installor place theremote control underdirect sunlight. Theheat may causedeformation of theunit.
<The remote control may notwork properly if the remote sensorwindow of the main unit isunder direct sunlight or strong lighting. Insuch a
case, change theangle of thelighting or LCDTV set, oroperate the remotecontrol closer tothe remote sensorwindow.
Batteries for the Remote Control
If the remotecontrol fails tooperate the LCDTV functions, replacethe batteries inthe remote control.
Open the batterycover.
1
Insert two size-AAbatteries.
2
<(Place the batteries with their terminals
corresponding to the (+) and(–) indicationsin
the battery compartment.)
Replace the cover.
3
5m
+
-
+
-
Precaution on battery use
Improper use ofbatteries can resultin a leakageof chemicals and/orexplosion. Be sure tofollow the instructionsbelow.
Place batteries withtheir terminals correspondingto the (+)and (–) indications.
<
Different types ofbatteries have different characteristics.Do not mixbatteries of differenttypes.
<
Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/or cause old batteries to leak
<
chemicals.
Remove batteries as soon as they are non-operable. Chemicals that leak from batteries can cause arash. If chemical leakage is found,
<
wipe with acloth.
The batteries suppliedwith the productmay have ashorter life expectancydue to storageconditions.
<
If the remotecontrol is notused for anextended period oftime, remove thebatteries from the remotecontrol.
<
Power Connection
Household
power outlet
Plug into AC outlet
AC cord
Note:
<
This product shouldbe operated onlyfrom the typeof power sourceindicated on themarking label.
<
Always unplug theAC cordfrom power outletwhen not usingfor a longperiod of time.
5
Preparation (continued)
Antenna Connection
CABLE TV (CATV) CONNECTION
A75-ohm coaxialcable connector is built into the set for easy hookup. When connecting the 75- ohm coaxial cable to the set, screw the 75ohm cable totheANT. Terminal.
Some cable TV companies offer “premium pay channels”. Since the signals of these premium pay channels are scrambled, a cable TV
converter/descrambler is generallyprovided to thesubscriber by thecable TV company.
This converter/descrambler is necessary for normal viewing of the scrambled channels. For more specific instructions on installing cable
TV, consult your cable TV company. One possible method of utilizing the converter/descrambler provided by your cable TV company is
explained below. Please note:An RFswitch provided withtwo inputs (Aand B)is required (notsupplied).
RF switch (not supplied)
OUT
Cable TV converter/
descrambler
(not supplied)
IN
Two-set
signal
splitter
(not
supplied)
Cable TV Line
“A” position onthe RF switch(not supplied) :You can view allunscrambled channels byusing the TV’schannel keys.
“B” positionon the RF switch (notsupplied) : You can view the scrambledchannels via the converter/descrambler byusing the converter’s
channel keys.
Note:
Consult your Dealeror Service Centerfor the typeof splitter, RF switchor combiner thatmight be required.
ANTENNAS
The antennarequirements for good color television reception are moreimportant than those for black & white televisionreception. For this
reason, a goodquality outdoor antennais strongly recommended.
The following isa brief explanationof the typeof connections thatare provided withthe various antenna systems.
1. A 75-ohm system is generally a round cable with F-type connector that can
easily be attachedto a terminalwithout tools (notsupplied).
2. A 300-ohm system is a flat “twin-lead” cable that can be attached to a 75-ohm
terminal through a300-75-ohm adapter (notsupplied).
F-type connector
75-ohm coaxial cable (round)
300-ohm twin-lead cable (flat)
OUTDOOR ANTENNA CONNECTION
Use one ofthe following twodiagrams if youconnect an outdoorantenna.
A: Using aVHF/UHF combination outdoorantenna.
B: Using separateVHF and/or UHFoutdoor antennas.
Connect the outdoor antenna cable lead-in to theANT. terminal on the rear of the
TV set.
Antenna cable
VHF/UHF
antenna
A. Combination VHF/UHF Antenna
300/75-ohm
adapter
(not supplied)
or
300-ohm
twin-lead
75-ohm
coaxial cable
B. Separ ate VHF and/or
UHF Antennas
UHF
antenna
300-ohm
twin-lead
Combiner
(not supplied)
OUT IN
300-ohm
twin-lead
75-ohm
coaxial cable
VHF/UHF
antenna
VHF
antenna
or
6
Main Unit
Identification of Controls
1.
VOL+/-
VOL
VOL
+
123
INPUT
4
CH
CH
+
5
6
VOL+ VOL-Press the or button to directly increase or decrease the sound volume level;
2. POWER
Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to STANDBY.
3. Remote Sensor
4. INPUT
To access signal source select menu
5. CH+/-
Press these two buttons to directly change the TV channel;
6. Power Indicator
Note:
Functions of , , and are also provided to the remote control. This operation manual provides a
VOL+/- CH+/- POWER INPUT
description based onoperating functions withthe remote control.
7
Main Unit
Press and pull out the Cover
carefully as the arrow shows
(press and pullthe twobuttons
at the same)
Identification of Controls (continued)
Press and pull out the Cover carefully
as the arrow shows
Before you connect external devices with the unit, please removing the
Back Cover. After finishing connecting, aim the insertion tabs toward
the locating groove,then carefullypush the Cover until the Cover locks
in place with a click.
AUDIO
VGA INHDMI
VGA
12
YY
PbP
//
b
CbC
b
COMPONENT IN
PrP
//
r
CrC
r
LL
AUDIO AUDIO
RR
RF
S-VIDEO
12
VIDEOVIDEO
AV IN
LL
AUDIO AUDIO
RR
HDMI
AUDIO
VGA
Y
Pb/Cb
Pr/Cr
AUDIO L
AUDIO R
ANTENNA INPUT
S-VIDEO INPUT
AV INPUT
SPEAKER JACK
VGA IN
COMPONENT IN
AV OUT
AUDIO R
AUDIO L
VIDEO
SPEAKER JACK
1. HDMI input jack
2. VGA input /AUDIO in
Connect to the VGA/audio output jacks on your equipment
3. COMPONENT input
(Y, Pb/Cb, Pr/Cr, Audio L, R)
Connect to the audio and component output jacks of a DVD player or Set-Top Box etc.
4. Antenna input
Allows you to connect cable or outdoor antenna
5. S-Video input
Receive a S-Video signal from external source such as VCR or DVD player.
6. AV inputs
(Video, Audio L, R)
Receive video/audio signals from external sources such as VCR or DVD player.
7. AV outputs
(Video, Audio L, R)
8. Speaker jack
Connect the speaker audio cable to the speaker output jack on the unit matching “+” and “-”
ends of the cable with color.(Before connecting, make sure to unplug the unit and all connected components)
AV OUT
8
Remote Control
Identification of Controls (continued)
1 Toselect products tobe controlled with remotecontrol
.
Note: universal
This remote controlis an remote control. If yourremote
control does not work correctly when you operate the TV set, please try
to press button.
TV
11
12
1
3
5
6
8
9
10
2
4
7
2 POWER.
Turn the unit on or off
3 0~9 number buttons.
Direct channel select
4 ENTER button.
Channel enter button
5 INPUT.
To access source input select menu
6 LAST.
To quickly jump between current channel and last selected
channel
7. VOL+/Used to adjust volume
8 CH+/-.
dUse to switch channels
9 MUTE.
Sound mute
10 MENU.
To access the Menu main page or exit menu operation
11 Menu navigation button:.
In Menu operation, use / to select menu item;
Use / to adjust selected item;
34
OK button
To confirm or enter submenu
12 EXIT.
Used to exit menu completely
5634
56
9
Remote Control
Identification of Controls (continued)
13 ASPECT.
To select screen aspect ratio
14 DISPLAY.
To display channel status or signal information
15 STEREO.
To select stereo mode
16 PIP.
To activate PIP function
17 SIZE.
To adjust PIP frame sizechange the position of the PIP frame and
18 CAPTION.
To select CCD on/off and CCD mode
13
14
15
16
17
18
19
20
21
22
19 SLEEP.
To set Sleep timer
20. PICTURE MODE
Picture mode select
21 SOUND MODE.
Sound mode select
22 PIP INPUT.
To select sound output from the main frame or the PIP frame when in
PIP mode
10
Loading...
