Polaroid FLM-1911 User Manual

19” HD-Ready LCD TV with NTSC Tuner
FLM-1 911
20060322
FEDERAL COMMUNICATIONS
COMMISSION (F.C.C) STATEMENT
FCC
ENGLISH
1. Reorient/Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit which is different from what the receiver is connected to.
4. Consult the dealer or an experienced radio/TV technician for help.
For Canada: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. This device complies with Canada ICES-003 Class B.
CAUTION
Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user authority to operate the equipment.
1
Safety Instructions
To reduce the risk of  re or electric shock, do not expose this
equipment to rain or moisture.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to avoid the risk of electric shock, do not disassemble this equipment by anyone except a quali ed service personnel.
This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.
CAUTION
Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
2
IMPORTANT SAFETY INSTRUCTIONS
Safety Instructions
To prevent any injuries, the following safety precautions should be observed in the installation, use, servicing and maintenance of this equipment. Before operating this equipment, please read this manual completely, and keep it nearby for future reference.
Do not place the equipment on any uneven or unstable carts, stands, tables, shelves etc.. The equipment may fall, causing serious injuries to children or adults and serious damage to the equipment itself. Use only a cart or stand recommended by the manufacturer. This equipment and recommended cart or stand should be handled with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and recommended cart or stand to overturn.
Do not disable the 3-wire grounding type plug. The grounding pin on the 3-prong plug is an important feature. Removing the grounding pin will increase the risk of damaging the equipment. If you can not fit the plug into the electrical outlet, contact an electrician to install a grounding outlet.
Always operate this equipment from the type of power source indicated on the rear of the serial/model plate.
Never overload wall outlets and extensions. Use and handle the power cord with care. Do not place any heavy objects on the AC power cord. Do not pull the AC power cord. Do not handle the AC power cord with a wet hand. Do not touch the power cord and antenna cable during lightning. Unplug this apparatus during lightning stoms or
when unused for long periods of time.
ENGLISH
Do not place, use or handle this equipment near water.
Never expose the equipment to liquid, rain, or moisture. Seek for service if any of the above is spilled into the equipment.
Do not expose the equipment to extreme temperatures or to direct sunlight, the equipment may overheat and can be damaged.
Do not install the equipment near any heat sources such as radiators, heat registers, stoves, or any other apparatus that might produce heat.
3
Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
Do not attempt to service the equipment yourself.
Only use attachments/accessories speci ed by the manufacturer.
Opening and removing the covers may expose you to dangerous voltage or any other hazards and may void your warranty. Refer all servicing to a quali ed service personnel. Servicing is required when the ap-
paratus has been damaged in any way, such as a power-supply cord or plug is damaged, liquid has been spilled or objects have fallen onto the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Do not place or drop any other objects on top.
Do not insert anything into the ventilation holes of your equipment.Inserting any metal or  ammable objects may result to  re or electric shock.
Do not place the equipment on uneven or unstable carts, stands,tables, shelves etc.. The equipment may fall, causing serious injuries to children or adults and serious damages to the equipment itself.
Always place the equipment on the  oor or on a surface that is sturdy, level, stable and strong enough to support the weight of the equipment.
Do not block any ventilating openings, leave an open space around the equipment.
Never place the equipment : on a bed, sofa, rug, or any other similar surfaces; too close to drapes/curtains/walls, in a bookcase,built-in cabinet, or any other similar places that may cause poor ventilation.
Always remove the cord from the outlet before cleaning the equipment.
Never use cleaners, harsh or abrasive chemicals or solvents on the equipment. Clean only with a dry, soft, lint-free cloth.
4
ANTENNA CONNECTION
EXAMPLE OF OUTDOOR ANTENNA GROUNDING
If an outdoor antenna is connected, follow the precautions below:
An outdoor antenna should not be located anywhere that can be in contact of overhead power lines, or any other electric light or power circuits.
When installing an outdoor antenna system, extreme caution should be taken to prevent contact with power lines. Direct contact with power lines may be fatal and should be avoided at all costs.
Section 810 of National Electrical Code (NEC) provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
ANTENNA CONN.
ENGLISH
Ground clamps
Electric service equipment
NEC : National Electrical Code
Ground clamps
Power service grounding (NEC Art250 part H)
5
Antenna lead-in wire
Antenna discharge unit (NEC section 810-20)
Grounding conductors (NEC section 810-20)
ANTENNA CONN.
ANTENNA CONNECTION
Cable TV (CATV) Connection
NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installers attention to Article 820-40 of the National Electrical Code (NEC) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building accurately, or as close to the point of cable entry as possible. Use of this TV for other than private viewing of programs broadcasted on UHF, VHF or transmitted by cable companies for the use of the general public may require authorization from the broadcast/cable company, and/or program owner.
A 75-ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75-ohm coaxial cable to the set, place the 75-ohm cable into the ANT. terminal.
Some cable TV companies o er premium pay channels. Since the signals of these premium pay channels are scrambled, a cable TV converter/descrambler is generally provided to the subscriber by the cable TV company. This converter/descrambler is necessary for normal viewing scrambled channels. (Set your TV to channel 3 or 4, typically one of these channels are used. If this is unknown, consult your cable TV company.) For more speci c instructions on installing cable TV, consult your cable TV company, One possible method of utilizing the coverter/descrambler provided by your cable TV company is explained below.
RF switch
(Not included)
2 set signal splitter (Not included)
Cable TV Line
OUT
A
IN
B
Cable TV converter/
descrambler
(Not included)
Please note: the RF switch is required to provide two inputs (A and B) . (not included) A position on the RF switch (not included) ; you can view all unscrambled channels by using the TV channel keys. B position on the RF switch (not included) ; you can view all scrambled channels via the converter/descrambler by using the converter channel keys.
6
a
r
ANTENNA CONNECTION
ANTENNA CONN.
ANTENNAS
The antenna requirements for good color TV reception are more important than those of a black & white TV reception. For this reason, a good quality outdoor antenna is strongly recommended. The following is a brief explanation of the type of connection that is provided with the various antenna systems.
A 75-ohm system is generally a round cable with NTSC connector that can easily be attached to a terminal without tools (not included).
75-ohm coaxial ca b le (round)
A 300-ohm system is a flat twin-lead cable that can be attached to a 75-ohm terminal through a 300-75-ohm adapter (not included).
300-ohm twin-lead cable ( at)
OUTDOOR ANTENNA
Use one of the following two diagrams when connecting an outdoor antenna. A: Use a VHF/UHF combination outdoor antenna. B: Use a separate VHF and /or UHF outdoor antenna.
Connect the outdoor antenna cable lead-in to the ANT. terminal located on the rear of the equipment.
A. Com bination VHF/UHF antenna
F-type co n n ecto
ENGLISH
Rear
VHF/UHF Antenna
300-ohm tw in-lead cable
B. Separate VH F and/or UHF Antennas
TV Tuner co n necto r
7
300/75-ohm adap ter (not included)
Com biner (not included)
IN
OUT
75-ohm coaxial cab le
300-ohm tw in-lead cable
75-ohm coaxial cable
300-ohm tw in-lead cable
VH F/UHF Antenna
UHF A ntenna
VHF Antenn
TABLE OF CONTENTS
TABLE OF CONTENTS
PREPARATION .................................................................................................................................................... 9
Features ............................................................................................................................................................................................................. 9

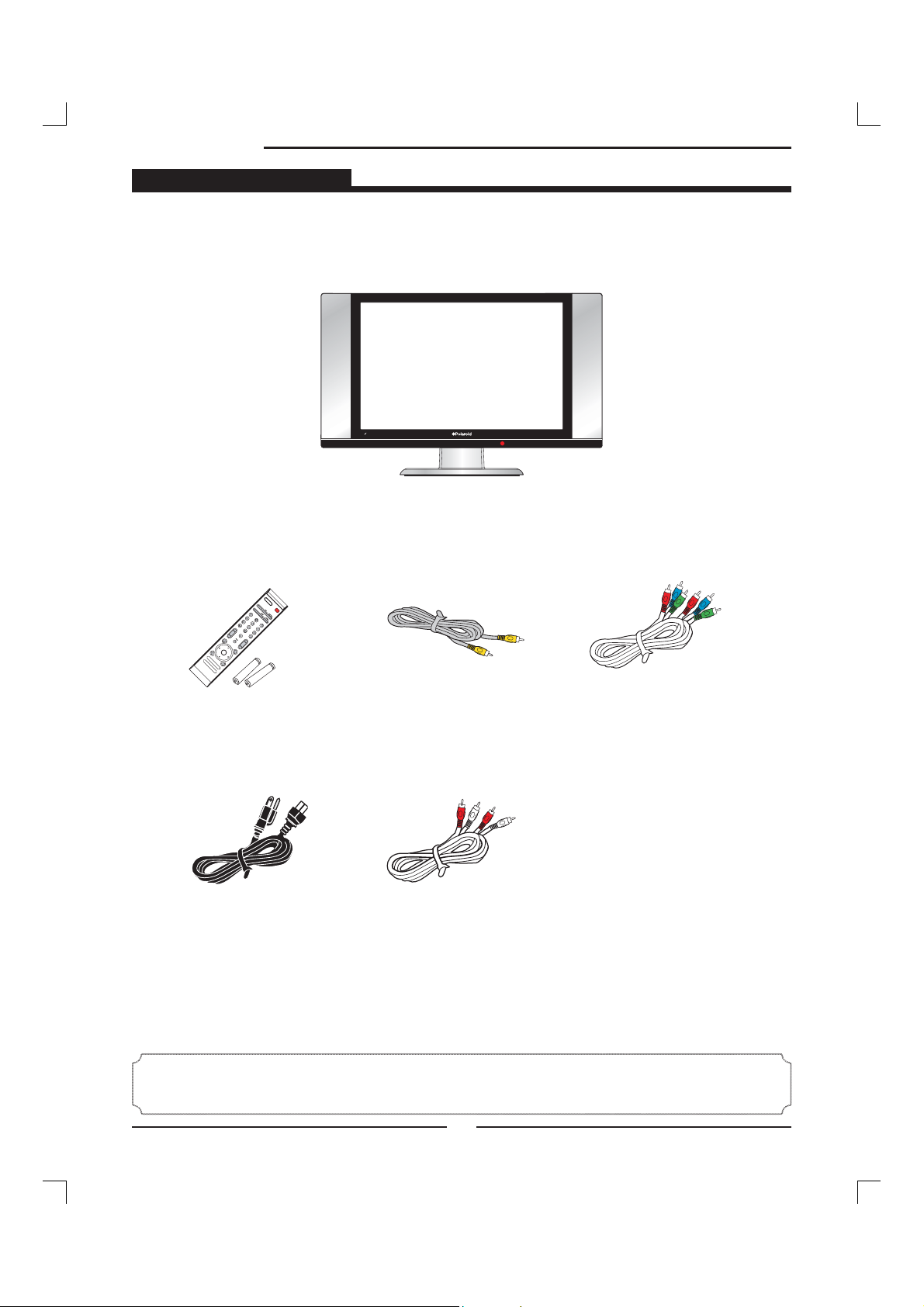

Package Contents ........................................................................................................................................................................................ 10
LCD TV ............................................................................................................................................................................................................. 11
Front View .................................................................................................................................................................................................... 11
Rear View ........................................................................................................................................................................................................ 12
Remote Control ........................................................................................................................................................................................... 13
Using your LCD TV....................................................................................................................................................................................... 15
INSTALLATION .................................................................................................................................................. 16

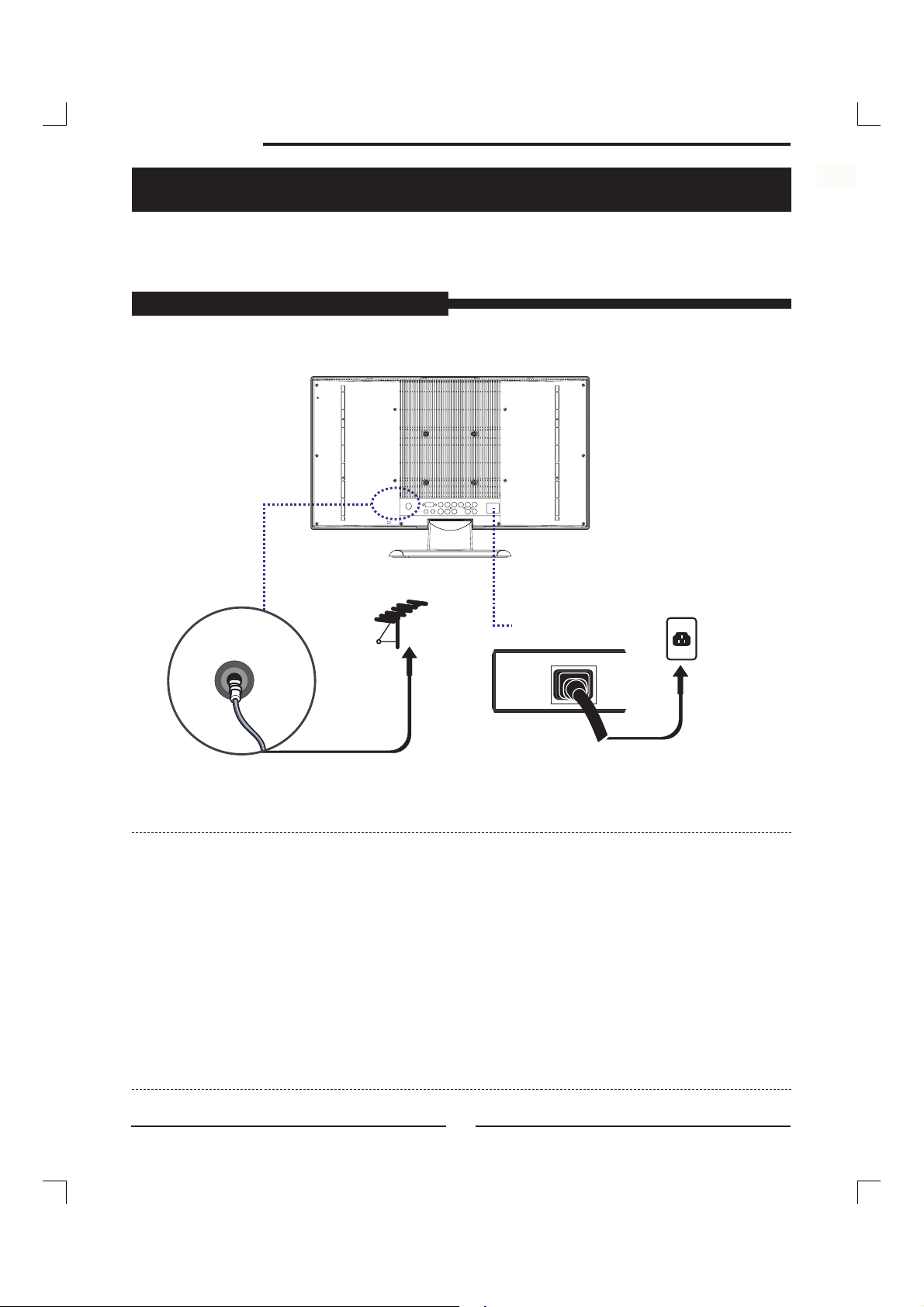

Connecting a TV Cable or an Antenna ............................................................................................................................................... 16
Connecting a DVD Player ........................................................................................................................................................................ 17
Connecting a VCR & a Video Camera .................................................................................................................................................. 18
Connecting a TV Box and Satellite Receiver .................................................................................................................................... 19
USING THE FEATURES .................................................................................................................................... 20
Basic Operation ......................................................................................................................................................................................... 20
OSD Menu Operation ............................................................................................................................................................................. 21
Video ............................................................................................................................................................................................................ 21
Audio ............................................................................................................................................................................................................ 22
Parental Control......................................................................................................................................................................................... 23
Setup ............................................................................................................................................................................................................ 24
TROUBLESHOOTING...................................................................................................................................... 27
SPECIFICATIONS ............................................................................................................................................ 28
8
PREPARATION
PREPARATION
Congratulations on the purchase of your new High Definition Compatible Television. In order to maximize the potential of this television, you must use
it in conjunction with a High Definition Signal Source, utilizing a proper High Definition receiving unit (often referred to as a “set-top” box). Only “true” High Definition transmitted video will yield optimum picture quality. Please contact your cable or satellite provider for more information on how to receive High Definition programming.
Features
Features High Brightness / Contrast Image Brightness: 300 cd/m2 Contrast Ratio: 500:1
VGA Support:
720x400/70Hz~1792x1344/60Hz
Supports ED and HD Input Signals 480i/480p/576i/576p/720p/1080i
Multimedia Jack
S-Video Jack
HD Component Video Jack (YPbPr)
ENGLISH
PC Jack
A/V Jack
Auto-channel setup
181-Channel CATV Tuner
Sleep-Timer
User selectable color temperature settings
MTS (Multi-Channel Television Sound)
V-Chip and Closed Captioning
Enhance audio processing
Built-In CATV tuner
Faroudja DCDI Edge Processing
"DCDi® by Faroudja" is a registered trademark of Genesis Microchip Inc.
9
