WARNING

Improper vehicle use can result in SEVERE INJURY or DEATH.

• Do not start vehicle until all occupants are seated.

• Remain seated, holding handles, while the vehicle is in motion.

• Operate from driver’s side only.

• Always wear your seat belt to prevent ejection from vehicle,

if your vehicle is so equipped,

• The roof is not designed or intended to provide rollover
protection. Vehicle rollover could cause severe injury or death.
Always operate with caution.

• Never operate after or while using Alcohol or Drugs.

• Never operate on slopes steeper than 15 degrees 15°.

• Drive slowly straight up and down slopes.

• Keep entire body in the vehicle at all times.

• Reduce speed and use extra caution when carrying passengers.

• Avoid sharp turns or turns during heavy acceleration.

• Operate slowly in reverse and avoid sharp turns or sudden braking.

• Make sure passengers read and follow all safety labels.

• This vehicle is restricted to a maximum of 4 occupants.

• When towing the vehicle, the Master ON-OFF Switch MUST be

in the OFF position or severe motor damage will occur.

• Place the Master ON-OFF Switch in the OFF position if storing
the vehicle for more than 5 days. Failure to do so may lead to
complete battery discharge and battery damage.

• Batteries require regular maintenance. Failure to maintain
batteries in accordance with the owner’s manual can result in
battery damage, vehicle malfunction, fire, and/or severe
injury or death.

For your nearest Polaris dealer,
call 1-800-POLARIS
or visit www.polarisindustries.com
Polaris Sales Inc., 2100 Hwy 55
Medina, MN 55340
Phone [phone]
Part No. 9922984 Rev 01
Printed in USA

*9923119 *

WELCOME

Thank you for purchasing a Polaris vehicle, and welcome to our world­wide family of Polaris owners. We proudly produce an exciting line of
utility and recreational products.

• Snowmobiles

• All-terrain vehicles (ATVs)

• RANGER

• Neighborhood vehicles (NVs)

• Victory Motorcycles
We believe Polaris sets a standard of excellence for all utility and recre-

ational vehicles manufactured in the world today. Many years of experi­ence have gone into the engineering, design, and development of your
Polaris vehicle, making it the finest machine we’ve ever produced.

For safe and enjoyable operation of your vehicle, be sure to follow the
instructions and recommendations in this owner’s manual. Your manual
contains instructions for minor maintenance, but information about
major repairs is outlined in the Polaris Service Manual and should be
performed only by a factory certified Master Service Dealer
technician.

Your Polaris dealer knows your vehicle best and is interested in your
total satisfaction. Be sure to return to your dealership for all of your ser­vice needs during, and after, the warranty period.

We also take great pride in our complete line of apparel, parts and acces­sories, available through our online store at www.purepolaris.com.!

®

utility vehicles

®

®

(MSD)

1

POLARIS, THE WAY OUT are registered trademarks of Polaris Industries Inc.
Copyright 2010 Polaris Sales Inc. All information contained within this publication is

based on the latest product information at the time of publication. Due to constant
improvements in the design and quality of production components, some minor discrep­ancies may result between the actual vehicle and the information presented in this publi­cation. Depictions and/or procedures in this publication are intended for reference use
only. No liability can be accepted for omissions or in acc uracies. Any reprinting or reuse
of the depictions and/or procedures contained within, whether whole or in part, is
expressly prohibited.

Printed in U.S.A.
2011 BREEZE SL Neighborhood Vehicle Owner’s Manual
2011 BREEZE (2 passenger) Neighborhood Vehicle Owner’s Manual
2011 BREEZE (4 passenger My Choice)
P/N 9922984 rev01

2

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Features and Controls. . . . . . . . . . . . . . . . . . . 26

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . 83

Polaris Products. . . . . . . . . . . . . . . . . . . . . . . . 86

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 87

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Maintenance Log . . . . . . . . . . . . . . . . . . . . . . . 94

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

3

INTRODUCTION

The following signal words and symbols appear throughout this manual
and on your vehicle. Your safety is involved when these words and sym­bols are used. Become familiar with their meanings before reading the
manual.

The safety alert symbol indicates a potential personal injury hazard.

WARNING

A WARNING indicates a hazardous situation which, if not avoided, may result in
death or serious injury.

CAUTION

A CAUTION indicates a hazardous situation which, if not avoided, may result in
minor or moderate injury.

NOTICE

A NOTICE indicates a situation that may result in property damage.

The Prohibition Safety Sign indicates an action NOT to take in order
to avoid a hazard.

The Mandatory Action Sign indicates an action that NEEDS to be
taken to avoid a hazard.

4

INTRODUCTION

WARNING

Failure to heed the warnings and safety precautions contained in this manual
can result in severe injury or death. Your Polaris vehicle is not a toy and can be
hazardous to operate. This vehicle handles differently than cars, trucks or other
off-road vehicles. A collision or rollover can occur quickly, even during routine
maneuvers like turning, or driving on hills or over obstacles, if you fail to take
proper precautions.

• Read this owner’s manual. Understand all safety warnings, precautions and
operating procedures before operating the vehicle. Keep this manual with the
vehicle.

• This vehicle is an ADULT VEHICLE ONLY. NEVER operate this vehicle if you
are under age 16 and NEVER operate this vehicle without a valid driver’s
license. Never operate with a passenger under the age of 5.

5

INTRODUCTION

Motor Serial
Number

Key
Number

XXXX

Breeze SL
VIN Label 7176799

Breeze SL
St amped VIN

Breeze
Manufacturer Label 7176293

Breeze
Stamped Serial Number

Vehicle Identification Numbers

Record your vehicle's identification numbers and key number in the
spaces provided. Remove the spare key and store it in a safe place. An
ignition key can be duplicated only by ordering a Polaris key blank
(using your key number) and mating it with one of your existing keys.
The ignition switch must be replaced if all keys are lost.

Vehicle Model Number: ___________________________________________________

Frame VIN/Serial Number: ________________________________________________

Key Number: ___________________________________________________________

6

SAFETY

Equipment Modifications

Your Polaris vehicle is designed to provide safe operation when used as
directed. Do not modify this vehicle in a way that will alter the weight
distribution of the vehicle. This type of modification may negatively
impact vehicle stability.

Failure of critical machine components may result from operation with
any modifications, especially those that increase speed or power. This
vehicle may become less stable at speeds higher than those for which it
is designed. Loss of control may occur at higher speeds.

Do not install on a Polaris vehicle any equipment that may increase the
speed or power of the vehicle, or make any other modifications to the
vehicle for these purposes. Any modifications to the original equipment
of the vehicle create a substantial safety hazard and increase the risk of
bodily injury.

The warranty on your Polaris vehicle is terminated if any equipment has
been added to the vehicle, or if any modifications have been made to the
vehicle, that increase its speed or power or alter the weight distribution
of the vehicle.

Use only Polaris-approved accessories, and familiarize yourself with
their function and effect on the vehicle before operating.

7

SAFETY

WARNING

Operator Safety

Failure to operate this vehicle properly can result in a collision, loss of control,
accident or overturn, which may result in serious injury or death. Heed all safety
warnings outlined in this section of the owner’s manual. See the OPERATION
section of the owner’s manual for proper operating procedures.

Operating Without Instruction

Operating this vehicle without proper instruction
increases the risk of an accident. The operator
must understand how to operate the vehicle
properly in different situations and on different
types of terrain. Complete the New Operator
Driving Procedures outlined on pages 49-50.

All operators must read and understand the
owner's manual and all warning and instruction
labels before operating the vehicle. Never allow a
guest to operate this vehicle until the guest has
completed the New Operator Driving Procedures
outlined on pages 49-50.

Age Restrictions

This vehicle is an ADULT VEHICLE ONLY.
NEVER operate this vehicle if you are under
age 16 and NEVER operate this vehicle

without a valid driver’s license. Never operate
with a passenger under the age of 5.

8

SAFETY

Operator Safety

V e ntilation When Charging Batteries

Failure to provide adequate ventilation while charging batteries can result in an
explosion. Volatile hydrogen gas is emitted during charging and may
accumulate in pockets at the ceiling. Always ensure a minimum of 5 air changes
per hour in the charging area.

Failure to Inspect Before Operating

Failure to inspect and verify that the
vehicle is in safe operating condition
before operating increases the risk of an
accident.

Always inspect the vehicle before each
use to make sure it's in safe operating
condition.

Always follow the inspection and
maintenance procedures and schedules
described in the owner's manual.

Using Alcohol or Drugs

Riding in this vehicle after consuming
alcohol or drugs could adversely affect
operator judgment, reaction time,
balance and perception.

Never consume alcohol or drugs before
or while operating or riding in this vehicle.

9

SAFETY

Operator Safety

Seat Belts

(if your vehicle is so equipped)

Seat belts reduce the severity of injury in the event of a sudden stop or accident.
Always make sure the seat belts are secured for both the operator and
passenger before riding.

Poor Visibility

Operating the vehicle in darkness o r inclement weathe r could result in a collisi on
or accident, especially if operating on a road or street. This vehicle is not
equipped with highway-approved lights. Use caution and drive at reduced
speeds in conditions of reduced visibility such as fog, rain and darkness. Clean
headlights frequently and replace burned out headlamps promptly.

Accessories

Non-approved accessories may seriously affect vehicle stability. Using accesso­ries not approved by Polaris for use on this vehicle could cause loss of control or
an accident. Never operate with accessories not approved by Polaris for use on
this vehicle.

10

SAFETY

Operator Safety

Carrying a Passenger

Never carry a passenger until you have operated this vehicle for at least two
hours and have completed the New Operator Driving Procedures outlined on
pages 49-50. Passengers must always be seated in a passenger seat and if
your vehicle is equipped with seat belts make sure the seat belt is secured.
Never drive the vehicle until all occupants are properly seated.

Carrying Multiple Passengers

Carrying more than one passenger can affect the operator’s ability to steer and
operate the controls, which increases the risk of loss of control, acciden t or
overturn.

Never allow more than two passengers to occupy the rear seat, if so equipped.

Operating on Public Roads

Operating this vehicle on public streets, roads or highways could result in a
collision with another vehicle.

Never operate this vehicle on any public street, road or highway, including dirt
and gravel roads, unless permitted by local regulations. In many areas it's
unlawful to operate vehicles of this type on public streets, roads and highways.

Operating at Excessive Speeds

Operating this vehicle at excessive speeds increases the operator's risk of
losing control.

Never exceed the maximum recommended speed for this vehicle. Always
operate at a speed that's appropriate for the terrain, the visibility and operating
conditions, your skills and your passenger’s skills.

11

SAFETY

Operator Safety

Turning Improperly

Turning improperly could cause loss of traction, loss of control, accident or
overturn. Always follow proper procedures for turning as described in the
owner's manual.

Avoid sharp turns. Never turn at a fast speed. Never make abrupt steering
maneuvers. Practice turning at slow speeds before attempting to turn at faster
speeds.

Physical Control of the Vehicle

Removing hands from the steering wheel or hand holds or removing feet from
the floor while riding increases the risk of loss of control and accident or
overturn. The operator should always keep both hands on the steering wheel
during operation. Passenger should always be seated in the passenger seat
with both feet on the floor and with both hands securely grasping the hand
holds.

Always keep head, hands and feet inside the vehicle at all times.

Jumps and Stunts

Exhibition driving increases the risk of an accident or overturn. DO NOT do
power slides, “donuts”, jumps or other driving stunts. Avoid exhibition driving.

Descending Hills Improperly

Improperly descending a hill could cause loss of control or overturn. Always
follow proper procedures for traveling down hills as described in the owner's
manual.

• Use the brake pedal to control speed when descending a hill. Never travel
down a hill at high speed.

• Always descend a hill with the direction selector on FORWARD. Never
descend a hill in neutral.

• Always check the terrain carefully before descending a hill.

• Avoid traveling down a hill at an angle, which would cause the vehicle to lean
sharply to one side. Travel straight downhill.

12

SAFETY

Operator Safety

Improper Hill Climbing

Improper hill climbing could cause loss of control or overturn. Use extreme
caution when operating on hills. Always follow proper procedures fo r hill
climbing as described in the owner's manual. See page 54.

Crossing Slopes

Crossing a slope is not recommended. Improper procedure could cause loss of
control or overturn. Avoid crossing a slope unless absolutely necessary.

If crossing a slope is unavoidable, always follow proper procedures as
described in the owner's manual. See page 57.

Stalling While Climbing a Hill

Stalling or rolling backwards while climbing a hill could cause an overturn.
Maintain a steady speed when climbing a hill.

If you lose all forward speed:

Apply the brakes gradually until the vehicle is fully stopped. Place the Forward/
Reverse Switch in reverse and slowly allow the vehicle to roll straight downhill
while applying light brake pressure to control speed.

Operating in Unfamiliar Terrain

Failure to use extra caution when operating on unfamiliar terrain could result in
an accident or overturn.

Unfamiliar terrain may contain hidden rocks, bumps, or holes that could cause
loss of control or overturn.

Travel slowly and use extra caution when operating on unfamiliar terrain. Always
be alert to changing terrain conditions.

13

SAFETY

Operator Safety

Operating on Slippery Terrain

Operating on excessively rough, slippery or loose terrain could cause loss of
traction, loss of control, accident or overturn.

Do not operate on excessively rough, slippery or loose terrain. Always use extra
caution on rough, slippery or loose terrain.

Operating Improperly in Reverse

Improperly operating in reverse could result in a collision with an obstacle or
person. Always follow proper operating procedures as outlined in this manual.
See page 56.

Before backing, always check for obstacles or people behind the vehicle. When
it's safe to proceed, back slowly.

Improper Tire Maintenance

Operating this vehicle with improper tires or with improper or uneven tire
pressure could cause loss of control, accident or overturn.

Always use the size and type of tires specified for your vehicle. Always maintain
proper tire pressure as described in the owner's manual and on safety labels.

14

SAFETY

Operator Safety

Operating Over Obstacles

Improperly operating over obstacles could cause loss of control or overturn.
Never operate over obstacles.

Skidding or Sliding

Skidding or sliding can cause loss of control or overturn. Always follow proper
procedures for operating on slippery surfaces as described in the owner's
manual.

When operating on slippery surfaces such as ice or loose gravel, reduce speed
and use extra caution to reduce the chance of skidding or sliding.

Do not operate on excessively slippery surfaces.

Operating a Damaged Vehicle

Operating a damaged vehicle can result in an accident with serious injury or
death. After any overturn or accident, have a qualified service dealer inspect the
entire vehicle for possible damage, including (but not limited to) brakes and
steering systems.

Unauthorized Use of the Vehicle

Leaving the keys in the ignition can lead to unauthorized use of the vehicle,
which could result in an accident or overturn. Always remove the ignition key
when the vehicle is not in use.

15

SAFETY

Operator Safety

Precautions During Maintenance

Always follow all safety instructions in the maintenance portion of this owner’s
manual, as well as the following:

• Make sure the vehicle is properly immobilized before beginning any mainte­nance.

• Always block the chassis securely before working under the vehicle.

• Always disable the vehicle’s electrical system before performing maintenance
on the vehicle. Remove the key. Turn the Master On-Off switch located in the
battery component to the OFF position.

• Insulate any tools used within the battery area to prevent sparks or battery
explosion caused by shorting the battery terminals or wiring. Remove the bat­teries, or cover the exposed terminals with an insulating material.

FOR MORE INFORMATION ABOUT SAFETY

call Polaris at 1-800-342-3764.

16

SAFETY

Discretionary WarningAge WarningGeneral Warning

Safety Labels and Locations

Warning labels have been placed on the vehicle for your protection.
Read and follow the instructions of the labels on the vehicle carefully. If
any of the labels depicted in this manual differ from the labels on your
vehicle, always read and follow the instructions of the labels on the
vehicle.

If an informational or graphic label becomes illegible or comes off, con­tact your Polaris dealer to purchase a replacement. Replacement safety
labels are provided by Polaris at no charge. The part number is printed
on the label.

17

SAFETY

Safety Labels and Locations

For Models: Breeze SL and Breeze 4 Passenger My Choice

General Warning

WARNING
READ OWNER’S MANUAL.
FOLLOW ALL INSTRUCTIONS AND WARNINGS.
TO OPERATE:

1. Turn Key to ON position

2. Place Forward/Reverse Switch in desired position.

3. Park Brake will release and vehicle will move when accelerator pedal is

pressed.

4. To stop, release accelerator and gradually depress brake pedal.

5. Come to a complete stop before reversing direction.

6. Beeper will sound when vehicle is in Reverse.

7. Set parking brake, place the V ehicle Control Switch to Neutral, and turn Key

Switch to OFF before leaving the vehicle.

8. Remove key if vehicle is unattended.

MOTOR BRAKING:

• Electric Motor Braking provides braking when the accelerator pedal is

released.

• For parked vehicles, beeping alarm indicates vehicle roll away.

TOWING:

• When towing the vehicle, the Master ON-OFF Switch, located in the battery

compartment, MUST be in the OFF position or severe motor damage will occur.

7176800

18

SAFETY

Safety Labels and Locations

For Model: Breeze 2 Passenger

General Warning

WARNING
READ OWNER’S MANUAL.
FOLLOW ALL INSTRUCTIONS AND WARNINGS.
TO OPERATE:

1. Turn Key to ON position

2. Place Forward/Reverse Switch in desired position.

3. Park Brake will release and vehicle will move when accelerator pedal is
pressed.

4. To stop, release accelerator and gradually depress brake pedal.

5. Come to a complete stop before reversing direction.

6. Set parking brake, place the V ehicle Control Switch to Neutral, and turn Key
Switch to OFF before leaving the vehicle.

7. Remove key if vehicle is unattended.

MOTOR BRAKING:

• Electric Motor Braking provides braking when the accelerator pedal is
released.

TOWING:

• When towing the vehicle, the Master ON-OFF Switch, located in the battery
compartment, MUST be in the OFF position or severe motor damage will occur.

7177055

19

SAFETY

Age Warning

Safety Labels and Locations

Age Warning

WARNING

Operating this vehicle if you are under
the age of 16 increases your chance of
severe injury or death.

NEVER operate this vehicle if you are
under age 16 and NEVER operate this
vehicle without a valid driver’s license.

7175566

20

SAFETY

Discretionary Warning

Safety Labels and Locations

For Models: Breeze SL and Breeze 4 Passenger My Choice

Discretionary Warning

WARNING
IMPROPER VEHICLE OPERATION CAN RESULT IN SEVERE INJURY OR

DEATH.

• Do not start vehicle until all occupants
are seated.

• Remain seated, holding handles while
the vehicle is in motion.

• Operate from Driver’s side only.

• Always wear your seatbelt to prevent
ejection from vehicle.

• The roof is not designed or intended to
provide rollover protection. Vehicle roll­over could cause severe injury or
death. Always operate with caution.

• Never operate after or while using
Alcohol or Drugs.

• Never operate on slopes steeper than
15 degrees (15°).

• Drive slowly straight up and down
slopes.

• Keep entire body in the vehicle at all times.

• Reduce speed and use extra caution when carrying passengers.

• Avoid sharp turns or turns during heavy acceleration.

• Operate slowly in reverse and avoid sharp turns or sudden braking.

• Make sure passengers read and follow all safety labels.

• This vehicle is restricted to a maximum of 2 occupants in the front seats and 2
occupants in the rear seat if so equipped.

• When towing the vehicle, the Master ON-OFF Switch MUST be in the OFF
position or severe motor damage will occur.

• Place the Master ON-OFF Switch in the OFF position if storing the vehicle for
more than 5 days. Failure to do so may lead to complete battery discharge and
battery damage.

• Batteries require regular maintenance. Failure to maintain batteries in accor­dance with the owner’s manual can result in battery damage, vehicle malfunc­tion, fire, and/or severe injury or death.

7176845

21

SAFETY

Discretionary Warning

Safety Labels and Locations

For Model: Breeze 2 Passenger

Discretionary Warning

WARNING
IMPROPER VEHICLE OPERA TION CAN RESUL T IN SEVERE INJURY OR

DEA TH.

• Do not start vehicle until all occupants
are seated.

• Remain seated, holding handles while
the vehicle is in motion.

• Operate from Driver’s side only.

• The roof is not designed or intended to
provide rollover protection. Vehicle roll­over could cause severe injury or
death. Always operate with caution.

• Never operate after or while using
Alcohol or Drugs.

• Never operate on slopes steeper than
15 degrees (15°).

• Drive slowly straight up and down
slopes.

• Keep entire body in the vehicle at all
times.

• Reduce speed and use extra caution when carrying passengers.

• Avoid sharp turns or turns during heavy acceleration.

• Operate slowly in reverse and avoid sharp turns or sudden braking.

• Make sure passengers read and follow all safety labels.

• This vehicle is restricted to a maximum of 2 occupants in the front seats and 2
occupants in the rear seat if so equipped.

• When towing the vehicle, the Master ON-OFF Switch MUST be in the OFF
position or severe motor damage will occur.

• Place the Master ON-OFF Switch in the OFF position if storing the vehicle for
more than 5 days. Failure to do so may lead to complete battery discharge and
battery damage.

• Batteries require regular maintenance. Failure to maintain batteries in accor­dance with the owner’s manual can result in battery damage, vehicle malfunc­tion, fire, and/or severe injury or death.

7177056

22

Safety Labels and Locations

Caution, Master Switch

CAUTION, MASTER SWITCH

CAUTION

• When towing the vehicle, the Master ON­OFF Switch MUST be in the OFF position
or severe motor damage will occur.

• Place the Master ON-OFF Switch in the
OFF position before disconnecting
batteries or servicing the vehicle.

• Place the Master ON-OFF Switch in the
OFF position if storing the vehicle for
greater than 5 days. Failure to due so may
lead to complete battery discharge and
battery damage.

• Exposure to water may damage
electronic components.

7176200

SAFETY

23

SAFETY

Passenger Safety Warning

Safety Labels and Locations

Rear Passenger Safety Warning

(if your vehicle is so equipped)
WARNING

• DO NOT get on or off vehicle while it is in

motion.

• Remain seated, holding handles while the

vehicle is in motion.

• Always wear your seatbelt to prevent

ejection from vehicle.

• The roof is not designed or intended to

provide rollover protection. Vehicle rollover
could cause severe injury or death. Always
operate with caution.

• Keep entire body in the vehicle at all times.

• Operator should reduce speed and use

extra caution when carrying passengers.

• Read and follow all safety labels.

7176199

24

SAFETY

7176201

Battery Connection Decal

Safety Labels and Locations

Warning Battery

WARNING

• Battery Explosion could result in severe injury or death.

• Wear eye protection when working near batteries.

• Do not store items in the battery compartment.

• Explosive gases are released when charging batteries. Keep well ventilated.

• No smoking. Keep sparks and flames away.

• Electrical shorts can result in burns. Do not make connection between positive
and negative battery terminals.

• Sulfuric acid in batteries will burn eyes, skin and clothing. Do not tip batteries.
Keep vent caps tight and level. In event of injury, flush with water and seek
medical attention immediately.

• Always ensure batteries are properly fastened.

CONT ACT YOUR AUTHORIZ ED POLARIS DEALER FOR ANY BATTERY
RELA T ED QUEST IO NS.

7176202

Battery Connection

25

FEATURES AND CONTROLS

Steering
Wheel

FRONT VIEW

Turn
Signal
Lever/
Hazard
Lights

Adjustable
Front
Shocks

Adjustable
Headlights

Turn
Signal
Lights

Canopy

Grab Handles

Component Locations - Breeze 4 Passenger

26

FEATURES AND CONTROLS

Tail Light/Brake Light/Running Light

Passenger Seat

REAR VIEW

Passenger Seat
T-Bar

Passenger Seat
Grab Handle

Footrest

Hand
Hold

Component Locations - Breeze 4 Passenger

27

FEATURES AND CONTROLS

FRONT VIEW

Canopy

Steering
Wheel

Turn
Signal/
Hi Beam
Low Beam/
Horn

Turn
Signal
Lights

Grab
Handle

Rear View
Mirrors

Adjustable
Front
Shocks

Adjustable
Headlights

Component Locations - Breeze SL

28

FEATURES AND CONTROLS

Tail Light/Brake Light

REAR VIEW

Rear Reflectors

Hand
Holds

Sweater
Basket

Strap
Buckles

Component Locations - Breeze SL

29

FEATURES AND CONTROLS

FRONT VIEW

Canopy

Steering
Wheel

Grab
Handle

Adjustable
Front
Shocks

Adjustable
Front

Shocks

Component Locations - Breeze 2 Passenger

30

FEATURES AND CONTROLS

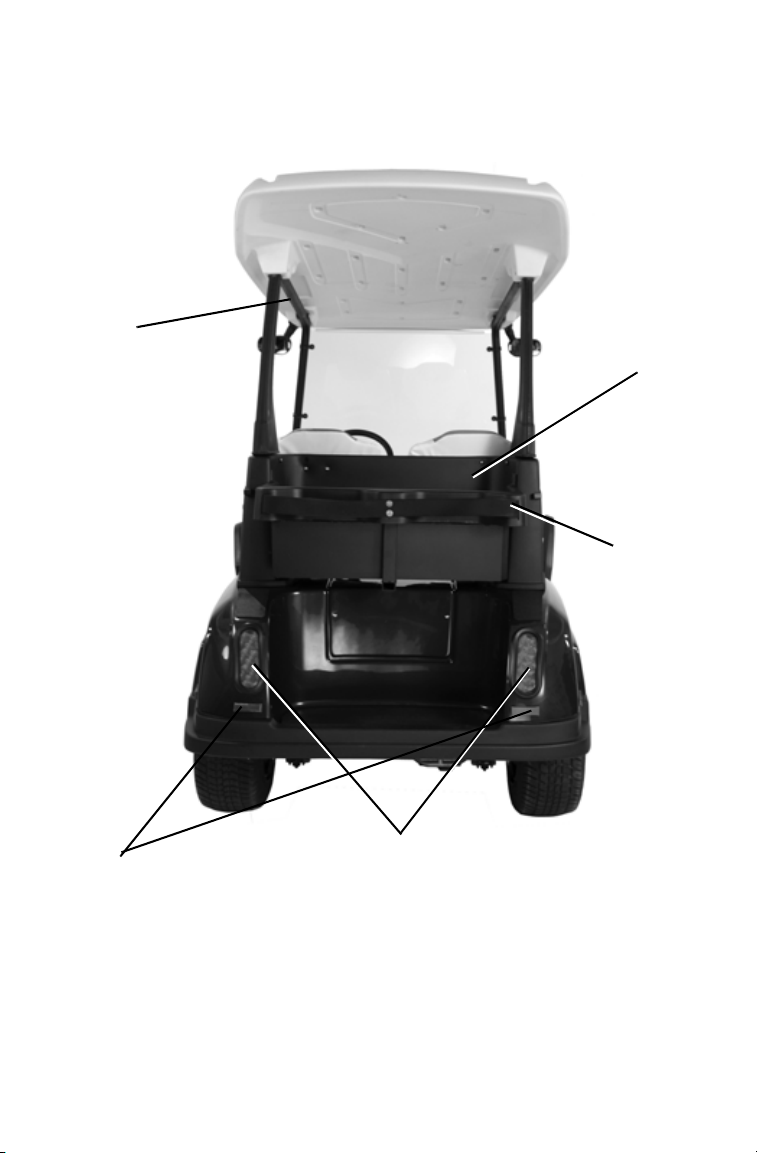

Tail Light/Brake Light/Running Light

REAR VIEW

Hand
Hold

Hand
Hold

Component Locations - Breeze 2 Passenger

31

FEATURES AND CONTROLS

A Pillar

Seat Belts

B Pillar

Bag Retainer

Drink Rail Charging Receptacle Battery Com partm ent

(Under Seat)

SIDE VIEW - Breeze

Component Locations - Breeze 4 Passenger

32

FEATURES AND CONTROLS

SIDE VIEW

Drink Rail

Windshield

A Pillar

Charging Receptacle

Battery Compartment
(Under Seat)

Golf Bag
Attachment
or Bag
Retainer

B Pillar

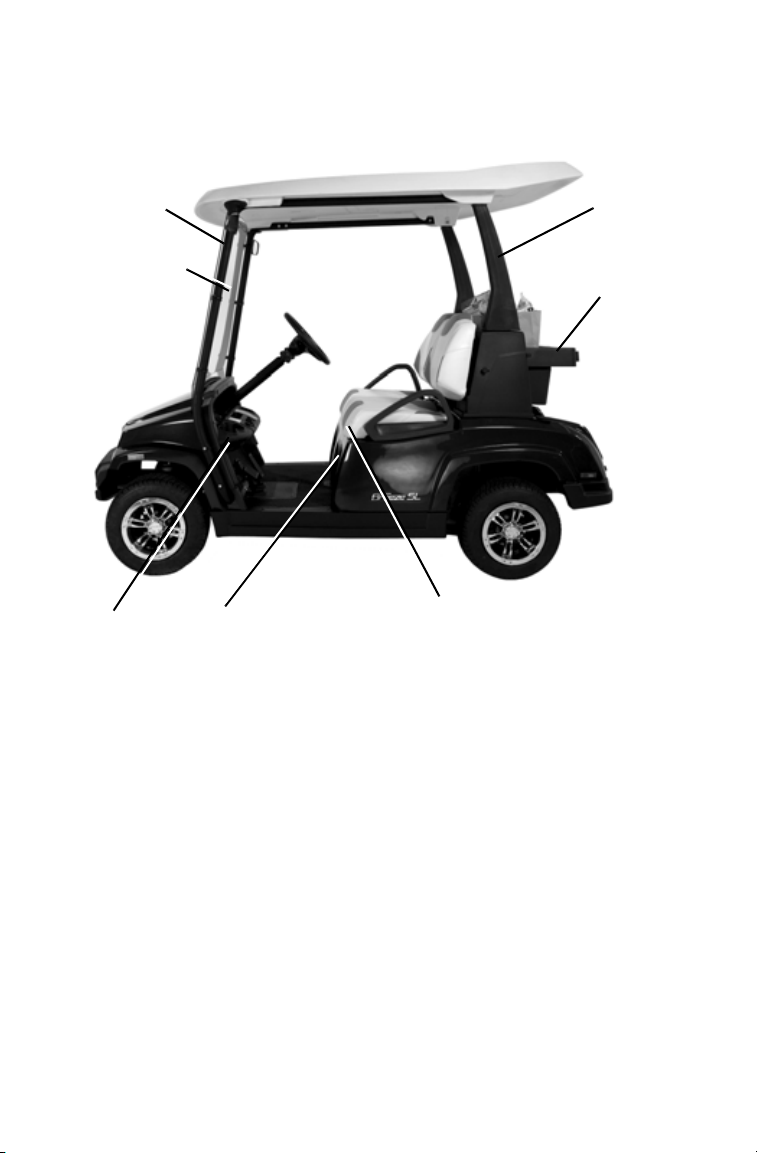

Component Locations - Breeze SL

33

FEATURES AND CONTROLS

Battery Compartment
(Under Seat)

SIDE VIEW

A Pillar

Charging
Receptacle

Bag Retainer

Drink Rail

B Pillar

Component Locations - Breeze 2 Passenger

34

FEATURES AND CONTROLS

12V

Accessory

Power Outlet

Key

Switch

Forward/

Reverse

Switch

Hazard

Switch

Battery

Discharge

Indicator

12V

Accessory

Power Outlet

Key

Switch

Forward/

Reverse

Switch

Plug Plug

Console Switches

Models: Breeze 4 Passenger, Breeze SL

Model: Breeze 2 Passenger

12V Accessory Power Outlet

A 12V power outlet is provided for charging cell phones and GPS
devices. Connected devices should not a exceed 2A or 24W rating.

Key Switch

Use the key switch to turn the electrical power on or off.
OFF: All electrical power is off, depends on ON/OFF switch
ON: Electrical power is on.
LIGHTS: Electrical power and headlights are on.
See page 43 for New Operator Driving Procedures.

35

FEATURES AND CONTROLS

Forward

Neutral

Reverse

Hazards

On

Hazards

Off

Switches

Forward/Reverse Switch

When the Forward/Reverse switch is in
the center position, the vehicle is in
neutral and will not operate. Select for­ward or reverse to operate the vehicle.

Push the top of the switch to select for­ward operation. Push the bottom of the
switch to select reverse operation.

Tip: A warning alert will sound when

reverse is selected, regardless of key
position.

Hazard Switch

(if so equipped)

Use the hazard switch to turn engage hazard functionality.

Top Position: Hazards on
Bottom Position: Hazards off

36

FEATURES AND CONTROLS

Battery Discharge Indicator

Switches

Battery Discharge Indicator
(BDI)

(if so equipped)

The battery discharge indicator shows
the amount of energy removed from
the batteries. 70% discharge is indi­cated by the second to the left LED bar
flashing. Full charge is indicated when
the rightmost led BAR IS LIT. Avoid
discharging the batteries more than 80%.

NOTICE: When the last bar is blinking, the gauge reflects 80% discharge.

37

FEATURES AND CONTROLS

OFF

ON

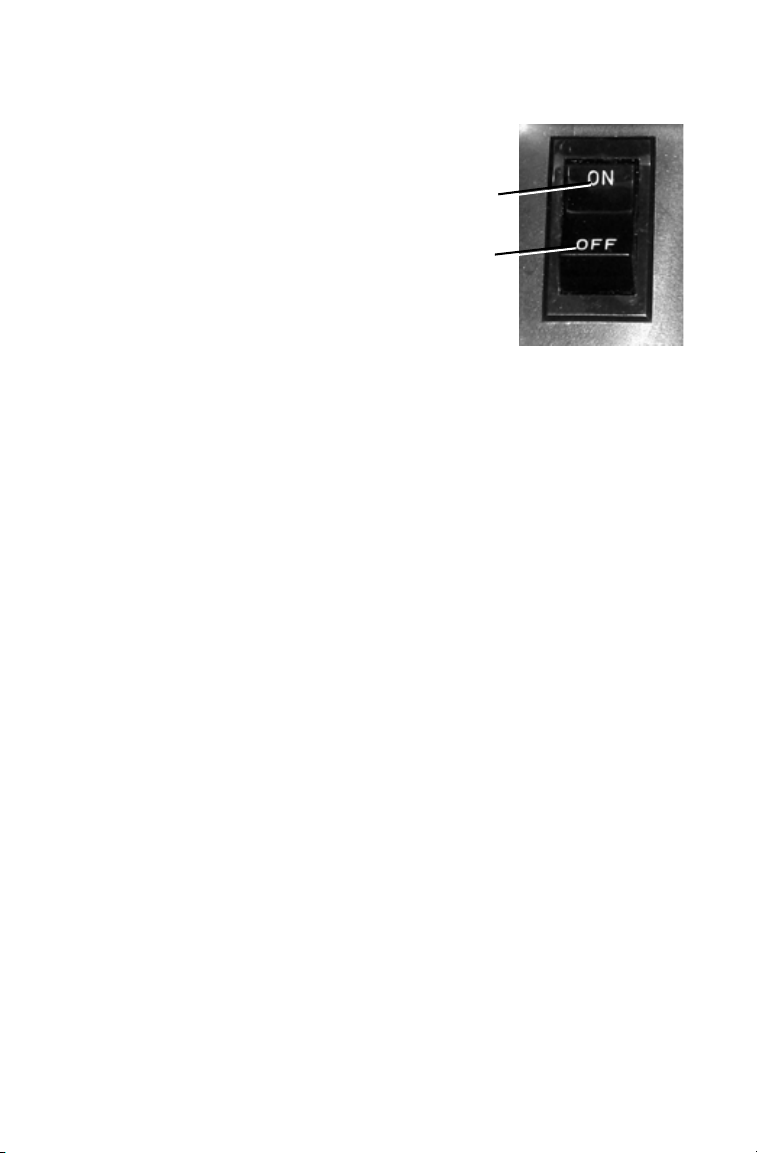

Master On/Off Switch

Switches

Master On/Off Switch

The master switch is located under the seat
on the passenger side of the battery box.
The switch must be in the ON position (for­ward) for the vehicle to operate. The switch
must be moved to the OFF position for:

• Towing the vehicle (or severe motor
damage will occur)

• Performing battery maintenance or
replacement (to disconnect all power
from the batteries to the vehicle)

• Storing the vehicle (to prevent battery
discharge) for more than 5 days.

NOTICE: Failure to turn off the Master On/Off switch when storing the

vehicle for a prolonged period can cause battery damage.

NOTICE: Failure to turn off the Master On/Off switch before performing

maintenance on the electrical system can cause damage to the
vehicle’s electrical components.

Sleep Mode

When the Master Switch is left on for more than 3 days, the vehicle will
automatically enter Sleep Mode to preserve battery life. All electrical
functions are powered off in sleep mode, and the vehicle will not turn on
with the key switch. To wake the vehicle from the sleep mode, toggle
the Master Switch off and then back on or turn the key off, place the
Forward/Reverse Switch in Neutral and slightly depress and release the
accelerator. The vehicle will enter sleep mode even if the key is left on
or the charger is plugged in.

NOTICE: The Roll-Away feature is disabled after time-out “sleep mode” is in

effect.

38

FEATURES AND CONTROLS

Multifunction Light

Multifunction Light

The green LED light, located on the motor
controller will illuminate, flashing initially
then remain on while the key is turned to the
On position AND the Master On/Off switch,
located under the seat, is in the On position.
The multifunction light is also your source
for trouble-shooting information in the
event that any electrical issues arise with the
vehicle. In normal operation the LED will
remain steady green. If a problem is
detected the light will flash, in different
sequences to indicate the type of issue to
investigate. Please refer to the Multifunction
Light Trouble-shooting Guide on page 40.

39

FEATURES AND CONTROLS

Multifunction Light

Multifunction Light Troubleshooting Guide

Flash

Sequence

1 Flash The system controller has an internal error . See your Polaris

dealer for service.

2 Flashes Move the master on/off switch to OFF. Inspect electrical con-

nections to the direction selector switch. Return the master on/
off switch to ON. If the light continues to flash, see your Polaris
dealer for service.

3 Flashes Move the master on/off switch to OFF. Inspect electrical con-

nections to the motor. Return the master on/off switch to ON. If
the light continues to flash, see your Polaris dealer for service.

4 Flashes The line contactor requires service. See your Polaris dealer for

service.

6 Flashes Move the master on/off switch to OFF. Inspect electrical con-

nections to the accelerator pedal. Return the master on/off
switch to ON. If the light continues to flash, see your Polaris
dealer for service.

7 Flashes Battery voltage is low. Move the master on/off switch to OFF.

Check battery cable connections. Return the master on/off
switch to ON. If the light continues to flash, move the master
on/off switch to OFF and use a battery tester to check each bat­tery.

Solution

If the light does not illuminate, the vehicle could be in sleep mode.
Toggle the master ON/OFF switch off and back on to wake up. If
this is unsuccessful, check the battery voltage, battery cable connec­tions and chassis fuse.

40

FEATURES AND CONTROLS

Batteries

This vehicle is equipped with six 8-volt batteries that supply the power
needed to operate the vehicle. Refer to the battery maintenance section
beginning on page 80 for battery safety warnings and safe handling and
maintenance procedures.

• Always make sure that all electrical accessories are grounded directly

to the battery (-) post. Never use the chassis or body as a ground con­nection.

• Always observe all battery safety warnings and safe handling proce-

dures.

• Always keep battery terminals and connections clean and free of cor-

rosion at all times.

• Always maintain a full charge on the batteries. For best battery life,

batteries should not be discharged more than 80% of their rated
capacity.

• New batteries should be given a full charge before use.

• New deep cycle batteries need to be cycled several times before

reaching full capacity (50-125 cycles, depending on type). Capacity
will be limited during this time.

• Vent caps should be correctly installed and tight during vehicle opera-

tion and battery charging.

• Recharge batteries at the end of every day the vehicle is operated.

Allow time for the charger to complete its charge cycle.

• The batteries in this vehicle do not have a “memory effect”. Frequent

charging will extend their life.

41

FEATURES AND CONTROLS

Accelerator PedalBrake PedalPark Brake

Brakes

Park Brake

The park brake pedal is located in the upper left corner of the brake
pedal. To engage the park brake, depress the brake pedal firmly and tip
the park brake portion of the pedal forward with your foot until it
latches. T o release the park brake, depress the accelerator or depress the
brake pedal

Brake Pedal

Depress the brake pedal with moderate pressure to slow or stop the vehi­cle. If any of the following occurs when the brakes are applied, see your
Polaris dealer for service promptly:

• Vehicle swerves • Vehicle stops abruptly

• Vehicle fails to stop • Vehicle makes grinding noise

42

FEATURES AND CONTROLS

Accelerator Pedal

Depress the accelerator pedal to release the park brake and increase
vehicle speed. The key must be ON and the direction selector switch
must be in either FORWARD or REVERSE. Release the pedal to
decrease speed.

Holding the accelerator pedal down continuously will accelerate the
vehicle to the maximum designed speed. Use the brakes to control speed
when traveling down a slope.

The vehicle will not operate if the accelerator pedal is depressed when
the key is switched on. The vehicle will operate normally after the accel­erator pedal is returned to rest.

NOTICE: Operating at excessive speeds may result in damage to drivetrain

components. Never exceed the maximum recommended speed for
this vehicle.

43

FEATURES AND CONTROLS

Push In
for Horn

Turn Signals

Push Forward - High Beam

Turn Signals/High Beams/Horn

(if so equipped)

Some models are equipped with turn signals, high and low beams, and a
horn. With the key switch in the LIGHTS position, push the turn signal
stalk away from the steering wheel to switch to high beams. Pull the
turn signal stalk towards the steering wheel to return to low beam opera­tion. Press the end of the stalk in towards the steering column to activate
the horn.

44

FEATURES AND CONTROLS

Seats

Open Seat to Access Batteries

To Flip the Seat Up for Service

1. Make sure the driver’s side seatback is in rearmost position

2. If your vehicle is equipped with seat belts, rotate the driver and pas-

senger buckles underneath the seatbacks

3. Grasping the driver or passenger side armrest, rotate the seat for-

ward until it rests against the steering wheel.

To Completely Remove the Seat

Follow Step 1 through 3 from above. Seek the assistance of a friend or
service technician. Lift the seat by both hand rails while it is in the verti­cal position until the front mounting brackets come loose. Be careful not
to damage the seat during removal.

Seat Cleaning

A solution of 10% household liquid dish soap with warm water applied
with a soft damp cloth will remove most dirt and stains.

45

FEATURES AND CONTROLS

Seat Belts

(if so equipped)

Falling from a moving vehicle could result in serious injury or death. Always fasten
your seat belt securely before operating or riding in this vehicle.

Always make sure the seat belts are secured for both the operator and
passengers before riding.

To wear the seat belt properly, follow this procedure:

1. Place the belt across your lap as low on your hips as possible. Make

sure that the belt is not twisted.

2. Push the latch plate into the buckle until it clicks.

3. Release the strap, it will self-tighten.

To rele ase the seat belt, press the square red button in the buckle's cen­ter.

Seat Belt Inspection

Inspect all seat belts for proper operation before each use of the vehicle.

1. Push the latch plate into the buckle until it clicks. The latch plate

must slide smoothly into the buckle. A click indicates that it's
securely latched.

2. Push the red release latch in the middle of the buckle to make sure it

releases freely.

3. Check the belt webbing for wear, cuts or damage. If any irregulari-

ties are found, have the seat belt system checked and/or replaced by
an authorized Polaris dealer.

To clean dirt or debris from the seat belts, sponge the straps with mild
soap and water. Do not use bleach, dye or household detergents.

46

FEATURES AND CONTROLS

Passenger Release Handle

Passenger Seat/Bag Retainer

(If your vehicle is so equipped)

To access the passenger seat, press the release lever to the left and let
down the seat until it is securely resting on the passenger seat bumpers.
Pull the passenger T-bar handle forward until it latches.

T o access the bag retainer , press the release lever to the left and push the
passenger T-bar handle down. Lift up the seat until it is securely fas­tened in place.

47

OPERATION

Brake System Break-in

Apply only moderate braking force for the first 50 stops. Aggressive or
overly forceful braking when the brake system is new could damage
brake shoes and drums.

Pre-Ride Inspection

Failure to inspect and verify that the vehicle is in safe operating condi­tion before operating increases the risk of an accident. Always inspect
the vehicle before each use to make sure it's in safe operating condition.

Item Remarks Page

Batteries Ensure batteries are fully charged 52
Brake system Ensure proper operation 42

Steering Ensure free operation 72
Tires Inspect condition and pressure 74
Wheels/fasteners Inspect, ensure fastener tightness 75
Frame nuts, bolts, fasteners Inspect, ensure tightness ­Accelerator Ensure proper operation 43
Indicator lights/switches Ensure proper operation 35-40
Headlamp Check operation, apply Polaris dielec-

Seat Belts
(if so equipped)

tric grease when lamp is replaced
Check length of belt for damage,

check latches for proper operation

72

78

46

48

OPERATION

New Operator Driving Procedures

1. Read and understand the owner's manual and all warning and

instruction labels before operating this vehicle.

2. Disconnect the battery charger (if connected). See page 81.

3. Perform the pre-ride inspection. See page 48.

4. Do not carry a passenger until you have at least two hours of driving

experience with this vehicle.

5. Sit in the driver's seat and fasten the seat belt if equipped on your

model.

6. Make sure the direction selector switch is in the proper position for

your intended direction of travel.

7. Make sure the front wheels are turned in the intended direction of

travel.

8. Apply the brakes.

9. Turn the key to the ON position.

10. Select an open area that allows room to familiarize yourself with

vehicle operation and handling. Check for obstacles and people in
your driving area.

11. Keeping both hands on the steering wheel, rele ase the brakes and

depress the accelerator with your right foot to begin driving.

12. Drive slowly at first. On level surfaces, practice starting, stopping,

turning, maneuvering, using the accelerator and brakes and driving
in reverse. Learn how the vehicle handles when making both left
and right turns at a slow speed.

13. Inc rease speed only after mastering all maneuvers at a slow speed.

14. After you become skilled at making turns and begin to operate at

faster speeds, follow these precautions:

• Avoid abrupt starts and stops.

• Avoid sharp turns and abrupt steering maneuvers.

• Never turn at a fast speed.

• Operate at speeds appropriate for your skills, the conditions and
the terrain.

49

OPERATION

New Operator Driving Procedures

Stopping

1. Release the accelerator pedal completely.

2. Depress the brake pedal and brake to a complete stop.

Parking

1. Stop the vehicle on a level surface.

2. Engage the park brake.

Tip: A roll-away alert will sound if the vehicle begins to roll away after being

parked. Return to the vehicle immediately and make sure the park brake is
engaged.

3. If the vehicle will be parked for more than a few minutes, turn the
key off. Remove the key and move the direction selector switch to
the neutral position.

4. Any time the vehicle will be parked for more than a few hours,
move the Master On/Off switch to the OFF position and follow the
recommended storage procedures. See page 64.

50

OPERATION

Driving with Passengers

1. Complete the New Operator Driving Procedures outlined on pages
49-50.

2. Perform the pre-ride inspection. See page 48.

3. Make sure all occupants are properly seated and if your vehicle is

equipped with seatbelts be sure they are all secured.

4. Slow down. Always travel at a speed appropriate for your skills,

your passenger's skills, and operating conditions. Avoid unexpected
or aggressive maneuvers that could cause discomfort or injury to
your passengers.

5. Vehicle handling may change with passengers on board. Allow

more time and distance for braking.

6. Always follow all operating guidelines as outlined on safety labels

and in this manual.

51

OPERATION

Battery Use

• New batteries should be given a full charge before use.

• New deep cycle batteries need to be cycled several times before
reaching full capacity (50-125 cycles, depending on type). Capacity
will be limited during this time. Always make sure that all electrical
accessories are grounded directly to the battery (-) post. Never use the
chassis or body as a ground connection.

• Always observe all battery safety warnings and safe handling proce­dures.

• Always keep battery terminals and connections free of corrosion.

• Always maintain a full charge on the batteries. For best battery life,
batteries should not be discharged 80% of their rated capacity. Proper
battery sizing will help avoid excessive discharge.

• Batteries should be kept clean and free of dirt and corrosion at all
times.

• Vent caps should be correctly installed and tight during vehicle opera­tion and battery charging.

52

OPERATION

WARNING

Driving on Slippery Surfaces

Skidding or sliding can cause loss of
control or overturn (if tires regain

traction unexpectedly). When
operating on slippery surfaces such
as ice or loose gravel, reduce speed
and use extra caution to reduce the
chance of skidding or sliding out of
control. Do not operate on
excessively slippery surfaces.

When driving on slippery surfaces
such as wet trails, loose gravel, or
ice, be alert for the possibility of
skidding and sliding.

Follow these precautions when
encountering slippery conditions:

1. Slow down before entering

slippery areas.

2. Maintain a high level of alertness, reading the trail and avoiding

quick, sharp turns, which can cause skids.

3. Correct a skid by turning the steering wheel in the direction of the

skid. Never apply the brakes during a skid.

53

OPERATION

15° maximum

Driving Uphill

Whenever traveling
uphill, follow these
precautions:

1. Always check the

terrain carefully
before ascending a
hill.

2. Avoid steep hills

(15° maximum).

3. Drive straight

uphill.

4. Never climb hills

with excessively
slippery or loose surfaces.

5. Proceed at a steady rate of speed and accelerator position. Never

apply full throttle suddenly.

6. Avoid unneces sary cha nges in spee d or direction.

7. Never go over the crest of a hill at high speed. An obstacle, a sharp

drop, or another vehicle or person could be on the ot her side of the
hill.

8. If the vehicle stalls while climbing a hill, apply the brakes. Place the

Direction Selector switch in reverse and slowly allow the vehicle to
roll straight downhill while applying light brake pressure to control
speed.

54

OPERATION

15° maximum

Driving Downhill

Whenever descending a
hill, follow these precau-

tions:

1. Avoid steep hills (15°

maximum).

2. Always descend a hill

with the direction
selector switch in for­ward. Never descend a
hill with the switch on
neutral.

WARNING! Coasting down a hill could result in excessive speed, which could
result in loss of control. Never travel down a hill at high speed.

3. Use the brake pedal to control speed when descending a hill.

4. Always check the terrain carefully before descending a hill.
Avoid traveling down a hill at an angle, which would cause the vehicle

to lean sharply to one side. Travel straight downhill.

55

OPERATION

Driving in Reverse

Follow these precautions when
operating in reverse:

1. Always check for obstacles

or people behind the vehi­cle.

2. Apply the pedal lightly.

Never press quickly on the
accelerator pedal.

3. Back slowly.

4. Apply the brakes lightly for

stopping.

5. Avoid making sharp turns.

56

OPERATION

Driving on a Sidehill (Sidehilling)

Driving on a sidehill is not
recommended. Improper

procedure could cause loss
of control or overturn. A void
crossing the side of any hill

unless absolutely necessary.
If crossing a hill is unavoid-

able, follow these precau­tions:

1. Drive slowly and use

extreme caution.

2. If the vehicle begins to

overturn, or if it feels as
if it may overturn, immediately turn downhill.

3. Avoid obstacles and changes in terrain that may lower or raise one

side of the vehicle or cause the vehicle to slide.

4. If the vehicle begins to slide downhill, immediately turn downhill to

stop the slide, or stop the vehicle and maneuver slowly and care­fully until the vehicle can be driven straight downhill.

57

OPERATION

Parking on an Incline

A rolling vehicle can result in serious injury. Avoid parking on an
incline. If parking on an incline is unavoidable, follow these precau­tions:

1. Set the Parking Brake.

2. Turn the Forward/Reverse switch to Neutral.

3. Block the rear wheels on the downhill side, or park the vehicle in a

sidehill position instead

58

OPERATION

WARNING

Hauling Cargo

Overloading the vehicle or carrying cargo improperly can alter vehicle handling
and may cause loss of control or brake instability. Always follow these
precautions when hauling cargo:

Never exceed the stated load capacity for this vehicle.
REDUCE SPEED AND ALLOW GREATER DISTANCES FOR BRAKING

WHEN HAULING CARGO.
NEVER EXCEED THE MAXIMUM WEIGHT CAPACITY of the vehicle. When

determining the weight you are adding to the vehicle, include the weight of the
operator, passenger, accessories, loads in the sweater basket. The combined
weight of these items must not exceed the maximum weight capacity.

Always load the cargo area with the load as far forward and as low as possible.
When operating over rough or hilly terrain, reduce speed and cargo to maintain

stable driving conditions.
Always operate the vehicle with extreme care when hauling loads. Slow down.
SECURE ALL LOADS BEFORE OPERATING. Unsecured loads can create

unstable operating conditions, which could result in loss of control of the vehicle.
OPERATE ONLY WITH STABLE AND SAFELY ARRANGED LOADS. When

handling off-centered loads that cannot be centered, securely fasten the load
and operate with extra caution.

HEAVY LOADS CAN CAUSE BRAKING AND CONTROL PROBLEMS. Use
extreme caution when applying brakes with a loaded vehicle. Avoid terrain or
situations that may require backing downhill.

DO NOT TRAVEL FASTER THAN THE RECOMMENDED SPEEDS.

59

OPERATION

Towing the Vehicle

Follow these procedures when towing the vehicle:

1. Place the direction selector switch in the NEUTRAL position.

2. Move the master ON/OFF switch to the OFF position.

3. Turn the key off.

4. Always follow these precautions when towing this vehicle:

• Do not operate faster than 12 mph (19 km/h).

• Do not tow on public streets.

• Do not allow passengers in the towed vehicle.

• Avoid abrupt starts and stops.

• Avoid sharp turns and abrupt steering maneuvers.

• Avoid towing on a hill.

60

OPERATION

Transporting the Vehicle on a Trailer

When transporting the vehicle for a long distance or on public streets,
always use a trailer with an approved load rating of 1200 lbs. (544 kg)
per vehicle being transported. Follow these procedures when trailering
the vehicle:

1. Place the direction selector switch in the NEUTRAL position.

2. Engage the park brake.

3. Remove the key to prevent loss during transporting.

4. Always tie the frame of the Polaris vehicle to the trailer securely

with suitable straps or rope.

5. Always follow these precautions when trailering the vehicle:

• Do not allow passengers on the trailer or in the trailered vehicle.

• Reduce speed and drive with caution.

6. Remove all personal equipment and/or golf bags before towing

vehicle on a trailer.

7. Remove the windshield if equipped. Failure to remove the wind-

shield while in tow may cause damage to the vehicle and pose a
safety hazard to others.

61

CLEANING

Washing the Vehicle

Keeping your Polaris vehicle clean will not only improve its appearance
but it can also extend the life of various components.

NOTICE: High water pressure may damage components. Polaris recommends

The best and safest way to clean your Polaris vehicle is with a garden
hose and a pail of mild soap and water.

1. Use a professional-type washing cloth, cleaning the upper body first

2. Rinse with clean water frequently.

3. Dry surfaces with a chamois to prevent wate r spo ts.

Washing Tips

• Avoid the use of harsh cleaners, which can scratch the finish.

• Do not use a power washer to clean the vehicle.

• Do not use medium to heavy duty compounds on the finish.

• Always use clean cloths and pads for cleaning and polishing. Old or
reused cloths and pads may contain dirt particles that will scratch the
finish.

• Clean the windshield with a non-abrasive glass cleaning solution and
a soft cloth.

• Clean seats with a vinyl cleaner and conditioner.

washing the vehicle by hand or with a garden hose, using mild soap.
Certain products, including insect repellents and chemicals, will

damage plastic surfaces. Do not allow these types of products to
contact the vehicle.

and the lower parts last.

62

CLEANING

Washing the Vehicle

If a high pressure water system is used for cleaning (not recommended),
exercise extreme caution. The water may damage components and could
remove paint and labels. Avoid directing the water stream at the follow­ing items:

• Electrical components, wiring, switches and controls, such as turn

signals and dash controls.

• Wheel bearings

•Brakes

• Cab and body panels

• Labels and decals
If warning and safety labels are damaged, contact your Polaris dealer for

free replacement.
Grease all zerk fittings immediately after washing.

Polishing the Vehicle

Polaris recommends the use of common household aerosol furniture
polish for polishing the finish on your Polaris vehicle. Follow the
instructions on the container.

Polishing Tips

• Avoid the use of automotive products, some of which can scratch the

finish of your vehicle.

• Always use clean cloths and pads for cleaning and polishing. Old or

reused cloths and pads may contain dirt particles that will scratch the
finish.

63

STORAGE

Storing the Vehicle

Any time the vehicle will be parked for more than 5 days, follow the
recommended storage procedures:

1. Make any necessary repairs and clean the vehicle. See page 62.

2. Clean the batteries. See page 81.

3. Store the vehicle out of the sun in a cool, dry place.

4. Be sure the storage area is well ventilated.

5. Move the Master On/Off switch to the OFF position.

6. Do not engage the park brake.

7. Verify that tire pressure is at specification.

8. Block the wheels to prevent rolling.

9. Fully charge the batteries. Leave the charger connected to maintain

a full charge during the storage period, or check battery voltage
each month during storage and recharge as needed to maintain a full
charge. See page 81. If the charger remains connected, check it
monthly to verify proper operation.

Tip: Do not use plastic or coated mate rials. They do not allow enough ventilation

to prevent condensation, and may promote corrosion and oxidation.

WARNING! Do not cover the vehicle while the charger is connected.
Dangerous levels of Hydrogen gas could accumulate.

64

STORAGE

Removal from Storage

1. Inspect all battery connections.

2. Verify that batteries are fully charged.

3. Verify that tire pressure is at specification.

4. Perform the pre-ride inspection. See page 48.

5. Inspect and verify the tightness of the bolts, nuts and other fasteners.

6. Lubricate at the intervals outlined in the Periodic Maintenance

Chart beginning on page 62.

65

MAINTENANCE

Periodic Maintenance Chart

Careful periodic maintenance will help keep your vehicle in the safest,
most reliable condition. Inspection, adjustment and lubrication of
important components are explained in the periodic maintenance chart.

Inspect, clean, lubricate, adjust and replace parts as necessary. When
inspection reveals the need for replacement parts, use genuine Polaris
parts available from your Polaris dealer.

Record maintenance and service in the Maintenance Log beginning on
page 94.

Service and adjustments are important for proper vehicle operation. If
you're not familiar with safe service and adjustment procedures, have a
qualified dealer perform these operations.

Maintenance intervals in the following chart are based upon average
riding conditions and an average vehicle speed of approximately ten
(10) miles per hour. Vehicles subjected to severe use must be inspected
and serviced more frequently.

Severe Use Definition

• Frequent exposure to mud, water or sand

• Prolonged low speed, heavy load operation

• Cold weather operation

66

MAINTENANCE

Periodic Maintenance Chart

Maintenance Chart Key

X Perform these operations more often for vehicles subjected to
severe use.

n Have an authorized Polaris dealer perform these services.

WARNING! Improperly performing the procedures marked with a n could result
in component failure and lead to serious injury or death. Have an authorized
Polaris dealer perform these services.

Perform all services at whichever maintenance interval is reached first.

Item Maintenance Interval

Steering - Pre-Ride -

n

Tires - Pre-Ride ­Batteries - Pre-Ride ­Brake system - Pre-Ride ­Wheels/fasteners - Pre-Ride ­Frame fasteners - Pre-Ride ­Headlamp/tail

lamp
Brake shoe wear 250 H Annually Inspect periodically

X

(whichever comes first)

Hours Calendar Miles

(Km)

- Daily - Check operation; apply
dielectric grease if replacing

Remarks

n

Batteries 25 H Monthly 250 (400) Check terminals; clean

67

MAINTENANCE

Periodic Maintenance Chart

Item Maintenance Interval

(whichever comes first)

Hours Calendar Miles

Brake and Acceler-

n

ator Pedals

X General

lubrication
Brake Cables 1st 10

n

Steering Kingpins 30 H 3 M 300 (500) Inspect; lubricate;

n

X Wiring 100 H 12 M 1000 (1600) Inspect for wear, routing,

Front wheel

n

bearings
Toe adjustment - Inspect periodically; adjust

n

X Headlight aim - Adjust as needed

X Perform these procedures more often for vehicles subjected to severe use.

30 H 3 M 300 (500) Inspect; adjust; lubricate;

50 H 3 M 500 (800) Lubricate all fittings, pivots,

h
30 h
after

100 H 12 M 1000 (1600) Inspect; replace as needed

3 M 300 (500) Inspect; adjust

(Km)

at intervals or after submer­sion in water

cables, etc.

at intervals or after submer­sion in water

security; apply dielectric
grease to connectors
subjected to water, mud, etc.

when parts are replaced

Remarks

n Have an authorized Polaris dealer perform these services.

68

MAINTENANCE

Lubricate

Kingpin

Lubrication Recommendations

Check and lubricate all components at the intervals outlined in the Peri­odic Maintenance Chart beginning on page 68, or more often under
severe use, such as wet or dusty conditions. Items not listed in the chart
should be lubricated at the general lubrication interval.

Item Lube Method

Steering Kingpins Polaris Premium all Season

Brake and Accelerator
pedals

Grease or grease
conforming to NLGI No. 2

Polaris Premium all Season
Grease or grease
conforming to NLGI No. 2

Locate fittings and grease.

Locate fittings and grease.

69

MAINTENANCE

Transaxle

Transaxle Specification Chart

Use of other fluids may result in improper operation of components.

Transaxle Lubricant Capacity Fill Plug

Transaxle Lubricant Gear-

case Polaris PN

2873602

12 oz.

(355 ml)

Torque

20-30 ft. lbs.

(27-41 Nm)

70

MAINTENANCE

WARNING

Speed Control System/Accelerator Pedal

Failure to check or maintain proper operation of the accelerator pedal
system can result in an accident and lead to serious injury or death if the
accelerator pedal sticks during operation.

Never start or operate this vehicle if it has a sticking or improperly oper­ating accelerator pedal.

Immediately contact your dealer for service if accelerator pedal prob­lems arise.

Always check the pedal for free movement and return before and during
operation.

• The vehicle will not operate if the accelerator pedal is
depressed when the key is switched on. The vehicle will oper­ate normally after the accelerator pedal is returned to rest.

71

MAINTENANCE

Brakes

The rear brakes are mechanical drum type brakes activated by the brake
pedal. See page 42.

Always check brake pedal travel before each use of the vehicle. When
applied, the brake pedal should feel firm.

If you discover any irregularities in brake system operation, including
excessive pedal travel, contact your dealer for proper diagnosis and
repairs.

WARNING! Operating the vehicle with a spongy brake pedal can result in loss
of braking, which could cause an accident resulting in severe injury or death.
Never operate the vehicle with a spongy-feeling brake pedal.

Steering Wheel Inspection

Check the steering wheel for smooth operation at the intervals outlined
in the Periodic Maintenance Chart beginning on page 67.

1. Position the vehicle on level ground.

2. Lightly turn the steering wheel left and right.

3. If there is excessive freeplay or strange noises, or the steering feels
rough or "catchy," have the steering system inspected by an autho­rized Polaris dealer.

72

MAINTENANCE

Adjustment
Cam

Lowest (Softest)
Setting

Highest (Stiffest)
Setting

Suspension Settings

The front suspension shocks are preload adjustable, with three settings
on each axle.

The suspensions are set on the middle setting at the factory. This setting
is appropriate for nearly all riding conditions.

• Always apply the same adjustment setting to both wheels.

73

MAINTENANCE

WARNING

1/8" (3 mm)

FRONT

BACK

Tires

Operating your vehicle with worn tires will increase the possi bility of skidding,
loss of control and an accident, which could result in serious injury or death.
Always replace tires when the tread depth measures 1/8" (3 mm) or less.

Improper tire inflation or the use of non-standard size or type of tires may
adversely affect vehicle handling, which could result in vehicle damage or
personal injury. Always maintain proper tire pressure. When replacing tires,
always use original equipment size and type.

Tire Tread Depth

Always replace tires
when tread depth is worn
to 1/8" (3 mm) or less.

Tire Rotation

Tire rotation is recom­mended in intervals of
1,000 miles for this vehi­cle. Tires should be rotated in Rearward-Cross pattern as recommended
by the Tire and Rim Association.

74

MAINTENANCE

Front

40 ft. lbs.
(54 Nm)

Rear
95-115 lbs.
(129-156 Nm)

Axle and Wheel Nut Torque Specifications

Inspect the following items occasionally for tightness, and if they've
been loosened for maintenance service. Do not lubricate the stud or the

lug nut.

Fastener Nut Torque

Wheel Lug Nut 55 ft. lbs. (74.5 Nm)
Front Hub Nut 40 ft. lbs. (54 Nm)
Rear Hub Nut

95-115 ft. lbs.

(129-156 Nm)

75

MAINTENANCE

Tires

WARNING! Improperly installed wheels can adversely affect tire wear and

vehicle handling, which can result in serious injury or death. Always ensure that
all nuts are torqued to specification. Do not service axle nuts that have a cotter
pin installed. See your Polaris dealer.

Wheel Removal

1. Position the vehicle

on a flat level sur­face.

2. Place the gear selec­tor switch in neutral.

3. Apply the parking
brake.

4. Loosen the wheel
nuts slightly.

5. Elevate one side of
the vehicle by placing a suitable stand under the frame. Do not ever
elevate both rear wheels at the same time! Parking brake only locks
rear wheels, and vehicle can roll.

6. Remove the wheel nuts. Remove the wheel.

76

MAINTENANCE

Rear

Front

Tires

Wheel Installation

1. Place the transmis­sion in NEUTRAL.

2. Place the wheel in

the correct position
on the wheel hub. Be
sure the valve stem
is toward the out­side and rotation
arrows on the tire
point toward for­ward rotation.

3. Attach the wheel

nuts and finger
tighten.

4. Carefully lower the vehicle to the ground.

5. Torque the wheel nuts to specification. See page 75.

77

MAINTENANCE

Lamp

Lights

WARNING! Poor lighting while driving can result in severe injury or death.

Headlight and tail light lenses become dirty during normal operation. Wash the
headlights frequently to maintain lighting quality.

Headlight Lamp Replacement

Do not service the headlamps until they've cooled sufficiently.

1. Unplug the headlamp
from the wiring harness.
Be sure to pull on the
connector, not on the wir­ing.

2. Turn the lamp counter-

clockwise to remove it.

3. Install the new lamp.

Make sure the tab on the
lamp locates properly in
the housing.

4. Reinstall the harness

assembly into the head­light assembly.

78

MAINTENANCE

Fuse

Lights

Brake Lights

When the brake pedal is depressed, the brake light comes on. Check the
brake light before each ride.

1. Turn the ignition switch to the ON position.

2. Apply the brakes.If the light doesn't come on, check the wiring, the
brake switch or the tail light assembly.

Light Fuse

If all lights are non-funtional, the fuse PN 7.5A 5A 10A might be need
to be replaced. The fuse is located under the seat near the controller.

79

MAINTENANCE

WARNING

WARNING

WARNING

WARNING

Batteries

Battery posts, terminals and related components contain lead and lead
compounds, chemicals known to cause cancer and reproductive harm. Always
wash your hands after touching or handling the batteries.

Charging a damaged battery can result in serious injury. Never attempt to
charge a frozen or bulging battery. Discard the battery appropriately and install a
new battery.

Improperly connecting or disconnecting battery cables can result in an explosion
and cause serious injury or death.

Battery electrolyte is poisonous. It contains sulfuric acid. Serious burns can
result from contact with skin, eyes or clothing.

Antidote:

External: Flush with water.
Internal: Drink large quantities of water or milk. Follow with milk of magnesia,

beaten egg, or vegetable oil. Call physician immediately.
Eyes: Flush with water for 15 minutes and get prompt medical attention.
Batteries produce explosive gases. Keep sparks, flame, cigarettes, etc. away.

Ventilate when charging or using in an enclosed space. Always shield eyes
when working near batteries. KEEP OUT OF REACH OF CHILDREN.

80

MAINTENANCE

Charging Receptacle

Batteries

Battery Cleaning

If cleaning is necessary, remove the corrosion with a stiff wire brush.
Wash with a solution of one tablespoon baking soda and one cup water.
Rinse well with tap water and dry off with clean shop towels. Coat the
terminals with dielectric grease or petroleum jelly. Be careful not to
allow cleaning solution or tap water into the batteries.

Battery Charging

When not in use, park the vehicle indoors and connect the battery
charger. The vehicle’s charging receptacle is located on the body below
the driver’s seat base.

WARNING! Failure to provide adequate ventilation while charging batteries can
result in an explosion. Hydrogen gas is emitted during charging and will rise and
accumulate at the ceiling. Always ensure a minimum of five (5) air changes per
hour in the charging area. Never charge the batteries in an area subject to a
flame or spark, including areas containing gas or propane water heaters and
furnaces. Do not smoke in the charging area.

1. Position the vehicle indoors

on a level surface. Make
sure the charging area is
well ventilated.

2. Open any door enclosures
or zippers.

3. Inspect charger cords and
receptacles for cracks,
loose connections and
frayed wiring. Replace any
damaged components
promptly.

4. Always connect the charger
to the vehicle first, then plug the charger into a wall receptacle.
Make sure each charger uses a dedicated circuit to prevent over­loading.

Tip: After the batteries have fully recharged, the battery charger will automati-

cally cycle in and out of the trickle charge mode to maintain the charge.

5. When disconnecting the charger, always disconnect the charger
from the wall receptacle first, then disconnect the charger from the
vehicle.

NOTE: Refer to the manual supplied with the battery charger for further details.

81

MAINTENANCE

Battery Cell Cover

Batteries

Battery Fluid

A poorly maintained battery will deteriorate rapidly. Check the battery
fluid level often.

Add only distilled water. Tap water contains minerals that are harmful to
a battery.

Batteries should
always be watered
after charging unless
plates are exposed
before charging. If
exposed, plates should
be covered by approxi­mately 1/8” of water.
Check level after
charge. The level
should be kept 1/4”
below the bottom of
the fill well in the cell
cover.

82

SPECIFICATIONS

BREEZE 2 Passenger

Gross Vehicle Weight 1120 lbs. (514 kg)
Rear Seat Capacity 500 lbs. (267 kg)
Maximum Weight Capacity 700 lbs. (317.5 kg) (riders/cargo/accessories)
Rear Gearcase Oil Capacity 12 oz. (355 ml)
Overall Length/Width/Height w/

canopy
Wheelbase 63 in. (161 cm)
Ground Clearance 4.6 in. (11.7 cm)
Motor Electric (48V DC)
Front Suspension Strut Type, Independent
Rear Suspension Semi-Independent, Solid Axle
Driving System Type Direct Drive Electric
Shift Type F-N-R
Drive Ratio Final 10.35:1
Tire Size Front/Rear 205/50/R10 / 205/50/R10
Tire Pressure-Front 30 p.s.i.
Tire Pressure-Rear 30 p.s.i.
Brakes Rear Drum / Regen
Headlights 2 Low Beam 35 watts at 12 volts
Tailights LED 0.6 watts at 12 volts
Brake lights LED 1.8 watts at 12 volts
Maximum Forward Speed (mph) 19.6
Auxiliary DC Outlet 12 volts

99 in. (251 cm) / 46.5 in. (118 cm) / 76 in. (193
cm)

83

SPECIFICATIONS

BREEZE 4 Passenger My Choice

Gross Vehicle Weight 1130 lbs. (514 kg)
Maximum W e ight Capacity 700 lbs. (318 kg) (riders/cargo/accessories)
Rear Gearcase Oil Capacity 12 oz. (355 ml)
Overall Length/Width/Height w/

canopy
Wheelbase 63 in. (161 cm)
Ground Clearance 4.6 in. (11.7 cm)
Motor Electric (48V DC)
Front Suspension Strut Type, Independent
Rear Suspension Semi-Independent, Solid Axle
Driving System Type Direct Drive Electric
Shift Type F-N-R
Drive Ratio Final 10.35:1
Tire Size Front/Rear 205/50/R10 / 205/50/R10
Tire Pressure-Front 30 p.s.i.
Tire Pressure-Rear 30 p.s.i.
Brakes Rear Drum / Regen
Headlights 2 Hi/Low Beam 35 watts at 12 volts
Tailights LED 0.6 watts at 12 volts
Brake lights LED 1.8 watts at 12 volts
Maximum Forward Speed (mph) 19.6
Auxiliary DC Outlet 12 volts

102 in. (259 cm)/ 46.5 in. (118 cm)/ 76 in. (193
cm)

84

SPECIFICATIONS

BREEZE SL

Gross Vehicle Weight 1120 lbs. (514 kg)
Maximum Weight Capacity 500 lbs. (267 kg) (riders/cargo/accessories)
Rear Gearcase Oil Capacity 12 oz. (355 ml)
Overall Length/Width/Height w/

canopy
Wheelbase 63 in. (161 cm)
Ground Clearance 4.6 in. (11.7 cm)
Motor Electric (48V DC)
Front Suspension Strut Type, Independent
Rear Suspension Semi-Independent, Solid Axle
Driving System Type Direct Drive Electric
Shift Type F-N-R
Drive Ratio Final 10.35:1
Tire Size Front/Rear 205/50/R10 / 205/50/R10
Tire Pressure-Front 30 p.s.i.
Tire Pressure-Rear 30 p.s.i.
Brakes Rear Drum / Regen
Headlights 2 Hi/Low Beam 35 watts at 12 volts
Tailights LED 0.6 watts at 12 volts
Brake lights LED 1.8 watts at 12 volts
Maximum Forward Speed (mph) 22.5
Auxiliary DC Outlet 12 volts

99 in. (251 cm) / 46.5 in. (118 cm) / 76 in. (193
cm)

85

POLARIS PRODUCTS

Part Number Description

Gearcase / Transmission Lubricants

2873602 Premium AGL Synthetic Gearcase Lubricant (qt.)
2870465 Pump for Gallon Jug

Grease / Specialized Lubricants

2871312 Grease Gun Kit, Premium All Season (3 oz.)
2871322 Premium All Season Grease (3 oz. cartridge)
2871423 Premium All Season Grease (14 oz. cartridge)
2871515 Premium U-Joint Lube (3 oz.)
2871551 Premium U-Joint Lube (14 oz.)
2871329

2871956

Dielectric Grease (Nyogel

Additives / Miscellaneous

TM

Loctite

565 Thread Sealant

TM

)

86

TROUBLESHOOTING

Vehicle and Reverse Buzzer Doesn’t Operate

Possible Cause Solution

Vehicle in Sleep Mode Slightly depress and release the accelera-

Low battery voltage Recharge the battery overnight, check

Loose battery connections Check all connections and tighten
Loose contactor connections Check all connections and tighten
Loose electronic control box connections Inspect, clean, reinstall connectors
Blown fuse Check chassis fuse

Vehicle Doesn’t Operate

Possible Cause Solution

Accelerator pedal depressed when turning
the key switch on

FNR switch in neutral Place FNR in desired direction of travel
Controller fault Refer to Multi Function Light Trouble-

All Lighting Non-Functional

Possible Cause Solution

Loose connection Check DC-DC converter connection
Blown Fuse Check lighting fuse

tor, or toggle the master on/off switch

charger status lights for correct operation

Return accelerator pedal to rest position

shooting Guide

Batteries Won’t Charge

Possible Cause Solution

Very Low battery voltage If battery voltage is less than 9V, the

charger won’t turn on. Contact dealer to
have batteries recharged.

Charger fault Refer to Charger Status Dispaly Trouble-

shooting Guide

87

TROUBLSHOOTING

Charger Status Display Troubleshooting Guide

88

WARRANTY

LIMITED WARRANTY

Polaris Sales Inc., 2100 Highway 55, Medina, MN 55340, gives a TWO YEAR LIM­ITED WARRANTY on all components of your Polaris vehicle against defects in mate­rial or workmanship. This warranty covers the parts and labor charges for repair or
replacement of defective parts which are covered by this warranty . This warranty begins
on the date of purchase. This warranty is transferable to another consumer during the
warranty period through a Polaris dealer. The warranty coverage ends two years from
the date of purchase.

REGISTRATION

At the time of sale, the Warranty Registration Form must be completed by your dealer
and submitted to Polaris within ten days. Upon receipt of this registration, Polaris will
record the registration for warranty. No verification of registration will be sent to the
purchaser as the copy of the Warranty Registration Form will be the warranty entitle­ment. If you have not signed the original registration and received the customer copy,
please contact your dealer immediately. NO WARRANTY COVERAGE WILL BE
ALLOWED UNLESS YOUR VEHICLE IS REGISTERED WITH POLARIS.

Initial dealer preparation and set-up of your vehicle is very important in ensuring trou­ble-free operation. Purchasing a machine in the crate or without proper dealer set-up will
void your warranty coverage.

89

WARRANTY

LIMITATIONS OF WARRANTIES AND REMEDIES

The Polaris limited warranty excludes any failures that are not caused by a defect in
material or workmanship. This warranty does not cover accidental damage, normal wear
and tear, abuse or improper handling. This warranty also does not cover any vehicle that
has been altered structurally, modified, neglected, improperly maintained, used for rac­ing, or used for purposes other than for which it was manufactured, or for any damages
which occur during trailer transit or as a result of unauthorized service or the use of
unauthorized parts. In addition, this warranty does not cover physical damage to pain t or
finish, stress cracks, tearing or puncturing of upholstery material, corrosion, or defects in
parts, components or the vehicle due to fire, explosions or any other cause beyond
Polaris' control.

The Polaris limited warranty excludes any battery failures that are not caused by a defect
in material or workmanship. Warranty claims for battery replacements require specific
testing as outlined by the Polaris Warranty Department and the battery manufacturer
U.S. Battery prior to replacement. If the Polaris Warranty Department in conjunction
with U.S. Battery determines that the failure of the battery is ca used by a de fect in m ate­rial or workmanship, Polaris will assist with the processing of the warranty claim
through U.S. Battery for a replacement battery. This warranty does not cover the time
required to test and/or diagnose issues with the battery . Consequential damage caused by
defective batteries are excluded from this warranty. Use of any charger not recom­mended by Polaris and/or modifications to the vehicle will void any stated or implied
warranty on the battery. Battery warranty limitations include abuse or neglect such as
improper fluid levels, loose wiring, or rusted or corroded hardware; Lack of proper
maintenance; Damage caused by improper installation of the battery; Neglect, breakage,
freezing, fire, explosion, wreckage, the addition of any chemical, operation of the bat­tery in an overcharged condition, or the operation of the battery in an uncharged condi­tion (below half-charge – 1.200 specific gravity); and a battery char ged by systems other
than those supplied or recommended by Polaris.

This warranty does not cover the use of unauthorized lubricants, chemicals, or fuels that
are not compatible with the vehicle. The exclusive remedy for breach of this warranty
shall be, at Polaris' exclusive option, repair or replacement of any defective materials, or
components or products. THE REMEDIES SET FORTH IN THIS WARRANTY ARE
THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS
WARRANTY. POLARIS SHALL HAVE NO LIABILITY TO ANY PERSON FOR
INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY DESCRIP­TION, WHETHER ARISING OUT OF EXPRESS OR IMPLIED WARRANTY OR
ANY OTHER CONTRACT, NEGLIGENCE, OR OTHER TORT OR OTHERWISE
THIS EXCLUSION OF CONSEQUENTIAL, INCIDENTAL, AND SPECIAL DAM­AGES IS INDEPENDENT FROM AND SHALL SURVIVE ANY FINDING THAT
THE EXCLUSIVE REMEDY FAILED OF ITS ESSENTIAL PURPOSE. Some states
do not permit the exclusion or limitation of incidental or consequential damages or
implied warranties, so the above limitations or exclusions may not apply to you if incon­sistent with controlling state law.

90

WARRANTY

LIMITATIONS OF WARRANTIES AND REMEDIES

U.S. Battery’ s li abilit y sh all be t o rep lace t he de fecti ve batt ery. Replacement shall mean
furnishing a new battery or used battery with sufficient life to complet e the warrant y
term, which is incidental or reasonably equivalent to the warranted product at no cost to
the purchaser during the replacement period.

ALL IMPLIED WARRANTIES (INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO THE ABOVE TWO
YEAR WARRANTY PERIOD. POLARIS FURTHER DISCLAIMS ALL EXPRESS
WARRANTIES NOT STATED IN THIS WARRANTY. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitation may not apply

to you if inconsistent with controlling state law

HOW TO OBTAIN WARRANTY SERVICE

If your vehicle requires warranty service, you must take it to a Polaris Servicing Dealer.
When requesting warranty service you must present your copy of the Warranty Registra­tion form to the dealer. (THE COST OF TRANSPORTATION TO AND FROM THE
DEALER IS YOUR RESPONSIBILITY). Polaris suggests that you use your original
selling dealer; however, you may use any Polaris Servicing Dealer to perform warranty
service.

Please work with your dealer to resolve any warranty issues. Should your dealer require
any additional assistance they will contact the appropriate person at Polaris.

This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.

If any of the above terms are void because of state or federal law, all other warranty
terms will remain in effect.

Lubricants

1. Mixing oil brands or using non-recommended oil may cause engine damage. We rec-

ommend the use of Polaris gearcase oil.

2. Damage resulting from the use of non-recommended lubricants may not be covered

by warranty.

.

91

WARRANTY

Exported Vehicles

EXCEPT WHERE SPECIFICALLY REQUIRED BY LAW, THERE IS NO
WARRANTY OR SERVICE BULLETIN COVERAGE ON THIS VEHICLE IF IT IS
SOLD OUTSIDE THE COUNTRY OF THE SELLING DEALER'S AUTHORIZED
LOCATION.

This policy does not apply to vehicles that have received authorization for export from
Polaris Industries. Dealers may not give authorization for export. You should consult an
authorized dealer to determine this vehicle's warranty or service bulletin coverage if you
have any questions.

This policy does not apply to vehicles registered to government officials or military
personnel on assignment outside the country of the selling dealer's authorized location.

This policy does not apply to Safety Recalls.

How to Get Service

In the Country where your vehicle was purchased:

Warranty or Service Bulletin repairs must be done by an authorized Polaris dealer. If
you move or are traveling within the country where your vehicle was purchased,
Warranty or Service Bulletin repairs may be requested from any authorized Polaris
dealer who sells the same line as your vehicle.

Outside the Country where your vehicle was purchased:

If you are traveling temporarily outside the country where your vehicle was purchased,
you should take your vehicle to an authorized Polaris dealer. You must show the dealer
photo identification from the country of the selling dealer's authorized location as proof
of residence. Upon residence verification, the servicing dealer will be authorized to
perform the warranty repair.

92

WARRANTY

If You Move:

If you move to another country, be sure to contact Polaris Customer Assistance and the
customs department of the destination country before you move. Vehicles importation
rules vary considerably from country to country. You may be required to present docu­mentation of your move to Polaris Industries in order to continue your warranty cover­age. You may also be required to obtain documentation from Polaris Industries in order
to register your vehicle in your new country.

If Purchased From A Private Party:

If you purchase a Polaris product from a private citizen outside of the country in which
the vehicle was originally purchased, all warranty coverage will be denied.

Notice

If your vehicle is registered outside of the country where it was purchased, and you have
not followed the procedure set out above, your vehicle will no longer be eligible for war­ranty or service bulletin coverage of any kind. (Vehicles registered to Government offi­cials or military personnel on assignment outside of the country where the vehicle was
purchased will continue to be covered by the basic warranty.)

For questions call Polaris Customer Assistance:

United States: 1-888-704-5290
Canada: 1-204-925-710

93

MAINTENANCE LOG

Use the following chart to record periodic maintenance.

DATE MILES (KM)

OR HOURS

TECHNICIAN SERVICE PERFORMED / COMMENTS

94

95

INDEX

A

Accelerator Pedal. . . . . . . . . . . . . . . 43

Axle Nut Torque . . . . . . . . . . . . . . . 75

B

Batteries . . . . . . . . . . . . . 41, 80, 81, 82

Charging . . . . . . . . . . . . . . . . . 81

Cleaning. . . . . . . . . . . . . . . . . . 81

Fluid. . . . . . . . . . . . . . . . . . . . . 82

Safety Warnings. . . . . . . . . . . . 80

Battery Discharge Indicator (BDI) . 37

Before Riding. . . . . . . . . . . . . . . . . . 48

Belts, Seat . . . . . . . . . . . . . . . . . . . . 46

Brake Lights. . . . . . . . . . . . . . . . . . . 79

Brake Pedal . . . . . . . . . . . . . . . . . . . 42

Brake System Break-in . . . . . . . . . . 48

Brake, Park . . . . . . . . . . . . . . . . . . . 42

Brakes . . . . . . . . . . . . . . . . . . . . . . . 72

C

Cargo . . . . . . . . . . . . . . . . . . . . . . . . 59

Charging Batteries . . . . . . . . . . . . . . 81

Chart, Periodic Maintenance 66, 67, 68
Component Locations 26, 27, 28, 30, 32,
34

D

Driving Downhill. . . . . . . . . . . . . . . 55

Driving in Reverse. . . . . . . . . . . . . . 56

Driving on a Sidehill . . . . . . . . . . . . 55

Driving on Slippery Surfaces. . . . . . 52

Driving Procedures . . . . . . . . . . 49, 50

Driving Uphill . . . . . . . . . . . . . . . . . 54

Driving with a Passenger . . . . . . . . . 51

E

Equipment Modifications . . . . . . . . . 7

F

Fluid, Battery . . . . . . . . . . . . . . . . . . 82

Freeplay, Steering Wheel. . . . . . . . . 72

H

Hauling a Load . . . . . . . . . . . . . . . . 59

Hauling Cargo . . . . . . . . . . . . . . . . . 59

Hazard Light . . . . . . . . . . . . . . . . . . 44

Headlight Lamp Replacement . . . . . 78

I

Inspection, Axle Nuts . . . . . . . . . . . 75

Inspection, Pre-Ride . . . . . . . . . . . . 48

Inspection, Steering Wheel . . . . . . . 72

Inspection, Wheel Nuts . . . . . . . . . . 75

Installation, Wheels . . . . . . . . . . . . . 77

K

Key Switch. . . . . . . . . . . . . . . . . . . . 35

Key, Periodic Maintenance Chart . . 67

L

Lamp Replacement, Headlight. . . . . 78

Light Fuse . . . . . . . . . . . . . . . . . . . . 79

Lights . . . . . . . . . . . . . . . . . . . . . 78, 79

Lights, Brake . . . . . . . . . . . . . . . . . . 79

Lubricant Part Numbers . . . . . . . . . . 86

Lubrication Recommendations . . . . 69

M

Maintenance Log . . . . . . . . . . . . . . . 94

Maintenance, Periodic . . . . . 66, 67, 68

Multi Function Indicator Light . 35, 40

Multifunction Light . . . . . . . . . . . . . 39

N

New Operator Driving Procedures 49, 50

O

Outlet, Power . . . . . . . . . . . . . . . . . . 35

P

Park Brake . . . . . . . . . . . . . . . . . . . . 42

Parking on an Incline . . . . . . . . . . . . 58

Passenger seat/bag retainer . . . . . . . 47

Periodic Maintenance Chart. 66, 67, 68

Polaris Products . . . . . . . . . . . . . . . . 86

Polishing the Vehicle . . . . . . . . . . . . 63

Power Outlet . . . . . . . . . . . . . . . . . . 35

Pre-Ride Inspection . . . . . . . . . . . . . 48

R

Removal, Seat . . . . . . . . . . . . . . . . . 45

Removal, Wheels . . . . . . . . . . . . . . . 76

Removing the Vehicle from Storage 65

Replacement, Headlight Lamp. . . . . 78

Reverse. . . . . . . . . . . . . . . . . . . . . . . 56

S

Safety Labels 17, 18, 19, 20, 21, 22, 23,
24, 25

Safety Symbols . . . . . . . . . . . . . . . . . 4

Safety Warnings 8, 9, 10, 11, 12, 13, 14,
15, 16

Accessories . . . . . . . . . . . . . . . 10

Age Restrictions. . . . . . . . . . . . . 8

Carrying a Passenger . . . . . . . . 11

Crossing Slopes . . . . . . . . . . . . 13

96

Descending Hills Improperly . . 12

Excessive Speeds . . . . . . . . . . . 11

Failure to Inspect . . . . . . . . . . . . 9

Headlights . . . . . . . . . . . . . . . . . 10

Improper Hill Climbing . . . . . . 13

Improper Tire Maintenance . . . 14

Instruction . . . . . . . . . . . . . . . . . . 8

Jumps and Stunts . . . . . . . . . . . 12

Multiple Passengers . . . . . . . . . 11

Obstacles. . . . . . . . . . . . . . . . . . 15

Operating a Damaged Vehicle . 15

Physical Control . . . . . . . . . . . . 12

Poor Visibility. . . . . . . . . . . . . . 10

Precautions During Maintenance 16

Public Roads . . . . . . . . . . . . . . . 11

Reverse . . . . . . . . . . . . . . . . . . . 14

Seat Belts . . . . . . . . . . . . . . . . . 10

Skidding or Sliding . . . . . . . . . . 15

Slippery Terrain . . . . . . . . . . . . 14

Stalling on a Hill. . . . . . . . . . . . 13

Turning Improperly. . . . . . . . . . 12

Unauthorized Use of the Vehicle 15

Unfamiliar Terrain . . . . . . . . . . 13

Using Alcohol or Drugs . . . . . . . 9

Ventilation When Charging . . . . 9

Seat Belts . . . . . . . . . . . . . . . . . . . . . 46

Seat Cleaning . . . . . . . . . . . . . . . . . . 45

Seat Removal . . . . . . . . . . . . . . . . . . 45

Severe Use Definition. . . . . . . . . . . . 66

Signal Words. . . . . . . . . . . . . . . . . . . . 4

Sleep Mode . . . . . . . . . . . . . . . . . . . . 38

Steering Wheel Inspection . . . . . . . . 72

Storage, Removal . . . . . . . . . . . . . . . 65

Storing the Vehicle . . . . . . . . . . . . . . 64

Suspension Settings . . . . . . . . . . . . . 73

Switches

Forward/Reverse Switch. . . . . . 36

Hazard Switch. . . . . . . . . . . . . . 36

Key Switch . . . . . . . . . . . . . . . . 35

Master On/Off Switch. . . . . . . . 38

T

Throttle System. . . . . . . . . . . . . . . . . 71

Tire Tread Depth. . . . . . . . . . . . . . . . 74

Tires . . . . . . . . . . . . . . . . . . . . . . 74, 76

Torque, Axle Nuts. . . . . . . . . . . . . . . 75

Torque, Wheel Nut . . . . . . . . . . . . . . 75

Trailer Transport. . . . . . . . . . . . . . . . 61

Transaxle. . . . . . . . . . . . . . . . . . . . . . 70

Transporting the Vehicle . . . . . . . . . 61

Tread Depth, Tire . . . . . . . . . . . . . . . 74

Turn Signals . . . . . . . . . . . . . . . . . . . 44

V

Vehicle Identification Numbers . . . . . 6

INDEX

W

Warning Symbols . . . . . . . . . . . . . . . . 4

Washing the Vehicle . . . . . . . . . . 62, 63

Wheel Installation . . . . . . . . . . . . . . . 77

Wheel Nut Torque. . . . . . . . . . . . . . . 75

Wheel Removal . . . . . . . . . . . . . . . . . 76

97
