Plantronics W740 User Manual
Headset
Desk Phone
Mobile
Computer
Savi® W740
Savi® W740
Multi Device Wireless
Multi-Device Wireless
Headset System
Headset System
Guide de démarrage rapide
Guía de inicio rápido
Guía de inicio rápido
Guia de Início Rápido
Guide de démarrage rapide
Guia de Início Rápido

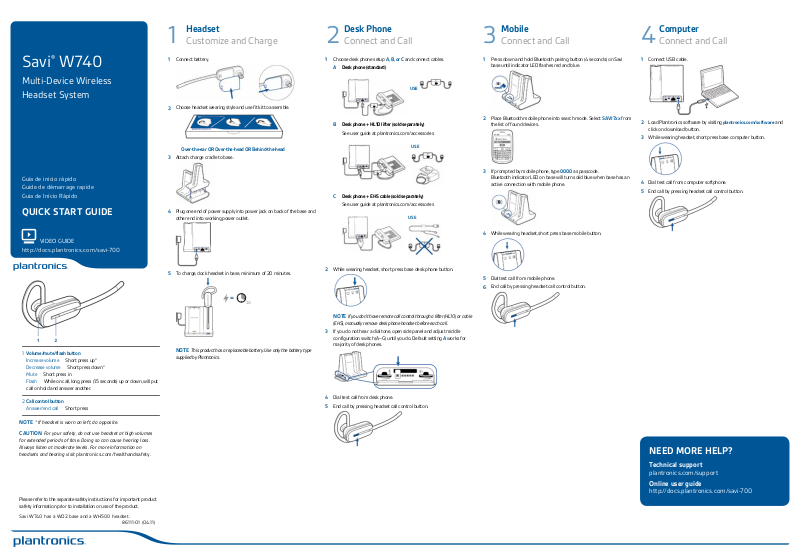

QUICK START GUIDE
QUICK START GUIDE
1
1
2
3
4
Customize and Charge
Connect battery.
Choose headset wearing style and use fit kit to assemble.
Over-the-ear OR Over-the-head OR Behind-the-head
Attach charge cradle to base.
Plug one end of power supply into power jack on back of the base and
other end into working power outlet.
2
1 Choose desk phone setup A, B, or C and connect cables.
Connect and Call
A Desk phone (standard)
USE
B Desk phone + HL10 lifter (sold separately)
See user guide at plantronics.com/accessories
USE
C Desk phone + EHS cable (sold separately)
See user guide at plantronics.com/accessories
USE
3
1
2 Place Bluetooth mobile phone into search mode. Select SAVI 7xx from
3 If prompted by mobile phone, type 0000 as passcode.
Connect and Call
Press down and hold Bluetooth pairing button (4 seconds) on Savi
base until indicator LED flashes red and blue.
the list of found devices.
Bluetooth indicator LED on base will turn solid blue when base has an
active connection with mobile phone.
4
1
2
3
4
5
Connect and Call
Connect USB cable.
Load Plantronics software by visiting plantronics.com/software and
click on download button.
While wearing headset, short press base computer button.
Dial test call from computer softphone.
End call by pressing headset call control button.
plantronics.com/software
VIDEO GUIDE
http://docs.plantronics.com/savi-700
VIDEO GUIDE
http://docs.plantronics.com/savi-700
1
Volume/mute/flash button
Increase volume Short press up*
Decrease volume Short press down*
Mute Short press in
Flash While on call, long press (1.5 seconds) up or down, will put
call on hold and answer another.
2
Call control button
Answer/end call Short press
To charge, dock headset in base, minimum of 20 minutes.
5
NOTE This product has a replaceable battery. Use only the battery type
supplied by Plantronics.
While wearing headset, short press base desk phone button.
2
NOTE If you don't have remote call control through a lifter (HL10) or cable
(EHS), manually remove desk phone handset before each call.
If you do not hear a dial tone, open side panel and adjust middle
3
configuration switch (A–G) until you do. Default setting A works for
majority of desk phones.
Dial test call from desk phone.
4
End call by pressing headset call control button.
5
While wearing headset, short press base mobile button.
4
Dial test call from mobile phone.
5
End call by pressing headset call control button.
6
NOTE * If headset is worn on left, do opposite.
CAUTION For your safety, do not use headset at high volumes
for extended periods of time. Doing so can cause hearing loss.
Always listen at moderate levels. For more information on
headsets and hearing visit plantronics.com/healthandsafety.
Please refer to the separate safety instructions for important product
safety information prior to installation or use of the product.
Savi W740 has a WO2 base and a WH500 headset.
Savi W740/W740S has a WO2/WO2S base and a WH500/
86111-01 (04.11)
WH500S headset.
NEED MORE HELP?
Technical support
plantronics.com/support
Online user guide
NEED MORE HELP?
http://docs.plantronics.com/savi-700
Product support
plantronics.com/support
Online user guide
http://docs.plantronics.com/savi-700
