find your space
Electronic hook switch guide
For Plantronics wireless systems
For detailed information on what to order and how to set up EHS on each of these systems, please click on table to take you to the appropriate page.
SupraPlus
Wireless
Voyager
510
CS60
CS70N
EHS modules allow remote call answering.
Electronic Hook Switch Overview
The Plantronics family of wireless headsets are designed to work with a wide range of telephone systems. Plantronics has developed the Electronic Hook Switch (EHS) range to enable customers to answer and end calls away from their desks. This is especially important where the physical design of the telephone does not allow for the use of Plantronics traditional HL10 lifter which also performs this function. This document provides guidance on the current system compatibility for the Electronic Hook Switches. For telephones not listed on this guide refer to the ‘Find My Headset’ tool on Plantronics.com
Agfeo
AP-1 Yes Yes Yes
4
ST30, ST40
Alcatel
AP-2 Yes No* Yes
5
IP Touch 4068, IP Touch 4028, IP Touch 4038, 4029, 4039
Auerswald
AP-1 + EHS Module
No Yes Yes
6
COMfort 1000, COMfort 1200, COMfort 2000 Plus, COMfortel 2500
Avaya
N/A Yes Yes Yes
7
2420, 4610, 4610SW, 4620, 4620SW, 4621, 4622, 4625, 5420, 5610, 5620
Avaya
N/A Yes No Yes
7
9620, 9630, 8410, 8411, 6416, 6424
Avaya Integral
AEI Yes Yes Yes
8
TH13, T3 Comfort
Aastra DeTeWe
AP-1 + EHS Module
Yes Yes Yes
2
OpenPhone 63, 65, 71, 73, 75, 73IP, 75IP
Cisco
HHC Yes Yes Yes
9
7942G, 7945G, 7962G, 7965G, 7975G
Aastra Intelligate
AP-1 Yes Yes Yes
3
Office 60IP, 70IP, 80IP
Funkwerk
AP-1 Yes Yes Yes
10
CS290U, CS410, CS410U, IP-S400
Siemens optiPoint
AP-1 Yes Yes Yes
11
optiPoint 410 with Acoustic Adapter, optiPoint 500 with Acoustic Adapter, optiPoint 600 with Acoustic Module, optiPoint 420 with Acoustic Adapter
Phones Supported
Manufacturer
Electronic
Hookswitch
type
Electronics Hookswitch
controls
Ringer
Alert
Phone Headset
Page
No.
System Compatiblity Overview
Operational Performance
Order Information
EHS Type Part No.
Standlone SKU for use with any
Plantronics Wireless system
Avaya Wireless Headsets with integrated EHS
Part No.Description
AP-1/A 36664-01
39361-01
AEI
AEI P 36477-02
36477-01
(Tenovis branded)
(Plantronics branded)
HHC 37978-01
ABT-35+ 72837-02 (UK)
72836-02 (Euro)
AWH-65+
Part No.Description
77306-03 (UK) 77306-02 (Euro)
AWH450N (Monaural NC)
72236-03 (UK) 72236-02 (Euro)
AP-2/A
36650-20 (UK) 36650-19 (Euro)
AWH-75N
AWH-460N (Binaural NC)
72235-03 (UK) 72235-02 (Euro)
*The AP-2 maintains a constant link between the headset and the base even when the headset is docked.
Snom
N/A Yes Yes Yes
13
320, 360, 370
Siemens openStage
AP-1 Yes Yes Yes
12
openStage 40, openStage 60, openStage 80
T-Systems
AP-1 Yes Yes Yes
14
Octophon F20 with Acoustic Adapter, Octophon F30 with Acoustic Adapter, Octophon F40 with Acoustic Adapter, Octophon F50 with Acoustic Adapter, System F900 an F20/F30/F40 with Acoustic Adapter
Tiptel
AP-1 Yes Yes Yes
15
85 System
Plantronics Ltd Wootton Bassett, UK 0800 410014 +44 (0)1793 842200
Plantronics Ireland Regus House, Harcourt Centre, Harcourt Rd Dublin 2 Office: ++353 (0) 1 477 3919 Service ROI: 1800 551 896
Plantronics GmbH Hürth, Deutschland Deutschland: 0800 9323 400 Österrreich: 0800 242 500 Schweiz: 0800 932 340
Plantronics B.V. Hoofddorp, Nederland (0)0800 PLANTRONICS 0800 7526876 (NL) 00800 75268766 (BE/LUX)
Plantronics Sarl Noisy-le-Grand, France
+33 (0)1 41 67 41 41
Nordic Region Finland: 0800 117 095 Sverige: 0200 21 46 81 Danmark: 8088 4610 Norge: 800 11336
Plantronics Middle East, Eastern Europe and Africa +44 (0)1793 842443
Plantronics Iberia, S.L.Madrid, España 902 41 51 91 Portugal 800 84 45 17
Plantronics Acoustics Italia Srl, Milano, Italia Numero Verde: 800 950934
1
Accessory
Power
Telephone
Handset not connected
Aastra DeTeWe
Electronics Hook Switch
5. Setup Information
Set rotary switch to 1
Set rear slide switch to 3
Set bottom slide switch to B
Headset set up information Diagrams
OpenPhone 63, 65 A2 Adapter EHS Module
EHS Solution: Also required:
1. Supported Telephones
Voyager System
EHS
6/6
4/4
Telephone
OpenPhone 71, 73, 75, 73IP, 75IP AP-1
EHS Solution:
2. Order Information
Headset System
Description Part No.
CS70N
CS60
SupraPlus
Wireless
Voyager510S
A2-Adapter
Order from
DeTeWe for
openphone
63, 65
AP-1
For openphone
71, 73, 75, 73IP, 75IP
EHS Module
Order from
Service-und for openphone 63 and 65 only
DescriptionEHS Adapter Part No.
3. Add EHS Module
*Service-und, Dienstleistungszentrum GmbH Leipzig, Schöbachstr. 65a, 04299 Leipzig, Germany
36995-01 (UK)
36995-02 (Euro)
39448-01 (UK)
39448-02 (Euro)
72272-04 (UK)
72272-05 (Euro)
Monaural NC
39986-01 (UK)
39986-02 (Euro)
Binaural NC
39261-01 (UK)
39261-02 (Euro)
Plantronics Ltd Wootton Bassett, UK 0800 410014 +44 (0)1793 842200
Plantronics Ireland Regus House, Harcourt Centre, Harcourt Rd Dublin 2 Office: ++353 (0) 1 477 3919 Service ROI: 1800 551 896
Plantronics GmbH Hürth, Deutschland Deutschland: 0800 9323 400 Österrreich: 0800 242 500 Schweiz: 0800 932 340
Plantronics B.V. Hoofddorp, Nederland (0)0800 PLANTRONICS 0800 7526876 (NL) 00800 75268766 (BE/LUX)
Plantronics Sarl Noisy-le-Grand, France
+33 (0)1 41 67 41 41
Nordic Region Finland: 0800 117 095 Sverige: 0200 21 46 81 Danmark: 8088 4610 Norge: 800 11336
Plantronics Middle East, Eastern Europe and Africa +44 (0)1793 842443
Plantronics Iberia, S.L.Madrid, España 902 41 51 91 Portugal 800 84 45 17
Plantronics Acoustics Italia Srl, Milano, Italia Numero Verde: 800 950934
2
Aastra Intelligate
Electronics Hook Switch
4. Setup Information
Set rotary switch to 1
Set rear slide switch to 3
Set bottom slide switch to B
Headset set up information Diagrams
Office 60IP
1. Supported Telephones
Voyager System
Office 70IP
Office 80IP
2. Order Information
Headset System
Description Part No.
CS70N
CS60
SupraPlus
Wireless
Voyager510S
AP-1 36664-01
DescriptionEHS Adapter Part No.
36995-01 (UK)
36995-02 (Euro)
39448-01 (UK)
39448-02 (Euro)
72272-04 (UK)
72272-05 (Euro)
Monaural NC
39986-01 (UK)
39986-02 (Euro)
Binaural NC
39261-01 (UK)
39261-02 (Euro)
PLT BaseAP-1
Telephone
Headset Socket on Acoustic Adapter
Accessory
Power
Telephone
Handset not connected
3. Add EHS Module
Plantronics Ltd Wootton Bassett, UK 0800 410014 +44 (0)1793 842200
Plantronics Ireland Regus House, Harcourt Centre, Harcourt Rd Dublin 2 Office: ++353 (0) 1 477 3919 Service ROI: 1800 551 896
Plantronics GmbH Hürth, Deutschland Deutschland: 0800 9323 400 Österrreich: 0800 242 500 Schweiz: 0800 932 340
Plantronics B.V. Hoofddorp, Nederland (0)0800 PLANTRONICS 0800 7526876 (NL) 00800 75268766 (BE/LUX)
Plantronics Sarl Noisy-le-Grand, France
+33 (0)1 41 67 41 41
Nordic Region Finland: 0800 117 095 Sverige: 0200 21 46 81 Danmark: 8088 4610 Norge: 800 11336
Plantronics Middle East, Eastern Europe and Africa +44 (0)1793 842443
Plantronics Iberia, S.L.Madrid, España 902 41 51 91 Portugal 800 84 45 17
Plantronics Acoustics Italia Srl, Milano, Italia Numero Verde: 800 950934
3
Accessory
Power
Telephone
Handset not connected
Agfeo
Electronic Hook Switch
1. Supported Telephones
5. Setup Information
Set rotary switch to 1
Set rear slide switch to 3
Set bottom slide switch to B
Headset set up information Diagrams
PLT BaseAP-1
Telephone
Headset socket on HS-Module30
2. Order Information
Headset System
Description Part No.
CS70N
CS60
SupraPlus
Wireless
Voyager510S
Binaural NC
39261-01 (UK)
39261-02 (Euro)
36995-01 (UK)
36995-02 (Euro)
39448-01 (UK)
39448-02 (Euro)
72272-04 (UK)
72272-05 (Euro)
4. Also Required
(for ST30 Only)
AP-1 36664-01
HS-Module
30
Order from
Agfeo
DescriptionEHS Adapter Part No.
3. Add EHS Module
Monaural NC
39986-01 (UK)
39986-02 (Euro)
 HI(%  HI(&  HI)%
Plantronics Ltd Wootton Bassett, UK 0800 410014 +44 (0)1793 842200
Plantronics Ireland Regus House, Harcourt Centre, Harcourt Rd Dublin 2 Office: ++353 (0) 1 477 3919 Service ROI: 1800 551 896
Plantronics GmbH Hürth, Deutschland Deutschland: 0800 9323 400 Österrreich: 0800 242 500 Schweiz: 0800 932 340
Plantronics B.V. Hoofddorp, Nederland (0)0800 PLANTRONICS 0800 7526876 (NL) 00800 75268766 (BE/LUX)
Plantronics Sarl Noisy-le-Grand, France
+33 (0)1 41 67 41 41
Nordic Region Finland: 0800 117 095 Sverige: 0200 21 46 81 Danmark: 8088 4610 Norge: 800 11336
Plantronics Middle East, Eastern Europe and Africa +44 (0)1793 842443
Plantronics Iberia, S.L.Madrid, España 902 41 51 91 Portugal 800 84 45 17
Plantronics Acoustics Italia Srl, Milano, Italia Numero Verde: 800 950934
4
Alcatel Lucent
Electronic Hook Switch
IP Touch 4068
IP Touch 4038
IP Touch 4028
Touch 4039
Touch 4029
1. Supported Telephones
4. Setup Information
Set rotary switch to 1
Set rear slide switch to 3
Set bottom slide switch to B
Headset set up information Diagrams
Telephone 4068, 4038, 4028
PLT BaseAP-2
AP-2
Headset Socket
External Bell
Telephone 4039, 4029
Headset Socket
Line Socket
Splitter Cable Supplied with AP-2
Telephone Line
Accessory
Power
Telephone
Adapter
Accessory
Power
Telephone
Handset not connected
3. Add EHS Module
2. Order Information
Headset System
Description Part No.
CS70N
CS60
36995-01 (UK)
36995-02 (Euro)
39448-01 (UK)
39448-02 (Euro)
Monaural NC
39986-01 (UK)
39986-02 (Euro)
Binaural NC
39261-01 (UK)
39261-02 (Euro)
SupraPlus
Wireless
EHS Adapter
Description Part No.
39361-01
AP-2
The AP-2 maintains a constant link between the headset and base even when the headset is docked.
Plantronics Ltd Wootton Bassett, UK 0800 410014 +44 (0)1793 842200
Plantronics Ireland Regus House, Harcourt Centre, Harcourt Rd Dublin 2 Office: ++353 (0) 1 477 3919 Service ROI: 1800 551 896
Plantronics GmbH Hürth, Deutschland Deutschland: 0800 9323 400 Österrreich: 0800 242 500 Schweiz: 0800 932 340
Plantronics B.V. Hoofddorp, Nederland (0)0800 PLANTRONICS 0800 7526876 (NL) 00800 75268766 (BE/LUX)
Plantronics Sarl Noisy-le-Grand, France
+33 (0)1 41 67 41 41
Nordic Region Finland: 0800 117 095 Sverige: 0200 21 46 81 Danmark: 8088 4610 Norge: 800 11336
Plantronics Middle East, Eastern Europe and Africa +44 (0)1793 842443
Plantronics Iberia, S.L.Madrid, España 902 41 51 91 Portugal 800 84 45 17
Plantronics Acoustics Italia Srl, Milano, Italia Numero Verde: 800 950934
5
Auerswald
Electronic Hook Switch
5. Setup Information
COMfort 1000 EHS Module
COMfort 1200 EHS Module
COMfort 2000 Plus EHS Module
COMfortel 2500 AP-1
1. Supported Telephones
Note: RINGER ALERT IS ONLY SUPPORTED ON COMfortel 2500
Set rotary switch to 1
Set rear slide switch to 3
Set bottom slide switch to B
Headset set up information Diagrams
Accessory
Power
Telephone
Handset
Auerswald EHSTelephone
Handset
Handset
Handset
2. Order Information
Headset System
Description Part No.
CS70N
CS60
36995-01 (UK)
36995-02 (Euro)
39448-01 (UK)
39448-02 (Euro)
72272-04 (UK)
72272-05 (Euro)
Monaural NC
39986-01 (UK)
39986-02 (Euro)
Binaural NC
39261-01 (UK)
39261-02 (Euro)
SupraPlus
Wireless
Voyager510S
*Service-und, Dienstleistungszentrum GmbH Leipzig, Schöbachstr. 65a, 04299 Leipzig, Germany
Description Part No.
EHS Adapter
EHS Module
Order from
service-und*
3. Add EHS Module
Description Part No.
EHS Adapter
AP-1
36664-01
4. Add AP-1 Module
Plantronics Ltd Wootton Bassett, UK 0800 410014 +44 (0)1793 842200
Plantronics Ireland Regus House, Harcourt Centre, Harcourt Rd Dublin 2 Office: ++353 (0) 1 477 3919 Service ROI: 1800 551 896
Plantronics GmbH Hürth, Deutschland Deutschland: 0800 9323 400 Österrreich: 0800 242 500 Schweiz: 0800 932 340
Plantronics B.V. Hoofddorp, Nederland (0)0800 PLANTRONICS 0800 7526876 (NL) 00800 75268766 (BE/LUX)
Plantronics Sarl Noisy-le-Grand, France
+33 (0)1 41 67 41 41
Nordic Region Finland: 0800 117 095 Sverige: 0200 21 46 81 Danmark: 8088 4610 Norge: 800 11336
Plantronics Middle East, Eastern Europe and Africa +44 (0)1793 842443
Plantronics Iberia, S.L.Madrid, España 902 41 51 91 Portugal 800 84 45 17
Plantronics Acoustics Italia Srl, Milano, Italia Numero Verde: 800 950934
6
Accessory
Power
Telephone
Handset
Avaya
Electronic Hook Switch
1. Supported Telephones
3. Setup Information
2. Order Information
Refer to user guide for rotary switch settings
Refer to user guide for rear slide switch settings
Refer to user guide for bottom slide switch settings
Headset set up information Diagrams
Headset
EHS Internal
Description Part No.
36650-20 (UK)
36650-19 (Euro)
Adj/Eu24 Socket or
External Microphone when required
Telephone
PLT Base
Headset Socket
Telephone AWH/ABT
2420 Yes 4610/4610SW Yes 4620/4620SW Yes 4621/4621SW Yes 4622/4622SW Yes 4625/4625SW Yes 4630/4630SW Yes 5420 Yes 5610 Yes 5620 Yes 2410 Yes
*
8403 Yes
*
8405 Yes
*
5410 Yes
*
6416D+M Yes
*
6424D+M Yes
9620 Yes
*
9630 Yes
*
8410D Yes
*
8411D Yes
*
8434 Yes
*
*
*Note – The external microphone that came supplied with the wireless headset must be used to provide the ringer indication.
AWH-65+
72837-02 (UK)
72836-02 (Euro)
ABT-35+
77306-03 (UK)
77306-02 (Euro)
AWH75N
72235-03 (UK)
72235-02 (Euro)
AWH460N
72236-03 (UK)
72236-02 (Euro)
AWH450N
Refer to user guide for exact setup for your particular phone
Plantronics Ltd Wootton Bassett, UK 0800 410014 +44 (0)1793 842200
Plantronics Ireland Regus House, Harcourt Centre, Harcourt Rd Dublin 2 Office: ++353 (0) 1 477 3919 Service ROI: 1800 551 896
Plantronics GmbH Hürth, Deutschland Deutschland: 0800 9323 400 Österrreich: 0800 242 500 Schweiz: 0800 932 340
Plantronics B.V. Hoofddorp, Nederland (0)0800 PLANTRONICS 0800 7526876 (NL) 00800 75268766 (BE/LUX)
Plantronics Sarl Noisy-le-Grand, France
+33 (0)1 41 67 41 41
Nordic Region Finland: 0800 117 095 Sverige: 0200 21 46 81 Danmark: 8088 4610 Norge: 800 11336
Plantronics Middle East, Eastern Europe and Africa +44 (0)1793 842443
Plantronics Iberia, S.L.Madrid, España 902 41 51 91 Portugal 800 84 45 17
Plantronics Acoustics Italia Srl, Milano, Italia Numero Verde: 800 950934
7

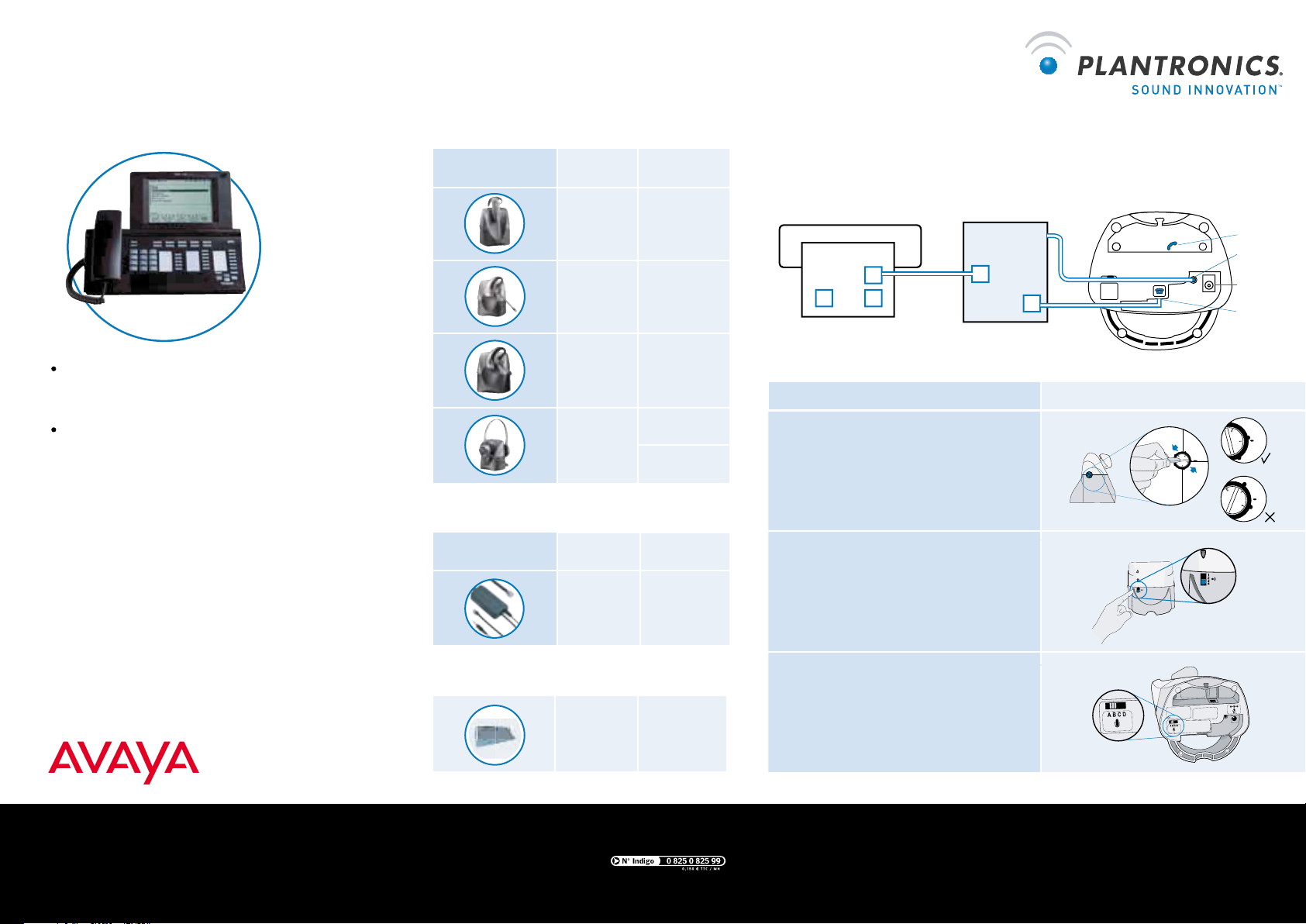

Avaya Integral
Electronic Hook Switch
TH13 / TM13 with SW Ex 7.17 (F package) and AEI interface
T3 Comfort / Classicab SW T110_ODE (A package) in conjunction with the CTI audio link adapter
Ensure telephone is set to headset mode, refer to user guide.
System requirements I33 or I55 or ICC 13 and 15.
1. Supported Telephones
5. Setup Information
Set rotary switch to 1
Set rear slide switch to 3
Set bottom slide switch to D
Headset set up information Diagrams
PLT BaseAEI EHS
Telephone
AEI Port
(On phone for TH13/TM13 on CTI Adapter for T3)
Accessory
Power
Telephone
Handset not connected
3. Add EHS Module
EHS Adapter
AEI
36477-02
(Plantronics)
Order from
Avaya
Description Part No.
CTI audio
link adapter
4. Also Required for T3 Comfort
Voyager System
2. Order Information
Headset System
Description Part No.
CS70N
CS60
SupraPlus
Wireless
Voyager510S
36995-01 (UK)
36995-02 (Euro)
39448-01 (UK)
39448-02 (Euro)
72272-04 (UK)
72272-05 (Euro)
Monaural NC
39986-01 (UK)
39986-02 (Euro)
Binaural NC
39261-01 (UK)
39261-02 (Euro)
36477-01
(Avaya)
Plantronics Ltd Wootton Bassett, UK 0800 410014 +44 (0)1793 842200
Plantronics Ireland Regus House, Harcourt Centre, Harcourt Rd Dublin 2 Office: ++353 (0) 1 477 3919 Service ROI: 1800 551 896
Plantronics GmbH Hürth, Deutschland Deutschland: 0800 9323 400 Österrreich: 0800 242 500 Schweiz: 0800 932 340
Plantronics B.V. Hoofddorp, Nederland (0)0800 PLANTRONICS 0800 7526876 (NL) 00800 75268766 (BE/LUX)
Plantronics Sarl Noisy-le-Grand, France
+33 (0)1 41 67 41 41
Nordic Region Finland: 0800 117 095 Sverige: 0200 21 46 81 Danmark: 8088 4610 Norge: 800 11336
Plantronics Middle East, Eastern Europe and Africa +44 (0)1793 842443
Plantronics Iberia, S.L.Madrid, España 902 41 51 91 Portugal 800 84 45 17
Plantronics Acoustics Italia Srl, Milano, Italia Numero Verde: 800 950934
8
Cisco
Electronic Hook Switch
1. Supported Telephones
4. Setup Information
Set rear slide switch to 3
Set bottom slide switch to B
2. Order Information
Headset System
Description Part No.
CS70N
CS60
SupraPlus
Wireless
Voyager510S
Binaural NC
39261-01 (UK)
39261-02 (Euro)
36995-01 (UK)
36995-02 (Euro)
39448-01 (UK)
39448-02 (Euro)
72272-04 (UK)
72272-05 (Euro)
HHC 37978-01
DescriptionEHS Adapter Part No.
Monaural NC
39986-01 (UK)
39986-02 (Euro)
Phones:
 ,.)'<  ,.)*<  ,.+'<  ,.+*<  ,.,*<
Set rotary switch to 1
Headset set up information and diagrams
3. Add EHS Module
The Cisco EHS solution requires version
)#&(dg\gZViZgd[XVaabVcV\Zg#I]Z iZaZe]dcZgZfj^gZhi]Z[^gblVgZidWZVi kZgh^dc-#((dg\gZViZg#7nYZ[Vjaii]Z :=Hdei^dcL^gZaZhh]ZVYhZi=dd`hl^iX 8dcigdad[i]ZiZaZe]dcZ^hY^hVWaZYVi i]ZXVaabVc\ZgaZkZa!eaZVhZZchjgZ^i]Vh WZZcZcVWaZY#
Plantronics Ltd Wootton Bassett, UK 0800 410014 +44 (0)1793 842200
Plantronics Ireland Regus House, Harcourt Centre, Harcourt Rd Dublin 2 Office: ++353 (0) 1 477 3919 Service ROI: 1800 551 896
Plantronics GmbH Hürth, Deutschland Deutschland: 0800 9323 400 Österrreich: 0800 242 500 Schweiz: 0800 932 340
Plantronics B.V. Hoofddorp, Nederland (0)0800 PLANTRONICS 0800 7526876 (NL) 00800 75268766 (BE/LUX)
Plantronics Sarl Noisy-le-Grand, France
+33 (0)1 41 67 41 41
Nordic Region Finland: 0800 117 095 Sverige: 0200 21 46 81 Danmark: 8088 4610 Norge: 800 11336
Plantronics Middle East, Eastern Europe and Africa +44 (0)1793 842443
Plantronics Iberia, S.L.Madrid, España 902 41 51 91 Portugal 800 84 45 17
Plantronics Acoustics Italia Srl, Milano, Italia Numero Verde: 800 950934
9
Funkwerk
Electronics Hook Switch
CS290u
Contact Plantronics for further details.
CS410
Refer to telephone manual for headset mode.
1. Supported Telephones
4. Setup Information
Set rotary switch to 1
Set rear slide switch to 3
Set bottom slide switch to B
Headset set up information Diagrams
PLT BaseAP-1
Telephone
Handset
Handset
Sockets
Accessory Power
Telephone
Accessory
Power
Telephone
Handset not connected
CS410-u
IP-S400
2. Order Information
Headset System
Description Part No.
CS70N
CS60
36995-01 (UK)
36995-02 (Euro)
39448-01 (UK)
39448-02 (Euro)
72272-04 (UK)
72272-05 (Euro)
Monaural NC
39986-01 (UK)
39986-02 (Euro)
Binaural NC
39261-01 (UK)
39261-02 (Euro)
SupraPlus
Wireless
Voyager510S
AP-1 36664-01
DescriptionEHS Adapter Part No.
3. Add EHS Module
Plantronics Ltd Wootton Bassett, UK 0800 410014 +44 (0)1793 842200
Plantronics Ireland Regus House, Harcourt Centre, Harcourt Rd Dublin 2 Office: ++353 (0) 1 477 3919 Service ROI: 1800 551 896
Plantronics GmbH Hürth, Deutschland Deutschland: 0800 9323 400 Österrreich: 0800 242 500 Schweiz: 0800 932 340
Plantronics B.V. Hoofddorp, Nederland (0)0800 PLANTRONICS 0800 7526876 (NL) 00800 75268766 (BE/LUX)
Plantronics Sarl Noisy-le-Grand, France
+33 (0)1 41 67 41 41
Nordic Region Finland: 0800 117 095 Sverige: 0200 21 46 81 Danmark: 8088 4610 Norge: 800 11336
Plantronics Middle East, Eastern Europe and Africa +44 (0)1793 842443
Plantronics Iberia, S.L.Madrid, España 902 41 51 91 Portugal 800 84 45 17
Plantronics Acoustics Italia Srl, Milano, Italia Numero Verde: 800 950934
10
Siemens Optipoint
Electronic Hook Switch
Optipoint 410 with acoustic adaptor
Optipoint 420 with acoustic adaptor
Optipoint 500 with acoustic adaptor
Optipoint 600 with acoustic adaptor
1. Supported Telephones
5. Setup Information
4. Also Required
Set rotary switch to 1
Set rear slide switch to 3
Set bottom slide switch to B
Headset set up information Diagrams
EHS support is not provided on Siemens Realitis Systems, on this system HL10 should be used.
PLT BaseAP-1
Telephone
Headset Socket on Acoustic Adapter
Accessory
Power
Telephone
Handset not connected
System Requirements: HiPath 500 => Rel. 5.0 HiPath 1220 => Rel. 2.1 build 032 HiPath 2000 => Rel. 1.0 HiPath 3000 => Rel. 4.0 SMR-07 HiPath 4000 => Rel. 1.0
2. Order Information
Headset System
Description Part No.
CS70N
CS60
36995-01 (UK)
36995-02 (Euro)
39448-01 (UK)
39448-02 (Euro)
72272-04 (UK)
72272-05 (Euro)
Monaural NC
39986-01 (UK)
39986-02 (Euro)
Binaural NC
39261-01 (UK)
39261-02 (Euro)
SupraPlus
Wireless
Voyager510S
Order from
Siemens
Acoustic
Adapter
AP-1 36664-01
DescriptionEHS Adapter Part No.
3. Add EHS Module
Plantronics Ltd Wootton Bassett, UK 0800 410014 +44 (0)1793 842200
Plantronics Ireland Regus House, Harcourt Centre, Harcourt Rd Dublin 2 Office: ++353 (0) 1 477 3919 Service ROI: 1800 551 896
Plantronics GmbH Hürth, Deutschland Deutschland: 0800 9323 400 Österrreich: 0800 242 500 Schweiz: 0800 932 340
Plantronics B.V. Hoofddorp, Nederland (0)0800 PLANTRONICS 0800 7526876 (NL) 00800 75268766 (BE/LUX)
Plantronics Sarl Noisy-le-Grand, France
+33 (0)1 41 67 41 41
Nordic Region Finland: 0800 117 095 Sverige: 0200 21 46 81 Danmark: 8088 4610 Norge: 800 11336
Plantronics Middle East, Eastern Europe and Africa +44 (0)1793 842443
Plantronics Iberia, S.L.Madrid, España 902 41 51 91 Portugal 800 84 45 17
Plantronics Acoustics Italia Srl, Milano, Italia Numero Verde: 800 950934
11
Siemens OpenStage
Electronic Hook Switch
OpenStage 40
OpenStage 60
OpenStage 80
1. Supported Telephones
4. Setup Information
Set rotary switch to 1
Set rear slide switch to 3
Set bottom slide switch to B
Headset set up information Diagrams
PLT BaseAP-1
Telephone
Headset Socket on Acoustic Adapter
Accessory
Power
Telephone
Handset not connected
2. Order Information
Headset System
Description Part No.
CS70N
CS60
36995-01 (UK)
36995-02 (Euro)
39448-01 (UK)
39448-02 (Euro)
72272-04 (UK)
72272-05 (Euro)
Voyager510S
AP-1 36664-01
DescriptionEHS Adapter Part No.
3. Add EHS Module
Monaural NC
39986-01 (UK)
39986-02 (Euro)
Binaural NC
39261-01 (UK)
39261-02 (Euro)
SupraPlus
Wireless
Plantronics Ltd Wootton Bassett, UK 0800 410014 +44 (0)1793 842200
Plantronics Ireland Regus House, Harcourt Centre, Harcourt Rd Dublin 2 Office: ++353 (0) 1 477 3919 Service ROI: 1800 551 896
Plantronics GmbH Hürth, Deutschland Deutschland: 0800 9323 400 Österrreich: 0800 242 500 Schweiz: 0800 932 340
Plantronics B.V. Hoofddorp, Nederland (0)0800 PLANTRONICS 0800 7526876 (NL) 00800 75268766 (BE/LUX)
Plantronics Sarl Noisy-le-Grand, France
+33 (0)1 41 67 41 41
Nordic Region Finland: 0800 117 095 Sverige: 0200 21 46 81 Danmark: 8088 4610 Norge: 800 11336
Plantronics Middle East, Eastern Europe and Africa +44 (0)1793 842443
Plantronics Iberia, S.L.Madrid, España 902 41 51 91 Portugal 800 84 45 17
Plantronics Acoustics Italia Srl, Milano, Italia Numero Verde: 800 950934
12
Snom
Electronics Hook Switch
Snom 320*
1. Supported Telephones
4. Setup Information
Set rotary switch to 1
Set rear slide switch to 3
Set bottom slide switch to B
Headset set up information Diagrams
PLT Base
Telephone
Ext
Headset
Handset
Sockets
Accessory Power
Telephone
Accessory
Power
Telephone
Handset not connected
Snom 360*
Snom 370*
2. Order Information
Headset System
Description Part No.
CS70N
CS60
36995-01 (UK)
36995-02 (Euro)
39448-01 (UK)
39448-02 (Euro)
SupraPlus
Wireless
*Firmware must be version 6.5.8 or higher.
http://wiki.snom.com/Snom320/Accessories/Interface_Box#Plantronics
Monaural NC
39986-01 (UK)
39986-02 (Euro)
Binaural NC
39261-01 (UK)
39261-02 (Euro)
Wireless
headset adapter
Order
from Snom
DescriptionEHS Adapter Part No.
3. Add EHS Module
Plantronics Ltd Wootton Bassett, UK 0800 410014 +44 (0)1793 842200
Plantronics Ireland Regus House, Harcourt Centre, Harcourt Rd Dublin 2 Office: ++353 (0) 1 477 3919 Service ROI: 1800 551 896
Plantronics GmbH Hürth, Deutschland Deutschland: 0800 9323 400 Österrreich: 0800 242 500 Schweiz: 0800 932 340
Plantronics B.V. Hoofddorp, Nederland (0)0800 PLANTRONICS 0800 7526876 (NL) 00800 75268766 (BE/LUX)
Plantronics Sarl Noisy-le-Grand, France
+33 (0)1 41 67 41 41
Nordic Region Finland: 0800 117 095 Sverige: 0200 21 46 81 Danmark: 8088 4610 Norge: 800 11336
Plantronics Middle East, Eastern Europe and Africa +44 (0)1793 842443
Plantronics Iberia, S.L.Madrid, España 902 41 51 91 Portugal 800 84 45 17
Plantronics Acoustics Italia Srl, Milano, Italia Numero Verde: 800 950934
13
Electronic Hook Switch
System requirement TK device F200 to F600 starting with V4.0SMR-07 and F900 starting with V1.0
Octophon F20 to F50
1. Supported Telephones
5. Setup Information
Set rotary switch to 1
Set rear slide switch to 3
Set bottom slide switch to B
Headset set up information Diagrams
PLT BaseAP-1
Telephone
Headset Socket on Acoustic Adapter
Accessory
Power
Telephone
Handset not connected
4. Also Required
2. Order Information
Headset System
Description Part No.
CS70N
CS60
36995-01 (UK)
36995-02 (Euro)
39448-01 (UK)
39448-02 (Euro)
72272-04 (UK)
72272-05 (Euro)
Monaural NC
39986-01 (UK)
39986-02 (Euro)
Binaural NC
39261-01 (UK)
39261-02 (Euro)
SupraPlus
Wireless
Voyager510S
Order from
T-Coms
Universal
Adapter
AP-1 36664-01
DescriptionEHS Adapter Part No.
3. Add EHS Module
T-Systems
Plantronics Ltd Wootton Bassett, UK 0800 410014 +44 (0)1793 842200
Plantronics Ireland Regus House, Harcourt Centre, Harcourt Rd Dublin 2 Office: ++353 (0) 1 477 3919 Service ROI: 1800 551 896
Plantronics GmbH Hürth, Deutschland Deutschland: 0800 9323 400 Österrreich: 0800 242 500 Schweiz: 0800 932 340
Plantronics B.V. Hoofddorp, Nederland (0)0800 PLANTRONICS 0800 7526876 (NL) 00800 75268766 (BE/LUX)
Plantronics Sarl Noisy-le-Grand, France
+33 (0)1 41 67 41 41
Nordic Region Finland: 0800 117 095 Sverige: 0200 21 46 81 Danmark: 8088 4610 Norge: 800 11336
Plantronics Middle East, Eastern Europe and Africa +44 (0)1793 842443
Plantronics Iberia, S.L.Madrid, España 902 41 51 91 Portugal 800 84 45 17
Plantronics Acoustics Italia Srl, Milano, Italia Numero Verde: 800 950934
14
Accessory
Power
Telephone
Handset not connected
Tiptel
Electronic Hook Switch
Tiptel 85 System works with PABX Family Tiptel 3011/22 system / office
1. Supported Telephones
4. Setup Information
Set rotary switch to 1
Set rear slide switch to 3
Set bottom slide switch to B
Headset set up information Diagrams
PLT BaseAP-1
Telephone
Headset socket on HS-Module30
2. Order Information
Headset System
Description Part No.
CS70N
CS60
36995-01 (UK)
36995-02 (Euro)
39448-01 (UK)
39448-02 (Euro)
72272-04 (UK)
72272-05 (Euro)
Monaural NC
39986-01 (UK)
39986-02 (Euro)
Binaural NC
39261-01 (UK)
39261-02 (Euro)
SupraPlus
Wireless
Voyager510S
AP-1 36664-01
DescriptionEHS Adapter Part No.
3. Add EHS Module
Plantronics Ltd Wootton Bassett, UK 0800 410014 +44 (0)1793 842200
Plantronics Ireland Regus House, Harcourt Centre, Harcourt Rd Dublin 2 Office: ++353 (0) 1 477 3919 Service ROI: 1800 551 896
Plantronics GmbH Hürth, Deutschland Deutschland: 0800 9323 400 Österrreich: 0800 242 500 Schweiz: 0800 932 340
Plantronics B.V. Hoofddorp, Nederland (0)0800 PLANTRONICS 0800 7526876 (NL) 00800 75268766 (BE/LUX)
Plantronics Sarl Noisy-le-Grand, France
+33 (0)1 41 67 41 41
Nordic Region Finland: 0800 117 095 Sverige: 0200 21 46 81 Danmark: 8088 4610 Norge: 800 11336
Plantronics Middle East, Eastern Europe and Africa +44 (0)1793 842443
Plantronics Iberia, S.L.Madrid, España 902 41 51 91 Portugal 800 84 45 17
Plantronics Acoustics Italia Srl, Milano, Italia Numero Verde: 800 950934
15
Plantronics Ltd Wootton Bassett, UK
0800 410014 +44 (0)1793 842200
Plantronics Ireland Citywest Business Campus
Dublin 24 Office: +353 (0)1 4693725 Service ROI: 1800 551 896 UK: 0800 410014
© 2007 Plantronics, Inc. All rights reserved. Plantronics, the logo design, Find Your Space and Sound Innovation are trademarks or registered trademarks of Plantronics, Inc.
Plantronics GmbH Hürth, Deutschland
Deutschland: 0800 9323 400 Österrreich: 0800 242 500 Schweiz: 0800 932 340
Plantronics B.V. Hoofddorp, Nederland
(0)0800 PLANTRONICS 0800 7526876 (NL) 00800 75268766 (BE/LUX)
Plantronics Sarl Noisy-le-Grand, France
+33 (0)1 41 67 41 41
Nordic Region Finland: 0800 117095 Sverige: 02002 14681 Danmark: 8088 4610 Norge: 800 11336
www.plantronics.com
Sound Innovation™ for missions to the moon. And for everyday life on this planet, too.
Plantronics Middle East, Eastern Europe and Africa
+44 (0)1793 842443
Plantronics Iberia, S.L. Madrid, España
902 41 51 91 Portugal 800 84 45 17
Plantronics Acoustics Italia Srl, Milano, Italia
Numero Verde: 800 950934
Electronic hook switch guide/Master/EN/1007/A4
In 1969, a Plantronics headset carried the historic first words from the moon: “That’s one small step for man...” From the man on the moon to the man on the street, Plantronics is an innovation leader dedicated to creating communication solutions for people who understand and appreciate the real freedom of space. From outer space to inner space, find your space.
Space photo imagery courtesy of NASA
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
