KEMCO

INSTALLATION INSTRUCTIONS

FOR

50-0230B-002

50-0230B-003

50-0230B-004

SUBURBAN

Overhead console with flip down TV

These instructions are intended for use only by experienced professionals in the automotive
customizing business. Special tools and equipment, as well as specialized handling and care
of product during installation, may be required. Before beginning this installation, carefully read

through the following instructions. Use extreme care when cutting headliner material.
Check for wiring or other componentry above headliner material. Cut only where indicated.

Materials/ Tools required for this installation:

1. #2 Phillips screwdriver 2. Powered screwdriver or drill with adapter

3. T-15 TORX bit driver 4. Razor knife or similar

5. T-45 TORX bit driver 6. 1/4” hex socket bit

7. Awl or similar tool 8. 3/32” Drill bit

9. Audiovox Series 645/655 Video Module

INSTALLATION INSTRUCTION # 44-0022B

May 26, 1999
Printed in the U.S.A.

Printed in the U.S.A

MATERIALS PROVIDED FOR INSTALLATION:

ITEM Description QTY

1

2

3

4

5

6

7

8
9

10

11

12

SCREW, # 8 X 3/4" HWH 4

SCREW, # 6 X 1/2" PPH 4

SCREW, # 6 X 3/8" PPH 4

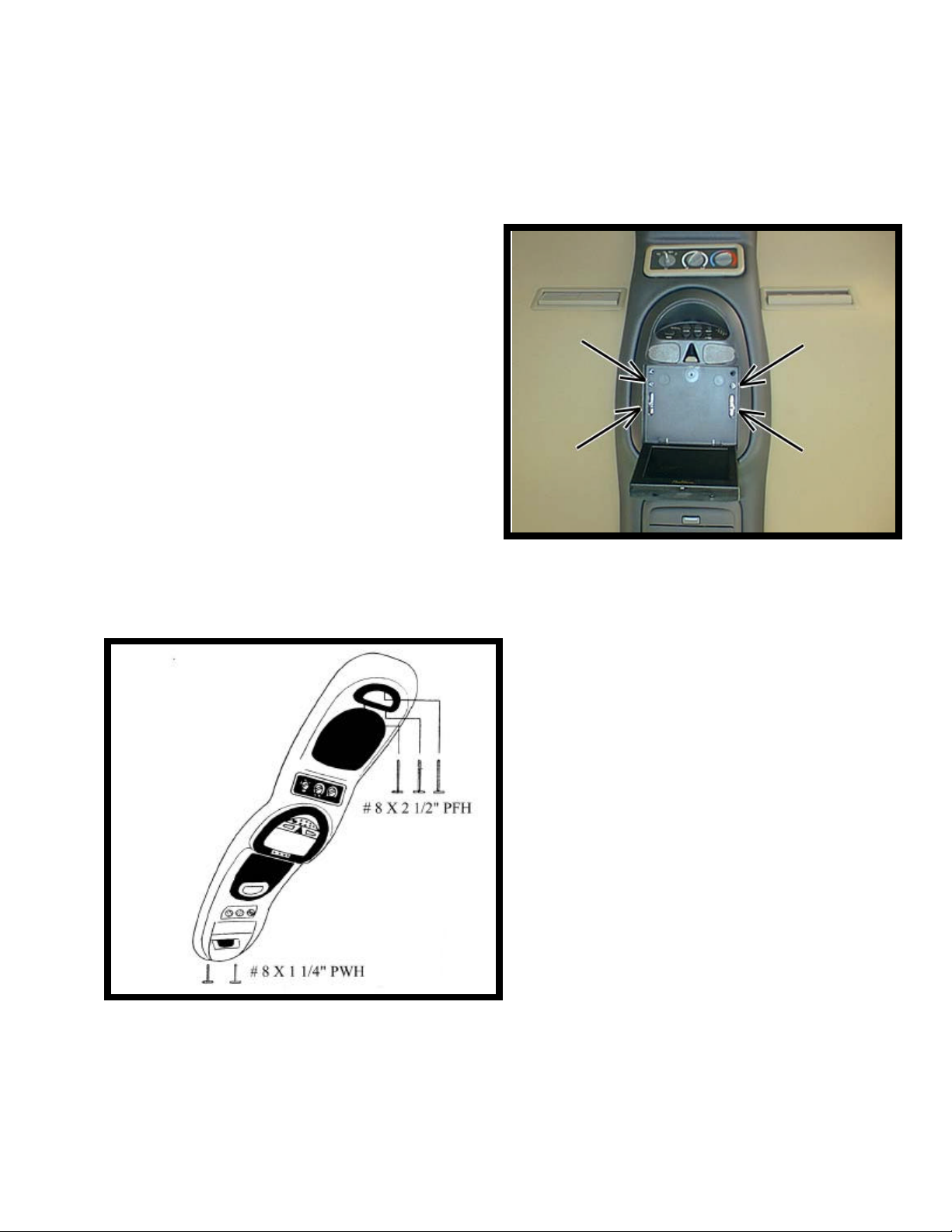

SCREW, # 8 X 2 1/2" PFH 3

SCREW, #8 X 1 1/4" PWH 2

MOUNTING BRACKET 1

CONSOLE 1

LIGHT 2

LIGHT TRIM 2

PLYWOOD, 3/8" X 6" X 14" 1

SCREW, 6-32 X 3/4" PPH 6

WASHER, 3.5 mm 4

INSTALLATION INSTRUCTION # 44-0022B

2

May 26, 1999

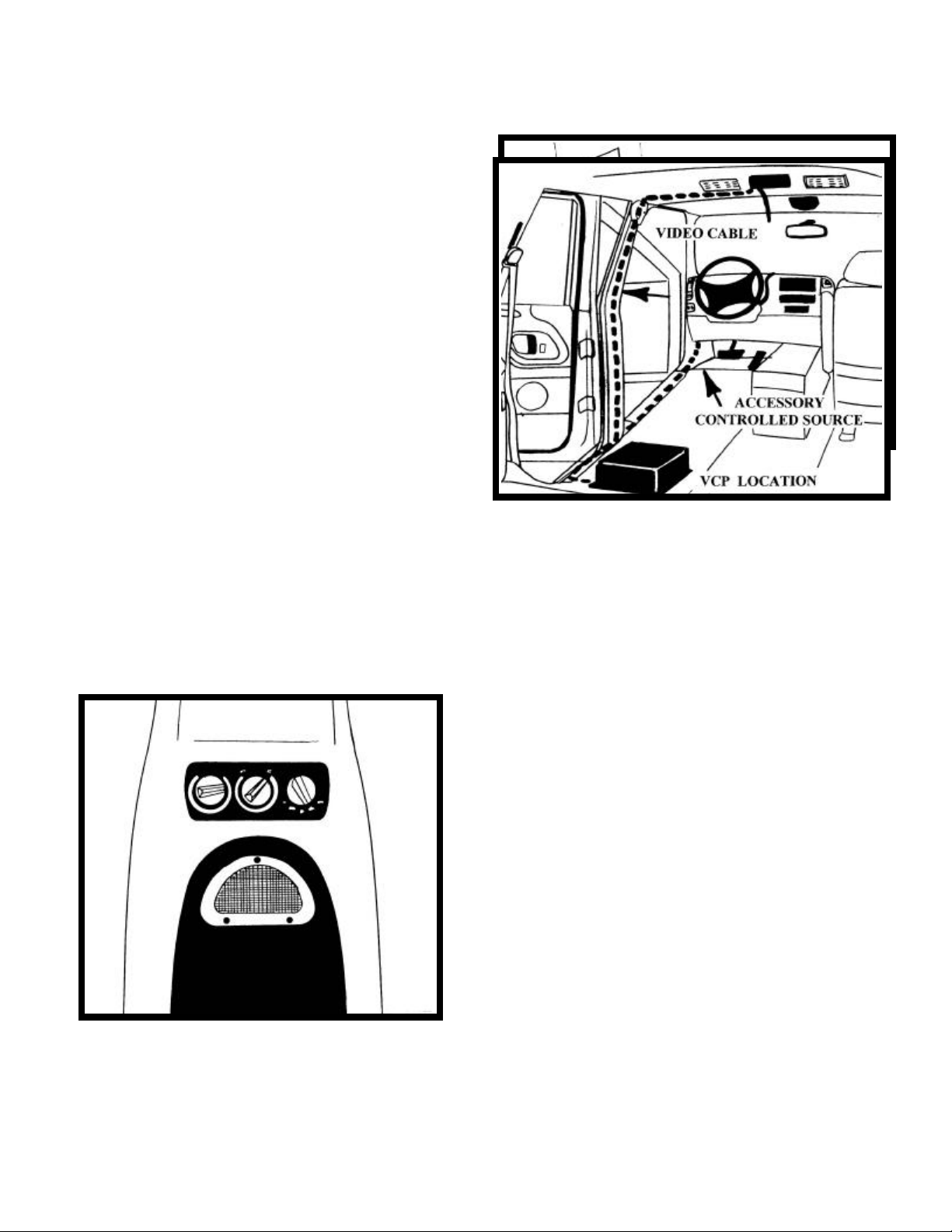

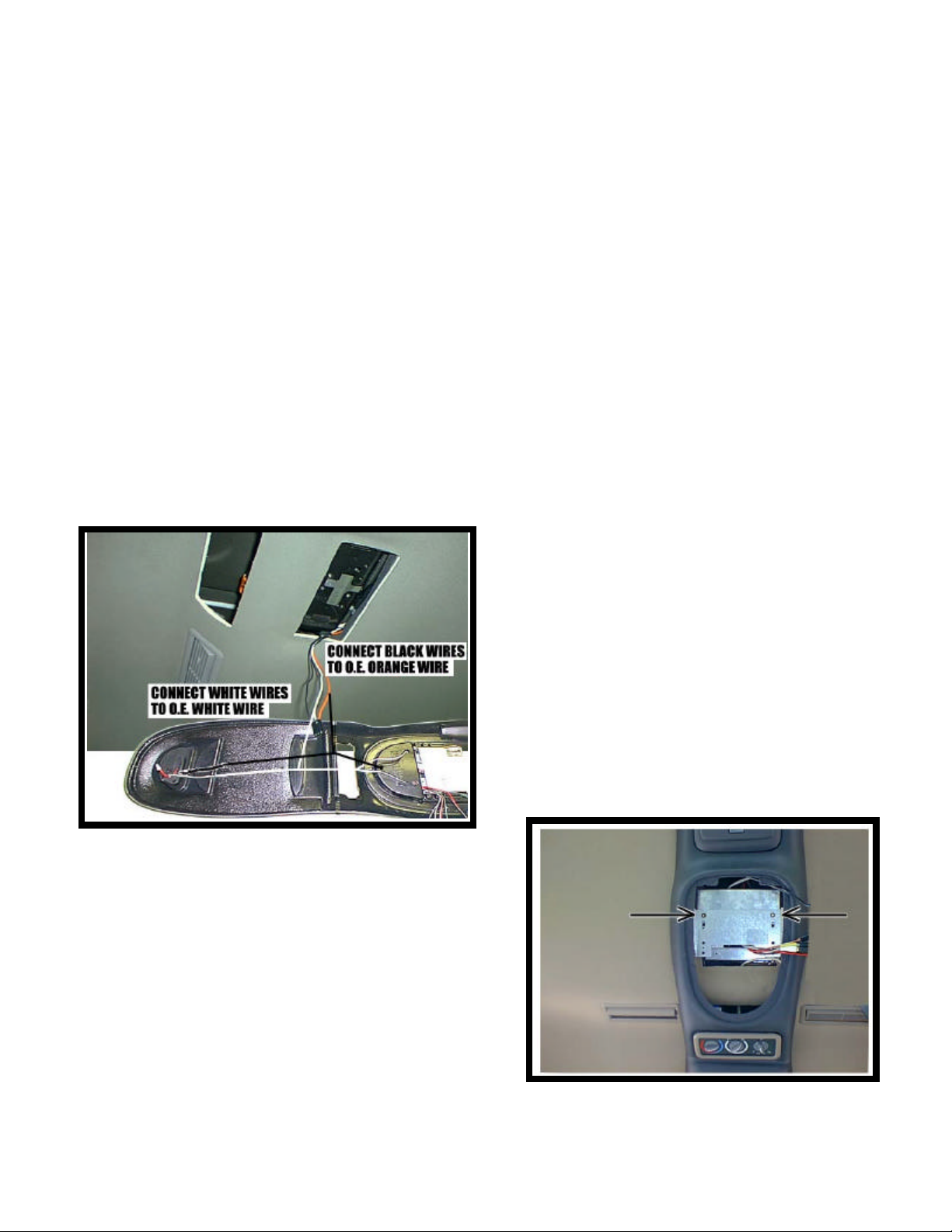

I. PREPARATION OF VEHICLE INTERIOR

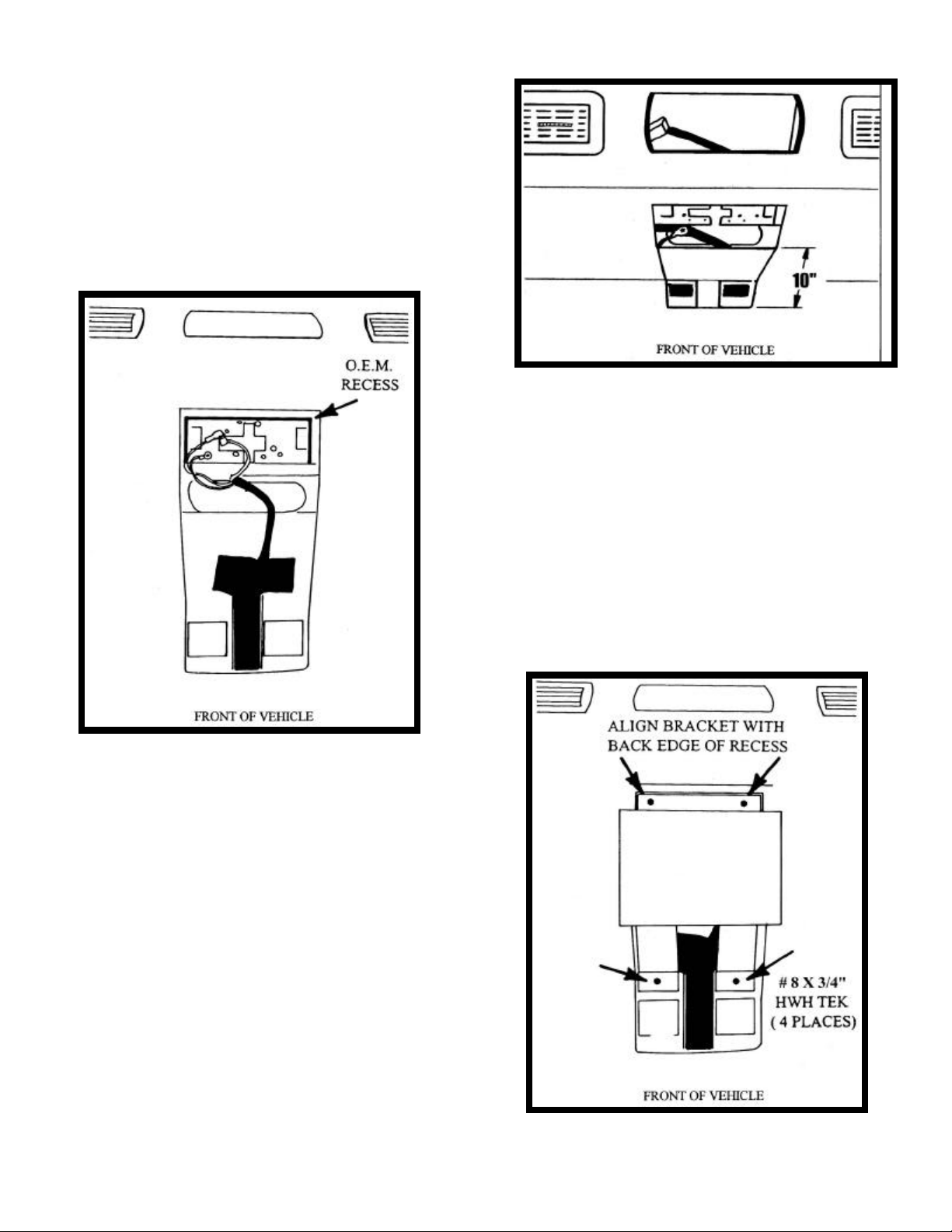

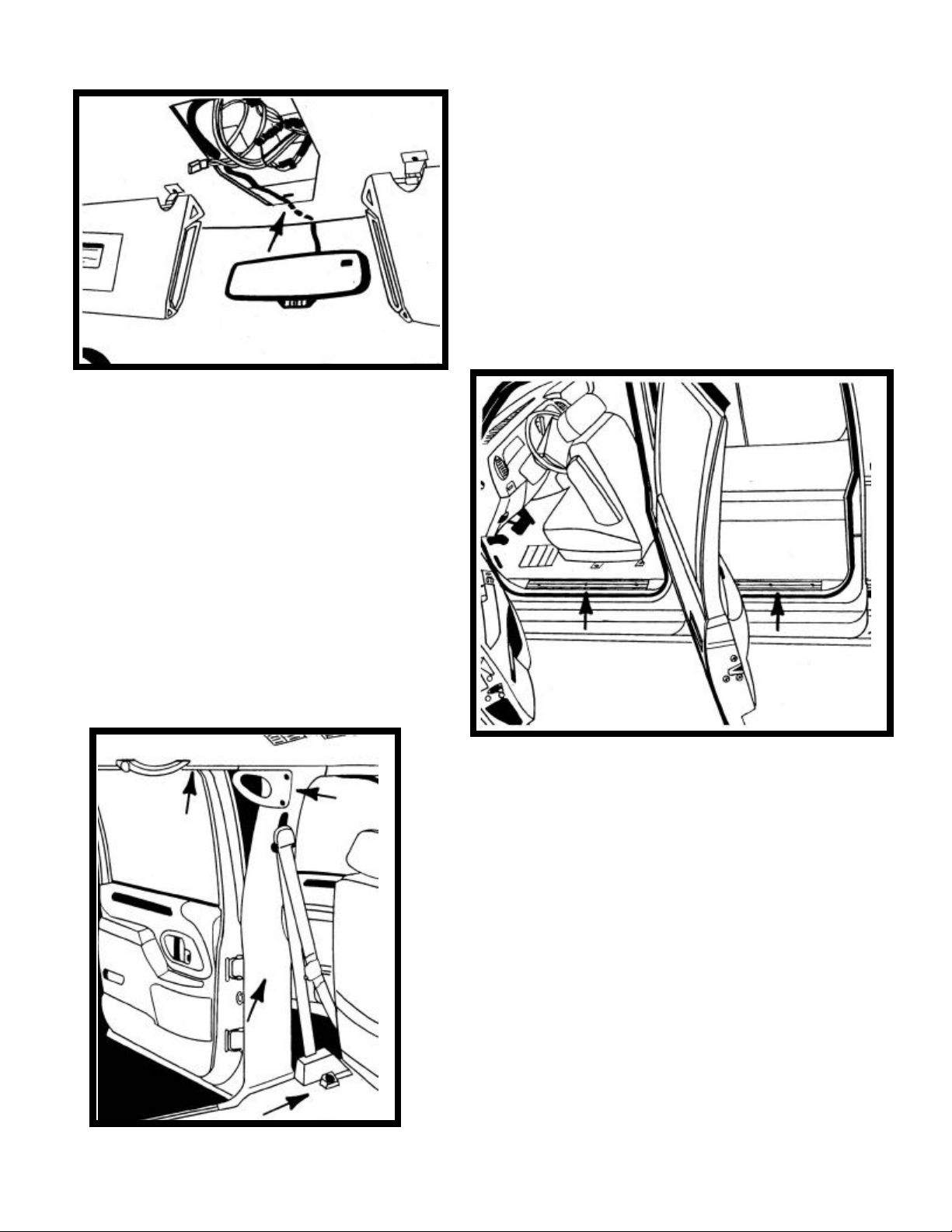

1. Remove the O.E.M. console mounted to inner
roof of vehicle. Remove and discard (1) one
screw from recess in front of console near rear
view mirror. Disconnect wire harness and
remove console from vehicle. Use care not to
damage A/C control head. See Figure 1.

FIGURE 1

2. Remove A/C control head from cloth covered
trim ring on O.E M. console by depressing (4)
four tabs on back of control assembly.
See Figure 2. Discard cloth covered trim ring.

FIGURE 2

3. Remove and discard O.E.M. dome light by
removing center cover and (2) two screws.
Disconnect wire harness. See Figure 3.

4. Carefully remove and retain bezel from rear
A/C control head and lay it in a safe place.
See Fig. 3.

5. Remove and retain rear A/C control head and
lay it in a safe place. See Figure 3.

FIGURE 3

3
