PLANET WGS3-24000 User Manual

WGS3-24000

User's Manual

24-Port 10/100/1000Mbps
Layer 3 Managed Ethernet Switch

1

Trademarks

Copyright © PLANET Technology Corp. 2007.

Contents subject to which revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no

warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for

a particular purpose.

PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability for any inaccuracies or

omissions that may have occurred.

Information in this User's Manual is subject to change without notice and does not represent a commitment on the part of

PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User's Manual. PLANET makes

no commitment to update or keep current the information in this User's Manual, and reserves the right to make improvements to

this User's Manual and/or to the products described in this User's Manual, at any time without notice.

If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and

suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the Instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at whose own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be

required to take adequate measures.

WEEE Warning

To avoid the potential effects on the environment and human health as a result of the presence of

hazardous substances in electrical and electronic equipment, end users of electrical and electronic

equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of

WEEE as unsorted municipal waste and have to collect such WEEE separately.

Revision

PLANET 24-Port 10/100/1000Mbps with 4 Gigabit SFP Layer 3 Managed Ethernet Switch User's Manual

FOR MODEL: WGS3-24000

REVISION: 1.1 (May.2007)

Part No. EM-WGS3-24000_v1.1 (2081-A96020-001)

2

Table of Contents

1. INTRODUCTION.................................................................................................................. 19

1.1 Packet Contents ............................................................................................................................................................19

1.2 How to Use This Manual................................................................................................................................................19

1.3 Product Feature.............................................................................................................................................................20

1.4 Product Specification.....................................................................................................................................................22

2. INSTALLATION .................................................................................................................... 24

2.1 Product Description .......................................................................................................................................................24

2.1.1 Product Overview..............................................................................................................................................24

2.1.2 Switch Front Panel............................................................................................................................................25

2.1.3 LED Indications.................................................................................................................................................25

2.1.4 Switch Rear Panel ............................................................................................................................................25

2.2 Install the Switch............................................................................................................................................................26

2.2.1 Desktop Installation...........................................................................................................................................26

2.2.2 Rack Mounting..................................................................................................................................................26

2.2.3 Installing the SFP transceiver ...........................................................................................................................27

3. CONFIGURATION ............................................................................................................... 30

3.1 Management Access Overview .....................................................................................................................................30

3.1.1 Administration Console .....................................................................................................................................31

3.1.2 Direct Access ....................................................................................................................................................31

3.2 Web Management .........................................................................................................................................................32

3.3 SNMP-Based Network Management.............................................................................................................................32

3.4 Protocols........................................................................................................................................................................32

3.4.1 Virtual Terminal Protocols .................................................................................................................................32

3.4.2 SNMP Protocol .................................................................................................................................................32

3.4.3 Management Architecture .................................................................................................................................32

4. Web Configuration................................................................................................................ 33

4.1 Main Menu.....................................................................................................................................................................35

4.2 Configure System ..........................................................................................................................................................37

4.2.1 ARP Cache .......................................................................................................................................................37

4.2.2 Inventory Information ........................................................................................................................................38

4.2.3 Configuration ....................................................................................................................................................39

4.2.4 Forwarding Database........................................................................................................................................50

4.2.5 Log....................................................................................................................................................................51

4.2.6 Port ...................................................................................................................................................................57

4.2.7 SNMP ...............................................................................................................................................................64

4.2.9 Statistics............................................................................................................................................................66

4.2.9 System Utilities .................................................................................................................................................74

4.2.10 Trap Management...........................................................................................................................................79

3

4.2.11 DHCP Server ..................................................................................................................................................81

4.2.12 SNTP ..............................................................................................................................................................89

4.3 Switching .......................................................................................................................................................................94

4.3.1 VLAN ................................................................................................................................................................94

4.3.2 Protocol-based VLAN .....................................................................................................................................102

4.3.3 Port Security ...................................................................................................................................................104

4.3.4 GARP..............................................................................................................................................................110

4.3.5 IGMP Snooping...............................................................................................................................................11 3

4.3.6 Port Channel...................................................................................................................................................121

4.3.7 Multicast Forwarding Database.......................................................................................................................125

4.3.8 Spanning Tree.................................................................................................................................................128

4.3.9 Class of Service..............................................................................................................................................142

4.4 Security........................................................................................................................................................................143

4.4.1 Port Access Control ........................................................................................................................................146

4.4.2 RADIUS ..........................................................................................................................................................154

4.4.3 TACACS+ .......................................................................................................................................................166

4.4.4 Secure HTTP ..................................................................................................................................................168

4.4.5 Secure Shell ...................................................................................................................................................169

4.5 QoS .............................................................................................................................................................................170

4.5.1 IP Access Control List .....................................................................................................................................170

4.5.2 MAC Access Control List ................................................................................................................................174

4.5.3 ACL Interface Configuration ............................................................................................................................179

4.5.4 Differentiated Services....................................................................................................................................181

4.5.5 Class of Service..............................................................................................................................................191

4.6 Routing ........................................................................................................................................................................197

4.6.1 IP ....................................................................................................................................................................200

4.6.2 VLAN Routing .................................................................................................................................................206

4.6.3 RIP..................................................................................................................................................................209

4.6.4 OSPF ..............................................................................................................................................................217

4.6.5 Router .............................................................................................................................................................244

4.6.6 ARP ................................................................................................................................................................250

4.6.7 BOOTP/DHCP Relay Agent............................................................................................................................254

4.6.8 Router Discovery ............................................................................................................................................256

4.6.9 VRRP..............................................................................................................................................................259

4.7 IP Multicast ..................................................................................................................................................................267

4.7.1 Multicast..........................................................................................................................................................267

4.7.2 IGMP...............................................................................................................................................................274

4.7.3 DVMRP...........................................................................................................................................................281

4.7.4 Mdebug...........................................................................................................................................................290

4.7.5 PIM-DM...........................................................................................................................................................297

4

4.7.6 PIM-SM...........................................................................................................................................................301

5. COMMAND STRUCTURE ................................................................................................. 310

5.1 Format .........................................................................................................................................................................310

5.1.1 Command .......................................................................................................................................................310

5.1.2 Parameters .....................................................................................................................................................310

5.1.3 Values .............................................................................................................................................................310

5.1.4 Conventions....................................................................................................................................................311

5.1.5 Annotations ..................................................................................................................................................... 311

6. QUICK START UP .............................................................................................................312

6.1 Quick Starting the Switch.............................................................................................................................................312

6.2 System Info and System Setup ...................................................................................................................................312

7. MODE-BASED CLI ............................................................................................................ 317

7.1 Mode-Based Topology.................................................................................................................................................318

7.2 Mode-based Command Hierarchy...............................................................................................................................319

7.3 Flow of Operation ........................................................................................................................................................321

7.4 "No" Form of a Command............................................................................................................................................322

7.4.1 Support for "No" Form.....................................................................................................................................322

7.4.2 Behavior of Command Help ("?") ....................................................................................................................322

8. CLI Commands: Base ........................................................................................................ 323

8.1 System Information and Statistics Commands ............................................................................................................323

8.1.1 show arp switch ..............................................................................................................................................323

8.1.2 show eventlog.................................................................................................................................................323

8.1.3 show hardware ...............................................................................................................................................324

8.1.4 show interface.................................................................................................................................................324

8.1.5 show interface ethernet...................................................................................................................................325

8.1.6 show logging...................................................................................................................................................329

8.1.7 show mac-addr-table ......................................................................................................................................330

8.1.8 show msglog...................................................................................................................................................330

8.1.9 show running-config ........................................................................................................................................331

8.1.10 show sysinfo .................................................................................................................................................331

8.1.11 snmp-server ..................................................................................................................................................331

8.2 Management VLAN Commands ..................................................................................................................................331

8.2.1 network mgmt_vlan.........................................................................................................................................331

8.3 Dot1P Commands .......................................................................................................................................................332

8.3.1 classofservice dot1pmapping..........................................................................................................................332

8.3.2 show classofservice dot1pmapping ................................................................................................................332

8.3.3 vlan port priority all..........................................................................................................................................332

8.3.4 vlan priority .....................................................................................................................................................332

8.4 LAG/Port-Channel (802.3ad) Commands....................................................................................................................332

8.4.1 port-channel staticcapability ............................................................................................................................332

5

8.4.2 show port-channel brief...................................................................................................................................333

8.5 Management Commands ............................................................................................................................................333

8.5.1 bridge aging-time ............................................................................................................................................333

8.5.2 mtu..................................................................................................................................................................334

8.5.3 network javamode...........................................................................................................................................334

8.5.4 network mac-address......................................................................................................................................334

8.5.5 network mac-type............................................................................................................................................334

8.5.6 network parms ................................................................................................................................................335

8.5.7 network protocol..............................................................................................................................................335

8.5.8 remotecon maxsessions .................................................................................................................................335

8.5.9 remotecon timeout ..........................................................................................................................................335

8.5.10 serial baudrate ..............................................................................................................................................336

8.5.11 serial timeout.................................................................................................................................................336

8.5.12 set prompt.....................................................................................................................................................337

8.5.13 show forwardingdb agetime ..........................................................................................................................337

8.7.14 show network................................................................................................................................................337

8.5.15 show remotecon............................................................................................................................................338

8.5.16 show serial....................................................................................................................................................338

8.5.17 show snmpcommunity ..................................................................................................................................338

8.5.18 show snmptrap..............................................................................................................................................339

8.5.19 show trapflags...............................................................................................................................................339

8.5.20 snmp-server community................................................................................................................................340

8.5.21 snmp-server community ipaddr.....................................................................................................................340

8.5.22 snmp-server community ipmask ...................................................................................................................341

8.5.23 snmp-server community mode......................................................................................................................341

8.5.24 snmp-server community ro ...........................................................................................................................341

8.5.25 snmp-server community rw...........................................................................................................................342

8.5.26 snmp-server enable traps .............................................................................................................................342

8.5.27 snmp-server enable traps bcaststorm...........................................................................................................342

8.5.28 snmp-server enable traps linkmode ..............................................................................................................342

8.5.29 snmp-server enable traps multiusers ............................................................................................................343

8.5.30 snmp-server enable traps stpmode...............................................................................................................343

8.5.31 snmptrap.......................................................................................................................................................343

8.5.32 snmptrap ipaddr ............................................................................................................................................344

8.5.33 snmptrap mode.............................................................................................................................................344

8.5.34 telnet .............................................................................................................................................................344

8.6 Device Configuration Commands ................................................................................................................................345

8.6.1 addport............................................................................................................................................................345

8.6.2 auto-negotiate .................................................................................................................................................345

8.6.3 auto-negotiate all ............................................................................................................................................345

6

8.6.4 delete interface ...............................................................................................................................................345

8.6.5 deleteport........................................................................................................................................................346

8.6.6 macfilter ..........................................................................................................................................................346

8.6.7 macfilter adddest.............................................................................................................................................346

8.6.8 macfilter adddest all ........................................................................................................................................347

8.6.9 macfilter addsrc...............................................................................................................................................347

8.6.10 macfilter addsrc all ........................................................................................................................................347

8.6.11 monitor session .............................................................................................................................................348

8.6.12 monitor session mode...................................................................................................................................348

8.6.13 port lacpmode ...............................................................................................................................................348

8.6.14 port lacpmode all...........................................................................................................................................349

8.6.15 port-channel..................................................................................................................................................349

8.6.16 port-channel adminmode ..............................................................................................................................349

8.6.17 port-channel linktrap .....................................................................................................................................350

8.6.18 port-channel name ........................................................................................................................................350

8.6.19 protocol group ...............................................................................................................................................350

8.6.20 protocol vlan group .......................................................................................................................................350

8.6.21 protocol vlan group all...................................................................................................................................351

8.6.22 set garp timer join .........................................................................................................................................351

8.6.23 set garp timer join all .....................................................................................................................................352

8.6.24 set garp timer leave ......................................................................................................................................352

8.6.25 set garp timer leave all ..................................................................................................................................352

8.6.26 set garp timer leaveall ...................................................................................................................................353

8.6.27 set garp timer leaveall all ..............................................................................................................................353

8.6.28 set gmrp adminmode ....................................................................................................................................354

8.6.29 set gmrp interfacemode ................................................................................................................................354

8.6.30 set gmrp interfacemode all............................................................................................................................355

8.6.31 set gvrp adminmode .....................................................................................................................................355

8.6.32 set gvrp interfacemode .................................................................................................................................355

8.6.33 set gvrp interfacemode all .............................................................................................................................356

8.6.34 show description ...........................................................................................................................................356

8.6.35 show garp .....................................................................................................................................................356

8.6.36 show gmrp configuration...............................................................................................................................356

8.6.37 show gvrp configuration ................................................................................................................................357

8.6.38 show igmpsnooping ......................................................................................................................................358

8.6.39 show mac-address-table gmrp......................................................................................................................358

8.6.40 show mac-address-table igmpsnooping........................................................................................................358

8.6.41 show mac-address-table multicast................................................................................................................359

8.6.42 show mac-address-table static......................................................................................................................359

8.6.43 show mac-address-table staticfiltering ..........................................................................................................359

7

8.6.44 show mac-address-table stats ......................................................................................................................360

8.6.45 show monitor ................................................................................................................................................360

8.6.46 show port ......................................................................................................................................................360

8.6.47 show port protocol.........................................................................................................................................361

8.6.48 show port-channel.........................................................................................................................................361

8.6.49 show storm-control........................................................................................................................................362

8.6.50 show vlan......................................................................................................................................................362

8.6.51 show vlan brief..............................................................................................................................................363

8.6.52 show vlan port...............................................................................................................................................363

8.6.53 shutdown ......................................................................................................................................................364

8.6.54 shutdown all..................................................................................................................................................364

8.6.55 snmp trap link-status .....................................................................................................................................364

8.6.56 snmp trap link-status all ................................................................................................................................364

8.6.57 spanning-tree ................................................................................................................................................365

8.6.58 spanning-tree bpdumigrationcheck ...............................................................................................................365

8.6.59 description ....................................................................................................................................................365

8.6.60 speed ............................................................................................................................................................366

8.6.61 speed all .......................................................................................................................................................366

8.6.62 storm-control broadcast ................................................................................................................................366

8.6.63 storm-control flowcontrol...............................................................................................................................367

8.6.64 vlan ...............................................................................................................................................................367

8.6.65 vlan acceptframe...........................................................................................................................................368

8.6.66 vlan ingressfilter ............................................................................................................................................368

8.6.67 vlan makestatic .............................................................................................................................................368

8.6.68 vlan name .....................................................................................................................................................369

8.6.69 vlan participation ...........................................................................................................................................369

8.6.70 vlan participation all ......................................................................................................................................369

8.6.71 vlan port acceptframe all ...............................................................................................................................369

8.6.72 vlan port ingressfilter all ................................................................................................................................370

8.6.73 vlan port pvid all............................................................................................................................................370

8.6.74 vlan port tagging all.......................................................................................................................................370

8.6.75 vlan protocol group .......................................................................................................................................371

8.6.76 vlan protocol group add protocol...................................................................................................................371

8.6.77 vlan protocol group remove ..........................................................................................................................371

8.6.78 vlan pvid........................................................................................................................................................371

8.6.79 vlan tagging...................................................................................................................................................372

8.7 User Account Management Commands......................................................................................................................372

8.7.1 disconnect.......................................................................................................................................................372

8.7.2 show loginsession...........................................................................................................................................372

8.7.3 show users......................................................................................................................................................372

8

8.7.4 users name .....................................................................................................................................................373

8.7.5 users passwd..................................................................................................................................................373

8.7.6 users snmpv3 accessmode ............................................................................................................................374

8.7.7 users snmpv3 authentication ..........................................................................................................................374

8.7.8 users snmpv3 encryption ................................................................................................................................374

8.8 System Utilities............................................................................................................................................................375

8.8.1 clear config .....................................................................................................................................................375

8.8.2 clear counters .................................................................................................................................................375

8.8.3 clear igmpsnooping.........................................................................................................................................375

8.8.4 clear pass .......................................................................................................................................................375

8.8.5 clear port-channel ...........................................................................................................................................375

8.8.6 clear traplog ....................................................................................................................................................376

8.8.7 clear vlan ........................................................................................................................................................376

8.8.8 copy ................................................................................................................................................................376

8.8.9 logout ..............................................................................................................................................................377

8.8.10 ping ...............................................................................................................................................................377

8.8.11 reload ............................................................................................................................................................377

9. CLI COMMANDS: QUALITY OF SERVICE ....................................................................... 378

9.1 CLI Commands: Access Control List.........................................................................................................................378

9.1.1 show ip access-lists ........................................................................................................................................378

9.2 Configuration Commands .........................................................................................................................................378

9.2.1 access-list .......................................................................................................................................................378

9.2.2 ip access-group ..............................................................................................................................................379

9.2.3 ip access-group all ..........................................................................................................................................379

9.3 CLI Commands: Differentiated Services ...................................................................................................................379

9.3.1 diffserv ............................................................................................................................................................381

9.4 Class Commands......................................................................................................................................................381

9.4.1 class-map .......................................................................................................................................................381

9.4.2 class-map rename ..........................................................................................................................................382

9.4.3 match any .......................................................................................................................................................382

9.4.4 match class-map.............................................................................................................................................382

9.4.5 match destination-address mac ......................................................................................................................383

9.4.6 match dstip .....................................................................................................................................................383

9.4.7 match dstl4port ...............................................................................................................................................384

9.4.8 match ip dscp..................................................................................................................................................384

9.4.9 match ip precedence.......................................................................................................................................384

9.4.10 match ip tos ..................................................................................................................................................385

9.4.11 match protocol...............................................................................................................................................385

9.4.12 match source-address mac...........................................................................................................................386

9.4.13 match srcip ...................................................................................................................................................386

9

9.4.14 match srcl4port .............................................................................................................................................386

9.4.15 match vlan ....................................................................................................................................................387

9.5 Policy Commands .....................................................................................................................................................387

9.5.1 bandwidth kbps ...............................................................................................................................................387

9.5.2 bandwidth percent...........................................................................................................................................388

9.5.3 class................................................................................................................................................................388

9.5.4 expedite kbps..................................................................................................................................................388

9.5.5 expedite percent .............................................................................................................................................389

9.5.6 mark ip-dscp ...................................................................................................................................................389

9.5.7 mark ip-precedence ........................................................................................................................................390

9.5.8 police-simple...................................................................................................................................................390

9.5.9 police-single-rate.............................................................................................................................................390

9.5.10 police-two-rate ..............................................................................................................................................391

9.5.11 policy-map.....................................................................................................................................................391

9.5.12 policy-map rename .......................................................................................................................................392

9.5.13 randomdrop ..................................................................................................................................................392

9.5.14 shape bps-average .......................................................................................................................................393

9.5.15 shape bps-peak ............................................................................................................................................393

9.6 Service Commands...................................................................................................................................................394

9.6.1 service-policy ..................................................................................................................................................394

9.7 Show Commands......................................................................................................................................................395

9.7.1 show class-map ..............................................................................................................................................395

9.7.2 show diffserv...................................................................................................................................................396

9.7.3 show policy-map .............................................................................................................................................396

9.7.4 show diffserv service.......................................................................................................................................398

9.7.5 show diffserv service brief...............................................................................................................................398

9.7.6 show policy-map interface ..............................................................................................................................399

9.7.7 show service-policy .........................................................................................................................................400

9.8 Rate-Limiting Commands..........................................................................................................................................400

9.8.1 rate-limiting .....................................................................................................................................................400

9.8.2 show rate-limiting ............................................................................................................................................401

10. CLI COMMANDS: SECURITY ......................................................................................... 402

10.1 Security Commands................................................................................................................................................402

10.1.1 authentication login .......................................................................................................................................402

10.1.2 clear dot1x statistics......................................................................................................................................402

10.1.3 clear radius statistics.....................................................................................................................................403

10.1.4 dot1x defaultlogin..........................................................................................................................................403

10.1.5 dot1x initialize ...............................................................................................................................................403

10.1.6 dot1x login ....................................................................................................................................................403

10.1.7 dot1x max-req...............................................................................................................................................403

10

10.1.8 dot1x port-control..........................................................................................................................................404

10.1.9 dot1x port-control All .....................................................................................................................................404

10.1.10 dot1x re-authenticate ..................................................................................................................................404

10.1.11 dot1x re-authentication................................................................................................................................404

10.1.12 dot1x system-auth-control...........................................................................................................................405

10.1.13 dot1x timeout ..............................................................................................................................................405

10.1.14 dot1x user ...................................................................................................................................................406

10.1.15 radius accounting mode..............................................................................................................................406

10.1.16 radius server host .......................................................................................................................................406

10.1.17 radius server key.........................................................................................................................................407

10.1.18 radius server msgauth ................................................................................................................................407

10.1.19 radius server primary ..................................................................................................................................407

10.1.20 radius server retransmit ..............................................................................................................................408

10.1.21 radius server timeout ..................................................................................................................................408

10.1.22 show accounting .........................................................................................................................................408

10.1.23 show authentication ....................................................................................................................................409

10.1.24 show authentication users ..........................................................................................................................409

10.1.25 show dot1x..................................................................................................................................................410

10.1.26 show dot1x users........................................................................................................................................411

10.1.27 show radius................................................................................................................................................. 411

10.1.28 show radius statistics ..................................................................................................................................412

10.1.29 show users authentication ..........................................................................................................................413

10.1.30 users defaultlogin........................................................................................................................................413

10.1.31 users login ..................................................................................................................................................413

10.2 Secure Shell (SSH) Commands..............................................................................................................................413

10.2.1 ip ssh ............................................................................................................................................................413

10.2.2 ip ssh protocol ...............................................................................................................................................414

10.2.3 show ip ssh ...................................................................................................................................................414

10.3 HTTP Commands ...................................................................................................................................................414

10.3.1 ip http secure-port .........................................................................................................................................414

10.3.2 ip http secure-protocol ..................................................................................................................................414

10.3.3 ip http secure-server .....................................................................................................................................415

10.3.4 ip http server .................................................................................................................................................415

10.3.5 show ip http...................................................................................................................................................415

10.4 MAC Lock Commands ............................................................................................................................................415

10.4.1 mac-lock .......................................................................................................................................................415

10.4.2 show mac-lock ..............................................................................................................................................416

11. CLI COMMANDS: SWITCHING ....................................................................................... 417

11.1 Spanning Tree Commands......................................................................................................................................417

11.1.1 show spanning-tree .......................................................................................................................................417

11

11.1.2 show spanning-tree interface ........................................................................................................................418

11.1.3 show spanning-tree mst detailed...................................................................................................................418

11.1.4 show spanning-tree mst port detailed............................................................................................................418

11.1.5 show spanning-tree mst port summary .........................................................................................................419

11.1.6 show spanning-tree mst summary ................................................................................................................420

11.1.7 show spanning-tree summary .......................................................................................................................420

11.1.8 show spanning-tree vlan ...............................................................................................................................420

11.1.9 spanning-tree ................................................................................................................................................421

11.1.10 spanning-tree configuration name...............................................................................................................421

11.1.11 spanning-tree configuration revision ............................................................................................................421

11.1.12 spanning-tree edgeport ...............................................................................................................................421

11.1.13 spanning-tree forceversion..........................................................................................................................422

11.1.14 spanning-tree forward-time .........................................................................................................................422

11.1.15 spanning-tree hello-time..............................................................................................................................422

11.1.16 spanning-tree max-age ...............................................................................................................................423

11.1.17 spanning-tree mst .......................................................................................................................................423

11.1.18 spanning-tree mst instance .........................................................................................................................424

11.1.19 spanning-tree mst priority............................................................................................................................424

11.1.20 spanning-tree mst vlan................................................................................................................................425

11.1.21 spanning-tree port mode .............................................................................................................................425

11.1.22 spanning-tree port mode all.........................................................................................................................425

12. CLI COMMANDS: Routing ............................................................................................... 426

12.1 Address Resolution Protocol (ARP) Commands........................................................................................................426

12.1.1 arp.................................................................................................................................................................426

12.1.2 no arp............................................................................................................................................................426

12.1.3 ip proxy-arp ...................................................................................................................................................427

12.1.4 no ip proxy-arp ..............................................................................................................................................427

12.1.5 arp cachesize................................................................................................................................................427

12.1.6 no arp cachesize...........................................................................................................................................427

12.1.7 arp dynamicrenew.........................................................................................................................................427

12.1.8 no arp dynamicrenew....................................................................................................................................428

12.1.9 arp purge ......................................................................................................................................................428

12.1.10 arp resptime................................................................................................................................................428

12.1.11 no arp resptime ...........................................................................................................................................428

12.1.12 arp retries....................................................................................................................................................428

12.1.13 no arp retries...............................................................................................................................................428

12.1.14 arp timeout ..................................................................................................................................................429

12.1.15 no arp timeout .............................................................................................................................................429

12.1.16 clear arp-cache ...........................................................................................................................................429

12.1.17 show arp .....................................................................................................................................................429

12

12.1.18 show arp brief .............................................................................................................................................430

12.1.19 show arp switch ..........................................................................................................................................431

12.2 IP Routing Commands ............................................................................................................................................431

12.2.2 no routing ......................................................................................................................................................431

12.2.3 ip routing .......................................................................................................................................................431

12.2.4 no ip routing ..................................................................................................................................................432

12.2.6 no ip address ................................................................................................................................................432

12.2.7 ip route..........................................................................................................................................................432

12.2.8 no ip route .....................................................................................................................................................433

12.2.9 ip route default ..............................................................................................................................................433

12.2.10 no ip route default .......................................................................................................................................433

12.2.11 ip route distance..........................................................................................................................................433

12.2.12 no ip route distance.....................................................................................................................................434

12.2.13 ip forwarding ...............................................................................................................................................434

12.2.14 no ip forwarding ..........................................................................................................................................434

12.2.15 ip netdirbcast...............................................................................................................................................434

12.2.16 no ip netdirbcast..........................................................................................................................................434

12.2.17 ip mtu ..........................................................................................................................................................435

12.2.18 no ip mtu .....................................................................................................................................................435

12.2.19 encapsulation..............................................................................................................................................436

12.2.20 show ip brief................................................................................................................................................436

12.2.21 show ip interface.........................................................................................................................................436

12.2.22 show ip interface brief .................................................................................................................................437

12.2.23 show ip route ..............................................................................................................................................438

12.2.24 show ip route summary ...............................................................................................................................439

12.2.25 show ip route preferences...........................................................................................................................439

12.2.26 show ip stats ...............................................................................................................................................440

12.3 Router Discovery Protocol Commands ...................................................................................................................440

12.3.1 ip irdp ............................................................................................................................................................440

12.3.2 ip irdp address ..............................................................................................................................................440

12.3.3 ip irdp holdtime..............................................................................................................................................441

12.3.4 ip irdp maxadvertinterval ...............................................................................................................................441

12.3.5 ip irdp minadvertinterval ................................................................................................................................441

12.3.6 ip irdp preference ..........................................................................................................................................442

12.3.7 show ip irdp...................................................................................................................................................442

12.4 Virtual LAN Routing Commands .............................................................................................................................443

12.4.1 vlan routing ...................................................................................................................................................443

12.4.2 show ip vlan ..................................................................................................................................................443

12.5 Virtual Router Redundancy Protocol Commands....................................................................................................443

12.5.1 ip vrrp (Global Config) ...................................................................................................................................444

13

12.5.2 ip vrrp (Interface Config) ...............................................................................................................................444

12.5.3 ip vrrp mode ..................................................................................................................................................444

12.5.4 ip vrrp ip ........................................................................................................................................................444

12.5.5 ip vrrp authentication.....................................................................................................................................445

12.5.6 ip vrrp preempt ..............................................................................................................................................445

12.5.7 ip vrrp priority ................................................................................................................................................446

12.5.8 ip vrrp timers advertise..................................................................................................................................446

12.5.9 show ip vrrp interface stats ...........................................................................................................................446

12.5.10 show ip vrrp ................................................................................................................................................447

12.5.11 show ip vrrp interface ..................................................................................................................................447

12.5.12 show ip vrrp interface brief ..........................................................................................................................448

12.6 DHCP and BOOTP Relay Commands ....................................................................................................................448

12.6.1 bootpdhcprelay cidoptmode..........................................................................................................................448

12.6.2 bootpdhcprelay enable..................................................................................................................................449

12.6.3 bootpdhcprelay maxhopcount .......................................................................................................................449

12.6.4 bootpdhcprelay minwaittime .........................................................................................................................449

12.6.5 bootpdhcprelay serverip................................................................................................................................450

12.6.6 show bootpdhcprelay ....................................................................................................................................450

12.7 Open Shortest Path First (OSPF) Commands ........................................................................................................451

12.7.1 router ospf.....................................................................................................................................................451

12.7.2 enable (OSPF)..............................................................................................................................................451

12.7.3 ip ospf ...........................................................................................................................................................451

12.7.4 1583compatibility ..........................................................................................................................................451

12.7.5 area default-cost (OSPF) ..............................................................................................................................452

12.7.6 area nssa (OSPF).........................................................................................................................................452

12.7.7 area nssa default-info-originate (OSPF) .......................................................................................................452

12.7.8 area nssa no-redistribute (OSPF) .................................................................................................................453

12.7.9 area nssa no-summary (OSPF) ....................................................................................................................453

12.7.10 area nssa translator-role (OSPF)................................................................................................................453

12.7.11 area nssa translator-stab-intv (OSPF).........................................................................................................454

12.7.12 area range (OSPF) .....................................................................................................................................454

12.7.13 area stub (OSPF)........................................................................................................................................454

12.7.14 area stub no-summary (OSPF) ...................................................................................................................455

12.7.15 area virtual-link (OSPF) ..............................................................................................................................455

12.7.16 area virtual-link authentication ....................................................................................................................455

12.7.17 area virtual-link dead-interval (OSPF).........................................................................................................456

12.7.18 area virtual-link hello-interval (OSPF) .........................................................................................................456

12.7.19 area virtual-link retransmit-interval (OSPF).................................................................................................457

12.7.20 area virtual-link transmit-delay (OSPF) .......................................................................................................457

12.7.21 default-information originate (OSPF) ..........................................................................................................457

14

12.7.22 default-metric (OSPF) .................................................................................................................................458

12.7.23 distance ospf (OSPF)..................................................................................................................................458

12.7.24 distribute-list out (OSPF).............................................................................................................................458

12.7.25 exit-overflow-interval (OSPF)......................................................................................................................459

12.7.26 external-lsdb-limit (OSPF)...........................................................................................................................459

12.7.27 ip ospf areaid ..............................................................................................................................................459

12.7.28 ip ospf authentication ..................................................................................................................................460

12.7.29 ip ospf cost..................................................................................................................................................460

12.7.30 ip ospf dead-interval....................................................................................................................................460

12.7.31 ip ospf hello-interval ....................................................................................................................................461

12.7.32 ip ospf priority..............................................................................................................................................461

12.7.33 ip ospf retransmit-interval............................................................................................................................461

12.7.34 ip ospf transmit-delay..................................................................................................................................462

12.7.35 ip ospf mtu-ignore .......................................................................................................................................462

12.7.36 router-id (OSPF) .........................................................................................................................................462

12.7.37 redistribute (OSPF) .....................................................................................................................................463

12.7.38 maximum-paths (OSPF) .............................................................................................................................463

12.7.39 timers spf ....................................................................................................................................................463

12.7.40 trapflags (OSPF).........................................................................................................................................464

12.7.41 show ip ospf................................................................................................................................................464

12.7.42 show ip ospf abr..........................................................................................................................................465

12.7.43 show ip ospf area........................................................................................................................................466

12.7.44 show ip ospf asbr........................................................................................................................................467

12.7.45 show ip ospf database ................................................................................................................................467

12.7.46 show ip ospf database database-summary.................................................................................................468

12.7.48 show ip ospf interface .................................................................................................................................469

12.7.49 show ip ospf interface brief .........................................................................................................................470

12.7.50 show ip ospf interface stats.........................................................................................................................471

12.7.51 show ip ospf neighbor .................................................................................................................................473

12.7.52 show ip ospf range......................................................................................................................................474

12.7.53 show ip ospf statistics .................................................................................................................................475

12.7.54 show ip ospf stub table................................................................................................................................475

12.7.55 show ip ospf virtual-link ...............................................................................................................................476

12.7.56 show ip ospf virtual-link brief .......................................................................................................................476

12.8 Routing Information Protocol (RIP) Commands ......................................................................................................478

12.8.1 router rip .......................................................................................................................................................478

12.8.2 enable (RIP)..................................................................................................................................................478

12.8.3 ip rip ..............................................................................................................................................................478

12.8.4 auto-summary...............................................................................................................................................478

12.8.5 default-information originate (RIP) ................................................................................................................479

15

12.8.6 default-metric (RIP).......................................................................................................................................479

12.8.7 distance rip....................................................................................................................................................479

12.8.8 distribute-list out (RIP) ..................................................................................................................................480

12.8.9 ip rip authentication .......................................................................................................................................480

12.8.10 ip rip receive version ...................................................................................................................................480

12.8.11 ip rip send version .......................................................................................................................................481

12.8.12 hostroutesaccept.........................................................................................................................................481

12.8.13 split-horizon ................................................................................................................................................481

12.8.14 redistribute (RIP).........................................................................................................................................482

12.8.15 show ip rip...................................................................................................................................................482

12.8.16 show ip rip interface brief ............................................................................................................................483

12.8.17 show ip rip interface ....................................................................................................................................483

13 CLI COMMANDS: IP Multicast ....................................................................................... 485

13.1 Multicast Commands...............................................................................................................................................485

13.1.1 ip mcast boundary.........................................................................................................................................485

13.1.2 ip multicast....................................................................................................................................................485

13.1.3 ip multicast staticroute ..................................................................................................................................486

13.1.4 ip multicast ttl-threshold ................................................................................................................................486

13.1.5 mrinfo............................................................................................................................................................486

13.1.6 mstat .............................................................................................................................................................487

13.1.7 mtrace...........................................................................................................................................................487

13.1.8 show ip mcast ...............................................................................................................................................487

13.1.9 show ip mcast boundary ...............................................................................................................................488

13.1.10 show ip mcast interface ..............................................................................................................................488

13.1.11 show ip mcast mroute .................................................................................................................................489

13.1.12 show ip mcast mroute group .......................................................................................................................489

13.1.13 show ip mcast mroute source .....................................................................................................................490

13.1.14 show ip mcast mroute static........................................................................................................................491

13.1.15 show mrinfo ................................................................................................................................................491

13.1.16 show mstat..................................................................................................................................................491

13.1.17 show mtrace ...............................................................................................................................................492

13.2 Distance Vector Multicast Routing Protocol (DVMRP) Commands.........................................................................493

13.2.1 ip dvmrp ........................................................................................................................................................493

13.2.2 ip dvmrp metric .............................................................................................................................................493

13.2.3 ip dvmrp trapflags .........................................................................................................................................493

13.2.4 show ip dvmrp...............................................................................................................................................494

13.2.5 show ip dvmrp interface ................................................................................................................................494

13.2.6 show ip dvmrp neighbor ................................................................................................................................495

13.2.7 show ip dvmrp nexthop .................................................................................................................................496

13.2.8 show ip dvmrp prune.....................................................................................................................................496

16

13.2.9 show ip dvmrp route......................................................................................................................................497

13.3 Internet Group Management Protocol (IGMP) Commands .....................................................................................498

13.3.1 ip igmp ..........................................................................................................................................................498

13.3.2 ip igmp version ..............................................................................................................................................498

13.3.3 set igmp mcrtrexpiretime...............................................................................................................................498

13.3.4 ip igmp last-member-query-count .................................................................................................................499

13.3.5 igmp last-member-query-interval ..................................................................................................................499

13.3.6 ip igmp query-interval....................................................................................................................................499

13.3.7 ip igmp query-max-response-time.................................................................................................................500

13.3.8 ip igmp robustness........................................................................................................................................500

13.3.9 ip igmp startup-query-count ..........................................................................................................................500

13.3.10 ip igmp startup-query-interval......................................................................................................................501

13.3.11 set igmp groupmembershipinterval .............................................................................................................501

13.3.12 set igmp maxresponse ................................................................................................................................502

13.3.13 set igmp mrouter interface ..........................................................................................................................502

13.3.14 set igmp mrouter .........................................................................................................................................502

13.3.15 show ip igmp...............................................................................................................................................503

13.3.16 show ip igmp groups...................................................................................................................................503

13.3.17 show ip igmp interface ................................................................................................................................504

13.3.18 show ip igmp interface membership............................................................................................................505

13.3.19 show ip igmp interface stats........................................................................................................................506

13.4 Protocol Independent Multicast – Dense Mode (PIM-DM) Commands...................................................................507

13.4.1 ip pimdm .......................................................................................................................................................507

13.4.2 ip pimdm mode .............................................................................................................................................507

13.4.3 ip pimdm query-interval.................................................................................................................................507

13.4.4 show ip pimdm ..............................................................................................................................................508

13.4.5 show ip pimdm interface ...............................................................................................................................508

13.4.6 show ip pimdm interface stats.......................................................................................................................508

13.4.7 show ip pimdm neighbor ...............................................................................................................................509

13.4.8 show ip pimdm componenttable....................................................................................................................509

13.5 Protocol Independent Multicast - Sparse Mode(PIM-SM) Commands ....................................................................510

13.5.1 ip pimsm cbsrpreference...............................................................................................................................510

13.5.2 ip pimsm cbsrhashmasklength......................................................................................................................510

13.5.3 ip pimsm crppreference ................................................................................................................................510

13.5.4 ip pimsm message-interval ...........................................................................................................................511

13.5.5 ip pimsm .......................................................................................................................................................511

13.5.6 ip pimsm mode..............................................................................................................................................512

13.5.7 ip pimsm query-interval.................................................................................................................................512

13.5.8 ip pimsm spt-threshold ..................................................................................................................................512

13.5.9 ip pim-trapflags .............................................................................................................................................513

17

13.5.10 ip pimsm staticrp.........................................................................................................................................513

13.5.11 ip pimsm register-rate-limit ..........................................................................................................................513

13.5.12 show ip pimsm rphash ................................................................................................................................514

13.5.13 show ip pimsm staticrp................................................................................................................................514

13.5.14 show ip pimsm ............................................................................................................................................514

13.5.15 show ip pimsm componenttable ..................................................................................................................515

13.5.16 show ip pimsm interface .............................................................................................................................515

13.5.17 show ip pimsm interface stats .....................................................................................................................516

13.5.18 show ip pimsm neighbor .............................................................................................................................516

13.5.19 show ip pimsm rp........................................................................................................................................517

13.5.20 show ip pimsm rphash ................................................................................................................................517

14. SWITCH OPERATION ..................................................................................................... 518

14.1 Address Table .........................................................................................................................................................518

14.2 Learning ..................................................................................................................................................................518

14.3 Forwarding & Filtering.............................................................................................................................................518

14.4 Store-and-Forward ..................................................................................................................................................518

14.5 Auto-Negotiation .....................................................................................................................................................519

15. TROUBLE SHOOTING .................................................................................................... 520

APPENDEX A ........................................................................................................................ 521

A.1 Switch's RJ-45 Pin Assignments .................................................................................................................................521

A.2 10/100Mbps, 10/100Base-TX......................................................................................................................................521

GLOSSARY ........................................................................................................................... 523

18

1. INTRODUCTION

1.1 Packet Contents

Thank you for purchasing PLANET 24-Port 10/100/1000Mbps wtih 4 shared SFP Layer 3 Managed Switch- WGS3-24000.

Terms of “WGS3-Layer 3 Switch” means the Switches mentioned titled in the cover page of this User’s manual,

i.e.WGS3-24000.

Check the contents of your package for following parts:

▫ The WGS3 Layer 3 Switch x1

▫ CD-ROM user’s manual x1

▫ Quick installation guide x1

▫ 19” rack mounting kit x1

▫ Power cord x1

▫ Rubber feet x 4

▫ RS-232 Console x 1

If any of these are missing or damaged, please contact your dealer immediately, if possible, retain the carton including the

original packing material, and use them against to repack the product in case there is a need to return it to us for repair.

1.2 How to Use This Manual

This User Manual is structured as follows:

Section 2, Installation

The section explains the functions of the Switch and how to physically install the Switch.

Section 3, Configuration

The section contains the information about the software function of the Switch.

Section 4, Web Configuration

The section explains how to manage the switch by Web interface.

Section 5, Command Structure

The section explains how to manage the switch by Console interface..

Section 6, Quick Start Up
Section 7, Mode-Base CLI
Section 8, CLI Command:-Base
Section 9, CLI Command: Quality of Service
Section 10, CLI Command: Security
Section 11, CLI Commands: Switching
Section 12, CLI Commands: Routing

Appendex A

The section contains cable information of the Switch.

In the following section, terms with lower case "switch" means other Ethernet switch devices.

19

1.3 Product Feature

Physical Ports

 24 RJ-45 ports for 10/100/1000Base-T

 4 shared SFP mini-GBIC interfaces ( Shared with Port-12 and Port-24)

 One DB9 male/RS-232 console port

 One DB9 male/RS-232 console port

 One DB9 male/RS-232 console port

Layer 2 Features

 Supports auto MDI/MDI-X on all 10/100/1000Base-T ports

 The 10/100/1000Base-TX ports support auto-sensing, auto-negotiation

 Supports Jumbo frame up to 9KB

 Provides wire speed of L2 switching performance

 Supports up to 16K MAC address entries

 Supports Flow Control

− IEEE 802.1x for Full-Duplex mode

− Back-Pressure Flow Control in Half-Duplex mode

 Provides Store-and-Forward forwarding scheme

 Provides Broadcast storm protection

 Supports IGMP snooping v1, v2

 Supports VLAN

− IEEE 802.1Q VLAN

− GARP/GVRP/GMRP

− Up to 4041 VLANs, out of 4041 VLAN IDs

− Protocol-Based VLAN

 Supports Spanning Tree Protocol

− STP, IEEE 802.1d

− RSTP, IEEE 802.1w

− MSTP, IEEE 802.1s

 Supports Link Aggregation

− up to 8 trunk groups

− up to 8 ports per trunk group

− 802.3ad Link Aggregation and LACP

− Cisco ether-channel (Static Trunk)

 Provides Port Mirror (many-to-1)

Routing Features

 Supports RIP v1 and v2

 Supports OSPF v1/v2

 Supports router discovery (IRDP)

20

 Supports VLAN routing

 Supports VRRP

 Supports IP routing

 Supports route redistribution

 Supports route preferences

Multicast

 Supports PIM-DM and PIM-SM

 Supports DVMRP

 Supports IGMP v1/v2/v3

Security

 User/Password protected system management

 L2/L3/L4 ACL (access control list)

 RADIUS client

 TACACS client

 SSH v1/v2

 SSL v3/TLS v1

 IEEE 802.1x Port-Based Autentication

 Port MAC lock

Quality of Service

 IEEE 802.1p based CoS

 8 priority queues per port

 IP TOS/Precedence based Cos

 DSCP based CoS

 Policy based DiffServ

Management

 Provides 1 male DB9 RS-232C console interface

 Supports BOOTP and DHCP for IP address assignment

 Supports DHCP relay function

 Supports software upload/download via XMODEM or TFTP

 Supports configuration upload/download via XMODEM or TFTP

 Supports up to three configuration files including factory default

 Supports SSH v1/v2 switch management

 Supports SSH/SSL/TLS keys download via XMODEM or TFTP

 Supports SNTP (Simple Network Time Protocol)

 Supports Ping function

 Supports telnet function

 Supports message/event/error/trap logs

21

 Supports logging to local file and syslog server

 Supports Command Line Interface switch management

 Supports Web switch management

 Supports SNMP v1, v2c, and v3 switch management

 Supports Private Enterprise MIB

 Supports RMON groups 1, 2, 3, 9

 Supports port mirror (many-to-1)

1.4 Product Specification

WGS3-24000

Product

Hardware Specification

24-Port 10/100/1000Mbps TP with 4-Port mini-GBIC

Layer 3 Managed Ethernet Switch

10/100/1000Base-T Ports

SFP/mini-GBIC slots

Switch Architecture

Switch Fabric

Switch throughput

Address Table

Layer 3 Routing Table

Buffer Memory

Flow Control

LED

Layer 2 function

Management Interface Console. Telnet, SSH, Web, SSL, SNMP

Port configuration

24 RJ-45 Auto-MDI/MDI-X ports

4 SFP interfaces

Store-and-Forward

48Gbps Capacity

35.7Mpps

16K MAC address table with Auto learning function

2048

2Mbits for packet buffer

Back pressure for Half-Duplex

IEEE 802.3x Pause Frame for Full-Duplex

Power, Link/Act, FDX/COL

Port disable/enable. Auto-negotiation 10/100Mbps full and half duplex mode selection. Flow

Control disable / enable. Bandwidth control on each port.

Port Status

VLAN

Port trunking

QoS

IGMP Snooping

Display each port’s speed duplex mode, link status, Flow control status. Auto negotiation

status, trunk status.

IEEE 802.1Q Tagged Based VLAN ,up to 4041 VLAN groups

Support 8 groups of 8-Port trunk

Traffic classification based on Port Number, 802.1p priority, DS/TOS field in IP Packet

Allow to disable or enable.

22

IP Routing Protocol

Static Route, RIPv1/v2, OSPFv2,IRDP, VRRP

Multicast Routing
Protocol

Standards Conformance

Regulation Compliance

Standards Compliance

DVMRP, PIM-DM/SM

FCC Part 15 Class A, CE

IEEE 802.3
IEEE 802.3u
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3ad
IEEE 802.1d
IEEE 802.1w
IEEE 802.1s
IEEE 802.1p
IEEE 802.1Q

10BASE-T
100BASE-TX/100BASE-FX
Gigabit SX/LX
Gigabit 1000T
Flow Control
Port trunk with LACP
Spanning tree protocol
Rapid Spanning tree protocol
Multiple Spanning Tree Protocol
Class of service
VLAN Tagging

23

2. INSTALLATION

This section describes the functionalities of the Switch's components and guides how to install it on the desktop or shelf. Basic

knowledge of networking is assumed. Please read this chapter completely before continuing.

2.1 Product Description

The PLANET WGS3-24000 is a 24-Port 10/100/1000Mbps with 4 shared SFP/copper GbE interface Gigabit Ethernet Switch. It

boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput

as high as 48Gbps. Its two built-in GbE uplink ports also offer incredible extensibility, flexibility and connectivity to the Core

switch or Servers.

2.1.1 Product Overview

PLANET WGS3-24000 is loaded with powerful traffic management and QoS features to enhance services offered by telcos. It

provides 4 priority queues per port for different types of traffics, allowing administrators to set policies for classified filtering and

rule-based rate limitation. The WGS3-24000 prioritizes applications with WFQ (Weighted Fair Queuing) scheduling algorithm to

allocate more bandwidth to key traffics such as voice transmission, empowering the enterprise to take full advantages of the

limited network resources and guarantee the best performance.

PLANET WGS3-24000 offers comprehensive Access Control List (ACL) for enforcing security to the edge. Its protection

mechanisms comprised of port-based 802.1x user and device authentication. The administrators can now construct highly

secured corporate networks with time and effort considerably less then before.

With its built-in web-based management, the PLANET WGS3-24000 offers an easy-to-use, platform-independent management

and configuration facility. The PLANET WGS3-24000 supports standard Simple Network Management Protocol (SNMP) and

can be managed via any standard-based management software. For text-based management, the WGS3-24000 can also be

accessed via Telnet and the console port. For secure remote management, the WGS3-24000 support SSL and SSH connection

which encrypt the packet content at each session.

24

2.1.2 Switch Front Panel

Figure 2-1 shows the front panel of the switch.

Figure 2-1 WGS3-24000 front panel.

2.1.3 LED Indications

Network:

LED Color Function

PWR Green Lights to indicate that the Switch is powered on.
LNK/ACT Green Lights to indicate the link through that port is successfully established.

FDX Green Blink to indicate the switch is actively sending or receiving data over that port.

Gigabit:

LED Color Function

LNK/ACT Green Lights to indicate the link through that port is successfully established.

FDX/COL Green Blink to indicate the switch is actively sending or receiving data over that port.

2.1.4 Switch Rear Panel

Figure 2-2 shows the rear panel of the switch

Figure 2-2 WGS3-24000 rear panel.

Power Notice:

1. The device is a power-required device, it means, it will not work till it is powered. If your networks should active all the time,

please consider using UPS (Uninterrupted Power Supply) for your device. It will prevent you from network data loss or

network downtime.

2. In some area, installing a surge suppression device may also help to protect your switch from being damaged by

unregulated surge or current to the Switch or the power adapter.

25

2.2 Install the Switch

This section describes how to install the Ethernet Switch and make connections to it. Please read the following topics and

perform the procedures in the order being presented.

2.2.1 Desktop Installation

To install the Switch on desktop or shelf, please follows these steps:

Step1: Attach the rubber feet to the recessed areas on the bottom of the switch.
Step2: Place the switch on the desktop or the shelf near an AC power source.
Step3: Keep enough ventilation space between the switch and the surrounding objects.

When choosing a location, please keep in mind the environmental restrictions discussed in Chapter

#Note:

Step4: Connect the Switch to network devices.

A. Connect one end of a standard network cable to the 10/100/1000 RJ-45 ports on the front of the Switch

1, Section 4, in Specification.

B. Connect the other end of the cable to the network devices such as printer servers, workstations or routers…etc.

Connection to the Switch requires UTP Category 5 network cabling with RJ-45 tips. For more

#Note:

Step5: Supply power to the switch.

A. Connect one end of the power cable to the switch.
B. Connect the power plug of the power cable to a standard wall outlet.

When the switch receives power, the Power LED should remain solid Green.

information, please see the Cabling Specification in Appendix A.

2.2.2 Rack Mounting

To install the switch in a 19-inch standard rack, please follows the instructions described below.

Step1: Place the switch on a hard flat surface, with the front panel positioned towards the front side.
Step2: Attach the rack-mount bracket to each side of the switch with supplied screws attached to the package.

Figure 2-5 shows how to attach brackets to one side of the switch.

Figure 2-5 Attach brackets to the switch.

26

Caution:

You must use the screws supplied with the mounting brackets. Damage caused to the parts by using incorrect screws

would invalidate the warranty.

Step3: Secure the brackets tightly.
Step4: Follow the same steps to attach the second bracket to the opposite side.
Step5: After the brackets are attached to the Switch, use suitable screws to securely attach the brackets to the rack, as shown

in Figure 2-6

Figure 2-6 Mounting the Switch in a Rack

Step6: Proceeds with the steps 4 and steps 5 of session 2.2.1 Desktop Installation to connect the network cabling and supply

power to the switch.

2.2.3 Installing the SFP transceiver

The sections describe how to insert an SFP transceiver into an SFP slot.

The SFP transceivers are hot-pluggable and hot-swappable. You can plug-in and out the transceiver to/from any SFP port

without having to power down the Switch. As the Figure 2-7 appears.

27

Figure 2-7 Plug-in the SFP transceiver

Approved PLANET SFP Transceivers

PLANET WGS3-24000 support both single mode and multi mode SFP transceiver. The following list of approved PLANET SFP

transceivers is correct at the time of publication:

■MGB-SX SFP (1000BASE-SX SFP transceiver )

■MGB-LX SFP (1000BASE-LX SFP transceiver )

It recommends using PLANET SFPs on the Switch. If you insert a SFP transceiver that is not

#Note:

Before connect the other switches, workstation or Media Converter.

1. Make sure both side of the SFP transfer are with the same media type, for example: 1000Base-SX to 1000Base-SX,

1000Bas-LX to 1000Base-LX.

2. Check the fiber-optic cable type match the SFP transfer model.

supported, the Switch will not recognize it.

¾ To connect to 1000Base-SX SFP transfer, use the multi-mode fiber cable- with one side must be male duplex LC

connector type.

¾ To connect to 1000Base-LX SFP transfer, use the single-mode fiber cable-with one side must be male duplex LC

connector type.

Connect the fiber cable

1. Attach the duplex LC connector on the network cable into the SFP transceiver.

2. Connect the other end of the cable to a device – switches with SFP installed, fiber NIC on a workstation or a Media

Converter..

3. Check the LNK/ACT LED of the SFP slot on the front of the Switch. Ensure that the SFP transceiver is operating correctly.

4. Check the Link mode of the SFP port if the link failed. Co works with some fiber-NICs or Media Converters, set the Link

mode to “1000 Force” is needed.

Remove the transceiver module

28

1. Make sure there is no network activity by consult or check with the network administrator. Or through the management

interface of the switch/converter (if available) to disable the port in advance.

2. Remove the Fiber Optic Cable gently.

3. Turn the handle of the MGB/MFB module to horizontal.

4. Pull out the module gently through the handle.

Figure 2-8 Pull Out the SFP transceiver

Never pull out the module without pull the handle or the push bolts on the module. Direct pull out the

#Note:

module with violent could damage the module and SFP module slot of the device.

29

3. CONFIGURATION

This chapter explains the methods that you can use to configure management access to the switch. It describes the types of

management applications and the communication and management protocols that deliver data between your management

device (work-station or personal computer) and the system. It also contains information about port connection options.

This chapter covers the following topics:

▫ Management Access Overview

▫ Key Concepts

▫ Key Guidelines for Implementation

▫ Administration Console Access

▫ Web Management Access

▫ SNMP Access

▫ Standards, Protocols, and Related Reading

3.1 Management Access Overview

The switch gives you the flexibility to access and manage the switch using any or all of the following methods:

▫ An administration console

▫ Web browser interface

▫ An external SNMP-based network management application

The administration console and Web browser interface support are embedded in the switch software and are available for

immediate use. Each of these management methods has their own advantages. Table 3-1 compares the three management

methods.

Method Advantages Disadvantages

Console

Web Browser

y No IP address or subnet needed

y Text-based

y Telnet functionality and HyperTerminal

built into Windows

95/98/NT/2000/ME/XP operating

systems

y Secure

y Ideal for configuring the switch remotely

y Must be near switch or use dial-up connection

y Not convenient for remote users

y Modem connection may prove to be unreliable

or slow

y Security can be compromised (hackers need

SNMP Agent

y Compatible with all popular browsers

y Can be accessed from any location

y Most visually appealing

y Communicates with switch functions at

the MIB level

only know the IP address and subnet mask)

y May encounter lag times on poor connections

y Requires SNMP manager software

y Least visually appealing of all three methods

30

y Based on open standards y Some settings require calculations

y Security can be compromised (hackers need

only know the community name)

Table 3-1 Management Methods Comparison

3.1.1 Administration Console

The administration console is an internal, character-oriented, and command line user interface for performing system

administration such as displaying statistics or changing option settings. Using this method, you can view the administration

console from a terminal, personal computer, Apple Macintosh, or workstation connected to the switch's console (serial) port.

There are two ways to use this management method: via direct access or modem port access. The following sections describe

these methods. For more information about using the console, refer to Chapter 4 Command Line Interface Console

Management.

3.1.2 Direct Access

Direct access to the administration console is achieved by directly connecting a terminal or a PC equipped with a

terminal-emulation program (such as HyperTerminal) to the switch console (serial) port.

When using this management method, a null-modem cable is required to connect the switch to the PC. After making this

connection, configure the terminal-emulation program to use the following parameters:

The default parameters are:

▫ 115,200 bps
▫ 8 data bits
▫ No parity
▫ 1 stop bit

You can change these settings, if desired, after you log on. This management method is often preferred because you can

remain connected and monitor the system during system reboots. Also, certain error messages are sent to the serial port,

regardless of the interface through which the associated action was initiated. A Macintosh or PC attachment can use any

terminal-emulation program for connecting to the terminal serial port. A workstation attachment under UNIX can use an

emulator such as TIP.

31

3.2 Web Management

The switch provides a browser interface that lets you configure and manage the switch remotely. After you set up your IP

address for the switch, you can access the switch's Web interface applications directly in your Web browser by entering the IP

address of the switch. You can then use your Web browser to list and manage switch configuration parameters from one central

location, just as if you were directly connected to the switch's console port.

Web Management requires either Microsoft Internet Explorer 6.0 or later or Mozilla Firefox 1.5 or later.

3.3 SNMP-Based Network Management

You can use an external SNMP-based application to configure and manage the switch. This management method requires the

SNMP agent on the switch and the SNMP Network Management Station to use the same community string. This management

method, in fact, uses two community strings: the get community string and the set community string. If the SNMP Net-work

management Station only knows the set community string, it can read and write to the MIBs. However, if it only knows the get

community string, it can only read MIBs. The default gets and sets community strings for the switch are public.

3.4 Protocols

The switch supports the following protocols:

▫ Virtual terminal protocols, such as Telnet

▫ Simple Network Management Protocol (SNMP)

3.4.1 Virtual Terminal Protocols

A virtual terminal protocol is a software program, such as Telnet, that allows you to establish a management session from a

Macintosh, a PC, or a UNIX workstation. Because Telnet runs over TCP/IP, you must have at least one IP address configured

on the switch before you can establish access to it with a virtual terminal protocol.

"Note: Terminal emulation differs from a virtual terminal protocol in that you must connect a terminal directly to the console

(serial) port.

3.4.2 SNMP Protocol

Simple Network Management Protocol (SNMP) is the standard management protocol for multi-vendor IP networks. SNMP

supports transaction-based queries that allow the protocol to format messages and to transmit information between reporting

devices and data-collection programs. SNMP runs on top of the User Datagram Protocol (UDP), offering a

connectionless-mode service.

3.4.3 Management Architecture

All of the management application modules use the same Messaging Application Programming Interface (MAPI). By unifying

management methods with a single MAPI, configuration parameters set using one method (console port, for example) are

immediately displayable by the other management methods (for example, SNMP agent of Web browser).

The management architecture of the switch adheres to the IEEE open standard. This compliance assures customers that the

switch is compatible with, and will interoperate with other solutions that adhere to the same open standard.

32

4. Web Configuration

The WGS3-24000 can be configured through an Ethernet connection, make sure the manager PC must be set on same the IP
subnet address with the switch. For example, if you have changed the default IP address of the Switch to 192.168.1.1 with

subnet mask 255.255.255.0 via console, then the manager PC should be set at 192.168.1.x (where x is a number between 2
and 254) with subnet mask 255.255.255.0. Or you can use the factory default IP address 192.168.1.254 to do the relative

configuration on manager PC.

 Logging on the switch

1. Use Internet Explorer 6.0 or above Web browser. Enter the factory-default IP address to access the Web interface. The

factory-default IP Address as following:

http://192.168.1.254

2. When the following login screen appears, the system will ask you to enter the username and password.

Default User name: admin

Default Password: admin

The login screen in Figure 4-2 appears.

33

3. When the following login screen appears, please enter the default username "admin" with password “admin” (or the

username/password you have changed via console) to login the main screen of Switch. The login screen in Figure 4-1

appears.

Figure 4-1 Login screen

Now, you can use the Web management interface to continue the switch management or manage the switch by console

interface.

#Note:

It is recommended to use Internet Explore 6.0 or above to access WGS3-24000.

34

4.1 Main Menu

The Switch provides a Web-based browser interface for configuring and managing the Switch. This interface allows you to

access the switch using the Web browser of your choice. This chapter describes how to use the switch’s Web browser interface

to con-figure and manage the switch.

Main Functions Menu

Port Link Status

Main Screen

Help Button

Figure 4-1-1 Main Page

Via the Web-Management, the administrator can setup the WGS3-24000 by select the functions those listed in the Main

Function. The screen in Figure 4-2 appears.

Figure 4-1-2 WGS3-24000 Main Funcrions Menu

Apply Button

35

The following functions can be configured here:

 System
 Switching
 Routing
 Security
 QoS
 IP Multicast

System Description

After a successful login, the main screen appears, the main screen displays the port status and a list of System section and the

topics it provide. As showed in Figure 4-2.

。 System Name - Enter the name you want to use to identify this switch. You may use up to 31 alpha-numeric

characters. The factory default is blank.

。 System Location - Enter the location of this switch. You may use up to 31 alpha-numeric characters. The factory

default is blank.

。 System Contact - Enter the contact person for this switch. You may use up to 31 alpha-numeric characters. The

factory default is blank.

Figure 4-1-3 main menu screen

36

4.2 Configure System

The System section provides information for configuring system parameters. Under system the following topics are provided to

configure and view the system information:

。 ARP Cache
。 Inventory Information
。 System Loading
。 Configuration
。 Forward Database
。 Log
。 Port
。 SNMP
。 Statistics
。 System Utilities
。 Trap Manager
。 DHCP Server
。 SNTP

4.2.1 ARP Cache

The Address Resolution Protocol (ARP) dynamically maps physical (MAC) addresses to Internet (IP) addresses. This panel

displays the current contents of the ARP cache.

For each connection, the following information is displayed:

。 The physical (MAC) Address
。 The associated IP address
。 The identification of the port being used for the connection

As shows in figure 4-3:

Figure 4-2-1 ARP Cache

37

4.2.2 Inventory Information

Use this panel to display the switch's Vital Product Data, stored in non-volatile memory at the factory. The page includes the

following fields:

。 System Description - The product name of this switch.
。 Machine Type - The machine type of this switch.
。 Machine Model - The model within the machine type.
。 Serial Number - The unique box serial number for this switch.
。 FRU Number - The field replaceable unit number.
。 Part Number - The manufacturing part number.
。 Maintenance Level - The identification of the hardware change level.
。 Manufacturer - The two-octet code that identifies the manufacturer.
。 Base MAC Address - The burned-in universally administered MAC address of this switch.
。 Software Version - The release version maintenance number of the code currently running on the switch. For

example, if the release was 1, the version was 2 and the maintenance number was 4, the format would be '1.2.4'.

。 Operating System - The operating system currently running on the switch.
。 Network Processing Device - Identifies the network processor hardware.
。 Additional Packages - A list of the optional software packages installed on the switch, if any. For example,

FASTPATH BGP-4, or FASTPATH Multicast.

Figure 4-2-2 Inventory Information

38

4.2.3 Configuration

Use this page to configure the parameters for system management, including the following fields:

。 System Description
。 Switch
。 Network Connectivity
。 Telnet Session
。 Outbound Telnet Client Configuration
。 Serial Port
。 User Account
。 Authentication List Configuration
。 Login Session
。 Authentication List Summary
。 User Login

4.2.3.1 System Description

This page shows the basic system information and is available to define the system name, location and contact person.

Includes the following fields:

。 System Name - Enter the name you want to use to identify this switch. You may use up to 31 alpha-numeric

characters. The factory default is blank.

。 System Location - Enter the location of this switch. You may use up to 31 alpha-numeric characters. The factory

default is blank.

。 System Contact - Enter the contact person for this switch. You may use up to 31 alpha-numeric characters. The

factory default is blank.

。 System Description - The product name of this switch.
。 System Object ID - The base object ID for the switch's enterprise MIB.
。 System IP Address - The IP Address assigned to the network interface.
。 System Up time - The time in days, hours and minutes since the last switch reboot.
。 MIBs Supported - The list of MIBs supported by the management agent running on this switch.

39

Figure 4—2-3 System Description

4.2.4.2 Switch Configuration

This page includes the following fields:

。 Broadcast Storm Recovery Mode - Enable or disable this option by selecting the corresponding line on the

pull-down entry field. The factory default is disabled.

。 IEEE 802.3x Flow Control Mode - Enable or disable this option by selecting the corresponding line on the

pull-down entry field. The factory default is disabled.

。 Lag Static Capability Mode - May be enabled or disabled by selecting the corresponding line on the pull-down

entry field. The factory default is disabled.

Figure 4-2-4 Switch Configuration

40

4.2.3.3 Network Connectivity

The network interface is the logical interface used for in-band connectivity with the switch via any of the switch's front panel

ports. The configuration parameters associated with the switch's network interface do not affect the configuration of the front

panel ports through which traffic is switched or routed.

Figure 4-2-5 Network Connectivity Configuration

To access the switch over a network you must first configure it with IP information (IP address, subnet mask, and default

gateway). You can configure the IP information using any of the following:

。 BOOTP
。 DHCP
。 Terminal interface via the EIA-232 port

Once you have established in-band connectivity, you can change the IP information using any of the following:

。 Terminal interface via the EIA-232 port
。 Terminal interface via telnet
。 SNMP-based management
。 Web-based management

The page includes the following configurable data:

。 IP Address - The IP address of the interface. The factory default value is 0.0.0.0
。 Subnet Mask - The IP subnet mask for the interface. The factory default value is 0.0.0.0
。 Default Gateway - The default gateway for the IP interface. The factory default value is 0.0.0.0
。 Locally Administered MAC Address - You may configure a locally administered MAC address for in-band

connectivity instead of using the burned-in universally administered MAC address. In addition to entering an

address in this field, you must also set the MAC address type to locally administered. Enter the address as twelve

hexadecimal digits (6 bytes) with a colon between each byte. Bit 1 of byte 0 must be set to a 1 and bit 0 to a 0, i.e.

byte 0 must have a value between x'40' and x'7F'.

。 MAC Address type - Specify whether the burned-in or the locally administered MAC address should be used for

in-band connectivity. The factory default is to use the burned-in MAC address

41

。 Network Configuration Protocol Current - Choose what the switch should do following power-up: transmit a

Bootp request, transmit a DHCP request, or do nothing (none). The factory default is DHCP.

。 Management VLAN ID - Specifies the management VLAN ID of the switch. It may be configured to any value in

the range of 1 - 4093. The management VLAN is used for management of the switch. This field is configurable for

administrative users and read-only for other users.

。 Web Mode - Specify whether the switch may be accessed from a web browser. If you choose to enable web mode

you will be able to manage the switch from a web browser. The factory default is enabled.

。 Java Mode - Enable or disable the java applet that displays a picture of the switch at the top right of the screen. If

you run the applet you will be able to click on the picture of the switch to select configuration screens instead of

using the navigation tree at the left side of the screen. The factory default is disabled.

The following data are non-configurable:

。 Burned-in MAC Address - The burned-in MAC address used for in-band connectivity if you choose not to

configure a locally administered address.

。 Network Configuration Protocol Current - Indicates what network protocol was used on the last, or current

power-up cycle, if any.

4.2.3.4 Telnet Session

This page includes the following fields:

Configurable Data

。 Telnet Session Timeout (minutes) - Specify how many minutes of inactivity should occur on a telnet session

before the session is logged off. You may enter any number from 1 to 160. The factory default is 5.

。 Maximum Number of Telnet Sessions - Use the pulldown menu to select how many simultaneous telnet sessions

will be allowed. The maximum is 5, which is also the factory default.

。 Allow New Telnet Sessions - If you set this to no, new telnet sessions will not be allowed. The factory default is

yes.

Figure 4-2-6 Telnet Session Configuration

42

4.2.3.5 Outbound Telnet Client Configuration

This page includes the following fields:

Configurable Data

。 Admin Mode - Specifies if the Outbound Telnet service is Enabled or Disabled. Default value is Enabled.
。 Maximum Sessions - Specifies the maximum number of Outbound Telnet Sessions allowed. Default value is 5.

Valid Range is (0 to 5).

。 Session Timeout - Specifies the Outbound Telnet login inactivity timeout. Default value is 5. Valid Range is (1 to

160).

Figure 4-2-7 OutboundTelnet Client Configuration

4.2.3. Remote Session

This page includes the following fields:

。 Remote Login Timeout (minutes) - Specify how many minutes of inactivity should occur on a telnet or SSH

session before the switch logs off. A zero means there will be no timeout. You may enter any number from 0 to 160.

The factory default is 5.

。 Maximum Number of Remote Sessions - Use the pull-down menu to select how many simultaneous telnet or

SSH sessions will be allowed. The maximum is 5, which is also the factory default.

。 Allow New Remote Sessions - If you set this to no, new telnet sessions will not be allowed. The factory default is

yes.

43

4.2.3.7 Serial Port

Use this page to define the parameters of console connectivity. The configurable data are:

。 Serial Port Login Timeout (minutes) - Specify how many minutes of inactivity should occur on a serial port

connection before the switch closes the connection. Enter a number between 0 and 160: the factory default is 5.

Entering 0 disables the timeout.

。 Baud Rate (bps) - Select the default baud rate for the serial port connection from the pull-down menu. You may

choose from 1200, 2400, 4800, 9600, 19200, 38400, 57600, and 115200 baud. The factory default is 115200

baud.

And the non-configurable data:

。 Character Size (bits) - The number of bits in a character. This is always 8.
。 Flow Control - Whether hardware flow control is enabled or disabled. It is always disabled.
。 Parity - The parity method used on the serial port. It is always None.
。 Stop Bits - The number of stop bits per character. The value is always 1.

Figure 4-2-8 Serial Port Configuration

44

4.2.3.8 User Accounts

By default, two user accounts exist:

。 admin, with 'Read/Write' privileges
。 guest, with 'Read Only' privileges

By default, both of these accounts have blank passwords. The names are not case sensitive.

If you logon with a user account with 'Read/Write' privileges (i.e. as admin) you can use the User Accounts screen to assign

passwords and set security parameters for the default accounts, and to add and delete accounts (other than admin) up to the

maximum of six. Only a user with 'Read/Write' privileges may alter data on this screen, and only one account may be created

with 'Read/Write' privileges.

Selection Criteria

。 User Name Selector - You can use this screen to reconfigure an existing account, or to create a new one. Use this

pull-down menu to select one of the existing accounts, or select 'Create' to add a new one, provided the maximum

of five 'Read Only' accounts has not been reached.

Configurable Data

。 User Name - Enter the name you want to give to the new account. (You can only enter data in this field when you

are creating a new account.) User names are up to eight characters in length and are not case sensitive. Valid

characters include all the alphanumeric characters as well as the dash ('-') and underscore ('_') characters.

。 Password - Enter the optional new or changed password for the account. It will not display as it is typed, only

asterisks(*) will show. Passwords are up to eight alpha numeric characters in length, and are case sensitive.

。 Confirm Password - Enter the password again, to confirm that you entered it correctly. This field will not display,

but will show asterisks (*)

。 Authentication Protocol - Specify the SNMPv3 Authentication Protocol setting for the selected user account. The

valid Authentication Protocols are None, MD5 or SHA. If you select None, the user will be unable to access the

SNMP data from an SNMP browser. If you select MD5 or SHA, the user login password will be used as the

SNMPv3 authentication password, and you must therefore specify a password, and it must be eight characters

long.

。 Encryption Protocol - Specify the SNMPv3 Encryption Protocol setting for the selected user account. The valid

Encryption Protocols are None or DES. If you select the DES Protocol you must enter a key in the Encryption Key

field. If None is specified for the Protocol, the Encryption Key is ignored.

。 Encrypt ion Key - If you selected DES in the Encryption Protocol field enter the SNMPv3 Encryption Key here.

Otherwise this field is ignored. Valid keys are 0 to 15 characters long. The Apply checkbox must be checked in

order to change the Encryption Protocol and Encryption Key.

Non-Configurable Data

。 Access Mode - Indicates the user's access mode. The admin account always has 'Read/Write' access, and all

other accounts have 'Read Only' access.

。 SNMP v3 Access Mode - Indicates the SNMPv3 access privileges for the user account. The admin account

always has 'Read/Write' access, and all other accounts have 'Read Only' access.

45

Figure 4-2-9 User Accounts

4.2.3.9 Authentication List Configuration

Use this screen to configure login lists. A login list specifies the authentication method(s) you want used to validate switch or

port access for the users associated with the list. The pre-configured users, admin and guest, are assigned to a pre-configured

list named defaultList, which you may not delete. All newly created users are also assigned to the defaultList until you

specifically assign them to a different list

Selection Criteria

。 Authentication List - Select the authentication login list you want to configure. Select 'create' to define a new

login list. When you create a new login list, 'local' is set as the initial authentication method.

Configurable Data

。 Authentication List Name - If you are creating a new login list, enter the name you want to assign. It can be up to

15 alphanumeric characters long and is not case sensitive.

。 Method 1 - Use the dropdown menu to select the method that should appear first in the selected authentication

login list. If you select a method that does not time out as the first method, such as 'local' no other method will be

tried, even if you have specified more than one method. Note that this parameter will not appear when you first

create a new login list. The options are:

¾ Local- the user's locally stored ID and password will be used for authentication
¾ Radius- the user's ID and password will be authenticated using the RADIUS server instead of locally
¾ Reject- the user is never authenticated
¾ Undefined- the authentication method is unspecified (this may not be assigned as the first method)

。 Method 2 - Use the dropdown menu to select the method, if any, that should appear second in the selected

authentication login list. This is the method that will be used if the first method times out. If you select a method

that does not time out as the second method, the third method will not be tried. Note that this parameter will not

appear when you first create a new login list.

。 Method 3 - Use the dropdown menu to select the method, if any, that should appear third in the selected

authentication login list. Note that this parameter will not appear when you first create a new login list.

46

Figure 4-2-10 Authentication List Configuration – Create User

Figure 4-2-11 Authentication List Configuration – DefaultList

4.2.3.10 Login Session

This page shows the information of login session, including:

。 ID - Identifies the ID of this row.
。 User Name - Shows the user name of user made the session.
。 Connection From - Shows the user is connected from which machine.
。 Idle Time - Shows the idle session time.
。 Session Time - Shows the total session time.

47

Figure 4-2-12 Login Sessions

4.2.3.11 Authentication List Summary

This page lists the authenticate user, the information fields include:

。 Authentication List - Identifies the authentication login list summarized in this row.
。 Method List - The ordered list of methods configured for this login list.
。 Login Users - The users you assigned to this login list on the User Login Configuration screen. This list is used to

authenticate the users for system login access.

。 802.1x Port Security Users - The users you assigned to this login list on the Port Access Control User Login

Configuration screen - This list is used to authenticate the users for port access, using the IEEE 802.1x protocol.

Figure 4-2-13 Authentication List Summary

48

4.2.3.12 User Login

Each configured user is assigned to a login list that specifies how the user should be authenticated when attempting to access

the switch or a port on the switch. After creating a new user account on the User Account screen, you should assign that user to

a login list for the switch using this screen and, if necessary, to a login list for the ports using the Port Access Control User Login

Configuration screen. If you need to create a new login list for the user, you would do so on the Login Configuration screen.

The pre-configured users, admin and guest, are assigned to a pre-configured list named defaultList, which you may not delete.

All newly created users are also assigned to the defaultList until you specifically assign them to a different list.

A user that does not have an account configured on the switch is termed the 'default' or 'non-configured' user. If you assign

the 'non-configured user' to a login list that specifies authentication via the RADIUS server, you will not need to create an

account for all users on each switch. However, by default the 'non-configured user' is assigned to 'defaultList', which by

default uses local authentication.

Selection Criteria

。 User - Select the user you want to assign to a login list. Note that you must always associate the admin user with

the default list. This forces the admin user to always be authenticated locally to prevent full lockout from switch

configuration. If you assign a user to a login list that requires remote authentication, the user's access to the switch

from all CLI, web, and telnet sessions will be blocked until the authentication is complete. Refer to the discussion

of maximum delay in the RADIUS configuration help.

Configurable Data

。 Authentication List - Select the authentication login list you want to assign to the user for system login.

Figure 4-2-14 User Login Configuration

49

4.2.4 Forwarding Database

4.2.4.1 Configuration

Use this panel to set the Address Ageing Timeout for the forwarding database.

。 Address Ageing Timeout (s e conds ) - The forwarding database contains static entries, which are never aged out,

and dynamically learned entries, which are removed if they are not updated within a given time. You specify that

time by entering a value for the Address Ageing Timeout. You may enter any number of seconds between 10 and

1000000. IEEE 802.1D recommends a default of 300 seconds, which is the factory default.

Figure 4-2-15 Forwarding Database

4.2.4.2 Search

Use this panel to display information about entries in the forwarding database. These entries are used by the transparent

bridging function to determine how to forward a received frame.

Configurable Data

。 Filter - Specify the entries you want displayed.

¾ Learned: If you choose "learned" only MAC addresses that have been learned will be displayed.
¾ All: If you choose "all" the whole table will be displayed.

。 MAC Address Search - You may also search for an individual MAC address. Enter the two byte hexadecimal

VLAN ID followed by the six byte hexadecimal MAC address in two-digit groups separated by colons, for example

01:23:45:67:89:AB:CD:EF where 01:23 is the VLAN ID and 45:67:89:AB:CD:EF is the MAC address. Then click on

the search button. If the address exists, that entry will be displayed as the first entry followed by the remaining

(greater) MAC addresses. An exact match is required.

50

4.2.5 Log

。 Buffered Log Configuration
。 Buffered Log
。 Command Logger Configuration
。 Console Log Configuration
。 Event Log
。 Hosts Configuration
。 Persistent Log Configuration
。 Persistent Log
。 Syslog Configuration

Figure 4-2-16 Forwarding Database Search

4.2.5.1 Buffered Log Configuration

This log stores messages in memory based upon the settings for message component and severity. On stackable systems, this

log exists only on the top of stack platform. Other platforms in the stack forward their messages to the top of stack log.

Configurable Data

。 Admin Status - A log that is "Disabled" shall not log messages. A log that is "Enabled" shall log messages. Enable

or Disable logging by selecting the corresponding line on the pulldown entry field.

51

。 Behavior Indicates the behavior of the log when it is full. It can either wrap around or stop when the log space is

filled.

Figure 4-2-17 Buffered Log Configuration

4.2.5.2 Buffered Log

This help message applies to the format of all logged messages which are displayed for the buffered log, persistent log or

console log.

Format of the messages

Messgges logged to a collector or relay via syslog have an identical format of either type

。 <15>Aug 24 05:34:05 STK0 MSTP[2110]: mspt_api.c(318) 237 %% Interface 12 transitioned to root state on

message age timer expiry

-The above example indicates a message with severity 7(15 mod 8) (debug) on a system that is not stack and

generated by component MSTP running in thread id 2110 on Aug 24 05:34:05 by line 318 of file mstp_api.c. This is

the 237th message logged.

Command Buttons

o Refresh - Refresh the page with the latest log entries.

Figure 4-2-18 Buffered Logs

52

44.2.5.3 Command Logger Configuration

This page includes the following fields:

Configurable Data

。 Admin Mode - Enable/Disable the operation of the CLI Command logging by selecting the corresponding pulldown

field and clicking Submit.

Figure 4-2-19 Command Logger Configuration

4.2.5.4 Console Log Configuration

This allows logging to any serial device attached to the host.

Configurable Data

。 Admin Status -A log that is "Disabled" shall not log messages. A log that is "Enabled" shall log messages. Enable

or Disable logging by selecting the corresponding line on the pulldown entry field.

。 Severity Filter - A log records messages equal to or above a configured severity threshold. Select the severity

option by selecting the corresponding line on the pulldown entry field. These severity levels have been enumerated

below:

-Emergency (0): system is unusable

-Alert (1): action must be taken immediately

-Critical (2): critical conditions

-Error (3): error conditions

-Warning (4): warning conditions

-Notice(5): normal but significant conditions

-Informational(6): informational messages

-Debug(7): debug-level messages

Figure 4-2-20 Console Log Configuration

53

4.2.5.5 Event Log

This allows logging to any serial device attached to the host.

Configurable Data

。 Admin Status -A log that is "Disabled" shall not log messages. A log that is "Enabled" shall log messages. Enable or

Disable logging by selecting the corresponding line on the pulldown entry field.

。 Severity Filter - A log records messages equal to or above a configured severity threshold. Select the severity option

by selecting the corresponding line on the pulldown entry field. These severity levels have been enumerated below:

-Emergency (0): system is unusable

-Alert (1): action must be taken immediately

-Critical (2): critical conditions

-Error (3): error conditions

-Warning (4): warning conditions

-Notice(5): normal but significant conditions

-Informational(6): informational messages

-Debug(7): debug-level messages

Figure 4-2-21 Event Log

4.2.5.6 Hosts Configuration

Figure 4-2-22 Host Configuration

Configurable Data

。 Host - This is a list of the hosts that have been configured for syslog. Select a host for changing the configuration or

choose to add a new hosts from the drop down list.

。 IP Address - This is the ip address of the host configured for syslog.

54

。 Port -This is the port on the host to which syslog messages are sent. The default port is 514. The default port is 514.

Specify the port in the text field.

。 Severity Filter -A log records messages equal to or above a configured severity threshold. Select the severity option

by selecting the corresponding line on the pulldown entry field. These severity levels have been enumerated below:

-Emergency (0): system is unusable

-Alert (1): action must be taken immediately

-Critical (2): critical conditions

-Error (3): error conditions

-Warning (4): warning conditions

-Notice(5): normal but significant conditions

-Informational(6): informational messages

-Debug(7): debug-level messages

Non Configurable Data

。 Status -This specifies wether the host has been configured to be actively logging or not.

Command Buttons

。 Submit - Update the switch with the values you entered.
。 Refresh - Refetch the database and display it again starting with the first entry in the table.
。 Delete - Delete a configured host.

4.2.5.7 Persistent Log Configuration

A persistent log is a log that is stored in persistent storage. Persistent storage survives across platform reboots. The first log

type is the system startup log. The system startup log stores the first N messages received after system reboot. The second log

type is the system operation log. The system operation log stores the last N messages received during system operation.

Figure 4-2-23 Persistent Log Configuration

Configurable Data

。 Admin Status - A log that is "Disabled" shall not log messages. A log that is "Enabled" shall log messages. Enable

or Disable logging by selecting the corresponding line on the pulldown entry field.

55

。 Severity Filter - A log records messages equal to or above a configured severity threshold. Select the severity

option by selecting the corresponding line on the pulldown entry field. These severity levels have been enumerated

below:

-Emergency (0): system is unusable

-Alert (1): action must be taken immediately

-Critical (2): critical conditions

-Error (3): error conditions

-Warning (4): warning conditions

-Notice(5): normal but significant conditions

-Informational(6): informational messages

-Debug(7): debug-level messages

Command Buttons

。 Submit - Update the switch with the values you entered.

4.2.5.8 Persistent Log

This help message applies to the format of all logged messages which are displayed for the buffered log, persistent log or

console log.

Figure 4-2-24 Persistent Logs

Format of the messages

。 <15>Aug 24 05:34:05 STK0 MSTP[2110]: mspt_api.c(318) 237 %% Interface 12 transitioned to root state on

message age timer expiry

-The above example indicates a user-level message (1) with severity 7 (debug) on a system that is not stack and

generated by component MSTP running in thread id 2110 on Aug 24 05:34:05 by line 318 of file mstp_api.c. This

is the 237th message logged. Messages logged to a collector or relay via syslog have an identical format to the

above message.

Command Buttons

。 Refresh - Refresh the page with the latest log entries.

56

4.2.5.9 Syslog Configuration

Figure 4-2-25 Syslog Configuration

Configurable Data

。 Admin Status -For Enabling and Disabling logging to configured syslog hosts. Setting this to disable stops logging to

all syslog hosts. Disable means no messages will be sent to any collector/relay. Enable means messages will be sent

to configured collector/relays using the values configured for each collector/relay. Enable/Disable the operation of the

syslog function by selecting the corresponding line on the pulldown entry field.

。 Local UDP Port This is the port on the local host from which syslog messages are sent. The default port is XXX. The

default port is 514. Specify the local port in the text field.

Non-Configurable Data

。 Messages Relayed - The count of syslog messages relayed.
。 Messages Ignored - The count of syslog messages ignored.

Command Buttons

。 Submit - Update the switch with the values you entered.

Refresh - Refetch the database and display it again starting with the first entry in the table.

4.2.6 Port

4.2.7.1 Configuration

Use this page to configure the parameters of the distinct port.

Selection Criteria

。 Slot.Port - Selects the interface for which data is to be displayed or configured.

Configurable Data

。 STP Mode - The Select the Spanning Tree Protocol Administrative Mode for the port or LAG. The possible values

are:

¾ Enable - select this to enable the Spanning Tree Protocol for this port.
¾ Disable - select this to disable the Spanning Tree Protocol for this port.

。 Admin Mode - Use the pull-down menu to select the Port control administration state. You must select enable if

57

you want the port to participate in the network. The factory default is enabled.

。 LACP Mode - Selects the Link Aggregation Control Protocol administration state. The mode must be enabled in

order for the port to participate in Link Aggregation. May be enabled or disabled by selecting the corresponding

line on the pull-down entry field. The factory default is enabled.

。 Physical Mode - Use the pull-down menu to select the port's speed and duplex mode. If you select auto the

duplex mode and speed will be set by the auto-negotiation process. Note that the port's maximum capability (full

duplex and 100 Mbps) will be advertised. Otherwise, your selection will determine the port's duplex mode and

transmission rate. The factory default is auto. The selection when applied against the "All" option in Slot.Port is

applied to all applicable interfaces only.

。 Link Trap - This object determines whether or not to send a trap when link status changes. The factory default is

enabled.

。 Maximum Frame Size - The maximum Ethernet frame size the interface supports or is configured, including

Ethernet header, CRC, and payload. (1518 to 1600). The default maximum frame size is 1518.

Non-Configurable Data

。 Port Type - For normal ports this field will be blank. Otherwise the possible values are:

¾ Mon - the port is a monitoring port. Look at the Port Monitoring screens for more information.
¾ LAG - the port is a member of a Link Aggregation trunk. Look at the LAG screens for more information.

。 Physical Status - Indicates the port speed and duplex mode.
。 Link Status - Indicates whether the Link is up or down.
。 ifIndex - The ifIndex of the interface table entry associated with this port.

Figure 4-2-26 Port Configuration

4.2.6.2 Summary

This screen displays the status for all ports in the box.

58

Figure 4-2-27 Port Summary

Selection Criteria

。 MST ID - Select the Multiple Spanning Tree instance ID from the list of all currently configured MST ID's to

determine the values displayed for the Spanning Tree parameters. Changing the selected MST ID will generate a

screen refresh. If Spanning Tree is disabled this will be a static value, CST, instead of a selector.

Non-Configurable Port Status Data

。 Slot.Port - Identifies the port
。 Port Type - For normal ports this field will be blank. Otherwise the possible values are:

¾ Mon - this port is a monitoring port. Look at the Port Monitoring screens for more information.
¾ LAG - the port is a member of a Link Aggregation trunk. Look at the LAG screens for more information.

。 STP Mode - The Spanning Tree Protocol Administrative Mode associated with the port or LAG. The possible

values are:

¾ Enable - spanning tree is enabled for this port.
¾ Disable - spanning tree is disabled for this port.

。 Forwarding State - The port's current state Spanning Tree state. This state controls what action a port takes on

receipt of a frame. If the bridge detects a malfunctioning port it will place that port into the broken state. The other

five states are defined in IEEE 802.1D:

¾ Disabled
¾ Blocking
¾ Listening
¾ Learning
¾ Forwarding
¾ Broken

59

。 Port Role - Each MST Bridge Port that is enabled is assigned a Port Role for each spanning tree. The port role will

be one of the following values: Root Port, Designated Port, Alternate Port, Backup Port, Master Port or Disabled

Port.

。 Admin Mode - The Port control administration state. The port must be enabled in order for it to be allowed into the

network. The factory default is enabled.

。 LACP Mode - Indicates the Link Aggregation Control Protocol administration state. The mode must be enabled in

order for the port to participate in Link Aggregation.

。 Physical Mode - Indicates the port speed and duplex mode. In auto-negotiation mode the duplex mode and speed

are set from the auto-negotiation process.

。 Physical Status - Indicates the port speed and duplex mode.
。 Link Status - Indicates whether the Link is up or down.
。 Link Trap - Indicates whether or not the port will send a trap when link status changes.
。 ifIndex - Indicates the ifIndex of the interface table entry associated with this port.

4.2.6.3 Port Mirroring

Use this page to configure the port mirror function.

Figure 4-2-29 Multiple Port Mirroring

Configurable Data

。 Session ID - A session ID or "All Sessions" option may be selected. By default the First Session is selected.
。 Session Mode - Specifies the Session Mode for a selected session ID. By default Session Mode is enabled.
。 Source Port(s) - Specifies the configured port(s) as mirrored port(s). Traffic of the configured port(s) is sent to the

probe port.

。 Destination Port - Acts as a probe port and will recieve all the traffic from configured mirrored port(s). Default value

is blank.

Command Buttons

。 Submit - Send the updated screen to the switch and cause the changes to take effect on the switch.

60

。 Delete - Remove the selected session configuration.

4.2.6.4 Periodic Port Mirroring

Use this page to configure the periodic port mirroring.

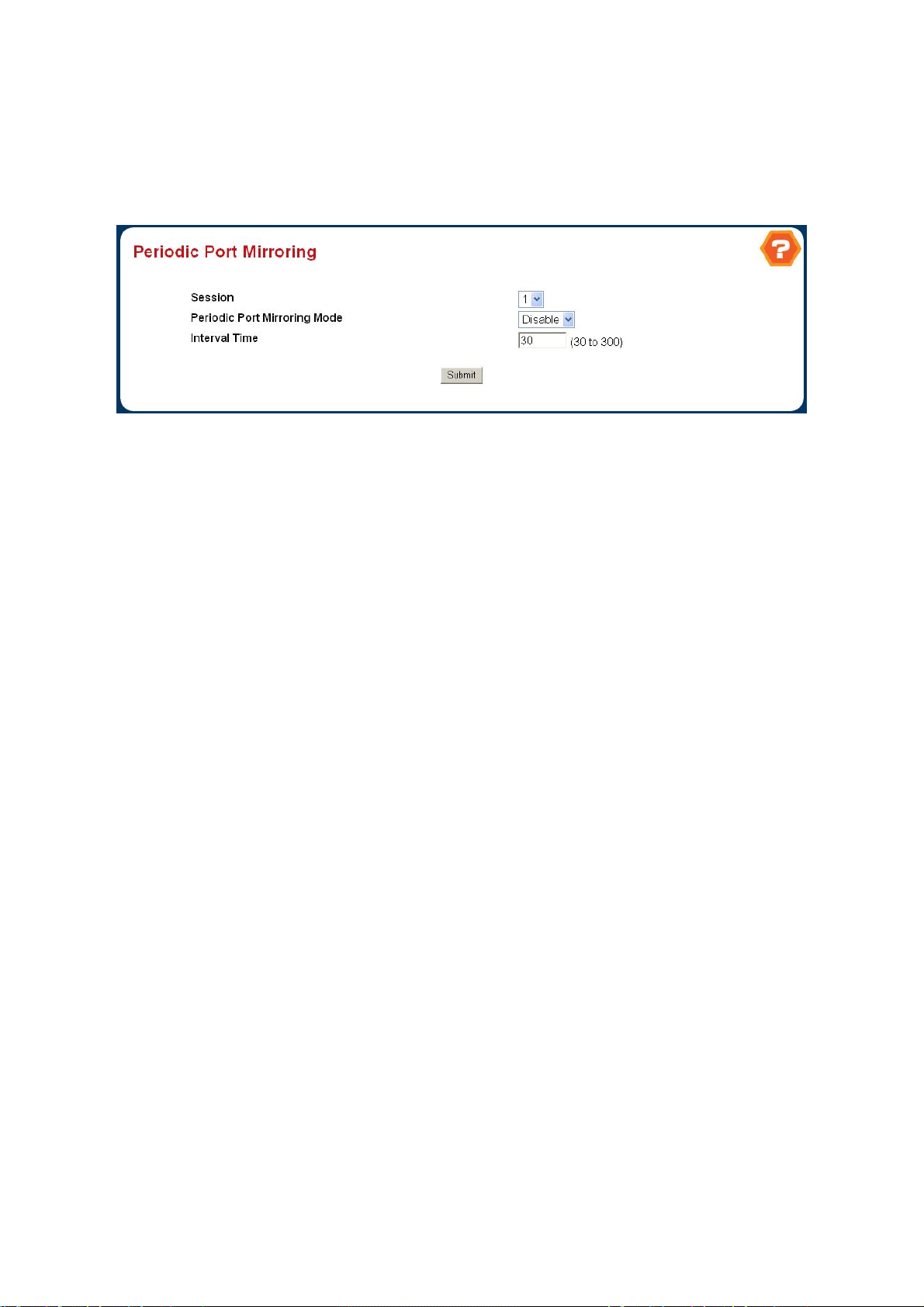

Figure 4-2-30 Periodic Port Mirroring

Selection Criteria

。 Session ID - A session ID can be selected. By default the First Session is selected.

Configurable Data

。 Peroidic Port Mirroring Mode - Specifies the Periodic Port Mirroring Mode for a selected session ID. By default

Periodic Port Mirroring Mode is Disabled.

。 Interval Time - Specifies the periodic port mirroring time interval in seconds.Default value is 30. Valid Range is (30

to 300).

Non-Configurable Data

。 Source Port - Specifies the mirrored port. This field is only visible when periodic port mirroring mode is enabled.

Source port changes periodically as per specified Interval Time.

Command Buttons

。 Submit - Send the updated screen to the switch and cause the changes to take effect on the switch.

61

4.2.6.5 Double VLAN Tunneling

Use this page to configure the Doubble VLAN Tunneling.

Figure 4-2-31 Double VLAN Tunneling

Selection Criteria

。 Slot/Port - Select the physical interface for which you want to display or configure data. Select 'All' to set the

parameters for all ports to same values.

Configurable Data

。 Mode - This specifies the administrative mode via which Double VLAN Tagging can be enabled or disabled. The

default value for this is Disabled.

。 Customer ID - This is a 12 bit customer ID which will be used as the last 12 bits of the DVlan tag. The valid range for

a customer Id is (0 to 4095). The default customer Id is 0 .

。 EtherType - The two-byte hex EtherType to be used as the first 16 bits of the DVlan tag.

¾ 802.1Q Tag - Commonly used tag representing 0x8100
¾ vMAN Tag - Commonly used tag representing 0x88A8
¾ Custom Tag - Configure the EtherType in any range from (0 to 65535)

Command Buttons

。 Submit - Update the switch with the values on this screen. If you want the switch to retain the new values across a

power cycle, you must perform a save.

62

4.2.6.7 Double VLAN Tunneling Summary

Figure 4-2-32 Double VLAN Tunneling Summary

Non-Configurable Data

。 Slot/Port - The physical interface for which data is being displayed.
。 Mode - This specifies the administrative mode via which Double VLAN Tagging can be enabled or disabled. The

default value for this is Disabled.

。 Customer ID - This is the 12 bit customer ID which will be used as the last 12 bits of the DVlan tag. The valid range

for a customer Id is (0 to 4095). The default customer Id is 0 .

。 EtherType - The two-byte hex EtherType to be used as the first 16 bits of the DVlan tag.

¾ 802.1Q Tag - Commonly used tag representing 0x8100
¾ vMAN Tag - Commonly used tag representing 0x88A8
¾ Custom Tag - Configure the EtherType in any range from (0 to 65535)

Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.

63

4.2.7 SNMP

4.2.7.1 Community Configuration

By default, two SNMP Communities exist:

。 private, with 'Read/Write' privileges and status set to enable
。 public, with 'Read Only' privileges and status set to enable

These are well-known communities; you can use this menu to change the defaults or to add other communities. Only the

communities that you define using this menu will have access to the switch using the SNMPv1 and SNMPv2c protocols. Only

those communities with read-write level access will have access to this menu via SNMP.

You should use this menu when you are using the SNMPv1 and SNMPv2c protocol: if you want to use SNMP v3 you should use

the User Accounts menu.

Figure 4-2-33 SNMP Community

Configurable Data

。 SNMP Community Name - You can use this screen to reconfigure an existing community, or to create a new one.

Use this pull-down menu to select one of the existing community names, or select 'Create' to add a new one. A

valid entry is a case-sensitive string of up to 16 characters.

。 Client IP Address - Taken together, the Client IP Address and Client IP Mask denote a range of IP addresses from

which SNMP clients may use that community to access this device. If either (IP Address or IP Mask) value is

0.0.0.0, access is allowed from any IP address. Otherwise, every client's IP address is ANDed with the mask, as is

the Client IP Address, and, if the values are equal, access is allowed. For example, if the Client IP Address and

Client IP Mask parameters are 192.168.1.0/255.255.255.0, then any client whose IP address is 192.168.1.0

through 192.168.1.255 (inclusive) will be allowed access. To allow access from only one station, use a Client IP

Mask value of 255.255.255.255, and use that machine's IP address for Client IP Address.

。 Client IP Mask - Taken together, the Client IP Address and Client IP Mask denote a range of IP addresses from

64

which SNMP clients may use that community to access this device. If either (IP Address or IP Mask) value is

0.0.0.0, access is allowed from any IP address. Otherwise, every client's IP address is ANDed with the mask, as is

the Client IP Address, and, if the values are equal, access is allowed. For example, if the Client IP Address and

Client IP Mask parameters are 192.168.1.0/255.255.255.0, then any client whose IP address is 192.168.1.0

through 192.168.1.255 (inclusive) will be allowed access. To allow access from only one station, use a Client IP

Mask value of 255.255.255.255, and use that machine's IP address for Client IP Address.

。 Access Mode - Specify the access level for this community by selecting Read/Write or Read Only from the

pull-down menu.

。 Status - Specify the status of this community by selecting Enable or Disable from the pull-down menu. If you select

enable, the Community Name must be unique among all valid Community Names or the set request will be

rejected. If you select disable, the Community Name will become invalid.

4.2.7.2 Trap Receiver Configuration

This menu will display an entry for every active Trap Receiver.

Figure 4-2-34 SNMP Trap Receiver

。 SNMP Community Name - Enter the community string for the SNMP trap packet to be sent to the trap manager.

This may be up to 16 characters and is case sensitive.

。 IP Address - Enter the IP address to receive SNMP traps from this device. Enter 4 numbers between 0 and 255

separated by periods.

。 Status - Select the receiver's status from the pulldown menu:
。 Enable - send traps to the receiver
。 Disable - do not send traps to the receiver.

65

4.2.7.3 Supported MIBS

This is a list of all the MIBs supported by the switch.

。 Name - The RFC number if applicable and the name of the MIB.
。 Description - The RFC title or MIB description.
。 Refresh - Update the data.

Figure 4-2-35 SNMP Supported MIBs

4.2.9 Statistics

4.2.9.1 Switch Detail

This page shows the detail information of the switch, including the following data:

。 ifIndex - This object indicates the ifIndex of the interface table entry associated with the Processor of this switch.
。 Octets Received - The total number of octets of data received by the processor (excluding framing bits but

including FCS octets).

。 Unicast Packets Received - The number of subnetwork-unicast packets delivered to a higher-layer protocol.
。 Multicast Packets Received - The total number of packets received that were directed to a multicast address.

Note that this number does not include packets directed to the broadcast address.

。 Broadcast Packets Received - The total number of packets received that were directed to the broadcast address.

Note that this does not include multicast packets.

。 Receive Packets Discarded - The number of inbound packets which were chosen to be discarded even though

no errors had been detected to prevent their being deliverable to a higher-layer protocol. A possible reason for

discarding a packet could be to free up buffer space.

。 Octets Transmitted - The total number of octets transmitted out of the interface, including framing characters.
。 Packets Transmitted Without Errors - The total number of packets transmitted out of the interface.
。 Unicast Packets Transmitted - The total number of packets that higher-level protocols requested be transmitted

to a subnetwork-unicast address, including those that were discarded or not sent.

。 Multicast Packets Transmitted - The total number of packets that higher-level protocols requested be transmitted

66

to a Multicast address, including those that were discarded or not sent.

。 Broadcast Packets Transmitted - The total number of packets that higher-level protocols requested be

transmitted to the Broadcast address, including those that were discarded or not sent.

。 Transmit Packets Discarded - The number of outbound packets which were chosen to be discarded even though

no errors had been detected to prevent their being deliverable to a higher-layer protocol. A possible reason for

discarding a packet could be to free up buffer space.

。 Most Address Entries Ever Used - The highest number of Forwarding Database Address Table entries that have

been learned by this switch since the most recent reboot.

。 Address Entries in Use - The number of Learned and static entries in the Forwarding Database Address Table for

this switch.

。 Maximum VLAN Entries - The maximum number of Virtual LANs (VLANs) allowed on this switch.
。 Most VLAN Entries Ever Used - The largest number of VLANs that have been active on this switch since the last

reboot.

。 Static VLAN Entries - The number of presently active VLAN entries on this switch that have been created

statically.

。 Dynamic VLAN Entries - The number of presently active VLAN entries on this switch that have been created by

GVRP registration.

。 VLAN Deletes - The number of VLANs on this switch that have been created and then deleted since the last

reboot.

。 Time Since Counters Last Cleared - The elapsed time, in days, hours, minutes, and seconds, since the statistics

for this switch were last cleared.

Figure 4-2-36 Switch Detailed Statistics

67

4.2.9.2 Switch Summary

。 ifIndex - This object indicates the ifIndex of the interface table entry associated with the Processor of this switch.
。 Broadcast Packets Received - The total number of packets received that were directed to the broadcast address.

Note that this does not include multicast packets.

。 Packets Received With Error - The number of inbound packets that contained errors preventing them from being

deliverable to a higher-layer protocol.

。 Packets Transmitted Without Errors - The total number of packets transmitted out of the interface.
。 Broadcast Packets Transmitted - The total number of packets that higher-level protocols requested to be

transmitted to the Broadcast address, including those that were discarded or not sent.

。 Transmit Packet Errors - The number of outbound packets that could not be transmitted because of errors.
。 Address Entries Currently in Use - The total number of Forwarding Database Address Table entries now active

on the switch, including learned and static entries.

。 VLAN Entries Currently in Use - The number of VLAN entries presently occupying the VLAN table.
。 Time Since Counters Last Cleared - The elapsed time, in days, hours, minutes, and seconds since the statistics

for this switch were last cleared.

Figure 4-2-37 Switch Summary Statistics

68

4.2.8.3 Port Detailed

Selection Criteria

。 Slot.Port - Selects the interface for which data is to be displayed or configured.

Non-Configurable Data

。 ifIndex - This object indicates the ifIndex of the interface table entry associated with this port on an adapter.
。 Packets RX and TX 64 Octets - The total number of packets (including bad packets) received or transmitted that

were 64 octets in length (excluding framing bits but including FCS octets).

。 Packets RX and TX 65-127 Octets - The total number of packets (including bad packets) received or transmitted

that were between 65 and 127 octets in length inclusive (excluding framing bits but including FCS octets).

。 Packets RX and TX 128-255 Octets - The total number of packets (including bad packets) received or transmitted

that were between 128 and 255 octets in length inclusive (excluding framing bits but including FCS octets).

。 Packets RX and TX 256-511 Octets - The total number of packets (including bad packets) received or transmitted

that were between 256 and 511 octets in length inclusive (excluding framing bits but including FCS octets).

。 Packets RX and TX 512-1023 Octets - The total number of packets (including bad packets) received or

transmitted that were between 512 and 1023 octets in length inclusive (excluding framing bits but including FCS

octets).

。 Packets RX and TX 1024-1518 Octets - The total number of packets (including bad packets) received or

transmitted that were between 1024 and 1518 octets in length inclusive (excluding framing bits but including FCS

octets).

。 Packets RX and TX 1519-1522 Octets - The total number of packets (including bad packets) received or

transmitted that were between 1519 and 1522 octets in length inclusive (excluding framing bits but including FCS

octets).

。 Packets RX and TX 1523-2047 Octets - The total number of packets (including bad packets) received or

transmitted that were between 1523 and 2047 octets in length inclusive (excluding framing bits but including FCS

octets).

。 Packets RX and TX 2048-4095 Octets - The total number of packets (including bad packets) received or

transmitted that were between 2048 and 4095 octets in length inclusive (excluding framing bits but including FCS

octets).

。 Packets RX and TX 4096-9216 Octets - The total number of packets (including bad packets) received or

transmitted that were between 4096 and 9216 octets in length inclusive (excluding framing bits but including FCS

octets).

。 Octets Received - The total number of octets of data (including those in bad packets) received on the network

(excluding framing bits but including FCS octets). This object can be used as a reasonable estimate of Ethernet

utilization. If greater precision is desired, the etherStatsPkts and etherStatsOctets objects should be sampled

before and after a common interval.

。 Packets Received > 1522 Octets - The total number of packets received that were longer than 1522 octets

(excluding framing bits, but including FCS octets) and were otherwise well formed.

。 Total Packets Received Without Errors - The total number of packets received that were without errors.
。 Unicast Packets Received - The number of subnetwork-unicast packets delivered to a higher-layer protocol.
。 Multicast Packets Received - The total number of good packets received that were directed to a multicast

69

address. Note that this number does not include packets directed to the broadcast address.

。 Broadcast Packets Received - The total number of good packets received that were directed to the broadcast

address. Note that this does not include multicast packets.

。 Tot al Packet s Received with MAC Errors - The total number of inbound packets that contained errors preventing

them from being deliverable to a higher-layer protocol.

。 Jabbers Received - The total number of packets received that were longer than 1518 octets (excluding framing

bits, but including FCS octets), and had either a bad Frame Check Sequence (FCS) with an integral number of

octets (FCS Error) or a bad FCS with a non-integral number of octets (Alignment Error). Note that this definition of

jabber is different than the definition in IEEE-802.3 section 8.2.1.5 (10BASE5) and section 10.3.1.4 (10BASE2).

These documents define jabber as the condition where any packet exceeds 20 ms. The allowed range to detect

jabber is between 20 ms and 150 ms.

。 Fragments/Undersize Received - The total number of packets received that were less than 64 octets in length

(excluding framing bits but including FCS octets).

。 Alignment Errors - The total number of packets received that had a length (excluding framing bits, but including

FCS octets) of between 64 and 1518 octets, inclusive, but had a bad Frame Check Sequence (FCS) with a

non-integral number of octets.

。 Rx FCS Errors - The total number of packets received that had a length (excluding framing bits, but including FCS

octets) of between 64 and 1518 octets, inclusive, but had a bad Frame Check Sequence (FCS) with an integral

number of octets

。 Overruns - The total number of frames discarded as this port was overloaded with incoming packets, and could

not keep up with the inflow.

。 Total Received Packets Not Forwarded - A count of valid frames received which were discarded (i.e. filtered) by

the forwarding process.

。 Local Traffic Frames - The total number of frames dropped in the forwarding process because the destination

address was located off of this port.

。 802.3x Pause Frames Received - A count of MAC Control frames received on this interface with an opcode

indicating the PAUSE operation. This counter does not increment when the interface is operating in half-duplex

mode.

。 Unacceptable Frame Type - The number of frames discarded from this port due to being an unacceptable frame

type.

。 Multicast Tree Viable Discards - The number of frames discarded when a lookup in the multicast tree for a VLAN

occurs while that tree is being modified.

。 Reserved Address Discards - The number of frames discarded that are destined to an IEEE 802.1 reserved

address and are not supported by the system.

。 Broadcast Storm Recovery - The number of frames discarded that are destined for FF:FF:FF:FF:FF:FF when

Broadcast Storm Recovery is enabled.

。 CFI Discards - The number of frames discarded that have CFI bit set and the addresses in RIF are in

non-canonical format.

。 Upstream Threshold - The number of frames discarded due to lack of cell descriptors available for that packet's

priority level.

70

。 Total Packets Transmitted (Octets) - The total number of octets of data (including those in bad packets)

transmitted on the network (excluding framing bits but including FCS octets). This object can be used as a

reasonable estimate of Ethernet utilization. If greater precision is desired, the etherStatsPkts and etherStatsOctets

objects should be sampled before and after a common interval.

。 Packets Transmitted 1523-2047 Octets - The total number of packets (including bad packets) received that were

between 1523 and 2047 octets in length inclusive (excluding framing bits but including FCS octets).

。 Packets Transmitted 2048-4095 Octets - The total number of packets (including bad packets) received that were

between 2048 and 4095 octets in length inclusive (excluding framing bits but including FCS octets).

。 Packets Transmitted 4096-9216 Octets - The total number of packets (including bad packets) received that were

between 4096 and 9216 octets in length inclusive (excluding framing bits but including FCS octets).

。 Maximum Frame Size - The maximum Ethernet frame size the interface supports or is configured, including

Ethernet header, CRC, and payload. (1518 to 1600). The default maximum frame size is 1518.

。 Total Packets Transmitted Successfully - The number of frames that have been transmitted by this port to its

segment.

。 Unicast Packets Transmitted - The total number of packets that higher-level protocols requested be transmitted

to a subnetwork-unicast address, including those that were discarded or not sent.

。 Multicast Packets Transmitted - The total number of packets that higher-level protocols requested be transmitted

to a Multicast address, including those that were discarded or not sent.

。 Broadcast Packets Transmitted - The total number of packets that higher-level protocols requested be

transmitted to the Broadcast address, including those that were discarded or not sent.

。 Total Transmit Errors - The sum of Single, Multiple, and Excessive Collisions.
。 Tx FCS Errors - The total number of packets transmitted that had a length (excluding framing bits, but including

FCS octets) of between 64 and 1518 octets, inclusive, but had a bad Frame Check Sequence (FCS) with an

integral number of octets

。 Tx Oversized - The total number of frames that exceeded the max permitted frame size. This counter has a max

increment rate of 815 counts per sec at 10 Mb/s.

。 Underrun Errors - The total number of frames discarded because the transmit FIFO buffer became empty during

frame transmission.

。 Total Transmit Packets Discarded - The sum of single collision frames discarded, multiple collision frames

discarded, and excessive frames discarded.

。 Single Collision Frames - A count of the number of successfully transmitted frames on a particular interface for

which transmission is inhibited by exactly one collision.

。 Multiple Collision Frames - A count of the number of successfully transmitted frames on a particular interface for

which transmission is inhibited by more than one collision.

。 Excessive Collision Frames - A count of frames for which transmission on a particular interface fails due to

excessive collisions.

。 Port Membership Discards - The number of frames discarded on egress for this port due to egress filtering being

enabled.

。 STP BPDUs Received - Number of STP BPDUs received at the selected port.
。 STP BPDUs Transmitted - Number of STP BPDUs transmitted from the selected port.

71

。 RSTP BPDUs Received - Number of RSTP BPDUs received at the selected port.
。 RSTP BPDUs Transmitted - Number of RSTP BPDUs transmitted from the selected port.
。 MSTP BPDUs Received - Number of MSTP BPDUs received at the selected port.
。 MSTP BPDUs Transmitted - Number of MSTP BPDUs transmitted from the selected port.
。 802.3x Pause Frames Transmitted - A count of MAC Control frames transmitted on this interface with an opcode

indicating the PAUSE operation. This counter does not increment when the interface is operating in half-duplex

mode.

。 GVRP PDUs Received - The count of GVRP PDUs received in the GARP layer.
。 GVRP PDUs Transmitted - The count of GVRP PDUs transmitted from the GARP layer.

。 GVRP Failed Registrations - The number of times attempted GVRP registrations could not be completed.
。 GMRP PDUs Received - The count of GMRP PDUs received from the GARP layer.
。 GMRP PDUs Transmitted - The count of GMRP PDUs transmitted from the GARP layer.
。 GVRP Failed Registrations - The number of times attempted GMRP registrations could not be completed.
。 Time Since Counters Last Cleared - The elapsed time, in days, hours, minutes, and seconds since the statistics

for this port were last cleared.

Figure 4-2-38 Port Detailed Statistic

4.2.8.4 Port Summary

Selection Criteria

。 Slot.Port - Selects the interface for which data is to be displayed or configured.

Non-Configurable Data

。 ifIndex - This object indicates the ifIndex of the interface table entry associated with this port on an adapter.
。 Total Packets Received Without Errors - The total number of packets received that were without errors.
。 Packets Received With Error - The number of inbound packets that contained errors preventing them from being

deliverable to a higher-layer protocol.

72

。 Broadcast Packets Received - The total number of good packets received that were directed to the broadcast

address. Note that this does not include multicast packets.

。 Packets Transmitted Without Errors - The number of frames that have been transmitted by this port to its

segment.

。 Transmit Packet Errors - The number of outbound packets that could not be transmitted because of errors.
。 Collision Frames - The best estimate of the total number of collisions on this Ethernet segment.
。 Time Since Counters Last Cleared - The elapsed time, in days, hours, minutes, and seconds since the statistics

for this port were last cleared.

Figure 4-2-39 Port Summary Statistics

4.2.8.5 CPU Statistics

This page shows the system loading information, including the following fields:

Figure 4-2-40 CPU Statistics

Non-Configurable Data

73

。 Total Memory - The total RAM memory available with the CPU.
。 Used Memory - The RAM memory already used by CPU.
。 Free Memory - The free memory available with the CPU.
。 % CPU Utilization - % of CPU capacity used over time.

Command Buttons

。 Refresh - Refresh the data on the screen with the present state of the data in the switch.

4.2.9 System Utilities

4.2.9.1 Save All Applied Changes

Saving all applied changes will cause all changes to configuration panels that were applied, but not saved, to be saved, thus

retaining their new values across a system reboot.

Figure 4-2-41 Save All Applied Changes

74

4.2.9.2 System Reset

Reboot the switch. Any configuration changes you have made since the last time you issued a save will be lost. You will be

shown a confirmation screen after you select the button.

Figure 4-2-42 System Reset

4.2.9.3 Reset Configuration to Default

Have all configuration parameters reset to their factory default values. All changes you have made will be lost, even if you have

issued a save. You will be shown a confirmation screen after you select the button.

Figure 4-2-43 Reset Configuration to Default

75

4.2.9.4 Reset Password to Default

Reset all of the system login passwords to their default values. If you want the switch to retain the new values across a power

cycle, you must perform a save.

Figure 4-2-44 Reset Password to Default

4.2.9.5 Download File To Switch

Use this menu to download a file to the switch.

Configurable Data

。 File Type - Specify what type of file you want to download:

¾ Code - specify code when you want to upgrade the operational flash.
¾ Configuration - specify configuration when you want to update the switch's configuration. If the file has

errors the update will be stopped.

¾ SSH-1 RSA Key File - SSH-1 Rivest-Shamir-Adleman (RSA) Key File
¾ SSH-2 RSA Key PEM File - SSH-2 Rivest-Shamir-Adleman (RSA) Key File (PEM Encoded)
¾ SSH-2 DSA Key PEM File - SSH-2 Digital Signature Algorithm (DSA) Key File (PEM Encoded)
¾ SSL Trusted Root Certificate PEM File - SSL Trusted Root Certificate File (PEM Encoded)
¾ SSL Server Certificate PEM File - SSL Server Certificate File (PEM Encoded)
¾ SSL DH Weak Encryption Parameter PEM File - SSL Diffie-Hellman Weak Encryption Parameter File

(PEM Encoded)

¾ SSL DH Strong Encryption Parameter PEM File - SSL Diffie-Hellman Strong Encryption Parameter File

(PEM Encoded)

The factory default is code.

Note that to download SSH key files SSH must be administratively disabled and there can be no active SSH sessions.

。 TFTP Server IP Address - Enter the IP address of the TFTP server. The factory default is 0.0.0.0.

76

。 TFTP File Path - Enter the path on the TFTP server where the selected file is located. You may enter up to 32

characters. The factory default is blank.

。 TFTP File Name - Enter the name on the TFTP server of the file you want to download. You may enter up to 32

characters. The factory default is blank.

。 Start File Transfer - To initiate the download you need to check this box and then select the submit button.

Figure 4-2-45 Download File To Switch

4.2.9.6 Upload File From Switch

Use this menu to upload a configuration or log file from the switch.

77

Figure 4-2-46 Upload File from Switch

Configurable Data

。 File Type - Specify the type of file you want to upload. The available options are Configuration, Error Log, System

Trace, and Trap Log. The factory default is Error Log.

。 TFTP Server IP Address - Enter the IP address of the TFTP server. The factory default is 0.0.0.0
。 TFTP File Path - Enter the path on the TFTP server where you want to put the file being uploaded. You may enter

up to 32 characters. The factory default is blank.

。 TFTP File Name - Enter the name you want to give the file being uploaded. You may enter up to 32 characters.

The factory default is blank.

。 Start File Transfer - To initiate the upload you need to check this box and then select the submit button.

4.2.9.7 Ping

Use this screen to tell the switch to send a Ping request to a specified IP address. You can use this to check whether the switch

can communicate with a particular IP station. Once you click the Submit button, the switch will send three pings and the results

will be displayed below the configurable data. If a reply to the ping is not received, you will see No Reply Received from IP

xxx.xxx.xxx.xxx, otherwise you will see Reply received from IP xxx.xxx.xxx.xxx : (send count = 3, receive count = n).

Figure 4-2-47 Ping

Configurable Data

。 IP Address - Enter the IP address of the station you want the switch to ping. The initial value is blank. The IP

Address you enter is not retained across a power cycle.

78

4.2.10 Trap Management

4.2.10.1 Trap Flags

Use this menu to specify which traps you want to enable. When the condition identified by an active trap is encountered by the

switch a trap message will be sent to any enabled SNMP Trap Receivers, and a message will be written to the trap log.

Configurable Data

。 Authentication - Enabled or disable activation of authentication failure traps by selecting the corresponding line

on the pull-down entry field. The factory default is enabled.

。 Broadcast Storm Flag - This field will only be displayed if Broadcast storm feature is supported. Enabled or

disable activation of broadcast storm traps by selecting the corresponding line on the pull-down entry field. The

factory default is enabled.

。 Link Up/Down - Enabled or disable activation of link status traps by selecting the corresponding line on the

pull-down entry field. The factory default is enabled.

。 Multiple Users - Enabled or disable activation of multiple user traps by selecting the corresponding line on the

pull-down entry field. The factory default is enabled. This trap is triggered when the same user ID is logged into the

switch more than once at the same time (either via telnet or the serial port).

。 Spanning Tree - Enabled or disable activation of spanning tree traps by selecting the corresponding line on the

pull-down entry field. The factory default is enabled.

Figure 4-2-48 Trap Flags

4.2.10.2 Trap Log

This screen lists the entries in the trap log. The information can be retrieved as a file by using System Utilities, Upload File from

Switch.

Non-Configurable Data

。 Number of Traps since last reset - The number of traps that have occurred since the last time the switch was

79

reset.

。 Number of Traps since log last viewed - The number of traps that have occurred since the traps were last

displayed. Displaying the traps by any method (terminal interface display, Web display, upload file from switch etc.)

will cause this counter to be cleared to 0.

。 Log - The sequence number of this trap.
。 System Up Time - The time at which this trap occurred, expressed in days, hours, minutes and seconds since the

last reboot of the switch.

。 Trap - Information identifying the trap.

Figure 4-2-49 Trap Log

80

4.2.11 DHCP Server

4.2.11.1 Global Configura tion

Figure 4-2-50 DHCP Server Global Configuration

Configurable Data

。 Admin Mode - Specifies if the DHCP Service is to be Enabled or Disabled. Default value is Disable.
。 Ping Packet Count - Specifies the number of packets a server sends to a Pool address to check for duplication as

part of a ping operation. Default value is 2. Valid Range is (0, 2 to 10). Setting the value to 0 will disable the function.

。 Conflict Logging Mode - Specifies if conflict logging on a DHCP Server is to be Enabled or Disabled. Default value

is Enable.

。 Bootp Automatic Mode - Specifies if Bootp for dynamic pools is to be Enabled or Disabled. Default value is

Disable.

。 Add Excluded Addresses - Specifies the IP addresses that the server should not assign to the client.

¾ From - Specifies the low address in case the user wants to exclude a range of addresses. Specifies the

address to be Excluded in case the user wants to exclude a single address.

¾ To - Specifies the high address in case the user wants to exclude a range of addresses. To exclude a single

addres you may enter the same IP address as specified in From or leave as 0.0.0.0.

。 Delete Excluded Addresses - Lists the Excluded Address ranges with a checkbox against each. One or more

checkbox(es) can be selected (checked) in order to delete the listed Excluded Addresses.

Command Buttons

。 Submit - Sends the updated configuration to the switch. Configuration changes take effect immediately.

81

4.2.11.2 Pool Configuration

DHCP Server Pool Configuration

Figure 4-2-51 DHCP Server Pool Configuration

Configurable Data

。 Pool Name* - For a user with readwrite permission, this field would show names of all the existing pools along with

an additional option "Create". When the user selects "Create" another text box "Pool Name" appears where the user

may enter name for the Pool to be created.For a user with readonly permission, this field would show names of the

existing pools only.

。 Pool Name - This field appears when the user with read-write permission has selected "Create" in the Drop Down

list against Pool Name*.Specifies the Name of the Pool to be created. Pool Name can be upto 31 characters in

length.

。 Type of Binding - Specifies the type of binding for the pool.

• Unallocated

• Dynamic

• Manual

。 Network Number - Specifies the subnet number for a DHCP address of a dynamic pool.
。 Network Mask - Specifies the subnet number for a DHCP address of a dynamic pool. Either Network Mask or Prefix

Length can be configured to specify the subnet mask but not both.

。 Prefix Length - Specifies the subnet number for a DHCP address of a dynamic pool. Either Network Mask or Prefix

Length can be configured to specify the subnet mask but not both. Valid Range is (0 to 32)

。 Client Name - Specifies the Client Name for DHCP manual Pool.

82

。 Hardware Address - Specifies the MAC address of the hardware platform of the DHCP client.
。 Hardware Address Type - Specifies the protocol of the hardware platform of the DHCP client. Valid types are

ethernet and ieee802. Default value is ethernet.

。 Client ID - Specifies the Client Identifier for DHCP manual Pool.
。 Host Number - Specifies the IP address for a manual binding to a DHCP client. Host can be set only if at least one

among of Client Identifier or Hardware Address is specified. Deleting Host would delete Client Name, Client ID,

Hardware Address for the Manual Pool and set the Pool Type to Unallocated.

。 Host Mask - Specifies the subnet mask for a manual binding to a DHCP client. Either Host Mask or Prefix Length

can be configured to specify the subnet mask but not both.

。 Prefix Length - Specifies the subnet mask for a manual binding to a DHCP client. Either Host Mask or Prefix Length

can be configured to specify the subnet mask but not both. Valid Range is (0 to 32)

。 Lease Time - Can be selected as "Infinite" to specify lease time as Infinite or "Specified Duration" to enter a specific

lease period. In case of dynamic binding infinite implies a lease period of 60 days and In case of manual binding

infinite implies indefinite lease period. Default Value is "Specified Duration".

。 Days - Specifies the Number of Days of Lease Period. This field appears only if the user has specified "Specified

Duration" as the Lease time. Default Value is 1. Valid Range is (0 to 59)

。 Hours - Specifies the Number of Hours of Lease Period. This field appears only if the user has specified "Specified

Duration" as the Lease time. Valid Range is (0 to 1439)

。 Minutes - Specifies the Number of Minutes of Lease Period. This field appears only if the user has specified

"Specified Duration" as the Lease time. Valid Range is (0 to 86399)

。 Default Router Addresses - Specifies the list of Default Router Addresses for the pool. The user may specify upto 8

Default Router Addresses in order of preference.

Figure 4-2-52 DHCP Server Pool Configuration

83

。 DNS Server Addresses - Specifies the list of DNS Server Addresses for the pool. The user may specify upto 8 DNS

Server Addresses in order of preference.

。 NetBIOS Name Server Addresses - Specifies the list of NetBIOS Name Server Addresses for the pool. The user

may specify upto 8 NetBIOS Name Server Addresses in order of preference.

。 NetBIOS Node Type - Specifies the NetBIOS node type for DHCP clients.

• b-node Broadcast

• p-node Peer-to-Peer

• m-node Mixed

• h-node Hybrid

。 Next Server Address - Specifies the Next Server Address for the pool.
。 Domain Name - Specifies the domain name for a DHCP client. Domain Name can be upto 255 characters in length.
。 Boot File - Specifies the name of the default boot image for a DHCP client. File Name can be upto 128 characters in

length.

。 Option Code - Specifies the DHCP option code. Valid Range is (1 to 254)
。 Option Ascii - Specifies an NVT ASCII character string.
。 Option Hex - Specifies dotted hexadecimal data. Each byte in hexadecimal character strings is 2 hexadecimal digits.

Each byte can be separated by a colon or white space. A period separates 2 bytes/4 hexadecimal digits.

。 Option IP Address - Specifies the Option IP addresses.

Figure 4-2-53 DHCP Server Pool Configuration

84

Command Buttons

。 Submit - Creates/Modifies the Pool Configuration. Sends the updated configuration to the switch. Configuration

changes take effect immediately.

。 Delete - Deletes the Pool. This field is not visible to a user with readonly permission.

#Note:

The network ip address/mask of the switch shall be within the same as ip pool.

4.2.11.3 Pool Options

DHCP Server Pool Options

Selection Criteria

Figure 4-2-54 DHCP Server Pool Options

。 Pool Name - Shows all the existing Pool Names.

Non-Configurable Data

。 Option Code - Specifies the Option Code configured for the selected Pool.
。 Option Type - Specifies the Option Type against the Option Code configured for the selected pool.

• Ascii

• Hex

• IP Address

。 Option Value - Specifies the Value against the Option Code configured for the selected pool.

Configurable Data

。 Delete Option Code - Specifies the Option Code to be deleted for the selected Pool. This field is not visible to a

user with readonly permission.

Command Buttons

。 Delete - Deletes the Option Code for the selected Pool. This field is not visible to a user with readonly permission.

85

4.2.11.4 Reset Co nfiguration

DHCP Server Reset Configuration

Figure 4-2-55 DHCP Server Reset Configuration

Selection Criteria

。 Clear - Specifies whether All Dynamic Bindings/Specific Dynamic Binding/All Address Conflicts/Specific Address

Conflict is to be deleted.

。 Clear IP Address - IP Address against the Binding/Address Conflict to be cleared.This field appears only if the user

has selected "Specific Dynamic Binding/Specific Address Conflict" in Clear.

Command Buttons

。 Clear - Clears/Removes the Dynamic Binding/Address Conflict.

4.2.11.5 Bindings Information

DHCP Server Bindings Information

Figure 4-2-56 DHCP Server Bindings Information

Selection Criteria

。 DHCP Binding - Specifies whether information is to be displayed for All/Specific Binding.
。 Binding IP Address - IP Address against the Binding for which information is to be displayed. This field appears

only if the user has selected "Specific Binding" in DHCP Binding.

86

Non-Configurable Data

。 IP Address - Specifies the Client's IP Address.
。 Hardware Address - Specifies the Client's Hardware Address.
。 Lease Time - Specifies the Lease time left in Days, Hours and Minutes dd:hh:mm format.
。 Type - Specifies the Type of Binding: Dynamic / Manual.

Command Buttons

。 Submit - Displays information for chosen Bindings.

4.2.11.6 Server Statistics

DHCP Server Statistics

Figure 4-2-57 Server Statistics

Non-Configurable Data

。 Automatic Bindings - Specifies the number of Automatic Bindings on the DHCP Server.
。 Manual Bindings - Specifies the number of Manual Bindings on the DHCP Server.
。 Expired Bindings - Specifies the number of Expired Bindings on the DHCP Server.
。 Malformed Messages - Specifies the number of the malformed messages.
。 DHCPDISCOVER - Specifies the number of DHCPDISCOVER messages received by the DHCP Server.

87

。 DHCPREQUEST - Specifies the number of DHCPREQUEST messages received by the DHCP Server.
。 DHCPDECLINE - Specifies the number of DHCPDECLINE messages received by the DHCP Server.
。 DHCPRELEASE - Specifies the number of DHCPRELEASE messages received by the DHCP Server.
。 DHCPINFORM - Specifies the number of DHCPINFORM messages received by the DHCP Server.
。 DHCPOFFER - Specifies the number of DHCPOFFER messages sent by the DHCP Server.
。 DHCPACK - Specifies the number of DHCPACK messages sent by the DHCP Server.
。 DHCPNAK - Specifies the number of DHCPNAK messages sent by the DHCP Server.

Command Buttons

。 Refresh - Refresh the data on the screen to the latest state.
。 Clear Server Statistics - Reset DHCP Server Statistics.

4.2.11.7 Conflicts Information

DHCP Server Conflicts Information

Figure 4-2-58 DHCP Server Conflicts Information

Selection Criteria

。 DHCP Conflict - Specifies whether information is to be displayed for a Specific Address Conflict or for All Address

Conflicts.

。 Conflict IP Address - IP Address of the conflict to be shown. This field appears only if the user has selected

"Specific Address Conflict" in DHCP Conflict.

Non-Configurable Data

。 IP Address - Specifies the IP Address of the host as recorded on the DHCP server.
。 Detection Method - Specifies the manner in which the IP address of the hosts were found on the DHCP Server.
。 Detection Time - Specifies the time when the conflict was detected in N days NNh:NNm:NNs format with respect to

the system up time.

Command Buttons

。 Submit - Displays information about the chosen conflict(s).

88

4.2.12 SNTP

4.2.12.1 Global Configuration

Figure 4-2-59 SNTP Global Configuration

Configurable Data

。 Client Mode - Specifies the mode of operation of SNTP Client. An SNTP client may operate in one of the following

modes.

• Disable- SNTP is not operational. No SNTP requests are sent from the client nor are any received SNTP

messages processed.

• Unicast- SNTP operates in a point to point fashion. A unicast client sends a request to a designated server at its

unicast address and expects a reply from which it can determine the time and, optionally the round-trip delay and

local clock offset relative to the server.

• Broadcast - SNTP operates in the same manner as multicast mode but uses a local broadcast address instead of

a multicast address. The broadcast address has a single subnet scope while a multicast address has Internet

wide scope.

Default value is Disable.

。 Port - Specifies the local UDP port to listen for responses/broadcasts. Allowed range is (1 to 65535). Default value is

123.

。 Unicast Poll Interval - Specifies the number of seconds between unicast poll requests expressed as a power of two

when configured in unicast mode. Allowed range is (6 to 10). Default value is 6.

。 Broadcast Poll Interval - Specifies the number of seconds between broadcast poll requests expressed as a power

of two when configured in broadcast mode. Broadcasts received prior to the expiry of this interval are discarded.

Allowed range is (6 to 10). Default value is 6.

89

。 Unicast Poll Timeout - Specifies the number of seconds to wait for an SNTP response when configured in unicast

mode. Allowed range is (1 to 30). Default value is 5.

。 Unicast Poll Retry - Specifies the number of times to retry a request to an SNTP server after the first time-out

before attempting to use the next configured server when configured in unicast mode. Allowed range is (0 to 10).

Default value is 1.

Command Buttons

。 Submit - Sends the updated configuration to the switch. Configuration changes take effect immediately.

4.2.12.2 Global Status

Figure 4-2-60 SNTP Global Status

Non-Configurable Data

。 Version - Specifies the SNTP Version the client supports.
。 Supported Mode - Specifies the SNTP modes the client supports. Multiple modes may be supported by a client.
。 Last Update Time - Specifies the local date and time (UTC) the SNTP client last updated the system clock.
。 Last Attempt Time - Specifies the local date and time (UTC) of the last SNTP request or receipt of an unsolicited

message.

。 Last Attempt Status - Specifies the status of the last SNTP request or unsolicited message for both unicast and

broadcast modes. If no message has been received from a server, a status of Other is displayed. These values are

appropriate for all operational modes.

90

• OtherNone of the following enumeration values.

• SuccessThe SNTP operation was successful and the system time was updated.

• Request Timed OutA directed SNTP request timed out without receiving a response from the SNTP server.

• Bad Date EncodedThe time provided by the SNTP server is not valid.

• Version Not SupportedTheSNTP version supported by the server is not compatible with the version supported

by the client.

• Server UnsychronizedThe SNTP server is not synchronized with its peers. This is indicated via the 'leap

indicator' field on the SNTP message.

• Server Kiss Of DeathThe SNTP server indicated that no further queries were to be sent to this server. This is

indicated by a stratum field equal to 0 in a message received from a server.

。 Server IP Address - Specifies the IP address of the server for the last received valid packet. If no message has

been received from any server, an empty string is shown.

。 Address Type - Specifies the address type of the SNTP Server address for the last received valid packet.
。 Server Stratum - Specifies the claimed stratum of the server for the last received valid packet.
。 Reference Clock Id - Specifies the reference clock identifier of the server for the last received valid packet.
。 Server Mode - Specifies the mode of the server for the last received valid packet.
。 Unicast Sever Max Entries - Specifies the maximum number of unicast server entries that can be configured on

this client.

。 Unicast Server Current Entries - Specifies the number of current valid unicast server entries configured for this

client.

。 Broadcast Count - Specifies the number of unsolicited broadcast SNTP messages that have been received and

processed by the SNTP client since last reboot.

4.2.12.3 Server Configuration

Configurable Data

Figure 4-2-61 SNTP Server Configuration

91

。 Server - Specifies all the existing Server Addresses along with an additional option "Create". When the user selects

"Create" another text box "Address" appears where the user may enter Address for Server to be configured.

。 Address - Specifies the address of the SNTP server. This is a text string of up to 64 characters containing the

encoded unicast IP address or hostname of a SNTP server. Unicast SNTP requests will be sent to this address. If

this address is a DNS hostname, then that hostname should be resolved into an IP address each time a SNTP

request is sent to it.

。 Address Type - Specifies the address type of the configured SNTP Server address. Allowed type is :

• IPV4

Default value is Unknown

。 Port - Specifies the port on the server to which SNTP requests are to be sent. Allowed range is (1 to 65535). Default

value is 123.

。 Priority - Specifies the priority of this server entry in determining the sequence of servers to which SNTP requests

will be sent. The client continues sending requests to different servers until a successful response is received or all

servers are exhausted. This object indicates the order in which to query the servers. A server entry with a

precedence of 1 will be queried before a server with a priority of 2, and so forth. If more than one server has the

same priority then the requesting order will follow the lexicographical ordering of the entries in this table. Allowed

range is (1 to 3). Default value is 1.

。 Version - Specifies the NTP Version running on the server. Allowed range is (1 to 4). Default value is 4.

Command Buttons

。 Submit - Sends the updated configuration to the switch. Configuration changes take effect immediately.
。 Delete - Deletes the SNTP Server entry. Sends the updated configuration to the switch. Configuration changes take

effect immediately.

It is recommended that you research any time server selection to ensure that it can meet your

#Notice:

specific time server requirements. Any NTP time server selection should be evaluated to determine if

the server in question meets your specific time server requirements.

For more detail about the Time Server and Time Server List, please refer to the following URL:

http://ntp.isc.org/bin/view/Servers/WebHome

http://ntp.isc.org/bin/view/Servers/NTPPoolServers

http://support.microsoft.com/kb/262680/en-us

92

4.2.12.4 Server Status

Figure 4-2-62 SNTP Server Status

Non-Configurable Data

。 Address - Specifies all the existing Server Addresses. If no Server configuration exists, a message saying "No

SNTP server exists" flashes on the screen.

。 Last Update Time - Specifies the local date and time (UTC) that the response from this server was used to update

the system clock.

。 Last Attempt Time - Specifies the local date and time (UTC) that this SNTP server was last queried.
。 Last Attempt Status - Specifies the status of the last SNTP request to this server. If no packet has been received

from this server, a status of Other is displayed.

• OtherNone of the following enumeration values.

• SuccessThe SNTP operation was successful and the system time was updated.

• Request Timed OutA directed SNTP request timed out without receiving a response from the SNTP

server.

• Bad Date EncodedThe time provided by the SNTP server is not valid.

• Version Not SupportedTheSNTP version supported by the server is not compatible with the version

supported by the client.

• Server UnsychronizedThe SNTP server is not synchronized with its peers. This is indicated via the

'leap indicator' field on the SNTP message.

• Server Kiss Of DeathThe SNTP server indicated that no further queries were to be sent to this server.

This is indicated by a stratum field equal to 0 in a message received from a server.

。 Unicast Server Num Requests - Specifies the number of SNTP requests made to this server since last agent

reboot.

。 Unicast Server Num Failed Requests - Specifies the number of failed SNTP requests made to this server since

last reboot.

93

4.3 Switching

This page provides all system operation for configuring VLAN, Port-based VLAN, Spanning Tree, Port Aggregation, and

Multicast Support.

The Switch page contains links to the following topics:

。 VLAN
。 Protocol-based VLAN
。 Filters
。 GARP
。 IGMP Snooping
。 Port Channel
。 Multicast Forwarding Database
。 Spanning Tree
。 Class of Service
。 Port Security

4.3.1 VLAN

VLAN Description

A Virtual Local Area Network (VLAN) is a network topology configured according to a logical scheme rather than the physical

layout. VLAN can be used to combine any collection of LAN segments into an autonomous user group that appears as a single

LAN. VLAN also logically segment the network into different broadcast domains so that packets are forwarded only between

ports within the VLAN. Typically, a VLAN corresponds to a particular subnet, although not necessarily.

VLAN can enhance performance by conserving bandwidth, and improve security by limiting traffic to specific domains.

A VLAN is a collection of end nodes grouped by logic instead of physical location. End nodes that frequently communicate with

each other are assigned to the same VLAN, regardless of where they are physically on the network. Logically, a VLAN can be

equated to a broadcast domain, because broadcast packets are forwarded to only members of the VLAN on which the

broadcast was initiated.

1. No matter what basis is used to uniquely identify end nodes and assign these nodes VLAN

#Notice:

membership, packets cannot cross VLAN without a network device performing a routing

function between the VLAN.

2. The Switch supports IEEE 802.1Q VLAN. The port untagging function can be used to remove

the 802.1 tag from packet headers to maintain compatibility with devices that are tag-unaware.

3. The Switch's default is to assign all ports to a single 802.1Q VLAN named DEFAULT_VLAN.

As new VLAN is created, the member ports assigned to the new VLAN will be removed from

the DEFAULT_ VLAN port member list. The DEFAULT_VLAN has a VID = 1.

IEEE 802.1Q VLANs

IEEE 802.1Q (tagged) VLAN are implemented on the Switch. 802.1Q VLAN require tagging, which enables them to span the

94

entire network (assuming all switches on the network are IEEE 802.1Q-compliant).

VLAN allow a network to be segmented in order to reduce the size of broadcast domains. All packets entering a VLAN will only

be forwarded to the stations (over IEEE 802.1Q enabled switches) that are members of that VLAN, and this includes broadcast,

multicast and unicast packets from unknown sources.

VLAN can also provide a level of security to your network. IEEE 802.1Q VLAN will only deliver packets between stations that

are members of the VLAN. Any port can be configured as either tagging or untagging. The untagging feature of IEEE 802.1Q

VLAN allows VLAN to work with legacy switches that don't recognize VLAN tags in packet headers. The tagging feature allows

VLAN to span multiple 802.1Q-compliant switches through a single physical connection and allows Spanning Tree to be

enabled on all ports and work normally.

Any port can be configured as either tagging or untagging. The untagging feature of IEEE 802.1Q VLAN allow VLAN to work

with legacy switches that don’t recognize VLAN tags in packet headers. The tagging feature allows VLAN to span multiple

802.1Q-compliant switches through a single physical connection and allows Spanning Tree to be enabled on all ports and work

normally.

Some relevant terms:

Tagging - The act of putting 802.1Q VLAN information into the header of a packet.
Untagging - The act of stripping 802.1Q VLAN information out of the packet header.

802.1Q VLAN Tags

The figure below shows the 802.1Q VLAN tag. There are four additional octets inserted after the source MAC address. Their

presence is indicated by a value of 0x8100 in the Ether Type field. When a packet's Ether Type field is equal to 0x8100, the

packet carries the IEEE 802.1Q/802.1p tag. The tag is contained in the following two octets and consists of 3 bits of user priority,

1 bit of Canonical Format Identifier (CFI - used for encapsulating Token Ring packets so they can be carried across Ethernet

backbones), and 12 bits of VLAN ID (VID). The 3 bits of user priority are used by 802.1p. The VID is the VLAN identifier and is

used by the 802.1Q standard. Because the VID is 12 bits long, 4094 unique VLAN can be identified.

The tag is inserted into the packet header making the entire packet longer by 4 octets. All of the information originally contained

in the packet is retained.

802.1Q Tag

User Priority CFI VLAN ID (VID)

3 bits 1 bits 12 bits

TPID (Tag Protocol Identifier) TCI (Tag Control Information)

2 bytes 2 bytes

Preamble Destination

Address

Source

Address

VLAN TAG Ethernet

Type

Data FCS

6 bytes 6 bytes 4 bytes 2 bytes 46-1517 bytes 4 bytes

The Ether Type and VLAN ID are inserted after the MAC source address, but before the original Ether Type/Length or Logical

95

Link Control. Because the packet is now a bit longer than it was originally, the Cyclic Redundancy Check (CRC) must be

recalculated.

Adding an IEEE802.1Q Tag

Dest. Addr. Src. Addr. Length/E. type Data Old CRC

Original Ethernet

Dest. Addr. Src. Addr. E. type Tag Length/E. type Data New CRC

Priority CFI VLAN ID

New Tagged Packet

Port VLAN ID

Packets that are tagged (are carrying the 802.1Q VID information) can be transmitted from one 802.1Q compliant network

device to another with the VLAN information intact. This allows 802.1Q VLAN to span network devices (and indeed, the entire

network – if all network devices are 802.1Q compliant).

Every physical port on a switch has a PVID. 802.1Q ports are also assigned a PVID, for use within the switch. If no VLAN are

defined on the switch, all ports are then assigned to a default VLAN with a PVID equal to 1. Untagged packets are assigned the

PVID of the port on which they were received. Forwarding decisions are based upon this PVID, in so far as VLAN are

concerned. Tagged packets are forwarded according to the VID contained within the tag. Tagged packets are also assigned a

PVID, but the PVID is not used to make packet forwarding decisions, the VID is.

Tag-aware switches must keep a table to relate PVID within the switch to VID on the network. The switch will compare the VID

of a packet to be transmitted to the VID of the port that is to transmit the packet. If the two VID are different the switch will drop

the packet. Because of the existence of the PVID for untagged packets and the VID for tagged packets, tag-aware and

tag-unaware network devices can coexist on the same network.

A switch port can have only one PVID, but can have as many VID as the switch has memory in its VLAN table to store them.

Because some devices on a network may be tag-unaware, a decision must be made at each port on a tag-aware device before

packets are transmitted – should the packet to be transmitted have a tag or not? If the transmitting port is connected to a

tag-unaware device, the packet should be untagged. If the transmitting port is connected to a tag-aware device, the packet

should be tagged.

Default VLANs

The Switch initially configures one VLAN, VID = 1, called "default." The factory default setting assigns all ports on the Switch to
the "default". As new VLAN are configured in Port-based mode, their respective member ports are removed from the "default."

VLAN and Link aggregation Groups

In order to use VLAN segmentation in conjunction with port link aggregation groups, you can first set the port link aggregation

group(s), and then you may configure VLAN settings. If you wish to change the port link aggregation grouping with VLAN

already in place, you will not need to reconfigure the VLAN settings after changing the port link aggregation group settings.

VLAN settings will automatically change in conjunction with the change of the port link aggregation group settings

96

4.3.1.1 VLAN Configuration

802.1Q VLAN Configuration

There are up to 4041 configurable VLAN groups. By default when 802.1Q is enabled, all ports on the switch belong to default

VLAN (VID 1). The default VLAN cannot be deleted.

Understand nomenclature of the Switch
Tagging and Untagging

Every port on an 802.1Q compliant switch can be configured as tagging or untagging.

。 Tagging: Ports with tagging enabled will put the VID number, priority and other VLAN information into the header of all

packets that flow into those ports. If a packet has previously been tagged, the port will not alter the packet, thus keeping

the VLAN information intact. The VLAN information in the tag can then be used by other 802.1Q compliant devices on the

network to make packet-forwarding decisions.

。 Untagging: Ports with untagging enabled will strip the 802.1Q tag from all packets that flow into those ports. If the packet

doesn't have an 802.1Q VLAN tag, the port will not alter the packet. Thus, all packets received by and forwarded by an

untagging port will have no 802.1Q VLAN information. (Remember that the PVID is only used internally within the Switch).

Untagging is used to send packets from an 802.1Q-compliant network device to a non-compliant network device.

Frame Income

Frame Leave

Leave port is tagged Frame remains tagged Tag is inserted

Leave port is untagged Tag is removed Frame remain untagged

Income Frame is tagged Income Frame is untagged

Figure 4-3-1 VLAN Configuration

97

Selection Criteria

。 VLAN ID and Name - You can use this screen to reconfigure an existing VLAN, or to create a new one. Use this

pulldown menu to select one of the existing VLANs, or select 'Create' to add a new one.

Configurable Data

。 VLAN ID - Specify the VLAN Identifier for the new VLAN. (You can only enter data in this field when you are

creating a new VLAN.) The range of the VLAN ID is (1 to 4093).

。 VLAN Name - Use this optional field to specify a name for the VLAN. It can be up to 32 alphanumeric characters

long, including blanks. The default is blank. VLAN ID 1 always has a name of 'Default'.

。 VLAN Type - This field identifies the type of the VLAN you are configuring. You cannot change the type of the

default VLAN (VLAN ID = 1): it is always type 'Default'. When you create a VLAN, using this screen, its type will

always be 'Static'. A VLAN that is created by GVRP registration initially has a type of 'Dynamic'. You may use this

pull-down menu to change its type to 'Static'.

。 Participation - Use this field to specify whether a port will participate in this VLAN. The factory default is

'Autodetect'. The possible values are:

。 Include - This port is always a member of this VLAN. This is equivalent to registration fixed in the IEEE 802.1Q

standard.

。 Exclude - This port is never a member of this VLAN. This is equivalent to registration forbidden in the IEEE

802.1Q standard.

。 Autodetect - Specifies that port may be dynamically registered in this VLAN via GVRP. The port will not participate

in this VLAN unless it receives a GVRP request. This is equivalent to registration normal in the IEEE 802.1Q

standard.

。 Tagging - Select the tagging behavior for this port in this VLAN. The factory default is 'Untagged'. The possible

values are:

。 Tagged - all frames transmitted for this VLAN will be tagged.
。 Untagged - all frames transmitted for this VLAN will be untagged.

4.3.1.2 VLAN Status

This page displays the status of all currently configured VLANs.

。 VLAN ID - The VLAN Identifier (VID) of the VLAN. The range of the VLAN ID is (1 to 4093) .
。 VLAN Name - The name of the VLAN. VLAN ID 1 is always named `Default`.
。 VLAN Type - The VLAN type:

¾ Default ( VLAN ID = 1) -- always present
¾ Static -- a VLAN you have configured
¾ Dynamic -- a VLAN created by GVRP registration that you have not converted to static, and that GVRP may

therefore remove

98

Figure 4-3-2 VLAN Status

4.3.1.3 VLAN Port Configuration

Selection Criteria

。 Slot.Port - Select the physical interface for which you want to display or configure data. Select 'All' to set the

parameters for all ports to same values.

Configurable Data

。 Port VLAN ID - Specify the VLAN ID you want assigned to untagged or priority tagged frames received on this port.

The factory default is 1.

。 Acceptable Frame Types - Specify how you want the port to handle untagged and priority tagged frames. If you

select 'VLAN only', the port will discard any untagged or priority tagged frames it receives. If you select 'Admit All',

untagged and priority tagged frames received on the port will be accepted and assigned the value of the Port VLAN

ID for this port. Whichever you select, VLAN tagged frames will be forwarded in accordance with the IEEE 802.1Q

VLAN standard. The factory default is 'Admit All'.

。 Ingress Filtering - Specify how you want the port to handle tagged frames. If you enable Ingress Filtering on the

pulldown menu, a tagged frame will be discarded if this port is not a member of the VLAN identified by the VLAN ID

in the tag. If you select disable from the pulldown menu, all tagged frames will be accepted. The factory default is

disable.

。 Port Priority - Specify the default 802.1p priority assigned to untagged packets arriving at the port.

99

Figure 4-3-3 VLAN Port Configuration

4.3.1.4 VLAN Port Summary

This page shows the configured VLAN parameters.

。 Slot.Port - The interface.
。 Port VLAN ID - The VLAN ID that this port will assign to untagged frames or priority tagged frames received on

this port.

。 Acceptable Frame Types - Specifies the types of frames that may be received on this port. The options are

'VLAN only' and 'Admit All'. When set to 'VLAN only ', untagged frames or priority tagged frames received on this

port are discarded. When set to 'Admit All', untagged frames or priority tagged frames received on this port are

accepted and assigned the value of the Port VLAN ID for this port. With either option, VLAN tagged frames are

forwarded in accordance to the 802.1Q VLAN specification.

。 Ingress Filtering - When enabled, the frame is discarded if this port is not a member of the VLAN with which this

frame is associated. In a tagged frame, the VLAN is identified by the VLAN ID in the tag. In an untagged frame, the

VLAN is the Port VLAN ID specified for the port that received this frame. When disabled, all frames are forwarded

in accordance with the 802.1Q VLAN bridge specification. The factory default is disabled.

100
