User’s Manual for PLANET 500M Powerline Pass-Through Ethernet Bridge
Model: PL-751
3
User’s Manual of PL-751
Contents
CHAPTER 1: PRODUCT INTRODUCTION...........................................................................................5
1.1 PACKAGE CONTENTS ...............................................................................................................5
1.2 PRODUCT DESCRIPTION ...........................................................................................................5
1.3 PRODUCT FEATURES................................................................................................................9
1.4 PRODUCT SPECIFICATION.......................................................................................................10
1.5 PHYSICAL DESCRIPTION.........................................................................................................11
1.6 WIRE DIAGRAM......................................................................................................................12
CHAPTER2: INITIAL UTILITY INSTALLING.......................................................................................14
2.1 OVERVIEW.............................................................................................................................14
2.2 RUNNING THE INSTALL SHIELD WIZARD...................................................................................14
CHAPTER 3: CONFIGURATION ......................................................................................................... 18
3.1 OVERVIEW.............................................................................................................................18
3.2 MAIN SCREEN........................................................................................................................18
3.3 PRIVACY................................................................................................................................21
3.4 DIAGNOSTICS.........................................................................................................................24
3.5 SECURITY BUTTON.................................................................................................................25
3.6 RESET BUTTON......................................................................................................................27
APPENDIX A TROUBLESHOOTING ..................................................................................................28
4
User’s Manual of PL-751
Chapter 1: Product Introduction
1.1 Package Contents
PL-751x 1 (PL-751 x 2 for PL-751-KIT)
CD ROM x 1 (User’s Manual, Quick Guide and Utility)
RJ-45 Cable x 1 (RJ-45 Cable x 2 for PL-751-KIT)
Quick Installation Guide x 1
ÍNote
1.2 Product Description
If any of the above items are missing, please contact your dealer immediately.
High Speed Ethernet Connection via HomePlug Powerline
With HomePlug AV technology, the PLANET PL-751 Powerline Pass-Through
Ethernet Bridge extends a high speed up to 500Mbps networking connection to any
power outlet. With hassle-free plug and play installation, it enables users only need
to plug a pair of powerline adapters into the house power outlets, and then users can
easily enjoy high definition video streaming and network transmission. No more
tripping over tangled, messy wires running through your house, the PL-751 is an
ideal solution to create a wall-to-wall home network.
Built-in Noise Filtering Power Socket
To efficiently make use of the power socket, the PL-751 is built-in with an extra AC
power outlet with noise filtering feature. As a result, another device needing power
can be plugged into the AC socket on the PL-751 directly without taking up another
wall socket. While the appliances which use the powerline as communications
medium will also contribute noise to it, with noise filtering function, the PL-751 can
enhance powerline communications coverage in the home when its AC Pass
Through outlet is in service.
5
User’s Manual of PL-751
Data Transfer Rate up to 500Mbps and Distance up to 300 Meters Wiring
With advanced HomePlug AV technology, the PL-751 provides users with stable,
high speed data transfer rates up to 500Mbps on electric powerline length up to 300
meters. Therefore, the PL-751 can transmit multiple HD streams and even Full HD
movies to every room, making it a great choice for easily building a multimedia
entertainment network.
Secures the network connection with the touch of a button, no need to
remember passwords
Simply by pushing the button on the PL-751, users can easily set up a hassle-free
secure Powerline network within minutes. It provides 128-bit AES encryption for
network security and data protection.
6
User’s Manual of PL-751
Getting started is as easy at 1-2-3
Users can immediately access to the Internet via the PC / Laptop connecting to PL751 by simple three steps:
1. Connects one Powerline Ethernet Bridge to your ADSL or Cable modem’s
Ethernet port and plug it into the nearest power socket.
2. Plugs in the second Powerline Ethernet Bridge in your room or office.
3. Connects the PC / Laptop to the Powerline Ethernet Bridge by the network cable.
Reduce Power Consumption Up to 80%
The PL-751 consumes less power when comparing to the existing Powerline
Ethernet Adapters. Moreover, when there is no Ethernet link, the PL-751 will enter
the "Power-saving" mode that reduces energy wasting for over 80% when comparing
to the adapters without this feature.
*Actual data will vary because of the network conditions and environmental factors.
7
User’s Manual of PL-751
Efficient Bandwidth Management by QoS (Quality of Service)
Quality of Service (QoS) is provided by the PL-751 enabling a network to provide
better service to selected network traffic over various technologies. The PL-751
provides 5 priorities of QoS for quick setup such as internet, online game, IPTV,
video and VoIP.
8
User’s Manual of PL-751
1.3 Product Features
IEEE Compliant HomePlug AV & LAN
Designed for high-definition multimedia streaming
Data rate of up to 500Mbps and 300 Meters over existing electrical wiring
IEEE 802.3, IEEE 802.3u, IEEE 1901 and HomePlug AV standard
compliant
Backwards compatible with HomePlug AV (200Mbps) including PLANET
Powerline products
Equipped with 10/100Mbps RJ-45 Ports for LAN/ WAN, Auto MDI/ MDI-X
supported
Secure Network Connection
Plug-and-Play installation in minutes, converts any power socket into a
wired connection point
Simple push-button setup with sophisticated data encryption128-bit AES
encryption for network protection enhancement
Easy Installation & Management
Create a network connection throughout your home without the mess of
cables
Easy-to-use utility for powerline network management
Up to 16 Powerline Network Adapters can communicate on a single
network
Green technology helps conserve energy when no data link is detected
TDMA and priority-based CSMA/CA channel access schemes maximize
efficiency and throughput
Provides a noise-filtered power outlet with AC Pass Through
Integrated Enhanced Quality of Service(QoS) features
9
User’s Manual of PL-751
1.4 Product Specification
Model PL-751
Hardware Specification
One RJ-45 port (10/100Base-TX Ethernet)
Network Interface
Cabling Cat. 5 UTP cable
LED
Button
Power Socket
Standards Conformance
Computer Interface
Standards
Security
Data PHY Rate
Modulation Schemes
Frequency Band
Additional Protocols
Operation Range
Software Utility
Environment Specifications
Operating
Storage
Power Supply
Housing Dimension (W x D x H)
Weight
Emission
One 500Mbps power line port supporting co-existence with
HomePlug 1.0
Power：On / Off / Blinking
Ethernet：Red / Orange / Green / Off
Data：Solid / Blinking / Off
One Security / Reset button
Support EU / US / UK power connector
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 1901 / HomePlug AV
128-bit AES link encryption with key management
500Mbps over Powerline and 10/100Mbps over Ethernet
OFDM symbol modulation on line synchronization
1024/256/64/16/8 - QAM, QPSK, BPSK, ROBO carrier
modulation
2 ~ 50 MHz
Mix of TDMA and CSMA/CA channel access scheme;
CO device generates a periodic beacon carrier for channel
access scheme
Estimated range of 300 meters in wall powerlines
Device detect / diagnostic, Windows 98 SE, ME, 2000, NT,
XP, Vista, and Window 7
Temperature: 0~40 Degree C
Relative Humidity:10~90% (non-condensing)
Temperature: -20~70 Degree C
Relative Humidity: 5~95% (non-condensing)
100~240V AC, 50~60Hz internal
92.4 x 62 x 38 mm
134 g
FCC, CE
10
User’s Manual of PL-751
1.5 Physical Description
Front View
LED Definition
LED Status Description
On
Power
Ethernet
Data
Off Power off
Green Device in standby mode
Off Ethernet Link not active
Green
Off
Red
Orange
Green
Steady on indicate the Powerline device connect to the power
outlet.
Steady on indicates the RJ-45 port has correctly connected to the
network card of your PC or the Ethernet network
This HomePlug Ethernet Bridge is not connected
Minimum connection indicates weak signal and slower network
speed: less than 50Mbps
Normal signal with standard network speed: 50-99Mbps
Excellent signal with optimal network speed: 100Mbps+
11
User’s Manual of PL-751
Button Definition
Button Description
Reset
Security
Hold the Reset button for 13 seconds to reset to default setting.
Press security button during 1~3
seconds.
Press security button more than 10
seconds
Join a another HomePlug AV
network
Set its security to random
value
1.6 Wire Diagram
High-Speed Ethernet Connection via Home's Power Supply
PLANET provides several types of powerline products to meet various demands on
Internet access sharing at home. As illustrated, users may connect an IP STB to the
Nano Powerline Adapter PL-751, or connect a PC to the PL-751 in the house freely.
With the PLANET powerline products applied, no messy network cables and
additional switches are required at home and users can entirely enjoy home
broadband network from now on.
12
User’s Manual of PL-751
13
User’s Manual of PL-751
Chapter2: Initial Utility Installing
2.1 Overview
The installation of 500M Ethernet Bridge will only take minutes. No need to set up
long wires through out the house, just simply install the utility, and physically plug the
unit into the wall outlet, then to connect RJ-45 to the computer. Users can select to
adjust its security functions and the platform of the network after the installation. For
further assistance, please read our Frequently Asked Questions section in our Web
site.
2.2 Running the Install Shield Wizard
Please verify that no other Powerline Management Utilities are installed before
installing this product. If other utilities were installed, uninstall them and restart
before installing this software.
To install, insert the utility CD into the computer's CD-ROM drive. The main page
shall pop up, then to press the link to install the software. Alternatively this can also
be done manually by double clicking the “setup.exe “ file on the CD.
Once the software is loaded, it will display a dialog as following, and please click
on ‘Next’ to continue the installation.
14
User’s Manual of PL-751
Please take a moment to read the license agreement now. If you accept the terms
below, click ”I Agree”. Then “Next“. Otherwise click” Cancel”.
This section allows you to change the default directory where the program is
installed. Or go ‘Back’. If you don’t want to change it, click on Next to continue the
installation.
15
User’s Manual of PL-751
Please click on ‘Next’ to confirm the installation.
Powerline Utility is being installed, and please waits for installation.
16
User’s Manual of PL-751
This screen shows that the installation was completed successfully. Click on
Close to exit the wizard.
17
User’s Manual of PL-751
Chapter 3: Configuration
3.1 Overview
The PL-751 uses 128-bit AES encryption to block outside access. The key is set by
using the Configuration Utility on the CD. By default, the protection is enabled,
however, it is recommended to change the default network password. All your
Powerline devices must use the same network password in order to be connected
together.
3.2 Main Screen
Part 1: Scan a Local Powerline device
Double click the PowerPacket Utility icon on your desktop and utility screen will
show up as below:
The Main tab shows the Powerline units that are connected to the current computer
and other Powerline devices on the home network, and it will also display Mac
Address of each device.
18
User’s Manual of PL-751
If you do not see ANY unit in the device status but the Powerline device
does exist, try to unplug all devices and plug them back.
"Note
Meanwhile, please make sure the cable is the right type and working
correctly. If all seems to be correct, and you still receive nothing in the
Device window, try rebooting your computer.
Part 2: Detect the Network Powerline device
The Main tab shows all the other Powerline units on your home network. It will
represent them by MAC Address, and will also show the available bandwidth to each
unit (Units farther away from another Powerline device might have a lower Data
Rate). If you add or remove units from your home network, click the “Scan” button to
re-scan the network, and refresh with any changes.
19
User’s Manual of PL-751
"Note
Only units with the same Network Password will be shown, (Password
case sensitive).
"Note
If a unit shows MAC Address of all 0’s, this unit might not have a solid
connection, or might not connect at all.
If there are units in the home network, but nothing displays in this
"Note
Network scan, try to unplug all devices, and plug them back (Only do
this with the units that you do not view in the network screen, you don’t
have to do this with all units.)
If the problem persists, try to move the unit closer to this current unit (adjacent plugs
on the same wall socket is most preferable). If the problem still persists and that unit
is still not shown on the network, then the unit might be defective, please contact
technical support. Otherwise if you view the unit working, distance might be the only
issue.
20
User’s Manual of PL-751
3.3 Privacy
Setting Up Security on a Local Powerline device
The Privacy tab will allow you to change the Network Password to the unit that is
currently connected to this computer. This network password encrypts all data that
is sent from this unit using 128-bit data encryption standard (AES).
"Note
Every unit on your home network MUST have the same Network
Password for connectivity to be established throughout your home. The
default network password is “HomePlugAV”
21
User’s Manual of PL-751
Setting Up Security on a Network Powerline device
The Privacy Tab will allow users to use one primary computer to control the
Network Password of all units on the home network.
You will have to go back to the Main Tab first then find the DEK (Device Encryption
Key) Key located on the bottom of each device. Enter this Key into the Device
Password area. Click Add. This Device Key will then appear in the bottom window.
Add all the DEK Keys for each unit in your house. You can now go back to the Main
Tab then change the password remotely from one computer. This will allow you to
change the password from one computer, instead of changing the password
individually.
22
User’s Manual of PL-751
"Note
The DEK is unique for EACH Powerline device. To use this you will
need to input the DEK for each unit.
23
User’s Manual of PL-751
3.4 Diagnostics
The Diagnostics screen shows system information and a history of all devices seen.
Diagnostics Screen
The upper panel shows technical data concerning software and hardware on the
host computer used to communicate over HomePlug. It shall include the following：
Operating System Type/Version
Host Network Name
User Name
MAC Address of all NICs (network interface card)
Chipset manufacturer name (Turbo Only devices)
Firmware Version (Turbo Only devices)
24
User’s Manual of PL-751
The lower panel contains a history of all remote devices.
Devices are shown here regardless of whether or not they are on the same logical
network.
Device Name
MAC Address
Password
Rate(Tx/Rx)
Network
Last Seen
Last Known Network
Chipset manufacturer name (Turbo Only devices)
Date device last scanned
3.5 Security Button
This section describes how to use Security button for configuration in the following
situations:
Establish a new security network (Network AB)
The procedure is as follows:
Step 1 Press and hold the Security button on Bridge A for no more than 10
seconds. Must release after 10 seconds. Once released, the Power light will
flash. The password to Bridge A has just been erased and random security key
has been generated. It must now be linked to your network to adopt the new
network security key.
Step 2 Press and hold the security button on Bridge B for 10 seconds and
release it when the Power light flashes. The password to Bridge B has just been
25
User’s Manual of PL-751
erased and random security key has been generated. It must now be linked to
your network to adopt the new network security key.
Step 3 Currently, Bridge A and Bridge B are not networked

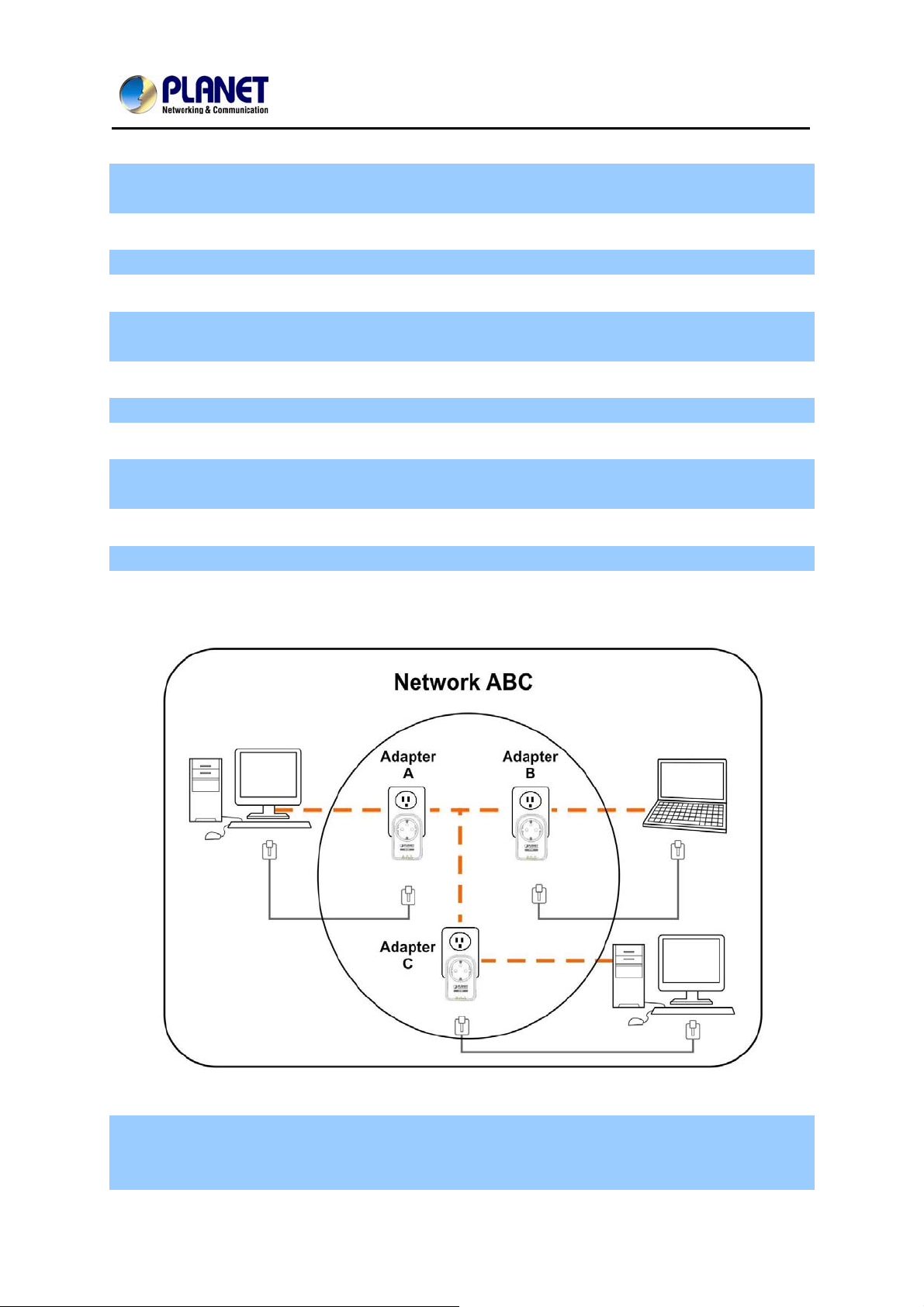

Step 4 Press and hold the Security button on Bridge A for 1~3 seconds then
release.
Step 5 The Power lights on Bridge A starts to flash.
Step 6 Within 120 seconds after the Power light on Bridge A starts to flash,
press and hold the Security button on Bridge B for 1~3 seconds then release.
Step 7 Both Bridge A and Bridge B are now networked together.
Establish Powerline (C) to join an existing network (Network AB)
The procedure is as follows:
Step 8 Press and hold the Security button on Bridge C for no more than 10
seconds. Must release after 10 seconds. Once released, the Power light will
flash. The password to Bridge C has just been erased and random security key
26
User’s Manual of PL-751
has been generated. It must now be linked to your network to adopt the new
network security key.
Step 9 Press and hold the security button on Bridge A for 1~3 seconds. The
Power lights on Bridge A starts to flash.
Step 10 Within 120 seconds after the Power light on Bridge A starts to flash,
press and hold the security button on Bridge C for 1~3 seconds then release.
Step 11 Bridge A, Bridge B and Bridge C is now networked to each other.
3.6 Reset Button
This section describes how to use Reset button, this button can be used to clear ALL
data and restore ALL settings to the factory default values.
The procedure is as follows:
Step 12 Hold the reset Button down while Power On for a few seconds.
Step 13 Release the reset button.
Step 14 All the LEDs will off, and then start again.
Step 15 PL-751 is now using the factory default values.
27
User’s Manual of PL-751
Appendix A Troubleshooting
Q1：If your PL-751 has difficulty communicating with each other, check the
following:
A ：
• Try power cycling the unit by unplugging it from the wall for 10 seconds and
plugging it in again.
• Hold the security/reset button down for more than 15 seconds to reset to default
setting. The PL-751 light will flash, the units will reset and attempt to link using
default factory settings.
• Try plugging the PL-751 into an adjacent plug.
• HomePlug AV Ethernet Bridges work better when plugged directly into the wall
outlet. Connecting these Ethernet Bridges to a power strip or surge protector may
degrade network performance or completely stop network signals.
• This HomePlug AV nano Ethernet Bridge should not be used on GFI protected
outlets as some outlets will filter out HomePlug Powerline signal.
• This HomePlug AV nano Ethernet Bridge should not be used in areas with
excessive heat.
• Certain florescent or incandescent lights are noise sources on the electrical and
can degrade performance.
• If your building has more than one circuit breaker box, your HomePlug AV
Ethernet Bridges may not be able to connect between the different circuit breaker
boxes. In this case, connect one HomePlug AV Ethernet Bridge to a power outlet
located on each of the circuit boxes. Connect Ethernet cable between each of the
HomePlug AV Ethernet Bridges to link the different circuits together. This will
allow the HomePlug AV Ethernet Bridges from different circuit breaker boxes to
connect.
• To enter standby mode for this device, simply remove the Ethernet cable and wait
about 3 minutes.
28
Loading...
