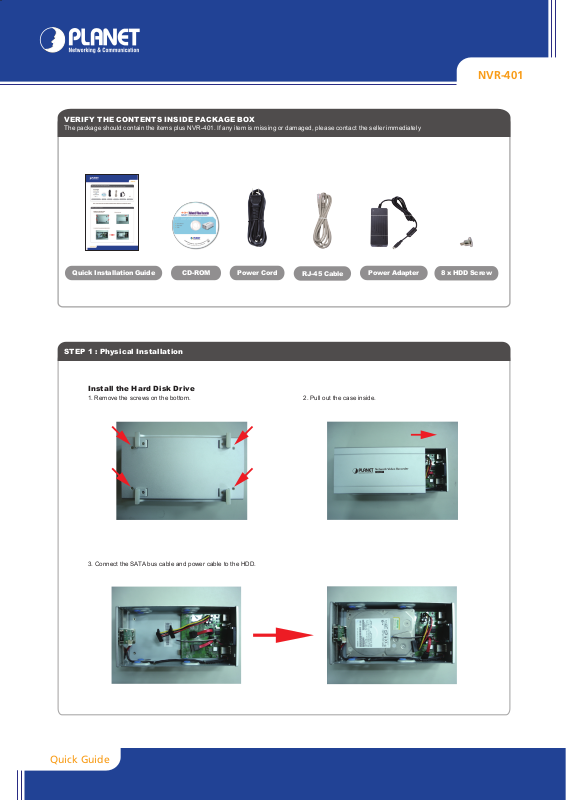

VERIFY THE CONTENTS INSIDE PACKAGE BOX

The package should contain the items plus NVR-401. If any item is missing or damaged, please contact the seller immediately

NVR-401 NVR-401

Quick Installation Guide

RJ-45 Cable

STEP 1 : Physical Installation

Install the Hard Disk Drive

1. Remove the screws on the bottom. 2. Pull out the case inside.

Power AdapterCD-ROM Power Cord

8 x HDD Screw

3. Connect the SATA bus cable and power cable to the HDD.

their respectiveowners. Copyright © 2010 PLANET Technology Corp. All rights reserved.

PLANET Technology Corporation

11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C.
Tel: [phone] Fax: [phone]
Email: [e-mail] www.planet.com.tw

4. Lock the HDD with bundled HDD screws on both sides.

5. If there is a second HDD, please repeat step 3 and 4. 6. Place the inside housing back and secure it with the

7. Connect the bundled power adapter to the power connec tor on the rear panel.

8. Press the power button to power on.

screws in step 1.

STEP 2 : Web Management

Login the Homepage

The Web management allows you to access and manage the Network Video Recorder easily. Launch the Web browser and enter the IP address. The
default IP address is 192.168.0.20. Fill in the User Name and Password to login the Web management. The default User Name / Password is admin /
admin.

Further con figu rations and i nfor matio n can be found in t he user’s ma nual CD. Please check t he user’s manual fo r more
information.
