Chapter 1. Product Description
PLANET NVR-1615 is a Linux-based st andalone NVR, a new model of Network V ideo Reco rder
(NVR) series designed for IP surveillance system. Users can just turn on cameras and the
NVR to easily protect their office and property under the Ethernet / IP networks. The recorded
video files can be saved on the NVR and thus, an additional PC for file storage is not
necessary, bringing users a secure surveillance system at a lower total cost of ownership.
The NVR-161
Central Man
connected IP
management of up to 256 surveillance channels simultaneously. With the NVR-161
view remote surveill
software or the web browser. The NVR also helps the administrators to monitor the
surveillance system more efficiently by providing multi-monitors.
The NVR-1615 not only supports PLANET IP cameras but also is compatible with most of major
IP camera brands with ONVIF in the market. Furthermore, the NVR-161
and find the
greatly reduces users’ effort when setting up the system.
The NVR-1615 is suitable to fit in various network environments. Besides its small-scale
applications for retail stores and SMBs, the NVR-1615 offers 2 SATA HDDs supporting capacity
up to 8TB and is ideal for large-scale surveillance premises, such as banks, enterprises,
transportation, campuses, etc.
5 provides powerful central surveillance management capability with its bundled
agement Software (CMS). One NVR-1615 can manage up to 16 IP cameras vi a a
n e tw o r k . W i t h t h e bundled CMS, the NVR system is expandable for multi-sites
5, users can
ance in real time and play back recorded videos via the bundled CMS
5 can automatically search
available cameras in the network and provide smart setup wizard program, so it
1.1 Product Features
Hardware
Linux-embedded, highly-reliable standalone NVR
Supports Gigabit Ethernet port
Supports VGA / HDMI dual local display
Supports 3.5" SATA III x 2 HDDs
Supports e-SATA
Video / Audio
Simultaneous recording and live view streams
16 channels input of IP cameras
Supports H.264 compression
Video resolution up to 5 mega-pixel (2560 x 1920)
Supports throughput up to 80Mbps
2-way audio (G.711, G.726)
Video Recording / Backup
Scheduled recording of 16 IP cameras simultaneously
Samba path supported
Supports 2 SATA HDDs, u p to 4TB per HDD
1 x e-SATA
Exports recorded video file in AVI format to USB device or local storage
Instant Event Notification and recording
Network Service
Easy access with PLANET Dynamic DNS and built-in NTP Server
6
16-Channel Network Video Recorder
NVR-1615
Supports PPPoE / DHCP / Static network connection
Supports low bit-rate connection for remote access
Easy Installation & Management
ONVIF compliant for interoperability
Supports multiple languages
Automatically discovered by management software
Web-based and management utility for easy configuration
Up to 256 channels management through central management software
Supports USB mouse and joystick (PTZ)*
Supports mobile phone remote view
*The remote control and joystick are optional
1.2 System Requirements
The followi ng are the minimum system requirements for the system to operate Network Video
Recorder (NVR):
Operating
System
CPU
Network
Graphics
Adapter
Microsoft® Windows® 2000 Professional, Windows® XP Professional
(32 bit) or Windows® Server 2003 (32 bit) Browser Microsoft Internet
Explorer 7 or above
Minimum Intel® Pentium® 4 2.4 GHz or higher (Dual Core is
recommended) RAM Minimum 1 GB of RAM, 2GB or above is
recommended
Minimum 10/100 Ethernet (Gigabit Ethernet is recommended)
AGP or PCI-Express, minimum 1024 x 768, 16 bit colors. (We highly
recommend to work above the 1024 x 768 resolution to get the full
experience of the software)
Make sure your display DPI setting is set to default at 96DPI
To set DPI value, right-click on desktop, choose “Settings” tab >>
“Advanced” >> “General”
1.3 Packet Contents
1 x NVR
1 x Power Adapter
2 x SATA Data Cord
2 x SATA Power Cord
16 x Screw
2 x HDD Cradle
1 x CD-ROM
1 x Quick Installation Guide
1.4 Specifications
Product
Hardware
Ethernet 1 x RJ-45, 10/100/1000Base-T
USB Interface 2 x USB 2.0 for backup device and mouse
NVR-1615
English
7
16-Channel Network Video Recorder
NVR-1615
Video Interface VGA / HDMI video interface
Audio Interface
1 x Mic-in (phone jack 3.5mm), 1 x Audio-out (phone jack
3.5mm)
Storage Device 2 x 3.5” SATA III hard disk connectors, 1 x e-SATA connector
LED Power, HDD, LAN, REC, Event, Alarm, Camera, DI/DO
Button Reset
Buzzer 1 x Buzzer
DI/DO 4 x Digital in, 4 x Digital out
Camera
Max. Channels 16-channel IP cameras
Add camera Manual / Auto Search / Auto setup
Video
Compression H.264
Resolution 5M / 3M / Full HD / SXGA / VGA / QVGA
480fps@D130
Max. live video frame rate
(Local Display)
360fps@720P30
120fps@1080P30
20fps@5M15
Max. 5MP/channel
Max. throughput 80Mbps
z Preview snapshot in HDD or removable device
Snapshot
z Search event snapshot
z Backup to USB device
Audio
Audio Type 2-way
Audio format G.711, G.726
Live view
Display Mode Live View / Playback / Full Screen
Split Screen 1 / 4 / 6 / 9 / 16 / Full Screen
Full Screen 1 / 4 / 6 / 9 / 16
PTZ Support Preset / Tour / Auto pan / Iris / Focus / Speed, and joystick
Playback
Split Screen 1 / 4 / 6 / 9 / 16 / Full Screen
Search Mode Simple / Graphical / Event
Play Method Play / Reverse / Pause / Seek / Pre I-frame / Next Frame
Search by time or event
Record
Recording Mode z Schedule recording each camera
z Round the clock / Motion record modes / DI detection /
Event Trigger
z Pre-alarm / Post-alarm configuration
z Auto recycle
Monitor
Dual Monitor Display same contents, depending on max. channels
Monitor Resolutions 1920x1080, 1440x900, 1366x768, 1280x1024, 1024x768
8
16-Channel Network Video Recorder
NVR-1615
Network and Configuration
Network Service Fix IP / DHCP / PPPOE / DIPS Report / UPNP / DDNS
Notification SMTP / HTTP / FTP / TCP
Triggers and Event
Event type z Motion Alarm
z Disconnect Alarm
z Audio Detection
z Digital Input
z Schedule Trigger
z HDD Error
Event Action
z Display on screen
z DO
z Buzzer alarm
z Snapshot
z Recording
z Mail
z FTP
z TCP
z HTTP
Management
Number of Groups 2 (Administrator / User )
Privileges Live View / Playback / Record / Setting / PTZ / Two Way Audio
z Graphic local user interface (Operated by mouse)*
User Interface
z Web browser (Internet Explorer 7 or above)
z CMS Utility
Log Type
Software Utility
System / Event / Bit-rate
Search utility / Mobile app / CMS
Environment
Power 12V DC/4.16A
Consumption 8W (without HDD)
Operating Temperature 0~40 degrees C
Storage Temperature -40~70 degrees C
Humidity 0~85% (non-condensing)
Weight 1455g
Dimensions (W x D x H) 330 x 252 x 57 mm
9
16-Channel Network Video Recorder
Reset
Audio
Reset
Audio
1.5 Physical Specifications
Front Panel
NVR-1615
e-SATA
-
12VD+D
DI 0
DI 1
DI 2
DI 3
GND
DO 0
DO 1
DO 2
I/O
DO 3
HDMI
eSATA
HDMI
12V DC
PWR
VGA USB
USB
VGA
LAN
RESET
LAN
AUDIO OUT
MIC IN
LEDs Color
PWR Green
HDD
Green
LAN Blue LED blinking when network is connected
REC Green LED on when record schedule is on
Event Green LED on when event detection schedule is on
Alarm Amber LED on when hard disk writes error
CAM Amber LED on when system has camera disconnected
Digital In (1~4) Amber LED on when digital input X is closed
Digital Out (1~4) Blue LED on when digital output X is closed
Description
LED on when system is ready
LED on when HDD is reading or writing
Rear Panel
e-SATA
-
12VD+D
DI 0
DI 1
DI 2
DI 3
GND
DO 0
DO 1
DO 2
I/O
DO 3
HDMI
eSATA
HDMI
12V DC
PWR
VGA USB
USB
VGA
LAN
RESET
LAN
AUDIO OUT
MIC IN
Connector
USB
Reset Press and hold reset button to factory default
HDMI HDMI output
VGA VGA output
e-SATA External e-SATA HDD
Description
Connect your mouse and USB flash disk for local display control and
backup
10
16-Channel Network Video Recorder
LAN 10/100/1000Mbps network.
I/O DI x 4 / DO x 4
Audio Audio out / Mic in
NVR-1615
11
16-Channel Network Video Recorder
Chapter 2. Hardware Installation
2.1 Accessories Check
2.2 Installation
1. Remove all screws on the box.
NVR-1615
2. Lift up and remove the cover.
English
12
16-Channel Network Video Recorder
3. Assemble the hard disk cradles with the silver screws.
4. Install the hard disks in the case with the black screws.
NVR-1615
13
16-Channel Network Video Recorder
NVR-1615
5. Connect the SATA data cable and SATA power cable between hard disk
and main board.
6. Put the cover back.
7. Assemble all the screws back to the box.
14
16-Channel Network Video Recorder
NVR-1615
Chapter 3. Connecting to the NVR
There are various ways you can connect to the NVR and below are the suggested methods
for different network setups:
The NVR is placed in a network with a DHCP server
“PLANET IP Wizard II” Utility.
The NVR is placed in a network without DHCP server
Access NVR with its default IP (192.168.0.20).
3.1 Use Device Search Utility
If the NVR is placed in a corporate network or a local area network where a DHCP server is
already presented, ple a s e install the “PLANET IP Wizard II” utility from the bu n d l e d CD disk.
To begin, launch the “PLANET IP Wizard II” utility from the CD and proceed with the
installation.
: Connect to the NVR by using
(or you are connecting to it directly):
15
16-Channel Network Video Recorder
Please click “Next” to continue.
NVR-1615
Please click “Install” to start the installation.
16
16-Channel Network Video Recorder
Once the installation is completed, p l e a s e click “Finish”.
NVR-1615
Please go to Start => Programs => PLANET IP Wizard II => PLANET IP Wizard II to run the
search tool. Then you will see the utility start searching the network.
The NVR should be located and its IP addres s should be displa y ed: Double-cli ck on it and the
program should automatically access the
browser.
NVR’s web administration page from your default
17
16-Channel Network Video Recorder
r
NVR-1615
You may change NVR’s IP address by clicking on the button highlighted below.
Y ou will be prompted for the NVR ’ s login information before proceeding to change device’s IP
address.
Ente
3.2 Access NVR with its default IP address
The NVR comes with a pre-configured static IP a d d r e s s “192.168.0.20”. However, it is only
used when there is no DHCP server presented in the network. C onnect the NVR and PC to
your switch or hub, or connect the PC directly to the NVR using a crossover CAT5 Ethernet
cable.
The PC that is connected directly to the NVR (or within the same local area network) should
receive an IP from it. Simply access the NVR from your Web browser with NVR default IP
address.
18
16-Channel Network Video Recorder
NVR-1615

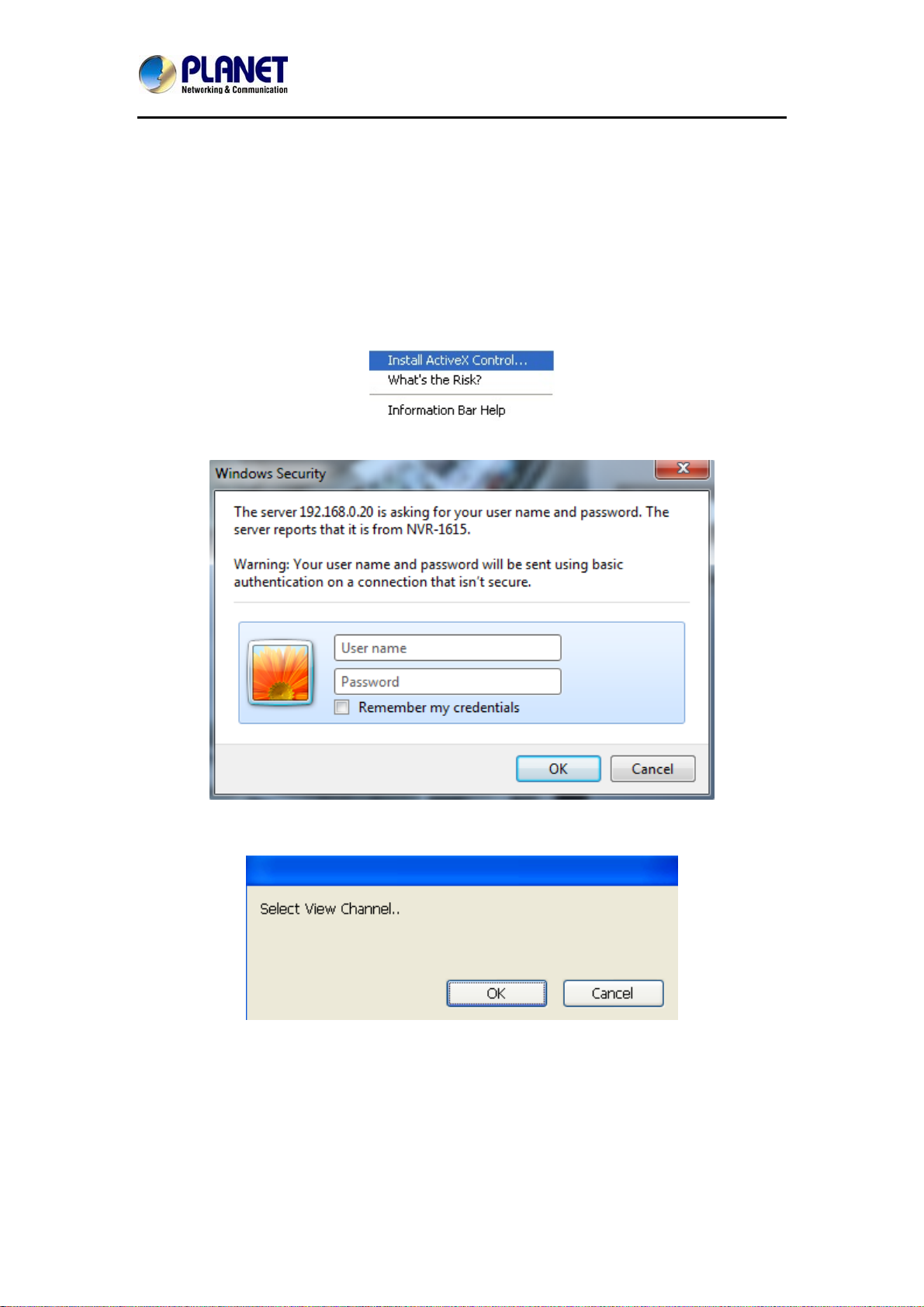

You should be prompted for the user name and password. Enter its default username
“admin” and password “admin” and then click” OK” to enter the system.
19
16-Channel Network Video Recorder
NVR-1615
Chapter 4. System
4.1 Main Console
This is the main control panel of the system providing live stream preview, system setup,
two-way audio, playback, volume control, snapshot, start or stop monitoring, and PTZ cont rols.
4.2 System Information

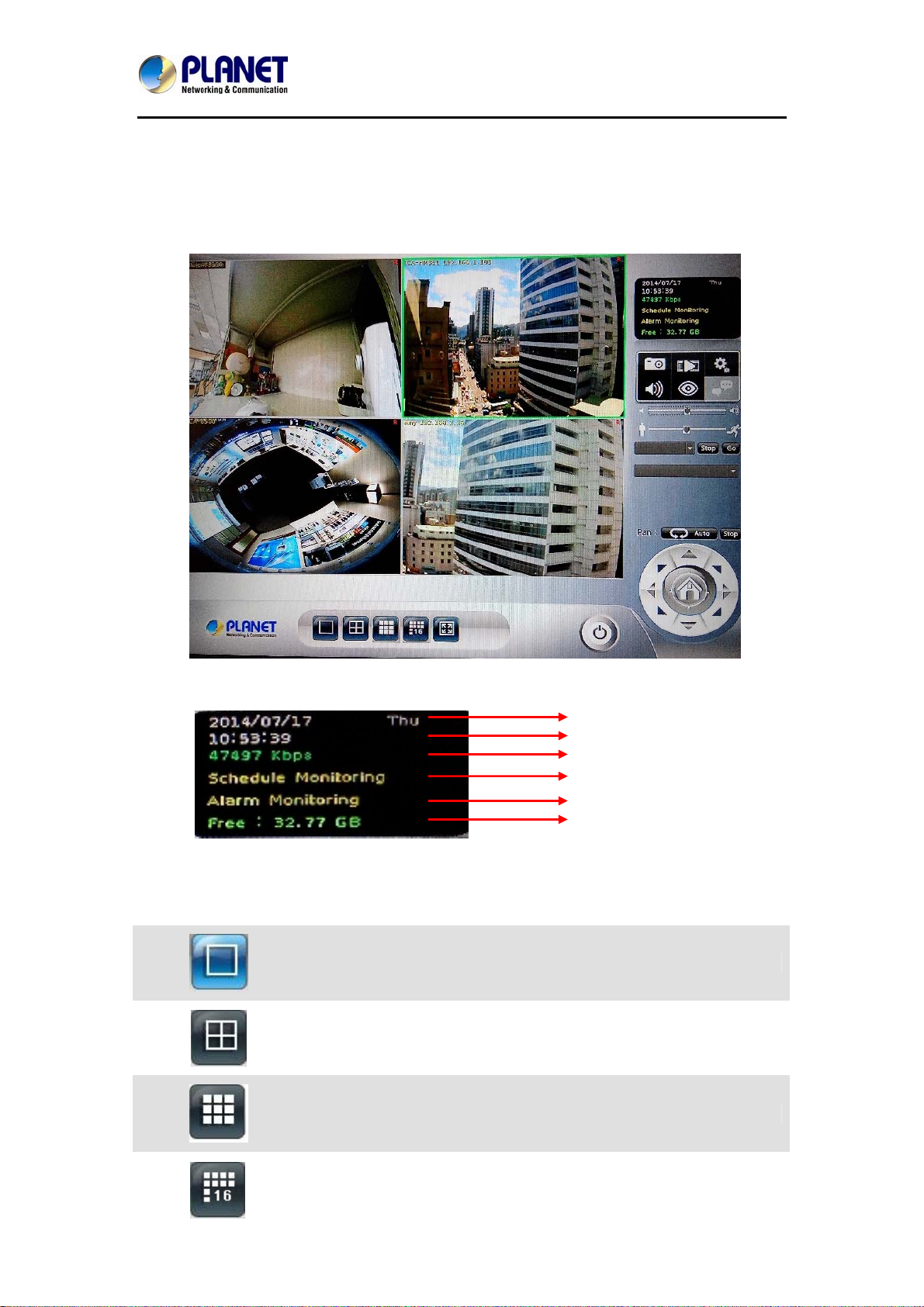

Date
Time
Throughput
Recording Status
Event Alarm Status
HDD Status
4.3 Screen Division
Assign the preview screen to the expected layout division by clicking these buttons.
Switch to 1 division
Switch to 4 division
Switch to 9 division
Switch to 16 division
20
16-Channel Network Video Recorder
Switch to Full screen, and click mouse right button to cancel Full
Screen.
Logout / firmware version display
4.4 Sub-screen Functions
Sub-screen window supported digital zoom; operating steps are
as follows:
Digital Zoom
Popup Menu
1. Click on preview image for switch current focus channel.
2. Scroll the mouse wheel; forward for digital zoom-in, and
backward for zoom-out.
3. Switch division mode will reset digital zoom status to default.
Click right button of mouse and select an option from the popup
menu.
1. Change current channel display camera.
2. Change current division mode.
3. Switch to current channel display ratio mode.
4. Switch to Full Screen mode / Cancel Full Screen mode.
5. Reset all channels to default camera list.
6. Snapshot current display.
7. Enable / Disable auto switch.
NVR-1615
Setting
Playback
Snapshot
Audio Volume Control
Schedule Monitoring
Two-way Audio
Click it to set up system and view log
Click it to go to “Playback” page to search and display needed
video
Click it to take a snapshot to the HDD; you can manage
snapshots on “snapshot” page under system management
Click it to switch between normal and mute
Click it to enable or disable scheduled monitoring;
the recording will be stopped if it is disabled
Click it to start or stop two-way audio of selected channel
PTZ Control
Move PTZ camera direction by clicking direction buttons
21
16-Channel Network Video Recorder
NVR-1615

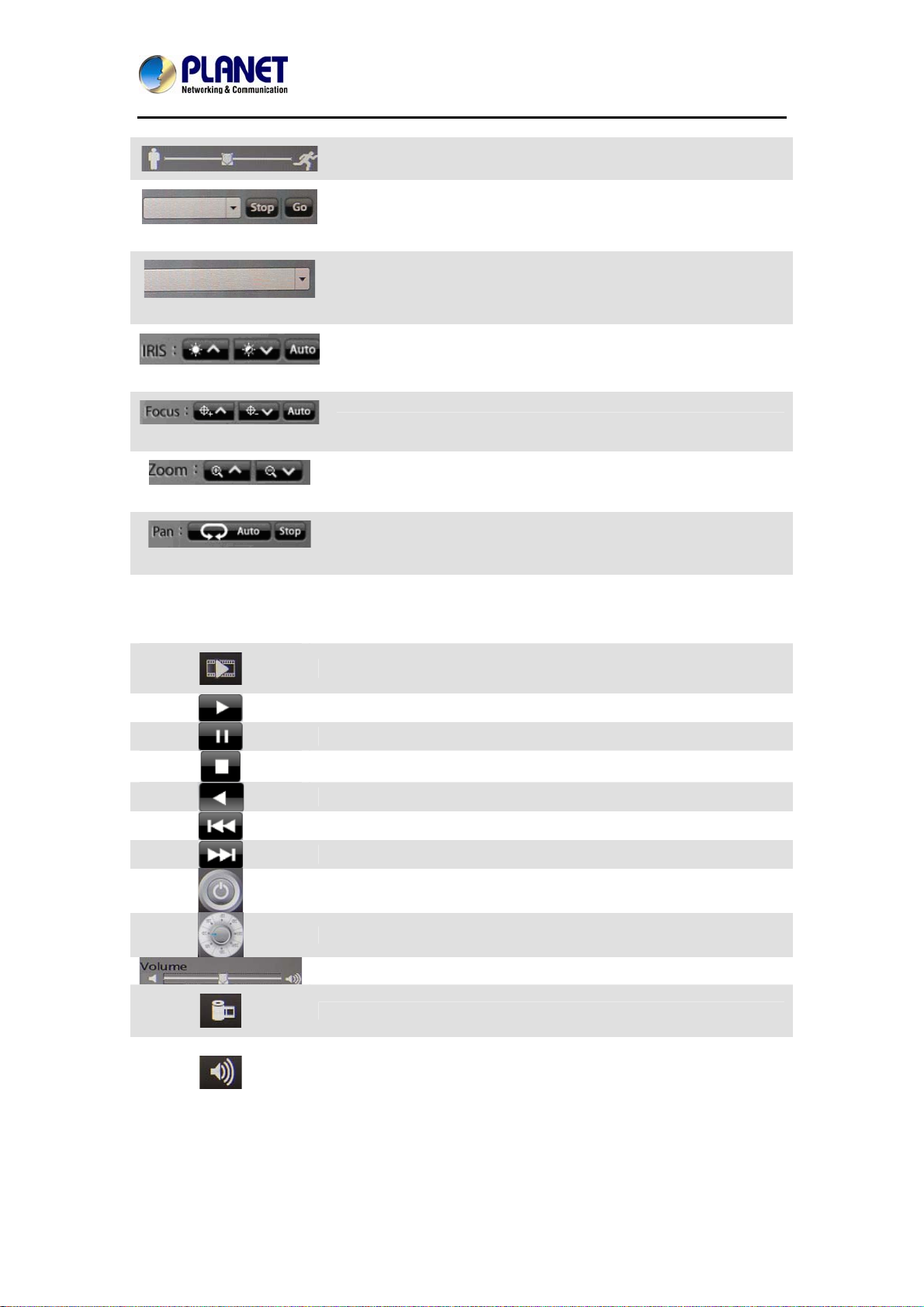

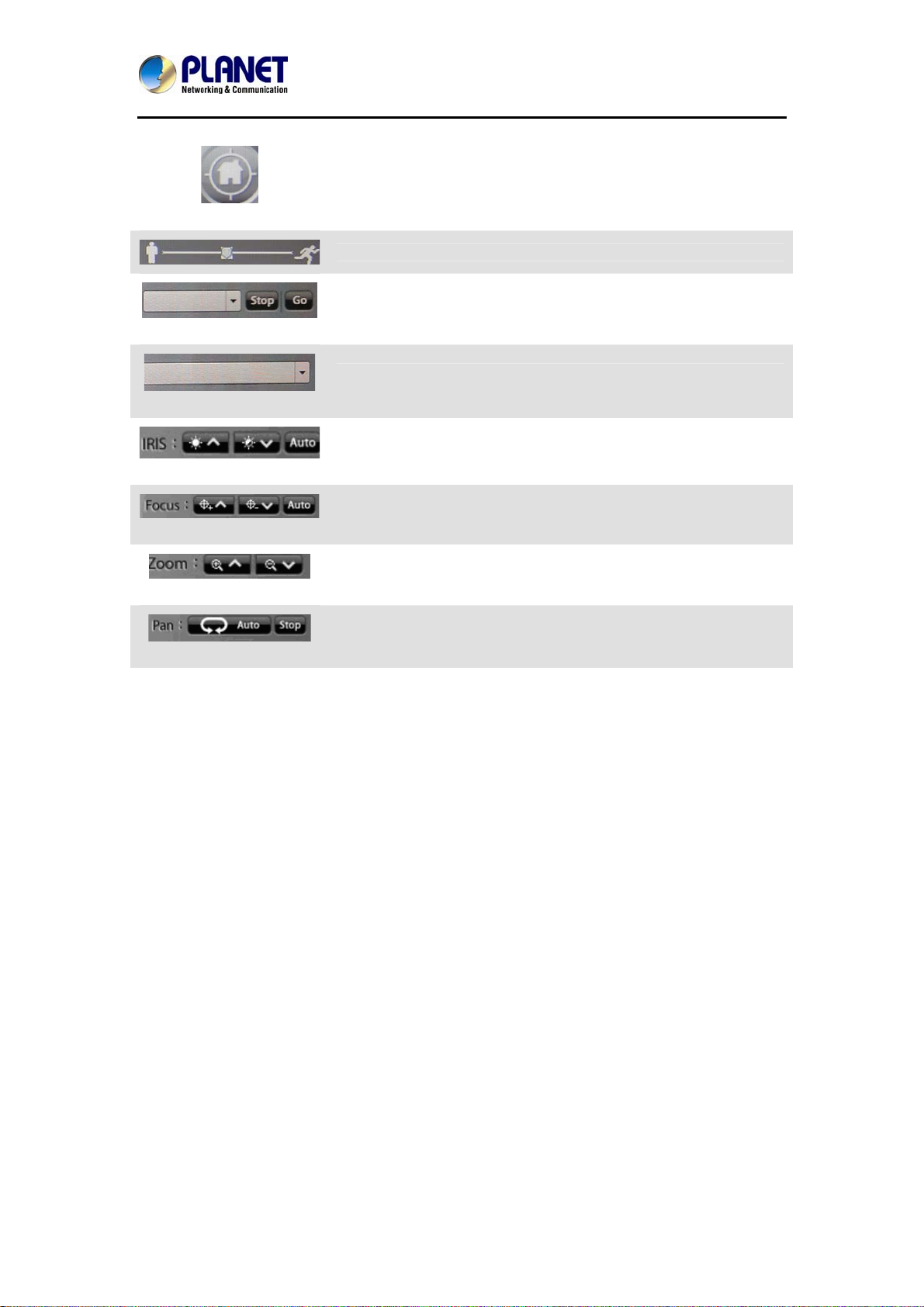

PTZ Control Home
Tour
Preset
IRIS
Focus
Zoom
Click it to make camera return to home position
Move the thumb to control speed
Select a tour setting from combo box and click “go” button to start
tour, click “Stop” button to stop tour
Select a preset position from combo box and camera will move to
preset position after clicking
Adjust camera’s IRIS setting, or set it to auto
Adjust camera’s focus setting, or set it to auto
Zoom-in or zoom-out focus
Start camera auto pan or stop
PAN
22
16-Channel Network Video Recorder
NVR-1615
Chapter 5. System Setting
Click setup button and select “System Setting” from pop-up menu to approach system setting
dialog.
5.1 Camera Setup
5.1.1 Audio Setting
Click the “Auto Setting” button for adding cameras to system automatically, and maximum
number of cameras depends on NVR’s model.
After clicking the button, system will show the fuzzy search filter dialog. You could input the
search filter with model name, IP address or MAC address, or you could keep them empty to
search all cameras.
23
16-Channel Network Video Recorder
NVR-1615
Auto setting could insert Intranet’s cameras even these cameras are located behind several
switch hubs. Besides, you could directly insert cameras on NVR’s switch hub and then click
“ Auto Setting “ button to add them to system. Through “ Auto Setting “ function , you do not
need to key-in any network IP address or sub-mask parameter. All you need to do is click
“ Auto Setting “ button to finish the job of inserting IP camera.

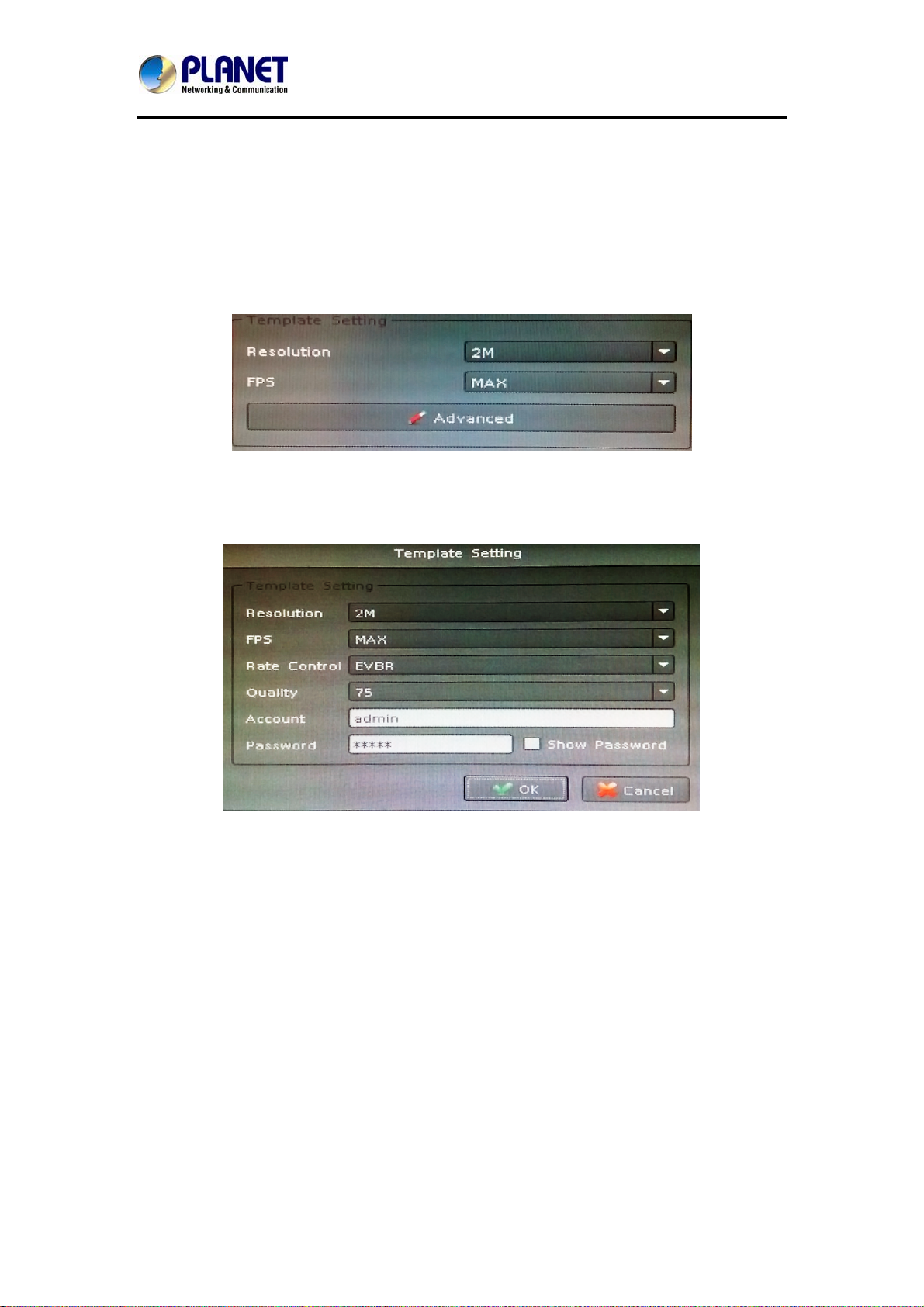

5.1.2 Template Setting
When you use “Auto Setting” or add a new camera, system will read the camera template from
“Template Setting” to fill out the camera parameter.
After the template has been confirmed, you will no longer need to set up parameter of camera
again in most cases. You could set up the quick template from camera setting page and only
need to set the camera’s resolution and frames per second. If you need to set up more details
in template, please click the “Advanced” button to approach the template setting dialog.
Resolution: The new camera will try to fit the selected resolution. When you select “Max”,
the camera will adopt maximum resolution. If you select another resolution, the system will
choose a resolution for the camera.
FPS: Set up frames per second for camera; system will try to set a near or equal FPS to
camera.
Rate Control: Set up the rate control algorithm of new camera.
Quality: If you select EVBR for new cameras, you could set up the then VBR quality here.
Account: Set up the default login user account of camera.
Password: Set up the default login password of camera.
24
16-Channel Network Video Recorder
NVR-1615
5.1.3 Camera List
List all inserted IP camera model names and IP addresses. It is able to display detailed
information and live streaming video by clicking the row of camera.
Check the box to make the camera available for video streaming; otherwise, the camera will be
disabled if the check box is empty.
Switch Camera sequential
Click right button of mouse on the camera, and select another camera in the popup menu.
System will switch to these two camera’s settings.
Quick Setup
1. Select a camera
2. Click “Quick Setup” button.
3. Select an action:
Copy to:
Copy selected camera’s settings to all channel or single channel
Switch To:
Switch selected camera and target camera sequential position.
Remove all:
Remove all camera settings.
5.1.4 Camera Setup
Key-in or modify camera information here.
25
16-Channel Network Video Recorder
NVR-1615

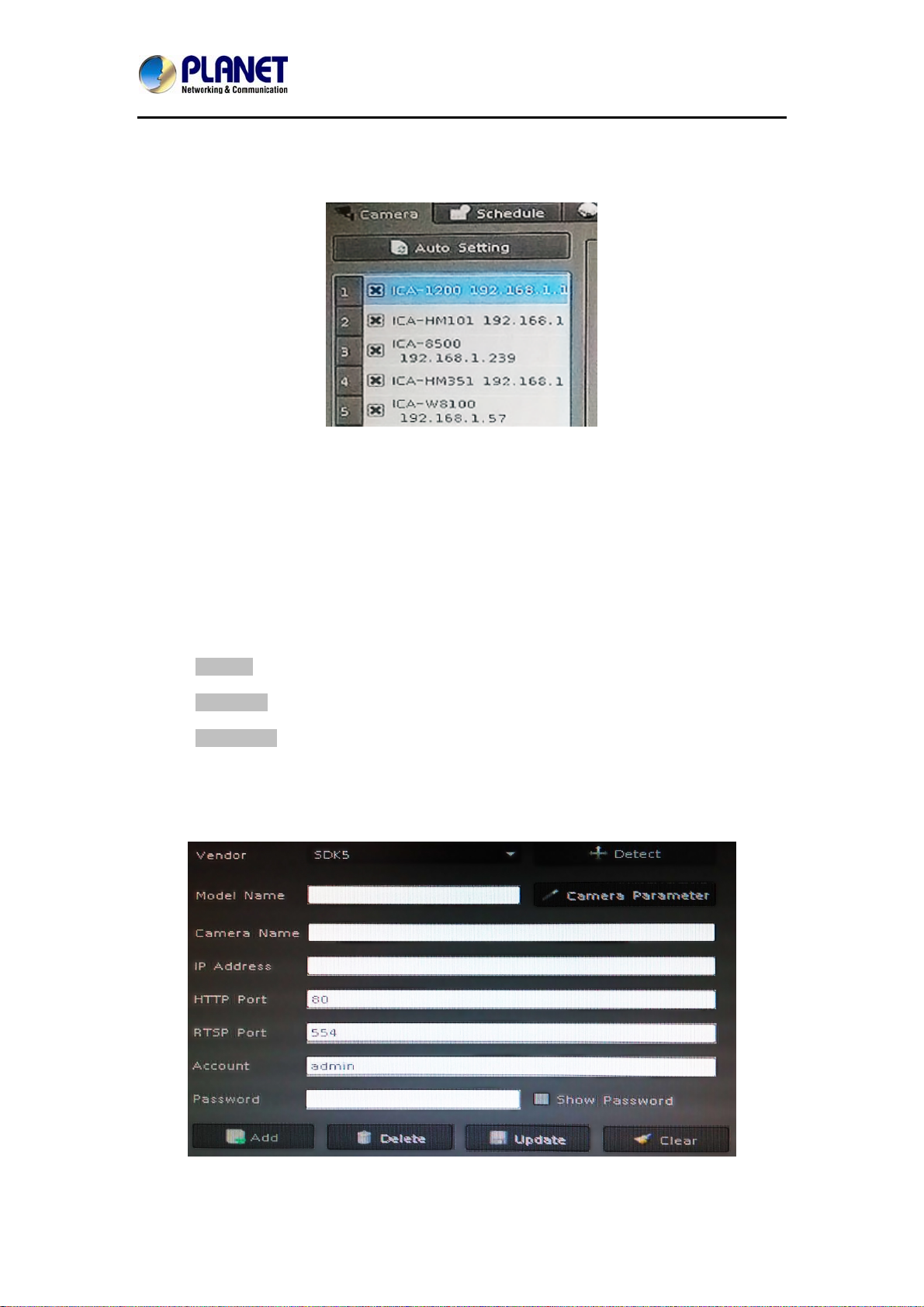

Vendor: You may select camera vendor or use ONVIF protocol for camera connection.
Detect: Check camera available and receive camera model name.
Camera Name: Key-in camera name.
IP Address: Key-in camera’s IP address.
HTTP Port: Set up camera’s HTTP port, default is 80.
RTSP Port: Set up camera’s RTSP port for TCP streaming, default is 554.
Account: Set up the login user name of camera.
Password: Set up the login password of camera.
5.1.5 Parameter Setting

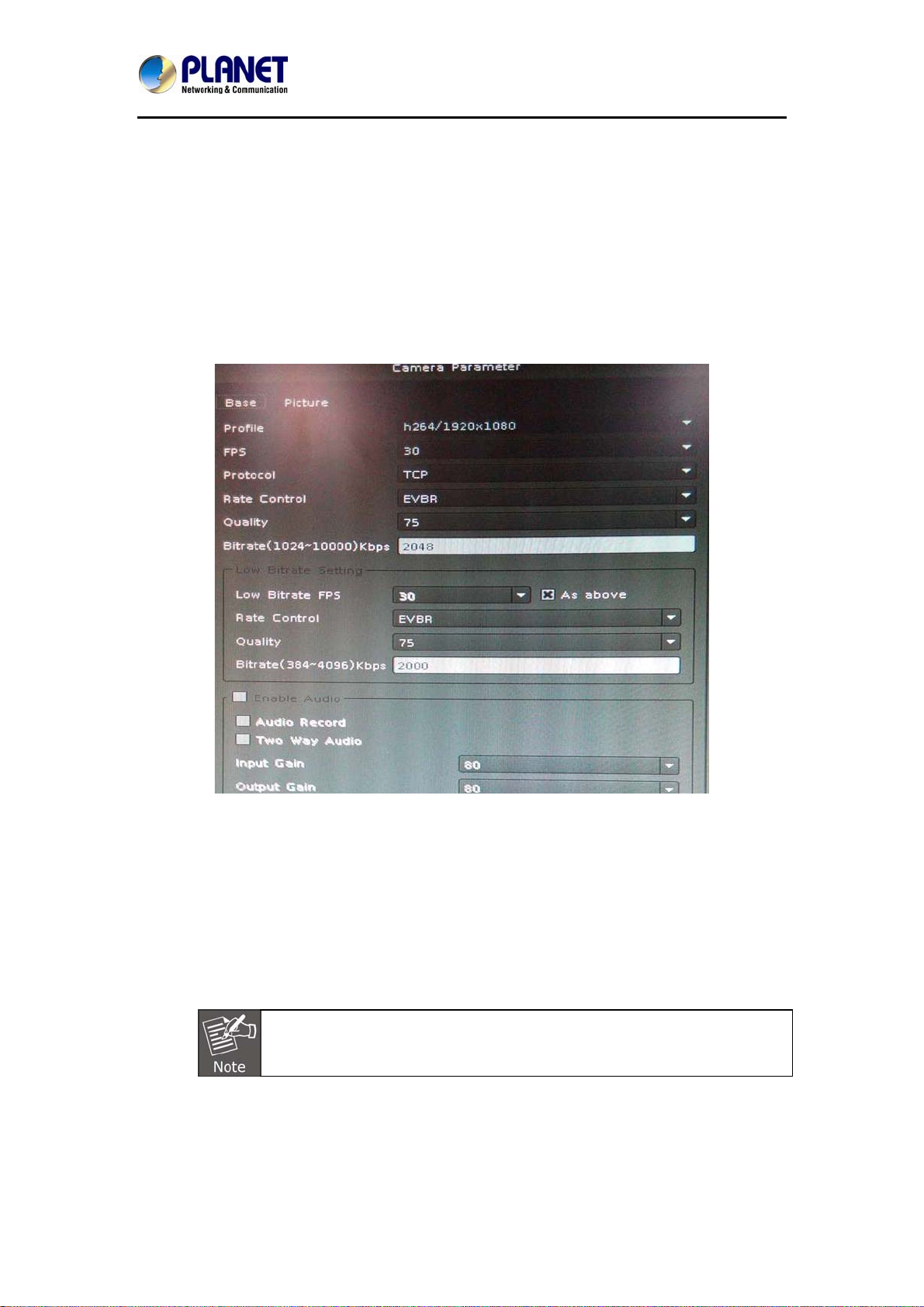

Profile:
Select video codec and resolution for live viewing and recording.
FPS: Select FPS for live viewing and recording.
Protocol: Select protocol HTTP / TCP and UDP.
Rate Control: Select EVBR or CBR for better video performance.
Quality: Select video quality by numbers.
Enable Audio: You have to enable audio for two-way audio function.
Audio Recording: Enable it for audio recording.
Two-way Audio: Enable it for Two-way Audio function.
Input Gain: Adjust the gain to reduce the input audio noise.
Output Gain: Adjust the gain to reduce the output audio noise.
The parameter dialogs are different for each vendor. It depends on camera’s
capability.
Add Camera:
1. Click “Search” button and wait for search job to finish.
2. Select a camera on search result list.
3. Preview live streaming video on preview window to confirm current came ra.
4. Click “Add” button to add selected camera into system.
26
16-Channel Network Video Recorder
NVR-1615
Delete Camera:
1. Select a camera from installed camera list.
2. Click “Delete” button to remove selected camera from list.
Update Camera setting:
1. Select a camera from installed camera list.
2. Modify camera’s setting at each setting fields.
3. Click “Update” button to save modified result.
Updated setting will write to disk after clicking “OK” on the bottom of the
page. If you click “Cancel” button to leave setting page, system will ignore
all your modified settings.
Clear button: Clear all setting fields.
5.1.6 Search Camera
Click “Search” button and system will list all cameras that can be searched in “Search List”.
You can click on each row to preview live video streaming. In addition, you can click on the
header column for sorting the current row data.
5.2 Schedule Setting
Schedule setting allows you to set up different times for recording. You may define multiple
recording types for each day or within 24 hours.
27
16-Channel Network Video Recorder
NVR-1615
The step to configure recording schedule

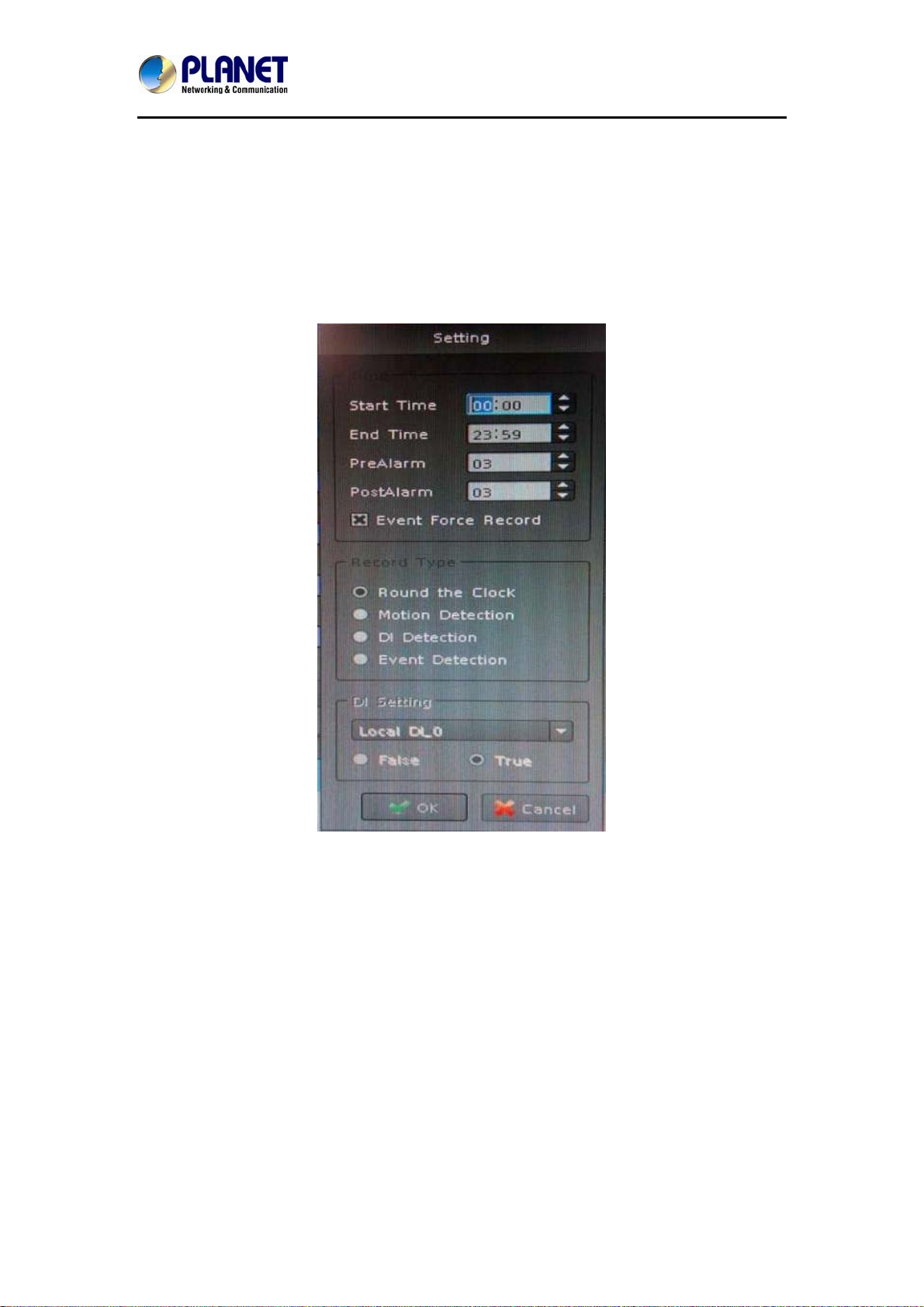

Select a camera: Select a camera for schedule configuration.
Select a weekday: Select a weekday bar; system will list time periods with this weekday.
Add / Configure: Select the time period and type of recording.
Delete: Delete the preset schedule.
Copy: Copy selected schedule to all weekdays.
28
16-Channel Network Video Recorder
5.3 Network Setting
NVR-1615

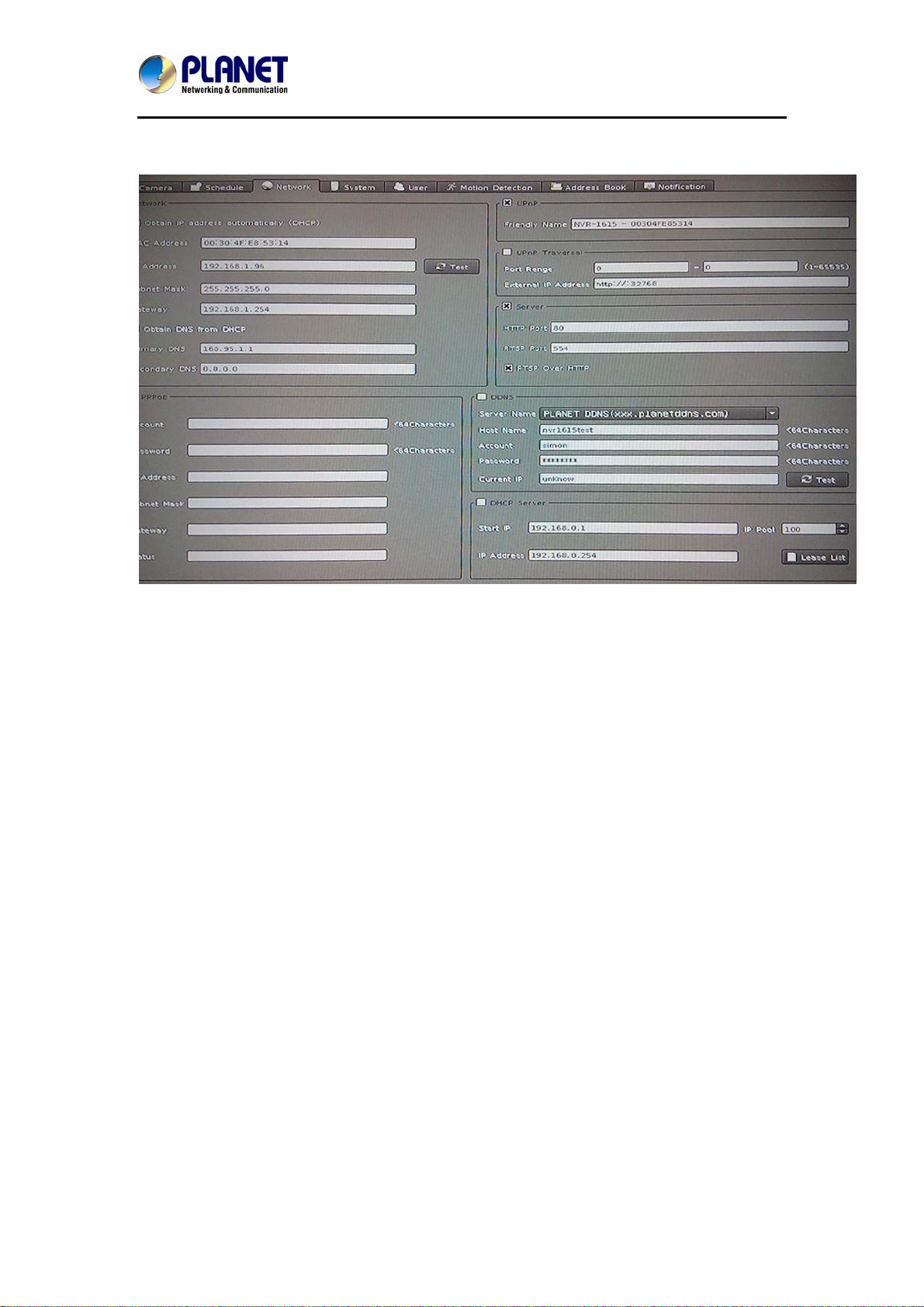

5.3.1 Network
DHCP Setting: Check the “Obtain IP address automatically (DHCP)” to get IP address
from DHCP server automatically.
MAC Address: Display MAC address of this NVR.
IP Address: Input the fixed IP address If you have disabled the DHCP function, and then
click “Test” button to detect IP conflict.
Subnet Mask: User defines.
Gateway: User defines.
Obtain DNS from DHCP: User defines.
Primary DNS: User defines.
Secondary DNS: User defines.
DNS Setting: Check “Obtain DNS from DHCP” to get DNS setting from DHCP server. It
only works on DHCP when enabled. If “Obtain DNS from DHCP” is disabled, you could key-in
DNS server IP in the text box.
5.3.2 PPPoE
Enable / Disable: Select the radio boxes to enable or disable PPPOE function.
Account: Key-in login user name of PPPOE server.
Password: Key-in login password of PPPOE server.
IP Address: Display current IP address which is assigned by PPPOE server.
Subnet Mask: Display current subnet mask which is assigned by PPPOE server.
Gateway: Display current gateway which is assigned by PPPOE server.
Status: Display PPPOE status.
29
16-Channel Network Video Recorder
NVR-1615
5.3.3 UPnP
Friendly Name: Display UPnP friend name on network
5.3.4 UPnP Transversal
Enable UPnP Traversal to auto-request port mapping with router, and define maximum and
minimum port value here.
Port Range: User defines.
External IP Address: User defines.
5.3.5 Server
Enable server option to start HTTP and RTSP server. When remote service is started, user is
able to connect remote service via IE browser.
HTTP Port: Set up HTTP service port here. The default setting is 80.
RTSP Port: Set up RTSP service port here. The default setting is 554.
RTSP over HTTP: Enable RTSP over HTTP function and the remote live streaming will
use HTTP protocol and HTTP port.
5.3.6 DDNS
The NVR-1615 provides PLANET DDNS function to allow you to map a domain name to the
dynamic IP address of a network device.
Sever Name: Select a DDNS server (e.g. PLANET DDNS).
Host Name: Key-in DDNS domain name.
Account: Key-in account of DDNS service.
Password: Key-in password of DDNS service.
Current IP: Click “Test” button to connect DDNS service and system will display current
public IP address.
30
16-Channel Network Video Recorder
5.4. System Setting
NVR-1615
5.4.1 Device Information
The “Device Information” provides the general information of the device such as firmware
version and model name.
Model Name: Display model name.
Device Title: Key-in device title here.
Software Version: Display current firmware version
5.4.2 Date & Time Info
Current Time: Display current time.
Server Date & Time: Display current system date-time.
Adjust:
Manual:
Click setting to approach date-time setting dialog and select current date and time now;
click “OK” to change system time or click “Cancel” button to abort configuration.
Synchronize with NTP (default):
Enable synchronize date-time with NTP service.
NTP Server: Key-in NTP server IP or domain name. If you use the domain name to connect
NTP server, the DNS service must be enabled.
NTP Sync Interval: Select time period to synchronize with NTP service.
Time Zone: Select the time zone of NVR location.
Daylight Saving: Enable or disable daylight saving mode.
Daylight Saving Start Time: Configure daylight saving start time; it works with daylight
saving mode when enabled.
Daylight Saving End Time: Configure daylight saving end time; it works with daylight
saving mode when enabled.
Daylight Saving Offset: Configure daylight saving offset time with current time; it works
with daylight saving mode when enabled.
Auto Login: Enable auto login mode to login with defined user name and password when
system boots up.
31
16-Channel Network Video Recorder
NVR-1615
User: Key-in auto login user name.
Password: Key-in auto login password.
System Setting: Enable “Auto full screen” to switch to full screen mode when system boots
up.
1. Change display language from language combo box.
2. Adjust auto switch interval seconds.
DIPS: Display device DIPS ID. Click “Test” button for test connection with DIPS server.
5.5. User Setting

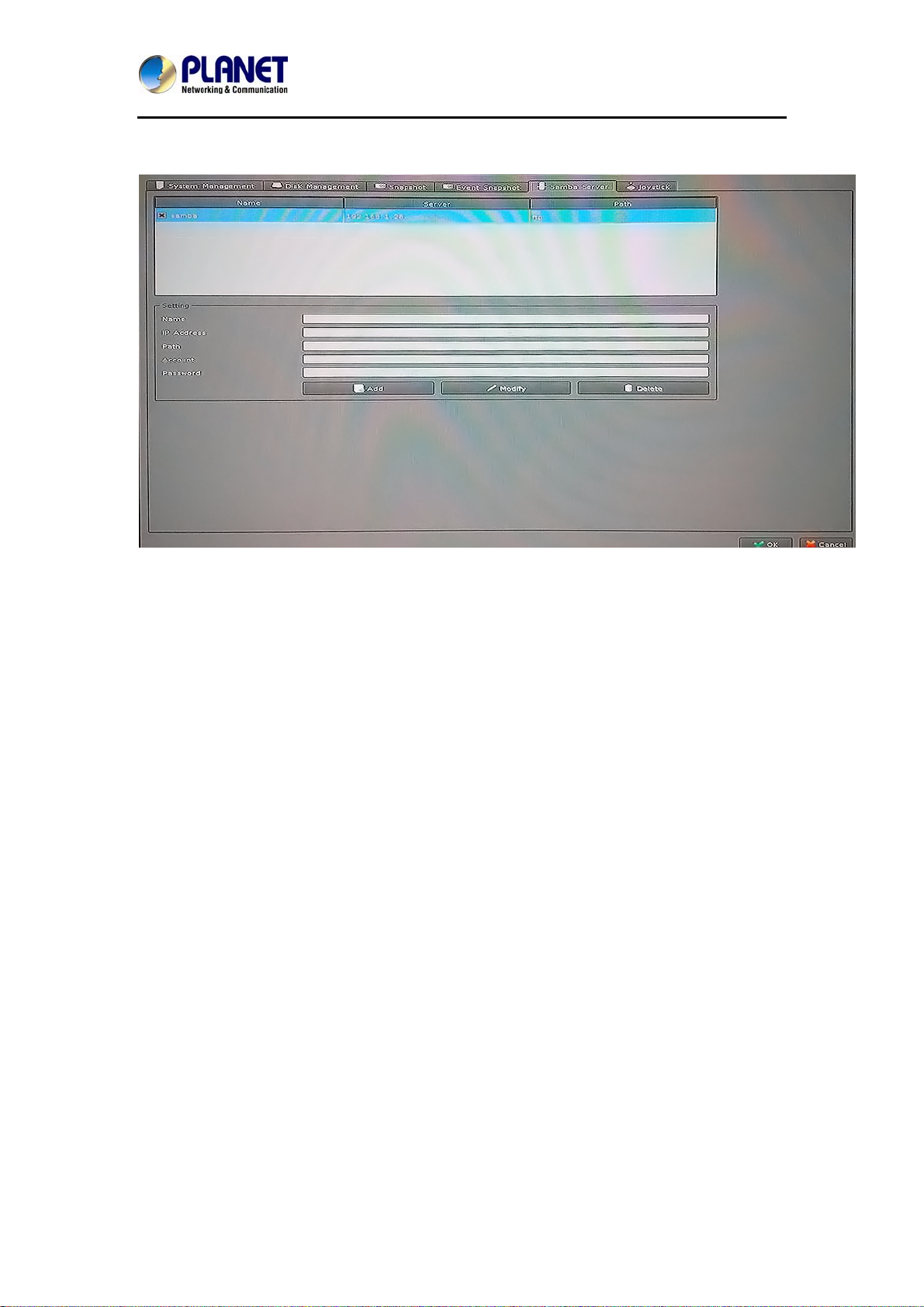

You may manage all user accounts or groups for different functions to access cameras.
Group: Select user’s login group.
Username: Set up username for account.
Password: Set up password for account.
Confirm Password: Confirm the password is correct.
Description: Describe the user or group.
Live Viewing: Define the access permission for each user to have live viewing.
Playback: Define the access permission for each user to play back camera.
Record: Define user permission for recording.
Setting: Define user permission for system setting.
PTZ: Define user permission for PTZ controls.
Two-way Audio: Define user permission for two-way audio.
Add: Click to add user after keying-in the user information.
Modify: Modify the user information and permissions.
Delete: Delete selected user account.
32
16-Channel Network Video Recorder

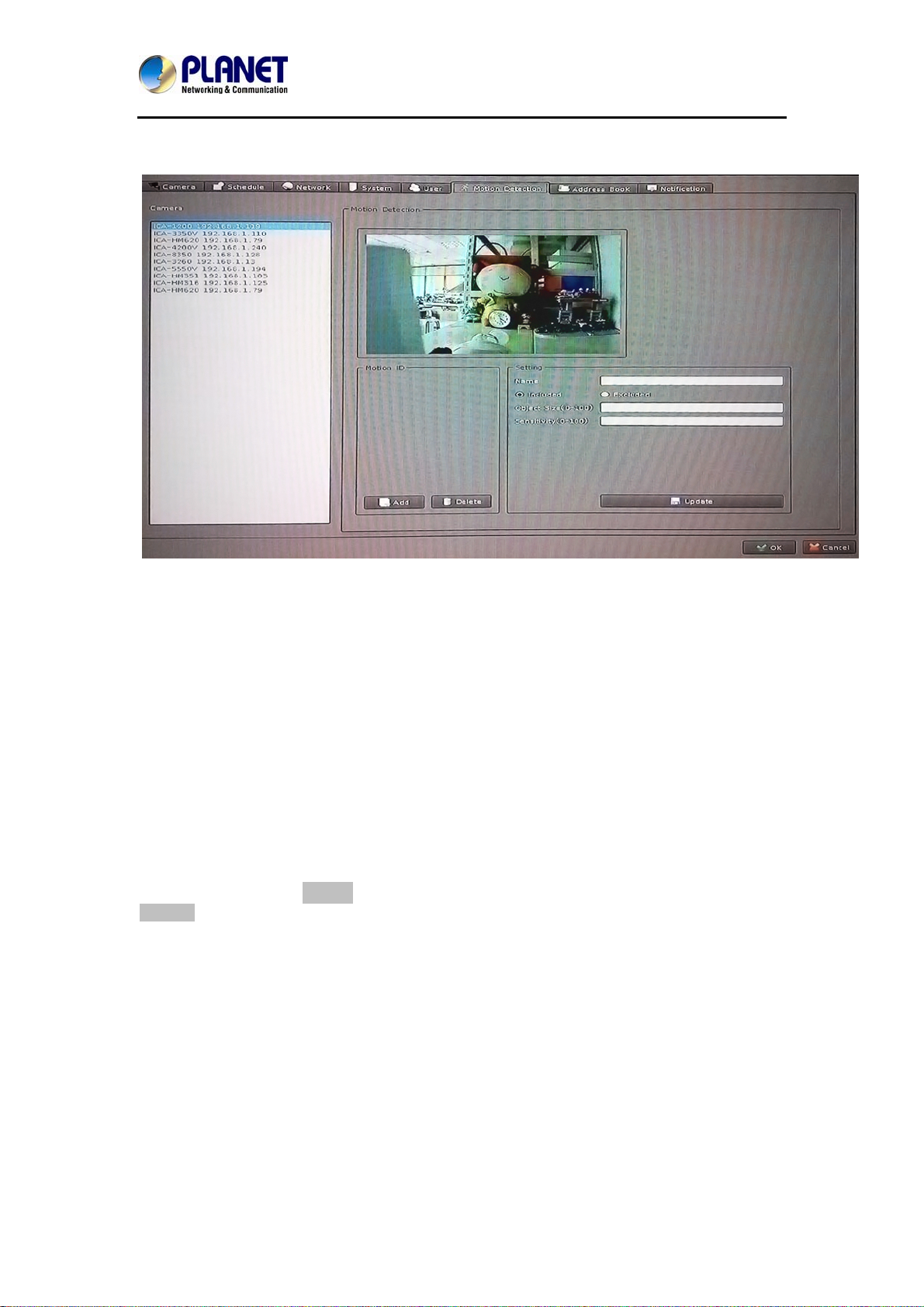

5.6. Motion Detection Setting
NVR-1615
You may set up to 10 regions of each camera for motion detection setting.
Select a camera: Click on camera list and select a camera to set up motion detection.
Add new motion detection: Click “Add” button to insert new motion window and then
the new window will appear on the left-upper corner.
Enable motion window: Check the window name to enable motion detection.
Modify motion detection area: Move mouse cursor to motion window border, and drag
cursor to resize motion window. Drag mouse cursor on motion window to re-position of motion
window.
Remove motion window: Click on motion window or window’s name to set up focus
window and then click “Delete” button to remove it.
Modify motion parameter: Click on motion window or window’s name to set up focus
window and then edit its motion parameters. You must click “Update” button to save modified
values, otherwise the settings will be lost.
Name: Key-in motion window’s name.
Include / Exclude: Include indicates system will detect motion inside of window area.
Exclude indicates system will detect motion outside of window area.
Object Size: Set up motion detection object size whose value is between 0 and 100. The
larger value indicates the object is bigger in the defined detection area
.
Sensitivity: Set up motion detection sensitivity whose value is between 0 and 100.The
larger value indicates the motion detection is more sensitive
.
33
16-Channel Network Video Recorder
5.7. Address Book Setting
NVR-1615
Add e-mail and other information to address book for sending e-mail alert.
Key-in the personal e-mail account information and then click on “Add” to add the information
to the address book; you may also click on “Modify” to change the information or “Delete” to
remove the account from the list.
5.8. Notification Setting
You may set up the notification to receive e-mails, send file to FTP server or HTTP CGI when
the event is triggered.
34
SMTP Settings
SMTP Server
SMTP Port
User Name
Password
From
Subject
Body
Retry
Send Interval
Send without picture
Server Required
Authentication
Server Required
Secure Connection
Send Test Button
HTTP Setting
HTTP IP
HTTP Port
HTTP User Name
HTTP Password
HTTP CGI
FTP Setting
FTP Server
FTP Port
User Name
Password
Path
Retry
Recycle Days
TCP Setting
TCP Server
TCP Port
16-Channel Network Video Recorder
NVR-1615
SMTP sever IP or domain name.
SMTP service port number
Login SMTP server user ID
Login SMTP server Password
E-mail sender’s name
Mail’s subject
Mail’s body content
Retry the number of times when mail fails to send out
Set the interval of each time when mail is sent out
Do not attach picture with notification mail
The e-mail server needs Authentication
The e-mail server needs SSL connection
Send out a test mail to check whether Server information is correct
or not
HTTP server’s IP or domain name
HTTP server’s service port
Login HTTP server’s user account
Login HTTP server’s password
HTTP server receive notification CGI path
FTP server IP or domain name
FTP server service port
Login FTP server account
Login FTP server password
Upload picture or video path
Retry the number of times when upload fails
Keep uploading failed picture or video in days
TCP server IP or domain name.
TCP service port number.
35
16-Channel Network Video Recorder
NVR-1615
Chapter 6. System Management
The system management is for you to set up the NVR for video image, return to default,
firmware upgrade, event, and storage management. Click setup button and select “System
Management” from pop-up menu to approach System setting dialog.
6.1. System Management
Resolution: Change monitor current display resolution and then confirm change result; the
system will recover old resolution after 15 seconds.
Style:
Image:
You may change the interface to Simple / Normal / Professional / Advance.
Adjust monitor Brightness, Contrast, Saturation, Sharpness, and Hue value.
Only available on D-sub interface.
Maintenance
Default Setting:
Reset all settings to factory default value.
Backup Setting: Export backup setting file to removable storage device.
Restore Setting: Restore a backup setting file from removable storage device.
Firmware Upgrade: Select a firmware file from removable storage device and then
click “Firmware Upgrade” button to begin update firmware job.
System Restart: Restart CoreNVR system.
Audio: Adjust audio input or output gain value for better audio quality.
36
16-Channel Network Video Recorder
NVR-1615

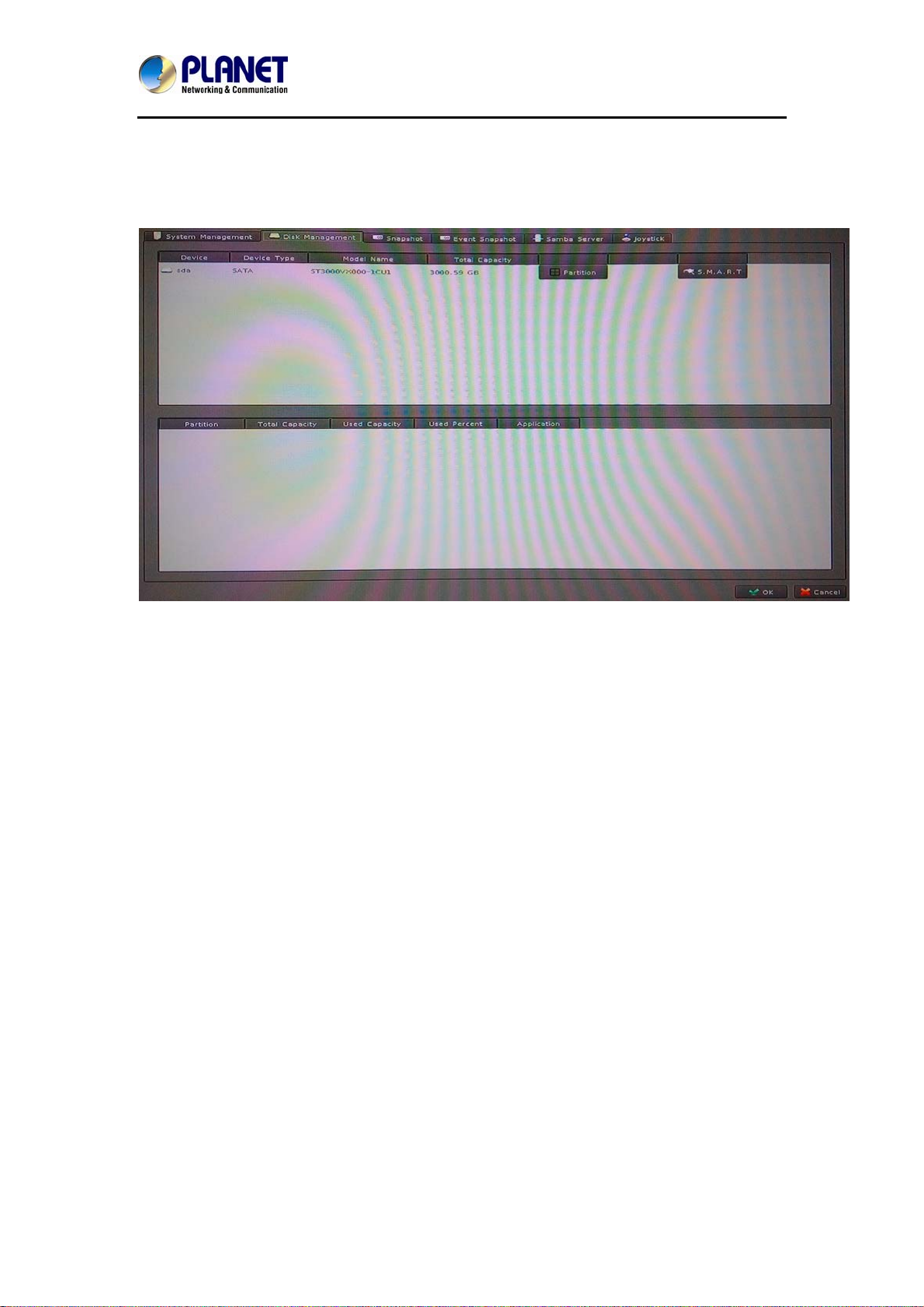

6.2. Disk Management
The NVR supports up to two 4TB HDDs installed in the system. You may also manage all USB
storage devices on this page.
Device List: Display all devices detected on NVR and their information.
Partition Button: Select a storage device and click “Partition” button. System will remove
all data and partitions on selected device, and create a new partition.
Mount / Un-mount Button: Mount or un-mount USB stick.
S.M.A.R.T Button: Display the Hard Disk S.M.A.R.T status.
Partition List: Display all partitions of selected device and their information. Clicking
“Format” button will format selected partition to “ext4” format; all data will be lost.
6.3. Snapshot
You may save your video snapshot and save them to the HDD or any removable USB device.
37
16-Channel Network Video Recorder
Source Snapshot List:
Search snapshot image:
1. Select a hard disk path
2. Select a time period
3. Click “search” button
4. The search result will display in the list box.
5. Select a snapshot file name; the snapshot image will display on the right of window
Copy: Clicking “Copy” button will copy selected snapshot file to removable device.
Delete: Clicking “Delete” button will delete selected snapshot file.
Destination Snapshot List:
1. Select a removable device path
2. System will show snapshot file’s name of selected folder
3. Select a snapshot file name; the snapshot image will display on the right of window
Delete: Clicking “Delete” button will delete selected snapshot file.
NVR-1615
38
16-Channel Network Video Recorder
6.4. Event Snapshot
NVR-1615
Event Snapshot:
Event Type: Select trigger snapshot event type.
Input: Select DI input port number.
Time: Select search time period.
Search: To search event snapshot based on the condition you set above.
Result Table:
Time:
Event Time.
Event Type: Triggered Event Type.
Input:
Device:
Event DI port number, if not DI event will fill -1.
Event triggered device ID.
Snapshot Viewer: Select an event from search result table and click the “Play” button.
The snapshot video will display on the right of window.
Next Frame: Click “>“ button for next frame.
Pre Frame: Click “<“ button for pre-frame.
Information:
Display snapshot video information.
Snapshot Button: Click “Snapshot” button and save snapshots to removable
device.
Backup Button: Clicking “Backup” button will back up this event video to removable
device.
39
16-Channel Network Video Recorder
6.5. Samba Server
NVR-1615
Name: Key-in Samba server name to identify server.
IP Address: Samba server IP address.
Path: Key-in Samba server recording path.
Account: Login Samba server account.
Password: Login Samba server password.
Add Button: Key-in all Samba server information and then Click “Add” button to add to
samba server list.
Modify Button: Select a Samba server from list and then modify server’s information.
when the modify job is done, click the “Update” button to save.
Delete Button: Select a Samba server in the list and then click “Delete” Button to remove it
from list.
40
16-Channel Network Video Recorder
NVR-1615
Chapter 7. Event Setting
You may define each event alarm on a different day and actions for each camera or NVR
system. Please refer to the operating instructions below.
7.1 Add a New Event
1. Select a camera or local from tree list
2. Click “Add” button in the below device list.
3. Select an event from table.
Motion Alarm: Camera’s motion detection. Please set the camera motion first.
Disconnect Alarm: Lost camera connection.
Digital Input_0 ~ Digital Input_4:
Schedule Trigger:
Triggered by schedule setting.
HDD Error Alarm: Failed recording or HDD error will send event alarm.
Detected input.
41
16-Channel Network Video Recorder
4. Click “Add” button in the below Event Schedule List.
5. Selecting event will detect weekdays and the time of each day.
6. Set up alarm detail parameter.
Weekdays: Select weekdays for event notification.
Time Period: Select time period for event notification.
Alarm Setting
Alarm Condition:
For Motion event, true means alarm triggered by motion; false means alarm
triggered by no motion.
For DI event, true means alarm triggered by DI in open status; false means alarm
triggered by DI in close status.
For Schedule trigger, true means alarm is triggered during scheduled period;
false means alarm triggered when not in scheduled period.
Alarm seconds: Define the alarm time period when the event is triggered.
Merge seconds: Set for merging the same two alarms between setting seconds.
7. Click “Add” button in the below Action list.
8. Select an action when event is triggered and system will execute it.
NVR-1615
7.2 Modify Existing Event Schedule or Output Action
Modify Event Schedule:
1. Select an event from event list.
2. Select a schedule from event schedule list.
3. Click “Modify” button.
42
16-Channel Network Video Recorder
NVR-1615
4. Modify setting values from schedule setting dialog.
5. Click “OK” button when the modification is done.
Modify Output Action:
1. Select an event from event list.
2. Select a schedule from event schedule list.
3. Select an action from “Action List”.
4. Click “Modify” button.
5. Modify setting values from each Action setting dialog.
6. Click “OK” button to close dialog.
7.3 Delete Existing Event Schedule or Output Action
Delete Event:
1. Select an Event from “Event List”.
2. Click “Delete” button in the below “Event List”.
Delete Event Schedule:
1. Select an event from “Event List”.
2. Select an event schedule from “Event Schedule List”.
3. Click “Delete” button in the below “Event Schedule List”.
Delete Action:
1. Select an event from “Event List”.
2. Select an event schedule from “Event Schedule List”.
3. Select an Action from “Action List”.
4. Click “Delete” button in the below “Action List”.
7.4 Event Action Type
Buzzer: Buzzer works after event is triggered.
Digital Output:
Display on Channel: When event is triggered, system will display OSD string on selected
channels.
Select a device to change DO status after event is triggered.
Set output to “True”, DO will change to “Close” status when alarm is
triggered.
Set output to “False”, DO will change to “Open” status when alarm is
triggered.
43
16-Channel Network Video Recorder
NVR-1615
Record: When event is triggered, system will force selected channels record.
1. System must switch to “Schedule Monitoring” when event is triggered.
2. The selected channels must set to “Recording schedule” when event
is triggered.
Snapshot:
System will snapshot images with selected channels, and save snapshots to event snapshot
folder automatically. You could search them on “Event Snapshot” page under “System
Management”.
E-mail:
1. Select channels for snapshot or record a file when event is triggered.
2. Select Snapshot or Record a period video file.
3. Set up Pre-Alarm seconds and Post-A larm seconds for record file.
4. Select users to send notification e-mail when event is triggered.
TCP: Send notification of TCP sockets to TCP server when event is triggered.
44
16-Channel Network Video Recorder
HTTP: Send notification to HTTP server when event is triggered.

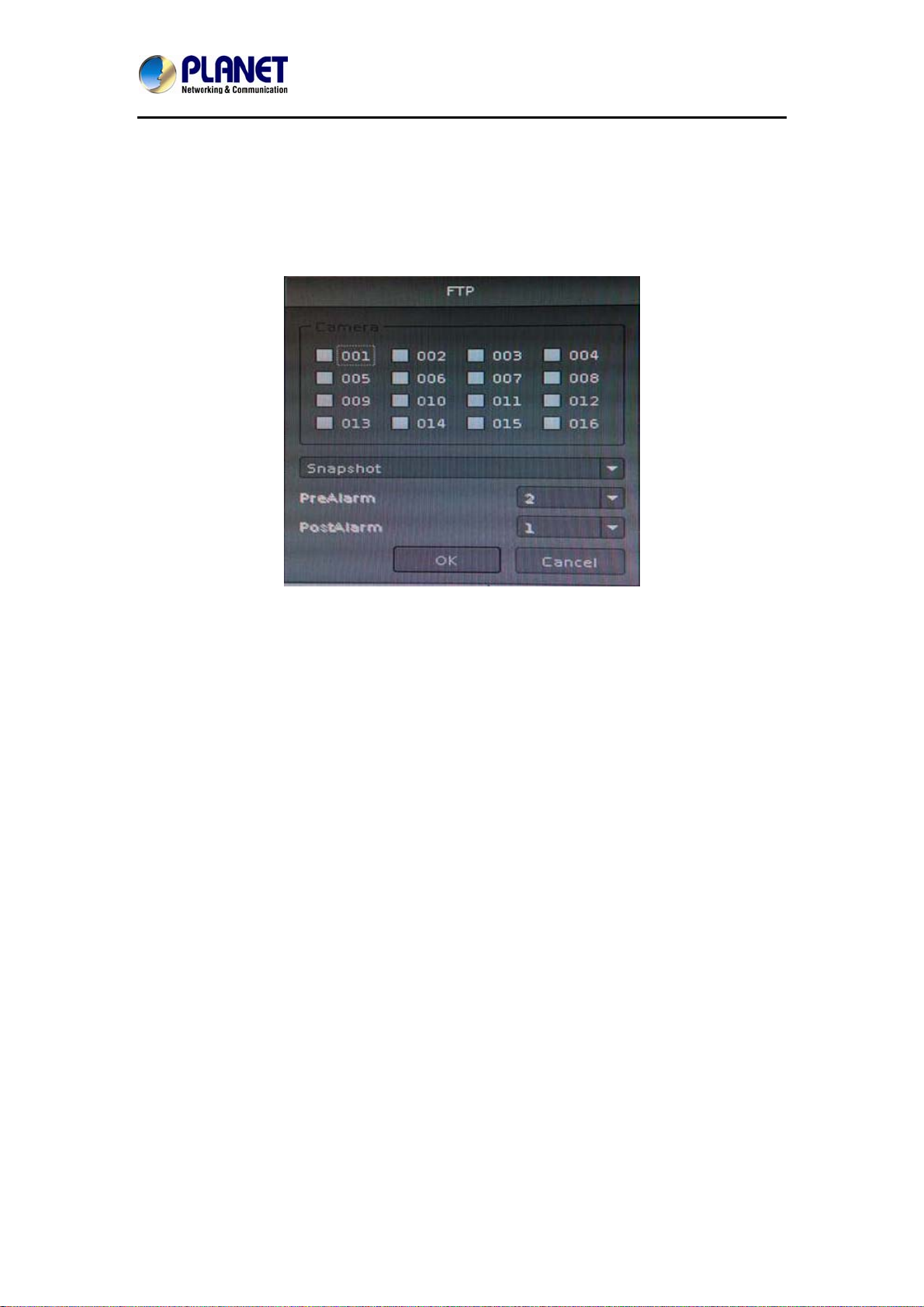

FTP:
1. Select channels for snapshot or record a file when event is triggered.
2. Select Snapshot or record a video file in a specified time.
3. Set up Pre-Alarm seconds and Post-Alarm seconds for recording.
NVR-1615
45
16-Channel Network Video Recorder
Chapter 8. Log Viewer

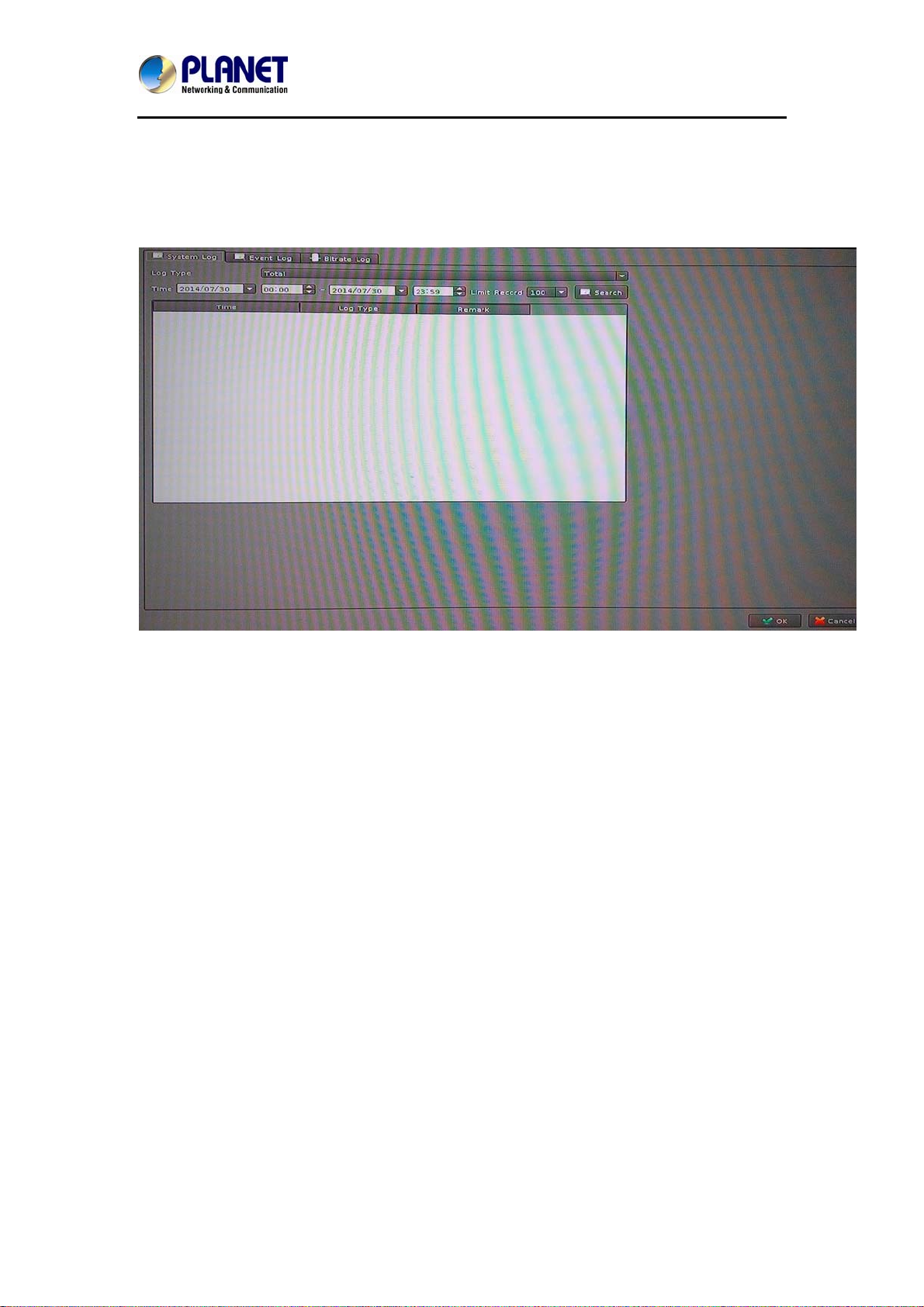

8.1 System Log
NVR-1615
Log Type: Select a log type to filter data.
Time: Set up search logs in time period.
Limit Record: Set up maximum number records of search result.
Search: Click “Search” button to start search; the search result will display in the table
below.
46
16-Channel Network Video Recorder

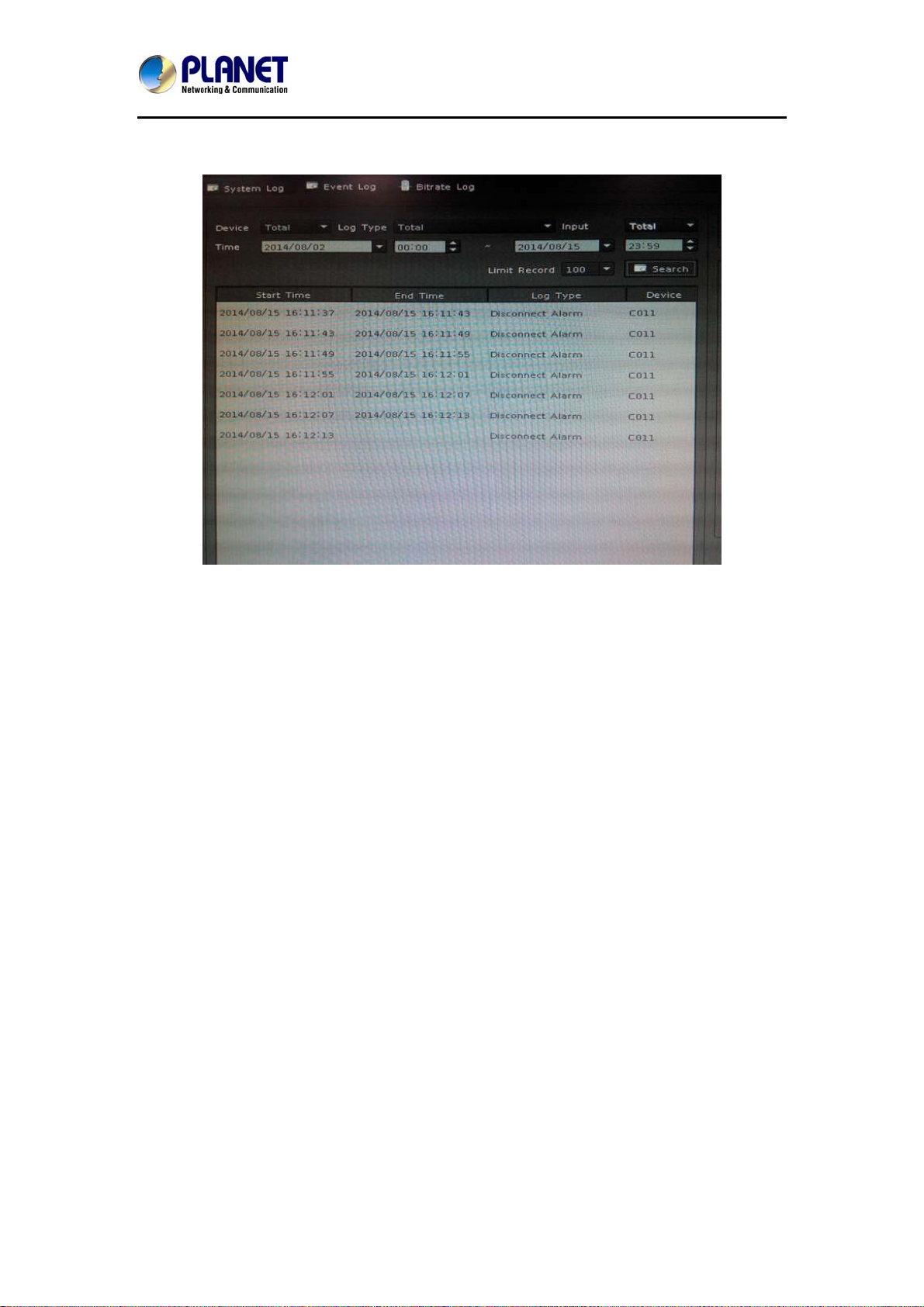

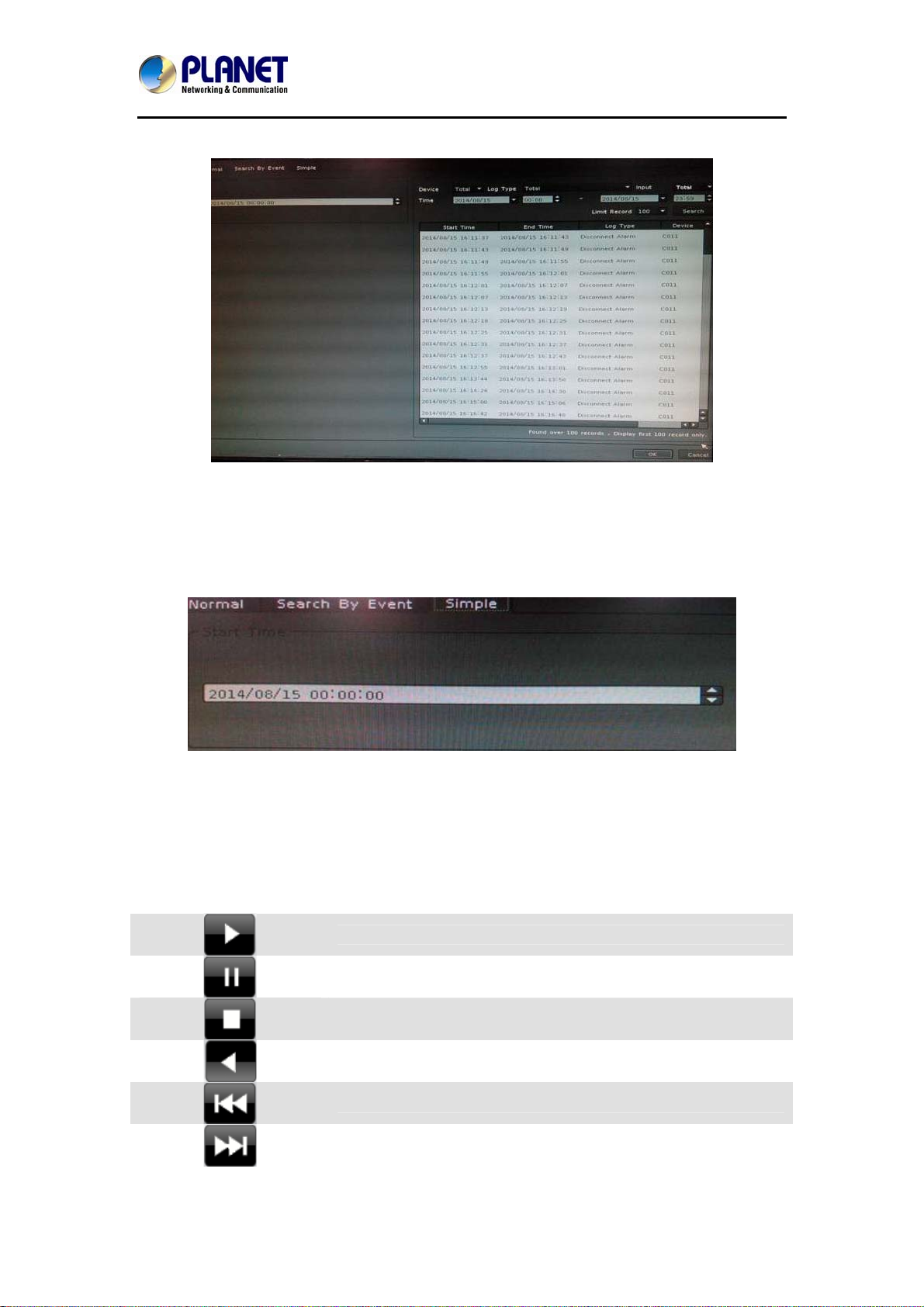

8.2 Event Log
NVR-1615
Device: Select a Device for search filter.
Log Type: Select a log type to filter data.
Input: Set up DI input port search filter; only works on search DI event.
Time: Set up search logs in time periods.
Limit Record: Set up maximum number records of search result.
Search: Click “Search” button to start search; the search result will display in the table
below.
Preview Event Images: Select an event log from log table. Event image will display in
the window. You could click the play control buttons to preview event images.
Change Display Channel: Select another camera ID from combo box. System will
display selected channel image in event time.
Snapshot: Insert USB dongle into the NVR first and click the Snapshot button to save it.
47
16-Channel Network Video Recorder
NVR-1615
8.3 Bitrate Log
You may search bitrate for selected time period; it will show a different color of bitrate data as
seen below
.
Select a date: Click on the calendar with blue background days.
Bit-rate table: System will display the bit-rate log in the table.
Blue: Bit-rate is very low.
Green: Bit-rate is fine.
Yellow: Bit-rate is a bit high.
Orange: Bit-rate is very high.
Bit-rate is over limit.
Red:
48
16-Channel Network Video Recorder
NVR-1615
Chapter 9. Playback
You may search and play back the recorded video files with selectable time peri od and is also
able to convert the video into AVI or back up the video files.
9.1 Search Recorded Video Files
Click button to approach search dialog.
Normal Search:
1. Select playback date: If there is record history data, system will set calendar’s day to
blue to identify which days has recorded files.
2. Begin search: Click “Search” button to start search record file in selected date and
system will draw search result in the grid.
3. Select playback camera and time period: Select cameras from list, and drag on
search result or edit start / end time from date-time picker control to define playback period.
4. Begin playback: Confirm playback camera and period and then click “OK” button to
begin playback.
49
16-Channel Network Video Recorder
NVR-1615
Search by Event:
Input search filter first by clicking the “Search” button; the search result will display on the list
as shown above. Select a log that you need to play back. System will fill the event period
automatically, and select which cameras you need to play back together.
Click the “OK” button when the search is done.
Simple Search:
Select playback period from date controls directly and select which cameras will play back.
Click the “OK” button when the search is done.
9.2 Playback Control Buttons
Parameter Description
Play video forward
Pause playing video
Stop playing video
Play video backward
Seek to previous frame when in pause mode
Seek to next frame when in pause mode
50
16-Channel Network Video Recorder
Close playback and return to live view
Change of playback speed
Adjust playback audio volume
Select play audio way as shown below
1. Mute : Mute sound output
2. Live Audio: Play live focus channel sound
3. Playback Audio: Play playback sound
Switch display mode to full screen and right-click mouse to return to
normal mode
Take a snapshot to hard disk
9.3 Convert into AVI File
1. Click button to open search dialog.
2. Select convert camera(s) and time period for converting
3. Select converted files destination folder and then click “OK”.
NVR-1615
9.4 Backup Video File
1. Click button to open backup dialog.
2. Select backup camera(s) and time period for backup.
3. Select backup files destination folder and then click “OK”.
51
16-Channel Network Video Recorder
NVR-1615
Chapter 10. Web Remote Management
The NVR is able to be viewed from Internet Explorer when the network is available. You can
have live view or playback, and most of the functions are the same as the NVR system.
10.1 Connection to NVR
For the first-time connection, you need to install the ActiveX control if it appears on your web
page as shown below.
After installing the ActiveX component, login the system on pop-up window.
Please login your username and password and then you will see the “Select View Channel”
window as shown below.
52
16-Channel Network Video Recorder
NVR-1615
You may select channel(s) you would like to view on your computer. Please also check the
“Low Bitrate” to reduce the bandwidth consumption on IE.
Click on “OK” to see the live view.
10.2 Live View on Internet Explorer
The picture below is the live view on IE, which is exactly the same as NVR system.
53
16-Channel Network Video Recorder
g
NVR-1615
10.3 System Information
10.4 Screen Division
Switch to 1 division
Switch to 4 division
Switch to 9 division
Date
Time
Recordin
Event Alarm Status
HDD Status
Status
Switch to 16 division
Switch to Full screen and right-click mouse to cancel Full Screen.
54
16-Channel Network Video Recorder
Logout / firmware version display
10.5 Sub-screen Functions
Right-click mouse to select an option from the popup menu.
NVR-1615
Popup Menu
Show Live Camera
Remove Camera Display
Digital Zoom
Snapshot
Full Screen
Restore Division Default
Playback
Snapshot
You may select any connected camera to display on selected
channel
You may remove the camera from selected channel
You must enable this function to zoom the selected camera on
the Web
Take a snapshot of selected channel
Make full screen of selected channel
Restore to default division when you finish full screen
view
Click it for System setting / System Management / Event
Setting/ Log Viewer
Click it to go to “Playback” page
Click it to take a snapshot to the HDD; you can manage
snapshots at “snapshot” page of system management
Audio Volume Control
Schedule Monitoring
Two-way Audio
PTZ Control
PTZ Control_Home
Click it to switch between normal and mute
Click it to enable or disable schedule monitoring,
the recording will be stopped if it is disabled
Click it to start or stop two-way audio of selected channel
Move PTZ camera direction by clicking direction buttons
Click it to make camera return to home position
55
16-Channel Network Video Recorder
NVR-1615
Move the thumb to control speed
Select a tour setting from combo box and click “go” button to start
tour, click “Stop” button to stop tour
Tour
Select a preset position from combo box and camera will move to
preset position after clicking
Preset
Adjust camera’s IRIS setting, or set it to auto
IRIS
Adjust camera’s focus setting, or set it to auto
Focus
Zoom-in or zoom-out focus
Zoom
Start camera auto pan or stop
PAN
10.6 Playback on Internet Explorer
Click it to go to “Playback” page
Play video forward
Pause playing video
Stop playing video
Play video backward
Seek to previous frame when in pause mode
Seek to next frame when in pause mode
Close playback and return to live view
Change of playback speed
Adjust playback audio volume
Convert into AVI; please see chapter 9.3 for information
Select play audio way as shown below
1. Mute : Mute sound output
2. Live Audio: Play live focus channel sound
3. Playback Audio: Play playback sound.
56
16-Channel Network Video Recorder
NVR-1615
To select which information you would like to show as seen below
Search recorded video files; please see chapter 9.1 for information
Take a snapshot to hard disk
Back up video files; please see chapter 9.4 for information
57
Loading...
