MGSW-28240F
24-Port 100/1000BASE-X SFP with 4-Port 10G
SFP+ L2/L4 Managed Metro Ethernet Switch
Physical Port
• 24-port 100/1000BASE-X SFP mini-GBIC slot
• 4 shared 10/100/1000BASE-T RJ45 ports
• 4-port 1G/10G SFP+ slot
• RS232 RJ45 console interface for switch basic
management and setup
Hardware Conformance
• 36 to 60V DC, redundant power with polarity reverse
protect function
10Gbps Ultra High Speed Switch with Multiple SFP Fiber Ports is Great for
All Long-Reach Applications
The MGSW-28240F is specially designed for service providers to deliver profitable
Ethernet network. It is equipped with advanced management functions and provides
24 100/1000Mbps dual speed SFP Fiber ports, 4 10Gbps SFP Fiber ports, and 4
10/100/1000Mbps TP/SFP combo ports delivered in a rugged strong case. The MGSW-
28240F is capable of providing non-blocking switch fabric and wire-speed throughput as
high as 128Gbps in the temperature range from -10 to 60 degrees C without any packet
loss and CRC error. It greatly simplifies the tasks of upgrading the enterprise LAN for
catering to increasing bandwidth demands.
DC power switch 4 x 10/100/1000Base-T
AC power input
and power switch
100~240V AC
ON
AC POWER
OFF
DC POWER
DC Input Range:
50/60 Hz
36V~72V
Grounding System / PWR / Alarm LED RESET button
2 x DC power input Console port
2 x DI/DO
ON
OFF
Fault
RJ45 port
GNDGNDDO 1DO 0DI 1DI 0
Ring R.O.
FAN1
PWR
DC 2DC 1
2 4 6 8 10 12 14 16 18 20 22 24 26 28
2 4
FaultFAN2
DC 2
DC 1
1 2 3 4
24 x 100/1000Base-X
SFP slot
4 x 1/10GBase-SR/LR
SFP slot
MGSW-28240F
Console
Reset
115200, N, 8, 1
272625242322212019181716151413121110987654321 28
Flexible and Extendable 10Gb Ethernet Solution
10G Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ slots
in the MGSW-28240F supports dual speed and 10GBASE-SR/LR or 1000BASE-SX/
LX. With its 4-port, 10G Ethernet link capability, the MGSW-28240F provides broad
bandwidth and powerful processing capacity. In addition, the MGSW-28240F provides
24 mini-GBIC slots, which supports Dual-speed, 100BASE-FX and 1000BASE-SX/
LX SFP (Small Form-factor Pluggable) fiber-optic modules. With the 4 10Gbps SFP
Fiber ports and 24 Gigabit dual speed SFP Fiber ports support, the MGSW-28240F
enables the administrator to flexibly choose the suitable SFP transceiver in the light
of the transmission distance or the transmission speed required to extend the network
efciently. It is suitable for metropolitan networks and wide area networks.
Data Sheet
• -10 to 60 degrees C operating temperature
• 19-inch rack-mountable
• Fault relay alarm for port breakdown, power failure
• Two built-in thermal fans
Layer 2 Features
• Prevents packet loss with back pressure (half-duplex)
and IEEE 802.3x pause frame ow control (full-duplex)
• High performance of Store-and-Forward architecture,
broadcast storm control and runt/CRC ltering
eliminate erroneous packets to optimize the network
bandwidth
• Storm Control support
–Broadcast/Multicast/Unknown-Unicast
• Supports VLAN
–IEEE 802.1Q Tagged VLAN
–Up to 255 VLANs groups, out of 4094 VLAN IDs
–Provider Bridging (VLAN Q-in-Q) support (IEEE
802.1ad)
–Private VLAN Edge (PVE)
–Voice VLAN
• Supports Spanning Tree Protocol
–STP, IEEE 802.1D Spanning Tree Protocol
–RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
–MSTP, IEEE 802.1s Multiple Spanning Tree
Protocol, spanning tree by VLAN
–BPDU Guard
• Supports Link Aggregation
1
1
Intelligent SFP Diagnosis Mechanism
The MGSW-28240F supports SFP-DDM (Digital Diagnostic Monitor) function that greatly
helps network administrator to easily monitor real-time parameters of the SFP, such as
optical output power, optical input power, temperature, laser bias current, and transceiver
supply voltage.
Digital Diagnostic Monitor (DDM)
Voltage
250
Power Transceiver
Ammeter
20
10
0
dBm
30
A
0
40
50
60
20−20
40−40
60−60
Temperature
°C
150
100
200
50
300
0
V
0
20−20
40−40
60−60
dBm
Power Receiver

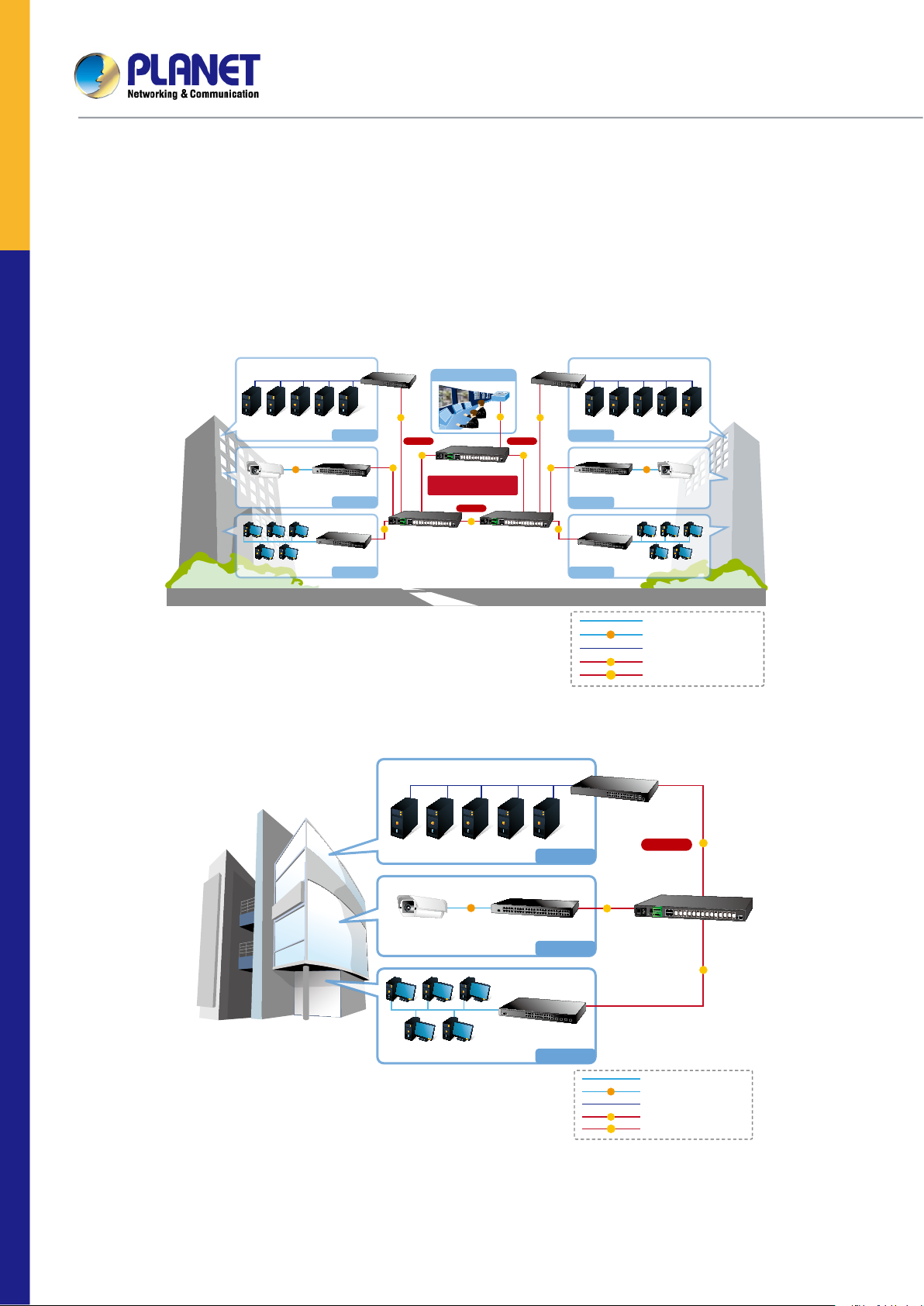

Optimized Design for MAN Redundant Ring, Fast Recovery for Surveillance
or Industrial System
The MGSW-28240F supports redundant ring technology and features strong rapid
self-recovery capability to prevent interruptions and external intrusions. It incorporates
ITU-G.8032 Ethernet Ring Protection Switching technology, Multiple Spanning Tree
Protocol (802.1s MSTP), and redundant power supply system into customer’s industrial
automation or surveillance network to enhance system reliability and uptime in harsh
factory environments. The MGSW-28240F also protects customer’s industrial network
connectivity with switching recovery capability that is used for implementing fault
tolerant ring and mesh network architectures. If the Industrial network is interrupted
accidentally, the fault recovery times can be less than 50ms to quickly bring the network
back to normal operation.
MGSW-28240F
–802.3ad Link Aggregation Control Protocol (LACP)
–Cisco ether-channel (static trunk)
–Maximum 12 trunk groups, up to 16 ports per trunk
group
–Up to 32Gbps bandwidth (duplex mode)
• Provides port mirror (many-to-1)
• Port mirroring to monitor the incoming or outgoing trafc
on a particular port
Quality of Service
• Ingress Shaper and Egress Rate Limit per port
bandwidth control
• 4 priority queues on all switch ports
• Trafc classication
–IEEE 802.1p CoS
–TOS/DSCP/IP Precedence of IPv4/IPv6 packets
–IP TCP/UDP port number
–Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS
policies
• Supports QoS and In/Out bandwidth control on each port
• Trafc-policing policies on the switch port
• QoS Control List Wizard makes QoS creation and
conguration easier and more quickly
• DSCP remarking
Multicast
• Supports IGMP Snooping v1, v2 and v3
• Querier mode support
• IGMP Snooping port ltering
• Multicast VLAN Registration (MVR) support
Factory
1000
Industrial MAN Switch
E.R.P.S. Ring for Metropolitan Area Network Application
Recovery Time < 50ms
Office
MGSW-28240F
Security
• IEEE 802.1x Port-based/MAC-based network access
authentication
1000
• Built-in RADIUS client to co-operate with the RADIUS
servers
• TACACS+ login users access authentication
1000
• RADIUS/TACACS+ users access authentication
• IP-based Access Control List (ACL)
Industrial
PoE Switch
PoE
1000
Highway
PoE
Industrial
PoE Switch
• MAC-based Access Control List
1000
8-Port MAN Switch
Control Center
• Source MAC/IP address binding
• DHCP Snooping to lter un-trusted DHCP messages
2
Front-access Interface Design Improves Efficiency of Installation and
Maintenance
The MGSW-28240F is with user-friendly front-access design to help improve technician
wiring and installation efficiency, whereas, in the traditional design, the power socket,
console port and even some extension module were always placed on the rear of the
product. When technician is installing or maintaining the product on the rack, they have
to be careful because they may not see the rear-end of the product. It is very dangerous
to the other on-line devices. Now, the front-access design helps technician avoid this
situation, and install or operate the MGSW-28240F very easily.

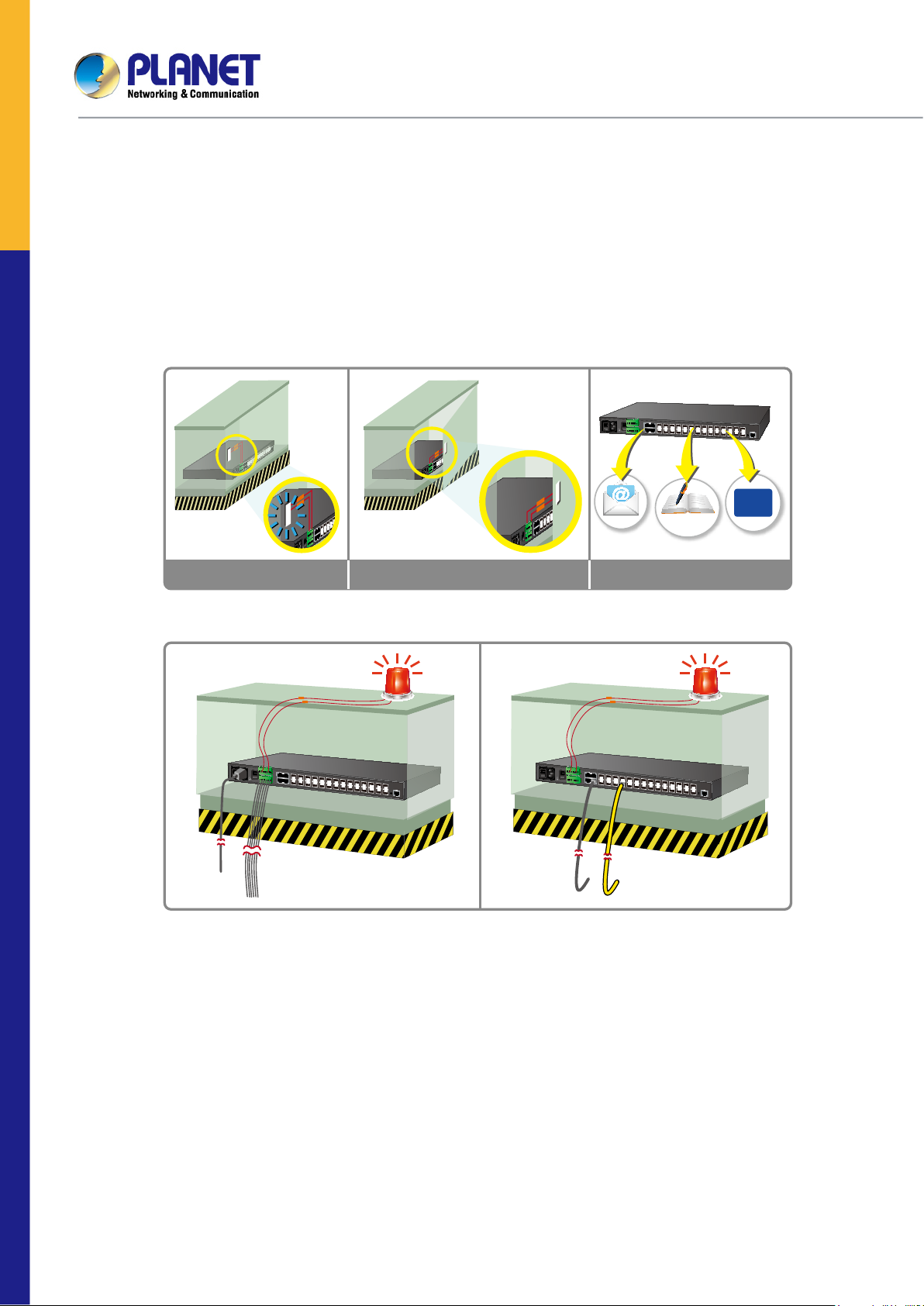

Digital Input/Output Design Helps to Efficiently React to the Emergency
Events
The MGSW-28240F helps the administrator to efficiently react to the emergency events
by offering digital input and digital output interface. The digital input can be set up to
indicate urgent events, and send the messages or alarm to the network system, such as
door open detector or windows open detector. The digital output function can define the
immediate response such as port failure or power failure to the related urgent event.
AC and DC Redundant Power to Ensure Continuous Operation
To enhance the operation reliability and exibility, the MGSW-28240F is equipped with one
100~240V AC power supply unit and two additional 36~60V DC power input connectors
for redundant power supply installation. The Redundant Power Systems are specifically
designed to handle the demands of high tech facilities requiring the highest power
integrity. Furthermore, with the 36~ 60V DC power supply implemented, the MGSW-
28240F can be applied as the telecom level device that could be located in the electronic
room.
Cost-effective IPv6 Managed Gigabit Switch Solution
Faced with the increasingly large number of IP cameras and wireless APs getting
deployed in all kinds of applications, more and more network equipment comes with
IPv6 protocol for next generation networking. The MGSW-28240F supports both the
original IPv4 network structure as well as the new IPv6 protocol. With easy and friendly
management interfaces and plenty of management functions included, the MGSW-28240F
is the best choice for enterprises, and IP Surveillance and Wireless service providers to
connect with IPv6 network.
Layer2/Layer4 Full-functioned Managed Switch for Building Automation
Networking
The MGSW-28240F Managed Metro Ethernet Switch is ideal for applications in the factory
data centers and distributions. It provides advanced Layer 2 to Layer 4 data switching and
redundancy, Quality of Service traffic control, network access control and authentication,
and Secure Management features to protect customer’s industrial network connectivity
with reliable switching recovery capability that is suitable for implementing fault tolerant
and mesh network architectures.
Powerful Security
The MGSW-28240F offers comprehensive Access Control List (ACL) for enforcing security
to the edge. Its protection mechanisms also comprise Port-based 802.1x and MAC-based
user and device authentication. The port-security function effectively limits the number of
client passes through, so that network administrators can now construct highly secured
corporate networks with time and effort considerably less than before.
MGSW-28240F
• Dynamic ARP Inspection discards ARP packets with
invalid MAC address to IP address binding
• IP Source Guard prevents IP spoong attack
• Auto DoS rule to defend DoS attack
• IP address access management to prevent
unauthorized intruder
Management
• Switch Management Interfaces
–Console/Telnet Command Line Interface
–Web switch management
–SNMP v1, v2c, and v3 switch management
–SSH/SSL secure access
• Four RMON groups (history, statistics)
• IPv6 IP Address/NTP/DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• DHCP for IP address assignment
• Firmware upload/download via HTTP/TFTP
• DHCP Relay and Option 82
• User Privilege levels control
• NTP (Network Time Protocol)
• Link Layer Discovery Protocol (LLDP) Protocol
• Cable Diagnostic technology provides the mechanism to
detect and report potential cabling issues
• Reset button for system reboot or reset to factory
default
• PLANET Smart Discovery Utility for deploying
management
• ICMPv6
Redundant Data Protection
• ITU-T G.8032 Ethernet Ring Protection Switching
Redundant Power System
• 100~240V AC/36~60V DC dual power redundant
• Active-active redundant power failure protection
• Backup of catastrophic power failure on one supply
• Fault tolerance and resilience
Digital Input/Digital Output
• 2 Digital Input (DI)
• 2 Digital Output (DO)
• Integrates sensors into auto alarm system
• Transfers alarm to IP network via email and SNMP trap
3
MGSW-28240F
Applications
Excellent Solution to Core/Department Network
The MGSW-28240F is an excellent choice of core layer switch for a Gigabit network. With 24 10/100/1000Mbps ports, the MGSW-28240F is able to connect
up to 24 edge switches in the Ethernet environment. Moreover, it also provides 128 Gigabit per second switch fabric and high bandwidth for backbone
connection.
Server Farm
PoE Camera
PC Group
10Gbps Switch
Node 1
PoE PoE
1000 1000
PoE Switch
Node 2
1000 1000
Control Center
10G
10Gbps
10G 10G
MGSW-28240F
STP/RTSR/MSTP
Redundant Connection
10Gbps
10G
1000
10Gbps
MGSW-28240FMGSW-28240F
24-Port Switch
Node 3
10G
10Gbps Switch
Server Farm
Node 1
PoE Switch
Node 2
24-Port Switch
Node 3
PoE
1000
10G
10Gbps Switch
PoE Camera
PC Group
100BASE-TX UTP
100BASE-TX UTP with PoE
1000BASE-T UTP
1000BASE-SX/LX Fiber-optic
10GBASE-SR/LR Fiber-optic
PoE Camera
PC Group
Server Farm
PoE
Node 1
PoE Switch
Node 2
24-Port Switch
Node 3
10Gbps
1000
MGSW-28240F
100Base-TX UTP
PoE
100Base-TX UTP with PoE
1000Base-T UTP
1000
1000Base-SX/LX Fiber-optic
10G
10GBase-SR/LR Fiber-optic
10G
1000
4
MGSW-28240F
I/O
I/O
I/O
I/O
Enhanced Protection via Digital Input and Digital Output Features
The MGSW-28240F features digital input and digital output functions that greatly help the administrator efciently react to the emergency events. The digital
input can be set up to indicate urgent events and send the messages or alarm to the network system once the urgent event detected by the external device
such as door or windows open detector. The digital output function can define the immediate response such as port failure or power failure to the related
urgent events.
Digital Input
SNMP
Enclosure
Door Detector
(Door Closed)
Enclosure
Door Detector
(Door Open)
Mail
System
Log
TRAP
Security OK Alarm Warning Alarm Messaging
Digital Output
AC Power
Failure
I/O
I/O
DC Power Failure
RJ-45 Cable
Link Down
I/O
I/O
Fiber Cable
Link Down
5
Specications
MGSW-28240F
Model
Hardware Specications
SFP/mini-GBIC Slots
10Gbps Fiber Ports 4 1/10GBASE- SR/LR SFP+ slots
Copper Ports 4 10/100/1000BASE-T TP/SFP combo ports
Console Port 1 x RS232 RJ45 serial port (11520 0, 8, N, 1)
Thermal Fan 2 Thermal Fans
Switch Processing Scheme Store-and-Forward
Switch Throughput@64Bytes 95.2Mpps
Switch Fabric 128Gbps/non-blocking
Address Table 16K entries, automatic source address learning and ageing
Share data Buffer 32Mbits
Flow Control
Jumb o Frame 10K bytes
Reset Button
Dimensions (W x D x H) 440 x 20 0 x 44.5 mm, 1U height
Weight 2.935kg
LED Power, DC1, DC2, Fault, Ring, R.O., Link/Act and speed per Gigabit port
Power Consumption
Power Requirement – AC AC 100~240V, 50/60Hz 1.5A
Power Requirement – DC -36V DC @ 1.6A, Range: -36V ~ - 60V DC
DI/DO
Layer 2 Function
Port Conguration
Port St atus
VLAN
Port Trunking
QoS
IGMP Snooping
Access Control List
Management
Basic Management Interfaces Console, Telnet, Web Browser, SNMP v1, v2c and v3
Secure Management Interface
MGSW-28240F
24 1000BASE-SX /LX /BX SFP inter faces
(Compatible with 100BASE-FX SFP Transceiver)
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
< 5 seconds: system reboot
> 10 seconds: factory default
57 watts/195.56 BTU (AC) maximum
57.6 watts/197.62 BTU (DC) maximum
2 Digital Input (DI): Level 0: -24~2.4V (± 0.1V)
Level 1: 2.4~24V (± 0.1V)
Input Load Current: 10mA max.
2 Digital Output (DO): Open collector to 24VDC, 100mA max. load
Port disable/enable
Auto negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable/enable
Bandwidth control on each port
Power saving mode control
Display each port ’s speed duplex mode, link status, ow control status,
auto negotiation status, trunk status
802.1Q Tagged based VLAN
Port-based VLAN
Q-in-Q
Private VLAN Edge (PVE)
Up to 256 VLAN groups, out of 4094 VLAN IDs
IEEE 802.3ad LACP/static trunk
12 groups of 16-port trunk support
Trafc classication based, str ict priority and WR R
4-level priority for switching
- Port Number
- 802.1p priority
- 802.1Q VLAN tag
DSCP/TOS eld in IP Packet Policy-Based QoS
IGMP (v1/v2/v3) Snooping, up to 255 multicast groups
IGMP querier and fast Leave mode support
IP-based ACL/MAC-based ACL
Up to 256 entries
SSH, SSL, SNMP v3
6
RFC-1213 MIB-II
IF-MIB
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-26 65 Ether-Like MIB
SNMP MIBs
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance
Environment
Operating
Storage
RFC-2819 RMON MIB (Group 1, 2)
RFC-2737 Entity MIB
RFC-2618 R ADIUS Client MIB
RFC3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU- MIB
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3ae 10 Gigabit Ethernet
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1D Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1s Multiple Spanning Tree protocol
IEEE 802.1p Class of Servic e
IEEE 802.1Q VL AN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
ITU G.8032 Ethernet Ring Protection Switching
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICM P
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGM P version 3
Temperature: -10 ~ 60 degrees C for DC power input
0 ~ 50 degrees C for AC power input
Relative Humidity: 5 ~ 95% (non-condensing)
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
MGSW-28240F
Ordering Information
MGSW-28240F 24-Port 100/100 0X SFP + 4-Port 10G SFP+ L2/L4 Managed Metro Switch
Available SFP/SFP+ Transceiver for MGSW-28240F
10Gbps SFP+ Transceivers
MTB-LR 1-Por t 10GBASE- LR SFP+ Fiber optical module 10KM
MTB-SR 1-Port 10GBASE-SR SFP+ Fiber optical module 300M
CB-DASFP-0.5M 10G SFP+ Direct Attached Copper Cable – 0.5M
7
1Gbps SFP Transceivers
MGB-GT SFP-Port 1000 BASE-T Module 10 0M
MGB-SX SFP-Port 1000BASE-SX mini- GBIC module 550M
MGB-LX SFP-Port 1000BASE-LX mini- GBIC module 10KM
MGB-L30 SFP-Port 1000 BASE-L X mini- GBIC module 30KM
MGB-L50 SFP-Port 1000BASE-LX mini-GBIC module 50 KM
MGB -L70 SFP-Port 1000BASE- LX mini -GBIC module 70KM
MGB -L120 SFP-Port 1000 BASE-L X mini- GBIC module 120KM
MG B -LA1 0 SFP-Port 1000 BASE-L X (WDM,TX:1310nm) mini-GBIC module 10K M
MGB-LB10 SFP-Port 1000BASE-L X (WDM,TX:1550nm) mini- GBIC module 10KM
MGB-LA20 SFP-Port 1000 BASE-L X (WDM,TX:1310nm) mini-GBIC module 20 KM
MGB- LB20 SFP-Port 1000BASE-LX (WDM,TX:1550nm) mini -GBIC module 20K M
MGB-LA40 SFP- Port 100 0BASE- LX (WDM,TX:1310nm) mini-GBIC module 40KM
MGB-LB40 SFP-Port 1000BASE-LX (WDM,TX:1550nm) mini-GBIC module 40KM
MGB-TLX SFP-Port 1000 BASE-L X mini- GBIC module 10KM (-40~75°C)
MG B-TSX SFP-Port 1000BASE-SX mini-GBIC module 5 50M (-40~75°C)
MGB-TL30 SFP-Port 1000 BASE-L X mini- GBIC module 30KM (- 40~75°C)
MG B-T L70 SFP-Port 1000 BASE-L X mini- GBIC module 70KM (-40~75°C)
100Mbps SFP Transceivers
MGSW-28240F
MFB-FX SFP-Port 100BASE-FX Transceiver (1310nm) 2KM
MFB-F20 SFP-Port 100BASE-FX Transceiver (1310nm) 20KM
MFB-F40 SFP-Port 100BASE- FX Transceiver (1310nm) 40K M
MFB-F60 SFP- Port 100BASE-FX Transceiver (1310nm) 60KM
MFB- FA20 SFP- Port 100 BASE-BX Transceiver (WDM,TX:1310nm) -20KM
MFB-FB20 SFP-Por t 100BASE-BX Transceiver ( WDM,TX:1550nm) -20KM
MFB-TFX SFP-Port 100BASE-FX Transceiver (1310nm) 2KM (-40~75°C)
MFB-TF20 SFP-Por t 100BASE-FX Transceiver (1310nm) 20KM (-40 ~75°C)
PLANET Technology Corporation
11F., No.96, Minquan Rd., Xindian Dist., New Taipei City
231, Taiwan (R.O.C.)
Tel: 886-2-2219-9518 Fax: 886-2-2219-9528
Email: sales@planet.com.tw www.planet.com.tw
MGSW-28240F
PLANET reserves the right to change specications without prior notice. All brand names and trademarks are property of
their respective owners. Copyright © 2016 PLANET Technology Corp. All rights reserved.
8
Loading...
