HDMI / Video Wall over IP
with PoE
IHD-200PT / IHD-200PR
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Copyright
Copyright (C) 2013 PLANET Technology Corp. All rights reserved.
The products and programs described in this User’s Manual are licensed products of
PLANET Technology, This User’s Manual contains proprietary information protected by
copyright, and this User’s Manual and all accompanying hardware, software, and
documentation are copyrighted.
No part of this User’s Manual may be copied, photocopied, reproduced, translated, or
reduced to any electronic medium or machine-readable form by any means by electronic or
mechanical. Including photocopying, recording, or information storage and retrieval systems,
for any purpose other than the purchaser's personal use, and without the prior express
written permission of PLANET Technology.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all
environments and applications, and makes no warranty and representation, either implied or
expressed, with respect to the quality, performance, merchantability, or fitness for a
particular purpose.
PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET
disclaims liability for any inaccuracies or omissions that may have occurred.
Information in this User’s Manual is subject to change without notice and does not represent
a commitment on the part of PLANET. PLANET assumes no responsibility for any
inaccuracies that may be contained in this User’s Manual. PLANET makes no commitment
to update or keep current the information in this User’s Manual, and reserves the right to
make improvements to this User’s Manual and/or to the products described in this User’s
Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading, or incomplete, we would
appreciate your comments and suggestions.
FCC Compliance Statement
This Equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CE mark Warning
The is a class A device, In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
WEEE
To avoid the potential effects on the environment and human health as a result of
the presence of hazardous substances in electrical and electronic equipment, end
users of electrical and electronic equipment should understand the meaning of the
crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal
waste and have to collect such WEEE separately.
Trademarks
The PLANET logo is a trademark of PLANET Technology. This documentation may refer to
numerous hardware and software products by their trade names. In most, if not all cases,
these designations are claimed as trademarks or registered trademarks by their respective
companies.
Revision
User’s Manual for PLANET HDMI / Video Wall over IP with PoE
Model: IHD-200PT / IHD-200PR
Rev.: 1.0 (October, 2013)
Part No. EM-IHD-200 PoE Series
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Contents
CHAPTER 1: PRODUCT INTRODUCTION...................................................................................................5
1.1 PACKAGE CONTENTS ................................................................................................................................5
1.2 PRODUCT DESCRIPTION ............................................................................................................................5
1.3 PRODUCT FEATURES.................................................................................................................................9
1.4 PRODUCT SPECIFICATIONS......................................................................................................................10
1.5 PHYSICAL DESCRIPTION.......................................................................................................................... 11
1.6 DEVICE CONNECTION TOPOLOGY ...........................................................................................................13
CHAPTER 2: HARDWARE INSTALLATION..............................................................................................16
2.1 INSTALLATION INSTRUCTIONS ................................................................................................................16
CHAPTER 3: INTERNET CONNECTION SETUP......................................................................................18
3.1. USING BONJOUR BROWSER.EXE..............................................................................................................18
3.2. SETTING TCP/IP ON YOUR PC ................................................................................................................19
CHAPTER 4: WEB UI FUNCTION INSTRUCTIONS .................................................................................25
4.1 SYSTEM...................................................................................................................................................25
4.1.1. Version Information......................................................................................................................25
4.1.2. Updating Firmware.......................................................................................................................25
4.1.3. Updating Firmware.......................................................................................................................25
4.1.4. Statistics........................................................................................................................................26
4.2 VIDEO WALL ..........................................................................................................................................27
4.2.1. Basic Setup ...................................................................................................................................27
4.2.2. Setup Step (Examples)..................................................................................................................30
4.2.3. Advanced Setup............................................................................................................................32
4.2.4. Tearing Delay ...............................................................................................................................34
4.3 NETWORK ...............................................................................................................................................36
4.3.1. IP Setup.........................................................................................................................................37
4.3.2. Casting Mode................................................................................................................................37
4.4 FUNCTION ...............................................................................................................................................37
4.4.1. Video over IP................................................................................................................................37
4.4.2. Serial over IP ................................................................................................................................38
CHAPTER 5: EDID INSTRUCTION..............................................................................................................40
5.1 EDID CONFIGURATION...........................................................................................................................40
CHAPTER 6: DISPLAY QUALITY ADJUSTMENT....................................................................................41
6.1 GRAPHIC MODE & VIDEO MODE ............................................................................................................41
6.2 ANTI–DITHER .........................................................................................................................................41
6.3 CONCLUSION...........................................................................................................................................42
CHAPTER 7: FIRMWARE UPDATING........................................................................................................43
7.1 UPDATING ENVIRONMENT ......................................................................................................................43
7.2 UPDATING STEP ......................................................................................................................................43
CHAPTER 8: VESA MOUNTING BRACKET..............................................................................................46
8.1 HOW TO INSTALL ....................................................................................................................................46
APPENDIX FAQ................................................................................................................................................48
HDMI / Video Wall over IP with PoE
Chapter 1: Product Introduction
1.1 Package Contents
Media Extender x 1
CD x 1 (User’s Manual, Quick Guide)
Quick Installation Guide x 1
Ethernet Cable x 1
VESA Mounting Bracket x 2
Screws x 9
Foot Pad x 4
Plastic Screw Driver x 1
If any of the above items are missing, please contact your dealer immediately.
IHD-200PT / IHD-200PR
1.2 Product Description
Product Function
PLANET IHD-200PT / IHD-200PR HDMI / Video Wall over IP with PoE deliver a
great HD video distribution solution such as bringing an efficient and effective
advertising deployment. The IHD-200 PoE series is the combination of the
transmitter, IHD-200PT, and the receiver, IHD-200PR. They allow you to
simultaneously send out a HDMI signal to one or more HDMI displays over a single
cat. 5/5e cable (or above) Ethernet infrastructure.
Besides, by supporting PoE function, meaning there is no additional power supply
needed, the IHD-200 PoE series thus reduces the complexity of cable installation.
The IHD-200 PoE series can distribute HD digital content from multiple sources to
practically any number of remote displays on a LAN and deliver ultra high quality
1080P HDMI video broadcast over IP network. It not only offers smooth vivid 1080P
full motion video with audio quality as CD, but also ensures the sharp images and
text give the viewers the maximum visual effect and ease of reading.
By cascading multiple Ethernet switches as the backbone of the IHD-200 PoE series,
it allows displays to be distributed far away from the source devices while sustaining
consistent 1080P video and audio quality. The video sources can be rack centralized
or decentralized, or even have a mixture of both. It thus increases the flexibility,
scope and scalability of audio and video distribution via the Ethernet networks.
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
High-Speed Ethernet Connection via Gigabit Ethernet
The IHD-200 PoE series is a perfect solution for audio and video signal extension via
the existing LAN. Designed with Gigabit LAN interface, it supports super high speed
transmission, which makes it ideal for live presentations, public broadcasting,
education training, boardrooms, etc.
Exclusive Video Transmission by IGMP Multicast Technology
One IHD-200PT in local site can drive multiple IHD-200PR in remote sites without
consuming extra network loading. Integrating with Gigabit switch built-in with IGMP
multicast functions, there are 16 channels selectable via the IHD-200 PoE series and
up to 4 channels can be transmitted simultaneously. IGMP is an integral part of IP
multicast and a communications protocol used by hosts and adjacent routers on IP
networks to establish multicast group memberships. IGMP can be used for one-tomany networking applications such as online streaming video and gaming, and
allows exclusive transmission and more efficient use of resources.
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Extended Display Identification Data (EDID) Support
The IHD-200 PoE series adopts EDID (Extended Display Identification Data) COPY
function to make smooth video distribution over different types of display units. EDID
is greatly important as it contains information about resources’ manufacturer names,
serial numbers, product types, maximum image sizes, color characteristics, factory
pre-set timings, frequency range limits, etc. In some cases, display problems may
occur due to incorrect EDID communication between the display monitor and the
transmitting unit or inappropriate EDID data programmed by display manufactures.
Therefore, with EDID COPY function, the IHD-200 PoE series allows the system to
copy EDID information from EDID compliant displays and assures accurate display
performance.
However, owing to a variety of monitor model types, EDID data may not be usable to
all. For example, if you use an HDMI-to-DVI converter to a REAL DVI monitor, the
copied EDID (DVI) data may NOT be applicable to HDMI monitors. On the other
hand, if using an HDMI-to-DVI converter to a DVI monitor (but in fact it’s an HDMI
monitor with DVI connector), the copied EDID (HDMI) data may be applicable to
HDMI monitors
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Easy Video Channel Matching through Network Configuration
The IHD-200 PoE series network can be configured by a central computer over the
same LAN within a certain distance. Fully leveraging the mature Gigabit Ethernet
with 802.1Q VLAN function, multi-casting can be performed to allow more video
source/senders in the network and be remotely managed. Just adjust and match
video channel setting by the simple DIP switch in both the IHD-200PT and IHD200PR. The video distribution is easily deployed through Plug and Play.
High Quality Output and Performance
The IHD-200 PoE series supports Full HD 1080P, HDCP and Blu-ray quality, which
have been commonly used for applications that require real-time high video
resolution and transmission in long distance. It also contains security and noise
immunity as well as HDMI with 2ch. audio (dts.) functions to offer the superior video
distribution.
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
1.3 Product Features
¾ HDMI Network
1080P ultra high quality video transmitter
Assigns video sources to any monitor of the video wall
Up to 8 x 8 Screen Array supported
Extends high definition video signal over Gigabit LAN and IGMP
The selectable 16-channel DIP switch is easily applied for multi-casting group
matching
1-to-1, 1-to-many and multi-casting broadcasting architectures allow to add
more displays without adding LAN bandwidth loading
¾ Video Output Characteristics
HDCP compliant and Blu-ray ready
Supports HDMI with 2ch. audio (dts.)
HDTV compatible, supporting 1080P, 1080i, 720P, 720i
Compatible with common screen resolutions from XGA, SXGA, UXGA,
WSXGA to the latest Full HD system
¾ Easy Installation & Management
PoE function supported; no additional power supply needed
Automatic EDID (Extended Display Identification Data) configuration
Friendly Web UI and simple utility for ease of use
Supports multi-casting group with Gigabit Ethernet Managed Switch (802.1q
VLAN & IGMP function required)
VESA mounting bracket supported
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
1.4 Product Specifications
Model
Hardware Specifications
Network Interface RJ-45 port (10/100/1000Base-T Ethernet) x 1
Console
Cabling
LED
Buttons
Source interface
Mounting Bracket
Channel Switching
IHD-200 PoE Series
HDMI / Video Wall over IP with PoE
Control port x 1
AUX / EXT. port x 1
Cat. 5/5e/6 UTP cable
Power / Link: Solid / Blinking / Off
Network Status: Blinking / Off
Linking button x 1
change mode button x 1
Reset button x 1
HDMI A Type
VESA mounting bracket
DIP (16 channels)
Standards Conformance
IEEE 802.3 10Base-T
Standards Compliance
Video Resolution (max.)
Security
Audio
Maximum Distance
Management Interfaces Web (LAN), Serial
System Expandability
(max.)
Video Rx Array (max.)
Resolution Identification
Environment Specifications
Operating
Storage
Power Supply
Power Consumption
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3af
Full HD (1920 x 1080)
WUXGA (1920 x 1200) @ 60 Hz
HDCP-compliant
HDMI with 2ch. audio (dts.)
Point-to-point / multicast, 100 meters
IHD-200PT: 16
IHD-200PR: Broadcast:16000
8 x 8
EDID (Extended display identification data)
Temperature: 0~50 degrees C
Relative Humidity:0~90% (non-condensing)
Temperature: -20~60 degrees C
Relative Humidity: 0~90% (non-condensing)
9~12V DC, 1.5A
13.5W (each unit)
Housing Dimensions (W x
D x H)
Weight
Emission
130 x 96 x 25 mm
492 g
FCC, CE
HDMI / Video Wall over IP with PoE
1.5 Physical Description
Product Description
IHD-200PT / IHD-200PR
Position Name Effect
T1
R1
T2 R2
T3 R3
T4 R4
T5 R5
T6 R6
T7 R7
T8 R8
T9 R9
T10 R10
T11
Video Connector
RJ-45 Jack
Reset Button System reset
Power Supply DC power input
B2 Push Button
B1 Push Button
Rotary DIP Switch Channel ID Select
Control Port System control (reserved)
AUX/EXT Port Data communication (reserved)
Network Status LED Flashing: Connected to Ethernet network
Link / Power LED
Connect to the HDMI source
Connect to the HDMI monitor
Connect to an PoE Switch
(IGMP Gigabit PoE Switch recommended)
Refer to Push Button Control section
Blue: Link OK
Green: Video unlink
Flash Blue + Green: Linking and searching
video source
R11
LED Definition
LED Unit Status Description
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Blue: Link OK
Red: Video Unlink
Flash Blue + Red: Linking and searching
video source
Network Status
Link /
Power
Tx/Rx
Tx
Rx
Flashing Connected to network
Off Abnormal
Green Unlink
Blue Link OK
Flash Blue +
Green
Red Unlink
Blue Link OK
Flash Blue + Red Linking and searching source
Linking and searching source
Button Definition
Button Unit Function
z Press once - Link/ Unlink video
B1
B2
IHD-200PT
&
IHD-200PR
IHD-200PT
IHD-200PR
z Factory Default Setting with steps below: Power off the unit →
Press and hold the button → Power on the unit → Release
the button after 17 sec. (the Power / Link LED flashes
green / red & blue) → Re-power the unit
z Press for 1 sec. - Select Graphic Mode or Video Mode
(also deploy to all the IHD-200PT and IHD-200PR of the
same channel) (Default: Graphic Mode)
z Press for 3 sec. – Enter Anti-Dither Adjustment Mode:
Level 1 / Level 2 / Off (also deploy to all the IHD-200PT
and IHD-200PR of the same channel) (Default: Off)
z Press for 1 sec. - Select Graphic Mode or Video Mode
(also deploy to all the IHD-200PT and IHD-200PR of the
same channel) (Default: Graphic Mode)
z Press for 3 sec. – Enter Anti-Dither Adjustment Mode:
Level 1 / Level 2 / Off (also deploy to all the IHD-200PT
and IHD-200PR of the same channel) (Factory Default: Off)
z EDID Copy with steps below: Power off the unit → Press
and hold the button →Power on the unit → Release the
button after 12 sec. (the Network Status LED flashes
yellow)
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
1.6 Device Connection Topology
Video Extender
The IHD-200PT and IHD-200PR are able to send the same video signal to multimonitors in different locations at the same time. It helps to quickly extend the image
and commercial to the public efficiently in such places as expos, food courts,
boardrooms, and any public areas.
Video wall
To bring the image and picture in larger size over video wall, the IHD-200PT and
IHD-200PR are the ideal solution to distributing one specified image, picture, or
video to multiple screens which are usually applicable for sports, department stores,
movie theaters, etc.
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Efficient Control via 16 Channels Selectable DIP Switch
Where there is more than one transmitter in the video wall system, the rotary DIP
switch in the IHD-200PT and IHD-200PR facilitates distinguishing the pair of the
transmitter and receiver units in the same channel. It further enables the
broadcasting system to perform multi functions including Video Extender and Video
Wall simultaneously through matching of the IHD-200PT and IHD-200PR.
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Combining the two functions
The selectable 16-channel DIP switch is applied to combine the two main functions
as shown in the following diagram:
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Chapter 2: Hardware Installation
z The Unit-Cast application is Plug-and-Play basis. It’s easy to install in seconds.
z The Multi-Cast application can be used as multi-to-multi and video wall which is
suitable for digital signage.
2.1 Installation Instructions
System Requirements
1. HDCP compliant monitors with HDMI interface for the HDCP video source
2. CAT5 / 5e / 6 UTP cable (EIA / TIA 568B industry standard compliant)
3. PoE Switch (see Recommended PoE Switch)
Application Recommended Ethernet Switch
Video Wall Application Gigabit PoE Switch, IGMP & Snooping function
Multiple Video Wall Application
Operation:
The LED on the Extender Units shows the real-time status indicating the linking and
communication between the Transmitter/Sender Unit and the Receiver Unit. Users
can identify the current status through the LED indicators on the unit.
The quality of the output signal will depend largely upon the quality of video source,
cable and display device used. Low quality cables degrade output signal causing
elevated noise levels. Please use the proper cable and make sure the display device
is capable of handling the resolution and refresh rate selected.
Step 1
Connect the video source to the Transmitter / Sender Unit.
Step 2
Connect the monitor to the Receiver Unit.
Step 3
Use CAT5 cables (EIA / TIA 568B industry standard compliant) for connection
between TX / RX and Gigabit PoE Switch.
Step 4
Set an identical ID number on Rotary DIP Switch for all Units of the same group.
Step 5
User still could apply the proper power to all connecting devices if without PoE
switch.
Gigabit PoE Switch, IGMP, Snooping function & VLAN
function
16
WARNING!
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
● Ensure that all devices are powered off before connecting to the
Unit.
● Make sure all devices you will connect to are properly grounded.
● Place cables away from fluorescent lights and air conditioners
machines that are likely to generate electrical noise.
● Please allow adequate space around the unit for air circulation.
17
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Chapter 3: Internet Connection Setup
3.1. Using Bonjour Browser.exe
After the device connection is complete, you have to use the utility called “Bonjour
Browser” to get to the Web UI to do the configuration.

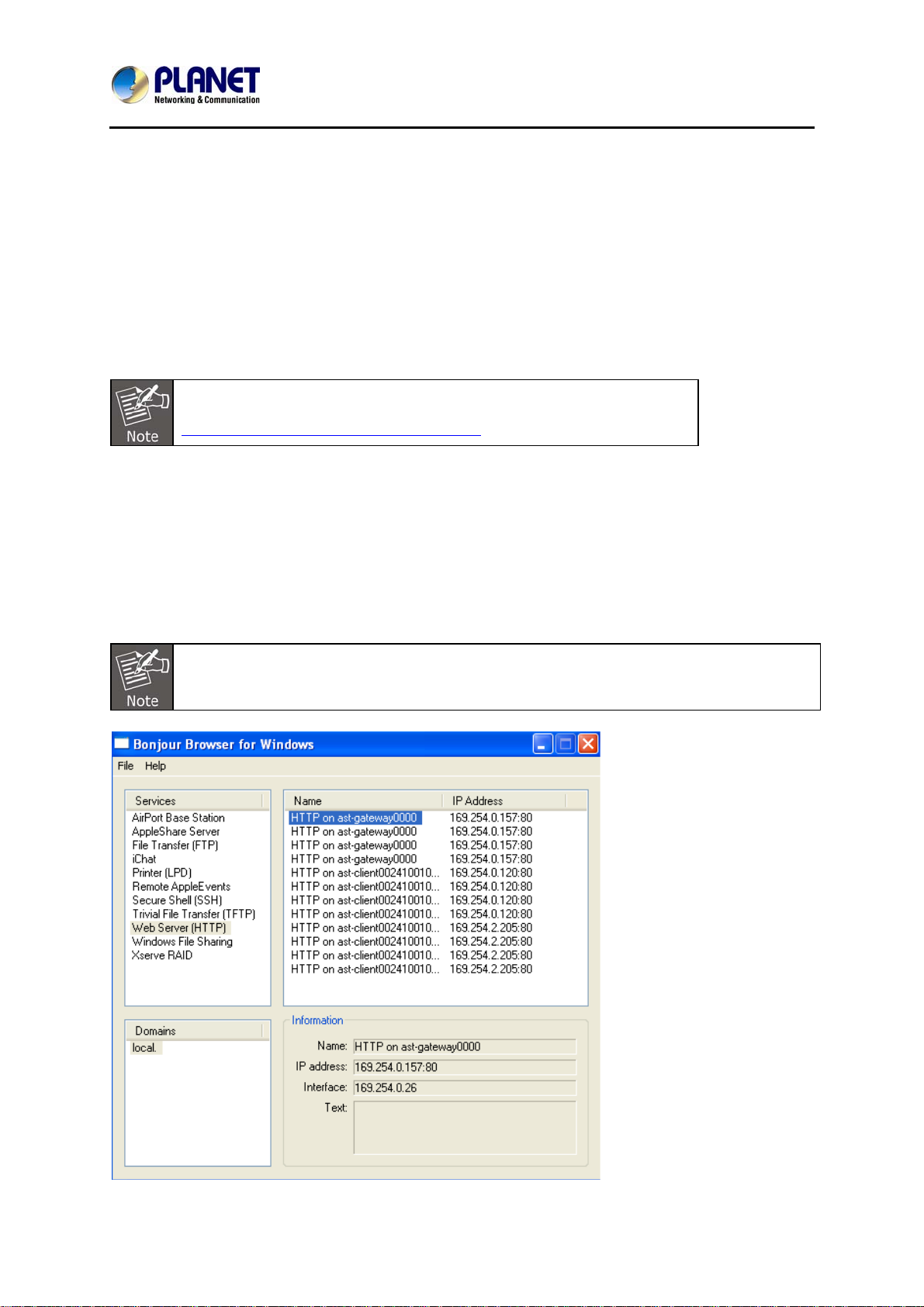

The following picture is the interface of Bonjour Browser.
: Click Web Server (HTTP) and theoretically, you can see all the devices
①
connected to the same hub/switch (over the same LAN) that are shown on the
right side of the grid.
: Ast-gateway: It represents transmitter.
②
The four digits after ast-gateway depend on the position of the Rotary Switch
you’ve set. Please refer to the form below. For example, if the position is set up
as 7, then you’ll see ast-gateway1110.
Rotary Switch
Four digits
Rotary Switch
Four digits
0 1 2 3 4 5 6 7
0000 1000 0100 1100 0010 1010 0110 1110
8 9 A B C D E F
0001 1001 0101 1101 0011 1011 0111 1111
18
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
: The IP address of transmitter side.
③
: Ast-client: It represents receiver.
④
: The IP address of receiver side.
⑤
: Beware, even though the name of receivers are the same, you can tell the
⑥
difference by the IP address.
: You can see the information here.
⑦
After PC’s IP Setting is complete, double click the device’s name and then get to
the Web UI to do the configuration.
3.2. Setting TCP/IP on your PC
If you are using Windows XP, do as follows:
1. From the desktop, right-click My Network Places > Properties.
19
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
2. Right-click on the Local Area Connection and select Properties.
3. Select Internet Protocol (TCP/IP) and click Properties.
4. Select "Use the following IP address".
IP address: You have to set the same network segment between your PC’s IP
and the transmitter / receiver.
Ex: If the transmitter’s IP is 169.254.0.157, then you should set 169.254.0.xxx
where xxx can be any number between 2 and 253. (same as receiver)
Subnet mask: Enter 255.255.0.0.
5. If necessary, you may enter “Advanced” to add more that one IP address.
20
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Generally, except for updating firmware, you only need to set the same network
segment between your PC’s IP and the transmitter to configure all the receivers.
If you are using Windows 7, do as follows:
1. Click on Start > Control Panel > Network and Internet > Network and Sharing
Center.
2. Click "Change adapter settings".
21
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
3. Right-click on the Local Area Connection and select Properties.
4. Select Internet Protocol Version 4 (TCP/IPv4) and click Properties or directly
double-click on Internet Protocol Version 4 (TCP/IPv4).
22
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
5. Select "Use the following IP address".
23
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Select "Use the following IP address".
IP address: You have to set the same network segment between your PC’s IP
and the transmitter / receiver.
Ex: If the transmitter’s IP is 169.254.0.157, then you should set 169.254.0.xxx
where xxx can be any number between 2 and 253. (same as receiver)
Subnet mask: Enter 255.255.0.0.
6. If necessary, you may enter “Advanced” to add more that one IP address.
Generally, except for updating firmware, you only need to set the same network
segment between your PC’s IP and the transmitter to configure all the receivers.
24
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Chapter 4: Web UI Function Instructions
Getting to Web UI to do Configuration
z Before doing configuration, ensure that all remote displays and all network cables
are connected correctly. (Video source is required.)
z Double click the device’s name in Bonjour Browser and then get to the Web UI, or
you can simply type the device’s IP in the address bar.(ex://169.254.xxx.xxx)
If the link is successful, user will see the web page as follows:
4.1 System
4.1.1. Version Information
Here user can see the current date and the firmware version information.
4.1.2. Updating Firmware
Here is for user to update firmware. Some functions or issues may have to be
improved by updating the firmware. For more details, please refer to chapter 7.
4.1.3. Utilities

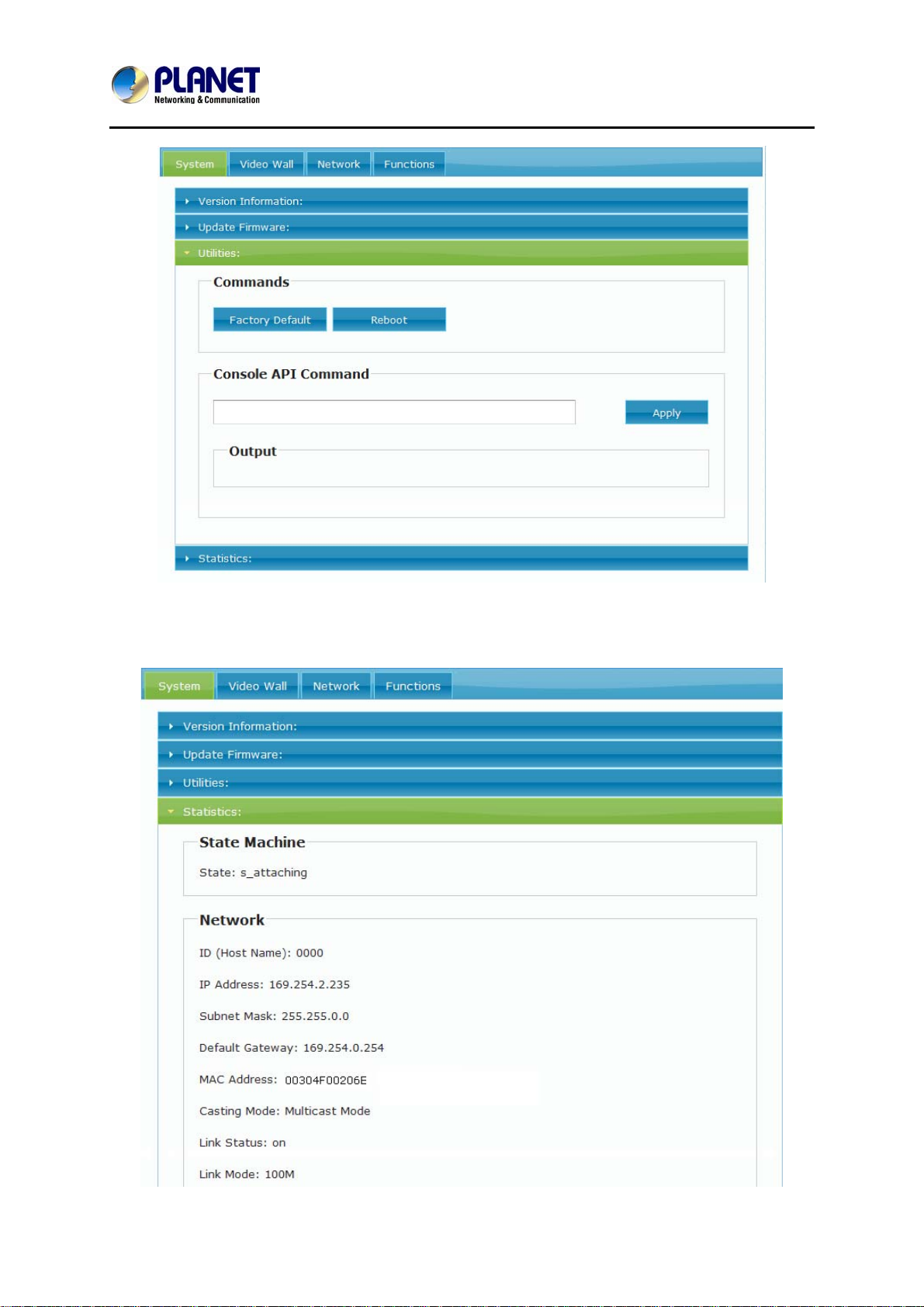

User can do factory default and reboot, even console API command is issued
here.
(Usually, the API command is for engineers to use, but not for endusers.)
25
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
4.1.4. Statistics
Below is the detailed information on ID, IP, unit status, casting mode, etc.
26
HDMI / Video Wall over IP with PoE
4.2 Video Wall
4.2.1. Basic Setup
Click on Video Wall Setup tab for Basic Setup first.
IHD-200PT / IHD-200PR

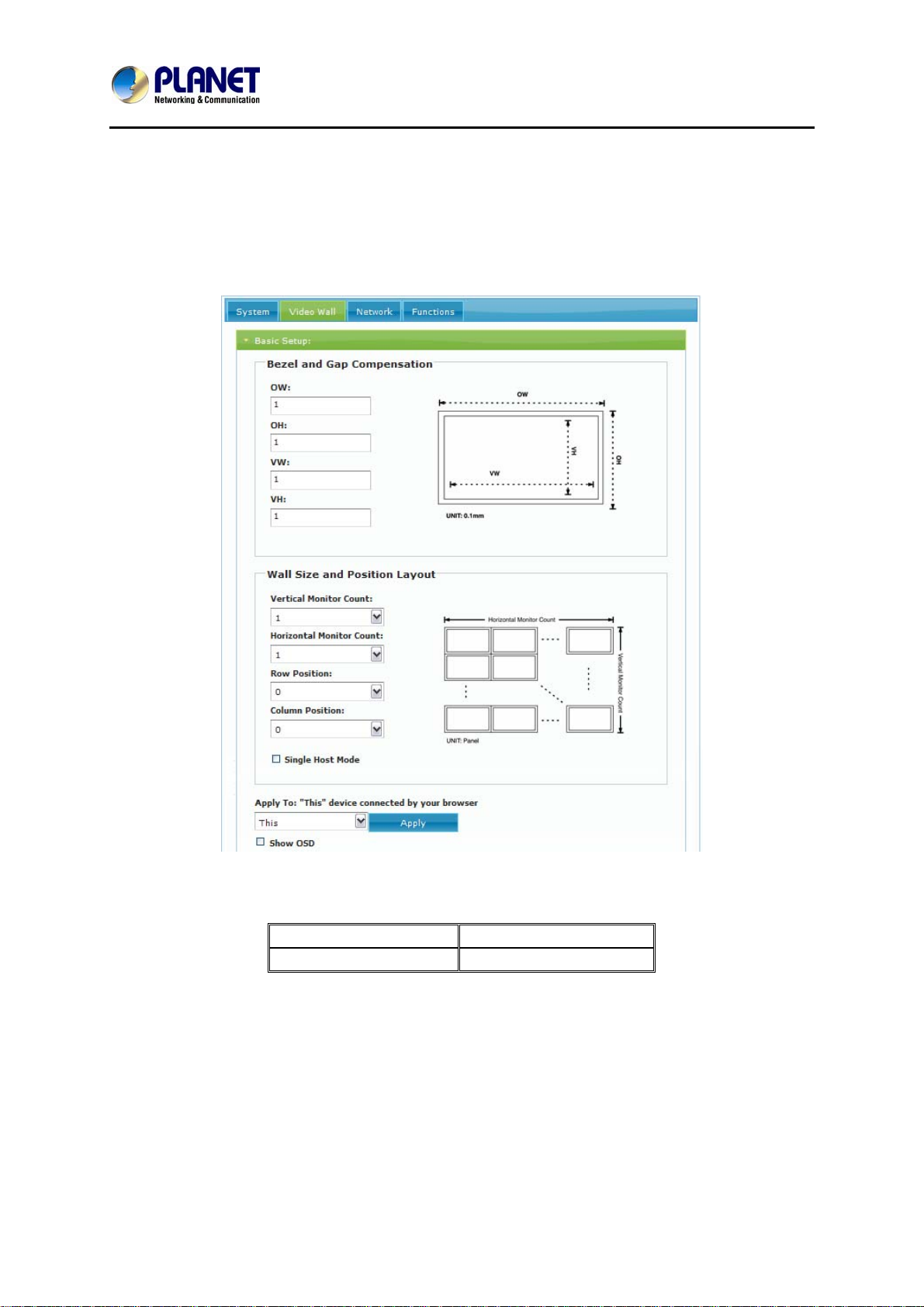

1. Bezel and Gap Compensation:
OW = Outside Width OH = Outside Height
VW = View Width VH = View Height
Adjust dimensions (mm) for the monitors of video wall. If you don’t need this, just set
all values “OW=VW, OH=VH.” And please note that the unit is 0.1mm and the value
must be an integer.
27
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
2. Wall Size and Position Layout:

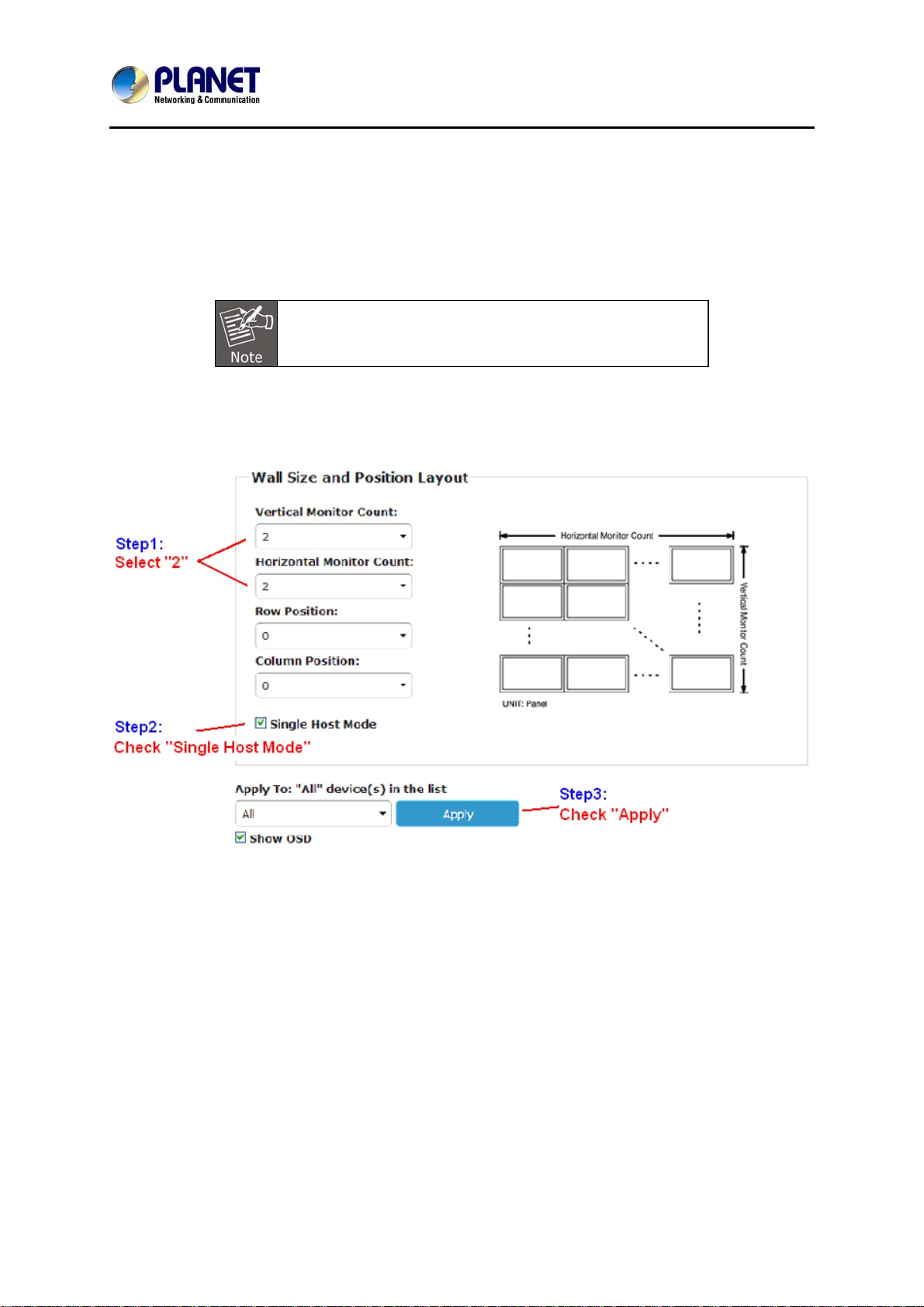

Step 1
Vertical Monitor Count x Horizontal Monitor Count: If the video wall is 2 x 2, then set
up Vertical Monitor Count and Horizontal Monitor Count as 2. (maximum: 8 x 8)
Step 2
Single Host Mode: Must check this item for single host application.
Step 3
Apply To: Select “All” and check “Apply” button for your settings and all screens will
refresh.
3. Configuring row and column position for each display
28
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR

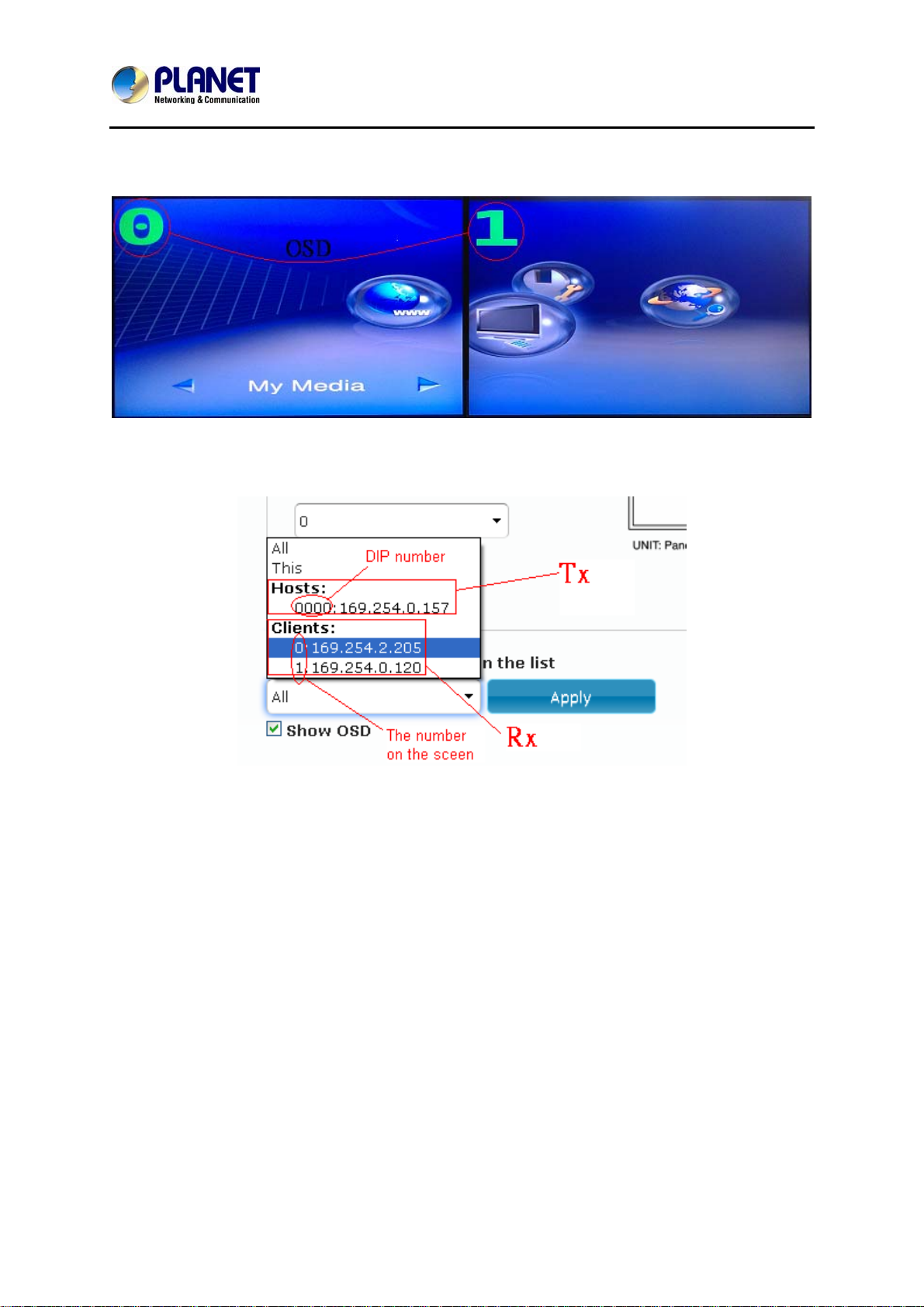

z OSD: On-Screen Display. The system automatically assigns a number to each
monitor.
User can according to the number do individual control with the corresponding
receiver’s IP.
z Vertical Monitor Count: The number of monitors on vertical line.
z Horizontal Monitor Count: The number of monitors on horizontal line.
z Row Position: Set up row position for a monitor. For example, if the monitor is
situated on the 1st row, the row position should be 0; if the monitor is situated on
the 2nd row, the row position should be 1.
z Column Position: Set up column position for a monitor. For example, if the monitor
is situated on the 1st column, the column position should be 0; if the monitor
situated is on the 2nd column, the column position should be 1.
29
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
4.2.2. Setup Step (Examples)
1. 1 x 2 video extender

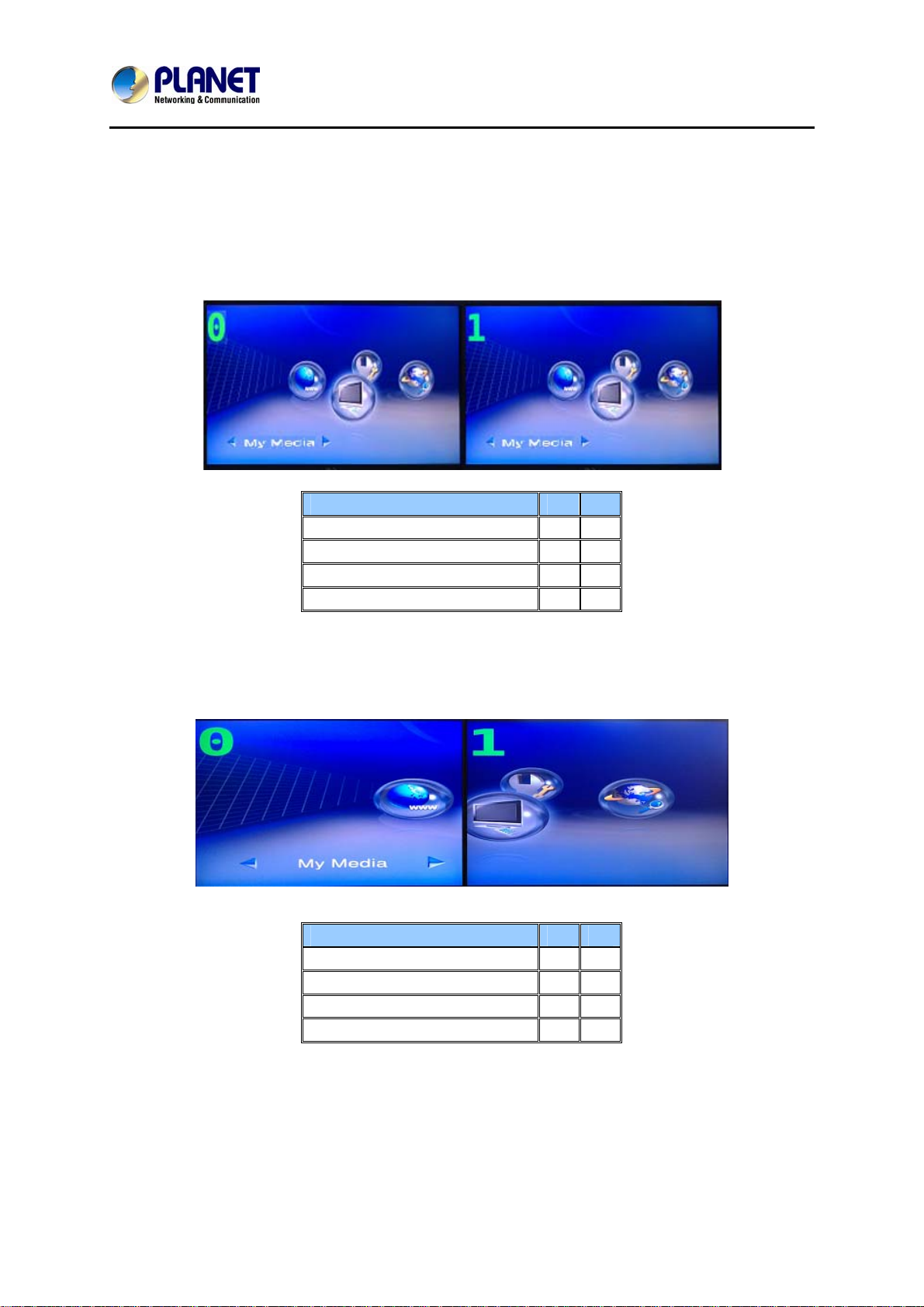

If you want to set a 1 x 2 “video extender” as shown in the following picture, you may
refer to the following table and see the steps below:
OSD 0 1
Vertical Monitor Count 1 1
Horizontal Monitor Count 1 1
Row Position 0 0
Column Position 0 0
2. 1 x 2 video wall
If you want to set a 1 x 2 “video wall” as shown in the following picture, you may refer
to the following table and see the steps below:
Vertical Monitor Count 1 1
Horizontal Monitor Count 2 2
Column Position 0 1
OSD 0 1
Row Position 0 0
Step 1
Show OSD: Check this item and all monitors will show their number on the screen.
Step 2
Row Position / Column Position: Decide which part of the screen will be applied to a
monitor.
30
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Step 3.
Apply To: Select one of the clients (OSD number) for the following setting.
Step 4
For all monitors setup; please follow the above steps 1 to 3.
After all settings are done, you can uncheck OSD item.
3. 2 x 2 video wall
Part 1: Wall Size and Position Layout
Part 2: Configuring row and column position for each display
31
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
To set up “Row Position” and “Column Position”, you can refer to the Coordination
below:
For video wall application, it is NOT suggested to set up your screen array as N
(row) x 1 (column) when horizontal resolution is greater than 1280 pixels.
4.2.3. Advanced Setup
After the Basic Setup is done, users may enter this tab for advanced setting. Please
note that each monitor should have its own part of the screen section and does not
overlap.
32
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Step 1: Choose Control Target
Show OSD: Check this item and all monitors will show their number on the screen
Step 2: Control Options
Single Host Mode: Must check this item for single host application
Horizontal Scale Up & Vertical Scale Up: It is NOT suggested to configure these two
items for it may result in flickering images.
33
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
4.2.4. Tearing Delay
Screen tearing may occur when the video feed to the device isn't in sync with the
display's refresh or lack of sync between two equal frame rates. During video motion,
screen tearing creates a torn look as edges of objects fail to line up. To solve this
issue, the HDMI over PoE IP Extender provides three ways by:
1. Switching to different video resolution
2. Setting up Tearing Delay value via GUI control. The typical value is 10000~16000
μs. Before setting up Tearing Delay, users need to choose control target (each or
several rows) and perform Tearing Delay individually.
34
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
3. Hardware solution: Using multiple Tx units. The following is a 4 x 4 example of
hard solution.
Steps:
1. Add more Tx units to the system for each row, and set up the ID number for each
Rx unit; see below.
To connect multiple Tx units, you can use multiple ports HDMI splitter.
2. Enter “Video Wall Setup”
3. Set up “Wall Size and position Layout”
4. Un-check “Single Host Mode”
5. Set up Vertical/Horizontal Monitor Count; for example, 4 x 4.
6. Set up Row/Column Position of Tx units:
35
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
a). Choose a host (Tx); the ID number (4 digits) should refer to rotary switch position
(1~F); see Rotary Switch chart.
b). The row & column positions of 1st row should be 0 &
0. The 2nd row is 1 & 0. The 3rd row is 2 & 0, and so
forth.
For example: The ID number of “Tx 1 host” is 0000,
and the row/column position should be 0 & 0.
c). Press “Apply”
7. Set up Row/Column Position for each client; see Video Wall Setting-Basic Setup.
36
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
4.3 Network
User can set the IP mode of each unit here and also can change the casting mode.
4.3.1. IP Setup
Auto IP: Factory default IP.
DHCP: IP dispatched from DHCP server.
Static: IP setting by user.
4.3.2. Casting Mode
Multicast: Multicast is a true broadcast. The multicast source relies on multicast-
enabled routers to forward the packets to all client subnets that have
clients listen.
Unicast: Unicast is a one-to-one connection between the client and the server.
Unicast uses IP delivery methods such as Transmission Control Protocol
(TCP) and User Datagram Protocol (UDP), which are session-based
protocols.
4.4 Function
Here user can make settings for IHD-200 PoE series.
4.4.1. Video over IP
Enable Video over IP: If user unchecks this item, then it can’t work.
Enable Video Wall: If user unchecks this item, then video wall function can’t be
used; only extender can be used.
37
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Reset EDID to Default Value: User can copy the EDID from this Rx to other Rxs
with the same ID. (the same group)
4.4.2. Serial over IP
Enable Serial over IP: If user unchecks this item, then serial 2 can’t be used.
Operation Mode:
Type 1 and Type 1 guest modes have to do other commands.
Type 2 (extender transmit) and Type 2 guest mode use telnet through port 6752.
(Usually, the API command is for our engineer to use, but not for end users.)
Baudrate Setting: User can set baudrate here for the unit.
38
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
39
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Chapter 5: EDID Instruction
5.1 EDID Configuration
EDID (Extended Display Identification Data) is greatly important which contains
information about manufacturer name and serial number, product type, maximum
image size, color characteristics, factory pre-set timings, frequency range limits, etc.
In some cases display problems may occur due to incorrect EDID communication
between the display monitor and the unit or inappropriate EDID data programmed by
display manufacturers. Therefore, by adopting “EDID COPY” function, it will allow the
system to copy EDID information from EDID compliant displays in order to assure
accurate display performance.
EDID Copy (on Receiver Unit only)
Step 1
Power off the unit.
Step 2
Press and hold the button
Step 3
Power on the unit.
Step 4
Release the button after the Network Status LED flashes.
B2.
However, owing to a variety of monitor models, EDID data may not be usable to all.
For example, if you use an HDMI-to-DVI converter to a REAL DVI monitor, the
copied EDID (DVI) data may NOT be applicable to HDMI monitors. On the other
hand, if using an HDMI-to-DVI converter to a DVI monitor (but in fact it’s an HDMI
monitor with DVI connector), the copied EDID (HDMI) data may be applicable to
HDMI monitors.
1. Using HDMI or DVI for all monitors; do not mix them up in one system.
2. It is suggested to use monitors with identical brand and type.
40
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Chapter 6: Display Quality Adjustment
6.1 Graphic Mode & Video Mode
User can press Button “B2” for once(less than 1 sec.) and then convert these two
modes. (default is Graphic Mode)
Graphic Mode: It’s usually for the static state video. Pictures are the main display
contents, and the pixel update processing is not so fast. The CPU
consumption is lower than video mode.
Video Mode: It’s usually for the dynamic state video. Videos are the main display
contents, and the pixel update processing is fast. The CPU
consumption is higher than graphic mode.
6.2 Anti–Dither
User can press Button “B2” for 3 seconds (till the subtitle appears) and then convert
three levels of Anti–Dither. (default is Anti-Dither off)
There are 3 levels of Anti–Dither:

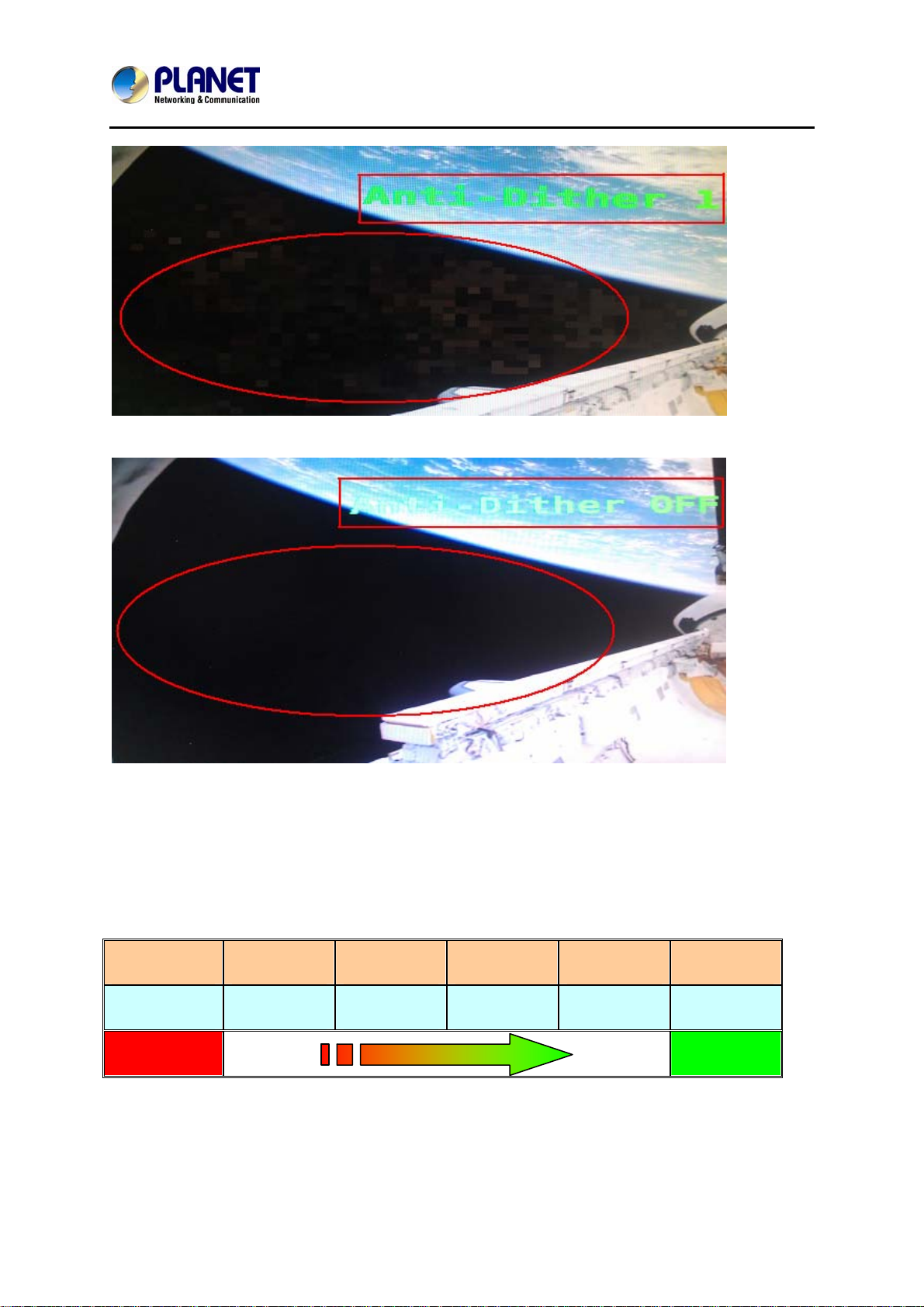

It would probably cause “Motion Blur” or “Broken Map” when user plays the high
quality video, but after “Anti–Dither” adjustment, it can be improved.
Anti–Dither 2: It’s the worst performance.
Anti–Dither 1: It’s better than Anti–Dither 2.
41
HDMI / Video Wall over IP with PoE
Anti–Dither off: It’s the best performance.
IHD-200PT / IHD-200PR
6.3 Conclusion
After changing modes and Anti-Dither adjustment, we can improve the display
quality.
Below is the performance from the worst to the best.
Graphic
Mode
Anti-Dither 2 Anti-Dither 1 Anti-Dither
WORST
Graphic
Mode
Graphic
Mode
off
Video
Mode
Video
Mode
Video
Mode
Anti-Dither 2 Anti-Dither 1 Anti-Dither
off
BEST
42
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Chapter 7: Firmware Updating
7.1 Updating Environment
1. We suggest you to use Safari browser because the BonjourSDKSetup is
embedded.
If you use Google Chrome browser or other browsers, you should install
BonjourSDKSetup on your PC. (IE is not recommended)
Google “bonjourSDK download” for the installation file or download:
http://developer.apple.com/opensource/
2. Make sure your computer and units are connected to the same hub/switch. Then
power on, and run Bonjour Browser.exe prepare to get to the Web UI.
(To know how to use Bonjour Browser.exe, please refer to 3.1 Using Bonjour
Browser.exe)
7.2 Updating Step
Beware! if you want to update firmware for transmitter, please get to transmitter’s
Web UI; if you want to update firmware for receiver, please get to the receiver’s
Web UI.
Ast-client: It represents receiver.
43
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Ast-gateway: It represents transmitter.
Step1: Getting to the Web UI System tab and then choose “Update Firmware”
Step2: Click “Choose File”, and then select the right firmware and final click ”Upload”.
There are two different kinds of firmware available: one for transmitter and the
other for receiver. The transmitter firmware must be uploaded to the transmitter
unit, and the receiver firmware must be uploaded to the receiver unit. Uploading the
44
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
wrong firmware to the wrong unit will cause the unit to malfunction.
Step 3: The upload will take around 5 minutes. After 100% complete, the unit will
automatically reboot. The reboot will take 25 seconds. Any interruption during the
upload will cause the unit to malfunction.
Step4: Repeat Step 1 through Step 3 for the 2nd unit, 3rd unit, and so on.
45
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Chapter 8: VESA Mounting Bracket
8.1 How to Install
You can use the VESA Mounting Bracket to fix the unit behind the screen or on the
wall anywhere you like.
You can refer to the following pictures:
1. VESA Mounting Bracket and screws.

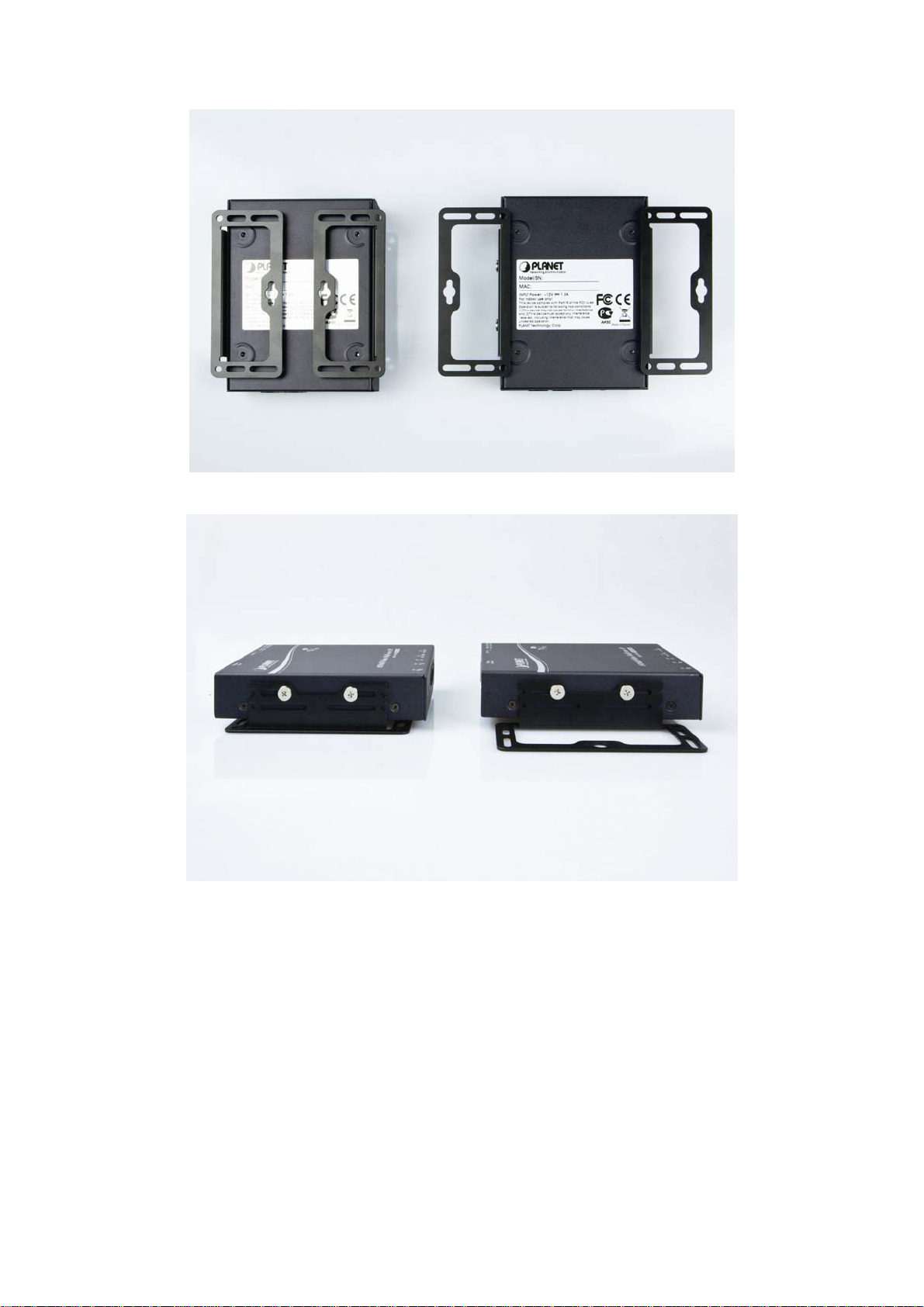

2. Provides two ways to install. (Front)
46
3. Provides two ways to install. (Back)
4. Provides two ways to install. (Side)
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Appendix FAQ
Q1: Where is the Bonjour Browser.exe utility?
A:
Basically, there are so many third - party search tools can be used, as long as you
can find the IP of the unit. If you want to use Bonjour Browser.exe please e-mail to
us and we will provide it to you.
Q2: What kind of switch should user use for this product?
A:
We strongly advise user to use the switch which supports IGMP snooping
function (V2 is fine), Gigabit Ethernet.
As for PoE, IHD-200 PoE series has passed Mid-span and End-span testing. By the
way, the power consumption is 13.5W for each unit.
Q3: Can I use power line with this product?
A:
Yes, you can use power line instead of switch to work it. Please refer to the topology
below:
48
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
Q4: Should user use the security DC adapter connector?
A:
No, the normal DC adapter connector is fine, please refer to the photo below.
Both of the two connectors can be plugged in, but the left one can be tightened.
Q5: How can I convert the video source?
A:
There are three ways to convert the video source. One is to use DIP switch, while
the other is to set VLAN port and go with HDMI splitter (matrix).
1. A Tx (transmitter) supports DIP switch for 16 channels, and every time when you
convert the source you have to switch DIP of all units to the same number, and then
reboot all the units.
2. You can set VLAN to convert the video source, please refer to the topology below
49
HDMI / Video Wall over IP with PoE
and imagine that the concept is based on your issue.
IHD-200PT / IHD-200PR
You can set up port-based VLAN for that Transmitter (IHD-200PT), and then for the
receiver (IHD-200PR), You can just dynamically swap the receiver port to a different
VLAN for video source change. You can swap VLAN via Web interface of the switch,
say, WGSW-24040.
However, to be faster and easier to swap the sources, you can consider using
TELNET or RS232 Console via CLI (command line).
Since the commands are just fixed commands, you can record those commands into
a macro, and just double click on specified macro, and then the commands will be
sent to the switch in a very short time and swap your video source. By the way, in
this setting, all the transmitter(s) and receiver should set as the same group.
Instructions about the topology above:
As for Test A, we set port1 and port3 to a VLAN, and set port2 and port4 to another
VLAN. The Rx will convert the source if we change the connection of Rx and switch
from port3 to port4.
As for Test B, we set port1 and port3 to a VLAN, and the Rx will convert the source if
we issue the command via telnet to set port2 and port3 to a VLAN.
50
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
3. You also could use HDMI splitter (matrix) to do the sources convert.
As you see, two sources connect to the input of HDMI matrix, and output to Tx, and
then Tx and Rx all connect to the switch.
In this case, we use the HDMI matrix controller to select the source, of which one
should be transmitted.
Q6: Users encounter no screen display in computer connection.
A:
1. Make sure the device cables are correctly and firmly attached.
2. Set your display device’s (TV, monitor, etc.) input source as HDMI.
3. Check the PC BIOS configuration about the video output setting.
4. Connect your computer to the HDMI Display DIRECTLY to check if the video
signal gets through.
5. Slide the Rotary DIP Switch to the correct position.
6. Inappropriate EDID data. Apply EDID Copy to your display.
Please refer to the 4.1 EDID Configurations.
7. Please reboot or disconnect and connect again.
Q7: Do I have to use the same screen resolution to set video wall?
A:
We suggest user to use the same screen resolution to set video wall so that user can
get the best performance. If user uses the different screen resolution please try
“EDID copy” to solve no display issue. (But video extender accepted.)
Q8: What’s the maximum limit distance between input video source and
output video?
51
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
A:
Point-to-point and multi-cast is 100 meters. But if the connection via switches,
theoretically, there is no limit distance. It depends on the cable and switch level you
use. (Giga Ethernet switch is recommended or higher level.)
Q9: What’s the maximum of Rx units can be linked via one Tx unit?
A:
Video Wall: 8 x 8.
Video Extender: Theoretically, 1000 are the most, as long as each Rx
unit is assigned to an IP from 65534 IP.
Q10: Why did it fail when updating firmware?
A:
1. If user doesn’t use Safari browser, please download BonjourSDKSetup on PC. (IE
browser is not recommended.)
2. Then choose the right firmware for the right unit (click in the right Web UI).
3. Do not interrupt while updating.
4. User should update every unit. (For example, if there are 3 Rx’s, user should
update for 3 times.)
Q11: I wanted to do Rx individual configuration, but why couldn’t I see all the
Rx’s in the drop-down list?
A:
Please make sure you entered the Web UI of Tx unit.
Q12: How can I connect two or more Tx’s?
A:
User can use HDMI splitter with two or more ports to connect.
Q13: About HDCP issue.
A:
The system will disable the video output signal when it detects non-HDCP compliant
display(s) playing the HDCP video source. All the connected output displays MUST
be HDCP compliant while the video source is HDCP compliant.
Q14: Why is Full HD video source watched on a non Full HD monitor is so
blur or choppy?
A:
We suggest user do not use the low-resolution monitor to watch the higher quality
video source. The screen resolution can only be backward compatible, not forward
compatible. So please adjust the video source resolution appropriate for the output
screen resolution.
52
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR

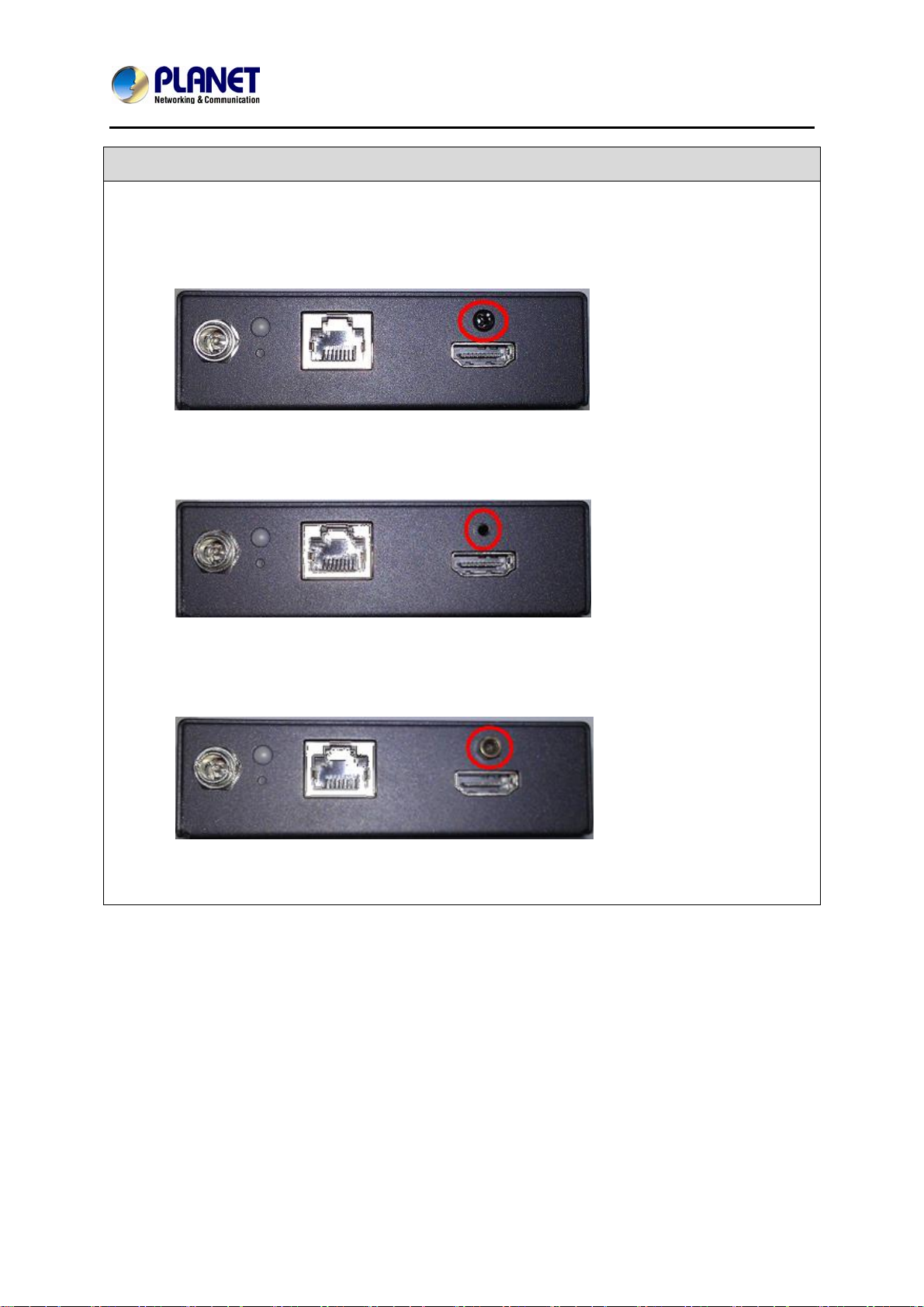

Q15: What is the function of the screw hole over the HDMI port?
A:
Please refer to the following picture.
Step 1: Unscrew the screw from the device.
Step 2: Then you will see the screw hole.
Step 3: Tighten the security screw onto the device.
Step 4: Plug in the HDMI cable and tighten the screw to secure.
53
HDMI / Video Wall over IP with PoE
IHD-200PT / IHD-200PR
54
Loading...
