User’s Manual of FGSW-2620VM
User’s Manual of FGSW-Series
Trademarks
Copyright © PLANET Technology Corp. 2012.
Contents subject to which revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes
no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or
fitness for a particular purpose.
PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability for any
inaccuracies or omissions that may have occurred.
Information in this User's Manual is subject to change without notice and does not represent a commitment on the part of
PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User's Manual. PLANET
makes no commitment to update or keep current the information in this User's Manual, and reserves the right to make
improvements to this User's Manual and/or to the products described in this User's Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and
suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the Instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at whose own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user
may be required to take adequate measures.
Energy Saving Note of the Device
This power required device does not support Standby mode operation.
For energy saving, please remove the power cable to disconnect the device from the power circuit.
Without removing power cable, the device will still consuming power from the power source. In the view of Saving the
Energy and reduce the unnecessary power consuming, it is strongly suggested to remove the power connection for the
device if this device is not intended to be active.
WEEE Warning
To avoid the potential effects on the environment and human health as a result of the presence of
hazardous substances in electrical and electronic equipment, end users of electrical and electronic
equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of
WEEE as unsorted municipal waste and have to collect such WEEE separately.
Revision
PLANET 24-Port 10/100Mbps + 2 Gigabit TP/SFP Managed Switch User’s Manual
FOR MODELS: FGSW-2620VM(v3) / FGSW-2620PVM / FGSW-2620VMP4 / FGSW-2612PVM
REVISION: 2.5 (SEPEMBER.2012)
Part No.: EM-FGSWx_v2.5 (2080-A92350-009)
2
User’s Manual of FGSW-Series
TABLE OF CONTENTS
1. INTRODUCTION ........................................................................................................13
1.1 Package Contents............................................................................................................................... 13
1.2 Product Description............................................................................................................................ 14
1.3 How to Use This Manual..................................................................................................................... 15
1.4 Product Features................................................................................................................................. 16
1.5 Product Specification......................................................................................................................... 18
2. INSTALLATION..........................................................................................................23
2.1 Hardware Description......................................................................................................................... 23
2.1.1 Switch Front Panel .................................................................................................................... 23
2.1.2 LED Indications.......................................................................................................................... 25
2.1.3 Switch Rear Panel ..................................................................................................................... 29
2.2 Install the Switch................................................................................................................................. 30
2.2.1 Desktop Installation ................................................................................................................... 30
2.2.2 Rack Mounting........................................................................................................................... 31
2.2.3 Installing the SFP transceiver.................................................................................................... 32
3. SWITCH MANAGEMENT...........................................................................................34
3.1 Requirements...................................................................................................................................... 34
3.2 Management Access Overview ......................................................................................................... 35
3.3 Web Management................................................................................................................................36
3.4 SNMP-Based Network Management ................................................................................................. 37
3.5 Administration Console (FGSW-2620VM doesn’t support)............................................................ 37
3.6 Protocols.............................................................................................................................................. 39
3.6.1 Virtual Terminal Protocols ......................................................................................................... 39
3.6.2 SNMP Protocol .......................................................................................................................... 39
3.6.3 Management Architecture ......................................................................................................... 39
4. WEB-BASED MANAGEMENT...................................................................................40
4.1 About Web-based Management ........................................................................................................ 40
4.1.1 Requirements ............................................................................................................................ 41
4.1.2 Logging on the switch................................................................................................................ 41

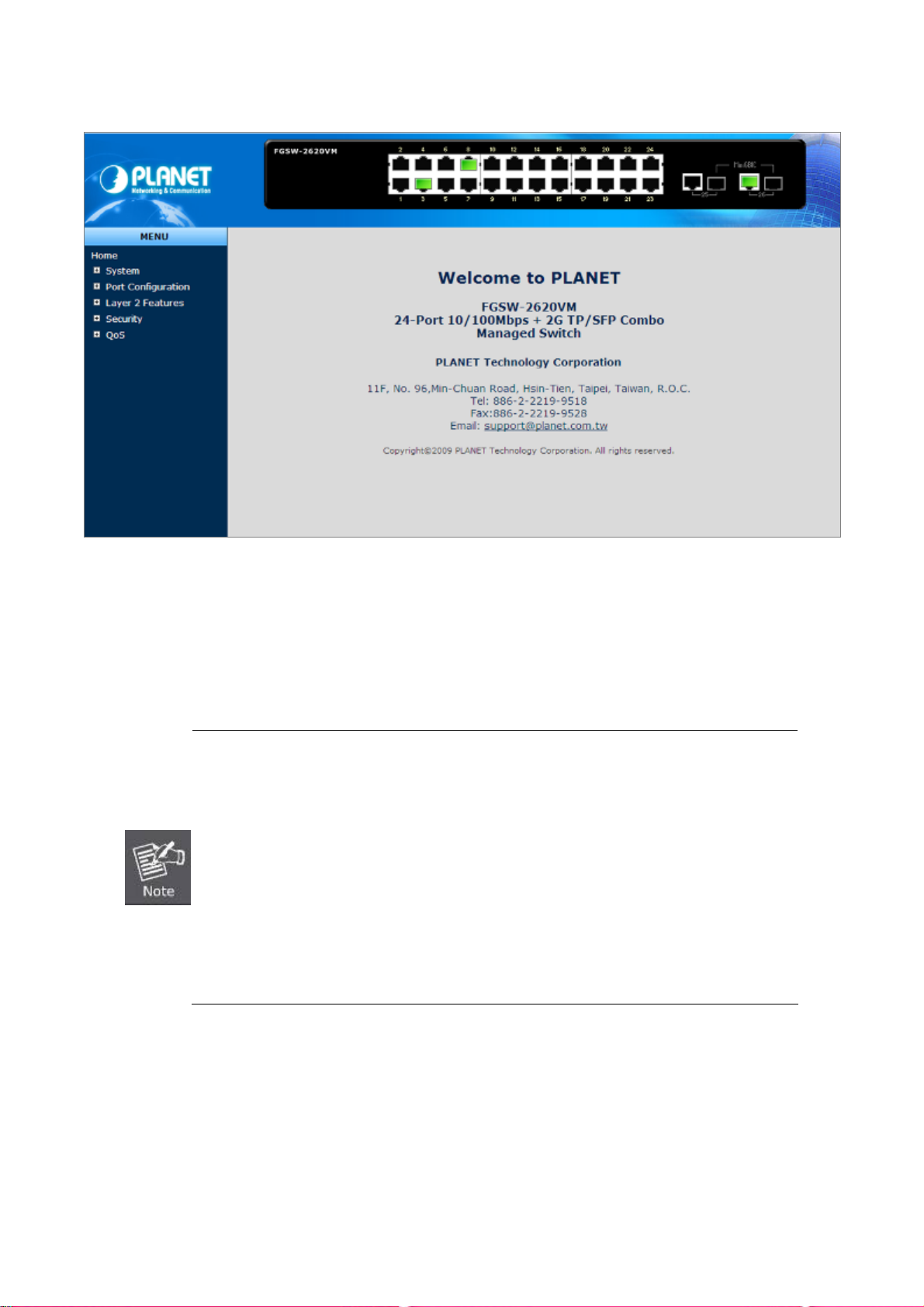

4.1.3 Main WEB PAGE....................................................................................................................... 43
4.2 System.................................................................................................................................................. 44

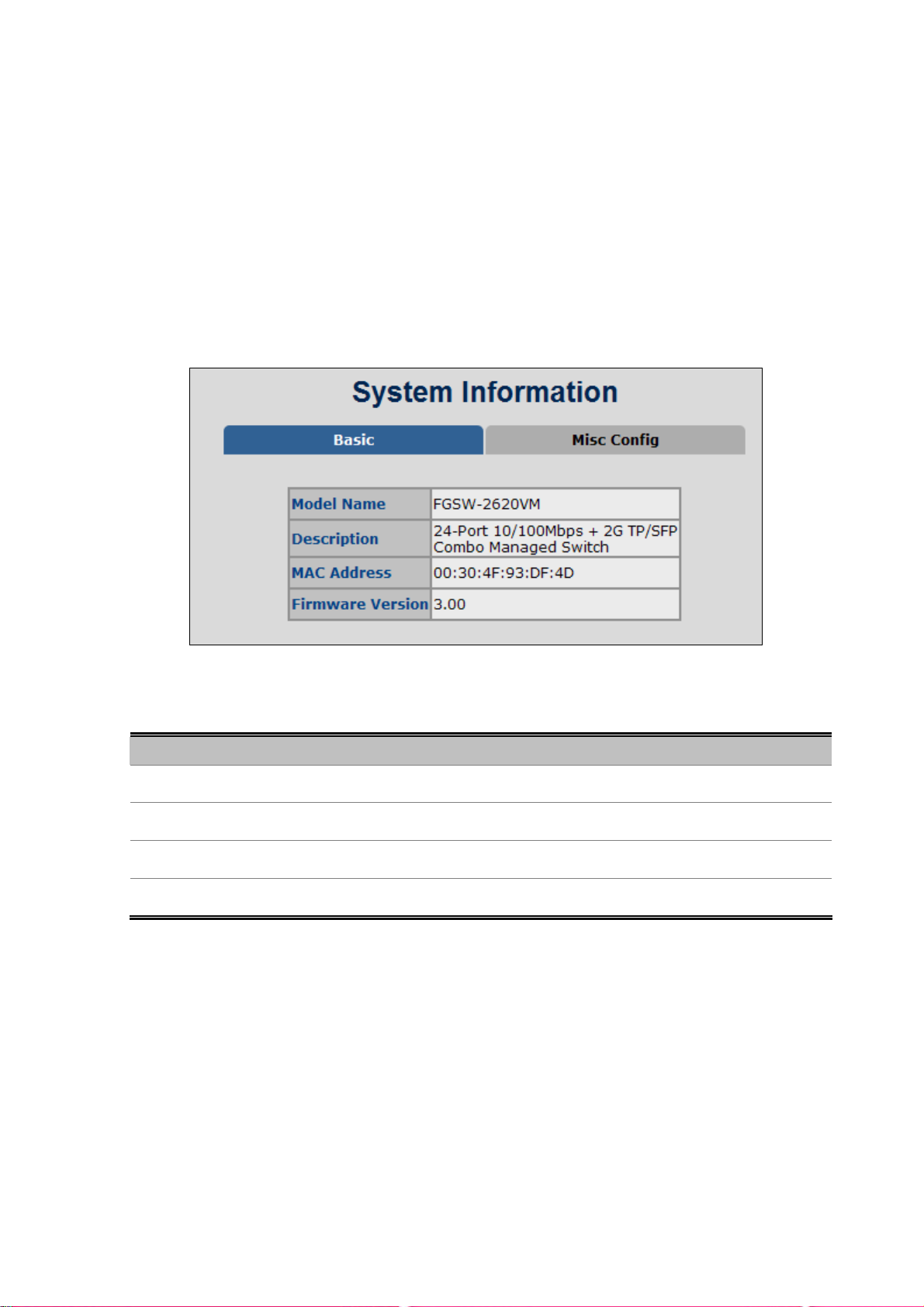

4.2.1 System Information.................................................................................................................... 45
4.2.1.1 Basic .................................................................................................................................. 45
3
User’s Manual of FGSW-Series
4.2.1.2 Misc Config ........................................................................................................................ 46
4.2.2 IP Configuration......................................................................................................................... 48
4.2.3 Console Port Info....................................................................................................................... 50
4.2.4 SNMP Configuration.................................................................................................................. 51
4.2.4.1 SNMP Overview................................................................................................................. 51
4.2.4.2 System Options.................................................................................................................. 52
4.2.4.3 Community Strings............................................................................................................. 53
4.2.4.4 Trap Managers................................................................................................................... 54
4.2.5 System Log................................................................................................................................55
4.2.6 SMTP Setting............................................................................................................................. 56
4.2.7 SNTP Setting............................................................................................................................. 57
4.2.8 Firmware Upgrade..................................................................................................................... 58
4.2.8.1 TFTP Firmware Upgrade ................................................................................................... 58

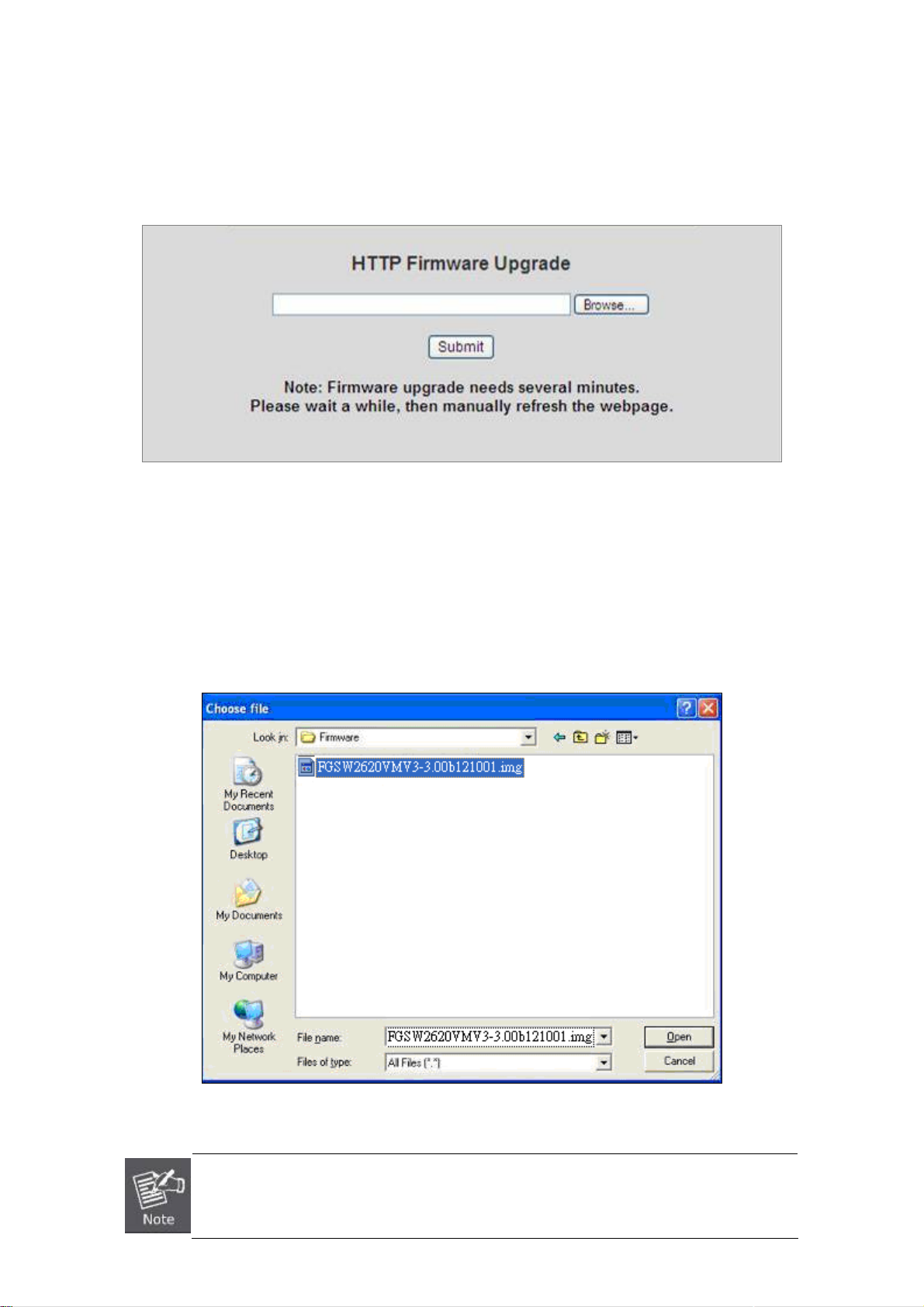

4.2.8.2 HTTP Firmware Upgrade................................................................................................... 59
4.2.9 Configuration Backup ................................................................................................................ 60
4.2.9.1 TFTP Restore Configuration.............................................................................................. 60
4.2.9.2 TFTP Backup Configuration............................................................................................... 61
4.2.10 Factory Default ........................................................................................................................ 62
4.2.11 System Reboot ........................................................................................................................ 62
4.3 Port Configuration .............................................................................................................................. 63
4.3.1 Port Control................................................................................................................................63
4.3.2 Rate Control............................................................................................................................... 65
4.3.3 Port Status ................................................................................................................................. 66
4.3.4 Port Statistics............................................................................................................................. 67
4.3.5 Port Sniffer................................................................................................................................. 68
4.4 VLAN configuration ............................................................................................................................ 72
4.4.1 VLAN Overview ......................................................................................................................... 72
4.4.2 Static VLAN Configuration......................................................................................................... 75
4.4.3 Port-based VLAN....................................................................................................................... 76
4.4.4 802.1Q VLAN............................................................................................................................. 78
4.4.4.1 VLAN Group Configuration ................................................................................................ 79
4.4.4.2 VLAN Filter......................................................................................................................... 82
4.4.5 Q-in-Q VLAN.............................................................................................................................. 84
4.4.5.1 Q-in-Q Port Setting............................................................................................................. 85
4.4.5.2 Q-in-Q Tunnel Setting ........................................................................................................ 86
4.5 Trunking............................................................................................................................................... 87
4
User’s Manual of FGSW-Series
4.5.1 Aggregator setting ..................................................................................................................... 88

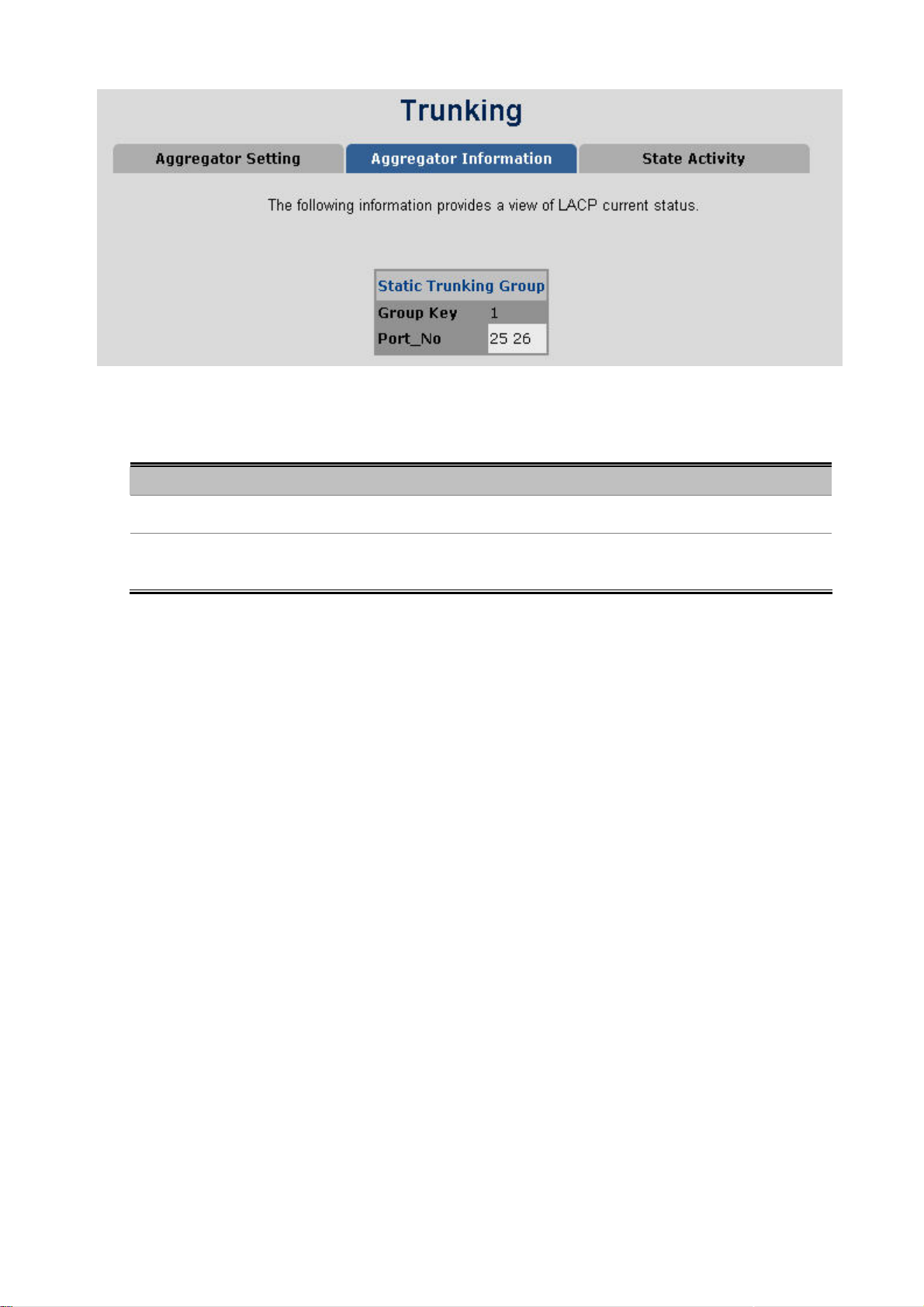

4.5.2 Aggregator Information.............................................................................................................. 89
4.5.3 State Activity.............................................................................................................................. 93
4.6 Forwarding and Filtering.................................................................................................................... 94
4.6.1 Dynamic MAC Table.................................................................................................................. 94
4.6.2 Static MAC Table....................................................................................................................... 95
4.6.3 MAC Filtering............................................................................................................................. 96
4.7 Static Multicast Table ......................................................................................................................... 97
4.8 IGMP Snooping ................................................................................................................................... 99
4.8.1 Theory........................................................................................................................................ 99
4.8.2 IGMP Configuration ................................................................................................................. 103
4.9 Spanning Tree Protocol.................................................................................................................... 105
4.9.1 Theory...................................................................................................................................... 105
4.9.2 Illustration of STP .................................................................................................................... 108
4.9.3 STP Parameters ...................................................................................................................... 109
4.9.4 STP System Configuration ...................................................................................................... 111
4.9.5 Port Configuration.................................................................................................................... 114
4.10 QoS Configuration.......................................................................................................................... 116
4.10.1 Understand QOS ................................................................................................................... 116
4.10.2 QoS Configuration ................................................................................................................. 117
4.10.2.1 Priority Queue Service settings...................................................................................... 117
4.10.2.2 QoS PerPort Configuration ............................................................................................ 119
4.10.3 TOS/DSCP ............................................................................................................................ 120
4.10.3.1 TOS/DSCP Configuration .............................................................................................. 121
4.10.3.2 TOS/DSCP Port Configuration....................................................................................... 122
4.11 Access Control List ........................................................................................................................ 123
4.12 User Configuration.......................................................................................................................... 127
4.13 MAC Limit ........................................................................................................................................ 128
4.13.1 MAC Limit Configuration........................................................................................................ 128
4.13.2 MAC Limit Port Status ........................................................................................................... 129
4.14 802.1X Configuration...................................................................................................................... 130
4.14.1 Understanding IEEE 802.1X Port-Based Authentication ...................................................... 130
4.14.2 System Configuration ............................................................................................................ 133
4.14.3 802.1x Port Configuration...................................................................................................... 135
4.14.4 Misc Configuration................................................................................................................. 136
4.15 Power Over Ethernet (FGSW-2620PVM / FGSW-2620VMP4 / FGSW-2612PVM)....................... 137
5
User’s Manual of FGSW-Series
4.15.1 Power over Ethernet Powered Device .................................................................................. 137
4.15.2 Power Management: ............................................................................................................. 138
5. CONSOLE MANAGEMENT.....................................................................................141
5.1 Login in the Console Interface ........................................................................................................ 141
5.2 Configure IP address........................................................................................................................ 142
5.3 Commands Level .............................................................................................................................. 144
6. COMMAND LINE INTERFACE ................................................................................145
6.1 Operation Notice............................................................................................................................... 145
6.2 System Commands........................................................................................................................... 146
show running-config ..................................................................................................................... 146
copy running-config startup-config............................................................................................... 146
erase startup-config ..................................................................................................................... 146
clear arp ....................................................................................................................................... 146
show arp....................................................................................................................................... 146
ping............................................................................................................................................... 146
6.3 Switch Static Configuration............................................................................................................. 147
6.3.1 Port Configuration and show status ........................................................................................ 147
port state ...................................................................................................................................... 147
port nego ...................................................................................................................................... 147
port speed .................................................................................................................................... 147
port flow........................................................................................................................................ 147
port rate........................................................................................................................................ 148
port priority ................................................................................................................................... 148
port jumboframe ........................................................................................................................... 148
port description............................................................................................................................. 148
show port status........................................................................................................................... 148
show port statistics....................................................................................................................... 149
show port protection..................................................................................................................... 150
6.4 Trunk Configuration.......................................................................................................................... 151
6.4.1 Trunking Commands ............................................................................................................... 151
show trunks .................................................................................................................................. 151
trunk add ...................................................................................................................................... 151
lacp............................................................................................................................................... 151
no trunk ........................................................................................................................................ 152
6.4.2 LACP Command...................................................................................................................... 152
[no] lacp........................................................................................................................................ 152
6
User’s Manual of FGSW-Series
lacp system-priority ...................................................................................................................... 152
no lacp system-priority ................................................................................................................. 152
show lacp status........................................................................................................................... 152
show lacp ..................................................................................................................................... 152
show lacp agg .............................................................................................................................. 153
show lacp port .............................................................................................................................. 153
6.5 VLAN Configuration.......................................................................................................................... 154
6.5.1 Virtual LANs............................................................................................................................. 154
6.5.2 VLAN Mode: Port-based.......................................................................................................... 155
show vlan mode ........................................................................................................................... 155
vlan mode..................................................................................................................................... 155
6.5.3 Advanced 802.1Q VLAN Configuration................................................................................... 156
show vlan mode ........................................................................................................................... 156
vlan mode..................................................................................................................................... 156
vlan add........................................................................................................................................ 156
no vlan.......................................................................................................................................... 157
show vlan ..................................................................................................................................... 157
show vlan static............................................................................................................................ 158
show vlan pvid.............................................................................................................................. 158
vlan filter....................................................................................................................................... 159
show vlan filter ............................................................................................................................. 159
6.6 Misc Configuration............................................................................................................................ 161
no mac-age-time .......................................................................................................................... 161
show mac-age-time...................................................................................................................... 161
broadcast...................................................................................................................................... 161
broadcast select ........................................................................................................................... 161
Collision-Retry.............................................................................................................................. 161
6.7 Administration Configuration.......................................................................................................... 162
6.7.1 Hostname ................................................................................................................................ 162
hostname...................................................................................................................................... 162
no hostname ................................................................................................................................ 162
6.7.2 IP Configuration....................................................................................................................... 162
ip address..................................................................................................................................... 162
ip default-gateway ........................................................................................................................ 162
show ip ......................................................................................................................................... 162
show info ...................................................................................................................................... 163
7
User’s Manual of FGSW-Series
dhcp.............................................................................................................................................. 163
show dhcp .................................................................................................................................... 163
6.7.3 Reboot switch .......................................................................................................................... 163
boot .............................................................................................................................................. 163
6.7.4 Reset to Default....................................................................................................................... 163
erase startup-config ..................................................................................................................... 163
6.7.5 TFTP Update Firmware ........................................................................................................... 164
copy tftp firmware......................................................................................................................... 164
6.7.6 Restore Configure File............................................................................................................. 164
copy tftp <running-config | flash> ................................................................................................. 164
6.7.7 Backup Configure File ............................................................................................................. 164
copy <running-config | flash> tftp ................................................................................................. 164
6.8 MAC limit............................................................................................................................................ 164
mac-limit....................................................................................................................................... 165
no mac-limit.................................................................................................................................. 165
Mac-limit....................................................................................................................................... 165
show mac-limit ............................................................................................................................. 165
6.9 Port Mirroring Configuration............................................................................................................ 166
mirror-port..................................................................................................................................... 166
show mirror-port ........................................................................................................................... 166
6.10 Quality of Service............................................................................................................................ 167
6.10.1 QoS Configuration ................................................................................................................. 167
qos priority.................................................................................................................................... 167
qos level ....................................................................................................................................... 168
show qos ...................................................................................................................................... 168
6.10.2 Per Port Priority ..................................................................................................................... 168
port priority ................................................................................................................................... 168
6.11 MAC Address Configuration.......................................................................................................... 169
clear mac-address-table............................................................................................................... 169
mac-address-table static.............................................................................................................. 169
no mac-address-table static mac-addr......................................................................................... 169
show mac-address-table.............................................................................................................. 169
show mac-address table static..................................................................................................... 169
show mac-address-table multicast............................................................................................... 169
smac-address-table static ............................................................................................................ 170
show smac-address-table ............................................................................................................ 170
8
User’s Manual of FGSW-Series
show smac-address-table multicast............................................................................................. 170
[no] filter........................................................................................................................................ 170
show filter ..................................................................................................................................... 170
6.12 STP/RSTP Commands.................................................................................................................... 171
[no] spanning-tree ........................................................................................................................ 171
spanning-tree forward-delay ........................................................................................................ 171
spanning-tree hello-time............................................................................................................... 171
spanning-tree maximum-age ....................................................................................................... 171
spanning-tree priority ................................................................................................................... 172
spanning-tree port path-cost ........................................................................................................ 172
spanning-tree port priority ............................................................................................................ 172
show spanning-tree...................................................................................................................... 172
show spanning-tree port............................................................................................................... 172
[no] spanning-tree debug ............................................................................................................. 173
spanning-tree protocol-version .................................................................................................... 173
[no] spanning-tree port mcheck ................................................................................................... 173
[no] spanning-tree port edge-port ................................................................................................ 173
[no] spanning-tree port non-stp.................................................................................................... 173
spanning-tree port point-to-point-mac.......................................................................................... 174
show spanning-tree...................................................................................................................... 174
show spanning-tree port............................................................................................................... 174
6.13 SNMP................................................................................................................................................ 175
6.13.1 System Options ..................................................................................................................... 175
Snmp /no snmp ............................................................................................................................ 175
Show snmp status........................................................................................................................ 175
snmp system-name...................................................................................................................... 175
snmp system-location .................................................................................................................. 175
snmp system-contact ................................................................................................................... 175
show snmp system....................................................................................................................... 176
6.13.2 Community Strings ................................................................................................................ 176
snmp community .......................................................................................................................... 176
no snmp community ..................................................................................................................... 176
show snmp community................................................................................................................. 176
6.13.3 Trap Managers ...................................................................................................................... 176
snmp trap ..................................................................................................................................... 176
no snmp trap ................................................................................................................................ 177
9
User’s Manual of FGSW-Series
show snmp trap............................................................................................................................ 177
6.14 IGMP................................................................................................................................................. 177
igmp.............................................................................................................................................. 177
igmp fastleave .............................................................................................................................. 177
igmp querier ................................................................................................................................. 178
igmp CrossVLAN.......................................................................................................................... 178
igmp debug .................................................................................................................................. 178
show igmp .................................................................................................................................... 178
igmp clear_statistics..................................................................................................................... 178
6.15 802.1x Protocol................................................................................................................................ 179
dot1x............................................................................................................................................. 179
radius-server host ........................................................................................................................ 179
radius-server key.......................................................................................................................... 179
radius-server nas ......................................................................................................................... 179
show radius-server ....................................................................................................................... 179
dot1x timeout quiet-period............................................................................................................ 180
dot1x timeout tx-period................................................................................................................. 180
dot1x timeout supplicant .............................................................................................................. 180
dot1x timeout radius-server.......................................................................................................... 180
dot1x max-req .............................................................................................................................. 180
dot1x timeout re-authperiod ......................................................................................................... 181
show dot1x ................................................................................................................................... 181
dot1x port ..................................................................................................................................... 181
show dot1x port............................................................................................................................ 181
6.16 Access Control List ........................................................................................................................ 182
6.16.1 IPv4 ACL commands............................................................................................................. 182
no acl............................................................................................................................................ 182
no acl count.................................................................................................................................. 182
show acl ....................................................................................................................................... 182
acl (add|edit) <1-220> (permit|deny) <0-4094> ipv4 <0-255>..................................................... 183
acl (add|edit) <1-220> (qosvoip) <0-4094>.................................................................................. 183
6.16.2 Non-IPv4 ACL commands..................................................................................................... 184
acl (add|edit) <1-220> (permit|deny) <0-4094> nonipv4 <0-65535>........................................... 184
6.17 Binding............................................................................................................................................. 185
6.17.1 SIP/SMAC binding commands .............................................................................................. 185
bind............................................................................................................................................... 185
10
User’s Manual of FGSW-Series
no bind.......................................................................................................................................... 185
no bind.......................................................................................................................................... 185
show bind ..................................................................................................................................... 185
bind add........................................................................................................................................ 185
6.18 Power over Ethernet Commands (FGSW-2612PVM/FGSW-2620PVM/FGSW-2620VMP4)....... 187
6.18.1 Display System PoE status ................................................................................................... 187
show poe...................................................................................................................................... 187
show poe status ........................................................................................................................... 187
6.18.2 Configure PoE Over Temperature Protection ....................................................................... 188
poe temperature-protection enable.............................................................................................. 188
6.18.3 Configure PoE -- System....................................................................................................... 189
poe limit-mode.............................................................................................................................. 189
6.18.4 Configure PoE -- Port ............................................................................................................ 190
poe enable ................................................................................................................................... 190
poe priority.................................................................................................................................... 191
poe maximum-power.................................................................................................................... 191
poe limit mode.............................................................................................................................. 192
poe admin-mode .......................................................................................................................... 192
poe usage..................................................................................................................................... 192
poe temperature........................................................................................................................... 193
6.19 SMTP ................................................................................................................................................ 193
smtp.............................................................................................................................................. 193
6.20 User (manage user name and password)..................................................................................... 194
user .............................................................................................................................................. 194
7. SWITCH OPERATION..............................................................................................195
7.1 Address Table ................................................................................................................................... 195
7.2 Learning............................................................................................................................................. 195
7.3 Forwarding & Filtering...................................................................................................................... 195
7.4 Store-and-Forward............................................................................................................................ 195
7.5 Auto-Negotiation............................................................................................................................... 195
8. POWER OVER ETHERNET OVERVIEW.................................................................197
What is PoE? ........................................................................................................................................... 197
The PoE Provision Process ................................................................................................................... 199
Stages of powering up a PoE link..................................................................................................... 199
Line Detection................................................................................................................................... 199
Classification..................................................................................................................................... 199
11
User’s Manual of FGSW-Series
Start-up ............................................................................................................................................. 200
Operation .......................................................................................................................................... 200
Power Disconnection Scenarios....................................................................................................... 200
9. TROUBLE SHOOTING.............................................................................................201
APPENDIX A—RJ-45 PIN ASSIGNMENT...................................................................203
A.1 Switch's RJ-45 Pin Assignments.................................................................................................... 203
A.2 10/100Mbps, 10/100Base-TX............................................................................................................ 203
APPENDIX B—HOW TO IDENTIFY THE HARDWARE VERSION? ........................205
12
User’s Manual of FGSW-Series
1. Introduction
The PLANET Layer 2 Managed Switch series - FGSW-2620VM, and Managed PoE Switch series - FGSW-2620PVM,
FGSW-2620VMP4, FGSW-2612PVM and are multiple 10/100Mbps ports Ethernet Switched with Gigabit TP/SFP fiber
optical combo connective ability and robust layer 2 features; the description of these models are shown as below:
FGSW-2620VM :
FGSW-2620PVM :
FGSW-2620VMP4 :
FGSW-2612PVM :
Terms of “Managed Switch” means the Switches mentioned titled in the cover page of this User’s manual, i.e.
FGSW-2620VM, FGSW-2620PVM, FGSW-2620VMP4 and FGSW-2612PVM.
24-Port 10/100Base-TX + 2-Port Gigabit TP/SFP Combo Managed Switch
24-Port 10/100Base-TX + 2-Port Gigabit TP/ SFP Managed PoE Switch
24-Port 10/100Base-TX + 2-Port Gigabit TP/ SFP Managed PoE Switch – 380W
24-Port 10/100Base-TX + 2-Port Gigabit TP/ SFP With 12-Port PoE Managed Switch
1.1 Package Contents
Open the box of the Managed Switch and carefully unpack it. The box should contain the following items:
Check the contents of your package for following parts:
; The Managed Switch
; User’s Manual CD
; Quick Installation Guide
; 19” Rack Mount Accessory Kit
x1
x1
x1
x1
; Power Cord
; Rubber Feet
; RS-232 DB9 male Console cable
(PoE Switch only)
If any of these are missing or damaged, please contact your dealer immediately, if possible, retain the carton including the
original packing material, and use them against to repack the product in case there is a need to return it to us for repair.
This user manual applies only to hardware FGSW-2620VM version 3, and about how to identify the
hardware version? Please refer to Appendix B.
x1
X4
x1
13
User’s Manual of FGSW-Series
1.2 Product Description
High Performance Wire-Speed Switching
The PLANET FGSW-2620VM / FGSW-2620PVM / FGSW-2620VMP4 / FGSW-2612PVM Managed Switch offer 24
Ethernet ports with 2 Gigabit TP / SFP combo ports (Port-25, 26). The type 24 Fast Ethernet ports of FGSW-2620VM and
FGSW-2620PVM / FGSW-2620VMP4 / FGSW-2612PVM are 10/100Base-TX copper (RJ-45). These two Gigabit TP / SFP
combo ports of all models can be either 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP (Small Factor
Pluggable) interface. The distance can be extended from 100 meters (TP), 550 meters (Multi-mode fiber), up to above
10/50/70/120 kilometers (Single-mode fiber).
The series Managed Switch boast a high performance switch’s architecture that is capable of providing non-blocking switch
fabric and wire-speed throughput as high as 8.8Gbps. Its two built-in GbE uplink ports also offer incredible extensibility,
flexibility and connectivity to the Core switches or Servers.
Power over Ethernet
The PoE in-line power following the standard IEEE 802.3af makes the FGSW-2620PVM / FGSW-2620VMP4 able to power
on 24 PoE devices and FGSW-2612PVM able to power on 12 PoE devices at the distance up to 100 meters through the
4-pair Cat 5/5e UTP wire.
Cost-effective solution with SNMP monitor for Network deployment
Not only for catering to the need of easy WEB-based management but also the centralized SNMP application to monitor the
status of Switch and traffic per port, PLANET releases the cost-effective Managed Switch. The key features are as below:
380 Watts Full PoE Power (FGSW-2620VMP4)
WEB / SSL / Telnet
802.1Q / Q-in-Q VLAN
Rapid Spanning Tree
IGMP Snooping
802.1X Authentication / RADIUS
Access Control List
SNMP and 4 RMON groups
Product Table
Managed Switch Managed PoE Switch
Model FGSW-2620VM FGSW-2612PVM FGSW-2620PVM FGSW-2620VMP4
10/100TX 24 24 24 24
100FX - - - 10/100/1000T 2
1000SX/LX 2 (Shared)
PoE Ports - 12 24 24
PoE Budget - 110 Watts 190 Watts 380 Watts
14
User’s Manual of FGSW-Series
1.3 How to Use This Manual
This User Manual is structured as follows:
Section 2, INSTALLATION
The section explains the functions of the Switch and how to physically install the Managed Switch.
Section 3, SWITCH MANAGEMENT
The section contains the information about the software function of the Managed Switch.
Section 4, WEB CONFIGURATION
The section explains how to manage the Managed Switch by Web interface.
Section 5, CONSOLE MANAGEMENT
The section describes how to use the Console management interface.
Section 6, COMMAND LINE INTERFACE
The section explains how to manage the Managed Switch by Command Line interface.
Section 7, SWITCH OPERATION
The chapter explains how to does the switch operation of the Managed Switch.
Section 8, POWER OVER ETHERNET OVERVIEW
The chapter introduce the IEEE 802.3af PoE standard and PoE provision of the Managed Switch.
Section 9, TROUBSHOOTING
The chapter explains how to trouble shooting of the Managed Switch.
Appendix A
The section contains cable information of the Managed Switch.
15
User’s Manual of FGSW-Series
1.4 Product Features
¾ Physical Port
FGSW-2620VM
24-Port 10/100Base-TX RJ-45 interfaces
2-Port Gigabit TP/SFP combo interfaces
Reset button for system management
FGSW-2620PVM / FGSW-2620VMP4 / FGSW-2612PVM
24-Port 10/100Base-TX RJ-45 with PoE Injector
2-Port Gigabit TP/SFP combo interfaces
Reset button for system management
1 RS-232 male DB9 console interface for Switch basic management and setup
¾ Layer 2 Features
Supports Auto-negotiation and Half-Duplex / Full-Duplex modes for all 10Base-T / 100Base-TX and Full-Duplex
mode for 1000Base-T ports.
Auto-MDI/MDI-X detection on each RJ-45 port
Prevents packet loss Flow Control:
• IEEE 802.3x PAUSE frame Flow Control for Full-Duplex mode
• Back-Pressure Flow Control in Half-Duplex mode
High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates
erroneous packets to optimize the network bandwidth
8K MAC Address Table, automatic source address learning and ageing
Support VLANs:
• IEEE 802.1Q Tag-Based VLAN
• Up to 255 VLANs groups, out of 4096 VLAN IDs
• Port-Based VLAN
• Q-in-Q tunneling (Double Tag VLAN)
Supports Link Aggregation
• Up to 13 Trunk groups
• Up to 8 ports per trunk group with 1.6Gbps bandwidth (Full Duplex mode)
• IEEE 802.3ad LACP (Link Aggregation Control Protocol)
• Cisco ether-Channel (Static Trunk)
Support Spanning Tree Protocol:
• STP, IEEE 802.1D (Classic Spanning Tree Protocol)
• RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
¾ Quality of Service
4 priority queues on all switch ports
Traffic classification:
• IEEE 802.1p Class of Service
• IP TOS / DSCP code priority
• Port Base priority
Strict priority and Weighted Round Robin (WRR) CoS policies
Ingress/Egress Bandwidth control on each port
16
User’s Manual of FGSW-Series
¾ Multicast
IGMP Snooping v1 and v2
IGMP Query mode for Multicast Media application
256 multicast groups
¾ Security
Layer 3 / 4 Access Control List (ACL)
IEEE 802.1x Port-Based Authentication
MAC address Filtering and MAC address Binding
IP address security management to prevent unauthorized intruder
Port Mirroring to monitor the incoming or outgoing traffic on a particular port
¾ Management
Switch Management Interface
• Web switch management
• Telnet Command Line Interface
• SNMP v1, v2c switch management
• Console local management (Not include FGSW-2620VM)
SNMP Trap for alarm notification of events
Four RMON groups 1, 2, 3, 9 (history, statistics, alarms, and events)
Built-in Trivial File Transfer Protocol (TFTP) client
Firmware upload / download via TFTP or HTTP
Configuration upload / download via TFTP or HTTP
Supports Ping function
¾ Power over Ethernet (FGSW-2612PVM / FGSW-2620PVM / FGSW-2620VMP4 Only )
Complies with IEEE 802.3af Power over Ethernet End-Span PSE
Up to 24 IEEE 802.3af devices powered (FGSW-2620PVM / FGSW-2620VMP4 only)
Up to 12 IEEE 802.3af devices powered (FGSW-2612PVM only)
Support PoE Power up to 15.4 watts for each PoE ports
Auto detect powered device (PD)
Circuit protection prevent power interference between ports
Remote power feeding up to 100m
PoE Management
• Total PoE power budget control
• Per port PoE function enable/disable
• PoE Port Power feeding priority
• Per PoE port power limit
• PD classification detection
• PoE Power Supply Over Temperature Protection
17
1.5 Product Specification
Product FGSW-2620VM
Hardware Specification
User’s Manual of FGSW-Series
Hardware Version
10/100Mbps Copper Ports
1000Mbps Copper Ports
SFP/mini-GBIC Slots
Switch Architecture
Switch Fabric
Switch Throughput
Address Table
Share Data Buffer
Flash
DRAM
Maximum Frame Size
Flow Control
Version 3
24 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports
2 10/100/1000Base-T RJ-45 port
2 SFP interfaces, shared with Port-25 and Port-26
Store-and-Forward
8.8Gbps / non-blocking
6.547Mpps@64Bytes
8K entries
512Kbytes
4Mbytess
16Mbytes
9K Bytes
Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full-Duplex
LED
Dimensions ( W x D x H)
Weight
Power Requirement
Power Consumption
Operating Temperature
Operating Humidity
Storage Temperature
Layer 2 Functions
Management Interface
Port Configuration
Power
Link/Activity (Green)
1000 LNK / ACT(Green)
10/100 LNK / ACT(Green)
440 x 200 x 44 mm, 1U height
1.87kg
100~240V AC, 50-60 Hz
25 Watts (Full load)
Standard: 0 ~ 50 Degree C
10% to 95% (Non-condensing)
-10 Degree C ~ 85 Degree C
Telnet, Web Browser, SNMP v1, v2c
Port disable / enable.
Auto-negotiation 10/100Mbps full and half duplex mode selection.
Flow Control disable / enable.
Port Status
Bandwidth control and broadcast storm filter on each port.
Display each port’s speed duplex mode, link status, Flow control status and Auto
18
negotiation status
User’s Manual of FGSW-Series
VLAN
Spanning Tree
Link Aggregation
Quality of Service
IGMP Snooping
Bandwidth Control
Port Mirror
Security
Access Control List
SNMP MIBs
Port-Based VLAN, up to 26 VLAN groups
IEEE 802.1q Tagged Based VLAN , 4K VLAN ID, up to 256 VLAN groups
IEEE 802.1D Spanning Tree
IEEE 802.1w Rapid Spanning Tree
Static Port Trunk
IEEE 802.3ad LACP (Link Aggregation Control Protocol)
Supports 13 groups of 8-Port trunk support
Traffic classification based on :
Port-Based priority
802.1p priority,
IP DSCP/TOS field in IP Packet
v1 and v2
256 multicast groups and IGMP querier mode
Per port Ingress / Egress bandwidth control in steps of 128Kbps
RX / TX / Both
802.1x Port-Based Network access control
MAC Limit
Static MAC
MAC Filtering
Supports up to 220 rule entries
RFC-1157 SNMP MIB
RFC-1213 MIB-II
RFC-1215 Trap
RFC-2863 Interface MIB
RFC-1493 Bridge MIB
RFC-2674 Extended Bridge MIB (Q-Bridge)
RFC-1643
Standards Conformance
Safety
Standards Compliance
Cable-Fiber-optic cable
FCC Part 15 Class A, CE
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000Base-T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.1d Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
• 50 / 125µm or 62.5 / 125µm multi-mode fiber cable:
- 100Base-FX : up to 2km
- 1000Base-SX: up to 220 / 550m
19
User’s Manual of FGSW-Series
• 9 / 125µm single-mode cable, provides long distance for :
- 100Base-FX: up to 10/40/60km (very on fiber transceiver or SFP module)
- 1000Base-LX / ZX: 10 / 15 / 20 / 30 / 40 / 50 / 60 / 70 / 120km (very on fiber
transceiver or SFP module)
Product FGSW-2612PVM FGSW-2620PVM FGSW-2620VMP4
Hardware Specification
Hardware Version
10/100Mbps Copper Ports
1000Mbps Copper Ports
SFP/mini-GBIC Slots
Switch Architecture
Switch Fabric
Switch Throughput
Address Table
Share Data Buffer
Flash
DRAM
Maximum Frame Size
Flow Control
Version 1 Version 1 Version 1
24 10/ 100Base-TX RJ-45
Auto-MDI/MDI-X ports
2 10/100/1000Base-T RJ-45 port
2 SFP interfaces, shared with Port-25 and Port-26
Store-and-Forward
8.8Gbps / non-blocking
6.547Mpps@64Bytes
8K entries
512Kbytes
4Mbytess
16Mbytes
9K Bytes
Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full-Duplex
24 10/ 100Base-TX RJ-45
Auto-MDI/MDI-X ports
24 10/ 100Base-TX RJ-45
Auto-MDI/MDI-X ports
LED
Dimensions ( W x D x H)
Weight
Power Requirement
Power Consumption
Operating Temperature
Operating Humidity
Storage Temperature
Power, FAN Alarm
Link/Activity (Green)
PoE In-Use (Amber)
1000 LNK / ACT(Green)
10/100 LNK / ACT(Green)
440 x 220 x 44 mm,
1U height
2.6kg 2.6kg 4.2kg
100~240V AC, 50-60 Hz
210 Watts (Full Load) 210 Watts (Full Load) 400 Watts (Full Load)
Standard: 0 ~ 50 Degree C
20% to 95% (Non-condensing)
-10 Degree C ~ 85 Degree C
Power, FAN Alarm
Link/Activity (Green)
PoE In-Use (Amber)
1000 LNK / ACT(Green)
10/100 LNK / ACT(Green)
440 x 220 x 44 mm,
1U height
20
Power, FAN Alarm
Link/Activity (Green)
PoE In-Use (Amber)
1000 LNK / ACT(Green)
10/100 LNK / ACT(Green)
440 x 300 x 44 mm
1U height
Layer 2 Functions
User’s Manual of FGSW-Series
Management Interface
Port Configuration
Port Status
VLAN
Spanning Tree
Link Aggregation
Quality of Service
Console, Telnet, Web Browser, SNMP v1, v2c
Port disable / enable.
Auto-negotiation 10/100Mbps full and half duplex mode selection.
Flow Control disable / enable.
Bandwidth control and broadcast storm filter on each port.
Display each port speed duplex mode, link status, Flow control status. And Auto
negotiation status
Port-Based VLAN, up to 26 VLAN groups
IEEE 802.1q Tagged Based VLAN , 4K VLAN ID, up to 256 VLAN groups
IEEE 802.1D Spanning Tree
IEEE 802.1w Rapid Spanning Tree
Static Port Trunk
IEEE 802.3ad LACP (Link Aggregation Control Protocol)
Supports 13 groups of 8-Port trunk support
Traffic classification based on :
Port-Based priority
802.1p priority,
IP DSCP/TOS field in IP Packet
IGMP Snooping
Bandwidth Control
Port Mirror
Security
Access Control List
SNMP MIBs
Power over Ethernet
PoE Standard
v1 and v2
256 multicast groups and IGMP querier mode
Per port Ingress / Egress bandwidth control in steps of 128Kbps
RX / TX / Both
802.1x Port-Based Network access control
MAC Limit
Static MAC
MAC Filtering
Supports up to 220 rule entries
RFC-1157 SNMP MIB
RFC-1213 MIB-II
RFC-1215 Trap
RFC-2863 Interface MIB
RFC-1493 Bridge MIB
RFC-2674 Extended Bridge MIB (Q-Bridge)
RFC-1643
IEEE 802.3af
PoE Power Supply Type
PoE Power output
Power Pin Assignment
End-Span
Per Port 48V DC, 350mA . Max. 15.4 watts
1/2(+), 3/6(-)
21
User’s Manual of FGSW-Series
PoE Power Budget
Max. number of Class2 PD
Max. number of Class 3 PD
Standards Conformance
Safety
Standards Compliance
110Watts 190Watts 380Watts
12 24 24
6 12 24
FCC Part 15 Class A, CE
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000Base-T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.1d Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.3af Power over Ethernet
FCC Part 15 Class A, CE
UL, cUL
Cable-Fiber-optic cable
• 50 / 125µm or 62.5 / 125µm multi-mode fiber cable:
- 100Base-FX : up to 2km
- 1000Base-SX: up to 220 / 550m
• 9 / 125µm single-mode cable, provides long distance for :
- 100Base-FX: up to 10/40/60km (very on fiber transceiver or SFP module)
- 1000Base-LX / ZX: 10 / 15 / 20 / 30 / 40 / 50 / 60 / 70 / 120km (very on fiber
transceiver or SFP module)
22
User’s Manual of FGSW-Series
2. INSTALLATION
This section describes the hardware features and installation of the Managed Switch on the desktop or rack mount. For
easier management and control of the Managed Switch, familiarize yourself with its display indicators, and ports. Front
panel illustrations in this chapter display the unit LED indicators. Before connecting any network device to the Managed
Switch, please read this chapter completely.
2.1 Hardware Description
2.1.1 Switch Front Panel
The unit front panel provides a simple interface monitoring the switch. Figure 2-1-1 to 2-1-5 shows the front panel of the
Managed Switches.
FGSW-2620VM Front Panel
FGSW-2620PVM Front Panel
FGSW-2620VMP4 Front Panel
Figure 2-1-1: FGSW-2620VM front panel
Figure 2-1-2: FGSW-2620PVM Switch front panel
Figure 2-1-3: FGSW-2620VMP4 Switch front panel
FGSW-2612PVM Front Panel
Figure 2-1-4: FGSW-2612PVM Switch front panel
23
User’s Manual of FGSW-Series
■ 10/100Mbps TP Interface
Port-1~Port-24: 10/100Base-TX Copper, RJ-45 Twist-Pair: Up to 100 meters.
■ Gigabit TP Interface
Port-25, Port-26: 10/100/1000Base-T Copper, RJ-45 Twist-Pair: Up to 100 meters.
■ Gigabit SFP Slots
Port-25, Port-26: 1000Base-SX/LX mini-GBIC slot, SFP (Small Factor Pluggable) transceiver module: From 550
meters (Multi-mode fiber), up to 10/30/50/70/120 kilometers (Single-mode fiber).
■ Console Port (not include FGSW-2620VM)
The console port is a DB9, RS-232 male serial port connector. It is an interface for connecting a terminal directly.
Through the console port, it provides rich diagnostic information includes IP Address setting, factory reset, port
management, link status and system setting. Users can use the attached RS-232 cable in the package and connect to
the console port on the device. After the connection, users an run any terminal emulation program (Hyper Terminal,
ProComm Plus, Telix, Winterm and so on) to enter the startup screen of the device.
■ Reset button
At the left of front panel, the reset button is designed for reboot the Managed Switch without turn off and on the power.
The following is the summary table of Reset button functions:
Reset Button Pressed and Released Function
About 1~3 second Reboot the Managed Switch
Reset the Managed Switch to Factory Default configuration.
The Managed Switch will then reboot and load the default
Until the PWR LED lit off
(Over 5 seconds)
settings as below:
。 Default Password: admin
。 Default IP address: 192.168.0.100
。 Subnet mask: 255.255.255.0
。 Default Gateway: 192.168.0.254
24
User’s Manual of FGSW-Series
2.1.2 LED Indications
The front panel LEDs indicates instant status of port links, data activity and system power; helps monitor and troubleshoot
when needed.
FGSW-2620VM LED indication
Figure 2-1-6: FGSW-2620VM LED panel
System
LED Color Function
PWR Green Lights to indicate that the Switch has power.
Per 10/100Base-TX RJ-45 port
LED Color Function
LNK/ACT Green
Per 10/100/1000Base-T port /SFP interfaces
LED Color Function
LNK/ACT 1000 Green
LNK/ACT 10/100 Green
Lights to indicate the link through that port is successfully established.
Blink to indicate that the Switch is actively sending or receiving data over that port.
Lit: indicate that the port is operating at 1000Mbps.
Off: indicate that the port is operating at 10Mbps or 100Mbps.
Blink: indicate that the Switch is actively sending or receiving data over that port.
Lit: indicate that the port is operating at 10Mbps or 100Mbps.
Off: indicate that the port is operating at 1000Mbps.
Blink: indicate that the Switch is actively sending or receiving data over that port.
25
FGSW-2620PVM LED indication
System
LED Color Function
PWR Green Lights to indicate that the Switch has power.
User’s Manual of FGSW-Series
Figure 2-1-7: FGSW-2620PVM LED panel
Per 10/100Base-TX, PoE interfaces (Port-1 to Por-24)
LED Color Function
LNK/ACT
PoE In-Use
Per 10/100/1000Base-T port /SFP interfaces
LED Color Function
LNK/ACT 1000 Green
LNK/ACT 10/100 Green
Green
Orange
Lights:
Blink:
Lights:
Off:
Lit: indicate that the port is operating at 1000Mbps.
Off: indicate that the port is operating at 10Mbps or 100Mbps.
Blink: indicate that the Switch is actively sending or receiving data over that port.
Lit: indicate that the port is operating at 10Mbps or 100Mbps.
Off: indicate that the port is operating at 1000Mbps.
Blink: indicate that the Switch is actively sending or receiving data over that port.
To indicate the link through that port is successfully established.
To indicate that the Switch is actively sending or receiving data over that port.
To indicate the port is providing 48VDC in-line power.
To indicate the connected device is not a PoE Powered Device (PD).
26
FGSW-2620VMP4 LED indication
System
LED Color Function
PWR Green Lights to indicate that the Switch has power.
FAN1 Green Lights to indicate that the FAN#1 has stopped.
User’s Manual of FGSW-Series
Figure 2-1-8: FGSW-2620VMP4 LED panel
FAN2 Green
FAN3 Green
Lights to indicate that the FAN#2 has stopped.
Lights to indicate that the FAN#3 has stopped.
Per 10/100Base-TX, PoE interfaces (Port-1 to Por-24)
LED Color Function
LNK/ACT Green
PoE In-Use Orange
Per 10/100/1000Base-T port /SFP interfaces
LED Color Function
Lights: To indicate the link through that port is successfully established.
Blink: To indicate that the Switch is actively sending or receiving data over that port.
Lights: To indicate the port is providing 48VDC in-line power.
Off: To indicate the connected device is not a PoE Powered Device (PD).
LNK/ACT 1000 Green
LNK/ACT 10/100 Green
Lit: indicate that the port is operating at 1000Mbps.
Off: indicate that the port is operating at 10Mbps or 100Mbps.
Blink: indicate that the Switch is actively sending or receiving data over that port.
Lit: indicate that the port is operating at 10Mbps or 100Mbps.
Off: indicate that the port is operating at 1000Mbps.
Blink: indicate that the Switch is actively sending or receiving data over that port.
27
FGSW-2612PVM LED indication
System
LED Color Function
PWR Green Lights to indicate that the Switch has power.
User’s Manual of FGSW-2620VM
Figure 2-1-9: FGSW-2612PVM LED panel
Per 10/100Base-TX, PoE interfaces (Port-1 to Por-24)
LED Color Function
LNK/ACT
PoE In-Use
Per 10/100/1000Base-T port /SFP interfaces
LED Color Function
LNK/ACT 1000 Green
LNK/ACT 10/100 Green
Green
Orange
Lights:
Blink:
Lights:
Off:
Lit: indicate that the port is operating at 1000Mbps.
Off: indicate that the port is operating at 10Mbps or 100Mbps.
Blink: indicate that the Switch is actively sending or receiving data over that port.
Lit: indicate that the port is operating at 10Mbps or 100Mbps.
Off: indicate that the port is operating at 1000Mbps.
Blink: indicate that the Switch is actively sending or receiving data over that port.
To indicate the link through that port is successfully established.
To indicate that the Switch is actively sending or receiving data over that port.
To indicate the port is providing 48VDC in-line power.
To indicate the connected device is not a PoE Powered Device (PD).
1. Press the RESET button 1-3 seconds. The t Switch will reboot automatically.
2. Press the RESET button for about 10 seconds. The Switch will back to the factory default mode; the
entire configuration will be erased.
3. The 2 Gigabit TP/SFP combo ports are shared with port 25/26 of FGSW-2620VM / FGSW-2620PVM /
FGSW-2620VMP4 / FGSW-2612PVM either of them can operate at the same time.
User’s Manual of FGSW-Series
2.1.3 Switch Rear Panel
The rear panel of the Managed Switch indicates an AC inlet power socket, which accepts input power from 100 to 240V AC,
50-60Hz. Figure 2-1-11 to Figure 2-1-15 shows the rear panel of the Switch.
FGSW-2620VM Rear Panel
Figure 2-1-11: FGSW-2620VM rear panel.
FGSW-2620PVM Rear Panel
FGSW-2620VMP4 Rear Panel
FGSW-2612PVM Rear Panel
1. The device is a power-required device, it means, it will not work till it is powered. If your networks
should active all the time, please consider using UPS (Uninterrupted Power Supply) for your
Figure 2-1-12: FGSW-2620PVM Switch rear panel
Figure 2-1-13: FGSW-2620PVM Switch rear panel
Figure 2-1-14: FGSW-2612PVM Switch rear panel
Power Notice:
device. It will prevent you from network data loss or network downtime.
2. In some area, installing a surge suppression device may also help to protect your Managed
Switch from being damaged by unregulated surge or current to the Switch or the power adapter.
29
User’s Manual of FGSW-Series
2.2 Install the Switch
This section describes how to install the Managed Switch and make connections to it. Please read the following topics and
perform the procedures in the order being presented.
2.2.1 Desktop Installation
To install the Managed Switch on desktop or shelf, please follows these steps:
Step1: Attach the rubber feet to the recessed areas on the bottom of the Managed Switch.
Step2: Place the Managed Switch on the desktop or the shelf near an AC power source.
Figure 2-2-1: Place the Managed Switch on the desktop
Step3: Keep enough ventilation space between the Managed Switch and the surrounding objects.
When choosing a location, please keep in mind the environmental restrictions discussed in
Chapter 1, Section 4, in Specification.
Step4: Connect the Managed Switch to network devices.
A. Connect one end of a standard network cable to the 10/100/1000 RJ-45 ports on the front of the Managed Switch
B. Connect the other end of the cable to the network devices such as printer servers, workstations or routers…etc.
Connection to the Managed Switch requires UTP Category 5 network cabling with RJ-45
tips. For more information, please see the Cabling Specification in Appendix A.
Step5: Supply power to the Managed Switch.
A. Connect one end of the power cable to the Managed Switch.
B. Connect the power plug of the power cable to a standard wall outlet.
When the Managed Switch receives power, the Power LED should remain solid Green.
30
User’s Manual of FGSW-Series
2.2.2 Rack Mounting
To install the Managed Switch in a 19-inch standard rack, please follows the instructions described below.
Step1: Place the Managed Switch on a hard flat surface, with the front panel positioned towards the front side.
Step2: Attach the rack-mount bracket to each side of the Managed Switch with supplied screws attached to the package.
Figure 2-2-2 shows how to attach brackets to one side of the Managed Switch.
Figure 2-2-2: Attach brackets to the Managed Switch
You must use the screws supplied with the mounting brackets. Damage caused to the parts
by using incorrect screws would invalidate the warranty.
Step3: Secure the brackets tightly.
Step4: Follow the same steps to attach the second bracket to the opposite side.
Step5: After the brackets are attached to the Managed Switch, use suitable screws to securely attach the brackets to the
rack, as shown in Figure 2-2-3.
Figure 2-2-3: Mounting the Switch in a Rack
Step6: Proceeds with the steps 4 and steps 5 of session 2.2.1 Desktop Installation to connect the network cabling and
supply power to the Managed Switch.
31
User’s Manual of FGSW-Series
2.2.3 Installing the SFP transceiver
The sections describe how to insert an SFP transceiver into an SFP slot.
The SFP transceivers are hot-pluggable and hot-swappable. You can plug-in and out the transceiver to/from any SFP port
without having to power down the Managed Switch. As the Figure 2-2-4 appears.
Figure 2-2-4: Plug-in the SFP transceiver
Approved PLANET SFP Transceivers
PLANET Managed switches supports both single mode and multi mode SFP transceiver. The following list of approved
PLANET SFP transceivers is correct at the time of publication:
1000Base-SX/LX SFP transceiver:
MGB-SX SFP (1000BASE-SX SFP transceiver – Multi mode / 220m)
MGB-LX SFP (1000BASE-LX SFP transceiver - Single Mode / 10km)
MGB-L30 SFP (1000Base-LX SFP transceiver – Single Mode / 30Km)
MGB-L50 SFP (1000Base-LX SFP transceiver - Single Mode / 50Km)
It recommends using PLANET SFPs on the Switch. If you insert a SFP transceiver that is
not supported, the Managed Switch will not recognize it.
Before connect the other switches, workstation or Media Converter.
1. Make sure both side of the SFP transceiver are with the same media type, for example: 1000Base-SX to
1000Base-SX, 1000Bas-LX to 1000Base-LX.
2. Check the fiber-optic cable type match the SFP transceiver model.
¾ To connect to 1000Base-SX SFP transceiver, use the multi-mode fiber cable- with one side must be male duplex
LC connector type.
32
User’s Manual of FGSW-Series
¾ To connect to 1000Base-LX SFP transceiver, use the single-mode fiber cable-with one side must be male
duplex LC connector type.
Connect the fiber cable
1. Attach the duplex LC connector on the network cable into the SFP transceiver.
2. Connect the other end of the cable to a device – switches with SFP installed, fiber NIC on a workstation or a Media
Converter..
3. Check the LNK/ACT LED of the SFP slot on the front of the Switch. Ensure that the SFP transceiver is operating
correctly.
4. Check the Link mode of the SFP port if the link failed. Co works with some fiber-NICs or Media Converters, set the Link
mode to “1000 Force” is needed.
Remove the transceiver module
1. Make sure there is no network activity by consult or check with the network administrator. Or through the
management interface of the switch/converter (if available) to disable the port in advance.
2. Remove the Fiber Optic Cable gently.
3. Turn the handle of the MGB module to horizontal.
4. Pull out the module gently through the handle.
Figure 2-2-5: Pull out the SFP transceiver
Never pull out the module without pull the handle or the push bolts on the module. Direct pull
out the module with violent could damage the module and SFP module slot of the Managed
Switch.
33
User’s Manual of FGSW-Series
3. SWITCH MANAGEMENT
This chapter explains the methods that you can use to configure management access to the Managed Switch. It describes
the types of management applications and the communication and management protocols that deliver data between your
management device (work-station or personal computer) and the system. It also contains information about port connection
options.
This chapter covers the following topics:
Requirements
Management Access Overview
Administration Console Access
Web Management Access
SNMP Access
Standards, Protocols, and Related Reading
3.1 Requirements
Workstations of subscribers running Windows 98/ME, NT4.0, 2000/XP, MAC OS9 or later, Linux, UNIX or
other platform compatible with TCP/IP protocols.
Workstation installed with Ethernet NIC (Network Interface Card)
Ethernet Port connect
• Network cables - Use standard network (UTP) cables with RJ45 connectors.
Above Workstation installed with WEB Browser and JAVA runtime environment Plug-in
Serial Port connect (Not include FGSW-2620VM)
• Above PC with COM Port (DB-9 / RS-232) or USB-to-RS-232 converter
It is recommended to use Internet Explore 6.0 or above to access Managed Switch.
34
User’s Manual of FGSW-Series
3.2 Management Access Overview
The Managed Switch gives you the flexibility to access and manage it using any or all of the following methods:
Web browser interface
An external SNMP-based network management application
An administration console
The administration console and Web browser interface support are embedded in the Managed Switch software and are
available for immediate use. Each of these management methods has their own advantages. Table 3-1 compares the three
management methods.
Method Advantages Disadvantages
Web Browser
SNMP Agent
Console
• Ideal for configuring the switch remotely
• Compatible with all popular browsers
• Can be accessed from any location
• Most visually appealing
• Communicates with switch functions at
the MIB level
• Based on open standards
• No IP address or subnet needed
• Text-based
• Telnet functionality and HyperTerminal
built into Windows
95/98/NT/2000/ME/XP operating
systems
• Secure
• Security can be compromised (hackers need
only know the IP address and subnet mask)
• May encounter lag times on poor connections
• Requires SNMP manager software
• Least visually appealing of all three methods
• Some settings require calculations
• Security can be compromised (hackers need
only know the community name)
• Must be near switch or use dial-up connection
• Not convenient for remote users
• Modem connection may prove to be unreliable
or slow
Table 3-1: Management Methods Comparison
35
User’s Manual of FGSW-Series
3.3 Web Management
The Managed Switch offers management features that allow users to manage the Managed Switch from anywhere on the
network through a standard browser such as Microsoft Internet Explorer. After you set up your IP address for the switch,
you can access the Managed Switch's Web interface applications directly in your Web browser by entering the IP address
of the Managed Switch.
Figure 3-3-1: Web management
You can then use your Web browser to list and manage the Managed Switch configuration parameters from one central
location, just as if you were directly connected to the Managed Switch's console port. Web Management requires either
Microsoft Internet Explorer 6.0 or later, Safari or Mozilla Firefox 2.0 or later.
Figure 3-3-2: Web main screen of Managed Switch
36
User’s Manual of FGSW-Series
3.4 SNMP-Based Network Management
You can use an external SNMP-based application to configure and manage the Managed Switch, such as SNMPc Network
Manager, HP Openview Network Node Management (NNM) or What’sup Gold. This management method requires the
SNMP agent on the switch and the SNMP Network Management Station to use the same community string. This
management method, in fact, uses two community strings: the get community string and the set community string. If the
SNMP Net-work management Station only knows the set community string, it can read and write to the MIBs. However, if it
only knows the get community string, it can only read MIBs. The default gets and sets community strings for the Managed
Switch are public.
Figure 3-4-1: SNMP management
3.5 Administration Console (FGSW-2620VM doesn’t support)
The administration console is an internal, character-oriented, and command line user interface for performing system
administration such as displaying statistics or changing option settings. Using this method, you can view the administration
console from a terminal, personal computer, Apple Macintosh, or workstation connected to the switch's console (serial) port.
There are two ways to use this management method: via direct access or modem port access. The following sections
describe these methods. For more information about using the console, refer to Chapter 5 Console Management.
Figure 3-5-1: Console management
37
User’s Manual of FGSW-Series
Direct Access
Direct access to the administration console is achieved by directly connecting a terminal or a PC equipped with a
terminal-emulation program (such as HyperTerminal) to the Managed Switch console (serial) port.
When using this management method, a straight DB9 RS-232 cable is required to connect the switch to the PC. After
making this connection, configure the terminal-emulation program to use the following parameters:
The default parameters are:
57600 bps
8 data bits
No parity
1 stop bit
Figure 3-5-2: Terminal parameter settings
You can change these settings, if desired, after you log on. This management method is often preferred because you can
remain connected and monitor the system during system reboots. Also, certain error messages are sent to the serial port,
regardless of the interface through which the associated action was initiated. A Macintosh or PC attachment can use any
terminal-emulation program for connecting to the terminal serial port. A workstation attachment under UNIX can use an
emulator such as TIP.
38
User’s Manual of FGSW-Series
3.6 Protocols
The Managed Switch supports the following protocols:
Virtual terminal protocols, such as Telnet
Simple Network Management Protocol (SNMP)
3.6.1 Virtual Terminal Protocols
A virtual terminal protocol is a software program, such as Telnet, that allows you to establish a management session from a
Macintosh, a PC, or a UNIX workstation. Because Telnet runs over TCP/IP, you must have at least one IP address
configured on the Managed Switch before you can establish access to it with a virtual terminal protocol.
Terminal emulation differs from a virtual terminal protocol in that you must connect a terminal directly
to the console (serial) port.
To access the Managed Switch through a Telnet session:
1. Be Sure of the Managed Switch is configured with an IP address and the Managed Switch is reachable from a
PC.
2. Start the Telnet program on a PC and connect to the Managed Switch.
The management interface is exactly the same with RS-232 console management.
3.6.2 SNMP Protocol
Simple Network Management Protocol (SNMP) is the standard management protocol for multi-vendor IP networks. SNMP
supports transaction-based queries that allow the protocol to format messages and to transmit information between
reporting devices and data-collection programs. SNMP runs on top of the User Datagram Protocol (UDP), offering a
connectionless-mode service.
3.6.3 Management Architecture
All of the management application modules use the same Messaging Application Programming Interface (MAPI). By
unifying management methods with a single MAPI, configuration parameters set using one method (console port, for
example) are immediately displayable by the other management methods (for example, SNMP agent of Web browser).
The management architecture of the switch adheres to the IEEE open standard. This compliance assures customers that
the Managed Switch is compatible with, and will interoperate with other solutions that adhere to the same open standard.
39
User’s Manual of FGSW-Series
4. Web-Based Management
This section introduces the configuration and functions of the Web-Based management.
4.1 About Web-based Management
The Managed Switch offers management features that allow users to manage the Managed Switch from anywhere on the
network through a standard browser such as Microsoft Internet Explorer.
The Web-Based Management supports Internet Explorer 6.0. It is based on Java Applets with an aim to reduce network
bandwidth consumption, enhance access speed and present an easy viewing screen.
By default, IE6.0 or later version does not allow Java Applets to open sockets. The user has to
explicitly modify the browser setting to enable Java Applets to use network ports.
The Managed Switch can be configured through an Ethernet connection, make sure the manager PC must be set on same
the IP subnet address with the Managed Switch.
For example, the default IP address of the Managed Switch is 192.168.0.100, then the manager PC should be set at
192.168.0.x (where x is a number between 1 and 254, except 100), and the default subnet mask is 255.255.255.0.
If you have changed the default IP address of the Managed Switch to 192.168.1.1 with subnet mask 255.255.255.0 via
console, then the manager PC should be set at 192.168.1.x (where x is a number between 2 and 254) to do the relative
configuration on manager PC.
40
User’s Manual of FGSW-Series
4.1.1 Requirements
• Workstations of subscribers running Windows 98/ME, NT4.0, 2000/2003/XP, MAC OS9 or later, Linux, UNIX or other
platform compatible with TCP/IP protocols.
• Workstation installed with Ethernet NIC (Network Card).
• Ethernet Port connect
¾ Network cables - Use standard network (UTP) cables with RJ45 connectors.
¾ Above PC installed with WEB Browser and JAVA runtime environment Plug-in.
It is recommended to use Internet Explore 6.0 or above to access FGSW series Managed Switch.
4.1.2 Logging on the switch
1. Use Internet Explorer 6.0 or above Web browser. Enter the factory-default IP address to access the Web interface.
The factory-default IP Address as following:
http://192.168.0.100
2. When the following login screen appears, please enter the default username "admin" with password “admin” (or the
username/password you have changed via console) to login the main screen of Managed Switch. The login screen in
Figure 4-1-1 appears.
Default User name: admin
Default Password: admin
Figure 4-1-1: Login screen
41
User’s Manual of FGSW-Series
1. After entering the username and password, the main screen appears as Figure 4-1-2.
Figure 4-1-2: Web main page
2. The Switch Menu on the left of the Web page let you access all the commands and statistics the Switch provides.
Now, you can use the Web management interface to continue the switch management or manage the Managed Switch by
Web interface. The Switch Menu on the left of the web page let you access all the commands and statistics the Managed
Switch provides.
1. It is recommended to use Internet Explore 6.0 or above to access Managed Switch.
2. The changed IP address take effect immediately after click on the Save button, you need to
use the new IP address to access the Web interface.
3. For security reason, please change and memorize the new password after this first setup.
4. Only accept command in lowercase letter under web interface.
5. The WEB configuration of FGSW-2620PVM / FGSW-2620VMP4 / FGSW-2612PVM is the
same with FGSW-2620VM except PoE feature, the FGSW-2620VM , FGSW-2620VMP4
and FGSW-2612PVM will be the same example to describe how to configure switch and
also, will describe PoE configuration in additional.
42
User’s Manual of FGSW-Series
4.1.3 Main WEB PAGE
The Managed Switch provides a Web-based browser interface for configuring and managing it. This interface allows you to
access the Managed Switch using the Web browser of your choice. This chapter describes how to use the Managed
Switch’s Web browser interface to configure and manage it.
Copper Port Link Status
SFP Port Link Status
Main Screen
Figure 4-1-3: Main Page
Main Functions Menu
Panel Display
The web agent displays an image of the Managed Switch’s ports. The Mode can be set to display different information for
the ports, including Link up or Link down. Clicking on the image of a port opens the Port Statistics page.
The port states are illustrated as follows:
State Disabled Down Link
RJ-45 Ports
Help Button
SFP Ports
PoE Ports
43
User’s Manual of FGSW-Series
The PoE Ports panel display is for FGSW-2620PVM / FGSW-2620VMP4 / FGSW-2612PVM
only.
Main Menu
Using the onboard web agent, you can define system parameters, manage and control the Managed Switch, and all its
ports, or monitor network conditions. Via the Web-Management, the administrator can setup the Managed Switch by select
the functions those listed in the Main Function. The screen in Figure 4-1-4 appears.
Figure 4-1-4: FGSW Managed Switch Main Functions Menu
4.2 System
Use the System menu items to display and configure basic administrative details of the Managed Switch. Under System the
following topics are provided to configure and view the system information: This section has the following items:
■ System Information Provides basic system description, including contact information.
■ IP Configuration
■ Console Port Info
■ SNMP Configuration
■ System Log
■ SMTP Setting
■ SNTP Setting
■ Firmware Upgrade Upgrades the firmware via TFTP server or Web Brower file transfer.
■ Configuration Backup Save/view the Managed Switch configuration to remote host.
■ Factory Default Reset the configuration of the Managed Switch.
Sets the IP address for management access.
Provides console port connection information
Configures SNMP agent and SNMP Trap.
Provides system log information.
Configures SMTP function.
Configures SNTP function.
Upload the switch configuration from remote host.
■ System Reboot Restarts the Managed Switch.
44
User’s Manual of FGSW-Series
4.2.1 System Information
In System information, it has two parts of setting – Basic and Misc Config. We will describe the configure detail in
following.
4.2.1.1 Basic
The Basic System Info page provides information for the current device information. Basic System Info page helps a switch
administrator to identify the model name, firmware / hardware version and MAC address. The screen in Figure 4-2-1
appears.
Figure 4-2-1: Basic System Information screenshot
The page includes the following fields:
Object Description
Model Name:
Description:
MAC Address:
Firmware Version:
Display the system name of the Managed Switch.
Describes the Managed Switch.
Displays the unique hardware address assigned by manufacturer (default).
Displays the Managed Switch’s firmware version.
45
User’s Manual of FGSW-Series
4.2.1.2 Misc Config
Choose Misc Config from System Information of Managed Switch, the screen in Figure 4-2-2 appears.
The page includes the following fields:
Object Description
MAC Address Age-out
Time
Broadcast Storm Filter
Figure 4-2-2: Switch Misc Config screenshot
Type the number of seconds that an inactive MAC address remains in the
switch's address table. The value is a multiple of 6.
Default is 300 seconds.
To configure broadcast storm control, enable it and set the upper threshold for
46
User’s Manual of FGSW-Series
Mode
Broadcast Storm Filter
Packets Select
Collision Retry Forever
individual ports. The threshold is the percentage of the port's total bandwidth
used by broadcast traffic. When broadcast traffic for a port rises above the
threshold you set, broadcast storm control becomes active.
The valid threshold values are 1/2, 1/4, 1/8, 1/16 and OFF.
Default is “OFF”.
To select broadcast storm Filter Packets type. If no packets type by selected,
mean can not filter any packets .The Broadcast Storm Filter Mode will show OFF.
The selectable items as below:
• Broadcast Packets
• IP Multicast
• Control Packets
• Flooded Unicast / Multicast Packets
Provide Collision Retry Forever function ”Disable” or 16, 32, 48 collision
numbers on Managed Switch. If this function is disabled, when a packet meet a
collision, the Managed Switch will retry 6 times before discard the packets.
Otherwise, the Managed Switch will retry until the packet is successfully sent.
Default value is 16.
Provide MAC address table Hashing setting on Managed Switch; available
Hash Algorithm
802.1x protocol Enable / disable 802.1x protocol.
Apply button
options are CRC Hash and Direct Map.
Default mode is CRC-Hash.
Press the button to complete the configuration.
47
User’s Manual of FGSW-Series
4.2.2 IP Configuration
The Managed Switch is a network device which needs to be assigned an IP address for being identified on the network.
Users have to decide a means of assigning IP address to the Managed Switch.
IP address overview
What is an IP address?
Each device (such as a computer) which participates in an IP network needs a unique "address" on the network. It's similar
to having a US mail address so other people have a know way to send you messages. An IP address is a four byte number,
which is usually written in "dot notation" - each of the bytes' decimal value is written as a number, and the numbers are
separated by "dots" (aka periods). An example: 199.25.123.1
How do I get one for this box?
The IP addresses on most modern corporate nets are assigned by an employee called a "Network Administrator", or "Sys.
Admin". This person assigns IP addresses and is responsible for making sure that IP addresses are not duplicated - If this
happens one or both machines with a duplicate address will stop working.
Another possibility is getting your address assigned to you automatically over the net via DHCP protocol. Enable DHCP
function, and reset the machine. If your network is set up for this service, you will get an IP address assigned over the
network. If you don't get an address in about 30 seconds, you probably don't have DHCP.
IP Configuration
The IP Configuration includes the IP Address, Subnet Mask and Gateway. The Configured column is used to view or
change the IP configuration. Fill up the IP Address, Subnet Mask and Gateway for the device. The screen in Figure 4-2-3
appears.
Figure 4-2-3: IP configuration interface
48
The page includes the following fields:
Object Description
DHCP
IP Address
User’s Manual of FGSW-Series
Enable or disable the DHCP client function.
When DHCP function is enabled, the Managed Switch will be assigned an IP
address from the network DHCP server. The default IP address will be replaced
by the assigned IP address on DHCP server. After the user clicks Apply, a
popup dialog shows up to inform the user that when the DHCP client is enabled,
the current IP will lose and user should find the new IP on the DHCP server.
Assign the IP address that the network is using.
If DHCP client function is enabled, this switch is configured as a DHCP client.
The network DHCP server will assign the IP address to the switch and display it
in this column.
The default IP is 192.168.0.100 or the user has to assign an IP address
manually when DHCP Client is disabled.
Assign the subnet mask to the IP address.
Subnet Mask
Gateway
If DHCP client function is disabled, the user has to assign the subnet mask in
this column field.
Assign the network gateway for the switch.
If DHCP client function is disabled, the user has to assign the gateway in this
column field.
The default gateway is 192.168.0.254.
49
User’s Manual of FGSW-Series
4.2.3 Console Port Info
The Managed Switch provide local console interface for switch command line management, console port info contains
console baud rate information and the screen in Figure 4-2-4 appears.
The page includes the following fields:
Object Description
Barurate (bits / sec) Provide Barurate information.
Data Bits
Parity Check
Stop Bits
Flow Control
Help
Figure 4-2-4: Console Information Screenshot
Provide Data Bits information.
Provide Parity Check information.
Provide Stop Bits information.
Provide Flow Control information.
Provide Console Setting Help information.
50
User’s Manual of FGSW-2620VM
4.2.4 SNMP Configuration
4.2.4.1 SNMP Overview
The Simple Network Management Protocol (SNMP) is an application layer protocol that facilitates the exchange of
management information between network devices. It is part of the Transmission Control Protocol/Internet Protocol (TCP/IP)
protocol suite. SNMP enables network administrators to manage network performance, find and solve network problems,
and plan for network growth.
Figure 4-2-5: SNMP configuration interface
An SNMP-managed network consists of three key components: Network management stations (NMSs), SNMP agents,
Management information base (MIB) and network-management protocol：
。 Network management stations (NMSs)： Sometimes called consoles, these devices execute management
applications that monitor and control network elements. Physically, NMSs are usually engineering workstation-caliber
computers with fast CPUs, megapixel color displays, substantial memory, and abundant disk space. At least one
NMS must be present in each managed environment.
。 Agents：Agents are software modules that reside in network elements. They collect and store management
information such as the number of error packets received by a network element.
。 Management information base (MIB)：A MIB is a collection of managed objects residing in a virtual information
store. Collections of related managed objects are defined in specific MIB modules.
。 network-management protocol：A management protocol is used to convey management information between
User’s Manual of FGSW-Series
agents and NMSs. SNMP is the Internet community's de facto standard management protocol.
SNMP Operations
SNMP itself is a simple request/response protocol. NMSs can send multiple requests without receiving a response.
。 Get -- Allows the NMS to retrieve an object instance from the agent.
。 Set -- Allows the NMS to set values for object instances within an agent.
。 Trap -- Used by the agent to asynchronously inform the NMS of some event. The SNMPv2 trap message is designed
to replace the SNMPv1 trap message.
SNMP community
An SNMP community is the group that devices and management stations running SNMP belong to. It helps define where
information is sent. The community name is used to identify the group. A SNMP device or agent may belong to more than
one SNMP community. It will not respond to requests from management stations that do not belong to one of its
communities. SNMP default communities are:
。 Write = private
。 Read = public
4.2.4.2 System Options
Use this page to define management stations. You can also define a name, location, and contact person for the Managed
Switch.
Figure 4-2-6: SNMP configuration interface
The page includes the following fields:
Object Description
• System Name
An administratively assigned name for this managed node. By convention, this is
the node's fully-qualified domain name. A domain name is a text string drawn
from the alphabet (A-Za-z), digits (0-9), minus sign (-). No space characters are
permitted as part of a name. The first character must be an alpha character. And
the first or last character must not be a minus sign.
The allowed string length is 0 to 255.
52
User’s Manual of FGSW-Series
A
• System Location
• System Contact
• SNMP Status
The physical location of this node (e.g., telephone closet, 3rd floor).
The allowed string length is 0 to 255, and the allowed content is the ASCII
characters from 32 to 126.
The textual identification of the contact person for this managed node, together
with information on how to contact this person.
The allowed string length is 0 to 255, and the allowed content is the ASCII
characters from 32 to 126.
Indicates the SNMP mode operation. Possible modes are:
• Enabled: Enable SNMP mode operation.
• Disabled: Disable SNMP mode operation.
4.2.4.3 Community Strings
Community strings serve as passwords and can be entered as one of the following:
The page includes the following fields:
Object Description
Community Strings: Here you can define the new community string set and remove the unwanted
dd
button
Remove
button
Figure 4-2-7: Community strings interface
community string.
String: Fill the name string.
RO: Read only. Enables requests accompanied by this community string to
display MIB-object information.
RW: Read/write. Enables requests accompanied by this community string to
display MIB-object information and to set MIB objects.
Press the button to add the management SNMP community strings on the
Managed Switch.
Press the button to remove the management SNMP community strings that you
defined before on the Managed Switch.
53
User’s Manual of FGSW-Series
4.2.4.4 Trap Managers
A trap manager is a management station that receives the trap messages generated by the switch. If no trap manager is
defined, no traps will be issued. To define a management station as a trap manager, assign an IP address, enter the SNMP
community strings, and select the SNMP trap version.
Figure 4-2-8: Trap Managers interface
The page includes the following fields:
Object Description
IP Address:
Community:
Enter the IP address of the trap manager.
Enter the community string for the trap station.
54
User’s Manual of FGSW-Series
4.2.5 System Log
It provides the functions allowing the user to Disable / Enable the System Log from the switch. If Enable the system Log, the
switch will save the log and show the information of log like Port Link Up / Down, System Warm / Cold Start and etc..
The page includes the following fields:
Object Description
System Log Mode
Log Level
Apply
Refresh
<Previous
Next>
Hide
Reset
Allows user to enable or disable system log mode.
Allows user to choose Major or All level for sending error message.
Click “Apply” button to set configuration.
Click “Refresh” button to reload system log web page.
Click ”<Previous” button to back pervious system log page.
Click ”Next>” button to go next system log page.
Click “Hide” button to only display / filter the logs within latest 24hrs.
Click “Reset” button to clear all system log.
Figure 4-2-9: System Log Screenshot
Click Here to download
System Log file
Click “Click Here to download System Log file” hyper link to download system
log. The download file format is “.csv”, user could open it by Microsoft Excel
program.
55
User’s Manual of FGSW-2620VM
4.2.6 SMTP Setting
The SMTP alarm allows user to set E-Mail account and receiver account, system will send error message via E-Mail if there
is event happened.
The page includes the following fields:
Object Description
SMTP E-Mail Alarm
SMTP Server IP Address
SMTP Port
SMTP Authentication
User (Mail Account)
Password:
Allows user to enable or disable SMTP alarm function.
For inputting SMTP server IP address
For inputting SMTP port number, the default value is 25.
Allows user to enable SMTP authentication. Because of almost SMTP server
deny relay mail to different domain, so user has to set a valid account for relaying
mail. If the mail just sends to the same domain, it may no need SMTP
authentication. Please consult to your network administrator first.
For inputting mail account name, not mail address.
For inputting mail account password.
Figure 4-2-10: System Log Screenshot
Sender email address
Mail to
For inputting the e-mail address from administrator.
Allows user to input mail address which who will be noticed alarm.
User’s Manual of FGSW-Series
4.2.7 SNTP Setting
SNTP is an acronym for Simple Network Time Protocol, a network protocol for synchronizing the clocks of computer
systems. SNTP uses UDP (datagrams) as transport layer. This page allows to configure enable/disable the SNTP mode.
Figure 4-2-11: SNTP Setting Screenshot
The page includes the following fields:
Object Description
SNTP
SNTP server IP
UTC Type Provide “Before-UTC” and “After-UTC” options for UTV Type.
Time Range (0~24)
Time
Apply
Help
Provide Disable or enable SNTP function.
Provide inputting the SNTP server IP address.
Provide input the time range and the available range is 0 to 24.
Provide SNTP Time display.
Press this button to take affect.
Press this button for SNTP Setting information.
57
User’s Manual of FGSW-Series
4.2.8 Firmware Upgrade
It provides the functions allowing the user to update the switch firmware via the Trivial File Transfer Protocol (TFTP)
server. Before updating, make sure the TFTP server is ready and the firmware image is located on the TFTP server.
4.2.8.1 TFTP Firmware Upgrade
The Firmware Upgrade page provides the functions to allow a user to update the Managed Switch firmware from the TFTP
server in the network. Before updating, make sure you have your TFTP server ready and the firmware image is on the
TFTP server.
Use this menu to download a file from specified TFTP server to the Managed Switch.
Figure 4-2-12: Firmware Upgrade interface
The page includes the following fields:
Object Description
TFTP Server IP Address: Type in your TFTP server IP.
Firmware File Name: Type in the name of the firmware image file to be updated.
58
User’s Manual of FGSW-Series
4.2.8.2 HTTP Firmware Upgrade
The HTTP Firmware Upgrade page contains fields for downloading system image files from the Local File browser to the
device.
Figure 4-2-13: HTTP Firmware Upgrade interface
To open Firmware Upgrade screen perform the folling:
1. Click System -> Web Firmware Upgrade.
2. The Firmware Upgrade screen is displayed as in Figure 4-2-13.
3. Click the “Browse” button of the main page, the system would pop up the file selection menu to choose firmware.
4. Select on the firmware then click “Upload”, the Software Upload Progress would show the file upload status.
Firmware upgrade needs several minutes. Please wait a while, and then manually
refresh the webpage.
59
User’s Manual of FGSW-Series
4.2.9 Configuration Backup
4.2.9.1 TFTP Restore Configuration
You can restore a previous backup configuration from the TFTP server to recover the settings. Before doing that, you must
locate the image file on the TFTP server first and the Managed Switch will download back the flash image.
The page includes the following fields:
Object Description
TFTP Server IP Address:
Restore File Name:
Type in the TFTP server IP.
Type in the correct file name for restoring.
Figure 4-2-14: Configuration Restore interface
60
User’s Manual of FGSW-Series
4.2.9.2 TFTP Backup Configuration
You can back up the current configuration from flash ROM to the TFTP server for the purpose of recovering the
configuration later. It helps you to avoid wasting time on configuring the settings by backing up the configuration.
The page includes the following fields:
Object Description
TFTP Server IP Address:
Backup File Name:
Apply
Save config except IP Address
Click here to download
configuration file
Click here to download
configuration file except IP
Address
Figure 4-2-15: Configuration Backup interface
Type in the TFTP server IP.
Type in the file name.
Click “Apply” button to download all configurations via TFTP.
Click “Save config except IP Address” button to download configurations via
TFTP, except IP address.
Click “Click here to download configuration file” hyper link to download all
configurations via HTTP.
Click “Click here to download configuration file except IP Address” hyper link to
download all configurations via HTTP.
61
4.2.10 Factory Default
User’s Manual of FGSW-Series
Reset switch to default configuration. Click
Default
Figure 4-2-16: Factory Default interface
to reset all configurations to the default value.
4.2.11 System Reboot
Reboot the switch in software reset. Click
Reboot
to reboot the system.
Figure 4-2-17 : System Reboot interface
62
User’s Manual of FGSW-Series
4.3 Port Configuration
4.3.1 Port Control
In Port control you can configure the settings of each port to control the connection parameters, and the status of each port
is listed beneath.
The page includes the following fields:
Object Description
Port
Description Allows user to input port description for labeling the port.
State
Negotiation
Speed
Figure 4-3-1: Port Control interface
Use the scroll bar and click on the port number to choose the port to be
configured.
Current port state. The port can be set to disable or enable mode. If the port state
is set as ‘Disable’, it will not receive or transmit any packet.
Auto and Force. Being set as Auto, the speed and duplex mode are negotiated
automatically. When you set it as Force, you have to set the speed and duplex
mode manually.
It is available for selecting when the Negotiation column is set as Force. When
the Negotiation column is set as Auto, this column is read-only.
Duplex
Flow Control
It is available for selecting when the Negotiation column is set as Force. When
the Negotiation column is set as Auto, this column is read-only.
Whether or not the receiving node sends feedback to the sending node is
determined by this item. When enabled, once the device exceeds the input data
rate of another device, the receiving device will send a PAUSE frame which halts
the transmission of the sender for a specified period of time. When disabled, the
receiving device will drop the packet if too much to process.
63
User’s Manual of FGSW-Series
Port-1 ~ Port-24, supports by-port ingress and egress rate control.
For example, assume port 1 is 10Mbps, users can set its effective egress rate at
1Mbps and ingress rate at 500Kbps. Device will perform flow control or
backpressure to confine the ingress rate to meet the specified rate.
Ingress: Type the port effective ingress rate.
Rate Control:
(Unit: 128KBbps)
Security:
BSF:
Jumbo Frame:
The valid range is 0 ~ 8000. The unit is 128K.
0: disable rate control.
1 ~ 8000: valid rate value
Egress: Type the port effective egress rate.
The valid range is 0 ~ 8000. The unit is 128K.
0: disable rate control.
1 ~8000: valid rate value.
A port in security mode will be “locked” without permission of address learning.
Only the incoming packets with SMAC already existing in the address table can
be forwarded normally.
User can disable the port from learning any new MAC addresses, then use the
static MAC addresses screen to define a list of MAC addresses that can use the
secure port. Enter the settings, then click Apply button to change on this page.
User can disable/Enable port broadcast storm filtering option by port.
The filter mode and filter packets type can be select in Switch Setting > Misc
Config page.
User can disable/Enable port jumbo frame option by port. When port jumbo
frame is enable, the port forward jumbo frame packet.
1. The three models support up to 9Kbytes jumbo frame forwarding
64
4.3.2 Rate Control
The rate control allows user to do rate limit speed to the specific port.
Figure 4-3-2: rate Control interface
User’s Manual of FGSW-Series
The page includes the following fields:
Object Description
Rate Control:
(Unit: 128KBbps)
Port
Ingress
Port-1 ~ Port-24, supports by-port ingress and egress rate control.
For example, assume port 1 is 10Mbps, users can set its effective egress rate at
1Mbps and ingress rate at 500Kbps. Device will perform flow control or
backpressure to confine the ingress rate to meet the specified rate.
Allows user to choose which port will be limited rate speed.
Type the port effective ingress rate.
The valid range is 0 ~ 8000. The unit is 128K.
0: disable rate control.
1 ~ 8000: valid rate value
Type the port effective egress rate.
The valid range is 0 ~ 8000. The unit is 128K.
Egress
0: disable rate control.
1 ~8000: valid rate value.
65
User’s Manual of FGSW-Series
4.3.3 Port Status
This page displays current port configurations and operating status - it is a ports’ configurations summary table. Via the
summary table, you can know status of each port clear at a glance, like Port Link Up/Link Down status, port description,
negotiation, Link Speed, Rate Control, Duplex mode and Flow Control.
Figure 4-3-3 : Port Status interface
66
User’s Manual of FGSW-Series
4.3.4 Port Statistics
The following chart provides the current statistic information which displays the real-time packet transfer status for each port.
The user might use the information to plan and implement the network, or check and find the problem when the collision or
heavy traffic occurs.
Figure 4-3-4: Port Statistics interface
The page includes the following fields:
Object Description
Port:
Type:
Link: The status of linking—‘Up’ or ‘Down’.
State:
Tx Good Packet:
Tx Bad Packet:
Rx Good Packet:
The port number.
Displays the current speed of connection to the port.
It’s set by Port Control. When the state is disabled, the port will not transmit or
receive any packet.
The counts of transmitting good packets via this port.
The counts of transmitting bad packets (including undersize [less than 64 octets],
oversize, CRC Align errors, fragments and jabbers packets) via this port.
The counts of receiving good packets via this port.
67
User’s Manual of FGSW-Series
Rx Bad Packet:
Tx Abort Packet:
Packet Collision:
Packet Dropped:
Rx Bcast Packet:
Rx Mcast Packet:
The counts of receiving good packets (including undersize [less than 64 octets],
oversize, CRC error, fragments and jabbers) via this port.
The aborted packet while transmitting.
The counts of collision packet.
The counts of dropped packet.
The counts of broadcast packet.
The counts of multicast packet.
4.3.5 Port Sniffer
The Port Sniffer (mirroring) is a method for monitor traffic in switched networks. Traffic through a port can be monitored by
one specific port. That is, traffic goes in or out a monitored port will be duplicated into sniffer port.
Figure 4-3-5: Port Mirror application
Configuring the port mirroring by assigning a source port from which to copy all packets and a destination port where those
packets will be sent.
68
User’s Manual of FGSW-Series
The page includes the following fields:
Object Description
Select a sniffer mode:
Sniffer Type:
It’ means Analysis port can be used to see the traffic on another port you want to
Analysis (Monitoring) Port:
Monitored Port:
monitor. You can connect Analysis port to LAN analyzer or netxray.
The port you want to monitor. The monitor port traffic will be copied to Analysis
port. You can select one monitor ports in the switch. User can choose which port
that they want to monitor in only one sniffer type.
Figure 4-3-6: Port Sniffer interface
• Disable
• Rx
• Tx
• Both
1 When the Mirror Mode set to RX or TX and the Analysis Port be selected, the packets
to and from the Analysis Port will not be transmitted. The Analysis Port will accept only
COPPIED packets from the Monitored Port.
2 If you want to disable the function, you must select monitor port to none.
69
4.3.6 Remote Ping
The Remote Ping allows user to check the device connection status via ping.
User’s Manual of FGSW-Series
The page includes the following fields:
Object Description
Remote IP Address
Ping Size
Ping
Result
Figure 4-3-7: Remote Ping interface
Allows user to input the IP address of remote device.
Allows user to input ping packet size. Generally, the size should be 64.
Click “Ping” button to start ping to remote device.
Shows ping action result.
If the ping successful, it will be showed “Ping Ok, Send 5 Packet, Recieve 5
Packet”.
70
User’s Manual of FGSW-Series
If the ping failed, it will showed “Ping Failed”
Click “Save” button to save Remote Ping configuration. User can use ping
Save
Reset
Clear
function even not save configuration, but after WEB page be refreshed the
configuration clear.
Click “Reset” button will reset all Remote Ping configuration and save
automatically.
Click “Clear” button will clear result message.
71
User’s Manual of FGSW-Series
4.4 VLAN configuration
4.4.1 VLAN Overview
A Virtual Local Area Network (VLAN) is a network topology configured according to a logical scheme rather than the
physical layout. VLAN can be used to combine any collection of LAN segments into an autonomous user group that
appears as a single LAN. VLAN also logically segment the network into different broadcast domains so that packets are
forwarded only between ports within the VLAN. Typically, a VLAN corresponds to a particular subnet, although not
necessarily.
VLAN can enhance performance by conserving bandwidth, and improve security by limiting traffic to specific domains.
A VLAN is a collection of end nodes grouped by logic instead of physical location. End nodes that frequently communicate
with each other are assigned to the same VLAN, regardless of where they are physically on the network. Logically, a VLAN
can be equated to a broadcast domain, because broadcast packets are forwarded to only members of the VLAN on which
the broadcast was initiated.
1. No matter what basis is used to uniquely identify end nodes and assign these nodes VLAN
membership, packets cannot cross VLAN without a network device performing a routing
function between the VLAN.
2. The Managed Switch supports IEEE 802.1Q VLAN. The port untagging function can be used
to remove the 802.1 tag from packet headers to maintain compatibility with devices that are
tag-unaware.
The Managed Switch supports IEEE 802.1Q (tagged-based) and Port-Base VLAN setting in web management page. In
the default configuration, VLAN support is “802.1Q”.
Port-based VLAN
Port-based VLAN limit traffic that flows into and out of switch ports. Thus, all devices connected to a port are members of
the VLAN(s) the port belongs to, whether there is a single computer directly connected to a switch, or an entire department.
On port-based VLAN.NIC do not need to be able to identify 802.1Q tags in packet headers. NIC send and receive normal
Ethernet packets. If the packet's destination lies on the same segment, communications take place using normal Ethernet
protocols. Even though this is always the case, when the destination for a packet lies on another switch port, VLAN
considerations come into play to decide if the packet is dropped by the Switch or delivered.
IEEE 802.1Q VLANs
IEEE 802.1Q (tagged) VLAN are implemented on the Switch. 802.1Q VLAN require tagging, which enables them to span
the entire network (assuming all switches on the network are IEEE 802.1Q-compliant).
VLAN allow a network to be segmented in order to reduce the size of broadcast domains. All packets entering a VLAN will
only be forwarded to the stations (over IEEE 802.1Q enabled switches) that are members of that VLAN, and this includes
broadcast, multicast and unicast packets from unknown sources.
VLAN can also provide a level of security to your network. IEEE 802.1Q VLAN will only deliver packets between stations
72
User’s Manual of FGSW-Series
that are members of the VLAN. Any port can be configured as either tagging or untagging. The untagging feature of IEEE
802.1Q VLAN allows VLAN to work with legacy switches that don't recognize VLAN tags in packet headers. The tagging
feature allows VLAN to span multiple 802.1Q-compliant switches through a single physical connection and allows Spanning
Tree to be enabled on all ports and work normally.
Any port can be configured as either tagging or untagging. The untagging feature of IEEE 802.1Q VLAN allows VLAN to
work with legacy switches that don’t recognize VLAN tags in packet headers. The tagging feature allows VLAN to span
multiple 802.1Q-compliant switches through a single physical connection and allows Spanning Tree to be enabled on all
ports and work normally.
Some relevant terms:
- Tagging - The act of putting 802.1Q VLAN information into the header of a packet.
- Untagging - The act of stripping 802.1Q VLAN information out of the packet header.
802.1Q VLAN Tags
The figure below shows the 802.1Q VLAN tag. There are four additional octets inserted after the source MAC address.
Their presence is indicated by a value of 0x8100 in the Ether Type field. When a packet's Ether Type field is equal to
0x8100, the packet carries the IEEE 802.1Q/802.1p tag. The tag is contained in the following two octets and consists of 3
bits of user priority, 1 bit of Canonical Format Identifier (CFI - used for encapsulating Token Ring packets so they can be
carried across Ethernet backbones), and 12 bits of VLAN ID (VID). The 3 bits of user priority are used by 802.1p. The VID
is the VLAN identifier and is used by the 802.1Q standard. Because the VID is 12 bits long, 4094 unique VLAN can be
identified.
The tag is inserted into the packet header making the entire packet longer by 4 octets. All of the information originally
contained in the packet is retained.
802.1Q Tag
User Priority CFI VLAN ID (VID)
3 bits 1 bits 12 bits
TPID (Tag Protocol Identifier) TCI (Tag Control Information)
2 bytes 2 bytes
Preamble
Destination
Address
6 bytes 6 bytes 4 bytes 2 bytes 46-1500 bytes 4 bytes
Source
Address
VLAN TAG
Ethernet
Type
Data FCS
The Ether Type and VLAN ID are inserted after the MAC source address, but before the original Ether Type/Length or
Logical Link Control. Because the packet is now a bit longer than it was originally, the Cyclic Redundancy Check (CRC)
must be recalculated.
73
User’s Manual of FGSW-Series
Adding an IEEE802.1Q Tag
Dest. Addr. Src. Addr. Length/E. type Data Old CRC
Dest. Addr. Src. Addr. E. type Tag Length/E. type Data New CRC
Original Ethernet
Priority CFI VLAN ID
New Tagged Packet
Port VLAN ID
Packets that are tagged (are carrying the 802.1Q VID information) can be transmitted from one 802.1Q compliant network
device to another with the VLAN information intact. This allows 802.1Q VLAN to span network devices (and indeed, the
entire network – if all network devices are 802.1Q compliant).
Every physical port on a switch has a PVID. 802.1Q ports are also assigned a PVID, for use within the switch. If no VLAN
are defined on the switch, all ports are then assigned to a default VLAN with a PVID equal to 1. Untagged packets are
assigned the PVID of the port on which they were received. Forwarding decisions are based upon this PVID, in so far as
VLAN are concerned. Tagged packets are forwarded according to the VID contained within the tag. Tagged packets are
also assigned a PVID, but the PVID is not used to make packet forwarding decisions, the VID is.
Tag-aware switches must keep a table to relate PVID within the switch to VID on the network. The switch will compare the
VID of a packet to be transmitted to the VID of the port that is to transmit the packet. If the two VID are different the switch
will drop the packet. Because of the existence of the PVID for untagged packets and the VID for tagged packets, tag-aware
and tag-unaware network devices can coexist on the same network.
A switch port can have only one PVID, but can have as many VID as the switch has memory in its VLAN table to store them.
Because some devices on a network may be tag-unaware, a decision must be made at each port on a tag-aware device
before packets are transmitted – should the packet to be transmitted have a tag or not? If the transmitting port is connected
to a tag-unaware device, the packet should be untagged. If the transmitting port is connected to a tag-aware device, the
packet should be tagged.
Default VLANs
The Switch initially configures one VLAN, VID = 1, called "default." The factory default setting assigns all ports on the
Switch to the "default". As new VLAN are configured in Port-based mode, their respective member ports are removed from
the "default."
VLAN and Link aggregation Groups
In order to use VLAN segmentation in conjunction with port link aggregation groups, you can first set the port link
aggregation group(s), and then you may configure VLAN settings. If you wish to change the port link aggregation grouping
with VLAN already in place, you will not need to reconfigure the VLAN settings after changing the port link aggregation
74
User’s Manual of FGSW-Series
group settings. VLAN settings will automatically change in conjunction with the change of the port link aggregation group
settings.
4.4.2 Static VLAN Configuration
A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain. It allows you to isolate network traffic
so only members of the VLAN receive traffic from the same VLAN members. Basically, creating a VLAN from a switch is
logically equivalent of reconnecting a group of network devices to another Layer 2 switch. However, all the network devices
are still plug into the same switch physically.
The Managed Switch supports Port-based and 802.1Q (Tagged-based) VLAN in web management page. In the default
configuration, VLAN support is “802.1Q”.
Figure 4-4-1: Static VLAN interface
1 No matter what basis is used to uniquely identify end nodes and assign these nodes
VLAN membership, packets cannot cross VLAN without a network device performing a
routing function between the VLAN.
2 The Switch supports Port-based VLAN and IEEE 802.1Q VLAN. The port untagging
function can be used to remove the 802.1 tag from packet headers to maintain
compatibility with devices that are tag-unaware.
75
User’s Manual of FGSW-Series
4.4.3 Port-based VLAN
Packets can go among only members of the same VLAN group. Note all unselected ports are treated as belonging to
another single VLAN. If the port-based VLAN enabled, the VLAN-tagging is ignored.
In order for an end station to send packets to different VLANs, it itself has to be either capable of tagging packets it sends
with VLAN tags or attached to a VLAN-aware bridge that is capable of classifying and tagging the packet with different
VLAN ID based on not only default PVID but also other information about the packet, such as the protocol.
Figure 4-4-2: Port-based VLAN interface
Create a VLAN and add member ports to it
1. Click the hyperlink "VLAN” \ “Static VLAN" to enter the VLAN configuration interface.
2. Select “Port Based VLAN” at the VLAN Operation Mode, to enable the port-based VLAN function.
3. Click “ Add “ to create a new VLAN group. Then the following Figure 4-4-3 appears.
4. Type a name and Group ID for the new VLAN, the available range is 2-4094.
5. From the Available ports box, select ports to add to the Managed Switch and click Add .
6. Click Apply.
7. You will see the VLAN Group displays.
8. If the port-based VLAN groups list over one page, please click “Next Page” to view other VLAN groups on other page.
9. Use “Delete” button to delete unwanted port-based VLAN groups
10. Use “ Edit” button to modify existing port-based VLAN groups.
By adding ports to the VLAN you have created one port-based VLAN group completely.
76
User’s Manual of FGSW-Series
The page includes the following fields:
Object Description
Use this optional field to specify a name for the VLAN. It can be up to 16
VLAN Name
Group ID
Port
Member
alphanumeric characters long, including blanks.
You can configure the ID number of the VLAN by this item. This field is used to add
VLANs one at a time. The VLAN group ID and available range is 2-4094.
Indicate port 1 to port 26.
Add
Remove
Figure 4-4-3: Static VLAN interface
Defines the interface as a Port-Based member of a VLAN.
Forbidden ports are not included in the VLAN.
All unselected ports are treated as belonging to another single VLAN. If the port-based
VLAN enabled, the VLAN-tagging is ignored.
77
User’s Manual of FGSW-Series
4.4.4 802.1Q VLAN
Tagged-based VLAN is an IEEE 802.1Q specification standard. Therefore, it is possible to create a VLAN across devices
from different switch venders. IEEE 802.1Q VLAN uses a technique to insert a "tag" into the Ethernet frames. Tag contains
a VLAN Identifier (VID) that indicates the VLAN numbers.
You can create and delete Tag-based VLAN. There are 256 VLAN groups to provide configure. Enable 802.1Q VLAN, the
all ports on the switch belong to default VLAN, VID is 1. The default VLAN can't be deleting.
Understand nomenclature of the Switch
■ IEEE 802.1Q Tagged and Untagged
Every port on an 802.1Q compliant switch can be configured as tagged or untagged.
• Tagged
• Untgged
Frame Leave
Leave port is tagged Frame remains tagged Tag is inserted
Leave port is untagged Tag is removed Frame remain untagged
Ports with tagging enabled will put the VID number, priority and other VLAN information into the
header of all packets that flow into those ports. If a packet has previously been tagged, the port
will not alter the packet, thus keeping the VLAN information intact. The VLAN information in the
tag can then be used by other 802.1Q compliant devices on the network to make
packet-forwarding decisions.
Ports with untagging enabled will strip the 802.1Q tag from all packets that flow into those
ports. If the packet doesn't have an 802.1Q VLAN tag, the port will not alter the packet. Thus,
all packets received by and forwarded by an untagging port will have no 802.1Q VLAN
information. (Remember that the PVID is only used internally within the Switch). Untagging is
used to send packets from an 802.1Q-compliant network device to a non-compliant network
device.
Frame Income
Income Frame is tagged Income Frame is untagged
78
4.4.4.1 VLAN Group Configuration
VLAN Group Configuration
User’s Manual of FGSW-Series
Figure 4-4-4: VLAN Group Configuration interface
1. Click the hyperlink "VLAN” \ “Static VLAN" to enter the VLAN configuration interface.
2. Select “802.1Q” at the VLAN Operation Mode, to enable the 802.1Q VLAN function.
3. Click Add to create a new VLAN group or Edit to management exist VLAN groups. Then the VLAN Group column
appears.
4. Input a VLAN group ID and available range is 2-4094.
79
User’s Manual of FGSW-Series
Figure 4-4-5: VLAN Group Configuration interface
5. Select specific port as member port and the screen in Figure 4-4-6 appears.
Figure 4-4-6: 802.1Q VLAN Setting Web Page screen
80
The page includes the following fields:
Object Description
User’s Manual of FGSW-Series
VLAN Name
VLAN ID
Port
UnTag Member
6. After setup completed, please press “Apply” button to take effect.
7. Please press “Back” for return to VLAN configuration screen to add other VLAN group, the screen in Figure 4-33
appears.
8. If there are many groups that over the limit of one page, you can click Next to view other VLAN groups.
9. Use Delete button to delete unwanted VLAN.
Use this optional field to specify a name for the VLAN. It can be up to 16
alphanumeric characters long, including blanks.
You can configure the ID number of the VLAN by this item. This field is used to
add VLANs one at a time.
The VLAN group ID and available range is 2-4094.
Indicate port 1 to port 26.
Untag
Tag
Packets forwarded by the interface are untagged.
Defines the interface as a tagged member of a VLAN. All packets
forwarded by the interface are tagged. The packets contain VLAN
information.
10. Use Edit button to modify existing VLAN group.
Enable 802.1Q VLAN, the all ports on the switch belong to default VLAN, VID is 1. The
default VLAN can't be deleting.
81
User’s Manual of FGSW-Series
4.4.4.2 VLAN Filter
802.1Q VLAN Port Configuration
This page is used for configuring the Switch port VLAN. The VLAN per Port Configuration page contains fields for managing
ports that are part of a VLAN. The port default VLAN ID (PVID) is configured on the VLAN Port Configuration page. All
untagged packets arriving to the device are tagged by the ports PVID.
This section provides 802.1Q Ingress Filter of each port from the Switch, the screen in Figure 4-4-7 appears.
The page includes the following fields:
Object Description
NO
PVID
Indicate port 1 to port 26.
Set the port VLAN ID that will be assigned to untagged traffic on a given port.
This feature is useful for accommodating devices that you want to participate in
the VLAN but that don't support tagging.
The switch each port allows user to set one VLAN ID, the range is 1~255, default
Figure 4-4-7: 802.1Q Ingress filter interface
82
User’s Manual of FGSW-Series
VLAN ID is 1.
The VLAN ID must as same as the VLAN ID that the port belong to VLAN group,
or the untagged traffic will be dropped.
Ingress Filtering 1
Ingress Filtering 2
Apply button
Ingress filtering lets frames belonging to a specific VLAN to be forwarded if the
port belongs to that VLAN.
Enable: Forward only packets with VID matching this port's configured VID.
Disable: Disable Ingress filter function.
Drop untagged frame.
Disable: Acceptable all Packet.
Enable: Only packet with match VLAN ID can be permission to go through the
port.
Press the button to save configurations.
83
User’s Manual of FGSW-Series
4.4.5 Q-in-Q VLAN
■ IEEE 802.1Q Tunneling (Q-in-Q)
IEEE 802.1Q Tunneling (QinQ) is designed for service providers carrying traffic for multiple customers across their
networks. QinQ tunneling is used to maintain customer-specific VLAN and Layer 2 protocol configurations even when
different customers use the same internal VLAN IDs. This is accomplished by inserting Service Provider VLAN (SPVLAN)
tags into the customer’s frames when they enter the service provider’s network, and then stripping the tags when the
frames leave the network.
A service provider’s customers may have specific requirements for their internal VLAN IDs and number of VLANs supported.
VLAN ranges required by different customers in the same service-provider network might easily overlap, and traffic passing
through the infrastructure might be mixed. Assigning a unique range of VLAN IDs to each customer would restrict customer
configurations, require intensive processing of VLAN mapping tables, and could easily exceed the maximum VLAN limit of
4096.
The Managed Switch supports multiple VLAN tags and can therefore be used in MAN applications as a provider bridge,
aggregating traffic from numerous independent customer LANs into the MAN (Metro Access Network) space. One of the
purposes of the provider bridge is to recognize and use VLAN tags so that the VLANs in the MAN space can be used
independent of the customers’ VLANs. This is accomplished by adding a VLAN tag with a MAN-related VID for frames
entering the MAN. When leaving the MAN, the tag is stripped and the original VLAN tag with the customer-related VID is
again available.
This provides a tunneling mechanism to connect remote costumer VLANs through a common MAN space without
interfering with the VLAN tags. All tags use EtherType 0x8100 or 0x88A8, where 0x8100 is used for customer tags and
0x88A8 are used for service provider tags.
In cases where a given service VLAN only has two member ports on the switch, the learning can be disabled for the
particular VLAN and can therefore rely on flooding as the forwarding mechanism between the two ports. This way, the MAC
table requirements is reduced.
84
4.4.5.1 Q-in-Q Port Setting
The QinQ VLAN \ QinQ Port Setting screen in Figure 4-4-8 appears.
User’s Manual of FGSW-Series
The page includes the following fields:
Object Description
Enable: Sets the Managed Switch to QinQ mode, and allows the QinQ tunnel port to
QinQ
QinQ TPID
Port QinQ
Disable:
The default is for the Managed Switch to function in Disable mode.
The Tag Protocol Identifier (TPID) specifies the ethertype of incoming packets on a
tunnel access port.
• 802.1Q Tag : 8100
• vMAN Tag : 88A8
Default : 802.1Q Tag.
Check: Sets the Port to QinQ mode. Or the port operates in its normal VLAN mode.
Default: Un-check.
Figure 4-4-8: Q-in-Q Port Setting interface
be configured.
The Managed Switch operates in its normal VLAN mode.
QinQ Uplink
Check:
Configures IEEE 802.1Q tunneling (QinQ) for an uplink port to another device
within the service provider network.
85
User’s Manual of FGSW-Series
Cancel:
Configures IEEE 802.1Q tunneling (QinQ) for a client access port to segregate
and preserve customer VLAN IDs for traffic crossing the service provider
network.
4.4.5.2 Q-in-Q Tunnel Setting
Business customers of service providers often have specific requirements for VLAN IDs and the number of VLANs to be
supported. The VLAN ranges required by different customers in the same service-provider network might overlap, and
traffic of customers through the infrastructure might be mixed. Assigning a unique range of VLAN IDs to each customer
would restrict customer configurations and could easily exceed the VLAN limit (4096) of the IEEE 802.1Q specification.
Using the QinQ feature, service providers can use a single VLAN to support customers who have multiple VLANs.
Customer VLAN IDs are preserved, and traffic from different customers is segregated within the service-provider network,
even when they appear to be in the same VLAN. Using QinQ expands VLAN space by using a VLAN-in-VLAN hierarchy
and retagging the tagged packets. A port configured to support QinQ is called a QinQ user-port. A port configured to support
QinQ Uplink is called a QinQ uplink-port.
Figure 4-4-9: Q-in-Q Tunnel Setting interface
To configure QinQ Port
1. Enable global QinQ function: select QinQ enable "Enable".
2. Fill QinQ Tpid.
3. Enable port QinQ function: select QinQ checkbox for special port.
4. Enable port QinQ Uplink function: select QinQ Uplink checkbox for special port.
86
User’s Manual of FGSW-Series
4.5 Trunking
Port trunking is the combination of several ports or network cables to expand the connection speed beyond the limits of any
one single port or network cable. The Managed Switch supports two types of port trunk technology:
Static Trunk
LACP
The Link Aggregation Control Protocol (LACP) provides a standardized means for exchanging information between Partner
Systems on a link to allow their Link Aggregation Control instances to reach agreement on the identity of the Link
Aggregation Group to which the link belongs, move the link to that Link Aggregation Group, and enable its transmission and
reception functions in an orderly manner. Link aggregation lets you group up to eight consecutive ports into a single
dedicated connection. This feature can expand bandwidth to a device on the network. LACP operation requires
full-duplex mode, more detail information refers to IEEE 802.3ad.
87
User’s Manual of FGSW-Series
4.5.1 Aggregator setting
This section provides Port Trunk-Aggregator Setting of each port from the Managed Switch, the screen in Figure 4-5-1
appears.
Figure 4-5-1: Port Trunk—Aggregator Setting Interface (two ports are added to the left field with LACP enabled)
The page includes the following fields:
Object Description
A value which is used to identify the active LACP. The Managed Switch with the
System Priority:
Group ID:
LACP:
lowest value has the highest priority and is selected as the active LACP peer of
the trunk group.
There are 13 trunk groups to be selected. Assign the "Group ID" to the trunk
group.
Enabled, the trunk group is using LACP. A port which joins an LACP trunk
group has to make an agreement with its member ports first.
Disabled, the trunk group is a static trunk group. The advantage of having
the LACP disabled is that a port joins the trunk group without any
handshaking with its member ports; but member ports won’t know that they
should be aggregated together to form a logic trunk group.
88
This column field allows the user to type in the total number of active port up to
four. With LACP static trunk group, e.g. you assign four ports to be the
Work ports:
Please notice that a trunk group, including member ports split between two switches, has to enable the
LACP function of the two switches.
members of a trunk group whose work ports column field is set as two; the
exceed ports are standby/redundant ports and can be aggregated if working
ports fail. If it is a static trunk group (non-LACP), the number of work ports must
equal the total number of group member ports.
4.5.2 Aggregator Information
When you had setup the LACP aggregator, you will see relation information in here.
User’s Manual of FGSW-Series
LACP disabled
Having set up the aggregator setting with LACP disabled, you will see the local static trunk group information on the tab of
Aggregator Information.
Figure 4-5-2: Assigning 2 ports to a Trunk Group with LACP Disabled Screenshot
89
Figure 4-5-3: Static Trunking Group Information Screenshot
The page includes the following fields:
Object Description
User’s Manual of FGSW-Series
Group Key:
Port Member:
This is a read-only column field that displays the trunk group ID.
This is a read-only column field that displays the members of this static trunk
group.
LACP enabled
Having set up the aggregator setting with LACP enabled, you will see the trunking group information between two switches
on the tab of Aggregator Information.
Switch 1 configuration
1. Set System Priority of the trunk group. The default is 32768.
2. Select a trunk group ID by pull down the drop-down menu bar.
3. Enable LACP.
4. Include the member ports by clicking the Add button after selecting the port number and the column field of
Work Ports changes automatically.
90
User’s Manual of FGSW-Series
Figure 4-5-4: Aggregation Information of Switch 1 Screenshot
5. Click on the tab of Aggregator Information to check the trunked group information as the illustration shown
above after the two switches configured.
Switch 2 configuration
6. Set System Priority of the trunk group. For example: 1.
7. Select a trunk group ID by pull down the drop-down menu bar.
8. Enable LACP.
9. Include the member ports by clicking the Add button after selecting the port number and the column field of
Work Ports changes automatically.
91
User’s Manual of FGSW-Series
Figure 4-5-5: Swit ch 2 Configuration Interface Screenshot
10. Click on the tab of Aggregator Information to check the trunked group information as the illustration shown
above after the two switches configured.
Figure 4-5-6: Switch 1 Aggregator Information Screenshot
92
User’s Manual of FGSW-Series
4.5.3 State Activity
Having set up the LACP aggregator on the tab of Aggregator Setting, you can configure the state activity for the members of
the LACP trunk group. You can tick or cancel the checkbox beside the state label. When you remove the tick mark of the
port and click
Apply
, the port state activity will change to
Figure 4-5-7: State Activity of Switch 1 Screenshot
Passive
.
The page includes the following fields:
Object Description
Active: The port automatically sends LACP protocol packets.
Passive:
A link having two passive LACP nodes will not perform dynamic LACP trunk because both
ports are waiting for an LACP protocol packet from the opposite device.
The port does not automatically send LACP protocol packets, and responds only
if it receives LACP protocol packets from the opposite device.
93
User’s Manual of FGSW-Series
4.6 Forwarding and Filtering
The frames of Ethernet Packets contain a MAC address (SMAC address), which shows the MAC address of the equipment
sending the frame. The SMAC address is used by the switch to automatically update the MAC table with these dynamic
MAC addresses. Dynamic entries are removed from the MAC table if no frames with the corresponding SMAC address
have been seen after a configurable age time.
4.6.1 Dynamic MAC Table
Entries in the MAC Table are shown on this page. The Dynamic MAC Table contains up to 8192 entries, and is sorted first
by VLAN ID, then by MAC address. You can view all of the dynamic MAC addresses learned by the listed port.
MAC Table Columns
Object Description
• NO
• MAC
• PORT
• VID
• Type
Click “
Clear”
Figure 4-6-1: Dynamic MAC Address interface
The index of the MAC address entry.
The MAC address of the entry.
The ports that are members of the entry.
The VLAN ID of the entry.
Indicates whether the entry is a static or dynamic entry.
to clear the dynamic MAC addresses information of the current port shown on the screen.
94
User’s Manual of FGSW-Series
4.6.2 Static MAC Table
You can add a static MAC address that remains in the switch's address table regardless of whether the device is physically
connected to the switch. This saves the switch from having to re-learn a device's MAC address when the disconnected or
powered-off device is active on the network again. Via this interface, you can add / modify / delete a static MAC address.
Add the Static MAC Addr ess
You can add static MAC address in the switch MAC table here.
The page includes the following fields:
Object Description
MAC Address:
Figure 4-6-2: Static MAC Addresses interface
Enter the MAC address of the port that should permanently forward traffic,
regardless of the device network activity.
Port num.:
VLAN ID:
Pull down the selection menu to select the port number.
The VLAN ID for the entry.
95
User’s Manual of FGSW-Series
4.6.3 MAC Filtering
By filtering MAC address, the switch can easily filter the pre-configured MAC address and reduce the un-safety. You can
add and delete filtering MAC address.
The page includes the following fields:
Object Description
MAC Address:
VLAN ID:
Figure 4-6-3: MAC Filtering interface
Enter the MAC address that you want to filter.
The VLAN ID for the entry.
96
User’s Manual of FGSW-Series
4.7 Static Multicast Table
Static Multicast Table is a feature for user to force steaming multicast stream to indicate port. When you add a static
multicast address, it remains in the multicast group table, regardless of whether the multicast stream has been joined or
hasn’t been joined. The static multicast group will be saved to switch and it will not be released, even no one join it or even
the multicast group no more streaming, unless user delete it.
How to delete static multicast group? User has to input the multicast address, port and VID again then press Delete button.
Figure 4-7-1: Static Multicast Table Interface
97
The page includes the following fields:
Object Description
User’s Manual of FGSW-Series
IP Address:
VLAN ID:
Allows user to input multicast address group.
Allows multicast streaming to indicate port.
Remove multicast streaming from indicate port.
Allows user to input VLAN ID for streaming multicast packet.
Allows user to add static multicast information to IGMP Snooping table.
Allows user to delete static multicast information from IGMP Snooping table.
Click this button shows help description
98
User’s Manual of FGSW-Series
4.8 IGMP Snooping
4.8.1 Theory
The Internet Group Management Protocol (IGMP) lets host and routers share information about multicast groups
memberships. IGMP snooping is a switch feature that monitors the exchange of IGMP messages and copies them to the
CPU for feature processing. The overall purpose of IGMP Snooping is to limit the forwarding of multicast frames to only
ports that are a member of the multicast group.
About the Internet Group Management Protocol (IGMP) Snooping
Computers and network devices that want to receive multicast transmissions need to inform nearby routers that they will
become members of a multicast group. The Internet Group Management Protocol (IGMP) is used to communicate this
information. IGMP is also used to periodically check the multicast group for members that are no longer active. In the case
where there is more than one multicast router on a sub network, one router is elected as the ‘queried’. This router then
keeps track of the membership of the multicast groups that have active members. The information received from IGMP is
then used to determine if multicast packets should be forwarded to a given sub network or not. The router can check, using
IGMP, to see if there is at least one member of a multicast group on a given subnet work. If there are no members on a sub
network, packets will not be forwarded to that sub network.
Figure 4-8-1: Multicast Service
99
User’s Manual of FGSW-Series
Figure 4-8-2: Multicast flooding
Figure 4-8-3: IGMP Snooping multicast stream control
100
