PLANET ENW-9800 User Manual

User’s Manual

ENW-9801 ENW-9802

PCI-E Dual / Single Port 10 Gigabit Ethernet Adapter

Copyright  PLANET Technology Corp. 2012. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET. PLANET makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not PLANET, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, PLANET reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders.

FCC Caution

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason able protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energ y and, if not installed and used in accordance with the Instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at whose own expense.

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

Revision

User’s Manual for PLANET PCI Express Dual / Single Port 10 Gigabit Ethernet Adapter For Models: ENW-9801 / ENW-9802 Revision: 1.3 (January.2012) Part No. EM-ENW9801_9802_v1.3 (2080-A14090-003)

Table of Contents

CHAPTER 1 INTRODUCTION............................................................................................. 4

1.1 Package Content............................................................................................................................4

1.2 Features.........................................................................................................................................4

1.3 Gathering Tools and Documentations ............................................................................................ 4

CHAPTER 2 HARDWA RE INSTALLATION ........................................................................5

2.1 LED Definitions...............................................................................................................................5

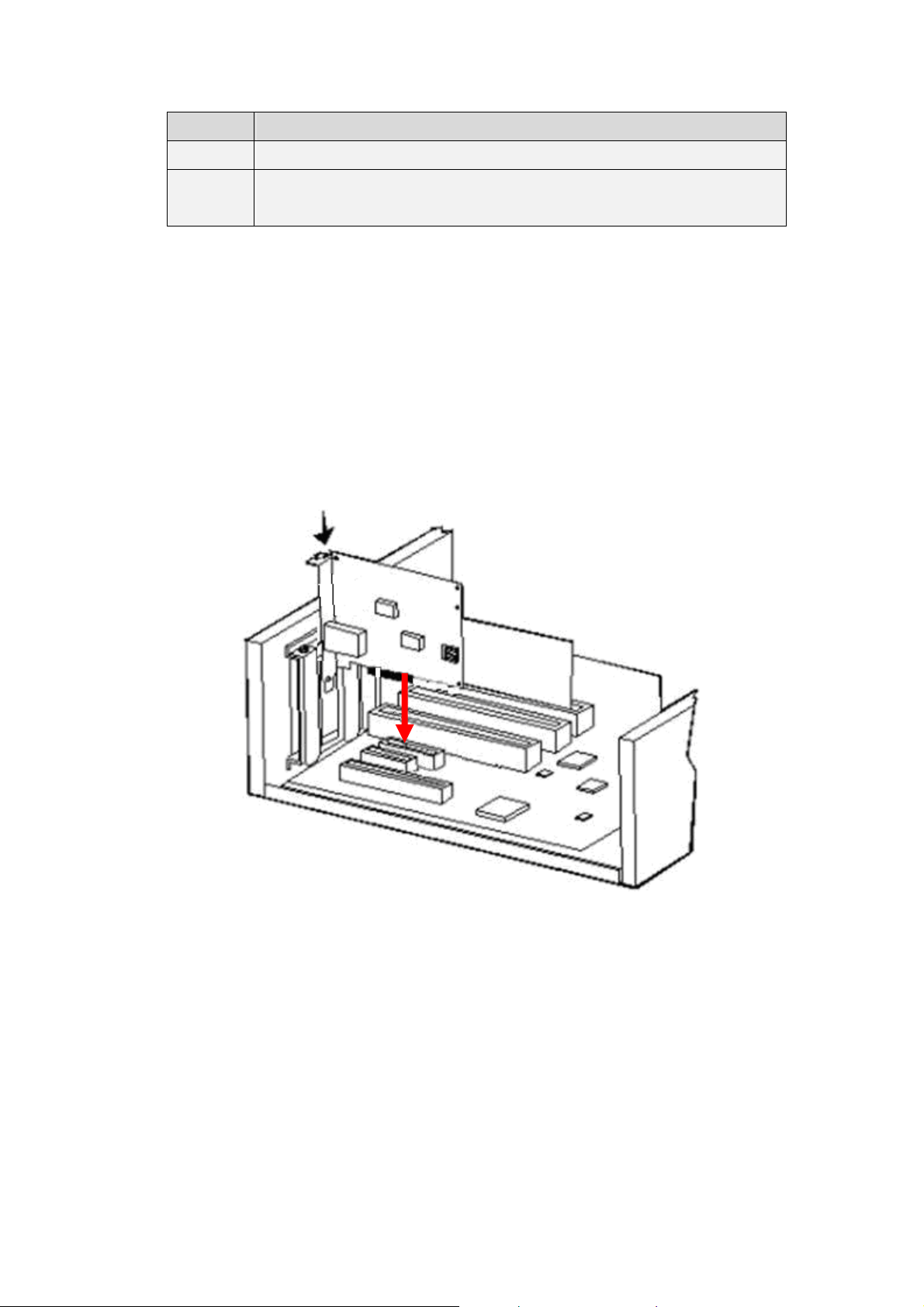

2.2 Hardware Installation......................................................................................................................6

CHAPTER 3 DRIVER INSTALLATION................................................................................ 7

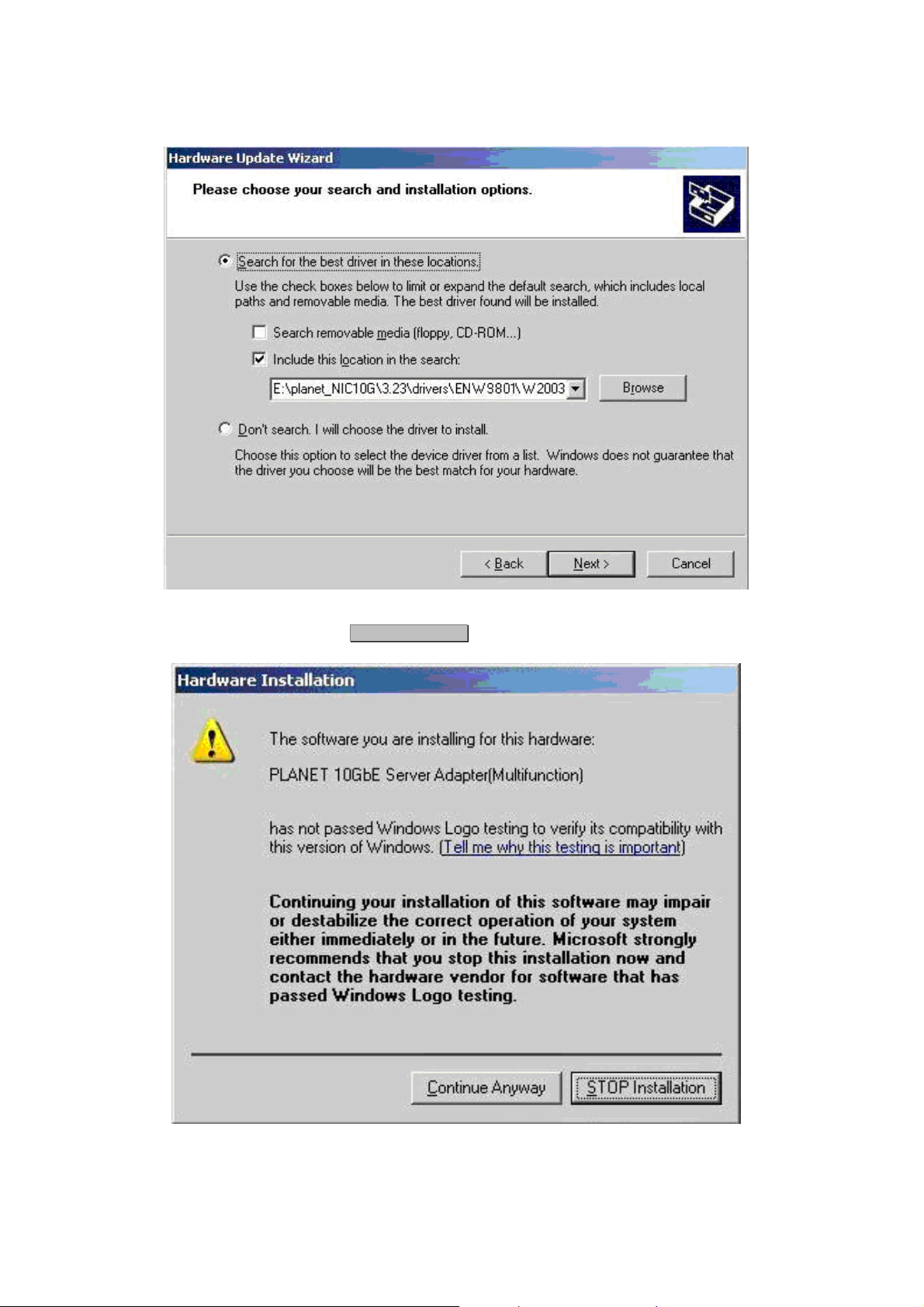

3.1 Installing Driver to Windows Server 2003/2003R2.........................................................................7

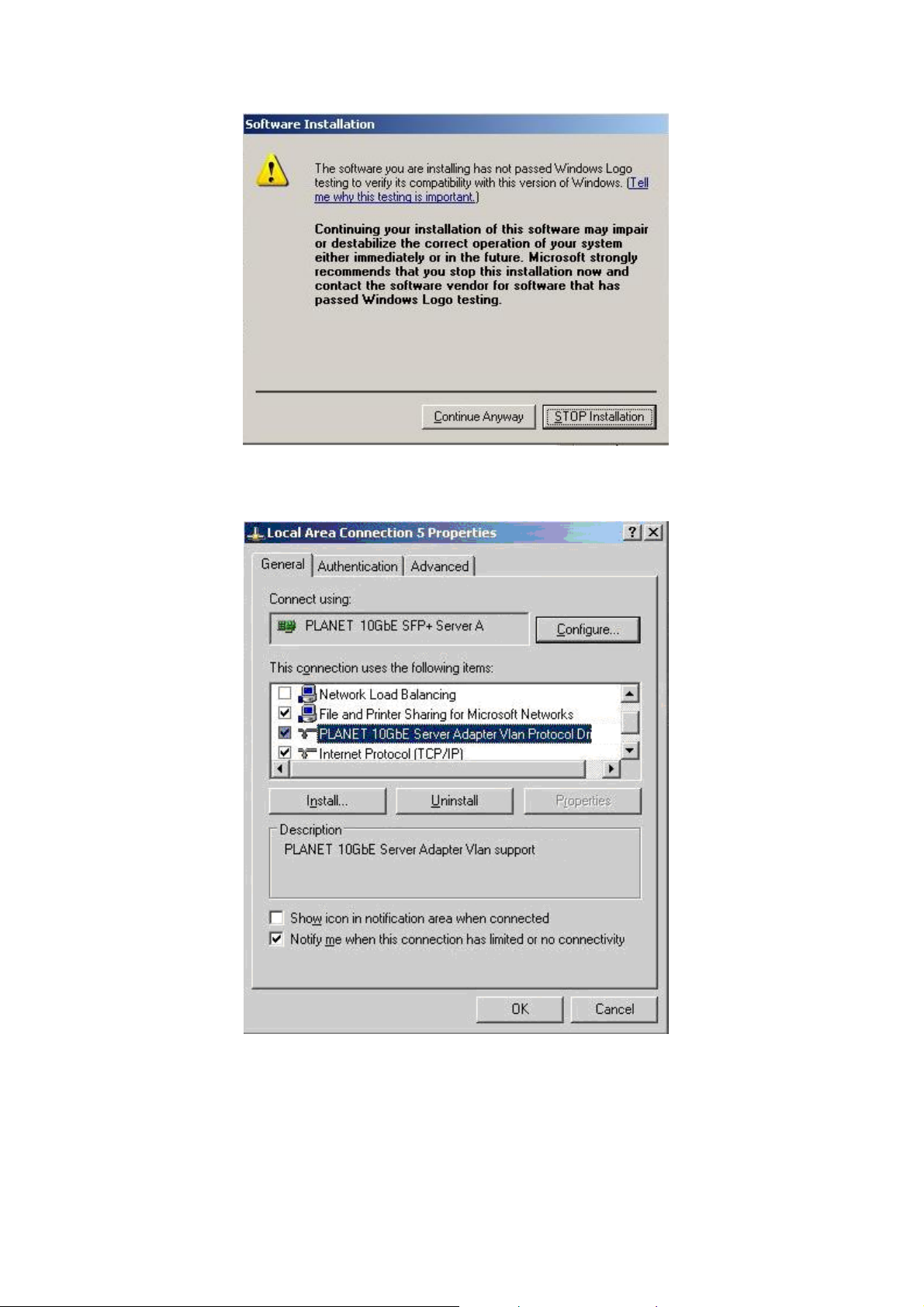

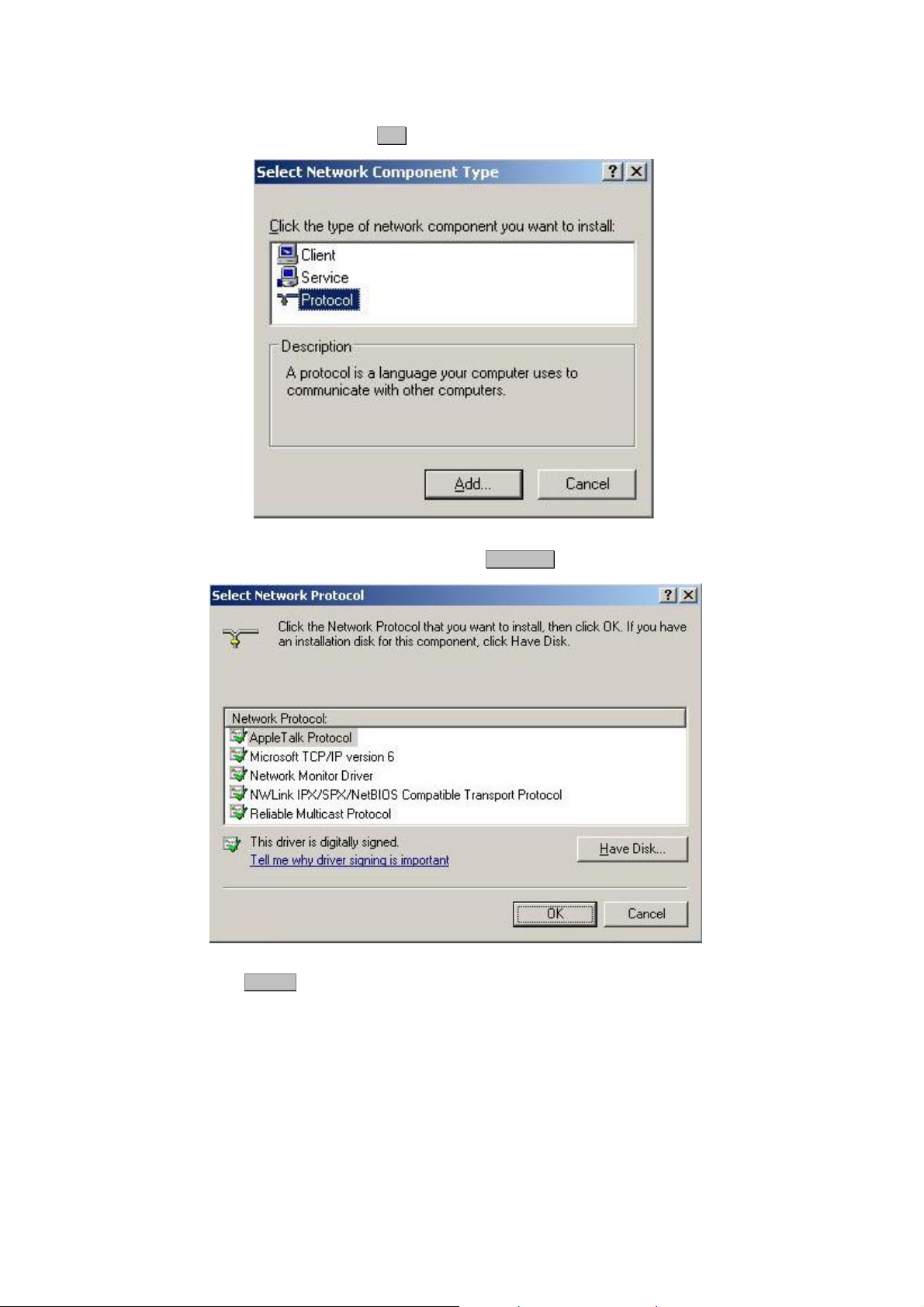

3.2 Installing VLAN Support Driver to Windows Server 2003/2003R2 ...............................................10

CHAPTER 4 SPECIFICATIONS......................................................................................... 14

Chapter 1 Introduction

Meet the next gerneration interface - PCI Express dual / single port 10 Gigabit Ethernet adapter can provide the best solution for one of the major issues of Local Area Networks communication speed. Hundred times as fast as the existing 100Base-TX solutions, using the PLANET ENW-9801 / ENW-9802 to connect your servers and workstations guarantees extremely high throughput and excellent signal quality.

The ENW-9801 / ENW-9802 is a PCI Express dual / single port 10 Gigabit Ethernet adapter designed to address high-performance system application requirements. With the higher band witdh of x8, x4 PCI Express Bus Architecture, ENW-9801 / ENW-9802 can provide better performance than the network cards which base on 32 / 64bit PCI architecture. It is specifically designed to allow throughput at rates up to 2.5Gbps, thus eliminating the existing 32/64bit PCI network card.

1.1 Package Content

Check that your package contains the following items:

 1 x 10G Ethernet Adapter  1 x Quick Installation Guide  1 x CD-ROM User’s Manual / Driver  1 x Low Profile Bracket

Please contact the seller if any of the items is missing or damaged.

Be sure to retain your proof of purchase, as it is required to receive warranty service.

1.2 Features

 Compliant with PCI Express 1.1 – x8 PCI Express standard  Supports IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q VLAN.  Integrated Frame Buffer Memory for Dual TX 32KB and Dual RX 64KB.  Supports Jumbo Frame up to 16K  IP, TCP and UDP checksum offload

1.3 Gathering Tools and Documentations

To install the adapter, you need the following items:

 A suitable screw driver  Your operating system documentation  Your system unit documentation, including any service documentation

Chapter 2 Hardware Installation

2.1 LED Definitions

The faceplate of ENW-9801 has one LED: Link / ACT. The pictures below have showed the faceplate of ENW-9801. Table 2-1 explains the function and state of the LED.

Link / ACT LED

ENW

-9801 Long and Low Profile Bracket

The faceplate of ENW-9802 has one LED: Link / ACT. The pictures below have showed the faceplate of ENW-9802. Table 2-1 explains the function and state of the LED.

Link / ACT LED

ENW-9802 Long and Low Profile Bracket

Link / ACT LED
