10
Joystick
Selection diagram
FIXING
RING
CENTRAL
LOCK
HEIGHT
ACTUATION
Z A
Without lock Lock in all directions
1 2
Standard (55 mm) Reduced (45 mm)
4B 2F 2B 4A 2E 2A
UP
spring-return
RIGHT
spring-return
DOWN
spring-return
LEFT
spring-return
LEFT
spring-return
RIGHT
spring-return
UP
spring-return
DOWN
spring-return
UP
maintained
RIGHT
maintained
DOWN
maintained
LEFT
maintained
LEFT
maintained
RIGHT
maintained
UP
maintained
DOWN
maintained
Plastic ring Metal ring
Code structure
Fixing ring and shaped ring
1
Plastic ring (standard)
2
Plastic fixing ring and shaped ring
3
Metal ring
4
Metal fixing ring and shaped ring
1 3
Joystick height
1
2
Attention! The feasibility of a code number does not mean the effective availability of a product. Please contact our sales office.
E2 1MA14BZ91
Lock
Z
Without lock
A
Lock in all directions
Actuation
Standard (55 mm)
Reduced (45 mm)
UP spring-return, RIGHT spring-return,
4B
DOWN spring-return, LEFT spring-return
LEFT spring-return, RIGHT spring-return
2F
UP spring-return, DOWN spring-return
2B
UP maintained, RIGHT maintained,
4A
DOWN maintained, LEFT maintained
LEFT maintained, RIGHT maintained
2E
UP maintained, DOWN maintained
2A
75
General Catalogue HMI 2017-2018
Technical data
General data
Protection degree: IP67 acc. to EN 60529
IP69K acc. to ISO 20653
Ambient temperature: -40°C … +80°C
Mechanical endurance: 1 million operating cycles
500,000 unblocking operating cycles
Max. actuation frequency: 3600 operating cycles/hour
Actuating force: 0.17 Nm (spring-return actuation)
0.3 Nm (maintained actuation)
Maximum travel: 35°
Tightening torque of the fixing ring: 2 … 2.5 Nm
Utilization requirements: See page 139
In compliance with standards:
IEC 60947-1, IEC 60947-5-1, IEC 60204-1, EN 60947-1, EN 60947-5-1, EN 60204-1,
UL 508, CSA 22-2 No. 14
10
Main features
•Protection degrees IP67 and IP69K
•2 possible heights:
standard (55 mm) and reduced (45 mm)
•Versions with central lock
•Versions with spring-return or maintained
actuation
•Two-step actuation
Quality marks:
UL approval: E131787
EAC approval: RU C-IT ДМ94.В.01024
Installation for safety applications:
Use only contact blocks marked with the symbol
connected to NC contacts (normally closed contacts: .1-.2)
Compliance with the requirements of:
Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EC
Positive contact opening in conformity with standards:
IEC 60947-5-1, EN 60947-5-1.
Features approved by UL
For Use on a Flat Surface of a Type 1, 4X, 12 and 13
Tightening torque 2.0 Nm
General data
Protection degrees IP67 and IP69K
The elastic hood of the Pizzato joystick is made
in a single seamless piece that completely
encloses the lever, in this way without leaving
the minimum aperture or junction.
present in all the versions of the joystick, including the versions with
reduced height and central lock and is the most effective method for
ensuring protection from all possible infiltrations of dirt and water.
These devices can therefore be used in all environments where the
maximum protection of the housing is required and pass both the IP67
immersion test according to EN 60529 and test IP69K according to
ISO 20653 with jets of water at 100 bar and temperature 80°C.
This particular solution (patent pending) is
Central lock
To prevent accidental operation,
the E2 MA series joystick can
be ordered in versions with central lock.
In these versions the lever remains fixed in the central posi-
various directions only after being unlocked by simply pulling the release disk. The pulling release movement avoids unwanted unlocking
actions.
tion and can be steered in the
. The safety circuit must always be
Two-step actuation
Two-step actuation in every direction is possible by connecting in
series to the normal NO contact blocks additional NO contact blocks
provided with early make
contacts. This option can be
used for example to control
two-speed actuations in
the same direction.
Maintained or spring-return actuation
Versions with 2 or 4 directions are available, and the single directions
can have a maintained actuation, in which the lever remains in the tilted
position, or spring-return actuation, in which the lever automatically
returns to the central position.
Two compact forms
With the standard height version (55 mm),
there is also a reduced height (45 mm) version,
55
45
the standard version options, such as the possibility of being provided
with central lock.
ideal for all situations where a low height is
required. Even so, the reduced height version
of the joystick does not dispense with any of
Easy configuration of the contacts
The joystick is paired with a mounting adapter with
four slots, thus allowing to associate different types of
contact blocks to every single direction of actuation.
Single or double contact blocks, even on two levels,
can be used.
There are therefore no constraints on the type of
contact block, the users can freely install the standard
contact block in the configuration they prefer.
General Catalogue HMI 2017-2018
Labels for the joystick
The joystick can be paired with specific circular
and rectangular labels. This accessory, available
in black or grey colour, is the ideal complement
for the joystick at both the functional and
aesthetic level, creating an assembly of original
and elegant design. The labels specify with
clear indications the functions performed by the joystick, and can be
customised with symbols or written text. The laser-engraved markings
are indelible. The application of the label does not alter the IP protection
degree of the device.
76
28.8

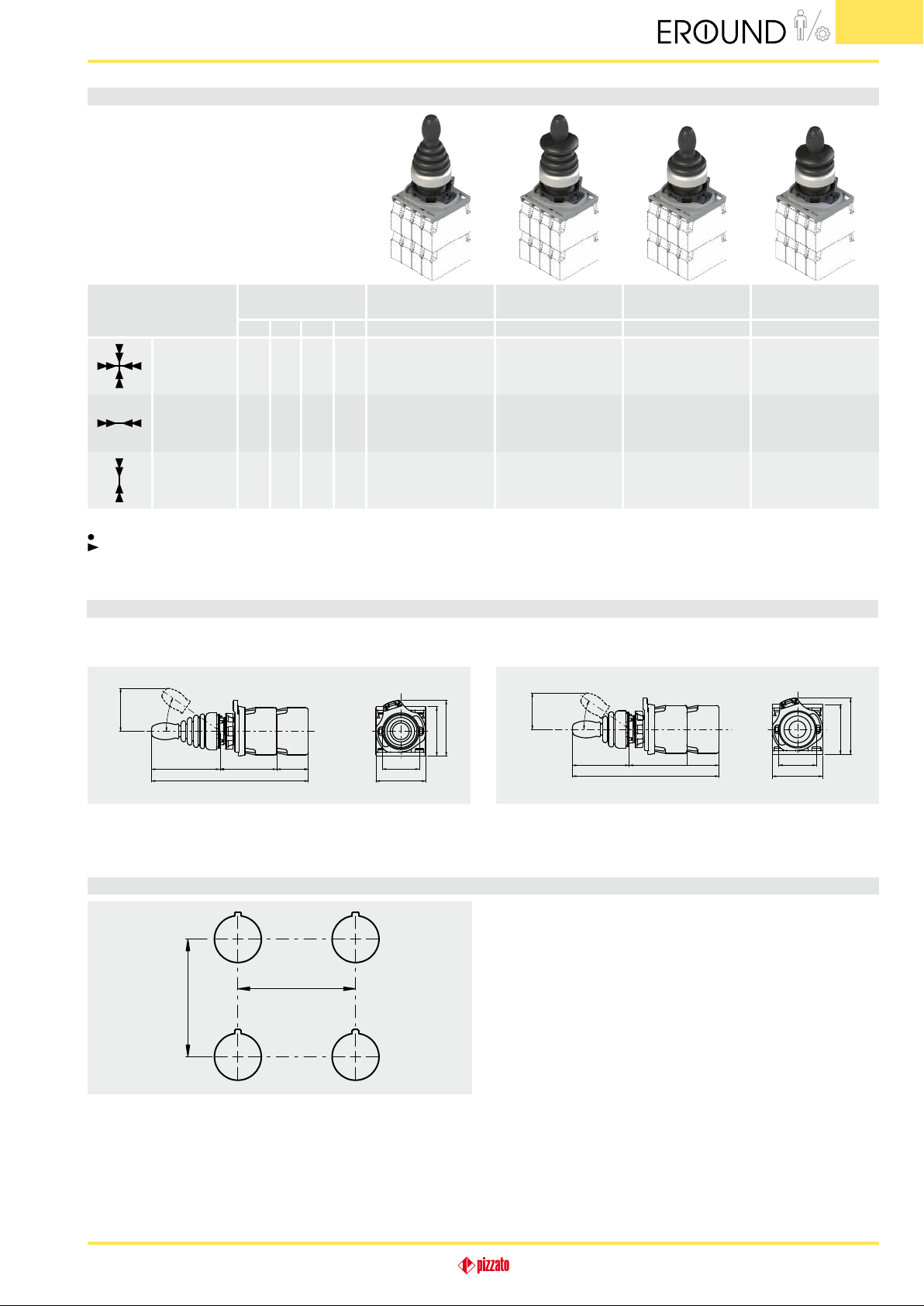

Selection table for complete units with two-step actuation
10
Functions
UP spring-return,
RIGHT spring-return,
LEFT spring-return
LEFT spring-return,
RIGHT spring-return
UP spring-return,
Legend:
maintained actuation
spring-return actuation
Dimensions
34.6
DOWN spring-
return,
DOWN spring-
return
35°
Contacts
pos. 3 pos. 2 pos. 4 pos. 1
1NO
1NO
1NO
+ 1NO
1NO
+ 1NO
+ 1NO
1NO
+ 1NO
+ 1NO
1NO
+ 1NO
1NO
+ 1NO
1NO
+ 1NO
Standard height (55 mm)
without lock
Satin chrome bezel Satin chrome bezel Satin chrome bezel Satin chrome bezel
E2 AC-DXBC2626
E2 1MA14BZ91
+ E2 1BAC21
+ 4x E2 CP10G2V1
+ 4x E2 CP10L2V1
E2 AC-DXBC2625
E2 1MA12FZ91
+ E2 1BAC21
+ 2x E2 CP10G2V1
+ 2x E2 CP10L2V1
E2 AC-DXBC2624
E2 1MA12BZ91
+ E2 1BAC21
+ 2x E2 CP10G2V1
+ 2x E2 CP10L2V1
44.6
39.6
Standard height (55 mm)
with lock
E2 AC-DXBC2629
E2 1MA14BA91
+ E2 1BAC21
+ 4x E2 CP10G2V1
+ 4x E2 CP10L2V1
E2 AC-DXBC2628
E2 1MA12FA91
+ E2 1BAC21
+ 2x E2 CP10G2V1
+ 2x E2 CP10L2V1
E2 AC-DXBC2627
E2 1MA12BA91
+ E2 1BAC21
+ 2x E2 CP10G2V1
+ 2x E2 CP10L2V1
35°
Reduced height (45 mm)
without lock
E2 AC-DXBC2632
E2 1MA24BZ91
+ E2 1BAC21
+ 4x E2 CP10G2V1
+ 4x E2 CP10L2V1
E2 AC-DXBC2631
E2 1MA22FZ91
+ E2 1BAC21
+ 2x E2 CP10G2V1
+ 2x E2 CP10L2V1
E2 AC-DXBC2630
E2 1MA22BZ91
+ E2 1BAC21
+ 2x E2 CP10G2V1
+ 2x E2 CP10L2V1
All measures in the drawings are in mm
Reduced height (45 mm)
with lock
E2 AC-DXBC2635
E2 1MA24BA91
+ E2 1BAC21
+ 4x E2 CP10G2V1
+ 4x E2 CP10L2V1
E2 AC-DXBC2634
E2 1MA22FA91
+ E2 1BAC21
+ 2x E2 CP10G2V1
+ 2x E2 CP10L2V1
E2 AC-DXBC2633
E2 1MA22BA91
+ E2 1BAC21
+ 2x E2 CP10G2V1
+ 2x E2 CP10L2V1
39.6
44.6
55
126.2
25.5 45.7
Minimum distances for installation
≥A
≥A
29.6
39.9
45
Standard height joystick
A=70 mm
Reduced height joystick
A=60 mm
116.2
25.5 45.7
29.6
39.9
General Catalogue HMI 2017-2018
78
