Indicator lights

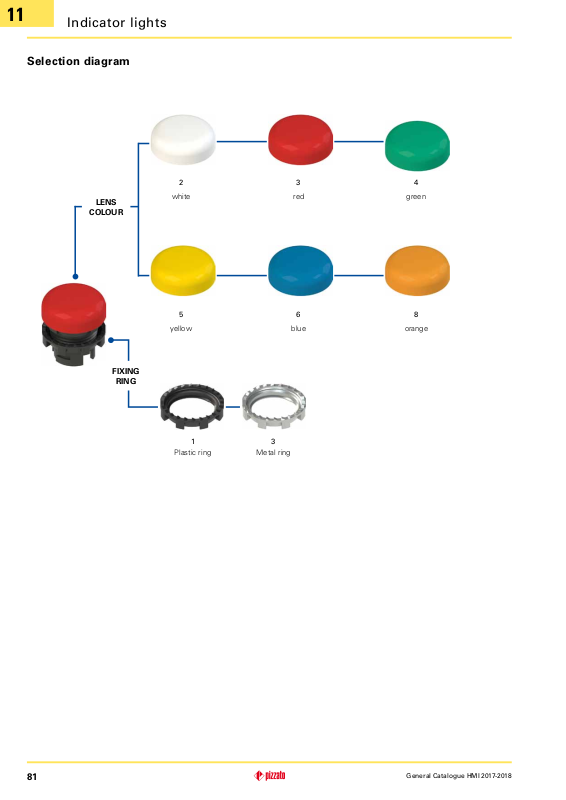

Selection diagram
LENS
COLOUR
2 3 4
white red green
FIXING
RING
5 6 8
yellow blue orange
1 3
Plastic ring Metal ring
81
General Catalogue HMI 2017-2018
11
Code structure
Fixing ring and shaped ring
1
Plastic ring (standard)
2
Plastic fixing ring and shaped ring
3
Metal ring
4
Metal fixing ring and shaped ring
Attention! The feasibility of a code number does not mean the effective availability of a product. Please contact our sales office.
Lens shape
A
level, smooth
E2 1ILA210
Lens colour
0
2
3
4
5
6
8
Engraving
0
no engraving (standard)
IT7 IN SERVIZIO
IT8 ERRORE
L54
...
........................
Other engravings on request. See page 138.
without lens
white
red
green
yellow
blue
orange
General Catalogue HMI 2017-2018
82
11
Indicator lights
Technical data
General data
Protection degree: IP67 acc. to EN 60529
IP69K acc. to ISO 20653
Ambient temperature: ‑25°C … +70°C
Lighting type: Combined with lighting unit with LED
series E2 LP●●●●, E2 LF●●●●
Tightening torque of the fixing ring: 2 … 2.5 Nm
Utilization requirements: See page 139
In compliance with standards:
IEC 60947‑1, IEC 60947‑5‑1, IEC 60204‑1, EN 60947‑1, EN 60947‑5‑1, EN 60204‑1,
UL 508, CSA 22‑2 No. 14.
Compliance with the requirements of:
Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU.
Main features
•Protection degrees IP67 and IP69K
•Customisation with symbols available
•Replaceable coloured lens
Quality marks:
IMQ approval: CA02.04805
UL approval: E131787
EAC approval: RU C-IT ДМ94.В.01024
Features approved by UL
For Use on a Flat Surface of a Type 1, 4X, 12 and 13
Tightening torque 2.0 Nm
General data
Protection degrees IP67 and IP69K
These devices are designed to be used in
the toughest environmental conditions and
they pass the IP67 immersion test acc. to
EN 60529. They can therefore be used in all
degree of the housing is required. Due to their special design, these
devices are suitable for use in equipment subjected to cleaning with
high pressure hot water jets. These devices meet the IP69K test
requirements according to ISO 20653 (water jets with 100 bar and a
80°C).
environments where maximum protection
Customisable
In order to suit various customer requests
and different kinds of application, Pizzato
Elettrica offers the possibility to customize the
indicator lights with symbols, inscriptions and
interchangeable lenses with different colours.
Combination of LED colours with lens colours
Metal fixing ring
The fixing ring in metal is particularly suitable for
those applications which require tighter fitting of the
panel‑mounted device, such as for example in metal
panels having holes without reference notches.
Shaped ring
The shaped ring can be used when no label holder
or other devices are applied; it prevents dirt and
other residues from settling between the indicator
and the panel or housing.
This turns out to be particularly useful in the sectors
where high standards of cleanness and hygiene are
required.
83
LED colour Lens colour
white
red
green
blue
orange
white / yellow
red
green
blue
orange
Note: Combinations of LED colour with lens
colour different from the recommended ones
can give a different colour compared to the
expected one.
General Catalogue HMI 2017-2018
