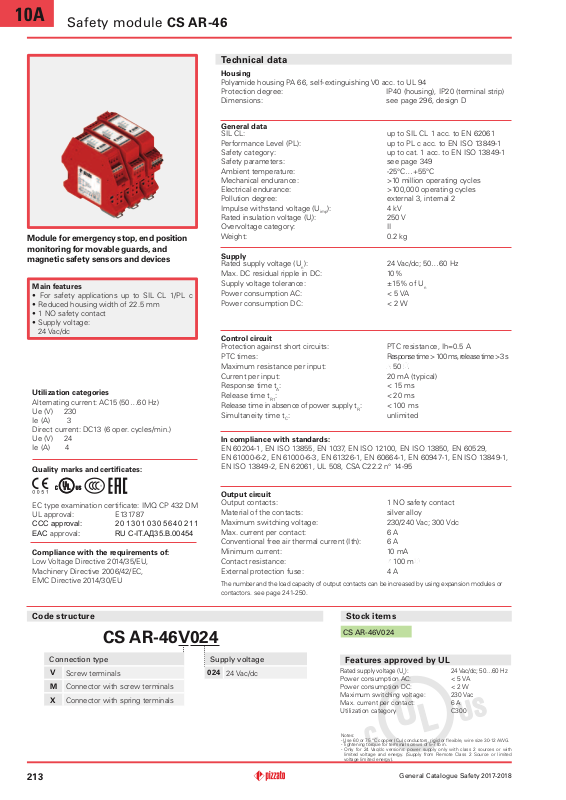

10A
Safety module CS AR-46
Module for emergency stop, end position
monitoring for movable guards, and
magnetic safety sensors and devices
Main features
• For safetyapplicationsuptoSILCL1/PLc
•Reducedhousingwidthof22.5mm
•1NOsafetycontact
•Supplyvoltage:
24 Vac/dc
Utilization categories
Alternating current: AC15 (50…60 Hz)
Ue (V) 230
Ie (A) 3
Direct current: DC13 (6 oper. cycles/min.)
Ue (V) 24
Ie (A) 4
Quality marks and certificates:
Technical data
Housing
Polyamide housing PA 66, self-extinguishing V0 acc. to UL 94
Protection degree: IP40 (housing), IP20 (terminal strip)
Dimensions: see page 296, design D
General data
SIL CL: up to SIL CL 1 acc. to EN 62061
Performance Level (PL): up to PL c acc. to EN ISO 13849-1
Safety category: up to cat. 1 acc. to EN ISO 13849-1
Safety parameters: see page 349
Ambient temperature: -25°C…+55°C
Mechanical endurance: >10 million operating cycles
Electrical endurance: >100,000 operating cycles
Pollution degree: external 3, internal 2
Impulse withstand voltage (U
Rated insulation voltage (U
Overvoltage category: II
Weight: 0.2 kg
Supply
Rated supply voltage (U
Max. DC residual ripple in DC: 10%
Supply voltage tolerance: ±15% of U
Power consumption AC: < 5 VA
Power consumption DC: < 2 W
Control circuit
Protection against short circuits: PTC resistance, Ih=0.5 A
PTC times: Response time > 100 ms, release time > 3 s
Maximum resistance per input:
Current per input: 20 mA (typical)
Response time t
Release time t
Release time in absence of power supply t
Simultaneity time t
: < 15 ms
A
: < 20 ms
R1
: unlimited
C
In compliance with standards:
EN 60204-1, EN ISO 13855, EN 1037, EN ISO 12100, EN ISO 13850, EN 60529,
EN 61000-6-2, EN 61000-6-3, EN 61326-1, EN 60664-1, EN 60947-1, EN ISO 13849-1,
EN ISO 13849-2, EN 62061, UL 508, CSA C22.2 n° 14-95
): 4 kV
imp
): 250 V
i
): 24 Vac/dc; 50…60 Hz
n
n
50
: < 100 ms
R
EC type examination certificate: IMQ CP 432 DM
UL approval: E131787
CCC approval: 2013010305640211
EAC approval: RUC-IT.AД35.В.00454
Compliance with the requirements of:
Low Voltage Directive 2014/35/EU,
Machinery Directive 2006/42/EC,
EMC Directive 2014/30/EU
Code structure
CS AR-46V024
Connection type
V
Screw terminals
M Connector with screw terminals
X Connector with spring terminals
Output circuit
Output contacts: 1 NO safety contact
Material of the contacts: silver alloy
Maximum switching voltage: 230/240 Vac; 300 Vdc
Max. current per contact: 6 A
Conventional free air thermal current (Ith): 6 A
Minimum current: 10 mA
Contact resistance:
100 m
External protection fuse: 4 A
The number and the load capacity of output contacts can be increased by using expansion modules or
contactors. see page 241-250.
Stock items
CS AR-46V024
Supply voltage
024
24 Vac/dc
Features approved by UL
Rated supply voltage (Un): 24 Vac/dc; 50…60 Hz
Power consumption AC: < 5 VA
Power consumption DC: < 2 W
Maximum switching voltage: 230 Vac
Max. current per contact: 6 A
Utilization category C300
Notes:
- Use 60 or 75 °C copper (Cu) conductors, rigid or flexible, wire size 30-12 AWG.
- Tightening torque for terminal screws of 5-7 lb in.
- Only for 24 Vac/dc versions: power supply only with class 2 sources or with
limited voltage and energy. (Supply from Remote Class 2 Source or limited
voltage limited energy).
213
General Catalogue Safety 2017-2018
S11
S12
S31
S32
S21
S22
S41
S42
A11314
A2
PWR
CH1
CH2
K1
K2
LED
CH1
A1
S11
S32
S41
S12
S31
13
A2
S21
S22
S42
14
LED
CH2
Safety module CS AR-46
Pin assignment
ITALY
Internal block diagram
Function diagrams
t
Legend:
: simultaneity time
t
C
tA: response time
t
: release time
R1
tR: release time in absence of power supply
A
t
t
C
R
10A
A1/A2
S11/S12
S21/S22
S31/S32
S41/S42
13/14
t
t
A
t
R1
A
L / +
LED
PWR
N / -
Input configuration
2 channels and 1 emergency button 2 channels and 2 emergency buttons 2 channels and 4 switches
L / +
Emergency stop circuits
Input configuration with automatic start
L / +
L / +
A1
S21 S22
S11
CS AR-46
S32
S41
S12
S31
S42
A2
N / -
Monitoring of movable guards and magnetic safety sensors
The safety module can monitor emergency stop circuits,
control circuits for movable
guards as well as magnetic
safety sensors. Replace the
emergency stop contacts
with switch contacts or
sensor contacts. The sen-
sors can only be used in
2-channel configuration.
General Catalogue Safety 2017-2018
A1
S21 S22
S11
CS AR-46
S32
S41
S12
S31
S42
A2
N / -
A1
S21 S22
S11
CS AR-46
S32
S41
S12
S31
S42
A2
N / -
1 channel and 1 emergency button
L / +
A1
S21 S22
S11
CS AR-46
S32
S41
S12
S31
S42
A2
N / -
Items with code on green background are stock items
