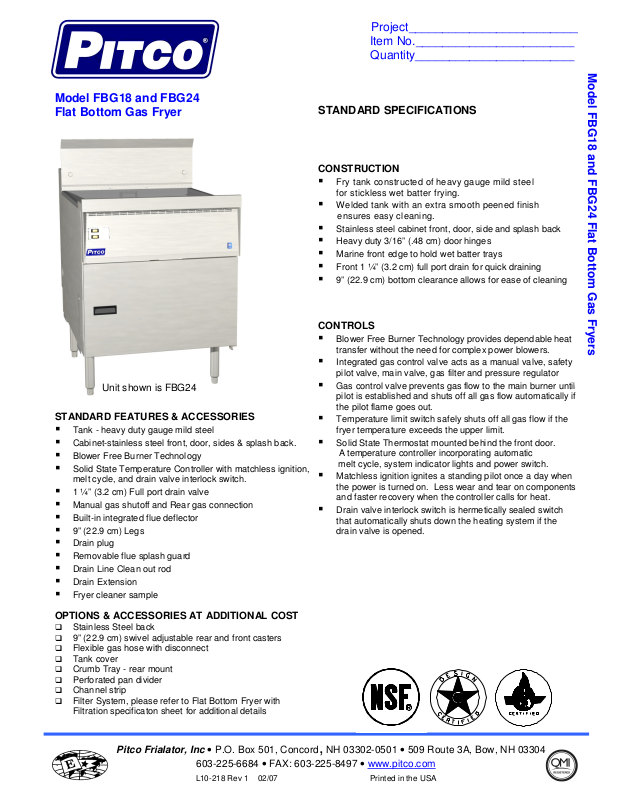

Pitco Fbg18, Fbg24 Specification Data
Model FBG18 and FBG24
Flat Bottom Gas Fryer
Project_________________________
Item No.________________________
Quantity________________________
Model FBG18 and FBG24 Flat Bottom Gas Fryers
STANDARD SPECIFICATIONS
CONSTRUCTION
Fry tank constructed of heavy gauge mild steel
for stickless wet batter frying.
Welded tank with an extra smooth peened finish
ensures easy cleaning.
Stainless steel cabinet front, door, side and splash back
Heavy duty 3/16” (.48 cm) door hinges
Marine front edge to hold wet batter trays
Front 1 ¼” (3.2 cm) full port drain for quick draining
9” (22.9 cm) bottom clearance allows for ease of cleaning
Unit shown is FBG24
STANDARD FEATURES & ACCESSORIES
Tank - heavy duty gauge mild steel
Cabinet-stainless steel front, door, sides & splash back.
Blower Free Burner Technology
Solid State Temperature Controller with matchless ignition,
melt cycle, and drain valve interlock switch.
1 ¼” (3.2 cm) Full port drain valve
Manual gas shutoff and Rear gas connection
Built-in integrated flue deflector
9” (22.9 cm) Legs
Drain plug
Removable flue splash guard
Drain Line Clean out rod
Drain Extension
Fryer cleaner sample
OPTIONS & ACCESSORIES AT ADDITIONAL COST
Stainless Steel back
9” (22.9 cm) swivel adjustable rear and front casters
Flexible gas hose with disconnect
Tank cover
Crumb Tray - rear mount
Perforated pan divider
Channel strip
Filter System, please refer to Flat Bottom Fryer with
Filtration specificaton sheet for additional details
CONTROLS
Blower Free Burner Technology provides dependable heat
transfer without the need for complex power blowers.
Integrated gas control valve acts as a manual valve, safety
pilot valve, main valve, gas filter and pressure regulator
Gas control valve prevents gas flow to the main burner until
pilot is established and shuts off all gas flow automatically if
the pilot flame goes out.
Temperature limit switch safely shuts off all gas flow if the
fryer temperature exceeds the upper limit.
Solid State Thermostat mounted behind the front door.
A temperature controller incorporating automatic
melt cycle, system indicator lights and power switch.
Matchless ignition ignites a standing pilot once a day when
the power is turned on. Less wear and tear on components
and faster recovery when the controller calls for heat.
Drain valve interlock switch is hermetically sealed switch
that automatically shuts down the heating system if the
drain valve is opened.
Pitco Frialator, Inc • P.O. Box 501, Concord, NH 03302-0501 • 509 Route 3A, Bow, NH 03304
603-225-6684 • FAX: 603-225-8497 • www.pitco.com
L10-218 Rev 1 02/07 Printed in the USA
Model FBG18 and FBG24 Flat Bottom Gas Fryer
SHORT FORM SPECIFICATION
Provide Pitco model FBG18 and FBG24 Flat Bottom Gas Fryer. Fryer shall have a blower free burner technology system. Unit shall have
a deep flat bottom cook depth up to 5" (12.7 cm ). Fryer cooking area shall be 18 x 24 (45.7 x 61 cm) for a FBG18 or 24 x 24 (61 x 61 cm)
30"
6"
11 - 13" W.C.
270 Lbs (122.5 kg)
INSTALLATION INFORMATION
INDIVIDUAL FRYER SPECIFICATIONS
18 x 24 in
(45.7 x 61cm)
3-1/4 - 5 in
42 - 65 Lbs
FRYER SHIPPING INFORMATION
24 x 24 in
3-1/4 - 5 in
315 Lbs (142.9 kg)
100,000 BTUs
(28.3kW) (105MJ)
TYPICAL APPLICATION
57 - 87 Lbs
4" W.C.
)
10" W.C.
a)
120,000 BTUs
CLEARANCES
7 - 10" W.C.
Frying Area Burner PressureCook Depth Oil Capacity Gas Input Rate / HrModels
FBG18
FBG24
Models
FBG18
FBG24 56 x 35 x 47 in (142.2 x 88.9 x 119.3 cm)
Supply Pressure *
* Check plumbing / gas codes for proper gas supply line sizing to sustain burner pressure when all gas appliances are full on.
Front min. Floor min. Combustible material
(76.2 cm)
for a FBG24. Heat transfer area shall be a minimum of 864 sq. inches (5574 sq. cm ) for the FBG18 and 1152 sq. inches (7432 sq. cm)
Offers versatile cooking of wet batter products like fish & chips, tempura, funnel cakes, and other conventional fried products.
(61 x 61cm)
GAS FRYER REQUIREMENTS ELECTRIC SYSTEM REQUIREMENTS
Natural Gas
(17.4 mbars/ 1.74 kPa)
(15.25 cm)
6" (15.2cm) 6" (15.2cm)
(8.3 - 12.7cm)
(8.3 - 12.7cm)
(27.4 mbars/ 2.74 kPa)
(19 - 29.5 kg)
( 25.6 - 39.5 kg)
Shipping Crate Size H x W x L
58 x 22 x 44 in (144.7 x 104.1 x 132.0 cm)
LP Gas
(Total Amps per Fryer)
Non-Combustible material
Sides min.
0" 0"
for the FBG24.
(35.1kW) (127MJ)
Fryer Cord
Rear min.Sides min. Rear min.
10 mbars/1kPa
(
115V 60Hz 208 / 220-240V 50-60 hz
0.7 0.4
Fryer Flue Area
Do not block / restrict flue gases from flowing into hood
or install vent hood drains over the flue.
LPNat
25 mbars/2.4kP
(
Shipping CubeShipping Weight
32.5 ft3 (0.9 m3 )
53.3 ft3 (1.5 m3 )
Pitco Frialator, Inc • P.O. Box 501, Concord, NH 03302-0501 • 509 Route 3A, Bow, NH 03304
603-225-6684 • FAX: 603-225-8497 • www.pitco.com L10-218 Rev 1 02/07 Printed in the USA
We We reserve the right to change specifications without notice and without incurring any obligation for equipment previously or subsequently sold.
