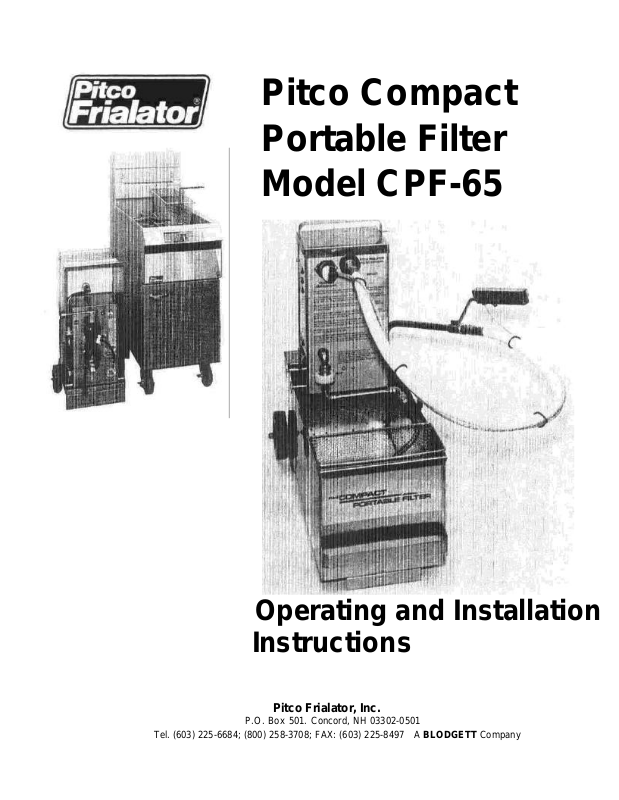

Pitco CPF65 Installation Manual
Pitco Compact
Operating and Installation
Portable Filter
Model CPF-65
Instructions
Pitco Frialator, Inc.
P.O. Box 501. Concord, NH 03302-0501
Tel. (603) 225-6684; (800) 258-3708; FAX: (603) 225-8497 A BLODGETT Company
Contents
Introduction Page 1
Safety Notes 2
Specifications 3
Unpacking and Checking the Filter 4
Installation Instructions 4
Operating Instructions 5
Preparing the Filter 5
Filtering Instructions 6
Cleaning and Storing the Unit 8
Parts Listing 10
Wiring Diagram 18
Troubleshooting Chart 20
Figures:
Fig. 1 Dimensions Page 3
Fig. 2 Filter Pickup Assembly 5
Fig. 3 Installing Filter Bag 5
Fig. 4 Unit Ready to Operate 6
Fig. 5 Draining the Fryer 7
Fig. 6 Rinsing the Fry Tank 7
Fig. 7 Circulating the Oil 8
Fig. 8 Returning the Oil 8
Fig. 9 Unit Folded for Storage 9
Fig.10 Filter Pan 10
Fig.11 Pump and Motor 10
Fig.12 Rear of Motor Housing 11
Fig.13 Inside of Motor Housing 11
Fig.14 Filter Hose Assembly 12
Fig.15 Filter Paper Bag 12
Fig.16 Filter Pickup Assembly 12
Fig.17 Accessories
Fig.18 Exploded View
Fig.19 Wiring Diagram
12
13
18
Contents
Introduction
The Pitco CPF-65 Compact Portable Filter is designed to
filter food and other sediment from the cooking oil used in
your deep fat fryer. The unit is portable, for convenient use.
If you do not filter regularly, the shortening or cooking oil
may become contaminated and break down. The Pitco
Portable Filter removes most microscopic particles,
moisture, and free fatty acids from the oil. By using the
Pitco CPF-65 Portable Filter regularly, you will produce
better-cooked, and better-tasting food. By extending the life
of your oil, the CPF-65 will pay for itself many times over.
The CPF-65 filter unit can be stored out of the way, and
rolls easily to wherever it is needed. The low profile allows
the unit to roll directly under the drain valve outlet extension
nipple on the fryer. This makes it easier to drain the fryer.
The inner area of the pan is free of clamps and brackets for
easy cleaning. The large filtering area assures fast filtering.
Introduction 1
Safety Notes
Warning!
Please read all of the instructions in this manual
before you attempt to operate your CPF-65 Pitco Filter.
To ensure that the unit is always used in a safe
manner, a copy of this brochure should be available at
all times. If the brochure is either lost or misplaced,
please contact the manufacturer for additional copies.
Warning!
When the filter is operating, the oil in the fryer may be
hotter than 375° (190°C). This hot oil can cause you to
be burned very badly. Do not let the hot oil touch your
skin or clothing. Always wear oil-proof insulated
gloves when filtering hot oil.
Warning!
The filter return hose assembly was designed with a
safety control switch to rinse the fry tank when
cleaning and to return clean filtered oil to the fry tank
after filtering. Added caution should be taken at all
times to ensure total safety to the operator and to
others in the area w hen using this assembly.
Warning!
Never jam the pump switch in the "on" position or
operate the unit while it is unattended.
2 Safety Notes Pitco Frialator CPF-65 - Operating and Installation Instructions
3
2015
Specifications
Model CPF-65
Dimensions U.S.A. Units Metric Units
A 30 1/2" 77.5 cm
B 10 3/4" 27.3 cm
C 14 3/4" 37.5 cm
D 31" 78.8 cm
Filter Bag Size: 11" x 13" 27.9 x 33.0cm
Filtering Area: 242 in
Fat Capacity: 65 lbs 29.5kg
Shipping Weight 88 lbs 40.0kg
Shipping Container vol. 5 cu ft 0.2 cu mtr
2
1561 cm2
Figure1-Dimensions
Specifications
Check to be sure the following items are included in the
Installation Instructions
Unpacking and Checking the Filter
The CPF-65 is shipped in a single cardboard box.
1.
box (see Fig. 4):
Item Quantity
Flush hose assembly 1
Crumb catch basket 1
Bag retainer inlet assembly 1
Filter paper bags 25
FiIter powder (precoat) sample 5 Ib.
Sediment cleaning scoop 1
Measuring cup (16 oz.) 1
Operation/instruction manual 1
Installation Instructions
1. The CPF-65 is equipped with an 8 ft. (2.4 m.) oil-proof
electrical power supply cord with ground.
Warning!
This ground is to protect the operator from electrical shock in
the event of an equipment malfunction. DO NOT remove or
tamper with the ground feature.
2. When you install the unit, follow all local codes. If local
codes do not apply, follow the United States National
Electric Code, ANS/NFPA No. 70-1987 (or current) or in
Canada, follow CSAC 22-1 Canadian Electrical Code
Part 1.
4 Installation Pitco Frialator CPF-6 -Operating and Installation Instructions
5
Warning
Operating Instructions
Preparing the Filter
1. Move the portable filter into position in front of the
fryer. See Fig. 4.
2. Lift the motor box housing assembly. When the
assembly locks into the upright position, you will hear
a click. Check to see if the latching mechanism is
engaged before releasing the handle.
3. When you use the filter, you will have to drain the oil
out of the fryer.
!
The end of the drain may be hot! Use insulated oil -proof
gloves when you attach the drain outlet extension nipple into
the drain valve (see Fig. 4). Beware of other parts of the fryer
and filter - may be hot
4. Change the filter paper bag if it is dark or torn:
a. Remove the filter pickup assembly from the filter pan.
b. Remove the filter paper bag retainer clip, as shown in
Fig. 2.
c. Remove the round knurled knob from the bottom of the
filter
Remove the filter screen and filter bag away from the
inlet suction Tube.
d. Remove the old filter bag from the filter screen and
throw it away.
e. To assemble, slide the filter paper bag over the filter
screen until the holes are in line with each other. See
fig.3.
f. Use the knurled knob to attach the filter pickup
assembly to the filter suction tube. See Fig. 2.
Fold the filter bag over the end of the filter screen and
attach the filter bag clamp with the flat side face
down. See Fig. 2.
Place the filter pickup assembly in the filter pan. Once
the filter pickup assembly has been properly located,
the assembly will sit flat on the bottom of the pan to
ensure proper filtering. See Fig. 9.
Operating instructions
