Pitco CPE14 Installation Manual

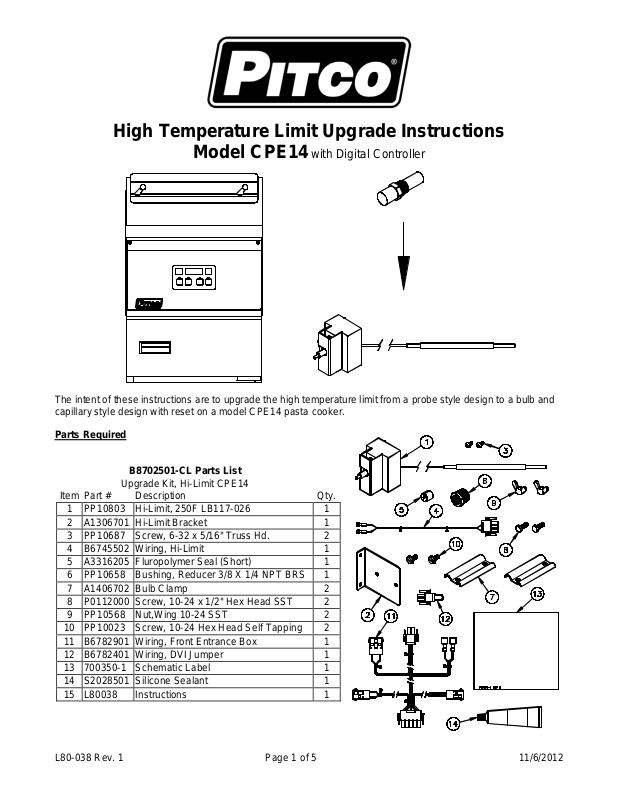

High Temperature Limit Upgrade Instructions

Model CPE14

The intent of these instructions are to upgrade the high temperature limit from a probe style design to a bulb and
capillary style design with reset on a model CPE14 pasta cooker.

Parts Required

Item Part # Description Qty.

1 PP10803 Hi-Limit, 250F LB117-026 1
2 A1306701 Hi-Limit Bracket 1
3 PP10687 Screw, 6-32 x 5/16" Truss Hd. 2
4 B6745502 Wiring, Hi-Limit 1
5 A3316205 Fluropolymer Seal (Short) 1
6 PP10658 Bushing, Reducer 3/8 X 1/4 NPT BRS 1
7 A1406702 Bulb Clamp 2
8 P0112000 Screw, 10-24 x 1/2" Hex Head SST 2

9 PP10568 Nut,Wing 10-24 SST 2
10 PP10023 Screw, 10-24 Hex Head Self Tapping 2
11 B6782901 Wiring, Front Entrance Box 1
12 B6782401 Wiring, DVI Jumper 1
13 700350-1 Schematic Label 1
14 S2028501 Silicone Sealant 1
15 L80038 Instructions 1

B8702501-CL Parts List

Upgrade Kit, Hi-Limit CPE14

with Digital Controller

L80-038 Rev. 1 Page 1 of 5 11/6/2012

High Temperature Limit Upgrade Instructions Model CPE14 with Digital Controller

g

Tools Required

 Flat blade screwdriver
 Phillips screwdriver
 11/16” Combination wrench

 9/16” Combination wrench
 3/8” Combination wrench
 5/16” Socket and a ratchet

 5/16” Combination wrench
 Drill with 7/32” & 5/16” drill bits*

*may not be required for all upgrades

The power supply must be disconnected
before servicing this appliance.

WARNING

WARNING

Drain the appliance before performing
the following procedure.

High Temperature Limit Removal

1. Ensure that the power is disconnecte d and that the
tank is drained.

2. Remove the two screws securing the bezel to the front
of the appliance. Keep the two screws in a safe place
since they will be required later. (See Diagram A)

3. Tilt the bezel down and disconnect the wire pl ug
connected to the controller. (See Diagram A)

4. Remove the Bezel from the appliance. Keep the bezel
in a safe place for reinstallation later.

A) Bezel Screws B) Bezel C) Controller

Diagram A

5. Disconnect the wire harness from the high
temperature limit, temperature probe and circuit breaker. (See Diagram B)

6. Disconnect the remaining connection on the wire harness and remove the harness from the appliance.

7. Remove the high temperature limit from the appliance . (See Diagram B)

A) High Temperature Limit
B) Temperature Probe
C) Circuit Breaker

ram B

Dia

L80-038 Rev. 1 Page 2 of 5 11/6/2012

High Temperature Limit Upgrade Instructions Model CPE14 with Digital Controller

Front Entrance Box Modification

1. Inspect the front entrance box to see if it has the hole pattern required to install the new high temperature
limit. Proceed to the following steps only if the front entrance box does
NOT include the hole pattern shown. (See Diagram C)

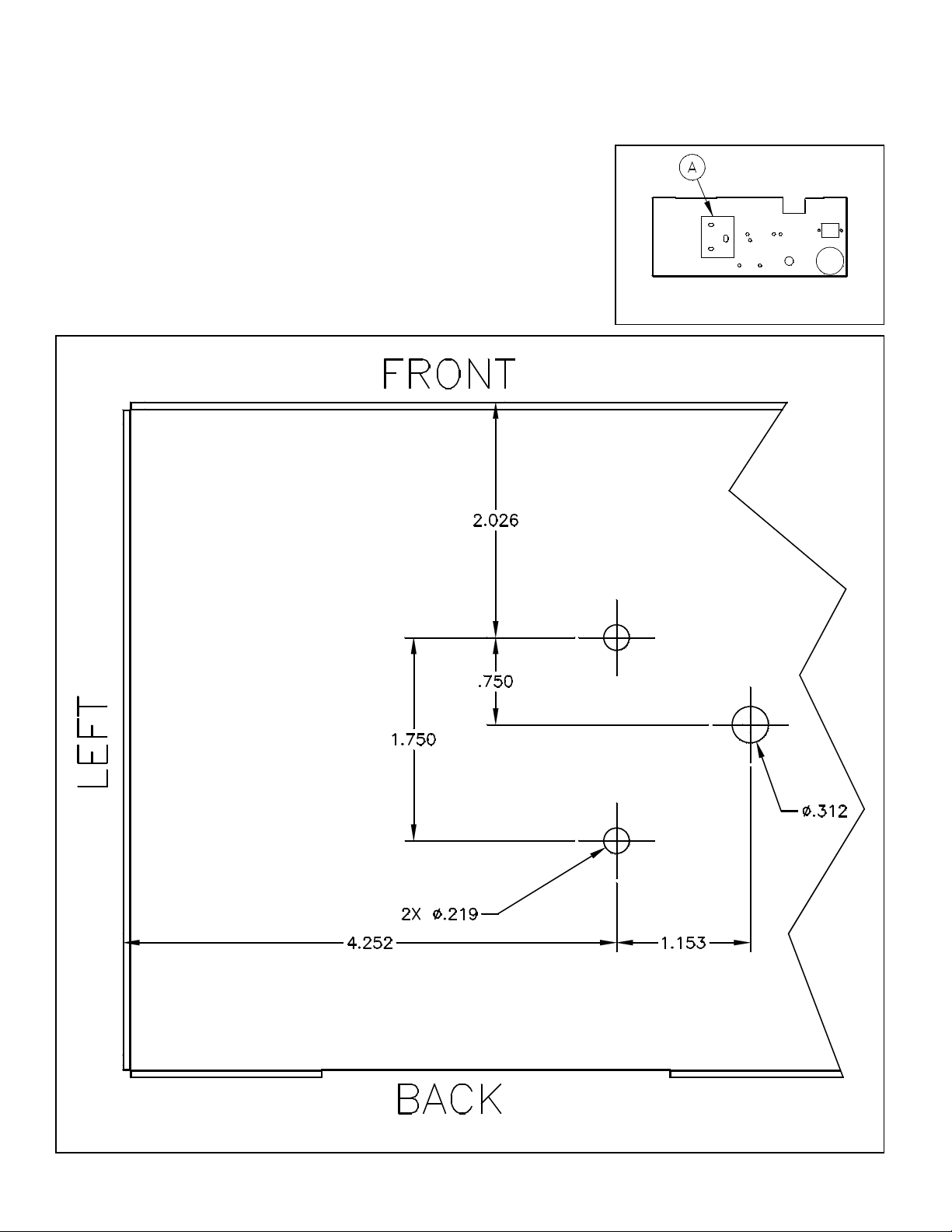

2. Drill two 7/32” holes and one 5/16” hole in the front entrance box in the
outlined locations. (See Diagram D) Diagram D is shown actual size

and therefore can be used as a template for locating hole centers.

3. Remove all burrs and sharp edges from the drilled h oles. Remove any
metal shavings created from the drilling operation.

A) High Temperature Limit Holes

Diagram C

Diagram D

L80-038 Rev. 1 Page 3 of 5 11/6/2012

High Temperature Limit Upgrade Instructions Model CPE14 with Digital Controller

High Temperature Limit Subassembly

1. Attach high temperature limit wiring to the
new high temperature limit.
(See Diagram E)

2. Fold over the flaps on the high temperature
limit to cover the wiring connections.
(See Diagram E)

3. Attach the high temperature limit to the
bracket using two 6-32 screws.
(See Diagram E)

Installation

1. Apply silicone sealant to the reducer
bushing. Install the bushing into the hi-limit
coupling. (See Diagram F)

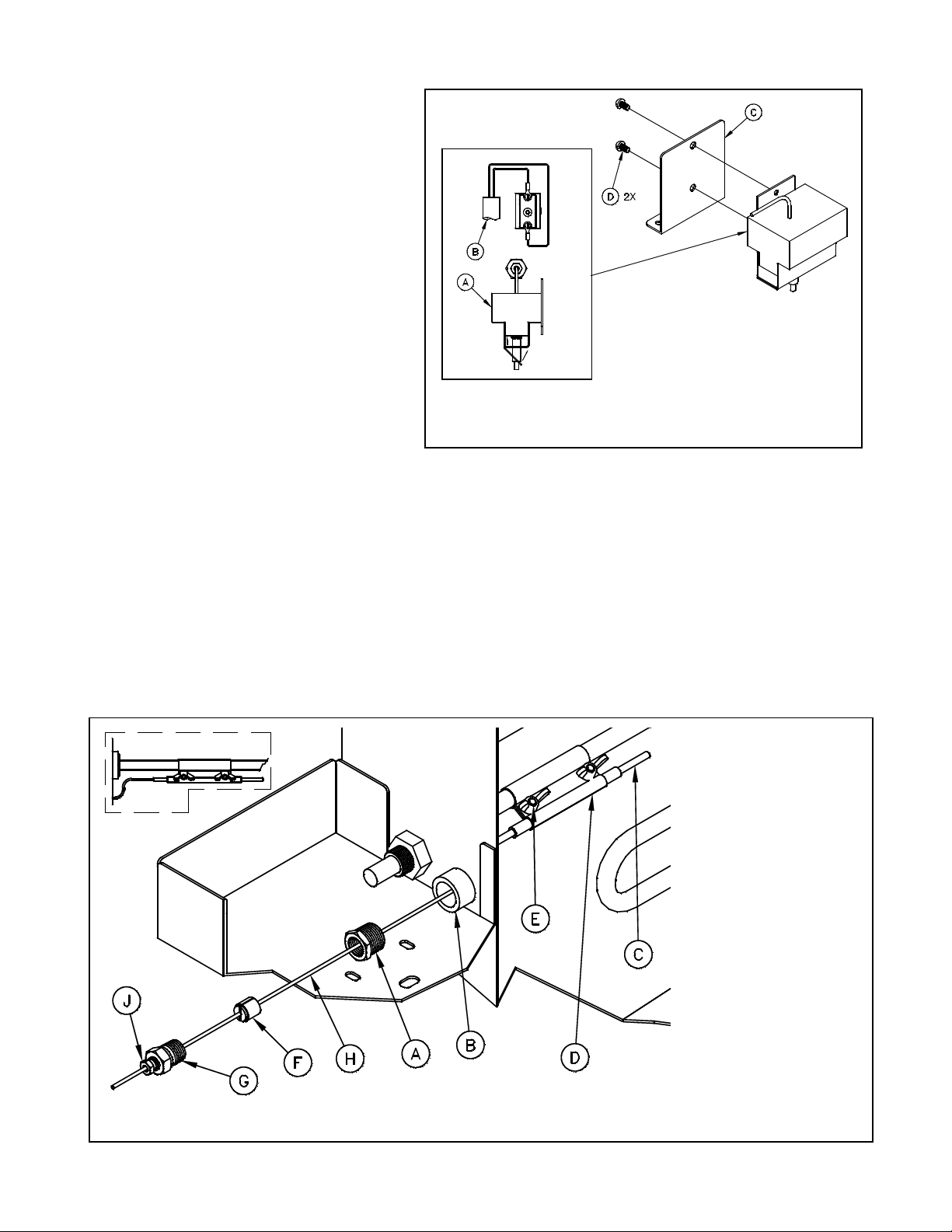

A) High Temperature Limit B) Wiring
C) Bracket D) 6-32 Screws

Diagram E

2. Insert the high temperature Limit bulb into the tank through the hi-limit coupling. (See Diagram F)

3. Secure the bulb to the heating element using two bulb clamps, 10-24 screws and wing nuts. The clamp
should be located 2 to 3 inches from the front of the tank. (See Diagram F)

4. Insert the Teflon seal into the reducer bushing. (See Diagram F)

5. Apply silicone sealant to the high temperature limit bulkhead fitting and install the fitting into the reducer
bushing. (See Diagram F)

6. Adjust how much of the capillary is inside the tank until it travels a short, smooth and kink free path inside the
tank. Assure that the capillary does NOT come in contact with the element at any point.

7. Tighten the compression screw on the bulkhead fitting until the capillary is secure. (See Diagram F)

A) Reducer Bushing
B) Hi-Limit Coupling
C) Bulb
D) Bulb Clamp
E) Wing Nuts & Screws
F) Fluropolymer Seal
G) Bulkhead Fitting
H) Capillary
J) Compression Screw

Diagram F

L80-038 Rev. 1 Page 4 of 5 11/6/2012

High Temperature Limit Upgrade Instructions Model CPE14 with Digital Controller

8. Fill the cook tank with water and inspect the tank coupling
connections to assure that they are leak free.

9. Drain the water from the tank before p ro cee ding.

10. Attach the high temperature limit subassembly to the front entrance
box using two 10-24 self tapping screws. (See Diagram G)

11. Connect the DVI jumper to the connector with orange and violet/white
wires on the new front entrance box wiring. (See Diagram H)

12. Connect the new front entrance box wiring to the components in the
front entrance box as shown. (See Diagram H)

13. Connect the new front entrance box wiring to the controller located
on the bezel.

14. Reinstall the bezel and secure using the
two screws removed during disassembly.

15. Replace the schematic label located
inside the door with the new schematic
label.

16. Startup the appliance per the procedure
shown in its installation and operation
manual. Assure that the appliance is
operating properly.

Connector Connection

CB1 Circuit Breaker

J3 Temperature Probe
J5 High Temperature Limit
J6 DVI Jumper
P1 Controller
P4 Other Connection

Schematic

A) High Temperature Limit

Subassembly

B) Self Tapping Screws

Diagram G

Diagram H

Location

A Entrance Box, Rear
B Entrance Box, Front
C Front Panel

Component

A1 Controller
CB1 Circuit Breaker
HL1 High Temperature Limit
HR1 Heating Element

K1, K2 Contactor

LS1 DVI
MP1 Ground
RT1 Temperature Probe

T1 Transformer

TB1, TB2 Terminal Block

Schematic Key

Description

Description

L80-038 Rev. 1 Page 5 of 5 11/6/2012
