Pioneer HTZ-SW7 User Manual

DVD SURROUND SYSTEM

HTZ-7

DVD CENTER UNIT

HTZ-C7

POWERED SUBWOOFER

HTZ-SW7

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

ORDER NO.

RRV2076

Type

KU/CA AC120V

This product is a system(s) component.
This product does not function properly when independent; to avoid malfunctions, be sure
to connect it to the prescribed system component(s), otherwise damage may result.

HTZ-7 is a combination of the following components.
DVD SURROUND SYSTEM (HTZ-7) DVD CENTER UNIT (HTZ-C7)

Model
HTZ-7

Power Requirement Remarks

POWERED SUBWOOFER (HTZ-SW7)

AMP ASSY (A-SW7)

CONTENTS

1. SAFETY INFORMATION .......................................2

2. EXPLODED VIEWS AND PARTS LIST................... 3

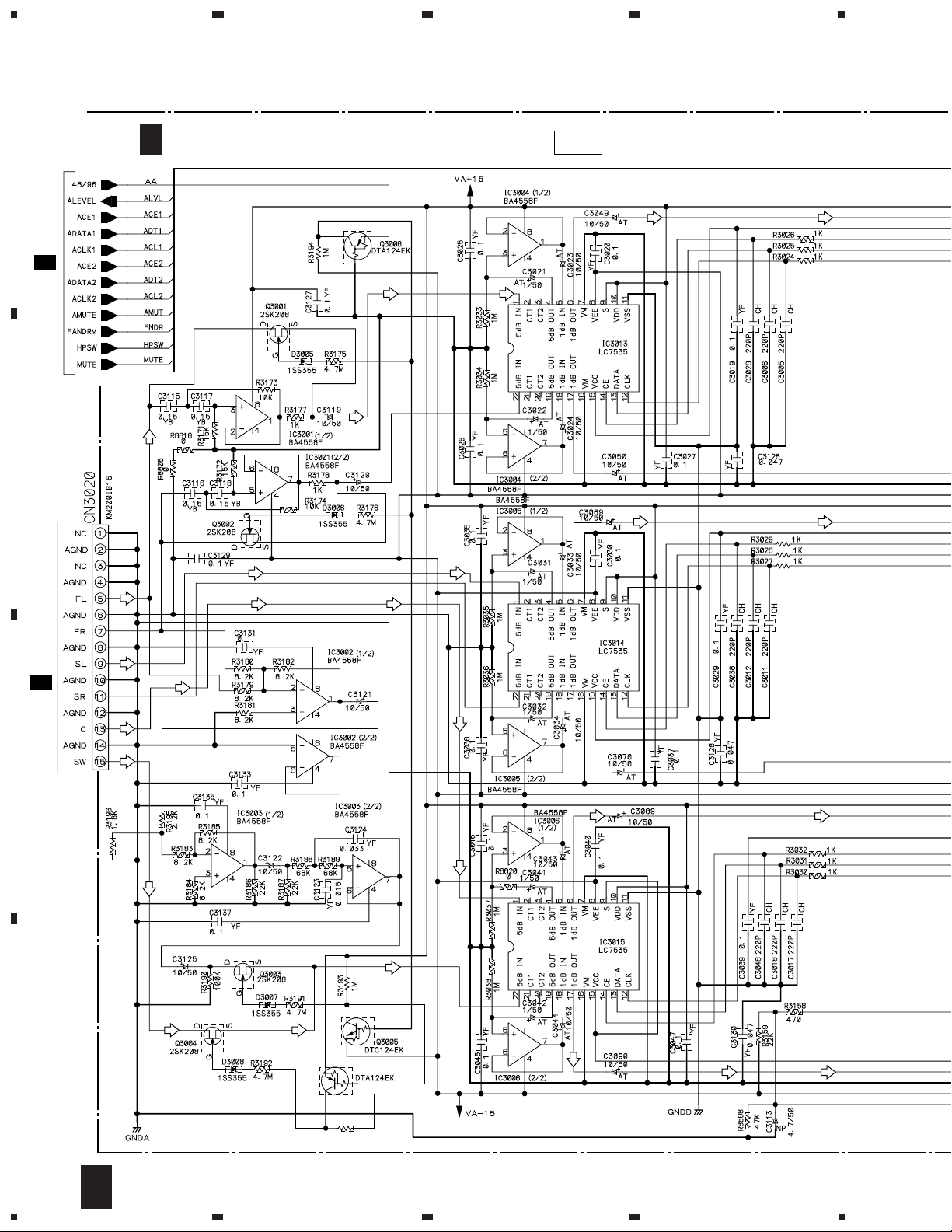

3. SCHEMATIC DIAGRAM ...................................... 19

4. PCB CONNECTION DIAGRAM............................ 54

5. PCB PARTS LIST ................................................79

6. ADJUSTMENT .................................................... 90

7. GENERAL INFORMATION .................................. 99

7.1 PARTS .......................................................... 99

7.1.1 IC ............................................................99

7.1.2 DISPLAY ............................................... 105

7.2 DIAGNOSIS................................................. 106

7.2.1 FAIL-SAFE ............................................ 106

7.2.2 SINGLE UNIT OPERATION METHODS.. 107

7.2.3 DISASSEMBLY ..................................... 109

7.2.4 TEST MODE ......................................... 114

7.3 BLOCK DIAGRAM ....................................... 118

7.4 REMOTE CONTROL UNIT ........................... 120

7.4.1 EXPLODED VIEWS AND PARTS LIST ... 120

7.4.2 SCHEMATIC DIAGRAM......................... 122

8. PANEL FACILITIES AND SPECIFICATIONS ...... 123

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER ELECTRONIC CORPORATION 1999

T–DZY JAN. 1999 Printed in Japan

HTZ-7, HTZ-C7, HTZ-SW7

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty . If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 – Proposition 65

NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols

(fast operating fuse) and/or (slow operating fuse)

on PCB indicate that replacement parts must be of identical designation.
REMARQUE

(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible
de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la
même désignation.

(FOR USA MODEL ONLY)

1. SAFETY PRECAUTIONS

The following check should be performed for the

continued protection of the customer and service
technician.

LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed

metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.

Reading should
not be above

0.5 mA

Earth ground

Device
under
test

Also test with plug
reversed
(Using AC adapter
plug as required)

Leakage

current

tester

Test all exposed
metal surfaces

AC Leakage Test

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO­TENTIAL SHOCK HAZARD AND MUST BE COR­RECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appli­ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob­tained by using replacement components rated for
voltage, wattage , etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.
Electrical components having such features are
identified by marking with a
on the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.
Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to, or ad­ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.

IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.

LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 7 mw
WAVELENGTH: 650 nm

on the schematics and

2

HTZ-7, HTZ-C7, HTZ-SW7

2. EXPLODED VIEWS AND PARTS LIST

NOTES : Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List.

The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screw adjacent to mark on the product are used for disassembly.

2.1 DVD CENTER UNIT (HTZ-C7)

2.1.1 PACKING

11

Refer to “ 7.4 REMOTE
CONTROL UNIT ”.

17

3

19

17

10

9

12

6

7

18

1

5

PACKING PARTS LIST

Mark No. Description Part No.

1 Protector A AHA7242
2 Protector B AHA7257
3 Protector C AHA7244

2

4 Packing Case AHD7741
5 Packing Sheet (750 × 600 × 0.5) Z23–007

6 Operating Instructions ARB7174

(Setting up the HTZ–7)
(English/French)

7 Operating Instructions ARB7175

(Basic/Detailed) (English/French)
8 ……………………
9 FM Antenna ADH7004

10 AM Loop Antenna ATB7009

16

15

11 Remote Control (CU–HT004) AXD7189

NSP 12 Alkaline Batteries (AA/LR6) VEM1012

13 ……………………
14 ……………………

NSP 15 Warranty ARY7023

4

NSP 16 Polyethylene Bag Z21–010

(100 × 230 × 0.018)

17 Polyethylene Bag Z21–038

(0.03 × 230 × 340)

18 Protector E AHA7258
19 Battery Cover 103RRC14701R

3

HTZ-7, HTZ-C7, HTZ-SW7

2.1.2 EXTERIOR (1/2)

11

26

26

26

34

13

33

11

17

39

2

29

b

EXTERIOR (2/2)

EXTERIOR (2/2)

A

D

18

38

25

CN5506

CN5502

30

c

27

e

EXTERIOR (2/2)

d

EXTERIOR (2/2)

CN5503

31

28

a

CN5501

CN5508

25

B

8

26

26

CN5505

CN5504

CN6201

36

6

10

26

9

25

26

7

9

26

D

32

26

26

26

26

21

15

20

26

1

37

CN101

26

4

26

CN105

5

22

26

CN106

CN107

CN801

CN201

CN802

CN102

CN803

B

CN7801

26

33

C

26

26

28

23

24

a

A

14

C

26

35

26

3

16

19

12

Refer to “ 2.1.3 EXTERIOR (2/2) ”.

4

EXTERIOR (1/2) PARTS LIST

Mark No. Description Part No.

1 VIDEO ASSY AWU7284
2 MOTHER ASSY AWU7285
3 FRONT (1) ASSY AWU7163
4 FRONT (2) ASSY AWU7164
5 LAMP ASSY AWU7165

6 FM/AM TUNER MODULE AXQ7065
7 Rear Panel ANC7814
8 FCC Holder ANG7231
9 Radiation Sheet VEB1285

10 Heat Sink VNE2134

11 Screw ABA7048

12 Front Skirt AMB7528
NSP 13 Side Panel L AMB7615
NSP 14 Side Panel R AMB7616

15 Side Skirt L AMB7532

16 Side Skirt R AMB7533

17 Front Alumi ANB7136

18 Top Alumi ANB7137

19 Panel Base Assy AXG7069
NSP 20 LED Lens AAK7581

HTZ-7, HTZ-C7, HTZ-SW7

NSP 21 Panel Base AMB7526

22 Illumination Filter VEC1950

23 Illumination Holder VNK4098

24 Illumination Lens VNK4168

25 Screw BBZ30P060FMC

26 Screw BBZ30P100FZK

27 17P FFC/60V ADD7108

(CN5503 += CN7005)

28 7P FFC/60V ADD7115

(CN5901 += CN5505)

29 7P FFC/60V ADD7137

(CN106 += CN5506)

30 14P FFC/60V ADD7138

(CN105 += CN5502)

31 12P FFC/60V ADD7139

(CN301 += CN107,
CN5501 += CN11)

32 Screw (3 × 8) ABA7050
NSP 33 Tape AEB7143

34 Side Panel L Assy AXG7073

35 Side Panel R Assy AXG7074

36 65 Label ARW7050

37 Fuse Caution Label ARW7051

38 Cushion E AEB7140

39 Cushion D AEB7139

5

HTZ-7, HTZ-C7, HTZ-SW7

2.1.3 EXTERIOR (2/2)

39

35

c

EXTERIOR (1/2)

30

42

42

CN105

42

CN101

b

EXTERIOR
(1/2)

6

CN107

29

CN106

h

CN802

31

40

CN801

f

CN803

22

36

33

26

44

24

25

47

46

43

37

43

10
Refer to “ 2.1.4 LOADING

MECHANISM ASSY”.

h

36

34

42

50

i

CN7002

EXTERIOR (1/2)

19

f

g

CN7004

d

33

CN7005

27

CN7502

CN7501

42

To VIDEO ASSY
CN7801
EXTERIOR (1/2)

32

42

1

42

41

38

31

2

42

23

45

CN11

CN10

42

42

g

34

13

7

31

e

EXTERIOR (1/2)

8

4

49

3

5

i

14

15

6

42

15

16

42

42

11

51

42

42

48

20

21

11

42

17

21

12

9

12

18

12

42

HTZ-7, HTZ-C7, HTZ-SW7

EXTERIOR (1/2) PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

1 SVIDEO ASSY AWU7283
2 POWER MAIN ASSY AWU7286
3 POWER SUB ASSY AWU7287
4 AC ASSY AWU7288
5 DVDM ASSY VWS1364

6 FLASH ROM (IC6003) VYW1570
7 Power Transformer (T1) ATS7238
8 Fuse (1A/125V, FU1) REK1075
9 Fan Motor AXM1019

NSP 10 Loading Mechanism Assy VWT1147

11 Leg AEB7090

12 Rubber Bush AEB7134
NSP 13 PCB Spacer (3 × 12) AEC1372
NSP 14 Chassis ANA7075

15 PCB Holder (A) ANG7202

16 PCB Holder (B) ANG7206

17 Fan Cover ANG7208

18 Fan Holder ANG7230

19 Shield Case ANK7046

20 Cover ANK7047

21 Screw BBZ30P300FZK
NSP 22 Edging Saddle (S) DEC1761

23 Tray Spring VBH1277

24 Clamper Plate VNE2068

25 Bridge VNE2069

41 Tray Label VRW1628
42 Screw BBZ30P060FMC
43 Screw BBZ30P100FZK
44 Screw BPZ26P080FZK
45 Insulation Sheet B AEC7186

46 Insulation Sheet AEC7187
47 Nylon Rivet (3 × 4.5) RBM–003
48 Label ARW7048
49 Cushion F AEB7141
50 Cushion G AEB7142

51 Spacer AEB7151

26 Tray VNL1731

27 17P FFC/60V ADD7108

(CN5503 += CN7005)
28 ……………………
29 7P FFC/60V ADD7137

(CN106 += CN5506)
30 14P FFC/60V ADD7138

(CN105 += CN5502)

31 12P FFC/60V ADD7139

(CN301 += CN107,

CN5501 += CN11)
32 7P FFC/60V ADD7109

(CN7801 += CN7501)
33 17P FFC/60V ADD7111

(CN802 += CN7502)
34 14P FFC/60V ADD7112

(CN803 += CN7004)
35 Housing Assy (14P) AKP7033

(CN101 += CN10)

36 4P Connector AKP7046

(CN801 += CN7002)
37 Clamper VNL1738
38 Tray Stopper VNL1739
39 Tray Panel AMB7534
40 DVD Badge VAM1076

7

HTZ-7, HTZ-C7, HTZ-SW7

2.1.4 LOADING MECHANISM ASSY

¶ Top View

2

Refer to “ 2.1.5 SERVO
MECHANISM ASSY”.

1

3

4

5

20

¶ Bottom View

17

18

10

6

9

13

7

8

16

15

11

12

LOADING MECHANISM ASSY PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

1 Servo Mechanism Assy-S VXX2538
2 Screw DBA1006
3 Drive Cam VNL1736
4 Drive Gear VNL1735
5 Lock Plate VNL1820

6 Loading Base VNL1730
7 Rubber Belt VEB1260
8 Gear Pulley VNL1733

NSP 9 LOSB Assy VWG1885

10 Loading Gear VNL1734

11 Loading Motor Assy VXX2505
12 DC Motor PXM1027
13 Motor Pulley PNW1634

NSP 14 LOMB Assy VWG1886

15 Connector Assy (2P) VKP2198

(LOMB CN401 += LOSB CN303)

16 Screw VBA1055
17 Screw Z39–019
18 Flexible Cable (8P) VDA1649

(LOSB CN302 += INSB CN202)
19 ……………………
20 Stopper DNH2076

14

8

2.1.5 SERVO MECHANISM ASSY

¶ Top View ¶ Bottom View

HTZ-7, HTZ-C7, HTZ-SW7

13

3

2

4

5
6

29

7

14

9

30

8

15

16

18

26

18

32

1

10

11

12

23

27

9

17

18
18

24

20

21
22

28

25

31

19

SERVO MECHANISM ASSY PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

1 Spindle Motor Assy VXX2563

2 Magnet Holder Assy VXX2507
NSP 3 Magnet VYM1024
NSP 4 Magnet Holder VNE2070

5 Centering Ring VNL1746

6 Centering Spring VBH1278
NSP 7 Disc Table VNL1747
NSP 8 Motor VXM1071

9 Screw JGZ17P028FMC

10 Sub Guide Bar VLL1489

11 Guide Bar VLL1488
12 Mechanism Base VNL1748
13 Hook VNL1770
14 Hook Spring VBH1291
15 Slider VNL1745

16 Hold Spring VNC1011

17 Pickup Assy VWY1046
18 Floating Rubber DEB1315
19 Float Base VNL1732
20 Gear D VNL1766
21 Gear Spring VBH1306
22 Gear E VNL1767

23 Gear F VNL1768
24 Motor VXM1062

NSP 25 INSB Assy VWG1883

26 Screw PBZ20P050FMC
27 Flexible Cable (20P) VDA1680

(DVDM CN102 += Pickup Assy)

28 Connector Assy (3P) VKP2150

(INSB CN201 += FGSB CN101)
29 Table Sheet DEC2040
30 Screw PBA1048

NSP 31 FGSB Assy VWG1884
NSP 32 Sheet VEC1959

9

HTZ-7, HTZ-C7, HTZ-SW7

2.2 POWERED SUBWOOFER (HTZ-SW7)

2.2.1 PACKING

33

1 (1/2)

3

34

17

13

15

16

14

19

5

6

7

1 (2/2)

20

12

12

8

25

21

11

9

10

24

23

22

27

26

3

30

32

31

2 (1/2)

4

2(2/2)

18

28

29

30

10

PACKING PARTS LIST

Mark No. Description Part No.

1 Protector (L) SHA2138
2 Protector (R) SHA2139
3 Packing Sheet SHC1723
4 Packing Case SHG2197

NSP 5 Cushion Set SEA1528

NSP 6 Polyethylene Bag SHL–051

7 Leg SXK1046
8 Display Cable (L= 3m) ADE7027
9 Digital Audio Cable (L= 3m) ADE7028

10 Control Cable (L= 3m) ADE7031

11 Video Cable (L= 3m) ADE7036
12 AC Power Cord ADG7021
13 Polyethylene Bag Z21–038

(0.03 × 230 × 340)
14 Packing Case (for Accessories) AHD7650
15 Packing Case (for Display Unit) AHD7651

HTZ-7, HTZ-C7, HTZ-SW7

16 Spacer AHD7652
17 Packing Sheet RHC1052

NSP 18 Accessory Kit SEA1534

19 Speaker Cords (5m × 3) SDS1065

NSP 20 Speaker Cords (10m × 2) SDS1066

NSP 21 Screw Package SEA1530

22 Installation Screws BMZ40P120FMC
23 Non Skid Pads SEP1189

NSP 24 Polyethylene Bag S1 SHL1225

25 Cord Labels SRW1066

NSP 26 Polyethylene Bag S2 SHL1223

27 Top Protector SHA2134
28 Bottom Protector SHA2135
29 Packing Case SHG2198

NSP 30 Polyethylene Bag S2 SHL1224

NSP 31 Polyethylene Bag S1 SHL1225
NSP 32 Satellite Speakers HTZ–ST7
NSP 33 Display Unit DU–HT7

34 Caution Card ARB7190

11

HTZ-7, HTZ-C7, HTZ-SW7

2.2.2 EXTERIOR

22

17

23

25

9

24

12

13

7

15

21

14

18

9

23

20

20

4

22

10

Refer to “ 2.2.3 AMP ASSY ”.

8

22

2

22

19

22

1

16
11

3

22

6

16

12

EXTERIOR PARTS LIST

Mark No. Description Part No.

NSP 1 Cabinet SMM1817

2 Grille SMG1623

NSP 3 Amp Assy A–SW7

4 Top Guard AAK7646
5 ……………………

6 Connection Cord SDF1073

7 Packing SEC1423
NSP 8 Packing SEC1429
NSP 9 Damper SEC1430

10 Damper SEC1431

NSP 11 Bush SEP–150
NSP 12 Acoustic Absorbent SMV1942

13 Damper SER1236
NSP 14 Damper Plate SLX1141
NSP 15 Duct SMR1302

NSP 16 Acoustic Absorbent SMV1936
NSP 17 Duct Ring SNK2348
NSP 18 Top Cover SNK2354

19 Speaker Q20EU82–53F

20 Screw (for Top Guard) BBZ30P080FZK

HTZ-7, HTZ-C7, HTZ-SW7

21 Screw (for HP Assy) BPZ30P080FMC

22 Screw (for Speaker, Duct BYC40P200FZB

and Amp Assy)
23 Screw (For Top Cover) SBA1095
24 Duct Assy SXB1370
25 Top Cover Assy SXB1368

13

HTZ-7, HTZ-C7, HTZ-SW7

2.2.3 AMP ASSY (A-SW7)
Exterior (1/2)

6

16

16

16

16

16

16

3

19

19

17

10

Refer to “ 7 EXTERIOR (2/2) ”.

19

19

20

13

16

19

16

4

17

10

13

17

7

9

16

16

17

21

18

14

16

18

16

17

2

11

1

5

17

15

9

8

12

17

14

17

EXTERIOR (1/2) PARTS LIST

Mark No. Description Part No.

1 POWER SUPPLY ASSY AWU7289
2 SWF ASSY AWU7292
3 IF ASSY AWU7293
4 MAIN ASSY AWU7362
5 Fuse (4A, FU8001) REK1082

6 Screw (3 × 8) ABA7050
7 Rear Panel ANC7809
8 Bottom Panel ANC7706
9 Side Panel ANC7707

10 Bridge ANG7200

11 PCB Holder ANG7203
12 Leg Assy AEC7165

13 PCB Fixing Jig DEC1231
NSP 14 Cord Clamper S DEC1574
NSP 15 PCB Holder PNW2029

16 Screw BBT30P080FZK

17 Screw BBZ30P080FMC

18 Cushion C AEB7138

19 Screw IBZ30P100FCC

20 Cushion D AEB7148

HTZ-7, HTZ-C7, HTZ-SW7

21 65 Label ARW7050

15

HTZ-7, HTZ-C7, HTZ-SW7

Exterior (2/2)

17

26

18

20

19

26

26

6

9

30

26

5

3

26

26

14

27

27

27

26

25

25

27

15

26

27

1

26

13

16

24

23

25

27

26

26

26

26

To IF ASSY

CN3025

8

26

31

26

11

26

28

26

26

15

26

12

10

15

22

21

21

2

4

28

16

7

EXTERIOR (2/2) PARTS LIST

Mark No. Description Part No.

1 AMP ASSY AWU7290
2 PRIMARY ASSY AWU7291
3 HP ASSY AWU7295
4 SECONDARY ASSY AWU7175
5 REG (1) ASSY AWU7176

6 DOLBY DIG 9624 ASSY AWX7271
7 Power Transformer (T8001) ATS7222
8 Cord with Plug ADE7030
9 Jumper Wire D15A10–150–2651

NSP 10 Chassis ANA7074

11 Top Panel ANC7808

12 Fan Holder ANG7199

13 PCB Holder ANG7201

14 IF Holder ANG7204

15 HS Holder ANG7207

NSP 16 Heat Sink ANH7091

17 Shield Case (A) ANK7044
NSP 18 Shield Case (B) Assy AXA7074
NSP 19 Earth Sleeve ALA7010
NSP 20 Shield Case (B) ANK7045

HTZ-7, HTZ-C7, HTZ-SW7

NSP 21 PCB Support AEC1006

22 Insulation Sheet AEC7148

23 Mica Sheet AEE7028
NSP 24 Locking Wire Saddle DEC1305

25 Screw (3 × 16) ABA1056

26 Screw BBZ30P080FMC

27 Screw BBZ30P100FCC

28 Screw BCZ40P060FMC

30 Cushion A AEB7136

31 Cushion B AEB7137

17

HTZ-7, HTZ-C7, HTZ-SW7

2.2.4 SATELLITE SPEAKER (HTZ-ST7)

15

3

12

13

4

6

10

11

9

8

14

7

14

8

1

13

SATELLITE SPEAKER PARTS LIST

Mark No. Description Part No.

4

2

2.2.5 DISPLAY UNIT (DU-HT7)

1

4

1 Cabinet SNK2305
2 Grille SMG1618
3 Speaker Wire SDD1269
4 Packing (for Grille) SEC1398
5 ……………………

6

NSP 11 Acoustic Absorbent SMV1940

8

9

3

6 Packing (for Grille) SEC1401
7 Packing SEE1066
8 Damper SES1021
9 Input Terminal SKX1056

10 Acoustic Absorben SMV1919

(for Grille rib)

12 Speaker B70AC45–57F
13 Screw BPZ40P060FMC
14 Screw BPZ40P120FMC
15 Mini Stand SNK2312

9

DISPLAY UNIT PARTS LIST

Mark No. Description Part No.

18

5

2

7

6

1 FLDP ASSY AWU7294
2 CNB ASSY AWU7172
3 Screw (3 × 8) ABA7050
4 Window AAK7582
5 Leg AEB7090

6 FL Filter AEC7150
7 Display Panel AMB7531
8 Rear Cover AMC7030
9 Screw BPZ30P080FMC

1

23

4

HTZ-7, HTZ-C7, HTZ-SW7

3. SCHEMATIC DIAGRAM

Note: When ordering service parts, be sure to refer to "EXPLODED VIEWS AND PARTS LIST" or "PCB PARTS LIST".

3.1 DVD CENTER UNIT (HTZ-C7)

3.1.1 OVERALL CONNECTION DIAGRAM (1/2), LOMB, LOSB, INSB and

FGSB ASSEMBLIES

LOADING MECHANISM ASSY

SERVO
MECHANISM
ASSY-S
(VXX2538)

: RF SIGNAL ROUTE

(F)

: FOCUS SERVO LOOP LINE

(T)

: TRACKING SERVO LOOP LINE

(S)

: SLIDER SERVO LOOP LINE

FGSB ASSY

D

(VWG1884)

PICKUP ASSY
(VWY1046)

(T)
(F)
(T)

(F)

A

LOMB ASSY
(VWG1886)

(T)
(F)
(F)
(T)
(F)
(F)

LOADING MOTOR

ASSY :VXX2505

(T)
(F)
(T)
(F)

A

B

DVDM ASSY

(VWS1364)

)

3/3

E

PC101
GP2S27(B)

C

SLDR MOTOR

CN201
B3B-PH-K-S

INSB ASSY
(VWG1883)

VXM1062

CN101
B3B-PH-K-S

DSG1017

SPINDLE MOTOR

ASSY : VXX2563

S201

CN202

VKN1239

(S)

(S)

B

LOSB ASSY
(VWG1885)

CN302

VKN1268

S301

VSK1011

CN401
B2B-PH-K-S

CN303
B2B-PH-K-S

CN301

VKN1272

(S)

(S)

ADD7139

1/3 to

E

(

C

E

(S)

(S)

D

DCBA

1

2

3

4

19

1

234

HTZ-7, HTZ-C7, HTZ-SW7

3.1.2 OVERALL CONNECTION DIAGRAM (2/2)

A

(

E

B

1/3 to E 3/3

E

ADD7138 14P ADD7137 7P

DVDM ASSY

)

(VWS1364)

F

FM/AM TUNER
MODULE
(AXQ7065)

MOTHER ASSY

I

(AWU7285)

C

ADD7109

G

VIDEO ASSY
(AWU7284)

AKP7046 4P

ADD7112 14P

D

20

ADD7111 17P

(

H

1234

1/2, H 2/2

H

SVIDEO ASSY

)

(AWU7283)

14P

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

LAMP ASSY
(AWU7165)

O

ADD7115 7P

FRONT (1) ASSY

M

(AWU7163)

AKP7033 14P

FRONT (2) ASSY
(AWU7164)

N

ADD7139 12P

A

K

POWER SUB ASSY
(AWU7287)

J

POWER MAIN ASSY
(AWU7286)

B

MOTHER ASSY

I

(AWU7285)

ADD7108 17P

L

AC ASSY
(AWU7288)

P

CN3023

(HTZ-SW7)

P

JA3026

(HTZ-SW7)

AC POWER CORD
ADG7021

C

D

21

5

6

7

8

1

HTZ-7, HTZ-C7, HTZ-SW7

3.1.3 DVDM ASSY (1/3)

E

1/3

234

DVDM ASSY(1/3)
(VWS1364)

VTL1074

L335

(5/6)

VTL1074

L342

A

!

!

E

2/3

VTL1074

L340

E

2/3

VKF1001

TP400

(2/6)

(3/6)

(1/6)

VCO Offset ADJ.

VKF1001

TP100

(4/6)

B

S14B-PH-SM3

CN101

(T)
(T)

(F)
(F)
(F)
(F)

(6/6)

VKF1001

TP300

1/2

2/2

(ROM)

(ROM)

E

2/3

CN10

J

(F)

CN201

VKN1324

(F)
(F)
(T)
(F)

C

PICKUP ASSY

CN102

VKN1445

VKN1416

CN107

D

CN301

B

(F)

(T)

(F)
(T)
(F)
(T)

(S)

(S)

(S)

(S)

E

3/3

(T)

(T)

(T)

(F)

(F)

(F)

(S)

(S)

(F)

(T)

(S)

R177

33k

R178

33k

2/2

IC171
BA10393F

1/2

IC171
BA10393F

22

E 1/3

(F)

1234

IC506

TC74VHCT245AFT

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

: RF SIGNAL ROUTE

(ROM)

: ROM DATA SIGNAL ROUTE

(F)

: FOCUS SERVO LOOP LINE

(T)

: TRACKING SERVO LOOP LINE

(S)

: SLIDER SERVO LOOP LINE

A

AGCOFF

IC501

HD74HC573FP

IC504

TC74VHC20FT

SRM2B256SLMX70

PD4889A

IC505(1/2)

TC74VHC139FT

IC505(2/2)

E

3/3

VKF1001

TP200

(T)

(T)

TC74VHC139FT

(ROM)

E

2/3

E

2/3

XRESET,DOUT,SBSY,
PW,SFSY,SBCK,LRSY,
ROMCK,ROMXA,MON,
C2F,FG

B

(F)

LD-ON

(T)

(F)

(F)

IC201

LC78650NE

(S)

(F)

(S)
(F)

(T)(T)

LEVEL SHIFT

C271 4700p

R277
100k

2/2

R271 150k

33k

R275

150k

R276

1/2

R273 220k

E

2/3

E

2/3

C

D

E 1/3

5

6

7

8

23

1

HTZ-7, HTZ-C7, HTZ-SW7

3.1.4 DVDM ASSY (2/3)

234

A

VYW1570-

B

E

DVDM ASSY(2/3)

2/3

(VWS1364)

E

1/3

C2F,XRESET

E

3/3

XCSDOLV,DOLV-CD,XWRL,XWRH,
XRD,XLT3,XAMUTE,XDREQ1,
HCPUCK,IR,SEL-IR,XDVRST1,
XAVIRQ0,48/X44,HIBSEL,XCS6,
XDACK1,NAP SW

I

CN5506

CN106

VKN1411

E

3/3

ADDRESS

A2-A10

E

3/3

DATA

C

IC605(1/2)

TC74VHC139FT

D

IC605(2/2)

TC74VHC139FT

X602
VSS1114
20MHz

Q771,Q772:

PDTC114TK

E

1/3

24

E 2/3

1234

5

: AUDIO SIGNAL ROUTE

(ROM)

: ROM DATA SIGNAL ROUTE

E

3/3

SDATA

(ROM)(ROM)

(ROM)

67

HTZ-7, HTZ-C7, HTZ-SW7

E

E

1/3

3/3

TC74VHCT541AFT

E

3/3

IC817

(ROM)

E

1/3

(ROM)

E

1/3

8

A

E

3/3

B

H

1/3

VKN1418

CN105

E

3/3

MONITOR OUTPUT

SERVO

E

1/3

C

E

3/3

E

3/3

E

3/3

E

I

3/3

E

3/3

(ROM) (ROM)

CN5502

E

1/3

E

1/3

E 2/3

5

6

7

8

25

D

1

HTZ-7, HTZ-C7, HTZ-SW7

234

3.1.5 DVDM ASSY (3/3)

A

B

(1/4)

(2/4)

2/3

E

2/3

(3/4)

E

2/3

E

2/3

E

2/3

(4/4)

E

(ROM)

(ROM)

E

2/3

C

E

(COM)

(Y)

2/3

0

R845

(C)

E

2/3

(Y)

(C)

(2/3)

(1/4)

(1/4)

(4/4)

(3/4)

E

2/3

S4B-PH-SM3

CN801

D

2/2

H

E

1/3

CN7002

(3/3)

(1/3)

(3/4)

(2/4)

IC813

CY2081SL-611

(4/4)

(2/4)

Video
Output
Level
ADJ.

E

2/3

(COM)

E

1/3

E

2/3

26

E 3/3

1234

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

E

DVDM ASSY(3/3)

3/3

(VWS1364)

E

2/3

HIBSEL,48/X44,XRESET,
XLT3,XAMUTE

A

B

E

2/3

: AUDIO SIGNAL ROUTE

(ROM)

: ROM DATA SIGNAL ROUTE

(COM)

: COMPOSITE VIDEO SIGNAL ROUTE

(Y)

: Y SIGNAL ROUTE

(C)

: C SIGNAL ROUTE

(COM)

1/2

2/2

(COM)

(Y)

(Y)

(COM)

(C)

1/2

(Y)

(C)

(Y)

(COM)

E

2/3

VKN1421

CN802

VKN1418

CN803

CN7502

1/2

H

C

CN7004

2/2

(C)

(C)

(C)

2/2

H

D

E 3/3

5

6

7

8

27

1

HTZ-7, HTZ-C7, HTZ-SW7

3.1.6 FM/AM TUNER MODULE

234

A

RF AMP

(FM)

(FM)

(FM)

1T378A

OSC

1T378A

(FM)

MIX AMP

BUFFER

(FM)

(FM)

(FM)

(FM)

B

(FM)

IF AMP

FM +B SW

(AM)

(FM)

(FM)

(AM)

(AM)

(AM)

C

(AM)

MW RF TUNING BLOCK
AKX7041

FM/AM TUNER MODULE

F

D

(AXQ7065)

28

F

1234

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

A

(TX)

: TUNER AUDIO SIGNAL ROUTE

(FM)

: FM SIGNAL ROUTE

(AM)

: AM SIGNAL ROUTE

(FM) (FM)

(AM)

(AM)

(FM)

(TX)

AF AMP

(TX)

AF AMP

REGULATOR

(TX)

B

CN5504

I

C

PLL

D

F

5

6

7

8

29

1

234

HTZ-7, HTZ-C7, HTZ-SW7

3.1.7 VIDEO ASSY and SVIDEO ASSY (1/2)

H

SVIDEO ASSY (1/2)

1/2

(Y)

(C)

(Y)

(AWU7283)

(Y)

(Y)

(C)

(C)

(C)

A

B

(Y)

(Y)

(C)

INPUT SELECT

(Y) (Y)

(C)

(C)

VIDEO ASSY

G

(AWU7284)

INPUT SELECT

(COM)

C

(COM)

(DVD)

: DVD DIGITAL AUDIO SIGNAL ROUTE

(COM)

: COMPOSITE VIDEO SIGNAL ROUTE

(Y)

: Y SIGNAL ROUTE

(C)

: C SIGNAL ROUTE

D

(COM)

(COM)

(COM) (COM)

30

G

H 1/2

1234

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

DVD /VIDEO 1, 2 /MUTE SELECT

(Y)

(C)

(Y)

(C)

(Y)

(Y)

(C)

(C)

(Y)(Y)

(C)(C)

A

B

(COM)

(COM)

(COM)

(COM)

H

2/2

(DVD)

(C)

(Y)

(DVD) (DVD)

(C)

(Y)

(Y)

(C)

(COM)

(DVD)

C

D

CN802

E

3/3

G

5

6

7

H 1/2

8

31

1

HTZ-7, HTZ-C7, HTZ-SW7

3.1.8 SVIDEO ASSY (2/2)

234

A

H 2/2

(DVD)

(AWU7283)

(DVD)

SVIDEO ASSY (2/2)

D/A CONVERTER

(DVD)

(DVD)

(DVD)

(DVD)

CN803

E 3/3

B

(DVD)(DVD)(DVD)

A/D CONVERTER

(DVD)

CN5503

I

C

(V2)

D

(V1)

(V2)

(V1)

(V2)

(V1)

32

H 2/2

1234

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

A

(DVD)

(DVD)

(DVD)

(DVD)

(DVD)(DVD)

DIGITAL OUT

SELECT

(DVD)

(DVD)

H 1/2

B

(V1)

(V2)

(DVD)

(V1)

(V2)

E 3/3

CN801

(DVD)

: DVD DIGITAL AUDIO SIGNAL

(V1)

: VIDEO 1 DIGITAL AUDIO SIGNAL

(V2)

: VIDEO 2 DIGITAL AUDIO SIGNAL
: DIGITAL AUDIO SIGNAL

(DVD)

: DVD AUDIO SIGNAL
: AUDIO SIGNAL

P

JA3026

(HTZ-SW7)

C

D

H 2/2

5

6

7

8

33

1

HTZ-7, HTZ-C7, HTZ-SW7

3.1.9 MOTHER ASSY

I

A

(TX) (TX)

CN6201

F

B

234

MOTHER ASSY
(AWU7285)

RESET

(TX)

3.3V DET.

DVD/CD: 3.3V

OTHER: 0V

C

CN11

J

To FAN

MOTOR

(V2) (V2)

(A1)

(A2) (A2)

(A1)

(TX)

(V2)

+5.2

+5.2

–5.2

DC 0V

(DVD)(DVD)

34

(V1)

I

1234

D

(V1)

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

FAN TROUBLE
DETECTION

+10

+10.8

+5.0

P

CN3023

(HTZ-SW7)

(DVD)

: DVD AUDIO SIGNAL

(TX)

: TUNER AUDIO SIGNAL

(V1)

: VIDEO 1 AUDIO SIGNAL

(V2)

: VIDEO 2 AUDIO SIGNAL

+5.6V

GND

(A1)

: AUDIO 1 SIGNAL

(A2)

: AUDIO 1 SIGNAL
: AUDIO SIGNAL
: RECORDING SIGNAL

IR

A

B

+4.9

C

CN105

E 2/3

(DVD)(DVD)

CN5901

(DVD)

M

D

CN106

E 2/3

CN7005

H 2/2

35

5

6

7

I

8

1

234

HTZ-7, HTZ-C7, HTZ-SW7

3.1.10 POWER MAIN ASSY, POWER SUB ASSY, FRONT (1) ASSY,
FRONT (2) ASSY and LAMP ASSY

A

FRONT (2) ASSY

N

(AWU7164)

SWITCHES:
S5906: VOL
S5907: VOL –
S5908: TUNER
S5910: STANDBY/ON

FRONT (1) ASSY

M

(AWU7163)

+

SWITCHES:
S5901: 6
S5902: 7
S5903:

+

¢

S5904: – 4
S5905: 0

I

CN5505

LAMP ASSY
(AWU7165)

O

B

POWER MAIN ASSY

J

(AWU7286)

STBY: 0V
DVD: 18.4V
TUNER: 20.5V

HEAT SINK

STBY: 0V
ON: 5.5V

HEAT SINK

CAUTION:

NOTE FOR FUSE REPLACEMENT

CAUTION: FOR CONTINUED PROTECTION

C

D

AGAINST RISK OF FIRE.
REPLACE ONLY WITH SAME
TIME AND RATINGS ONLY.

L

FU1: 1A/125V

REK1075

AKP7032

AC POWER CORD
ADG7021

AC ASSY
(AWU7288)

FOR CONTINUED PROTECTION AGAINST RISK
OF FIRE.
REPLACE WITH SAME TYPE NO. 491004 MFD.
BY LITTELFUSE INC. FOR IC11 (AEK7018).

POWER TRANSFORMER

T1 ATS7238

Short-circuit here for
operation by itself.

120V

2.2 M

STBY: 0V
ON: 10V

CHASSIS

GND

CHASSIS

GND

491004

(4A/125V)

STBY: 0V
DVD: 5.7V
TUNER: 8.4V

STBY: 0V
DVD: 8.4V
TUNER: 10.6V

36

LJ O

1234

M

N

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

POWER SUB ASSY

K

(AWU7287)

CABLE HOLDER

491.500

(500mA/125V)

HEAT SINK

491001

(1A/125V)

CABLE HOLDER

CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE NO. 491001 MFD. BY
LITTELFUSE INC. FOR IC16 (AEK7009).

CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.

REPLACE WITH SAME TYPE NO. 491.500 MFD. BY
LITTELFUSE INC. FOR IC17 (AEK7005).

Note: If the parts are not identified in the diagram
the followings are used.

Chip Transistor NPN: 2SC2412K (QR)–TLB
Chip Transistor PNP: 2SA1037K (QR)–TLB
Chip Digital Transistor NPN: DTC124EK–TLB

A

B

491.200

(0.2A/125V)

CAUTION :
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE NO. 491.200 MFD. BY
LITTELFUSE INC. FOR IC18 (AEK7023).

DVD/CD: 0V
TUNER: 5V

DC12V

DC3.9V

E

1/3

CN101

I

CN5501

C

D

J K

5

6

7

8

37

1

234

HTZ-7, HTZ-C7, HTZ-SW7

3.2 POWERED SUBWOOFER (HTZ-SW7)

3.2.1 OVERALL CONNECTION DIAGRAM

A

FLDP ASSY

AA

(AWU7294)

CNB ASSY

Z

B

(AWU7172)

T

AMP ASSY
(AWU7290)

C

D

I

CN5509
(HTZ-C7)

H

2/2

JA7003

(HTZ-C7)

P

IF ASSY
(AWU7293)

(

Q

Q

1/2, Q 2/2

(

S

S

DOLBY DIG 9624 ASSY
(AWX7271)

1/3 to S 3/3

MAIN ASSY

)

(AWU7362)

)

38

1234

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

Part No.No. No. No.

HP ASSY

U

(AWU7295)

SWF ASSY

V

(AWU7292)

Part No. Part No.

No.

No.

A

Part No.

Part No.

B

REG (1) ASSY

R

(AWU7176)

SECONDARY ASSY

(AWU7175)

POWER TRANSFORMER
T8001 ATS7222

X

POWER SUPPLY ASSY

W

(AWU7289)

PRIMARY ASSY

(AWU7291)

Y

C

D

AC POWER CORD
ADG7021

39

5

6

7

8

1

234

HTZ-7, HTZ-C7, HTZ-SW7

3.2.2 IF ASSY, MAIN ASSY (1/2) and REG (1) ASSY

A

CN3015

T

B

CN9301

µ-COM.

2/3

S

CN3017

+31V

T

C

CN9801

1/3

S

–31V

IC8112

491004

(4A/125V)

–27.6V

+27.5V

+11V

Q

MAIN ASSY (1/2)

1/2

(AWU7362)

R8199

4.7

FU

(1/4W)

W243

491004

(4A/125V)

491004

(4A/125V)

+26.5V

D

J3009

R

CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE NO. 491004 MFD. BY
LITTELFUSE INC. FOR IC8101, IC8102 and IC8112 (AEK7018).

40

Q 1/2

1234

–11.6V

491001

(1A/125V)

491001

(1A/125V)

–26.9V

CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE NO. 491001 MFD. BY
LITTELFUSE INC. FOR IC8103 and IC8104 (AEK7009).

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

S

1/3

: DIGITAL AUDIO SIGNAL

JA9000

IF ASSY

P

(AWU7293)

H

2/2

JA7003

(HTZ-C7)

I

CN5509
(HTZ-C7)

Z

CN3037

A

B

49101.5

(1.5A/125V)

+4.9V

–53.3V

X

J3008

–36.2V

Q

2/2

W

J3002

CN3009

1/2

Q

REG (1) ASSY

R

(AWU7176)

C

D

CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE NO. 49101.5 MFD. BY
LITTELFUSE INC. FOR IC8105 (AEK7011).

5

P R

6

7

Q 1/2

8

41

1

HTZ-7, HTZ-C7, HTZ-SW7

3.2.3 MAIN ASSY (2/2)

234

Q 2/2

MAIN ASSY (2/2)
(AWU7362)

E–VR

A

(FL) (FL)

Q 1/2

(FL) (FL)

(FL)

(FL)

B

(SL) (SL)

(SL) (SL)

(FL)

(C) (C)

C

D

CN9661

S 3/3

(SL)

(C)

(SW)

(SW)

(SW)

(C)

(C)(C)

(C) (C)

(SW)

(SW)

(SW)

Q3039

(SW) (SW)

42

Q 2/2

R3312

1 M

1234

(FL)

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE NO. 491002 MFD. BY
LITTELFUSE INC. FOR IC8111 (AEK7013).

A

(FL)

(FL)

CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE NO. 49101.5 MFD. BY
LITTELFUSE INC. FOR IC8110 (AEK7011).

(FL)

(SL)

(FL) (FL)

IC8111

(SL)

(SL)

(SL)

SL ch

SR ch

(C)

(C)

(C)

C ch

(C)

AEK7013

491002

(2A/125V)

IC8110 AEK7011

(1.5A/125V)

49101.5

(SL)

(SW)

(FL)

(C)

B

CN3022

T

C

(SW)

SW ch

(SW) (SW)

(FL)

(SW)

5

6

7

: AUDIO SIGNAL (FRONT)

(SL)

: AUDIO SIGNAL (REAR)

(C)

: AUDIO SIGNAL (CENTER)

(SW)

: AUDIO SIGNAL (SW)

Q 2/2

8

D

43

1

HTZ-7, HTZ-C7, HTZ-SW7

3.2.4 DOLBY DIG 9624 ASSY (1/3)

A

S

1/3

: DIGITAL AUDIO SIGNAL

P

CN3025

B

234

DOLBY DIG 9624 ASSY (1/3)
(AWX7271)

S

2/3

S

2/3

S

2/3S 3/3

C

CN3019

1/2

Q

D

44

S 1/3

1234

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

A

S

2/3

B

S

2/3

S

2/3

S

2/3

S

2/3

S

2/3S 3/3

C

D

S 1/3

5

6

7

8

45

1

234

HTZ-7, HTZ-C7, HTZ-SW7

3.2.5 DOLBY DIG 9624 ASSY (2/3)

A

B

S

2/3

DOLBY DIG 9624 ASSY (2/3)
(AWX7271)

S

1/3

C

S

1/3

S

3/3

S

1/3

S

1/3

CN3018

1/2

D

Q

46

S 2/3

1234

S
S

1/3
3/3

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

A

S

3/3

B

S
S

1/3

3/3

C

D

S

1/3

S 2/3

5

6

7

8

47

1

HTZ-7, HTZ-C7, HTZ-SW7

3.2.6 DOLBY DIG 9624 ASSY (3/3)

S

A

B

3/3

DOLBY DIG 9624 ASSY (3/3)
(AWX7271)

S

1/3S 2/3

234

C

S

2/3

D

S

2/3

48

S 3/3

1234

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

(FL)

: AUDIO SIGNAL (FRONT)

(SL)

: AUDIO SIGNAL (REAR)

(C)

: AUDIO SIGNAL (CENTER)

(SW)

: AUDIO SIGNAL (SW)

A

(FL)

(FL)

(FL)

S

2/3

(FL)

(FL)

(FL)

(FL)

(FL)

B

(SL)

(FL)

CN3020

2/2

Q

(C)

(SL)(SL)

(SW)

(SW)

(C)

(C)

(SW)

(C)

(C) (C)(C)

(SW)(SW)

(SW)(SW)

C

D

S 3/3

5

6

7

8

49

1

234

HTZ-7, HTZ-C7, HTZ-SW7

3.2.7 AMP ASSY, HP ASSY and SWF ASSY

(C)

+25.9V

+26.5V–26.5V

Amplifier for FL, FR

+0.1V

(FL)

–0.1V

–25.3V

–0.1V

AT

100/10

3p

3p

47/10

AT

AT

100/10

AT

3p

47/10

AT

AT

100/10

3p

(FL)

3p

(FL)

(SL)

AMP ASSY

T

–27.6V

(AWU7290)

AT

2.2/50

(FL)

(SL)

0.022

10/50

ZA

2.2/50

10/50

10/50

AT

ZA

2.2/50

AT

AT

A

+27.5V

(FL)

(SL)

B

CN3021

2/2

Q

(C)

(SW)

–27.6V

(SW)

+27.5V

–26V

(SL) (SL)

(C) (C)

+0.1V

Amplifier for CENTER, SL, SR

C

Amplifier for subwoofer

+31.2V

–31.4V

+31.2V

(SW)

(SW)

AT 47/10

491.250
(250mA/125V)

(SW)

CN3016

1/2

D

Q

–31.4V

491.250

(250mA/125V)

50

CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE NO. 491.250 MFD. BY
LITTELFUSE INC. FOR IC3410 and IC3411 (AEK7002).

T

1234

(FL)

5

DC DET.

(FL)

+4.8V

(FL)(FL)

67

HTZ-7, HTZ-C7, HTZ-SW7

1000p

YF

YF

1000p

0.01

0.01

U

HP ASSY
(AWU7295)

8

1000p

A

1000p

(SL)

+4.8V

HEADPHONE

MUTE

+23.6V

(FL)

(C)

10

(C)

10

(SL) (SL)

10

ATH–133

(SL)

+26.7V

(C)

(C)

(SL)

+23.6V

(C)

CN3014

1/2

Q

ATH–133

10

ATH–133

ATH–133

(FL)

(SL)

(C)

(SW)

ATH–133

1000p

YB

1000p

YB

1000p

: AUDIO SIGNAL (FRONT)
: AUDIO SIGNAL (REAR)
: AUDIO SIGNAL (CENTER)
: AUDIO SIGNAL (SW)
: AUDIO SIGNAL

(FL)

YB

1000p

YB

1000p

(C)

YB

B

C

OVERCURRENT DET.

(SW)

5

(SW)

10

(SW)

ATH–133

(SW)

V

SWF ASSY

10

T

6

7

(AWU7292)

(SW)

PCB BINDER

D

VU

51

8

1

234

HTZ-7, HTZ-C7, HTZ-SW7

3.2.8 POWER SUPPLY ASSY, SECONDARY ASSY, PRIMARY ASSY,

CNB ASSY and FLDP ASSY

P

A

B

CN3024

FL DRIVER

–29.3V

–36V

RESET

Mask Sheet

C

D

Z

CNB ASSY
(AWU7172)

AA

STANDBY

LED

FLDP ASSY
(AWU7294)

52

Z

AA

1234

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

A

B

X

CN3008

Q 1/2

SECONDARY ASSY
(AWU7175)

DXUY1215E

CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE NO. 491.315 MFD. BY
LITTELFUSE INC. FOR IC8001 (AEK7003).

T8001 ATS7222
POWER
TRANSFORMER

Y

PRIMARY ASSY
(AWU7291)

+11V

W

POWER SUPPLY ASSY
(AWU7289)

4A

REK1082

AC POWER
CORD

ADG7021

C

CN3002

Q 1/2

491.315

(315mA/125V)

5

6

NOTE FOR FUSE REPLACEMENT

CAUTION: FOR CONTINUED PROTECTION

AGAINST RISK OF FIRE.
REPLACE ONLY WITH SAME
TIME AND RATINGS ONLY.

7

AKP7032

YXW

AA

8

53

D

1

234

HTZ-7, HTZ-C7, HTZ-SW7

4. PCB CONNECTION DIAGRAM

A

B

NOTE FOR PCB DIAGRAMS:

1. Part numbers in PCB diagrams match those in the schematic
diagrams.

2. A comparison between the main parts of PCB and schematic
diagrams is shown below.

Symbol in PCB
Diagrams

BCE

BCE

DGS

Symbol in Schematic
Diagrams

BCE

BCEBCE

DGSDGS

BCE

Part Name

Transistor

Transistor
with resistor

Field effect
transistor

4.1 DVD CENTER UNIT (HTZ-C7)

4.1.1 LOMB, LOSB, INSB and FGSB ASSEMBLIES

Symbol in PCB
Diagrams

3. The parts mounted on this PCB include all necessary parts
for several destination.
For further information for respective destinations, be sure
to check with the schematic diagram.

4. Viewpoint of PCB diagrams

Symbol in Schematic
Diagrams

CapacitorConnector

Part Name

Resistor array

3-terminal
regulator

SIDE A

P. C. Board Chip Part

SIDE B

E

B

LOSB ASSY

C

C

SLDR
MOTOR

D

CN107

(VNP1628-A)

INSB ASSY

SPINDLE MOTOR
ASSY

LOMB ASSY

A

(VNP1627-B)

FGSB ASSY

D

SIDE A

54

DCBA

1234

1

4.1.2 DVDM ASSY

23

HTZ-7, HTZ-C7, HTZ-SW7

• This PCB is a four-layered board.
Midddle layer is a mainly connected to Vcc and GND.

4

SIDE A

I

CN5506

IC601

IC701

IC807

IC501
Q401

|
Q403

IC506
IC401

IC302
IC303

Q301

IC203

IC202
IC806

Q291
IC204

E

VC301

DVDM ASSY

CN5502

I

J

CN10

A

B

B

CN301

IC801

IC151
IC161
IC271

IC171
IC824
Q802

IC206
Q801

Q105

IC902
IC815 IC816

Q455

Q891
IC813

Q102
IC814

Q873

IC818
|
IC820

IC810
IC811

1

VR801

VR891

H

CN7002

2

H

CN7502

H

CN7004

3

(VNP1624–D)

E

4

C

To PICKUP ASSY

D

55

1

HTZ-7, HTZ-C7, HTZ-SW7

234

• This PCB is a four-layered board.
Midddle layer is a mainly connected to Vcc and GND.

A

B

DVDM ASSY

E

IC505
IC605

IC504

IC502

IC503

IC301

SIDE B

Q601
|
Q603

Q771
Q772

IC603

IC602

IC604

IC703 IC817

IC702

IC201

IC808
IC809

IC205

Q261

Q106
Q107

IC101

Q103
Q108
|
Q110

Q104

IC805
IC821
IC802

Q871
Q851
Q831

IC901
Q872
Q852
Q832

IC804

C

D

56

(VNP1624-D)

E

1234

1

(

)

4.1.3 FM/AM TUNER MODULE

FM/AM TUNER MODULE

F

23

HTZ-7, HTZ-C7, HTZ-SW7

I

CN5504

SIDE A

4

A

B

FM/AM TUNER MODULE

F

Q6204

VR6201

Q6203

SIDE B

C

Q6205

Q6306

Q6304

1

Q6401

Q6402

Q6214

2

Q6404

Q6403

Q6303Q6302 Q6301

IC6202

Q6202 Q6201

3

IC6201

ANP7159-B

F

4

D

57

1

HTZ-7, HTZ-C7, HTZ-SW7

234

4.1.4 VIDEO ASSY and SVIDEO ASSY

A

G

VIDEO ASSY

B

IC7801

IC7804

Q7801

IC7802

IC7803

Q7802

H

SVIDEO ASSY

SIDE A

E

CN802

Q7501

|

Q7506
IC7502

IC7503

IC7603
IC7602

Q7602
Q7601

Q7508
IC7505

Q7604
IC7605

Q7004
IC7001

Q7003

Q7005
Q7007

(ANP7283–B)

C

I

CN5503

P

JA3026

(HTZ-SW7)

Q7015
IC7004
IC7005
IC7003

IC7006

IC7007

VC7001

IC7008

Q7018

D

E

CN801

58

G H

1234

E

CN803

(ANP7283–B)

1

H

SVIDEO ASSY

23

HTZ-7, HTZ-C7, HTZ-SW7

SIDE B

G

VIDEO ASSY

IC7501

IC7801

IC7701
Q7509
IC7504
Q7507

4

A

B

IC7604
Q7603

IC7002
Q7002
Q7001
IC7017

Q7017
Q7013

Q7019
IC7013

IC7015
IC7010
IC7011

IC7014
IC7009

Q7803

(ANP7283–B)

C

IC7012

D

(ANP7283–B)

G H

1

2

3

4

59

1

234

HTZ-7, HTZ-C7, HTZ-SW7

4.1.5 MOTHER ASSY, FRONT (1) ASSY, FRONT (2) ASSY and LAMP ASSY

A

B

I

MOTHER ASSY

F

CN6201

J

C

To FAN MOTOR

FRONT (1) ASSY

M

D

(ANP7284–C)

O

LAMP ASSY

CN11

(ANP7284–C)

60

MI O

1234

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

P

CN3023

(HTZ-SW7)

A

SIDE A

B

N

FRONT (2) ASSY

E

CN105ECN106

(ANP7284–C)

(ANP7284–C)

C

D

N

I

5

6

7

8

61

1

Q

HTZ-7, HTZ-C7, HTZ-SW7

234

A

I

MOTHER ASSY

SIDE B

B

Q5601–Q5606

(ANP7284–C)

C

N

FRONT (2) ASSY

D

IC5501 Q5511 IC5602

(ANP7284–C)

IC5601 Q5501
Q5009 Q5502 Q5503

62

NI

1234

5

(

)

67

8

HTZ-7, HTZ-C7, HTZ-SW7

SIDE B

A

B

IC5003 Q5007 Q5510 Q5008IC5004

Q5501 Q5507 Q5003 Q5004 IC5002 IC5001

Q5502 Q5503 Q5512 Q5513 Q5701

FRONT (1) ASSY

M

Q5901 Q5902

C

IC5701

Q5508 Q5509

Q5504 Q5505

D

ANP7284–C

MI

5

6

7

8

63

1

234

HTZ-7, HTZ-C7, HTZ-SW7

4.1.6 POWER MAIN ASSY, POWER SUB ASSY and AC ASSY

J

POWER MAIN ASSY

A

L

SIDE A

AC ASSY

B

IC13
IC15
IC12
IC11

C

IC14
IC18

Q20
Q14

AC INLET

K

POWER SUB ASSY

(ANP7284–C)

AC POWER CORD

Q21

D

I

CN5501

E

CN101

64

Q13

IC17

IC16

Q15

(ANP7284–C)

(ANP7284–C)

J L

K

1234

Q23

1

SIDE B

23

HTZ-7, HTZ-C7, HTZ-SW7

J

POWER MAIN ASSY

4

A

B

Q22

Q12

IC17

IC16

K

POWER SUB ASSY

(ANP7284–C)

IC11
IC12
IC15
IC13

Q18
IC18

Q19

Q17

Q16

Q11
Q24

Q25

C

D

(ANP7284–C)

KJ

1

2

3

4

65

1

234

HTZ-7, HTZ-C7, HTZ-SW7

4.2 POWERED SUBWOOFER (HTZ-SW7)

4.2.1 IF ASSY, MAIN ASSY and REG (1) ASSY

A

R

REG (1) ASSY

IC8202

IC8110
IC8111

IC8201

B

IC8204

Q

MAIN ASSY

T

CN3017

T

CN3022

IC8203

IC8112

(ANP7286–D)

IC8103
IC8104

X

J3008

C

W

J3002

S

CN9301

IC8101
IC8107
IC8106

IC8102

IC8105

Q8101

IC3014
IC3013

IC3015

D

SIDE A

S

CN9801

66

Q

R

1234

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

T

CN3015

SIDE A

P

A

IF ASSY

B

S

CN9661

(ANP7286–D)

Z

CN3037

I

CN5509

(HTZ-C7)

H

JA7003

(HTZ-C7)

S

C

JA9000

(ANP7285–C)

D

QP

5

6

7

8

67

1

HTZ-7, HTZ-C7, HTZ-SW7

A

SIDE B

P

IF ASSY

B

IC8701

234

Q

MAIN ASSY

Q8502

Q8503
Q3418

Q3027

Q8513

Q3033

IC3019

IC3020
Q8508
IC8501

Q3037
Q3038

Q3018
Q3017

Q8507

Q3015
Q3016

Q8510
Q8509

Q8511

IC3010

Q8501

IC3011

Q8512
Q8504

Q3034

Q3035

IC3004

IC3001

Q3001

Q3006

IC3005

Q3005
Q3039

Q3002

IC3002

C

(ANP7285–C)

D

68

QP

1234

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

SIDE B

A

R

REG (1) ASSY

Q3020

Q3032

IC3012

Q3019

IC3009

Q3003
Q3004

IC3006

B

(ANP7286–D)

C

IC3003

(ANP7286–D)

D

Q

5

6

7

R

8

69

1

HTZ-7, HTZ-C7, HTZ-SW7

4.2.2 DOLBY DIG 9624 ASSY

A

DOLBY DIG 9624 ASSY

S

Q

CN3019

B

Q

CN3020

C

234

SIDE A

Q

CN3018

IC9361

IC9781

IC9301

Q9833

Q9841

Q9843

Q9834

Q9842

Q9844

Q9823
Q9822

Q9462

Q9432

Q9461

Q9431

Q9402

Q9221

Q9201

IC9761

Q9821

IC9741

Q9401

IC9181

IC9182
IC9271

IC9183

Q9181

IC9721

IC9381
IC9371

IC9902

IC9172
IC9174

IC9121

IC9171

IC9103

IC9091

IC9071

(ANP7271–A)

D

P

CN3025

70

S

1234

Q9302

Q9304

IC9193

Q9901

IC9901

1

Q9301

IC9471

IC9441

IC9411

Q9601

IC9501

Q9832

Q9831

IC9601

IC9641

Q9651

IC9621

Q9641

Q9631
Q9611
Q9621

23

DOLBY DIG 9624 ASSY

S

4

HTZ-7, HTZ-C7, HTZ-SW7

SIDE B

A

B

Q9191

IC9173

IC9191

IC9192

Q9032

Q9001
Q9002
Q9031

Q9741

Q9271
Q9242

Q9241

IC9401

Q9004

Q9007

Q9005
Q9006

IC9221

IC9201

C

Q9003

(ANP7271–A)

D

S

1

2

3

4

71

1

234

HTZ-7, HTZ-C7, HTZ-SW7

4.2.3 AMP ASSY, SWF ASSY and HP ASSY

A

T

AMP ASSY

B

U

HP ASSY

Q

CN3014

(ANP7285–C)

Q

CN3021

Q

CN3016

SIDE A

C

D

72

T

1234

Q3419–Q3422 IC3401 IC3402

IC3403

U

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

V

SWF ASSY

(ANP7285–C)

SIDE A

A

B

IC3411 Q3414 Q3411 Q3408 Q3409 Q3405

Q3415Q3412Q3416

5

Q3410
IC3410Q3413Q3417

6

C

(ANP7285–C)

VT

7

8

73

D

1

HTZ-7, HTZ-C7, HTZ-SW7

A

SIDE B

T

AMP ASSY

B

234

V

SWF ASSY

(ANP7285–C)

C

D

Q3032Q3026Q3428Q3424

74

Q3423 Q3425 Q3427 Q3429Q3426

VT

1234

5

67

8

HTZ-7, HTZ-C7, HTZ-SW7

U

HP ASSY

(ANP7285–C)

SIDE B

A

B

Q3030

Q3430 Q3028 Q3022 Q3027 Q3021

Q3025 Q3031Q3032Q3026

5

Q3024 Q3023 Q3029

Q3407 Q3406

6

C

D

(ANP7285–C)

T

7

U

8

75

1

234

HTZ-7, HTZ-C7, HTZ-SW7

4.2.4 POWER SUPPLY ASSY, SECONDARY ASSY and PRIMARY ASSY

X

SECONDARY ASSY

A

Q

CN3008

B

(ANP7286–D)

11

12

13

14

15

16

17

18

19

20

21

22

POWER TRANSFORMER

Y

PRIMARY ASSY

1

3

4

5

6

7

(ANP7285–C)

SIDE A

W

POWER SUPPLY ASSY

C

D

76

IC8001IC8002

Q

CN3002

(ANP7285–C)

XW Y

1234

1

23

4

HTZ-7, HTZ-C7, HTZ-SW7

NOTE FOR PCB DIAGRAMS:

1. Part numbers in PCB diagrams match those in the schematic
diagrams.

2. A comparison between the main parts of PCB and schematic
diagrams is shown below.

Symbol in PCB
Diagrams

BCE

BCE

DGS

W

POWER SUPPLY ASSY

Symbol in Schematic
Diagrams

BCE

BCEBCE

DGSDGS

BCE

Part Name

Transistor

Transistor
with resistor

Field effect
transistor

Symbol in PCB
Diagrams

3. The parts mounted on this PCB include all necessary parts
for several destination.
For further information for respective destinations, be sure
to check with the schematic diagram.

4. Viewpoint of PCB diagrams

Symbol in Schematic
Diagrams

CapacitorConnector

Part Name

Resistor array

3-terminal
regulator

SIDE A

P. C. Board Chip Part

SIDE B

SIDE B

A

B

(ANP7285–C)

1

C

D

W

2

3

4

77

1

HTZ-7, HTZ-C7, HTZ-SW7

234

4.2.5 CNB ASSY and FLDP ASSY (DISPLAY UNIT)

A

AA

FLDP ASSY

B

Z

CNB ASSY

P

CN3024

SIDE A

(ANP7285–C)

(ANP7285–C)

C

D

Q8605 Q8604 Q8603 IC8601 Q8601 Q8602

AA

FLDP ASSY

SIDE B

(ANP7285–C)

78

Z

AA

1234

HTZ-7, HTZ-C7, HTZ-SW7

5. PCB PARTS LIST

NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List.

÷ The

÷ When ordering resistors, first convert resistance values into code form as shown in the following examples.

Mark No. Description Part No. Mark No. Description Part No.

mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by

J = 5%, and K = 10%).

1

560 Ω = 56 × 10
47k Ω = 47 × 10

= 561................................................... RD1/4PU 5 6 1 J

3

= 473 .................................................. RD1/4PU 4 7 3 J

0.5 Ω = R50 ...................................................................... RN2H Â 5 0 K

1 Ω = 1R0 ......................................................................... RS1P 1 Â 0 K

Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors).

5.62k Ω = 562 × 10 1 = 5621 ........................................... RN1/4PC 5 6 2 1 F

5.1 DVD CENTER UNIT (HTZ-C7)

LIST OF PCB ASSEMBLIES

NSP CVDB ASSY AWM7427

SVIDEO ASSY AWU7283
VIDEO ASSY AWU7284

NSP CPCB ASSY AWM7428

FRONT (1) ASSY AWU7163
FRONT (2) ASSY AWU7164
LAMP ASSY AWU7165
MOTHER ASSY AWU7285
POWER MAIN ASSY AWU7286
POWER SUB ASSY AWU7287

AC ASSY AWU7288
FM/AM TUNER MODULE AXQ7065
DVDM ASSY VWS1364

NSP LOADING MECHANISM ASSY VWT1147
NSP LOAB ASSY VWM1798
NSP LOSB ASSY VWG1885
NSP LOMB ASSY VWG1886

NSP SERVO MECHANISM ASSY VWT1148
NSP SMEB ASSY VWM1797
NSP INSB ASSY VWG1883
NSP FGSB ASSY VWG1884

IC7011 TC74HCU04AF
IC7007 TC7W74F
IC7013–IC7015 TC7WU04F
IC7008 TC9271F
Q7003, Q7004, Q7501, Q7509 2SA1037K

Q7502, Q7507, Q7508 2SC2412K
Q7001, Q7002, Q7013–Q7016 2SD2114K
Q7007, Q7017 DTA124EK
Q7019, Q7505, Q7506 DTA143EK
Q7005, Q7006 DTC124EK

Q7503, Q7504 DTC143EK
D7501–D7505 1SS355

COILS AND FILTERS

F7001, F7002 ATF7013
F7501 DTF1069
L7001–L7005, L7007, L7008, L7011 OTL1040
(100 MHz)
L7014–L7019, L7022 (100 MHz) OTL1040
L7023 PTL1003

L7010 RTF1167
L7020, L7021 VTL1098

CAPACITORS

C7012, C7013, C7085 CCSQCH101J50
C7031, C7032 CCSQCH220J50
C7047, C7509–C7511 CCSQCH221J50
C7102 CCSQCH270J50
C7044 CCSQCH271J50

H

SVIDEO ASSY

SEMICONDUCTORS

IC7006 AK5351–VF
IC7002, IC7004, IC7005 BA4558F–HT
IC7503 BU4053BCF
IC7003, IC7701 BU4094BCF
IC7501, IC7502 MM1112XF

IC7505 NJM2534M
IC7504 NJM2535M
IC7001 PD2026BM (L)
IC7017 TC74HC02AF
IC7010 TC74HC153AF

C7014–C7017, C7099, C7106, C7107 CCSQCH470J50
C7098, C7103 CCSQCH560J50
C7104 CCSQCH6R0D50
C7096, C7097, C7101 CCSQCH7R0D50
C7027, C7028, C7515, C7523 CEAT100M50

C7008, C7010, C7040, C7042, C7053 CEAT101M10
C7058, C7060, C7067, C7078, C7088 CEAT101M10
C7039 CEAT221M6R3
C7022, C7024–C7026, C7126, C7127 CEAT330M16
C7513, C7517, C7527, C7534 CEAT330M16

79

HTZ-7, HTZ-C7, HTZ-SW7

Mark No. Description Part No. Mark No. Description Part No.

C7501, C7505 CEAT470M16
C7003, C7050, C7530 CEAT471M6R3
C7704 CEJA4R7M35
C7129, C7708 CKSQYB102K50
C7061 CKSQYB103K50

C7035, C7036 CKSQYB152K50
C7018, C7019 CKSQYB332K50
C7001, C7005, C7011, C7021, C7023 CKSQYF103Z50
C7029, C7030, C7033, C7034 CKSQYF103Z50
C7037, C7038, C7041, C7043, C7046 CKSQYF103Z50

C7051, C7052, C7057, C7059, C7068 CKSQYF103Z50
C7079, C7080, C7082, C7086 CKSQYF103Z50
C7089, C7090, C7093, C7095, C7105 CKSQYF103Z50
C7110–C7112, C7118, C7119, C7125 CKSQYF103Z50
C7512, C7516, C7518–C7521 CKSQYF103Z50

C7524–C7526, C7528, C7532, C7533 CKSQYF103Z50
C7535, C7537 CKSQYF103Z50
C7004, C7006, C7007, C7009, C7048 CKSQYF104Z25
C7100, C7503, C7504, C7507, C7508 CKSQYF104Z25
C7002, C7081, C7121–C7124 CKSQYF105Z16

C7071, C7705 CKSQYF473Z50
C7538 CKSQYF474Z16
VC7001 (20 pF) VCM–008

RESISTORS

R7066 (330 Ω) ACN7054
R7001, R7002 (220 Ω) DCN1093
R7057, R7058, R7109, R7110 RN1/10SE1002D
R7025–R7028 RN1/10SE4702D
Other Resistors RS1/10S J

OTHERS

CN7501 14P FFC CONNECTOR 9604S–14C
CN7005 17P FFC CONNECTOR 9604S–17C
7001, 7003 PIN JACK (1P) AKB7035
CN7503 DIN SOCKET (4P ×2) AKP7020
CN7504 DIN SOCKET (4P) AKP7045

X7001 (16.9344 MHz) ASS1073
CN7002 KR CONNECTOR B4B–PH–K–S
JA7002 OPTICAL RECEIV MOD. GP1F32R
JA7005 OPTICAL LINK OUT GP1F32T
X7002 (18.432 MHz) RSS1052

CN7004 14P FFC CONNECTOR VKN1245
CN7502 17P FFC CONNECTOR VKN1248
KN7001–KN7003, KN7501 VNF1084

EARTH METAL FITTING

CAPACITORS

C7806, C7813 CEAT330M16
C7801, C7803 CEAT470M16
C7816 CEAT471M6R3
C7808, C7809 CEJA100M16
C7805, C7812, C7814, C7825 CKSQYF103Z50

C7811 CKSQYF104Z25
C7897 CKSQYF474Z16

RESISTORS

All Resistors RS1/10S J

OTHERS

CN7801 14P FFC CONNECTOR 9604S–14C
JA7802 PIN JACK (1P) AKB7096
JA7801 PIN JACK (2P) VKB1094
7801 PCB HOLDER (S) VNE1952

FRONT (1) ASSY

M

SEMICONDUCTORS

Q5902 DTC143EK

SWITCHES AND RELAYS

S5901–S5905 VSG1009

RESISTORS

All Resistors RS1/10S J

OTHERS

CN5901 7P FFC CONNECTOR 52044–0745
J5903 3P JUMPER WIRE D20PWW0310E
J5902 4P JUMPER WIRE D20PWW0420E

N

FRONT (2) ASSY

SEMICONDUCTORS

D5901 SLP9118C51H

SWITCHES AND RELAYS

S5906–S5908, S5910 VSG1009

RESISTORS

All Resistors RS1/10S J

VIDEO ASSY

G

SEMICONDUCTORS

IC7801 MM1112XF
IC7802 NJM2535M
Q7803 2SA1037K
Q7801 2SC2412K
D7801, D7802, D7805 1SS355

80

LAMP ASSY

O

SEMICONDUCTORS

Q5903 DTD113ES
D5903 1SS254

OTHERS

PL5901 LAMP (DVD) VEL1022

HTZ-7, HTZ-C7, HTZ-SW7

Mark No. Description Part No. Mark No. Description Part No.

I

MOTHER ASSY

SEMICONDUCTORS

IC5002 BA4558F–HT
IC5004 BU4066BCF
IC5501 PDG234A
IC5601 TC7W04F
IC5001 TC9164AF

Q5505 2SA1037K
Q5003, Q5004, Q5512, Q5513 2SC2412K
Q5603, Q5604 2SC2412K
Q5007–Q5009 2SD2114K
Q5507, Q5510, Q5601 DTA124EK

Q5504 DTA143EK
Q5501–Q5503, Q5508, Q5509, Q5511 DTC124EK
Q5602 DTC124EK
D5502 11EQS06
D5001, D5002, D5005, D5503, D5506 1SS254

D5508, D5601, D5608, D5622 1SS254
D5509, D5616, D5617, D5632, D5633 1SS355
D5629, D5630 MTZJ5.1B
D5602–D5607, D5619, D5620 MTZJ8.2B
D5635 UDZS8.2B

COILS AND FILTERS

L5501 LAU220J
L5601 LAU2R2J

CAPACITORS

C5520 (1F/16V) ACH1246
C5001–C5008, C5051–C5055 CCSQCH101J50
C5502–C5504, C5507, C5514, C5517 CCSQCH221J50
C5615, C5616, C5622 CCSQCH221J50
C5510, C5605–C5607 CEAT101M10

C5029, C5524 CEAT1R0M50
C5032, C5522 CEAT220M25
C5009, C5010 CEAT2R2M50
C5033, C5034 CEAT330M16
C5015, C5016 CEAT470M10

C5038–C5042, C5056, C5501, C5511 CKSQYB102K50
C5519, C5525, C5528, C5601 CKSQYB102K50
C5013, C5014, C5037, C5508, C5509 CKSQYF103Z50
C5512, C5515, C5518, C5521 CKSQYF103Z50
C5529, C5530, C5604, C5611–C5614 CKSQYF103Z50

C5617 CKSQYF103Z50
C5516 CKSQYF104Z50
C5023, C5513, C5523, C5527 CKSQYF473Z50

OTHERS

CN5505 7P FFC CONNECTOR 52492–0720
CN5503 17P FFC CONNECTOR 9604S–17C
JA5508 PIN JACK (2P) AKB7107
JA5507, JA5509 PIN JACK (4P) AKB7108
CN5509 10P MINI DIN SOCKET AKP7031

X5501 (16 MHz) ASS7020
CN5504 14P PLUG KM200IA14
JA5510 REMOTE CONTROL JACK RKN1004
CN5508 KR CONNECTOR S2B–PH–K–S
CN5506, CN5507 VKN1211

CN5501 12P FFC CONNECTOR VKN1216
CN5502 14P FFC CONNECTOR VKN1274

POWER MAIN ASSY

J

7P FFC CONNECTOR

SEMICONDUCTORS

IC11 (4A/125V) AEK7018
IC18 (200mA/125V) AEK7023
IC14 NJM78M56FA
Q17, Q19, Q25 2SA1037K
Q16, Q18, Q24 2SC2412K

Q20 2SD2395
Q11 DTC114EK
D1 1SS254
D13 D2SBA20 (B)
D11, D12 D3SBA20 (B)

D14, D16, D18 MTZJ15A
D17 MTZJ8.2B

SWITCHES AND RELAYS

RY1 RSR1037

CAPACITORS

C15, C19, C82, C83 CEAT101M10
C27, C70 CEAT101M16
C12 CEAT103M10
C30 CEAT221M16
C14 CEAT331M25

C13 CEAT682M25
C24, C29 CEJA101M10
C16, C20, C23, C26, C28 CKSQYF103Z50
C53, C55, C56 CKSQYF103Z50
C99 CKSQYF105Z16

C11 (6800 µF/16V) VCH1060

RESISTORS

R5801 RA4T103J
R5803 RA5T103J
R5053, R5056 RD1/2VM431J
R5522 RS1/10S1801F
Other Resistors RS1/10S J

RESISTORS

R1 (2.2 MΩ) DCN1041
Other Resistors RS1/10S J

OTHERS

11 CABLE HOLDER (13P) 51063–1305

SCREW BBZ30P080FCC
J12 JUMPER WIRE D15A13–125–2651
CN11 12P FFC CONNECTOR VKN1188
KN1, KN11 EARTH METAL FITTING VNF1084
CN10 14P CONNECTOR B14B–PH–K–S

81

HTZ-7, HTZ-C7, HTZ-SW7

Mark No. Description Part No. Mark No. Description Part No.

K

POWER SUB ASSY

SEMICONDUCTORS

IC17 (500mA/125V) AEK7005
IC16 (1A/125V) AEK7009
Q13, Q15, Q21, Q23 2SB1566
Q12, Q22 2SC2412K

RESISTORS

All Resistors RS1/10S J

OTHERS

12 CABLE HOLDER (13P) 51063–1305

L

AC ASSY

COILS AND FILTERS

L1 ATF–151

CAPACITORS

C1, C2 (0.01 µF/250V) ACG7010

OTHERS

AN1 POWER SOCKET AKP7032
H1, H2 FUSE CLIP AKR1003
J1 LEAD WIRE UNIT DB415NB2

FM/AM TUNER MODULE

F

SEMICONDUCTORS

IC6201 LA1832ML
IC6202 LC72131MD
Q6402 2SC2223
Q6203 2SC2705
Q6201, Q6202 2SC2712

Q6214, Q6403 2SC2714
Q6404 2SK302
Q6401 3SK194
Q6204 DTA124ES
Q6205 DTC124EK

D6202 1SS254
D6401, D6402 1T378A

COILS AND FILTERS

L6404 ATC1003
L6401 ATC1020
L6402 ATC1021
F6204 ATF–107
F6203 ATF–119

F6401 ATF–155
F6206 ATF7008
F6202 (455 kHz) ATF7011
L6206, L6208, L6403 LAU2R2J

TRANSFORMERS

T6201 ATB7008
T6401 ATE7002

CAPACITORS

C6208 CCSQCH100D50
C6212, C6274, C6275, C6408 CCSQCH101J50
C6221, C6222, C6416 CCSQCH150J50
C6271 CCSQCH200J50
C6415 CCSQCH330J50

C6406 CCSQCH331J50
C6401, C6419 CCSQCH5R0C50
C6407 CCSQCK1R0C50
C6410 CCSQCK2R0C50
C6413 CCSQRH180J50

C6414 CCSQRH8R0D50
C6405 CCSQTH150J50
C6234, C6235 CEAL1R0M50
C6245 CEAL470M16
C6224 CEAT100M50

C6243 CEAT101M16
C6231 CEAT1R0M50
C6227 CEAT220M25
C6214, C6236 CEAT2R2M50
C6262 CEAT3R3M50

C6219 CEAT470M10
C6244 CEAT470M16
C6249, C6250, C6265, C6266 CEAT4R7M50
C6258 CEJA470M16
C6215 CFTLA103J50

C6211, C6254, C6403, C6417 CKSQYB102K50
C6201, C6205, C6210, C6237, C6276 CKSQYB103K50
C6278, C6280, C6281, C6402, C6409 CKSQYB103K50
C6418 CKSQYB103K50
C6251, C6252 CKSQYB153K50

C6203, C6259 CKSQYB223K50
C6228 CKSQYB472K50
C6209 CKSQYB473K50
C6230 CKSQYB821K50
C6218, C6223, C6255 CKSQYF103Z50

C6220, C6226, C6242, C6256 CKSQYF223Z50
C6225 CKSQYF473Z50

RESISTORS

R6280 RD1/4PU101J
R6413, R6416, R6418, R6906, R6909 RS1/8S0R0J
R6401 RS1/8S470J
VR6201 (10 kΩ) PCP1029
Other Resistors RS1/10S J

OTHERS

BN6202 TERMINAL 4–P AKE7025
X6202 (456 kHz) ASS1066
X6201 (7.2000 MHz) ASS1093
CN6201 14P SOCKET KP200IA14L

AM RF TUNING BLOCK AXX7041

82

HTZ-7, HTZ-C7, HTZ-SW7

Mark No. Description Part No. Mark No. Description Part No.

DVDM ASSY

E

SEMICONDUCTORS

IC171 BA10393F
IC161 BA6195FP
IC151 BA6797FP
IC813 CY2081SL–611
IC503 HD74HC573FP

IC702 HM514800CJ–7
IC101 LA9700M
IC201 LC78650NE
IC802
IC801 MB86371C

IC815, IC816 MC14577CF
IC271, IC302 NJM2100M
IC203 NJM2107F
IC601 PD3381A
IC701 PD4833A

IC501 PD4889A
IC502 SRM2B256SLMX70
IC401 TA78M08F
IC202, IC204, IC206 TC4W53F
IC604 TC551001BFL–85

IC804 TC74HCT541AF
IC303 TC74HCU04AF
IC807, IC808 TC74LCX245FT
IC821 TC74VHC00FT
IC814, IC820 TC74VHC02FT

MB811171622A–100FN

L301 (1.5 µH) VTL1059
L101, L302 (10 µH) VTL1061
L802, L803 (22 µH) VTL1067
L335, L340, L342 VTL1074
L777, L780–L787, L895 VTL1075

L897–L899 VTL1075

CAPACITORS

C623 CCSRCH100D50
C152, C208, C291, C612, C613 CCSRCH101J50
C700, C735, C737, C739 CCSRCH101J50
C897, C898 CCSRCH101J50
C111, C139, C215, C231, C232 CCSRCH151J50

C248 CCSRCH151J50
C125, C148, C329 CCSRCH180J50
C112, C118 CCSRCH220J50
C121, C130, C199, C319, C324 CCSRCH330J50
C120 CCSRCH331J50

C310, C323, C327 CCSRCH470J50
C230 CCSRCH471J50
C126, C331, C838 CCSRCH560J50
C127, C330, C863, C873, C882 CCSRCH5R0C50
C160 CCSRCH680J50

C401 CEV101M10
C101, C104, C201, C325, C601 CEV101M6R3
C701, C704, C706, C801 CEV101M6R3
C803, C804, C813–C815, C826 CEV101M6R3
C123, C158, C264, C412, C414 CEV220M16

IC505, IC605 TC74VHC139FT
IC504 TC74VHC20FT
IC805, IC806, IC809 TC74VHC541FT
IC506 TC74VHCT245AFT
IC817 TC74VHCT541AFT

IC811, IC818, IC819 TC7SHU04F
IC810 TC7WU04F
IC301 TLC5540INS
IC603 VKH1012
IC6003 VYW1570

Q401 2SB1260
Q108 HN1K03FU
Q455, Q831, Q832, Q851, Q852 IMT1A
Q871, Q872 IMT1A
Q103, Q402, Q873 IMX1

Q102, Q104, Q291, Q301 IMZ1A
Q106, Q603 PDTA114EK
Q107, Q109, Q261, Q602 PDTC114EK
Q601, Q771, Q772 PDTC114TK
D301 KV1410

D171, D172 MA152WK
D601 RB501V–40

COILS AND FILTERS

F771, F778, F779 DTF1067
L941, L942, L945, L946 QTL1011
F896 VTF1077
F801 (6.0 MHz) VTF1098
F401–F406 (4700 pF) VTH1037

C835, C895 CEV221M4
C131, C135, C205, C206, C301 CEV470M6R3
C303, C404, C406, C408, C410 CEV470M6R3
C501, C504, C832, C836, C841 CEV470M6R3
C887 CEV470M6R3

C211 CKSQYB104K25
C109, C124, C216, C220, C229 CKSQYB105K10
C234, C261, C275, C308, C326 CKSQYB105K10
C332, C333, C730, C731 CKSQYB105K10
C818, C823, C828 CKSQYF105Z16

C213, C292, C309, C321 CKSRYB102K50
C105, C106, C108, C146, C147 CKSRYB103K50
C151, C154–C157, C161, C207 CKSRYB103K50
C217, C221, C247, C263, C265 CKSRYB103K50
C276, C318, C320, C620, C705 CKSRYB103K50

C722, C772, C859 CKSRYB103K50
C143, C162–C165, C223, C224 CKSRYB104K16
C242, C273, C274, C311, C312 CKSRYB104K16
C315 CKSRYB104K16
C141 CKSRYB222K50

C328 CKSRYB223K25
C262, C271 CKSRYB472K50
C122 CKSRYB473K16
C102, C103, C113, C129 CKSRYF104Z16
C132–C134, C136, C137, C159 CKSRYF104Z16

83

HTZ-7, HTZ-C7, HTZ-SW7

Mark No. Description Part No. Mark No. Description Part No.

C166, C191, C202–C204, C209 CKSRYF104Z16
C214, C218, C219, C222 CKSRYF104Z16
C226–C228, C235, C237, C241 CKSRYF104Z16
C246, C302, C304, C305, C317 CKSRYF104Z16
C322, C402, C403, C405, C407 CKSRYF104Z16

C409, C411, C413, C415 CKSRYF104Z16
C502, C503, C505–C509 CKSRYF104Z16
C602–C605, C608–C611 CKSRYF104Z16
C614, C615, C617, C621, C622 CKSRYF104Z16
C702, C703, C707–C721 CKSRYF104Z16

C732–C734, C736, C738 CKSRYF104Z16
C740–C742, C771, C791, C800 CKSRYF104Z16
C802, C805–C812, C816, C817 CKSRYF104Z16
C819–C822, C824, C825, C827 CKSRYF104Z16
C829, C830, C833, C834, C837 CKSRYF104Z16

C839, C840, C842–C848 CKSRYF104Z16
C861, C862, C867, C871, C872 CKSRYF104Z16
C876, C878, C881, C883 CKSRYF104Z16
C888–C890 CKSRYF104Z16
C852, C855, C857, C858 (2.2 µF/6.3V) VCG1030

C922–C924 (2.2 µF/6.3V) VCG1030
VC301 (40 pF) VCM1010

RESISTORS

R752 RA4C101J
R507, R508, R624, R628, R633 RA4C103J
R703, R704, R717, R718 RA4C103J
R745, R746, R761, R762, R792 RA4C103J
R812, R813 RA4C103J

R137, R501, R502, R505, R506 RA4C220J
R604–R607, R712, R713, R719 RA4C220J
R724, R748, R749, R791 RA4C220J
R802, R803, R808 RA4C220J
R602, R603, R610, R613, R618 RA4C470J

R100, R101, R11–R14, R141 RS1/10S0R0J
R15–R17, R171, R18 RS1/10S0R0J
R201–R203, R266, R300, R319 RS1/10S0R0J
R333, R411–R413, R701 RS1/10S0R0J
R775, R776, R891, R893 RS1/10S0R0J

OTHERS

CN101 PH CONNECTOR S14B–PH–SM3
CN801 PH CONNECTOR S4B–PH–SM3

TP100, TP200, TP300, TP400 VKF1001
CN201 B TO B CONNECTOR 14P VKN1324
CN106 7P FFC CONNECTOR VKN1411

CN107 12P FFC CONNECTOR VKN1416
CN105, CN803 14P FFC CONNECTOR VKN1418
CN802 17P FFC CONNECTOR VKN1421
CN102 20P FFC CONNECTOR VKN1445

KN1–KN3 EARTH METAL FITTING VNF1109
X602 (20.00MHz) VSS1114

X501 (10.00MHz) VSS1115

C

INSB ASSY

FLEXIBLE CABLE 7P VDA1681
CHECKER CHIP

LABEL VRW1634

SWITCHES AND RELAYS

S201 DSG1017

OTHERS

CN201 KR CONNECTOR POST B3B–PH–K–S
CN202 FFC CONNECTOR 8P VKN1239

FGSB ASSY

D

PCB BINDER DEF1012

SEMICONDUCTORS

PC101 GP2S27 (B)

RESISTOR

R101 RS1/10S681J

OTHERS

CN101 KR CONNECTOR 3P B3B–PH–K–S

R920, R921, R935, R936 RS1/10S0R0J
R205 RS1/10S101J
R835, R839, R855, R859, R875 RS1/16S1001F
R881 RS1/16S1001F
R834, R854, R874 RS1/16S1201F

R823–R825 RS1/16S1500F
R117, R118 RS1/16S1501F
R126 RS1/16S1502F
R241, R247 RS1/16S2202F
R110, R153, R155, R173, R174 RS1/16S2702F

R213, R228, R229, R248 RS1/16S2702F
R152, R156, R158–R164 RS1/16S4702F
R167–R170, R172, R175, R194 RS1/16S4702F
R227 RS1/16S4702F
R836, R856, R879 RS1/16S5600F

VR801 (1 kΩ) VCP1125
Other Resistors RS1/16S J

84

B

LOSB ASSY

SWITCHES AND RELAYS

S301 REAF SWITCH VSK1011

OTHERS

CN303 KR CONNECTOR B2B–PH–K–S
CN302 FFC CONNECTOR 8P VKN1268
CN301 FFC CONNECTOR 12P VKN1272

A

LOMB ASSY

OTHERS

CN401 KR CONNECTOR B2B–PH–K–S

HTZ-7, HTZ-C7, HTZ-SW7

Mark No. Description Part No. Mark No. Description Part No.

5.2 POWERED SUBWOOFER
(HTZ-SW7)

LIST OF PCB ASSEMBLIES

NSP SPAB ASSY AWM7429

NSP SMCB ASSY AWM7430

Z

SEMICONDUCTORS

CNB ASSY AWU7172
POWER SUPPLY ASSY AWU7289
AMP ASSY AWU7290
PRIMARY ASSY AWU7291
SWF ASSY AWU7292
IF ASSY AWU7293
FLDP ASSY AWU7294
HP ASSY AWU7295

SECONDARY ASSY AWU7175
REG (1) ASSY AWU7176
MAIN ASSY AWU7362

DOLBY DIG 9624 ASSY AWX7271

CNB ASSY

D8751 MTZJ2.0A
D8752–D8755 MTZJ8.2B

OTHERS

H8001, H8002 FUSE CLIP AKR1003
3002 4P CABLE HOLDER 51048–0400
AN3001 POWER SOCKET AKP7032
T8002 POWER TRANSFORMER ATT7027
J3002 JUMPER WIRE 4P D20PYY0425E

AMP ASSY

T

SEMICONDUCTORS

IC3410, IC3411 (250mA/125V) AEK7002
IC3401 STK407–040
IC3402 STK407–240
Q3425–Q3429 2SA1037K
Q3410 2SA1145

Q3414 2SA1837
Q3416 2SA1941 (P)
Q3405 2SA933S
Q3408, Q3409 2SA970
Q3412 2SC1740S

Q3417 2SC2240
Q3406, Q3407, Q3430 2SC2412K
Q3411 2SC2705
Q3419–Q3422 2SC2878
Q3413 2SC4793

OTHERS

CN3037 10P MINI DIN SOCKET AKP7015
CN3036 10P PLUG KM200TA10

POWER SUPPLY ASSY

W

SEMICONDUCTORS

IC8001 (315mA/125V) AEK7003
IC8002 NJM78M56FA
D8005 1SS254
D8001–D8004 S5688G

COILS AND FILTERS

L8001 ATF1006

SWITCHES AND RELAYS

RY8001 ASR7018

CAPACITORS

C8001–C8003 (0.01 µF/250V) ACG7010
C8005 CEAT102M16
C8503 CEAT1R0M50
C8006 CEAT330M16
C8004 CQMBA103J50

RESISTOR

R8502 RS1/10S102J

Q3415 2SC5198 (P)
Q3021–Q3032 2SD2114K
Q3423, Q3424 DTC143EK
D3411–D3414, D3419–D3423 1SS254
D3012–D3019 1SS355

D3416, D3418 MTZJ24B

COILS AND FILTERS

L3401–L3406 (1 µH) ATH–133

SWITCHES AND RELAYS

RY3401–RY3403 ASR7014

CAPACITORS

C3446, C3447 CCCSL101K2H
C3445 CCCSL181K2H
C3432, C3435 CCCSL220J50
C3437 CCSQCH331J50
C3407, C3408, C3411, C3412, C3414 CCSQCH560J50

C3422, C3425, C3428, C3431, C3434 CCSQCJ3R0C50
C3448 CEANP2R2M50
C3409, C3410, C3413, C3417, C3419 CEAT100M50
C3442, C3481 CEAT100M50
C3427, C3430, C3433 CEAT101M10

C3402, C3404, C3418, C3420 CEAT101M50
C3436 CEAT221M6R3
C3415 CEAT2R2M50
C3421, C3424, C3443 CEAT470M10
C3401, C3403 CEAT470M50

85

HTZ-7, HTZ-C7, HTZ-SW7

Mark No. Description Part No. Mark No. Description Part No.

C3405, C3406 CEZA2R2M50
C3456, C3457, C3460, C3461 CFTYA224J50
C3464, C3465, C3468, C3469 CFTYA224J50
C3472, C3473, C3476, C3477 CFTYA224J50
C3416 CKCYF223Z50

C3453, C3454, C3459, C3463, C3467 CKSQYB102K50
C3471, C3475 CKSQYB102K50
C3455 CKSQYB473K25
C9998, C9999 CKSQYF103Z50
C3557 CKSQYF334Z25

RESISTORS

R3470 (0.22 Ω /5W) ACN7026
R3511–R3515 (0.1 Ω /1W) ACN7032
R3457 RD1/2PMF563J
R3484, R3488, R3493, R3498, R3502 RD1/4LMF100J
R3507 RD1/4LMF100J

R3401, R3402, R3412, R3413 RD1/4LMF101J
R3464, R3465, R3467, R3468 RD1/4PMF101J
R3483 RD1/4PMF151J
R3459 RD1/4PMF563J
R3492 RD1/4PMF750J

R3455 RD1/4PU222J
R3473 RD1/4PU821J
R3452, R3453, R3466, R3469 RFA1/4PS4R7J
R3477, R3482 RS1LMF331J
Other Resistors RS1/10S J

OTHERS

CN3030 SPEAKER TERMINAL 6–P AKE7020
CN3015 11P SOCKET KP200IB11L
CN3022 19P SOCKET KP200IB19L
CN3027 3P JUMPER CONNECTOR KPD3
CN3033 6P JUMPER CONNECTOR KPE6

CN3017 B TO B CONNECTOR 10P RKP1822
JA3029 SPEAKER TERMINAL 4–P VKE1001
KN3402 EARTH METAL FITTING VNF1084

Y

PRIMARY ASSY

PRIMARY ASSY has no service part.

V

SWF ASSY

CAPACITORS

C3556 CKSQYB102K50

OTHERS

CN3028 2P CONNECTOR 5569–02A1
J3027 JUMPER WIRE DXUY0310E
3027 PCB BINDER VEF1040

CABLE HOLDER (3P) 51052–0300

P

IF ASSY

SEMICONDUCTORS

IC8701 TC7W04F
D8701–D8711 MTZJ8.2B

CAPACITORS

C8702 CKSQYF103Z50

RESISTOR

R8701 RS1/10S0R0J

OTHERS

3026 PIN JACK (1P) AKB7035
CN3024 10P MINI DIN SOCKET AKP7015
CN3023 10P MINI DIN SOCKET AKP7031
CN3011 18P SOCKET KP200TA18L

FLDP ASSY

AA

SEMICONDUCTORS

IC8601 LC75710NE
Q8601, Q8602, Q8604 2SC2412K
Q8603, Q8605 DTC124EK
D8604, D8605 1SS254
D8603 MTZJ39D

D8602 MTZJ8.2B
D8606 SLP9118C51H

COILS AND FILTERS

L8603 ATX1012
L8602 LAU100J
L8601 LAU220J

CAPACITORS

C8611 CCSQCH300J50
C8618, C8620 CEAL1R0M50
C8616 CEAL470M16
C8602 CEAT101M6R3
C8613 CEJA100M35

C8605 CEJA101M6R3
C8604, C8606, C8607, C8615, C8619 CKSQYB473K50
C8621–C8623 CKSQYB473K50
C8614 CKSQYF103Z50
C8603 CKSQYF104Z50

RESISTORS

R8622 RA11T473J
R8619 RA13T473J
R8620, R8621 RA14T473J
Other Resistors RS1/10S J

OTHERS

V8601 FL TUBE AAV7061
8602, 8603 FL SPACER AEB7122
8601 REMOTE RECEIVER UNIT GP1U27X
CN3035 10P SOCKET KP200TA10L

86

HTZ-7, HTZ-C7, HTZ-SW7

Mark No. Description Part No.

U

HP ASSY

CAPACITORS

C3901, C3902 CKCYB102K50

RESISTORS

All Resistors RS1/10S J

OTHERS

3033 CABLE HOLDER (6P) 51063–0605
J3033 CORD WITH PLUG ADE7035
CN3034 HEADPHONE JACK AKN1028

SECONDARY ASSY

X

CAPACITORS

C8126 CQMA104J50

OTHERS

J3008 JUMPER WIRE DXUY1215E

REG (1) ASSY

R

CABLE HOLDER (12P) 51052–1200

SEMICONDUCTORS

IC8203 NJM78M15FA
IC8204 NJM79M15FA
IC8201, IC8202 PQ20RV1E
D8201, D8202 1SS254

CAPACITORS

C8205, C8206 CEAT1R0M50
C8207, C8208 CEAT330M16
C8201, C8203 CEJA1R0M50
C8202, C8204 CEJA330M16

Mark No. Description Part No.

IC3019, IC3020 BA4558F–HT
IC3013–IC3015 LC7535
IC8106 NJM78L06A
IC8107 NJM79L06A
IC8501 PDG235B

Q8101 2SB1566
Q3015–Q3020, Q3031, Q8501–Q8503 2SC2412K
Q8512 2SD2114K
Q3001–Q3004, Q3037, Q3038 2SK208
Q3006, Q3027, Q3034, Q3039, Q8513 DTA124EK

Q3418 DTA143EK
Q8506 DTC114EK
Q8505, Q8507–Q8511 DTC114TK
Q3005, Q3035, Q8504 DTC124EK
D3001, D3002, D3005–D3008, D8501 1SS355

D8503–D8506 1SS355
D8101, D8103 D3SBA20 (B)
D8102 D5SBA20 (B)
D8205, D8206 MTZJ18C
D8108 MTZJ39A

D8203 MTZJ5.6B
D8115 MTZJ6.8B
D8204 MTZJ7.5C
D8118, D8119 MTZJ8.2C
D8104–D8107, D8109, D8110 S5688G

COILS AND FILTERS

L8502 ATX1012
L8501 LAU220J

CAPACITORS

C8103, C8106, C8109, C8112 ACH1237
(1 µF/100V)
C8101, C8102 (4700 µF/50V) ACH7097
C8104, C8105 (3300 µF/50V) ACH7098
C3003, C3004, C3009, C3010 CCSQCH101J50
C3015, C3016, C8501 CCSQCH101J50

RESISTORS

R8203 RS1/10S1201F
R8202, R8204 RS1/10S3900F
R8201 RS1/10S6200F

OTHERS

J3009 JUMPER WIRE D15A11–200–2651

MAIN ASSY

Q

CABLE HOLDER (11P) 51063–1105

SEMICONDUCTORS

IC8103, IC8104 (1A/125V) AEK7009
IC8105, IC8110 (1.5A/125V) AEK7011
IC8111 (2A/125V) AEK7013
IC8101, IC8102, IC8112 (4A/125V) AEK7018
IC3001–IC3006, IC3009–IC3012 BA4558F–HT

C3005, C3006, C3011, C3012 CCSQCH221J50
C3017, C3018, C3028, C3038, C3048 CCSQCH221J50
C8504 CCSQCH221J50
C3113, C8519 CEANP4R7M50
C3023, C3024, C3033, C3034 CEAT100M50

C3043, C3044, C3049, C3050 CEAT100M50
C3063, C3064, C3069, C3070 CEAT100M50
C3083, C3084, C3089, C3090, C3092 CEAT100M50
C3103, C3104, C3119–C3122, C3125 CEAT100M50
C3147–C3151, C8113, C8122, C8123 CEAT100M50

C8505 CEAT101M10
C8114 CEAT101M2A
C3021, C3022, C3031, C3032 CEAT1R0M50
C3041, C3042, C8118, C8119, C8502 CEAT1R0M50
C8510 CEAT1R0M50

C8512 CEAT220M50
C8116, C8117 CEAT330M16
C8115 CEAT331M35
C8108 CEAT471M16
C8110, C8111 CEAT471M35

87

HTZ-7, HTZ-C7, HTZ-SW7

Mark No. Description Part No.

C8107 CEAT472M16
C8127–C8133, C8137 CKSQYB102K50
C8506, C8507, C8513, C8517, C8518 CKSQYB103K50
C8520, C8521, C8523 CKSQYB103K50
C3115–C3118 CKSQYB154K16

C3096 CKSQYB184K16
C3106 CKSQYB223K25
C3059, C3060, C3079, C3080, C3099 CKSQYB223K50
C3102 CKSQYB274K16
C3141–C3145 CKSQYB473K25

C3061, C3062, C3081, C3082, C3101 CKSQYB562K50
C3100 CKSQYB564K16
C3019, C3020, C3025–C3027 CKSQYF104Z25
C3029, C3030, C3035–C3037 CKSQYF104Z25
C3039, C3040, C3045–C3047 CKSQYF104Z25

C3055, C3056, C3067, C3068 CKSQYF104Z25
C3075, C3076, C3087, C3088 CKSQYF104Z25
C3093, C3094, C3107, C3108, C3127 CKSQYF104Z25
C3129, C3131, C3133, C3135, C3137 CKSQYF104Z25
C8511 CKSQYF104Z50

C3123 CKSQYF153Z50
C3124 CKSQYF333Z50
C3126, C3128, C3130 CKSQYF473Z50

RESISTORS

R8520 RA15T472J
R8103 RD1/4LMF220J
R8101, R8102, R8104 RD1/4LMF470J
R3027–R3029 RD1/4PU102J
R3193, R3194 RD1/4PU105J

R3015, R3016, R8525, R8535 RD1/4PU221J
R8116 RD1/4PU472J
R8105 RD1/4VM103J
R8199 RFA1/4PS4R7J
Other Resistors RS1/10S J

OTHERS

CN3002 4P JUMPER CONNECTOR 52151–0410
CN3018 10P JUMPER CONNECTOR AKP7047
X8501 (7.70 MHz) ASS1055
CN3014, CN3019 11P PLUG KM200IB11
CN3020 15P PLUG KM200IB15

CN3021 19P PLUG KM200IB19
CN3010 18P PLUG KM200TA18
CN3008 L–CONNECTOR (12P) KPD12L
CN3016 B TO B CONNECTOR 10P RKP1784
KN8101, KN8102 VNF1084

EARTH METAL FITTING

Mark No. Description Part No.

IC9301 MB86342B
IC9501 PA4025A
IC9371 TC74HCT244AF
IC9103 TC74HCU04AF
IC9381 TC74LVX244FS

IC9192 TC74VHC00FT
IC9182, IC9721 TC74VHC157FT
IC9171 TC74VHC393FT
IC9172, IC9173, IC9181 TC74VHC74FT
IC9174 TC7S04FU

IC9183 TC7S08F
IC9191 TC7S86FU
IC9193, IC9902 TC7W08FU
IC9901 TC7WU04FU
Q9401, Q9431, Q9461 2PB709A

Q9402, Q9432, Q9462 2PD601A
Q9601, Q9611, Q9621, Q9631, Q9641 2SC3326
Q9651, Q9831, Q9832, Q9841, Q9842 2SC3326
Q9833, Q9834, Q9843, Q9844 2SK208
Q9304, Q9741, Q9822, Q9823, Q9901 PDTA124EK

Q9181, Q9191, Q9301–Q9303, Q9821 PDTC124EK
D9101, D9193, D9401, D9431, D9461 1SS181
D9192 1SS184
D9191, D9402, D9432, D9831, D9832 1SS355
D9841, D9842 1SS355

COILS AND FILTERS

F9911 ATF7013
L9301, L9801–L9811 (100 MHz) ATL7001
L9171, L9181, L9601, L9611, L9621 OTL1040
(100 MHz)
L9631, L9641, L9651, L9721 (100 MHz) OTL1040
L9741, L9742, L9761, L9762 (100 MHz) OTL1040

L9781, L9782 (100 MHz) OTL1040
L9103, L9121, L9361, L9371, L9380 VTL1019
(100 MHz)

CAPACITORS

C9125 CCSQCH100D50
C9105, C9122, C9126, C9159, C9302 CCSQCH101J50
C9309, C9312, C9315, C9318, C9321 CCSQCH101J50
C9361, C9381, C9624, C9634, C9905 CCSQCH101J50
C9192, C9832, C9842, C9911 CCSQCH102J50

C9644 CCSQCH151J50
C9413, C9414, C9423, C9424, C9512 CCSQCH181J50
C9522 CCSQCH181J50
C9901, C9902 CCSQCH220J50
C9604, C9614 CCSQCH221J50

DOLBY DIG 9624 ASSY

S

SEMICONDUCTORS

IC9741, IC9761, IC9781 AK4324–VF
IC9411, IC9441, IC9471, IC9601, IC9621 BA4558F–HT
IC9641 BA4558F–HT
IC9121 CD0015AF
IC9361 KM62V256CLG–7L

88

C9151, C9152, C9173, C9175, C9182 CCSQCH271J50
C9184, C9443, C9444, C9453, C9454 CCSQCH271J50
C9473, C9474, C9542, C9552, C9572 CCSQCH271J50
C9702, C9704, C9709, C9723, C9743 CCSQCH271J50
C9746, C9763, C9766, C9783, C9786 CCSQCH271J50

C9904 CCSQCH271J50
C9326, C9387, C9388, C9511, C9521 CCSQCH471J50
C9912 CCSQCH560J50
C9412, C9422 CCSQCH561J50
C9442, C9452, C9472, C9541, C9551 CCSQCH681J50

Mark No. Description Part No.

C9571 CCSQCH681J50
C9301 CEAT471M6R3
C9107, C9128, C9502, C9504, C9605 CEV100M16
C9615, C9625, C9635, C9645, C9741 CEV100M16
C9744, C9761, C9764, C9781, C9784 CEV100M16

C9171 CEV101M6R3
C9655 CEV2R2M50
C9801, C9802 CEV330M25
C9186, C9242, C9363, C9373, C9383 CEV470M6R3
C9721 CEV470M6R3

C9371 CKSQYB102K50
C9101, C9172, C9183, C9185 CKSQYB103K50
C9483, C9484, C9606, C9616, C9656 CKSQYB103K50
C9701, C9703, C9706–C9708, C9722 CKSQYB103K50
C9903 CKSQYB103K50

C9121, C9153, C9154, C9179 CKSQYB104K25
C9194, C9195 CKSQYB104K25
C9831, C9841 CKSQYB222K50
C9482, C9582 CKSQYB223K25
C9581 CKSQYB473K25

HTZ-7, HTZ-C7, HTZ-SW7

C9626, C9636, C9646 CKSQYB822K50
C9043, C9058, C9106, C9127, C9130 CKSQYF104Z25
C9177, C9178, C9188, C9191, C9193 CKSQYF104Z25
C9196, C9204, C9224, C9303, C9310 CKSQYF104Z25
C9313, C9316, C9319, C9322, C9362 CKSQYF104Z25

C9372, C9382, C9409, C9411, C9421 CKSQYF104Z25
C9439, C9441, C9451, C9469, C9471 CKSQYF104Z25
C9481, C9501, C9503, C9601, C9611 CKSQYF104Z25
C9621, C9631, C9641, C9651, C9742 CKSQYF104Z25
C9745, C9762, C9765, C9782, C9785 CKSQYF104Z25

RESISTORS

All Resistors RS1/10S J

OTHERS

X9901 (18.432 MHz) ASS1035
CN9801 11P SOCKET KP200IB11L

CN9661 15P SOCKET KP200IB15L
CN9301 10P JUMPER CONNECTOR KPE10
JA9000 PIN JACK (1P) VKB1077

DOLBY DIGITAL PCB ANP7271

89

HTZ-7, HTZ-C7, HTZ-SW7

6. ADJUSTMENT

6.1 DVD SECTION

6.1.1 ADJUSTMENT ITEMS AND LOCATION

7 Adjustment Points (PCB Part)

DVDM ASSY

SIDE A

3

1

13

14

2

CN201

VR801

1

IC813

SVIDEO ASSY

SIDE A

CN7005

CN201
1, 2 : FE
3, 4 : GNDS
5, 6 : RFO
7, 8 : GNDS
9, 10 : TE
11, 12 : VREF
13 : TDO
14 : FDO

IC302

2

VC301

IC501

1

IC801

IC701

IC601

CN101

7 Adjustment Points (Mechanical Part)

Note 1:
Remove the tray when adjusting the tangential and radial
adjustment screws.

Note 2:
After the adjustment, stabilize the screw with an adhesive.

CN7004

1

VC7001

CN7002

7 Adjustment Items

[ Mechanical Part ]

Tangential Skew and Radial Skew Coarse Adjustment

1

DVD Jitter Adjustment

[ Electrical Part ]

1

18 MHz Master Clock Adjustment

2

VCO Offset Adjustment

3

Video Output Level Adjustment

Tangential Adjustment Screw

Radial Adjustment
Screw

90

6.1.2 JIGS AND MEASURING INSTRUMENTS

HTZ-7, HTZ-C7, HTZ-SW7

CD test disc (ABEX–784)

Precise screwdriver

Frequency counter
Display digit 8-digit

DVD test disc (DVD–MJK1)

Screwdriver (large)

TV monitor

Screwdriver (medium)

Screwdriver (medium)

Test mode remote control
unit (GGF1067)

Screwdriver (small)

CH1 CH2

(X) (Y)

Dual-trace oscilloscope
(with delay)
Frequency band 40 MHz

Hexagonal screwdriver

LEVEL

Jitter Meter

×1

JITTER

27M

Equalizer Unit

91

HTZ-7, HTZ-C7, HTZ-SW7

6.1.3 TEST MODE

TEST MODE: ON

ON

TEST MODE: DISC SET

¶ With TRAY

<TRAY OPEN>

DVD disc

GGF1067
Test mode
remote control
unit

<TRAY CLOSE>

ESC TEST

TILT-OFF(N)
TRKG-OFF

CHECK

DVD:S-CDV

TEST MODE: PLAY

<TRACKING OFF PLAY>

TEST

2

+

TEST

<TRACKING ON PLAY>

TEST MODE: OFF

5

PLAY TILT- OFF
TRKG- OFF

TILT-OFF
TRKG-OFF

TILT-OFF
TRKG-ON

OR

GGF1067
Test mode
remote control
unit

TILT-OFF(N)
TRKG-ON

PLAY TILT- OFF(N)
TRKG- ON

ESC

92

ON

6.1.4 NECESSARY ADJUSTMENT POINTS

When Adjustment Points

EXCHANGE MECHANISM ASSY PARTS

HTZ-7, HTZ-C7, HTZ-SW7

Exchange pickup

Exchange spindle motor

EXCHANGE PCB ASSY

Exchange board

SVIDEO ASSY

Mechanical

point

Electric

point

Mechanical

point

Electric

point

Mechanical

point

Electric

point

2

1

,

Exchange board

DVDM ASSY

Note: 1 is adjusted already.

Mechanical

point

Electric

point

Note: 2 and 3 are adjusted already.

93

HTZ-7, HTZ-C7, HTZ-SW7

6.1.5 MECHANICAL ADJUSTMENT

Tangential Skew and Radial Skew Coarse Adjustment

•

Test mode
TRKG = OFF

•

Play the DVD test disc
at outer track.

START

DVDM ASSY

CN201

RFO

5

Player

Mechanism
assy

Tangential
Adjustment
Screw

See “Adjustment

∗

points”.

Mechanism
assy

Radial
Adjustment
Screw

∗

See “Adjustment

points”.

Probe (10:1)

RF(11T)

Max.

RF(11T)

Max.

CH1 CH2

(X) (Y)

Oscilloscope

V: 50mV/div.
H: 0.5µsec/div.
AC mode

DVD Jitter Adjustment

TEST DIG/ANA

• Test mode
TRKG = ON

• Play the DVD test disc at outer track
(around #1F0000).

Player

START

DVDM ASSY

CN201

RFO

5

UNIT

EQ

VIDEO OUT

Mechanism
assy

Tangential
Adjustment
Screw

See “Adjustment

∗

points”.

Mechanism
assy

Radial
Adjustment
Screw

∗

See “Adjustment

points”.

Probe (10:1)

JT:Min.

VIDEO IN

JT:Min.

JT[0000] 0280

TV monitor

CHECK

Jitter < 6.0 nS

LEVEL

X1

Jitter Meter

JITTER

27M

94

6.1.6 ELECTRICAL ADJUSTMENT

18 MHz Master Clock Adjustment

1

HTZ-7, HTZ-C7, HTZ-SW7

• Normal mode

• Power ON

START

DVDM ASSY

CN801

SVIDEO ASSY

CN7002

2

VCO Offset Adjustment

1

or

1

Player

SVIDEO
ASSY

VC7001

18.432MHz ± 90Hz

Frequency counter

• Normal mode

• Play the DVD test disc

START

DVDM ASSY

1

IC302

Player

DVDM ASSY

VC301

Probe (10:1)

CH1 CH2

(X) (Y)

1.9V± 0.1V

GND

Oscilloscope

V: 50mV/div.
H: 10msec/div.
DC mode
TV trigger

95

HTZ-7, HTZ-C7, HTZ-SW7

3

Video Output Level Adjustment

6.1.6 ELECTRICAL ADJUSTMENT

• Normal mode

• Still the DVD test disc

100% White Screen.

START

TV monitor

VIDEO
IN

VIDEO
OUT

Player (Rear)

DVDM ASSY

VR801

Probe (10:1)

CH1 CH2

(X) (Y)

Oscilloscope

1Vp-p

50mV

V: 20mV/div.
H: 10µsec/div.
AC mode
TV trigger

96

6.1.7 OPERATIONS IN THE TEST MODE

Test Mode Remote Control Unit (GGF1067)

Player status

Play

REPEAT B

PAUSE

Play Still

Tray
open

+10

Play

3
1
8
3

CHP/TM

Stop

Tray Move

Tray Close

Tray Move

Tray Open

Search to
input frame #

# 3183

LASER
DISC

SR

TEST
MODE

ESC CX

REP.A REP.B STEREO P. N

A,MON TV/LDP

A B SCAN

SIDE

×3

×3

CHAPTER
SKIP

1 2 3 CLEAR

456+10

7890

FRM/TIM CHAP CHP/TIM SEARCH

PIONEER SERVICE

DIG/ANA DISP

TEST

SPEED

−

STILL
STEP

PLAY

PAUSE

GGF1067

HTZ-7, HTZ-C7, HTZ-SW7

Clamp

+

+

Clamp

TEST 3

Tray

REPEAT A

open

Clamp

TEST 2

SPDL ON,
TRK servo OFF

TRK
servo
OFF

TRK
servo
ON

Focus sweep
(Up and Down)

Slider Move

Disc clamp

TEST 5

+

TRK servo
ON

TRK servo
OFF

TV Monitor Display

Address

Tilt error value, Tilt servo status

Tracking status

Spindle status

AGC setting

FTS servo IC information

C1 error value of CD and DVD

Internal operation mode of

the mechanism control

Disc judgment

Pickup

Character in bold: Item name

Note: Switch the first and second screen

by pressing the [DISPLAY] key on
the remote control unit.

: Information display

Remote control code

Key code

Mechanical position value
Slider position
Output video system

FL controller version
Region setting for the player

Flash ROM version
System controller revision

DVD mechanism controller revision

AV-1 chip version

First screen display

FL controller version
GUI-ROM number
Part No. of flash ROM and system controller

Part No. of DVD mechanism controller
Part No. of CLD mechanism controller

CLD mechanism controller revision

Second screen display (at lower right portion of the screen)

97

HTZ-7, HTZ-C7, HTZ-SW7

6.2 TUNER SECTION

6.2.1 FM TUNER SECTION

Set the mode selector to FM BAND.
Connect the wiring as shown in Fig. 1.

Step No.

1

2

Adjustment

Title

Front End

Sensitivity

TUNED IND.

Lighting Level

FM SG (1kHz, ±75kHz dev.)

Frequency

(MHz)

98

Level

(dBµV)

0 – 30 98 MHz

98

Reception

Frequency

Display

98 MHz18 ± 2

Adjustment

Location

L6402
T6401

VR6201

Specifications

Adjust so that the DC voltage between the IC6201­Pin 20 and GND becomes at maximum level.

Adjust so that the indicator of TUNED IND. starts to
light up.

Note: Before adjusting, make sure there is no gap between L6401 and L6402. If there is a gap between them, bring them into contact with

each other first, and then make adjustments.

6.2.2 AM TUNER SECTION

Set the mode selector to AM BAND.
Connect the wiring as shown in Fig. 1.

AM SG (400Hz, 30% Mod.)

Frequency

(kHz)

1

999*

Level

(dBµV/m)

35 – 45

Step No.

1

Adjustment

Title

Front End
Sensitivity

∗1: For the area using 10 kHz step, frequencies should be 1000 kHz.

60cm

Reception

Frequency

Display

999 kHz*

Adjustment

Location

1

T6201

Loop Antenna

Specifications

Adjust so that the DC voltage between the IC6201­Pin 20 and GND becomes at maximum level.

AM
Antenna
Terminal

FM
Antenna
Terminal

AM SG

MPX SG

Center Center

FM75Ω antenna terminal

Fig. 1 AM and FM Adjustment Wiring Diagram

FM/AM TUNER MODULE

SIDE A

YELLOW BLACK

AXX7041

L6401

AM antenna terminal

FM SG

T6401

L6402

Fig. 2 Adjustment Points

PRODUCT

DC

Voltmeter

T6201

IC6201

Pin 20

VR6201

98

7. GENERAL INFORMATION

7.1 PARTS

7.1.1 IC
TC9271F (IC7008: SVIDEO ASSY)
Digital Audio Interface Modulation and Transmission IC

Block Diagram

CKA2

CKA1

VDD

28

LBIT

27

26

25

FR32

24

CTG3

23

¶ The information shown in the list is basic information and may not

correspond exactly to that shown in the schematic diagrams.

CTG2

CTG1

IS2

IS1

M2

19

21

22

20

18

HTZ-7, HTZ-C7, HTZ-SW7

M1

DO2

17

DO1

16

15

Serial Interface

Category Code Register

Data Input Circuit

Clock Generation Circuit

1

BLOCK

2

UBDA

3

LRS

4

LRCK

5

BCK

6

DATA

Pin Function

No. Name I/O Description

1 BLOCK O Block leading head position detection terminal
2 UBDA I User bit data input terminal
3 LRS I LRCK polarity selection terminal

LRS

L Level R ch Data L ch Data
L Level L ch Data R ch Data

4 LRCK I LR clock input terminal
5 BCK I Bit clock input terminal
6 DATA I 2-channel mode: Data input terminal

4-channel mode: Data input terminal 1

7 VLDY I 2-channel mode: Compensation flag input terminal

4-channel mode: Data input terminal 2
8 EMPH I Emphasis flag setting terminal
9 COPY I Parallel setting mode: Copy flag setting terminal

Serial setting mode: Fixed to “H”

10 FS1 I Sampling frequency setting terminal 1
11 FS2 I Sampling frequency setting terminal 2
12 CKS I Clock division selection terminal
13 XI I Clock input terminal

LRCK

LR

Biphase Mark

Modulation Circuit

Parity

Generation

Circuit

12

13

XI

CKS

14

Vss

7

VLDY

8

EMPH

9

COPY

10

FS1

+

11

FS2

No. Name I/O Description

14 Vss –– GND terminal
15 DO1 O Digital data output terminal 1
16 DO2 O Digital data output terminal 2
17 M1 I Channel mode setting terminal 1
18 M2 I Channel mode setting terminal 2
19 IS1 I Data input mode setting terminal 1
20 IS2 I Data input mode setting terminal 2
21 CTG1 I

Parallel setting mode: Category code setting terminal 1
Serial setting mode: Data input terminal

22 CTG2 I

Parallel setting mode: Category code setting terminal 2
Serial setting mode: Clock input terminal

23 CTG3 I

Parallel setting mode: Category code setting terminal 3

Serial setting mode: Latch pulse input terminal
24 FR32 O FR32 output terminal
25 LBIT I Parallel setting mode: LBIT input terminal 1

Serial setting mode: 32/192 bit switching terminal
26 CKA1 I

Parallel setting mode: Clock accuracy setting terminal 1

Serial setting mode: Fixed to “H”
27 CKA2 I

Parallel setting mode: Clock accuracy setting terminal 2

Serial setting mode: Output prohibited, fixed to “H”
28 VDD –– Power supply voltage terminal

99

HTZ-7, HTZ-C7, HTZ-SW7

PDG234A (IC5501: MOTHER ASSY)
System Micro-computer (for AV center)

Pin Function

No. Symbol Name I/O Description

1 G1/A1 ––––– OUT ––––––––––
2 G0/A0 ––––– OUT ––––––––––
3 NC ––––– –– ––––––––––
4 PE0/INT0/EC0 ––––– IN ––––––––––
5 PE1/INT1/EC1 ––––– IN ––––––––––
6 PE2/INT2 ––––– IN ––––––––––
7 PE3/INT3/NM1 ––––– IN ––––––––––
8 PE4/RMC SR_IN IN SR input

9 PE5 TEST_MODE IN Test mode when this port is “L” at the time of power ON
10 PE6/PWM AUDIOSW_STAT3 OUT AV switching strobe 3 (DIGITAL system)
11 PE7/TO/ADJ AUDIOSW_STAT1 OUT AV switching strobe (AUDIO system)
12 PC0/KR0 AUDIOSW_STAT2 OUT AV switching strobe 2 (VIDEO system)
13 PC1/KR1 AUDIOSW_DATA OUT Function switching IC data
14 PC2/KR2 AUDIOSW_CLK OUT Function switching IC clock
15 PC3/KR3 ––––– OUT ––––––––––
16 PC4/KR4 SYSBUS_DI IN System bus data input [ for ID (priority) confirmation ]
17 PC5/KR5 SYSBUS_DO IN/OUT System bus data I/O (input except at the time of transmission)
18 PC6/KR6 SYSBUS_REQ IN/OUT System bus REQ I/O (input except at the time of transmission)
19 PC7/KR7 SYSBUS_CLK OUT System bus CLK output (always communication master)
20 PB0/CINT DVD_XRDY OUT DVD-READY
21 PB1/CS0 DVD_LT1 IN DVD latch
22 PB2/SCK0 DVD_XSCK OUT DVD serial data CLK
23 PB3/SI0 DVD_SI IN DVD serial data IN
24 PB4/SO0 DVD_SO OUT DVD serial data OUT
25 PB5/SCK1 DISP_CLK OUT Display communication transmission clock output
26 PB6/SI1 DISP_REQ_MD OUT Display communication REQ to MD
27 PB7/SO1 DISP_DATA OUT Display communication transmission data output
28 PI0 ––––– IN ––––––––––
29 PA0/AN0 KEY_IN IN AD input for main unit key input
30 PA1/AN1 SLEEP IN AD input for confirmation of microcomputer power supply 5.6 V DOWN (for backup)
31 PA2/AN2 FAN DET IN AD input for confirmation of heat dissipation fan operation
32 PA3/AN3 3.3V DET IN AD input for confirmation of DVD power supply 3.3 V DOWN (for sag correspondence)
33 PA4/AN4 MS1 IN AD input for destination switching, 0: J/1: KU
34 PA5/AN5 AD_OVL IN AD input overload detection AD input
35 PA6/AN6 AV_5.6V IN AD input for confirmation of AV center 5.0 V power supply DOWN
36 PA7/AN7 XSTEREO/TUNED IN ADL for TUNER stereo reception OK/reception OK
37 PI1 ––––– –– GND
38 RST ––––– –– Reset
39 EXTAL ––––– –– Oscillator 16 MHz
40 XTAL ––––– –– Oscillator 16 MHz
41 Vss ––––– –– GND
42 PI2/TX ––––– –– GND
43 PI3/TEX ––––– –– GND
44 VDD ––––– –– 5V
45 Vfdp ––––– –– GND
46 PD0/A55 TX_DI (OUT) OUT TUNER data output
47 PD1/A54 TX_CLOCK OUT TUNER clock output
48 PD2/A53 TX_CE OUT TUNER CE output
49 PD3/A52 TX_MUTE OUT TUNER mute output

100
