PIONEER HTP-610, HTP-SB510 User Manual

Download

HTP-710

SX-SWR2

S-DV595T

Speaker System Enceintes acoustiques Luidsprekersysteem

5.1 ch Surround System Système Surround 5.1 canaux

5.1-kanaals surroundsysteem

HTP-610

SX-SWR2

S-SWR600

Speaker System Enceintes acoustiques Luidsprekersysteem

Audio/Video Multi-Channel Receiver Subwoofer Subwoofer avec récepteur audio-vidéo multicanaux intégré Audio/video multikanaals receiver subwoofer

5.1 ch Surround System Système Surround 5.1 canaux

5.1-kanaals surroundsysteem

HTP-FS510

SX-SWR2

S-SWR500FS

Audio/Video Multi-Channel Receiver Subwoofer Subwoofer avec récepteur audio-vidéo multicanaux intégré Audio/video multikanaals receiver subwoofer

Front Surroud System Système Surround frontal Surround Voor systeem

Speaker System Enceintes acoustiques Luidsprekersysteem

HTP-SB510

SX-SWR2

S-SB510

Audio/Video Multi-Channel Receiver Subwoofer Subwoofer avec récepteur audio-vidéo multicanaux intégré Audio/video multikanaals receiver subwoofer

Front Surroud System Système Surround frontal Surround Voor systeem

Operating Instructions Mode d’emploi Handleiding

Discover the benefits of registering your product online at

http://www.pioneer.co.uk (or http://www.pioneer.eu).

Découvrez les nombreux avantages offerts en enregistrant votre produit en ligne maintenant sur

http://www.pioneer.fr (ou http://www.pioneer.eu).

Ontdek nu de voordelen van online registratie! Registreer uw Pioneer product via

http://www.pioneer.nl - http://www.pioneer.be (of http://www.pioneer.eu).

IMPORTANT

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1-1_A1_En

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

WARNING

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel.

D3-4-2-1-4*_A1_En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10 cm at top, 10 cm at rear, and 10 cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*_A1_En

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-1a_A1_En

CAUTION

The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a*_A1_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

K041_A1_En

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

D3-4-2-1-7c*_A1_En

Information for users on collection and disposal of old equipment and used batteries

Symbol for

equipment

Symbol examples

for batteries

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT: THE MOULDED PLUG

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be obtained from your local dealer.

If the fitted moulded plug is unsuitable for your socket outlet, then the fuse shall be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code: Blue : Neutral Brown : Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows;

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

K058a_A1_En

D3-4-2-1-2-2*_A1_En

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD Master Audio, and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

Setup Guide (HTP-710)

SYSTEM

TV CONTROL

VOL

DIMMER

SIGNAL SEL

BD MENU

DISPLAY

SURROUND SYSTEM

ENTER

MUTE

INPUT

SOURCE

Large non-skid pads (for receiver subwoofer) x4

iPod cable x1

Dry cell batteries (AAA size IEC R03) x2

Microphone (for Auto MCACC setup) x1

Remote control x1

Receiver subwoofer x1

FM wire antenna x1

Warranty card Operating instructions

(This document)

Power cords x2

Receiver subwoofer (SX-SWR2) box

Optical digital cable x1

Video cable x1

Speakers (S-DV595T) box

Front/surround speakers x4

Center speaker x1

Speaker cables (for front speaker x2, for center speaker x1, for surround speaker x2)

Speaker stand bases x4

Screws x12

Small non-skid pads (for speaker stand bases) x16

What’s in the box

Please confirm that the following items are all supplied.

A B D E C

English Deutsch Italiano EspañolFrançais

Nederlands

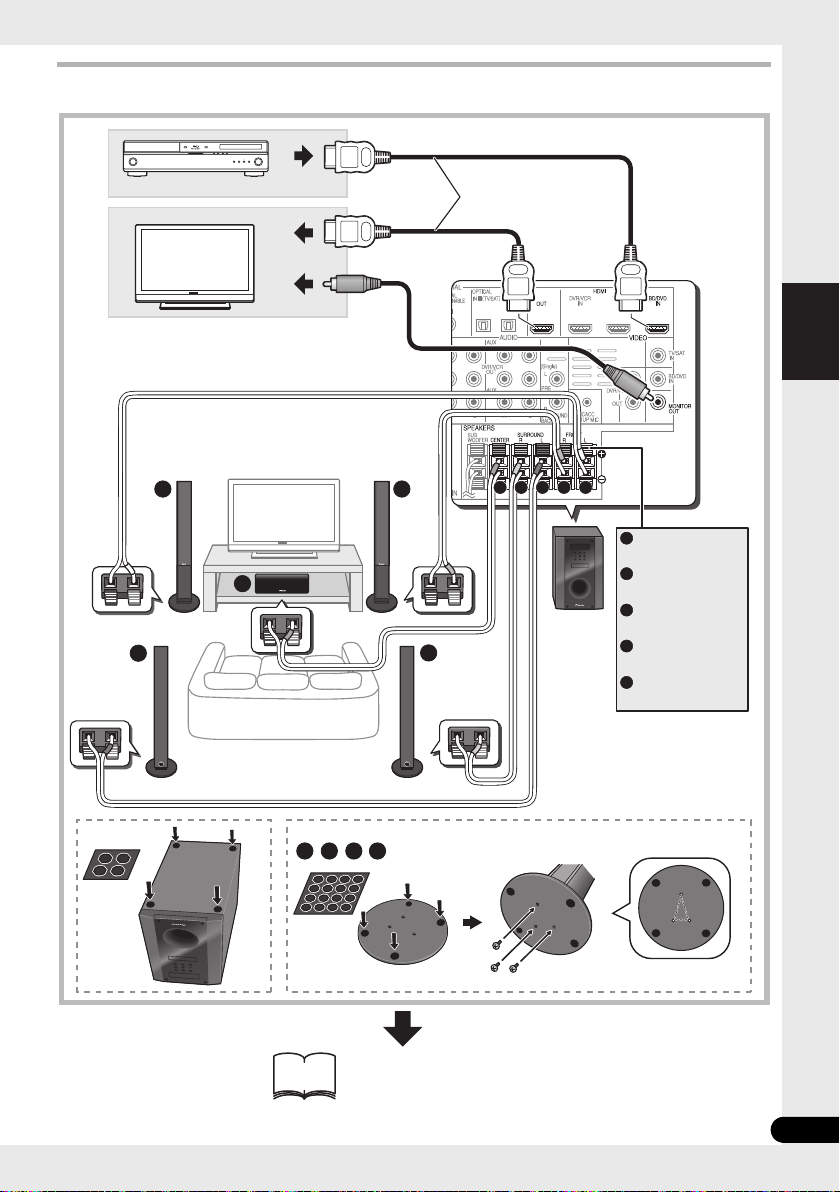

Connection

1 2

B D E

E DC B

FRONT - L

FRONT

CENTER

SURROUND

HDMI OUT

HDMI IN

VIDEO IN

White

Red

Green

Blue

Grey

For enjoying your self (MCACC)

Commercially available

Setup Guide (HTP-610)

SYSTEM

TV CONTROL

VOL

DIMMER

SIGNAL SEL

BD MENU

DISPLAY

SURROUND SYSTEM

ENTER

MUTE

INPUT

SOURCE

Large non-skid pads (for receiver subwoofer) x4

iPod cable x1

Dry cell batteries (AAA size IEC R03) x2

Microphone (for Auto MCACC setup) x1

Remote control x1

Receiver subwoofer x1

FM wire antenna x1

Warranty card Operating instructions

(This document)

Power cords x2

Receiver subwoofer (SX-SWR2) box

Optical digital cable x1

Video cable x1

Speakers (S-SWR600) box

Front speakers x2

Speaker cables (for front speaker x2, for center speaker x1, for surround speaker x2)

Brackets x2

Small non-skid pads (for speaker stand bases) x18

Center speakers x2

Surround speakers x2

Mounting brackets x6

Screws x8

What’s in the box

Please confirm that the following items are all supplied.

C C

English Deutsch Italiano EspañolFrançais

Nederlands

Connection

1 2

C D E

E D B

FRONT - L

FRONT

CENTER

SURROUND

HDMI OUT

HDMI IN

VIDEO IN

White

Red

Green

Blue

Grey

For enjoying your self (MCACC)

Commercially available

Setup Guide (HTP-FS510)

SYSTEM

TV CONTROL

VOL

DIMMER

SIGNAL SEL

BD MENU

DISPLAY

SURROUND SYSTEM

ENTER

MUTE

INPUT

SOURCE

Large non-skid pads (for receiver subwoofer) x4

iPod cable x1

Dry cell batteries (AAA size IEC R03) x2

Microphone (for Auto MCACC setup) x1

Remote control x1

Receiver subwoofer x1

FM wire antenna x1

Warranty card Operating instructions

(This document)

Power cords x2

Receiver subwoofer (SX-SWR2) box

Optical digital cable x1

Video cable x1

Speakers (S-SWR500FS) box

Front speakers x2

Speaker cables x2

Poles x2

Speaker stand bases x2

Gaskets x2

Screws (short) x8

Screws (long) x4

What’s in the box

Please confirm that the following items are all supplied.

A B

English Deutsch Italiano EspañolFrançais

Nederlands

Connection

HDMI OUT

HDMI IN

VIDEO IN

FRONT - L

FRONT

White

Red

For enjoying your self (MCACC)

Commercially available

Setup Guide (HTP-SB510)

SYSTEM

TV CONTROL

VOL

DIMMER

SIGNAL SEL

BD MENU

DISPLAY

SURROUND SYSTEM

ENTER

MUTE

INPUT

SOURCE

Large non-skid pads (for receiver subwoofer) x4

iPod cable x1

Dry cell batteries (AAA size IEC R03) x2

Microphone (for Auto MCACC setup) x1

Remote control x1

Receiver subwoofer x1

FM wire antenna x1

Warranty card Operating instructions

(This document)

Power cords x2

Receiver subwoofer (SX-SWR2) box

Optical digital cable x1

Video cable x1

Speakers (S-SB510) box

Speaker x1

Speaker cable x1

Speaker stands x2

Screws x2

Small non-skid pads (for speaker stands/for speaker) x10

What’s in the box

Please confirm that the following items are all supplied.

English Deutsch Italiano EspañolFrançais

Nederlands

Connection

1 2

FRONT - L

FRONT

CENTER

HDMI OUT

HDMI IN

VIDEO IN

White

Red

Green

For enjoying your self (MCACC)

Commercially available

(HTP-710)

System Setup

1.Auto MCACC

2.Manual SP Setup

Return

System Setup

1.Auto MCACC

2.Manual SP Setup

Return

1.Auto MCACC

Now Analyzing

Environment Check Ambient Noise Speaker YES/NO

Return

1.Auto MCACC

Check!

Return

10:Next

Front Center Surr Surr. Back Subwoofer

[ YES ] [ YES ] [ YES ] [YESx2] [ YES ]

51-53

VIDEO IN

HDMI

For enjoying your self (MCACC)

SYSTEM

TV CONTROL

INPUT

ENTER

SYSTEM

SOURCE

ENTER

English Deutsch Italiano EspañolFrançais

Nederlands

Home theater

BD/DVD Radio

HDMI IN

BD/DVD

TUNER

Off

SYSTEM

INPUT

TV CONTROL

SOURCE

SYSTEM

INPUT

DIMMER

ENTER

TV CONTROL

SIGNAL SEL

BD MENU

SOURCE

VOL

SOURCE

SYSTEM

SOURCE

ENTER

Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference

Contents

Setup Guide

HTP-710.........................................4

HTP-610.........................................6

HTP-FS510 .....................................8

HTP-SB510...................................10

For enjoying your self (MCACC)...12

Home theater.................................13

01 Speaker Setup (HTP-710)

Safety precautions when setting up. . . . . .16

Home theater sound setup . . . . . . . . . . . .16

Preparing the speakers . . . . . . . . . . . . . . .16

Securing your front and surround

speakers . . . . . . . . . . . . . . . . . . . . . . . . .18

Wall mounting the center speaker . . . . . . .18

Before mounting . . . . . . . . . . . . . . . . . . .18

Additional notes on speaker placement . . .19

01 Speaker Setup (HTP-610)

Safety precautions when setting up. . . . . .20

Home theater sound setup . . . . . . . . . . . .20

Preparing the speakers . . . . . . . . . . . . . . .20

Wall mounting the speakers . . . . . . . . . . .22

Before mounting . . . . . . . . . . . . . . . . . . .22

Additional notes on speaker placement . . .23

01 Speaker Setup (HTP-FS510)

Safety precautions when setting up. . . . . .24

Home theater sound setup . . . . . . . . . . . .24

Preparing the speakers . . . . . . . . . . . . . . .24

Wall mounting the front speakers . . . . . . .26

Before mounting . . . . . . . . . . . . . . . . . . .26

Attaching the speakers . . . . . . . . . . . . . .27

Additional notes on speaker placement . . .27

For Enhanced Sound Quality . . . . . . . . . . .27

01 Speaker Setup (HTP-SB510)

Safety precautions when setting up . . . . . 28

Home theater sound setup . . . . . . . . . . . . 28

Preparing the speakers . . . . . . . . . . . . . . . 28

Wall mounting the speaker . . . . . . . . . . . . 30

Before mounting. . . . . . . . . . . . . . . . . . . 30

Additional notes on speaker placement . . 31

For Enhanced Sound Quality. . . . . . . . . . . 31

02 Connecting up

Rear panel. . . . . . . . . . . . . . . . . . . . . . . . . 32

Making cable connections . . . . . . . . . . . . 33

About video outputs connection . . . . . . . 33

HDMI cables. . . . . . . . . . . . . . . . . . . . . . 33

Analog audio cables. . . . . . . . . . . . . . . . 34

Digital audio cables . . . . . . . . . . . . . . . . 34

Connect your TV (For TV audio) . . . . . . . . . 35

Connecting your TV and playback

components . . . . . . . . . . . . . . . . . . . . . . . 36

Connecting using HDMI . . . . . . . . . . . . . 36

Connecting your component with no

HDMI terminal . . . . . . . . . . . . . . . . . . . . 37

Connecting an HDD/DVD recorder, VCR

and other video sources . . . . . . . . . . . . . . 38

Connecting a satellite receiver or other

digital set-top box . . . . . . . . . . . . . . . . . . . 39

Connecting other audio components . . . . 40

Connecting to the front panel video

terminal . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Connecting an iPod/iPhone . . . . . . . . . . . 41

Connecting a USB device . . . . . . . . . . . . . 42

Connecting the FM antenna . . . . . . . . . . . 42

Connecting external antennas . . . . . . . .42

Use the PRE OUT outputs to connect the

surround back speakers . . . . . . . . . . . . . . 43

Plugging in the system . . . . . . . . . . . . . . . 43

English Deutsch Italiano EspañolFrançais

Nederlands

03 Controls and displays

Front panel. . . . . . . . . . . . . . . . . . . . . . . . 44

Display. . . . . . . . . . . . . . . . . . . . . . . . . . 45

Remote control . . . . . . . . . . . . . . . . . . . . 47

Putting the batteries in the remote

control . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Using the remote control. . . . . . . . . . . . 50

04 Getting started

Automatically setting up for surround

sound (MCACC) . . . . . . . . . . . . . . . . . . . . 51

Front left Front right

Surround left Surround right

Listening position

Center

Subwoofer

Small non-skid pads

Large non-skid pads

Chapter 1-1

Speaker Setup (HTP-710)

Safety precautions when setting up

When assembling the speakers, lay them down flat on their side to avoid accidents or injury. Make sure to use a stable surface when assembling, setting up, and placing the speakers.

Home theater sound setup

This is a standard multichannel surround sound speaker setup for optimal 5.1 channel home theater sound. The front left and right speakers should be about 1.8 m to 2.7 m apart.

Preparing the speakers

1 Attach the non-skid pads to the base of

each speaker stand bases and the receiver

subwoofer.

For speaker stand bases:

Use the supplied adhesive to attach four small

pads to the base (bottom) of each speaker

stand base.

For subwoofer:

Use the supplied adhesive to attach four large

pads to the base of subwoofer.

English Deutsch Italiano EspañolFrançais

Nederlands

Speaker Setup (HTP-710) 01

Rear

Front

Black

(–)

Red (+)

Color-coded wire

Black

(–)

Color-coded wire

Color-coded tab (+)

2 Attach the speaker stand bases to the stems using the screws provided.

Once you have aligned the stem and base, secure with the small screws at the points shown below. Note that the speaker should face in the direction of the base of the isosceles triangle.

CAUTION

• Be careful not to tighten screws excessively.

• If excessive force is used to tighten screws, the threads of screw and/or nut may be damaged. Use a middle-sized manual screwdriver during assembly.

• Do not use power screwdrivers or oversized screwdrivers that may exert excessive force on the screws and nuts.

• Confirm that no foreign matter is stuck to the stand base or the tall speaker during assembly.

• If the unit is assembled with foreign matter stuck between the stand base and the tall speaker the unit may not be assembled securely, resulting in tipping or falling.

• Do not stand on the speaker stand base of the tall speaker to push or swing the speaker. The speaker may fall and break, or someone may be injured. Pay special attention to children.

3 Connect each speaker.

Connect the wires to the speaker. Each speaker in the illustration can be identified by means of the color-coded indicator provided on the rear-surface label.

Front left: White Front right: Red Center: Green Surround left: Blue

Surround right: Gray Match the color-coded wire with the color indicator on the label, then insert the colorcoded wire into the red (+) side and the other

wire into the black (–) side.

Connect the other end to the color-coded speaker terminals on the rear of the receiver subwoofer.

Speaker Setup (HTP-710)01

Sufficiently

thick cord

Plastic catch

CAUTION

• These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.

• Do not connect any speakers other than those supplied to this system.

• Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.

• After connecting the plugs, pull lightly on the cables to make sure that the ends of the cables are securely connected to the terminals. Poor connections can create noise and interruptions on the sound.

• If the cable’s wires happen to be pushed out of the terminals, allowing the wires to come into contact with each other, it places an excessive additional load on the amp. This may cause the amp to stop functioning, and may even damage the amp.

Securing your front and surround speakers

• Secure each of the front and surround speakers using the plastic catch provided.

Screw two supporting hooks into the wall behind the speaker. Pass a thick cord around the hooks and through the plastic catch so that the speaker is stabilized (make sure to test that it supports the weight of the speaker). After installing, make sure the speaker is securely fixed.

CAUTION

• The plastic catch is not a mounting fixture, and the speaker should not be hung directly from the wall using this catch. Always use a cord when stabilizing the speaker.

• Pioneer disclaims all responsibility for any losses or damage resulting from improper assembly, installation, insufficient strength of the installation materials, misuse, or natural disasters.

• When placing this unit, ensure that it is firmly secured and avoid areas where it may be likely to fall and cause injury in the event of a natural disaster (such as an earthquake).

Wall mounting the center speaker

The center speaker have a mounting hole which can be used to mount the speaker on the wall.

Before mounting

• Remember that the speaker system is heavy and that its weight could cause the screws to work loose, or the wall material to fail to support it, resulting in the speaker falling. Make sure that the wall you intend to mount the speakers on is strong enough to support them. Do not mount on plywood or soft surface walls.

English Deutsch Italiano EspañolFrançais

Nederlands

Speaker Setup (HTP-710) 01

5 mm

10 mm

Mounting screw

(not supplied)

5 mm to 7 mm

• Mounting screws are not supplied. Use screws suitable for the wall material and support the weight of the speaker.

CAUTION

• If you are unsure of the qualities and strength of the wall, consult a professional for advice.

• Pioneer is not responsible for any accidents or damage that result from improper installation.

Additional notes on speaker placement

• Install the main front left and right speakers at an equal distance from the TV.

• Install the surround speakers slightly above ear level for optimum effect.

• Televisions supporting 3D display transmit signals to the 3D glasses worn by the viewer. In order to view 3D images, consult the television’s Operating Instructions and install the center speaker so that it does not block the television’s 3D signal transmitter.

Precautions:

• When installing the center speaker on top of the TV, be sure to secure it with tape or some other suitable means. Otherwise, the speaker may fall from the TV due to external shocks such as earthquakes, endangering those nearby or damaging the speaker.

• Make sure that all the bare speaker wire is twisted together and inserted fully into the speaker terminal. If any of the bare speaker wire touches the back panel it may cause the power to cut off as a safety measure.

• The front, center and surround speakers supplied with this system are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker is installed extremely close to the screen of a television set. If this case happens, turn the power switch of the television set OFF, and turn it ON after 15 min. to 30 min. If the problem persists, place the speaker system away from the television set.

• The subwoofer is not magnetically shielded and so should not be placed near a TV or monitor. Magnetic storage media (such as floppy discs and tape or video cassettes) should also not be kept close to the subwoofer.

• Do not attach the front/surround speakers and subwoofer to a wall or ceiling. They may fall off and cause injury.

• Do not stand on the speaker stand base of the tall speaker to push or swing the speaker. The speaker may fall and break, or someone may be injured. Pay special attention to children.

Speaker Setup (HTP-610)01

Front left

Front right

Surround left

Surround right

Listening position

Subwoofer

Center Center

*When center speakers are placed in the center.

Center

Front left

Front right

Small non-skid pads

Large non-skid pads

Chapter 1-2

Speaker Setup (HTP-610)

Safety precautions when setting up

When assembling the speakers, lay them down flat on their side to avoid accidents or injury. Make sure to use a stable surface when assembling, setting up, and placing the speakers.

If the speakers are to be used in a stacked configuration, always use the provided brackets to secure them together (page 21).

Home theater sound setup

This is a standard multichannel surround sound speaker setup for optimal 5.1 channel home theater sound. The front left and right speakers should be about 1.8 m to 2.7 m apart.

Preparing the speakers

1 Attach the non-skid pads to the base of each speakers and the receiver subwoofer.

For front, center and surround speakers:

Use the supplied adhesive to attach three pads to the base (bottom) of each speaker.

For subwoofer:

Use the supplied adhesive to attach four large pads to the base of subwoofer.

Speaker Setup (HTP-610) 01

English Deutsch Italiano EspañolFrançais

Nederlands

Model label

Color indicator

Left Right

Green

Center

speaker

Front

speaker

Green

White

Red

Bracket

Screw

Center speaker

Front speaker

Black

(–)

Red (+)

Color-coded wire

Y-cable

To receiver subwoofer

2 (When mounting center speakers to right and left) Stack the speakers and fix with the bracket.

Each speaker is provided with a color-coded indicator on the model label on the rear side to assist identification. Refer to the color indicators and install the speakers correctly.

As shown in the illustration, stack the speakers. Align the bracket with the respective upper and lower screw holes as shown in each figure below and fasten the screws securely.

3 Connect each speaker.

Connect the wires to the speaker. Each speaker in the illustration can be identified by means of the color-coded indicator provided on the rear-surface label.

Front left: White Front right: Red Center: Green Surround left: Blue Surround right: Gray

Match the color-coded wire with the color indicator on the label, then insert the colorcoded wire into the red (+) side and the other wire into the black (–) side.

• When connecting the center speakers, connect the Y-cable dual end to the two center speakers in the same way.

CAUTION

• Do not attempt to carry the speakers when they are connected with the bracket. Doing so may cause damage to the bracket or worsen damage to the bracket and speakers in the event they are dropped.

Speaker Setup (HTP-610)01

Black

(–)

Color-coded wire

Color-coded tab (+)

Connect the other end to the color-coded speaker terminals on the rear of the receiver subwoofer.

CAUTION

• Do not connect any speakers other than those supplied to this system.

• Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.

Wall mounting the speakers

All the speakers (except the subwoofer, which should be placed on the ground) have holes for mounting brackets, and depending on the speaker setup you choose, you can wall-mount the front, center and surround speakers.

• Make sure to tighten the supplied screw as securely as possible when attaching the bracket to the back of the speaker.

Before mounting

• Mounting screws are not supplied. Use screws suitable for the wall material and support the weight of the speaker.

CAUTION

• If you are unsure of the qualities and strength of the wall, consult a professional for advice.

• Pioneer is not responsible for any accidents or damage that result from improper installation.

Speaker Setup (HTP-610) 01

English Deutsch Italiano EspañolFrançais

Nederlands

Mounting bracket

(supplied)

Screw (supplied)

5 mm to 7 mm

Mounting screw

(not supplied)

5 mm

10 mm

Additional notes on speaker placement

• Install the main front left and right speakers at an equal distance from the TV.

• Install the surround speakers slightly above ear level for optimum effect.

Precautions:

• Do not attach the subwoofer to the wall or ceiling. They may fall off and cause injury.

Speaker Setup (HTP-FS510)01

Front left Front right

Subwoofer

Non-skid pads

Chapter 1-3

Speaker Setup (HTP-FS510)

2 Insert the pole from the holes behind the

Safety precautions when setting up

When assembling the speakers, lay them down flat on their side to avoid accidents or injury. Make sure to use a stable surface when assembling, setting up, and placing the speakers.

Home theater sound setup

This is a standard speaker setup. The front left and right speakers should be about 1.8 m to 2.7 m apart.

Preparing the speakers

1 Attach the non-skid pads to the base of receiver subwoofer.

Use the supplied adhesive to attach four pads to the base of subwoofer.

base and secure with the 4 screws.

CAUTION

• Be careful not to tighten screws excessively.

• If excessive force is used to tighten screws, the threads of screw and/or nut may be damaged. Use a middle-sized manual screwdriver during assembly.

• Do not use power screwdrivers or oversized screwdrivers that may exert excessive force on the screws and nuts.

• Confirm that no foreign matter is stuck to the stand base or the tall speaker during assembly.

• If the unit is assembled with foreign matter stuck between the stand base and the tall speaker the unit may not be assembled securely, resulting in tipping or falling.

3 Affix the gasket to the pole.

Affix the gasket to the surface of the pole where the speaker will be mounted.

Speaker Setup (HTP-FS510) 01

English Deutsch Italiano EspañolFrançais

Nederlands

Black

(–)

Red (+)

Color-coded wire

Black

(–)

Color-coded wire

Color-coded tab (+)

4 Insert the speaker cable from the hole behind the base through to the pole.

5 Connect each speaker.

Connect the wires to the speaker. Each speaker in the illustration can be identified by means of the color-coded indicator provided on the rear-surface label.

Front left: White

Front right: Red Match the color-coded wire with the color indicator on the label, then insert the colorcoded wire into the red (+) side and the other

wire into the black (–) side.

Connect the other end to the color-coded speaker terminals on the rear of the receiver subwoofer.

• When connections are completed, secure the speaker cables. Fix the cables to the groove in the speakers.

CAUTION

• Only those speakers supplied, or purchased as an officially supported option, should be connected to this system.

• Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.

Speaker Setup (HTP-FS510)01

5 mm

10 mm

Mounting screw

(not supplied)

5 mm to 7 mm

6 Secure the speaker and the pole with 2 screws.

• Confirm that the speaker cable does not become pinched between the pole and the speaker.

•

Put the speaker cable in the back of the base

the stand.

Wall mounting the front speakers

The front speakers have a mounting hole which can be used to mount the speaker on the wall.

Before mounting

• Mounting screws are not supplied. Use screws suitable for the wall material and support the weight of the speaker.

CAUTION

• If you are unsure of the qualities and strength of the wall, consult a professional for advice.

• Pioneer is not responsible for any accidents or damage that result from improper installation.

Speaker Setup (HTP-FS510) 01

English Deutsch Italiano EspañolFrançais

Nederlands

Mounting holes

Speaker terminal

Front right

Front left

Attaching the speakers

The front speaker can be hung vertically or horizontally on the wall. Use one hole to hang it vertically and two holes to hang it horizontally.

When installing the speaker horizontally, set it up so that the speaker terminal on the back side of the speaker is on the outside on the end of the surface, farthest away from the other speaker.

Additional notes on speaker placement

• Install the front left and right speakers at an equal distance from the TV.

Precautions:

• The front speakers supplied with this system are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker is installed extremely close to the screen of a television set. If this case happens, turn the power switch of the television set OFF, and turn it ON after 15 min. to 30 min. If the problem persists, place the speaker system away from the television set.

• Do not attach the subwoofer to a wall or ceiling. They may fall off and cause injury.

For Enhanced Sound Quality

A home theater system can be easily constructed using just the front (right/left) speakers and the subwoofer of this set, but by adding optional S-SWR5CR speaker systems, you can enjoy genuine 5.1 channel surround sound.

Take the following points into account when connecting the optional speaker systems:

• When the contents of these Operating Instructions from chapter 2 on describe a specific model, use those portions dealing with the HTP-610.

• For information regarding the installation and connection of optional speaker systems, consult the information provided with the optional speaker systems, together Speaker Setup (HTP-610) on page 20 portion of these Operating Instructions.

• See Automatically setting up for surround sound (MCACC) on page 51 to set up your system again using MCACC.

Speaker Setup (HTP-SB510)01

Speaker Subwoofer

Small non-skid pads

Large non-skid pads

Chapter 1-4

Speaker Setup (HTP-SB510)

Safety precautions when setting up

When assembling the speakers, lay them down flat on their side to avoid accidents or injury. Make sure to use a stable surface when assembling, setting up, and placing the speakers.

Home theater sound setup

The speaker should be installed below (in front of) the TV. The height of the speaker stands can be adjusted, or the speaker can be installed without using the stands at all.

• The speaker and subwoofer are not magnetically shielded and so should not be used with CRT TV.

Preparing the speakers

1 Attach the non-skid pads to the base of each speaker stands and the receiver subwoofer.

For speaker stands:

Use the supplied adhesive to attach three small pads to the base (bottom) of each speaker stand.

For subwoofer:

Use the supplied adhesive to attach four large pads to the base of subwoofer.

Speaker Setup (HTP-SB510) 01

English Deutsch Italiano EspañolFrançais

Nederlands

Small non-skid pads

Black

(–)

Red (+)

Color-coded wire

Black

(–)

Color-coded wire

Color-coded tab (+)

If you decide not to use the speaker stands, use the supplied adhesive to attach four small pads to the base of the speaker.

2 Attach the speaker stand bases to the speaker.

Attach both right and left speaker stands to the rear of the speaker. The height of the speaker stands can be adjusted in two levels; select the height you prefer, and fix in position.

• If the unit is assembled with foreign matter stuck between the stand and the speaker the unit may not be assembled securely, resulting in tipping or falling.

3 Connect each speaker.

Connect the wires to the speaker. The rear of the speaker has channel terminals

(Right/Center/Left), together with color-coded labels.

Front left: White Front right: Red Center: Green

Match the color-coded wire with the color indicator on the label, then insert the colorcoded wire into the red (+) side and the other wire into the black (–) side.

Connect the other end to the color-coded speaker terminals on the rear of the receiver subwoofer.

CAUTION

• Be careful not to tighten screws excessively.

• If excessive force is used to tighten screws, the threads of screw may be damaged. Use a middle-sized manual screwdriver during assembly.

• Do not use power screwdrivers or oversized screwdrivers that may exert excessive force on the screws.

• Confirm that no foreign matter is stuck to the stand or the speaker during assembly.

Speaker Setup (HTP-SB510)01

5 mm

10 mm

Mounting screw

(not supplied)

4 mm to 5 mm

460 mm

CAUTION

• Do not connect any speakers other than those supplied to this system.

• Do not connect the supplied speaker to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.

Wall mounting the speaker

The speaker have the mounting holes which can be used to mount the speaker on the wall.

CAUTION

• If you are unsure of the qualities and strength of the wall, consult a professional for advice.

• Pioneer is not responsible for any accidents or damage that result from improper installation.

• When mounting the speaker on a wall, install it so that it is parallel to the floor.

• When mounting the speaker on a wall, do not attach the accessory speaker stands.

Before mounting

• Remember that the speaker system is heavy and that its weight could cause the screws to work loose, or the wall material to fail to support it, resulting in the speaker falling. Make sure that the wall you intend to mount the speaker on is strong enough to support them. Do not mount on plywood or soft surface walls.

• Mounting screws are not supplied. Use screws suitable for the wall material and

support the weight of the speaker.

Speaker Setup (HTP-SB510) 01

English Deutsch Italiano EspañolFrançais

Nederlands

Additional notes on speaker placement

• Install the speaker below the TV, in the center position.

• Televisions supporting 3D display transmit signals to the 3D glasses worn by the viewer. In order to view 3D images, consult the television’s Operating Instructions and install the speaker so that it does not block the television’s 3D signal transmitter.

Precautions:

• Do not rest the speaker on the TV itself.

• The speaker and subwoofer are not magnetically shielded and so should not be placed near a TV or monitor. Magnetic storage media (such as floppy discs and tape or video cassettes) should also not be kept close to the speaker and subwoofer.

• Do not attach the subwoofer to a wall or ceiling. They may fall off and cause injury.

For Enhanced Sound Quality

A home theater system can be easily constructed using just the speaker and the subwoofer of this set, but by adding optional SSB5R speaker systems, you can enjoy genuine

5.1 channel surround sound. Take the following points into account when

connecting the optional speaker systems:

• When the contents of these Operating Instructions from chapter 2 on describe a specific model, use those portions dealing with the HTP-610.

• See Automatically setting up for surround sound (MCACC) on page 51 to set up your system again using MCACC.

Connecting up02

1 2

Chapter 2

Connecting up

Rear panel

1 Coaxial/Optical digital audio inputs (x3)

Use the supplied optical digital cable to connect the DIGITAL OPTICAL IN 1 (TV/SAT) input to the television’s optical digital output terminal. Use for digital audio sources, including DVD players/recorders, digital satellite receivers, CD players, etc.

2 HDMI inputs (x3)/output (x1)

Multiple inputs and one output for high-quality audio/video connection to compatible HDMI devices.

4 Stereo analog audio inputs/outputs

Use for connection to audio sources such as CD players, tape decks, turntables, etc.

antenna socket

5 Surround back pre-amplifier outputs

Use to connect separate amplifiers for surround back channels.

MCACC SETUP MIC

Use to connect the supplied microphone for the Auto MCACC setup (page 51).

7 Video inputs/outputs

Use the supplied video cable to connect the MONITOR OUT terminal to the television’s video input terminal. Use for connection to video sources, such as DVD players/recorders, VCRs, etc.

AC IN

– Power inlet

SPEAKERS

Match the colors of the speaker cables to their respective connectors.

terminals

jack

Connecting up 02

English Deutsch Italiano EspañolFrançais

Nederlands

Note

Making cable connections

Make sure not to bend the cables over the top of this unit. If this happens, the magnetic field produced by the transformers in this unit may cause a humming noise from the speakers.

CAUTION

• When connecting this system or changing connections, be sure to switch power off and disconnect the power cord from the wall socket. After completing all connections, connect the power cords to the wall socket.

About video outputs connection

This system is not loaded with a video converter. When you use HDMI cable for connecting to the input device, the same cables should be used for connecting to the TV.

HDMI cables

The HDMI cables transfers uncompressed digital video, as well as almost every kind of digital audio that the connected component is compatible with, including DVD-video, DVDAudio, Dolby Digital Plus, Dolby TrueHD, DTSHD Master Audio (see below for limitations), Video CD/Super VCD, CD, SACD (DSD 2 ch only) and 192 kHz/8 ch (Max. number of channel inputs) PCM.

Be careful to connect the terminal in the proper direction.

About HDMI

HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD players, DTV, set-top boxes, and other AV devices. HDMI was developed to provide the technologies of High Bandwidth Digital Content Protection (HDCP) as well as Digital Visual Interface (DVI) in one specification. HDCP is used to protect digital content transmitted and received by DVI-compliant displays.

HDMI has the capability to support standard, enhanced, or high-definition video plus standard to multi-channel surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of up to 2.2 gigabytes per second (with HDTV signals), one connector (instead of several cables and connectors), and communication between the AV source and AV devices such as DTVs.

This system is also compatible with the DeepColor and x.v.Color feature (x.v.Color is trademarks of Sony Corporation).

HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

1 • Set the HDMI parameter in Setting the Audio options on page 69 to THRU (THROUGH) and set the input signal in

Choosing the input signal on page 54 to HDMI, if you want to hear HDMI audio output from your TV (no sound will be

heard from this system).

• If the video signal does not appear on your TV, try adjusting the resolution settings on your component or display.

Note that some components (such as video game units) have resolutions that may not be displayed. In this case, use a (analog) composite connection.

• The signals input from the (analog) composite video inputs of this unit will not be output from the HDMI OUT.

• When the video signal from the HDMI is 480i, 480p, 576i or 576p, Multi Ch PCM sound and HD sound cannot be

received.

Connecting up02

Note

Important

• Compared to existing digital audio transmission formats (optical and coaxial), HDMI format digital audio transmissions requires a longer time to be recognized. Due to this, interruption in the audio may occur when switching between formats or beginning playback. Additionally, turning on/off the component connected to this unit’s HDMI OUT terminal or disconnecting/connecting the HDMI cable may cause noise or interrupted audio.

Analog audio cables

Use stereo RCA phono cables to connect analog audio components. These cables are typically red and white, and you should connect the red plugs to R (right) terminals and white plugs to L (left) terminals.

Digital audio cables

Commercially available coaxial digital audio cables or optical cables should be used to connect digital components to this system.

Coaxial digital audio cable

Optical cable

• A cap has been factory-attached to the connector on the accessory optical digital cable. Be sure to remove the cap before connecting the cable.

Standard RCA video cables

These cables are the most common type of video connection and are used to connect to the composite video terminals. The yellow plugs distinguish them from cables for audio.

1 • When connecting optical cables, be careful when inserting the plug not to damage the shutter protecting the optical

socket.

• When storing optical cable, coil loosely. The cable may be damaged if bent around sharp corners.

• You can also use a standard RCA video cable for coaxial digital connections.

Connecting up 02

English Deutsch Italiano EspañolFrançais

Nederlands

1 2

DIGITAL OUT

OPTICAL

ANALOG

AUDIO OUT

Select one

Connect your TV (For TV audio)

This will allow you to play the sound from the TV’s built-in tuner.

• Connect the digital audio output from your TV to the SAT)

input on this system.

DIGITAL OPTICAL IN 1 (TV/

Use the supplied optical digital cable.

• If your TV has no optical digital audio output, you can connect an analog audio outputs from your TV to the AUDIO TV/ SAT inputs on this system. Use an analog audio cables for the connection.

Connecting up02

1 2

1 1

VIDEO IN

HDMI OUTHDMI IN HDMI OUT

HDMI/DVI-compatible TV

HDMI/DVI-equipped

component

HDMI/DVI-compatible

Blu-ray disc player

Connecting your TV and playback components

Connecting using HDMI

If you have an HDMI or DVI (with HDCP) equipped component (Blu-ray disc player, etc.), you can connect it to this system using a commercially available HDMI cable.

1 Connect the HDMI output on your BD/ DVD player to the HDMI BD/DVD IN input on this system.

Use an HDMI cable for the connection.

2 Connect the HDMI OUT on this system to an HDMI input on your TV.

3 Connect the MONITOR OUT on this system to the composite video input on your TV.

The OSD will not appear if you have connected using the HDMI output to your TV. Use composite connections for system setup.

Use the supplied video cable.

Connecting up 02

English Deutsch Italiano EspañolFrançais

Nederlands

1 2

2 3

VIDEO INVIDEO OUT

ANALOG

AUDIO OUT

DIGITAL OUT

OPTICALCOAXIAL

DVD player, etc.

Select one

Note

Connecting your component with no HDMI terminal

This diagram shows connections of a TV and DVD player (or other playback component) with no HDMI terminal to the system.

1 Connect the composite video output on your DVD player to the VIDEO BD/DVD input on this system.

3 Connect the MONITOR OUT on this system to the composite video input on your TV.

Use the supplied video cable.

Use a standard RCA video cable.

2 Connect the audio output on your DVD player to the AUDIO BD/DVD IN inputs on this system.

Use a stereo RCA phono cable. If your component has a digital output, you can also use an optical cable or coaxial cable for the connection.

1 In this case, you’ll need to tell the system which digital input you connected the component to (see Choosing the input

signal on page 54).

Connecting up02

Select one

DVR, VCR, LD player, etc.

Note

Connecting an HDD/DVD recorder, VCR and other video sources

This system has audio/video inputs and outputs suitable for connecting analog or digital video recorders, including VCRs and HDD/DVD recorders.

1 2

DIGITAL OUT

COAXIALOPTICAL

ANALOG

AUDIO OUT

1 Connect the composite video output on your video component to the VIDEO DVR/VCR input on this system.

Use a standard RCA video cable.

• If the video component connected is equipped with an HDMI output, an HDMI cable may also be used for connection. In this case, use an HDMI cable to connect the TV as well.

2 Connect the VIDEO DVR/VCR OUT on this

ANALOG

AUDIO IN

VIDEO IN

3 Connect the audio output on your video component to the AUDIO DVR/VCR IN inputs on this system.

Use a stereo RCA phono cable. If your component has a digital output, you can also use an optical cable or coaxial cable for the connection.

4 Connect a video inputs on the recorder to the VIDEO DVR/VCR output on this system.

Use a standard RCA video cable.

system to the composite video input on your video component.

In this case, you’ll need to tell the system which digital input you connected the component to (see signal on page 54

)

243

VIDEO OUT

HDMI OUT

Choosing the input

Connecting up 02

English Deutsch Italiano EspañolFrançais

Nederlands

1 2

ANALOG

AUDIO OUT

DIGITAL OUT

COAXIAL OPTICAL

VIDEO OUT

Select one

STB

Note

Connecting a satellite receiver or other digital set-top box

Satellite and cable receivers, and terrestrial digital TV tuners are all examples of so-called ‘set-top boxes’.

1 Connect the composite video output on your set-top box to the VIDEO TV/SAT input on this system.

Use a standard RCA video cable.

2 Connect the audio output on your set-top box to the AUDIO TV/SAT IN inputs on this system.

Use a stereo RCA phono cable. If your component has a digital output, you can also

1 In this case, you’ll need to tell the system which digital input you connected the TV to (see Choosing the input signal

on page 54).

use an optical cable or coaxial cable for the connection.

Connecting up02

Note

Select one

CD-R, MD, DAT, etc.

Connecting other audio components

The number and kind of connections depends on the kind of component you’re connecting.1 Follow the steps below to connect a CD-R, MD, DAT, tape recorder or other audio component.

1 2

COAXIAL OPTICAL

DIGITAL OUT

ANALOG

AUDIO OUT

1 Connect the analog audio outputs of the component to a set of spare audio inputs on this system.

Use a stereo RCA phono cable. If your component has a digital output, connect this to a digital input on the system as shown.

1 Note that you must connect digital components to analog audio jacks if you want to record to/from digital compo-

nents (like an MD) to/from analog components.

ANALOG

AUDIO IN

2 If you’re connecting a recorder, connect the analog audio outputs to the analog audio inputs on the recorder.

The example shows an analog connection to the AUX OUT analog output jack using a stereo RCA phono cable.

Connecting up 02

English Deutsch Italiano EspañolFrançais

Nederlands

Note

VIDEO INPUT

VIDEO

iPod

iPhone

5 V 0.5 A

USB

AUDI OLR

AUDIOVIDEO

OUTPUT

Video camera, etc.

VIDEO INPUT

VIDEO

iPod

iPhone

AUDI OLR





5 V 0.5 A

USB

iPod

iPod cable

(supplied)

Connecting to the front panel video terminal

Front video connections are accessed via the front panel using the VIDEO button on the remote control. video jacks. Hook them up the same way you made the rear panel connections.

• Remove the panel cover when making connections to the front panel.

There are standard audio/

Connecting an iPod/iPhone

This system has a dedicated iPod/iPhone terminal that will allow you to control playback of audio content from your iPod/iPhone using the controls of this system.

• Switch the system into standby then use the supplied iPod cable to connect your iPod to the

iPod/iPhone

panel of this system.

• Remove the panel cover when making connections to the front panel.

• For the cable connection, refer to also the operating instructions for iPod.

• For instructions on playing the iPod, see Playing an iPod on page 55.

terminal on the front

1 If you connected the video components and there is still no sound, press then press SIGNAL SEL repeatedly

to select A (ANALOG).

Connecting up02

VIDEO INPUT

VIDEO

iPod

iPhone

AUDI OLR

5 V 0.5 A

USB

USB mass

storage device

75 Ω coaxial cable

Connecting a USB device

It is possible to playback files using the USB interface on the front of this system.

• Switch the system into standby then connect your USB device to the on the front panel of this system.

• Remove the panel cover when making connections to the front panel.

• For instructions on playing the USB device, see Playing a USB device on page 58.

USB

terminal

Connecting the FM antenna

Connect the FM wire antenna as shown below. To improve reception and sound quality, connect external antennas (see Connecting external antennas below).

•

Push the FM antenna plug onto the center

pin of the FM antenna socket.

For best results, extend the FM antenna fully and fix to a wall or door frame. Don’t drape loosely or leave coiled up.

Connecting external antennas

To improve FM reception connect an external FM antenna to the FM UNBAL 75 Ω.

Connecting up 02

English Deutsch Italiano EspañolFrançais

Nederlands

Surround back

channel amplifier

Surround back speakers

SBL SBR

Use the PRE OUT outputs to connect the surround back speakers

Connect the PRE OUT outputs of the system and additional amplifier to add a surround back speaker.

1 2

• You can use the additional amplifier on the surround back channel pre-outs for a single speaker as well. In this case plug the amplifier into the left (L (Single)) terminal only.

ANALOG

AUDIO IN

Plugging in the system

Only plug in after you have connected all your components to this system including the speakers.

1 Plug the supplied power cord into the IN

socket on the back of the system.

2 Plug the other end into a power outlet.

CAUTION

• Handle the power cord by the plug part. Do not pull out the plug by tugging the cord, and never touch the power cord when your hands are wet, as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, or other object on the power cord or pinch the cord in any other way. Never make a knot in the cord or tie it with other cables. The power cords should be routed so that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electric shock. Check the power cord once in a while. If you find it damaged, ask your nearest Pioneer authorized independent service company for a replacement.

• Do not use any power cord other than the one supplied with this unit.

• Do not use the supplied power cord for any purpose other than that described above.

• The system should be disconnected by removing the mains plug from the wall socket when not in regular use, e.g., when on vacation.

Controls and displays03

ST/MONO

STANDBY/ON

FUNCTION

VOLUM E

VIDEO INPUT

VIDEO

iPod

iPhone

AUDIOLR

AUTO/DIRECT

TUNE

5 V 0.5 A

USB

2 3

Chapter 3

Controls and displays

Front panel

1 Front panel display

See Display on page 45 for details.

2 Tuner control buttons

ST/MONO

Switches between auto stereo mode and

mono reception mode (page 60).

TUNE +/–

Used to find radio frequencies (page 60).

3 IR remote sensor

4 Power indicator

FUNCTION

button

Selects an input source.

AUTO/DIRECT

Switches between Auto surround mode (Auto playback on page 63) and Stream Direct

playback.

 STANDBY/ON

Switches the system on or into standby.

VOLUME +/–

Adjusts the volume.

iPod

/USB terminal

Use to connect your Apple iPod or USB mass storage device as an audio source (page 55 and 58).

AUDIO/VIDEO

input

See Connecting to the front panel video terminal on page 41.

Controls and displays 03

English Deutsch Italiano EspañolFrançais

Nederlands

2 3 4 5 76

11 12 13 14 15 14 16

Display

1PHASE

Lights when the Phase Control is switched on (page 66).

2AUTO

Lights when the Auto Surround feature is switched on (see Auto playback on page 63).

3RDS

Lights when an RDS broadcast is received (page 62).

4ST

Lights when a stereo FM broadcast is being received in auto stereo mode.

5TUNE

Lights when a normal broadcast channel is being received.

6MHz

Lights when the character display is showing the currently received broadcast frequency.

7 Sleep timer indicator

Lights when the system is in sleep mode (page 49).

8 Tuner preset indicators

PRESET

Shows when a preset radio station is registered or called.

MEM

Blinks when a radio station is registered.

9 PRESET Information or Input signal indicator

Shows the preset number of the tuner or the input signal type, etc.

10 Character display

Displays various system information.

11 DTS indicators

DTS

Lights when a source with DTS encoded audio signals is detected.

Lights when a source with DTS-EXPRESS or DTS-HD encoded audio signals is detected.

Lights when a source with DTS-ES encoded audio signals is detected.

96/24

Lights when a source with DTS 96/24 encoded audio signals is detected.

NEO:6

When one of the NEO:6 modes of the system is on, this lights to indicate NEO:6 processing (page 63).

Controls and displays03

12 Dolby Digital indicators

Lights when a Dolby Digital encoded signal is detected.

Lights when a source with Dolby Digital Plus encoded audio signals is detected.

2HD

Lights when a source with Dolby TrueHD encoded audio signals is detected.

Lights when a source with Dolby Digital EX encoded audio signals is detected.

2PLll(x)

Lights to indicate 2 Pro Logic II / 2 Pro Logic IIx decoding (see Listening in surround sound on page 63 for more on this).

13 ADV.S.

Lights when one of the Advanced Surround modes has been selected (see Using the Advanced surround effects on page 64 for more on this).

14 SIGNAL SELECT indicators

DIGITAL

Lights when a digital audio signal is selected. Blinks when a digital audio signal is not selected.

HDMI

Lights when an HDMI signal is selected. Blinks when an HDMI signal is selected and selected HDMI input is not provided.

15 UP MIX indicator

Lights when the UP MIX function is set to ON (page 68). Also, lights when DIMMER is set to off.

16 DIR.

Lights when the DIRECT or PURE DIRECT mode is switched on (page 65).

Controls and displays 03

English Deutsch Italiano EspañolFrançais

Nederlands

Remote control

SYSTEM

INPUT

DIMMER

 SYSTEM

Switches the system between standby and on.

INPUT SELECT

Use to select the input source.

ENTER

SURROUND SYSTEM

TV CONTROL

SIGNAL SEL

BD MENU

ENTER

SOURCE

VOL

MUTE

DISPLAY

SOURCE

Press to turn on/off other components

connected to the system (see page 77 for more on this).

Switches the remote to control the system (used to select the white commands above the number buttons (S.RETRIEVER, etc)). Also use this button to set up surround sound (page 72) or Audio parameters (page 65).

TV CONTROL

These buttons are dedicated to control the TV

buttons

assigned to the TV button. Thus if you only have one TV to hook up to this system assign it to the TV button (see page 76 for more on this).



Use to turn on/off the power of the TV.

INPUT

Use to select the TV input signal.

CH +/–

Use to select channels.

VOL +/–

Use to adjust the volume on your TV.

MULTI CONTROL

buttons

Press to select control of other components (see Controlling the rest of your system on page 75

DIMMER

Dims or brightens the display. The brightness can be controlled in four steps.

SIGNAL SEL

Use to select an input signal (page 54). Press BD first to access:

BD MENU

Displays the disc menu of Blu-ray Discs.

Controls and displays03

9 Listening mode buttons

AUTO/DIRECT

Switches between Auto surround mode (Auto playback on page 63) and Stream Direct playback. Stream Direct playback bypasses the tone controls for the most accurate reproduction of a source (page 65).

STEREO/A.L.C.

Switches between stereo playback, Auto level control stereo mode (page 64) and Front Stage Surround Advance modes (page 65).

STANDARD

Press for Standard decoding and to switch between 2 Pro Logic II options (page 63).

ADV SURR

Switches between the various surround modes (page 64).

System Setup

buttons

The following button controls can be accessed after you have selected the corresponding MULTI CONTROL button (BD, TV, etc.).

Press first to access:

AUDIO PARAMETER

Use to access the Audio options (page 65).

SETUP

Press to access the System Setup menu (page 72).

RETURN

Confirm and exit the current menu screen.

Press BD or DVR first to access:

TOP MENU

Displays the disc ‘top’ menu of a BD/DVD.

HOME MENU

Displays the HOME MENU screen.

RETURN

Confirm and exit the current menu screen.

and Component control

Displays the TOOLS menu screen of Blu-ray Disc player.

Press TUNER first to access:

TUNER EDIT

Memorizes/names stations for recall (page 60 and 61).

ST/MONO

Switches between auto stereo mode and

mono reception mode (page 60).

PTY SEARCH

Use to search for RDS program types (page 62).

Press iPod USB first to access:

iPod CTRL

Switches between the iPod controls and the system controls (page 57).

 (TUNE /, PRESET /

ENTER

Use the arrow buttons when setting up your surround sound system (page 72). Also used to control BD/DVD menus/options.

Use the TUNE / buttons can be used to find radio frequencies (page 60) and the PRESET / buttons can be used to select preset radio stations (page 61).

MASTER VOLUME

Use to set the listening volume.

13 Component control buttons

The main buttons (, , etc.) are used to control a component after you have selected it using the input source buttons.

The controls above these buttons can be accessed after you have selected the corresponding input source button (for example BD, DVR or TV). These buttons also function as described below.

+/–

Controls and displays 03

English Deutsch Italiano EspañolFrançais

Nederlands

Note

Press first to access:

BASS –/+

Use to adjust the channel level of the subwoofer.

TRE –/+

Use to adjust Treble

Press TV first to access:

DTV/TV

Switches between the DTV and analog TV input modes for Pioneer TVs.

MUTE

Mutes/unmutes the sound.

15 Number buttons and other component controls

Use the number buttons to directly select a radio frequency (page 60) or the tracks on a CD, DVD, etc. There are other buttons that can be accessed after the button is pressed. (For example MIDNIGHT, etc.)

HDD*, DVD*, VCR*

These buttons switch between the hard disk, DVD and VCR controls for HDD/DVD/ VCR recorders.

S.RETRIEVER

Press to restore CD quality sound to compressed audio sources (page 65).

Press to switch on/off Acoustic Calibration EQ setting (page 66).

CH SELECT

Press repeatedly to select a channel, then use +/– to adjust the level (page 74).

CH SELECT +/–

Use to adjust the channel level.

SB CH

Use to select the surround back channel mode (page 68).

PHASE

Press to switch on/off Phase Control (page 66).

MIDNIGHT

Press to switch on/off Midnight listening (page 69).

SLEEP

Press to change the amount of time before the system switches into standby (30 min – 60 min – 90 min – Off). You can check the remaining sleep time at any time by pressing SLEEP once.

DISPLAY

Switches the display of this unit. The input name, listening mode or sound volume can be checked by selecting an input source.

SHIFT

Press to access the ‘boxed’ commands (above the buttons) on the remote. These buttons are marked with an asterisk (* ) in this section.

1 The tone controls are disabled when the listening mode is set to DIRECT or PURE DIRECT.

Controls and displays03

30°

7 m

Putting the batteries in the remote control

CAUTION

Incorrect use of batteries can result in hazards such as leakage and bursting. Please observe the following:

• Don’t mix new and old batteries together.

• Don’t use different kinds of battery together — although they may look similar, different batteries may have different voltages.

• Make sure that the plus and minus ends of each battery match the indications in the battery compartment.

• Remove batteries from equipment that isn’t going to be used for a month or more.

• When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country/area.

• Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Using the remote control

Please keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote and the remote sensor on the unit.

• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit’s remote sensor.

• Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.

• Replace the batteries when you notice a fall off in the operating range of the remote.

• Use within the operating range in front of the remote control sensor on the unit, as shown.

Getting started 04

English Deutsch Italiano EspañolFrançais

Nederlands

TOP MENU

HOME MENU

PTY SEARCH

AUDIO

PARAMETER

iPod CTRL

MASTER VOLUME

TOOLS

RETURN

ST/MONO

SETUP

ENTER

TV CONTROL

INPUT

INPUT SELECT SOURCE

SYSTEM

TUNER EDIT

Tripod

Microphone

Chapter 4

Getting started

Automatically setting up for surround sound (MCACC)

The Auto Multi-Channel Acoustic Calibration (MCACC) setup measures the acoustic characteristics of your listening area, taking into account ambient noise, speaker size and distance, and tests for both channel delay and channel level. After you have set up the microphone provided with your system, the system uses the information from a series of test tones to optimize the speaker settings and equalization for your particular room.

CAUTION

• The test tones used in the Auto MCACC Setup are output at high volume.

• Before using the Auto MCACC Setup, the iPod USB function should not be selected as an input source.

1 Connect the microphone to the SETUP MIC

jack on the rear panel.

MCACC

Make sure there are no obstacles between the speakers and the microphone.

If you have a tripod, use it to place the microphone so that it’s about ear level at your normal listening position. Otherwise, place the microphone at ear level using a table or a chair.

• When using HTP-FS510 and HTP-SB510 models, always use the Auto MCACC setup function. If this setup is not performed, various problems may occur, including an inability to hear screen dialogue, or to hear sound from the surround channel. In the event the Auto MCACC setup is not used, perform the manual Speaker Setting instead.

• The OSD will not appear if you have connected using the HDMI output to your TV. Use composite connections for system setup.

• The Auto MCACC Setup will overwrite any existing speaker settings you’ve made.

Important

2 Switch on the system and your TV.

Switch the TV input so that it connects to the system in analog.

Getting started04

Note

1.Auto MCACC

Check!

Return

10:Next

Front Center Surr Surr. Back Subwoofer

[ YES ] [ YES ] [ YES ] [YESx2] [ YES ]

3 Press on the remote control, then press the

SETUP

button.

An on-screen display (OSD) appears on your TV. Use /// and ENTER on the remote control to navigate through the screens and select menu items. Press RETURN to exit the current menu.

• Press SETUP at any time to exit the System Setup menu.

4 Select ‘Auto MCACC’ from the System Setup menu then press

System Setup

1.Auto MCACC

2.Manual SP Setup

ENTER

Return

Try to be as quiet as possible after pressing ENTER. The system outputs a series of test tones to establish the ambient noise level.

5 Follow the instructions on-screen.

• Make sure the microphone is connected.

• See below for notes regarding background noise and other possible interference.

• When using surround back speakers, turn on the power to the amplifier to which the surround back speakers are connected, and adjust the sound level to the desired level.

6 Wait for the test tones to finish.

• A progress report is displayed on-screen while the system outputs test tones to determine the speakers present in your setup. Try to be as quiet as possible while it’s doing this.

1.Auto MCACC

Now Analyzing

Environment Check Ambient Noise Speaker YES/NO

Return

• For correct speaker settings, do not adjust the volume during the test tones.

7 Confirm the speaker configuration.

The configuration shown on-screen should reflect the actual speakers you have.

• With error messages (such as Too much ambient noise) select RETRY after checking for ambient noise (see Other

problems when using the Auto MCACC Setup on page 53).

If the speaker configuration displayed isn’t correct, use / to select the speaker and / to change the setting. When you’re finished, go to the next step.

If you see an error message (ERR) in the right side column, there may be a problem with the speaker connection. If selecting RETRY doesn’t fix the problem, turn off the power and check the speaker connections.

1 The screensaver automatically starts after three minutes of inactivity. If you cancel the Auto MCACC Setup at any

time, the system automatically exits and no settings will be made.

2 MIC IN blinks when the microphone is not connected to MCACC SETUP MIC.

Getting started 04

English Deutsch Italiano EspañolFrançais

Nederlands

Note

1.Auto MCACC

Now Analyzing

Surround Analyzing Speaker System Speaker Distance Channel Level Acoustic Cal EQ

Return

8 Make sure ‘OK’ is selected, then press ENTER

If the screen in step 7 is left untouched for 10 seconds and the ENTER button is not pressed in step 8, the Auto MCACC setup will start automatically as shown below.

A progress report is displayed on-screen while the system outputs more test tones to determine the optimum system settings for channel level, speaker distance, and Acoustic Calibration EQ.

Again, try to be as quiet as possible while this is happening. It may take 1 to 3 minutes.

9 The Auto MCACC Setup has finished! You return to the System Setup menu.

• Be sure to disconnect the microphone from this unit upon completion of the Auto MCACC setup.

The settings made in the Auto MCACC Setup should give you excellent surround sound from your system, but it is also possible to adjust these settings manually using the System Setup menu (starting on page 72).

Basic operation

Procedures for listening to audio from a radio or connected other component.

1 Turn on the power of the playback component.

2Press this system.

3 Select the source you want to playback. Use the MULTI CONTROL (or INPUT SELECTOR) buttons.

4 Start playback of the component you selected in step 1.

5 Select the listening mode.

Use the listening mode buttons.

6Press volume.

 SYSTEM

to turn on the power of

• Select the type of audio input signal if required (see below).

MASTER VOLUME +/–

to adjust the

Choosing the input signal

On this system, it is possible to switch the input signals for the different inputs as described below.

1 Press on the remote control.

2 Press signal corresponding to the source component.

When DIGITAL (C1/O1/O2) or HDMI (H) is selected and the selected audio input is not provided, A (analog) is automatically selected.

Each press cycles through the following:

• A – Selects the analog inputs.

• DIGITAL – Selects the digital input. The coaxial 1 input is selected for C1, and the optical 1 or 2 audio input is selected for O1 or O2.

• HDMI – Selects an HDMI signal. H can be selected for BD/DVD, VIDEO or DVR/VCR input. For other inputs, HDMI cannot be selected.

When set to DIGITAL or HDMI, 2 lights when a Dolby Digital signal is input, and DTS lights when a DTS signal is input.

When the HDMI is selected, the A and DIGITAL indicators are off (see page 44).

SIGNAL SEL

to select the input

1 • This system can only play back Dolby Digital, PCM (32 kHz to 96 kHz) and DTS (including DTS 96 kHz / 24 bit) digital

signal formats. The compatible signals via the HDMI terminals are: Dolby Digital, DTS, SACD (DSD 2 ch), PCM (32 kHz to 192 kHz sampling frequencies), Dolby TrueHD, Dolby Digital Plus, DTS-EXPRESS, DTS-HD Master Audio and DVD Audio (including 192 kHz). With other digital signal formats, set to A (analog).

• You may get digital noise when a LD or CD player compatible with DTS is playing an analog signal. To prevent noise, make the proper digital connections (page 33) and set the signal input to C1/O1/O2 (DIGITAL).

• Some DVD players don’t output DTS signals. For more details, refer to the instruction manual supplied with your DVD player.

2 When the HDMI option in Setting the Audio options on page 69 is set to THRU, the sound will be heard through your

TV, not from this system.

iPod/USB playback 05

English Deutsch Italiano EspañolFrançais

Nederlands

Note

Chapter 5

iPod/USB playback

Playing an iPod

This system has a dedicated iPod terminal that will allow you to control playback of audio content from your iPod using the controls of this system.

• When connected to a television using HDMI output alone, the iPod Top menu will not be displayed. In this case, use composite connection instead.

1 Switch on the system and your TV.

See Connecting an iPod/iPhone on page 41.

2 Press the system to the iPod/USB.

The front panel display shows Loading while the system verifies the connection and retrieves data from the iPod.

3Use the Top menu.

When the display shows Top Menu you’re ready to play music from the iPod.

•If after pressing iPod the display shows NO DEVICE, try switching off the system and reconnecting the iPod to the system.

Important

iPod USB

TOP MENU

button to switch the

button to display iPod

iPod playback

To navigate songs on your iPod, you can take advantage of the OSD of your TV connected to this system. operations for music in the front panel display of this system.

Finding what you want to play

When your iPod is connected to this system, you can browse songs stored on your iPod by playlist, artist, album name, song name, genre or composer, similar to using your iPod directly.

1Use the then press

• To return to the previous level any time, press RETURN.

You can also control all

iPod Top

[ Playlists [ Artists [ Albums [ Songs [ Podcasts [

Genres [ Composers [ Audiobooks [ Shuffle Songs

ENTER

/

buttons to select a category

ENTER

to browse that category.

] ] ] ] ] ] ] ] ]

1 • This system is compatible with the audio and the video of the iPod nano, iPod fifth generation, iPod classic, iPod

touch and iPhone (iPod shuffle not supported). However, that some of the functions may be restricted for some models. Note, however, compatibility may vary depending on the software version of your iPod and iPhone. Please be sure to use the latest available software version.

• iPod and iPhone are licensed for reproduction of non-copyrighted materials or materials the user is legally permitted to reproduce.

• Features such as the equalizer cannot be controlled using this system, and we recommend switching the equalizer off before connecting.

• Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience or loss of recorded material resulting from the iPod failure.

2 The controls of your iPod (excluding iPod touch or iPhone) will be inoperable when connected to this system (Pioneer

shows in the iPod display).

3 • Note that non-roman characters in the title are displayed as .

• This feature is not available for photos or video clips on your iPod.

iPod/USB playback05

Note

2Use the

/

buttons to browse the

selected category (e.g., albums).

•Use / to move to previous/next levels.

3 Continue browsing until you arrive at what you want to play, then press playback.



to start

Navigation through categories on your iPod looks like this:

Playlists  Songs Artists  Albums  Songs Albums  Songs Songs Podcasts Genres  Artists  Albums  Songs Composers  Albums  Songs Audiobooks Shuffle Songs

Tip

• You can play all of the songs in a particular category by selecting the All item at the top of each category list. For example, you can play all the songs by a particular artist.

Basic playback controls

The following table shows the basic playback controls for your iPod. Press iPod USB to switch the remote control to the iPod operation mode.

Button What it does

 Press to start playback.

ENTER Press to set the play and pause modes.



/

/ Press to skip to previous/next track.

DISPLAY Press repeatedly to change the song

/ When browsing, press to move to

/ During Audiobook playback, press

TOP MENU

RETURN Press to return to the previous level.

If you start playback when something other than a song is selected, all the songs that fall into that category will play.

Pauses playback, or restarts playback when paused.

Press and hold during playback to start scanning.

Press repeatedly to switch between

Repeat One, Repeat All and Repeat Off.

Press repeatedly to switch between Shuffle Songs, Shuffle Albums and Shuffle Off.

playback information displayed in the front panel display.

previous/next levels.

to switch the playback speed: Faster  Normal  Slower

Press to return to the iPod Top menu screen.

1 If you’re in the song category, you can also press ENTER to start playback.

iPod/USB playback 05

English Deutsch Italiano EspañolFrançais

Nederlands

Note

Watching photos and video content

To view photos or video on your iPod, since video control is not possible using this system, you must use the main controls of your iPod

instead.

Important

• To play photos or video on your iPod, you must connect the composite MONITOR OUT jack and TV. The photos and video content will not appear if you have connected using the HDMI output to your TV.

1 Press controls for photo and video playback.

The system controls will be unavailable while you are watching iPod videos or browsing photos.

2 Press the system controls when you’re done.

iPod CTRL

to switch to the iPod

again to switch back to

About iPod/iPhone

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

iPod and iPhone are a trademarks of Apple Inc., registered in the U.S. and other countries.

1 • iPod photos and video content can be viewed only when the iPod is connected to the iPod VIDEO input on the front

panel.

· • This feature can only be used with an iPod having video output.

iPod/USB playback05

Note

USB

R:Fld S:On

001/004PLAY

Return

Relax Your Body

Kevin Jackson We are all one

32kbps 0:01

MP3

File/Folder number File format

Repeat or Shuffle Song name

Artist name Album name

Elapsed time

Bit rates

Playing a USB device

It is possible to listen to two-channel audio1 using the USB interface on the front of this system.

Important

• When connected to a television using HDMI output alone, the USB playback window of the on-screen display (OSD) will not be displayed. In this case, use composite connection instead.

1 Switch on the system and your TV.

2Press switch the system to the iPod/USB. No Device appears in the OSD.

3 Connect your USB device.

See Connecting a USB device on page 42. Loading appears in the OSD as this system

starts recognizing the USB device connected. After the recognition, a playback screen appears in the OSD and playback starts automatically.

iPod USB

on the remote control to

Basic playback controls

The following table shows the basic controls on the remote for USB playback. Press iPod USB to switch the remote control to the iPod USB operation mode.

Button What it does

 Starts normal playback.  Pauses/unpauses playback. / Press to skip to previous/next track. / Press and hold during playback to

start scanning. Press repeatedly to switch between

Repeat Folder, Repeat One and Repeat All.

Press repeatedly to switch between

Shuffle On and Shuffle Off.

DISPLAY Press repeatedly to change the

song playback information displayed in the front panel display.

/ /

TOP MENU

RETURN Press to return to the previous level.

During playback, press to skip to previous/next track.

Press to return to the menu screen.

1 This includes playback of WMA/MP3/MPEG-4 AAC files (except files with copy-protection or restricted playback). 2 • Make sure the system is in standby when disconnecting the USB device.

• Compatible USB devices include external magnetic hard drives, portable flash memory (particularly keydrives) and

digital audio players (MP3 players) of format FAT16/32. It is not possible to connect this system to a personal computer for USB playback.

• Pioneer cannot guarantee compatibility (operation and/or bus power) with all USB mass storage devices and

assumes no responsibility for any loss of data that may occur when connected to this system.

• With large amounts of data, it may take longer for the system to read the contents of a USB device.

3 • If the file selected cannot be played back, this system automatically skips to the next file playable.

• When the file currently being played back has no title assigned to it, the file name is displayed in the OSD instead;

when neither the album name nor the artist name is present, the row is displayed as a blank space.

• Note that non-roman characters in the playlist are displayed as .

iPod/USB playback 05

English Deutsch Italiano EspañolFrançais

Nederlands

Note

Important

If a USB Error message lights in the display, try following the points below:

• Switch the system off, then on again.

• Reconnect the USB device with the system switched off.

• Select another input source (like BD), then switch back to iPod USB.

• Use a dedicated AC adapter (supplied with the device) for USB power.

For more information on error messages, see USB messages on page 88.

If this doesn’t remedy the problem, it is likely your USB device is incompatible.

Compressed audio compatibility

Note that although most standard bit/ sampling rate combinations for compressed audio are compatible, some irregularly encoded files may not play back. The list below shows compatible formats for compressed audio files:

• MP3 (MPEG-1/2/2.5 Audio Layer 3) – Sampling rates: 8 kHz to 48 kHz; Bit rates: 8 kbps to 320 kbps (128 kbps or higher recommended); File extension: .mp3

• WMA (Windows Media Audio) – Sampling rates: 32 kHz / 44.1 kHz; Bit rates: 32 kbps to 192 kbps (128 kbps or higher recommended); File extension: .wma; WMA9 Pro and WMA lossless encoding: No

• AAC (MPEG-4 Advanced Audio Coding) – Sampling rates: 11.025 kHz to 48 kHz; Bit rates: 16 kbps to 320 kbps (128 kbps or higher recommended); File extension: .m4a; Apple lossless encoding: No

Other compatibility information

• VBR (variable bit rate) MP3/WMA/MPEG-4 AAC playback: Yes

• DRM (Digital Rights Management) protection compatible: Yes (DRM-protected audio files will not play in this system).

About MPEG-4 AAC

Advanced Audio Coding (AAC) is at the core of the MPEG-4 AAC standard, which incorporates MPEG-2 AAC, forming the basis of the MPEG-4 audio compression technology. The file format and extension used depend on the application used to encode the AAC file. This system plays back AAC files encoded by iTunes bearing the extension ‘.m4a’. DRM-protected files will not play, and files encoded with some versions of iTunes may not play.

Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

About WMA

The Windows Media logo printed on the box indicates that this system can playback Windows Media Audio content.

WMA is an acronym for Windows Media Audio and refers to an audio compression technology developed by Microsoft Corporation. This system plays back WMA files encoded using Windows Media ‘.wma’. Note that DRM-protected files will not play, and files encoded with some versions of Windows Media

Windows Media, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Player bearing the extension

Player may not play.

1 Note that in some cases playback time will not be displayed correctly.

Using the tuner06

VOL

DIMMER

SIGNAL SEL

BD MENU

TUNER EDIT

Note

TOP MENU

HOME MENU

RETURN ST/MONO

DTV/TV

BASS TRE

DISPLAY

SETUP

PTY SEARCH

AUDIO

PARAMETER

iPod CTRL

MASTER VOLUME

TOOLS

TUNER EDIT

HDD DVD VCR

ENTER

MUTE

Chapter 6

Using the tuner

Listening to the radio

The following steps show you how to tune in to FM broadcasts using the automatic (search) and manual (step) tuning functions. Once you are tuned to a station you can memorize the frequency for recall later—see Saving station presets below for more on how to do this.

AUDIO

PARAMETER

TOP MENU

ENTER

HOME MENU

SETUP

iPod CTRL

PTY SEARCH

1Press

TUNER

to select the tuner.

2 Tune to a station.

There are three ways to do this:

Automatic tuning

To search for stations in the currently selected band, press and hold TUNE / (remote control or front panel) for about a second. The system will start searching for the next station, stopping when it has found one. Repeat to search for other stations.

Manual tuning

To change the frequency one step at a time, press TUNE /.

High speed tuning

Press and hold TUNE / for high speed tuning. Release the button at the frequency you want.

1 If the system is left disconnected from the AC power outlet for over a month, the station memories will be lost and will

have to be reprogrammed.

TOOLS

RETURN

ST/MONO

MASTER VOLUME

If the TUNE or ST indicators don’t light when tuning to an FM station because the signal is weak, press the ST/MONO button to select FM MONO and set the system to the mono reception mode. This should improve the sound quality and allow you to enjoy the broadcast.

Saving station presets

If you often listen to a particular radio station, it’s convenient to have the system store the frequency for easy recall whenever you want to listen to that station. This saves the effort of manually tuning in each time. This unit can memorize up to 30 stations.

SYSTEM

INPUT SELECT SOURCE

SYSTEM

TV CONTROL

INPUT

DIMMER

SIGNAL SEL

BD MENU

VOL

1 Tune to a station you want to memorize.

See Listening to the radio above for more on this.

2 Press

TUNER EDIT

The display shows PRESET, then a blinking MEM and station preset.

Improving FM stereo sound

Using the tuner 06

English Deutsch Italiano EspañolFrançais

Nederlands

Note

3 Press

PRESET /

to select the station

preset you want.

You can also use the number buttons.

4 Press

ENTER

After pressing ENTER, the preset number stop blinking and the system stores the station.

Listening to station presets

You will need to have some presets stored to do this. See Saving station presets on page 60 if you haven’t done this already.

• Press

PRESET /

to select the station

preset you want.

• You can also use the number buttons on the remote control to recall the station preset.

Naming preset stations

For easier identification, you can name all of your preset stations.

1 Choose the station preset you want to name.

See Listening to station presets above for how to do this.

2 Press

The cursor at the first character position is blinking on the display.

3 Input the name you want.

Choose a name up to eight characters long.

TUNER EDIT

twice.

•Use the PRESET / buttons to select character position.

•Use the TUNE / buttons to select characters.

• The name is stored when

ENTER

Tip

• To erase a station name, follow steps 1 and 2, and press ENTER while the display is blank. Press TUNER EDIT while the display is blank, to keep the previous name.

is pressed.

• Once you have named a station preset, press DISPLAY to show the name. When you want to return to the frequency display, press DISPLAY several times to show the frequency.

An introduction to RDS

Radio Data System (RDS) is a system used by most FM radio stations to provide listeners with various kinds of information—the name of the station and the kind of show they’re broadcasting, for example.

One feature of RDS is that you can search by type of program. For example, you can search for a station that’s broadcasting a show with the program type, JAZZ.

You can search the following program types:

NEWS – News AFFAIRS – Current Affairs INFO – General

Information

SPORT – Sport EDUCATE – Educational DRAMA – Radio plays, etc. CULTURE – National or

regional culture, theater, etc. SCIENCE – Science and technology VARIED – Usually talkbased material, such as quiz shows or interviews.

POP M – Pop music ROCK M – Rock music EASY M – Easy listening LIGHT M – ‘Light’ classical

music CLASSICS – ‘Serious’ classical music OTHER M – Music not fitting above categories WEATHER – Weather reports

FINANCE – Stock market reports, commerce, trading, etc. CHILDREN – Programs for children

SOCIAL – Social affairs RELIGION – Programs

concerning religion PHONE IN – Public expressing their views by phone TRAVEL – Holiday-type travel rather than traffic announcements LEISURE – Leisure interests and hobbies

JAZZ – Jazz COUNTRY – Country

music NATION M – Popular music in a language other than English OLDIES – Popular music from the ’50s and ’60s

FOLK M – Folk music DOCUMENT –

Documentary

1 In addition, there are three other program types, ALARMTST, ALARM, and NO TYPE. ALARM and ALARMTST are

used for emergency announcements. NO TYPE appears when a program type cannot be found.

Using the tuner06

Note

MASTER

TUNER EDIT

TOOLS

ENTER

DTV/TV

BASS TRE

HDD DVD VCR

RETURN ST/MONO

VOLUME

MUTE

DISPLAY

SYSTEM

DIMMER

INPUT SELECT SOURCE

TV CONTROL

INPUT

SIGNAL SEL

BD MENU

VOL

AUDIO

PARAMETER

TOP MENU

HOME MENU

SETUP

iPod CTRL

PTY SEARCH

Searching for RDS programs

You can search for a program type listed above.

1Press

2Press SEARCH shows in the display.

3Press type you want to hear.

4Press type.

The system starts searching through the station presets for a match, stopping when it was found one. Repeat to search for other stations.

If NO PTY is displayed it means the tuner couldn’t find that program type at the time of the search.

TUNER

PTY SEARCH

PRESET /

ENTER

to select the program

to search for the program

Displaying RDS information

Use the DISPLAY button to display the different types of RDS information available.

• Press

Each press changes the display as follows:

•Listening mode

•Master volume

• Radio Text (RT) – Messages sent by the

• Program Service Name (PS) – The name of

•Program Type (PTY) – This indicates the

• Current tuner frequency (FREQ)

DISPLAY

for RDS information.

radio station. For example, a talk radio station may provide a phone number as RT.

the radio station.

kind of program currently being broadcast.

1 RDS searches station presets only. If no stations have been preset, or if the program type could not be found among

the station presets NO PTY is displayed. FINISH means the search is complete.

2 • If any noise is picked up while displaying the RT scroll, some characters may be displayed incorrectly.

• If you see NO TEXT in the RT display, it means no RT data is sent from the broadcast station. The display will automatically switch to the PS data display (if no PS data, NO NAME is displayed).

• In the PTY display, NO PTY may be shown.

Listening to your system 07

English Deutsch Italiano EspañolFrançais

Nederlands

Note

Chapter 7

Listening to your system

Important

• The listening modes and many features described in this section may not be available depending on the current source, settings and status of the system.

Selecting Listening mode

Various listening modes are available for enjoyment of diverse sound effects and for sound field correction according to your preference.

The best listening mode may vary, depending on the model. In order to ascertain the best settings for your listening conditions, use of the Auto MCACC function is recommended.

• HTP-710/HTP-610/HTP-SB510 model

Select one listening mode from the surround sound mode. See Listening in surround sound below.

• HTP-FS510 model

Select one listening mode from the Front Stage Surround Advance mode. See Using Front Stage Surround Advance on page 65.

• When optional speakers are connected, select one listening mode from the surround sound mode. See Listening in surround sound below.

Auto playback

The simplest, most direct listening option is the Auto Surround feature. With this, the system automatically detects what kind of source you’re playing and selects multichannel or stereo playback as necessary.

• While listening to a source, press DIRECT

Press repeatedly until AUTO SURROUND shows briefly in the display (it will then show the decoding or playback format). Check the digital format indicators in the display to see how the source is being processed.

for auto playback of a source.

AUTO/

Listening in surround sound

For HTP-710/HTP-610/HTP-SB510:

Using this system, you can listen to any source in surround sound. However, the options available will depend on your speaker setup and the type of source you’re listening to.

The following modes provide basic surround sound for stereo and multichannel sources.

1 Stereo surround (matrix) formats are decoded accordingly using NEO:6 CINEMA or DOLBY PLII MOVIE (see

Listening in surround sound above for more on these decoding formats).

2 For more options using this button, see Using Stream Direct on page 65.

Listening to your system07

Note

• While listening to a source, press

STANDARD

If the source is Dolby Digital, DTS, or Dolby Surround encoded, the proper decoding format will automatically be selected and shows in the display.

With two channel sources, you can select from:

• DOLBY PLII MOVIE – Up to 5.1 channel sound, especially suited to movie sources

• DOLBY PLII MUSIC

– Up to 5.1 channel

sound, especially suited to music sources

• DOLBY PLII GAME – Up to 5.1 channel sound, especially suited for video games

• NEO:6 CINEMA – Up to 5.1 channel sound, especially suited to movie sources

• NEO:6 MUSIC – Up to 5.1 channel sound, especially suited to music sources

• DOLBY PRO LOGIC – 4.1 channel surround sound

Using the Advanced surround effects

The Advanced surround feature creates a variety of surround effects. Try different modes with various soundtracks to see which you like.

•Press listening mode.

ADV SURR

repeatedly to select a

• ACTION – Designed for action movies with dynamic soundtracks.

• DRAMA – Designed for movies with lots of dialog.

• ENT.SHOW – Suitable for musical sources.

• ADVANCED GAME – Suitable for video games.

• SPORTS – Suitable for sports programs.

• CLASSICAL – Gives a large concert halltype sound.

• ROCK/POP – Creates a live concert sound for rock and/or pop music.

• UNPLUGGED – Suitable for acoustic music sources.

• EXT.STEREO – Gives multichannel sound to a stereo source, using all of your speakers.

Listening in stereo

When you select STEREO you will hear the source through just the front left and right speakers (and possibly your subwoofer depending on your speaker settings). Dolby Digital and DTS multichannel sources are downmixed to stereo.

In the Auto level control stereo mode (A.L.C.), this unit equalizes playback sound levels if each sound level varies with the music source recorded in a portable audio player.

• While listening to a source, press STEREO/A.L.C.

Press repeatedly to switch between:

• STEREO – The audio is heard with your surround settings and you can still use the Midnight, Phase Control, Sound Retriever and Tone functions.

• A.L.C. – Listening in Auto level control stereo mode.

• F.S.S.ADVANCE – See Using Front Stage Surround Advance on page 65 for more on this.

for stereo playback.

1 When listening to 2-channel sources in DOLBY PLII MUSIC mode, there are three further parameters you can adjust:

C.WIDTH, DIMEN., and PNRM.. See Setting the Audio options on page 69 to adjust them.

2 When listening to 2-channel sources in NEO:6 CINEMA or NEO:6 MUSIC mode, you can also adjust the C.IMG effect

(see Setting the Audio options on page 69).

Listening to your system 07

English Deutsch Italiano EspañolFrançais

Nederlands

F.S.S.ADVANCE

position

Front left

speaker

Front right

speaker

Note

Using Front Stage Surround Advance

The Front Stage Surround Advance function allows you to create natural surround sound effects using just the front speakers and the subwoofer.

• While listening to a source, press STEREO/A.L.C. Surround Advance modes.

• STEREO – See Listening in stereo on

page 64 for more on this.

• A.L.C. – See Listening in stereo on page 64

for more on this.

• F.S.S.ADVANCE – Use to provide a rich surround sound effect directed to the center of where the front left and right speakers sound projection area converges.

to select Front Stage

Using Stream Direct

Use the Stream Direct modes when you want to hear the truest possible reproduction of a source. All unnecessary signal processing is bypassed.

• While listening to a source, press DIRECT

to select Stream Direct mode.

AUTO/

• AUTO SURROUND – See Auto playback on

page 63.

• DIRECT – Sources are heard according to the settings made in the Surround Setup (speaker setting, channel level, speaker distance), as well as with dual mono settings.

You will hear sources according

to the number of channels in the signal.

• PURE DIRECT – Analog and PCM sources are heard without any digital processing.

Using the Sound Retriever

When audio data is removed during the compression process, sound quality often suffers from an uneven sound image. The Sound Retriever feature employs new DSP technology that helps bring CD quality sound back to compressed 2-channel audio by restoring sound pressure and smoothing jagged artifacts left over after compression.

SYSTEM

INPUT

TV CONTROL

HDD DVD VCR

S.RETRIEVER

PHASESB CH

CH SELECT

DISPLAY

SLEEP

MIDNGIHT

• Press , then press to switch the sound retriever on or off.

1In the DIRECT mode, Phase Control, Acoustic Calibration EQ, Sound Delay, Auto Delay, LFE Attenuate and Center

image functions are available.

2 There are cases where a brief noise is heard before playback of sources other than PCM. Please select AUTO

SURROUND or DIRECT if this is a problem.

3 The Sound Retriever is only applicable to 2-channel sources.

S.RETRIEVER

Listening to your system07

Note

DISPLAY

PHASESB CH

CH SELECT

SLEEP

MIDNGIHT

S.RETRIEVER

HDD DVD VCR

Listening with Acoustic Calibration EQ

• Default setting: ON

You can listen to sources using the Acoustic Calibration Equalization set in Automatically setting up for surround sound (MCACC) on page 51. Refer to these pages for more on Acoustic Calibration Equalization.

SYSTEM

TV CONTROL

INPUT

• While listening to a source, press , then press

Acoustic Calibration EQ on or off.

to switch the

Better sound using Phase Control

This system’s Phase Control feature uses phase correction measures to make sure your sound source arrives at the listening position in phase, preventing unwanted distortion and/or coloring of the sound (see illustration below).

During multichannel playback, LFE (LowFrequency Effects) signals as well as lowfrequency signals in each channel are assigned to the subwoofer or other the subwoofer and the most appropriate speaker. At least in theory, however, this type of processing involves a group delay that varies with frequency, resulting in phase distortion where the low-frequency sound is delayed or

muffled by the conflict with other channels. With the Phase Control mode switched on, this system can reproduce powerful bass sound without deteriorating the quality of the original sound (see illustration below).

P H A S E

C O N T R O

F F

P H A S E

C O N T R O

O N

Sound source

Front speaker

Subwoofer

Front speaker

Subwoofer

Listening position

Phase Control technology provides coherent sound reproduction through the use of phase matching

for an optimal sound image at your listening position. The default setting is on and we recommend leaving Phase Control switched on for all sound sources.

S.RETRIEVER

CH SELECT

ENTER

SLEEP

MIDNGIHT

SHIFT

SYSTEM

INPUT

TV CONTROL

PHASESB CH

• Press , then press PHASE to switch on phase correction.

1 You can’t use Acoustic Calibration EQ with Stream Direct mode. 2 • Phase matching is a very important factor in achieving proper sound reproduction. If two waveforms are ‘in phase’,

they crest and trough together, resulting in increased amplitude, clarity and presence of the sound signal. If a crest of a wave meets a trough (as shown in the upper section of the diagram above) then the sound will be ‘out of phase’ and an unreliable sound image will be produced.

• If your subwoofer has a phase control switch, set it to the plus (+) sign (or 0°). However, the effect you can actually feel when PHASE CONTROL is set to ON on this system depends on the type of your subwoofer. Set your subwoofer to maximize the effect. It is also recommended you try changing the orientation or the place of your subwoofer.

• Set the built-in lowpass filter switch of your subwoofer to OFF. If this cannot be done on your subwoofer, set the cutoff frequency to a higher value.

• If the speaker distance is not properly set, you may not have a maximized PHASE CONTROL effect.

• When the PURE DIRECT mode is selected, the PHASE CONTROL mode cannot be set to ON.

Listening to your system 07

English Deutsch Italiano EspañolFrançais

Nederlands

Note

Functions when surround back speakers are connected

For HTP-710/HTP-610 (In the case of the HTPFS510 and HTP-SB510, it may be necessary to connect the optional speaker systems as well.):

When surround back speakers are connected to a surround back amplifier, 7.1 ch surround sound is possible. In this case, it is possible to select a listening mode and make other settings supported by 7.1 ch playback.

See also Using surround back channel processing on page 68.

Surround sound mode

With two channel sources, you can select from:

• DOLBY PLIIx MOVIE – Up to 7.1 channel sound, especially suited to movie sources

• DOLBY PLIIx MUSIC – Up to 7.1 channel sound, especially suited to music sources

• DOLBY PLIIx GAME – Up to 7.1 channel sound, especially suited to video games

• NEO:6 CINEMA – 6.1 channel sound, especially suited to movie sources

• NEO:6 MUSIC – 6.1 channel sound, especially suited to music sources

• DOLBY PRO LOGIC – 4.1 channel surround sound (sound from the surround speakers is mono)

With multichannel sources, if you have connected surround back speaker(s) and have selected SB ON, you can select (according to

format):

• DOLBY PLIIx MOVIE – See above (only available when you’re using two surround back speakers)

• DOLBY PLIIx MUSIC – See above

• DOLBY DIGITAL EX – Creates surround

back channel sound for 5.1 channel sources and provides pure decoding for

6.1 channel sources (like Dolby Digital Surround EX)

• DTS-ES – Allows you to hear 6.1 channel playback with DTS-ES encoded sources

• DTS NEO:6 – Allows you to hear 6.1 channel playback with DTS encoded sources

1 • If surround back channel processing (page 68) is switched off, or the surround back speakers are set to NO, DOLBY

PLIIx becomes DOLBY PLII (5.1 channel sound).

• In modes that give 6.1 channel sound, the same signal is heard from both surround back speakers.

2 When listening to 2-channel sources in DOLBY PLIIx MUSIC mode, there are three further parameters you can adjust:

C.WIDTH, DIMEN., and PNRM.. See Setting the Audio options on page 69 to adjust them.

3 When listening to 2-channel sources in NEO:6 CINEMA or NEO:6 MUSIC mode, you can also adjust the C.IMG effect

(see Setting the Audio options on page 69).

Listening to your system07

PHASESB CH

CH SELECT

SLEEP

ENTER

MIDNGIHT

S.RETRIEVER

SHIFT

Note

Using surround back channel processing

• Default setting: SB ON

You can have the system automatically use 6.1 or 7.1 decoding for 6.1 encoded sources (for example, Dolby Digital EX or DTS-ES), or you can choose to always use 6.1 or 7.1 decoding (for example, with 5.1 encoded material).

5.1 encoded sources, a surround back channel will be generated, but the material may sound better in the 5.1 format for which it was originally encoded (in which case, you can simply switch surround back channel processing off).

• With a 7.1-channel surround system, audio signals that have undergone matrix decoding processing through surround back channel processing to which the Up Mix function is added are output from the surround back speakers.

SYSTEM

TV CONTROL

INPUT

• Press , then press SB CH repeatedly to cycle the surround back channel options.

Each press cycles through the options as follows:

• SB ON – Matrix decoding processing for

generating the surround back component from the surround component is turned on.

• SB AUTO – Matrix decoding processing for generating the surround back component from the surround component is switched automatically. Matrix decoding processing is only performed when surround back channel signals are detected in the input signals.

•SB

OFF

– Matrix decoding processing for generating the surround back component from the surround component is turned off.

With

Setting the Up Mix function

In a 7.1-channel surround system with surround speakers placed directly at the sides of the listening position, the surround sound of

5.1-channel sources is heard from the side. The Up Mix function mixes the sound of the surround speakers with the surround back speakers so that the surround sound is heard from diagonally to the rear as it should be.

• Using the Up Mix function is effective when the speakers in the 7.1-channel surround system are set up as recommended in the example below.

• Depending on the positions of the speakers and the sound source, in some cases it may not be possible to achieve good results. In this case, set the setting to OFF.

Up Mix OFF Up Mix ON

FL FR

SL SR

FL FR

SL SR

SBL SBR SBL SBR

1 Switch the system into standby.

2 While holding down the PRESET + on the front panel, and hold the



STANDBY/ON for

about two seconds. UP MIX: OFF appears and the Up Mix function

turns off. If you want to turn this function on, perform steps 1 and 2 again.

•When set to ON, the UP MIX indicator on the front panel lights.

1 • Set to ON regardless of this setting when playing DTS-HD signals.

• May automatically be set to OFF even when set to ON, depending on the input signal and listening mode.

Listening to your system 07

English Deutsch Italiano EspañolFrançais

Nederlands

1 Press on the remote control,

Setting the Audio options

There are a number of additional sound settings you can make using the AUDIO PARAMETER menu. The defaults, if not stated, are listed in bold.

then press

2Use adjust.

Depending on the current status/mode of the system, certain options may not be able to be selected. Check the table below for notes on

Important

• Note that if a setting doesn’t appear in the AUDIO PARAMETER menu, it is unavailable due to the current source, settings and status of the system.

AUDIO

PARAMETER

TOP MENU

HOME MENU

SETUP

iPod CTRL

PTY SEARCH

SYSTEM

INPUT SELECT SOURCE

TV CONTROL

INPUT

ENTER

TOOLS

RETURN

ST/MONO

MASTER

VOLUME

this.

3Use

See the table below for the options available for each setting.

4Press menu.

Setting What it does Option(s)

Switches on/off the effect of Acoustic Calibration EQ. ON (Acoustic Calibration EQ)

S.DELAY

(Sound Delay)

Some monitors have a slight delay when showing

video, so the soundtrack will be slightly out of sync

with the picture. By adding a bit of delay, you can

adjust the sound to match the presentation of the

video.

MIDNIGHT

Allows you to hear effective surround sound of movies

at low volumes.

S.RTV

(Sound Retriever)

When audio data is removed during the WMA/MP3

compression process, sound quality often suffers from

an uneven sound image. The Sound Retriever feature

employs new DSP technology that helps bring CD

quality sound back to compressed 2-channel audio by

restoring sound pressure and smoothing jagged

artifacts left over after compression.

AUDIO PARAMETER

/

to select the setting you want to

/

to set it as necessary.

RETURN

button.

to confirm and exit the

OFF

0.0 to 9.0 (frames)

1 second = 25 frames (PAL)

Default: 0.0

MID OFF

MIDNIGHT

OFF

Listening to your system07

Setting What it does Option(s)

DUAL MONO

DRC

(Dynamic Range Control)

LFE ATT

(LFE Attenuate)

HDMI

(HDMI Audio)

A.DLY

(Auto Delay)

C.WIDTH

(Center Width) (Applicable only when using a center speaker)

DIMEN.

(Dimension)

Specifies how dual mono encoded Dolby Digital soundtracks should be played.

Adjusts the level of dynamic range for movie soundtracks optimized for Dolby Digital, DTS, Dolby Digital Plus, Dolby TrueHD, DTS-HD and DTS-HD Master Audio (you may need to use this feature when listening to surround sound at low volumes).

Some Dolby Digital and DTS audio sources include ultra-low bass tones. Set the LFE attenuator as necessary to prevent the ultra-low bass tones from distorting the sound from the speakers. The LFE is not limited when set to 0 dB, which is the recommended value. When set to –10 dB, the LFE is limited by the respective degree. When OFF is selected, no sound is output from the LFE channel.

Specifies the routing of the HDMI audio signal out of this system (amp) or through to a TV. When THRU is selected, no sound is output from this system.

This feature automatically corrects the audio-to-video delay between components connected with an HDMI cable. The audio delay time is set depending on the operational status of the display connected with an HDMI cable. The video delay time is automatically adjusted according to the audio delay time.

Spreads the center channel between the front right and left speakers, making it sound wider (higher settings) or narrower (lower settings).

Adjusts the surround sound balance from front to back, making the sound more distant (minus settings), or more forward (positive settings).

CH1 – Channel 1 is heard only

CH2 – Channel 2 is heard only

CH1 CH2 – Both channels heard from front speakers

AUTO

MAX MID OFF

LFEATT 0 (0 dB)

LFEATT 10 (–10 dB)/ LFEATT ** (OFF)

AMP

THRU

OFF

0 to 7 Default: 3

–3 to +3 Default: 0

Listening to your system 07

English Deutsch Italiano EspañolFrançais

Nederlands

Setting What it does Option(s)

PNRM.

(Panorama)

C.IMG

(Center image) (Applicable only when using a center speaker)

a. You can change the MIDNIGHT option at any time by using MIDNIGHT button. b. You can change the Sound Retriever feature at any time by using S.RETRIEVER button. c. WMA and MP3 playback available only via iPod/USB input. d. This setting works only with dual mono encoded Dolby Digital and DTS soundtracks. e. The initial set AUTO is only available for Dolby TrueHD signals. Select MAX or MID for signals other than

Dolby TrueHD.

f. This feature is only available when the connected display supports the automatic audio/video synchronizing

capability (‘lip-sync’) for HDMI. If you find the automatically set delay time unsuitable, set A.DLY to OFF and adjust the delay time manually. For more details about the lip-sync feature of your display, contact the manufacturer directly.

g. Only available with 2-channel sources in DOLBY PLII MUSIC mode. h. Only when listening to 2-channel sources in NEO:6 CINEMA and NEO:6 MUSIC mode.

Extends the front stereo image to include surround

speakers for a ‘wraparound’ effect.

Adjust the center image to create a wider stereo effect

with vocals. Adjust the effect from

channel sent to front right and left speakers) to

0 (all center

(center channel sent to the center speaker only).

OFF

0 to 10 Default: 3 (NEO:6 MUSIC), 10 (NEO:6 CINEMA)

The System Setup menu08

Note

TOP MENU

HOME MENU

PTY SEARCH

AUDIO

PARAMETER

iPod CTRL

MASTER

VOLUME

TOOLS

RETURN

ST/MONO

SETUP

ENTER

TV CONTROL

INPUT

INPUT SELECT SOURCE

SYSTEM

TUNER EDIT

System Setup

1.Auto MCACC

2.Manual SP Setup

Return

Chapter 8

The System Setup menu

3 Select the setting you want to adjust.

Using the System Setup menu

The following section shows you how to make detailed settings to specify how you’re using the system, and also explains how to fine-tune individual speaker system settings to your liking.

Important

• The OSD will not appear if you have connected using the HDMI output to your TV. Use composite connections for system setup.

1 Switch on the system and your TV.

Use the  SYSTEM button to switch on. Switch the TV input so that it connects to the

system in analog.

2 Press on the remote control, then press the

SETUP

button.

An on-screen display (OSD) appears on your TV. Use /// and ENTER on the remote control to navigate through the screens and select menu items. Press RETURN to confirm and exit the current menu.

• Auto MCACC – This is a quick and effective automatic surround setup (see

Automatically setting up for surround sound (MCACC) on page 51).

• Manual SP Setup – Specify the number, distance and overall balance of the speakers you’ve connected (see Manual speaker setup below).

Manual speaker setup

These settings are designed to fine-tune your system, but if you’re satisfied with the settings made in Automatically setting up for surround sound (MCACC) on page 51, it isn’t necessary to make all of these settings.

CAUTION

• The test tones used in the System Setup are output at high volume.

1 • You can’t use the System Setup menu when the iPod/USB input is selected.

• Press SETUP at any time to exit the System Setup menu.

The System Setup menu 08

English Deutsch Italiano EspañolFrançais

Nederlands

System Setup

1.Auto MCACC

2.Manual SP Setup

Return

2.Manual SP Setup

Return

a.Speaker Setting

b.Channel Level c.Speaker Distance

2.Manual SP Setup

Return

a.Speaker Setting

b.Channel Level c.Speaker Distance

Note

1 Select ‘Manual SP Setup’ then press ENTER

2 Select the setting you want to adjust.

If you are doing this for the first time, you may want to adjust these settings in order:

• Speaker Setting – Specify the number of speakers you’ve connected (see below).

• Channel Level – Adjust the overall balance of your speaker system (see below).

• Speaker Distance – Specify the distance of your speakers from the listening position (see page 74).

3 Make the adjustments necessary for each setting, pressing

RETURN

to confirm after

each screen.

Speaker Setting

Use this setting to specify your speaker configuration (number of speakers). It is a good idea to make sure that the settings made in Automatically setting up for surround sound (MCACC) on page 51 are correct.

1 Select ‘Speaker Setting’ from the Manual SP Setup menu.

2a.Speaker Setting

Front Center Surr Surr. Back Subwoofer:

SMALL

[ SMALL ] [ SMALL ] [ NO ] YES

Return

2 Choose the set of speakers that you want to set then select a speaker setting.

Use / to select the number of each of the following speakers:

• Front – This setting cannot be changed, since it is already optimized for this unit.

• Center – Select SMALL if you connect a center speaker. If you didn’t connect a center speaker, choose NO (the center channel is sent to the other speakers).

• Surr – Select SMALL if you connect surround speakers. If you didn’t connect surround speakers choose NO (the sound of the surround channels is sent to the other speakers).

• Surr. Back – Select the number of surround back speakers you have (one, two or none).

If you didn’t connect surround

back speakers choose NO.

• Subwoofer – This setting cannot be changed, since it is already optimized for this unit.

3 When you’re finished, press

RETURN

You return to the Manual SP Setup menu.

Tip

For HTP-FS510: If optional speaker systems are not connected, set Center and Surr to NO.

For HTP-SB510: If optional speaker systems are not connected, set Surr to NO.

Channel Level

Using the channel level settings, you can adjust the overall balance of your speaker system, an important factor when setting up a home theater system.

1 • If the surround speakers are set to NO, the surround back speakers will automatically be set to NO.

• If you select one surround back speaker only, make sure that additional amplifier is hooked up to the PRE OUT SURROUND BACK L (Single) terminal.

The System Setup menu08

Note

2.Manual SP Setup

Return

a.Speaker Setting

b.Channel Level

c.Speaker Distance

2c.Speaker Distance

Front L Center Front R Surround R Surr. Back R Surr. Back L Surround L Subwoofer

Return

3.0 m

[ 3.0 m ] [ 3.0 m ] [ 3.0 m ] [ –––– ] [ –––– ] [ 3.0 m ] [ 3.0 m ]

1 Select ‘Channel Level’ from the Manual SP Setup menu.

2b.Channel Level

Test Tone Manual

ENTER:NextReturn

2 Select a setup option.

• Manual – Move the test tone manually from speaker to speaker and adjust individual channel levels.

• Auto – Adjust channel levels as the test tone moves from speaker to speaker automatically.

3 Confirm your selected setup option.

The test tones will start after you press ENTER. After the volume increases to the reference level, test tones will be output.

2b.Channel Level

Test Tone [ Manual ]

Please Wait . . .20

Caution Loud test tones will be output.

 Return

4 Adjust the level of each channel using

/

If you selected Manual, use / to switch speakers. The Auto setup will output test tones in the order shown on-screen:

2b.Channel Level

Front L Center Front R Surround R Surr. Back R Surr. Back L Surround L Subwoofer

0dB

[ 0dB] [ 0dB] [ 0dB] [ ––– ] [ ––– ] [ 0dB] [ 0dB]

Return

5 When you’re finished, press

RETURN

You return to the Manual SP Setup menu.

Tip

• You can change the channel levels at any time by press , then press CH SELECT and +/– on the remote control. You can also press CH SELECT and use / to select the channel, and then use / to adjust the channel levels.

Speaker Distance

For good sound depth and separation from your system, you need to specify the distance of your speakers from the listening position. The system can then add the proper delay needed for effective surround sound.

1 Select ‘Speaker Distance’ from the Manual SP Setup menu.

2.Manual SP Setup

a.Speaker Setting

b.Channel Level

c.Speaker Distance

Return

2 Adjust the distance of each speaker using

/

You can adjust the distance of each speaker in

0.1 m increments.

3 When you’re finished, press RETURN.

You return to the Manual SP Setup menu.

Adjust the level of each speaker as the test tone is emitted.

1 • If you are using a Sound Pressure Level (SPL) meter, take the readings from your main listening position and adjust

the level of each speaker to 75 dB SPL (C-weighting/slow reading).

• The subwoofer test tone is output at low volumes. You may need to adjust the level after testing with an actual soundtrack.

Controlling the rest of your system 09

English Deutsch Italiano EspañolFrançais

Nederlands

Note

SYSTEM

TV CONTROL

INPUT

DISPLAY

PHASESB CH

CH SELECT

SLEEP

ENTER

MIDNGIHT

S.RETRIEVER

HDD DVD VCR

SHIFT

Chapter 9

Controlling the rest of your system

3 Use the number buttons to enter the

Setting the remote to control other components

Most components can be assigned to one of the MULTI CONTROL buttons using the component’s manufacturer preset code stored in the remote.

However, please note that there are cases where only certain functions may be controllable after assigning the proper preset code, or the codes for the manufacturer in the remote control will not work for the model that you are using.

Note

• You can cancel or exit any of the steps by pressing .

• After one minute of inactivity, the remote automatically exits the operation.

Selecting preset codes directly

preset code.

You can find the preset codes on page 79. If the correct code has been input the power of

the component being input will turn on or off. The power of the component being input will

only turn on or off if that component is able to be turned on directly by remote control.

4 Repeat steps 2 through 3 to try a different code, or to enter a code for another component you want to control.

5 When you’re done, press .

Clearing all the remote control settings

You can clear all presets and restore the factory default settings.

• While pressing the button, press and hold the ‘0’ button for three seconds.

Default preset codes

1 While pressing the button, press and hold the ‘1’ button for three seconds.

2 Press the

MULTI CONTROL

button for the

MULTI CONTROL button

BD 2126 TV 0120 DVR 2121 VIDEO 1120

Preset code

component you want to control. The component can be assigned to the BD, TV, DVR or VIDEO button.

1 TV control codes (for example, codes for TV, CATV, Satellite TV or DTV) can only be assigned to the TV button.

Controlling the rest of your system09

Controls for TVs

This remote control can control components after entering the proper codes or teaching the system the commands (see Controlling the rest of your system on page 75 for more on this). Use the MULTI CONTROL buttons to select the component

•The TV CONTROL buttons on the remote control are dedicated to control the TV assigned to the TV button.

Button(s) Function Components

TV CONTROL  Switches the DTV on or off. DTV

Switches the TV or CATV between standby and on. Cable TV/Satellite TV/TV

TV CONTROL INPUT

TV CONTROL CH +/–

TV CONTROL VOL +/–

 SOURCE Press to switch the component assigned to the TV

DTV/TV Switches between the DTV and analog TV input modes

TOP MENU Switches TEXT ON/OFF for TVs. TV HOME MENU Use as the GUIDE button for navigating. Cable TV/Satellite TV/TV/

RETURN Use to select closed captioning with DTV. DTV

Number buttons

+10 button Use to add a decimal points when selecting TV

ENTER Use to enter a channel. Cable TV/Satellite TV/TV/

MENU Press to display the DTV menu. DTV

 &

ENTER CH +/– Selects channels. Cable TV/Satellite TV/TV/

Switches the TV input. (Not possible with all models.) TV

Selects channels. Cable TV/Satellite TV/TV/

Adjust the TV volume. Cable TV/Satellite TV/TV/

button on or off.

for Pioneer TVs.

Use to select a specific TV channel. Cable TV/Satellite TV/TV/

channels.

Select the menu screen. Cable TV/Satellite TV/TV Press to select or adjust and navigate items on the

menu screen.

DTV

DTV Cable TV/Satellite TV/TV/

DTV DTV/TV

DTV

DTV DTV

DTV

Cable TV/Satellite TV/TV/ DTV

DTV

Controlling the rest of your system 09

English Deutsch Italiano EspañolFrançais

Nederlands

Controls for other components

This remote control can control these components after entering the proper codes or teaching the system the commands (see Controlling the rest of your system on page 75 for more on this). Use the MULTI CONTROL buttons to select the component.

Button(s) Function Components

 SOURCE Press to switch the component between standby and on. BD/DVD player, DVR, VCR  Press to return to the start of the current track.

Repeated presses skips to the start of previous tracks.

 Press to advance to the start of the next track.

Repeated presses skips to the start of following tracks.

 Pause playback or recording. BD/DVD player, DVR, VCR  Start playback. BD/DVD player, DVR, VCR  Hold down for fast forward playback. BD/DVD player, DVR, VCR  Hold down for fast reverse playback. BD/DVD player, DVR, VCR  Stops playback (on some models, pressing this when the

Number buttons

+10 button Selects tracks higher than 10. (For example, press +10

ENTER Use as the ENTER button. BD/DVD player

DISPLAY Press to display information. BD/DVD player, DVR TOP MENU Displays the disc ‘top’ menu of a BD/DVD player. BD/DVD player, DVR MENU Displays menus for the current BD/DVD player or DVD

,

ENTER & RETURN

HOME MENU

CH +/– Selects channels. DVR, VCR

HDD (SHIFT + 1)

disc is already stopped will cause the disc tray to open). Directly access tracks on a program source. VCR Use to enter a title/chapter/track number. BD/DVD player, DVR

then 3 to select track 13.)

Displays the DISC NAVI screen for DVD recorder. DVR

recorder you are using. Navigates BD/DVD menu/options. BD/DVD player, DVR

Displays the HOME MENU. BD/DVD player, DVR

Switches to the hard disk controls when using an HDD/ DVD recorder.

BD/DVD player, DVR, VCR

BD/DVD player, DVR

HDD/DVD/VCR recorder

Controlling the rest of your system09

Button(s) Function Components

DVD (SHIFT + 2)

VCR (SHIFT + 3)

Switches to the DVD controls when using an HDD/DVD recorder.

Switches to the VCR controls when using an HDD/DVD/ VCR recorder.

HDD/DVD/VCR recorder

Controlling the rest of your system 09

English Deutsch Italiano EspañolFrançais

Nederlands

Preset Code List

You should have no problem controlling a component if you find the manufacturer in this list, but please note that there are cases where codes for the manufacturer in the list will not work for the model that you are using. There are also cases where only certain functions may be controllable after assigning the proper preset code.

BD/DVD/DVR

Manufacturer Code

AEG 2093 Aiwa 2054 Akai 2001 Akura 2091 Alba 2027, 2038, 2048 Amitech 2093 AMW 2094 Awa 2094 Bang & Olufsen 2096 Bellagio 2094 Best Buy 2090 Brainwave 2093 Brandt 2017, 2044 Bush 2027, 2048, 2082,

2089

Cambridge Audio 2085 CAT 2087, 2088 Centrum 2088 CGV 2085, 2093 Cinetec 2094 Clatronic 2089 Coby 2095 Conia 2082 Continental Edison 2094 Crown 2093 C-Tech 2086 CyberHome 2008, 2037 Daenyx 2094 Daewoo 2035, 2059, 2093,

2094

Daewoo International

2094

Dalton 2092 Dansai 2084, 2093 Daytek 2010, 2033, 2094 Dayton 2094 DEC 2089 Decca 2093 Denon 2066, 2068 Denver 2069, 2089, 2091,

2095

Denzel 2083 Diamond 2085, 2086 DK Digital 2034 Dmtech 2000 Dual 2083

DVX 2086 Easy Home 2090 Eclipse 2085 Electrohome 2093 Elin 2093

2047, 2093

Elta

r 2083

Enze Fi

nlux 2085, 2093 Gericom 2050 Global Solutions 2086 Global Sphere 2086 Goodmans 2027, 2070,

2089

Graetz 2083 Grundig 2053 Grunkel 2093 H&B 2089 Haaz 2085, 2086 HiMAX 2090 Hitachi 2015, 2083, 2090 Innovation 2002 JVC 2024, 2041, 2057 Kansai 2095 Kennex 2093 Kenwood 2051 KeyPlug 2093 Kiiro 2093 Kingavon 2089 Kiss 2083 Koda 2089 KXD 2090 Lawson 2086 Lecson 2084 Lenco 2089, 2093 LG 2016, 2020, 2040, 2043,

2065, 2076

Life 2002 Lifetec 2002 Limit 2086 Loewe 2056 LogicLab 2086 Magnavox 2089 Majestic 2095 Marantz 2062 Marquant 2093 Matsui 2044 Mecotek 2093 Medion 2002

MiCO 2085 Micromaxx 2002 Microstar 2002 Minoka 2093 Mizuda 2089, 2090 Monyka 2083 Mustek 2006 Mx Onda 2085 Naiko 2093 Neufunk 2 Nevir 2093 NU-TEC 2 Onkyo 2072 Optim 2084 Optimus 2004 Orava 2089 Orbit 2094 Orion 2061 P&B 2089 Pacific 2086 Panasonic 2018, 2019,

Philips 2005, 2011, 2022,

Pioneer 2004, 2012, 2014,

Pointer 2093 Portland 2093 Powerpoint 2094 Prosonic 2095 Provision 2089 Raite 2083 RedStar 2091, 2093, 2095 Reoc 2086 Roadstar 2021, 2089 Ronin 2094 Rowa 2082 Rownsonic 2088 Saba 2017, 2044 Sabaki 2086 Saivod 2093 Samsung 2015, 2042, 2063,

Sansui 2085, 2086, 2093 Sanyo 2045, 2071 ScanMagic 2006 Schaub Lorenz 2093

083

082

2026, 2032, 2036, 2075

2023, 2031, 2039, 2062

2049, 2120, 2121, 2122, 2123, 2124, 2125, 2126

2078, 2081

Schneider 2000 Scientific Labs 2086 Scott 2025, 2092 SEG 2021, 2083, 2086, 2094 Sharp 2002, 2046, 2079 Sigmatek 2090 Silva 2091 Singer 2085, 2086 Skymaster 2058, 2086 Skyworth 2091 Slim Art 2093 SM Electronic 2086 Sony 2009, 2013, 2028,

2029, 2030, 2055, 2080

Soundmaster 2086 Soundmax 20 Spect Standard 2086 Star Cluster 2086 Starmedia 2089 Sunkai 2093 Supervision 2086 Synn 2086 Tatung 2035, 2093 TCM 2002 Teac 2067, 2082, 2086 Tec 2091 Technika 2093 Telefunken 2088 Tensai 2093 Tevion 2002, 2086, 2092 Thomson 2003, 2017,

2060, 2064

Tokai 2083, 2091 Toshiba 2007, 2061, 2073,

2074, 2077

TRANScontinents 2094 Trio 2093 TruVision 2090 Wharfedale 2085, 2086 Xbox 2003 Xlogic 2086, 2093 XMS 2093 Yamada 2094 Yamaha 2011 Yamakawa 2083, 2094 Yukai 2006, 2052

ra 2094

Controlling the rest of your system09

Manufacturer Code

A.R. Systems 0040 Acme 0026 Acura 0027, 0039 ADC 0025 Admiral 0023, 0024, 0025,

0030, 0031

Adyson 0026, 0113, 0114 Agashi 0113, 0114 Agazi 0025 Aiko 0026, 0027, 0039,

0040, 0113, 0114

Aim 0040 Aiwa 0084 Akai 0027, 0028, 0034,

0037, 0039, 0040, 0113, 0114

Akiba 0028, 0040 Akura 0025, 0028, 0039,

0040

Alaron 0113 Alba 0010, 0026, 0027,

0028, 0032, 0035, 0037, 0039, 0040, 0075, 0078, 0088, 0113

Alcyon 0017 Allorgan 0114 Allstar 0034, 0040 AMOi 0109 Amplivision 0010, 0026,

0041, 0114

Amstrad 0025, 0027, 0028,

0039, 0040

Anam 0027 Anglo 0027, 0039 Anitech 0017, 0025, 0027,

0039, 0040

Ansonic 0010, 0018, 0027,

0029, 0039, 0040

Arcam 0113, 0114 Arcam Delta 0026 Aristona 0034, 0037, 0040 Arthur Martin 0041 ASA 0023, 0031 Asberg 0017, 0034, 0040 Astra 0027 Asuka 0025, 0026, 0028,

0113, 0114

Atlantic 0026, 0034, 0037,

0040, 0113

Atori 0027, 0039 Auchan 0041 Audiosonic 0010, 0026,

0027, 0028, 0034, 0037, 0040, 0114

AudioTon 0010, 0026, 0114 Ausind 0017 Autovox 0017, 0023, 0025,

0026, 0114

0113, 0114

Awa

d 0114

Bair Bang & O

Basic Line 0027, 0028,

Bastide 0026, 0114 Baur 0037, 0040 Bazin 0114 Beko 0010, 0035, 0040,

Benq 0104 Beon 0034, 0037, 0040 Best 0010 Bestar 0010, 0034, 0040 Binatone 0026, 0114 Blue Sky 0028, 0040 Blue Star 0036 Boots 0026, 0114 BPL 0036, 0040 Brandt 0033, 0038, 0042,

Brinkmann 0040 Brionvega 0023, 0034,

Britannia 0026, 0113, 0114 Bruns 0023 BTC 0028 Bush 0027, 0028, 0030,

Capsonic 0025 Carena 0040 Carrefour 0032 Cascade 0027, 0039, 0040 Casio 0106 Cathay 0034, 0037, 0040 CCE 0114 Centurion 0034, 0037, 0040 Century 0023 CGE 0010, 0017 Cimline 0027, 0039 City 0027, 0039 Clarivox 0037 Clatronic 0010, 0017, 0025,

CMS 0113 CMS Hightec 0114 Concorde 0027, 0039 Condor 0010, 0026, 0034,

lufsen 0023,

0115

0034, 0039, 0040, 0114

0060

0044

0037, 0040

0032, 0034, 0036, 0037, 0039, 0040, 0065, 0078, 0114

0026, 0027, 0028, 0034, 0035, 0039, 0040, 0114

0035, 0039, 0040, 0113

Contec 0026, 0027, 0032,

0039, 0113

Continental Edison 0033 Cosmel 0027, 0039

0017, 0023

Crosley

n 0010, 0017, 0027,

Crow

0034, 0035, 0037, 0039, 0040

CS Electronics 0026, 0028,

0113

CTC Clatronic 0029 Cybertron 0028 Daewoo 0013, 0026, 0027,

0034, 0039, 0040, 0054, 0064, 0091, 0113, 0114

Dainichi 0028, 0113 Dansai 0025, 0034, 0037,

0040, 0113, 0114

Dantax 0010, 0037 Dawa 0040 Daytron 0027, 0039 De Graaf 0030 Decca 0026, 0034, 0037,

0040, 0114

Denver 0098, 0103 Desmet 0034, 0037, 0040 Diamant 0040 Diamond 0113 Dixi 0027, 0034, 0037, 0039,

0040, 0114

DTS 0027, 0039 Dual 0026, 0040, 0114 Dual-Tec 0026, 0027 Dumont 0023, 0026, 0029,

0114

Dux 0037 Dynatron 0034, 0037, 0040 Elbe 0010, 0018, 0040, 0114 Elcit 0023 Electa 0036 ELECTRO TECH 0027 Elin 0026, 0034, 0037, 0039,

0040, 0113

Elite 0028, 0034, 0040 Elman 0029 Elta 0027, 0039, 0113 Emerson 0010, 0023, 0040 Epson 0101 Erres 0034, 0037, 0040 ESC 0114 Etron 0027 Eurofeel 0025, 0114 Euroline 0037 Euroman 0010, 0025, 0026,

0034, 0040, 0113, 0114

Europhon 0026, 0029,

0034, 0040, 0113, 0114

Expert 0041 Exquisit 0040 Fenner 0027, 0039 Ferguson 0033, 0037, 0038,

0042

Fidelity 0

Fil Finlandia 0030 Finlux 0017, 0023, 0026,

Firstline 0026, 0027, 0034,

Fisher 0010, 0023, 0026,

Flint 0034, 0040 Formenti 0017, 0023, 0024,

Formenti/Phoenix 0113 Fortress 0023, 0024 Fraba 0010, 0040 Friac 0010 Frontech 0025, 0027, 0030,

Fujitsu 0114 Fujitsu General 0114 Funai 0025 Galaxi 0035, 0040 Galaxis 0010, 0040 GBC 0027, 0032, 0039 Geant Casino 0041 GEC 0026, 0031, 0034,

Geloso 0027, 0030, 0039 General Technic 0027,

Genexxa 0028, 0031, 0034,

Giant 0114 GoldHand 0113 Goldline 0040 GoldStar 0010, 0026, 0027,

Goodmans 0025, 0027,

Gorenje 0010, 0035 GPM 0028 Graetz 0031 Granada 0017, 0026, 0030,

Grandin 0027, 0028, 0036,

Gronic 0114

026, 0030, 0040,

0113

sai 0114

0029, 0034, 0037, 0040, 0114

0039, 0040, 0113, 0114

0032, 0035, 0114

0026, 0037, 0113

0031, 0039, 0114

0037, 0040, 0114

0039

0040

0030, 0034, 0037, 0039, 0040, 0113, 0114

0032, 0034, 0037, 0039, 0040, 0107, 0114

0032, 0034, 0037, 0040, 0041, 0114

0037

Controlling the rest of your system 09

English Deutsch Italiano EspañolFrançais

Nederlands

Grundig 0009, 0010, 0017,

0040, 0047

Halifax 0025, 0026, 0113,

0114

Hampton 0026, 0113, 0114 Hanseatic 0010, 0018,

0026, 0027, 0032, 0034, 0037, 0039, 0040, 0114

Hantarex 0027, 0039, 0040 Hantor 0040 Harwood 0039, 0040 HCM 0025, 0026, 0027,

0036, 0039, 0040, 0114

Hema 0039, 0114 Higashi 0113 HiLine 0040 Hinari 0027, 0028, 0032,

0034, 0037, 0039, 0040

Hisawa 0028, 0036, 0041 Hitachi 0022, 0026, 0030,

0031, 0032, 0040, 0076, 0111, 0114

Hornyphon 0034, 0040 Hoshai 0028 Huanyu 0026, 0113 Hygashi 0026, 0113, 0114 Hyper 0026, 0027, 0039,

0113, 0114

Hypson 0025, 0026, 0034,

0036, 0037, 0040, 0041, 0114

Iberia 0040 ICE 0025, 0026, 0027, 0028,

0034, 0039, 0040, 0113, 0114

ICeS 0113 Imperial 0010, 0017, 0031,

0034, 0035, 0040

Indiana 0034, 0037, 0040 Ingelen 0031 Ingersol 0027, 0039 Inno Hit 0017, 0026, 0027,

0028, 0034, 0037, 0039, 0040, 0114

Innovation 0025, 0027 Interactive 0010 Interbuy 0027, 0039 Interfunk 0010, 0023, 0031,

0034, 0037, 0040

International 0113 Intervision 0010, 0025,

0026, 0029, 0040, 0114

Irradio 0017, 0027, 0028,

0034, 0037, 0039, 0040

Isukai 0028, 0040 ITC 0026, 0114

ITS 0028, 0034, 0036, 0040,

0113

ITT 0027, 0031 ITV 0027, 0037, 0040 JVC 0019, 0020, 0032, 0034,

0077

26, 0027, 0028,

Kaisui 00

0036, 0039, 00 0114

Kamosonic 0026 Kamp 0026, 0113 Kapsch 0031 Karcher 0010, 0026, 0027,

0037, 0040

Kawasho 0113 Kendo 0010, 0029, 0030,

0040

KIC 0114 Kingsley 0026, 0113 Kneissel 0010, 0018, 0040 Kolster 0034, 0040 Konka 0028 Korpel 0034, 0037, 0040 Korting 0010, 0023 Kosmos 0040 Koyoda 0027 KTV 0026, 0114 Kyoto 0113, 0114 Lasat 0010 Lenco 0027, 0039 Lenoir 0026, 0027, 0039 Leyco 0025, 0034, 0037,

0040

LG 0010, 0021, 0026, 0027,

0030, 0034, 0037, 0039, 0040, 0071, 0074, 0081, 0105, 0113, 0114

LG/GoldStar 0014 Liesenk 0037 Liesenkotter 0040 Life 0025, 0027 Lifetec 0025, 0027, 0039,

0040

Lloyds 0039 Loewe 0010, 0018, 0040,

0051, 0052

Loewe Opta 0023, 0034,

0037

Luma 0030, 0037, 0039,

0040

Lumatron 0030, 0034,

0037, 0040, 0114

Lux May 0034 Luxor 0026, 0030, 0114 M Electronic 0026, 0027,

0031, 0033, 0034, 0037

40, 0113,

Magnadyne 0023, 0029,

0037

Magnafon 0017, 0026,

0029, 0113

Magnum 0025, 0027 Mandor 0025 Manesth 0025, 0026, 0034,

0037, 0040, 0114

Marantz 0034, 0037, 0040

0023

Marelli

k 0034, 00

Mar

0040, 0113, 0114

Masuda 0114 Matsui 0026, 0027, 0030,

0032, 0034, 0037, 0039, 0040, 0114

Mediator 0034, 0037, 0040 Medion 0025, 0027, 0040 M-Electronic 0039, 0040,

0113, 0114

Melvox 0041 Memorex 0027, 0039 Memphis 0027, 0039 Mercury 0039, 0040 Metz 0023 Micromaxx 0025, 0027 Microstar 0025, 0027 Minerva 0017 Minoka 0034, 0040 Mitsubishi 0023, 0032,

0034, 0040, 0085

Mivar 0010, 0017, 0018,

0026, 0113, 0114

Motion 0017 MTC 0010, 0113 Multi System 0037 Multitech 0010, 0026,

0027, 0029, 0030, 0032, 0037, 0039, 0040, 0113, 0114

Murphy 0026, 0113 Naonis 0030 NEC 0032, 0114 Neckermann 0010, 0023,

0026, 0030, 0034, 0035, 0037, 0040, 0114

NEI 0034, 0037, 0040 Neufunk 0039, 0040 New Tech 0027, 0034,

0039, 0040, 0114

New World 0028 Nicamagic 0026, 0113 Nikkai 0025, 0026, 0028,

0034, 0037, 0039, 0040, 0113, 0114

Nobliko 0017, 0026, 0029,

0113

37, 0039,

Nokia 0031 Nordic 0114 Nordmende 0023, 0031,

0033, 0034

Nordvision 0037 Novatronic 0040 Oceanic 0031, 0041 Okano 0010, 0035, 0040 ONCEAS 0026 Opera 0040 Orbit 0034, 0040

0027, 0034, 0037,

Orion

039, 0040, 0079

line 0040

Or Osaki 0025, 0026, 0028,

0040, 0114

Oso 0028 Otto Versand 0024, 0026,

0032, 0034, 0036, 0037, 0040, 0114

Pael 0026, 0113 Palladium 0010, 0026,

0035, 0040, 0114

Palsonic 0114 Panama 0025, 0026, 0027,

0039, 0040, 0113, 0114

Panasonic 0008, 0031,

0040, 0043, 0049, 0099, 0102, 0121

Panavision 0040 Pathe Cinema 0010, 0018,

0026, 0041, 0113

Pausa 0027, 0039 Perdio 0040, 0113 Perfekt 0040 Philco 0010, 0017, 0023,

0040

Philharmonic 0026, 0114 Philips 0000, 0002, 0023,

0026, 0034, 0037, 0040, 0045, 0048, 0050, 0055, 0056, 0058, 0059, 0067, 0068, 0080, 0081, 0087, 0090, 0097, 0100

Phoenix 0010, 0023, 0034,

0037, 0040, 0113

Phonola 0023, 0034, 0037,

0040, 0113

Pioneer 0010, 0031, 0033,

0034, 0037, 0040, 0120

Plantron 0025, 0034, 0039,

0040

Playsonic 0114 Poppy 0027, 0039 Prandoni-Prince 0017,

0030

Precision 0026, 0114

Controlling the rest of your system09

Prima 0027, 0031, 0039 Profex 0027, 0039 Profi-Tronic 0034, 0040 Proline 0034, 0040 Prosonic 0010, 0026, 0037,

0040, 0113, 0114

Protech 0025, 0026, 0027,

0029, 0034, 0037, 0114

Provision 0037, 0040 Pye 0034, 0037, 0040, 0083 Pymi 0027, 0039 Quandra Vision 0041 Quelle 0025, 0026, 0034,

0037, 0040, 0114

Questa 0032 Radialva 0040 Radio Shack 0040 Radiola 0034, 0037, 0040,

0114

Radiomarelli 0023, 0040 Radiotone 0010, 0034,

0039, 0040

Rank 0032 Recor 0040 Redstar 0040 Reflex 0040 Revox 0010, 0034, 0037,

0040

Rex 0025, 0030, 0031 RFT 0010, 0018, 0023 Rhapsody 0113 R-Line 0034, 0037, 0040 Roadstar 0025, 0027, 0028,

0039

Robotron 0023 Rowa 0113, 0114 Royal Lux 0010 RTF 0023 Saba 0023, 0031, 0033,

0038, 0042, 0044

Saisho 0025, 0026, 0027,

0039, 0114

Salora 0030, 0031 Sambers 0017, 0029 Samsung 0004, 0005, 0010,

0025, 0026, 0027, 0034, 0035, 0037, 0039, 0040, 0062, 0063, 0066, 0089, 0093, 0113, 0114

Sandra 0026, 0113, 0114 Sansui 0034, 0040 Sanyo 0010, 0018, 0026,

0032, 0039, 0072, 0113, 0114

SBR 0037, 0040 SCHAUB LORENTZ 0031

Schneider 0026, 0028,

0034, 0037, 0040, 0075, 0114

SEG 0025, 0026, 0029, 0032,

0037, 0039, 0040, 0075,

, 0114

0113

SEI 0040

I-Sinudyne 0023, 0029,

0031

Seleco 0030, 0031, 0032 Sencora 0027, 0039 Sentra 0039 Serino 0113 Sharp 0015, 0016, 0024,

0032, 0069, 0092

Siarem 0023, 0029, 0040 Sierra 0034, 0040 Siesta 0010 Silva 0113 Silver 0032 Singer 0023, 0029, 0041 Sinudyne 0023, 0029, 0037,

0040

Skantic 0031 Solavox 0031 Sonitron 0010, 0114 Sonoko 0025, 0026, 0027,

0034, 0037, 0039, 0040, 0114

Sonolor 0031, 0041 Sontec 0010, 0034, 0037,

0040

Sony 0001, 0003, 0027,

0032, 0046, 0053, 0057, 0070, 0073, 0082, 0086, 0096, 0110, 0112

Sound & Vision 0028, 0029 Soundwave 0034, 0037,

0040

Standard 0026, 0027, 0028,

0034, 0039, 0040, 0114

Starlight 0037 Starlite 0039, 0040 Stenway 0036 Stern 0030, 0031 Strato 0039, 0040 Stylandia 0114 Sunkai 0027 Sunstar 0039, 0040 Sunwood 0027, 0034,

0039, 0040

Superla 0026, 0113, 0114 SuperTech 0039, 0040,

0113

Supra 0027, 0039 Susumu 0028 Sutron 0027, 0039

Sydney 0026, 0113, 0114 Sysline 0037 Sytong 0113 Tandy 0024, 0026, 0028,

0031, 0114

Tashiko 0026, 0030, 0032,

0113, 0114

tung 0026

0040, 0114

TCM 0025, 0027 Teac 0040, 0114 Tec 0026, 0027, 0039, 0114 TEDELEX 0114 Teleavia 0033 Telecor 0040, 0114 Telefunken 0033, 0034,

0040, 0042

Telegazi 0040 Telemeister 0040 Telesonic 0040 Telestar 0040 Teletech 0027, 0037, 0039,

0040

Teleton 0026, 0114 Televideon 0113 Televiso 0041 Tensai 0027, 0028, 0034,

0039, 0040, 0114

Tesmet 0034 Tevion 0025, 0027 Texet 0026, 0039, 0113,

0114

Thomson 0006, 0007, 0026 ,

0033, 0034, 0038, 0040, 0042, 0044, 0095

Thorn 0037, 0040 Tokai 0034, 0040, 0114 Tokyo 0026, 0113 Tomashi 0036 Toshiba 0011, 0012, 0032,

0061, 0094, 0114

Towada 0031, 0114 Trakton 0114 Trans Continens 0040,

0114

Transtec 0113 Trident 0114 Triumph 0040 Uher 0010, 0017, 0031,

0034, 0040

Ultravox 0023, 0026, 0029,

0040, 0113

Unic Line 0040 United 0037 Universum 0010, 0017,

0025, 0034, 0035, 0037, 0040, 0114

, 0034, 0037,

Univox 0040 Vestel 0030, 0031, 0034,

0035, 0037, 0040, 0114

Vexa 0027, 0037, 0039,

0040

Victor 0032, 0034 VIDEOLOGIC 0113 Videologique

eoSystem 0034, 0040

Vid Videotechnic 0113, 0114 Viewsonic 0108 Visiola 0026, 0113 Vision 0034, 0040, 0114 Vortec 0034, 0037, 0040 Voxson 0017, 0023, 0030,

0031, 0034, 0040

Waltham 0026, 0040, 0114 Watson 0034, 0037, 0040 Watt Radio 0026, 0029,

0113

Wega 0023, 0032, 0040 Wegavox 0039 Weltblick 0034, 0037,

0040, 0114

White Westinghouse

0026, 0029, 0037, 0040, 0113

Xrypton 0040 Yamishi 0040, 0114 Yokan 0040 Yoko 0010, 0025, 0026,

0027, 0028, 0034, 0037, 0039, 0040, 0113, 0114

Yorx 0028 Zanussi 0030, 0114

0026, 0028,

13, 0114

VCR

Manufacturer Code

Adyson 1017 Aiwa 1000, 1001, 1002 Akai 1001 Akiba 1007, 1017 Akura 1001, 1007, 1017 Alba 1002, 1003, 1004,

1007, 1017, 1018

Ambassador 1004 Amstrad 1000, 1017, 1018 Anitech 1007, 1017 ASA 1005, 1006 Asuka 1000, 1005, 1006,

1007, 1017

Audiosonic 1018 Baird 1000, 1001, 1003,

1018

Bang & Olufsen 1019

Controlling the rest of your system 09

English Deutsch Italiano EspañolFrançais

Nederlands

Basic Line 1002, 1003,

1004, 1007, 1017, 1018

Baur 1006 Bestar 1003, 1004, 1018 Black Panther Line 1003,

1018

Blaupunkt 1006 Bondstec 1004, 1017 Bush 1002, 1003, 1007,

1017, 1018

Cathay 1018 Catron 1004 CGE 1000, 1001 Cimline 1002, 1007, 1017 Clatronic 1004, 1017 Condor 1003, 1004, 1018 Crown 1003, 1004, 1007,

1017, 1018

Daewoo 1003, 1004, 1018 Dansai 1007, 1017, 1018 Dantax 1002 Daytron 1003, 1018 De Graaf 1006 Decca 1000, 1001, 1006 Denko 1017 Dual 1001, 1006, 1018 Dumont 1000, 1006 Elbe 1018 Elcatech 1017 Elsay 1017 Elta 1007, 1017, 1018 Emerson 1017 ESC 1003, 1018 Etzuko 1007, 1017 Ferguson 1001 Fidelity 1000, 1017 Finlandia 1006 Finlux 1000, 1001, 1006 Firstline 1002, 1005, 1007,

1017

Flint 1002 Formenti/Phoenix 1006 Frontech 1004 Fujitsu 1000 Funai 1000 Galaxy 1000 GBC 1004, 1007 GEC 1006 Geloso 1007 General 1004 General Technic 1002 GoldHand 1007, 1017 GoldStar 1000, 1005 Goodmans 10

004, 1005, 1007, 1017,

1 1018

Graetz 1001

00, 1003,

Granada 1006 Grandin 1000, 1003, 1004,

1005, 1007, 1017, 1018

Grundig 1006, 1007 Hanseatic 1005, 1006, 1018 Harwood 1017 HCM 1007, 1017 Hinari 1002, 1007, 1017,

1018

Hisawa 1002 Hitachi 1000, 1001, 1006,

1012

Hypson 1002, 1007, 1017,

1018

Impego 1004 Imperial 1000 Inno Hit 1003, 1004, 1006,

1007, 1017, 1018

Innovation 1002 Interbuy 1005, 1017 Interfunk 1006 Intervision 1000, 1018 Irradio 1005, 1007, 1017 ITT 1001 ITV 1003, 1005, 1018 JVC 1001, 1013 Kaisui 1007, 1017 Karcher 1006 Kendo 1002, 1003, 1004,

1017

Kenwood 1001 Korpel 1007, 1017 Kyoto 1017 Lenco 1003 Leyco 1007, 1017 LG 1000, 1005, 1016 Lifetec 1002 Loewe Opta 1005, 1006 Logik 1007, 1017 Lumatron 1003, 1018 Luxor 1017 M Electronic 1000 Manesth 1007, 1017 Marantz 1006 Mark 1018 Matsui 1002, 1005 Mediator 1006 Medion 1002 Memorex 1000, 1005 Memphis 1007, 1017 Micromaxx Mic Migros 1000 Mitsubishi 1000, 1006 Multitech 1000, 1004,

Murphy 1000

1002

rostar 100

1006, 1007, 1017

NEC 1001 Neckermann 1001, 1006 NEI 1006 Nesco 1007, 1017 Nikkai 1004, 1017, 1018 Nokia 1001, 1018 Nordmende 1001 Oceanic 1000, 1001 Okano 1002, 1017, 1018 Orion 1002 Orson 1000 Osaki 1000, 1005, 1007,

1017

Otto Versand 1006 Palladium 1001, 1005,

1007, 1017

Panasonic 1010 Pathe Marconi 1001 Perdio 1000 Philco 1017 Philips 1006, 1012, 1019 Phonola 1006 Pioneer 1006, 1120 Portland 1003, 1004, 1018 Prinz 1000 Profex 1007 Proline 1000 Prosonic 1002, 1018 Pye 1006 Quelle 1000, 1006 Radialva 1017 Radiola 1006 Rex 1001 RFT 1004, 1006, 1017 Roadstar 1003, 1005, 1007,

1017, 1018

Royal 1017 Saba 1001 Saisho 1002, 1007 Samsung 1008 Samurai 1004, 1017 Sansui 1001 Saville 1018 SBR 1006 Schaub Lorenz 1000, 1001 Schneider 1000, 1002,

1003, 1004, 1005, 1006,

7, 1017, 101

100

SEG 1007, 1017, 1018 SEI-Sinudyne 1006 Seleco 1001 Sentra 1004, 1017 Sentron 1007, 1017 Sharp 1009 Shintom 1007, 1017 Shivaki 1005 Siemens 1005

Silva 1005 Silver 1018 Sinudyne 1006 Solavox 1004 Sonneclair 1017 Sonoko 1003, 1018 Sontec 1005 Sony 1011 Standard 1003, 1018 Stern 1018 Sunkai 1002 Sunstar 1000 Suntronic 1000 Sunwood 1007, 1017 Symphonic 1017 Taisho 1002 Tandberg 1018 Tashiko 1000 Tatung 1000, 1001, 1006 TCM 1002 Teac 1018 Tec 1004, 1017, 1018 Teleavia 1001 Telefunken 1001 Teletech 1017, 1018 Tenosal 1007, 1017 Tensai 1000, 1005, 1007,

1017

Tevion 1002 Thomson 1001, 1015 Thorn 1001 Tokai 1005, 1007, 1017 Tonsai 1007 Toshiba 1001, 1006, 1014 Towada 1007, 1017 Towika 1007, 1017 TVA 1004 Uher 1005 Ultravox 1018 United Quick Star 1003,

1018

006

blick 1005

1017

1000, 1005,

Universum

Videon 1002 Welt Yamishi 1007, 1017 Yokan 1007, 1017 Yoko 1004, 1005, 1007,

Additional information10

Chapter 10

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Take a look at the other components and electrical appliances being used, because sometimes the problem may lie there. If the trouble isn’t sorted out even after going through the checks below, ask your nearest Pioneer authorized independent service company to carry out repair work.

•

If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions.

Problem Remedy

The power does not turn on.

The system suddenly switches off.

No sound is output when a function is selected.

No image is output when a function is selected.

No sound from subwoofer. • The Dolby Digital or DTS source you are listening to may not have an

No sound from surround or center speakers.

*HTP-710/HTP-610 only

No sound from center speaker.

*HTP-SB510 only

The PHASE CONTROL feature doesn’t seem to have an audible effect.

• Disconnect the power plug from the outlet, and insert again.

• Make sure there are no loose strands of speaker wire touching the rear panel. This could cause the system to shut off automatically.

• After about a minute (you won’t be able to switch the unit on during this time), switch the system back on. If the message persists, call a Pioneer authorized independent service company.

• Make sure the component is connected correctly (refer to Connecting up on page 32).

• Press MUTE on the remote control to turn muting off.

• Press SIGNAL SEL to select the proper input signal (see Choosing the input signal on page 54).

•

Make sure the component is connected correctly (refer to

on page 32

• Select the correct component (use the MULTI CONTROL buttons).

• The video input selected on the TV monitor is incorrect. Refer to the instruction manual supplied with the TV.

LFE channel.

• Switch the

• Connect the speakers properly (refer to page 16 or page 20).

• Refer to Speaker Setting on page 73 to check the speaker settings.

• Refer to Channel Level on page 73 to check the speaker levels.

• Make sure the speaker distance setting is correct for all speakers (see Speaker Distance on page 74).

LFE ATT (LFE Attenuate)

on page 70 to

LFEATT 0

Connecting up

LFEATT 10

Additional information 10

English Deutsch Italiano EspañolFrançais

Nederlands

Problem Remedy

Considerable noise in radio broadcasts.

Broadcast stations cannot be selected automatically.

Noise during playback of a cassette deck.

Sound is produced from other components, but not from LD or DVD player.

No sound is output or a noise is output when software with DTS is played back.

During a playback search, noise is output from a DTS compatible CD player.

Everything seems to be set up correctly, but the playback sound is odd.

There seems to be a time lag between the speakers and the output of the subwoofer.

Can’t operate the remote control.

The display is dark or off. • Press DIMMER on the control repeatedly to return to the default.

•

Connect the antenna (page 42) and adjust the position for best reception.

• Route any loose cables away from the antenna terminals and wires.

• Fully extend the FM wire antenna, position for best reception, and secure to a wall (or connect an outdoor FM antenna).

• Turn off equipment causing interference or move it away from the system (or move antennas farther away from equipment causing noise).

• Connect an outdoor antenna (refer to page 42).

• Move the cassette deck away from your system, until the noise disappears.

• Set the SIGNAL SEL to HDMI, C1/O1/O2 (DIGITAL) or A (analog) according to the type of connections made (refer to page 54).

• Set the digital input settings correctly (refer to page 54).

•

Make digital connections (refer to page 33) and set the

C1/O1/O2 (DIGITAL)

• Refer to the instruction manual supplied with the DVD player.

•

Set the digital volume level of the player to full, or to the neutral position.

• Make sure the player’s settings are correct and/or the DTS signal out is on. Refer to the instruction manual supplied with the DVD player.

• Set the input signal type to C1/O1/O2 (DIGITAL) (see Choosing the input signal on page 54).

• This is not a malfunction, but be sure to turn the volume down to prevent the output of loud noise from your speakers.

• Check that the positive/negative speaker terminals on the system are matched with the corresponding terminals on the speakers (see page 16, 20 or 24).

• See Automatically setting up for surround sound (MCACC) on page 51 to set up your system again using MCACC (this will automatically compensate for a delay in the subwoofer output).

• Replace the batteries (refer to page 50).

• Operate within 7 m, 30° of the remote sensor (refer to page 50).

• Remove the obstacle or operate from another position.

• Avoid exposing the remote sensor on the front panel to direct light.

(refer to page 54).

SIGNAL SEL

Additional information10

HDMI

Symptom Remedy

No picture or sound. • If the problem still persists when connecting your HDMI component

No picture. • Video signals that are input from the analog video terminal will not

OSD does not appear. • The OSD will not appear if you have connected using the HDMI output to

No sound, or sound suddenly ceases.

directly to your monitor, please consult the component or monitor manual or contact the manufacturer for support.

output from the HDMI terminal. Signals that are input from the HDMI terminal will not output from the analog video terminal. Be consistent with the type of cable between input and output.

• Depending in the output settings of the source component, it may be outputting a video format that can’t be displayed. Change the output settings of the source, or connect using the composite jack.

•

This system is HDCP-compatible. Check that the components you are connecting are also HDCP-compatible. If they are not, please connect them using the composite video jack.

• Depending on the connected source component, it’s possible that it will not work with this system (even if it is HDCP-compatible). In this case, connect using the composite video jack between source and system.

•

If video images do not appear on your TV, try adjusting the resolution, DeepColor or other setting for your component.

•

To output signals in DeepColor, use an HDMI cable (High Speed HDMI Cable) to connect this system to a component or TV with the DeepColor feature.

your TV. Use composite connections when setting up the system.

• If you’ve made separate connections for audio, make sure you have assigned the analog/digital jack(s) to the corresponding HDMI input for the component.

• Check the audio output settings of the source component.

• Check that the Audio Parameter setting is set to HDMI AMP/THRU (refer to page 70).

•

If the component is a DVI device, use a separate connection for the audio.

• HDMI format digital audio transmissions require a longer time to be recognized. Due to this, interruption in the audio may occur when switching between audio formats or beginning playback.

• Turning on/off the device connected to this unit’s HDMI OUT terminal during playback, or disconnecting/connecting the HDMI cable during playback, may cause noise or interrupted audio.

Additional information 10

English Deutsch Italiano EspañolFrançais

Nederlands

Note

Important information regarding the HDMI connection

There are cases where you may not be able to route HDMI signals through this system (this depends on the HDMI equipped component you are connecting-check with the manufacturer for HDMI compatibility information).

If you aren’t receiving HDMI signals properly through this system (from your component), please try the following configuration when connecting up.

Configuration

Connect your HDMI-equipped component directly to the display using an HDMI cable. Then use the most convenient connection (digital is recommended) for sending audio to the system. See the operating instructions for more on audio connections. Set the display volume to minimum when using this configuration.

iPod messages

Symptom Cause Action

iPod/USB Error 1 (I/U ERR1)

iPod/USB Error 2 (I/U ERR2)

iPod/USB Error 3 (I/U ERR3)

No Track When there are no tracks in the category

There is a problem with the signal path from the iPod to the system.

The software version being used with the iPod needs to be updated.

An iPod not supported by this system is connected.

When there is no response from the iPod.

selected on the iPod.

Switch off the system and reconnect the iPod to the system. If this doesn’t seem to work, try resetting your iPod.

Update the software being used with the iPod (please use the latest iPod software versions later than the iPod updater 200410-20).

Connect the iPod supported by this system.

Update the iPod software to the latest version. If this doesn’t seem to work, try resetting your iPod.

Select a different category.

1 • If your display only has one HDMI terminal, you can only receive HDMI video from the connected component.

• Depending on the component, audio output may be limited to the number of channels available from the connected display unit (for example audio output is reduced to 2 channels for a monitor with stereo audio limitations).

• If you want to switch the input source, you’ll have to switch functions on both the system and your display unit.

• Since the sound is muted on the display when using the HDMI connection, you must adjust the volume on the display every time you switch input sources.

Additional information10

USB messages

Symptom Cause Action

iPod/USB Error 1 (I/U ERR1)

iPod/USB Error 3 (I/U ERR3)

iPod/USB Error 4 (I/U ERR4)

There is a problem with the signal path from the USB to the system.

When there is no response from the USB.

The power requirements of the USB device are too high for this system.

Switch off the system and reconnect the USB to the system.

Resetting the main unit

Use this procedure to reset all the system’s settings to the factory default. Use the front panel controls to do this.

1 Switch the system into standby.

2 While holding down the button, press and hold the button for about two seconds.

3 When you see RESET? appear in the display, press

TUNE –

OK? shows in the display.

4Press

TUNE +

to confirm.

OK appears in the display to indicate that the

system has been reset to the factory settings.



ST/MONO

STANDBY/ON

Specifications

SX-SWR2 Receiver subwoofer

• Audio section

Rated power output

Front, Center, Surround . . .100 W per channel

Subwoofer . . . . . . . .100 W (100 Hz, 4

• FM tuner Section

Frequency Range. . . . . . . . .87.5 MHz to 108 MHz

Antenna Input . . . . . . . . . . . . . . 75 Ω unbalanced

• Input/Output section

HDMI terminal:

Input . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-pin x3

Output. . . . . . . . . . . . . . . . .19-pin (5 V, 100 mA)

Audio input. . . . . . Coaxial x1, Optical x2 (Digital)

Audio output . . . . . . . . . .RCA (2-pin) x2 (Analog)

Video input . . . . . . . . . . . . . . . . . . . . . . . . . RCA x3

Video output . . . . . . . . . . . . . . . . . . . . . . . . RCA x2

MCACC input . . . . . . . . . . . . . . . . . . . . . .Mini jack

iPod terminal . . . . . . . USB + Video (Composite)

• Speaker section

Enclosure . . . . . . . . . . . . . . . Bass-reflex floor type

System . . . . . . . . . . . . . . . . . .16 cm 1-way system

Speakers. . . . . . . . . . . . . . . . . 16 cm cone type x1

Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Ω

Frequency range . . . . . . . . . . . . 35 Hz to 1 000 Hz

(1 kHz, 4

RCA (2-pin) x4 (Analog)

, 10 %)

Additional information 10

English Deutsch Italiano EspañolFrançais

Nederlands

• Miscellaneous

Power Requirements

. . . . . . . . . . . . . . . .AC 220 V to 240 V, 50 Hz/60 Hz

Power Consumption . . . . . . . . . . . . . . . . . . . 61 W

In standby. . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 W

Dimensions

. . . . 230 mm (W) x 360.5 mm (H) x 422.5 mm (D)

Weight (without package). . . . . . . . . . . . . . . 11 kg

• Accessories

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Dry cell batteries (AAA size IEC R03). . . . . . . . . . 2

Video cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Optical digital cable. . . . . . . . . . . . . . . . . . . . . . . .1

iPod cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

FM wire antenna . . . . . . . . . . . . . . . . . . . . . . . . . .1

Microphone (for Auto MCACC setup) . . . . . . . . .1

Power cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Large non-skid pads (for receiver subwoofer). . .4

Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Operating instructions (This document)

S-DV595T Speaker system (HTP-710)

• Front/surround speakers

Enclosure . . . . . . . Closed-box floorstanding type

System . . . . . . . . . . . . . . . . . . . . . . . 2-way system

Speakers:

Woofer . . . . . . . . . . . . . . . . . . 7.7 cm cone type

Tweeter . . . . . . . . . . . . 2.6 cm semi-dome type

Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Ω

Frequency range . . . . . . . . . . . . . .62 Hz to 20 kHz

Dimensions

. . . . . . 260 mm (W) x 1097 mm (H) x 260 mm (D)

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.8 kg

• Center speaker

Enclosure . . . . . . . . . . .Closed-box bookshelf type

System . . . . . . . . . . . . . . . . . 7.7 cm 1-way system

Speakers. . . . . . . . . . . . . . . . . . . 7.7 cm cone type

Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Ω

Frequency range . . . . . . . . . . . . . .72 Hz to 20 kHz

Dimensions

. . . . . . . . 220 mm (W) x 90 mm (H) x 100 mm (D)

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.7 kg

(magnetically shielded)

• Accessories

Speaker cables . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Speaker stand bases . . . . . . . . . . . . . . . . . . . . . . 4

Screws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Small Non-skid pads

(for speaker stand bases). . . . . . . . . . . . . . . . . . 16

S-SWR600 Speaker system (HTP-610)

• Front/surround speakers

Enclosure . . . . . . . . . . Closed-box bookshelf type

(magnetically shielded)

System. . . . . . . . . . . . . . . . . .6.6 cm 1-way system

Speakers . . . . . . . . . . . . . . . . . . . 6.6 cm cone type

Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Ω

Frequency range. . . . . . . . . . . . . . 82 Hz to 20 kHz

Dimensions

. . . . . . . . . . 96 mm (W) x 96 mm (H) x 96 mm (D)

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 kg

• Center speaker

Enclosure . . . . . . . . . . Closed-box bookshelf type

(magnetically shielded)

System. . . . . . . . . . . . . . . . . .6.6 cm 1-way system

Speakers . . . . . . . . . . . . . . . . . . . 6.6 cm cone type

Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Ω

Frequency range . . . . . . . . . . . . . 82 Hz to 20 kHz

Dimensions

. . . . . . . . . . 96 mm (W) x 96 mm (H) x 96 mm (D)

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 kg

• Accessories

Speaker cables . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Screws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Small Non-skid pads (for speakers) . . . . . . . . . 18

Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Mounting brackets . . . . . . . . . . . . . . . . . . . . . . . . 6

Additional information10

S-SWR500FS Speaker system (HTPFS510)

• Front speakers

Enclosure. . . . . . . . Closed-box floorstanding type

(magnetically shielded)

System . . . . . . . . . . . . . . . . . . . . . . . .2-way system

Speakers:

Woofer . . . . . . . . . . . . . . . 5.2 cm cone type x2

Tweeter . . . . . . . . . . . . 2.6 cm semi-dome type

Impedance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Ω

Frequency range . . . . . . . . . . . . . 60 Hz to 20 kHz

Dimensions:

Without speaker stand

. . . . . . . 77 mm (W) x 395 mm (H) x 55 mm (D)

With speaker stand

. . . . . 126 mm (W) x 462 mm (H) x 126 mm (D)

Weight:

Without speaker stand . . . . . . . . . . . . . . . 1.0 kg

With speaker stand. . . . . . . . . . . . . . . . . . 1.3 kg

• Accessories

Speaker cables . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Speaker stand bases . . . . . . . . . . . . . . . . . . . . . . 2

Poles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Gaskets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Screws (short) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Screws (long) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

S-SB510 Speaker system (HTP-SB510)

• Speaker

Enclosure. . . . . . . . . . . . . . . . . . . . . . . . Closed-box

System . . . . . . . . . . . . . 4 cm x 7 cm 1-way system

Speakers . . . . . . . . . . . .4 cm x 7 cm cone type x6

Impedance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Ω

Frequency range . . . . . . . . . . . . . 70 Hz to 20 kHz

Dimensions:

Without speaker stand

. . . . . . . 800 mm (W) x 57 mm (H) x 85 mm (D)

With speaker stand

. . . . . . . . 800 mm (W) x 100 mm or 88 mm (H)

x 102 mm (D)

Weight:

Without speaker stand . . . . . . . . . . . . . . . 1.8 kg

With speaker stand. . . . . . . . . . . . . . . . . . 1.9 kg

• Accessories

Speaker cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Speaker stands . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Screws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Small Non-skid pads

(for speaker stand or speaker) . . . . . . . . . . . . . .10

Note

• The specifications are applicable when the power supply is 230 V.

• Specifications and the design are subject to possible modifications without notice, due to improvements.

Cleaning the unit

• Use a polishing cloth or dry cloth to wipe off dust and dirt.

• When the surface is dirty, wipe with a soft cloth dipped in some neutral cleanser diluted five or six times with water, and wrung out well, and then wipe again with a dry cloth. Do not use furniture wax or cleansers.

• Never use thinners, benzine, insecticide sprays or other chemicals on or near this unit, since these will corrode the surface.

English Deutsch Italiano EspañolFrançais

Nederlands

Additional information 10

IMPORTANT

Ce symbole de l’éclair, placé dans un triangle équilatéral, a pour but d’attirer l’attention de l’utilisateur sur la présence, à l’intérieur du coffret de l’appareil, de “tensions dangereuses” non isolées d’une grandeur suffisante pour représenter un risque d’électrocution pour les êtres humains.

ATTENTION

DANGER D´ELECTROCUTION

NE PAS OUVRIR

ATTENTION :

POUR ÉVITER TOUT RISQUE D’ÉLECTROCUTION, NE PAS ENLEVER LE COUVERCLE (NI LE PANNEAU ARRIÈRE). AUCUNE PIÈCE RÉPARABLE PAR L’UTILISATEUR NE SE TROUVE À L’INTÉRIEUR. CONFIER TOUT ENTRETIEN À UN PERSONNEL QUALIFIÉ UNIQUEMENT.

Ce point d’exclamation, placé dans un triangle équilatéral, a pour but d’attirer l’attention de l’utilisateur sur la présence, dans les documents qui accompagnent l’appareil, d’explications importantes du point de vue de l’exploitation ou de l’entretien.

D3-4-2-1-1_A1_Fr

AVERTISSEMENT

Cet appareil n’est pas étanche. Pour éviter les risques d’incendie et de décharge électrique, ne placez près de lui un récipient rempli d’eau, tel qu’un vase ou un pot de fleurs, et ne l’exposez pas à des gouttes d’eau, des éclaboussures, de la pluie ou de l’humidité.

D3-4-2-1-3_A1_Fr

AVERTISSEMENT

Milieu de fonctionnement

empérature et humidité du milieu de fonctionnement : De +5 °C à +35 °C (de +41 °F à +95 °F) ; Humidité relative inférieure à 85 % (orifices de ventilation non obstrués) N’installez pas l’appareil dans un endroit mal ventilé ou un lieu soumis à une forte humidité ou en plein soleil (ou à une forte lumière artificielle).

D3-4-2-1-7c*_A1_F

Avant de brancher l’appareil pour la première, lisez attentivement la section suivante.

La tension de l’alimentation électrique disponible varie selon le pays ou la région. Assurez-vous que la tension du secteur de la région où l’appareil sera utilisé correspond à la tension requise (par ex. 230 V ou 120 V), indiquée sur le panneau arrière.

D3-4-2-1-4*_A1_Fr

Si la fiche d’alimentation secteur de cet appareil ne

convient pas à la prise secteur à utiliser, la fiche doit

être remplacée par une appropriée. Ce

remplacement et la fixation d’une fiche secteur sur le

cordon d’alimentation de cet appareil doivent être

effectués par un personnel de service qualifié. En cas

de branchement sur une prise secteur, la fiche de

AVERTISSEMENT

Pour éviter les risques d’incendie, ne placez aucune flamme nue (telle qu’une bougie allumée) sur l’appareil.

D3-4-2-1-7a_A1_Fr

PRÉCAUTION DE VENTILATION

coupure peut provoquer une sérieuse décharge

électrique. Assurez-vous qu’elle est éliminée

correctement après sa dépose.

L’appareil doit être déconnecté en débranchant sa

fiche secteur au niveau de la prise murale si vous

prévoyez une période prolongée de non utilisation

(par exemple avant un départ en vacances).

D3-4-2-2-1a_A1_Fr

Lors de l’installation de l’appareil, veillez à laisser un espace suffisant autour de ses parois de manière à améliorer la dissipation de chaleur (au moins 10 cm sur le dessus, 10 cm à l’arrière et 10 cm de chaque côté).

AVERTISSEMENT

Les fentes et ouvertures du coffret sont prévues pour la ventilation, pour assurer un fonctionnement stable de l’appareil et pour éviter sa surchauffe. Pour éviter les risques d’incendie, ne bouchez jamais les ouvertures et ne les recouvrez pas d’objets, tels que journaux, nappes ou rideaux, et n’utilisez pas l’appareil posé sur un tapis épais ou un lit.

D3-4-2-1-7b*_A1_Fr

ATTENTION

L’interrupteur STANDBY/ON de cet appareil ne

coupe pas complètement celui-ci de sa prise secteur.

Comme le cordon d’alimentation fait office de

dispositif de déconnexion du secteur, il devra être

débranché au niveau de la prise secteur pour que

l’appareil soit complètement hors tension. Par

conséquent, veillez à installer l’appareil de telle

manière que son cordon d’alimentation puisse être

facilement débranché de la prise secteur en cas

d’accident. Pour éviter tout risque d’incendie, le

cordon d’alimentation sera débranché au niveau de

la prise secteur si vous prévoyez une période

prolongée de non utilisation (par exemple avant un

départ en vacances).

D3-4-2-2-2a*_A1_Fr

Information à destination des utilisateurs sur la collecte et l’élimination des équipements et batteries usagés

Marquage pour les

équipements

Exemples de marquage

pour les batteries

Ces symboles qui figurent sur les produits, les emballages et/ou les documents d’accompagnement signifient que les équipements électriques et électroniques et batteries usagés ne doivent pas être jetés avec les déchets ménagers et font l’objet d’une collecte sélective.

Pour assurer l’enlèvement et le traitement appropriés des produits et batteries usagés, merci de les retourner dans les points de collecte sélective habilités conformément à la législation locale en vigueur.

En respectant les circuits de collecte sélective mis en place pour ces produits, vous contribuerez à économiser des ressources précieuses et à prévenir les impacts négatifs éventuels sur la santé humaine et l’environnement qui pourraient résulter d’une mauvaise gestion des déchets.

Pour plus d’information sur la collecte et le traitement des produits et batteries usagés, veuillez contacter votre municipalité, votre service de gestion des déchets ou le point de vente chez qui vous avez acheté ces produits.

Ces symboles ne sont valables que dans les pays de l’Union Européenne. Pour les pays n’appartenant pas à l’Union Européenne :

Si vous souhaitez jeter ces articles, veuillez contacter les autorités ou revendeurs locaux pour connaître les méthodes d’élimination appropriées.

K058a_A1_Fr

Ce produit est destiné à une utilisation domestique générale. Toute panne due à une utilisation autre qu'à des fins privées (comme une utilisation à des fins commerciales dans un restaurant, dans un autocar ou sur un bateau) et qui nécessite une réparation sera aux frais du client, même pendant la période de garantie.

K041_A1_Fr

Fabriqué sous licence de Dolby Laboratories. Les termes « Dolby » et « Pro Logic », ainsi que le sigle double D sont des marques commerciales de Dolby Laboratories.

Fabriqué sous licence sous couvert des brevets U.S. N° : 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 et d’autres brevets U.S. et mondiaux, émis et en cours d’enregistrement. DTS et le symbole sont des marques déposées, et DTS-HD, DTS-HD Master Audio et les logos DTS sont des marques commerciales de DTS, Inc. Logiciel inclus dans ce produit. © DTS, Inc. Tous droits réservés.

Guide de configuration (HTP-710)

SYSTEM

TV CONTROL

VOL

DIMMER

SIGNAL SEL

BD MENU

DISPLAY

SURROUND SYSTEM

ENTER

MUTE

INPUT

SOURCE

Grands coussinets antidérapants (pour caisson de basses à récepteur) x4

Câble iPod x1

Piles (taille AAA, IEC R03) x2

Microphone (pour configuration Auto MCACC) x1

Télécommande x1

Caisson de basses à récepteur x1

Antenne à fil FM x1

Carte de garantie Mode d’emploi (ce

document)

Cordons d’alimentation x2

Boîte du caisson de basses à récepteur (SX-SWR2)

Câble optique numérique x1

Câble vidéo x1

Boîte d’enceintes (S-DV595T)

Enceintes avant/surround x4

Enceinte centrale x1

Câbles d’enceinte (pour enceinte avant x2, pour

enceinte centrale x1, pour enceinte surround x2)

Bases pour support d’enceinte x4

Vis x12

Petits coussinets antidérapants (pour bases de support d’enceinte) x16

Contenu de l’emballage

Assurez-vous que tous les articles suivants sont présents.

A B D E C

Connexions

1 2

B D E

E DC B

FRONT - L

FRONT

CENTER

SURROUND

HDMI OUT

HDMI IN

VIDEO IN

Blanc

Rouge

Vert

Bleu

Gris

Pour une écoute personnelle (MCACC)

Disponible dans le commerce

Français

Guide de configuration (HTP-610)

SYSTEM

TV CONTROL

VOL

DIMMER

SIGNAL SEL

BD MENU

DISPLAY

SURROUND SYSTEM

ENTER

MUTE

INPUT

SOURCE

Grands coussinets antidérapants (pour caisson de basses à récepteur) x4

Câble iPod x1

Piles (taille AAA, IEC R03) x2

Microphone (pour configuration Auto MCACC) x1

Télécommande x1

Caisson de basses à récepteur x1

Antenne à fil FM x1

Carte de garantie Mode d’emploi (ce

document)

Cordons d’alimentation x2

Boîte du caisson de basses à récepteur (SX-SWR2)

Câble optique numérique x1

Câble vidéo x1

Boîte d’enceintes (S-SWR600)

Enceintes avant x2

Câbles d’enceinte (pour enceinte avant x2, pour enceinte

centrale x1, pour enceinte surround x2)

Appliques x2

Petits coussinets antidérapants (pour bases de support d’enceinte) x18

Enceinte centrale x2

Enceinte surround x2

Appliques de fixation x6

Vis x8

Contenu de l’emballage

Assurez-vous que tous les articles suivants sont présents.

C C

Connexions

1 2

C D E

E D B

FRONT - L

FRONT

CENTER

SURROUND

HDMI OUT

HDMI IN

VIDEO IN

Blanc

Rouge

Vert

Bleu

Gris

Pour une écoute personnelle (MCACC)

Disponible dans le commerce

Français

Guide de configuration (HTP-FS510)

SYSTEM

TV CONTROL

VOL

DIMMER

SIGNAL SEL

BD MENU

DISPLAY

SURROUND SYSTEM

ENTER

MUTE

INPUT

SOURCE

Grands coussinets antidérapants (pour caisson de basses à récepteur) x4

Câble iPod x1

Piles (taille AAA, IEC R03) x2

Microphone (pour configuration Auto MCACC) x1

Télécommande x1

Caisson de basses à récepteur x1

Antenne à fil FM x1

Carte de garantie Mode d’emploi (ce

document)

Cordons d’alimentation x2

Boîte du caisson de basses à récepteur (SX-SWR2)

Câble optique numérique x1

Câble vidéo x1

Boîte d’enceintes (S-SWR500FS)

Enceintes avant x2

Câbles d’enceinte x2

Montants x2

Bases pour support de haut-parleur x2

Joints x2

Vis (courtes) x8

Vis (longues) x4

Contenu de l’emballage

Assurez-vous que tous les articles suivants sont présents.

A B

Connexions

HDMI OUT

HDMI IN

VIDEO IN

FRONT - L

FRONT

Blanc

Rouge

Pour une écoute personnelle (MCACC)

Disponible dans le commerce

Français

Guide de configuration (HTP-SB510)

SYSTEM

TV CONTROL

VOL

DIMMER

SIGNAL SEL

BD MENU

DISPLAY

SURROUND SYSTEM

ENTER

MUTE

INPUT

SOURCE

Grands coussinets antidérapants (pour caisson de basses à récepteur) x4

Câble iPod x1

Piles (taille AAA, IEC R03) x2

Microphone (pour configuration Auto MCACC) x1

Télécommande x1

Caisson de basses à récepteur x1

Antenne à fil FM x1

Carte de garantie Mode d’emploi (ce

document)

Cordons d’alimentation x2

Boîte du caisson de basses à récepteur (SX-SWR2)

Câble optique numérique x1

Câble vidéo x1

Boîte d’enceinte (S-SB510)

Enceinte x1

Câble d’enceinte x1

Supports de haut-parleur x2

Vis x2

Petits coussinets antidérapants (pour supports d’enceinte/pour enceinte) x10

Contenu de l’emballage

Assurez-vous que tous les articles suivants sont présents.

PIONEER HTP-610, HTP-SB510 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Large non-skid pads (for receiver subwoofer) x4

White

Green

Blue

Grey

Large non-skid pads (for receiver subwoofer) x4

White

Green

Blue

Grey

Large non-skid pads (for receiver subwoofer) x4

White

Large non-skid pads (for receiver subwoofer) x4

White

Green

Front left Front right

Small non-skid pads

Large non-skid pads

Speaker Setup (HTP-710)

Safety precautions when setting up

Home theater sound setup

Preparing the speakers

Rear

Securing your front and surround speakers

Wall mounting the center speaker

Before mounting

5 mm

Additional notes on speaker placement

Front left

Small non-skid pads

Large non-skid pads

Speaker Setup (HTP-610)

Safety precautions when setting up

Home theater sound setup

Preparing the speakers

Model label

Y-cable

Wall mounting the speakers

Before mounting

5 mm to 7 mm

Additional notes on speaker placement

Front left Front right

Non-skid pads

Speaker Setup (HTP-FS510)

Safety precautions when setting up

Home theater sound setup

Preparing the speakers

5 mm

Wall mounting the front speakers

Before mounting

Mounting holes

Attaching the speakers

Additional notes on speaker placement

For Enhanced Sound Quality

Speaker Subwoofer

Small non-skid pads

Large non-skid pads

Speaker Setup (HTP-SB510)

Safety precautions when setting up

Home theater sound setup

Preparing the speakers

Small non-skid pads

5 mm

Wall mounting the speaker

Before mounting

Additional notes on speaker placement

For Enhanced Sound Quality

Connecting up

Rear panel

Making cable connections

About video outputs connection

HDMI cables

Analog audio cables

Digital audio cables

Connect your TV (For TV audio)

HDMI/DVI-compatible TV

USB mass

storage device
