Welcome to Avid® Studio for iPad, an app that lets you use your
iPad to transform videos, photos, and music into multimedia
experiences that are both easy to make and easy to share.

Avid Studio for iPad is designed to take full advantage of your

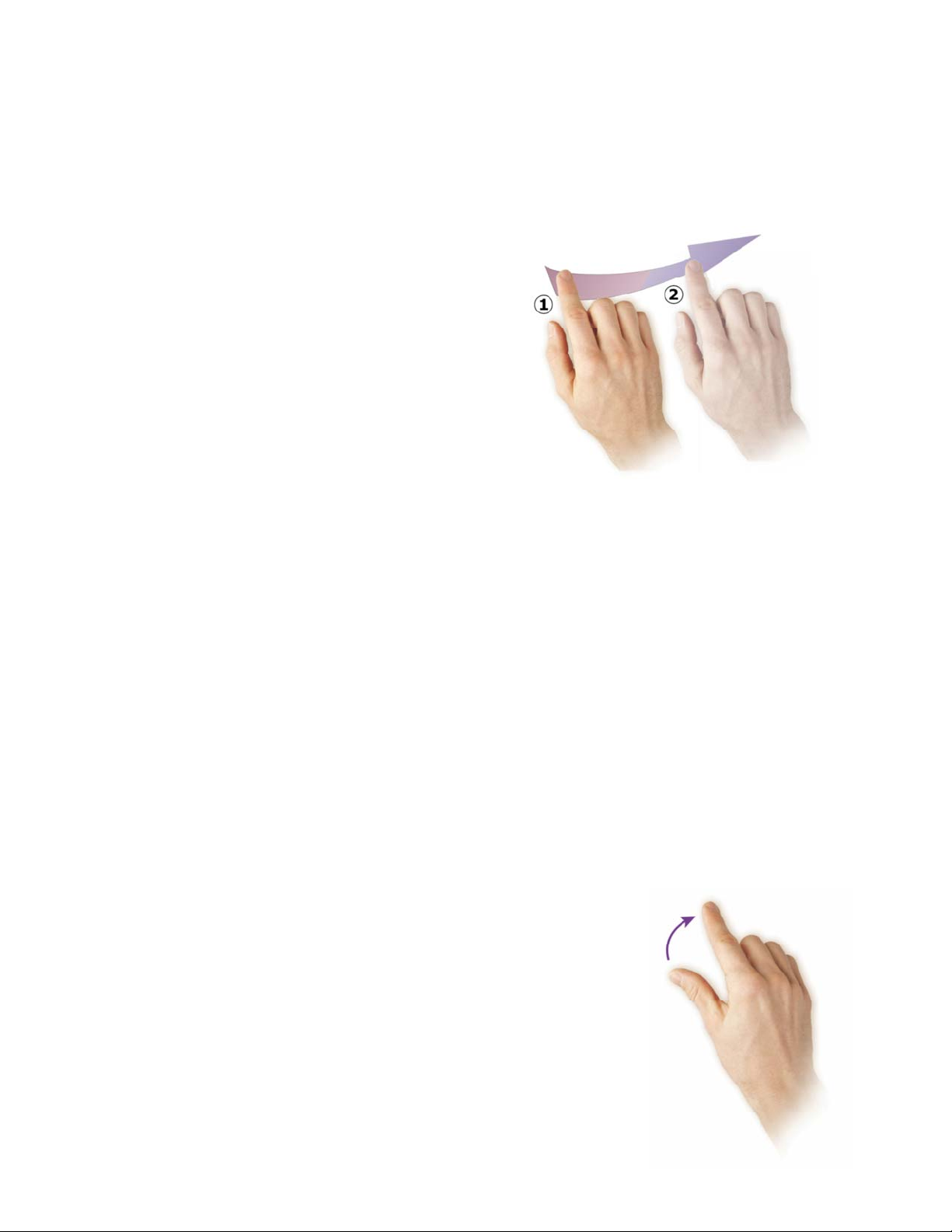

device’s touch-screen. A convenient summary of the touch gestures
used in the app can be found in Appendix B: Touch-Screen Gestures.

The Projects Page in Avid Studio for iPad, with four existing
projects listed. The third has been highlighted by tapping its name
or thumbnail and is ready for other operations.

Tip: Current Avid Studio for iPad system requirements and other
information can be found on the Avid website. A collection of free

tutorial videos is available on YouTube. You are also invited to

join our Avid Studio community on Facebook.

Chapter 1: Getting acquainted 1

About this Guide

The rest of this introductory chapter provides a very quick Avid
Studio for iPad orientation tour.

The later chapters cover the app area by area, starting with Chapter
2: The Projects Page. The core of the Guide is the sequence of
editing chap ters from Chapter 3: The Edit Page through Chapter 9:
Audio. These cover every aspect of constructing your movie, from
gathering the raw materials to adding Transitions, Titles, and other
finishing touches. When you are ready to share the result, Chapter
10: Exporting explains how to make your work available to others.

MeetAvidStudioforiPad

Avid Studio for iPad divides its controls into two screens, or pages:
the Projects Page, for starting and managing projects; and the Edit
Page, where the creative action of movie-making takes place.

The Projects Page

The primary role of the Projects Page is the creation and
management of your movie projects.

Opening a project, existing or new, takes you to the Edit Page
(introduced below), which is where you’ll spend most of your time
with the app. However, you will need to return to the Projects Page
in order to:

 Start a new project;
 Switch to editing a different project;
 Rename or delete a project.

The Projects Page is also the location of several administrative
functions, such as adjusting global settings, rebuilding the Library
from your available media, and opening the documentation. See
Chapter 2: The Projects Page for details.

2 Avid Studio for iPad

The Edit Page

This is the page where you build, preview, and fine-tune your
movies. The work area is laid out differently (see below) according
to whether your iPad is in portrait view or landscape view, but
always contains three zones:

 The Library, in which production materials like video footage,

photos, and effects, are contained;

 The Movie Editor, which contains those Library materials you

have chosen for your current production. Here you can freely
trim, organize, and edit the media clips in your project without
affecting the Library-based originals;

 The Preview, a viewing area with transport controls. You can

screen either the source material in the Library or the clips that
you have created by adding Library materials to your movie.

Use the iPad in portrait view (left) for a more detailed preview, or
in landscape view (right) to maximize the area available for
editing.

The Movie Editor is the construction site where your movie will be
built using the items in your Library as raw materials. Your
production is presented for editing in two separate but
complementary parts, called the Storyboard and the Timeline. Each
visual item in your movie will appear both as a Storyboard
thumbnail and as a clip on the Timeline’s video track. See Chapter
3: The Edit Page for detailed information, as well as the further
coverage in Chapter 4: The Library, Chapter 5: The Storyboard, and
Chapter 6: The Timeline.

Chapter 1: Getting acquainted 3

C

HAPTER

2:

The Projects Page

Every Avid Studio for iPad movie reflects the final state of a movie
project. A project starts out as nothing but a name then grows into a
unique personal creation as you bring together your source materials
and apply the editing tools covered later in this Guide.

The Projects Page of the app provides simple tools for opening,
renaming, deleting, and sharing existing projects (see “Project
management” below). It also provides access to a handful of
additional tools, including the Global Settings panel (see “Other
Projects Page functions” on page 5).

To create a new project:

1.

Tap the new project icon in the header bar or any
unused cell in the project filmstrip.

2.

Enter a name for your project and tap OK. The Edit
Page now opens, with your new project loaded and ready for
editing.

To open a project for editing on the Edit Page, double-tap either the
project’s filmstrip thumbnail or the neighboring title. On your future
visits to the Projects Page, you will be able to reopen this project for
further editing. Saving is automatic: your latest changes are always
preserved just as you last saw them on the Edit Page.

Projectmanagement

The main business of the Projects Page is to let you access and
manage your projects. The tool buttons in the header bar of the page
let you create, rename, share, or delete your project. They also
provide access to help and master settings. The first tool button,
which creates a new project, was described above.

4 Avid Studio for iPad

Tools on the header bar of the Projects Page let you

perform operations on the selected project.

The rename, delete, and share tools work on the currently-selected
project – the one highlighted in the projects list. To select a project,
tap either its thumbnail or its name.

Rename: Tapping the rename icon in the header bar opens
the iPad virtual keyboard so that you can enter a new name
for the selected project. Tap OK to save.

Share: Tap the share icon when you are ready to send
your movie out into the world. This opens the menu of
options described in Chapter 10: Exporting. The share
icon is also available on the Edit Page.

Delete: Tap the trash can icon to delete the selected
project. This operation cannot be reversed, so you will also
have to tap Yes in a pop-up confirmation window before it
is carried out.

OtherProjectsPagefunctions

At the top right of the Projects Page are two icons that
control global functions. Tapping the help icon opens this
Guide.

Global settings

The neighboring gear icon opens the Global Settings
panel, with several options that will apply from now on
when you are editing any of your Avid Studio for iPad
projects, not just the one you are currently working on.

Chapter 2: The Projects Page 5

Here you can choose the durations
assigned by default to photos,
Titles, and Transitions when they
are first added to a project (since
these assets have no predetermined
length). On installation the default
durations are four seconds for both
photos and Titles, and one second
for Transitions.

Add Transitions automatically:
If you would like Avid Studio for
iPad to automatically insert
dissolve Transitions between your
photos or video segments as you
add them to the Movie Editor, turn
on the Automatic Transitions setting. This is handy when you want
to quickly throw together a slideshow or highlight reel.

Updating the Library

If you have added video, music, or photos to your iPad, you can
make them accessible to the Library by allowing it to “rebuild”.
Open the Global Settings panel using the gear icon as just described,
then tap Rebuild Media Library at the bottom of the panel.
Rebuilding may take up to several minutes if there is a wealth of
new material.

Automatic checks for new media are perfo rmed when certain even ts
occur, such as re-opening the app. You will be invited to approve a
Library rebuild if any uncatalogued media are found. The manual
Rebuild Media Library operation is provided so that you can update
the Library at other times if required.

6 Avid Studio for iPad

C

HAPTER

3:

The Edit Page

The Edit Page in Avid Studio for iPad is dedicated to the creative
process of assembling your movie project from the raw materials
present in the Library.

Everything you will need is gathered in this one place. Browse your
available media, bring together your video footage, photos, and
soundtrack in the Movie Editor, then add finishing touches like
Titles and Transitions.

Returning to the Projects Page: If you want to switch to
the Projects Page to create, rename, or delete a project, or
for one of its other functions, tap the home icon in the
upper left corner of the Edit Page.

Previewing a project clip on the Edit Page.

When you leave the Edit Page, either by switching to the Projects
Page or by closing Avid Studio, the project you were working on is
automatically saved. When you reopen the project on another
occasion, you can pick up from exactly where you left off.

Chapter 3: The Edit Page 7

TheLibrary

The Library is a storehouse for the media clips and other “assets”
that are available for your productions. The first time you use Avid
Studio for iPad, the app will request permission to build the Library
from the media already stored on your device. All the videos,
photos, and music present on your iPad will become accessible
through the Library as raw material for your movie projects.

Another method of bringing in new material is to make it
yourself. You can use your iPad to record photos, video,
and audio from within the Avid Studio app by tapping the
record button on the left side of the Library. Once recorded, new
media items are immediately available for use.

For full coverage of the Library, please see Chapter 4: The Library.
For information on using Apple’s iTunes to build your Library,
please see Appendix A: Importing with iTunes.

Organization of the Library

Materials in the Library are organized by type, with videos in one
section, photos in another, and so on. Select which section to view
by tapping one of the six media type buttons along the left edge of
the Library. See “Inside the Library” on page 18 for a description of
the purpose and use of each section.

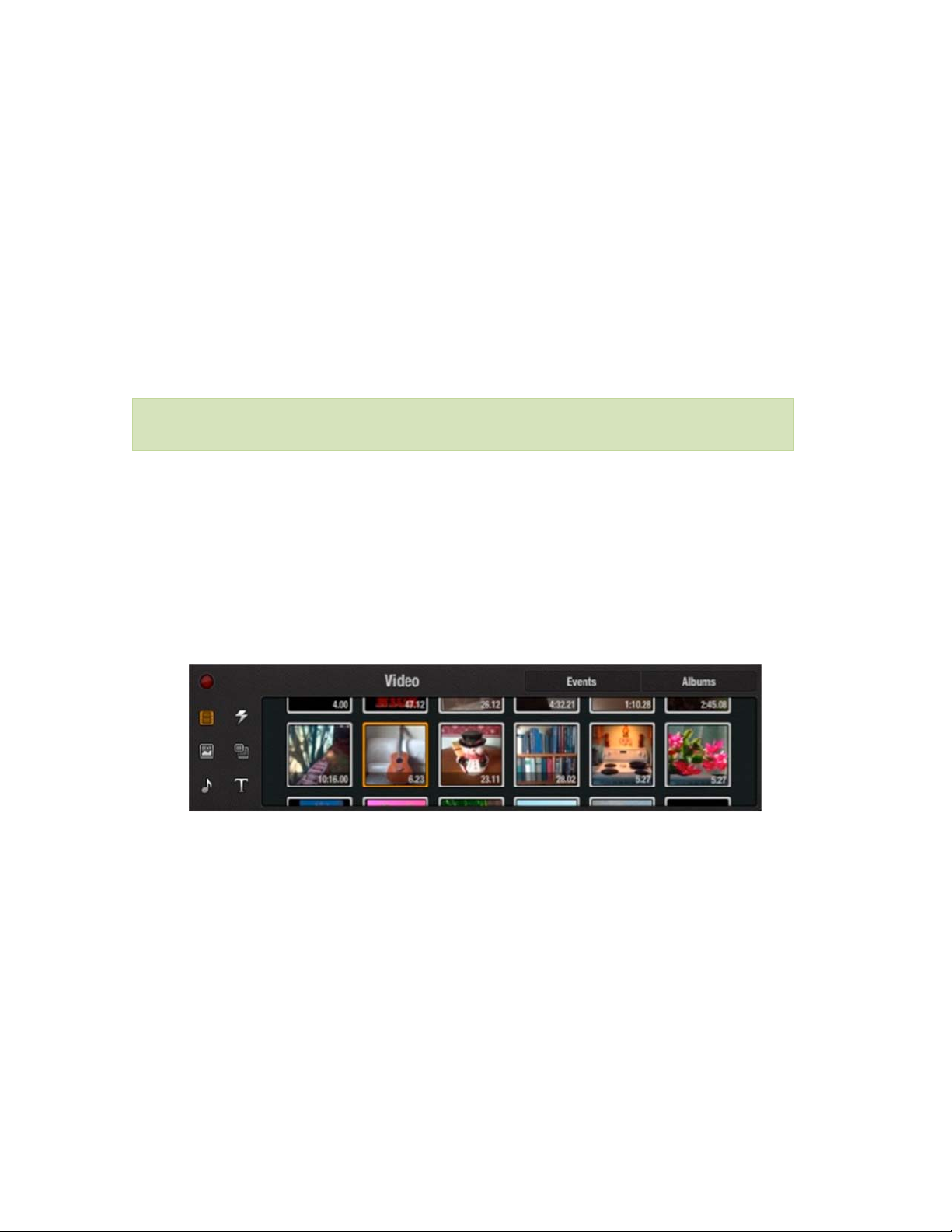

Browsing the Video section of the Library.

8 Avid Studio for iPad

Browse the Library sections for videos, photos, music, and any other
items you wish to use in your movie. Tap the thumbnail of any
Library item to display the item in the Preview, where you can also
pre-trim it if desired before bringing it into your project.

Touch-and-hold any Library thumbnail until it responds by
highlighting; then drag it straight into the Movie Editor to become
part of your production.

ThePreview

The Preview occupies the top right of the screen in landscape view.
In portrait view, it fills nearly the entire upper half of the screen.

Project video plays in the Preview (landscape view).

The Preview lets you screen material either from the Library or from
your current project. In most cases, Avid Studio for iPad
automatically selects the appropriate source, but the source icons at
the top left of the Preview not only indicate which source is being
previewed but also let you switch between the Library and the
project by tapping if required.

Library Preview: Tap any item in the Library to see or
hear its content, and the Library’s source icon will
highlight. The Preview for most kinds of material (all but
photos) includes both a set of transport controls for navigating

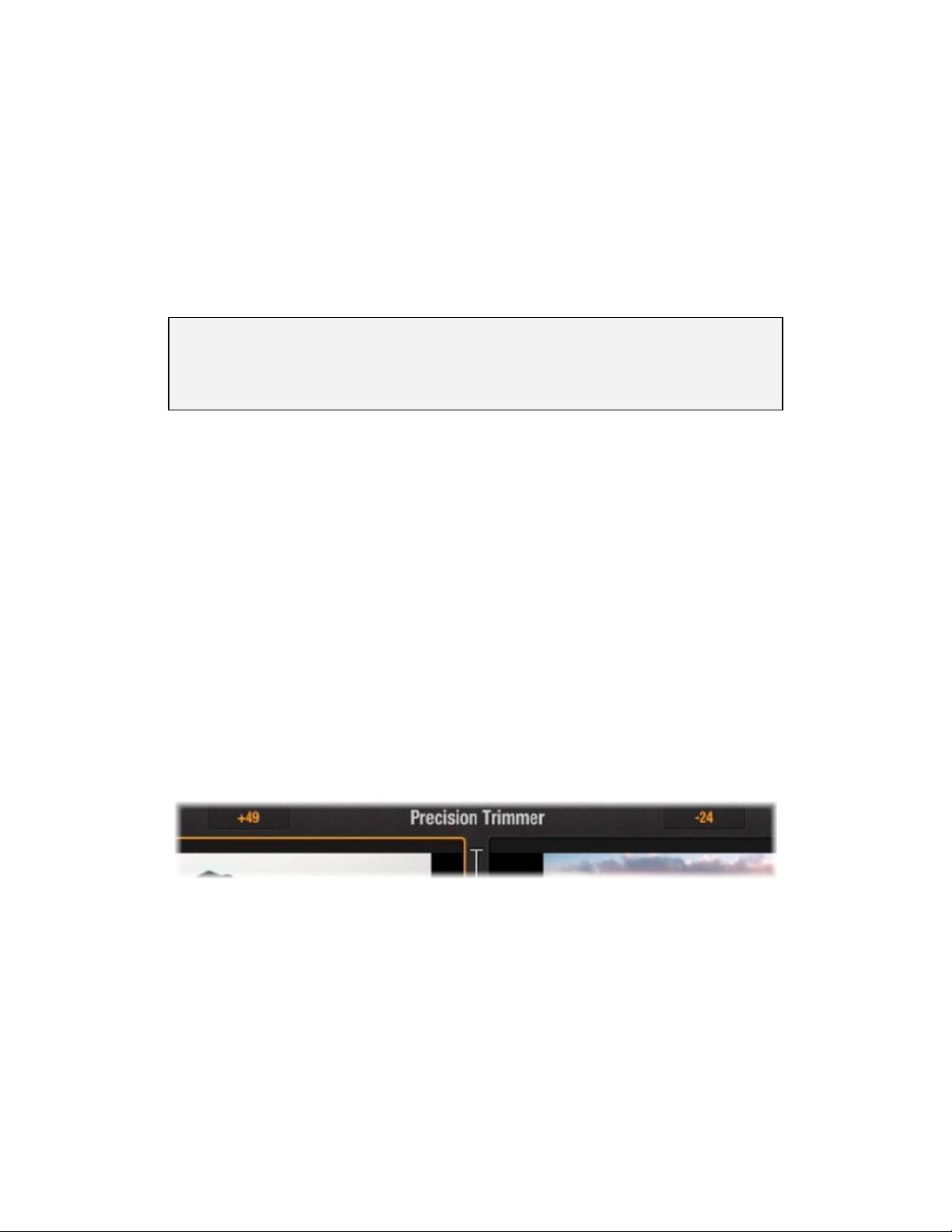

through the item, and a pre-trimming tool (see page 20) for paring
away excess material prior to bringing the item into the Movie
Editor.

Chapter 3: The Edit Page 9

Project Preview: With the Movie Editor as its source, the
Preview always displays the video frame corresponding to
the current position of the Timeline Playhead within your
movie. Tap any clip in the Movie Editor to move the Playhead to the
start of the clip and begin previewing. The provided transport
controls let you navigate to any part of the movie, or use a swipe
gesture on the Timeline to scroll (“scrub”) through your project. To
preview your project from the beginning, tap the first clip in the
Storyboard.

Full-screen view

The full-screen icon at the top right of the Preview
temporarily enlarges it to the full size of the iPad display.
Tap the icon again to restore the normal Edit Page view.

TheMovieEditor

The Movie Editor offers two representations of your project
simultaneously. In an upper strip called the Storyboard, each element
on the main video track – each video clip, photo, Transition, Title, or

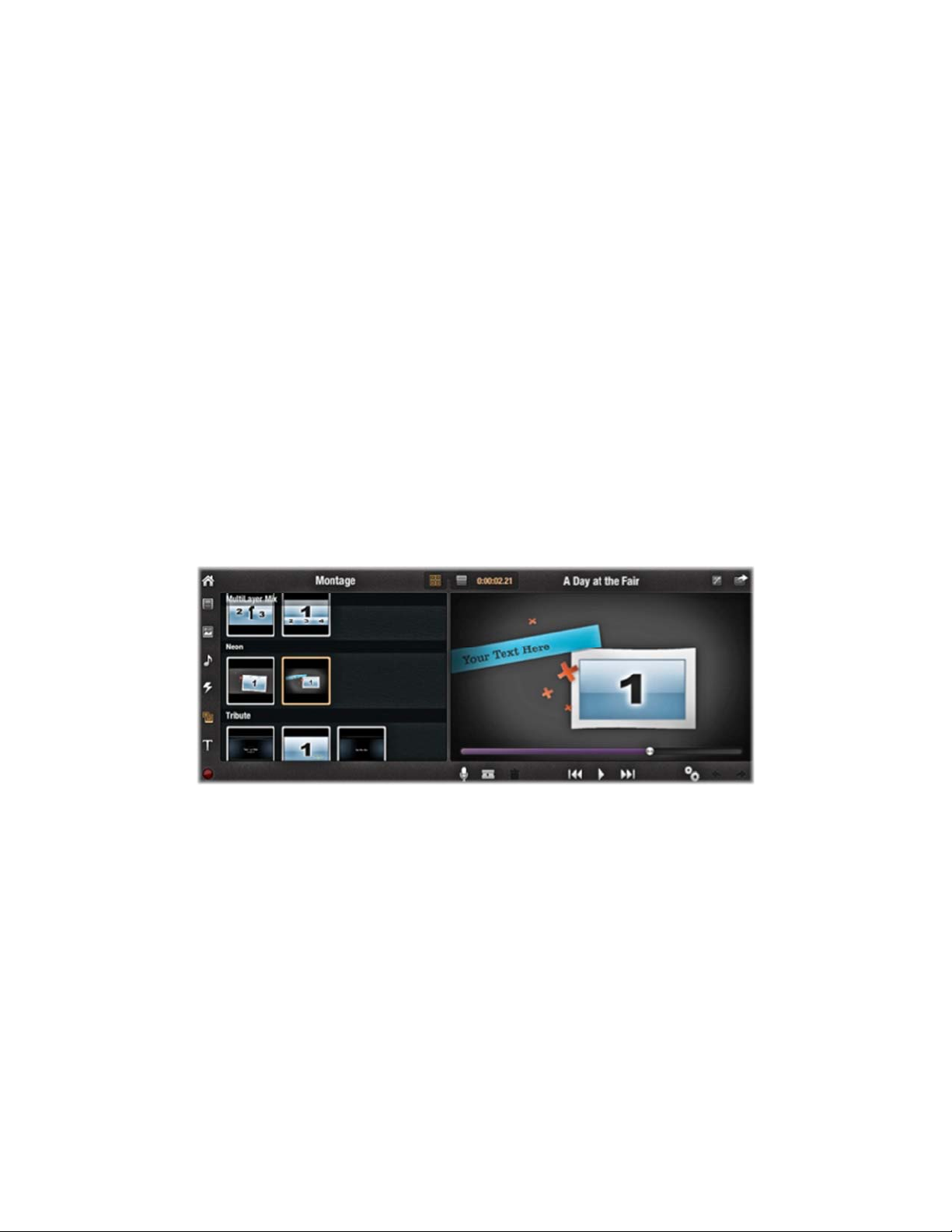

Montage sequence – is represented by an icon of fixed size,
regardless of its duration. The Storyboard is ideal for roughing out or
reorganizing a project since each clip, however short or long, is
clearly visible and easy to manipulate.

The Movie Editor: The horizontally-scrolling tray of thumbnails
at the top is the Storyboard; below it, the Timeline presents your
project on a video track and three audio tracks, all synchronized
to the Timescale (bottom).

The lower portion of the Movie Editor is called the Timeline. It
shows all the elements of your movie, including the audio clips, but
scales their widths to their durations. This provides a graphical

10 Avid Studio for iPad

overview of the production that lets you position and trim clips
interactively relative to the Timescale. In addition to its main video
track, the Timeline provides three tracks for the audio assets of your
production: music, voice-overs, and sound effects.

The Storyboard

The Storyboard shows a separate thumbnail for each video clip,
photo, Title, or Montage theme in your movie. The thumbnails are
all the same size, rather than being proportional in width to their
durations as on the Timeline. The clip duration is displayed in hours,
minutes, seconds, and frames in the bottom-right corner of each
thumbnail.

Transitions – the animated effects often used in movie editing to
bridge the passage from one clip to the next – are represented on the
Storyboard as smaller thumbnails positioned between the main clips.

If a clip in your movie requires rendering to play smoothly, a gears
icon will appear in the top-left corner of its Storyboard thumbnail.
Other graphical hints tip you off to certain clip features. Title clips
have a stylized T in the bottom-left corner, while Transition clips are
smaller with a purple border.

The Storyboard shows the content of your movie.

For a detailed account of the Storyboard area, please see Chapter 5:
The Storyboard.

The Timeline

The Timeline consists of four parallel tracks positioned over an
expandable ruler called the Timescale (use pinch gestures to control
the ruler’s magnification level). The uppermost track is the video
track, whose contents correspond exactly to those of the Storyboard.
Whereas Storyboard thumbnails always have a fixed width,
however, the position and size of Timeline clips is determined by

Chapter 3: The Edit Page 11

their screen time in the movie as represented on the Times cale. If th e
video clip has a built-in audio track, that is indicated by a volume
graph overlaid on the clip box.

The lower three tracks of the Timeline are for audio. Audio clips –
music, sound effects, and voice-overs – can be positioned on any of
these as desired.

The Timeline consists of four tracks, only the uppermost of which
is for video. A graph of the clip volume is shown both on all-audio
clips and on video clips with integral audio.

The Playhead is a vertical orange line whose position on the
Timescale specifies the current frame for the Movie Editor Preview.
Dragging the Timeline past the Playhead allows you to s crub freely
through your movie. Suitably adjusting both the expansion level of
the Timescale and the speed with which you drag can help make
scrubbing more efficient.

By giving you an interactive graphical representation of your
project, the Timeline excels when it comes to positioning and
trimming clips as precisely as your movie requires. Please see
Chapter 6: The Timeline for detailed coverage of this topic.

MovieEditorcontrols

Some operations in the Avid Studio for iPad Movie Editor are
performed directly in the Storyboard or on the Timeline, but the
controls in the header bar apply regardless of which area you are
working in. They are:

Voice-over: This is the tool to use if you want to add a
voice-over clip to any part of your movie. For more
information, see “Voice-overs” on page 40.

Razor blade: This tool lets you split any video, photo, or
audio clip on the Timeline or Storyboard except those that
use the pan-and-zoom or picture-in-picture features. This

12 Avid Studio for iPad
